Prediction of small non-coding RNA in bacterial genomes using support

vector machines

Tzu-Hao Chang

a

_{, Li-Ching Wu}

b

_{, Jun-Hong Lin}

a

_{, Hsien-Da Huang}

c

_{, Baw-Jhiune Liu}

d

_{, Kuang-Fu Cheng}

e

_,

Jorng-Tzong Horng

a,b,f,*

a

Department of Computer Science and Information Engineering, National Central University, Taiwan

b_{Institute of Systems Biology and Bioinformatics, National Central University, Taiwan} c

Department of Biological Science and Technology, Institute of Bioinformatics, National Chiao-Tung University, Taiwan

d

Department of Computer Science and Information Engineering, Yuan Ze University, Taiwan

e

Biostatistics Center and Department of Public Health, and Graduate Institute of Statistics, China Medical University, Taiwan

f

Department of Bioinformatics, Asia University, Taiwan

a r t i c l e

i n f o

Keywords: Expert systems Support vector machines Machine learning Bioinformatics Non-coding RNA

a b s t r a c t

Small non-coding RNA genes have been shown to play important regulatory roles in a variety of cellular processes, but prediction of non-coding RNA genes is a great challenge, using either an experimental or a computational approach, due to the characteristics of sRNAs, which are that sRNAs are small in size, are not translated into proteins and show variable stability. Most known sRNAs have been identiﬁed in Esch-erichia coli and have been shown to be conserved in closely related organisms. We have developed an integrative approach that searches highly conserved intergenic regions among related bacterial genomes for combinations of characteristics that have been extracted from known E. coli sRNA genes. Support vec-tor machines (SVM) were then used with these characteristics to predict novel sRNA genes.

1. Introduction

Over the past decade, RNA molecules that do not encode pro-teins, called functional RNAs or non-coding RNAs (ncRNAs), have been shown to play important structural and catalytic roles in the cell (Rivas, Klein, Jones, & Eddy, 2001; Storz, Opdyke, & Zhang, 2004). The bacterial ncRNAs are smaller in size that eukaryote ncR-NAs, ranging from 50 to 400 nt and are termed small RNAs (sRNAs) or small regulatory RNAs (Gottesman, 2004). Small non-coding RNAs have been found to be involved in the control of: tran-scription, rRNA processing, RNA stability, mRNA translation, pro-tein degradation and translocation (Wang, Ding, Meraz, & Holbrook, 2006). All of the sRNAs of Escherichia coli that act by base-pairing affect either the stability or translation of the mRNA target; in most cases the mRNAs are encoded in trans at positions on the chromosome distant from the sRNAs (Tjaden et al., 2006).

Small non-coding RNA (ncRNA) genes play critical regulatory roles in a variety of cellular processes (Wang et al., 2006), but pre-diction of non-coding RNA genes is a great challenge, either using an experimental or a computational approach. This is due to the characteristics of sRNAs, which include their small size, the fact that they are not translated into proteins and their variable

stabil-ity. Until recently, most known sRNAs have been identiﬁed in E. coli and shown to be conserved in closely related organisms. In this study, we hope to use the various characteristics extracting from known sRNAs genes of E. coli to predict novel sRNA genes in bacte-ria. We developed an integrative approach for the prediction of putative sRNA genes in the related bacterial genomes using sup-port vector machines (SVM) based on a combination of character-istics extracted from known sRNA genes.

2. Materials and methods 2.1. Genome sequence

We choose E. coli K12 MG1655 for our development, because E. coli K12 is a well-studied model organism in microbiological re-search. Researchers first identified and studied regulatory proteins in E. coli and many global analysis of gene expression have been documented for this organism (Gottesman, 2004). In addition, most known sRNAs have been identified on E. coli. The complete E. coli K12 MG1655 strain genome sequence was downloaded from EcoGene database.

2.2. Intergenic regions

The intergenic regions of E. coli K12 MG1655 are available from the EcoGene database. In addition, the intergenic regions of various

* Corresponding author. Address: Department of Computer Science and Infor-mation Engineering, National Central University, Taiwan.

E-mail address:[email protected](J.-T. Horng).

Contents lists available atScienceDirect

Expert Systems with Applications

(2)

other bacterial genomes can be downloaded from the JCVI-CMR database. There are 2346 intergenic regions in E. coli K12 MG1655. Of these, 1583 (62%) intergenic regions are more than 50 nt in size. There are 3576 intergenic regions in Salmonella enter-ica serovar Typhi Ty2 and of these, 2529 (71%) intergenic regions are more than 50 nt in size.

2.3. sRNAs genes

Most known sRNAs have been identiﬁed on E. coli. Currently, 60 sRNAs identiﬁed in E. coli K12 MG1655 that are available from the EcoGene database.

2.4. System organization

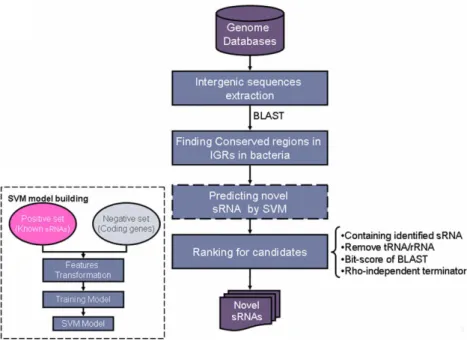

The process ﬂow of our method is depicted inFig. 1. After we had collected genome sequences from various bacterial genomes, we identiﬁed conserved regions among the intergenic regions of related bacterial genomes. Next, we search for the existence of putative Rho-independent terminators beside the conserved re-gions we had found; if any Rho-independent terminator existed, we assign to this sequence the possibility that it was a candidate sRNAs, giving it a higher ranking score. Finally, we used the sup-port vector machine model we had built to classify these sRNA candidates.

2.5. Intergenic sequences extraction

All known sRNA are encoded within intergenic regions (deﬁned as regions between ORFs) (Wassarman, Repoila, Rosenow, Storz, & Gottesman, 2001). In addition, previous studies have indicated that no sRNAs gene resides in an intergenic region that is smaller than 50 nt and most of sRNAs genes are between 50 and 250 nt long (Hershberg, Altuvia, & Margalit, 2003). Therefore, we set 50 nt as threshold length for the selected intergenic regions during inter-genic sequence extraction. We extract all interinter-genic regions with a length that was more than 50 nt in size and 1583 intergenic re-gions were pinpointed.

2.6. Finding conserved region of intergenic regions

We search for conserved regions within the intergenic regions because previous studies have indicated that small RNAs resided in intergenic regions and are generally conserved across closely re-lated species (Gottesman, 2005; Hershberg et al., 2003; Luban & Kihara, 2007; Rivas et al., 2001).Hershberg et al. (2003)have ob-served conservation of sRNAs and adjacent genes among related species. Furthermore, we can clearly observe that sRNA genes are more conserved than coding genes by aligning E. coli with Salmo-nella typhimurium LT2, SalmoSalmo-nella typhi CT18 and S. typhi Ty2; sRNA genes have a higher ratio than coding-genes when sequence iden-tity is over 85%.

Therefore, we use BLAST (Basic Local Alignment Search Tool) program to make alignment between the 1583 intergenic regions (length > 50 nt) identified in E. coli K12 and the 2529 intergenic re-gions (length > 50 nt) identified in S. enterica serovar Typhi Ty2 organism. The result shows using a bit-score as threshold of more than 80 as a filter, 809 conserved intergenic regions can be pin-pointed remained between two species.

2.7. Conserved regions ﬁltration

We download known tRNAs and rRNAs from the E. coli EcoGene database and create a database for querying the non-coding RNAs. After identifying the conserved interspeciﬁc intergenic regions the two enterobacterial species, we search these conserved regions by BLAST using the known tRNA/rRNA database from E. coli K12. If a region conserved between the two enterobacterial species was also similar to these known tRNAs or rRNAs, we remove these con-served regions from the dataset.

2.8. Building of the support vector machine model 2.8.1. Support vector machine

Support vector machine (SVM) is a supervised learning method used widely to solve classiﬁcation problems. We use LibSVM, an implementation version of SVM classiﬁer that is supplied as part of the Weka suite to perform training and prediction by the SVM approach. Weka (Waikato Environment for Knowledge Analysis)

(3)

is a popular suite of machine learning software designed in the Java programming language and was developed by the University of Waikato.

The set types available for the kernel function were linear func-tion, polynomial funcfunc-tion, radial basis function (RBF) and sigmoid function. We use the radial basis function (RBF) kernel for our ap-proach. The two parameters in RBF kernel are

c

and C.

c

determines the effective range of distances between points and C determines the trade-off between margin maximization and training error minimization (Wang et al., 2006). We use a grid-search method supplied by LibSVM to identify a pair of

c

and C values that gave optimal performance. The optimal parameters were

c

= 0.05 and C = 10 and these were used in the SVM.

2.8.2. Building of training and testing set

Our positive set for the SVM training consisted of all 60 known sRNAs identiﬁed from E. coli K12 MG1655. The negative set for the SVM training consisted 120 coding genes randomly selected from all the coding genes of E. coli K12 MG1655.

2.8.3. Features transformation

Each sequence in training and testing set were transformed into a feature vector consisting of sequence composition, structural mo-tifs, sequence conservation in related species, over-represented se-quence patterns and folding minimum free energy (MFE). The sequence composition consisted of the frequency of individual nucleotide, dimers, trimers and GC content. The structural motifs consisted of the UNCG, GNRA, CUYG, AAR, CTAG motifs. The se-quence conservation was the identity computed by WU-BLAST (window = 4) between the E. coli K12 MG1655 sequences and those in related species of the same family. These reference species were S. typhimurium LT2, S. typhi CT18 and S. typhi Ty2, which are mem-bers of the same enterobacterial family as E. coli K12. Over-repre-sented sequence patterns are over-repreOver-repre-sented oligonucleotides in a set of sequences and these patterns were detected by the oli-go-analysis tool found in regulatory sequence analysis tool (RSAT) van Helden, 2003. The minimum free energy (MFE) of each se-quence was calculated using the RNAfold program (Kingsford, Ayanbule, & Salzberg, 2007).

2.8.4. Sequence composition

Sequence composition is the frequency of individual nucleo-tides (A, T, G, C) (4 features), of dimers (AA, AT, . . ., CC) (16 fea-tures), of trimers (AAA, AAT, . . ., CCC) (64 features) and the GC content (the sum of G and C frequency).

2.8.5. Structural motif

This relies on a previous study where the occurrence frequency of sequence motifs that are commonly found within RNA structural elements were identiﬁed (Carter, Dubchak, & Holbrook, 2001). We also use a set of structural motifs as features for prediction; it was hoped that not only primary sequence, but also structural level information could be useful during prediction. These structural motifs consist of the well-known sequence motifs UNCG, GNRA and CUYG (R, purine; Y, pyrimidine) found in RNA tetraloops and the AAR subsequence of the tetraloop receptor motif. In addition, the DNA sequence motif ‘CTAG’ (CUAG in RNA), which only occurs rarely in bacterial protein genes and non-coding regions to com-pared to RNA genes was included (Carter et al., 2001).

2.8.6. Sequence conservation in related species

The sequence conservation we used as a feature was the iden-tity computed with WU-BLAST (window size = 4 with default parameters) between E. coli K12 MG1655 and various related spe-cies of the same family. The reference spespe-cies used were S.

typhimurium LT2, S. typhi CT18 and S. typhi Ty2, which are in the same enterobacterial family as E. coli K12.

2.8.7. Over-represented sequence patterns

Over-represented sequence patterns are those over-represented oligonucleotides in a set of sequences. These patterns were de-tected by oligo-analysis tool found in regulatory sequence analysis tool (RSAT) (van Helden, 2003).

2.8.8. Minimum free energy

The minimum free energy (MFE) of each sequence was calcu-lated using the RNAfold program (Kingsford et al., 2007). The RNA-fold program provided through the Vienna RNA package is widely used to predict possible RNA secondary structure through energy minimization. RNAfold will read an input RNA sequence and calcu-late its minimum free energy structure.

2.8.9. Features selection

We now had available the numerous features generated from the feature transformation step described above. However, too many features can often degrade the prediction performance of the dis-crimination method by over-ﬁtting the training data (Wang et al., 2006). Therefore, we hoped to select the features from the full pool that provide a signiﬁcant contribution to the prediction of sRNAs and discard the rest. We used a correlation-based feature subset selection (CFS) method for machine learning supplied by the Weka suite to select the meaningful features. After feature selection, a total of 40 features remained and these are shown inTable 1.

3. Results

3.1. Support vector machine model performance

The performance of the SVM models using the different features is shown inTable 2. The results show that our SVM model has a high accuracy when predicting sRNA sequences and therefore we used the model to identify putative sRNA sequences in conserved intergenic regions.

3.2. Validation with identiﬁed sRNAs in the ncRNAdb

The non-coding RNA database (ncRNAdb) was created as a source of information on RNA molecules that do not possess pro-tein-coding capacity. Currently, the ncRNAdb contains >30,000 ncRNA sequences from Eukaryotes, Eubacteria and Archaea ( Szy-manski, Erdmann, & Barciszewski, 2007). The total number of non-coding RNAs identified from the ncRNAdb database was 437, including sRNA, tRNA, rRNA and these non-coding RNA are present in 43 species across various bacterial genomes (as shown in Table S1). Among these non-coding RNAs, there are 128 that are classified as sRNAs, including 35 identified sRNAs in E. coli K12 and 43 in various other bacterial genomes. These 128 sRNAs form

Table 1

Selected features in SVM model. Feature classes Selected features Dinucleotide AT, GC, TC, TG

Trinucleotide GAG, GTG, GCA, GGT, GAC, ATG, AGA, AAA, ACA, AAT, AGC, AAC, TGG, TAG, TCA, TGT, TTT, TAC, TTC, TCC, CAG, CGA, CAA, CAT, CTT, CCT, CCC

Structural motif UNCG motif, CUYG motif Sequence

conservation

Conservation with Salmonella Ty2 Sequence

pattern

(4)

18 sRNAs classes made up of CsrB, CsrC, DsrA, GadY, GcvB, MicC, MicF, OxyS, RprA, RybB, RydB, RyeB, RyeE, RyfA, RyhB, SraB, SraD, SraG. We use these sRNAs as the testing set to validate whether our approach was able to detect these sRNAs correctly. The result shows that 96.9% (124/128) of ‘‘known sRNA” could be found cor-rectly by our approach. This result indicates that our approach shows good performance when discovering known sRNAs, not only in E. coli, but also in other related bacterial species (Vogel & Sharma, 2005).

3.3. Validation using sRNAs candidates predicted by the PSoL tool We use the 421 sRNA genes predicted by PSoL (Wang et al., 2006), available from thesupplementary data, as a testing set to observe how many candidates can be detected by our approach. It was found that 81% of the sRNAs genes predicted by PSoL were identiﬁed by our approach. The result demonstrates our approach can reliably pinpoint putative sRNA genes and is probably at least as good as the PSoL method.

3.4. Performance comparison with sRNAFinder

For comparison with a previous study, namely sRNAFinder, we use the same dataset and criteria to evaluate our approach. Accord-ing to the criteria of sRNAFinder when measurAccord-ing performance, intergenic regions in which sRNAs were correctly predicted by the program were deemed true-positive predictions. There are up to 85% of known sRNAs that overlapped with conserved regions (bit-score >40) between related species. In contrast, the intergenic regions that contained no sRNAs genes in the evaluation set of known sRNAs were deemed false-positive or true-negative predic-tions, if the program predicted a sRNA gene in the region or not, respectively. Intergenic regions that contain sRNAs not predicted by the program were deemed false-negatives (Tjaden, 2008).

The dataset of sRNAs was made up of the 49 documented sRNAs in E. coli K12.Fig. 2shows the performance of three different tools, namely QRNA, sRNAFinder and our approach. sRNAFinder gave a sensitivity of 78% and a speciﬁcity of 76%. Our approach gave a sen-sitivity of 84% and a speciﬁcity of 72%.

3.5. Criteria for selecting putative sRNAs

Although we found the conservation-based approach to be the most productive in identifying sRNA genes, a high level of conser-vation is not sufﬁcient to indicate the presence of an sRNA gene (Wassarman et al., 2001). One the one hand, therefore, we selected these highly conserved regions (with high sequence similarity be-tween related species) as our sRNA candidates. On the other hand; we also hoped to include the cases that do not show relatively high conservation between related species but did contain additional biological signals, like existence of putative or known promoters, Rho-independent terminators (an intrinsic terminator) and

attenu-ators beside the sRNA candidate. For example, one sRNA candidate obtained only a 60 bit-score using BLAST with other related spe-cies; but this candidate has promoter and terminator in its up-stream and downup-stream regions, respectively, this candidate is very likely to be a novel sRNA because of the presence of these bio-logical signals. This is because promoters, Rho-independent termi-nators and attenuators play important roles in mechanism of regulation. The criteria we used to select sRNA candidates are listed inTable 3.

3.6. Pairwise overlap between sRNAs prediction methods

Some of the main difficulties in computational prediction of sRNA genes are the lack of benchmark data to validate the method and the difficulties associated with experimental verification on a large scale, which is expensive and time-consuming (Kulkarni & Kulkarni, 2007; Wang et al., 2006). There we apply the smart val-idation method suggested in PsoL. This proposes that if our results show significant agreement with other studies, this would be a val-idation of our method (Kulkarni & Kulkarni, 2007; Wang et al., 2006). The methods used for our comparison are listed inTable 4. In this study, we compared our predictions to results available from previous studies. In this context, Affy is the only experimen-tally based method where the results are more reliable (Kulkarni & Kulkarni, 2007; Wang et al., 2006). Our method gave the largest overlap ratio with the Affy method (20%, 33/165), which suggests that our method is possibly more reliable than the other prediction methods (Tables 5 and 6). Furthermore, from the result of the pair-wise comparison (shown inTable 7), it is clear that our method has the largest overlap ratio (76%) with all other sRNA prediction methods. These observations provide the strong evidence for vali-dation of the performance of our system.

Table 2

The performance of our support vector machine (SVM) model.

Used features Sn. (%) Sp. (%) Acc. (%)

Sequences compositions Tetraloop motif Sequence conservationa

Sequence patterns Minimum free energy

U U U U U 90 100 96.6a U U U U U 85 100 95.3 U U U U 85 100 95.3 U U U 83 97 92.6 U U 79 97 91.2 U 75 97 89.9

Performance is evaluated by 10-fold cross validation.

a

Optimized after feature selection; Sn., sensitivity; Sp., speciﬁcity; Acc., accuracy.

(5)

3.7. Case study I: small RNA IstR

We use our approach for the S. enterica subsp. enterica serovar Typhi Ty2 species to predict novel sRNA not found yet in other studies. We were able to pinpoint a putative sRNA by our ap-proach. The candidate sequence is highly conserved with a docu-mented sRNA, IstR, found in previous studies. Two sRNAs, IstR-1 and IstR-2, are encoded in the ilvB–tisAB intergenic region (Fig. S1). In some cases, IstR sRNAs can inhibits expression of downstream genes, tisA and tisB, under speciﬁc conditions (Vogel, Argaman, Wagner, & Altuvia, 2004). The candidate we found is also located in a region that has been reported as psr19 in previous study. The region psr19, a sRNA-encoding gene, was predicted to be in the intergenic region between ilvB and tisAB (Argaman et al., 2001). Furthermore, the ﬂanking gene pairs of the IstR sRNAs

gene are also conserved between E. coli K12 and S. enterica subsp. enterica serovar Typhi Ty2 (Fig. S2).

In addition, we wished to observe the similarity between these known and predicted IstR secondary structures only at the se-quence level because similar structures often have correspondingly similar functions .We use RNALogo server (Chang, Horng, & Huang, 2008) to fold our predicted IstR sRNAs candidate and all known IstR sRNAs and RNALogo was able to report a consensus structure for all known IstR sRNAs and our predicted IstR sRNA candidate. Fig. 3 shows that the consensus structures of the predicted IstR candidate and the known IstR sRNAs, which are highly conserved. 3.8. sRNA candidates predicted by our approach

The sRNA candidates predicted by our approach are listed in Ta-ble 8. The abbreviations of the biological signals mean: KP, known promoter; PP, predicted promoter; KT, known Rho-independent terminator; PT, predicted Rho-independent terminator; PA, pre-dicted attenuator.

4. Discussion

We have used features in addition to those used for prediction in our approach, which are mentioned above. Furthermore, in this process, we have attempted to use features that correspond to practical functions. These additional features are ones associated with the characteristics of sRNAs and include the existence of tran-scription factor binding sites, afﬁnity with the Hfq protein and existence of a Rho-independent terminator sequences. However, these additional features failed to raise performance to any great extent because these additional features did not supply informa-tion that helped to predict novel sRNAs effectively. Nevertheless, we shall discuss the statistics and possible meanings of each fea-ture and known sRNAs in the following section. During this pro-cess, the intergenic regions were scanned for promoters, for characteristic DNA sequences and for the presence a rho-indepen-dent terminator sequence (Argaman et al., 2001; Chen et al., 2002; Gottesman, 2005).

4.1. Transcription factor binding sites

We have used the existence of various distinct transcription fac-tor binding sites and the distance between genes (sRNAs genes and protein-coding genes) as features in our SVM model for prediction. Unfortunately, it was found that no signiﬁcant beneﬁt to the suc-cess of the approach when discovering known sRNA ensued. We suggest that one reason for this might be that currently known transcription factor binding sites are too few and therefore the information cannot be used effectively to predict sRNAs.

4.2. Rho-independent terminator prediction

Rho-independent (also known as intrinsic) terminators are se-quence motifs found in many prokaryotes that cause RNA tran-scription from DNA to stop. These termination signals typically

Table 3

Criteria for selecting the putative sRNAs.

Bit-score

Number of biological signalsa

found

Number of candidate in our study P200 At least one 44 80–200 All 22 80–200 Two 81 50–80 All 11 40–50 All 7 Sum – 165 a

Biological signals: promoters, Rho-independent terminators and attenuators.

Table 4

The methods used for the pairwise comparison.

Tool Methods Features References Affy Microarray Microarray experiments (Tjaden, 2008) QRNA HMM Coding sequence

Secondary structure conservation

(Rivas et al., 2001) PSoL SVM Sequence composition

Highest bits score with WU-BLAST

Minimum Free Energy

(Wang et al., 2006)

Table 5

Pairwise overlap between the prediction methods and Affy.

Method (# of candidates) QRNA (275) PSoL (420) Ours (165) Affy (305) 44 (16.0%) 79 (18.8%) 33 (20.0%)

Table 6

Pairwise overlap between the various computational sRNA prediction methods. Method (# of candidates) QRNA (275) PSoL (420) Ours (165)

QRNA – 61 47 PSoL 61 – 46 Ours 47 46 – Sum of overlapped 108 107 93 Percentage 39 25 56 Table 7

Pairwise overlap between the sRNA prediction methods.

Method (# of candidates) Affy (305) QRNA (275) PSoL (420) Ours (165) Column sum

Affy – 44 79 33 156 QRNA 44 – 61 47 152 PSoL 79 61 – 46 186 Ours 33 47 46 – 126 Sum of overlapped 156 152 186 126 – Percentage 51 55 44 76

(6)

consist of a short, often GC-rich hairpin followed by a sequence en-riched in thymine residues (Kingsford et al., 2007). Several previ-ous studies have predicted novel sRNAs using terminator signal. In these circumstances, the intergenic regions were scanned for promoters and the characteristic DNA sequence and structure of a Rho-independent terminator (Argaman et al., 2001; Chen et al., 2002; Livny, Fogel, Davis, & Waldor, 2005; Rivas & Eddy, 2004; Wassarman et al., 2001; Yachie, Numata, Saito, Kanai, & Tomita, 2006).

Since candidates for novel sRNAs cannot be identiﬁed by the conventional searches used for open reading frames, we focused on transcription signals and searching for promoter sequences within a short distance upstream of a terminator (Argaman et al., 2001). Based on this terminator signals were added to our ap-proach in the hope that performance or prediction might improve. We predict novel sRNAs in sequences where the distance between the predicted promoter and terminator were 50–400 base pairs according to a previous survey (Argaman et al., 2001). The

pre-dicted Rho-independent terminators are available from the Trans-TermHP database (Kingsford et al., 2007). We set conﬁdence parameter for the putative Rho-independent terminator prediction as the default 75%. The statistics reveals there are about 50% of sRNAs in the upstream and downstream regions within 1000 nt of where we can ﬁnd a putative Rho-independent terminator as predicted by TransTerm; however, when we searched all the inter-genic regions, only 27.4% had sRNAs.

4.3. Attenuators

Attenuation, which involves the activation or inhibition of tran-scription termination at a site located between the promoter and structural genes of an operon, is a common regulatory strategy em-ployed to sense a speciﬁc metabolic signal and enables a response that directs the RNA polymerase to either terminate transcription or transcribe the downstream genes of the operon; this system operates in many prokaryotes (Henkin & Yanofsky, 2002; Merino

Fig. 3. The consensus structure of the known IstR and our predicted IstR.

Table 8

sRNA candidates predicted by our approach.

Start position End position Length Bit-score Existence of biological signals*

17027 17061 35 46.1 PP PT PA 17027 17061 35 46.1 PP PT PA 21079 21178 100 198 KT PT PA 29603 29651 49 89.7 KP PP KT 160605 160755 151 236 PP PT 167428 167484 57 81.8 PP PT 190600 190857 258 341 PP PT 236830 237006 177 200 PP PT 255879 255974 96 143 KT PT PA 262017 262170 154 204 PT 279347 279602 256 204 PP 430189 430219 31 54 PP KT PT PA 460961 461084 124 121 KP PP PT PA 475627 475794 168 317 PP PA 496294 496395 102 52 PP KT PT PA 563945 564021 77 129 KP PP PT 638732 638856 125 168 PT PA 692642 692720 79 109 PP PT PA 696367 696505 139 172 PP PT 705247 705313 67 109 KP KT PA 727956 728060 105 113 KP PA

(7)

& Yanofsky, 2005). The regulatory elements involved in attenua-tion are called attenuators and are cis-regulatory elements that can modulate transcription elongation or translation initiation (Gama-Castro et al., 2008).

However, exactly how attenuation and repression work to-gether to regulate the expression of an operon is not known, but it is thought that repression provides the basic on–off switch and attenuation modulates the precise level of gene expression that oc-curs (Brown, 2002). The latest version of the RegulonDB database was able to provide information on predicted attenuators ( Gama-Castro et al., 2008; Merino & Yanofsky, 2005). We have observed a phenomenon whereby many known sRNAs (24/60, 40%) were lo-cated beside a putative attenuator and within a very short distance of it (<500 nt); in some of these cases, the sRNA was exactly beside an attenuator (the data is shown inTable 9. Three cases are shown asFigs. S3–S5with the hairpins depicted by the dotted line repre-senting the putative attenuators and the arrows depicted in bold solid representing the sRNAs (Gama-Castro et al., 2008)).

We observe that sRNAs and attenuator are often located in the upstream regulatory region of operons and this phenomenon might imply that the sRNAs and attenuator both play important roles in the mechanism of genes regulation in prokaryotes. 4.4. Hfq protein

The conserved RNA-binding protein Hfq modulates the stability or the translation of mRNAs and has been shown to interact with some small regulatory RNAs (i.e. DsrA, RyhB, Spot42 RNA, OxyS) in E. coli that act by base-pairing (Geissmann & Touati, 2004; Mol-ler et al., 2002; Zhang et al., 2003). Several previous studies indi-cate that Hfq stabilizes the small RNAs and mediates their interaction with the target mRNA by altering the target RNA struc-ture or by interfering with ribosome binding (Aiba, 2007; Valentin-Hansen, Eriksen, & Udesen, 2004). However the precise mechanism

by which Hfq regulation occurs remains unclear (Geissmann & Touati, 2004; Moller et al., 2002; Zhang et al., 2003). Hfq protein does not have a precise target sequence but appears to bind pref-erentially to small, single-stranded AU rich RNA segments (Moller et al., 2002; Zhang et al., 2003). Up to now, more than 30% of the known sRNAs in E. coli K-12 have been found to undergo Hfq-bind-ing (Zhang et al., 2003, 2006). All the known sRNAs targets that binding Hfq are listed inTable 10.

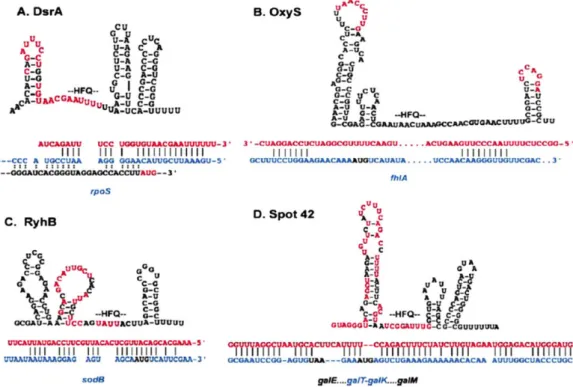

In E. coli, a search for sRNAs that bind to Hfq, an RNA chaperone implicated in non-coding NA function, has yielded several novel non-coding RNAs not found by the other methods (Chen et al., 2002; Gottesman, 2005; Zhang et al., 2003). Therefore, we have developed a method to predict possible Hfq-binding sites in inter-genic regions in the hope that this might help the discovery of un-known sRNAs that can bind Hfq protein and have never been found by other prediction methods. We use the RNAFold program to fold the secondary structures of known sRNAs and then search for AU rich region between two stem-loops in single strand structure, which are the criteria previous studies have suggested (Geissmann & Touati, 2004; Moller et al., 2002; Zhang et al., 2003, 2006) (three cases are shown inFig. 4) (Gottesman, 2004). If an AU rich region between two stem-loops in single strand structure can be found, this region is considered to be a putative Hfq-binding site.

Table 9

Known sRNAs with an attenuator within 500 bp of the sRNA. sRNA name Left position Right position Left position of attenuator Right position of attenuator

Strand Distance Attenuator type

Attenuator regulates sRNA?

Ffs 475672 475785 475852 475895 Plus 67 Terminator OxyS 4156308 4156417 4156456 4156519 Plus 39 Terminator DsrA 2023251 2023337 2023478 2023542 Plus 141 Terminator 2022900 2022940 Minus 311 Terminator SokB 1490143 1490198 1490086 1490140 Minus 3 Terminator Yes SokC 16952 17006 16895 16950 Minus 2 Terminator Yes RttR 1286289 1286459 1285758 1285805 Minus 484 Terminator Tff 189712 189847 189648 189703 Minus 9 Anti- Yes RdlA 1268546 1268612 1269024 1269081 Plus 412 Terminator Yes 1268489 1268546 Minus 0 Terminator Yes RdlB 1269081 1269146 1269559 1269616 Plus 412 Terminator Yes 1269024 1269081 Minus 0 Terminator Yes RdlC 1269616 1269683 1269559 1269616 Minus 0 Terminator Yes RdlD 3698159 3698222 3698101 3698159 Minus 0 Terminator Yes RyeA 1921090 1921338 1921385 1921441 Plus 47

Anti–anti-RyeB 1921188 1921308 1921327 1921422 Plus 19 Anti- Yes 1921139 1921175 Minus 13 Anti- Yes IsrB 1985863 1986022 1986039 1986099 Plus 17 Terminator Yes RyeE 2165136 2165221 2165539 2165588 Plus 318 Terminator MicA 2812824 2812901 2812638 2812699 Minus 125 Terminator Yes OmrA 2974124 2974211 2974315 2974363 Plus 104 Terminator Yes OmrB 2974332 2974407 2974531 2974580 Plus 124 Terminator Yes RygD 3192745 3192887 3192932 3192976 Plus 45 Terminator Yes PsrO 3309247 3309420 3309429 3309492 Plus 9

Anti–anti-RyjA 4275950 4276089 4276266 4276329 Plus 177 Terminator Yes 4275535 4275591 Minus 359 Anti–anti- Yes IstR 3851141 3851280 3851714 3851794 Plus 434 Anti- Yes 3850898 3850965 Minus 176 Anti–anti- Yes RygE 3193121 3193262 3192932 3192976 Minus 145 Terminator RseX 2031673 2031763 2031501 2031546 Minus 127 Terminator

Table 10

All known small RNA targets that bind to Hfq. Known small RNA targets

RydC Qrr RyhB DicF

OxyS Spot 42 GcvB MicF

RyeB RyeE MicC RprA

DsrA MicA/SraD RybB RybB SraE/OmrB/RygB SraJ RyeF MicA SraH SgrS SroC OmrA/RygA GadY

(8)

In total, 15 such sRNAs have been identified in E. coli and we can find 10 (66.7%) of these sRNAs targets using our designed Hfq-binding sites searching method. However, we are not satisfied with the prediction performance for Hfq-binding sites. Predicting cor-rectly Hfq-binding sites is a difficult challenge at present and we believe that a greater number of novel sRNAs will be detected using methods other than predicting Hfq-binding sites in bacterial genomes.
