Construction Methods for Asymmetric and
Multiblock Space–Time Codes
Camilla Hollanti and Hsiao-Feng (Francis) Lu, Member, IEEE
Abstract—In this paper, the need for the construction of asym-metric and multiblock space–time codes is discussed. Above the trivial puncturing method, i.e., switching off the extra layers in the symmetric multiple-input multiple-output (MIMO) setting, two more sophisticated asymmetric construction methods are proposed. The first method, called the block diagonal method (BDM), can be converted to produce multiblock space–time codes that achieve the diversity–multiplexing tradeoff (DMT). It is also shown that maximizing the density of the newly proposed block diagonal asymmetric space–time (AST) codes is equivalent to minimizing the discriminant of a certain order, a result that also holds as such for the multiblock codes. An implicit lower bound for the density is provided and made explicit for an important special case that contains e.g., the systems equipped with 4Tx +2Rx antennas. Further, an explicit scheme achieving the bound is given. Another method proposed here is the Smart Puncturing Method (SPM) that generalizes the subfield construction method proposed in earlier work by Hollanti and Ranto and applies to any number of transmitting and lesser receiving antennas. The use of the general methods is demonstrated by building explicit, sphere decodable codes using different cyclic division algebras (CDAs). Computer simulations verify that the newly proposed methods can compete with the trivial puncturing method, and in some cases clearly outperform it. The conquering construction exploiting maximal orders improves upon the punctured perfect code and the DjABBA code as well as the Icosian code. Also extensive DMT analysis is provided.
Index Terms—Asymmetric space–time block codes (ASTBCs), cyclic division algebras (CDAs), dense lattices, discriminants, di-versity–multiplexing tradeoff (DMT), maximal orders, multiblock codes, multiple-input multiple-output (MIMO) channels, normal-ized minimum determinant.
I. INTRODUCTION
M
ULTIPLE-antenna wireless communication promises very high data rates, in particular when we have perfect channel state information (CSI) available at the receiver. In [1], the design criteria for such systems were developed, and furtherManuscript received December 26, 2007; revised October 24, 2008. Current version published February 25, 2009. The work of C. Hollanti is supported in part by the Finnish Cultural Foundation, the Finnish Academy of Science, and the Foundation of the Rolf Nevanlinna Institute, Finland. The material in this paper was presented in part at the IEEE Information Theory Workshop, Bergen, Norway, July 2007, and at the IEEE International Symposium on Information Theory, Toronto, ON, Canada, July 2008.
C. Hollanti was with the Laboratory of Discrete Mathematics for Information Technology, Turku Centre for Computer Science, Finland. She is now with the Department of Mathematics, FI-20014 University of Turku, Finland (e-mail: [email protected]).
H.-F. Lu is with Department of Communications Engineering, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail:[email protected]).
Communicated by E. Viterbo, Associate Editor for Coding Techniques. Color version of Figure 2 is available online at http://ieeexplore.ieee.org. Digital Object Identifier 10.1109/TIT.2008.2011449
on the evolution of space–time (ST) codes took two directions: trellis codes and block codes. Our work concentrates on the latter branch and especially on the so-called asymmetric and multiblock space–time codes. We are interested in the coherent multiple-input multiple-output (MIMO) case where the receiver perfectly knows the channel coefficients. The received signal is
where is the transmitted codeword taken from the space–time block code (STBC) is the Rayleigh-fading channel re-sponse matrix and the elements of the noise matrix are in-dependent and identically distributed (i.i.d.) complex Gaussian random variables. Throughout the paper, (respectively, ) denotes the number of transmitting (respectively, receiving) an-tennas #Tx (respectively, #Rx).
From the pairwise error probability (PEP) point of view [2], the performance of a space–time code is dependent on two pa-rameters: diversity gain and coding gain. Diversity gain is the minimum of the rank of the difference matrix taken over all distinct code matrices , also called the rank of the code . For non-zero square matrices, being full-rank coincides with being invertible. When is full-rank, the coding gain is proportional to the determinant of the matrix
, where indicates the complex conjugate transpose of a matrix. The minimum of this determinant taken over all distinct code matrices is called the minimum determinant of the code . If it is bounded away from zero even in the limit as the spec-tral efficiency approaches infinity, the ST code is said to have the nonvanishing determinant (NVD) property [3]. Note that the minimum determinant defined here is actually the square of the minimum determinant of a lattice defined below.
Definition 1.1: The data rate in bits per channel use (bpcu) is given by
where is the size of the code, and is the block length. Here, the code rate is defined as the ratio of the number of transmitted information symbols (complex, e.g., QAM sym-bols) to the decoding delay (equivalently, block length) of these symbols at the receiver for any given number of transmit an-tennas using any complex signal constellations. If this ratio is equal to the delay, the code is said to have full rate.
The very first STBC for two transmit antennas was the Alam-outi code [4] representing multiplication in the ring of quater-nions. As the quaternions form a division algebra, such matrices must be invertible, i.e., the resulting STBC meets the rank crite-rion. Matrix representations of other division algebras have been
proposed as STBCs in various papers, e.g., [5]–[18] to name just a few. Major amount of the work in recent years has con-centrated on adding multiplexing gain and/or combining it with a good minimum determinant, so that the resulting construc-tions can achieve the so-called diversity–multiplexing tradeoff (DMT) in [19]. It has been shown in [15] that cyclic division algebra (CDA) based square ST codes with the NVD prop-erty achieve the DMT. This result also extends over multiblock space–time codes [20]. The codes proposed in [17] all fall into this category (as do many other codes too) and are in that sense optimal. One of the goals of this paper is to generalize some of the results of [17] to the asymmetric and multiblock case.
After a cyclic division algebra has been chosen, the next step is to choose a corresponding lattice, or what amounts to the same thing, to choose an order within the algebra. Most authors, including [10] and [15], have gone with the so-called natural order (see the next section for a definition). One of the points the authors wanted to emphasize in [17] was to use maximal orders instead. The idea is that one can sometimes use several cosets of the natural order and hence transmit at a higher rate without sacrificing anything in terms of the minimum deter-minant or the coding gain. So the study of maximal orders is clearly motivated by an analogy from the theory of error cor-recting codes: why one would use a particular code of a given minimum distance and length, if a larger code with the same parameters is available. The standard matrix representation of the natural order results in codes that have a so-called threaded layered structure [21]. When a maximal order is used, the code will then also extend “between layers”. Earlier, maximal orders have been successfully used in the construction of MISO and symmetric MIMO lattices, see [5], [22], [17]. For more infor-mation on matrix representations of division algebras and their use as MIMO STBCs the reader can refer to [23], [7].
Recently, different methods for constructing asymmetric [24], [25] and multiblock [20] space–time codes have been proposed. Asymmetric codes are targeted at the code design for downlink transmission where the number of Rx antennas is strictly less than the number of Tx antennas. Typical exam-ples of such situations are mobile phones and DVB-H (Digital Video Broadcasting-Handheld) user equipment, where only a very small number of antennas fits at the end user site. Multi-block codes, for their part, are called for when one wishes to obtain vanishing error probability in addition to the DMT optimality.
Remark 1.1: We want to note that in this paper the emphasis is purely on the construction of sphere decodable asymmetric schemes having a minimum delay, and hence we do not in-tend to compete with the symmetric schemes that will natu-rally have a higher rate. The problem of constructing minimum-delay symmetric schemes has been efficiently solved already, see e.g., [10], [17]. However, unless at least receiving an-tennas is used, such codes cannot be decoded by using simple decoding methods such as a sphere decoder, and this is the very reason why we now consider the construction of sphere decod-able codes for receiving antennas, being strictly less than the number of transmitters .
We define a lattice to be a discrete finitely generated free abelian subgroup of a real or complex finite dimensional vector space, called the ambient space. In the space–time (ST) setting a natural ambient space is the space of complex
matrices. The Gram matrix is defined as
(1) where tr is the matrix trace ( sum of the diagonal elements), and , form a -basis of . The rank of the lattice is upper bounded by . Note that we really need to take the real part of the trace in the Gram matrix, as the matrices are not necessary real as themselves for . The Gram matrix has a positive determinant equal to the squared measure of the fundamental parallelotope . A change of basis does not affect the measure .
Any lattice with the NVD property [8] can be scaled, i.e., multiplied by a real constant , either to satisfy
or to satisfy . This is
because and . As
the minimum determinant determines the asymptotic pairwise error probability, this gives rise to natural numerical measures for the quality of a lattice.
Definition 1.2: Following [26], we shall denote by the normalized minimum determinant of the lattice , i.e., here we first scale to have a unit size fundamental parallelotope. Du-ally we denote by the normalized density of the lattice , when we first scale the lattice to have unit minimum determinant, and only then compute the quantity . In other words, we define
When comparing the minimum determinants of different codes, one should always use the normalized minimum deter-minant. To avoid confusion let us mention that from now on, when we talk about minimum determinant we always mean and not its square as in the traditional definition of minimum determinant (see above). The squared normalized minimum determinant can be righteously identified with the coding gain. According to the above definition, maximizing the coding gain, i.e., the normalized minimum determinant, is equivalent to maximizing the (normalized) density of the code. Formally, we get the following proposition.
Proposition 1.1: The coding gain of a lattice equals
Hence, increasing the density is equivalent to increasing the coding gain.
Given that maximal orders provide the best codes in terms of minimum determinant versus average power we are left with the question: Which division algebra should we use? To continue the analogy from the theory of error-correcting codes we want to find the codes with the highest possible density. That is, with the smallest fundamental parallelotope. In [17] we developed
the required tools for parameterizing cyclic division algebras with a given center and index. Also an achievable lower bound for the measure of the fundamental parallelotope was derived.
One aim in this paper is to generalize the notions and results from [17] to the asymmetric scheme where the number of re-ceiving antennas is strictly less than the number of transmitting antennas. As the main contributions, we
• propose new methods for constructing asymmetric space–time codes, one of which is applicable for any number of transmitting and receiving antennas
;
• prove that similarly to the symmetric scheme, maximizing the density (i.e., finding the most efficient packing in the available signal space) of codes arising from the so-called block diagonal method is equivalent to minimizing the dis-criminant of an order. With the aid of this observation we generalize the density bound from [17] to the asymmetric scheme;
• derive an explicit density upper bound for the case;
• provide an explicit construction achieving our density bound;
• give a table comparing the normalized minimum determi-nants and densities of different block diagonal AST codes; • show that the block diagonal method can be converted to produce multiblock ST codes [20] that achieve the DMT, and that the density bound is also applicable as such to these multiblock codes;
• provide extensive DMT alalysis of the proposed codes; • demonstrate by simulations that by using the newly
pro-posed methods we can outperform the punctured Perfect code and the DjABBA code [25] as well as the Icosian code [27] in BLER performance.
The paper is organized as follows. In Section II we will shortly motivate this research and describe our solutions to the stated problems. In Section III, various algebraic notions related to cyclic algebras, orders, and discriminants are intro-duced. If the reader is familiar with the standard symmetric cyclic division algebra based space–time codes, this introduc-tory section can safely be skipped. Furthermore, it is shown that maximizing the density of the code, i.e., minimizing the fundamental parallelotope is equivalent to minimizing the discriminant. This leads us to Section IV, where we recall the achievable lower bound from [17] for the discriminant in the symmetric case. In Section V we describe the block diagonal construction method for asymmetric ST lattices. We generalize the density bound from [17] to the block diagonal AST codes in Section V-A, and show in Section V-B that it also holds as such to the multiblock codes [20]. Also explicit example codes are given in Section V-C accompanied with a table comparing their densities and normalized minimum determinants. Further, in Section V-D we derive an explicit, achievable density bound for the case and show that it is achieved by one of the proposed constructions. The smart puncturing method is described in Section VI, and finally some simulation results and DMT analysis are provided in Sections VII and VIII, respectively. Section IX contains the conclusions.
II. MOTIVATION ANDPROBLEMSTATEMENT
In some applications the number of Rx antennas is required to be strictly less than the number of Tx antennas. Typical examples are mobile phones and DVB-H (Digital Video Broadcasting-Handheld) user equipment, where only a very small number of antennas fits at the end user site. One may also think of downlink transmissions in wireless networks, where one can usually fit more antennas in the access point than in a laptop. For such application, the symmetric, minimum-delay MIMO constructions arising from the theory of cyclic division algebras (see e.g., [10]) have to be modified. For simplicity, the concrete examples given here concentrate on the an-tenna case: if we could afford four Rx anan-tennas, the task would be easy—just to use the minimum-delay, rate-optimal CDA-based construction transmitting 16 (complex, usually QAM/HEX) information symbols in four time slots, i.e., four in each time slot. Now, however, the reduced number of Rx antennas limits the transmission down to two symbols per each time slot (cf. Definition 1.1) if we wish to enable efficient decoding such as sphere decoding.
We have come up with two different types of solutions to this problem. Both solutions take advantage of cyclic division al-gebras and yield rate codes with a non-vanishing determi-nant. Let us denote by the number of transmitters in the usual symmetric CDA-based MIMO system and suppose we want to construct a code for antennas. In the Block Diagonal Method (BDM) the idea is to first pick an index division algebra with a center that is 2 m-dimensional over , form isomorphic copies of it and then use them as di-agonal blocks in an code matrix. Another possibility is to take the symmetric MIMO code, but choose the elements in the matrix from an intermediate field of degree over instead of the maximal subfield. This method can be generalized to any number of transmitters and receivers by performing so called Smart Puncturing Method (SPM) instead of restricting the elements to belong to some fixed subfield. In practice, this means that we puncture at an arbitrary level, i.e., set a required number of QAM/HEX coeffiecients of basis ele-ments to zero. These methods shall be explained in greater detail in Sections V and VI accompanied with illuminating examples. In this paper, we will thoroughly analyze (in class field the-oretic terms) the block diagonal method. The smart puncturing method will be treated in more detail in a forthcoming paper.
III. CYCLICALGEBRAS, ORDERS,ANDDISCRIMINANTS
We refer the interested reader to [23] and [7] for a detailed ex-position of the theory of simple algebras, cyclic algebras, their matrix representations and their use in ST-coding. We only re-call the basic definitions and notations here. In the following, we consider number field extensions , where denotes the base field and (respectively, ) denotes the set of the nonzero elements of (respectively, ). In the interesting cases is an imaginary quadratic field, either or cor-responding to the QAM and HEX alphabets, respectively. We assume that is a cyclic field extension of degree with
the corresponding cyclic algebra of degree ( is also called the index of , and in practice ), that is
as a (right) vector space over . Here is an auxiliary generating element subject to the relations for all
and . An element
has the following representation as a matrix :
..
. ...
We refer to this as the standard matrix representation of . Ob-serve that some variations are possible here. E.g., one may move the coefficients from the upper triangle to the lower triangle by conjugating this matrix with a suitable diagonal matrix. Sim-ilarly, one may arrange to have the first row to contain the “pure” coefficients . Such changes do not affect the min-imum determinant nor the density of the resulting lattices.
In practice, some restrictions to the elements and have to be made, see Definition 3.4 and the comment below. If we denote the integral basis of by ,
then the elements in the above matrix
are restricted to take the form , where
for all . Hence information symbols
are transmitted per channel use, i.e., the design has rate . In literature this is often referred to as having a full rate.
Definition 3.1: The determinant of the matrix above is called the reduced norm of the element and is denoted
by .
Remark 3.1: The connection between the usual norm map and the reduced norm of an element is
, where is the degree of .
Definition 3.2: An algebra is called simple if it has no nontrivial ideals. An -algebra is central if its center
.
All algebras considered in this paper are central simple. A division algebra may be represented as a cyclic algebra in many ways as demonstrated by the following example.
Example 3.1: The division algebra used in [3] to con-struct the Golden code is a cyclic algebra with
, when the -automorphism is de-termined by . We also note that in addition to this representation can be given another construction as a cyclic algebra. As now we immediately see that is a subfield of that is isomorphic to the eighth
cyclo-tomic field , where . The relation
read differently means that we can view as the complex number and as the auxiliary generator, call it
. We thus see that the cyclic algebra
is isomorphic to the Golden algebra. Here is the
-automor-phism of determined by and .
The element is often called a non-norm element due to The-orem 3.2 by A. A. Albert [28, TheThe-orem 11.12, p. 184]. It pro-vides us with a condition of when a cyclic algebra is a division algebra. The original result was stated for , but can be simplified after the next lemma.
Lemma 3.1: Let and be as above. Consider the set of exponents such that is a norm of an element of . Then
for some .
Proof: The mapping is a homomorphism of
groups from to . Because is a
subgroup of , and , we immediately see that is a subgroup of . From basic algebra it now follows that is cyclic, i.e., for some . On the other
hand, as we get that , and hence .
Therefore .
Proposition 3.2 (Norm Condition): The cyclic algebra of degree is a division algebra if and only if the smallest factor of such that is the norm of some element of is .
Proof: We are to prove the equivalence of two conditions, the original stating that is not a norm for any in the range , and the relaxed version stating the same for those in the same range that are also divisors of . One implication is clear, and the other follows from the above lemma. Namely, if there are integers in the range such that happens to be a norm, then the lemma tells us that the smallest such must be a divisor of .
Remark 3.2: We can even relax the above conditions for . The proof of the previous lemma shows that actually it suffices to check that is not a norm for any prime divisor of . For example, when , it suffices to check that is not a norm.
We are now ready to present some of the basic definitions and results from the theory of maximal orders. The general theory of maximal orders can be found in [29].
Let denote a Noetherian integral domain with a quotient field (e.g., and ), and let be a finite dimensional -algebra.
Definition 3.3: An -order in the -algebra is a subring of , having the same identity element as , and such that is a finitely generated module over and generates as a linear space over . An order is called maximal, if it is not properly contained in any other -order.
In the rest of the paper, will always denote an order and can be treated as an algebraic lattice. Let us illustrate the above definition by concrete examples.
Example 3.2:
(a) Orders always exist: If is a full -lattice in , i.e., , then the left order of defined as
is an -order in . The right order is defined in an analogous way.
(b) If is the ring of integers of the number field , then the ring of integers of the extension field is the unique maximal -order in . For example, in the case of the cyclotomic field , where
is a primitive root of unity of order the maximal order is .
(c) The set of integral elements does not form a ring in the non-commutative case. As an easy counter-example one can use the ring of Lipschitz quaternions
a subring of the Hamiltonian quaternions used for the construction of the Alamouti code. For instance, consider the polynomial having integral coefficients. The element is one of the (infinitely many) roots of the polynomial , and hence may be called integral. However, if we try to adjoin to the ring , we end up with a set that will also contain the element . The reduced trace is not an integer, hence we cannot have an order that would contain both the Lipschitz quaternions and . For the purposes of constructing MIMO lattices the reason for concentrating on orders is summarized in the following propo-sition (e.g., [29, Theorem 10.1, p. 125]). We simply rephrase it here in the language of MIMO-lattices. We identify an order (or its subsets) with its standard matrix representation.
Proposition 3.3: Let be an order in a cyclic division algebra . Then for any non-zero element its reduced norm is a non-zero element of the ring of integers of the center . In particular, if is an imaginary quadratic number field, then the minimum determinant of the lattice is equal to one.
Definition 3.4: In any cyclic algebra we can always choose the element to be an algebraic integer. We immediately see that the -module
where is the ring of integers, is an -order in the cyclic algebra . We refer to this -order as the natural order. An alternative appellation would be layered order, as the corresponding MIMO-lattice of this order has the layered struc-ture described in [21].
Remark 3.3: We want the reader to note that in any cen-tral simple algebra a maximal -order is a maximal -order as well. Note also that if is not an algebraic integer, then fails to be closed under multiplication. This may adversely af-fect the minimum determinant of the resulting matrix lattice, as elements not belonging to an order may have non-integral (and hence small) norms.
Definition 3.5: Let . The discriminant of the -order is the ideal in generated by the set
In the interesting cases of (respectively, ) the ring (respectively,
) is a Euclidean domain, so in these cases (as well as in the case ) it makes sense to speak of the dis-criminant as an element of rather than as an ideal. We simply pick a generator of the discriminant ideal, and call it the dis-criminant. Equivalently we can compute the discriminant as
where is any -basis of .
Remark 3.4: It is readily seen that whenever are two -orders, then is a factor of . It also turns out (cf. [29, Theorem 25.3]) that all the maximal orders of a division algebra share the same discriminant that we will refer to as the discriminant of the division algebra. In this sense a maximal order has the smallest possible discriminant among all orders within a given division algebra, as all the orders are contained in some maximal order.
The definition of the discriminant closely resembles that of the Gram matrix of a lattice, so the following result proved in [17] is unsurprising and immediately generalizes to the asym-metric scheme as well as was shown in [24].
Lemma 3.4: Assume that is an imaginary quadratic number field and that 1 and form a -basis of its ring of integers . Assume further that the order is a free -module (an assump-tion automatically satisfied, when is a principal ideal domain). Then the measure of the fundamental parallelotope equals
In the respective cases and we have
and , respectively, so we immediately get the following two corollaries.
Corollary 3.5: Let , and assume that
is an -order. Then the measure of the funda-mental parallelotope equals
Example 3.3: When we scale the Golden code [3](cf. Ex-ample 3.1) to have a unit minimum determinant, all the 8 ele-ments of its -basis will have length and the measure of the fundamental parallelotope is thus . In view of all of the above this is also a consequence of the fact that the -discriminant of the natural order of the Golden algebra is equal to . As was observed in [30] the natural order happens to be maximal in this case, so the Golden code cannot be improved upon by enlarging the order within .
Corollary 3.6: Let
, and assume that is an -order. Then the measure of the fundamental parallelotope equals
The upshot in [17] was that in both cases maximizing the den-sity of the code, i.e., minimizing the fundamental parallelotope,
is equivalent to minimizing the discriminant. Thus, in order to get the densest MIMO-codes one needs to look for division al-gebras that have a maximal order with as small a discriminant as possible.
For an easy reference we also include the following result [17] that is a relatively easy consequence of the definitions.
Lemma 3.7: Let be as above, assume that is an alge-braic integer of , and let be the natural order of Definition 3.4. If is the -discriminant of (often referred to as the relative discriminant of the extension ), then
To conclude the section, we include the following simple but interesting result on maximal orders explaining why using a principal one-sided (left or right) ideal instead of the entire order will not change the density of the code. For the proof, see [17, Lemma 7.1]
Lemma 3.8: Let be a maximal order in a cyclic division algebra over an imaginary quadratic number field. Assume that the minimum determinant of the lattice is equal to one. Let be any non-zero element. Let be a real parameter chosen so that the minimum determinant of the lattice is also equal to one. Then the fundamental parallelotopes of these two lattice have the same measure
IV. THEDISCRIMINANTBOUND
In this section, we recall some more material from [17] to be used later on in Section V.
Again let be an algebraic number field that is finite dimen-sional over and its ring of integers. In what follows by the size of ideals of we mean that ideals are ordered by the ab-solute values of their norms to , so e.g., in the case
we say that the prime ideal generated by is smaller than the prime ideal generated by as they have norms and , re-spectively.
Theorem 4.1: [17, Discriminant bound] Assume that is a totally complex number field, and that and are the two smallest prime ideals in . Then the smallest possible discrim-inant of all central division algebras over of index is
We remark that the division algebra achieving this bound is by no means unique.
Example 4.1: The smallest primes of the ring are and . They have norms and , respectively. The smallest primes of the ring are and with respective norms and . Together with Corollaries 3.5 and 3.6 we have arrived at the following bounds.
Let be an order of a central division algebra of index over the field . Then the measure of a fundamental parallelotope of the corresponding lattice
Let be an order of a central division algebra of index
over the field . Then the measure of
a fundamental parallelotope of the corresponding lattice
Example 4.2: Let , so . In this case
the two smallest prime ideals are generated by 2 and and as noted above they have norms and , respectively. By Theorem 4.1 the minimal discriminant is when . As the absolute value of is an application of the formula in Corollary 3.6 shows that the lattice of the code achieving this bound has . In [22] we showed that a maximal
order of the cyclic algebra , where
, achieves this bound.
For more information on finding maximal orders and their discriminants, see [17]. In practice maximal orders can easily be computed with the aid of the (unfortunately commercial) MAGMA software [31], or in small cases by hand following [32] (see also [33], [34]). The computation and decoding of maximal order will be treated in more detail in a forthcoming paper by Hollanti and Ranto [35].
We conclude this section by a couple of remarks1related to the use of outer codes and our choice to consider only codes having a minimum delay.
Remark 4.1: While the concatenation of the maximal-order space–time code as the inner code and the conventional error correction code as the outer code is beyond the scope of this work, it is expected that such concatenation will result in a smaller multiplexing gain as the outer code has rate less than 1. However, the error performance will be significantly improved due to the use of additional error correction techniques. On the other hand, we must point out that since 1) the inner maximal-order code makes use of sphere decoding, which is a hard-deci-sion based decoding, and 2) such inner decoder cannot provide soft information for the input of output decoder, it is techni-cally impossible to use either low-density parity check (LDPC) code or turbo code as the outer code as these codes requires a soft-input–soft-output (SISO) decoder in order to deliver the promised near-capacity performance. Nevertheless, some con-clusion can be easily drawn. From simulation we have already seen that, in the symmetric case, the maximal order code outper-forms the perfect code, meaning that the former has lower error probability than the latter; the overall error probability of the concatenated maximal-order code after incorporating the outer decoder must be even lower than that of the concatenated per-fect code, simply because the BER curve of the outer decoder is monotonically decreasing in SNR, and such conclusion holds for all outer codes.
Remark 4.2: In this paper the focus is on square matrices, i.e., on codes having a minimum delay. If longer delay is allowed, then the optimal DMT can be achieved at least in some special
1The remarks are invoked by the comments of the anonymous reviewers of
this paper. We thank all the reviewers for the careful reading of our paper. Also complexity issues were brought up by one of the reviewers, hence a short dis-cussion on the decoding complexity has been added in the simulation results section.
cases. The authors of the present paper have submitted a sepa-rate work related to this subject, see [41]. Increasing the delay requires lattices with a higher dimension, so also the decoding process will get more complex.
V. CONSTRUCTINGASYMMETRIC ANDMULTIBLOCK
SPACE–TIMECODES BY THEBLOCKDIAGONALMETHOD
(BDM)
A straightforward way to obtain AST lattices would be just to “switch off the extra layers” (following [25] and [24]) in a symmetric MIMO setting, i.e., by trivial puncturing. In the case of antennas this would mean that in the standard matrix representation we set e.g., in order to transmit a limited number of symbols that can be received with only two receivers. In this and the following section we present two more sophisticated methods for constructing AST lattices that still admit efficient sphere decoding.
A. Block Diagonal Asymmetric ST Lattices
In this section, we recall Method 1 from [24]. Let us rename this method as Block Diagonal Method (BDM).
Let us consider an extension tower with the
degrees and with the Galois groups
. Let
be an index division algebra, where the center is fixed by
. We denote by .
Note that if one has a symmetric, index CDA-based STBC, the algebra can be constructed by just picking a suitable intermediate field of a right degree as the new center.
An element
of the algebra has the standard representation
as an matrix as given in Section III.
However, we can afford an packing as we are using transmitting antennas. This can be achieved by using the iso-morphism . Let us denote by
the isomorphic copies of and the respective matrix representations by
(2) The next proposition shows that by using these copies as di-agonal blocks we obtain an infinite lattice with non-vanishing determinant.
Proposition 5.1 (BDM): Let and ,
where . Assume . The block diagonal lattice
..
. . .. ...
built from (2) has a nonvanishing determinant
. Thus, the minimum determinant is equal to one for all . The code rate equals .
Proof: According to Definition 3.1 and Proposition 3.3
and hence .
Remark 5.1: In [36] an approach similar to the BDM was used for the MIMO amplify-and-forward cooperative channel.
Now the natural question is how to choose a suitable division algebra. In [15] and [16] several systematic methods for con-structing extensions are provided. All of them make use of cyclotomic fields. Next we will show that also in the asym-metric scheme, maximizing the code density (i.e., minimize the volume of the fundamental parallelotope, see [17]) with a given minimum determinant is equivalent to minimizing a certain dis-criminant. In the next section we shall show that this also holds for the multiblock codes from [20].
First we need the following result. For the proof, see [29, p. 223].
Lemma 5.2: Suppose is an -order
and that . The discriminants then satisfy
The same naturally holds in the commutative case when we re-place with .
As a generalization to Lemma 3.4, we prove the following proposition.
Proposition 5.3: Assume that is an imaginary quadratic number field and that forms a -basis of its ring of
in-tegers . Let , and
. If the order defined as in Proposition 5.1 is a free -module (which is always the case if is a principal ideal domain), then the measure of the fundamental parallelo-tope equals
(3) (4) (5) Proof: In order to keep the notation simple let us assume . The proof directly generalizes to an arbitrary . Let be an complex matrix. We flatten it out into a matrix by first forming a vector of length out of the entries (e.g., row by row) and then replacing a complex number by a diagonal four by four matrix with entries and ( is the usual complex conjugate of ). If and are two square matrices with rows we can easily verify the identities as shown in (6) and (7) at the top of the following page.
Next let be an -basis for . We
(6) and
(7)
on top of each other. Similarly we get by using the matrices as column blocks. Then by (7) the matrix
consists of four by four blocks of the form
Clearly
and
Thus
(8) Next, we turn our attention to the Gram matrix. Let be a -basis for . Then by our assump-tions the set is a -basis for . From the theory of algebraic numbers we know that
and (9)
where and
From the identities and
..
. ...
together with (6) it follows that for any two matrices and we have
..
. ...
Therefore, if we denote by the matrix having copies of along the diagonal and zeros elsewhere, we get
Thus
As
by (9) and Lemma 5.2, (8) now gives us the claim when we still note (again by Lemma 5.2) that
(10)
Corollary 5.4: In the case the volume equals
Corollary 5.5: In the case , we get
Now we can conclude (cf. (4)) that the extensions
and the order should be chosen in such a way that the dis-criminants and are as small as possible. By choosing a maximal order within a given division algebra we can minimize the norm of (cf. Remark 3.4). As in practice an imaginary quadratic number field is contained in , we know that is totally complex. In that case the fact that
(11) where and are prime ideals with the smallest norms (to ) helps us in picking a good algebra (for the proof, see [17, Theorem 3.2]). Note that optimization with respect to
may result in a loss in and vice versa. Keeping the above notation, we have now arrived at the fol-lowing theorem.
Theorem 5.6 (Density Bound for Lattices From BDM): For the density of the lattice it holds that
(12) Remark 5.2: Note that as opposed to Example 4.1 (cf. [17]), here we do not automatically achieve nice, explicit lower bounds for . That is a consequence of the fact that the center can now be any field containing or , and thus de-termining the smallest ideals and or even the minimal is not at all straightforward. An exact lower bound is hard to derive in the general case as the calculation of min-imal number field discriminants is known to be a tricky problem. The reader may ponder over the fact that tables for minimal dis-criminants do exist in literature (though only for certain degrees, see e.g., [37]) so why not use them. We want to emphasize that these tables cannot be adapted here, as the fields in question do not necessarily contain the desired subfield or . However, in the smallest (and perhaps the most practical) case of antennas we are able to give an explicit and even achievable upper bound for the density. We believe that the best one can do in the other cases is to take advantage of known bounds of more general nature such as Odlyzko’s bound [38]. B. Minimum-Delay Multiblock ST Codes
The antenna AST code from Proposition 5.1 can be transformed into an antenna multiblock code [20] by an evident rearrangement of the blocks:
..
. . .. ...
(13) As the Gram matrices of an AST lattice and a multiblock ST lattice coincide, Lemma 5.3 also holds for multiblock ST codes with the same parameters. Let the notation be as in Section V-A.
Proposition 5.7: Let and , where
. Assume . As the lattice
built from (2) satisfies the generalized non-vanishing determi-nant property (cf. [20], [12]), it is optimal with respect to the DMT for all numbers of fading blocks . Similarly as in Propo-sition 5.1,
The code rate equals .
Proof: For the proof, see [20].
Proposition 5.8: The Gram determinants (cf. (1)) of the
lat-tices and coincide:
Proof: This is obvious, as
An immediate consequence of Proposition 5.8 is as follows. Corollary 5.9: The lattices and share the same density, i.e., Proposition 5.3 can be adapted as such to the multi-block scheme.
C. Explicit Codes Using BDM
In this section we provide explicit asymmetric constructions for the important case of antennas. These codes can be modified for multiblock use (cf. (13). The primitive th root of unity will be denoted by . The first three examples are given in terms of an asymmetric construction, whereas the last one is described as a multiblock code. However, with the aid of (13), an asymmetric code can always be transformed into a multiblock code and vice versa.
1) Perfect Algebra : Let us consider an algebra with the same maximal subfield that was used for the Perfect code in [10]. We have the nested sequence of fields ,
where , and with
. We denote this algebra by
, where and
. As , the field is indeed fixed by . By embedding the algebra as in Proposition 5.1 we obtain the AST code
where . As the center is with and
, the elements in the matrix are
of the form where
. Thus, the code transmits, on the average, independent QAM symbols per channel use.
We can further improve the performance by taking the
ele-ments from the ideal , where .
Moreover, a change of basis given by
guarantees an orthogonal lattice.
2) Cyclotomic Algebra : The algebra
(cf. [12], [22], [24]), for its part, has the nested sequence of fields with
, the field is fixed by . Again by embedding the algebra as in Proposition 5.1, the AST code
with is obtained. The center is with
and . The elements in the matrix are of the
form , where , hence the above
code transmits on the average, 2 independent QAM symbols per channel use.
Note that we have chosen here a suitable non-norm element from instead of (cf. Section V.A). We get some energy
savings as .
The code can be made perfect (see [11]) by forcing to be unit, i.e., we can choose . The loss in the minimum determinant is compensated by an improvement in performance. We denote the perfect version of the code by .
By doing this, we need not sacrifice the NVD property: Let . If we denote by the matrix where we have multiplied the matrix rows containing by , that is
then we have
and hence
Note also that this is only possible because of the addi-tive structure of the code. Taking powers of the elements into the code would result in a vanishing determinant (cf. Remark 3.3).
3) Algebra —an Improved Maximal Order: Similarly as in the two previous subsections, we obtain a rate- AST code
by introducing yet another algebra , where
and . Among
our example algebras, has the densest maximal order. In Section V-D we will show that its maximal order is also the
densest in general, when and .
Let us now describe the code explicitly. If we order the -basis of the natural order of as
then (according to the MAGMA software [31]) the maximal
order has a -basis
Now the codebook of an arbitrary size can be pro-duced as
where denotes the Frobenius norm (corresponds to the squared Euclidean norm of the vectorized matrix, i.e., the sum of the squares of all the matrix elements), and is some desired energy limit.
4) Algebra —An Improved Natural Order: Let us use the multiblock notation for a change. Here we consider another tower of number fields , where
, and where with . Clearly,
we have , and .
Thus we obtain the CDA ,
and is a non-norm element. Embedding the algebra as in Proposition 5.1 yields the following multiblock ST code with coding over 2 consecutive fading blocks:
where
and
The elements in the above are of the form , where , hence the above code trans-mits on the average, two independent QAM symbols per channel use.
Among our example algebras, has the densest natural order.
Example 5.1: Let us calculate the normalized minimum de-terminant of the algebra as an example (cf. Section I, Def-initions 3.4, 3.5, and Propositions 5.1,5.3). The other algebras can be treated likewise. In Table I we have listed the normal-ized minimum determinants and densities of the natural and maximal orders of the algebras and . Note that for these two actually coincide. We can conclude that among the natural orders, that of the algebra has the largest normalized minimum determinant, i.e., the highest density. The
TABLE I
NORMALIZEDMINIMUMDETERMINANTANDNORMALIZEDDENSITY
= 1=m(3)OFNATURAL ANDMAXIMALORDERS OFDIFFERENTALGEBRAS
algebra , for its part, has the densest maximal order. The cor-responding numbers are shown bold in Table I.
For the natural order of we have
and hence
. Now and the normalized minimum
determinant is
. The maximal order of has
and thus and
.
D. An Explicit Density Upper Bound for the Lattices
With and
As shown in Example 5.1, for the maximal order of we have
where and are the norm wise smallest ideals of . In what follows, we will show that when and
we cannot go below this, i.e., the maximal order of has optimal density.
Let us now assume that we would have such an exten-sion that the corresponding lattice would have . If the prime splits, this would mean that . If does not split, then the discriminant should be even smaller so this is a sufficient upper
bound for .
Let such that is an integral basis for . Now this degree two extension has a minimal polynomial of
the form , where , and the
discriminant
Note that a minimal polynomial of the form is out of
the question, as then .
Furthermore, cannot be a square, as then it would trivially follow that and . Now we are left with the choices
or the obvious translates with the same absolute value.
Let us treat in detail the cases
to set an example. As the prime ramifies in this extension, we know that the smallest ideal is above and . The second ideal would depend on the behavior of the primes and 3. However, as
it immediately follows that neither of fit into the equation.
The other cases are equally straightforward. In the case we note that we end up into an isomorphic
extension that we
al-ready have. For it would require that splits which is not the case.
We have now proved the following proposition. For the nota-tion, cf. Proposition 5.1.
Proposition 5.10 (Density Bound for : Let , i.e., . For the density of the lattice it holds that
(14) The lower bound is achieved, e.g., by the maximal order of the algebra , see Table I.
VI. CONSTRUCTINGAST LATTICES BY THESMART
PUNCTURINGMETHOD(SPM)
Another way to construct AST lattices would be as follows (cf. [24]). Let be an index division algebra
and . If in the standard matrix
rep-resentation the elements are restricted to belong to (rather than to ), we obtain another division algebra . Obviously also the algebra is a division algebra as it is contained in . This construction also yields rate codes for
antennas with a nonvanishing determinant. As is fixed by we have
for all . Thus, the center of is extended by the element .
Proposition 6.1: Let be the ring of algebraic integers of and . The lattice
..
. ...
has a non-vanishing determinant . Thus, the minimum determinant is equal to one.
Proof: This immediately follows from the way of construc-tion.
As we consider the construction of Proposition 6.1 only for natural orders, we denote it by as opposed to the notation where we needed to specify the order in use. The above

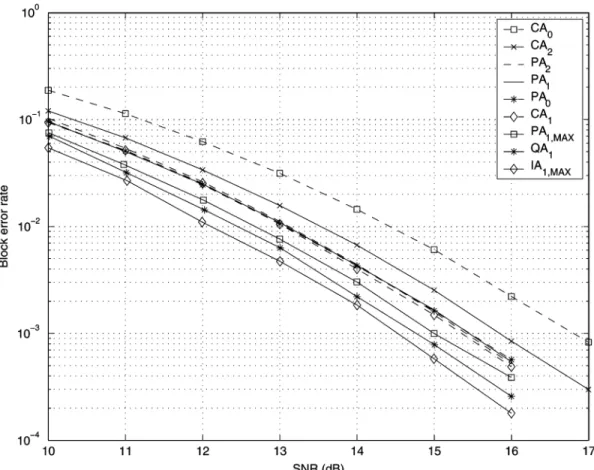

Fig. 1. Block error rates at 4 bpcu.
subfield construction method [24] can be generalized so that it applies to any number of receiving antennas . The idea is that instead of restricting the elements to belong to a subfield, we can puncture at any level. By this we mean that we can set an arbitrary number of the QAM/HEX coefficients equal to zero. More formally, let us denote
where and is an integral basis of
. If we wish to use receiving antennas, we set any of the coefficients to zero for each . Nevertheless, to enable efficient decoding one should choose the same set of indices at where to puncture for each . We call this the Smart Puncturing Method (SPM).
For instance, one option is to define for , that is
for .
A. Explicit Codes Using SPM
Let us now use the SPM for constructing AST codes. To sim-plify the notation, we use the subfield construction as a special case of SPM. To set an example, we write down the construc-tions for the algebras and , the other algebras can be treated similarly.
1) Algebra : By using the algebra (cf. Section V-C1) and the subfield Construction 6.1, we get
Each of the elements is of the form ,
where . Thus, the code rate is again equal to two. 2) Algebra : Let us then construct a code using (cf. Section V-C2) and 6.1. This time we have
with .
Each of the elements is of the form , where . Thus, the code rate equals two.
Again we could also use a unit non-norm element . VII. SIMULATIONRESULTS
In Fig. 1, the different construction methods are denoted by subscripts: Trivial Puncturing Method, Block Diag-onal Method (cf. Section V\-C), and Subfield Construction Method (cf. Section VI-A).
The use of a maximal order instead of the natural order will be indicated by ‘MAX’, e.g., we write for the code
Fig. 2. DMT forn = 4, n = 2, and m = 2.
designed using the BDM and a maximal order of the algebra .
First of all, we have to admit that we have not carried out op-timization as much as would have been possible. For example, the use of ideals has not been taken advantage of, except in the case of the punctured Perfect code and the code , for which we used the ideal given in Section V-C1. Still, the simu-lation results are indeed very satisfactory.
The codes , and perform more or less
equally. The code is beaten by these by 0.2–0.7 dB, de-pending on the SNR. Next comes , losing still by 0.7–1 dB to . Despite of its lower density, the code performs equally well as the code , possibly because of the careful optimization of carried out in [10] such that it falls into the category of information lossless (IL) codes (see [40] for the definition) and has a good (orthogonal) lattice shaping. Probably for the same reason, it appears to be irrele-vant to which construction method is used for , whereas the same is not true at all for the other algebras. Thus, the simula-tion results of the codes suggest that having a good shaping is also important at low SNR regime and it is better that the code has this property.
Do note that information losslessness is a property defined for linear dispersion (LD) codes and as such does not concern the maximal order codes (they are not linear dispersion codes when optimally used). Orthogonal shaping, for its part, has many other justifications than that of yielding information lossless codes. As mentioned earlier, orthogonal (or hexagonal) shaping enables simple bit labeling and usually makes the decoding less com-plex. Hence, in addition to density (maximization of the nor-malized minimum determinant), it is preferable to have orthog-onal or nearly orthogorthog-onal shaping. In our simulations we did not do lattice reduction or use any other methods to simplify the decoding, as we feel that these concepts should be treated in a paper of their own.
To summarize the above, by orthogonal shaping one can com-pensate somewhat the lower density. That is, if we have two
equally dense codes, then one might prefer the one that is closer to being orthogonal. But do note that by using orthogonal codes only, one cannot achieve the excellent performance provided by the maximal order codes as is clearly shown by the simulations. Also the data rate used in Fig. 1 is very much in favor of as its shape fits perfectly with the constellation. At a different data rate (e.g., at 5 bpcu), however, the performance of can be expected to get worse as compared to the maximal order codes as then the orthogonal shape does not help that much and the density has more impact. Similar phenomenon was experienced when comparing the Golden code with the Golden+ code [17]: At the rate 4 bpcu that is ideal for the Golden code it could not be beaten, but immediately when taking a bigger data rate the dif-ference became clear and the denser Golden+ code was shown to outperform the Golden code.
The code obtained by combining BDM with the use of a maximal order (cf. Section V-C3 and [22]) triumphs over all the other codes. It outperforms the next best code by approximately 0.3 dB and by 0.5 dB. In [25] the authors show that the DjABBA code wins the punctured Perfect code by 0.5 dB or less in the BER performance at the rate 4 bpcu. The same holds for the BLER performance and thus our code improves even upon the DjABBA code. Also the Icosian code for antennas exploiting the Icosian ring (which also happens to be a maximal order) loses to by 0.7–1 dB. The curves depicting the DjABBA code, the Icosian code and the perfect version of are not shown in the picture in order to keep it readable. The perfect version of the code
performs almost equally to being just slightly better. Remark 7.1: There are some practical problems related to maximal order codes in general. Using maximal orders or more generally highly skewed lattices can make the bit labeling less obvious and the decoding process more complex even when the same decoding procedure is used. E.g., comparing the number of points in the search tree visited by a sphere decoder shows that usually a skewed lattice causes more visits than an orthog-onal one. So these are purely properties the system designer can choose to use or not to use, depending on the situation. Never-theless, the decoding complexity can be significantly reduced by using sphere encoding together with some suboptimal decoding techniques getting very close to the maximal-likelihood (ML) performance, see [42] for the promising results.
Here, a suitably modified (more details will follow in a forth-coming paper, see [35]) sphere decoder was used for decoding the lattices. Briefly, the sphere decoder performs an additional energy check, checking that the decoded codeword is valid and within the desired energy sphere. This step is required because of the spherical shape used for the constellation. The codebook can be formed beforehand, so it has to be carried out only once. Alternatively, maintaining a codebook can be overcome by using sphere encoding as mentioned above. The maximal order codes can be also used as linear dispersion codes, but then the full advantage of the density of maximal orders is not achieved. If used as LD codes, no additional steps are needed for decoding.
The DMT analysis (Section III) tells us that asymptotically BDM should outperform the other constructions methods, but
we want to emphasize that, as suggested by Fig. 1, at the low SNR this is not necessarily the case. Indeed it seems that at the low SNRs, the best construction method depends on the very algebra (and especially on its density) that is in use. Fig. 1 also shows that the trivial puncturing method used by other authors [25] is not always the first choice (as again implied by the DMT analysis too, see Section III), hence proving the point of new construction methods. Actually, for the algebra puncturing actually yields the worst performance.
VIII. DIVERSITY–MULTIPLEXINGTRADEOFFANALYSES
Diversity–multiplexing tradeoff (DMT) analyses of several constructions of asymmetric space–time codes will be given in this section. We try to make this section self contained. In a MIMO communication system with transmit and receive antennas, under the quasi-static MIMO Rayleigh block fading channel model, it is known that the ergodic MIMO channel ca-pacity equals [39]
bits/channel use (15) at high SNR regime.
Let R denote that data rate of a space–time code defined in Definition 1.1, and let denote the normalized rate of , also known as the multiplexing gain [19], given by
(16) From (15) it can be seen that the maximum achievable multi-plexing gain equals . Given the code with multi-plexing gain , we say achieves diversity gain if at high regime, the codeword error probability of is on the order of
(17) By we mean the exponential equality [19], i.e., we say the
function if and only if
(18) The notations of and are defined similarly.
Zheng and Tse [19] showed that there exists a fundamental tradeoff between the multiplexing and the diversity gains, referred to as the diversity–multiplexing tradeoff (DMT). For
the cases when and when the code
spans over independent block fading channels, the DMT asserts that the maximum possible diversity gain for any space–time coding scheme with multiplexing gain is a piecewise linear function connecting the points
, and
(19) Furthermore, it has been shown in [20] using explicit construc-tions that the tradeoff (19) holds whenever . On the other hand, if , only upper and lower bounds on are available in [19].
A. DMT for the Trivial Puncturing Construction
Let denote the cyclic division algebra where and is cyclic Galois. Let and let be the corresponding cyclic algebra
..
. ... . .. ...
where . The puncturing construction is thus obtained
by setting in and by restricting the
elements to be of form
where is the underlying base-alphabet and where is an integral basis for .
Remark 8.1: If , it does not matter which ones of the coefficients we set equal to zero. However, if , then we should choose the indices for which in such a way that the overall energy is minimized. It can be easily verified that the above puncturing method, i.e., , is the most efficient in energy.
To achieve multiplexing gain at value , we require
(20) hence
(21) Given the transmitted code matrix , the received signal matrix at the receiver end is
(22) where we set
(23) to ensure the power constraint . Let
be the ordered eigenvalues of , and for any , let be the ordered eigenvalues of
, where . Then given , the squared Euclidean distance between and is
Combining the two results above and setting
we have and
Now we see the DMT for the puncturing construction is lower bounded by
(24) and the right-hand side is given by the lines connecting the
points for integral values of .
B. DMT for the Block Diagonal Construction Let be cyclic Galois with
and . Let be such that and
with where . It should
be noted that we have assumed . Let be the cyclic division algebra and let be the corresponding
algebra
..
. ... . .. ...
. The block diagonal construction is
(25)
where with .
denotes the underlying base-alphabet and is an integral basis for .
To achieve multiplexing gain at value , we require
(26) hence
(27) Given the transmitted code matrix
the received signal matrix at the receiver end is
(28) where we set
(29) to ensure the power constraint. On the other hand, we may par-tition the matrices , and into
and rewrite (28) as
for . Let
be the ordered eigenvalues of , and for any
let
be the ordered eigenvalues of , where
. We will reorder and reindex the set of eigenvalues
and such that and
. Thus the squared Euclidean distance between the two noise-free received signal matrices can be lower bounded by
Moreover
Combining the two results above and setting
we have and
Now we see the DMT for the block-diagonal construction is given by
(30) and is obtained by the lines connecting the points
for integral values of . C. DMT for the Subfield Construction
The DMT derived here for the subfield construction also holds for the more general codes designed using the smart puncturing method.
Let be a cyclic Galois extension with
and , and . Let be the cyclic division
algebra and let
..
. ... . .. ...
where and . The subfield
construction is thus obtained by restricting the elements to be of form
where is the underlying base-alphabet and where is an integral basis for .
To achieve multiplexing gain at value , we require
(31) hence
(32) Given the transmitted code matrix , the received signal matrix at the receiver end is
(33) where we set
(34) to ensure the power constraint. Now we see the DMT for this construction has the same lower bound as that for the puncturing construction, hence
(35)
and the right-hand-side is obtained by the lines connecting the
points for integral values of .
D. DMT for the Original CDA Construction Let be a cyclic Galois extension with
and , and . Let be the cyclic division
algebra and let
..
. ... . .. ...
. The original construction (cf. e.g., [15]) is obtained by restricting the elements to be of form
where is the underlying base-alphabet and where is an integral basis for .
To achieve multiplexing gain at value , we require
(36) hence
(37) Given the transmitted code matrix , the received signal matrix at the receiver end is
(38) where we set
(39) to ensure the power constraint. Let be the or-dered eigenvalues of , and for any , let be the ordered eigenvalues of , where . Then given , the squared Euclidean
dis-tance between and is
for . In particular,
Combining the two results above and setting
we have and
Now we see the DMT for the CDA construction is given by (40)
and the right-hand side is obtained by the lines connecting the points for integral values of .
Remark 8.2: One might ponder why not use the original sym-metric construction with a smaller constellation as it is DMT optimal. In principle, AST codes can indeed be designed just by using the standard CDA-based MIMO code with a smaller con-stellation. Nevertheless, this destroys the lattice structure and causes exponential complexity at the receiver.
IX. CONCLUDINGREMARKS ANDSUGGESTIONS FOR
FURTHERWORK
We have introduced new construction methods for asym-metric space–time codes based on cyclic division algebras and their orders. Part of the results were reviewed from [24] and [17]. One of the methods, the so-called smart puncturing method, is suitable for an arbitrary number of transmitting antennas and lesser receiving antennas.
The density bound from [17] was generalized to the block di-agonal asymmetric case and made explicit for the
antenna case when building upon . Also a construction achieving this bound was provided. It was noted that in the more general case, the most reasonable way to derive density bounds is with the aid of Odlyzko bound as the computation of minimal discriminants is in general a hard problem.
We proved the connection between the block diagonal asym-metric and multiblock codes, hence showing that the density re-sults hold as such in the multiblock case.
We have not yet exhausted the box of optimization tools on our code. For example, the codes can be pre- and postmultiplied by any complex matrix of determinant one without affecting nei-ther its density nor its good minimum product distance. In par-ticular, if we use nonunitary matrix multipliers, the geometry of the lattice will change. While we cannot always turn the lat-tice into a rectangular one in this manner, some energy savings and perhaps also shaping gains are available. The simulations were carried out by using a suitably modified sphere decoder (on which more details in a forthcoming paper [35]). It was shown that the newly proposed codes outperform in block error perfor-mance the punctured Perfect code, the DjABBA code as well as the Icosian code, all aimed at transmission with four transmit-ting and two receiving antennas.
Also extensive DMT analysis was provided, showing that amongst the previously and newly proposed methods, the BDM is the best way to construct asymmetric codes in this respect.
ACKNOWLEDGMENT
The authors would like to thank Professor P. Vijay Kumar (Indian Institute of Science, Bangalore, India) for bringing the perfect version of the code to our notice. They are also indebted to Dr. J. Lahtonen (University of Turku, Finland) for the helpful discussions during the revision process of this paper. Dr. R. Vehkalahti (University of Turku, Finland) is gratefully acknowledged for his help in Section V-C3.
REFERENCES
[1] J.-C. Guey, M. P. Fitz, M. R. Bell, and W. Y. Kuo, “Signal design for transmitter diversity wireless communication systems over Rayleigh fading channels,” in Proc. IEEE Veh. Technol. Conf., 1996, pp. 136–140, Also. in IEEE Trans. Commun., vol. 47, pp. 527–537, Apr. 1999.
[2] V. Tarokh, N. Seshadri, and A. R. Calderbank, “Space-time codes for high data rate wireless communications: Performance criterion and code construction,” IEEE Trans. Inf. Theory, vol. 44, pp. 744–765, Mar. 1998.
[3] J.-C. Belfiore, G. Rekaya, and E. Viterbo, “The Golden code: A 22 2 full-rate space-time code with non-vanishing determinant,” IEEE
Trans. Inf. Theory, vol. 51, no. 4, pp. 1432–1436, Apr. 2005.
[4] S. M. Alamouti, “A simple transmit diversity technique for wireless communication,” IEEE J. Sel. Areas Commun., vol. 16, pp. 1451–1458, Oct. 1998.
[5] C. Hollanti and J. Lahtonen, “Maximal orders in the design of dense space-time lattice codes,” IEEE Trans. Inf. Theory, vol. 54, pp. 4493–4510, Oct. 2008.
[6] M. O. Damen, K. Abed-Meraim, and J.-C. Belfiore, “Diagonal alge-braic space-time block codes,” IEEE Trans. Inf. Theory, vol. 48, pp. 628–636, Mar. 2002.
[7] B. A. Sethuraman, B. S. Rajan, and V. Shashidhar, “Full-diversity, high-rate space-time block codes from division algebras,” IEEE Trans.
Inf. Theory, vol. 49, pp. 2596–2616, Oct. 2003.
[8] J.-C. Belfiore and G. Rekaya, “Quaternionic lattices for space-time coding,” in Proc. ITW 2003, Paris, France, Mar. 31–Apr. 4 2003. [9] J.-C. Belfiore, G. Rekaya, and E. Viterbo, “Algebraic 32 3, 4 2 4 and
62 6 space-time codes with non-vanishing determinants,” in Proc.
IEEE ISITA 2004, Parma, Italy, Oct. 10–13, 2004.
[10] J.-C. Belfiore, F. Oggier, G. Rekaya, and E. Viterbo, “Perfect space-time block codes,” IEEE Trans. Inf. Theory, vol. 52, pp. 3885–3902, Sept. 2006.
[11] P. Elia, B. A. Sethuraman, and P. V. Kumar, “Perfect space-time codes for any number of antennas,” IEEE Trans. Inf. Theory, vol. 53, no. 11, pp. 3853–3868, Nov. 2007.
[12] T. Kiran and B. S. Rajan, “STBC-schemes with non-vanishing determi-nant for certain number of transmit antennas,” IEEE Trans. Inf. Theory, vol. 51, pp. 2984–2992, Aug. 2005.
[13] V. Shashidhar, B. S. Rajan, and B. A. Sethuraman, “STBCs using ca-pacity achieving designs from crossed-product division algebras,” in
Proc. IEEE ICC 2004, Paris, France, June 20–24, 2004, pp. 827–831.
[14] V. Shashidhar, B. S. Rajan, and B. A. Sethuraman, “Information-loss-less STBCs from crossed-product algebras,” IEEE Trans. Inf. Theory, vol. 52, pp. 3913–3935, Sep. 2006.
[15] P. Elia, K. R. Kumar, P. V. Kumar, H.-F. Lu, and S. A. Pawar, “Explicit space-time codes achieving the diversity-multiplexing gain tradeoff,”
IEEE Trans. Inf. Theory, vol. 52, pp. 3869–3884, Sep. 2006.
[16] H.-F. Lu, P. Elia, S. A. Pawar, K. R. Kumar, and P. V. Kumar, “Space-time codes meeting the diversity-multiplexing gain tradeoff with low signaling complexity,” in Proc. CISS 2005, Baltimore, MD, Mar. 2005. [17] C. Hollanti, J. Lahtonen, K. Ranto, and R. Vehkalahti, “On the densest MIMO lattices from cyclic division algebras,” IEEE Trans. Inf. Theory [Online]. Available: http://arxiv.org/abs/cs.IT/0703052
[18] G. Wang and X.-G. Xia, “On optimal multi-layer cyclotomic space-time code designs,” IEEE Trans. Inf. Theory, vol. 51, pp. 1102–1135, Mar. 2005.
[19] L. Zheng and D. Tse, “Diversity and multiplexing: A fundamental tradeoff in multiple-antenna channels,” IEEE Trans. Inf. Theory, vol. 49, pp. 1073–1096, May 2003.
[20] H.-f. (F.) Lu, “Explicit constructions of multiblock space-time codes that achieve the diversity-multiplexing tradeoff,” IEEE Trans. Inf.
Theory, vol. 54, no. 8, pp. 3790–3796, Aug. 2008.
[21] H. El Gamal and A. R. Hammons, Jr., “A new approach to layered space-time coding and signal processing,” IEEE Trans. Inf. Theory, vol. 47, pp. 2321–2334, Sep. 2001.
[22] C. Hollanti, J. Lahtonen, K. Ranto, and R. Vehkalahti, “Optimal matrix lattices for MIMO codes from division algebras,” in Proc. IEEE Int.
Symp. Information Theory (ISIT 2006), Seattle, Jul. 2006, pp. 783–787.
[23] N. Jacobson, Basic Algebra II. San Francisco, CA: Freeman, 1980. [24] C. Hollanti and K. Ranto, “Asymmetric space-time block codes for
MIMO systems,” in Proc. IEEE ITW 2007, Bergen, Norway, July 2007, pp. 101–105.
[25] A. Hottinen, Y. Hong, E. Viterbo, C. Mehlführer, and C. F. Meck-lenbräuker, “A comparison of high rate algebraic and non-orthogonal STBCs,” in Proc. ITG/IEEE Workshop Smart Antennas WSA 2007, Vi-enna, Austria, Feb. 2007.
[26] J. Lahtonen, “Dense MIMO matrix lattices and class field theoretic themes in their construction,” in Proc. IEEE ITW 2007, Bergen, Norway, Jul. 2007, pp. 96–100.
