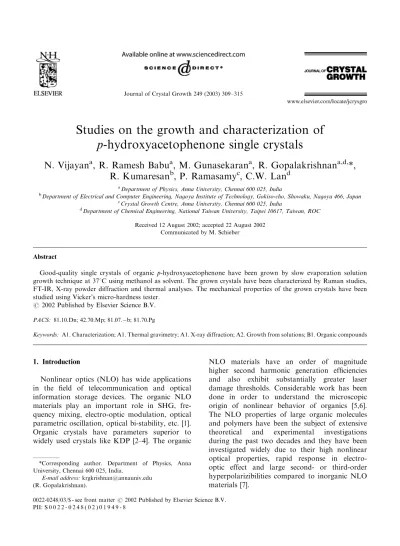

Studies on the growth and characterization of
p-hydroxyacetophenone single crystals
N. Vijayan
a, R. Ramesh Babu
a, M. Gunasekaran
a, R. Gopalakrishnan
a,d,*,
R. Kumaresan
b, P. Ramasamy
c, C.W. Lan
daDepartment of Physics, Anna University, Chennai 600 025, India
bDepartment of Electrical and Computer Engineering, Nagoya Institute of Technology, Gokiso-cho, Showaku, Nagoya 466, Japan cCrystal Growth Centre, Anna University, Chennai 600 025, India
dDepartment of Chemical Engineering, National Taiwan University, Taipei 10617, Taiwan, ROC
Received 12 August 2002; accepted 22 August 2002 Communicated by M. Schieber
Abstract
Good-quality single crystals of organic p-hydroxyacetophenone have been grown by slow evaporation solution growth technique at 371C using methanol as solvent. The grown crystals have been characterized by Raman studies, FT-IR, X-ray powder diffraction and thermal analyses. The mechanical properties of the grown crystals have been studied using Vicker’s micro-hardness tester.
r2002 Published by Elsevier Science B.V.
PACS: 81.10.Dn; 42.70.Mp; 81.07.b; 81.70.Pg
Keywords: A1. Characterization; A1. Thermal gravimetry; A1. X-ray diffraction; A2. Growth from solutions; B1. Organic compounds
1. Introduction
Nonlinear optics (NLO) has wide applications in the field of telecommunication and optical information storage devices. The organic NLO materials play an important role in SHG, fre-quency mixing, electro-optic modulation, optical parametric oscillation, optical bi-stability, etc. [1]. Organic crystals have parameters superior to widely used crystals like KDP [2–4]. The organic
NLO materials have an order of magnitude higher second harmonic generation efficiencies and also exhibit substantially greater laser damage thresholds. Considerable work has been done in order to understand the microscopic origin of nonlinear behavior of organics [5,6]. The NLO properties of large organic molecules and polymers have been the subject of extensive theoretical and experimental investigations during the past two decades and they have been investigated widely due to their high nonlinear optical properties, rapid response in electro-optic effect and large second- or third-order hyperpolarizibilities compared to inorganic NLO materials [7].
*Corresponding author. Department of Physics, Anna University, Chennai 600 025, India.
E-mail address:[email protected] (R. Gopalakrishnan).
0022-0248/03/$ - see front matter r 2002 Published by Elsevier Science B.V. PII: S 0 0 2 2 - 0 2 4 8 ( 0 2 ) 0 1 9 4 9 - 8
Recently, a large number of organic compounds with nonlocalized p electron systems and a large dipole moment have been synthesized to realize the nonlinear susceptibilities larger than the inorganic optical materials. However, their potential appli-cations are limited by poor chemical stability, by red cut-off wavelength caused by a large organic n-conjugated system and by poor phase matching properties caused by large birefringence which results from the layer stacking of the structure and by other factors [8]. The basic structure of organic NLO materials is based on p bond systems. Due to the overlap of p orbital, delocalization of electro-nic charge distribution leads to a high mobility of the electron density. Functionalization of both ends of the p bond system with appropriate electron donor and acceptor groups can enhance the asymmetric electronic distribution in either or both the ground and excited states, these leading to an increased optical nonlinearity [9].
The low-temperature solution growth technique is widely used for the growth of organic and inorganic compounds to get good single crystals [10]. In this paper we present the growth details and analyses of p-hydroxyacetophenone. p-hydro-xyacetophenone(C8H8O2) is one of the potential
organic NLO material. It has been grown by slow evaporation solution growth technique. The Ra-man spectrum of the 4-hydroxyacetophenone shows more intense absorption for powder sample compared to as-grown crystal. The C–H bend is more intense in the crystal sample than in the powder sample.
2. Experimental procedure 2.1. Crystal growth
The p-hydroxyacetophenone belongs to P212121
space group and aromatic ketone class with a noncentrosymmetrical structure. The low-tem-perature solution has been employed to grow the above crystal using an alcoholic solvent as it is insoluble in water. The commercially available 4-hydroxyacetophenone (99.99%) has been purified by repeated recrystallization process using metha-nol as solvent. A very small amount of charcoal
was added to the solution in order to remove the impurities. The recrystallization was done in order to improve the optical quality as well as the size of the growing crystals. It was found that the growth occurs in a faster manner in methanol compared to ethanol and hence methanol was used as a solvent for our growth.
The saturated solution of 4-hydroxyacetophe-none was obtained by dissolving the recrystallized material with continuous stirring of the solution using a magnetic stirrer. On reaching saturation, the equilibrium concentration of the solute was determined by gravimetry. The beaker containing the solution was optimally closed for controlled evaporation. The solution was kept in a constant temperature bath at 371C. Transparent single crystals were obtained from the mother solution after 15 days (Fig. 1). The molecular structure of the grown crystal is given in Scheme 1.
Fig. 1. Single crystal of p-hydroxyacetophenone (4-hydroxya-cetophenone).
3. Crystal characterization 3.1. X-ray diffraction analysis
The grown crystals have been characterized by X-ray powder diffraction technique using the Rich Seifert powder X-ray diffractometer. From the powder X-ray diffraction data the lattice para-meters and the cell volume have been calculated using the celn software package. The obtained results are in good agreement with the reported XRD values [6]. The peak corresponding to (2 0 1) has a maximum count of 430 cts. This is the strongest diffraction peak. From the X-ray dif-fraction data we observe that it belongs to P212121
space group and orthorhombic crystal system. Fig. 2 represents the powder X-ray diffraction pattern of the grown p-hydroxyacetophenone single crystals. The crystallographic data are given in Table 1.
3.2. Raman spectra analysis
The Raman spectra of p-hydroxyacetophenone have been recorded between 200 and 2000 cm1 both for single crystal and the powder form. Figs. 3a and b show the Raman spectra recorded
on the grown crystal and powdered sample, respectively. The spectrum shows more intense absorption for powder sample compared to as-grown crystal. In both spectra, the C=O stretch-ing mode yields less intense 1650 cm1 and more intense 1595 cm1 lines. The less intense peak is assigned to free C=O and the more intense peak is assigned to hydrogen bonded C=O. As the hydrogen bonded C=O absorption (lower wave number mode) is more intense than that of the free C=O in the crystal, it is expected that most of the C=O groups of p-hydroxyacetophenone in the crystal are hydrogen bonded [6]. When the intensities of these two bands of the crystal are compared with that of the powder sample, the latter sample is observed to have much more intensity than the former. This is to be attributed to more number of hydrogen bonded free C=O’s in the powder sample compared to the crystal. Thus, powdering of the crystal reduces the bonding forces within the crystal and also between molecules. In addition to C=O, the skeletal vibrations (1440, 1520 and 1565 cm1) of the aromatic ring are also found to produce more intense absorption in the powder sample than the crystal, illustrating more freedom for skeletal vibration in the powder than in the crystal. The bands between 1225 and 1500 cm1are assigned to CH3symmetric bends. The phenolic C=O
stretch-ing mode also provides two peaks between 1000 and 1225 cm1and these two bands are also more intense for powder than for the crystal. The aromatic C–H bend produces intense peak in the crystal than in the powder sample.
3.3. Thermal gravimetric analysis
The thermal gravimetric analysis (TGA) of the sample was carried out in METTLER-TA4000 system, about 17 mg of the sample was heated in a Fig. 2. Powder X-ray spectrum of p-hydroxyacetophenone.
Table 1
Crystallographic data of p-hydroxyacetophenone
a b c a ¼ b ¼ g Volume
crucible between 351C and 7001C at a heating rate of 201C/min in air. The resulting thermogram and the DTG trace are illustrated in Fig. 4. There is a sharp single stage of weight loss between 1401C and 3001C. There is no loss of water below 1251C illustrating the absence of any absorbed water in the sample. Since, the single stage of weight loss starts at 1471C without any intermediate stages the compound is expected to evaporate at this temperature. This study indicates that the com-pound could be used for any application below its melting point. The sharpness of the thermogram is also illustrative of the crystal purity without association of any impurities.
3.4. FT-IR analysis
The middle IR spectrum of p-hydroxyacetophe-none was scanned between 400 and 4000 cm1 by KBr technique (Model: BRUKER IFS 66 V FT-IR). It is shown in Fig. 5. The higher wave number region gives interesting informations with regard to bonding of the groups in the crystal. The phenolic OH stretch provides sharp as well as broad peaks illustrating the presence of free OH grouping without intermolecular bonding and intensely hydrogen bonded OH groupings. The former free OH groupings provide their stretching patterns at 3483.84, 3452.87 and 3392.66 cm1. Fig. 3. (a) Raman spectrum of p-hydroxyacetophenone (crystal sample). (b) Raman spectrum of p-hydroxyacetophenone (powder sample).
The broad peak due to hydrogen bonded OH groupings has its peak maximum at 3205.97 and 3321.03 cm1. The aromatic CH and aliphatic CH stretching modes are not clearly resolved even though their presence is clearly seen at 3010 and 2950 cm1. The carbonyl C=O stretch is observed at 1694.99 cm1. Its appearance illustrates nearly same type of interaction between carbonyl groups of all molecules with the environment in the crystal. Hence in the crystal to bind the molecules together, the C=O groups are entirely involved in bonding and OH groups are not fully involved in bonding. The skeletal vibrations of the aromatic ring are observed to produce peaks at 1603.43, 1567.49, 1516.01 and 1463.03 cm1. The peaks at 1367.8 and 1450 cm1 indicate CH3 bending
modes. Phenolic C=O stretch is seen to produce a doublet at 1273.88 and 1310.34 cm1due to the presence of free and hydrogen bonded groupings. The para substitution is clearly evident by the peak at 832.08 cm1. There is an intense peak at 1111.64 cm1 which may be assigned to –C–CO– CH3stretch and bend of the constituent.
Fig. 5. FT-IR spectrum of p-hydroxyacetophenone. Fig. 4. TGA spectrum of p-hydroxyacetophenone.
3.5. Optical assessment
The UV–Vis absorbance of the compound was scanned between 200 and 800 nm (Fig. 6) (Model: VARIAN CARRY 5E UV–Vis NIR). Generally, pure acetophenone absorbs at 246 and 280 nm. Both are assigned to p2p* transition. In the p-hydroxyacetophenone, the absorbance maximum at 315 nm is to be assigned to n2p* transition of the constituent group. But the material is trans-parent to wavelengths ranging from 350–400 nm and the entire visible region. Hence, the material can be used for NLO applications. In order to confirm the NLO property, the grown crystal has been tested using Nd:YAG laser. When the Nd:YAG laser light was incident on the crystal sample the second harmonic generation is devel-oped on the crystal samples (confirmed by emis-sion of green radiation).
3.6. Hardness studies
Micro-hardness studies have been carried out on the 4-hydroxyacetophenone single crystals using a Leitzmicro-hardness tester fitted with a Vickers diamond pyramidal indentor. Vickers micro-hardness values have been calculated using Hv¼ 1:8544P=d2kg/mm2 where P is the applied load and d is the mean diagonal length of the indentor impression. Hardness values have been taken for various applied loads.
A graph has been plotted between hardness number (Hv) and applied load (P) (Fig. 7). It is observed from the graph that the hardness value
increases and then attains almost saturation with the increase of the applied load. A plot obtained between ln(P) against ln(d) gives a straight line, which is derived from the Meyer’s law, the relation connecting the applied load is given by P ¼ adn: Here, n is the Meyer index or work hardening coefficient and a is the constant for a given material. The work hardening coefficient has been calculated from the slope of the straight line. The value of n is 2.04. According to Onitsch, n is greater than 2 when hardness decreases with the increase of load. It satisfies the prediction of Onitsch [11].
4. Conclusion
Single crystals of p-hydroxyacetophenone (4-hydroxyacetophenone) has been grown by the solution growth technique at 371C using a constant temperature bath (70.011C). The grown crystals have been confirmed using X-ray diffrac-tion studies. The funcdiffrac-tional groups have been identified by FT-IR analysis. Raman analysis has been made on the as-grown crystal and powdered sample. The aromatic C–H bend produces more intense peak in the crystal than in the powder sample. It is the only observation differing from Fig. 6. UV–Vis spectrum of p-hydroxyacetophenone.
the crystal to the powdered sample. It is observed from the thermal gravimetric analysis (TGA) that there is a sharp single stage of weight loss between 1401C and 3001C. There is no loss of water below 1251C illustrating the absence of any absorbed water in the sample. Since, the single stage of weight loss starts at 1471C without any intermediate stages the compound is expected to evaporate at this temperature. The Vicker’s micro-hardness test has been carried out and the work hardening coefficient has been determined.
