排列碼與其高效率之編解碼演算法

國

立

交

通

大

學

資訊科學與工程研究所

碩

士

論

文

排 列 碼 與 其 高 效 率 之 編 解 碼 演 算 法

Efficient Encoding and Decoding

with Permutation Arrays

研 究 生：林德璁

指導教授：蔡錫鈞 教授

Efficient Encoding and Decoding with Permutation Arrays

研 究 生：林德璁 Student：Te-Tsung Lin

指導教授：蔡錫鈞 Advisor：Shi-Chun Tsai

國 立 交 通 大 學

資 訊 科 學 與 工 程 研 究 所

碩 士 論 文

Submitted to Institute of Computer Science and Engineering College of Computer Science

National Chiao Tung University in partial Fulfillment of the Requirements

for the Degree of Master

in

Computer Science

July 2007

Hsinchu, Taiwan, Republic of China

Efficient Encoding and Decoding with

Permutation Arrays

An (n, d) permutation array(PA) is a subset of Sn with the property that

the distance (under any distance metric, such as hamming) between any two permutations in the array is at least d, which becomes popular recently for communication over power line. We use both hamming distance and l_∞ -norm to measure the distance between permutations, and give constructions of permutations arrays under those two metrics. For the hamming distance, we give the first explicit construction of 3-DPMH. For the l∞-norm, we give

the first explicit construction of DPM_∞ and a direct construction of (n, d) permutation array with l_∞-norm without using other binary code. Further-more, all have efficient encoding and decoding algorithms.

Acknowledgements

I am grateful to my advisor, Dr. Shi-Chun Tsai, for his guidance. I thank Hsin-Lung Wu who gives some important ideas for this thesis.

1 Introduction 7

1.1 Background and Preliminary . . . 7

1.2 Main Result and Construction Idea . . . 9

1.3 Notations . . . 11

2 Metrics and Lower Bound of Permutation Arrays 12 2.1 Metrics on Sn . . . 12

2.2 Lower Bound of PAs . . . 16

3 DPMs from Zn 3 to Sn with Hamming Distance 18 3.1 Construction of 3-DPMH . . . 18

3.1.1 3-DPMH of length 8n for n≥ 2 . . . 18

3.1.2 3-DPMH for input length ≥ 16 . . . 31

3.2 Construction of PAs with Hamming Distance . . . 34

3.3 Previous Result and Comparison . . . 43

4 Permutation Arrays with l_∞-Norm 45 4.1 DPMs from Z₂n−1 to Sn with l∞-norm . . . 45

4.2 Encoding and Decoding with PAs by DPM_∞ . . . 48

4.3 Encoding and Decoding Directly with PAs under l_∞-norm . . 52

CONTENTS 4

5 Conclusion and Open Problem 57

2.1 A_6×6 such that per(A) = V_∞(6, 1) . . . 15

3.1 3-DPMH Algorithm A8n . . . 19

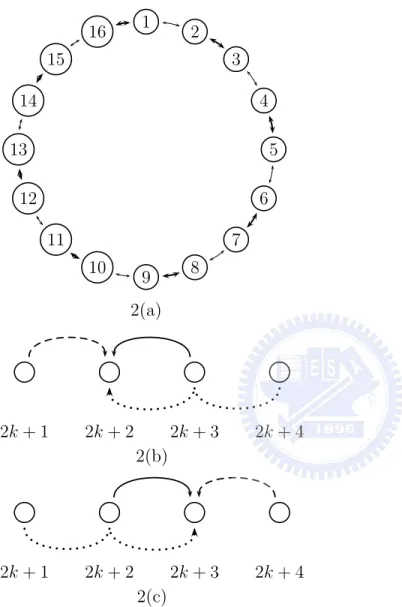

3.2 Transition patterns of PASS 1. . . 20

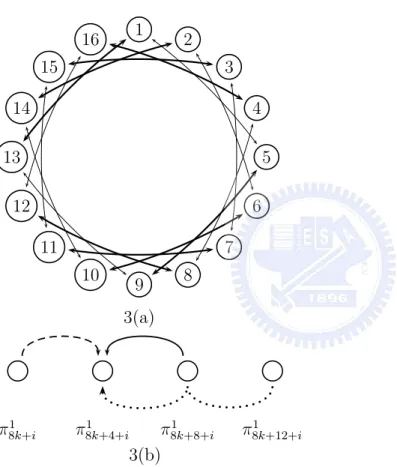

3.3 Transition patterns of PASS 2. i∈ {0, 1, 2, 3} . . . 21

3.4 Possible final positions of π_8k+i1 , i∈ {0, 1, 2, 3}. . . 26

3.5 3-DPMH Algorithm A8n+k for k ∈ [7] . . . 32

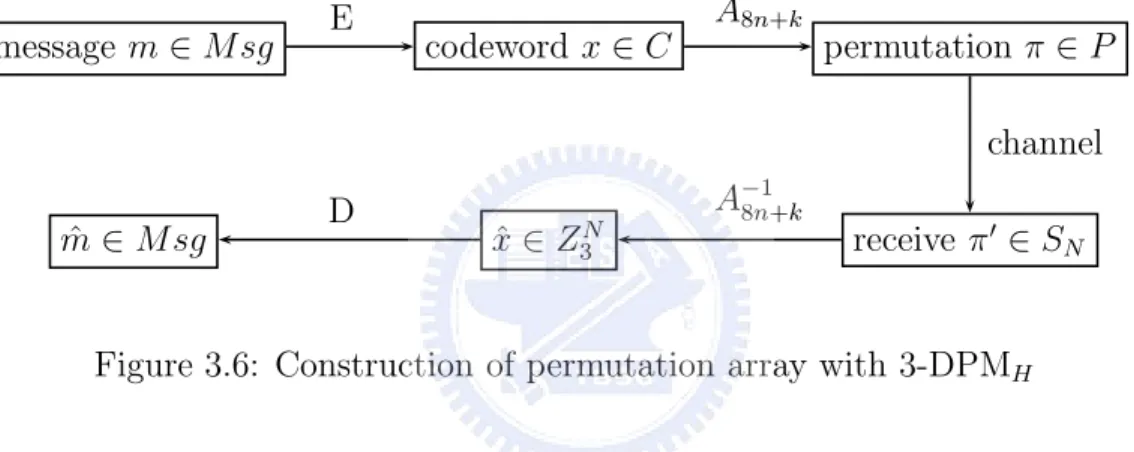

3.6 Construction of permutation array with 3-DPMH . . . 35

3.7 The unique path of symbol 12, given π₅ = 12. . . 36

3.8 Weighted majority vote . . . 41

4.1 Algorithm Bn computes DPM∞ from Z₂n−1 to Sn . . . 46

4.2 Algorithm C computes an (n₁ + 1, n₂ + 1, k)-DIM_∞ with an (n₁, n₂, k)-DIM_∞ . . . 47

4.3 Encoding and decoding with DPM_∞ . . . 50

4.4 Algorithm Dn . . . 51

4.5 Direct encoding and decoding scheme with PAs . . . 53

4.6 Algorithm Gn encodes from Z₂n−d to Sn . . . 53

4.7 Algorithm G−1_n is the decoding algorithm for Gn. . . 55

A.1 Algorithm A−1_8n+k without table lookup for n≥ 2, k ∈ [0, 7] . . 60 5

List of Tables

2.1 Lower bounds of P (16, d) with different metrics . . . 17

3.1 Possible values of π_j1 after PASS 1 for k ∈ {0, 1, · · · , 4n − 1}. 23 3.2 Possible values of πj after PASS 2 for k ∈ {0, 1, · · · , n − 1} and i∈ {1, 2, 3, 4}. . . 24

3.3 Possible final positions of π_8k+i1 and π_8k+4+i1 . . . 27

3.4 Necessary Conditions for Position Covering . . . 30

3.5 Path Table of πi , i = 8k + 8 + j, j ∈ {1, 2, 3, 4} . . . 37

3.6 Path Table of πi , i = 8k + 4 + j, j ∈ {1, 2, 3, 4} . . . 38

3.7 Comparison between A₃(16, d) and A(16, d−2) where L[A₃(16, d)] stands for the lower bound of A₃(16, d) as in [2] and U [A(16, d− 2)] the upper bound of A(16, d− 2) as in [1]. . . 44

4.1 f is a (4, 4,−1)-DIM_∞. . . 49

4.2 Comparison of the three constructions . . . 56

Introduction

1.1

Background and Preliminary

Let Sn denote the set of all permutations of length n. We consider a coding

scheme C : {0, 1}k _{→ S}

nwith the property that if we are given a permutation y ∈ Sn that is close to a valid encoding C(x), then it is possible to recover

the message x from the corrupted encoding y. To do this, first we need to choose a proper metric for the distance between two permutations. A natural choice is hamming distance, but it is not clear how to decode corrupted permutations efficiently under this metric. Secondly, we need to decide which permutations can be used as code words, such that for any two different messages x and x, such that C(x) and C(x) are “far” enough. In this thesis, we give efficient encoding and decoding algorithms for such scheme by measuring the permutation distance with the hamming distance and the

l_∞-norm.

An (n, d) permutation array(PA) is a subset of Sn with the property

that the distance (under any distance metric, such as hamming, etc.) be-tween any two permutations in the array is at least d. PAs were studied

CHAPTER 1.

Introduction

i∈ {1, .., n} is associated with a frequency fi and a message is encoded as a

permutation, which is then transmitted in time as the series of corresponding frequencies. For example, to transmit the message encoded as (3, 4, 1, 2), the sequence of frequencies (f₃, f₄, f₁, f₂) is transmitted one by one. Since then many researches have been done on coding/modulation schemes with PAs [12],[21],[23],[24]. Ferreira and Vinck [12] made use of distance preserving mappings (DPMs) from binary sequences to permutation sequences to con-struct permutation trellis codes. A systematic study of DPMs was initiated in [6]. Later, Lee [16],[18], Swart et al. [20] proposed several constructions of DPMs, and Chang [4],[5] studied the distance increasing mappings (DIMs). All the above mentioned works use the hamming distance as a metric for per-mutations. Most of the efforts have been on finding mappings from binary vectors to permutations that preserve the minimum distance of the binary vectors. A typical scheme is starting by encoding a message with a binary code, which is mapped to a permutation and transmitted. Upon receiving a permutation, one can recover the corresponding binary vector and then with the binary code one can do some error correcting to recover the mes-sage. However, there is no discussion on the efficiency of error correcting directly from the permutations. In our research, we construct distance pre-serving mappings from ternary vectors to permutations and we give efficient encoding/decoding scheme for the PAs we constructed.

A permutation can be seen as a ranking, and vice versa. To study the correlations between ranks, several metrics on permutations were introduced, such as the hamming distance, the minimum number of transpositions tak-ing one permutation to another, etc. [14], [9], [7], [8]. And some consider

permutation arrays with different metrics. Stoll and Kurz [22] investigated a detection scheme of permutation arrays using Spearman’s rank correlation. Chadwick and Kurz [3] studied the permutation arrays based on Kendall’s tau.

We consider a noisy channel which can transmit permutations as code words. The noise in the channel is an independent Gaussian distribution with zero mean for each position. The received sequence is the original permutation together with the Gaussian noise, and its ranking can be seen as a permutation, which can be different from the original one. Under the model of additive white gaussian noise (AWGN) [11], there is only a small probability for any frequency to deviate significantly from the original one. This inspires us to consider not only the hamming distance but also the

l_∞-norm.

1.2

Main Result and Construction Idea

In this thesis, we have two main results.

First, we give the first explicit construction of distance preserving map-pings from ternary vectors of dimension n to Sn with hamming distance

(3-DPMH) for n ≥ 16. Thus we can construct (n, d) permutation array

under hamming distance with size ≥ A₃(n, d). Moreover, we have efficient encoding/decoding scheme for the PAs we constructed by the 3-DPMH.

Second, we give explicit constructions of distance preserving mappings with l_∞-norm (DPM_∞), which can be used to recover corrupted permuta-tions. And we give an (n, d) permutation array under l_∞-norm without us-ing binary codes. It’s the first direct construction of PAs to the best of our knowledge. With both constructions, a lower bound on the size of

permu-CHAPTER 1.

Introduction

Moreover, for both constructions, we have efficient encoding/decoding algo-rithms.

For the first result, Our 3-DPMH construction is inspired by [18]. It is

based on a crucial ”local” property which we discuss as follows. Intuitively, an algorithm has the local property if each element of the permutation is not far away from its initial position after running the algorithm. From a 2-DPMH with local property, we can obtain a 3-DPMH. First we run a

2-DPMH algorithm such that every element in the permutation is not far from

the initial position, i.e. with a small position difference. Then we only swap two positions far enough, i.e. with the position difference larger than the difference resulting from the 2-DPMH. This will give us a 3-DPMH if we

have a 2-DPMH with local property. We constructed a two-pass 3-DPMH

by using a 2-DPMH, which is very similar to the one constructed in [17, 18].

However, in these papers, the local property is not fully exploited. Following the same paradigm, one can obtain q-DPMH for all q > 3.

For the second result, both construction ideas are crucial on a greedy strategy. For a binary vector, first we use the largest number n to represent 1 and the smallest number to represent 0 for the first bit. For the second bit, we use the available largest number to represent 1 and the available smallest number to represent 0, i.e. if the first and second bit is one, then we use the largest value n to represent the first bit and second largest value n− 1 to represent the second bit. The other bits can be determined one by one. Thus each value of permutation only depends on the prefix of the vector, and then it gives the largest distance with a greedy strategy and it can be decoded in linear time.

1.3

Notations

Let [n] ={1, · · · , n}, [m · · · n] = {m, m+1, · · · , n}, for m < n. For a function

f , let f (S) denote the union of f (s) for all s∈ S. Let δ : Zq×Zq → {0, 1} be

the function defined by δ(a, b) = 1 if a = b and 0 otherwise. Let Sn denote

the set of all permutations of [n] and Zn

q denote the set of all q-ary vectors

of length n. For any π ∈ Sn and i∈ [n], π−1(i) denotes the position of i in π, i.e. if π(j) = i then π−1(i) = j. Let idn denote the identity permutation

in Sn, i.e. idn = (1, 2,· · · , n). For any x ∈ Z₂n, we use x[i..j] to denote the

subvector (xi,· · · , xj) for any i < j. For any π ∈ Sn, we use π[i..j] to denote

the partial permutation (πi,· · · , πj) for any i < j. The Hamming distance dH(a, b) between two n-tuples a = (a1, a2,· · · , an) and b = (b1, b2,· · · , bn) is

the number of positions where they differ, i.e. dH(a, b) =|{j : aj = bj}|. The l_∞-norm distance of two permutations is d_∞(π, σ) = max

j |πj− σj|.

Define Vf(n, d) = |{π ∈ Sn : df(id, π) ≤ d}| to be the size of a sphere

with center id∈ Snand radius d, where f is any metric function of Sn. If f is

right-invariant, i.e., df(π1, π2) = df(π1σ, π2σ) for all σ then for any center π

and fixed radius d, the size of a sphere is the same, i.e. |{π ∈ Sn: df(σ, π)≤ d}| = {π ∈ Sn : df(id, πσ−1) ≤ d}| = Vf(n, d). Let (n, d) q-ary code be a

code over Zn

q with minimum distance d. Let (n, d)-PA with metric f be a

permutation array over Sn with minimum distance d based on metric f . Let Aq(n, d) denote the maximum size among all (n, d) q-ary code and Pf(n, d)

denote the maximum size among all (n, d)-PA with metric f . A mapping

F : Zn1

q → Sn₂ is a q-ary distance-preserving mappings under metric f

(q-DPMf), if for any x, y ∈ Z₂n1, df(F (x), F (y))≥ dH(x, y). We usually omit q

Chapter 2

Metrics and Lower Bound of

Permutation Arrays

In this chapter, we introduce several metrics, and derive the Gilbert like lower bounds for permutation arrays under these metrics. To get the lower bounds, we will need to estimate the size of a sphere for every metric.

2.1

Metrics on S

Given Sn and a metric function d : Sn × Sn → R+ satisfied d(π, π) = 0, d(π, σ) = d(σ, π) and d(π, σ)≤ d(π, η) + d(η, σ) then (Sn, d) formed a metric

space. The metric function d is designed to measure the distance between any two permutations in Sn. We call the metric function just metric.

Many metrics can be defined and discussed. We need two additional restrictions. First is right invariant. In general, permutations are presented as one to one mappings between two sets with the same cardinality. π :

A → B, |A| = |B| = n. If the distance will not change when changing the

labeling of A, then it’s right invariant, i.e. d(π₁, π₂) = d(π₁σ, π₂σ) for all

σ. On the other hand, if the distance will not change when changing the

labeling of B, it’s left invariant, d(π₁, π₂) = d(σπ₁, σπ₂). By the definition, given a right invariant metric d, it’s easy to construct another inverse metric

d(π₁, π₂) = d(π−1₁ , π₂−1) which is left invariant. It’s because d(π₁, π₂) =

d(π₁−1, π−1₂ ) = d(π₁−1σ, π₂−1σ) = d((σ−1π₁)−1, (σ−1π₂)−1) = d(σ−1π₁, σ−1π₂). So we only need to consider right invariant.

Next we introduce several different kinds of metrics. These metrics have been used to measure the distance of permutations in various areas.

Define Vf(n, d) = |{π ∈ Sn : df(id, π) ≤ d}|, the size of a sphere with

center id ∈ Sn with radius d with respect to metric f . Note that all metrics

we discuss here are right-invariant, so spheres with the same radius have the same sizes, i.e., given any σ ∈ Sn, |{π ∈ Sn : df(σ, π) ≤ d}| = {π ∈ Sn : df(id, πσ−1)≤ d}| = Vf(n, d).

The Hamming distance is a well-known and very popular metric. Orig-inally it’s a natural design for string. It counts the number of positions for which the corresponding symbols are different. Hamming distance is widely used for binary vectors and q-ary vectors in coding theory category. The Hamming distance between two permutations is dH(π, σ) = |{j : πj = σj}|.

One may verify that it’s a bi-invariant metric easily. Next let’s consider

Vd_H(n, d). Because |{π|dH(id, π) = d}| =

_n

d



(!d), where the subfactorial !d is the number of distinct derangement on d elements, it implies VdH(n, d) =

d  i=0
_n i

(!i). It’s well known the subfactorials satisfy the recurrence relations !(n + 1) = n· [!n+!(n − 1)] and !n is equivalent to ning(n_e!), where ning is the nearest integer function, ning(r) = minargj{z ∈ Z : |j − r|}(half-integers

are rounded to even numbers to avoid ambiguous). Thus VdH(n, d)≤ 2e n!

(n−d)!

CHAPTER 2.

Metrics and Lower Bound of PAs

n



j=1

|πj− σj|. It’s not clear whether an explicit formula of Vl1(n, d) exist, but

the upper bound can be derived. By [10], Vl₁(n, d) ≤ (2e(d+n)_n )n. Note that l₁-norm is one of a metric family called lp-norm family. In general, lp-norm

is defined as lp(π, σ) = [ n  j=1 (|πj − σj|)p] 1 p.

The l_∞-norm of two permutations is d_∞(π, σ) = max

j |πj − σj|. It’s a

special case of lp-norm when p is infinitely large. We give two ways to derive

upper bounds for V_∞(n, d). Note that there is a connection between V_∞(n, d) and permanent. Recall the definition of permanent for a matrix A, perA ≡



π∈Sn

a_1π1· · · anπn =|{π ∈ Sn : aiπi = 1 for all i}|. Define A(n,d) to be an n×n

matrix, a(n,d)_ij =    1 if |j − i| ≤ d 0 otherwise

And by the theorem 11.5 in [19], for an n× n (0, 1)-matrix A with ri ones in

row i, then per(A) ≤

n



i=1

(ri)!

1

ri_{. We can derive the upper bound of V∞(n, d)}

as follows.

V_∞(n, d) = |{π ∈ Sn: d∞(id, π)≤ d}|

= |{π ∈ Sn:|πi− i| ≤ d for all i}|

= |{π ∈ Sn: a(n,d)iπi = 1 for all i}|

= per(A(n,d))

≤ [(2d + 1)!] n

2d+1

The second way to estimate V_∞(n, d) is by a recurrence relation. Define

Aij to be the matrix obtained from A by deleting row i and column i. It’s well

known per(A) =

n



i=1

aij · per(Aij). By observing A(n,d), one can find A(n,d)₁₁ = A(n−1,d) and each entry in A(n,d)_1k is upper bounded by the corresponding entry

A =               1 1 0 0 0 0 1 1 1 0 0 0 0 1 1 1 0 0 0 0 1 1 1 0 0 0 0 1 1 1 0 0 0 0 1 1              

Figure 2.1: A_6×6 such that per(A) = V_∞(6, 1)

of A(n−1,d) for 2≤ k ≤ 1 + d. Thus V_∞(n, d) = per(A(n,d)) = 1+d k=1 per(A(n,d)_1k ) ≤ (1 + d)per(A(n−1,d)₎ ≤ (1 + d)2_per(A(n−2,d)₎ · · · ≤ (1 + d)n−d−1_per(A(d+1,d)₎ = (1 + d)n−d−1V_∞(d + 1, d) = (1 + d)n−d−1(d + 1)!

The second bound is better when d is large.

For other metrics, define I(π, σ) as the minimum number of pairwise adjacent transpositions taking π−1 to σ−1. It has an equivalent definition

I(π, σ) ≡ |{(i, j) : πi < πj, σi > σj}|. Let π be a permutation ∈ Sn. If i < j and πi > πj, the pair (i, j) is called an inversion of π. Note that I(π, σ) equals the number of inversions of πσ−1. Let In(k) denotes the

num-CHAPTER 2.

Metrics and Lower Bound of PAs

a recurrence relation In(k) = In−1(k) + In−1(k − 1) + In−1(k − 2) + .. + In−1(k − n + 1) and then VI(n, d) = |{π ∈ Sn : I(π, id) ≤ d}| = |{π ∈ Sn : the number of inversions of π ≤ d}| =

d



k=0

In(k). Thus VI(n, d) can be

computed by dynamic programming in quadratic time.

Define T (π, σ) as the minimum number of transpositions required to bring

π to σ. This is a bi-invariant metric on Sn. It’s known T (π, σ) = n−

number of cycles in πσ−1 [9]. Let c(n, k) denote the number of permutations

π ∈ Sn with exactly k cycles. This number is called a signless Stirling

number of the first kind. c(n, k) satisfies the recurrence relation c(n, k) = (n− 1)c(n − 1, k) + c(n − 1, k − 1) by [19]. Thus VT(n, d) =

d



i=0

c(n, n− i),

which can be computed by dynamic programming in quadratic time.

2.2

Lower Bound of PAs

Gilbert bound [13] is a lower bound on A(n, d). Similar idea can be applied to permutation arrays.

Theorem 1. Pf(n, d) ≥ _V n!

f(n,d−1), where f is any metric function of Sn.

Proof. We give a greedy algorithm for producing a permutation array

achiev-ing the claimed bound.

(a) Start with any permutation in Sn.

(b) Choose a permutation whose distance is at least d to all previous chosen

permutations.

Let P be the permutation array produced by the above greedy algorithm. Once the algorithm stops, it implies all permutations can be covered with the |P | spheres centered at codewords in P . Thus n! ≤ |P | · Vd(n, d− 1)

By the upper bounds of VdH(n, d), Vl1(n, d) and V∞(n, d), we have

follow-ing corollaries immediately.

Corollary 1. P_∞(n, d)≥ n! [(2d−1)!]2d−1n , and P∞(n, d) ≥ n! dn−d_(d)! Corollary 2. Pl1(n, d) ≥ ₍2e(d+n)n! n )n Corollary 3. PH(n, d)≥ 2 n! e(n−d)!n! for d < n.

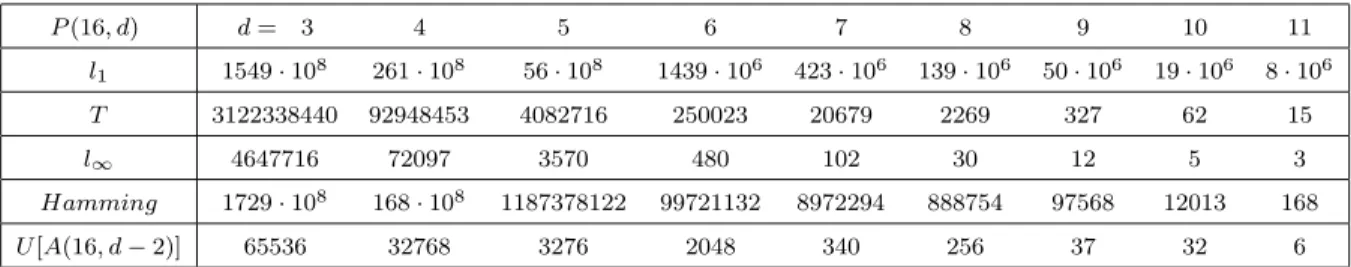

We give the lower bounds for n = 16 with different metrics by following table. One can find that the lower bound of Pl₁(n, d) is very large since the l₁-norm has a wide range up to n2/2. By [5], one can construct an (n, d)

permutation array P with hamming distance such that |P | = A(16, d − 2). Let U [A(16, d − 2)] denote the upper bound of A(16, d − 2). The lower bound of PH(n, d) is much larger than A(16, d− 2). The large gap between

those two constructions inspires us to construct PAs directly without using DPMs/DIMs. Note that the permutation array meets the lower bound of

PH(n, d) by Gilbert bound may not have efficient encoding/decoding

algo-rithm. P(16, d) d= 3 4 5 6 7 8 9 10 11 l1 1549 · 108 261 · 108 56 · 108 1439 · 106 423 · 106 139 · 106 50 · 106 19 · 106 8 · 106 T 3122338440 92948453 4082716 250023 20679 2269 327 62 15 l∞ 4647716 72097 3570 480 102 30 12 5 3 Hamming 1729 · 108 168 · 108 1187378122 99721132 8972294 888754 97568 12013 168 U[A(16, d − 2)] 65536 32768 3276 2048 340 256 37 32 6

Chapter 3

DPMs from Z

₃

n

to S

_n

with

Hamming Distance

3.1

Construction of 3-DPM

In this section, we give the construction of 3-DPMH. First of all, we show

the algorithm for input length 8n for any integer n≥ 2. We call the algorithm

A_8n. Then we extend A_8n for all input length≥ 16. Note that our approach gives a framework for designing general q-DPMH. In this chapter, all addition

and substraction is operated in Z_8n = [8n], that is, if a, b ∈ Z_8n then the output of a + b is a + b mod 8n if a + b mod 8n = 0, 8n otherwise.

3.1.1

3-DPM

of length 8n for n

≥ 2

The 3-DPMH of length 8n (A8n) is shown in Figure 3.1. Algorithm A8n

consists of two passes: PASS 1 and PASS 2. The transition patterns of both passes are illustrated in figures 3.2 and 3.3 respectively.

In figures 2(a) and 3(a), the thin lines represent the transpositions in the first for-loop of both passes and the thick lines represent those transpositions

Algorithm A_8n: Input: (x₁,· · · , x_8n)∈ Z₃8n Output: (π₁,· · · , π_8n)∈ S_8n PASS 1 : (π₁1, π1₂,· · · , π_8n1 )← (1, 2, · · · , 8n); for i = 0 to 4n− 1 do;

if x_2i+1= 1 then swap (π_2i+11 , π1_2i+2);

for i = 0 to 4n− 1 do;

if x_2i+2= 1 then swap (π_2i+21 , π1_2i+3); PASS 2 :

(π₁, π₂,· · · , π_8n)← (π₁1, π1₂,· · · , π_8n1 );

for i = 0 to n− 1 do;

if x_8i+1= 2 then swap (π_8i+1, π_8i+5);

if x_8i+2= 2 then swap (π_8i+2, π_8i+6);

if x_8i+3= 2 then swap (π_8i+3, π_8i+7);

if x_8i+4= 2 then swap (π_8i+4, π_8i+8);

for i = 0 to n− 1 do;

if x_8i+5= 2 then swap (π_8i+5, π_8i+9);

if x_8i+6= 2 then swap (π_8i+6, π_8i+10);

if x_8i+7= 2 then swap (π_8i+7, π_8i+11);

if x_8i+8= 2 then swap (π_8i+8, π_8i+12); Output (π₁,· · · , π_8n).

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 3(a)

π_8k+i1 π_8k+4+i1 π_8k+8+i1 π1_8k+12+i

3(b)

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

A_8n.

Theorem 2. A_8n is a 3-DPMH for all n≥ 2.

Proof. Given x∈ Z₃8n, let π = A_8n(x) and π1 be the intermediate result after PASS 1. First of all, for any fixed position i, we look into what possible values πi and π1i can be after running the corresponding pass of A8n.

Claim 1. If i is even, the possible values of π1_i are in{i−1, i, i+1, i+2}. If i is odd, the possible values of π_i1 are in{i−2, i−1, i, i+1}. If i = 8k+4+j for j ∈ {0, 1, 2, 3}, the possible values of πi are in {π1i−4, πi1, πi1+4, π1i+8}. If i = 8k +

8 + j for j ∈ {0, 1, 2, 3}, the possible values of πi are in {π1i−8, πi1−4, πi1, πi1+4}. Proof. First consider i is even. Let i = 2k + 2. Observe figure 3.2(b), the

possible values of π1_2k+2 are {2k + 1, 2k + 2, 2k + 3, 2k + 4}. For example, if x_2k+1 = 1, x_2k+2 = 1 and x_2k+3 = 1 (transition indicated in dotted line),

π_2k+21 = 2k + 4. If only x_2k+2 = 1(normal line), π_2k+21 = 2k + 3. If only

x_2k+1 = 1(dashed line), π_2k+21 = 2k + 1. If all inputs are zero, π_2k+21 = 2k + 2. Similarly for odd i, the transition pattern is shown in figure 3.2(c). All cases are summarized in Table 3.1.

In the table, each row stands for the input and the corresponding result after swap operations. For example, in row 7, if x_2k+1 = x_2k+2 = 1 and

x_2k+3 = 1, then π_2k+21 = 2k + 3 and π1_2k+3= 2k + 1. Thus by a similar obser-vation from figure 3.3, we summarize the possible values of πi’s in Table 3.2,

which is very similar to Table 3.1 if we replace 1 by 2. The claim is true by Table 3.1 and Table 3.2.

x_2k+1 x_2k+2 x_2k+3 π_2k+21 π_2k+31 1 - - - 2k+2 2k+3 2 - - 1 2k+2 2k+4 3 - 1 - 2k+3 2k+2 4 - 1 1 2k+4 2k+2 5 1 - - 2k+1 2k+3 6 1 - 1 2k+1 2k+4 7 1 1 - 2k+3 2k+1 8 1 1 1 2k+4 2k+1

Table 3.1: Possible values of π_j1 after PASS 1 for k∈ {0, 1, · · · , 4n − 1}.

Given x, y ∈ {0, 1}8n, let A_8n(x) = π, A_8n(y) = τ , and π1 and τ1 are the intermediate result after PASS 1 respectively.

Claim 2. If i and j are both even (or odd) and |i − j| ≥ 4, then π_i1 = τ_j1. Proof. Assume that i and j are even. By Claim 1, the possible values of π_i1are in{i−1, i, i+1, i+2} and the possible values of τ_j1are in{j−1, j, j+1, j+2}. Clearly |i − j| ≥ 4 implies that π_i1 = τ_j1. Similarly the claim holds for the case when i and j are odd.

The following claim shows that if the values of the i-th position of π and τ are different after running PASS 1, the difference will be kept (or the difference may be propagated to different position) after running the whole algorithm.

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

x8k+i x8k+4+i x8k+8+i π8k+4+i π8k+8+i

1 - - - π_8k+4+i1 π_8k+8+i1 2 - - 2 π_8k+4+i1 π_8k+12+i1 3 - 2 - π_8k+8+i1 π_8k+4+i1 4 - 2 2 π_8k+12+i1 π_8k+4+i1 5 2 - - π_8k+i1 π_8k+8+i1 6 2 - 2 π_8k+i1 π_8k+12+i1 7 2 2 - π_8k+8+i1 π_8k+i1 8 2 2 2 π_8k+12+i1 π_8k+i1

Table 3.2: Possible values of πj after PASS 2 for k ∈ {0, 1, · · · , n − 1} and i∈ {1, 2, 3, 4}.

Proof. Note that πj = π1i implies that 4|(j − i) since πj must be one of

the elements in {π_i1₋₈, π_i1₋₄, π_i1, π1_i+4, π1_i+8} by Claim 1. Similarly assume that τj = τi1, then we have 4|(j − i). Thus, 4|(i − i). If |i − i| ≥ 4, then we

obtain π1_i = τ_i1 by Claim 2. Therefore, in this case, πj = τj. On the other

hand, if |i − i| < 4, it implies i = i. By assumption, we have π1_i = τ_i1 and this also implies πj = τj.

Definition 1. For any i = j, we say that position i can be covered with

position j if δ(xi, yi) > δ(πi, τi) and δ(xj, yj) < δ(πj, τj), where δ(a, b) = 1 if a = b and 0 otherwise. (that is, xi = yi, πi = τi, xj = yj, and πj = τj). Furthermore, we say that position i is self-covered if δ(xi, yi)≤ δ(πi, τi).

For each i with δ(xi, yi) > δ(πi, τi), it needs some other position to make

up the decrease of distance at position i in order to satisfy the distance preserving property.

Definition 2. Let NSC be the set of positions not self-covered, that is, NSC= {i ∈ [n] : δ(xi, yi) > δ(πi, τi)}. A covering pattern is a function g :

[n]→ [n] such that for any i ∈ NSC, g(i) covers i and for any i ∈ [n]\NSC,

g(i) = i.

The following is our main claim which is crucial to show the distance-preserving property of algorithm A_8n.

Claim 4. There exists a covering pattern g such that for any position j ∈NSC,

g(j) ∈ {j − 1, j − 4, j − 5, j − 8, j − 9}. Furthermore, |g−1(k)∩ {k + 1, k + 4, k + 5, k + 8, k + 9}| ≤ 1 for any position k.

Proof. For any x and y ∈ {0, 1}8n, we define such a covering pattern g by analyzing every possible position j ∈ [n] and setting g(j) case by case.

Case 1 : [j with xj = yj] It implies that δ(xj, yj) = 0, and it is always

true that δ(πj, τj) ≥ δ(xj, yj). So j is self-covered. In this case,we can set g(j) = j.

Case 2 : [j with xj = yj and one of xj and yj is 2] W.L.O.G., we may

assume that xj = 2 and yj = 2.

• Case 2-1: [j = 8k + 4 + i for some k ∈ {0, 1, · · · , n − 1} and i ∈ {1, 2, 3, 4}] Observe that in Table 3.2, under the case condition, the

possible values of πj are in{π_8k+8+i1 , π1_8k+12+i} and the possible values of τjare in{τ_8k+i1 , τ_8k+4+i1 }. Note that {π_8k+8+i1 , π1_8k+12+i}∩{τ_8k+i1 , τ_8k+4+i1 } = ∅ by Claim 2. Thus, πj = τj. So j is self-covered. In this case, we set g(j) = j.

• Case2-2: [j = 8k+8+i for some k ∈ {0, 1, · · · , n−1} and i ∈ {1, 2, 3, 4}]

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

that πj = πj1₁ and τj = τj1₂. If j1 = j2, then |j1− j2| ≥ 4 and πj = τj

by Claim 2. I.e., j is self-covered. In this case, set g(j) = j. On the other hand, if j₁ = j₂, then it must be the cases in row 3 and 4 (i.e.

j₁ = j₂ = 8k + 4 + i) or in rows 7 and 8 (i.e. j₁ = j₂ = 8k + i) of Table 3.2. In both cases, observe that x_8k+4+i and y_8k+4+i must be 2 and π_8k+4+i = π1_8k+12+i and τ_8k+4+i = τ_8k+8+i1 . By Claim 2, π_8k+4+i =

τ_8k+4+i. Note that it’s still possible πj = τj; i.e. j is self-covered, and

we can simply set g(j) = j. So if πj = τj, then set g(j) = j, else j = 8k + 8 + i can be covered with position j− 4 = 8k + 4 + i and we

set g(j) = j − 4.

For convenience, we can let g(j) = j for all j by default. If j is not self-covered, then we can set g(j) to be other value. In other words, we reset

g(j) whenever necessary.

π_8k−4+i π_8k+i π_8k+4+i π_8k+8+i

Figure 3.4: Possible final positions of π_8k+i1 , i∈ {0, 1, 2, 3}.

Case 3 : [j with xj = yj and xj, yj ∈ {0, 1}] In this case, W.L.O.G. we

may assume xj = 1 and yj = 0. For convenience, we use Table 3.3 to show

that the possible positions of π_8k+i1 and π_8k+4+i1 . For example, row 7 means that when x_8k−4+i = 2, x_8k+i= 2 and x_8k+4+i = 2, then after running PASS

x_8k−4+i x_8k+i x_8k+4+i π_8k−4+i π_8k+i π_8k+4+i π_8k+8+i 1 - - - π_8k+i1 π_8k+4+i1 2 - - 2 π_8k+i1 π1_8k+4+i 3 - 2 - π_8k+4+i1 π_8k+i1 4 - 2 2 π_8k+4+i1 π_8k+i1 5 2 - - π1_8k+i π_8k+4+i1 6 2 - 2 π1_8k+i π1_8k+4+i 7 2 2 - π1_8k+4+i π_8k+i1 8 2 2 2 π1_8k+4+i π_8k+i1

Table 3.3: Possible final positions of π_8k+i1 and π_8k+4+i1

2, π_8k+i1 will appear in position 8k + 4 + i (figure 3.4: dashed line) and π1_8k+4+i in position 8k− 4 + i.

• Case 3-1: [π1

j = τj1 and j = 8k + i for some k ∈ {0, 1, · · · , n − 1} and i∈ {1, 2, 3, 4}] Note that xj = 2. By Table 3.3, π_8k+i1 can be in position

either 8k+i or 8k−4+i. If π_8k+i= π_8k+i1 , then π_8k+i= τ_8k+iby Claim 3. Thus, j is self-covered and we set g(j) = j. Similarly it applies to the case when τ_8k+i = τ_8k+i1 . The rest of this case is that both π1_8k+i and

τ_8k+i1 are in position 8k − 4 + i. When this happens, it implies that

xj−4 = yj−4 = 2 by observing Table 3.3 and we have π8k−4+i = π_8k+i1

and τ_8k−4+i = τ_8k+i1 . By assumption that π_8k+i1 = τ_8k+i1 , we conclude that j can be covered with j − 4. In this case, set g(j) = j − 4, if

πj = τj. • Case 3-2: [π1

j = τj1 and j = 8k + 4 + i for some k∈ {0, 1, · · · , n−1} and i∈ {1, 2, 3, 4}] Again by observing Table 3.3 if xj = 2 and yj = 2, then

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

π_8k+4+i1 and τ_8k+4+i1 have three possible final positions i.e., 8k + 4 + i, 8k + i, and 8k− 4 + i. We divide the analysis into three subcases.

– Subcase 3-2-I: [π_8k+4+i1 or τ_8k+4+i1 are in position 8k+4+i] W.L.O.G. we assume that π_8k+4+i1 appears in position 8k+4+i, i.e. π_8k+4+i=

π_8k+4+i1 . By the assumption that π1_8k+4+i = τ_8k+4+i1 , we obtain

π_8k+4+i= τ_8k+4+i by Claim 3. Thus j = 8k + 4 + i is self-covered and set g(j) = j by default.

– Subcase 3-2-II: [π1_8k+4+ior τ_8k+4+i1 are in position 8k + i] W.L.O.G. we assume that π_8k+4+i1 appears in position 8k + i, i.e. π_8k+i =

π_8k+4+i1 . We can assume that τ_8k+4+i = τ_8k+4+i1 , otherwise it has been done in Subcase 3-2-I. By Claim 3, it’s clear that π_8k+i =

τ_8k+i. In this subcase since π_8k+4+i = π1_8k+4+i, τ_8k+4+i = τ_8k+4+i1 and both x_8k+4+i and y_8k+4+i are not equal to 2, it must be the cases in row 3 or row 7 of Table 3.3. In both cases we have

x_8k+i = y_8k+i = 2. Thus j can be covered with j− 4 and we set

g(j) = j− 4, if πj = τj.

– Subcase 3-2-III: [Both π1_8k+4+iand τ_8k+4+i1 are in position 8k−4+i] I.e. π_8k−4+i = π_8k+4+i1 and τ_8k−4+i = τ_8k+4+i1 . Clearly π_8k−4+i =

τ_8k−4+i by the assumption of Case 3-2 that π_8k+4+i1 = τ_8k+4+i1 . Again, by observing Table 3.3, it must be the case that x_8k−4+i=

y_8k−4+i = 2 and x_8k+i = y_8k+i = 2. Thus j can be covered with

j− 8 and we set g(j) = j − 8, if πj = τj.

Next, we deal with the case that π_j1 = τ_j1 and xj, yj ∈ {0, 1} with xj = yj. By observing Table 3.1, in this case, j must be odd, and in

rows 3 and 4 (i.e. π1_2k+3 = τ_2k+31 = 2k + 2) or in rows 7 and 8 (i.e.

and π_j1₋₁ = τ_j1₋₁ in these cases. We divide the analysis into two cases.

• Case 3-3: [π1

j = τj1 and j = 8k + i for some k ∈ {0, 1, · · · , n − 1} and i ∈ {3, 5}] Note that xj = yj. From the above discussion, we know

that xj−1 = yj−1 = 1 and π1j−1 = τj1−1. The possible final positions

of π1_j−1 and τ_j1₋₁ are j − 1 and j − 5 by observing Table 3.3. Thus, there are the following three cases: (1) πj−5 = πj1−1 and τj−1 = τj1−1

(or symmetrically πj−1 = π1j−1 and τj−5 = τj1−1); (2)πj−1 = πj1−1 and τj−1 = τj1−1 and (3) πj−5 = π1j−1 and τj−5 = τj1−1. For (1), by Claim 3, πj−1 = τj−1. Thus, j can be covered with position j − 1 and we set g(j) = j− 1. For (2), it is obvious that j can be covered with position j − 1 and we set g(j) = j − 1. For (3), note that xj−5 = yj−5 = 2 by

observing Table 3.3. Thus j can be covered with position j− 5 and we set g(j) = j− 5.

• Case 3-4: [π1

j = τj1 and j = 8k + 4 + i for some k ∈ {0, 1, · · · , n − 1}

and i ∈ {3, 5}] Again we have xj−1 = yj−1 = 1 and πj1−1 = τj1−1. By

observing Table 3.3, the possible final positions of π_j1₋₁ and τ_j1₋₁ are

j − 1, j − 5, and j − 9. If one of the final positions of π_j1₋₁ and τ_j1₋₁ is j− 1, then j can be covered with position j − 1 by Claim 3 and we can set g(j) = j− 1. Suppose that one of final positions is j − 5. With the same argument as in Subcase 3-2-II, j can be covered with position

j− 5 and we can set g(j) = j − 5. Finally, suppose that both the final

positions are j− 9. With the same argument as of Subcase 3-2-III, j can be covered with position j− 9 and we can set g(j) = j − 9. By the above analysis, we can set up a covering pattern g such that

g(j) = j if position j is self-covered and g(j)∈ {j −1, j −4, j −5, j −8, j −9}

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

covered case necessary condition

g(k + 4) = k xk= yk= 2 xk+4 = yk+4 xk= yk= 2 g(k + 8) = k xk+4 = yk+4 = 2 xk+8 = yk+8 g(k + 1) = k xk= yk= 1 xk+1 = yk+1 xk= yk= 2 g(k + 5) = k xk+4 = yk+4 = 1 xk+5 = yk+5 xk= yk= 2 g(k + 9) = k xk+4 = yk+4 = 2 xk+8 = yk+8 = 1 xk+9 = yk+9

Table 3.4: Necessary Conditions for Position Covering

In Table 3.4, we list the necessary conditions for the covering pattern g. Note that those conditions are all disjoint. This implies that g−1(k) contains at most one position in{k +1, k +4, k +5, k +8, k +9} Therefore we complete the proof of Claim 4.

Recall that NSC={i ∈ [n] : δ(xi, yi) > δ(πi, τi)}. Based on Claim 4, we

show that g on NSC is a one-to-one function.

NSC → [n] is a one-to-one function and g(NSC) ∩ NSC = ∅, and hence

|g(NSC)| = |NSC|.

Proof. Assume that g(i) = g(h) = j. Thus we have j ∈ {i − 1, i − 4, i − 5, i −

8, i− 9} ∩ {h − 1, h − 4, h − 5, h − 8, h − 9}. If i = h, then |g−1(j)∩ {j + 1, j + 4, j + 5, j + 8, j + 9}| ≥ 2 since i and h are both in the intersection. However, this is impossible by Claim 4. Thus, i = h and hence g is one-to-one. By Table 3.4, if k covers some other position, then xk = yk. By definition, if k can be covered with some other position, then xk = yk. Thus it implies

g(NSC)∩NSC = ∅. Since g is one-to-one, we have |g(NSC)| = |NSC|.

Now we show the distance-preserving property of A_8n. Note that for any

i ∈ NSC, δ(xi, yi) = 1 and δ(πi, τi) = 0. Also for any i∈ g(NSC), we have δ(xi, yi) = 0 and δ(πi, τi) = 1. Thus  i∈NSCδ(xi, yi) +  i∈g(NSC)δ(xi, yi) =  i∈NSCδ(πi, τi) +

i∈g(NSC)δ(πi, τi) by Claim 5. Thus, we have dH(x, y) = 8n i=1 δ(xi, yi) = i∈NSC∪g(NSC) δ(xi, yi) + i /∈NSC∪g(NSC) δ(xi, yi) ≤ i∈NSC∪g(NSC) δ(πi, τi) + i /∈NSC∪g(NSC) δ(πi, τi) = 8n i=1 δ(πi, τi) = dH(π, τ ).

This completes the proof of Theorem 2.

3.1.2

3-DPM

for input length

≥ 16

In this section, we modify our algorithm A_8n such that new algorithm can be applied to any input length at least 16. To achieve this goal, we need

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

π = A_8n(x) and π1 be the intermediate result after PASS 1.

Lemma 1. For any i∈ {1, 2, · · · , 8n}, πi = i − 3.

Proof. By way of contradiction, suppose that there is i such that πi = i− 3.

Assume that πi = πj1 = i− 3 for some j. j must satisfy 4|(i − j). By the

structure of PASS 1, (i− 3) − 2 ≤ j ≤ (i − 3) + 2. Thus, it must be the case that j = i− 4, that is πi = πi1−4 = i− 3. If πi = π1i−4, then we have xi−4 = 2.

However, if π_i1₋₄ = i− 3, then we have xi−4 = 1 by observing Table 3.1.

Hence, we get a contradiction.

Now we show the 3-DPMH A8n+k as in Figure 3.5.

Algorithm A_8n+k (8n≥ 16 , 1 ≤ k ≤ 7) : Input: (x₁,· · · , x_8n+k)∈ Z₃8n+k Output: (π₁,· · · , π_8n+k)∈ S_8n+k (π₁,· · · , π_8n)← A_8n(x₁, x₂· · · , x_8n); (π_8n+1,· · · , π_8n+k)← (8n + 1, · · · , 8n + k); for i = 1 to k do;

if x_8n+i = 1 then swap (π_8n+i, ππ−1(i−3));

if x_8n+i = 2 then swap (π_8n+i, πi);

Figure 3.5: 3-DPMH Algorithm A8n+k for k ∈ [7]

We prove its correctness in the following theorem.

Theorem 3. A_8n+k : Z₃8n+k → S_8n+k is a 3-DPMH for all n ≥ 2 and k ∈ {1, · · · , 7}.

Proof. Given two inputs (x, w), (y, z)∈ Z₃8n×Zk

3, suppose that π = A8n+k(x, w)

and τ = A_8n+k(y, z). Let wi _{and z}i _{denote the first i symbols of w and z}

respectively. Let πi _{and τ}i _{be the permutations in S}

8n+i obtained by

run-ning the i-th iteration in the for loop when the inputs are (x, w) and (y, z) respectively. It suffices to prove the following claim.

Claim 6. dH((x, wi), (y, zi))≤ dH(πi, τi) for any i∈ {0, · · · , k}.

Proof. We prove this claim by induction on i. It holds trivially for i = 0

since we have dH(x, y)≤ dH(A8n(x), A8n(y)) = dH(π0, τ0). For the inductive

step, suppose that dH(x, y) + dH(wi−1, zi−1)≤ dH(πi−1, τi−1). We divide the

analysis into the following cases.

• Case [wi = zi] : The claim holds trivially in this case since both swap

operations in the ith iteration are the same.

• Case [wi = zi and one of them is 0] : W.L.O.G. we assume that wi = 0.

In this case we have π_8n+ii = 8n + i, π_{[1..8n+i−1]}i = πi−1 and τ_8n+ii equals to either i− 3 or τ_ii−1. Thus we have δ(πi

8n+i, τ8n+ii ) = 1. W.L.O.G.,

we assume that τ_8n+ii = τ_ii−1 and hence τ_ii = 8n + i. So δ(π_ii, τ_ii) = 1. Also note that τi

t = τ i−1

t for any t ∈ [8n + i − 1]\{i}. So we have dH((x, wi), (y, zi))≤ dH(πi, τi).

• Case [wi = zi, and wi, zi ∈ {1, 2}] : W.L.O.G. we assume that wi = 1

and zi = 2. In this case, π_8n+ii = i− 3 and τ_8n+ii = τii−1 = τi. By

Lemma 1, we know that π−1(i − 3) = i and τi = i − 3. Now it is

easy to check dH(πi, τi) = dH(πi−1, τi−1) + 1. Hence we also have dH((x, wi), (y, zi))≤ dH(πi, τi).

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

Corollary 4. There exists an explicit construction of 3-DPMH from Z₃n to Sn for any n≥ 16.

Note that the above construction can be applied to the case when q ≥ 3. However, for different q, we need a different version of lemma 1 in order to obtain an explicit construction of q-DPMH.

3.2

Construction of PAs with Hamming

Dis-tance

As shown in [6] and [4], we know that distance-increasing mappings are quite helpful for constructing permutation arrays. Similarly we can make use of 3-DPMH to construct permutation array with hamming distance. In this

section we introduce the construction and the corresponding encoding and decoding algorithms.

Theorem 4. For all N ≥ 16 and d ≤ N, suppose C is an (N, d) ternary

code. Then there is an (N, d) permutation array P with hamming distance and the same cardinality as C. If C has an efficient encoding/decoding algo-rithm pair, then there is an efficient encoding/decoding algoalgo-rithm pair for P . Furthermore, if the decoding algorithm of C can correct up to e errors, then the decoding algorithm of P can decode correctly when the corrupted codeword π satisfying dH(π, π)≤ e/4 − 2, for some codeword π ∈ P .

Proof. First note that C may not be a linear code. It can be any code over Z₃N. Let N = 8n + k, n ≥ 2 and 0 ≤ k ≤ 7. By Theorem 3 and n ≥ 2, we

have a distance-preserving mapping A_8n+k : ZN

3 → SN. It is easy to see that A_8n+k(C) is a permutation array of length N with minimum distance d. Let

P be A_8n+k(C) and so |P | = |A_8n+k(C)| = |C|.

Next consider the encoding issue. If C has an efficient encoding algorithm

E : M sg → ZN

3 , where M sg is any arbitrary message space with size equal

to |C|. In particular, Msg usually is Z₂log|C| or Z₃log3|C| when using ternary code. Let EP = A8n+k◦ E, then EP : M sg → SN is an efficient encoding

algorithm for P because E and A_8n+k are both efficient.

message m∈ Msg codeword x∈ C permutation π ∈ P

ˆ m∈ Msg xˆ∈ ZN 3 receive π ∈ SN E A8n+k A−1_8n+k D channel

Figure 3.6: Construction of permutation array with 3-DPMH

Finally consider the decoding issue. If C has an efficient decoding al-gorithm D : Z₃N → C to correct up to e errors, i.e. for any codeword

x ∈ C , and a corrupted codeword y ∈ ZN

3 with dH(x, y) ≤ e, then

D(y) = x. Let π = A_8n+k(x) ∈ P and π be a corrupted permutation

satisfying dH(π, π) = d. Without decoding π to π directly, we design an

algorithm A−1_8n+k which compute the inversion of A_8n+k. If we can bound

dH(A−1_8n+k(π), x) by dH(π, π), then we can decode P by combining A−1_8n+k

and D. We will describe how to do that in the rest of this proof.

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

A_8n+k is based on A_8n and then handle the last k positions. We consider the inversion of A_8n first. The idea is based on the proof of lemma 1. In the lemma, we prove for any i, πi = i − 3 by checking the path of symbol i − 3

and derive a contradiction on the value of xi−4. In general if the value of πi = t is given, we can determine the path of symbol t and the values of four

positions of x. For example, given π₅ = 12, the path of symbol 12 can be determined as in the figure below, where symbol 12 goes to position 13 in PASS 1 and goes to position 9 and then 5 in PASS 2. Furthermore, we can determine that x₁₁ = 1, x₁₂= 1, x₅ = 2 and x₉ = 2 by Tables 3.5 and 3.6.

12

5 9 13

Figure 3.7: The unique path of symbol 12, given π₅ = 12.

We give Tables 3.5 and 3.6. for each possible value of πi. For example,

given πi = i + 7, i mod 8∈ {5, 6, 7, 8} and i is odd(the case π5 = 12). In the

gray area in Table 3.6, it implies that πi = πi1+8 , πi1+8 = i + 7 and determines

the values of four positions of x, i.e., xi = 2, xi+4 = 2, xi+6 = 1 and xi+7 = 1.

One can verify each entry in the both tables by checking algorithm A_8n. Note that the tables give some entries, whcih are not applicable(n.a.) since under our construction certain positions in a permutation will avoid some values.

Checking each position of π, we can determine all the values of xi, so we

can compute the inversion of A_8n. Then we consider A−1_8n+k. If given πi = t

i = 8k + 8 + j, j ∈ {1, 2, 3, 4}, i ∈ [n], k ∈ {0,n₈ − 1} i is odd i is even πi πi

π

π

π

π

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

π

π

π

π

xi = 2 otherwise. If given πi = t where i ∈ [1, 8n] and t ∈ [8n + 1, 8n + k], it

implies πi must have been swapped with πt= t in the final stage of algorithm A_8n+k. Thus we can just swap the value of πi and πt first and then determine x by the above approach.

We give the algorithm A−1_8n+k as follows.

Algorithm A−1_8n+k (8n≥ 16 , k ∈ [0, 7]) :

(a) For all i in [1, k], check whether π_8n+i is 8n + i or i− 3 or others, and then assign the corresponding value 0, 1, or 2, to x_8n+i respectively. (b) For all i in [1, 8n], if it is larger than 8n, then swap (πi, ππi).

(c) For each πi, i ∈ [1, 8n], let Bi is a bucket for index i. By the value

of i and πi, find the corresponding entries in Table 3.5 or Table 3.6.

If it is not in the tables or not applicable(n.a), then do nothing. Else it will determine the values of four positions of x. Once we know

xi = b ∈ {1, 2} by checking the tables, put b to Bi. If xi = b ∈ {1, 2},

then put 0 to Bi.

(d) Decide xi by a weighted majority vote. For each i in [1, 8n], check Bi, ‘0’ gives half weight, ‘1’ and ‘2’ each gives weight 1, and assign xi be

the largest weighted value b∈ {0, 1, 2}. If tie, choose the larger value.

Let us explain the algorithm A−1_8n+k. First using π_8n+i to decide x_8n+i for all i ∈ [1, k]. One can verify that if π_8n+k is not corrupted then x_8n+k is correct too. Next for i∈ [1, 8n], if πi > 8n, it implies A8n+k swap πi and ππi,

CHAPTER 3.

DPMs from Z

to S

with Hamming Distance

the vote (information) of xi. For each πi = t, one can determine the values

of four positions of x by checking Table 3.5 and Table 3.6. And if it gives

xi = b∈ {1, 2} then puts b to Bi; if it gives xi = b ∈ {1, 2} then puts ‘0’ to Bi. For example, if π5 = 12, then it will put ‘2’ to B5 and B9, put ‘1’ to B12

and put ‘0’ to B₁₁. Finally for each bucket Bi, make a weighted majority

vote to decide the value of xi. Because if it gives xi = 1(or 2) then we puts

0 to bucket but the vote 0 does not guarantee xi is 0, thus we give 0 half

weight in the weighted majority vote. If tie, choose the larger value. Also we give another version of algorithm A−1_8n+k in appendix A without table lookup. Let’s give figure 3.8 to illustrate the weighted majority vote. Each π determine information in at most 4 positions of x. For each xi, there are four

positions of π determine information of xi if π is not corrupted, since xi

can be used to decide whether to swap two positions or not in PASS 1, and to swap two positions or not in PASS 2. Thus it reveals some information about xi by checking the path of those four symbols.

Bucket x π B1 x1 π₁
B₂ x_{2 π2}
B₃ x_{3 π3}

·

·

·

·

·

·

·

·

·

·

·

·

·

·

·

Figure 3.8: Weighted majority vote

The inverse algorithm A−1_8n+k works well if π is not corrupted. Let us consider the corrupted π. By Tables 3.5 and 3.6, each error will give us wrong information in at most 4 positions of x, and also lose correct information in at most 4 positions of x. It gives us a rough bound dH(A−1_8n+k(π), x) ≤

8· dH(π, π). Here we give a better bound by analyzing it more carefully.

Let π = A_8n+k(x) be the correct codeword of x, and π be the corrupted permutation.

Claim 7. dH(A−1_8n+k(π), x) ≤ 4 · dH(π, π) + k
