Efficient Multiple Multicast on Heterogeneous
Network of Workstations
JAN-JAN WU* wuj@iis.sinica.edu.tw
Institute of Information Science, Academia Sinica, Taipei, Taiwan, R.O.C.
SHIH-HSIEN YEH shyeh@iis.sinica.edu.tw
Institute of Information Science, Academia Sinica, Taipei, Taiwan, R.O.C.
PANGFENG LIU pangfeng@csie.ntu.edu.tw
Department of Computer Science and Information Engineering, National Taiwan University, Taipei, Taiwan, R.O.C.
Abstract. In recent years, network of workstations/PCs (so called NOW) are becoming appealing vehicles for cost-effective parallel computing. Due to the commodity nature of workstations and networking equipment, LAN environments are gradually becoming heterogeneous. The diverse sources of heterogeneity in NOW systems pose a challenge on the design of efficient communication algorithms for this class of systems.
In this paper, we propose efficient algorithms for multiple multicast on heterogeneous NOW systems, focusing on heterogeneity in processing speeds of workstations/PCs. Multiple multicast is an important operation in many scientific and industrial applications.
Multicast on heterogeneous systems has not been investigated until recently. Our work distinguishes itself from others in two aspects: (1) In contrast to the blocking communication model used in prior works, we model communication in a heterogeneous cluster more accurately by a non-blocking communication model, and design multicast algorithms that can fully take advantage of non-blocking communication. (2) While prior works focus on single multicast problem, we propose efficient algorithms for general, multiple multicast (in which single multicast is a special case) on heterogeneous NOW systems. To our knowledge, our work is the earliest effort that addresses multiple multicast for heterogeneous NOW systems.
These algorithms are evaluated using a network simulator for heterogeneous NOW systems. Our experimental results on a system of up to 64 nodes show that some of the algorithms outperform others in many cases. The best algorithm achieves completion time that is within 2.5 times of the lower bound. Keywords: collective communication heterogeneous network of workstations, parallel processing, multiple multicast, scheduling algorithms
1. Introduction
Due to the commodity nature of workstations and networking equipments, LAN environments are gradually becoming heterogeneous. The heterogeneity could be due to the difference in processing speed and communication capability of the workstations, or coexistence of multiple network architectures or communication
protocols. This trend is forcing network of workstations/PCs to be redefined as heterogeneous network of workstations (HNOW).
Many research projects are currently in progress to provide efficient communica-tion for NOW systems [2, 7, 11, 12, 15, 16, 21, 27, 30]. However, most of these research projects focus on homogeneous NOWs, systems comprising of the same type of PCs/workstations connected over a single network architecture. Commu-nication algorithms designed for homogeneous clusters have been shown to be very inefficient for heterogeneous clusters [3].
Collective communication, where all processors contribute data to a result that may arrive at one or all processors, provides important functionality for many applications, and thus efficient implementations of collective communication is crucial for achieving maximum performance in message-passing systems. Typical examples of collective communication include multicast, broadcast, multiple multicast, gather, scatter, and all-to-all personalized communication.
In this paper, we study the multicast problem in HNOW systems. Multicast is an important operation in many scientific, industrial, and commercial applications. In a single multicast, the source node sends the same message to a subset of nodes in the system. Multiple multicast is a general case in that multiple source nodes issue multicast communication simultaneously. Multiple multicast is frequently used in sparse matrix computation and many scientific simulation problems [19].
Multicast can be implemented at different levels: hardware-supported, network interface firmware-supported, and software implementation based on point-to-point messages. We focus on software implementation of multicast because it does not require modification of hardware/firmware and therefore is portable to different cluster environments.
Software-based multicast on heterogeneous systems has not been investigated until very recently. In software-based approach, a multicast is implemented as p sequences of send/receive tasks, where p is the number of processors involved in the multicast. The fact that finding optimal sequences of tasks for multicast on heterogeneus systems is NP-complete has led to a number of research works on devising heuristic algorithms [3, 23, 25]. These works have two restrictions, however. First, they all focus on single multicast. Although a multiple multicast operation can be implemented by performing the single multicast operations individually, it may not be the most efficient way to do it. Secondly, prior works all assume a blocking communication model; that is, a node cannot send a message until the previously sent message has been received by the destination node. However, many networks and operating systems support non-blocking communication; that is, after an initial start-up time, the sender can send the next message. The previously sent messages can be completed by the network without intervention of the sender. Thus, a node can send out several messages before the first message is received by the destination. To optimize performance of multicast communication, it is extremely important to take the factor of non-blocking communication into consideration when designing algorithms, which is not possible under a blocking communication model.
In this paper, we design efficient algorithms for multiple multicast in heterogeneous systems under a non-blocking communication model. Our commu-nication model represents the commucommu-nication latency between two processors Piand
Pj using three parameters: (1) Send overhead on sender Pi, (2) data transmission
time, and (3) receive overhead on Pj. Under this model, we formalize the multiple
multicast problem as finding for each processor a sequence of send/recv operations (call it task schedule) that lead to minimum completion time of the multicast. Since the problem of finding optimal task schedule for multicast is NP-complete, we have developed several heuristic algorithms based on our communication model.
In this paper, we present the heuristic algorithms that we have implemented. Two algorithms, the fastest edge first (FEF) and the earliest completion first (ECF) are modified based on existing algorithms for single multicast. The algorithms earliest available earliest completion first, round-robin (RR), and a randomized algorithm are motivated by scheduling strategies in operating systems and parallel and distributed computing systems. The algorithm work racing (WR) is new. The WR algorithm proposes a notion of virtual time, which estimates the time a destination node has spent in receiving messages. The algorithm selects receiving nodes based on their virtual time. We show that the WR algorithm has low cost and generates the best task schedule.
In addition to these algorithms, we have also proposed an optimization that can fully take advantage of non-blocking communication. This optimization fills the receiving node’s idle time frames with useful send operations as much as it allows. With this optimization, the completion time of multiple multicast can be greatly shortened.
These algorithms are evaluated using a network simulator for HNOW systems. Our experimental results on a system of up to 64 nodes demonstrate performance improvement of multiple multicast by 20% to 160% compared to existing algorithms. The rest of the paper is organized as follows. Section 2 defines our communication model for heterogeneous NOW systems. Section 3 formulates the multiple multicast problem based on our communication model. Section 4 presents our heuristic algorithms for multiple multicast. Section 5 describes the optimization for non-blocking communication. Section 6 uses an example to illustrate the algorithms and the optimization. Section 7 reports our simulation results for multiple multicast on a heterogeneous NOW system. Section 8 reviews related works. Section 9 gives some concluding remarks and outlines our future work.
2. Communication model for heterogeneous systems
We assume that a collective operation is implemented by a series of point-to-point message passing. Since in this paper, we focus on the heterogeneity in processing speeds of the processors, we make an assumption that there is a direct link between every pair of processors, so each pair of processors can pass messages independent of other processors. Under this assumption, we adopt the model for point-to-point communication on heterogeneous network of workstations proposed by Banikazemi et al. [4]. To make this paper self-contented, we give a brief overview of the communication model.
The model measures the cost of a point-to-point message transfer between the sender Pi and the receiver Pj using three parameters (1) the send overhead Sði; mÞ,
which represents the message initialization cost on sender Pifor sending a message of
length m, (2) the network link transmission rate Xði; jÞ, which accounts for the unit transmission time between Pi and Pj, and (3) receive overhead Rð j; mÞ, which
represents the software overhead on receiver Pj for receiving and copying the
message from the network buffer to the user space. Based on these three parameters, the latency for transmitting a message of length m between the two nodes is given in Equation (1).
Tði; j; mÞ ¼ Sði; mÞ þ Xði; jÞ m þ Rð j; mÞ: ð1Þ For a short message, the send overhead and receive overhead are nearly constant and independent of the message size. However, for a long message, the message size-dependent cost contributing to the software overhead dominates the overall software cost. Let ScðiÞ and RcðiÞ be the constant factors of the send and receive costs of node
Pi, respectively, and Smi and Rmi be the message-dependent parts. The send
overhead Sði; mÞ and receive overhead Rði; mÞ of node Pifor a message of size m can
be further refined as the following. Each parameter in the equation can be measured using the ping-pong scheme described in Banikazemi et al. [4].
Sði; mÞ ¼ ScðiÞ þ SmðiÞ m; ð2Þ
Rði; mÞ ¼ RcðiÞ þ RmðiÞ m: ð3Þ
Note that in HNOW systems these parameters may vary for different pairs of nodes. Furthermore, in this paper we make the following assumptions.
. A send operation is non-blocking. In other words, after an initial start-up time (i.e., the send overhead), the sender can execute its next send operation.
. A receive operation is blocking. That is, after issuing a receive operation the receiving node can continue to execute its next operation only when the received message arrives and is removed from the local network buffer to the local memory of the receiving node. We consider this assumption reasonable as in most applications, the computation following a receive operation is very likely to require data in the received message and hence the computation cannot start until the required data is ready in the local memory.
3. Multiple multicast problem
This section formulates the multiple multicast problem using the notion of task schedule.
3.1. Definitions
A multiple multicast has multiple source nodes multicasting their messages to their destination nodes simultaneously. Consider a HNOW system consisting of N nodes
and let N¼ fP1; P2; . . . ; PNg be the set of all nodes. Let S denote the set of the
multicast source nodes, and Di(N fPig be the set of destination nodes for source
node Pi[ S. After the multiple multicast communication, each node in Dihas a copy
of the message from source node Pi, denoted by mi. Both a single broadcast and an
all-to-all broadcast are special cases of multiple multicast. Figure 1(a) shows an example of two multicast operations.
The multiple multicast is accomplished by a series of communication tasks. A communication taskðop; i; j; kÞ is a send or receive operation that Piis scheduled to
execute. For op¼ send; Pi is scheduled to send mkto Pj, where Pi[ Dkþ fPkg and
Pj[ Dk. For op¼ recv; Pi is scheduled to receive mk from Pj where Pi[ Dk and
Pj[ Dkþ fPkg. The task schedule of Pi, denoted by TaskListi, is an ordered list of
communication tasksðop; i; j; kÞ. The tasks in the task schedule are executed in the order they appear. Figure 1(b) illustrates a communication schedule for the multicast with source P1.
The multiple multicast scheduling problem is to determine a task schedule for each participating node so that the time to deliver all the messages is as short as possible. In addition, for dynamic patterns of multicast, the scheduling needs to be done on-line. Thus the scheduling algorithm must generate efficient task schedule within reasonable amount of time.
3.2. A lower bound
We first derive a lower bound on the time to solve a multiple multicast problem as the basis for evaluating our algorithms. Since it is too computationally expensive to
determine the optimal completion time of a multiple multicast, we idealize our model and deduce an idealized optimal completion time as a lower bound. In this model, we assume that a node is allowed to receive a message and, meanwhile, send multiple messages in parallel. That is, a receive operation will not be delayed by any send operation, and the messages from one node to different destinations can be processed in parallel.
Since the completion time of a multiple multicast is determined by the maximum of the task completion time of all the destination nodes, we can compute the lower bound on the task completion time for each destination node, and select the maximum as the lower bound on the overall completion time. First, we compute the shortest path for each pair of source and destination in the idealized model. Let L½Pj; Pi denote the cost of the shortest path from source Pjto its destination Pi, that
is, L½Pj; Pi represents the earliest-reach-time at which the message from Pjcan reach
Pi. Thus, the lower bound on the task completion time of a destination node can be
defined as follows.
Definition 1 Assume that a node Pineeds to receive messages from nisource nodes.
Let IðkÞ denote the k-th source node from which Pi receives the message. Suppose
that Pi receives messages in the increasing order of the earliest reach times of the
messages, that is, L½IðkÞ; Pi L½Iðk 1Þ; Pi for 1 < k ni, then we call this
receiving order the earliest-reach-first order.
Let lkbe the message size of the k-th source node IðkÞ. The earliest receiving time
for Pito complete receiving the message from the k-th source node IðkÞ, denoted by
Trði; kÞ, can be derived recursively as follows. Note that Equation (4) uses the fact
that the receive overhead from different source nodes cannot overlap, and the earliest-reach-first order can minimize Trði; kÞ.
Trði; kÞ ¼ L½IðkÞ; i;
k¼ 1 maxfTrði; k 1Þ þ Rði; lkÞ; L½IðkÞ; ig; 1 < k ni:
ð4Þ
The lower bound on the completion time of the multiple multicast is the maximum of all Trði; niÞ, for all i.
4. Scheduling algorithms for multiple multicast
In this section, we present the heuristic algorithms we have devised for implementing multiple multicast on HNOW systems. The heuristics are FEF, ECF, earliest-available-first (EAF), RR, receiver random selection (RRS) and WR. We first give some definitions.
Available time. The available time of Pi, denoted as Availi, is the earliest time at
which Pi can execute a new task. Initially, the available time of the participating
Arrival time. Assume that Piis scheduled to send mkto Pj. Let lkbe the size of mk,
then mkwill arrive at the network buffer of Pj at time ArrivalTimeði; j; kÞ.
ArrivalTimeði; j; kÞ ¼ Availiþ Sði; mÞ þ Xði; jÞ lk: ð5Þ
Completion time. The completion time, CompleteTimeði; j; kÞ of a task ðsend; i; j; kÞ is defined as follows. If the destination node Pj is not available when mkarrives at its
network buffer, it will not be processed until Pj becomes available.
CompleteTimeði; j; kÞ ¼ maxðArrivalTimeði; j; kÞ; AvailjÞ þ Rð j; lkÞ: ð6Þ
4.1. Fastest-edge-first algorithm
The FEF heuristic algorithm was first proposed in Prasanna et al. [26] for implementing single multicast on heterogeneous NOW systems. We extend the FEF algorithm to solve the multiple multicast problem. We keep a sender set Akand a
receiver set Bkfor each source node Pkof the multiple multicast. A node in Akcan
relay the message it received to other destination nodes. Initially Ak¼ fPkg and Bk
contains all the destination nodes of Pk.
In each iteration we select theði; j; kÞ that has the smallest weight, where node Pi
belongs to Akand node Pjbelongs to Bk. We then move Pjfrom Bkto Ak. The same
steps repeat until all Bkbecome empty. The Weight of a tupleði; j; kÞ is defined as the
point-to-point latency between the sender Pi and the receiver Pj as follows.
Weightði; j; kÞ ¼ Sði; lkÞ þ Xði; jÞ lkþ Rð j; lkÞ: ð7Þ
Similar to Raghavendra et al. [25], we keep a sorted tuple list and a sorted sender list according to their weights. The sorting process takes OðN3log NÞ time steps
where N is the number of processing nodes in the network, and this process dominates the total execution time of this algorithm. Therefore, the complexity of this algorithm is OðN3log NÞ.
Fastest-edge-first algorithm
Step 1: Select aði; j; kÞ with minimum Weightði; j; kÞ, where Pi[ Ak and Pj[ Bk.
Step 2:
Ak/ Akþ fPjg
Bk/ Bk fPjg
AppendTaskðTaskListi;ðsend; i; j; kÞÞ
AppendTaskðTaskListj;ðrecv; j; i; kÞÞ
4.2. Earliest-completion-first algorithm
The ECF heuristic algorithm was also proposed in Prasanna et al. [26] for single multicast. The ECF algorithm determines the schedule iteratively. In each iteration the ECF algorithm selects the task (i.e., the sender and receiver pair) that has the earliest completion time as defined in Equation (4) as the next task to schedule. The same process repeats until all destination nodes have received the message.
We extend the ECF algorithm to implement multiple multicast. We also modify the definition of available time of a node to model non-blocking communication more accurately. Since with non-blocking send, a sender can send a new message right after the previous message is transmitted into the network, the available time for the sender and the receiver is updated in different ways as shown in the following pseudo code algorithm.
Similar to the FEF algorithm, for each source node Pkof the multiple multicast,
we keep a sender set Akand a receiver set Bk. In each iteration, the algorithm selects
the earliest completing task for each source node which has not yet completed its multicast operation. Then,among these earliest-completing tasks, it selects the task with the minimum completion time as the next task to be scheduled. The receiver of the selected task is then moved from the receiver set to the sender set. Note that the tasks from different multicasts may interleave as a result of the ECF selection process.
In Raghavendra et al. [25], a sorted sender list according to their minimum completion time is maintained. Unfortunately, for multiple multicast problems this is not possible because the completion time of a sender/receiver/message tuple also depends on the available times of the sender and the reciever. Therefore, the available time of a node needs be calculated dynamically during each iteration of the algorithm. In each iteration, it requires OðN2Þ steps to compute the available times
of the senders and receivers. The algorithm iterates N2 times. Therefore, the total
time for the ECF algorithm is OðN4Þ.
Earliest-completion-first algorithm
Step 1: For all k that Bk is not empty, choose ði; j; kÞ with minimum Ck¼
CompleteTimeði; j; kÞ where Pi[ Ak and Pj[ Bk.
Step 2: Choose k such that Ckis the minimum.
Ak/ Akþ fPjg
Bk/ Bk fPjg
AppendTaskðTaskListi;ðsend; i; j; kÞÞ
Availi / Availiþ Sði; lkÞ
AppendTaskðTaskListj;ðrecv; j; i; kÞÞ
Availj / CompleteTimeði; j; kÞ
Our experimental study shows that the ECF algorithm delivers good performance in multiple multicast. However, the scheduling time of the ECF algorithm OðN4Þ is
substantially higher than that of the FEF algorithm OðN3log NÞ in a large system
(up to 64 nodes), since it has to consider all the possible sender-receiver pairs per iteration. This makes the ECF algorithm impractical for scheduling dynamic multicast patterns. In the following subsections, we present several algorithms that has lower scheduling complexity of OðN3Þ. The idea is to reduce the search space by
selecting the receiver node first and then select the sender and the message within the source set of the receiver node. We propose four heuristics for this purpose, namely WR, EAF, RR, and RRS.
Some of these algorithms generate task schedules that are competitive to the ECF algorithm. In the following, we describe each of these algorithms.
4.3. Work racing algorithm
In our communication model, a receive operation is blocking, that is, if multiple messages arrive at the receiving node, they will be queued in the buffer until the receiving node has finished receiving previous message. The key idea in the WR heuristic is that, if the chance of message built-up at the destination nodes is reduced, then the messages can be delivered as early as possible, resulting in earlier completion of the multicast. One way to implement this strategy is to allow faster destination node to receive messages more often than slower nodes. However, the scheduling should also be fair so that slower nodes will not be starved forever.
We define the notion of virtual time of a destination node, which estimates the time this destination node has spent in receiving messages. WR selects the destination node with the earliest virtual time as the receiver of the next message. Then WR selects a message and a sender for this message based on the ECF principle. The new send and receive tasks are then appended to the task schedules of the sender and the receiver, respectively. After that, the virtual time of the receiver is increased by the amount of work it has just accomplished. This mechanism ensures that the faster destination node will be selected more often, and each destination node will be scheduled fairly according to their communication capability. In the following we elaborate on this algorithm.
. For each destination Pi, assuming Pihas received messages from k sources so far, the
WR algorithm keeps the record of the virtual time, denoted by Wi;k, which indicates
the services that Pihas received from its sources. Initially, Wi;0is set to zero.
. While scheduling a new task, the WR algorithm selects the destination node which has the earliest virtual time. If there are multiple possibilities, it chooses the fastest one.
. Each destination node Pikeeps a set of source nodes SRiof the multiple multicast
in which Pi is a destination. Each source node Pkkeeps a set of sender nodes Ak
which contains the nodes that have received message mk. Nodes in Ak may relay
mkto other nodes. When a destination Piis selected, the WR algorithm chooses a
source Pmfrom SRiand a sender Pjfrom Amsuch that the completion time of the
. The destination Piwill be scheduled a receive taskðreceive; i; j; kÞ. Assume that this
is the k-th receive task that Pihas been scheduled (and we will call the source node
of this message the k-th source node of Pi), the virtual time Wi;kof Piis updated as
follows:
Wi;k¼ AmaxfWr½k; i þ Rði; lkÞ; k¼ 1 i;k1; Ar½k; ig þ Rði; lkÞ; k >1,
ð8Þ
where lkis the message length of this receive task and Ar½k; i is the time at which
the message from the k-th source node arrives at Pi. Let the source node of the
message be the n-th source in sender Pj. Then, Ar½k; i is calculated as follows:
Arðk; iÞ ¼
Ws;nþ Sðs; lkÞ þ Xðs; iÞ lk; if Ps is not the source node
Sðs; lkÞ þ Xðs; iÞ lk; otherwise.
ð9Þ
. Finally, the source node Pjis removed from the source set SRi of the destination
Pi, and the destination Pi is added to the sender set Akof the source Pk of the
multicast.
In general, the completed work of a faster node advances more slowly than that of a slower node. Thus, a faster destination node can be scheduled earlier than a slower one. Consequently, a faster node has more chances to relay messages for the sources to the slower nodes.
Work-racing scheduling algorithm
Let SRibe the set of source nodes for a receiving node Pi. Initially, SRi contains all
the source nodes of the multiple multicast which has Pi in their destination sets.
Similar to the FEF and the ECF algorithms, we define a sender set Ak for each
source Pk of the multiple multicast.
Step 1:Let Pibe the node with the minimum completed work whose source set SRiis
not empty. If there are multiple possibilities, choose the fastest one.
Step 2: Choose Pk[ SRi and Pj[ Ak such that the completion time of the task
ðsend; j; i; kÞ is the minimum. Assume the source of this task (i.e., Pk) is the m-th
source in Pi. Ak/ Akþ fPig SRi/ SRi fPkg ComputeWi;m AppendTaskðTaskListj;ðsend; j; i; kÞÞ Availj/ Availjþ Sð j; lkÞ AppendTaskðTaskListi;ðrecv; i; j; kÞÞ Availi/ CompleteTimeð j; i; kÞ
For each destination node Pi, we sort its source nodes in increasing order of their
message lengths. In each iteration of the algorithm, when the destination node and its message source and sender have been selected, those senders that are not selected are marked and do not need be checked again. Therefore, for a selected receiver, it only takes OðNÞ time steps to select the message source and the sender. The algorithm iterates at most N2 times for multiple multicast. Therefore, the overall
complexity of the WR algorithm is OðN3Þ.
4.4. Summary
This section describes the heuristic algorithms that we have devised for implementing multiple multicast on HNOW systems. The ECF algorithm has very high scheduling overhead OðN4Þ. The receiver-based algorithms, including the EAF, RR, RRS, and
WR, reduce scheduling time to OðN3Þ. The performance comparison of the task
schedules generated by these algorithms will be reported in Section 7.
5. Optimization for non-blocking communication
Our communication model assumes that send operations are non-blocking and receive operations are blocking. After issuing a non-blocking send operation, a sender only has to wait until the message goes into the network, then it can start its next communication. In contrast, a node performing a blocking receive operation cannot issues another communication until the incoming message is received completely (Equation (1)). For small messages, network transmission time is small compared to the software overhead on the sender and the receiver. However, for large messages, network transmission time dominates the communication latency, therefore, the time a receiver spends in waiting for the messages to go through the network can substantially degrade communication performance.
We illustrate this phenomenon by an example. In previous scheduling algorithms, we always append the new task to the end of the task schedule. This can incur much longer waiting time than necessary. In Figure 2(a), a receive operation recv½k is issued at time t1. However, the message will not arrive until time t4, making the receiver idle waiting from t1 to t4.
To overcome this problem, we propose an optimization to preempt blocking receive operation with non-blocking send operation, under the assumption that it will not invalidate the original multicast schedule. As illustrated in Figure 2(b), if we preempt the receive task, recv½k, with the send tasks send½2 and send½3, and issue send½k at t3 instead, the waiting time is reduced from ðt4 t1Þ to ðt4 t3Þ. The idea is that if a new task can preempt a prescheduled receive task safely, we can reduce the waiting time by delaying the preempted receive task.
To preempt a receiving task without invalidating the original schedule, we need to observe the following rules.
. The send tasks must be executed in the order as they appear in their schedule list. As in Figure 3(a), the task send½k must appear before send½k þ 1.
. If the sender of a task is not the source node of the message, the new send task must be scheduled after the sender has received the message. This is to ensure that a sender will not relay a message that it has not yet received. Figure 3(b) shows that only after the task recv½h þ u in which the sender of send½k þ 1 receives the message will it relay to the receiver of send½k þ 1.
. The preempting send tasks cannot delay the completion time of the preempted receiving task. To avoid interfering the execution of the preempted receive task½k in Figure 3(c), the completion time of the preempting send task must be earlier than the arrival time of the message that task½k is waiting for. Let lkand ltbe the
message sizes in task½k and the new send task, respectively, and task½ j be the task preceding task½k in the task schedule before the new task is scheduled. The following condition must hold for the new send task to preempt task½k.
ðCompletionTimeðtask½kÞ Rði; lkÞÞ CompletionTimeðtask½ jÞ
Sði; ltÞ: ð10Þ
Figure 2. Preemptive scheduling of send tasks.
To facilitate the implementation of this optimization, we classify the available time of a node into two: The receive available time and the send available time. The receive available time of Pi is the earliest time that Pi can issue a receive, which is
defined as the maximum between the completion time of the last send task and the last receive task. The send available time of Pifor Pk is defined as the earliest time
that Pican send out mkthat satisfies all three rules listed above. The send available
time should be later than both the completion time of the last send task by Piand the
completion time of the receive task in which Pi receives mk. In the optimized
algorithm, the sender and the receiver will update their completion time of a communication task with new definitions of available times.
Figures 15 and 16 illustrate the details of finding the location to insert a new send task. The procedure UpdateSenderState (Figure 13) deals with the preempting process of a new send task in the sender. The procedure UpdateReceiverState (Figure 14) deals with the process of appending the new receive task to the task schedule of the receiver. We improve our previous algorithms including ECF, WR, EAF, RR and RRS algorithms by this preemption optimization. The optimized versions of these algorithms are named as ECFP, WRP, EAFP, RRP and RRSP algorithms. All these algorithms have the same structure of updating available time and task schedules. The ECFP algorithm is listed below as an example.
Let SRi be the set of source nodes for a receiving node Pi. Initially, SRi contains
all the source nodes of the multiple multicast which has Pi in their destination sets.
Also, we define a sender set Akfor each source Pkof the multiple multicast.
Earliest-completion-first preemptive algorithm (ECFP)
Step 1: For all k that Bk is not empty, choose ði; j; kÞ with minimum Ck¼
CompleteTimeði; j; kÞ where Pi[ Ak and Pj[ Bk.
Step 2:Choose k such that Ckis the minimum.
Ak/ Akþ fPjg
Bk/ Bk fPjg
UpdateReceiverStateð j; i; k; CompleteTimeði; j; kÞÞ UpdateSenderStateði; j; kÞ
Step 3:Repeat Steps 1 and 2 until all Bkbecome empty.
Since the preemption optimization does not change the structure of the unoptimized algorithms, the optimized algorithms also generate communication schedule in OðN3Þ time steps.
6. An example
In this section, we use an example to illustrate these non-preemptive and preemptive algorithms. The communication involves three multicast patterns, with P0; P1 and
Letði; j; kÞ be a communication task where Pisends the message to the receiver Pj
for source Pk. In Figure 4(a), the sequence of the tasks selected by the FEF algorithm
is (0, 1, 0), (2, 0, 2), (0, 1, 2), (0, 2, 0), (1, 2, 1), (0, 3, 2), and (1, 3, 1), where i denotes the sender, j denotes the receiver and k denotes the message source. In Figure 4(b), the sequence of the tasksði; j; kÞ selected by the ECF algorithm is (0, 1, 0), (2, 0, 2), (2, 1, 2), (0, 2, 0), (0, 3, 2), (1, 2, 1) and (1, 3, 1). The completion times corresponding to these tasks are 4, 5, 7, 12, 13, 18, and 19.
In Figure 4(c), the WR algorithm selects task schedules according to the receiving nodes’ completed work. In the first step node P0 is chosen as the receiver and then
the source P2 from its source set is selected. This task is denoted by (2, 0, 2). After
task (2, 0, 2) is scheduled, the completed work for this first receive task in P0, denoted
by W0;1, is updated as W0;1¼ Sð2Þ þ Rð0Þ ¼ 2 þ 3 ¼ 5, and so on. At the fourth
step, the task (0, 3, 2) is scheduled and it is the first receive task of P3. Since for this
task P0 relays the message for source P2, the completed work for this task, denoted
by W3;1, should be updated as follows.
W3;1¼ W0;1þ Sð0Þ þ Rð3Þ ¼ 5 þ 1 þ 6 ¼ 12:
The resulting task schedule is (2, 0, 2), (2, 1, 2), (0, 2, 0), (0, 3, 2), (0, 1, 0), (1, 2, 1) and (1, 3, 1).
In Figure 4(d), the EAF algorithm selects the destination with the minimum available time as the receiver of a new task. Thus, the sequence of tasks selected by the EAF algorithm is (2, 0, 2), (2, 1, 2), (2, 3, 2), (0, 2, 0), (0, 1, 0), (1, 2, 1) and (1, 3, 1). In Figure 4(e), the task schedule derived by the RR algorithm is (2, 0, 2), (2, 1, 2), (0, 2, 0), (0, 3, 2), (0, 1, 0), (1, 2, 1) and (1, 3, 1). From the previous sequence, it can be observed that the destination nodes take turn to be the receivers of the tasks. In Figure 4(f), the RRS algorithm selects the receiver randomly for a new task. The resulting sequence of tasks is (0, 1, 0), (2, 1, 2), (2, 0, 2), (2, 3, 2), (0, 2, 0), (1, 3, 1) and (1, 2, 1).
For the preemptive scheduling algorithms, the results are illustrated in Figure 5. In Figure 5(a), the sequence of tasks derived by the earliest completion first preemptive (ECFP) algorithm is (0, 1, 0), (2, 0, 2), (2, 1, 2), (1, 3, 1), (0, 2, 0), (0, 3, 2) and (1, 2, 1). Compared with the sequence in the ECF scheme, for example, at the fourth step the ECFP scheme schedules the task (1, 3, 1) instead of the task (0, 2, 0) in the ECF scheme. The trick in this difference is that the ECFP scheme preempts the receive task (0, 1, 0) and utilizes the waiting time to schedule the send task (1, 3, 1).
In Figure 5(b), by preempting receive operations with non-blocking send operations, the work racing preemptive (WRP) algorithm generates the following task schedule: (2, 0, 2), (0, 1, 0), (0, 2, 0), (1, 3, 1), (0, 1, 2), (1, 2, 1), and (0, 3, 2). In Figure 5(c), the resulting sequence of tasks generated by the earliest available first preemptive (EAFP) scheme is (2, 0, 2), (0, 1, 0), (1, 3, 1), (0, 2, 0), (0, 1, 2), (0, 3, 2) and (1, 2, 1). In Figure 5(d), the round robin preemptive (RRSP) algorithm derives the following sequence of tasks: (2, 0, 2), (0, 1, 0), (0, 2, 0), (1, 3, 1), (0, 1, 2), (1, 2, 1) and (0, 3, 2). In Figure 5(e), the sequence of tasks generated by the receiver random selection preemptive (RRSP) algorithm is (0, 1, 0), (2, 1, 2), (2, 0, 2), (1, 3, 1), (0, 2, 0), (0, 3, 2) and (1, 2, 1).
7. Experimental results
To evaluate the performance of the scheduling algorithms, we developed a software simulator for heterogeneous networks. The simulation is modeled by the number of nodes, the processing speeds of the nodes, the network bandwidth, and the multicast patterns. Since in this paper we do not consider the effect of network contention, we assume the processors in the network are fully connected (each pair of processors can communicate independent of others).
Recall the point-to-point latency between two nodes given in Equations (2) and (3) in Section 2. The send/receive overheads of each processor are chosen randomly from an interval as described below. The constant parts (Scand Rc) are in the range
of 80 to 400 ms, and the length-dependent parts (Sm and Rm) are in the range of
0:0001 to 0.01 ms/byte. The network bandwidth between a pair of processors is randomly chosen as either 155 Mbps (slow links) or 1 Gbps (fast links). For each data point, the multicast performance was averaged over 100 different system configurations.
We consider three sets of message lengths in our experiments—all small messages ð 1 kbytesÞ, all large messages (1 and 1.5 Mbytes), and a mixture of small and large messages. In the following, we present and discuss the results for three multicast patterns: single broadcast, all-to-all broadcast, and general multiple multicast.
7.1. Single broadcast
The broadcast time on a N-node system is measured as follows. We repeat the broadcast for N times and each time a different processor is chosen as the source. The time is measured as the average of the completion time from the N broadcasts. Figure 6 shows the single broadcast time on different numbers of nodes. We note that the completion time of the FEF algorithm is significantly higher than those of the others. The reason is that FEF only considers the latency of a communication task instead of the completion time of a task.

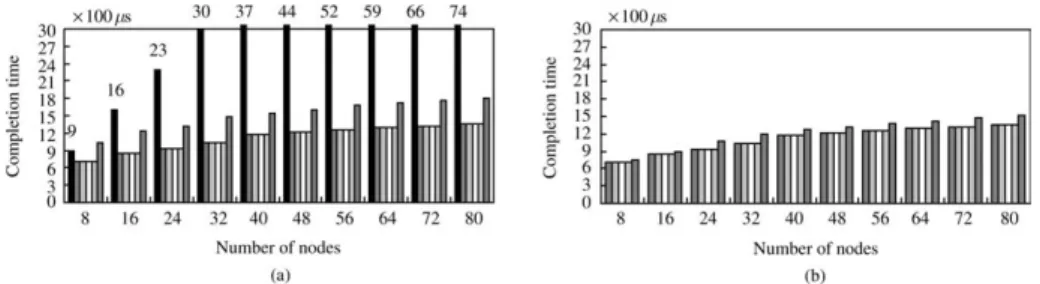

Figure 6. Broadcast completion time on a HNOW system: (a) non-preemptive schemes: from left to right, the results of FEF, ECF, WR, EAF, RR, and RRS are shown. (b) preemptive schemes: from left to right, the results of ECFP, WRP, EAFP, RRP, and RRSP are shown.
For single broadcast, all the algorithms generate almost identical schedules, resulting in similar completion time of multiple multicast. Randomized selection (the RRS algorithm) does not perform as well as others, but still outperforms the FEF algorithm.
7.2. All-to-all broadcast
For the all-to-all broadcast problem, we compare the timing results of the non-preemptive and non-preemptive algorithms, with different number of nodes (up to 80 nodes), two message sizes (1 kbytes and 1 Mbytes), and two network transmission rates (155 Mbps and 1 Gbps). Figures 7 and 8 compare the performance of these algorithms in a fast network (1 Gbps) and a slow network (155 Mbps) respectively. In a fast network as shown in Figure 7, for short messages we note that the completion times of the non-preemptive and preemptive versions of ECF, WR, EAF, and RR algorithms are comparable to each other and are all within twice the lower bound. Also shown in Figure 7(a), although the performance of the RRS algorithm is not as good as the others, its completion times are still acceptable compared to the FEF algorithm. For large messages, as shown in Figure 7(c), the EAF and RR algorithms perform much worse than the ECF, WR and RRS algorithms.
In Figure 7(b) and (d), the results of the preemptive schemes in a fast network for short and large messages are shown respectively. It can be observed that the completion times of all the five algorithms are comparable with each other. Especially for the EAFP and RRP algorithms with large messages, the preemption optimization provides great improvement over their unoptimized counterparts.
In a slow network, as shown in Figure 8, the performance advantage of the preemptive algorithm is more significant since the network transmission latency becomes more substantial. We also note that the EAF and RR schemes perform more worse with large messages in a slow network. The completion time of the WRP algorithm is within 2.5 times of the lower bound. The WR algorithm is competitive to the ECF algorithm and outperforms ECF in many cases.
The computation (scheduling) times of all these algorithms are measured and listed in Table 1. The WR, EAF, RR and RRS algorithms all have lower scheduling overhead, and the ECF algorithm has the highest, making ECF impractical for dynamic multicast patterns with short messages. The computation times of the preemptive algorithms are about three to five times as much as those of their non-preemptive counterparts.
7.3. Multiple multicast
For multiple multicast we consider a 64-node HNOW system, with three different combinations of message lengths. Given the set of source nodes, we randomly choose
the destination nodes for each source node. The completion time is taken from the average of 1,000 runs of simulation with random configuration of source and destination nodes.

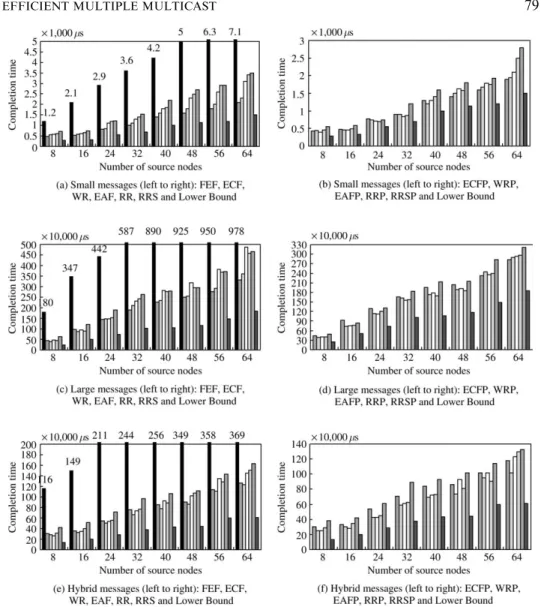

Figures 9 and 10 show the completion times in a fast network and a slow network respectively. Similar to the results of the all-to-all broadcast, the ECF and the WR algorithms perform the best among all non-preemptive algorithms, especially for large messages (Figures 9(c) and 10(c)). The preemptive algorithms all have comparable performances and significant improvement over the non-preemptive ones. Figures 11 and 12 show the competitive ratio of the non-preemptive and preemptive algorithms. The competitive ratio of an algorithm is defined as the ratio of its completion time against the lower bound (defined in Section 2). It can be observed that the completion times of the WRP algorithm are within 2.5 times of the lower bounds in large systems.
Table 2 shows the computation time of the algorithms on a 64-node HNOW system with different number of source nodes. Compared with the computation times of ECF and ECFP, the non-preemptive and preemptive versions of WR, EAF, RR and RRS algorithms have much lower scheduling time. The overhead is negligible compared to the completion time of the multicast.
8. Related work
Collective communication for NOW has been studied in a number of research projects [1, 5, 7–9, 12, 15, 16, 21, 27, 29]. Most of them are for homogeneous clusters. The study on collective communication for heterogeneous networks of work-stations was initiated by the ECO project [23]. ECO proposed heuristic algorithms to partition the workstations participating in a collective communication into subnet-works based on pair-wise round-trip latencies between subnet-workstations. It then decomposes the collective communication into two phases: inter-subnetwork and intra-subnetwork. ECO automatically chooses a suitable tree algorithm for each of these phases. The network partitioning approach based on pair-wise round-trip latencies was shown to be effective in implementing collective communication on
Table 1. The computation times (in s) of the scheduling algorithms for all-to-all broadcast
Non-preemptive schemes Preemptive schemes
# of nodes FEF ECF WR EAF RR RRS ECFP WRP EAFP RRP RRSP 8 0.4 0.6 0.2 0.2 0.15 0.22 2 0.3 0.28 0.26 0.29 16 5 17 1 1 1 1 47 2 2 2 3 24 32 121 5 3 4 5 423 14 11 10 13 32 127 504 17 9 9 15 2,072 44 29 28 42 40 304 1,514 39 17 22 32 7,634 117 72 68 103 48 602 3,714 58 35 38 66 19,585 158 139 130 242 56 810 8,168 85 59 67 89 46,323 315 250 233 356 64 1,033 15,871 136 97 104 150 88,053 633 426 451 716 72 1,494 29,026 189 143 160 240 140,020 786 672 619 827 80 2,568 45,597 296 210 243 364 232,947 1,345 1,043 1,031 1,575
heterogeneous networks (i.e., systems where multiple network architectures coexist). However, it does not consider other types of heterogeneity, such as the communication capabilities of individual workstations.
Banikazemi et al. [3] proposed two new algorithms to optimize multicast communication for NOW with heterogeneity in communication capability of workstations. The sped-partitioned ordered chain (SPOC) algorithm ordered the participating nodes of a collective communication based on their communication capabilities (measured by round-trip latency between different types of work-stations), and then assigns the nodes to the binomial trees for broadcast/multicast based on the ordering. The authors show that SPOC may not be efficient for general cases and then proposed a greedy algorithm called fastest node first (FNF). In each
iteration of the algorithm, the fastest node which has not received the message is added to the tree. Their simulation results show that the FNF algorithm approaches near optimal solution for multicast communication.
Although FNF can also be used for implementing multiple multicast by constructing one tree for each multicast operation, it may not be the most efficient way to do it. In this paper we take on this challenge and design efficient Cluster-Agent based algorithms for all-to-all communication (all-to-all broadcast, complete exchange, and multiple multicast) for NOW/HNOW.
Raghavendra et al. [25] proposed a communication framework that characterizes heterogeneity of both processing nodes and networks. A cost function is constructed
for each pair of nodes, which represents the communication cost between the two nodes. Based on the communication framework, the authors designed three heuristic algorithms FEF, ECF, and Look-ahead (LA) for multicast and broadcast on distributed networks. The experimental results show that FEF, ECF and LA outperform the FNF approach significantly on distributed heterogeneous networks. The same group also developed a greedy algorithm (call it Openshop) for all-to-all personalized communication on heterogeneous systems [26]. The algorithm is based on the openshop scheduling problem and schedules the messages according to the earliest available time of the processing node.
Jacunski et al. [17] studied all-to-all broadcast on clusters of workstations based on commodity switch-based networks. A new algorithm called link scheduling,
which is an enhancement to the simultaneous broadcast algorithm, was proposed to avoid link contention problem between switches. The basic idea is that use of the interconnecting link is scheduled among nodes in a way that permits every node to remain busy with useful work. Since the link scheduling algorithm employs a homogeneous scheduling algorithm for all-to-all broadcast between the nodes connected to the same switch, it may not be efficient for heterogeneous NOW.
Kielmann et al. [20] design efficient algorithms for collective communication operations (barrier, broadcast, reduction, personalized communication) on wide area networks with heterogeneous network speeds. The algorithms are wide area
optimal in that an operation incurs only a single wide area latency, and every data item is sent at most once across each wide area link.
Another line of works focus on irregular all-to-all communication on distributed-memory systems [13, 22, 28]. Unlike the works described above, this line of works study heterogeneity in the length of messages, rather than that of machine characteristics. Typically, these algorithm reduce communication latency using several strategies, including reducing total number of messages, reducing the variance of message length, as well as overlapping communication with computa-tion, by decomposing the all-to-all communication among all processors into several stages of all-to-all communication among subsets of processors. All these works focus on the management of heterogeneity resulted from different length of messages transmitted between processors, but lack of support for managing other types of heterogeneity.
9. Conclusion and future work
In this paper, we have presented six algorithms for software message-passing based implementation of multiple multicast on heterogeneous NOW systems. Our implementations exploit several advantages over existing works: (1) They are portable to different HNOW systems because they are implemented based on the message-passing primitives provided at the application layer of interconnection networks, (2) they are efficient for both general multiple multicast and their degenerate cases (single multicast, broadcast, all-to-all broadcast), and (3) they are developed based on a more realistic, non-blocking communication model, and are optimized to take advantage of non-blocking communication that are available in current networks and operating systems.
Collective communication on heterogeneous systems is a challenging research issue. There is a lot of ground to be covered. In the following we outline some of our future works.
Table 2. The computation times (in s) of the scheduling algorithms for multiple multicast
Non-preemptive schemes Preemptive schemes
# of nodes FEF ECF WR EAF RR RRS ECFP WRP EAFP RRP RRSP 4 1.35 2.13 0.3 0.27 0.14 0.26 4.25 0.41 0.4 0.27 0.41 8 23.7 50.58 2.15 2.01 1.29 2.15 124.6 3.97 3.72 3.23 3.83 16 44.6 86.2 3.25 3.11 1.98 3.18 226 6.34 6.4 5.2 6.1 24 136 429 10.7 8.8 7.3 10.9 1,344 24.8 21.9 20.1 23.8 32 368 836 16.7 12.5 11.1 17.7 2,823 39.5 30.7 31.8 42.8 48 639 1,611 27.9 20.2 19.8 32.1 6,427 76.9 55.5 63.8 72.3 56 973 1,956 32.1 23 22.1 39.3 8,136 87.4 67.7 73.3 98.7 64 1,558 3,000 47.2 31.1 29.1 56.4 12,548 134.9 102.5 112 157
9.1. Minimizing contention in multicast
The communication model and the scheduling algorithms make an assumption that all the processors in the network are fully connected, so the impact of message contention is neglegible. In today’s cluster environments, switches (such as Myrinet [6], Autonet [10], ServerNet [14], and GigaNet) are a common choice for building a cost-effective cluster. A switch usually has eight to thirty-two ports that can interconnect with workstations/PCs or other switches. The processors (workstations and PCs) within a switch are fully connected so each pair of processors can pass messages independent of others. However, message passing between processors residing in different switches will have to travel through the links connecting the switches. If multiple messages travel through a link simultaneously, contention will occur. The contention problem is crucial to the performance of collective communication.
Kesavan et al. [18] a number of research effort has devoted to multicasting with reduced contention on irregular switch-based wormhole networks with unicast message passing [24]. The idea was to find appropriate ordering of the procesing nodes so as to reduce contention. In this line of work, Kesavan et al. [18] proposed the chain concatenation ordering heuristic for irregular networks with up-down routing. This algorithm was shown to be the best among three algorithms to implement multicast with reduced contention and minumum latency. Fan and King [11] proposed a two-level multicast algorithm based on the Eulerian Trail of processing nodes in the network. Contention is reduced by finding and reducing a subtrail containing the switches involved in the multicast. However, both works only focus on single multicast on homogeneous stwitching networks. Algorithms for reducing contention in multiple multicast have been reported in existing literatures [19, 31, 32]. All of them only focus on homogeneous systems with uniform network topologies, therefore they may not be efficient for heterogeneous systems.
Minimizing contention in multiple multicast on heterogeneous systems is much more complicated. We plan to extend our communication model and scheduling algorithms to implement multiple multicast with reduced contention and minimum completion time. The communication model maybe extended by incorporating a parameter measuring the delay caused by message contention. The scheduling algorithms will update the available time of selected sender and receiver according to the new communication model.
9.2. Incremental scheduling
Although the OðN3Þ algorithms and the preemption optimization that we have
proposed can determine efficient communication schedules with negligible overhead for multicast of long messages, there is room for improvement for short messages. We are considering an incremental optimization for dynamic multiple multicast patterns. That is, given a multiple multicast pattern P and a good schedule S for it, our goal is to derive a good schedule for a similar pattern P0 from S instead of
9.3. Collective communication in wide area networks
We are also investigating the possibility of extending this work to handle collective communication over wide-area-networks (WAN). The first step toward WAN communication is to enhance our communication model with the ability to predict the behavior of communication in WAN. In order to do so, we need to statistically analyze the effect of the cross-traffics from other sessions and the traffic pattern of a communication in order to measure the network transmission time more accurately.
9.4. Scheduling with QoS or constraints
In this paper, the goal of the scheduling algorithms has been to minimize the completion time of multiple multicast. In the future, we will study the possibility of revising these algorithms for collective communication on heterogeneous systems that have quality of service requirement or resource constraints.
Appendix
Figure 14. UpdateReceiverState procedure.
Figure 15. SendAvailable function.
References
1. H. R. Arabnia and S. M. Bhandarkar. Parallel stereocorelation on a reconfigurable multi-ring network. The Journal of Supercomputing, 10(3):243–270, 1996.
2. J. V. Bala, J. Bruck, R. Cypher, P. Elustando, A. Ho, C.-T. Ho, S. Kipnis, and M. Snir. CCL: A portable and tunable collective communication library for scalable parallel computers. Journal of Parallel and Distributed Computing, 6(2):154–164, 1995.
3. M. Banikazemi, V. Moorthy, and D. K. Panda. Efficient collective communication on heterogeneous networks of workstations. In Proceedings of International Conference on Parallel Processing, pp. 460– 467, 1998.
4. M. Banikazemi, J. Sampathkumar, S. Prabhu, D. K. Panda, and P. Sadayappan. Communication modeling of heterogeneous networks of workstations for performance characterization of collective operations. In Proceedings of the Heterogenenous Computing Workshop, 1999.
5. S. M. Bhandarkar and H. R. Arabnia. The REFINE multiprocessor—theoretical properties and algorithms. Parallel Computing, 21(11):1783–1806, 1995.
6. N. J. Boden, D. Cohen, R. F. Felderman, A. E. Kulawik, C. L. Seitz, J. Seizovic, and W. Su. Myrinet—a gigabit per second local area network. IEEE Micro, pp. 29–36, February 1995. 7. J. Bruck, R. Cypher, P. Elustando, A. Ho, C.-T. Ho, V. Bala, S. Kipnis, and M. Snir. Efficient
message passing interface (MPI) for parallel computing on clusters of workstations. Journal of Parallel and Distributed Computing, 40(1):19–34, January 1997.
8. A. Chien, S. Pakin, M. Lauria, M. Badanan, K. Hane, and L. Giannini. High performance virtual machines (HPVM): Clusters with supercomputing and performance. In Proceedings of 8th SIAM Conference on Parallel Processing for Scientific Computing, 1996.
9. D. Culler, A. Arpaci-Dusseau, R. Arpaci-Dusseau, B. Chun, S. Lumetta, A. Mainwaring, R. Martin, C. Yoshikawa, and F. Wang. Parallel computing on the berkeley now. In 9th Joint Symposium on Parallel Processing, 1997.
10. M. D. Schroeder, A. D. Birrell, M. Burrows, H. Murray, R. M. Needham, T. L. Rodeheffer, E. H. Satterthwaite, and C. P. Thacker. Autonet: A high-speed, self-configuring local area network using point-to-point links. Technical Report SRC research report 59, DEC, April 1990.
11. K.-P. Fan and C.-T. King. Efficient multicast on wormhole switch-based irregular networks of work-stations and processor clusters. In Proceedings of Parallel and Distributed Computing Symposium (PDCS), 1997.
12. W. Gropp and E. Lusk. User’s guide for mpich, a portable implementation of mpi. Technical Report ANL/MCS-TM-ANL-96/6, Mathematics and Computer Science Division, Argonne National Laboratory, 1996.
13. S. Hambrusch, F. Hameed, and A. Khokhar. Communication operations on coarse-grained mesh architectures. Parallel Computing, 21:731–751, 1995.
14. R. Horst. Servernet deadlock avoidance and fractahedral topologies. In Proceedings of the International Parallel Processing Symposium, pp. 274–280, April 1996.
15. C. Huang, Y. Huang, and P. K. McKinley. A thread-based interface for collective communication on ATM networks. In Proceedings of ICDCS, pp. 254–261, 1995.
16. Y. Hwang and P. K. McKinley. Efficient collective operations with atm network interface support. In Proceedings of ICPP, 1996.
17. M. Jacunski, P. Sadayappan, and D. K. Panda. All-to-all broadcast on switch-based clusters of workstations. In Proceedings of International Parallel and Distributed Processing Symposium (IPDPS), 1999.
18. R. Kesavan, K. Bondalapati, and D. K. Panda. Multicast on irregular switch-based networks with wormhole routing. In International Symposium on High Performance Computer Architecture, February 1997.
19. R. Kesavan and D. K. Panda. Multiple multicast with minimized node contention on wormhole k-ary n-cube networks. IEEE Transacations on Parallel and Distributed Systems, 10(4):371–393, 1999. 20. R. Kielmann, R. F. H. Hofman, H. E. Bal, A. Plaat, and R. A. F. Bhoedjang. MAGPIE: MPI’s
collective communication operations for clustered wide area systems. In PPoPP’99, Symposium on Principles and Practice of Parallel Programming, May 1999.
21. M. Lauria. High performance MPI implementation on a network of workstations. Technical Report Master Thesis, Department of Computer Science, University of Illinois at Urbana-Champaign, 1996. 22. W. Liu, C.-L. Wang, and V. K. Prasanna. Portable and scalable algorithms for irregular all-to-all
communication. In Proceedings of the 16th ICDCS, pp. 428–435, 1996.
23. B. Lowekamp and A. Beguelin. ECO: Efficient collective operations for communication on heterogeneous networks. In Proceedings of International Parallel Processing Symposium, pp. 399– 405, 1996.
24. P. K. McKinley, H. Xu, A. Esfahanian, and L. M. Ni. Unicast-based multicast communication in wormhole-routed direct networks. IEEE Transactions on Parallel and Distributed Systems, (5):1252– 1265, 1994.
25. C. S. Raghavendra, V. K. Prasanna, and P. B. Bhat. Efficient collective communication in distributed heterogeneous systems. In Proceedings of International Conference on Distributed Computing Systems (ICDCS), 1999.
26. V. K. Prasanna, P. B. Bhat, and C. S. Raghavendra. Adaptive communication algorithms for distributed heterogeneous systems. In Proceedings of the 7th IEEE International Symposium on High Performance Distributed Computing (HPDC), 1998.
27. J. Y. L. Park, H. A. Choi, N. Nupairoj, and L. M. Ni. Construction of optimal multicast trees based on the parameterized communication model. In Proceedings of the International Conference on Parallel Processing, 1996.
28. S. Ranka, R. Shankar, and K. Alsabti. Many-to-many communication with bounded traffic. In Symposium on Frontiers of Massively Parallel Computation, 1995.
29. H. Tezuka, A. Hori, Y. Ishikawa, and M. Sato. PM: An operating system coordinated high-performance communication library. In Proceedings of High Performance Computing and Networking (LNCS vol. 1225), 1997.
30. K. Verstoep, K. Langendoen, and H. Bal. Efficient reliable multicast on myrinet. In Proceedings of International Conference Parallel Processing, volume III, pp. 156–165, August 1996.
31. S. Y. Wang, Y. C. Tseng, C. S. Sheu, and J. P. Sheu. Balancing traffic load for multi-node multicast in a wormhole 2d torus/mesh. In International Parallel and Distributed Processing Symposium, pp. 611– 616, 2000.
32. Z. Zhou and Z. Tang. Optimal algorithms to reduce contention in multiple multicast. Technical report, Institute of Computing Technology, Chinese Academy of Sciences, 2000.
