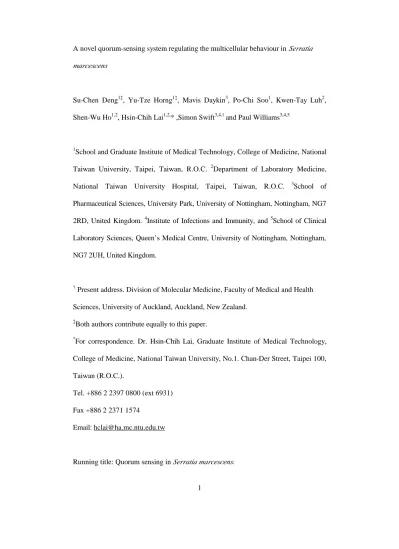

A novel quorum-sensing system regulating the multicellular behaviour in Serratia marcescens
Su-Chen Deng1‡, Yu-Tze Horng1‡, Mavis Daykin3, Po-Chi Soo1, Kwen-Tay Luh2, Shen-Wu Ho1,2, Hsin-Chih Lai1,2,* ,Simon Swift3,4,† and Paul Williams3,4,5
1
School and Graduate Institute of Medical Technology, College of Medicine, National Taiwan University, Taipei, Taiwan, R.O.C. 2Department of Laboratory Medicine, National Taiwan University Hospital, Taipei, Taiwan, R.O.C. 3School of Pharmaceutical Sciences, University Park, University of Nottingham, Nottingham, NG7 2RD, United Kingdom. 4Institute of Infections and Immunity, and 5School of Clinical Laboratory Sciences, Queen’s Medical Centre, University of Nottingham, Nottingham, NG7 2UH, United Kingdom.
†
Present address. Division of Molecular Medicine, Faculty of Medical and Health Sciences, University of Auckland, Auckland, New Zealand.
‡
Both authors contribute equally to this paper.
*
For correspondence. Dr. Hsin-Chih Lai, Graduate Institute of Medical Technology, College of Medicine, National Taiwan University, No.1. Chan-Der Street, Taipei 100, Taiwan (R.O.C.).
Tel. +886 2 2397 0800 (ext 6931) Fax +886 2 2371 1574
Email: [email protected]
Keywords: Serratia marcescens, quorum sensing, sliding, biosurfactant, prodigiosin, nuclease.
Summar y
In Serratia marcescens SS-1 the regulation of the production of a biosurfactant that facilitates surface translocation, the pigment prodigiosin and the NucA nuclease involves N-acyl homoserinelactone (acyl-HSL) dependant quorum sensing. The major S. marcescens SS-1 acyl-HSL signal is identified as N-3-oxohexanoyl homoserine lactone (3-oxo-C6-HSL). The gene for its synthase, SpnI, and the response regulator, SpnR, have been cloned and their sequences determined. SpnR over-expression and spnR gene deletion show that, in contrast to the two other Serratia quorum sensing systems investigated to date, SpnR appears to act as a repressor. SpnI over-expression, acyl-HSL supplementation and spnI gene deletion show that SpnR is de-repressed by 3-oxo-C6-HSL. The blockade of 3-oxo-C6-HSL signalling with long acyl chain HSLs reduces biosurfactant mediated surface translocation in both S. marcescens SS-1 and an acyl-HSL quorum sensing negative S. marcescens isolate, CH-1. Upstream of spnI there is a gene we have termed spnT. Database searches have found no homologs of SpnT and while usually reliable strategies to delete this gene from the S. marcescens SS-1 chromosome have failed, over-expression of this gene produces a strong inhibition of quorum sensing controlled traits.
Intr oduction
Serratia marcescens is noted for the production of a red pigment, prodigiosin (2-methyl-3-pentyl-6-methoxyprodigiosin) (Dauenhauer et al., 1984; Hejazi and Falkiner, 1997) that is now receiving renewed interest as a consequence of its potency as a therapeutic agent (Han et al., 1998; Montaner et al., 2000). In addition, the β-lactam antibiotic, carbapenem (carbapen-2-em-3-carboxylic acid) has been described as a secondary metabolite produced by some strains of Serratia (Cox et al., 1998; McGowan et al., 1999). Moreover, S. marcescens has emerged as a nosocomial pathogen, mainly being responsible for outbreaks that affect immuno-compromised or surgical patients, and where Serratia multi-antibiotic resistance amplifies the problem (Arakawa et al., 2000; Traub, 2000; Knowles et al., 2000). Interestingly, isolates of S. marcescens from the clinical setting are predominantly non-pigmented (Carbonell et al., 2000), however a number of other traits have been identified that may be involved in pathogenesis, including swimming and swarming motility and extracellular enzyme activities, i.e. nuclease, protease, lipase, and haemolysin (Hejazi and Falkiner, 1997).
The regulation of both prodigiosin production and carbapenem production has been demonstrated to be under the control of N-acylhomoserine lactone (acyl-HSL) mediated quorum sensing in Serratia sp. ATCC 39006 (Thomson et al., 2000). Quorum sensing is a mechanism of gene regulation that requires cell-to-cell signalling and reflects the population cell density (reviewed in Dunny and Winans, 1999; Fuqua and Eberhard, 1999; Williams et al., 2000; Swift et al., 2001). The simple paradigm describes bacteria at low population cell density producing a small amount of a diffusible signal molecule that accumulates in the extracellular milieu. After growth to a high population cell density, the concentration of the signal reaches a threshold level and activates
transcription of the quorum sensing regulon of genes via a response regulator protein. In Gram-negative bacteria acyl-HSL signalling is predominant, although other signalling chemistries are apparent (Holden et al., 2000). The LuxI family of proteins is most commonly associated with acyl-HSL signal generation. The LuxR family of proteins is most commonly associated with acyl-HSL signal response. The luxI and luxR homologous genes are often genetically linked, although they may be arranged consecutively, convergently or divergently (Salmond et al., 1995).
Notably in Serratia sp. ATCC 39006, the quorum sensing signals produced were identified, using comparative thin-layer chromatography, as N-butanoylhomoserine lactone (C4-HSL; major product) and N-hexanoylhomoserine lactone (C6-HSL; minor product) (Thomson et al., 2000). The genes encoding the signal generator and response regulator proteins were identified as a convergently transcribed pair and termed smaI and smaR (Thomson et al., 2000). Protein sequence identity analyses identified SmaI and SmaR as members of the LuxI and LuxR families, sharing high levels of identity with homologues from Erwinia chrysanthemi (SmaR:EchR 55%), Erwinia caratovora (SmaR:ExpR 55%; SmaI:EcbI 53%) and Serratia liquefaciens (SmaR:SwrR 71%, SmaI:SwrI 55%).
The quorum sensing response in bacterial populations can favour pathogenesis, symbiosis, dissemination or dispersal, DNA transfer, microbial biofilm development, the production of antibiotics and other secondary metabolites, and the exit from dormancy (see Dunny and Winans, 1999; Swift et al., 2001 for reviews). In the non-pigmented S. liquefaciens strain MG-1 acyl-HSL quorum sensing activates the production of a secondary metabolite with surfactant properties (Lindum et al., 1998). One physiological role for this substance has been demonstrated in the facilitation of flagellar-mediated swarming motility across surfaces, e.g. that of an agar plate.
Evidence also exists for other traits forming part of a quorum sensing regulon in S. liquefaciens, i.e. in the quorum sensing signal generator swrI- mutant the production of an exoprotease activity is much reduced (Eberl et al., 1996). Recently this has been attributed to quorum sensing control of the LipB protein involved in the secretion of lipase, protease and S-layer monomers (Riedel et al., 2001).
Surface translocation is important in colonisation and pathogenesis. For example, the swarming motility phenotype of Proteus mirabilis has been implicated in uropathogenesis, with mutants unable to swarm being unable to ascend to the kidney from the bladder (Allison et al., 1994). Dramatic morphological and physiological changes occur in swarming cells (Allison and Hughes, 1991; Harshey, 1994). This swarmer cell differentiation involves a change from short, vegetative cells with few peritrichous flagella to elongated, multi-nucleoid swarmer cells covered with flagella that are required to produce the population movement over a surface. The regulation of swarming in Serratia spp., perhaps unexpectedly, also involves the FlhDC flagellar master regulator (Givskov et al., 1998; Fraser and Hughes, 1999; Liu et al., 2000). In addition, the rsmA (repressor of secondary metabolism) gene product (named after the Erwinia homologue; Cui et al., 1995) of Serratia inhibits swarming motility (Ang et al., 2001). The activity of rsmA in both Erwinia and Serratia is part of the regulatory network that also involves acyl-HSL based quorum sensing regulation (Cui et al., 1995, Ang et al., 2001).
In this study we have investigated the role of acyl-HSL mediated quorum sensing in two pigmented isolates of S. marcescens with particular emphasis upon secondary metabolism, exoenzyme production and surface translocation. The differences observed between the Serratia strains documented here and in previous studies are striking and may offer insight into the role of quorum sensing in bacterial ecology and the spread of
Results
Genetic structure of the quorum sensing locus in Serratia marcescens SS-1
The first reports of acyl-HSL signalling in S. marcescens used a pigmented, laboratory-maintained strain we have designated SS-1. In 1993, the population cell density dependent production of an acyl-HSL activating a plasmid-based biosensor was shown for S. marcescens SS-1 (Swift et al., 1993). The biosensor technology used relies upon activation of LuxR, derived from Vibrio fischeri, by its cognate ligand N-3-oxohexanoyl homoserine lactone (3-oxo-C6-HSL), or an agonist thereof. The activated LuxR then activates transcription of the reporter gene, which in this case was luxAB. Swift et al., (1993) also utilised the biosensor strain to screen a S. marcescens SS-1 DNA library for a clone that could direct the production of 3-oxo-C6-HSL, or an agonist, and a 7.5 kbp BamHI DNA fragment was isolated. To extend this study, the DNA sequence of the 7.5 kbp fragment has been determined. The genes for the acyl-HSL signal synthase, spnI, and the response regulator, spnR, (spn stands for sliding, pigment and nuclease) were located as a convergon at one end of the BamHI fragment, with 6.3 kbp cloned upstream of spnR. A second screening (NsiI library) identified a 4 kbp DNA fragment for which DNA sequencing revealed spnRI and 2.5 kbp of DNA upstream of spnI.
The spnRI region sequenced comprises approximately 10 kbp and 11 complete and partial open reading frames (ORFs). The structure of the spnRI region upon the S. marcescens SS-1 genome is shown in Figure 1, and the identities of the open reading frames indicated are given in Table 1. The DNA sequence of the spnRI region of S. marcescens SS-1 has been submitted to GenBank under the accession number
AF389912. It is interesting to note here that SpnR and SpnI share most identity with the EsaR (67 %) and EsaI (57 %) proteins of Pantoea stewartii (von Bodman et al., 1998), and not the SmaR and SmaI genes identified in Serratia sp. ATCC 39006 (Thomson et al., 2000), with the identity of 43 % and 34 %, respectively.
C6-HSL and 3-oxo-C6-HSL are the major quorum sensing signals produced by Serratia marcescens SS-1
Cell-free supernatants from S. marcescens SS-1 cultures taken at various points in growth were extracted with dichloromethane and fractionated by TLC and HPLC. TLC overlays with the biosensor strain C. violaceum CV026 revealed major spots corresponding to C6-HSL and 3-oxo-C6-HSL in supernatants after growth to an A600nm
of 1.0. Allowing growth to continue to an A600nm of 2.2 revealed two additional minor
spots corresponding C7-HSL and C8-HSL (Figure 2a and 6b). The designations were made after comparison to synthetic acyl-HSL standards. To confirm this preliminary identification, HPLC fractionation [acetonitrile/water gradient from 20% (V/V) to 80%] and sub-fractionation of the active molecules (isocratic mobile phase) followed by mass spectrometry was performed. This analysis confirmed the two major signal molecules as C6-HSL and 3-oxo-C6-HSL and the two minor signal molecules as C7-HSL and C8-HSL (Figure 2d).
SpnR is a repressor of prodigiosin production, nuclease production and sliding motility in Serratia marcescens SS-1
SmaR molecules in the cell by introducing a plasmid copy of spnR and (2) deleting the spnR gene from the S. marcescens SS-1 chromosome using homologous recombination. Increasing the SpnR copy has an obvious negative effect upon the production of the red pigment, prodigiosin: colonies of S. marcescens SS-1 (pSC200) are white, whereas those of the control strain S. marcescens SS-1 (pSC201) are red. Deletion of the spnR gene produces colonies that are qualitatively more pigmented when compared to the parent strain.
Analysis of S. marcescens SS-1, S. marcescens SS-1∆R, S. marcescens SS-1 (pSC200), and S. marcescens SS-1 (pSC201) in exoenzyme assays failed to demonstrate any effect upon protease or phospholipase (data not shown). As the production of exonuclease activity is partially regulated by the flhDC operon in S. marcescens (Liu et al., 2000), we further investigated whether the spnRI system also performed a regulatory role. A microplate format DNA degradation assay (Chen et al., 1992) shows that in the presence of multicopy SpnR in trans, exonuclease activity is reduced, but in the absence of SpnR, exonuclease activity is increased (Fig. 3a). Hence, in comparison to the parental S. marcescens SS-1 strain, the nuclease activity produced by SS-1∆R is substantially higher (up to 400% of the wild-type activity; Fig. 3a). In the presence of multi-copy spnR, the nuclease activity of S. marcescens SS-1 (pSC200) is reduced (to 50% of the wild-type activity; Fig. 3a). The provision of spnR in trans to S. marcescens SS-1∆R restores nuclease activity to give about 200% of the parental activity (Fig. 3a).
The data presented above indicates that SpnR plays a negative regulatory effect upon the production of nuclease. To determine whether this effect was due to action at the nuclease promoter or perhaps an effect at some other stage of the secretion of the nuclease, a chromosomal nucA::luxAB promoter fusion was constructed in S.
marcescens SS-1 (to obtain the strain S. marcescens N-2) and assayed in the presence/absence of pSC200. A clear negative effect of SpnR upon the expression of luciferase activity is observed (Fig. 3b). The light emission of S. marcescens N-2 (pSC200) is substantially lower than that of S. marcescens N-2 (pSC201) (35% parental activity left; Figure 3b). The inhibitory effect can be complemented by addition of 3-oxo-C6-HSL at the concentration of 10 µM (Fig. 3b). These data demonstrate that SpnR exerts a negative regulatory effect upon the exonuclease activity of S. marcescens SS-1 by influencing the level ofnucA gene transcription.
S. marcescens SS-1 does not swim or swarm, a property we presume is due to the inability of this strain to produce flagellae (Fig. 4b). SDS-PAGE analysis of total cell protein and of sheared surface protein fails to show the presence of the 37 kDa flagellin subunit (data not shown). Furthermore, no flagellae are visible under the microscope after silver staining of the bacteria (Fig. 4b). Nevertheless, S. marcescens SS-1 is still able to spread rapidly from a point inoculation to a 0.35% agar LB plate, a phenomenon we will describe as sliding motility (see also Henrichsen, 1972 and Martinez et al., 1999) (Fig. 4a). The behaviors of S. marcescens SS-1, S. marcescens SS-1 ∆R, and S. marcescens SS-1 (pSC200) in sliding motility assays are markedly different (Fig. 5a) and in keeping with SpnR as a negatively acting regulator, as seen with the effects upon pigment and nuclease production. Hence, in comparison to their control strains, S. marcescens SS-1 (pSC200) does not slide from the point of inoculation and S. marcescens SS-1∆R is up-regulated for sliding motility. Moreover, the S. marcescens SS-1∆R colony begins to slide much earlier after inoculation than the parent strain, and the sliding of SS-1 ∆R was inhibited in the presence of multi-copy pSC200 (Fig. 5a). A comparison of the growth rates of S. marcescens SS-1 with its spnR deletion strain and
of S. marcescens SS-1 (pSC200) with S. marcescens SS-1 (pSC201) in L-broth does not show any differences that could explain differing rates of sliding motility (data not shown).
SpnR control of sliding motility is through the regulation of the production of a biosurfactant
The role of quorum sensing in S. liquefaciens has been described previously to activate the production of a biosurfactant (Lindum et al., 1998). One effect of biosurfactant production is the reduction of surface tension of broth cultures, which can be qualitatively assessed using the drop-collapsing test (Fig. 5a). A semi-quantitative thin layer chromatography technique has also been developed to assess biosurfactant production (Matsuyama et al., 1992) (Fig. 5b). The data presented in Fig. 5 show that the extent of sliding motility can be correlated with biosurfactant production. Hence, S. marcescens SS-1∆R exhibits greatest sliding motility and produces most biosurfactant, whereas S. marcescens SS-1 (pSC200) shows very little sliding motility and produces no detectable biosurfactant. The beginning of sliding motility is observable approximately 3 h after inoculation for S. marcescens SS-1. In comparison, the migration of S. marcescens SS-1 ∆R is reproducibly observable after only about 1.5 h (Fig. 5a). The provision of multi-copy spnR, in trans, on pSC200, represses the production of biosurfactant and increases the time of sliding initiation in S. marcescens SS-1 ∆R from 1.5 hours to about 5 hours (Fig. 5a).
To determine whether SpnR has any effect upon quorum sensing signal production, acyl-HSLs were monitored through growth for S. marcescens SS-1, S. marcescens SS-1∆R, S. marcescens SS-1 (pSC200) and S. marcescens SS-1∆R (pSC200). The spent supernatants were collected and the amount of acyl-HSL signals was monitored using the biosensor E. coli JM109 (pSB401) (Winson et al., 1998). The results in Fig. 6a demonstrate that the synthesis of a LuxR activating signal increases throughout the growth of S. marcescens SS-1. The strains tested [SS-1 (pSC201), SS-1∆R (pSC201), SS-1 (pSC200) and SS-1∆R (pSC200)] show no differences in their growth rates and produce similar patterns of quorum sensing dependent light emission, suggesting that synthesis of acyl-HSL signals by S. marcescens SS-1 is independent of the expression of SpnR. By following the pattern of acyl-HSL signal production from cultures of SS-1 and SS-1∆R throughout growth in CV026 TLC overlay assays, we further demonstrate that SpnR has little influence upon the actual acyl-HSLs produced (Fig. 6b). In a third experiment, a recombinant plasmid pYT505 [pACYC184(PspnI::luxAB)] was constructed to determine whether any SpnR effect upon the activity of the spnI promoter could be detected. The intensity of light emission was monitored throughout the growth in S. marcescens SS-1 (pYT505) and SS-1∆R (pYT505). The results are presented in Fig. 6c and show that a similar pattern of spnI promoter activity is observed in both SS-1 and SS-1∆R strains. The promoter activity is highest when cells are in the logarithmic phase of growth, reducing as cells enter the stationary phase.
A lux box consensus sequence as defined in Egland and Greenberg (1999) is present in the upstream region of spnR (Fig. 7a) and partially overlaps with the predicted –35 promoter region, suggesting that the expression of spnR might be auto-regulated. To confirm this a recombinant plasmid, pSC503 [pACYC184(PspnR::luxAB)], was
constructed to monitor the promoter activity of PspnR. A comparison of the light emission patterns from S. marcescens SS-1 (pSC503) and S. marcescens SS-1 ∆R (pSC503) (Fig. 7b) showed an average increase of 2.4 fold in PspnR activity in the presence of a chromosomal copy of spnR, suggesting the positive auto-regulation effect of SpnR. The addition of 3-oxo-C6-HSL (10 µM) to the media further stimulated the activity of PspnR (to 5 times) in SS-1 (pSC503) (Fig. 7b). Taken together these data suggest that SpnR stimulates the activity of its own promoter and that this effect is enhanced by the addition of 3-oxo-C6-HSL.
3-oxo-C6-HSL and 3-oxo-C8-HSL derepress SpnR
The observation that excess SpnR represses a wide range of phenotypic characters, whereas the deletion of spnR resulted in the over-expression of these same traits led us to hypothesise that SpnR is acting as a repressor. To ascertain the role of the acyl-HSL signals in this process we followed three lines of investigation: (1) addition of exogenous synthetic acyl-HSLs to S. marcescens SS-1(pSC200); (2) increasing acyl-HSL production by S. marcescens strains by providing spnI on a multicopy plasmid; and (3) making a spnI deletion mutant.
The addition of S. marcescens SS-1 signal molecule, 3-oxo-C6-HSL and also 3-oxo-C8-HSL at 10 µM to sliding motility plates inoculated with S. marcescens SS-1 (pSC200) overcomes the repression by SpnR (Fig. 8a). The addition of C4-HSL, C5-HSL, C6-HSL, C8-HSL, C10-HSL, C12-HSL, 3-oxo-C4-HSL, 3-oxo-C10-HSL, 3-oxo-C12-HSL and 3-oxo-C14-HSL had no observable effect when applied at 10 µM (Fig. 8a). Further experiments showed that the de-repression effect by 3-oxo-C6-HSL and 3-oxo-C8-HSL is dose-dependent (Fig. 8b). The provision of spnI on the plasmid
pYT300 to strain S. marcescens SS-1 (pSC200) de-represses SpnR, thus allowing sliding motility (Fig. 8c). In both situations the provision of acyl-HSLs either exogenously, or via SpnI, to S. marcescens SS-1 (pSC200) also restores pigment and biosurfactant production (data not shown). A similar de-repressing effect from 3-oxo-C6-HSL and 3-oxo-C8-HSL on the production of nuclease was also observed (data not shown).
The deletion of the spnI gene results in a phenotype similar to the SpnR over-expression strain. Prodigiosin production is reduced and the colonies are essentially white (data not shown). Biosurfactant production (Fig. 5) and sliding motility (Fig. 5) are substantially reduced. In each case the spnI mutant can be complemented by the provision of exogenous 3-oxo-C6-HSL (Fig. 5). Interestingly, the spnI mutant strain retains the ability to produce reduced levels of AHLs as shown in Fig. 2c. Addition of 3 µl out of a total of 100 µl concentrated supernatant (equivalent to 30 ml of cell-free supernatant) prepared from a 1 litre overnight MGM broth culture gave faint C6-HSL and 3-oxo-C6-HSL signals from the SS1∆I mutant in the TLC/CV026 assay (Fig. 2b). PCR and Southern blot hybridisations demonstrate that the spnI gene is both disrupted and has its central portion deleted. The N-terminal fragment of SpnI that remains is unable to direct the synthesis of acyl-HSLs when encoded upon a plasmid in E. coli (data not shown).
The nuclease activity produced by S. marcescens SS-1∆I was reduced to about 25% of the parental S. marcescens SS-1 level. The complementation of the spnI mutation in trans with pYT200 restores nuclease activity to parental levels (Fig. 3a). The complementation of the spnI mutation with exogenously added synthetic acyl-HSL signals is successful for the cognate molecule 3-oxo-C6-HSL (Fig. 3a) and also 3-oxo-C8-HSL but none of the others tested [i.e. C4-HSL, C5-HSL, C6-HSL, C8-HSL,
C10-HSL, C12-HSL, 3-oxo-C4-HSL, 3-oxo-C10-HSL, 3-oxo-C12-HSL and 3-oxo-C14-HSL](data not shown). Using S. marcescens N-2 (which carries a chromosomal PnucA::luxAB reporter fusion), it was shown that addition of 3-oxo-C6-HSL at the concentration of 10 µM into the medium restores the repressed light emission of N-2 (pSC200) (Fig. 3b). These data show the repression of nucA expression by SpnR is relieved in the presence of the SpnR ligand, 3-oxo-C6-HSL.
Long chain acyl-HSLs antagonise sliding motility in Serratia marcescens SS-1, and swarming motility in S. marcescens CH-1
To study the role of quorum sensing in the regulation of swarming motility in S. marcescens, we began work with a flagellated S. marcescens strain, termed CH-1 (Fig. 4c), which has previously been characterised as motile in swimming and swarming assays (Liu et al., 2000). Unexpectedly, we discovered that this strain was unable to produce any acyl-HSL able to activate biosensors based upon LuxR, CviR, AhyR or LasR in T-streak assays and in well assays after dichloromethane extraction of spent culture supernatants (data not shown). To exclude the possibility that inhibitory compounds were present in the crude dichloromethane extract we subjected the extract to fractionation by both HPLC and TLC and assayed using well assays or biosensor overlays respectively. In both cases no acyl-HSL activity was detected (data not shown). As further evidence for the absence of a LuxRI/acyl-HSL quorum sensing system in S. marcescens CH-1, DNA/DNA hybridisation in a Southern blot failed to identify any homologous DNA to the spnRI and spnT genes of SS-1 (data not shown).
To determine whether S. marcescens CH-1 could perceive and respond to acyl-HSLs, we performed swarm plate motility assays with a range of synthetic acyl-HSLs
incorporated into the medium at the concentration of 10 µM. Figure 9b shows while all the short chain acyl-HSLs tested did not inhibit swarming, a clear, inhibitory effect of some specific long chain acyl-HSLs upon swarm plate motility was observed. Among the long chain acyl-HSLs tested, 3-oxo-C10, 3-oxo-C12 and especially 3-oxo-C14 inhibit the CH-1 swarming most significantly. Using S. marcescens SS-1 as the study model a similar inhibitory effect of long chain acyl-HSLs upon sliding plate motility was also observed (Fig. 9a).
SpnT inhibits the sliding and pigment production in S. marcescens SS-1
Analysis of the orfs to either side of spnRI identified a number of transposon remnants. The only exception is orf3 that is directly upstream of spnI and which we have designated spnT. Overexpression of spnT in S. marcescens SS-1 has a profound negative effect upon sliding motility and pigment production (Fig. 10) without affecting the bacterial growth rate. Homology searches with the deduced SpnT primary protein sequence provide little information regarding possible functions. To date we have been unable to disrupt the spnT gene using homologous recombination techniques that are routinely successful in Serratia in our hands, suggesting that SpnT is essential under the conditions used for selection of the spnT mutant.
Discussion
In this study we describe a quorum-sensing system that regulates expression of biological traits involved in the multicellular behaviors of S. marcescens. We demonstrate that the flagellar independent surface translocation, by a sliding motility, of S. marcescens SS-1 relies upon the production of a QS-regulated biosurfactant. In addition we identify two additional components of the QS-regulon in S. marcescens SS-1 as the genes responsible for the production of the pigment prodigiosin and the extracellular nuclease.
Quorum sensing has previously been described in two strains of Serratia. In the non-pigmented S. liquefaciens MG-1, flagellar dependent surface translocation by swarming motility has been shown to rely upon the production of a QS regulated surfactant. Moreover, the SwrRI system has recently been shown to regulate the secretion of the LipA lipase, PrtA metalloprotease and the SlaA S-layer monomer via the regulation of the Lip exporter (Riedel et al., 2001). For S. liquefaciens MG-1, this study demonstrated that Swr signalling did not control the transcription of lipA, prtA or slaA, but that the effects seen in the QS regulation of protease and lipase activities in the supernatant was due to transcriptional control of components of the secretory apparatus. In contrast, for S. marcescens SS-1 we show using a chromosomal gene fusion in nucA that Spn signalling is regulating the transcription of nucA itself. NucA is translocated across the inner cytoplasmic membrane to the periplasm via the Sec pathway (Suh et al., 1996) and so is independent of LipB. The mechanism by which NucA crosses the outer membrane is unclear (reviewed in Benedik and Strych, 1998). Benedik and Strych (1998) suggested that the growth phase dependent secretion of NucA was the result of QS regulation, perhaps via the activation of NucC (a nucA activator encoded upon a
cryptic prophage). Our study suggests that QS control is focussed directly upon nucA. However, given the variation in QS systems employed by Serratia observed in this study, the specific involvement of QS and NucC in the regulation of nucA should be determined for each strain tested. Perhaps most intriguing in relation to these observations is that Serratia employs genes encoded in the remnants of prophage and transposon inserts to regulate the expression of its nuclease. In the pigmented Serratia spp. ATCC 39006 the production of prodigiosin and also an antibiotic, carbapenem, is under QS control.
A significant finding of this study is that while the QS systems of S. liquefaciens MG-1 and Serratia spp. ATCC 39006 are closely related to each other, by virtue of protein primary sequence homologies and cognate acyl-HSLs, they do not exhibit as much similarity to the QS system of S. marcescens SS-1, which is most similar to the EsaRI system of P. stewartii. Hence, although the QS-regulated traits described in this study for a member of the genus Serratia are not novel, the QS apparatus and underlying regulatory mechanism used are. Nevertheless there are some organizational similarities as both the Sma and Spn QS systems are flanked by remnants of transposons, although different IS family homologues are identified (Tn3 and IS3 for SS-1, and IS1 for ATCC39006). These results suggest that complex QS regulatory systems exist in S. marcescens regulating the multicellular behaviours and secondary metabolites. The observations at the protein primary sequence level for SpnRI have a functional relevance as SpnR behaves as a repressor. De-repression occurs in the presence of the SpnI derived acyl-HSL. This is in contrast to most LuxR-like regulators, including SmaR and SwrR, which are thought to form complexes with acyl-HSL signals and then function as transcriptional activators. Other examples of repressor activity include EsaR of P. stewartii (von Bodman et al., 1998) and probably YpsR of Yersinia
pseudotuberculosis (Atkinson et al., 1999). Nevertheless, although there are many similarities between SpnR and EsaR, we have identified one difference, i.e. that EsaR auto-represses (von Bodman and Farrand, 1995) but SpnR auto-activates at its own promoter. The possible mechanism may involve the location of the lux box in the promoter region, and is discussed later.
Although the phenotypic effects of the spnI mutation in S. marcescens SS-1 are obvious and complemented by the exogenous addition of the cognate acyl-HSLs, we do still detect low levels of acyl-HSLs (with TLC Rf values comparable to C6-HSL and 3-oxo-C6 HSL). We have confirmed by PCR and Southern blotting that the spnI deletion mutant has been constructed as described. We have tested the N-terminal remnant of SpnI as constructed in the plasmid used to direct the gene deletion by homologous recombination and have shown that this construct cannot direct the production of acyl-HSLs when expressed in E. coli. Indeed, all the residues shown by mutational analyses of LuxI homologues (Hanzelka et al., 1997; Parsek et al., 1997) are deleted. We therefore suggest that a second acyl-HSL synthase exists in S. marcescens SS-1. This is true for Y. pseudotuberculosis, where YpsRI and YtbRI systems exist (Atkinson et al., 1999) and P. aeruginosa, where LasRI and RhlRI systems exist (Latifi et al., 1995; Pesci et al., 1997). A second possibility is that Serratia may possess an alternative acyl-HSL synthase of the LuxLM (Bassler et al., 1993; Gilson et al., 1995) or HdtS families (Laue et al., 2000).
The most revealing studies of the activity of a member of the LuxR family to date have focussed upon TraR from Agrobacterium tumefaciens. An analysis of the accumulated data for TraR suggests that transcriptional activation is promoted upon the acyl-HSL induced dimerisation (Zhu and Winans, 1999; 2001; Qin et al., 2000). Further evidence obtained with TraR suggests that inactive monomers reside at the
inner cell membrane, where they may interact with incoming acyl-HSL signals, undergo conformational change, form dimers that are released into the cytosolic fraction and which are capable of activating transcription (Qin et al., 2000). In LuxR and TraR distinct regions containing amino acids that are involved in transcriptional activation, DNA binding, dimerisation have been localised, although there is some difference between the location of some activities between these two proteins (Luo and Farrand, 1999; Trott and Stevens, 2001). In contrast, data gathered for CarR (an acyl-HSL activated regulator of carbapenem biosynthesis in Erwinia carotovora) (McGowan et al., 1995; Welch et al., 2000) and EsaR (an acyl-HSL de-repressed regulator of exopolysaccharide biosynthesis in P. stewartii)(von Bodman et al., 1998; Qin et al., 2000) show dimerisation in the absence of ligand. The data presented here suggests that SpnR behaves in a similar fashion to its closest homolog, EsaR, and hence we hypothesise that it forms DNA binding dimers in the absence of acyl-HSL. Thus in the absence of acyl-HSL we see repression of target genes and in the presence of de-repressing levels of acyl-HSL we see de-repression and the potential for target gene expression. Nevertheless, data presented in this study also suggests that SpnR can act as an activator of spnR gene expression. A potential spnR promoter contains a 20 bp region of dyad symmetry, which overlaps 1 bp with a putative -35 region and closely resembles the canonical lux box sequence (Fig.7a). It is tempting to speculate that SpnR activates its own expression by interacting with this lux box-like element. No lux-box like sequence is found in the promoter region of spnI, so it seems reasonable that, as indicated by our data, SpnR does not regulate the expression of spnI. A similar situation is observed in P. stewartii (von Bodman et al., 1998). Furthermore, EsaR represses the expression both esaR and cps operons, where the lux-box like elements are all located at the –10 region, blocking access for transcription (von Bodman et al., 1998).
Although the spnR and spnI gene produces are key components in the regulatory network, other genes are also important. For instance, spnT in multi-copy causes a dramatic reduction of pigment synthesis, change of red-white colonial variation and complete inhibition of sliding motility (Fig. 10). SpnT is a novel protein and appears potentially as a pivotal regulator of SS-1 multicellular phenotypes. Further studies in progress should clarify the role of this unique regulator in the regulation of multicellular behaviors.
Spn-signalling may also play roles in the bacterial translocation and colonization during the process of interaction between bacteria and eukaryotic host organisms. The ability to coordinate the behaviour of a population of bacterial pathogens may contribute to establishing a successful infection. The ability to interfere with this co-ordination may be valuable in combating bacterial infection where the blockade of quorum sensing appears to be a viable target (see Finch et al., 1998 for a review and Givskov et al., 1996; Mayville et al., 1999; Swift et al., 1999 for experimental evidence). In this study we show that simple QS antagonists in the form of long chain acyl-HSLs can inhibit the surface translocation of not only S. marcescens SS-1, which controls biosurfactant production via acyl-HSL signalling, but also of S. marcescens CH-1, which has not yet been shown to use acyl-HSL signalling, despite considerable efforts to do so. An understanding of the molecular basis of how S. marcescens CH-1 perceives and reacts to the presence of acyl-HSLs is now required to underpin possible future investigations that may focus on controlling or manipulating quorum-sensing systems to intervene in pathogenic interactions.
Exper imental procedures
Bacterial strains, plasmids, and culture conditions
The bacterial strains and plasmids used in this study are described in Table 1. E. coli was cultured at 37 oC and S. marcescens and Chromobacterium violaceum CV026 at 30
oC in L-broth (LB) medium (Difco, USA) (Sambrook et al., 1989). In cases of mixed
cultures, e.g., conjugations, incubations were at 30 oC. For extraction of acyl-HSLs, M9 minimal growth medium (M9 MGM, Sambrook et al., 1989) was used for overnight bacterial culture. Swimming motility was examined on motility agar [LB solidified with 0.3% Eiken agar (Eiken, Japan)] by sterile needlepoint inoculation from an overnight culture into the centre of the agar plate. Sliding assay was performed on L-broth medium with 0.35% Eiken agar and swarming motility was examined on swarming agar plates (LB solidified with 0.8% Eiken agar) by inoculating 5 µl of an overnight broth culture onto the centre of the agar plate. Bacterial colonies were examined by light microscopy at a magnification of 1x or 30x using an Olympus SZH microscope. Images were captured using an Olympus C35AD photo system. An Olympus BH2 light microscope was used for observation of single bacterial cells at a magnification of 1000x. For determining the bacterial growth rate, hourly increases in the optical density of broth cultures at 600 nm were observed.
Analysis of F lagellum production
To prepare flagellae for SDS-PAGE analysis cells from the surface of agar plate were harvested by washing into 3 ml of LB. Flagellin from the supernatant of vortexed cells
was precipitated by 10% trichloro-acetic acid (Allison et al., 1992), normalized to cell mass [A600nm x (ml) cell suspension volume =5], separated by SDS-PAGE (Sambrook et
al., 1989) and stained with Coomassie brilliant blue. Flagellae were stained on whole cells using the silver-plating method of West et al., (1977).
Enzymes and chemicals
DNA restriction and modification enzymes were purchased from Roche (Germany). Taq polymerase and PCR-related products were from Perkin Elmer (USA) or Takara Biomedicals (Japan). Other laboratory grade chemicals were purchased from Sigma (USA), Merck (Germany) or BDH (UK).
Recombinant DNA techniques
Unless mentioned specifically, standard protocols were used for DNA/DNA hybridization, the isolation of plasmid and chromosomal DNA, transformation, electroporation, PCR, restriction digestion, agarose gel electrophoresis, DNA recovery from agarose gels, the ligation of DNA fragments (Sambrook et al., 1989), and conjugation (de Lorenzo and Timmis, 1994). DNA/DNA hybridization and washes were carried out at 68 oC. DNA sequencing and analysis was performed using a Perkin-Elmer Autosequencer model 377 with a Taq DyeDeoxyTM terminator cycle sequencing kit (Applied Biosystems, USA). The DNA sequence of PCR products was confirmed by sequencing both strands from two or three independent reactions.
The DNA and deduced protein sequences were compared with GenBank DNA or non-redundant protein sequence databases using blastn or blastx via the NCBI internet homepage (http://www.ncbi.nlm.nih.gov/). Protein sequence identities were obtained using the ALIGN program available on the GENESTREAM network server at Institut
de Génétique Humaine, Montpellier, France
(http://vega.igh.cnrs.fr/bin/align-guess.cgi).
Construction of S. marcescens N-2 (PnucA::luxAB in the chromosome)
To construct the S. marcescens N-2 (PnucA::luxAB) strain, a 170-bp putative promoter region of the nucAgene (Chen et al., 1992) was amplified by PCR using the primers, RnucA and FnucA (Table 3), and was ligated in front of the luxAB genes of pUT-luxAB-Km (de Lorenzo and Timmis, 1994) as a NotI/SfiI fragment to form pUT-PnucA-luxAB-Km. For transfer to the S. marcescens chromosome, pUT-PnucA-luxAB-Km was transformed into E. coli S17-1 λpir (de Lorenzo and Timmis, 1994) and conjugated into wild-type S. marcescens SS-1 at 30 oC. A kanamycin resistant exconjugant showing a positive light signal and normal sliding was selected and designated S. marcescens N-2.
Detection of luxAB reporter luciferase activity
The Autolumat LB 953 luminometer (EG&G, Germany) with the program 'replicates' was used for bioluminescence measurement. All procedures followed the protocols supplied by the manufacturer.
N-Acyl homoserine lactone bioassays
The biosensor strains used were E. coli JM109 (pSB401) (Winson et al., 1998) and C. violaceum CV026 (McClean et al., 1997). The presence of acyl-HSLs produced by bacteria growing on agar plates was detected in T-streaks against biosensor organisms (see Swift et al., 1999 for a review). The presence of acyl-HSLs in filter (0.25-mm pore size)-sterilized conditioned media was detected according to McClean et al., (1997) and Winson et al., (1998). The presence of acyl-HSLs in conditioned media after high-pressure liquid chromatography (HPLC) fractionation was detected as described in Camara et al., (1998). The presence of acyl-HSLs in conditioned media after thin layer chromatography (TLC) fractionation was detected as described in Shaw et al., (1997) with the modifications described by McClean et al., (1997). Positive assays were judged as induction of the purple pigment violacein in the C. violaceum CV026 reporter (McClean et al., 1997) or the induction of bioluminescence in E. coli JM109 carrying either plasmid pSB401 detected with a Hamamatsu Argus 100 Vim3 (Hamamatsu Photonics, UK), a Berthold LB980 (E.G. & G, Germany) photon video camera or a Autolumat LB 953 luminometer with the program 'replicates'. Pigment production by C. violaceum CV026 was scored after over-night incubation at 30 oC. Bioluminescence was determined after 4 h of incubation at 30 oC, and quantitative results are expressed as plots of log10 [luminescence per unit test culture optical density] against test culture
optical density.
Recombinant E. coli libraries were screened for the presence of a luxI homolog either by toothpicking into C. violaceum CV026 overlays or by cross-streaking CV026 against 24-h growth on plates of E. coli JM109 transformants. Alternatively, plasmid-based libraries were introduced into E. coli JM109(pSB401) by electroporation
and the recombinant clones obtained were examined for bioluminescence as described in Swift et al., (1993). In both cases, incubation was at 30°C.
N-Acylhomoserine lactones
The acyl-HSLs used in this study, N-butanoyl-L-homoserine lactone, (C4-HSL); N-hexanoyl-L-homoserine lactone, (C6-HSL); N-octanoyl-L-homoserine lactone, (C8-HSL); N-decanoyl-L-homoserine lactone, (C10-HSL); N-dodecanoyl-L-homoserine lactone, (C12-HSL); N-(3-oxobutanoyl)-L-homoserine lactone, (3-oxo-C4-HSL); N-(3-oxohexanoyl)-L-homoserine lactone, (3-oxo-C6-HSL); N-(3-oxooctanoyl)-L-homoserine lactone, (3-oxo-C8-HSL); N-(3-oxodecanoyl)-L-homoserine lactone, (3-oxo-C10-HSL); N-(3-oxododecanoyl)-L-homoserine lactone, (3-oxo-C12-HSL) and N-(3-oxotetradecanoyl)-L-homoserine lactone (3-oxo-C14-HSL) were synthesized as described by Chhabra et al., (1993). Each compound was purified to homogeneity by semipreparative HPLC, and its structure was confirmed by MS and proton nuclear magnetic resonance spectroscopy (see Camara et al., 1998 for a review). Stock solutions at 10 mM in acetonitrile (far-UV grade) were diluted into the growth medium to give the stated concentrations.
Purification and characterization of acyl-HSLs
Spent supernatants (1 liter) from stationary-phase cultures of S. marcescens SS-1 and E. coli JM109 transformed with the recombinant plasmid (both grown in M9 minimal growth medium) were extracted three times with dichloromethane (700:300
supernatant:dichloromethane). The dried extract was reconstituted in 50 µl acetonitrile, and then samples were subjected to analytical and preparative thin-layer chromatography (TLC) and preparative HPLC. Tentative identification of acyl-HSLs was made by comparing the Rf values of the positive sample spots with those of synthetic standards. For preparative TLC, samples were separated as described above and the silica matrix at the relevant Rf was collected. Acyl-HSLs were extracted from the TLC matrix three times with 2 ml of acetone and evaporated to dryness. For preparative HPLC, samples were separated by using a Kromasil KR100-5C8 (250 by 8 mm) reverse-phase column (Hichrom, England) with an isocratic mobile phase of 70% (vol/vol) acetonitrile in water at a flow rate of 2 ml per min and monitored at 210 nm. Fractions showing activity in the CV026 reporter assay were pooled and rechromatographed by using 60% (vol/vol) acetonitrile in water; the procedure was repeated, using a final chromatographic separation employing 35% (vol/vol) acetonitrile in water. Active fractions with the same retention times were pooled and analyzed by mass spectrometry (MS) on a V.G.70-SEQ instrument (Fisons Instruments, VG Analytical, England). Samples were ionized by positive-ion fast atom bombarbment (FAB), and the molecular ion (M+1 H) peaks recorded by FAB-MS were further analyzed by tandem MS (MS-MS).
Assay of nuclease and surfactant production
Nuclease activity was detected using the DNase microplate assay following the protocol of Chen et al., (1992). Qualitative assay of surfactant production was performed using the drop collapsing method (Lindum et al., 1998). Semi-quantitative assay of biosurfactant was performed using a TLC based assay as described by Matsuyama et al.,
(1992).
Construction of S. mar cescens SS-1 spnI and spnR deletion insertion mutants
PCR primers (Table 3) were designed to introduce specific HindIII sites into spnI and spnR respectively for subsequent insertion of HindIII digested Ω (Sm r
) gene cassette (Prentki and Krisch, 1984). Primer pairs SI-1/SI-2 (for spnI) and SR-7/SR-8 (for spnR) were used to amplify the 5’-region (approximately 400 bp) of the gene to be inactivated. PCR products were T-cloned into pCR2.1 (Stratagene, UK), sub-cloned as an XbaI/BamHI fragment into pZero-2 (Invitrogen, Nederland) and excised as a XbaI/HindIII fragment. A second PCR product encompassing the 3’-region of the gene to be inactivated (approximately 400 bp) was generated using primer pairs SI-3/SI-4 (spnI) and SR-5/SR-6 (spnR), T-cloned into pCR2.1 and excised as an HindIII/EcoRI fragment. The 2 kb Sm-resistant Ω DNA fragment was excised from pHP45Ω (Prentki and Krisch, 1984) as a HindIII fragment. The three DNA fragments were ligated together with XbaI/EcoRI digested suicide vector pUT-mini-Tn5-Km (de Lorenzo and Timmis 1994). The resultant pUT-spnI::Sm and pUT-spnR::Sm vectors were selected as conferring streptomycin resistance upon the permissive E. coli strain CC118 and verified by restriction enzyme mapping. For gene inactivation mutagenesis by homologous recombination, the respective plasmids were transferred from the permissive host strain E. coli S17-1 λpir to S. marcescens SS-1 by conjugation and the transonjugants were spread on LB plates with streptomycin (100 µg/ml) and tetracycline (13 µg/ml). The mutants with double cross over events were selected by CV026 T-streaking (spnI::Sm) or by selecting mutants with fast-sliding phenotype followed by PCR screening (spnR::Sm). Southern hybridization using the PCR
amplified spnI gene (SI-1 and SR-6 as primers) or spnR gene (SR-8 and SI-3 as primers) as the probe respectively was performed. In a BamHI digestion of chromosomal DNA from the parent strain, a single band corresponding to the predicted size of 7.4 kbp hybridized to the probe. In the SS-1 ∆I mutant, a 9 kbp and a 0.4 kbp band hybridized (data not shown). In the SS-1 ∆R mutant a band of 0.8 kbp and a band of 8.6 kbp hybridized (data not shown). The data confirmed that a double-crossover event had taken place and the new strains were designated SS-1∆I and SS-1 ∆R strains.
Acknowledgements
The authors are grateful to whomever for funding.
Refer ences
Allison, C., and Hughes, C. (1991) Bacterial swarming: an example of prokaryotic differentiation and multicellular behaviour. Sci Prog75: 403-422.
Allison C. Lai HC. Hughes C. (1992) Co-ordinate expression of virulence genes during swarm-cell differentiation and population migration of Proteus mirabilis. Mol Microbiol 6:1583-1591.
Allison, C., Emody, L., Coleman, N., and Hughes, C. (1994) The role of swarm cell differentiation and multicellular migration in the uropathogenicity of Proteus mirabilis. J Infect Dis169: 1155-1158.
Ang, S., Horng, Y.T., Shu, J.C., Soo, P.C., Liu, J.H., Yi, W.C., Lai, H.C., Luh, K.T., Ho, S.W., and Swift, S. (2001) The Role of RsmA in the Regulation of Swarming Motility in Serratia marcescens. J Biomed Sci8: 160-169.
Arakawa, Y., Ike, Y., Nagasawa, M., Shibata, N., Doi, Y., Shibayama, K., Yagi, T., and Kurata, T. (2000) Trends in antimicrobial-drug resistance in Japan. Emerg Infect Dis6: 572-575.
Atkinson, S., Throup, JP., Stewart, GS., and Williams, P. (1999) A hierarchical quorum-sensing system in Yersinia pseudotuberculosis is involved in the regulation of motility and clumping. Mol Microbiol
33: 1267-1277.
Bassler, B.L., Wright, M., Showalter, R.E., and Silverman, M.R. (1993) Intercellular signalling in Vibrio harveyi: sequence and function of genes regulating expression of luminescence. Mol Microbiol9:
773-786.
Microbiol Lett165: 1-13.
Camara, M., Daykin, M., and Chhabra, S.R. (1998) Detection, purification, and synthesis of N-acylhomoserine lactone quorum sensing signal molecules. Meth Microbiol 27: 319-330.
Carbonell, G.V., Della Colleta H.H., Yano, T., Darini, A.L., Levy, C.E., and Fonseca, B.A. (2000) Clinical relevance and virulence factors of pigmented Serratia marcescens. FEMS Immunol Med Microbiol28: 143-149.
Chang, A.C., and Cohen, S.N. (1978) Construction and characterization of amplifiable multicopy DNA cloning vehicles derived from the P15A cryptic miniplasmid. J Bacteriol134: 1141-1156.
Chen, Y.C., Shipley, G.L., Ball, T.K., and Benedik, M.J. (1992) Regulatory mutants and transcriptional control of the Serratia marcescens extracellular nuclease gene. Mol Microbiol 6: 643-651.
Chhabra, S.R., Stead, P., Bainton, N.J., Salmond, G.P.C., Stewart, G.S.A.B., Williams, P., and Bycroft, B.W. (1993) Autoregulation of carbapenem biosynthesis in Erwinia carotovora by analogues of N-(3-oxohexanoyl)-L-homoserine lactone. J Antibiot46: 441-454.
Cox, A.R., Thomson, N.R., Bycroft, B., Stewart, G.S., Williams, P., and Salmond, G.P. (1998) A pheromone-independent CarR protein controls carbapenem antibiotic synthesis in the opportunistic human pathogen Serratia marcescens. Microbiology144: 201-209.
Cui, Y., Chatterjee, A., Liu, Y., Dumenyo, C.K., and Chatterjee, A.K. (1995) Identification of a global repressor gene, rsmA, of Erwinia carotovora subsp. carotovora that controls extracellular enzymes, N-(3-oxohexanoyl)-L-homoserine lactone, and pathogenicity in soft-rotting Erwinia spp. J Bacteriol
177: 5108-5115.
Dauenhauer, S.A., Hull, R.A., and Williams, R.P. (1984) Cloning and expression in Escherichia coli of Serratia marcescens genes encoding prodigiosin biosynthesis. J Bacteriol158: 1128-1132.
Dunny and Winans (1999) Cell-Cell Signaling in Bacteria. ASM Press, Washington, DC.
de Lorenzo, V., and Timmis, K.N. (1994) Analysis and construction of stable phenotypes in gram-negative bacteria with Tn-5 and Tn10- derived minitransposons. Method Enzymol235: 386-405.
Eberl, L., Winson, M.K., Sternberg, C., Stewart, G.S., Christiansen, G., Chhabra, S.R., Bycroft, B., Williams, P., Molin, S., and Givskov, M. (1996) Involvement of N-acyl-L-hormoserine lactone autoinducers in controlling the multicellular behaviour of Serratia liquefaciens. Mol Microbiol20:
127-136.
Egland, K.A., and Greenberg, E.P. (1999) Quorum sensing in Vibrio fischeri: elements of the luxI promoter. Mol Microbiol31: 1197-204.
Finch, R.G., Pritchard, D.I., Bycroft, B.W., Williams, P., and Stewart, G.S.A.B. (1998) Quorum sensing: a novel target for anti-infective therapy. J Antimicrob Chemother42: 569-571.
Fraser, G.M., and Hughes, C. (1999) Swarming motility. Curr Opin Microbiol 2: 630-635.
Fuqua, C., and Eberhard, A. (1999). In “Cell-Cell Signaling in Bacteria” (ed G.M. Dunny and S.C. Winans), Signal Generation in Autoinducer Systems: Synthesis of Acylated Homoserine Lactones by LuxI-type Proteins. pp. 211-230. ASM Press, Washington, DC.
Gilson, L., Kuo, A., and Dunlap, P.V. (1995) AinS and a new family of autoinducer synthesis proteins. J Bacteriol 177: 6946-6951.
and Kjelleberg, S. (1996) Eukaryotic interference with homoserine lactone-mediated prokaryotic signalling. J Bacteriol 178: 6618-6622.
Givskov, M., Ostling, J., Eberl, L., Lindum, P.W., Christensen, A.B., Christiansen, G., Molin, S., and Kjelleberg, S. (1998) Two separate regulatory systems participate in control of swarming motility of Serratia liquefaciens MG1. J Bacteriol180: 742-745.
Han, S.B., Kim, H.M., Kim, Y.H., Lee, C.W., Jang, E.S., Son, K.H., Kim, S.U., Kim, Y.K. (1998) T-cell specific immunosuppression by prodigiosin isolated from Serratia marcescens. Int J Immunopharmacol20: 1-13.
Hanzelka, B.L., Stevens, A.M., Parsek, M.R., Crone, T.J., and Greenberg, E.P. (1997) Mutational analysis of the Vibrio fischeri LuxI polypeptide: critical regions of an autoinducer synthase. J Bacteriol
179: 4882-4887.
Harshey, R.M. (1994) Bees aren't the only ones: swarming in gram-negative bacteria. Mol Microbiol13:
389-394.
Hejazi, A., and Falkiner, F.R. (1997) Serratia marcescens. J Med Microbiol46: 903-12.
Henrichsen (1972) Bacterial surface translocation: a survey and a classification. Bacteriological Reviews
36: 478-503.
Herrero, M., de Lorenzo, V., and Timmis, K.N. (1990) Transposon vectors containing non-antibiotic resistance selection markers for cloning and stable chromosomal insertion of foreign genes in gram-negative bacteria. J Bacteriol172: 6557-6567.
Holden, I., Swift, I., and Williams, P. (2000) New signal molecules on the quorum-sensing block. Trends Microbiol. 8: 101-104.
Knowles, S., Herra, C., Devitt, E., O'Brien, A., Mulvihill, E., McCann, S.R., Browne, P., Kennedy, M.J., and Keane, C.T. (2000) An outbreak of multiply resistant Serratia marcescens: the importance of persistent carriage. Bone Marrow Transplant25: 873-877.
Latifi, A., Winson, M.K., Foglino, M., Bycroft, B.W., Stewart, G.S., Lazdunski, A., and Williams, P. (1995) Multiple homologues of LuxR and LuxI control expression of virulence determinants and secondary metabolites through quorum sensing in Pseudomonas aeruginosa PAO1. Mol Microbiol17:
333-343.
Laue, B.E., Jiang, Y., Chhabra, S.R., Jacob, S., Stewart, G.S., Hardman, A., Downie, J.A., O'Gara, F., and Williams, P. (2000) The biocontrol strain Pseudomonas fluorescens F113 produces the Rhizobium small bacteriocin, N-(3-hydroxy-7-cis-tetradecenoyl)homoserine lactone, via HdtS, a putative novel N-acylhomoserine lactone synthase. Microbiology146: 2469-2480.
Lindum, P.W., Anthoni, U., Christophersen, C., Eberl, L., Molin, S., and Givskov, M. (1998) N-Acyl-L-homoserine lactone autoinducers control production of an extracellular lipopeptide biosurfactant required for swarming motility of Serratia liquefaciens MG1. J Bacteriol 180:
6384-6388.
Liu, J.H., Lai, M.J., Ang, S., Shu, J.C., Soo, P.C., Horng, Y.T., Yi, W.C., Lai, H.C., Luh, K.T., Ho, S.W., and Swift, S. (2000) Role of flhDC in the expression of the nuclease gene nucA, cell division and flagellar synthesis in Serratia marcescens. J Biomed Sci7: 475-483.
Luo, Z.Q., and Farrand, S.K. (1999) Signal-dependent DNA binding and functional domains of the quorum-sensing activator TraR as identified by repressor activity. Proc Natl Acad Sci U S A. 96: 9009-9014.
Martinez, A., Torello, S., and Kolter, R. (1999) Sliding motility in Mycobacteria. J Bacterol 181:
7331-7338.
Matsuyama, T., Kaneda, K., Nakagawa, Y., Isa, K., Hara-Hotta, H., and Yano, I. (1992) A novel extracellular cyclic lipopeptide which promotes flagellum-dependent and -independent spreading growth of Serratia marcescens. J Bacteriol174: 1769-1776.
Mayville, P., Ji, G., Beavis, R., Yang, H., Goger, M., Novick, R.P., and Muir, T.W. (1999) Structure-activity analysis of synthetic autoinducing thiolactone peptides from Staphylococcus aureus responsible for virulence. Proc Natl Acad Sci U S A 96:1218-1223.
McClean, K.H., Winson, M.K., Fish, L., Taylor, A., Chhabra, S.R., Camara, M., Daykin, M., Lamb, J.H., Swift, S., Bycroft, B.W., Stewart, G.S.A.B., and Williams, P. (1997) Quorum sensing and Chromobacterium violaceum: exploitation of violacein production and inhibition for the detection of N-acylhomoserine lactones. Microbiology 143: 3703-3711.
McGowan, S., Sebaihia, M., Jones, S., Yu, B., Bainton, N., Chan, P.F., Bycroft, B., Stewart, G.S., Williams, P., and Salmond, G.P. (1995) Carbapenem antibiotic production in Erwinia carotovora is regulated by CarR, a homologue of the LuxR transcriptional activator. Microbiology141: 541-550.
McGowan, S.J., Holden, M.T., Bycroft, B.W., and Salmond, G.P. (1999) Molecular genetics of carbapenem antibiotic biosynthesis. Antonie Van Leeuwenhoek75: 135-141.
Montaner, B., Navarro, S., Pique, M., Vilaseca, M., Martinell, M., Giralt, E., Gil, J., and Perez-Tomas, R. (2000) Prodigiosin from the supernatant of Serratia marcescens induces apoptosis in haematopoietic cancer cell lines. Br J Pharmacol131: 585-593.
Parsek, M.R., Schaefer, A.L., and Greenberg, E.P. (1997) Analysis of random and site-directed mutations in rhII, a Pseudomonas aeruginosa gene encoding an acylhomoserine lactone synthase. Mol Microbiol 26: 301-310.
Pesci, E.C., Pearson, J.P., Seed, P.C., and Iglewski, B.H. (1997) Regulation of las and rhl quorum sensing in Pseudomonas aeruginosa. J Bacteriol179: 3127-3132.
Prentki, P., and Krisch, H.M. (1984) In vitro insertional mutagenesis with a selectable DNA fragment. Gene 29: 303-13.
Qin, Y., Luo, Z.Q., Smyth, A.J., Gao, P., Beck von Bodman, S., and Farrand, S.K. (2000) Quorum-sensing signal binding results in dimerization of TraR and its release from membranes into the cytoplasm. EMBO J19: 5212-5221.
Riedel, K., Ohnesorg, T., Krogfelt, K.A., Hansen, T.S., Omori, K., Givskov, M., and Eberl, L. (2001) N-acyl-L-homoserine lactone-mediated regulation of the lip secretion system in Serratia liquefaciens MG1. J Bacteriol183: 1805-1809.
Salmond, G.P.C., Bycroft, B.W., Stewart, G.S.A.B., and Williams, P. (1995). The bacterial ‘enigma’: cracking the code of cell-cell communication. Mol Microbiol16: 615-624.
Spring Harbor, NY, Cold Spring Harbor Laboratory.
Shaw, P.D., Ping, G., Daly, S.L., Cha, C., Cronan, J.E. Jr., Rinehart, K.L., and Farrand, S.K. (1997) Detecting and characterizing N-acyl-homoserine lactone signal molecules by thin-layer chromatography. Proc Natl Acad Sci U S A 94: 6036-6041.
Simon, R., Priefer, U., and Puhler, A. (1983) A broad host range mobilization system for in vivo genetic engineering: transposon mutagenesis in gram-negative bacteria. BioTechnology1: 784-791.
Suh, Y., Jin, S., Ball, T.K., and Benedik, M.J. (1996) Two-step secretion of the Serratia marcescens extracellular nuclease. J Bacteriol178: 3771-3778.
Swift, S., Winson, M.K., Chan, P.F., Bainton, N.J., Birdsall, M., Reeves, P.J., Rees, C.E., Chhabra, S.R., Hill, P.J., Throup, J.P., et al. (1993) A novel strategy for the isolation of luxI homologues: evidence for the widespread distribution of a LuxR:LuxI superfamily in enteric bacteria. Mol Microbiol 10:
511-520.
Swift, S., Stewart, G.S.A.B. and Williams, P. (1999). In “Cell-Cell Signaling in Bacteria” (ed G.M. Dunny and S.C. Winans), N-acylhomoserine lactones and quorum sensing in proteobacteria. pp. 291-314. ASM Press, Washington, DC.
Swift, S., Downie, J.A., Whitehead, N.A., Barnard, A.M., Salmond, G.P., and Williams, P.. (2001) Quorum sensing as a population-density-dependent determinant of bacterial physiology. Adv Microb Physiol.45:199-270.
Thomson, N.R., Crow, M.A., McGowan, S.J., Cox, A., and Salmond, G.P. (2000) Biosynthesis of carbapenem antibiotic and prodigiosin pigment in Serratia is under quorum sensing control. Mol Microbiol36: 539-556.
Traub, W.H. (2000) Antibiotic susceptibility of Serratia marcescens and Serratia liquefaciens. Chemotherapy46: 315-321.
Trott, A.E., and Stevens, A.M. (2001) Amino acid residues in LuxR critical for its mechanism of transcriptional activation during quorum sensing in Vibrio fischeri. J Bacteriol183: 387-392.
von Bodman, S.B., and Farrand, S.K. (1995) Capsular polysaccharide biosynthesis and pathogenicity in Erwinia stewartii require induction by an N-acylhomoserine lactone autoinducer. J Bacteriol
177:5000-5008.
von Bodman, S.B., Majerczak, D.R., and Coplin, D.L. (1998) A negative regulator mediates quorum-sensing control of exopolysaccharide production in Pantoea stewartii subsp. stewartii. Proc Natl Acad Sci U S A 95: 7687-7692.
Welch, M., Todd, D.E., Whitehead, N.A., McGowan, S.J., Bycroft, B.W., and Salmond, G.P. (2000) N-acyl homoserine lactone binding to the CarR receptor determines quorum-sensing specificity in Erwinia. EMBO J19: 631-641.
West, M., Burdash, N.M., and Freimuth, F. (1977) Simplified silver-plating stain for flagella. J Clin Microbiol6: 414-419.
Williams, P., Camara, M., Hardman, A., Swift, S., Milton, D., Hope, V.J., Winzer, K., Middleton, B., Pritchard, D.I., and Bycroft, B.W. (2000) Quorum sensing and the population-dependent control of virulence. Philos Trans R Soc Lond B Biol Sci355: 667-680.
and Stewart, G.S. (1998) Construction and analysis of luxCDABE-based plasmid sensors for investigating N-acyl homoserine lactone-mediated quorum sensing. FEMS Microbiol Lett 163:
185-192.
Yanisch-Peron, C., Vieira, J., and Messing J. (1985) Improved M13 phage cloning vectors and host strains: nucleotide sequences of the M13mp18 and pUC19 vectors. Gene33: 103-109.
Zhu, J., and Winans, S.C. (1999) Autoinducer binding by the quorum-sensing regulator TraR increases affinity for target promoters in vitro and decreases TraR turnover rates in whole cells. Proc Natl Acad Sci U S A 96: 4832-4837.
Zhu, J., and Winans, S.C. (2001) The quorum-sensing transcriptional regulator TraR requires its cognate signaling ligand for protein folding, protease resistance, and dimerization. Proc Natl Acad Sci U S A
