because the characteristic impedance of the microstrip line in the low-impedance section is mainly controlled by the signal strips and the inserted ground strips in a coplanar manner. The concepts and characteristics of this modified resonator structure are discussed in detail. The filters constructed by the conventional microstrip SIR were also designed and fabricated at the same frequency band to compare with the proposed ones. Measured results show that each proposed filter has compact size, wide stopband, and high tolerance to fabrication errors. Two four-pole cross-coupled filters were designed and fabricated to demonstrate the feasibility.
Index Terms—Cross-coupled filter, fabrication tolerance, ground strip, spurious response, stepped-impedance resonator (SIR), transmission zero.
I. INTRODUCTION
H
IGH-PERFORMANCE bandpass filters have become more and more important in recent years due to the rapid growth in modern wireless communication systems. The microstrip filter plays an important role in modern filter applica-tions owing to its planar structure and easy integration into the printed circuit board (PCB). Recently, the stepped-impedance resonator (SIR) filter has been a hot topic because of its ability to reduce the circuit size and to improve the upper stopband performance. There are many related studies on SIR filters [1]–[12]. The SIR filters can be categorized into three major types, namely: 1) quarter-wave; 2) half-wave; and 3) one-wave-length SIR filters. Since the SIR has a smaller size and fewer spurious modes than other type of SIRs, it is of great benefit to the design of microstrip bandpass filters.A conventional microstrip SIR structure is shown in Fig. 1(a) [9]. It comprises a section of high-impedance and a section of a low-impedance transmission line with corresponding physical (electrical) lengths and , Manuscript received April 09, 2008; revised October 08, 2008. First pub-lished April 14, 2009; current version pubpub-lished May 06, 2009. This work was supported in part by the National Science Council under Grant NSC95-2221-E-009-042-MY3, and by the Ministry of Education (MoE) under an MoE Aiming for the Top University (ATU) Plan Grant.
The authors are with the Department of Communication Engineering, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail: seaman. [email protected]; [email protected]; [email protected]).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TMTT.2009.2017345

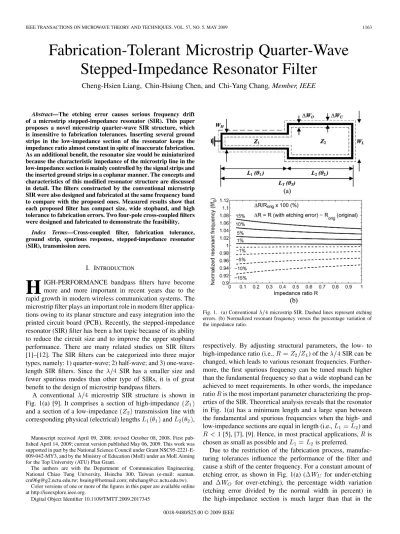

Fig. 1. (a) Conventional=4 microstrip SIR. Dashed lines represent etching errors. (b) Normalized resonant frequency versus the percentage variation of the impedance ratio.
respectively. By adjusting structural parameters, the low- to high-impedance ratio (i.e., ) of the SIR can be changed, which leads to various resonant frequencies. Further-more, the first spurious frequency can be tuned much higher than the fundamental frequency so that a wide stopband can be achieved to meet requirements. In other words, the impedance ratio is the most important parameter characterizing the prop-erties of the SIR. Theoretical analysis reveals that the resonator in Fig. 1(a) has a minimum length and a large span between the fundamental and spurious frequencies when the high- and low-impedance sections are equal in length (i.e., ) and [5], [7], [9]. Hence, in most practical applications, is chosen as small as possible and is preferred.
Due to the restriction of the fabrication process, manufac-turing tolerances influence the performance of the filter and cause a shift of the center frequency. For a constant amount of etching error, as shown in Fig. 1(a) ( for under-etching and for over-etching), the percentage width variation (etching error divided by the normal width in percent) in the high-impedance section is much larger than that in the 0018-9480/$25.00 © 2009 IEEE
1164 IEEE TRANSACTIONS ON MICROWAVE THEORY AND TECHNIQUES, VOL. 57, NO. 5, MAY 2009
Fig. 2. (a) Top view of the proposed microstrip structure. (b) Cross-sectional view of the circled portion in (a).
low-impedance section. Thus, the variation of the characteristic impedance of the high-impedance line is different from that of the low-impedance line, and this causes the impedance ratio to change.
The normalized resonant frequency versus the percentage variation of the impedance ratio is shown in Fig. 1(b), where different curves correspond to different amounts of variation in due to etching errors. It is observed that small changes in the impedance ratio would contribute to obvious variations in the resonant frequency. As an example, consider two conventional microstrip SIRs, shown in Fig. 1(a), with different physical dimensions on the substrate with a dielectric constant of 3.6 and a thickness of 0.5 mm. The first case is mm
and mm, which corresponds to . The
second case is mm and mm, which
corresponds to . For mm (i.e.,
over-etching 0.05 mm), the impedance ratio is changed to 0.189 for the first case and to 0.904 for the second case. The percentage variations of the impedance ratio for the first and second cases due to the over-etching are 7.35% and 0.22%, respectively. As a result, the first case would have 3.334% of the frequency drift, and the second case would only have 0.073% of the frequency drift. The frequency drift due to etching errors becomes larger as the impedance ratio becomes smaller. Therefore, the conventional microstrip SIR structure is very sensitive to fabrication tolerances such as over-etching, under-etching, and errors in substrate thickness. Sometimes the filter requires a substantial amount of tuning and even additional iteration to meet the desired performance specification. Although numerous studies have been performed on the advantages of SIRs [1]–[12], how to decrease the effect of fabrication tolerances is still critically lacking.
As mentioned above, the fabrication tolerance is an impor-tant factor in filter design, especially for the SIR case. In this paper, a novel microstrip SIR structure with inserted ground strips is proposed. In the modified structure, the ground strip is only placed on the signal plane of the low-impedance sec-tion. This method will increase the coplanar capacitance and make the characteristic impedance less sensitive to the varia-tion of the substrate thickness. It will be shown later that this
Fig. 3. (a) Proposed=4 microstrip SIR. (b) Comparison of the frequency re-sponses of the resonators with one and two via-holes on the ends of each inserted ground strip.
structure also has a high tolerance for inaccurate fabrication. In addition, the ground strip provides an extra benefit to de-crease the characteristic impedance of the low-impedance sec-tion so that the resonator length could be shortened. Based on the proposed SIR structure, two compact microstrip cross-cou-pled bandpass filters with good stopband rejection and excel-lent tolerance of fabrication errors were designed and fabricated. Here, we use four-pole filters with the cross coupling between resonators 1 and 4 as examples. Both filters use the tapped-line input/output structure [13] to save space. To compute the charac-teristic impedance of the modified microstrip structure, a com-mercial full-wave electromagnetic (EM) simulator is used.
II. NEWMODIFIEDMICROSTRIPSTRUCTURE AND CHARACTERISTICS OF THEPROPOSED SIR Fig. 2 shows the top and cross-sectional views of the proposed microstrip structure. This structure is based on the conventional microstrip line where a ground strip is inserted in the signal plane and a ground via-hole is used. In Fig. 2(b), denotes the parallel-plate capacitance between the signal strip and the mi-crostrip ground plane; and represent the fringe capac-itances across the gap between the signal strip and the inserted ground strip in the air and dielectric regions, respectively. While the capacitance diminishes due to the inserted ground strip, however, the capacitances and can compensate for the
Fig. 4. Impedance ratioR of the conventional and proposed =4 SIRs versus substrate thicknessh and width W (in millimeters) for: (a) = 3:6, (b) = 6:8, and (c) = 10:2. Conventional: solid line. Proposed: dashed line. (circle: W = 1:35, N = 1; triangle 4: W = 2:4, N = 2; cross 2: W = 3:45, N = 3; asterisk 3: W = 4:5, N = 4; square : W = 5:55, N = 5; diamond 5: W = 6:6, N = 6.)
decrease of . Furthermore, if the strip spacing is small enough compared with the substrate thickness, and become large, which effectively decreases the characteristic impedance. This concept could be used to minimize the resonator size if the lower characteristic impedance is needed, especially for the thick substrate.
On the basis of the structure in Fig. 2(a), more parallel strips can be added to change the characteristic impedance of the mi-crostrip line. Fig. 3(a) shows the proposed microstrip SIR structure. It is seen in the figure that the high-impedance and low-impedance sections are cascaded together and the high-impedance section is short-ended. In comparison with the conventional microstrip SIR structure shown in Fig. 1(a),

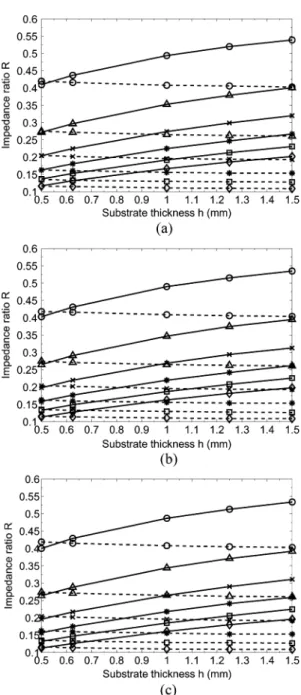

Fig. 5. Impedance ratioR versus substrate thickness h for the proposed =4 SIRs with different numbers of inserted ground strips whenW = 3:45 mm. (a) = 3:6. (b) = 6:8. (c) = 10:2. (N : number of inserted ground strips.N = 0: conventional microstrip structure.)
the proposed one has ground strips in its low-impedance section. The high-impedance section has a physical (electrical) length of and a width of . The low-impedance section has a physical (electrical) length of and a total width of . The total physical (electrical) length of the resonator is . In the low-impedance section, the width of inserted ground strips is , the width of inner signal strips is , the width of outmost signal strips is , and the spacing be-tween strips is . Thus,
, where is the number of inserted ground strips. Note that an additional ground via-hole is added on the other end of each inserted ground strip in Fig. 3(a) so as to push the resonant frequency of the ground strip to higher fre-quency. To understand this better, consider the simple case of
1166 IEEE TRANSACTIONS ON MICROWAVE THEORY AND TECHNIQUES, VOL. 57, NO. 5, MAY 2009
Fig. 6. Sensitivity to etching tolerances for the conventional and proposed=4 SIRs with various values of the substrate thicknessh (in millimeters) when W = 3:45 mm. (a) = 3:6. (b) = 6:8. (c) = 10:2. Conventional: solid line. Proposed (N = 3): dashed line. Positive: under-etching. Negative: over-etching. (circle: h = 0:5; triangle 4: h = 0:625; cross 2: h = 1; square :h = 1:25; diamond 5: h = 1:5.)
the resonator with , , mm,
mm, and mm on the
sub-strate with a dielectric constant of 3.6 and a thickness of 0.5 mm. Fig. 3(b) compares the frequency responses of two resonators where the inserted ground strips have one via-hole and two via-holes on their ends, respectively. It is apparent that the res-onator with two via-holes on the ends of each inserted ground strip has better spurious response.
To compare the characteristics of the proposed SIR with the conventional one, first of all it is necessary to obtain the characteristic impedance of the proposed low-impedance mi-crostrip structure. We first perform the full-wave EM simulation for the proposed microstrip structure by using Sonnet software

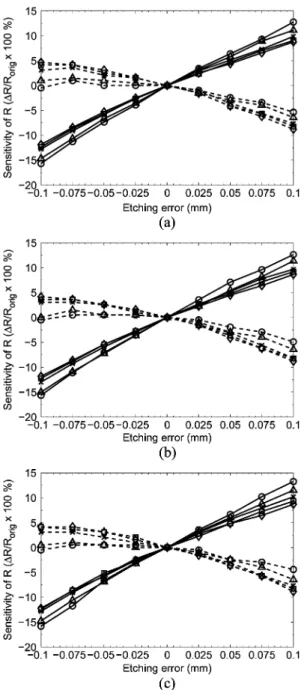

Fig. 7. Sensitivity to etching tolerances for the proposed=4 SIRs with dif-ferent numbers of inserted ground strips. (Case I:W = 3:45 mm, W = W = 0:3 mm, and W = W = 0:225 mm. Case II: W = 3:4 mm, W = W = 0:25 mm, W = 0:275 mm, and W = 0:175 mm). (a) Case I:h = 0:5 mm. (b) Case I: h = 1:5 mm. (c) Case II: h = 0:5 mm. (d) Case II:h = 1:5 mm. (N: number of inserted ground strips. N = 0: con-ventional microstrip structure.)
Fig. 8. Coupling structures for: (a) electric coupling and (b) magnetic coupling.
[14], and then load the two-port -parameter file in AWR Mi-crowave Office [15] to obtain the characteristic impedance. A lossless metal is assumed during the simulation. Since the capa-bility of the available fabrication process is taken into account, each via-hole is 0.3 mm in diameter and the following physical
dimensions are fixed as , mm,
and mm.
For the same and , the impedance ratio versus sub-strate thickness for the conventional and proposed SIRs is shown in Fig. 4 for comparison, where solid lines belong to the conventional SIRs and dashed lines belong to the proposed ones. In Fig. 4, the number of inserted ground strips of the proposed
SIRs is maximized so that mm. Thus,
dif-ferent in each figure corresponds to different numbers of inserted ground strips (i.e., from to ). Fig. 4(a)–(c) is similar, except substrate dielectric constants are different. As shown in Fig. 4, it can obviously be found that the impedance ratio of the proposed SIR is lower than that of the conven-tional one in most of the substrate thickness values (i.e.,
mm in all cases). One extra benefit is that the proposed SIR has a nearly constant impedance ratio versus substrate thickness . The phenomenon implies that the impedance ratio of the proposed SIR is insensitive to the variation of the sub-strate thickness.
Another interesting issue is about the number of inserted ground strips. As the number of inserted ground strips is not maximized, what will be the performance? Taking mm as an example, Fig. 5 depicts the impedance ratio versus substrate thickness with the number of inserted ground strips as a parameter. The number of inserted ground strips is varied from 0 to 3, where corresponds to the conventional microstrip structure. It is observed that the proposed SIR structure ( ) is less sensitive to the
Fig. 9. Coupling coefficients of the coupling structures for: (a) electric coupling and (b) magnetic coupling.
Fig. 10. Proposed layout of the four-pole cross-coupled filter.
substrate thickness variation compared with the conventional one and or has the best performance. For the conventional microstrip SIR, the percentage variation of the characteristic impedance of the high-impedance line is much less than that of the low-impedance line under the varia-tion of the substrate thickness. Therefore, the impedance ratio varies largely for the conventional microstrip SIR structure. The principle behind the proposed microstrip SIR is that in the low-impedance microstrip section, the coplanar signal and ground strips also control the characteristic impedance. As a result, the proposed low-impedance microstrip structure is
1168 IEEE TRANSACTIONS ON MICROWAVE THEORY AND TECHNIQUES, VOL. 57, NO. 5, MAY 2009
TABLE II
DIMENSIONS OF THEDESIGNEDFILTERS
much less sensitive to the variation of the substrate thickness. Taking Fig. 5(a) as an example, when the substrate thickness is changed from 0.5 to 1.5 mm, is changed from 108.4 to 149.7 , and is changed from 22.1 to 47.9 for the conventional microstrip structure and from 22.2 to 28.9 for the proposed one with . Consequently, the impedance ratio is changed from 0.204 to 0.32 for the case and from 0.205 to 0.193 for the case.
During the PCB manufacturing process, the most serious error is the etching error. The over-etching or under-etching occurs frequently from lot to lot. The proposed SIR structure further shows much better tolerance to etching errors than the conventional one. For the case of mm in Figs. 4 and 5, Fig. 6 shows the percentage variation of the impedance ratio of the conventional and proposed
SIRs versus etching error (from over-etching 0.1 mm to under-etching 0.1 mm). In each figure, different curves correspond to different substrate thicknesses. Fig. 6(a)–(c) is similar, except substrate dielectric constants are different. From Fig. 6, it can be clearly observed that the percentage change of the impedance ratio of the proposed SIR structure is much less than that of the conventional one. The mechanism behind this is that the proposed low-impedance microstrip structure is more sensitive to etching tolerances than the conventional one to keep the impedance ratio unchanged. In other words, for the conventional microstrip SIR, the characteristic impedance variation of the high-impedance line is much larger than that of the low-impedance line under the same amount of etching error, and this causes the impedance ratio to change largely. For example, under the condition of over-etching 0.05 mm and the substrate thickness mm in Fig. 6(a), is changed 9.13% (from 108.4 to 118.3 ), and is changed 0.9% (from 22.1 to 22.3 ) for the con-ventional microstrip structure. Consequently, is changed
from 0.204 to 0.189 . However, for the
proposed low-impedance microstrip structure, is changed 9.46% (from 22.2 to 24.3 ) so that is almost unchanged
( and ). Here, mm
is just an example and other ’s in Fig. 4 also show similar results.
Again, it is interesting to change the number of inserted ground strips. Fig. 7 shows the percentage variation of the impedance ratio of the proposed SIR versus etching error for different numbers of inserted ground strips. There are two sets of physical dimensions to be used for the simulation. The first one is mm,
mm, and mm. The
second one is mm, mm,
mm, and mm. During the
sim-ulation, substrates with thicknesses of 0.5 and 1.5 mm and a dielectric constant of 3.6 are used. As shown in Fig. 7, for the
given dimensions, the best choice for the number of inserted ground strips can be determined. Taking Fig. 7(a) as an ex-ample, (the maximum allowable number) is the best choice for the first set of dimensions on the given substrate. It is demonstrated that the impedance ratio of the proposed microstrip SIR is less sensitive to etching tolerances compared with that of the conventional one, even if .
III. FILTER DESIGN AND SENSITIVITY TO FABRICATIONTOLERANCES
To demonstrate the proposed structure, two four-pole cross-coupled bandpass filters were fabricated. The filter adjustment method proposed by Dishal [16] and summarized by Hong and Lancaster [17] is used in our filter design. Since the cross cou-pling, which produces transmission zeros, is very weak, the ini-tial design procedure is based on the fourth-order Chebyshev response filter with a 0.05-dB equal-ripple passband character-istic. Both filters have the same topology, and their specifica-tions and coupling coefficients are listed in Table I. Filter I was fabricated on a Rogers RO4003 substrate with a relative dielec-tric constant of 3.58, a loss tangent of 0.0027, and a thickness of 0.508 mm. Filter II was fabricated on the same substrate as filter I, except the thickness is 1.524 mm.
A. Filter Design
In the design process, we first fix the widths of , , , , and , and then plot the variation of the impedance ratio versus etching error for different numbers of inserted ground strips. The proper number of inserted ground strips could be chosen for the prescribed dimensions and the available fabrication process.
Fig. 8 shows the two basic coupling structures for our filter design. Note that each SIR is folded for size reduction. There are two kinds of couplings involved in the filter. At resonance, each of the SIRs has the maximum electric fringe fields near the open end and the maximum magnetic fringe fields at the short end. Hence, Fig. 8(a) is for the electric coupling and Fig. 8(b) is for the magnetic coupling. For filter I, the resonator dimensions
are mm, mm, and
mm. For filter II, they are mm,
mm, mm, and
mm. In both filters, the number of inserted ground strips is three. All diameters of via-holes have the same size of 0.3 mm. Based on the structures presented in Fig. 8, the relation between the coupling coefficient and the spacing between adjacent SIRs is shown in Fig. 9.
Fig. 10 depicts the layout of the filters where the physical pa-rameters corresponding to those of Table II are indicated. Here, we number these four resonators as 1–4 from left to right. The coupling is magnetic, whereas and are electric. The source coupling and load coupling are both achieved by a tapped
Fig. 11. Photograph of the fabricated circuit (filter I).
Fig. 12. Simulated (dashed line) and measured (solid line) results (jS j and jS j) of filter I. (a) Narrowband responses. (b) Wideband responses. feed line because it is space saving and easy to design [13]. The tap position is chosen to match the value for the 50- source/load impedance. A thin microstrip line provides the small cross coupling [17], [18] between resonators 1 and 4 to produce a pair of transmission zeros on both sides of the pass-band. The passband response almost remains unchanged when the cross coupling is applied. The strength of the cross coupling is determined by the length , the width of the coupling microstrip, and the gap between the coupling microstrip and resonators 1 and 4. Herein, two transmission zeros are placed
Fig. 14. Simulated (dashed line) and measured (solid line) results (jS j and jS j) of filter II. (a) Narrowband responses. (b) Wideband responses.
at 0.8 and 1.2 GHz. The commercial full-wave EM simulation software Sonnet [14] is used to perform the simulation.
B. Simulation and Measurement
Fig. 11 shows the fabricated filter I with a size of 17.2 mm 13.3 mm. Fig. 12 illustrates its simulated and measured re-sponses. The measured results show that the filter has a center frequency of 1.015 GHz and two transmission zeros at 0.784 and 1.222 GHz. The measured passband insertion loss is ap-proximately 3.1 dB, and the passband return loss is better than 16 dB. The first spurious response is at 5.631 GHz, and the rejec-tion level is better than 30 dB from 1.116 to 5.364 GHz. The
1170 IEEE TRANSACTIONS ON MICROWAVE THEORY AND TECHNIQUES, VOL. 57, NO. 5, MAY 2009
Fig. 15. Measured sensitivity to etching tolerances for the proposed SIR filter. (a) Filter I. (b) Filter II (over: over-etching; under: under-etching).
comparison between the simulated and measured results gives good agreement. For filter II, Fig. 13 shows a photograph of the fabricated circuit, which has a size of 17.7 mm 13.5 mm. The simulated and measured responses of filter II are presented in Fig. 14. The measured results show that the filter has a center frequency of 1.023 GHz and two transmission zeros at 0.796 and 1.214 GHz. The measured passband insertion loss is ap-proximately 2.2 dB, and the passband return loss is better than 15 dB. The first spurious frequency is at 5.085 GHz, which is a little down-shifted due to the resonance of the cross-coupling microstrip. The rejection level is better than 30 dB from 1.147 to 4.967 GHz.
It can be seen that both filters have symmetric insertion loss responses and sharp skirt characteristics. The insertion loss is mainly due to the conductor loss. Although a lot of via-holes are used in the proposed low-impedance microstrip structure, they have little effect on the passband insertion loss. This is because in the passband of the filter, the current is mainly distributed in the high-impedance section. There is little current through the via-holes on the inserted ground strips in the low-impedance section. Therefore, the loss is attributed to the high current den-sity in the high-impedance section.
C. Sensitivity to Etching Tolerances
To show the sensitivity to etching tolerances for the proposed SIR filters, we modify the masks during the fabrication process because PCB factories cannot change their processing parame-ters to match our study. Fig. 15 presents the measured responses of both proposed filters versus etching error, i.e., from
over-Fig. 16. Measured sensitivity to etching tolerances for the conventional SIR filter (W and W are the same as those of the proposed filter). (a) Filter I. (b) Filter II (over: over-etching; under: under-etching).

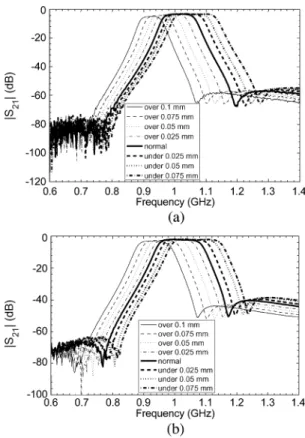

Fig. 17. Measured sensitivity to etching tolerances for the conventional SIR filter (R and W are the same as those of the proposed filter). (a) Filter I. (b) Filter II (over: over-etching; under: under-etching).
etching 0.1 mm (4 mil) to under-etching 0.075 mm (3 mil), to demonstrate their sensitivity. Only the insertion loss curves
quency and two transmission zeros of filter I are almost un-shifted in spite of inaccurate fabrication. The passband return losses, although not shown, are all better than 10 dB. The pass-band insertion loss and pass-bandwidth are slightly changed. The passband insertion loss is higher for the over-etched case owing to the lower unloaded quality factor and narrower bandwidth. The bandwidth is wider for the under-etched case because the narrower gap results in the stronger coupling between the res-onators. The same results are applied to filter II, as shown in Fig. 15(b), except the passband return losses are better than 12 dB in all cases.
The conventional microstrip SIR filters were also de-signed and fabricated on the same substrates to compare with the proposed ones. The conventional SIR filters have the same center frequencies and bandwidths, as given in Table I, and sim-ilar layout configurations, as shown in Fig. 10, except that there is no inserted ground strip in the low-impedance section. We set two groups of parameters for comparison. The first group of the conventional SIR filters keeps the same dimensions and as those of the proposed SIR filters. The second group of the conventional SIR filters is designed with the same impedance ratio and width as those of the proposed SIR filters. Their measured responses versus etching error are shown in Figs. 16 and 17, respectively. Again, only the insertion loss curves are shown for both groups of filters. As expected from the figures for both groups of the conventional SIR filters, the center fre-quency and two transmission zeros are significantly shifted. The passband return losses of the conventional SIR filters, although not shown, are worse than those of the proposed ones when the etching error occurs. An extra benefit of the proposed SIR fil-ters is that an obvious size reduction is achieved. For example, there is a size reduction of 39% for the proposed filter II com-pared with the conventional SIR filter when they have the same impedance ratio and width . Table III summarizes the per-centage of the center frequency drift due to etching errors for the proposed SIR filters and two groups of the conventional SIR fil-ters. It can be clearly observed that the proposed microstrip SIR filters show much less sensitivity to fabrication tolerances and have better performance.
IV. CONCLUSION
A novel modified microstrip SIR structure, which is tol-erant to fabrication errors, has been presented in this paper. By inserting ground strips inside the low-impedance microstrip
proposed SIR less sensitive to substrate thickness variations and etching tolerances, has been achieved. Moreover, the proposed microstrip SIR has shown an extra benefit of size reduction. Two four-pole cross-coupled filters with the proposed SIR structure have been realized with different amounts of etching error. The results have proven that the proposed filters have compact sizes, high selectivity, wide stopband range, and most importantly, in-sensitivity to fabrication inaccuracies.
