Triphenylsilyl- and trityl-substituted carbazole-based host materials for blue electrophosphorescence

(1)

Triphenylsilyl- and Trityl-Substituted

Carbazole-Based Host Materials for Blue

Electrophosphorescence

Ming-Han Tsai,

†

Tung-Huei Ke,

†

Hao-Wu Lin,

†

Chung-Chih Wu,*

,†

Shih-Feng Chiu,

‡

Fu-Chuan Fang,

‡

Yuan-Li Liao,

‡

Ken-Tsung Wong,*

,†

Yu-Hung Chen,

†

and Chih-I Wu

† Department of Electrical Engineering, Graduate Institute of Electro-optical Engineering and Graduate Institute of Electronics Engineering, and Department of Chemistry, National Taiwan University, Taipei, Taiwan 106

ABSTRACT Carbazole-based materials adopting the nonconjugated substitution of triphenylsilyl (-SiPh3) and trityl (-CPh3) side groups

are studied as high-triplet-energy, morphologically, and electrochemically stable host materials with tunable carrier-transport properties for organic blue electrophosphorescence. The developed host materials 9-(4-tert-butylphenyl)-3,6-bis(triphenylsilyl)-9H-carbazole (CzSi), 9-(4-tert-butylphenyl)-3,6-ditrityl-9H-carbazole (CzC), and 9-(4-tert-butylphenyl)-3-(triphenylsilyl)-6-trityl-9H-carbazole (CzCSi) all show high triplet energies of 2.97-3.02 eV, along with high glass transition temperatures of 131-163 °C and superior electrochemical stability. Nevertheless, the carrier-transport properties show rather significant dependence on different substitutions. Although three different host materials give similar peak electroluminescence efficiencies at low driving currents, the CzSi host, which has more suitable carrier-transport properties, renders broadened distributions of the triplet excitons in phosphorescent devices, reducing the quenching associated with triplet-triplet annihilation and giving larger resistance against efficiency roll-off at higher brightnesses.

KEYWORDS: blue electrophosphorescence • host • carbazole • triphenylsilyl substitution • trityl substitution • triplet energy •

charge transport

1. INTRODUCTION

T

he development of efficient phosphorescent organic light-emitting devices (OLEDs) in recent years renders possible harvesting of both electrogenerated singlet and triplet excitons for realizing nearly 100% internal quantum efficiencies of electroluminescence (EL) (1–8). While green and red phosphorescent OLEDs have been demonstrated to achieve nearly 100% internal quantum efficiency (2), research efforts to improve the performances of blue phosphorescent OLEDs are still highly desired. In pursuing highly efficient phosphorescent OLEDs, it is es-sential that the triplet energy of the host be larger than that of the triplet emitter to prevent reverse energy transfer from the guest back to the host and to effectively confine triplet excitons on guest molecules. Such a requirement becomes particularly challenging when blue electrophosphorescence is of interest (3–8), in which the conjugation lengths of host molecules must be extremely confined to achieve a triplet energy level larger than photon energies of blue light (i.e., g2.7 eV). As such, host materials reported for blue electro-phosphorescence have thus far been rare (4–8). Among them, tetraphenylsilane derivatives (such as UGH materials) and carbazole-based materials are two common classes of

large-triplet-energy host materials for blue electrophospho-rescence. Although tetraphenylsilane derivatives possess particularly large triplet energies of well over 3.0 eV, they, however, usually suffer poor conductivity/carrier-transport properties and poor morphological stabilities (i.e., low glass transition temperatures) (8), which are detrimental to either the device efficiency/operation voltage or long-term stability. On the other hand, materials based on the carbazole moiety are more electrically active systems (4–7). Carbazole moi-eties are characterized by their relatively small exchange energies, which are associated with small orbital overlaps in their n-π* transitions (9–11). The exchange energies of carbazole-based compounds can be as small as about 0.3-0.5 eV for judiciously designed molecular struc-tures (9–11), thus rendering high triplet energies. Small exchange energies make a significant contribution to the reduction of the energy loss in the excitation of dopants via conductive hosts, which would improve the power efficiency of the device.

To achieve a large triplet energy, successive π conjugation beyond one monomer (e.g., a single phenyl ring or carbazole unit) is generally undesirable (9–11). This, however, conflicts with film morphological stability considerations because materials with molecular sizes as small as monomers usually suffer from the tendency of crystallization and thermal instability. For molecules to form morphologically stable and uniform amorphous films with typical processing tech-niques, the molecule size must be extended beyond one carbazole monomer to afford bulky and steric molecular configurations, yet without reduction of the triplet energy of the molecule. Previously, we had reported that such

* E-mail: [email protected] (C.-C.W), [email protected] (K.-T.W.).

Received for review October 15, 2008 and accepted January 6, 2009

†

Department of Electrical Engineering, Graduate Institute of Electro-optical Engineering and Graduate Institute of Electronics Engineering.

‡

ARTICLE

Downloaded by NATIONAL TAIWAN UNIV on September 2, 2009 | http://pubs.acs.org

(2)

challenges can be conquered by introducing triphenylsilyl onto the C3 and C6 sites of carbazole as sterically hindered side groups, forming a molecule of 9-(4-tert-butylphenyl)-3,6-bis(triphenylsilyl)-9H-carbazole (CzSi) with enhanced mor-phological stability (12). The tetrahedral Si atoms serve as effective spacers, blocking the π conjugation of the carbazole core from extending to the peripheral substitution; thus, the large triplet energy of carbazole can be retained. Rather efficient blue phosphorescent OLEDs had been demon-strated using such a host material.

In our previous report, properties of CzSi were not thoroughly characterized, and thus it is not well understood why CzSi is successful in giving highly efficient blue phos-phorescent devices, particularly when considering that its triplet energy is similar to those of other reported carbazole-based wide-gap host materials. To understand the critical and fundamental issues (in addition to triplet energies, glass transition temperatures, etc.) in the design of effective host materials for blue organic electrophosphorecence, in this paper we systematically vary the nonconjugated substitu-tions on C3 and C6 of carbazole, such as triphenylsilyl, trityl, or their combinations, to tune the properties of the host materials while still maintaining their large triplet energies. These carbazole-based host materials include CzSi, butylphenyl)-3,6-ditrityl-9H-carbazole (CzC), and 9-(4-tert-butylphenyl)-3-(triphenylsilyl)-6-trityl-9H-carbazole (CzCSi).

By thoroughly characterizing various properties (e.g., chemi-cal, electrochemichemi-cal, thermal, photophysichemi-cal, charge-trans-port, and electroluminescent properties, energy levels, etc.) of these host materials, we seek to understand the critical and fundamental issues that need to be considered in the selection and design of effective host materials for blue organic electrophosphorecence, in addition to the more commonly recognized requirements in triplet energies, glass transition temperatures, etc.

2. RESULTS AND DISCUSSION

2.1. Synthesis.

The synthetic pathways of the target compounds CzSi, CzC, and CzCSi are depicted in Scheme 1. The 3,6-dibromo derivatives of carbazole were treated with n-BuLi at -78 °C to give dilithiated intermediates, which were subsequently quenched with chlorotriphenylsi-lane to give the desired CzSi in 78% yield after column chromatography. 9-(4-tert-Butylphenyl)carbazole and triph-enylmethanol were dissolved in CH2Cl2, and Eaton’s reagent (7.7 wt % P2O5in CH3SO3H) was added dropwise at 25 °C under a nitrogen atmosphere to give the desired CzC in 84% yield. Compound 1 prepared similarly to the synthesis of CzC was dissolved in CH2Cl2, and a solution of N-bromosuccin-imide in dimethylformamide was added slowly at room temperature to give compound 2. Compound 2 was treated

Scheme 1. Synthesis of CzSi, CzC, and CzCSi

ARTICLE

(3)

with n-BuLi at -78 °C and subsequently quenched with chlorotriphenylsilane to give CzCSi in 60% yield.

2.2. Cyclic Voltammetry (CV).

The electrochemical properties of the compounds CzSi, CzC, and CzCSi were investigated by CV, as shown in Figure 1a-c. In CH2Cl2, using 0.1 M n-Bu4NPF6as the supporting electrolyte, a glassy carbon electrode as the working electrode, and Ag/AgCl as the reference electrode with the scan rate set to 100 mV/s, reversible oxidation was observed. Therefore, it is reason-able to expect that the present host compounds be streason-able upon accepting holes in OLEDs. In contrast, when the electrochemically active sites (C3 and C6 of carbazoles) are left unblocked, the oxidation process of the commonly used blue phosphorescent OLED host mCP (N,N′ -dicarbazolyl-3,5-benzene; inset of Figure 1d) is not reversible (4), with the oxidation potential gradually shifting to lower potentials and the current increasing during repeated CV scans, as shown in Figure 1d. As revealed in the literature, such characteris-tics are signatures of electrochemical polymerization of carbazoles through the active C3 and C6 sites (10, 13, 14). These electrochemical results indicate that the introduction of triphenylsilyl and trityl substitutions brings enhanced electrochemical stability because they block the electro-chemically active sites (C3 and C6) of carbazole. This is an important factor in the application of carbazole compounds in OLEDs when the compounds transport positive charge carriers in the devices.

Figure 2 depicts the phosphorescence spectra of pristine films deposited by thermal evaporation compared with films on the indium-tin oxide (ITO) working electrode during repeating CV scans. It is evident that, as a result of electro-chemical polymerization, new species with extended con-jugation lengths are formed in CV-deposited films of mCP. The new chromophores exhibit reduced triplet energies in the region from about 500-600 nm (Figure 2b). In contrast, CzSi with the electrochemically active sites of carbazole

protected does not undergo electrochemical polymerization but merely adsorbs on the ITO electrode. The phosphores-cence spectrum of CzSi in pristine evaporated film and that adsorbed on the ITO working electrode are nearly identical, as shown in Figure 2a. Therefore, it is capable of suppressing the formation of reduced triplet energy species. Such results provide further evidence of the superior electrochemical stability of the developed host materials.

2.3. Thermal Properties.

As mentioned above, the introduction of triphenylsilyl and trityl groups to C3 and C6 of carbazole renders the molecule rather steric, rigid, and bulky. Such a molecular configuration is strongly beneficial to the thermal stability, as indicated by the high decomposi-tion temperature (Td, corresponding to 5% weight loss in the thermogravimetric analysis, TGA) of 392, 393, and 388 °C for CzSi, CzC, and CzCSi, respectively. The glass transition temperatures (Tg) determined by differential scanning cal-orimetry (DSC) are 131, 163, and 146 °C for CzSi, CzC, and CzCSi, respectively. Such Tg’s are rather high and are more than 2 times higher than that of mCP (Tg) 55 °C) (7). The

Tg’s are in the order of CzC > CzCSi > CzSi, where the trityl substitutions provide higher morphological stability (higher

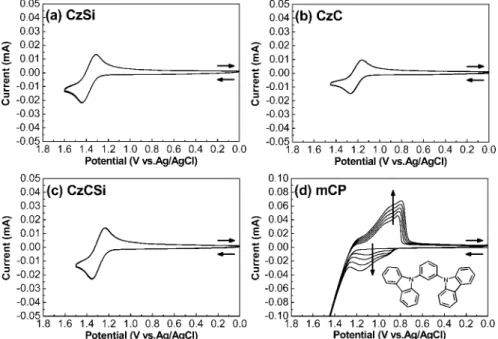

Tg) than the triphenylsilyl substitutions. This might be at-FIGURE 1. Repeated cyclic voltammograms of (a) CzSi (five cycles), (b) CzC (five cycles), (c) CzCSi (five cycles), and (d) mCP (five cycles). The inset of part d is the molecular structure of mCP.

FIGURE 2. Phosphorescence of pristine films deposited by thermal evaporation compared with the films on the ITO working electrode in repeated CV scans of (a) CzSi and (b) mCP.

ARTICLE

(4)

tributed to the shorter bond length of the C-C bond than the C-Si bond, which will render a denser molecular pack-ing. Among these compounds, CzC gives the most impres-sive and highest Tgof 163 °C, which is among the highest

Tg reported for host materials of blue electrophospho-rescence (7, 11). With high Tg’s and thus resistance against crystallization, all of the developed host materials are able to form homogeneous and stable amorphous films by thermal evaporation.

2.4. Photophysical Properties.

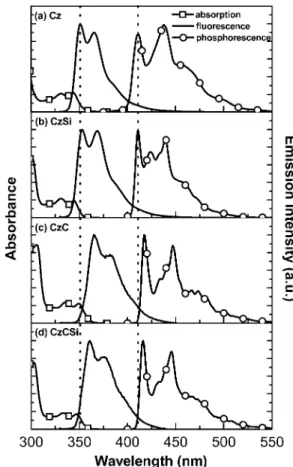

Parts b-d of Figure 3 show the room-temperature absorption, fluorescence, and 77 K phosphorescence spectra of CzSi, CzC, and CzCSi. It is obvious that the photophysical characteristics are all nearly identical with those of the unsubstituted carbazole (Cz, Figure 3a) and thus can be unambiguously attributed to the lowest π-π* transition of the central carbazole chro-mophores. The tetrahedral Si and C atoms, therefore, serve as effective spacers, blocking the π conjugation of the carbazole core from extending to the peripheral substitution. Furthermore, it is noticed that phenyl substitution at the 9 position of the carbazole hardly has an effect on these photophysical behaviours possibly because the phenyl group is out-of-plane with the carbazole ring as a result of steric hindrances, consistent with previous observations (10). By taking the highest-energy peak of phosphorescence as the transition energy of T1 f S₀, which corresponds to the vibronic 0-0 transition between these two electronic states (1–8), the triplet energies of CzSi, CzC, and CzCSi are

estimated to be as high as 3.02, 2.97, and 2.98 eV, respec-tively, which are very close to that of the unsubstituted carbazole (3.02 eV).

While the shift in the triplet energy is negligible, it is worth noting that there are slight reductions in the singlet energies of CzC (365 nm, 3.40 eV) and CzCSi (361 nm, 3.43 eV) as compared to those of carbazole (351 nm, 3.53 eV) and CzSi (353 nm, 3.51 eV). The observations here are consistent with previous studies, which show that the substitutions on the C3 and C6 sites of carbazole could influence the singlet energy while leaving the triplet energy intact (10).

2.5. Carrier Mobility Measurements.

The carrier-transport properties of the host materials CzSi, CzC, and CzCSi were studied by the time-of-flight (TOF) transient photocurrent technique in vacuum at room temperature. A frequency-quadrupled neodynium:yttrium-aluminum-garnet laser (266 nm) with 10 ns pulse duration was used for pulsed illumination. This wavelength gives high absorp-tion coefficients of∼105_cm-1_{for all three materials,} ensur-ing that the penetration depth for the illumination and the sheet of photogenerated carriers is negligibly thin in com-parison with the sample thickness. Representative TOF transients of the three hosts for holes are shown in Figure 4a-c, which were measured at an electric field of 4× 105 V/cm on thick films (2 µm for CzSi and CzC and 1.6 µm for CzCSi). The initial spike of the TOF transients for both CzC and CzCSi is followed by a clear constant-current plateau, indicating that the charge carriers (i.e., holes) have attained a constant drift velocity, and hence nondispersive transport occurs. On the other hand, CzSi exhibits somewhat disper-sive hole-transport characteristics (Figure 4a). In the double-logarithmic representation of the TOF transients (insets of Figure 4a-c), the carrier transit time (tT) can be evaluated from the intersection point of the asymptotes to the plateau and the tail sections. In contrast with the case of holes, the TOF transients for electrons of these three hosts are highly dispersive, and no clear transit time could be resolved in both double-linear or double-logarithmic representations. It is therefore concluded that the developed host materials CzSi, CzC, and CzCSi, like most carbazole-based materials, are predominantly hole-transport materials.

Figure 4d shows the field dependence of hole mobilities of the host materials. The field dependence of mobilities thus determined follows the nearly universal Poole-Frenkel relationship: µ∝exp(βE1/2_{), where β is the Poole-Frenkel} factor (15). Unlike the other properties already described that show much similarity among these three compounds, the carrier-transport properties show rather significant depen-dence on different substitutions. The hole mobility of CzC (∼5 × 10-4cm2_{/V · s) is about 1 order higher than that of} CzSi (∼5 × 10-5cm2_{/V · s), while that of CzCSi is in between.} Again, the more condensed packing of CzC due to a shorter C-C bond as compared to that of a C-Si bond is suggested to result in shorter interchromophore distances and more efficient carrier transport. Such evident differences in carrier-transport properties are expected to affect the performances

FIGURE 3. Room-temperature absorption, fluorescence, and 77 K phosphorescence spectra of (b) CzSi, (c) CzC, and (d) CzCSi in toluene, in comparison with those of the unsubstituted carbazole monomer (a).

ARTICLE

(5)

of the phosphorescent devices, which will be discussed in the following section.

2.6. Device Results.

The developed host compounds CzSi, CzC, and CzCSi have been subjected to electrophos-phorescence studies. The devices were fabricated on glass substrates with the typical structure of multiple organic layers sandwiched between the bottom ITO anode and the top metal cathode (Al). The device structure used was ITO/ PEDT-PSS (∼300 Å)/DPAS (175 Å)/TCTA (25 Å)/host doped with 8 wt % FIrpic (250 Å)/TAZ (500 Å)/LiF (5 Å)/Al (1000 Å), where the conducting polymer poly(ethylenediox-ythiophene)/poly(styrene sulfonate) (PEDT-PSS) was used as the hole-injection layer (16), 2,2′ -bis(N,N-diphenylamine)-9,9′-spirobifluorene (DPAS) and 4,4′,4′′ -tri-N-carbazolyltriph-enylamine (TCTA) as the hole-transport layers (12), host compounds with a nearly optimized concentration (8 wt %) of the blue phosphorescent dopant iridium(III) bis[4,6-difluorophenyl]pyridinato-N,C2‘_{]picolinate (FIrpic) as the} emit-ting layer (3–5, 7), 3-(4-biphenylyl)-4-phenyl-5-(4-tert-bu-tylphenyl)-1,2,4-triazole (TAZ) as the electron-transport layer

(17), and LiF as the electron-injection layer (18). Chemical structures of related compounds and their energy levels are shown in Figure 5, in which ionization potentials (IPs) of host compounds CzSi, CzC, and CzCSi in films were determined by ultraviolet photoemission spectroscopy (UPS), while IPs of other materials were taken from our previous measure-ments or from the literature (12, 19). Electron affinities of all compounds were derived by subtracting IPs with optical energy gaps. As can be seen from the energy levels shown in Figure 5, either a trityl or triphenylsilyl substituent has a rather limited effect on the energy levels of the host compounds.

The EL spectra of the devices are shown in Figure 6, while Figure 7 depicts the I-V-L characteristics and external EL quantum efficiencies of the devices. The devices employing the developed host materials all exhibit rather low turn-on voltages of∼3 V (defined as the voltage where EL becomes detectable) and low operation voltages of 4.7-5.0 V at 100 cd/m2_{, as shown in Figure 7b. High maximum external EL} quantum efficiencies of 15.7%, 12.9%, and 14.2% photons/ electron were obtained for the CzSi, CzC, and CzCSi devices, respectively. High quantum efficiencies along with the low operation voltages gave maximal power efficiencies of 26.7, 25.9, and 25.0 lm/W for the CzSi, CzC, and CzCSi devices, respectively. One important factor contributing to these improved characteristics is the judicious use of two hole-transport layers (DPAS/TCTA) with a stepwise increase in the IPs to match those of the host materials and the choice of the electron-transport layer (TAZ). Use of only a single hole-transport layer of either DPAS or TCTA results in lower efficiency and higher voltage. Adopting other electron-transport and hole-blocking layers widely used in phospho-rescent OLEDs, such as

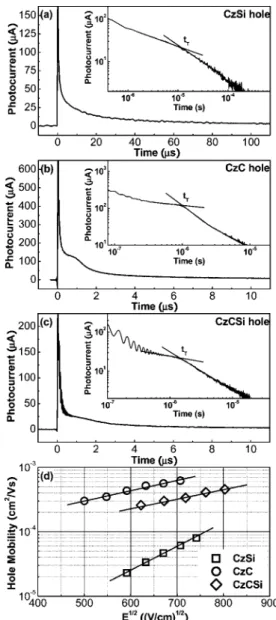

2,9-dimethyl-4,7-diphenyl-1,10-FIGURE 4. TOF transients of (a) CzSi, (b) CzC, and (c) CzCSi. Insets: double-logarithmic plots. (d) Hole mobilities of the host materials vs square roots of the electric field.

FIGURE 5. (a) Chemical structures of DPAS, TCTA, FIrpic, and TAZ. (b) Energy levels of related compounds in thin films.

FIGURE 6. EL spectra of the devices.

ARTICLE

(6)

phenanthroline, 2,2′,2′′ -(1,3,5-benzenetriyl)tris[1-phenyl-1H-benzimidazole], or 1,3-bis[2-(2,2′ -bipyridin-6-yl)-1,3,4-oxa-diazol-5-yl]benzene (1–8, 20), also substantially reduces the device efficiency. The rather small exchange energies of the developed carbazole-based host materials could be another factor that contributes to the improvement of the power efficiencies of the devices. It is also worth mentioning that although the phosphorescent dopant FIrpic emitting a less saturated blue light was used in this work, the developed host materials are expected to function as well for more saturated blue dopants considering their high triplet energies (21).

Although the performances of the devices using three different hosts, CzSi, CzC, and CzCSi, are all similarly impressive in the lower-current-density region (i.e., the lower-brightness region), the device characteristics differ strongly at higher current densities. As can be seen from Figure 7c, the CzC and CzCSi devices suffer from severe efficiency roll-off at higher current densities (i.e., at higher brightnesses) in comparison with the device using CzSi. While the CzSi device retains an efficiency of above 12% at 100 cd/m2_{and 9% at 1000 cd/m}2_{, the efficiency of the CzC} device has dropped to 7% and 0.6% at 100 and 1000 cd/ m2_{, respectively. Resistance against efficiency roll-off at high} currents gives the CzSi device a maximum brightness as high as 59 000 cd/m2_{at 14.5 V. As for the CzC and CzCSi devices,}

the maximum brightnesses are only 2200 and 4200 cd/m2_, respectively. The superior performance of the CzSi host over the CzC and CzCSi analogues is most likely attributed to the differences in carrier-transport properties because other properties are similar among the three host materials. Efficiency roll-off at higher currents typically observed in phosphorescent OLEDs may be associated with triplet-triplet annihilation (1–8). With a relatively higher hole mobility in CzC and CzCSi, the exciton formation regions of CzC and CzCSi are speculated to be highly concentrated at the vicinity of the interface between the emitting layer and electron-transport layer. Therefore, at high current densities and thus high exciton densities, the accumulated excitons suffer severe quenching by triplet-triplet annihilation, resulting in low efficiencies. On the contrary, the relatively lower hole mobility of CzSi (about 1 order lower than that of CzC) could broaden the exciton distribution zone over the emitting layer, reducing the chance of quenching with high densities of triplet excitons. Such results demonstrate the significance of the thorough understanding and consideration of host material properties in the design of effective phosphorescent devices.

Such a difference in carrier-transport properties may also partly explain the difference between the devices using the CzSi host and the devices using the mCP host, in addition to their differences in morphological and electrochemical stabilities. In reported FIrpic/mCP devices with device struc-tures similar to the one described in this work, they exhibited peak quantum efficiencies of∼6-11% (6, 7, 22), signifi-cantly lower than the efficiency of the CzSi device. Mean-while, mCP was reported to have a hole mobility of 5× 10-4 cm2_{/V · s (23), which is much higher than the hole mobility} of CzSi (∼5 × 10-5cm2_{/V · s) and may also lead to highly} concentrated carrier/concentrated distribution and degrade device performances (as in CzC and CzCSi).

3. CONCLUSIONS

The development of effective host and dopant materials for blue phosphorescent OLEDs remains a challenge in OLED technology. Major issues for developing effective host materials used for blue electrophosphorescence are to satisfy many material requirements, such as large triplet energy, high thermal stability, electrochemical stability, tunable carrier-transport properties, etc. In this paper, we have performed systematic studies and demonstrated that these requirements can be achieved simultaneously by introduc-ing nonconjugated, steric, bulky, and large-gap substitutions, such as triphenylsilyl and trityl groups, onto the electro-chemically active C3 and C6 sites of carbazole. The devel-oped compounds CzSi, CzC, and CzCSi preserve the large triplet energy of carbazole and yet exhibit much enhanced morphological and electrochemical stability. Most impor-tantly, while these materials exhibit other similar physical and photophysical properties, such a molecular design strategy provides an extra capability of tuning carrier-transport properties and provides a chance to study the significant influences of the carrier-transport properties on the device behaviors and performances. Such findings shall

FIGURE 7. (a) I-V characteristics, (b) L-V characteristics, and (c) external EL quantum efficiency vs brightnesses of the devices.

ARTICLE

(7)

provide useful guidelines for the future design and selection of effective host materials for organic blue electrophospho-rescence.

4. EXPERIMENTAL SECTION

Preparation of CzSi.

9-(4-tert-Butylphenyl)-3,6-dibromocar-bazole (4.57 g, 10 mmol) in THF (250 mL) was treated with

n-BuLi (15.6 mL, 1.6 M in hexane, 25 mmol) at -78 °C and

quenched with a solution of chlorotriphenylsilane (7.4 g, 25 mmol) in THF (50 mL). The desired product was purified by column chromatography, eluting with CHCl3/hexane (1:4) to

provide the product as a white solid (6.36 g, 78%): mp 354 °C (DSC); IR (neat) ν 2960, 2359, 1681, 1428, 1260, 1025, 801, 699, 512 cm-1; 1_{H NMR (CDCl} 3, 400 MHz) δ 8.21 (s, 2H), 7.61-7.55 (m, 16H), 7.49-7.41 (m, 2H), 7.44-7.40 (m, 8H), 7.37-7.34 (m, 12H) 1.42 (s, 9H);13_{C NMR (CDCl} 3, 100 MHz) δ 150.1, 141.5, 136.0, 134.4, 134.0, 133.4, 129.0, 128.5, 127.4, 126.3, 126.1, 123.5, 122.7, 109.5, 35.1, 31.7; MS (m/z, FAB+) 815(4). HRMS (m/z, FAB+). Calcd for C58H49NSi2: 815.3404.

Found: 815.3403. Elem anal. Calcd for C58H49NSi2: C, 85.35; H,

6.05. Found: C, 85.10; H, 6.07.

Preparation of CzC. 9-(4-tert-Butylphenyl)carbazole (2.99 g,

10 mmol) and triphenylmethanol (5.47 g, 21 mmol) were dissolved in CH2Cl2(70 mL), and Eaton’s reagent (0.5 mL, 7.7

wt % P2O5in CH3SO3H) was added dropwise at 25 °C under a

nitrogen atmosphere. After stirring for 48 h, the precipitate was filtered and washed with water (50 mL× 2) and a dilute aqueous sodium bicarbonate solution. The crude product suspended in acetone was refluxed for 1 h and refluxed for another 1 h in CH2Cl2. The white powder was filtered and dried: yield 6.6 g

(84%); mp 372-374 °C; IR (KBr) ν 3062, 2963, 1600, 1520, 1485, 817, 745, 700 cm-1;1_{H NMR (CDCl} 3, 400 MHz) δ 7.79 (d, J ) 1.6 Hz, 2H), 7.53 (dd, J ) 8.8 and 2.0 Hz, 2H), 7.47 (dd, J ) 8.8 Hz, 2H), 7.30 (s, 1H),7.30-7.26 (m, 4H), 7.26-7.16 (m, 27H), 7.12 (dd, J ) 8.8 and 2.0 Hz, 2H), 1.40 (s, 9H);13_{C NMR} (CDCl3, 100 MHz) δ 150.0, 147.1, 139.0, 138.4, 134.8, 131.1, 130.4, 127.2, 126.4, 126.0, 125.6, 122.3, 121.3, 108.9, 64.9, 34.8, 31.5; MS (m/z, FAB+) 783 (0.41). HRMS (M+, FAB+). Calcd for C60H49N: 783.3865. Found: 783.3871. Elem anal. Calcd for

C60H49N: C, 91.91; H, 6.30; N, 1.79. Found: C, 91.97; H, 6.66;

N, 1.48.

Preparation of CzCSi. Under nitrogen, Eaton’s reagent (0.5

mL) was added into a solution of 9-(4-tert-butylphenyl)carbazole (2.99 g, 10 mmol) and triphenylmethanol (2.86 g, 11 mmol) dissolved in CH2Cl2(70 mL). After stirring for 48 h, the crude

product 3-trityl-9-(4-tert-butylphenyl)carbazole was subjected to silical gel column chromatography, eluting with CHCl3/hexane

(1:7) to provide the product 3-trityl-9-(4-tert-butylphenyl)carba-zole (1; 3.52 g, 65%) as a white solid: mp 255-256 °C; IR (KBr)

ν 3056, 2957, 1600, 1517, 1457, 1242, 742, 705 cm-1;1_{H NMR} (CDCl3, 400 MHz) δ 7.97 (d, J ) 1.6 Hz, 1H), 7.92 (d, J ) 8 Hz, 1H), 7.54-7.52 (m, 2H), 7.46-7.44 (d, 2H), 7.40-7.27 (m, 5H), 7.25-7.21 (m, 9H), 7.21-7.15 (m, 6H), 1.40 (s, 9H);13_{C NMR} (CDCl3, 100 MHz) δ 149.8, 146.9, 140.7, 138.6, 138.1, 134.5, 130.8, 129.9, 127.0, 126.2, 125.9, 125.3, 125.2, 123.0, 121.8, 121.5, 119.7, 119.2, 109.5, 108.5, 64.7, 34.5, 31.2; MS (m/z, FAB+) 541 (60). 3-Trityl-9-(4-tert-butylphenyl)carbazole (1.0 g, 1.8 mmol) was dissolved in CH2Cl2 (25 mL). A solution of N-bromosuccinimide (0.33 g, 1.8 mmol) in dimethylformamide

(50 mL) was added slowly at room temperature. After stirring for 4 h, the precipitate was collected and washed with hexane (50 mL× 2) to provide the compound 3-bromo-6-trityl-9-(4-tert-butylphenyl)carbazole (2) as a white solid (1.0 g, 90%): mp 317-319 °C; IR (KBr) ν 3064, 2967, 1593, 1518, 1479, 1247, 816, 746, 705 cm-1;1_{H NMR (CDCl} 3, 400 MHz) δ 8.02 (d, J ) 2 Hz, 1H), 7.93 (d, J ) 1.6 Hz, 1H), 7.55-7.53 (m, 2H), 7.42-7.38 (m, 3H), 7.28-7.16 (m, 18H);13_{C NMR (CDCl} 3, 100 MHz) δ 150.5, 147.0, 139.6, 139.2, 138.9, 134.3, 131.1, 128.1, 127.5, 127.4, 126.6, 126.1, 125.7, 125.1, 122.7, 121.7, 121.1, 112.3, 111.3, 109.1, 64.9, 34.9, 31.5. n-BuLi (5.5 mmol, 3.4 mL in a 1.6 M hexane solution) was added dropwise to a degassed THF (50 mL) solution of 3-bromo-6-(tripheylmethyl)-9-(4-tert-bu-tylphenyl)carbazole (3.1 g, 5 mmol) at -78 °C. After stirring for 1 h at -78 °C, chlorotriphenylsilane (1.62 g, 5.5 mmol) in THF (30 mL) was added in one portion. The resulting mixture was immediately warmed to room temperature. The precipitate was filtered and washed with hexane (50 mL) to provide a white powder of CzCSi (2.4 g, 60%): mp 357-360 °C; IR (KBr) ν 3071, 2954, 1601, 1519, 1481, 1427, 1108, 817, 740, 700 cm-1;1_H NMR (CDCl3, 400 MHz) δ 8.11 (s, 1H), 7.88 (d, J ) 1.2 Hz, 1H), 7.61-7.59 (m, 5H), 7.54 (t, 4H), 7.48 (s, 2H), 7.46 (s, 1H), 7.42 (dd, J ) 7.8 and 5.4 Hz, 5H), 7.36 (t, J ) 7 Hz, 7H), 7.3 (s, 1H), 7.28 (d, J ) 5.6 Hz, 3H), 7.24-7.15 (m, 10H), 1.40 (s, 9H);13_C NMR (CDCl3, 100 MHz) δ 150.2, 147.1, 142.0, 138.9, 138.7, 136.3, 134.8, 134.6, 133.4, 131.1, 130.6, 129.3, 128.6, 127.7, 127.2, 126.5, 126.1, 125.7, 123.3, 123.2, 122.0, 121.6, 109.7, 108.9, 64.9, 34.8, 31.5; MS (m/z, FAB+) 799 (100). Elem anal. Calcd: C, 88.57; H, 6.17; N, 1.75. Found: C, 88.58; H, 6.07; N, 1.38.

Synthesized compounds were subjected to purification by temperature-gradient sublimation in a high vacuum before use in subsequent studies. CV was performed at a scan rate of 100 mV/s using the glassy carbon electrode as the working electrode and Ag/AgCl as the reference electrode. Oxidation CV was performed in CH2Cl2with 0.1 M of n-Bu4NPF6as the supporting

electrolyte.

Thermal properties of organic compounds were investigated by TGA and DSC. TGA was performed on a TA Instruments 2950 TGA thermal analyzer with a heating rate of 10 °C/min under nitrogen purging. DSC was performed on a TA Instruments DSC-2920 low-temperature difference scanning calorimeter. During the DSC measurement, the sample was first heated at a rate of 20 °C/min to melt, was quenched with liquid nitrogen, and then was heated again at 10 °C/min to record various transition temperatures.

Ultraviolet (UV) spectra were measured with a Shimadzu UV-1601PC spectrophotometer. Photolumenescence was mea-sured using a CCD spectrograph and the 325 nm line of the He-Cd laser as the excitation source. The phosphorescence spectra were obtained in dilute solutions at 77 K. The emission spectra at 77 K were recorded with an IBH picosecond photon detection module and a sub-microsecond xenon flashlamp as an excitation source. Gated spectra were recorded to discrimi-nate phosphorescence from fluorescence. The gate delay was 5 ms with a gate width of 5 ms. The highest energy peak in the phosphorescence spectrum was taken for the T1fS₀transition (i.e., the triplet energy).

Charge transport in films of various host materials was characterized by applying the TOF transient photocurrent technique on glass/Ag (30 nm)/organic (∼2 µm)/Al (150 nm) samples in vacuum. Pulsed illumination (fourth harmonic of a Nd:YAG laser, 266 nm, 10 ns) through the semitransparent electrode (Ag) induces photogeneration of a thin sheet of excess carriers. The sample thickness had been chosen to be much larger than the optical absorption depth of the excitation. Depending on the polarity of the applied bias, selected photo-generated carriers (holes or electrons) are swept across the sample with a transit time tT. With the applied bias V and the

sample thickness D, the applied electric field E is then V/D, and the carrier mobility is given by µ ) D/EtT) D2/VtT.

IPs of thin films of organic compounds were measured by UPS. The deposition and the UPS measurements of thin-film samples were performed in two interconnected ultrahigh-vacuum chambers. Organic thin films were deposited on gold-coated silicon substrates by thermal evaporation in the depo-sition chamber and then transferred in situ to the analysis chamber. In the analysis chamber with a base pressure of less

ARTICLE

(8)

than 1× 10-10Torr, UPS was carried out using the He I (21.22 eV) and He II (40.8 eV) photon lines and the double-pass cylindrical mirror analyzer to measure the energy spectrum of photoexcited electrons. The overall resolution of the UPS mea-surement is about 0.15 eV. The energy scale of UPS spectra is referenced to the Fermi level of the system, which is measured on the gold surface before deposition of organic thin films. IPs of molecular films can be deduced from the energy difference between the highest occupied molecular orbital level and the vacuum level (inferred from the low-energy onset of the UPS spectrum).

OLEDs were fabricated on the ITO-coated glass substrates with multiple organic layers sandwiched between the transpar-ent bottom ITO anode and the top metal cathode. The material layers were deposited by vacuum evaporation in a vacuum chamber with a base pressure of <10-6Torr. The deposition system permits the fabrication of the complete device structure in a single vacuum pumpdown without breaking of the vacuum. The deposition rate of organic layers was kept at∼0.2 nm/s. The active area of the device is 1× 1 mm2_{, as defined by the}

shadow mask for cathode deposition. The I-V-L) characteriza-tion of the light-emitting devices was performed with a source measurement unit and a silicon photodiode calibrated with Photo Research PR650. EL spectra of devices were collected by a calibrated CCD spectrograph.
