Assessing the effort of meteorological variables for evaporation estimation

by self-organizing map neural network

Fi-John Chang

a,*

, Li-Chiu Chang

b

, Huey-Shan Kao

a

, Gwo-Ru Wu

a a

Department of Bioenvironmental Systems Engineering, National Taiwan University, Taipei, Taiwan, ROC

b

Department of Water Resources and Environmental Engineering, Tamkang University, Taipei, Taiwan, ROC

a r t i c l e

i n f o

Article history: Received 8 August 2009

Received in revised form 30 December 2009 Accepted 15 January 2010

This manuscript was handled by A. Bardossy, Editor-in-Chief, with the assistance of Taha Ouarda, Associate Editor

Keywords:

Artiﬁcial neural network Evaporation

Meteorological variables Self-organizing map

s u m m a r y

The phenomenon of evaporation affects the distribution of water in the hydrological cycle and plays a key role in agriculture and water resource management. We propose a self-organizing map neural network (SOMN) to assess the variability of daily evaporation based on meteorological variables. The daily mete-orological data sets from a climate gauge were collected as inputs to the SOMN and then were classiﬁed into a topology map based on their similarities to investigate their multi-collinear relationships to assess their effort in the evaporation. To accurately estimate the daily evaporation based on the input pattern, the weights that connect the clustered centers in a hidden layer with the output were trained by using the least square regression method. In addition, we compared the results with those of back propagation neural network (BPNN), modiﬁed Penman and Penman–Monteith formulas. The results demonstrated that the topological structures of SOMN could give a meaningful map to present the clusters of meteoro-logical variables and the networks could well estimate the daily evaporation. By comparing the perfor-mances of these models in estimating daily and long-term (monthly or yearly) cumulative evaporation, the SOMN provides the best performance.

Introduction

Evaporation is a key input to hydrological models. Estimating evaporation is fundamental for agricultural irrigation, water bal-ance studies, water supply, and land resource planning. However, it is difficult to accurately estimate because of complex interac-tions between the components of the land and atmosphere sys-tems. Temperature, wind speed, atmospheric pressure, and solar radiation could all influence the amount of evaporation. In hydro-logical practice, the estimation can be achieved by direct or indirect methods. One of the direct methods for evaporation mea-surements is pan evaporation. A practical means of estimating the amount of pan evaporation is of considerable significance to hydrologists and agriculturists. Indirect methods, such as mass transfer and water budget methods, based on meteorological data have been used to estimate evaporation on a water body by many researchers (Burman, 1977; Coulomb et al., 2001; Gavin and Ag-new, 2004). The FAO Penman–Monteith equation is recommended as the standard method for computation of daily reference evapo-transpiration (Allen et al., 1998).Warnaka and Pochop (1988) com-pared six equations to estimate evaporation using climatologic data and stated that the equations vary greatly in their ability to

deﬁne the variability of evaporation. The accuracy of the evapora-tion estimate is highly dependent on the reliability and precision of a number of measurements involved in radiation measurements. The wide range of data type and the expertise needed to correctly use the various equations make it difﬁcult to select the most suit-able equation to use for a given study.

Many researchers have emphasized the need for accurate esti-mates of evaporation in hydrologic modeling studies (Sudheer et al., 2002; Szilagyi and Jozsa, 2009). This requirement could be addressed through better models that will address the inherent non-linearity in the process. The artiﬁcial neural network (ANN) often serves as a viable alternative to physical modeling in real time applications. It is used to characterize mapping of the input to the output directly with less emphasis on the internal structure driving the physical process. Neural network approaches have been successfully applied to a number of diverse ﬁelds. In the hydrological context, recent experiments have reported that the ANN may offer a promising alternative (Chang and Chang, 2001; Tayfur, 2002; Cancelliere et al., 2002; Chiang et al., 2004; Suphara-tid, 2003; Kumar et al., 2004; Kisi, 2005; Cigizoglu and Kisi, 2005; Chau, 2006; Chen et al., 2008; Wu et al., 2008; Chen and Chang, 2009).

The application of ANN in the ﬁelds of the evaporation and evapotranspiration has also been the subject of intense research (Bruton et al., 2000; Sudheer et al., 2003; Trajkovic et al., 2003;

* Corresponding author. Tel.: +886 2 23639461; fax: +886 2 23635854. E-mail address:[email protected](F.-J. Chang).

Contents lists available atScienceDirect

Journal of Hydrology

(3)

Keskin and Terzi, 2006a; Kisi, 2006; Parasuraman et al., 2007). Od-hiambo et al. (2001)stated the optimized fuzzy-neural-model is reasonably accurate, and is comparable to the FAO Penman–Mon-teith equation.Sudheer et al. (2002)used the neural network mod-el for the evaporation process using proper combinations of the observed climatic variables such as temperature, relative humidity, sunshine duration, and wind speed.Kisi (2006)used the neuro-fuz-zy model to estimate the daily PE using observed climatic variables such as air temperature, solar radiation, wind speed, pressure, and relative humidity for the neuro-fuzzy model. Kisi and Ozturk (2007)used the neuro-fuzzy model to estimate the evapotranspi-ration using the observed climatic variables. An uncertainty based on the neural network model can be ascribed not only to the mod-eling process but also to the limited data used for the training per-formance of the neural network model.Keskin and Terzi (2006b)

used ANN model as an alternative approach to evaporation estima-tion and demonstrated the ANN estimaestima-tions of daily pan evapora-tion is better than the Penman estimaevapora-tions. Kim and Kim (2008)

proposed the generalized regression neural network model embedded with the genetic algorithm to estimate the pan evapora-tion (PE) and the alfalfa reference evapotranspiraevapora-tion (ETr), and claimed that PE and ETr maps could be constructed to provide the reference data for a drought analysis and an irrigation network system.

Feature maps have the property of representing regions of high signal density on the topological structure, preserving neighbor-hood relations, and displaying important statistical characteristics of input patterns. Users could visually label clusters on the map and gain an idea over the structure of the data. This distinct feature of the human brain motivates the development of the self-organiz-ing maps (SOM). Introduced by Kohonen (1982), the SOM algo-rithm is capable of generating mappings from high-dimensional signal spaces to lower dimensional topological structure, and has been widely applied to pattern recognition, classification, speech processing and geometric models (Barhak and Fischer, 2002). There are also a number of studies which use the SOM to solve var-ious water resource problems. For instance,Hsu et al. (2002) pre-sented the self-organizing linear output map (SOLO) for hydrologic modeling and analysis.Richardson et al. (2003)claimed the SOM-algorithm succeeds in providing insight in the groundwa-ter quality data set, highlighting the main differences between groups of samples and pointing out anomalous wells and well screens.Regis et al. (2005)investigated the suitability of the self-organizing map neural network for patterning habitat invasion by exotic fish species.Tadeusz et al. (2006)applied the self-orga-nizing maps to revealing variation in non-obligatory riverine fish.

Grieu et al. (2006) developed a data exploration technique for wastewater treatment monitoring based on self-organizing map.

Chang et al. (2007)presented an SOM network for flood forecasting and stated that it has great efficiency for clustering, especially for peak flow, and super capability of modeling flood forecasts.

The purpose of this study is to assess the effort of meteorolog-ical variables for evaporation through the constructed self-organiz-ing map neural network (SOMN). Our interest lies on buildself-organiz-ing an artiﬁcial topographic map to demonstrate that the spatial location of an output in the map would correspond to a particular feature of data drawn from the input space and gain ideas over the formu-lated map of input–output patterns. The 6 years’ (2001–2006) dai-ly meteorological data of the Hengchun weather station in South Taiwan are the focus of this analysis. The effectiveness of the SOMN for building the relationships among meteorological vari-ables with evaporation are examined and discussed, and the reli-ability of the constructed SOMN for estimating the evaporation based on the meteorological variables is compared with those of the commonly used modiﬁed Penman and Penman–Monteith for-mula and the back propagation neural network (BPNN).

Methods

The SOM neural network (SOMN)

Kohonen (1982)self-organizing feature map (SOM) algorithm is a simple yet powerful learning process and an effective clustering method. A self-organizing map consists of components called nodes. Associated with each node are a weight vector of the same dimension as the input data vectors and a position in the map space (Fig. 1). Self-organizing maps use a neighborhood function to pre-serve the topological properties of the input space. It can transform high dimensional input patterns into the responses of two-dimen-sional arrays of neurons and perform this transformation adap-tively in a topologically ordered fashion based on similarity, thus facilitates the detection of the inherent structure and the interrela-tionship of data. The training algorithm is summarized as follows:

Step1. Initialization: Choose random values for the initial weights. Step 2. Winner-ﬁnding: Find the winning neuron using the min-imum distance Euclidean criterion. The neuron with weight vector most similar to the input is called the winner.

Step3. Weight-updating: Adjust the weights of the winner and its neighborhood neurons towards the input vector. The magni-tude of the change decreases with time and with distance from the winner.

This process is repeated for a large number of cycles until the map is well unfolded. After a certain number of iterations (e.g., 2000), if the map has still not unfolded, it is suggested to restart the training process with a different set of initial weights.

The LMS algorithm for optimizing output weights

Like most artificial neural networks, SOMs operate in two cases: training and mapping. As mentioned above, training builds the map using input examples, while mapping automatically classifies a new input vector. During mapping, there will be one single win-ning neuron: i.e. the neuron whose weight vector lies closest to the input vector. Because the SOM uses an unsupervised learning algo-rithm for clustering the input patterns into groups of similar pat-terns, the output of the SOM, like other cluster methods, to the input vectors can only recall the classifying results specified in the network. This way is only good for recognizing problems and cannot be effectively used for continuous function approximation. Because similar input patterns could have various outputs, one easy way to determine the output for a given input pattern is to use the average output value as the clustered input patterns to the correspondent neuron and then directly use the output of the closest (most similar) neuron for the given input pattern (Kohonen, 1990). To be more generalized in extending the use of the topolog-ical structure of SOM, a weighted sum of the outputs is commonly used. In this study, we implement the least-mean-square (LMS) method to search the connected weights between neurons in the hidden layer and output layer. The learning algorithm is summa-rized as follows.

Once the centers are determined, the output of the network to the input vectors can be computed as

^ yðqÞ ¼X m i¼1

a

i/ðXðqÞ; WiÞ; q ¼ 1; 2; . . . ; Q ð1Þ /ðXðqÞ; WiÞ ¼ /ðkXðqÞ Wik2Þ; q ¼ 1; 2; . . . ; Q ð2Þ /ðaÞ ¼ expða2_Þ

where ^y 2 R11 _{is the actual network output, X 2 R}n1_{is the input}

(4)

a

iare the weights in the output layer, m is the number of neurons in

the hidden layer, and Wi2 Rn1are the SOM centers in the hidden

layer.

The optimal set of weights minimizes the performance measures JðwÞ ¼1 2 XQ q¼1 ½ydðqÞ ^yðqÞ 2 ð3Þ

where yd2 R11 denotes the desired network output. The weights

(

a

i) can then be easily obtained by using the training sets (input–

output patterns) through the least-mean-square algorithm (LMS).

Fig. 1presents the prototype of SOMN used in this study. It includes the input variables, the winner clustered hidden node, and the weighted sum of the outputs.

Determining the structure of the networks

The general architecture of the SOMN includes the input layer, clustering layer and output layer. There are five input variables and one output inTable 1. Determining the appropriate size of clustering neural networks is important for validity and efficiency of clustering. Since there is no systematic or standard method for finding the optimal number of clusters in the clustering algorithms,

the optimal network size is based on trial-and-error in the circum-stance. To determine a suitable size of the SOM network, a number of networks (i.e., 3 3, 4 4, 5 5, 6 6, 7 7, and 8 8) were chosen to train, validate, and test the constructed networks based on training, validation and testing data sets, respectively. The re-sults are presented inFig. 2. In the training case, as expected, the estimation error (root mean square error) is decreasing as the size of network is increased, while in the validation case, the 6 6 net-work has the minimum estimation error. Consequently, the 6 6 network is chosen to be applied to the testing case and further interpolation.

Back propagation neural networks

The back propagation neural network (BPNN) is the most pop-ular and widely used neural network in use today. Details on the

Fig. 1. The architecture of self-organizing map network.

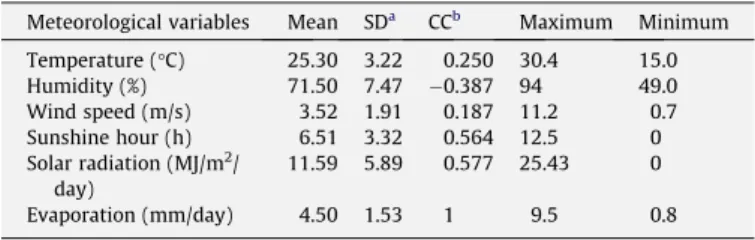

Table 1

The statistics results of meteorological variables in the Hengchun weather station. Meteorological variables Mean SDa

CCb Maximum Minimum Temperature (°C) 25.30 3.22 0.250 30.4 15.0 Humidity (%) 71.50 7.47 0.387 94 49.0 Wind speed (m/s) 3.52 1.91 0.187 11.2 0.7 Sunshine hour (h) 6.51 3.32 0.564 12.5 0 Solar radiation (MJ/m2 / day) 11.59 5.89 0.577 25.43 0 Evaporation (mm/day) 4.50 1.53 1 9.5 0.8 a _{SD: standard deviation.} b _{CC: coefﬁcient of correlation.} 9 16 25 36 49 64 1.02 1.04 1.06 1.08 1.1 1.12 1.14 1.16 1.18

node

rmse(mm/day)

train-rmse valid-rmse

Fig. 2. The number of SOM hidden nodes and their corresponding errors in the training and validation cases.

(5)

standard BP algorithm can be found in the literature (Rumelhart et al., 1986). For the purpose of comparison, the BPNN is investi-gated through a different number of hidden nodes and a great number of initial settings for the connected weights. The in-put–output patterns are the same for building the SOMN. To determine a suitable BPNN for the given input–output patterns, we also investigated several network architectures. Because the input vector and output are set the same as previously, i.e., ﬁve input variables and one output, only the number of nodes in the hidden layer needs be determined. The networks with vari-ous numbers of hidden nodes, from 1 to 10, are performed; fur-thermore, each network is executed with a number of initial sets of connected weights to make sure the ﬁnal results are

reason-able. We ﬁnd when the hidden layer has two nodes, both training and validation sets have the best performance. This simple struc-ture of the BPNN is then used for the purpose of comparison only.

The modiﬁed Penman and Penman–Monteith estimators

Xu and Singh (1998)noted that the values of the Penman meth-od agree most closely with the pan evaporation values. The FAO-modiﬁed Penman equation has gained acceptance as the standard method of estimating reference crop evapotranspiration. For the purpose of comparison, two popular evaporation estimation mod-els, the modiﬁed Penman and Penman–Monteith, were used.

Table 2

The estimation errors in three cases by four different methods.

Models Training case Validation case Testing case

RMSE (mm/day) RMSE (mm/day) RMSE (mm/day) MAE (mm/day) EC

BPNN 1.064 1.077 1.172 0.891 0.569

SOMN 1.048 1.121 1.162 0.881 0.572

Modiﬁed Penman 1.263 1.261 1.305 1.035 0.520 Penman–Monteith 1.137 1.252 1.307 1.014 0.519 RMSE: root mean square error; MAE: mean absolute error; EC: the Nash–Sutcliffe efﬁciency.

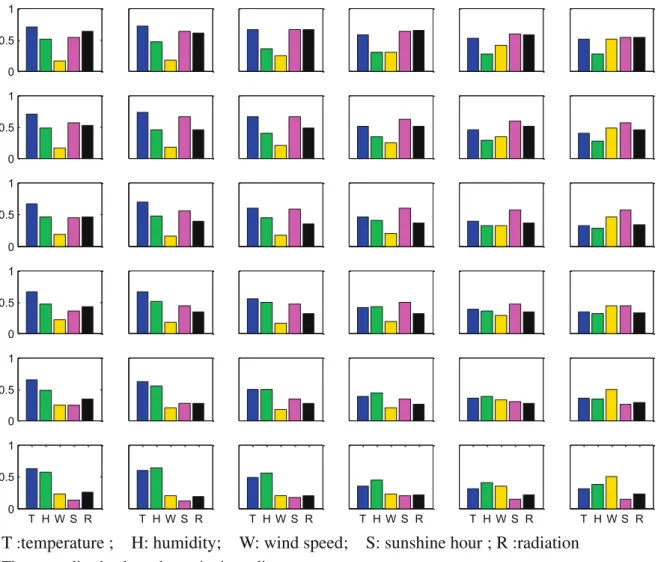

0 0.5 1 0 0.5 1 0 0.5 1 0 0.5 1 0 0.5 1 T H W S R 0 0.5 1 T H W S R T H W S R T H W S R T H W S R T H W S R

T

:

temperature ; H: humidity; W: wind speed; S: sunshine hour ; R :radiation

The normalized values shown in the ordinate

(6)

The modiﬁed Penman equation: ET0¼

D

þ

c

86; 400 ðRn SÞ k þ

c

D

þ

c

2:7 f ðuÞ ðea edÞ The Penman–Monteith equation:

ET0¼

D

86; 400 ðRnSÞ k þ

c

900 ðTþ275Þuðea edÞ

D

þ

c

ð1 þ 0:337uÞ

where ET0is the reference evapotranspiration (mm/day), Rnis the

net radiation (W/m2), S is the soil heat ﬂux density (W/m2), k is

cluster1-6

cluster7-12

l

13 18

cluster13-18

cluster19-24

cluster25-30

cluster31-36

1 2 3 4 5 6 20 22 24 26 28 30

Temperature

cluster o C 1 2 3 4 5 6 60 65 70 75 80 85

Humidity

cluster % 1 2 3 4 5 6 0 1 2 3 4 5 6 7

Wind Speed

cluster m/ s 1 2 3 4 5 6 0 2 4 6 8 10 12

Sunshine Hour

cluster ho ur 1 2 3 4 5 6 4 6 8 10 12 14 16 18 20

Solar Radiation

cluster MJ /m 2/d a y 1 2 3 4 5 6 0 1 2 3 4 5 6 7

Average of Evaporation

cluster m m /day

(7)

the latent heat of vaporization (J/kg), T is the mean daily air temper-ature at 2 m height (°C), u is the wind speed at 2 m height (m/s), edis

the saturation vapour pressure (kPa), eais the actual vapour

pres-sure (kPa), es– ed is the saturation vapour pressure deﬁcit (kPa),

Dis the slope vapour pressure curve (kPa °/C), and

c

is the psychro-metric constant (kPa°/C). Temperature (oC) 1 2 3 4 5 6 1 2 3 4 5 6 21 22 23 24 25 26 27 Humidity (%) 1 2 3 4 5 6 1 2 3 4 5 6 62 64 66 68 70 72 74 76 78 80 Wind Speed (m/s) 1 2 3 4 5 6 1 2 3 4 5 6 2.5 3 3.5 4 4.5 5 5.5 6

Sunshine Hour (hour)

1 2 3 4 5 6 1 2 3 4 5 6 2 3 4 5 6 7 8

Solar Radiation (MJ/m2/day)

1 2 3 4 5 6 1 2 3 4 5 6 6 8 10 12 14 16

Average of Evaporation (mm/day)

1 2 3 4 5 6 1 2 3 4 5 6 6 8 10 12 14 16

(8)

Results and discussion

Description of data

The daily climatic data of the Hengchun weather station (lati-tude 22°000_19.5600_{, longitude 120°44}0_16.9900_{) operated by the}

Cen-tral Weather Bureau (CWB), Taiwan, were used in the study. It is located in southeast Taiwan at the elevation of 22.1 m. The mea-sured daily climatic data for the station were downloaded from the CWB web server. The data sample consisted of 6 years’

(2001–2006) daily records of air temperature (T), solar radiation (SR), wind speed (W), sunshine hours (S), humidity (H) and pan evaporation (E). Because the solar radiation data were recorded as zero during 2004/8/15–9/21, we deleted the data in those 2 months. A total of 34-month data in the years of 2002–2004 were used, among which, 26-month data (792 daily data sets) for train-ing case, month data (121 data sets) for validation case, and 4-month data (122 data sets) for testing case. The data sets in the years of 2001, 2005 and 2006 were used further for model evaluation.

0

5

10

15

0

5

10

15

0

5

10

15

0

5

10

15

0

5

10

15

0

5

10

0

5

10

15

0

5

10

0

5

10

0

5

10

0

5

10

0

5

10 X-coordinate: evaporation(mm/day) ; Y-coordinate: number of time (day)

(9)

-3.40 -1.7 0 1.7 3.4 5 10 15 0.8~1mm -3.40 -1.7 0 1.7 3.4 5 10 15 1.1~2mm -3.40 -1.7 0 1.7 3.4 5 10 15 2.1~3mm -3.4 -1.7 0 1.7 3.4 0 5 10 15 3.1~4mm -3.40 -1.7 0 1.7 3.4 5 10 15 4.1~5mm -3.40 -1.7 0 1.7 3.4 5 10 15 5.1~6mm -3.40 -1.7 0 1.7 3.4 5 10 15 6.1~7mm -3.40 -1.7 0 1.7 3.4 5 10 15 7.1~8mm -3.40 -1.7 0 1.7 3.4 5 10 15 8.1~9.5mm

X -coordinate: estimated error (mm/day); Y -coordinate: number of time (day)

Fig. 7. The estimated error distributions of evaporation in different ranges.

Spring

Summer

Fall

Winter

1 2 3 4 5 6 7 8 9

(light to dark represented the number of data fall into a clusterednode)

(10)

The daily statistical parameters of the climatic data are given in

Table 1. Being located in a coastal area, the weather station is of moderately to highly humid condition with relative humidity reaches more than 90% in some days and pressure shows signiﬁ-cantly high variation. The evaporation losses in site are moderately high due to high temperature. The annual mean temperature is 25.3 °C, where July has the highest temperature (mean 28.6 °C) and January has the lowest temperature (20.7 °C). The relative humidity is also high in summer, about 80%, and low in winter, approximately 65%. The average wind velocity is 3.52 m/s with a high value during winter. The average sunshine hours are 6.51 h. The yearly evaporation rate is approximately 1600 mm.

Models evaluations

The results of SOMN, BPNN, and empirical formulas are summa-rized inTable 2. The results show that (1) the SOMN and BPNN could adequately produce suitable estimation of evaporation with

relatively small mean error; (2) the performance of the BPNN with only two hidden nodes is slightly behind those of the SOM net-works in the training and testing sets but slightly better in the val-idation set, and (3) the neural networks (BPNN and SOMN) have better performance than the empirical formulas do. As we investi-gate the model performances, the mean square error (MSE) values of SOMN are 1.048, 1.121, and 1.162 for the training, validation and testing cases, respectively, while the MSE values of Penman–Mon-teith formula are 1.137, 1.252, and 1.307 for the training, valida-tion and testing cases, respectively. It appears that the SOMN is comparable to the BPNN, and the SOMN has much better perfor-mance (about 20% improvement) than the empirical formulas do.

SOM features

As mentioned above, one of the most signiﬁcant characteristics and contributions of using SOM is that the results obtained by SOM can be visualized from its topology map. Once the SOM has con-verged, it stores the most relevant information about the process in its topology map and allows all such information to be dis-played.Fig. 3presents the SOM topology maps, which have 6 6 grids (neurons) with each neuron represents a cluster of similar in-put patterns. Each neuron includes ﬁve meteorological variables whose normalized mean value is represented as the center of each neuron. The topology map displays the general trend of meteoro-logical factors within the 6 6 grid. For example, the temperature in the left side is greater than that in the right side, and the radia-tion on the top row is much higher than that on the bottom row. We could also easily identify the differences in various nodes, especially the differences among the four corners of the map, whereas the nearby grids are similar in each corner. We demon-strate the feature map is topologically ordered in the sense that the spatial location of a neuron in the lattice corresponds to a par-ticular feature of input patters.

To more clearly distinguish the 6 6 SOM clustering results for each variable and interpolate its response, the center (mean) val-ues of the variables in each node of the topology map are calcu-lated and listed. The six values of each variable in each row are then connected and shown inFig. 4. We can easily identify that the values of the upper rows (nodes) are generally greater than those of the lower rows (nodes) for the variables of temperature (T), sunshine hours (S), solar radiation (SR), and evaporation (E), while the relative humidity (H) has the inverse phenomenon and the lines of wind speed (W) are intersected. The information

Table 3

The monthly cumulative errors (mm/month).

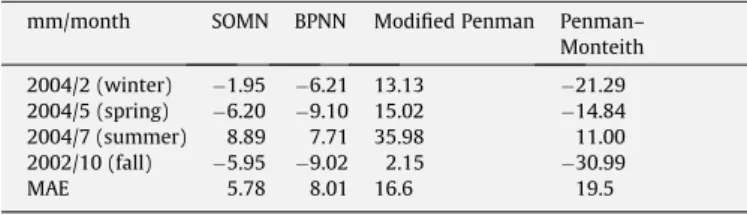

mm/month SOMN BPNN Modiﬁed Penman Penman– Monteith 2004/2 (winter) 1.95 6.21 13.13 21.29 2004/5 (spring) 6.20 9.10 15.02 14.84 2004/7 (summer) 8.89 7.71 35.98 11.00 2002/10 (fall) 5.95 9.02 2.15 30.99 MAE 5.78 8.01 16.6 19.5 Table 4

The daily, cumulative monthly and yearly estimating errors (mm; in years of 2001, 2005, and 2006).

Model SOMN BPNN Modiﬁed Penman Penman–Monteith Daily RMSE 1.34 1.33 1.44 1.41 MAE 1.01 1.02 1.12 1.09 Monthly RMSE 14.4 13.9 20.3 20.6 MAE 11.4 10.8 17.4 16.7 Yearly RMSE 105 108 209 184 MAE 88 92 192 160

Hengchun monthly evaporation

80

130

180

230

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35 month

monthly evaporation (mm)

observed value SOM Modified Penman Penman -Monteith

(11)

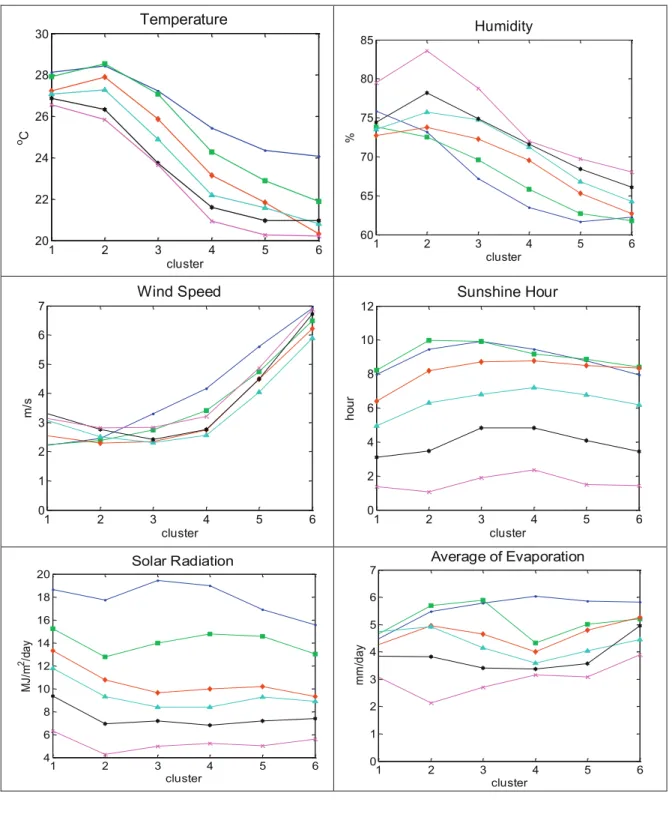

presented inFig. 4is interesting and can be further interpreted. As we check the correlation coefﬁcients (CC) between evaporation with the meteorological variables listed inTable 1, the SOM clus-tering results are highly consistent with the correlation coefﬁ-cients, where for positive CC, such as T and S, the values of connected lines are decreased from top to bottom; and for nega-tive CC, such as H, the values of the lines are increasing from top to bottom. For the small CC, such as wind speed, the lines are intersected. The mean evaporations of each node in the SOM are also presented in theFig. 4. It shows that the values of the upper rows (nodes) are generally greater than those of the lower rows (nodes).

Synoptic clustered meteorological patterns

To provide a clear image regarding the SOM synoptic clustered meteorological patterns, six 6 6 SOM of daily meteorological images are shown in Fig. 5. We can easily ﬁnd that there is a continuum of change across the SOM array for each of the six meteorological variables, for instance, with warm patterns on the upper-left and cool patterns on the lower right; with more shine hour and solar radiation patterns on the upper and less sun-shine hour and solar radiation patterns on the bottom. Superimposed on these SOM patterns of input meteorological vari-ables, i.e. temperature, humidity, wind speed, sunshine hour, and solar radiation with the output pattern (evaporation), we could capture their relations and multi-variability. This representation not only highlights the topology maps of each input meteorological factor, but reveals their co-variability with the evaporation. Thus, as depicted inFig. 5, the clustering results of the meteorological variables in the map provide a good approximation and display important and meaningful relationships of the input–output patterns.

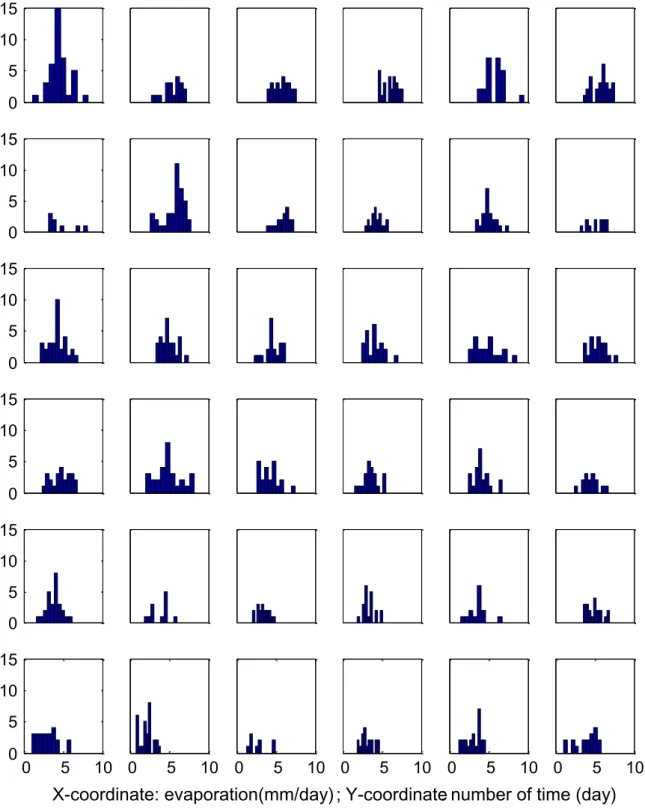

Fig. 6presents the correspondent outputs (evaporations) to the set of input variables in each hidden node, where the longitudinal coordinate represents the number of times (days) and the latitudi-nal coordinate represents the values of evaporation. We could ﬁnd that most of the outputs (evaporations) of the nodes in the upper-right corner are greater than 5 (mm/day), while large potions of outputs of the nodes in the low-left corner are less than 5 (mm/ day). The widespread distribution of the evaporation in each node

might be a reason why the estimation error (MAE) could not be small (around 0.85–1.1 mm/day). This is mainly because simular input condition (same clustered node) could have very different output value.

Fig. 7gives the estimated error distributions in six different evaporation ranges. As the evaporation is less than 3 mm/day (low-er evaporation), the network would constantly provide high(low-er evaporation and its estimation errors are constantly greater than zero; while the evaporation is larger than 6.1 mm/day (higher evaporation), the network would provide lower evaporation and its estimation errors are tended to be negative values. When the evaporation is falling within the range of 3–6 mm/day, the esti-mated error distributions are likely normal-distributed within the range of 1.7 to 1.7 mm/day. For a number of abnormal events whose evaporations are either very high (e.g., 8.1–9.5 mm/day) or very low (e.g., 0.8–1 mm/day), the model could provide notable estimating surplus or shortage to adjust the abnormal conditions. The results suggest that the model would adjust the evaporation when it is much higher, or lower, than the average. The adjustment is solely based on the relative meteorological variables used in building the SOMN.

It is interesting to learn whether the SOM is capable to identify the seasonal meteorology. To visualize the seasonal effect on the evaporation, we count the number of times (days) clustered in each node, which could display the lumped effect of input meteo-rological variables, from four different seasons. The degree of dark-ness of a node in the map represents the relative frequency of the events (days) clustered in that category. The frequency of occur-rence of each season is shown inFig. 8to highlight seasonal differ-ences. Some individual patterns are noteworthy: (1) most of the summer days are clustered on the left side; (2) in contrast, most of the winter days are sorted on the right side; and (3) the tenden-cies of the clustering maps of spring and fall days are relatively fuz-zy. These patterns represent given data from input meteorological conditions, the SOM is able to select a set of best features for approximating the underlying distribution.

To learn the accuracy of the constructed models in different sea-sons and years, the cumulated errors of monthly evaporation rates were made for 4 months in testing cases as shown inTable 3. The results show that (1) the SOMN provides the smallest estimation errors of cumulated monthly evaporation in all the months (four

2001 2005 2006 1000 1250 1500 1750 2000

year

yearly evaporation (mm)

Hengchun yearly evaporation

observed value SOM

Modified Penman Penman-Monteith

(12)

seasons); (2) the modified Penman tends to over-estimate the evaporation rate, while the Penman–Monteith is likely to underes-timate the evaporation. The mean absolute errors (MAE) of the SOMN, BPNN, the modified Penman and Penman–Monteith meth-ods are 5.78 mm/month, 8.01 mm/month, 16.6 mm/month and 19.5 mm/month, respectively, where the SOMN provides much smaller error than those two empirical methods do. The reliabili-ties of these models are further evaluated by using the data sets in the years of 2001, 2005, and 2006. These data sets are never in-volved in a model’s construction. The root mean square error (RMSE) and mean absolute error (MAE) of daily, monthly and yearly cumulative evaporation by the SOMN, BPNN, and two empirical methods are presented inTable 4. The results of daily evaporation show that the models’ performances in these three evaluated years are quite similar to those in constructed years (2002, 2003, and 2004), and the reliability and consistency of the constructed models are confirmed. We can also easily find that the constructed SOMN does provide much better performance, in terms of small values of RMSE and MAE in daily, cumulated monthly and yearly evaporation, than the two empirical methods do. In 2001, 2005, and 2006, their cumulated monthly evaporation by the constructed methods is shown as a continuous monthly time series inFig. 9, and their values of cumulated yearly evapora-tion are shown inFig. 10. Again, the results demonstrate that the SOMN well simulated the observed values, the values of modified Penman seem appear on the upper bound, and the values of Pen-man–Monteith are likely in the lower bound.

Conclusions

The study presented a self-organizing map network (SOMN) for assessing the variability of daily evaporation based on meteorolog-ical variables. The daily climatic data sets (air temperature, solar radiation, wind speed, sunshine hour and humidity) of a weather station in the southeast part of Taiwan from 2001 to 2006 were collected for model construction. To assess the reliability and sta-bility of SOMN, BPNN and two commonly used evaporation-esti-mating equations, i.e., the modified Penman and Penman– Monteith methods, comparisons were made according to the vari-ous statistic measures and data sets. The results show that the con-structed SOMN is slightly better than the commonly used BPNN and performs much better than the modified Penman and Pen-man–Monteith equations do. The daily mean absolute error in the testing periods obtained by SOMN is 0.881 mm/day and by BPNN is 0.891 mm/day, while those by using the FAO-modified Penman and Penman–Monteith methods are 1.035 mm/day and 1.014 mm/day, respectively. A further testing case was conducted by using the constructed models with the data sets, which are not used in model constructing processes, in three different years (2001, 2005, and 2006). The results give clear evidence that the SOMN through training with input–output examples provides an easy and effective method to new sets of climatic conditions and yields more accurate estimation of evaporation than traditional estimating equations do. The study demonstrated that modeling of daily evaporation is possible through the use of network data driven techniques, such as SOMN and BPNN, from easily available meteorological variables. We also want to note that the FAO-mod-ified Penman equation, which has gained acceptance as the stan-dard method of estimating reference crop evapotranspiration, was used without calibration for estimating pan evaporation, while the used ANN-based models were sophisticatedly trained and ver-ified by the observed data.

SOM can establish the relationships among input meteorologi-cal variables through representing regions of high signal density on the topological map and preserving neighborhood relations in

the input data. We could visually identify clusters on the 2D topol-ogy map and gain ideas through the behavior of the input variables and the multi-relations among variables. For example, in this study we ﬁnd the temperature in the left side is greater than that in the right hand side, and the radiation on the top row is much higher than that on the bottom row. We could also easily identify the dif-ferences in various nodes, especially the difdif-ferences among the four corners of the map, whereas the nearby grids are similar in each corner. The frequency of occurrence of each season highlights seasonal differences, i.e. most of the summer days are clustered on the left side, while most of the winter days are sorted on the right side. These patterns represent the SOM can select a set of best fea-tures for approximating the underlying distribution. The SOMN fuses the SOM for identifying the cluster centers of topology map and the least square regression technique for optimizing the con-nected weights between the centers and the output node. We dem-onstrate that the SOMN is a systematic and efﬁcient way of extracting the multi-collinear relationship between evaporation and meteorological variables, and suitably and reliably formulates the meteorological input–output patterns for evaporation estimation.

Acknowledgements

This paper is based on partial work supported by National Sci-ence Council, Taiwan, ROC (Grant No. NSC 97-2313-B-002-013-MY3). The authors are grateful to the editors and anonymous reviewers for their valuable comments and suggestions.

References

Allen, R.G., Pereira, L.S., Raes, D., Smith, M., 1998. Crop evapotranspiration: guidelines for computing crop water requirements. FAO Irrigation and Drainage Paper, 56.

Barhak, J., Fischer, A., 2002. Adaptive reconstruction of freeform objects with 3D SOM neural network grids. Computers & Graphics – UK 26 (5). PII S0097-8493(02)00129-2.

Bruton, J.M., Mcclendon, R.W., Hoogenboom, G., 2000. Estimating daily pan evaporation with artiﬁcial neural networks. Transactions of the ASAE 43 (2), 491–496.

Burman, R.D., 1977. Intercontinental comparison of evaporation estimates. Journal of the Irrigation and Drainage Division – ASCE 103 (3), 381.

Cancelliere, A., Giuliano, G., Ancarani, A., Rossi, G., 2002. A neural networks approach for deriving irrigation reservoir operating rules. Water Resources Management 16 (1), 71–88.

Chang, F.J., Chang, L.C., Wang, Y.S., 2007. Enforced self-organizing map neural networks for river ﬂood forecasting. Hydrological Processes 21 (6), 741–749. Chang, L.C., Chang, F.J., 2001. Intelligent control for modeling of real time reservoir

operation. Hydrological Processes 15 (9), 1621–1634.

Chau, K.W., 2006. Particle swarm optimization training algorithm for ANNs in stage prediction of Shing Mun River. Journal of Hydrology 329 (3–4), 363–367. Chen, Y.H., Chang, F.J., 2009. Evolutionary artiﬁcial neural networks for hydrological

systems forecasting. Journal of Hydrology 367, 125–137.

Cheng, C.T., Xie, J.X., Chau, K.W., Layeghifard, M., 2008. A new multi-step-ahead model for long-term hydrologic prediction. Journal of Hydrology 361 (1–2), 118–130.

Chiang, Y.M., Chang, L.C., Chang, F.J., 2004. Comparison of static-feedforward and dynamic-feedback neural networks for rainfall–runoff modeling. Journal of Hydrology 290, 297–311.

Cigizoglu, H.K., Kisi, O., 2005. Flow prediction by three back propagation techniques using k-fold partitioning of neural network training data. Nordic Hydrology 36 (1), 49–64.

Coulomb, C.V., Legessea, D., Gassea, F., Travic, Y., Chernetd, T., 2001. Lake evaporation estimates in tropical Africa (Lake Ziway, Ethiopia). Hydrological Processes 245 (1–4), 1–18.

Gavin, H., Agnew, C.A., 2004. Modelling actual, reference and equilibrium evaporation from a temperate wet grassland. Hydrological Processes 18 (2), 229–246.

Grieu, S., Thiery, F., Traore, A., Nguyen, T.P., Barreau, M., Polit, M., 2006. KSOM and MLP neural networks for on-line estimating the efﬁciency of an activated sludge process. Chemical Engineering Journal 116 (1), 1–11.

Hsu, K.L., Gupta, H.V., Gao, X., Sorooshian, S., Imam, B., 2002. Self-organizing linear output map (SOLO): an artiﬁcial neural network suitable for hydrologic modeling and analysis. Water Resources Research 38 (12), 10–26.

Keskin, M.E., Terzi, O., 2006a. Artiﬁcial neural network models of daily pan evaporation. Journal of Hydrologic Engineering 11 (1), 65–70.

(13)

Keskin, M.E., Terzi, O., 2006b. Evaporation estimation models for Lake Egirdir, Turkey. Hydrological Processes 20 (11), 2381–2391.

Kim, S., Kim, H.S., 2008. Neural networks and genetic algorithm approach for nonlinear evaporation and evapotranspiration modeling. Journal of Hydrology 351 (3–4), 299–317.

Kisi, O., 2005. Suspended sediment estimation using neuro-fuzzy and neural network approaches. Hydrological Sciences Journal – Journal Des Sciences Hydrologiques 50 (4), 683–696.

Kisi, O., 2006. Daily pan evaporation modelling using a neuro-fuzzy computing technique. Journal of Hydrology 329 (3–4), 636–646.

Kisi, O., Ozturk, O., 2007. Adaptive neurofuzzy computing technique for evapotranspiration estimation. Journal of the Irrigation and Drainage Division – ASCE 133 (4), 368–379.

Kohonen, T., 1982. Self-organized formation of topologically correct feature maps. Biological Cybernetics 43 (1), 59–69.

Kohonen, T., 1990. The self-organizing map. Proceedings of the IEEE 78 (9), 1464– 1480.

Kumar, D.N., Srinivasa, R.K., Sathish, T., 2004. River ﬂow forecasting using recurrent neural networks. Water Resources Management 18 (2), 143–161.

Odhiambo, L.O., Yoder, R.E., Yoder, D.C., Hines, J.W., 2001. Optimization of fuzzy evapotranspiration model through neural training with input–output examples. American Society of Agricultural Engineers 44 (6), 1625–1633.

Parasuraman, K., Elshorbagy, A., Carey, S.K., 2007. Modelling the dynamics of the evapotranspiration process using genetic programming. Hydrological Sciences Journal – Journal Des Sciences Hydrologiques 52 (3), 563–578.

Regis, C., Frederic, S., Arthur, C., Sylvain, M., 2005. Using self-organizing maps to investigate spatial patterns of non-native species. Biological Conservation 125 (4), 459–465.

Richardson, A.J., Risien, C., Shillington, F.A., 2003. Using self-organizing maps to identify patterns in satellite imagery. Progress in Oceanography 59 (2–3), 223– 239.

Rumelhart, D.E., Hinton, G.E., Williams, R.J., 1986. Learning representations by back-propagating errors. Nature 323 (6088), 533–536.

Supharatid, S., 2003. Tidal level forecasting and ﬁltering by neural network model. Coastal Engineering Journal 45 (1), 119–138.

Sudheer, K.P., Gosain, A.K., Ramasastri, K.S., 2003. Estimating actual evapotranspiration from limited climatic data using neural computing technique. Journal of the Irrigation and Drainage Division – ASCE 129 (3), 214–218.

Sudheer, K.P., Gosain, A.K., Rangan, D.M., Saheb, S.M., 2002. Modelling evaporation using an artiﬁcial neural network algorithm. Hydrological Processes 16 (16), 3189–3202.

Szilagyi, J., Jozsa, J., 2009. Analytical solution of the coupled 2-D turbulent heat and vapor transport equations and the complementary relationship of evaporation. Journal of Hydrology 37 (1–4), 61–67.

Tadeusz, P., Andrzej, K., Maria, G., Małgorzata, D., 2006. Patterning of impoundment impact on chironomid assemblages and their environment with use of the self-organizing map (SOM). Acta Oecologica 30 (3), 312–321.

Tayfur, G., 2002. Artiﬁcial neural networks for sheet sediment transport. Hydrological Sciences Journal – Journal Des Sciences Hydrologiques 47 (6), 879–892.

Trajkovic, S., Todorovic, B., Stankovic, M., 2003. Forecasting of reference evapotranspiration by artiﬁcial neural networks. Journal of the Irrigation and Drainage Division – ASCE 129 (6), 454–457.

Warnaka, K., Pochop, L., 1988. Analyses of equations for free water evaporation estimates. Water Resource Research 24 (7), 979–984.

Wu, C.L., Chau, K.W., Li, Y.S., 2008. River ﬂow prediction based on a distributed support vector regression. Journal of Hydrology 358 (1–2), 96–111.

Xu, C.Y., Singh, V.P., 1998. Dependence of evaporation on meteorological variables at different time-scales and intercomparison of estimation methods. Hydrological Processes 12, 429–442.
