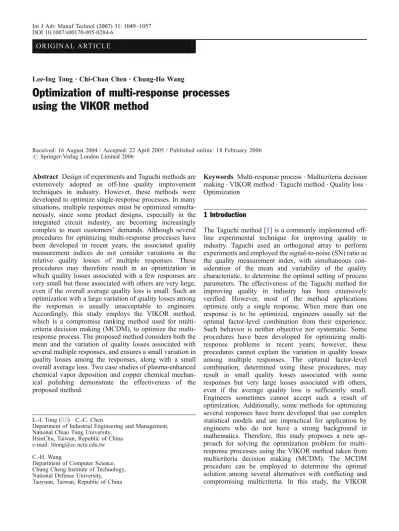

Int J Adv Manuf Technol DOI 10.1007/s00170-005-0284-6
O R I G I N A L A RT I C L E
Lee-Ing Tong . Chi-Chan Chen . Chung-Ho Wang
Optimization of multi-response processes
using the VIKOR method
Received: 16 August 2004 / Accepted: 22 April 2005 / Published online: 18 February 2006 # Springer-Verlag London Limited 2006
Abstract Design of experiments and Taguchi methods are extensively adopted as off-line quality improvement techniques in industry. However, these methods were developed to optimize single-response processes. In many situations, multiple responses must be optimized simulta-neously, since some product designs, especially in the integrated circuit industry, are becoming increasingly complex to meet customers’ demands. Although several procedures for optimizing multi-response processes have been developed in recent years, the associated quality measurement indices do not consider variations in the relative quality losses of multiple responses. These procedures may therefore result in an optimization in which quality losses associated with a few responses are very small but those associated with others are very large, even if the overall average quality loss is small. Such an optimization with a large variation of quality losses among the responses is usually unacceptable to engineers. Accordingly, this study employs the VIKOR method, which is a compromise ranking method used for criteria decision making (MCDM), to optimize the multi-response process. The proposed method considers both the mean and the variation of quality losses associated with several multiple responses, and ensures a small variation in quality losses among the responses, along with a small overall average loss. Two case studies of plasma-enhanced chemical vapor deposition and copper chemical mechan-ical polishing demonstrate the effectiveness of the proposed method.
Keywords Multi-response process . Multicriteria decision making . VIKOR method . Taguchi method . Quality loss . Optimization
1 Introduction
The Taguchi method [1] is a commonly implemented off-line experimental technique for improving quality in industry. Taguchi used an orthogonal array to perform experiments and employed the signal-to-noise (SN) ratio as the quality measurement index, with simultaneous con-sideration of the mean and variability of the quality characteristic, to determine the optimal setting of process parameters. The effectiveness of the Taguchi method for improving quality in industry has been extensively verified. However, most of the method applications optimize only a single response. When more than one response is to be optimized, engineers usually set the optimal factor-level combination from their experience. Such behavior is neither objective nor systematic. Some procedures have been developed for optimizing multi-response problems in recent years; however, these procedures cannot explain the variation in quality losses among multiple responses. The optimal factor-level combination, determined using these procedures, may result in small quality losses associated with some responses but very large losses associated with others, even if the average quality loss is sufficiently small. Engineers sometimes cannot accept such a result of optimization. Additionally, some methods for optimizing several responses have been developed that use complex statistical models and are impractical for application by engineers who do not have a strong background in mathematics. Therefore, this study proposes a new ap-proach for solving the optimization problem for multi-response processes using the VIKOR method taken from multicriteria decision making (MCDM). The MCDM procedure can be employed to determine the optimal solution among several alternatives with conflicting and compromising multicriteria. In this study, the VIKOR L.-I. Tong (*) . C.-C. Chen
Department of Industrial Engineering and Management, National Chiao Tung University,
HsinChu, Taiwan, Republic of China e-mail: [email protected] C.-H. Wang
Department of Computer Science, Chung Cheng Institute of Technology, National Defense University,
Taoyuan, Taiwan, Republic of China
(VlseKriterijumska Optimizacija I Kompromisno Resenje in Serbian) method [2–4] is applied to derive an integrated quality measurement of several conflicting and compro-mising responses. Firstly, the ideal and negative-ideal solutions are initially determined from the quality loss. Secondly, the utility measure and the regret measure of each alternative are determined according to the weight of each criteria. Thirdly, the VIKOR index of each experi-mental run is obtained using the corresponding utility and regret measures. Finally, the main effect of the VIKOR index is determined and the optimal factor-level combina-tion is thus obtained. Two cases, one of plasma-enhanced chemical vapor deposition (PECVD) and one of copper chemical mechanical polishing (Cu-CMP), are presented to demonstrate the effectiveness of the proposed method.
2 Literature review
2.1 Optimizing multiple responses
Derringer and Suich [5] defined a desirability function to transform several response variables into a single response. Khuri and Conlon [6] simultaneously optimized various responses using polynomial regression models. They firstly defined a distance function by considering the ideal solution, and then determined the optimal condition by minimizing this function. Logothetis and Haigh [7] dem-onstrated the use of the multiple regression method and the linear programming approach, to optimize a multi-response process using Taguchi experiments. Phadke [8] implemen-ted the conventional Taguchi method to optimize individ-ually the number of surface defects, and the thickness of the wafer and the rate of deposition in an IC manufacturing process. The optimal condition is determined by separately optimizing each response. When conflicts arise in
determining the optimal level of a factor, the engineer draws upon his own knowledge to determine the best factor-level combination. Su and Hsieh [9] and Tong and Hsieh [10] applied artificial neural networks (ANN) to find the optimal solution to the multi-response type of problem. Su and Tong [11] and Antony [12] utilized principle component analysis (PCA) to analyze multi-response problems. The PCA technique can transform several related original variables into a smaller number of uncorrelated principal components, which are linear combinations of the original variables. The optimal factor-level combination is determined using these un-correlated principal components. Vining and Myers [13] developed algorithms for obtaining the optimal solutions of a dual-response surface system (DRSM). Their method assumed that the DRSM includes a primary response, yp and a constraint response, ys. ypand yscan both be fitted using a quadratic regression model. The DRSM seeks parameter settings that can optimize byp under the con-straintbyS ¼ c; where c is a constant.
The features of the above multi-response optimization methods can be summarized as follows.
1. Most procedures neglect the variation in quality losses for multiple responses. The optimal factor-level combination may result in very small quality losses associated with some responses, but very large quality losses associated with others, even when the average quality loss is acceptably small.
2. The optimal condition obtained from some procedures is determined by separately optimizing each response. When conflict arises in determining the optimal levels of factors, the optimal factor-level combination is determined from the engineer’s knowledge. Since each engineer’s experience is subjective, addressing of the same problem by various engineers may yield incon-sistent results.
3. Some procedures used complex mathematics or statistical methods, such as PCA, ANN or the dual-response approach or linear programming. These approaches are difficult to implement by individuals with little background in statistics and so are of little practical use.
4. Some procedures for developing an optimization model cannot easily determine the optimal learning structure or assign the best values of the learning parameters.
5. Some methods can set parameters optimally, but nothing can be learned about the relationship between Table 1 Quality losses for five responses in two experimental runs
Response 1 Response 2 Response 3 Response 4 Response 5 Total loss
Experiment 1 10 10 10 10 10 50
Experiment 2 8 8 8 8 16 48
Table 2 Control factors and their levels
Control factor Level 1 Level 2 Level 3
A. Cleaning method No Yes
B. Chamber temperature 100°C 200°C 300°C C. Run number after chamber
has been cleaned
1st 2nd 3rd
D. Flow rate of SiH4 6% 7% 8%
E. Flow rate of N2 30% 35% 40%
F. Chamber pressure 160 motorr 190 motorr 220 motorr G. R.F. power 30 watt 35 watt 40 watt H. Deposition time 11.5 min 12.5 min 13.5 min The current levels are identified by underlining
the control factors and the responses during the optimization process.
This study proposes a novel approach based on the VIKOR method from MCDM to solve some of these problems.
2.2 MCDM and the VIKOR method
The MCDM method is an extensively applied tool for determining the best solution among several alternatives with multiple criteria or attributes. An MCDM problem can be expressed using a decision matrix as follows:
D ¼ x1 x2 xn A1 A2 .. . Am x11 x12 x1n x21 x22 x2n .. . .. . .. . xm1 xm2 xmn 2 6 4 3 7 5 (1)
where Airepresents the ith alternative, i = 1, 2, …, m; xj represents the jth criterion, j = 1, 2, …, n, and xij is the performance of alternative Ai with respect to the jth criterion. The procedures for determining the best solution to an MCDM problem include computing the utilities of alternatives and ranking these utilities. The alternative solution with the greatest largest utility is considered to be the optimal solution. For details of MCDM methods refer to Zeleny [14].
The VIKOR method includes the following steps. Step 1. Determine the normalized decision matrix.
The normalized decision matrix can be expressed as follows: F ¼ f ij mn (2) wherefij¼ ffiffiffiffiffiffiffiffiffixij Pm i¼1 x2 ij r , i = 1,2,…, m; j = 1, 2, …,n; and xijis the performance of alternative Ai with respect to the jth criterion.
Step 2. Determine the ideal and negative-ideal solutions. The ideal solution A* and the negative ideal solution A− are determined as follows:
A ¼ maxf ijjj 2 J or min fijj 2 J0 i ¼ 1; 2; ; m j n o ¼ f 1; f2; :::; fj; :::fn n o (3) A ¼ minf ijjj 2 J or max fijj 2 J0 i ¼ 1; 2; ; m j n o ¼ f 1 ; f2; ; fj; ; fn n o (4)
whereJ¼ j ¼ 1; 2; :::; n f ;ij a larger response is desired J0¼ j ¼ 1; 2; :::; n f
ij
;a smaller response is desired
Step 3. Calculate the utility measure and the regret measure.

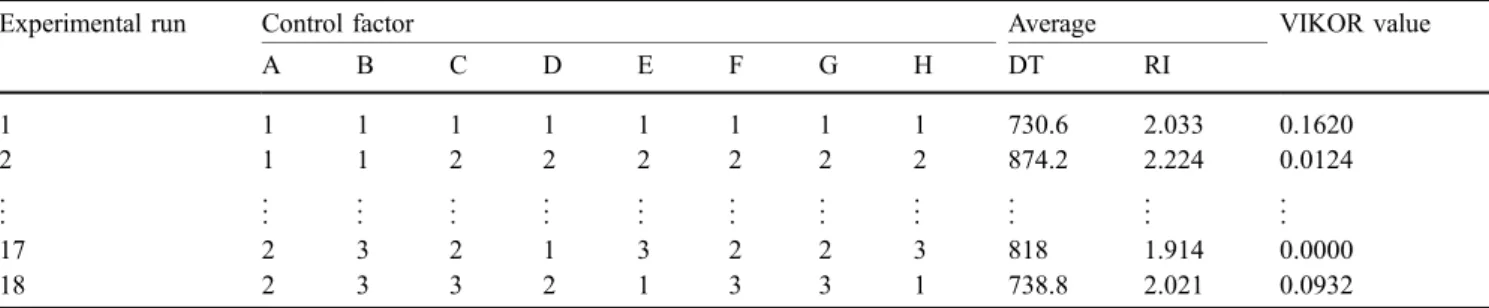

Table 3 Summary of experimental data
Experimental run Control factor Average VIKOR value
A B C D E F G H DT RI 1 1 1 1 1 1 1 1 1 730.6 2.033 0.1620 2 1 1 2 2 2 2 2 2 874.2 2.224 0.0124 .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . 17 2 3 2 1 3 2 2 3 818 1.914 0.0000 18 2 3 3 2 1 3 3 1 738.8 2.021 0.0932
Fig. 1 Factor effects of RI response on SN ratios
The utility measure and the regret measure for each alternative are given as
Si¼ Xn j¼1 wj fj fij . f j fj (5) Ri¼ Max j wj f j fij . f j fj h i (6)
where Siand Rirepresent the utility measure and the regret measure, respectively, and wj is the weight of the jth criterion.
Step 4. Calculate the VIKOR index.
The VIKOR index can be expressed as follows:
Qi¼ ν Si S S S þ 1 νð Þ Ri R R R (7)
where Qi represents the ith alternative VIKOR value, i=1,…, m; S ¼ Min i Si; S ¼ Max i Si; R ¼ Min i Ri; R ¼ Max
i Ri andν is the weight of the maximum group utility (and is usually set to 0.5 [1–3]).
Step 5. Rank the order of preference.
The alternative with the smallest VIKOR value is determined to be the best solution.
The advantage of the VIKOR method, enabling it to be applied in situations with multiple criteria, follows from the use of the Lp metric in the compromising programming method [14,15]. It can be described as follows:
LP;i¼ Xn j¼1 wj fj fij . f j fj h ip ( )1=p (8) where 1≤ p ≤ ∞; i =1, 2,…, m.
The utility function of the VIKOR method is an aggregate of L1,i and L∞,i. L1,i is interpreted as ‘concor-dance’ and can provide decision makers with information about the maximum‘group utility’ or ‘majority’. Similarly, L∞,i is interpreted as ‘discordance’ and provides decision makers with information about the minimum individual regret of the‘opponent’.
Of the many MCDM tools, the VIKOR method has the following characteristics.
1. The best alternative determined by the VIKOR method is nearest to the ideal solution and farthest from the negative-ideal solution.
2. The best alternative according to the VIKOR method has the maximum group utility for decision makers and ensures the least regret.
3. The VIKOR method considers two distance measure-ments, L1,i and L∞,i, based on the Lp metric in the compromising programming method to provide in-formation about utility and regret.
4. The VIKOR method considers two weights in decision-making. One is that of the criteria, the other that of the maximum group utility.
2.3 VIKOR method for multi-response optimization The VIKOR method can be applied to optimize the multi-response problem, because it accounts for the variation among quality losses associated with multiple responses. It also simultaneously accounts for the utility and regret measures in an experimental run. For instance, two experimental runs are completed and the quality losses for five responses are obtained as in Table1.
From the traditional perspective, in which smaller losses are better, experiment 2 apparently yields a higher quality measurement than experiment 1, since its total loss is smaller. However, from an engineering perspective, exper-iment 2 is worse than experexper-iment 1 because the loss of response 5 is too large. A good quality measurement index must reflect this fact. By the VIKOR method, the utility

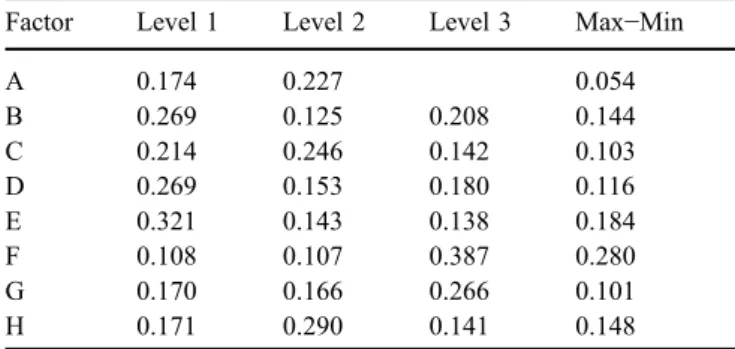

Table 4 Main effects on VIKOR values
Factor Level 1 Level 2 Level 3 Max−Min
A 0.174 0.227 0.054 B 0.269 0.125 0.208 0.144 C 0.214 0.246 0.142 0.103 D 0.269 0.153 0.180 0.116 E 0.321 0.143 0.138 0.184 F 0.108 0.107 0.387 0.280 G 0.170 0.166 0.266 0.101 H 0.171 0.290 0.141 0.148
Fig. 2 Factor effects of DT response on SN ratios
measure in experiment 1 is 50 and the regret measure of experiment 1 is 10, while the utility measure in experiment 2 is 48 and the regret measure is 16. By simultaneously considering both concordance and discordance, the VIKOR method determines that experiment 1 is better than experiment 2.
3 Proposed procedure
Although some methods have been developed to solve simultaneous optimizing multi-response problems, they neglect the variation among quality losses associated with the various responses. The optimal factor-level combina-tion may generate an inconsistent quality loss among responses that is unacceptable to customers. A systematic multi-response optimization procedure is presented herein to solve this problem. The VIKOR method in MCDM is employed to optimize the solution to the multi-response problem. The proposed procedure firstly calculates the
ideal and negative-ideal solutions of each experimental run by considering the quality loss and weight of each response, and then the corresponding utility and regret measures can be determined. The VIKOR index is obtained by weighting the utility and regret measures of each experimental run. The developed VIKOR index can help engineers to determine the optimal setting of parameters. The proposed optimization procedure is as follows.
3.1 Step 1. Calculate the quality loss.
Taguchi [8] defined three formulae for quality loss, based on the desirability of each quality characteristic, as follows. (a) For a smaller-is-better response:
Lij¼ k1 1 r Xr k¼1 y2 ijk (9)
Fig. 3 Factor effects on VIKOR values
Fig. 4 Factor effects on the average of RI response
Fig. 5 Factor effects on the average of DT response
(b) For a larger-is-better response: Lij ¼ k2 1 r Xr k¼1 1 y2 ijk (10)
(c) For a nominal-is-better response:
Lij ¼ k3 Sij yij !2
(11)
where Lij is the quality loss associated with the jth response in the ith experimental run; yijk is the observed kth repetition datum for the jth response in the ith experimental run; r is the number of repetitions for each experimental run, y ij¼1r Pr k¼1yijk; and S2ij¼r11 Pr k¼1 yijk yij 2
; and k1, k2 and k3 are quality loss coefficients, for i= 1, 2,…, m; j= 1, 2, …, n; k= 1, 2, …, r. 3.2 Step 2. Calculate the normalized quality loss
(NQL) of each response in each experimental run. The NQL can be obtained as follows:
fij¼ ffiffiffiffiffiffiffiffiffiffiffiLij Pm i¼1L 2 ij s ; i ¼ 1; 2; :::; m; j ¼ 1; 2; :::; n (12)
where fij represents the NQL of the jth response in the ith experimental run.
3.3 Step 3. Determine the ideal and negative-ideal solutions.
A smaller NQL is preferred, so the ideal and negative-ideal solutions which represent the minimum and maximum NQL of all experimental runs are as follows:
A ¼ min f ijji ¼ 1; 2; ::::m ¼ f 1; f2; :::; fj; :::; fn n o (13) A ¼ max f ijji ¼ 1; 2; ::::m ¼ f 1 ; f2; :::; fj; :::; fn n o (14)
3.4 Step 4. Calculate the utility and regret measures for each response in each experimental run.
The utility and regret measure of each response in each experimental run can be obtained using Eqs.5and6.
3.5 Step 5. Calculate the VIKOR index of the ith experimental run.
Substituting Siand Riinto Eq.7yields the VIKOR index of the ith experimental run as follows. A smaller VIKOR index produces better multi-response performance.

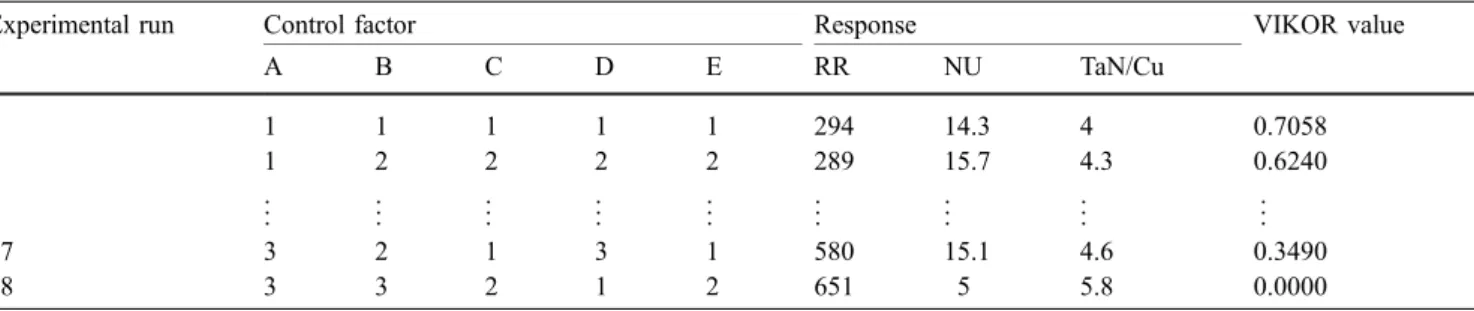

Table 6 Summary of experimental data
Experimental run Control factor Response VIKOR value
A B C D E RR NU TaN/Cu 1 1 1 1 1 1 294 14.3 4 0.7058 2 1 2 2 2 2 289 15.7 4.3 0.6240 .. . .. . .. . .. . .. . .. . .. . .. . .. . .. . 17 3 2 1 3 1 580 15.1 4.6 0.3490 18 3 3 2 1 2 651 5 5.8 0.0000
Table 5 Results of
confirma-tory experiment Response Index Starting
condition Optimal condition (prediction) Optimal condition (confirmation) Improvement Refractive index SN 32.09 33.21 38.53 6.44 Average 2.0216 1.8714 Variance 0.00198 0.000491 Deposition thickness SN 22.58 27.99 31.13 8.55 Average 1043.267 1124.35 Variance 6000.8 974.54
Step 3. Determine the ideal and negative-ideal
Step 2. Calculate the normalized quality loss
Step 5. Calculate the VIKOR index of the ith Step 4. Calulate the utility and regret measures for
3.6 Step 6. Determine the optimal factor-level combination.
The multi-response quality scores for each experimental run can be determined from the VIKOR index obtained in step5, and the effects of the factors can be estimated from the VIKOR values. The optimal combination factor-level combination is finally determined, based on the fact that a smaller VIKOR value indicates a better quality.
3.7 Step 7. Perform the confirmatory experiment.
A confirmatory experiment should be performed to ensure that the optimal condition actually yields improvement. If the predicted and observed SN ratios are close to each other, the effectiveness of the optimal condition is ensured. The optimal condition can then be applied to the production line and expected to yield a robust result. If the predicted and observed SN ratios are not comparable, then the additive model is suspected to have failed and the interactions of factors are to be significant. Consequently, the entire experimental design must be reviewed to obtain a successful additive model and an optimal condition.
4 Illustrative examples
4.1 Optimizing the PECVD process
The following case study [16] demonstrates the effective-ness of the proposed optimization procedure. The case illustrates the improvement of a PECVD process used in fabricating an IC. Two major responses (nominal is the best) in the multi-response process are of interest, i.e., the refractive index (RI) and the deposition thickness (DT).
Following a discussion with process engineers, eight control factors were chosen to be optimized. Table2lists these factors and their levels. The standard orthogonal
array L18 is selected to plan the experiment. Table 3 summarizes the experimental data. The relative importance of RI and DT was determined to be 2:1 in the discussion with the engineers. The target values of the two responses are 2 and 1000 Å, respectively.
4.1.1 Conventional Taguchi method
The following study illustrates the difficulty of determin-ing the optimal condition of the multi-response process using the conventional Taguchi method. Figures 1and 2
show the factor effects of responses RI and DT on SN ratios, respectively. These two Figures illustrate the conflicts among the conditions for some factors.
A larger SN ratio reflects better quality, so the following optimal factor-level combination for each response can be found as follows.
– RI: A1B3C2D1E3F1G1H3 – DT: A1B1C3D2E2F2G2H3
The two responses can be optimized by setting factor A to level 1 and setting factor H to level 3. However, determining the optimal settings of factors B, C, D, E, F and G is difficult. For instance, setting factor C to level 2 is advantageous for the RI response, but not for the DT response. In contrast, setting factor C to level 3 is advantageous for the DT response, but not for the RI response. This conflicting situation reveals the difficulty of optimizing factor-level combination by separately optimiz-ing the two responses.
4.1.2 Proposed optimization procedure
By applying the procedure proposed, the values of the VIKOR index can be obtained, as presented in the last column of Table3. Table4summarizes the VIKOR values of factor effects. Figure3plots the corresponding effects of Table 7 Main effects of factors on VIKOR values
Factors Level 1 Level 2 Level 3 Max−Min
A 0.691 0.367 0.257 0.434
B 0.618 0.490 0.207 0.114
C 0.514 0.400 0.401 0.080
D 0.419 0.408 0.488 0.080
E 0.431 0.449 0.435 0.018

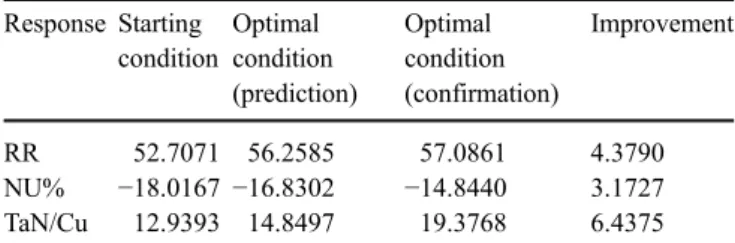

Table 8 Confirmatory experimental result Response Starting condition Optimal condition (prediction) Optimal condition (confirmation) Improvement RR 52.7071 56.2585 57.0861 4.3790 NU% −18.0167 −16.8302 −14.8440 3.1727 TaN/Cu 12.9393 14.8497 19.3768 6.4375
Fig. 6 Effects of factors on VIKOR values
Step 6. Determine the optimal factor-level
these factors. The order of the strength of the effects of control factors on the VIKOR value is F, E, H, B, D, C, G and A. A smaller VIKOR value means a better quality, so the optimal condition is A1B2C3D2E3F2G2H3.
Figures4and5plot the factor effects on the averages of responses RI and DT, respectively. The flow rate of SiH4 (Factor D) is selected as the factor to be adjusted to optimize the RI response, because it only weakly affects the VIKOR value of the RI response and the average DT response, whereas it more strongly affects the average RI response. Similarly, the R.F. power (factor G) is selected to be adjusted to optimize the DT response, because it only weakly affects the VIKOR value of DT response and the average RI response, but more strongly affects the average DT response. If the average RI is not satisfactory, the flow rate of SiH4 can be adjusted to the target value of RI. Similarly, if the average of DT is not satisfactory, the R.F. power can be adjusted to the target value of DT.
The optimal condition was verified by performing a confirmatory experiment. Table 5 compares the optimal condition A1B2C3D2E3F2G2H3with the starting condition A2B1C2D2E2F2G2H2. The optimal condition represents an improvement of 6.44 dB (with a decline in variance to 25%) in the RI response and 8.55 dB (with a decline in variance to 16%) in the DT response.
4.2 Optimizing the Cu-CMP process
The Cu-CMP process [17] is optimized using the VIKOR method to demonstrate the effectiveness of the procedure. As advanced IC technology develops, devices are becom-ing smaller. As the speed and performance of IC devices are increased, reducing the width of the metallic lines and increasing the resistance may delay signal propagation. Such a delay is a major concern. Additionally, increasing the speed of IC operation may also increase current densities in smaller interconnections. Copper is an appropriate material for metalizing advanced interconnec-tions since it has lower resistivity and higher electro-migration resistance than aluminum alloy interconnects. Accordingly, Cu-CMP is a promising method for fabricating multilevel Cu interconnections and performing planarization. This process optimization case concerns a Taiwanese integrated circuit (IC) manufacturer. In a discussion with engineers, the following three important responses were identified.
1. Removal rate (RR): larger is better 2. Non-uniformity (NU): smaller is better 3. Selectivity of TaN/Cu: larger is better
Five control factors (A to E) were selected and included in an orthogonal array L18. The starting levels of all control factors were set to 2. For reasons of confidentiality, no detailed information about the factors or levels is presented. Table6summarizes the experimental data.
4.2.1 Proposed optimization procedure
The last column of Table6lists the VIKOR values for each experimental run, obtained by the proposed procedure. Table7summarizes the main effects on the VIKOR values, and Fig.6plots their effects of the corresponding factors. The optimal factor-level combination is determined as A3B3C2D2E1and the order of the strengths of the effects of the control factors on the VIKOR value is A, B, C, D and E. Table8presents the predicted and confirmed results. The optimal condition provides an improvement of 4.379 dB in RR, 3.1727 dB in NU% and 6.4375 dB in TaN/Cu. This great improvement demonstrates the effectiveness of the proposed method.
5 Conclusions
Most applications of the Taguchi method concern only the optimization of a single-response problem. When more than one response is considered, engineers generally optimize based on their subjective experience. Although some systematic procedures for optimizing multi-response problems have been developed in recent years, the quality indices associated with these procedures are concerned primarily with optimizing the utility of the multi-response process, and they neglect the variation in quality loss among the various responses. In this study, a systematic procedure is developed that involves applying the MCDM compromise ranking method VIKOR to optimize the multi-response process. The procedure consists of the following steps: (a) computing the quality loss; (b) determining the VIKOR value; (c) determining the optimal condition; (d) performing and analyzing the results of a confirmatory experiment. Theoretical analysis herein revealed that the quality concepts of Taguchi’s SN ratio and VIKOR index are compatible. Taguchi’s SN ratio simultaneously con-siders the mean and variation of a quality characteristic and can be applied to optimize the single-response process, while the VIKOR index simultaneously considers the utility and regret measure to optimize the multi-response process. Two case studies of plasma-enhanced chemical vapor deposition and copper chemical mechanical polish-ing demonstrate the effectiveness of the proposed method.
References
1. Kackar RN (1985) Off-line quality control, parameter design and the Taguchi method. J Qual Technol 17:176–188 2. Opricovic S (1994) Preference stability of compromise solution
in multiple decision making. XIth International Conference on Multiple Criteria Decision Making, Coimbra, Portugal 3. Opricovic S (1998) Multi-criteria optimization of civil
engineering systems. Faculty of Civil Engineering, Belgrade 4. Opricovic S, Tzeng GH (2002) Multicriteria planning of
post-earthquake sustainable reconstruction. Comput Aided Civil Intrastructure Eng 17:211–220
5. Derringer G, Suich R (1980) Simultaneous optimization of several response variables. J Qual Technol 12:214–219
6. Khuri AI, Conlon M (1981) Simultaneous optimization of multiple responses represented by polynomial regression functions. Technometrics 23:363–375
7. Logothetis N, Haigh A (1988) Characterizing and optimizing multi-response processes by the Taguchi method. Qual Reliab Eng Int 4:159–169
8. Phadke MS (1989) Quality engineering using robust design. Prentice-Hall
9. Su CT, Hsieh KL (1998) Applying neural networks to achieve robust design for dynamic quality characteristic. Int J Qual Reliab Manage 15(4–5):509–519
10. Tong LI, Hsieh KL (2000) A novel means of applying artificial neural networks to optimize multi-response problem. Qual Eng 13(1):11–18
11. Su CT, Tong LI (1997) Multi-response robust design by principal component analysis. Total Qual Manag 8:409–416
12. Antony J (2000) Multi-response optimization in industrial experiments using Taguchi’s quality loss function and principal component analysis. Qual Reliab Eng Int 16:3–8
13. Vining GG, Myers RH (1990) Combining Taguchi and response surface philosophies: a dual response approach. J Qual Technol 22:38–45
14. Zeleny M (1982) Multiple criteria decision making. McGraw-Hill, New York
15. Yu PL (1973) A class of solution for group decision problems. Manage Sci 19(8):936–946
16. Tong LI, Su CT (1997) Optimizing multi-response problems in the Taguchi method by fuzzy multiple attribute decision making. Qual Reliab Eng Int 13:25–34
17. Tong LI, Wang CH (2001) Multi-response process improve-ment using grey relational analysis. Ind Eng Res 13(2):142–155
