Wirel. Commun. Mob. Comput. 2005; 5:899–916

Published online in Wiley InterScience (www.interscience.wiley.com). DOI: 10.1002/wcm.354

NCTUns network simulation and emulation

for wireless resource management

Shie-Yuan Wang*,yand Yi-Bing Lin

Department of Computer Science and Information Engineering, National Chiao Tung University, Hsinchu, Taiwan

Summary

This paper describes NCTUns, an innovative network simulator and emulator for wireless and mobile networks. Effects of various radio resource management and quality of service (QoS) schemes on higher-layer protocols and real-world applications can be easily studied using NCTUns. In this paper, we elaborate on NCTUns simulation methodology, architecture, design, functionalities, performance, and applications. NCTUns simulation for wireless ad hoc, sensor, inter-vehicle communication networks, GPRS cellular networks, and wireless mesh networks are also illustrated. More details about this tool can be found in http://NSL.csie.nctu.edu.tw/nctuns.html. Copyright # 2005 John Wiley & Sons, Ltd.

KEY WORDS: network simulation; network emulation; wireless network; radio resource management; QoS

1. Introduction

Radio resource management and quality of service (QoS) schemes are important for next-generation wireless and mobile networks. With them, scarce wireless bandwidth can be more efficiently utilized and applications demanding a certain level of QoS (e.g., voice over IP) can be adequately supported. Several radio resource management and QoS schemes are being proposed for next-generation wireless and mobile networks such as IEEE 802.16 WiMax net-works and IEEE 802.11 WiFi netnet-works with IEEE 802.11e QoS supports. Evaluating the performance of these schemes in various conditions can help research-ers discover their design flaws and performance limitation.

In a network, providing QoS guarantees for an application (e.g., VoIP) should be end-to-end and up to the application layer. The effect of a radio resource management or a QoS scheme on network-layer routing protocols (e.g., IP), transport-layer protocols (e.g., TCP/UDP), and application-layer protocols (e.g., HTTP) should all be considered. Performance analysis of these schemes at a lower layer such as the MAC layer cannot reflect the real performance of these applications. To obtain more realistic end-to-end application-layer performance, the processing and the interactions among these layers and real-world appli-cations need to be investigated.

Network simulators are valuable tools for research-ers to design, test, diagnose, and evaluate network pro-tocols under various network conditions. Conducting

*Correspondence to: Shie-Yuan Wang, Department of Computer Science and Information Engineering, National Chiao Tung University, Hsinchu, Taiwan.

yE-mail: [email protected]

Contract/grant sponsor: MOE; contract/grant numbers: 91-E-FA06-4-4; NSC93-2752-E-0090005-PAE. Copyright # 2005 John Wiley & Sons, Ltd.

(2)

simulations is more economical, flexible, and safer than performing real experiments. For example, in large wireless and mobile networks where thousands of nodes need to move, significant performance eva-luation cost will be saved via simulations because one need not to purchase many equipments to do the real experiments. In addition, simulation results are easier to analyze than experimental data because simulation results are repeatable while experimental results usually are unrepeatable due to many uncontrollable factors in the real world. However, traditional network simulators usually have the following drawbacks.

First, results of traditional simulations are not as convincing as those produced by real hardware and software equipment. In order to reduce development complexity and cost, most network simulators only simulate real-world network protocols and application implementations with limited details. This abstraction may lead to inaccurate results. For example, in ns-2 package [1], it is documented that ‘there is no dy-namic receiver’s advertised window for TCP.’ As another example, in a real network, a UDP-based application program can change its destination host (i.e., change the used destination IP address for an outgoing UDP packet) at run time on a per-packet basis. However, this cannot be done in ns-2 because there is no concept of IP addresses in an ns-2 simu-lated network. In ns-2, a traffic generator agent needs to be bound to a traffic sink agent at the beginning of a simulation. During simulation, it cannot dynamically change its destination node at run time like a normal real-world application program does.

Second, existing and to-be-developed real-world application programs may not be directly run with traditional network simulators. Instead, applications in these simulators need to be simplified and re-implemented as functions and compiled with the simulation engine program. Such over-simplified functions usually are not realistic (e.g., a generated packet stream whose packet transmission time inter-vals are drawn from a statistic distribution). As such, when the simulator runs as a user-level process on top of the operating system’s kernel, a real-world applica-tion program cannot deliver packets to the simulator via the standard UNIX POSIX system call API (e.g., socket(), sendto(), recvfrom(), etc.), because they run at the same level. For this reason, the application programs supported by a traditional network simula-tor are only those that have been simplified, modified, and re-implemented in the simulator.

To overcome these problems, Wang invented a kernel re-entering simulation methodology [2,3] and

implemented it in the Harvard network simulator [4]. Later on, Wang improved the methodology in the NCTUns 1.0 network simulator (referred to as ‘NCTUns’) [5]. Due to the kernel re-entering simula-tion methodology, NCTUns directly uses the real-world TCP/IP protocol stack in either FreeBSD or Linux operating system to generate more accurate simulation results than those generated by a simulator that abstracts away a lot of protocol details. In addi-tion, all existing or to-be-developed application pro-grams that run on these operating systems can directly run with NCTUns to generate realistic traffic for a simulated network. These two properties enable re-searchers to evaluate the effect of a new radio resource management or QoS scheme on real-world applica-tions and their end-to-end performance [6].

Regarding network devices and protocols, supports for wireless LAN networks, wireless mesh networks, GPRS networks, QoS DiffServ networks, RTP/RTCP/ SIP VoIP protocols, and several other wireless stan-dards such as IEEE 802.11(e) QoS protocol have been added to NCTUns. Regarding simulation speed, we have designed and implemented a new simulation eng-ine that combeng-ines the advantages of the discrete-event simulation methodology and the kernel re-entering simulation methodology for fast simulation execution [7]. Regarding operating system platform, NCTUns can be run on both FreeBSD and Linux. Regarding functionalities, NCTUns supports emulation, which can evaluate a real-world network device without the need to get, know, or modify its protocol stack. The NCTUns network simulator can be easily turned into an emulator by just selecting an option. During emulation, a real-world network device can exchange packets with a simulated device in NCTUns. One can use this capability to test the protocol conformance and interoperability of a network device [8].

This paper is organized as follows. Section 2 surveys related work. Section 3 briefly presents the kernel re-entering sim ulation methodology. Section 4 presents the NCTUns high-level architecture. In Section 5, we present the wireless radio resource management support provided by NCTUns. In Sec-tion 6, we describe the emulaSec-tion support provided by NCTUns and how emulation can be applied to wireless LAN mobile devices in the real world. Section 7 illustrates how NCTUns is used to study mobile ad hoc, sensor, inter-vehicle communication (IVC) networks, wireless mesh networks, and gen-eral packet radio service (GPRS) networks. Section 8 discusses a performance optimization technique that NCTUns employs to significantly speed up

(3)

wireless simulations. Finally, Section 9 concludes this paper.

2. Related Work

In the following, we discuss related work and the differences between NCTUns and them.

Dummynet [9], when it was originally proposed, also used tunnel interfaces to use the real-world TCP/ IP protocol stack in the simulation machine. However, since its release in 1997, Dummynet has changed substantially and now is used as a real-time traffic shaper or a bandwidth and delay manager in the FreeBSD kernel. It is no longer used as a network simulator.

VMware [10] can implement virtual machines. It can provide virtual x86-like hardware environments within which a number of different operating systems can be executed. With this capability, a number of virtual machines can be implemented on a single real machine to act as hosts or routers. They can be configured to form an emulated network and packets generated by real-world application programs run on these virtual machines can be exchanged through the emulated network. Although VMware can be used as an emulator, it is not a network simulator. As such, its result is not repeatable and a simulation case cannot be finished more quickly than the simulated time in the real world. In addition, it is very heavy weight. A virtual machine consumes much resource and runs substantially slower than the real machine—some-times by an order of magnitude.

OPNET modeler [11], ns-2, and SSFnet [12] re-present the traditional network simulation approach. In this approach, the thread-supporting event schedu-ler, application code (not real-world application pro-grams) that generates network traffic, utility programs that configure, monitor, or gather statistics about a simulated network, the TCP/IP protocol stack imple-mentation on hosts, the IP protocol stack implementa-tion on routers, and links are all compiled together to form a single user-level program. A simulator con-structed using this approach cannot easily provide UNIX POSIX API for real-world application pro-grams to run normally to generate network traffic. Although some simulators may provide their own non-standard API to let real-world application pro-grams to interact with them (via IPC library calls), real-world application programs still need to be re-written so that they can use the internal API, be compiled and linked with the simulator, and be

concurrently executed with the simulator during simulation.

3. Simulation Methodology

The kernel re-entering simulation methodology was proposed in References [2,3,5], where tunnel network interface is the key facility in the kernel re-entering methodology. A tunnel network interface, available on most UNIX machines, is a pseudo network inter-face that does not have a physical network attached to it. The functions of a tunnel network interface, from the kernel’s point of view, are the same as those of an Ethernet network interface. A network application program can send or receive packets through a tunnel network interface, just as if these packets were sent to or received from a normal Ethernet interface.

Each tunnel interface has a corresponding device special file in the/dev directory. If an application program opens a tunnel interface’s special file and writes a packet into it, the packet will enter the kernel. From the kernel’s viewpoint, the packet appears to come from a real network and will pass through the kernel’s TCP/IP protocol stack as an Ethernet packet would do. On the other hand, if the application program reads a packet from a tunnel interface’s special file, the first packet in the tunnel interface’s output queue will be dequeued and copied to the application program. To the kernel, the packet appears to have been transmitted onto a real link and this pseudo transmission is not different from an Ethernet packet transmission.

Using tunnel network interfaces, we can easily simulate the wireless network depicted in Figure 1, where a TCP sender application program running on node 1 sends TCP packets to a TCP receiver applica-tion program running on node 2. We set up the virtual simulated network with two operations. First, we configure the kernel routing table of the simulation machine so that tunnel network interface 1 is chosen as the outgoing interface for the TCP packets sent from node 1 to node 2 and tunnel network interface 2 is chosen for the TCP packets sent from node 2 to node 1. Second, the wireless channel is simulated by a simulation engine process. For the direction from node i to node j (i¼ 1 or 2 and j ¼ 3  i), the simula-tion engine opens the special files of tunnel network interfaces i and j in /dev. It then executes a while loop. In each step of this loop, it simulates a packet’s transmission in the direction from node i to node j by reading a packet from the special file of tunnel

(4)

interface i, waiting for the packet’s transmission on the channel to finish (in virtual time), and then writing this packet to the special file of tunnel interface j.

The bottom of Figure 1 depicts this simulation scheme. Since replacing a real channel with a simu-lated channel happens outside the kernel, the kernels on both nodes do not know that their packets actually are exchanged in a simulated network. The TCP sender and receiver programs, which run on top of the kernels, do not know the fact, either. As a result, all existing real-world application programs can run on the simulated network, all existing real-world net-work utility programs can be executed in the simula-tion, and the TCP/IP network protocol stack used in the simulation is the real-world implementation. Note that in this simulation methodology, the kernel of the simulation machine is shared by all simulated nodes. Therefore, although two TCP/IP protocol stacks are depicted in Figure 1, actually they are the same one— the protocol stack of the simulation machine.

In addition to bandwidth and signal propagation delay characteristics, we can simulate more interface

details by adding more protocol modules to the simulation engine. In this figure, we see that there is one routing protocol module, ARP protocol module, packet scheduling or buffer management module (PSBM), IEEE 802.11(b) MAC module (WMAC), and IEEE 802.11(b) wireless physical module (WPHY) associated with each interface.

4. High-Level Architecture

NCTUns uses a distributed architecture to support remote and concurrent simulations. This feature uses an open-system architecture to enable protocol mod-ules to be added to the simulator. This task can be easily done in just a few mouse clicks via its GUI operating environment. Functionally, NCTUns can be divided into eight components described in the fol-lowing subsections.

4.1. GUI Operating Environment

The fully integrated GUI environment enables a user to edit a network topology, configure the protocol modules of a network node, set the parameter values of a protocol module, specify mobile nodes’ moving paths, plot performance curves, playback animations of logged packet transfers, etc.

From a network topology, the GUI program can generate a simulation job description file suite. Since the GUI program uses Internet TCP/IP sockets to communicate with other components, it can submit a job to a remote simulation machine for execution. When the simulation is finished, the simulation results and generated log files are transferred back to the GUI. The user then either examines logged data, plots performance curves, or plays back packet transfer animations.

During a simulation, the user can query or set an object’s value (e.g., the routing table of a router or the switch table of a switch) at any time. If the user does not want to do any query or set operation during a simulation, the user can choose to disconnect (but not terminate) the currently running simulation so that he (she) can use the GUI to handle other simulation jobs. The user can later re-connect to a disconnected simulation, regardless whether it is still running or has finished. A user thus can submit many simulation jobs simultaneously. This can increase simulation throughput if multiple simulation machines are avail-able to service these jobs concurrently.

Mobile Node 1 WPHY WPHY PSBM PSBM ARP ARP TCP_sender TCP_receiver TCP_sender User-level Kernel TCP/IP Stack Tunnel interface 1 TCP_receiver TCP/IP Stack Tunnel interface 2 Route Route WMAC WMAC Simulation Engine Mobile Node 2

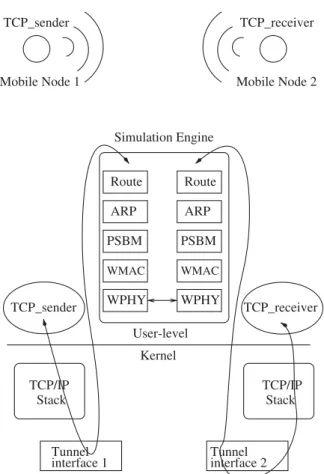

Fig. 1. The top single-hop TCP/IP wireless network can be simulated by the bottom design.

(5)

4.2. Simulation Engine

The NCTUns simulation engine is a user-level pro-gram that functions like a small operating system. Through a defined API, it provides basic simulation services to protocol modules (to be described later). Such services include virtual clock maintenance, timer management, event scheduling, variable regis-trations, etc. The simulation engine needs to be compiled with various protocol modules to form a single user-level program called ‘simulation server.’ A simulation server takes a simulation job description file suite as input, runs the simulation, and generates data and packet transfer log files. When a simulation server is running, it utilizes a lot of kernel resources. Therefore, we do not allow other simulation servers to run at the same time on the same machine.

4.3. Protocol Module and Job Dispatcher NCTUns supports various protocol modules. A pro-tocol module implements a layer of a propro-tocol stack (e.g., the ARP protocol or a FIFO queue). A protocol module is composed of a set of functions. It needs to be compiled with the simulation engine to create a simulation server. Inside the simulation server, multi-ple protocol modules can be chained to form a proto-col stack.

The NCTUns simulation job dispatcher is a user-level program that supports concurrent simulations on multiple simulation machines. The job dispatcher should be executed and remain alive to manage multi-ple simulation machines.

The job dispatcher coordinates a large number of GUI users and a large number of simulation machines. When a user submits a simulation job to the job dispatcher, the dispatcher will select an available simulation machine to execute this job. If no machine is available, the submitted job can be queued and managed by the dispatcher as a background job. Various scheduling policies can be used to schedule their service order [13].

4.4. Coordinator

The NCTUns coordinator is a user-level program executed on every machine where a simulation server resides. The coordinator informs the job dispatcher whether this machine is currently busy in running a simulation or not. When executed, it first registers itself with the dispatcher to join in the dispatcher’s simulation machine farm. When its status (idle or

busy) changes, the dispatcher is notified of this new status. Based on the machine status information, the dispatcher chooses an available machine from its machine farm to service a job.

When the coordinator receives a job from the dispatcher, it forks (executes) a simulation server to simulate the specified network and protocols. The forked simulation server process will kill itself when its simulation is finished. During simulation, the coordinator may also fork (start) or kill (end) some real-world application programs as specified in the job. Because the coordinator has the process IDs of the forked traffic generators, it can register these traffic generators with the kernel, and all time-related system calls issued by these registered traffic generators will be performed based on the virtual time of the simu-lated network, rather than the real time.

When the simulation server is running, the coordi-nator communicates with the job dispatcher and the GUI program on behalf of the simulation server. For example, the simulation server periodically sends the current virtual time of the simulated network to the coordinator. The coordinator then forwards this in-formation to inform the GUI user of the simulation progress. During simulation, the user can also on-line set or retrieve an object’s value (e.g., to query or set a switch’s switch table). Message exchanges between the simulation server and the GUI program are per-formed via the coordinator.

4.5. Kernel Modification

NCTUns modifies the kernel of the simulation ma-chine so that a simulation server can correctly run on it. During a simulation, the timers of TCP connections in a simulated network should be triggered in the simulation time rather than in the real time. The same processing should also be applied to the time-related services requested by the application programs that are run on simulated nodes. For example, when the kernel receives the sleep(5) system call issued by an application program process, it should suspend the execution of the process for 5 s in simulation time rather than in real time.

Also, the kernel needs to automatically perform UDP/TCP port mapping between a port number specified by a simulation user and the port number that is actually used inside the kernel. This mapping allows multiple real-world application programs to bind to the same port number on different nodes in a simulated network. Consider an example where two web server processes are running on two different

(6)

nodes in a simulated network and they both want to bind to the well-known port number 80. Without converting these two 80 port numbers to two different port numbers inside the kernel, the above setup cannot be simulated due to port number collision.

4.6. User-Level Daemon and Real-World Application Program

The NCTUns protocol daemons run at the user level to perform specific jobs. For example, the real-world ‘routed’ (using the RIP routing protocol) or ‘gated’ (using the OSPF routing protocol) daemons run with NCTUns to set up the routing tables in a simulated network.

The NCTUns real-world application programs run at the user level to either generate network traffic, configure network, or monitor network traffic, etc. For example, the tcpdump program can run on a simulated network to capture packets flowing over a link and the traceroute program can run on a simulated network to find out the routing path traversed by a packet.

4.7. Remote, Concurrent, and Parallel Simulations

NCTUns uses a distributed architecture, by which simulation machines can be far away from the ma-chines where the GUI programs are run. For example, the simulation service machines may reside at NCTU in Taiwan while the GUI users come from many different places of the world. Multiple simulation jobs can be concurrently simulated on different ma-chines (one machine serves one job) to increase the total simulation throughput.

When the NCTUns simulation jobs are run on multiple machines, we say that NCTUns is operating in the ‘multiple machine’ mode [13]. This mode supports remote and concurrent simulations. In the ‘single-machine’ mode, the simulation jobs run on the same machine. With the inter-process communi-cation (IPC) design, NCTUns can be used for either mode without changing its program code. Only the mode parameter in its configuration file needs to be changed.

NCTUns can also be turned into a parallel and distributed network simulator. This is particularly suitable for simulating a very large wireless network with thousands of mobile nodes. In this mode, differ-ent nodes of a network are simulated by the NCTUns simulation engines running on different machines. The real-world application programs run on these

mobile nodes are forked and executed on different machines. This approach can effectively spread the total memory space demand imposed by these appli-cation programs over multiple machines, hence over-coming the memory space limitation of a single machine. We have used the conservative synchroniza-tion algorithm [14] to turn NCTUns into a parallel and distributed network simulator that generates the same simulation results as the sequential version.

5. Radio Resource Management and QoS Supports

NCTUns supports radio resource management, QoS, and mobility researches. It has been used in several research work (e.g., [15–20]) to study these research areas.

At the physical layer, the wireless channel models supported include: (1) a simplified model like that used in ns-2, where only a transmission range and an interference range are specified for a wireless inter-face, (2) a two-ray ground reflection model that considers large-scale path loss and computes the received power at a distance. The computed power is then compared against BER (bit error rate) versus power versus modulation scheme versus encoding/ decoding scheme curves to derive a BER for the received packet, (3) a Rayleigh fading model that further considers the effect of small-scale fading and multipath propagation. Depending on the focus of the research, one can choose an appropriate physical-layer channel model to balance simulation result accuracy and simulation speed.

At the MAC layer, the wireless MAC protocols supported include: (1) CSMA/CA with RTS/CTS used for IEEE 802.11(b) networks, (2) multiple frequency time division multiplexed access (MF-TDMA) for GPRS cellular networks, and (3) multichannel and multiradio MAC protocols for reducing the bad effect of signal interference in wireless mesh networks.

QoS support provided for IEEE 802.11(b) wireless LAN networks is IEEE 802.11e protocol. NCTUns includes a full implementation of enhanced distribu-tion coordinadistribu-tion funcdistribu-tion (EDCF) to differentiate eight different priority traffic classes and hybrid co-ordination function (HCF) to support contention-free medium accesses.

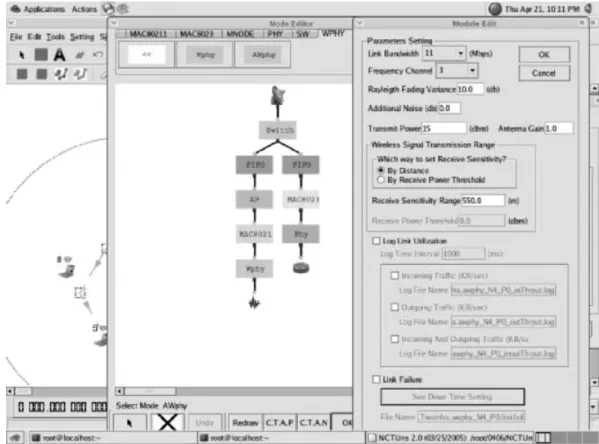

Replacing an existing protocol module with a new one developed by a researcher can be easily done with a few mouse clicks in the node editor of NCTUns. Figure 2 shows that the node editor for a wireless LAN

(7)

access point has been invoked. In this editor, the modules used in the access point’s protocol stack are shown and the parameters of the more advanced wireless physical module are being set. More GUI operation illustrations are available in Reference [21].

6. Emulation Supports

The NCTUns network simulator can be easily turned into an emulator. With emulation, we can test the functions and performance of a real-world host and see how it would perform under various network conditions without getting, knowing, or modifying its internal protocol stack.

When NCTUns is operating as an emulator, a real-world host (e.g., a WLAN ad hoc mode mobile host, a WLAN infrastructure mode mobile host, or a router) can exchange packets with any node in a simulated network. In the emulator mode, all nodes and links specified in the simulated network are still simulated by NCTUns (i.e., the simulation machine) where the simulation speed is purposely slowed down to match the speed of the wall clock.

In NCTUns, a real-world device is referred to as an ‘external node,’ and is represented by a different node icon in the topology editor. The NCTUns external nodes can interact with the simulated net-work in two configurations. In the first configuration (see Figure 3(a)), the application programs running on an external node can exchange packets with the application programs running on a node in the simulated network. For example, a TCP connection can be set up between two application programs with one running in the real network while the other running in the simulated network. These two real-world application programs can then exchange their packets via the TCP connection to complete a spe-cific job (e.g., a web server and client completing a web page retrieval). With this feature, network de-vice developers can test whether their applications and protocols conform to standards, specifications, or inter-operability requirements before releasing them to the market. For example, a newly developed VoIP phone device can interact with a fully tested VoIP program running in the simulated network to see whether it can pass the interoperability and conformance tests. This feature is enabled by the

(8)

kernel re-entering simulation methodology and is very unique.

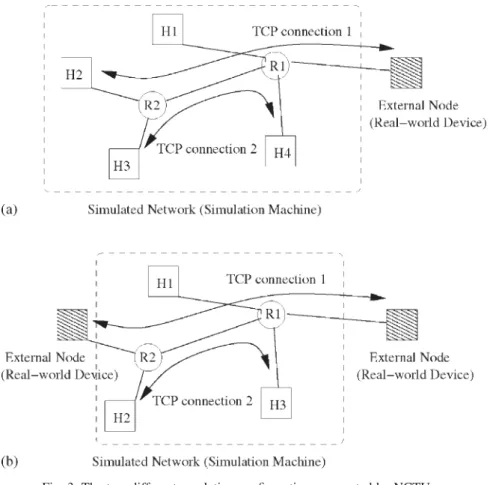

Alternatively, two external hosts can exchange their packets via the simulated network. In Figure 3(b), a TCP connection is set up between two application programs with one running on one external host, the other running on another external host, and the TCP connection traversing through several nodes in the simulated network. Since the TCP packets exchanged by these two real-world application programs need to pass through the simulated network and experience various simulated network characteristics, network device developers can test how their applications and protocols would perform under various network conditions. For example, we can easily test the sound quality generated by two VoIP phone devices when the phone call needs to go through a simulated net-work with about 300 ms netnet-work delay and 10% packet loss rate. Although existing emulators can support this configuration, the simulated network supported by them mostly is only a link abstraction, which may delay, drop, and reorder real-world packets based on a certain statistics distribution. In the

NCTUns network emulator, on the other hand, the simulated network where real-world packets go through can be a complicated network with many nodes. (The size of the simulated network can be very large as long as the speed of the simulation machine’s CPU can simulate the network at real time.) In addition, in NCTUns, real-world packets can interact and compete with the packet traffic dynamically generated by application programs running on simu-lated nodes. This capability is illustrated in Figure 3(b) by showing that ‘TCP connection 1’ is competing with ‘TCP connection 2’ for the bandwidth of the link connecting R1 to R2. To our knowledge, no existing emulators support this type of traffic mix between simulated and real-world packets.

To describe the connectivity between an external node and a simulated node, each external node is represented by an external node icon in the simulated network. A GUI user can easily specify the connec-tivity by drawing a link between an external node and a simulated node. Lik e other links in the simulated network, such a link has its own delay and bandwidth properties simulated by NCTUns.

(9)

We note that the physical link connecting the simulation machine and the external node need not apply any MAC protocol processing to the real-world packets when they are transmitted over the link. Instead, it only needs to transfer the real-world pack-ets from one end of the link to the other end of the link as fast as possible. Simulations of properties (e.g., bandwidth, delay, BER, etc.) for the link connecting the external node is done by the simulation engine.

Since the packets delivered from an external node to a simulated node need to enter the simulation machine, the external node must be physically con-nected to the simulation machine via some physical network (can be as simple as a physical link). Ideally, such a network should have infinite bandwidth and zero latency. For example, a 100 Mbps Fast Ethernet network may be used for this purpose. For NCTUns, an external node must reside on the same subnet as the simulation machine; otherwise, the emulation func-tion will not work properly.

To receive the packets from an external node and further inject them into the simulated network, a user-level emulation daemon is run up on the simulation machine for each external node. These daemons play a similar role as a user-level network address transla-tor (NAT) daemon. They intercept packets, translate IP and port numbers, and then further inject packets into their destinations (the simulated network or the external hosts). Commands for running up these daemons are automatically generated by the GUI program and are automatically executed by the simu-lation engine. These user-level daemons may incur extra latency during context switching. According to our test results, a machine with 1 GHz CPU or above can limit the packet latency caused by the emulation daemon to within 100 Ms.

To direct an external node’s packets to the simula-tion machine, some routing entries must be set up on the external node. To direct packets originated from the simulated network to the external node, the emulation daemon also needs some information. A GUI user thus needs to do some settings on both the external node and the simulation machine to ensure that an emulation case works correctly.

6.1. Adjusting Simulation Speed

Once a user adds an external node into the network topology, the speed of the simulation engine will be automatically set to the speed of the wall clock. This means that during an emulation, the simulated net-work will be simulated at the speed of the wall clock.

During an NCTUns emulation, the clock of the simulated network is synchronized with the wall clock every 1 ms, and therefore the emulation function’s latency precision is about 1 ms. For example, suppose that a user uses the real-world ping program to measure the round-trip time of the path between an external node and a simulated node and the round-trip time (RTT) of this path is 100 ms in the simulated network, then the reported RTT on the external node may be some value between 99 and 101 ms.

From experimental results, we found that the pre-cision may get worse if NCTUns is used in the single-machine mode. During emulation, the GUI program, simulation engine, traffic generator application pro-grams, and some daemon programs compete for the machine’s CPU cycles, which results in degraded emulation precision. The time mismatch between the simulation clock and the wall clock may increase up to 3 ms. However, we found that when NCTUns is used in the multiple-machine mode, where the above-mentioned components are run on separate machines, the precision is quite high and seldom degrades.

6.2. Adding an External Node to the Network Topology

An emulation is set up as follows. First, a user clicks on the external node icon in the tool bar and add it to the network topology. This is to indicate how the external node is connected to the simulated network. Second, the user enters the IP address used by that external node in the real network through the GUI. This information must be known by the emulation daemon so that it can forward packets originated from the simulated network to the external node.

Like any node in the simulated network, the GUI will assign an IP address to each external node’s inter-face. This IP address is not a public IP address used in the real world. Instead, it is a private IP address used in the simulated network so that a user can specify the destination IP address of a packet if he (she) intends to send the packet to that node. To send packets to the external node, a simulated node uses this assigned private IP address as these packets’ destination IP address. These packets will traverse the simulated network as in the simulation mode and then reach the external node represented in the simulated network. The emulation daemon supporting this external node will intercept these packets, change their destination IP addresses from the one used in the simulated network to the one used in the real network, and then forward them to the external node in the real network.

(10)

Now we describe how to direct traffic generated by an external node to the simulated network (i.e., to the simulation machine). Suppose that the simulation machine’s IP address in the real world is 10.0.0.1 and the external machine’s IP address is 10.0.0.2, and they are physically connected via an Ethernet cable. Suppose that the external node makes a TCP connec-tion to a simulated node whose assigned private IP address is 1.0.3.1. Then on the external node, the user should first execute the ‘route add 1.0/16 10.0.0.1’ command to add the required routing entry to the system routing table.

In the above command, 1.0/16 means that the destination network address is 1.0.X.X. (16 means that the netmask is 255.255.0.0). Note that every node in the simulated network is assigned a private IP address of the form of 1.0.X.X. As such, the above command indicates that all outgoing IP destination address 1.0.X.X should be first sent to the gateway whose IP address is 10.0.0.1. Since 10.0.0.1 is the simulation machine’s IP address, these packets will be delivered to the simulation machine.

When the packets generated by an external node arrive at the simulation machine, we use the IP fire-wall facility provided by FreeBSD or Linux to inter-cept these packets and divert them to one emulation daemon responsible for this external node. The re-quired IP firewall rules are automatically generated by the GUI program. They are automatically installed into the operating system by NCTUns when an emulation run is executed. Therefore, a user need not install these firewall rules. When the emulation daemon responsible for this, external node receives these packets; it will function like an NAT to translate their source IP addresses (which is the public IP address of this external node) into the private IP address assigned to this external node in the simulated network. After this translation, the emulation daemon will re-inject them into the kernel of the simulation machine and these packets will traverse the simulated network based on the routing tables stored in the simulated network.

6.3. Mobile Network Emulation

We give two examples of mobile network emulations: mobile ad hoc network and mobile infrastructure network.

(1) Mobile ad hoc network: NCTUns supports emu-lations with external mobile nodes, which can be wireless LAN ad hoc mode or infrastructure-mode devices. An external mobile node is

repre-sented by a node in the simulated network and the mobility of this node in the simulated network is specified in the topology editor.

During emulation, the packets generated by the external mobile node will be transferred to the simulation machine and then enter the simulated wireless network. For the simulated network, these packets seem to be generated by the corre-sponding mobile node in the simulated network. Since the corresponding mobile node uses a wireless interface to connect to the simulated wireless network (in either the ad hoc mode or the infrastructure mode), these real-world packets will be transferred wirelessly in the simulated net-work and may contend with other wireless pack-ets that are generated in the simulated network.

Note that real-world packets will experience the wireless MAC protocols (e.g., IEEE 802.11(b) MAC) in the simulated network, rather than the wireless MAC protocols that are implemented in the wireless interface of the external mobile node. This situation is similar to a fixed-network emula-tion where the link connecting the simulaemula-tion machine and an external node needs to deliver real-world packets between two ends of the link as fast as possible and need not apply any MAC protocol processing to them. In addition, because the moving path of an external node is specified in the simulated network rather than in the real world, an external mobile node in the real world need not move.

Figure 4 shows an emulation example in which one external ad-hoc mobile host (on the left) communicates with a simulated mobile host (on the right) via another simulated mobile host (in the middle). Initially, the application running on the external mobile host can exchange packets with the application running on the mobile host on the right via the middle mobile host. As time proceeds, the external mobile host begins to move away from the middle mobile host (not in the real world but in the simulated network; the mobile host move-ment path can be easily set up as described in Section 7) and it eventually moves out of the trans-mission range of the middle mobile host. During this period, the application running on the external node can no longer communicate with the applica-tion running on the mobile host on the right. Later on, when the external node moves back to the mobile node in the middle, the communication between the two applications will be able to continue. (2) Infrastructure-mode mobile network: The usage

(11)

similar to those of external hosts and external ad hoc mode mobile nodes. The only difference is that in the GUI dialog box of the external infra-structure-mode mobile node, the user needs to provide the IP address of the gateway in the simulated network for this mobile node.

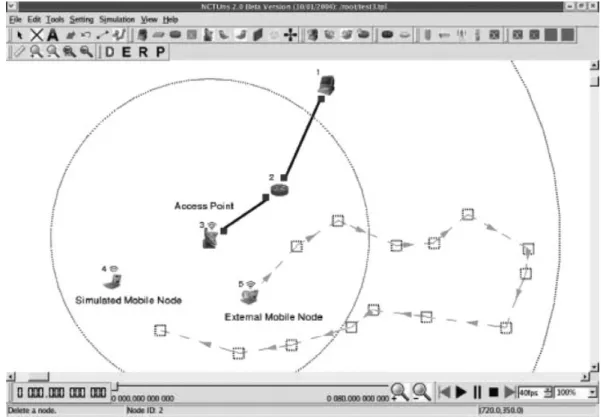

Figure 5 shows an emulation example in which one external infrastructure-mode mobile node in the real-world communicates with a simulated host at the top via a simulated wireless access point.

Like the ad hoc mobile node emulation case, the external infrastructure-mode mobile node in the real world may communicate with the simu-lated host at the top initially. As time proceeds, it will leave the coverage (represented by the inner circle) of the simulated wireless access point and no longer can communicate with that simulated host. Later on, when it enters the coverage area of the simulated wireless access point again, the communication continues.

7. Various Wireless Network Supports This section describes the NCTUns supports on various wireless networks.

7.1. Military, Sensor, IVC Mobile Ad Hoc Networks In mobile ad hoc network studies, one usually wants to change the protocol stack or the parameter values used by mobile nodes to see how the changes would affect the overall performance of the mobile network. In NCTUns, this task can be easily done for thousands of mobile nodes without requiring the user to config-ure individual mobile nodes. A user, before executing a GUI command to automatically insert thousands of mobile nodes into the topology editor, can first invoke the node editor of the GUI to specify the protocol stack and parameter values used for these mobile nodes. With this setting, all inserted mobile nodes will use the same protocol stack and parameter values. In addition to protocol stack and parameter settings, data and information fusion operation also useful in mobile sensor networks to reduce traffic volume and make intelligent decisions. In NCTUns, data and information fusion agents running on each mobile node can be conveniently implemented as user-level application programs. This implementation provides several advantages.

First, since such agents contain intelligence and are usually complicated, it is better to implement them separately rather than implement them as protocol

(12)

modules and mix their codes with the simulation engine code. Second, such agents may have been implemented as application programs and are being used in real-world sensor networks (e.g., there are several commercial companies selling sensor network products in the market). Since real-world application programs can directly run on simulated nodes in NCTUns, all developed data fusion agent programs can readily run with NCTUns. Third, since applica-tion programs developed for simulaapplica-tions can directly run on real machines in NCTUns, it is advantageous to develop data and information fusion agents as appli-cation programs on NCTUns. Later on, they can be immediately deployed in the real world or be sold as commercial products.

For a large network with thousands of mobile nodes, individually opening the GUI dialog box of each node to configure its application programs and moving path require significant effort. To simplify this task, NCTUns provides a command to read a traffic configuration file. Typically, such file is generated by a script or a program written by the user. After the GUI reads this file, each traffic generator (i.e., appli-cation program) command string will be put into the application tab of the specified node in the GUI. Also,

each moving path description in this file will be set as the moving path of the specified node in the GUI. This facility saves significant effort because the user need not invoke each node’s GUI dialog box individually to enter its application commands and set its moving path.

The above facility is also useful for creating a mobility pattern not provided by NCTUns. In the current version, NCTUns can only automatically generate random-waypoint paths for mobile nodes or allow a user to manually specify the moving paths of mobile nodes. However, a user may want to study a mobile network with a different mobility pattern. For example, to acquire a realistic vehicle moving sce-nario not provided by NCTUns, one can first use a microscopic vehicle traffic simulator to generate rea-listic moving paths of vehicles moving on a highway or in a city. Such traffic simulators consider the car-following and lane-changing driver’s behavior and the characteristics of various vehicles. The user then imports this moving path file into the GUI and studies how these vehicles (mobile nodes in the simulation) wirelessly exchange their packets based on the im-ported moving patterns. With this import facility, any mobility pattern can be studied with NCTUns.

(13)

Besides the above capabilities, NCTUns can dyna-mically create, destroy, and disable/enable a mobile node during a simulation. Each mobile node can also dynamically change its moving path (including the moving direction and moving speed), used protocol stack, and used parameter values (e.g., a radio’s transmit power) during a simulation. In addition, each mobile node can also receive command mes-sages sent over the simulated network to complete the above tasks. This feature is useful for military tactics mobile ad hoc network research and intelligent trans-portation systems (ITS) IVC network research, as elaborated below.

In a military tactics mobile ad hoc network, a mobile node can be viewed as a military vehicle (e.g., a tank) on which an intelligent agent program acts as a commander controlling the movement of the vehicle. The commanders on these mobile nodes use ad hoc wireless links to communicate with each other. Based on the information acquired from other com-manders, a commander can make decisions to move the vehicle. In a battlefield, a vehicle may be des-troyed by the enemy force. It is also possible that a vehicle suddenly appears in the battlefield (e.g., car-ried and dropped by an airplane). To support these military scenarios, NCTUns provides control API functions (e.g., setNextTurningPoint()) to allow an application program (e.g., the commander) running

on a simulated mobile node to control the movement of the node.

In an IVC information network in ITS, a mobile node can be viewed as a vehicle on which an intelli-gent aintelli-gent program acts as a control unit that controls the movement of the vehicle. Recent studies have proposed to use an ad hoc IVC network approach to quickly distribute an emergent message among vehi-cles without infrastructure support (i.e., via the uses of GSM or GPRS cellular networks). One application is to quickly distribute such a message from a scene where a vehicle accident occurs to all following vehicles, and the control units on the following vehicles will then automatically slow down the cars to avoid subsequent collisions. Another application is to automatically maintain the safety distance between a vehicle and its lead (or following) vehicle through these control units without driver involvement. In these two applications, a mobile node also needs to actively control its moving speed and direction.

Figure 6 shows an example of IVC network studied in NCTUns. The tiny vehicle icons in the figure represent real-world vehicles moving on the highway. The appearance of a small and large circles centered at a vehicle icon represent that the vehicle is transmitting a wireless packet, and they represent the transmission and interference ranges of the wireless interface, respectively. The moving paths of these vehicles are

(14)

imported from the log file generated by the VISSIM vehicle microscopic traffic simulator [22].

7.2. Wireless Mesh Networks

In a wireless mesh network (e.g., IEEE 802.11s), access points function like routers to forward packets among themselves. A mobile station associates itself with an access point and transmits/receives packets to/ from the associated access point. The access point, upon receiving a packet from the mobile station, wirelessly sends it to a neighboring access point for further forwarding. The forwarding process continues until the packet reaches an access point that connects to the Internet. Through this approach, a major part of wiring cost can be saved because only a few access points need to connect to the Internet to provide Internet access for all mobile stations.

NCTUns provides 802.11(b) AP module for wire-less mesh network study. Several routing approaches suitable for wireless mesh networks have been im-plemented and are being tested in NCTUns. We have implemented AODV, DSR, and DSDV routing proto-col modules for the MANET approach, the RIP and

OSPF routing protocol daemons for the fixed-network approach, and the spanning tree protocol for the cellular approach to build a spanning routing tree among access points and the user location-tracking database. Figure 7 shows an example 4 3 wireless mesh network. We can see that packets generated by mobile stations are wirelessly forwarded among access points until they reach the access points at the top-left and top-right corners, where an Internet con-nection is available.

7.3. GPRS Cellular Networks

In addition to simulating IEEE wireless LAN, NCTUns also supports wide area GPRS cellular net-work simulations. In the future, with some protocol module modifications, NCTUns can also support more recent cellular network proposals such as W-CDMA.

Figure 8 shows an example of GPRS network studied in NCTUns. From this figure, we see the GPRS phones, base stations, SGSNs, GGSNs, and GPRS switches that connect multiple SGSNs with multiple GGSNs. In NCTUns, each GPRS phone is

(15)

given an IP address to exchange IP packets with any host on the fixed network. Internally, a GPRS phone behaves like a host. It uses the real-world TCP/UDP/ IP protocol stack to communicate with the outside world and any real-world application program can run on it. This means that in NCTUns, a real-world web browser program (e.g., the Mozilla on Linux) can run on a GPRS phone to fetch web pages from a real-world web server (e.g., the Apache) via the simulated GPRS channels.

NCTUnss support for GPRS cellular network si-mulations provides more freedom for researchers to study such networks. NCTUns implements detailed GPRS protocol modules (e.g., RadioPhy, MAC, RLC, LLC, SNDCP, BSSGP, NS, and GTP [23]) and allows their parameter values and designs to be easily chan-ged. For example, the channel time slot allocation and scheduling algorithm can be varied to study its effects on contending GSM and GPRS traffic.

8. Performance Optimization

NCTUns uses a performance optimization technique to speed up large-scale wireless network simulations.

In a real-world wireless network, when a node trans-mits a packet through its wireless interface, the wi reless interface of every surrounding node in the network may receive this packet. To simulate this phenomenon, a traditional approach makes many copies of the packet and delivers each copy to every surrounding wireless interface for further processing. Although this implementation is correct, the simula-tion speed may significantly degrade due to excessive packet processing and duplications.

When the wireless nodes are scattered in a large field, many of them will not ‘sense’ the signal of a wireless packet transmitted by a node that is far from them. In this situation, even though NCTUns makes a copy of the transmitted packet and delivers a copy to each of them, they will simply discard the delivered packets because the signal strength of the received packets is below their carrier-sense power threshold. Therefore, CPU cycles and memory space are wasted for duplicating, delivering, storing, and processing these unnecessary packets.

To optimize the performance of wireless network simulations, NCTUns moves the above power level comparison tests from receiving nodes to the sending node. A copy of a packet is created and delivered to

(16)

another node only when the comparison test is passed. In this optimization implementation, a significant amount of packet processing cost can be saved.

To illustrate this optimization technique, Figure 9 shows an example 10 10 mobile ad hoc network in which the node spacing between two neighboring

nodes is set to 200 m. In this network, the receive and carrier-sense power thresholds of all wireless interfaces are set to certain values that correspond to 250 and 550 m, respectively, which are graphically indicated by the inner and outer circles centered at the (5th row, 5th column) node. In this figure, many nodes

Fig. 10. The time required for a simulation with respect to the number of mobile nodes. Fig. 9. A 10 10 mobile ad hoc network configuration.

(17)

are outside the scope of the outer circle and the new implementation can save a lot of overhead by not duplicating and delivering packets to them.

Figure 10 compares the simulation execution times between the original and the optimization implemen-tations with different numbers of nodes. The simula-tion period is 60 s in simulasimula-tion time. During the simulation each node round-robinly transmits a 1500-byte UDP packet to other nodes in the network at the rate of 10 packet/sec. The sizes of the networks are 64 (8 8), 100 (10  10), 144 (12  12), 255 (15 15), 384 (18  18), respectively. This figure indicates that without using the performance optimi-zation technique, the execution time will grow ex-ponentially.

Since each packet is treated and processed as a simulation event, the optimization technique also reduces the number of events and the memory storage during the simulation. Figure 11 compares the number of events generated per simulated second between the original and the optimization implementations under different network sizes. The settings are the same as those used in the previous comparison. This figure indicates that the optimized implementation signifi-cantly outperforms the original one.

9. Conclusions

In this paper, we present the NCTUns network simulator and emulator for conducting wireless communication and network researches. NCTUns has several unique features that cannot be easily achieved by existing simulators. For example, real-world TCP/IP protocol stack is directly used to generate simulation results and real-world applica-tion programs can readily run on simulated nodes to generate realistic traffic. These two properties en-able researchers to use NCTUns to study the perfor-mance of various radio resource management and QoS schemes and their effect on higher-layer pro-tocols and real-world applications. In addition, NCTUns also supports emulation in which simu-lated traffic and real-world traffic can interact with each other. This capability is useful for testing the function and performance of real-world networking devices.

Currently, we are developing simulation modules for supporting IEEE 802.16 WiMax networks, Ka-band satellite networks, and IPv6 networks. All of these networks are important next-generation wireless and mobile networks.

(18)

Acknowledgments

The NCTUns project was supported in part by MOE program for promoting Academic Excellence of Uni-versities under the grant number 91-E-FA06-4-4, and the NSC Excellence Project under the grant number NSC93-2752-E-0090005-PAE. We also thank the edi-tor and reviewers for their valuable suggestions, which greatly help us improve the quality of this paper.

References

1. McCanne S, Floyd S. ns-LBNL network simulator. (http:// www-nrg.ee.lbl.gov/ns/)

2. Wang SY, Kung HT. A simple methodology for constructing extensible and high-fidelity TCP/IP network simulators. IEEE INFOCOM’99, March 21–25, 1999, New York, USA. 3. Wang SY, Kung HT. A new methodology for easily

construct-ing extensible and high-fidelity TCP/IP network simulators. Computer Networks 2002; 40(2): 257–278.

4. Wang SY. Harvard TCP/IP network simulator 1.0, available at http://www.eecs.harvard.edu/networking/simulator.html. 5. Wang SY, Chou CL, Huang CH, et al. The design and

implementation of the NCTUns 1.0 Network Simulator. Computer Networks 2003; 42(2): 175–197.

6. Wang SY. NCTUns, in the column ‘software tools for network-ing’. IEEE Networks 2003; 17(4): 4.

7. Wang SY, Chou CL, Lin CC, et al. The design and implemen-tation of the NCTUns 2.0 network simulation engine. Sub-mitted for publication.

8. Wang SY, Liao KC. Innovative network emulations using the NCTUns Tool. (to be published as a book chapter in the ‘‘Progress in Computer Network Research’’ book, which will be published by Nova Science Publisher, Inc. at the end of 2005).

9. Rizzo L. Dummynet: a simple approach to the evaluation of network protocols. ACM Computer Communication Review 1997; 27(1): 31–41.

10. VMware: Exterprise-class virtualization software, http:// www. vmware.com.

11. OPNET, Inc. (http://www.opnet.com).

12. SSF network module (SSFnet), available at http://www. ssfnet.org.

13. Lin Y-B. Parallel independent replicated simulations on a network of workstations. Simulation 1995; 64(2): 102–110. 14. Fujimoto RM. Parallel and Distributed Simulation Systems.

Wiley Inter-Science, John Wiley and Sons, Inc. New York, USA; 2000.

15. Wang SY, Hwang CC, Chou CL. On striping traffic over multiple IEEE 802.11(b) wireless channels. ACM Wireless Networks (accepted and to appear).

16. Wang SY. Optimizing the packet forwarding performance of wireless chain networks. Computer Communication 2003; 26(14): 1515–1532.

17. Tsai TC, Tu CM. An adaptive IEEE 802.11 MAC in multi-hop wireless ad hoc networks considering large interference range. Lecture Notes in Computer Science 2003; 2928: 87–100. 18. Liu YH, Chen YC. A distributed buffer management approach

supporting IPv6 mobility. In Proceedings of the 10th IEEE International Workshop on Future Trends of Distributed Com-puting Systems, 2004.

19. Ciarletta L. Emulating the future with/of pervasive computing research and development. In Proceedings of the Third Inter-national Conference on Pervasive Computing, May 2005, Munich, Germany.

20. Tsarmpopoulos N, Kalavros I, Lalis S. A low-cost and simple-to-deploy peer-to-peer wireless network based on open source Linux routers. In Proceedings of the First IEEE International Conference on Testbeds and Research Infrastructure for the Development of Networks and Communities, February 2005, Trento, Italy.

21. NCTUns 2.0 GUI User Manual, available at http://NSL.csie. nctu.edu.tw/nctuns.html.

22. VISSIM 3.70 User Manual, PTV Planung Transport Verkehr AG company.

23. Lin Y-B, Chlamtac I. Wireless and Mobile Network Architec-tures. John Wiley, New York, USA; 2000.

Authors’ Biographies

Shie-Yuan Wangis an associate pro-fessor in the Department of Computer Science and Information Engineering at National Chiao Tung University, Taiwan. He received his Master degree and Ph.D. in Computer Science from Harvard University in 1997 and 1999, respectively. His research interests include wireless networks, Internet technologies, network simulations, and operating systems.

Yi-Bing Lin (M’96-SM’96-F’04) is chair professor and vice president of Research and Development, National Chiao Tung University. His current research interests include wireless communications and mobile comput-ing. Dr Lin has published over 190 journal articles and more than 200 conference papers. Lin is the co-author of the book Wireless and Mobile Net-work Architecture (with Imrich Chlamtac; published by John Wiley Sons). Lin is an IEEE fellow, an ACM fellow, an AAAS fellow, and an IEE fellow.

數據

Fig. 1. The top single-hop TCP/IP wireless network can be simulated by the bottom design.
Fig. 2. The node editor invoked for editing the protocol stack and protocol module parameters of a wireless LAN access point.
Fig. 3. The two different emulation configurations supported by NCTUns.
Figure 5 shows an emulation example in which one external infrastructure-mode mobile node in the real-world communicates with a simulated host at the top via a simulated wireless access point.
+7

參考文獻

相關文件

„ An adaptation layer is used to support specific primitives as required by a particular signaling application. „ The standard SS7 applications (e.g., ISUP) do not realize that

Microphone and 600 ohm line conduits shall be mechanically and electrically connected to receptacle boxes and electrically grounded to the audio system ground point.. Lines in

The simulation environment we considered is a wireless network such as Fig.4. There are 37 BSSs in our simulation system, and there are 10 STAs in each BSS. In each connection,

In this study, variable weights are added into the probabilistic density function of Elliptical Probabilistic Neural Network (EPNN), so that the kernel function can be adjusted

6 《中論·觀因緣品》,《佛藏要籍選刊》第 9 冊,上海古籍出版社 1994 年版,第 1

The first row shows the eyespot with white inner ring, black middle ring, and yellow outer ring in Bicyclus anynana.. The second row provides the eyespot with black inner ring

Now, nearly all of the current flows through wire S since it has a much lower resistance than the light bulb. The light bulb does not glow because the current flowing through it

The entire moduli space M can exist in the perturbative regime and its dimension (∼ M 4 ) can be very large if the flavor number M is large, in contrast with the moduli space found
