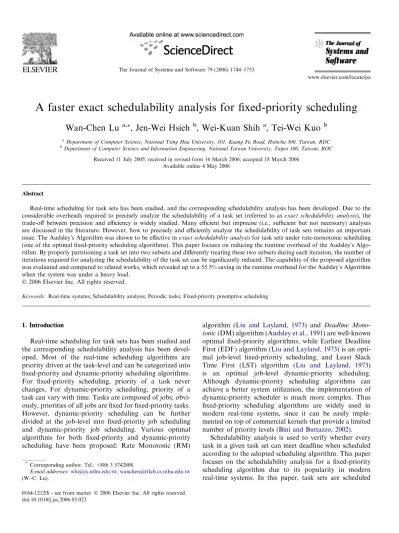

A faster exact schedulability analysis for fixed-priority scheduling
Wan-Chen Lu
a,*, Jen-Wei Hsieh
b, Wei-Kuan Shih
a, Tei-Wei Kuo
baDepartment of Computer Science, National Tsing Hua University, 101, Kuang Fu Road, Hsinchu 300, Taiwan, ROC bDepartment of Computer Science and Information Engineering, National Taiwan University, Taipei 106, Taiwan, ROC
Received 11 July 2005; received in revised form 16 March 2006; accepted 18 March 2006 Available online 4 May 2006
Abstract
Real-time scheduling for task sets has been studied, and the corresponding schedulability analysis has been developed. Due to the considerable overheads required to precisely analyze the schedulability of a task set (referred to as exact schedulability analysis), the trade-off between precision and efficiency is widely studied. Many efficient but imprecise (i.e., sufficient but not necessary) analyses are discussed in the literature. However, how to precisely and efficiently analyze the schedulability of task sets remains an important issue. The Audsley’s Algorithm was shown to be effective in exact schedulability analysis for task sets under rate-monotonic scheduling (one of the optimal fixed-priority scheduling algorithms). This paper focuses on reducing the runtime overhead of the Audsley’s Algo-rithm. By properly partitioning a task set into two subsets and differently treating these two subsets during each iteration, the number of iterations required for analyzing the schedulability of the task set can be significantly reduced. The capability of the proposed algorithm was evaluated and compared to related works, which revealed up to a 55.5% saving in the runtime overhead for the Audsley’s Algorithm when the system was under a heavy load.
Ó 2006 Elsevier Inc. All rights reserved.
Keywords: Real-time systems; Schedulability analysis; Periodic tasks; Fixed-priority preemptive scheduling
1. Introduction
Real-time scheduling for task sets has been studied and the corresponding schedulability analysis has been devel-oped. Most of the real-time scheduling algorithms are priority driven at the task-level and can be categorized into fixed-priority and dynamic-priority scheduling algorithms. For fixed-priority scheduling, priority of a task never changes. For dynamic-priority scheduling, priority of a task can vary with time. Tasks are composed of jobs; obvi-ously, priorities of all jobs are fixed for fixed-priority tasks. However, dynamic-priority scheduling can be further divided at the job-level into fixed-priority job scheduling and dynamic-priority job scheduling. Various optimal algorithms for both fixed-priority and dynamic-priority scheduling have been proposed: Rate Monotonic (RM)
algorithm (Liu and Layland, 1973) and Deadline Mono-tonic (DM) algorithm (Audsley et al., 1991) are well-known optimal fixed-priority algorithms, while Earliest Deadline First (EDF) algorithm (Liu and Layland, 1973) is an opti-mal job-level fixed-priority scheduling, and Least Slack Time First (LST) algorithm (Liu and Layland, 1973) is an optimal job-level dynamic-priority scheduling. Although dynamic-priority scheduling algorithms can achieve a better system utilization, the implementation of dynamic-priority scheduler is much more complex. Thus fixed-priority scheduling algorithms are widely used in modern real-time systems, since it can be easily imple-mented on top of commercial kernels that provide a limited number of priority levels (Bini and Buttazzo, 2002).
Schedulability analysis is used to verify whether every task in a given task set can meet deadline when scheduled according to the adopted scheduling algorithm. This paper focuses on the schedulability analysis for a fixed-priority scheduling algorithm due to its popularity in modern real-time systems. In this paper, task sets are scheduled 0164-1212/$ - see front matter Ó 2006 Elsevier Inc. All rights reserved.
doi:10.1016/j.jss.2006.03.023
*
Corresponding author. Tel.: +886 3 5742808.
E-mail addresses:[email protected],[email protected]
(W.-C. Lu).
according to RM algorithm, one of the optimal fixed-prior-ity scheduling algorithms. Schedulabilfixed-prior-ity analysis can be categorized into three main classes according to their pre-ciseness. Necessary but insufficient analysis is based on the processor utilization factor: total utilization factor of a task set shall never exceed one, or some tasks will miss their deadlines (Liu and Layland, 1973). Though such an analy-sis is simple and efficient, it is too optimistic to be helpful in schedulability analysis. Sufficient but not necessary analysis is more precise than the first (but still might provide a false-negative) while more efficient than the third (Liu and Layland, 1973; Han and Tyan, 1997; Bini et al., 2001). Sufficient and necessary analysis, i.e., exact schedula-bility analysis, provides an exact verification of task-set schedulability, but it also introduces higher analysis over-heads and is the least efficient but the most precise.
Efficient exact schedulability analysis is required by var-ious service-critical systems, such as tele-medicine systems, tele-conferencing systems, multimedia services with Qual-ity-of-Service (QoS) requirements (Vin et al., 1994; Kuo
et al., 1997), and real-time traffic scheduling over networks
(Wong and Cheng, 1997; Miller and Cheng, 2000; Rao and
Cheng, 2000; Cheng and Rao, 2003). It is also important
for industry, e.g., HVE consumer products of Philips Inter-national, Inc., mentioned in (Bril et al., 2003). Researchers
(Audsley et al., 1991; Bini and Buttazzo, 2002; Bril et al.,
2003) proposed ways to improve runtime of exact schedula-bility analysis. In particular (Bini and Buttazzo (2002)) pro-pose an adaptive schedulability-analysis framework that can be tuned through a parameter to balance the runtime and the preciseness. Based on a well-known exact schedula-bility analysis proposed byAudsley et al. (1993), referred to as the Audsley’s Algorithm, Bril et al. (2003) modified its initial setup to jump-start the analysis process.
This paper focuses on reducing the runtime overhead of the Audsley’s Algorithm. In contract to (Bril et al., 2003), improvements are imposed throughout the analysis pro-cess, not just confined to the initial setup. By properly par-titioning a task set into two subsets and differently treating these two subsets during each iteration, the number of iter-ations required for analyzing the schedulability of the task set can be significantly reduced. Although the proposed algorithm does introduce additional cost in the partitioning of tasks in each iteration and some temporary storage in the partitioning procedure. The extra temporary storage only costs few more variables. The capability of the pro-posed method was evaluated and compared to the related work (Audsley et al., 1993; Bril et al., 2003), which revealed up to a 55.5% saving in the runtime overhead for the Auds-ley’s Algorithm when the system was under a heavy load.
The rest of this paper is organized as follows. In Section 2, task model, basic concept of the exact schedulability anal-ysis, and some terminologies are addressed. Section3 pre-sents a faster exact schedulability analysis for fixed-priority scheduling and proves its correctness. Section 4 provides the simulation results to evaluate the capability of the pro-posed method. Section5is the conclusion and future work.
2. Task model and definitions
This paper focuses on exact schedulability analysis of rate monotonic scheduling for periodic tasks over uni-pro-cessor systems. A periodic task is usually characterized by four parameters: release time, period, maximum computa-tion time, and relative deadline. To concentrate on the pro-posed method, the task model is simplified by assuming that the first jobs of all tasks are released at the same time, and the period is equal to the relative deadline for each task. Since the schedulability analysis for tasks with arbi-trary release times can be reduced to one for tasks with the same release time, it is admissible to assume all tasks are released simultaneously.
Definition 1 (Task model and task set). A periodic task si
comprises an infinite sequence of jobs with regular release times, where the task is a template of its corresponding jobs and one job of the task arrives at the beginning of each period. Ji,j denotes the jth job of the task si. Let Tn=
{s1= (c1, p1), s2= (c2, p2), . . . , sn= (cn, pn)} be a set of
periodic tasks, where ciis the maximum computation time,
and piis the period of task si. The utilization of si, referred
to as ui, is defined as ci/pi. All jobs are ready when they
arrive and should be finished before the arrival of next job. Without loss of generality, p16p26 6 pnis assumed.
As mentioned in Section 1, this paper focuses on schedulability analysis for task sets under rate monotonic scheduling. First, the concept of rate monotonic scheduling is addressed.
Definition 2 (Feasible and schedulable). Suppose a task set is scheduled by S scheduling algorithm, the schedule for the task set is feasible if all the jobs in each task can meet their corresponding deadlines under S scheduling. A task set is schedulable if there exists a feasible schedule.
Definition 3 (Rate monotonic scheduling (Liu and Layland, 1973)). Rate monotonic (RM) algorithm is an optimal fixed-priority scheduling algorithm, which means RM algo-rithm can always generate a feasible schedule if a task set is schedulable. Under RM scheduling, the individual task pri-orities are assigned inversely proportional to their respec-tive periods. In other words, a task with shorter period is assigned with a higher priority (and can be scheduled earlier).
Let Tm1= {s1, s2, . . . , sm1} = Tm {sm} be a subset
of Tm. To analyze the schedulability of a task set Tn, a
schedulability analysis is applied on Ti iteratively, for
i = 1, . . . , n, to check whether the lowest-priority task in Ti is schedulable. For efficiency consideration, a sufficient
but not necessary analysis is usually applied first. When the analysis reports that the task set might be unschedula-ble, an exact schedulability analysis takes over the verifica-tion process, since the report of the sufficient but not necessary analysis might be a false negative. To facilitate the discussion in the remainder of this paper, we assume
that tasks in Tn1are all schedulable and confine our
atten-tion to verifying whether the lowest-priority task in Tn(i.e.,
snunder RM) is schedulable.
Lehoczky et al. developed an algorithm to precisely ana-lyze whether a task set can be feasibly scheduled under RM scheduling (Lehoczky et al., 1989). The basic idea of this algorithm is to check if the demand (total computation time demanded by the task set) is no larger than the supply (available processing time) at some integer multiples of task periods.Audsley et al. (1993)proposed an alternative for exact schedulability analysis by constructing a schedule and then observing whether the task set is schedulable. Definition 4 (Audsley’s Algorithm (Audsley et al., 1993)). Under the Audsley’s Algorithm, the worst-case response time ri of each task si is derived by iteratively
calculating the formula rðlþ1Þ ¼ ciþPi1k¼1 r
ðlÞ
pk l m
ck until
r(l+1)either converges to a real number (i.e., ri) or exceeds
the deadline of task si. A task is schedulable if its worst-case
response time is no larger than its deadline; otherwise, the task is unschedulable. Note that tasks are sorted in a non-decreasing priority order (according toDefinitions 1 and 3) and rð0Þ¼Pij¼1cj.
3. A faster exact schedulability analysis 3.1. Overview
This research is motivated by the needs in reducing the runtime of exact schedulability analysis algorithms in a tool design for hardware/software co-designs. Exact schedula-bility analysis algorithms could be applied to many system design tools, e.g., schedulability analyses in some electronic design automation (EDA) tools (Richter et al., 2003; Pop
et al., 2000, 2004), where an exact schedulability analysis
algorithm might be executed once per iteration. The improvement on the performance of exact schedulability analysis algorithms could significantly improve the perfor-mance of such tools. Note that although such tools are also executed in an off-line fashion, the performance of the exact schedulability analysis algorithms does have a scala-bility problem when the number of tasks is large. The needs are strong, especially when the design procedure of embed-ded systems goes iteratively to seek a feasible solution.
The basic idea is to attempt a larger jump in the deriva-tion of each subsequent time instant r(l), such that the num-ber of iterations required by the Audsley’s Algorithm can be reduced. It is of paramount importance that the extra overhead introduced by such attempt should not be large, or the proposed algorithm loses its mission. Section 3.3 proves that the time complexity of the proposed algorithm in each iteration is O(n). The overall runtime overhead is less than the Audsley’s Algorithm as well, as illustrated in Section4. To achieve this goal, the Audsley’s Algorithm is modified accordingly, referred to as the Enhanced Auds-ley’s Algorithm (EAA).
In the Audsley’s Algorithm, the next time instant r(l)is derived by calculating the total computation requirements of all jobs that are ready before the current time instant
r(l1). To have a larger jump in the derivation of r(l), the
EAA assumes that only a proportion a of processing time is available for executing real-time tasks. For the rest of the tasks, the reserved computation times are proportional to their corresponding utilizations. To be more specific, sup-pose task siis such a task, the total computation time
assig-ned to the jobs in sibefore time instant t is set to t Æ ci/pi,
which is less than the actual total computation requirements, i.e.,dt/pie Æ ci, of jobs in sibefore time instant t.
The major modifications in the EAA are summarized as follows:
(1) Partition the task set into two subsets: During each itera-tion, all the tasks in the task set Tnare partitioned
into two sets, namely L and R (=Tn L). Note that
the partitions might differ in different iterations. (2) Calculate the proportion of the available processing
time: Let a¼ 1 Psi2Lui, where ui= ci/pi. The
pro-portion of the available processing time for L is 1 a, while the remaining processing time is reserved for tasks in R.
(3) Find the next time instant: The formula used to derive the worst-case response time in the Audsley’s Algo-rithm is modified to rðlÞ¼ P si2Rdr ðl1Þ=p ie ci a ¼ P si2Rdr ðlÞ=p ie ci 1Psj2Luj :
The differences between the Audsley’s Algorithm and the enhanced one can be illustrated by the following example: given a task set T = {s1= (1.5, 2), s2= (1.5, 10)}, r(0)is
cal-culated byP2i¼1ci¼ 3. The next time instant r(1)determined
by the Audsley’s Algorithm would be 1.5 +d3/2e Æ 1.5 = 4.5. In the EAA, r(0)is also set as 3. By partitioning T into L = {s1} and R = {s2}, r
(1)
is derived as 1.5/a = 1.5/0.25 = 6, which is larger than the one derived by the Audsley’s Algorithm. The technical issue is how to properly partition a task set T into L and R for the EAA such that the jump in each derivation of r(l)can be maximized. Section4 discusses the impact of adopting different partition rules. 3.2. Enhanced Audsley’s algorithm (EAA)
Although the Audsley’s Algorithm has been shown to be effective in the exact schedulability analysis for task sets under rate-monotonic scheduling, the needs in reducing its runtime is demanding. This section discusses in detail the enhancement over the Audsley’s Algorithm. Listing 1 shows the pseudo-code of the EAA. Four input parameters are provided (Step 1) where P[ ], C[ ], and U[ ] are arrays used to store the periods, the maximum computation times, and the corresponding utilizations of tasks in the task set, and TaskNo records the number of tasks in the task set. The EnhancedAA( ) declares six variables (Steps 2 and 3)
where NextTimeInstant is used to keep the next time instant r(l) in the lth iteration; tmpNextTimeInstant and oldNextTimeInstant are temporal space for the possible r(l) and the derived r(l1), respectively; diffJmp assists in exclusively partitioning the task set into two subsets, and M and UL are auxiliary for deriving r(l).
Listing 1: pseudo-code of the EAA
1 int EnhancedAA(float P[ ], float C[ ], float U[ ], int TaskNo){
2 float NextTimeInstant= 0, tmpNextTimeInstant, oldNextTimeInstant, diffJmp;
3 float M, UL;
4
5 for (int i= 0; i < TaskNo; i++) {
6 NextTimeInstant= NextTimeInstant + C[i];
7 } 8 diffJmp= NextTimeInstant; 9 do{ 10 M= UL = 0; 11 oldNextTimeInstant= NextTimeInstant; 12
13 for (i= 0; i < TaskNo; i++) {
14 if (ceil(oldNextTimeInstant/P[i])*P[i]< 15 oldNextTimeInstant+ Ratio*diffJmp) { 16 UL+ = U[i]; 17 } else { 18 M+ = (ceil(oldNextTimeInstant/ P[i])*C[i]); 19 } 20 } 21
22 tmpNextTimeInstant= (float)(M/(1.0 UL)); 23 if (tmpNextTimeInstant< = oldNextTimeInstant)
{
24 NextTimeInstant= 0;
25 for (i= 0; i < TaskNo; i++) {
26 NextTimeInstant+ = (ceil(oldNextTimeIn-stant/P[i])s*C[i]); 27 } 28 } else { 29 NextTimeInstant= tmpNextTimeInstant; 30 } 31
32 diffJmp= NextTimeInstant oldNextTimeInstant; 33 if (NextTimeInstant> P[TaskNo 1]) { 34 return UNSCHEDULABLE; 35 } 36 if (NextTimeInstant= = oldNextTimeInstant){ 37 lastResponseTime= NextTimeInstant; 38 return SCHEDULABLE; 39 }
40 } while ((NextTimeInstant ! = oldNextTimeInstant) &&
41 (NextTimeInstant< = P[TaskNo 1]));
42 }
Initially, r(0) is set as the summation of the maximum computation times of all tasks since they are released simultaneously (Steps 5–7); diffJmp keeps the difference between the previous two valid jumps, and diffJmp is set to r(0)when l = 1 (Step 8). In Steps 9–40, the EAA analyzes the schedulability of the task set by iteratively deriving the next time point to find out the worst-case response time of the task set. In the beginning of each iteration, M and UL are initialized to 0, and the previously derived r(l1) is reserved in oldNextTimeInstant (Steps 10–11). In Steps 13–20, the task set is partitioned into two subsets L and R. For each task, if the release time of its first newly arrived job, i.e.,dr(l1)/pie Æ pi, is less than the threshold, i.e., r(l1)+
Ratio Æ diffJmp, the task belongs to L; otherwise, the task belongs to R. A system defined parameter, Ratio, is a posi-tive real number ranging from 0 to 1. When Ratio is set to 0, all the tasks belong to R, and the EAA operates totally the same as the Audsley’s Algorithm. In Section4, perfor-mances with different settings of Ratio are demonstrated, and a feasible setting is suggested. The contribution of each task to r(l)is counted accordingly (Step 16 or 18).
The next time instant r(l)can then be determined (Steps 22–30). A possible next time instant is calculated (Step 22). The newly calculated time instant might be no larger than the previously derived one, i.e., r(l1), due to the task-set partition scheme (Step 23). When such situation occurs, all the tasks are put into R, and r(l)is re-calculated (Steps 24–27); otherwise, the value calculated in Step 22 is set as the next time instant (Step 29). When r(l)needs to be re-cal-culated, the EAA is penalized by an extra iteration count. After the next time instant r(l)is determined, new diffJmp for the next iteration can be set (Step 32). Finally, the schedulability of the task set is checked (Steps 33–39). If r(l)exceeds the deadline, UNSCHEDULABLE is returned. If the next time instant converges (and does not exceed the deadline), SCHEDULABLE is returned (Steps 36–39). Otherwise, a new iteration is started (Steps 40 and 41).
The effectiveness and efficiency of the EAA are illus-trated by two examples. Example 1 demonstrates the details of the EAA. Example 2 reveals how the EAA can achieve a large improvement in the number of iterations. Example 1. Given a task set T3= {s1= (2, 4), s2= (1, 5),
s3= (3.3, 15)}, the schedulability of T3is analyzed by the
EAA. Suppose s1 and s2 have already been verified as
schedulable, and Ratio is set as 0.5, the operation of the EAA is as follows: Initially, r(0) is set to 6.3 ¼P3i¼1ci
. The release times of the newly arrived job for s1, s2, and s3
are 8 (=d6.3/4e Æ 4), 10 (=d6.3/5e Æ 5), and 15 (=d6.3/15e Æ 15), respectively. Since the threshold is 9.45, T3 is
partitioned into L = {s1} and R = {s2, s3}. The next time
instant r(1)= (2 + 3.3)/(1 0.5) = 10.6 is then derived accordingly. Table 1 shows the related information in deriving the worst-case response time of J3,1, in which the
third to the fifth columns indicate the release times of the newly arrived job for s1, s2, and s3, respectively. Note that
tasks into R, and the EAA is penalized by an extra iteration count. When a termination condition, i.e., r(5)= r(6), is satisfied, the derivation of the worst-case response time for J3,1is accomplished. Since the worst-case response time of
J3,1is less than its corresponding deadline, T3is reported as
‘‘schedulable’’.
The efficiency of the EAA (compared with the Audsley’s Algorithm) can be illustrated by an example in flash-memory storage systems. Flash-memory technology is becoming crit-ical in building embedded systems applications because of its shock-resistant, power economic, and nonvolatile nature. Since flash memory is a write-once and bulk-erase medium, a garbage-collection mechanism is required to provide appli-cations a transparent storage service. For a time-critical sys-tem, such as manufacturing systems, it is highly important to predict the number of free pages reclaimed after each block recycling so that the system will never be blocked for an unpredictable duration of time because of garbage collec-tion. InChang et al. (2004), a garbage-collection mechanism is modelled as a periodic task to provide a guaranteed perfor-mance for hard real-time systems. Note that the period of such task is much larger compared with read/write tasks. Example 2. For a flash-memory storage system applied in database accesses, suppose its write task and read task can be modelled as s1= (1.6, 2) and s2= (0.76, 4), and the
garbage-collection mechanism is modelled as a periodic task s3= (3, 301) as well. The schedulability of such task
set T3= {s1= (1.6, 2), s2= (0.76, 4), s3= (3, 301)} is
ana-lyzed. To be focused, assume s1and s2have been verified as
schedulable. Under the EAA, the derivation of the worst-case response time for J3,1is as follows: initially, r(0)is set
to 5.36 ¼P3i¼1ci
. By partitioning T3 into L = {s1, s2}
and R = {s3}, r(1)= 3/(1 0.99) = 300 is obtained. Since
r(2), which is derived as 0 by partitioning T3into L = {s1,
s2,s3} and R =;, is less than r (1)
, it is re-calculated by putting all the tasks into R, and the EAA is penalized by an extra iteration count. Finally, by partitioning L = ; and R = {s1, s2, s3}, r(4)is equal to 300. Now that r(3)is equal to
r(4)and the worst-case response time of J3,1is less than its
corresponding deadline, the termination condition is met and the task set T3 is reported as ‘‘schedulable’’. The
schedulability analysis for s3under the EAA is finished in
four iterations. On the other hand, when the Audsley’s Algorithm is applied, the number of required iterations increases dramatically to 117.
3.3. Properties
This section explores the properties of the EAA from a theoretical perspective. The correctness of the EAA is proved byLemmas 1, 2, andTheorem 1. It is of paramount importance that the extra overhead introduced by the EAA should not be large.Theorem 2demonstrates that the time complexity in each iteration is O(n).
Lemma 1. For every time instant r(l) derived by the EAA during the lth iteration, the time interval (0, r(l)) has no idle time.
Proof. This lemma will be proved by induction.
Induction basis. For l = 0, rð0Þ¼Pni¼1ci. It is obvious that no idle time exists inð0;Pni¼1cjÞ because the first job of each task si, for i = 1 to n, is ready for execution at time 0.
Induction hypothesis.Assume that the lemma is true for the time instant r(k); that is, no idle time exists in the time interval (0, r(k)). It needs to be proved that the lemma is also true for the time instant r(k+1).
Induction step. The induction step is proved by a contradiction. Suppose that an idle time occurred in (r(k),
r(k+1)). Since there is no idle time before the worst-case
response time derived by the Audsley’s Algorithm (denoted by t), t must be the first idle time in (r(k), r(k+1)), i.e., r(k)6t < r(k+1). Without loss of generality, let r(k)= t e, where e P 0. According to the EAA, r(k+1) is derived by P sj2Rdðt eÞ=pje cj= 1 P si2Lui . Because r(k+1)> t, the following inequalities can be derived:
P sj2Rdt=pje cj 1Psi2Lui P P sj2Rdðt eÞ=pje cj 1Psi2Lui > t X sj2R dt=pje cjþ t X si2L ui> t X sj2R dt=pje cjþ X si2L ðt=piÞ ci> t ð1Þ
On the other hand, since t is the worst-case response time of Jn,1 derived by the Audsley’s Algorithm, the following
equation can be obtained: X sk2Tn dt=pke ck ¼ X sj2R dt=pje cjþ X si2L dt=pie ci¼ t ð2Þ
Based on(1) and (2), the following inequality is derived: t ¼Psj2Rdt=pje cjþ P si2Ldt=pie ci P P sj2Rdt=pje cjþ Table 1
The related information in deriving the worst-case response time of J3,1
Threshold s1 s2 s3 L R r(l)
l = 1 6.3 + 6.3 Æ 0.5 = 9.45 8 10 15 {s1} {s2, s3} 10.6
l = 2 10.6 + (10.6 6.3) Æ 0.5 = 12.75 12 15 15 {s1} {s2, s3} 12.6
l = 3 12.6 + (12.6 10.6) Æ 0.5 = 13.6 16 15 15 ; {s1, s2, s3} 14.3
l = 4 14.3 + (14.3 12.6) Æ 0.5 = 15.15 16 15 15 {s2, s3} {s1} 13.79
l = 5 N/A N/A N/A N/A ; {s1, s2, s3} 14.3
P
si2Lðt=piÞ ci> t, which is a contradiction. Thus, it can be
concluded that no idle time occurs in (r(k), r(k+1)).
According to the induction step, the induction is completed, and hence the lemma is proved. h
Lemma 2. When the EAA reports that the task snis
‘‘sched-ulable’’, snis indeed schedulable.
Proof. The lemma is proved by a contradiction. Let r(l)be the derived time instant when the EAA reports ‘‘schedula-ble’’ in the lth iteration, but there is no idle time in the time interval (r(l), r(l)+) in the RM schedule. (Here r(l)+ means some time instant later than r(l).) According to the EAA, the variable diffJmp approaches 0. When the value of diff-Jmp is sufficiently small, the EAA will eventually put all the tasks into R and leave L empty. As a result, the inequality
rðlþ1Þ¼P sj2Rðdr ðlÞ=p je cjÞ ¼ P sj2ðs1;...;snÞðdr ðlÞ=p je cjÞ > rðlÞ
is obtained, which means at least one new job of some task is ready at time r(l). Therefore, if the while-loop in the EAA executes one more time, a new time point that is larger than or equal to r(l)+is obtained. This is a contradiction to the ‘‘schedulable’’ termination condition of the EAA. h Theorem 1. Assume Tn1is schedulable. Tnis schedulable if
and only if the EAA reports Tnas ‘‘schedulable’’.
Proof. ()) If Tnis schedulable, there would be an idle time
in the time interval (0, pn). According to Lemma 2, the
EAA will terminate and report ‘‘schedulable’’.
(() If Tnis unschedulable, there would be no idle time
in the time interval (0, pn). According to Lemma 2, the
EAA cannot find an idle time. That is, the time instant will keep increasing until exceeding pn, and the EAA will report
Tnas ‘‘unschedulable’’. h
Theorem 2. The EAA requires O(n) time to find the next time instant r(l).
Proof. There are two parts for executing each iteration in the EAA: (1) For each task in Tn, the EAA takes constant
time in determining to which subset (L or R) the task belongs. Since there are n tasks in Tn, it takes O(n) time
for the EAA to partition all tasks into L and R. (2) In the lth iteration, the EAA takes O(n) time to calculate r(l) according to the partition result in (1). Based on the above, the EAA has O(n) time complexity in each iteration. h
4. Performance evaluation
4.1. Metrics, experimental setup, and data sets
This section assesses the proposed idea (i.e., the EAA) in relation to runtime speedup. The EAA is compared with another related exact schedulability analysis algorithms, i.e., the Audsley’s Algorithm (Audsley et al., 1993). Both are then modified by the Initial Value Improvement
method proposed inBril et al. (2003). These two compari-sons are made in terms of the runtime overhead and the number of required iterations needed for each algorithm, where each iteration derives r(l)based on the result of r(l1). The primary performance metric is the Runtime Ratio of the algorithms. Let x be the runtime for the EAA, and let y be the runtime for the Audsley’s Algorithm. Both sim-ulations are running schedulability analyses for 10,000 task sets. The Runtime Ratio on runtime is defined as follows: x/y. The Iteration Ratio on the number of required itera-tions is defined in a similar way. The comparison is repeated by modifying both algorithms by the Initial Value Improvement method proposed inBril et al. (2003).
The task sets for performance evaluation were generated based on benchmarks and systems reported inMolini et al. (1990), Kamenoff and Weiderman (1991), Locke et al.
(1991), Kim et al. (1996). A random number generator was
adopted to generate task sets: the number of tasks per task set was randomly chosen between 10 and 30. The number of fundamental frequencies was a real number within a range [1/4, 1] multiplied by the number of tasks in the task set. Since a task set with a utilization factor of no more than 69% would be schedulable according to the Liu and Layland bound (Liu and Layland, 1973), the data sets for the exper-iments were generated with a utilization factor between 75% and 100%. The experiments started with each task set with a utilization factor equal to 75%, and were repeated for sets with the utilization factor increasing in increments of 5% until 100% is reached. The utilization factor of each task was no more than 20% of the total utilization factor of its task set. Each task was assigned fundamental frequencies randomly, where the possibility of assigning i fundamental frequencies to a task was (1/2)i1. The period of each task was derived by the multiplication of each of its assigned fun-damental frequencies. A total of 10,000 task sets were tested for each utilization factor.
4.2. Experimental results
Each exact schedulability analysis algorithm was evalu-ated experimentally in the same way. The schedulability of each task in a task set was verified in a non-increasing order of task priority. The sufficient but not necessary anal-ysis proposed byLiu and Layland (1973)was applied first to verify the schedulability of tasks until some task failed the verification. If the ith task failed the verification, the schedulability of all the remaining tasks (with an index of no less than i) were verified by exact schedulability analysis algorithms in the experiments. Table 2shows the average percentage of tasks in a task set being verified by exact schedulability analysis algorithms in the experiments. 4.2.1. EAA compared with the Audsley’s algorithm
Fig. 1demonstrates the iteration overheads for the EAA
against the Audsley’s Algorithm. The performance differ-ences of the EAA under different settings of the Ratio (as indicated in the legend) are also illustrated. As mentioned
in Section 3, different settings of Ratio result in different task-set partitions, from which the value of r(l) derived in the lth iteration varies. As shown inFig. 1, a lower Itera-tion Ratio over the number of required iteraItera-tions was achieved when the utilization factor of a task set was large. This is because the EAA tends to jump farther in such cases, compared with the Audsley’s Algorithm. The simula-tion result shows that the performance improvement of the Iteration Ratio is maximized when the value of Ratio in the EAA was set to 0.2. The mean and standard derivation of the number of iterations for the Audsley’s Algorithm and the EAA (with Ratio = 0.2) are shown inTable 3.

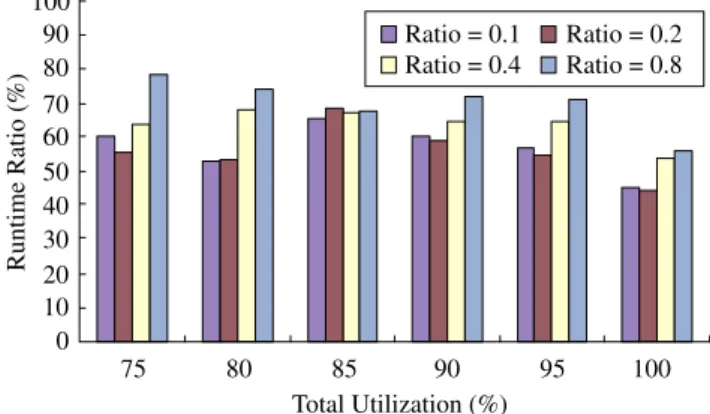

Fig. 2shows the Runtime Ratio for the EAA against the
Audsley’s Algorithm in terms of the runtime needed for each algorithm. The measuring of runtime for each algo-rithm was done by taking advantage of an Intel supported instruction RDTSC, which can measure runtime in the unit of CPU cycles (Intel, 1997). The EAA produces up to a 55.5% saving in the runtime overhead for the Audsley’s Algorithm when the system was in a heavy load. (The Run-time Ratio for the EAA against the Audsley’s Algorithm ranged from 44.5% to 68% when the value of Ratio in
the EAA was set to 0.2.)Table 4shows the mean and stan-dard derivation of the runtime for the Audsley’s Algorithm and the EAA (with Ratio = 0.2). Note that the unit of run-time was a CPU cycle.
Based on Figs. 1 and 2, the EAA would significantly outperform the Audsley’s Algorithm when the value of Ratio in the EAA was small, e.g., 0.2.Table 5 shows the performance of the EAA. Among 10,000 Task Sets, the EAA (with Ratio = 0.2) outperformed the Audsley’s Algo-rithm in most cases for both the number of iterations and the runtime.
4.2.2. Initial value improvement
InBril et al. (2003), Bril et al. modified the initial setup
for the Audsley’s Algorithm to jump-start the analysis pro-cess: r(0) is set to max ci= 1Pi1j¼1uj
; rn1þ ci
, in which rn1 is the previously derived worst-case response
time for Jn1,1. To complete the study of this paper, the
idea inBril et al. (2003) is adopted in both the Audsley’s Algorithm and the EAA. With the initial value improve-ment,Fig. 3 demonstrates the iteration overheads for the EAA against the Audsley’s Algorithm. The simulation result shows that the performance improvement of the Iter-ation Ratio is better when the value of Ratio set in the EAA was small. The mean and standard derivation of the number of iterations with initial value improvement for both the Audsley’s Algorithm and the EAA (with Ratio = 0.2) are shown inTable 6.
With the initial value improvement, Fig. 4 shows the Runtime Ratio for the EAA against the Audsley’s Algo-rithm in terms of the runtime needed for each algoAlgo-rithm. Table 2
The average percentage of tasks in a task set remaining to be verified Utilization factor of task set
75% 80% 85% 90% 95% 100% Average percentage 14.42% 18.30% 21.59% 25.05% 28.36% 31.68% 0 10 20 30 40 50 60 70 80 90 100 75 80 85 90 95 100 Total Utilization (%) Iteration Ratio (%) Ratio = 0.4 Ratio = 0.1 Ratio = 0.8 Ratio = 0.2
Fig. 1. Comparison in the iteration ratio.
Table 3
The mean and standard deviation of the number of iterations for the Audsley’s Algorithm and the EAA (with Ratio = 0.2) Utilization factor of task set
75% 80% 85% 90% 95% 100%
Audsley’s Algorithm Mean 48.66320 63.37820 79.31720 98.97070 125.86380 137.11110
Standard deviation 36.93568 34.94621 36.58553 39.43057 48.06183 58.91121 EAA Mean 32.34480 39.84970 47.59280 56.10830 65.90040 64.44790 Standard deviation 26.94133 24.46076 24.13280 24.00492 26.17973 28.21729 Ratio = 0.4 Ratio = 0.1 Ratio = 0.8 Ratio = 0.2 0 10 20 30 40 50 60 70 80 90 100 Runtime Ratio (%) 75 80 85 90 95 100 Total Utilization (%)
According to the simulation results, the EAA with Initial Value Improvement can speed up the schedulability analy-sis significantly. For instance, the Runtime Ratio for the EAA against the Audsley’s Algorithm ranged from 59% to 66% when the value of Ratio in the EAA was set to 0.2. In other words, the EAA produces up to a 41% saving in the runtime overhead for the Audsley’s Algorithm when the system was in a heavy load.Table 7 shows the mean
and standard derivation of the runtime with initial value improvement for both the Audsley’s Algorithm and the EAA (with Ratio = 0.2). Note that the unit of runtime was a CPU cycle.
Table 8 shows the performance of the EAA when
both algorithms were enhanced by the initial value improvement. Among 10,000 Task Sets, the EAA (with Table 4
The mean and standard deviation of runtime (in CPU cycles) of the Audsley’s Algorithm and the EAA (with Ratio = 0.2) Utilization factor of task set
75% 80% 85% 90% 95% 100%
Audsley’s Algorithm Mean 344,752.69 425,897.81 524,472.73 644,888.71 814,831.38 879,427.18
Standard deviation 350,480.30 341,917.86 400,578.73 456,076.75 528,122.48 590,828.24
EAA Mean 222,747.47 259,801.81 303,035.39 348,551.87 406,775.73 394,669.40
Standard deviation 247,988.65 232,609.10 241,294.58 236,444.57 289,069.98 303,109.62
Table 6
The mean and standard deviation of the number of iterations with initial value improvement for both the Audsley’s Algorithm and the EAA (with Ratio = 0.2)
Utilization factor of task set
75% 80% 85% 90% 95% 100%
Audsley’s Algorithm Mean 40.16420 51.14560 62.59170 75.95960 92.68770 83.94700
Standard deviation 32.31783 30.99649 32.56320 35.02468 41.76408 43.51630
EAA Mean 31.46770 38.33050 45.44290 53.05790 61.60840 58.41560
Standard deviation 26.84397 24.31287 23.84215 23.56130 25.32597 26.61234
Table 5
The efficiency of the EAA (with Ratio = 0.2)
Utilization factor of task set
75% 80% 85% 90% 95% 100%
Iteration EAA is better 9993 10,000 10,000 9999 10,000 9998
Equal 7 0 0 0 0 2
EAA is worse 0 0 0 1 0 0
Runtime EAA is better 9964 9986 9993 9991 9993 9982
EAA is worse 36 14 7 9 7 18 0 10 20 30 40 50 60 70 80 90 100 Runtime Ratio (%) 75 80 85 90 95 100 Total Utilization (%) Ratio = 0.4 Ratio = 0.1 Ratio = 0.8 Ratio = 0.2
Fig. 4. Comparison in the runtime ratio with initial value improvement for both algorithms.
0 10 20 30 40 50 60 70 80 90 100 Iteration Ratio (%) Ratio = 0.4
Ratio = 0.1 Ratio = 0.2 Ratio = 0.8
75 80 85 90 95 100
Total Utilization (%)
Fig. 3. Comparison in the iteration ratio with initial value improvement for both algorithms.
Ratio = 0.2) outperformed the Audsley’s Algorithm in most cases in terms of the number of iterations and the runtime.
5. Conclusion and future work
The goal of this research is to improve the performance of the exact schedulability analysis, the Audsley’s Algo-rithm. The basic idea is to create a larger jump in the der-ivation of each subsequent time instant r(l), such that the runtime overhead required by the Audsley’s Algorithm can be much reduced. By properly partitioning a task set into two subsets, L and R, and differently treating tasks in L and R during each iteration, the number of iterations required for analyzing the schedulability of the task set can be reduced. The time complexity of the proposed algorithm in each iteration has been proved to be O(n). Although the proposed algorithm does introduce additional cost in the partitioning of tasks in each iteration and some temporary storage in the partitioning procedure. The extra temporary storage only costs few more variables. The capability of the proposed algorithm was evaluated and compared to the related work (Audsley et al., 1993; Bril et al., 2003), which revealed up to a 55.5% saving (Fig. 2 with Total Utiliza-tion = 100% and Ratio = 0.2) in the runtime overhead for the Audsley’s Algorithm when the system was in a heavy load. A minimum saving of 21.7% is provided
(Fig. 2 with Total Utilization = 75% and Ratio = 0.8).
Furthermore, EAA produces a maximum saving in itera-tions of 50.7% (Fig. 1with Total Utilization = 100% and Ratio = 0.2) and a minimum saving in iterations of 6.1%
(Fig. 3with Total Utilization = 75% and Ratio = 0.8).
For the future work, the EAA will be modified to be capable of handling more general task models, e.g., allow-ing resource accesses among tasks. For analyzallow-ing the schedulability of a task set with synchronization
require-ments, the blocking time produced by priority inversion must be taken into consideration. The EAA will also be extended to the multiframe task model (Mok and Chen, 1996), in which the computation requirements of tasks in consecutive periods are modelled as regular patterns. References
Audsley, N.C., Burns, A., Richardson, M., Wellings, A. 1991. Hard real-time scheduling: the deadline-monotonic approach. In: Proceedings of the 8th IEEE Workshop on Real-Time Operating Systems and Software, May, pp. 133–137.
Audsley, N.C., Burns, A., Richardson, M., Tindell, K., Wellings, A., 1993. Applying new scheduling theory to static priority preemptive sched-uling. Software Engineering Journal 8 (5), 284–292.
Bini, E., Buttazzo, G.C., 2002. The space of rate monotonic schedulability. In: Proceedings of the 23rd IEEE Symposium on Real-Time Systems, December, pp. 169–178.
Bini, E., Buttazzo, G.C., Buttazzo, G., 2001. A hyperbolic bound for the rate monotonic algorithm. In: Proceedings of the 13th IEEE Euromi-cro Conference on Real-Time Systems, June, pp. 59–66.
Bril, R.J., Verhaegh, W.F.J., Pol, E.J.D., 2003. Initial values for on-line response time calculations. In: Proceedings of the 15th IEEE Euro-micro Conference on Real-Time Systems, July, pp. 13–22.
Chang, L.P., Kuo, T.W., Lo, S.W., 2004. Real-time garbage collection for flash memory storage systems of real-time embedded systems. ACM Transactions on Embedded Computing Systems (TECS) 3 (4), 837–863. Cheng, A.M.K., Rao, S., 2003. Real-time traffic scheduling and routing in packet-switched networks using a least-laxity-first strategy. Journal of VLSI Signal Processing.
Han, C.C., Tyan, H.Y., 1997. A better polynomial-time schedulability test for real-time fixed priority scheduling algorithms. In: Proceedings of the 18th IEEE Symposium on Real-Time Systems, pp. 36–45. Intel, 1997. Using the RDTSC Instruction for Performance Monitoring.
Available from:<http://developer.intel.com/drg/pentiumII/appnotes/ RDTSCPM1.htm>.
Kuo, T.W., Lee, S.L., Lin, Y.S., Liu, Y.H., 1997. Providing video-on-demand services on Windows NT. In: Proceedings of International Symposium on Multimedia Information Processing.
Kim, N., Ryu, M., Hong, S., Saksena, M., Choi, C.H., Shin, H., 1996. Visual assessment of a real-time system design: a case study on a CNC Table 7
The mean and standard deviation of runtime (CPU cycles) with initial value improvement for both the Audsley’s Algorithm and the EAA (with Ratio = 0.2)
Utilization factor of task set
75% 80% 85% 90% 95% 100%
Audsley’s Algorithm Mean 308,952.03 367,796.10 439,015.05 520,728.33 632,235.65 562,065.80
Standard deviation 407,847.57 321,222.50 342,499.34 369,328.82 460,239.15 454,742.28
EAA Mean 215,636.46 250,299.74 287,133.03 328,916.27 374,175.44 349,675.45
Standard deviation 245,590.66 288,908.25 232,272.77 273,497.80 250,466.09 275,220.50
Table 8
The efficiency of the EAA (with Ratio = 0.2) with initial value improvement for both algorithms Utilization factor of task set
75% 80% 85% 90% 95% 100%
Iteration EAA is better 9283 9640 9803 9873 9923 9651
Equal 381 197 95 56 25 121
EAA is worse 336 163 102 71 52 228
Runtime EAA is better 9899 9962 9979 9981 9982 9945
controller. In: Proceedings of the 17th IEEE Symposium on Real-Time Systems, pp. 300–310.
Kamenoff, N.I., Weiderman, N.H., 1991. Hartstone distributed bench-mark: requirements and definitions. Proceedings of the IEEE Sympo-sium on Real-Time Systems, 199–209.
Liu, C.L., Layland, J.W., 1973. Scheduling algorithms for multiprogram-ming in a hard-real-time environment. Journal of the ACM 20 (1), 46–61.
Lehoczky, J.P., Sha, L., Ding, Y., 1989. The rate monotonic scheduling algorithms: exact characterization and average behavior. In: Proceed-ings of the 10th IEEE Symposium on Real-Time Systems, December, pp. 166–171.
Locke, C.D., Vogel, D.R., Mesler, T.J., 1991. Building a predictable avionics platform in Ada: a case study. In: Proceedings of the 12th IEEE Symposium on Real-Time Systems, December, pp. 181–189. Mok, A.K., Chen, D., 1996. A multiframe model for real-time tasks. In:
IEEE 17th Real-Time Systems Symposium, December, pp. 22–29. Miller, L., Cheng, A.M.K., 2000. Admission of high priority real-time
calls in an ATM network via bandwidth reallocation and dynamic rerouting of active channels. In: Proceedings of the 21st IEEE Real-Time Systems Symposium.
Molini, J.J., Maimon, S.K., Watson, P.H., 1990. Real-time system scenarios. In: Proceedings of the 12th IEEE Symposium on Real-Time Systems, December, pp. 214–225.
Pop, P., Eles, P., Peng, Z., 2000. Bus access optimization for distributed embedded systems based on schedulability analysis. DATE.
Pop, P., Eles, P., Peng, Z., 2004. Schedulability-driven communication synthesis for time triggered embedded systems. Real-Time Systems 6 (3), 297–325.
Richter, K., Racu, R., Ernst, R., 2003. Scheduling analysis integration for heterogeneous multiprocessor SoC. In: Proceedings of the 24th IEEE International Real-Time Systems Symposium.
Rao, S., Cheng, A.M.K., 2000. Scheduling and Routing of Real-Time Multimedia Traffic in Packet-Switched Networks. In: Proceedings of the IEEE International Conference on Multimedia and Expo. Vin, H.M., Goyal, P., Goyal, A., 1994. A statistical admission control
algorithms for multimedia servers. In: Proceedings of the ACM International Conference on Multimedia.
Wong, C., Cheng, A.M.K., 1997. An Approach for imprecise transmission of TIFF image files through congested real-time ATM networks. In: Proceedings of the 22nd International Conference on Local Computer Networks.
