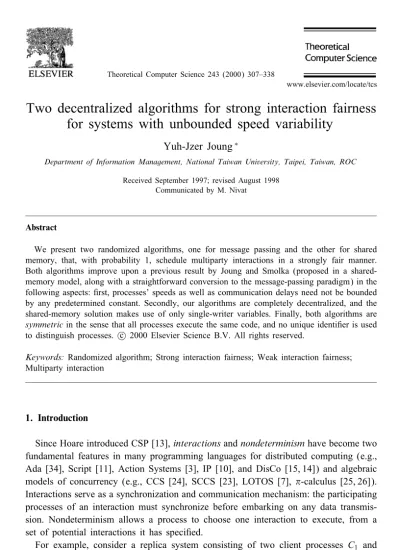

Two decentralized algorithms for strong interaction fairness
for systems with unbounded speed variability
Yuh-Jzer Joung
∗Department of Information Management, National Taiwan University, Taipei, Taiwan, ROC Received September 1997; revised August 1998
Communicated by M. Nivat
Abstract
We present two randomized algorithms, one for message passing and the other for shared memory, that, with probability 1, schedule multiparty interactions in a strongly fair manner. Both algorithms improve upon a previous result by Joung and Smolka (proposed in a shared-memory model, along with a straightforward conversion to the message-passing paradigm) in the following aspects: rst, processes’ speeds as well as communication delays need not be bounded by any predetermined constant. Secondly, our algorithms are completely decentralized, and the shared-memory solution makes use of only single-writer variables. Finally, both algorithms are symmetric in the sense that all processes execute the same code, and no unique identi er is used to distinguish processes. c 2000 Elsevier Science B.V. All rights reserved.
Keywords: Randomized algorithm; Strong interaction fairness; Weak interaction fairness; Multiparty interaction
1. Introduction
Since Hoare introduced CSP [13], interactions and nondeterminism have become two fundamental features in many programming languages for distributed computing (e.g., Ada [34], Script [11], Action Systems [3], IP [10], and DisCo [15, 14]) and algebraic models of concurrency (e.g., CCS [24], SCCS [23], LOTOS [7], -calculus [25, 26]). Interactions serve as a synchronization and communication mechanism: the participating processes of an interaction must synchronize before embarking on any data transmis-sion. Nondeterminism allows a process to choose one interaction to execute, from a set of potential interactions it has speci ed.
For example, consider a replica system consisting of two client processes C1 and
C2, and two replica managers M1 and M2. The two clients C1 and C2 interact with
∗E-mail address: [email protected] (Y. Joung).
0304-3975/00/$ - see front matter c 2000 Elsevier Science B.V. All rights reserved.
Fig. 1. A replica system.
the managers M1 and M2 respectively to access the database. Moreover, from time to
time the two managers interact with each other to update their replica data (Fig. 1). The system can be described by the following program written in CSP’s style except that input=output commands are now replaced by interactions (where i = 1; 2):
Ci:: ∗ [ accessi → local-computing; ]
Mi:: ∗ [ accessi → local-computing;
gossip → local-computing; ]
In the program accessi designates the interaction between Ci and Mi, and gossip
desig-nates the interaction between M1 and M2. Like CSP’s input=output guards, interactions
can also serve as guards in an alternative=repetitive command, and an interaction guard can be executed only if its participating processes are all ready for the interaction. So the replica manager M1 can either establish an interaction with its client C1, or an
interaction with its peer M2; and if both targets are ready, then the choice is
nondeter-ministic. Interactions and nondeterminism therefore provide a higher level of abstraction by hiding execution-dependent synchronization activities into the implementation level. Note that, although like CSP and Ada, each interaction in the above example involves only two processes, interactions can also be multipartied, allowing an arbitrary number of processes to establish an interaction. Multiparty interactions provide a higher level of abstraction than biparty interactions as they allow interactions in some applications to be naturally represented as an atomic unit. For example, the natural unit of process interactions in the famous Dining Philosophers problem involves a philosopher and its neighboring chopsticks, i.e., a three-party interaction. More examples can be found in [10], and a taxonomy of programming languages o ering linguistic support for multiparty interaction is presented by Joung and Smolka [18].
Intuitively, since a process may be ready for more than one interaction at a time, the implementation of interaction guards must guarantee a certain level of fairness to avoid a prejudicial scheduling that favors a particular process or interaction. For example, the notion of weak interaction fairness (WIF) is usually imposed to ensure that an interaction that is continuously enabled will eventually be executed. (An interaction is enabled if its participants are all ready for the interaction, and is disabled otherwise.) To illustrate, the following execution of the above replica program does not satisfy WIF, as interaction access2 is continuously enabled forever but is never executed (note
that, in the program, when a process is ready for interaction, it is ready to execute any interaction of which it is a member):
All four processes are ready for interaction initially, and then the following scenario is repeated forever:
• C1 and M1 establish access1;
• C1 and M1 exit access1 and then respectively become ready again.
WIF has been widely implemented in CSP-like biparty interactions [8, 31, 29, 5, 33], as well as in the multiparty case [28, 4, 27, 20, 17].
Although WIF can ensure some form of liveness, it is sometimes too weak to be useful. For example, consider another execution of the replica program:
All four processes are ready for interaction initially, and then the following scenario is repeated forever:
• C1 and M1 establish access1;
• C2 and M2 establish access2;
• the four processes respectively leave their interactions and become ready again.
The computation satis es WIF because no interaction is continuously enabled forever. (Recall that an enabled interaction becomes disabled when some of its participants executes an interaction.) However, in the computation the two replica managers never establish an interaction, regardless of the in nitely many opportunities they have.
On the other hand, the above execution can be prevented if the implementation were to satisfy strong interaction fairness (SIF), meaning that an interaction that is in nitely often enabled is executed in nitely often. SIF is much stronger than most known fairness notions (including WIF) [2], and therefore induces more liveness properties. Unfortunately, given that (1) a process decides autonomously when it will be ready for interaction, and (2) a process’s readiness for interaction can be known by another only through communications, and the time it takes two processes to communicate is nonnegligible, SIF cannot be implemented by any deterministic algorithm [32, 16]. Note that, the impossibility result holds as well even if interactions are strictly bipartied.
To cope with the impossibility phenomenon, Joung and Smolka [19] propose a ran-domized algorithm for scheduling multiparty interactions that guarantees SIF with prob-ability 1. That is, if an interaction is enabled in nitely often, then the probprob-ability is 1 that it will be executed in nitely often. The algorithm is an extension of Francez and Rodeh’s randomized algorithm [12] for CSP-like biparty interactions to the multiparty case. Both algorithms use a very basic idea – “attempt, wait, and check” – to establish interactions. That is, when a process is ready for interaction, it rst “attempts” to es-tablish an interaction by accessing some shared variables, and then “waits” for some time before it “checks” if its partners are likewise willing to establish the interaction.1
Francez and Rodeh were able to claim only weak interaction fairness, and only under 1A similar concept is used by Reif and Spirakis [30], albeit the -parameter in their randomized
algo-rithm is more deliberately calculated to meet the real-time response requirement. Like Francez and Rodeh’s algorithm, however, Reif and Spirakis’s algorithm is proposed only for biparty interactions, and guarantees WIF with probability 1.
the limiting assumption that the time it takes to access a shared variable (i.e., the communication delay) is negligible compared to . Joung and Smolka remove the negligible delay assumption, but they require the delay be bounded by some constant max so that can then be appropriately determined.2 The algorithm therefore does not
work for systems where such a bound cannot be known in advance. Moreover, given that the algorithm’s time complexity is in linear proportion to , the performance may be signi cantly decreased if the average communication delay is much less than the upper bound max.
Moreover, like Francez and Rodeh’s algorithm, Joung and Smolka’s algorithm is presented in a shared-memory model where processes communicate by reading from and writing to shared variables. They also have to use a multi-writer variable (meaning that a shared variable can be read and written by more than one process) for each interaction in order to resolve the mutual exclusion and concurrency problem between the participating processes of the interaction. While it is true that multi-writer variables can be implemented from single-writer variables (where a single-writer variable allows only one process to write),3 some extra cost in eciency would be required in the
conversion.
The main contributions of this paper are two randomized algorithms for the inter-action scheduling problem, one for message passing and the other for shared memory. Like Joung and Smolka’s algorithm, our algorithms are presented for a multiparty setting, and use the concept of “attempt, wait, and check” to establish interactions. However, we do not assume any predetermined bound on the length of each process step, where a step is a non-zero nite time interval in which a single instruction is instantaneously executed at the last moment of the interval. (A process’s speed is a measure of the process’s steps such that the slower the speed, the more the time it takes to execute a step.) Rather, a process’s parameter is dynamically adjusted according to other processes’ speeds. Therefore, the system’s performance is determined by the actual speeds of the processes, not by a worst-case scenario of the system. We show that our algorithm guarantees SIF with probability 1, so long as the following two con-ditions are satis ed: (A1) processes are not hanging (a process is hanging if it stops executing its instructions, or there exist an in nite sequence of steps of the process with monotonically increasing length),4 and (A2) a process’s transition to a state ready for
interaction does not depend on the random choices performed by other processes. Note that, the no-hanging assumption implies that the length of each process’s step will even-tually be bounded throughout an in nite computation of the system. However, unlike Joung and Smolka’s algorithm, this bound may vary from computations to computations and, therefore, no xed bound is assumed for all possible computations of the system. 2As noted by Joung and Smolka [19], the impossibility result for SIF holds as well even if the
commu-nication delay is bounded by some constant.
3For references on the related issues, see the book Distributed Algorithms by Lynch [22].
4A similar showdown situation has been addressed by Afek et al. [1] in solving the sequence transmission
Our algorithms are completely decentralized, meaning that no coordinating process is used in either of them. In particular, for the shared-memory algorithm, only single-writer variables have been used, as opposed to Joung and Smolka’s algorithm for which a multi-writer variable has to be associated with each interaction. Our algorithms are also symmetric in the sense that all processes execute the same code, and no unique identi ers are used to distinguish processes. Symmetry is particular useful if we are to extend the algorithms to an environment where processes can be dynamically created and destroyed. Joung and Smolka have also described how to convert their algorithm into a message-passing paradigm. However, this conversion would also turn the algorithm into asymmetric because some processes are distinguished from the others to maintain the multi-writer variables they have used in their algorithm.
To help understand our algorithms, we have chosen to present the message-passing solution rst. The algorithm is simpler because a communication imposes a causal ordering between the initiator (usually the information provider) and its target (the information recipient), and the send and receive commands in the message-passing paradigm implicitly assumes this causal ordering in their executions. By contrast, a more sophisticated technique is required in a completely decentralized shared-memory model to ensure that two asynchronous processes engaged in a communication are appropriately synchronized so that the information provider will not overwrite the in-formation before the other process has observed the content. Both algorithms share the same idea in the dynamic adjustment of the -parameter.
The rest of the paper is organized as follows. Section 2 presents the multiparty inter-action scheduling problem. The message-passing solution is presented in Section 3, and the shared-memory solution in Section 4. Concluding remarks are o ered in Section 5. 2. The problem
We assume a xed set of sequential processes p1; : : : ; pn which interact by engaging
in multiparty interactions X1; : : : ; Xm. Each multiparty interaction Xi involves a xed
set of processes P(Xi). Initially, each process in the system is in its local computing
phase which does not involve any interaction with other processes. From time to time, a process becomes ready for a set of potential interactions of which it is a member. After executing any one of the potential interactions the process returns to its local computing phase.
Assume that a process starting an interaction will not complete the interaction until all other participants have started the interaction. Assume further that a process will eventually complete an interaction if all other participants have started the interaction. The multiparty interaction scheduling problem is to devise an algorithm to schedule interactions satisfying the following requirements:
Synchronization: If a process pi starts X , then all other processes in P(X ) will
eventually start X . Note that by the above two assumptions that a process will not complete an interaction until all other participants have started the interaction, and that
a process will eventually complete an interaction if all other participants have started the interaction, the synchronization requirement implies that when a process starts X , all participants of X will eventually complete an instance of X .
Exclusion: No two interactions can be in execution simultaneously if they have a common member. An interaction X is in execution if every process in P(X ) has started X , but none of them has yet completed its execution of X .
Strong interaction fairness: If an interaction is enabled in nitely often, then it will be executed in nitely often. (Recall that an interaction is enabled if its participants are all ready for the interaction, and becomes disabled when some of them starts an interaction.)
3. A message-passing solution 3.1. The algorithm
We now present our solution for the multiparty interaction scheduling problem in the message-passing paradigm. To help explain our algorithm, we rst present a simpli ed version of the algorithm, which satis es the synchronization and exclusion requirements of the problem, but does not satisfy strong interaction fairness unless the length of a process step is bounded by some predetermined constant. The restriction will be lifted later when we present the full version of the algorithm.
In the simpli ed version of the algorithm, each process pi is associated with a unique
token Ti. When pi is ready for interaction, it randomly chooses one interaction X from
the set of potential interactions it is willing to execute, and informs each process in P(X ) of pi’s interest in executing X . To do so, pi makes |P(X )| copies of Ti, tags
them with “X ”, and sends one copy to each participant of X (including pi itself).
When all of the recipients have acknowledged the receipt of Ti, pi waits for some
time, hoping that every other process in P(X ) will also send pi a copy of its token
tagged with “X ” in this time interval.
If for each pj∈ P(X ), pi does receive a copy of Tj, and each copy is tagged with
“X ”, then pi has successfully observed the establishment of X (because the processes
in P(X ) all agree to execute X ). Then pi changes the tags of the tokens to “success”.
When expires, pi retrieves its tokens from each pj∈ P(X ) by sending pj a message
request, and then starts X when the tokens are returned. (Note that pi will also receive
a copy of Ti tagged with “success” from itself.)
If pi does not receive copies of tokens tagged with “X ” from all processes in P(X )
before expires, then pi also retrieves its tokens by sending each pj a message
request. When the tokens are returned, pi checks if any one of them is tagged with
“success”. If so, then the process returning this token has observed the establishment of X . So pi also starts X . If none of the tokens is tagged with “success”, then pi must
give up on X , discard all duplicated copies of Ti, and return to the beginning of this
1 ∗[ ¬ready → do local computations; ready := true; 2 ready ∧ ¬commit ∧ attempt = nil →
3 randomly select an interaction X for which pi is ready;
4 attempt := X ;
5 send a copy of Ti tagged with “X ” to each pj∈ P(X );
6 wait until each pj∈ P(X ) acknowledges the receipt of the token;
7 init−ck := clock(pi); /* start timing */
8 receive Tj from pj →
9 add Tj to token−pool;
10 send an acknowledgment to pj;
11 ∀pj∈ P(attempt) : Tj∈ token−pool ∧ tag(Tj) = attempt →
12 for each such Tj, tag(Tj) := success;
13 receive request from pj →
14 remove Tj from token−pool and send it back to pj;
15 clock(pi) − init−ck¿ →/* expires */ 16 send each pj∈ P(attempt) a message request;
17 wait until each pj returns its copy of Ti;
18 if any returned Ti is tagged with success
19 then commit := true;
20 else attempt := nil;
21 delete the returned tokens; 22 init−ck := ∞; 23 commit → 24 execute attempt; 25 attempt := nil; 26 commit := false; 27 ready := false; 28 ]

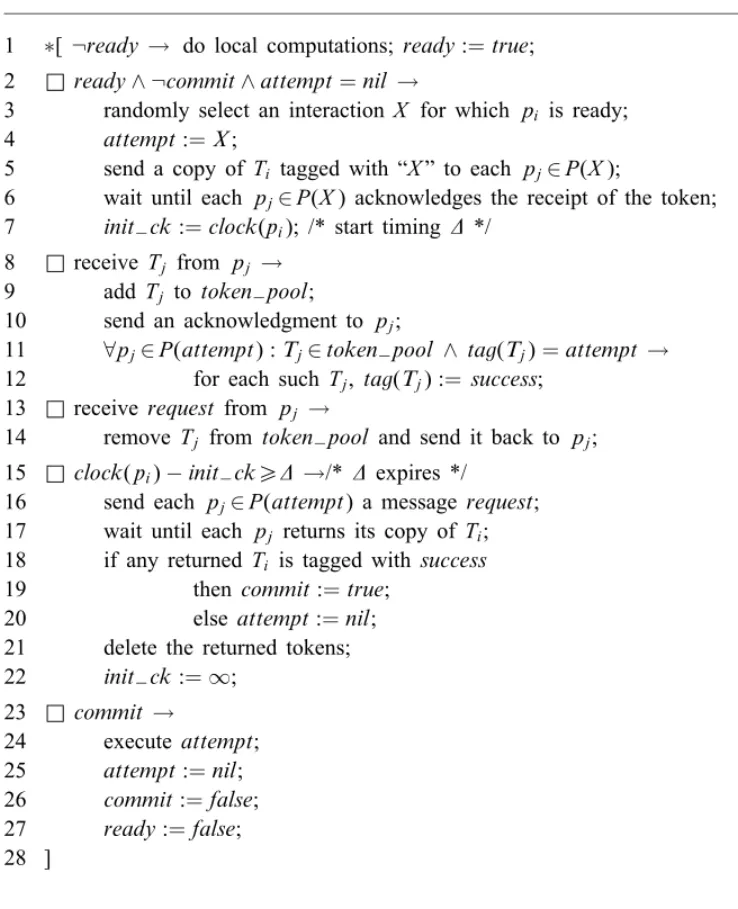

Fig. 2. An algorithm for multiparty-interaction scheduling that may not guarantee strong interaction fairness if the length of a process step is unbounded.
The algorithm to be executed by each pi is given in Fig. 2 as a CSP-like repetitive
command consisting of guarded commands. Each guarded command is of the form “b; message → S”. A guarded command can be executed only if it is enabled; i.e., its boolean guard b evaluates to true and the speci ed message has arrived. Both the boolean guard and the message guard are optional. The execution receives the mes-sage and then the command S is executed. If there is more than one enabled guarded command, then one of them is chosen for execution, and the choice is nondeterminis-tic. We do, however, require that a guarded command that is continuously enabled be executed eventually.

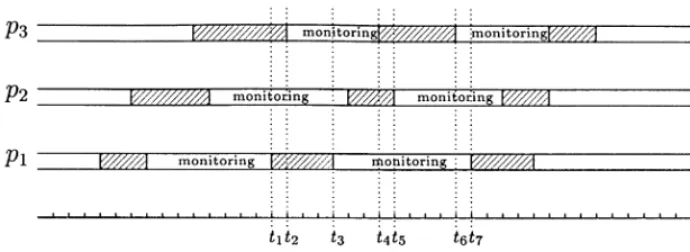

Fig. 3. A scenario of three processes executing the algorithm. Each non-shaded interval represents the time during which a process is monitoring an interaction.
The variables local to each pi are given as follows:
• ready: a boolean ag indicating if piis ready for interaction. It is initialized to false.
• attempt: the interaction that pi randomly chooses to attempt; it is set to nil if there
is none. The initial value of attempt is nil.
• commit: a boolean ag indicating if pi has committed to an interaction. It is
initial-ized to nil.
• token−pool: set of tokens received by pi. It is initialized to ∅.
• Ti: pi’s token. Function tag(Ti) returns the tag associated with Ti.
• init−ck: a temporary variable for pi to record the time at which it starts waiting for
a -interval before it determines whether or not its chosen interaction is established. It is initialized to ∞.
Moreover, each process pi is equipped with a clock, and clock(pi) returns the content
of the clock when the function is executed. We assume that processes’ clocks tick at the same rate. Section 5 discusses how this assumption can be lifted from the algorithm.
From the above description, it is not dicult to see that the algorithm satis es the synchronization requirement of the multiparty interaction scheduling problem (see The-orem 1). This is because a process can start an interaction X only if it has received a copy of it’s token tagged with “success”. Since only the process pk which possesses
a set of tokens {Tj| pj∈ P(X ); tag(Tj) = “X ”} can change the tags to “success”,
when a process pj nds that the token returned by pk is tagged with “success”, all
other processes in P(X ) will also nd that their tokens are tagged with “success” when they retrieve their tokens from pk, and so will all start X . Moreover, the
ex-clusion requirement is easily satis ed because a process attempts one interaction at a time.
The fairness property depends on an appropriate choice of , however. To see this, assume that interaction X involves p1; p2, and p3, which are all ready for X . We say
that a process is monitoring X if it, after choosing X , has set up init−ck (line 7 of Fig. 2) and is waiting for its -interval to expire (i.e., to execute line 15). Consider the scenario depicted in Fig. 3. In this gure, each non-shaded interval represents the time during which a process is monitoring an interaction. A shaded interval then
amounts to the maximum time a process can spend from the time it has executed line 15 until the time it loops back to line 7 to set a new init−ck to monitor another interaction. According to this scenario, p1 is monitoring some interaction from t3 to
t7. During this interval, p2 and p3 will also start monitoring some interaction (at t5
and t6, respectively). If the three processes monitor the same interaction, say X , then
by t5, p1 will have received p2’s token tagged with X ,5 and by t6, p1 will also have
received p3’s token with the same tag. So, by t6, p1 will have collected all three
processes’ tokens tagged with “X ” (p1’s own token is received prior to t3). So each
process, upon receiving its own token returned by p1, will start X .
On the other hand, if a process does not monitor an interaction long enough, then no interaction may be established among processes even if their random choices coincide. For example, consider again Fig. 3. At time t1, p1 has collected tokens from p1 and
p2 (assume that they both choose the same interaction X to monitor). Suppose p3
also chooses X to monitor at t2. However, p3’s token is not guaranteed to arrive at
p1 before t1, and so p1 may give up on X at t1 when its -interval expires.
From the above discussion it can be seen that if there exists a time instance at which all processes in P(X ) are monitoring X , then X will be established after the processes nish up their monitoring phases. Moreover, suppose that the maximum pos-sible interval during which each pi∈ P(X ) is ready for interaction but is not
monitor-ing any interaction (i.e., the maximum possible length of a shaded interval in Fig. 3; we shall henceforth refer to each such interval as a “non-monitoring window”, see Section 3.2) is strictly less than i. Suppose further that the processes in P(X )
estab-lish their non-monitoring windows, one after another, in the following manner (assume that P(X ) = {p1; p2; : : : ; pl}): p1’s window is [t; t +1−) (where the window is taken
to be semi-closed because p1 stops monitoring an interaction at t, and starts
monitor-ing a new interaction at t + 1− ), p2’s window is [t + 1− ; t + 1+ 2− 2), and
so on. Then, we see that, at no time instance in [t; t +Ppk∈P(X )k− l), the processes
in P(X ) can be all monitoring an interaction simultaneously. However, if each pi’s
satis es the condition: ¿Ppk∈P(X )−{pi}k, then the processes in P(X ) are all
mon-itoring an interaction at t +Ppk∈P(X )k−l. Note that, on the condition that each pi’s
is greater than or equal to Ppk∈P(X )−{pi}k, the layout of non-monitoring windows
described above provides a maximal interval throughout which we cannot nd a time instance at which the processes in P(X ) are all monitoring an interaction.
By the algorithm, when a process is monitoring an interaction, the interaction it is monitoring is determined by the random draw performed prior to the monitoring phase. So when the processes of P(X ) are all monitoring interactions, the probability that X will be established after the monitoring phases is given by the probability that a set of random draws, one by each process in P(X ), yield the same outcome X . The Law of Large Numbers in probability theory (see, for example, the book by Chung [9]) then tells us that if there are in nitely many points at which all processes in P(X ) 5Recall that p2’s token sent to p1is acknowledged by p1, and p2will not start monitoring an interaction
are monitoring interactions, then the probability is 1 that they will monitor the same interaction X in nitely often and, so, with probability 1 they will establish X in nitely often.
So, strong fairness of the algorithm relies on the assumption that the length of each non-monitoring window is bounded by some k so that another process’s can be
determined accordingly. Note that the condition ¿Ppk∈P(X )−{pi}k for pi implies
that the values chosen by processes need not be the same. Moreover, a temporarily short cannot cause the algorithm to err, although it may cause a set of processes to miss a chance for rendezvous.
Based on these observations, we can remove the bounded step assumption by let-ting processes communicate with each other about the length of their previous non-monitoring windows. Processes then use this information to adjust their next -intervals. So long as processes are not hanging and every message will eventu-ally be delivered, the dynamic adjustment of processes’ -intervals guarantees that when the participants of X are all ready for X , eventually their -intervals will be adjusted to meet the rendezvous requirement (i.e., they will all monitor interactions at the same time). The chance that they will establish X is then determined by their random draws. In this regard, we need not assume any predetermined bound on pro-cesses’ steps (speeds) and communication delays; the algorithm will adapt itself to the run-time environment.
So, we can modify the algorithm, yielding that shown in Fig. 4 — the full version of our algorithm for the multiparty interaction scheduling problem. We shall refer to the algorithm as TB (for Token-Based). Algorithm TB adds the following time variables to each pi:
• : records the maximum of the durations from the time pi previously stopped
mon-itoring interaction to the time pi starts monitoring interaction. It is initialized to 0.
• init−: a temporary variable for pi to record the time at which it starts to measure .
It is initialized to ∞.
• E[1::n]: E[j], initialized to 0, records the maximum value of pj’s sent by pj.
In the algorithm, pi measures its by lines 1.1 and 7.1 (for the rst non-monitoring
window while pi is ready for interaction), and by lines 15.1 and 7.1 (for the remaining
non-monitoring windows). When pi has sent out its token to pj (line 5), pj
acknowl-edges the receipt of the token by sending its to pi (line 100). Then pi adjusts its
E[j] to the larger value of E[j] and pj’s new (lines 6.1–6.2). These E[j]’s are used
in line 150 to time-out p
i’s -interval.
The system’s performance depends on the lengths of -intervals the processes choose, which in turn depend on the values of E[j]’s. From time to time, one may reset each E[j] (and ) after pi has established an interaction to prevent the system getting too
slow due to some abnormal speed retardation. (Note that the time variables cannot be reset while pi is attempting to establish an interaction; for, otherwise, the algorithm
would not even guarantee weak interaction fairness.) In general, since a temporarily short -interval cannot cause the algorithm to err, E[j] can be reset to any value, e.g., the average of the past history of E[j]’s values, or the minimum of them. On the other
1 ∗[ ¬ready → do local computations;
1.1 init− := clock(pi); /* start measuring */
1.2 ready := true;
2 ready ∧ ¬commit ∧ attempt = nil →
3 randomly select an interaction X for which pi is ready;
4 attempt := X ;
5 send a copy of Ti tagged with “X ” to each pj∈ P(X );
6 wait until each pj∈ P(X ) acknowledges the receipt of the token;
6.1 let j be the timestamp in pj’s acknowledgment;
6.2 ∀pj∈ P(X ) − {pi} : E[j] := max(E[j]; j);
7 init−ck := clock(pi); /* start timing */
/* start monitoring interaction */
7.1 := max(; clock(pi) − init−); /* record a new */ 8 receive Tj from pj →
9 add Tj to token−pool;
100 send an acknowledgment with timestamp to pj;
11 ∀pj∈ P(attempt) : Tj∈ token−pool ∧ tag(Tj) = attempt →
12 for each such Tj, tag(Tj) := success;
13 receive request from pj →
14 remove Tj from token−pool and send it back to pj;
150 clock(p
i) − init−ck¿, where =Ppj∈P(attempt)−{pi}E[j] →
/* expires */
15.1 init− := clock(pi); /* start measuring */
/* stop monitoring interaction */ 16 send each pj∈ P(attempt) a request;
17 wait until each pj returns its copy of Ti;
18 if any returned Ti is tagged with success
19 then commit := true;
20 else attempt := nil;
21 delete the returned tokens;
22 init−ck := ∞; 23 commit → 24 execute attempt; 25 attempt := nil; 26 commit := false; 27 ready := false; 28 ] Fig. 4. Algorithm TB.
hand, reseting E[j]’s may also bring an extra load to a stable system. This is because if E[j] is reset to a value smaller than the length of pj’s next non-monitoring window
then, when next time pi wishes to establish an interaction with pj, it may not be able
to do so because pi’s is too short. Therefore, extra attempts by pi are needed for pi
to re-catch the length of pj’s non-monitoring windows. This overhead will be analyzed
in Section 3.2.4.
3.2. Analysis of algorithm TB
In this section we prove that TB satis es the synchronization and exclusion require-ments of the multiparty interaction scheduling problem and, with probability 1, is strong interaction fair. We also analyze the expected time TB takes to schedule an interaction. 3.2.1. De nitions
We assume a discrete global time axis where, to an external observer, the events of the system are totally ordered.6 Moreover, we assume that for any given time instances
t0; t1; : : : on this axis, the usual less-than relation over these instances is well-founded.
That is, for any given two time instances ti and tj, there are only a nite number of
points ti1; ti2; : : : ; tik on the global time axis such that ti¡ti1¡ti2· · · ¡tik ¡ tj.
Accord-ingly, the phrase “there are in nitely many time instances” refers to the interval [0; ∞]. Recall from TB that, a process pi, after sending out its tokens to the processes in
P(X ), must wait for time before it decides whether to start or give up on X . We say that pi starts monitoring X if it has executed line 7 of the algorithm to time its . It
stops monitoring X when line 15.1 is executed. Let t1 and t2, respectively, be the time at
which these two events occur. The semi-closed interval [t1; t2) is a monitoring window
of pi, and pi is monitoring X in this window. Suppose that X fails to be established
in this monitoring window, then pi must start another monitoring window. Therefore,
from the time (say t0) pi becomes ready for interaction until the time (say tl) pi stops
monitoring an interaction that has been successfully established, the interval [t0; tl)
contains a sequence of monitoring windows [t1; t2); [t3; t4); : : : ; [tl−1; tl). The interspersed
intervals [t0; t1); [t2; t3); : : : ; [tl−2; tl−1) are called non-monitoring windows.7 The length
of a window is the di erence of the two ends in the interval. Note that all non-monitoring windows and non-monitoring windows have a non-zero length. The non-monitoring window of pi at time t refers to the monitoring window [ts; tf) of pi (if any) such
that ts6t¡tf; similarly for non-monitoring windows.
6As usual, an event transits a process from one state to another. If an event occurs at time t and it transits
p from state s1 to state s2, then we say that p is in state s1 just before t, and is in state s2 right after t.
For p’s state to be de ned at every time instance, we stipulate that p’s state at time t is s2 if the event
occurs at time t.
7There is a latency between the time tl at which pi stops monitoring an interaction (line 15.1), until the
time tl0 at which pi starts executing the interaction (line 24). To simplify the de nition, we shall henceforth
consider [tl−1; tl0) rather than [tl−1; tl) as a monitoring window. As a result, we can say that, from the
time pi becomes ready for interaction until the time its executes an interaction, it spends all of its time in
Note that, if pi is monitoring X , then every process in P(X ) must hold a copy
of Ti with a tag “X ”. Moreover, recall that a process records the length of a
non-monitoring window in variable . Since a process records an value only after it has started monitoring an interaction (line 7.1), the recorded value is slightly larger than the actual length. This is crucial to the correctness of Lemma 4.
If pi is monitoring X at time t, then the choice of X must be the result of some
random draw performed by pi before t. Let Dt; pi denote the event that is this random
draw. We use v(Dt; pi) to denote the outcome of the random draw. The probability that
v(Dt; pi) = X is denoted by pi; X, and the probability is assumed to be independent of t.
Moreover, assume ts6tf. We de ne a set EttfsP(X ) of random draw events, at most
one by each process pi in P(X ), as follows:
• If pi remains in a monitoring window throughout [ts; tf], or pi is in a monitoring
window at ts and then starts an interaction after the window terminates, then the
random draw events Dts; pi is included in E
tf
tsP(X ). With respect to E
tf
tsP(X ), process
pi is referred to as a type-M process.
• If pi has a non-monitoring window contained8 in [ts; tf], then the random draw event
performed in the window is included in Etf
tsP(X ), and with respect to E
tf
tsP(X ); pi
is referred to as a type-N process. If pi has more than one non-monitoring window
contained in [ts; tf], then one of the random draw events performed in these windows
is chosen for Etf
tsP(X ). To avoid ambiguity, we shall give the priority to the one
performed in the largest window; and if there is still a tie, then the tie will be broken by giving the priority to the one performed the latest.
• Otherwise, no event by pi is included in EttfsP(X ).
So, if |Etf
tsP(X )|=|P(X )|, then every process in P(X ) has a random draw event in
Etf
tsP(X ). Furthermore, with respect to E
tf
tsP(X ), let QN⊆ P(X ) be the set of type-N
processes. For each pi∈QN, let ui denote the non-monitoring window in which pi
per-forms its random draw event chosen for Etf
tsP(X ), and let kuik denote the length of ui.
Then, the set Etf
tsP(X ) is said to be proper if tf−ts6
P
pi∈QNkuik and |E
tf
tsP(X )|=|P(X )|.
3.2.2. Properties of TB that hold with certainty
We now analyze the correctness of TB. We begin with the synchronization property. For this, it is useful to distinguish between an interaction (a static entity) and an instance of an interaction (a dynamic entity): when an interaction X is established, an instance of X is executed.
Theorem 1 (Synchronization). If a process starts a new instance of X; then all other processes in P(X ) will eventually start the instance of X .
8We say that an interval [t1; t2] is contained in [t3; t4] if t36t1and t26t4. Two intervals join if they have
a common end point, and they overlap if there exists a non-zero length interval contained in both intervals. The terms apply to semi-closed intervals as well. For example [2, 4) is contained in [1, 4], and [2, 4) and [4, 6) join.
Proof. A process starts an instance of X only if it has sent a copy of its token tagged with “X ” to some pj∈ P(X ), and the token is returned with a tag “success”. Since only
the process which holds the set of tokens {Tj| pj∈ P(X ); tag(Tj) = “X ”} can change
the tags to “success”, and since a process will not give up its attempt to establish X until its tokens are returned, when a process attempting X receives a token tagged with “success”, all other processes in P(X ) will also obtain a token tagged with “success” when they retrieve their tokens. The theorem therefore follows.
Theorem 2 (Exclusion). No two interactions can be in execution simultaneously if they have a common member.
Proof. This follows from the fact that a process attempts one interaction at a time. 3.2.3. Properties of TB that hold with probability 1
We move on to prove the fairness property of TB.
Lemma 3. Suppose that, from time t0−u to time t0+u; for each p
i∈ P(X ); if pi has
a non-monitoring window overlapping or joining with [t0− u; t0+ u]; then the length of this window is strictly less than max
i . Let X =Ppi∈P(X )maxi . If X is enabled
at t0 and u¿X; then there exist t1 and t2; where t0− X¡t16t2¡t0 + X and t2− t1¡X; such that Ett21P(X ) is proper.
Proof. Since X is enabled at t0, each p
i∈ P(X ) is ready for interaction at t0. So, at
t0; pi is either in a non-monitoring window or in a monitoring window. It is clear that either (i) every pi∈ P(X ) is in a monitoring window at t0, or (ii) some process in
P(X ) is in a non-monitoring window at t0.
Consider Case (i). Let t1= t2= t0. By de nition, then |Ett12P(X )| = |P(X )|. Since with
respect to Et2
t1P(X ) there is no type-N process, set Ett12P(X ) is obviously proper.
More-over, the two time instances t1 and t2 we have chosen easily satisfy the condition:
t0−
X¡t16t2¡t0+ X and t2− t1¡X. So, the lemma is proven for this case.
Consider Case (ii). We begin with the following de nition. Let U be a set of inter-vals [aj; bj), where 16j6l. Let left(U) = min{aj| 16j6l}, and right(U) =
max{bj| 16j6l}. The intervals in U are said to be connected if
∀t; left(U)6t¡right(U) ⇒ ∃[ak; bk) ∈ U; ak6t¡bk
(Intuitively, the intervals are connected if they can be “glued” together to form a single interval. For example, the three intervals in {[3; 7); [5; 9); [9; 10)} are connected, but the two intervals in {[3; 7); [8; 9)} are not.) It follows from the above de nition that if the intervals in U are connected, then right(U) − left(U)6P16j6l(bj− aj).
Recall that for Case (ii), there exists some process in P(X ), say p1, that is in a
non-monitoring window at t0. Let [t
1; s; t1; f) be the non-monitoring window of p1. De ne
to be a set of pairs hp; ui satisfying the following conditions:
(1) For each hp; ui ∈ ; p ∈ P(X ) and u is a non-monitoring window of p. (2) hp1; [t1; s; t1; f)i ∈ .
(3) For each p ∈ P(X ); contains at most one pair hq; ui such that p = q.
(4) Let intervals–of ( ) = {u | hp; ui ∈ }. Then, the intervals in intervals–of ( ) are connected.
(5) is maximal; that is, there exists no other pair such that set ∪ { } satis es the above four conditions.
(Note that there may be more than one such set.)
Let t1= left(intervals–of ( )), and let t2= right(intervals–of ( )). Since the
inter-vals in interinter-vals–of ( ) are connected and since t1; s6t0¡t1; f, it can be seen that
t0−
X¡t16t2¡t0+ X and t2− t1¡X.
Consider Et2
t1P(X ). Let processes–of ( ) = {p | hp; ui ∈ }. Clearly, with respect to
Et2
t1P(X ) each p ∈ processes–of ( ) is a type-N process.
Let Q = P(X ) – processes–of ( ). We argue that, if Q 6= ∅, then with respect to Et2
t1P(X ) each q ∈ Q is a type-M process. To see this, observe that t16t0¡t2 (because
t16t1; s6t0¡t1; f6t2). Since q does not have a non-monitoring window overlapping
of joining with [t1; t2) (for otherwise, would not be maximal), q is in a monitoring
window at t0. Since every monitoring window must be preceded by a non-monitoring window, and since q does not have a non-monitoring window overlappng or joining with [t1; t2), either q remains in a monitoring window throughout [t1; t2], or q remains
in a monitoring window throughout [t1; t0] and starts an interaction after the window
terminates. So, with respect to Et2
t1P(X ); q is a type-M process.
Given that, with respect to Et2
t1P(X ), each p ∈ P(X ) is either a type-N of type-M
pro-cess, we have |Et2
t1P(X )| = |P(X )|. So to show that Ett21P(X ) is proper it
remains to show that t2− t16Pp∈processes of ( )kupk, where up is the non-monitoring
window in which p performs its random draw event chosen for Et2
t1P(X ). For this, let
vp be the non-monitoring window of p such that hp; vpi ∈ . Note that, because each
p ∈ processes–of ( ) may have more than one non-monitoring window contained in [t1; t2]; vp and up may not refer to the same window. However, the up we have chosen
to build up Et2
t1P(X ) guarantees that kvpk6kupk. Observe that t2− t16
P
hp; vpi∈ kvpk.
So, t2− t16Pp∈processes of ( )kupk.
Therefore, the lemma is proven for Case (ii). Lemma 4. Assume set Et2
t1P(X ) is proper. With respect to Ett21P(X ); let QN be the set
of type-N processes, and QM be the set of type-M processes. For each pi∈ QN; let
ui denote pi’s non-monitoring window from which pi’s random draw event is chosen
for Et2
t1P(X ); and let wi denote pi’s monitoring window immediately following ui. For
each pi∈ QM; let wi denote pi’s monitoring window at t1. If all the random draws
in Et2
t1P(X ) yield the same outcome X and, for each pi∈ QN; kwik¿(
P
pl∈QNkulk) −
kuik; then an instance of X will be started when some process pj∈ P(X ) nishes its
monitoring window wj.
Proof. Since t2−t16Ppl∈QNkulk, and since for each pi∈ QN; pi’s monitoring window
wi has a length strictly greater than (Ppl∈QNkulk) − kuik; pi must still be in the
Recall that every pj∈ QM either remains in a monitoring window throughout [t1; t2],
or is monitoring an interaction at t1 and starts the interaction after it nishes the
monitoring window. Suppose rst that every pj∈ QM remains in a monitoring window
throughout [t1; t2] (where, under the lemma assumptions, this window is wj). Then,
every pj∈ QM is also monitoring X at t2. So, at time t2 each process in P(X ) has
collected every other process’s token tagged with “X ” and has changed (or is changing) all the tags to “success”. Hence, every process pk∈ P(X ) will start X when it nishes
its monitoring window wk (and retrieves its tokens).
Suppose otherwise that some pj∈ QM is monitoring an interaction at t1 and starts
the interaction after it nishes the monitoring window. Since the interaction pj is
monitoring is decided by the outcome of pj’s random draw event in Ett12P(X ), by the
assumptions of the lemma, the outcome is X . So, pj will start X when it nishes its
wj.9
Note that in Lemma 4 the monitoring window wi of each pi∈ P(X ) must overlap
or join with the interval [t1; t2]. So, if an instance of X is established and each wi6,
then the instance will be established by time t2+ .
For fairness, we rst show that TB satis es weak interaction fairness, for which we need some assumption on the faultless behaviour of the system. We assume that if the communication medium remains connected, then every message will eventually reach its destination. Note that, if processes are not hanging, then they remain active (that is, every process will eventually execute its next instruction unless the instruction is a message receiving command and no message speci ed in the command has been sent to the process), and starting from any point the time it takes a process to execute an instruction (i.e., the length of the step to execute the instruction) will eventually be bounded.
Theorem 5 (Weak interaction fairness). Assume that processes are not hanging and the communication medium remains connected. If X is enabled at time t then, with probability 1, X will be disabled eventually.
Proof. We show that the probability is 0 that X is continuously enabled from t onward. Observe that since the communication medium remains connected and processes remain active, and since every continuously enabled guarded command will eventually be executed, a process will not be blocked inde nitely from executing its next action. So, the time it takes for each process to measure a new value (which corresponds to the length of a non-monitoring window, although the measured value is slightly larger) 9In the algorithm, it is possible that some process p1 has already started X , but another process is still
monitoring X , or is even still in a non-monitoring window. For example, consider the following scenario, and assume that P(X ) = {p1; p2} : (1) p1 starts monitoring X ; (2) p2 randomly chooses X and sends
p1 a copy of T2 tagged with “X ”; (3) p1 receives T2 and acknowledges the receipt (at this point p1 has
successfully observed the establishment of X ); (4) p1 nishes its monitoring window, retrieves its tokens,
is nite. Moreover, the assumption that processes are not hanging also ensures that, starting from any point, all possible values measured by a process will eventually be bounded by some constant c. The well-founded ordering of events on the time axis ensures that a process may at most measure a nite number of distinct values less than c.
Recall that the length of a monitoring window for pi to monitor X is determined
by the valuePpj∈P(X )−{pi}E[j], where E[j] is the maximum of pj’s previous
val-ues collected between the time pi becomes ready for interaction through the time pi
starts the monitoring window. Moreover, every time when pi chooses to attempt X ,
it will learn all other participants’ current values when they acknowledge the re-ceipt of pi’s tokens (see lines 6–6.2 of TB). Since if pi is continuously ready it will
attempt interactions in nitely often, by the law of large numbers (Theorem 6 will ex-plain this law in more detail), pi will attempt X in nitely often with probability 1. So
if X is continuously enabled forever, then by the previous observations on values, there must exist some t0 such that, from t0 onward, for every pi∈ P(X ); pi’s new
value is no greater than some max
i , and pi’s E[j] is equal to maxj . It follows that
from t0 onward each pi’s non-monitoring window has a length less than maxi , and
each pi’s monitoring window to monitor X has a length greater than10 or equal to
P
pj∈P(X )−{pi}maxj .
Let X=Ppj∈P(X )jmax. Consider the interval [t0; t0 + 2X). Given that from t0
onward each pi’s non-monitoring window has a length less than maxi , Lemma 3
(with t0= t
0+ X and u = X) ensures that there exist two time instances t1; s; t1; f,
where t0¡t1; s6t1; f¡t0+ 2X such that Ett1; s1; fP(X ) is a proper set of random draw
events. Given that starting from t0 each pi’s non-monitoring window has a length
less than max
i , and each pi’s monitoring window to monitor X has a length greater
than or equal to Ppj∈P(X )−{pi}max
j , Lemma 4 implies that, if the random draws in
Et1; f
t1; sP(X ) yield the same outcome X , then X will be disabled. Note that, even if the
random draws do not yield the same outcome, some process in P(X ) may still estab-lish another interaction X0 if its random draw coincides with other processes’ random draws.
Let denote the probability that X remains enabled starting from t up to the point the random draws in Et1; f
t1; sP(X ) are to be made. So the probability that the random
draws in Et1; f
t1; sP(X ) do not cause X to be disabled is no greater than (1 − X), where
X is the probability that the random draws in Ett1; s1; fP(X ) yield the same outcome X . If
X remains enabled after the random draws, then every process in P(X ) will perform a new random draw in nite time, and so by Lemma 3 again there exists another proper set of random draws Et2; f
t2; sP(X ) such that E
t1; f
t1; sP(X ) ∩ E
t2; f
t2; sP(X ) = ∅. The probability that
X remains enabled after the new set of random draws is no greater than (1− X)2. In
10The length may be greater than P
pj∈P(X )−{pi}E[j] because the condition that the length of pi’s
monitoring window equals to Ppj∈P(X )−{pi}E[j] only causes the guarded command in line 150 to be
general, the probability that X remains enabled after l mutually disjoint sets of random draws is no greater than (1 − X)l. If X continues to be enabled then l will keep
increasing and, so, (1 − X)l tends to 0. So the probability that X remains enabled
forever is 0.
Theorem 6 (Strong interaction fairness). Assume (A1) that processes are not hang-ing and the communication medium remains connected, and (A2) that a process’s transition to a state ready for interaction does not depend on the random draws per-formed by other processes. If an interaction X is enabled in nitely often then, with probability 1, the interaction will be executed in nitely often.
Proof. Assume the hypothesis that X is enabled in nitely often. By (A1), there exists some time instance t0 after which every non-monitoring window of pk has a length
less than max
k for each pk in the system, and every monitoring window of pk has
a length no less than X − maxk , where X=Ppj∈P(X )
max
j . Because t0 is nite,
from t0 onward X is still enabled in nitely often. By Lemma 3, there exist in nitely
many ti’s, ti;1’s, and ti; 2’s, where i¿0, ti− X¡ti;16 ti; 2¡ti+ X and ti;2− ti;1¡X,
such that X is enabled at ti; Etti; 2i;1P(X ) is proper, and E
ti; 2
ti;1P(X ) ∩ E
tj; 2
tj;1P(X ) = ∅ if i 6= j.
Let I be the set of indices of such ti’s. By Lemma 4, if the random draws in
Eti; 2
ti;1P(X ) yield the same outcome X , then an instance of X will be established. So,
in the following, we shall show that the probability is 1 that there are in nitely many i’s in I such that Eti; 2
ti;1P(X ) yield the same outcome X . This then establishes the
theorem.
Because I is in nite and there are only a nite number of interactions in the system, there exists an in nite subset J ⊂ I such that, for each p ∈ P(X ), p is ready for the same set of interactions Ap at ti for each i ∈ J. Let Ap; X be the non-zero probability that
X is chosen from Ap in a random draw. Let X=Qp∈P(X ) Ap; X. Consider E
ti; 2
ti;1P(X ),
where i ∈ J. By Assumption (A2), the random draws in Eti; 2
ti;1P(X ) are independent of
the enabledness of X at ti and, so, are independent of one another. So, the probability
that the random draws in Eti; 2
ti;1P(X ) produce the same outcome X is X.
For each i ∈ J, de ne random variable Ei to be 1 if the random draws in Etti; 2i;1P(X )
produce the same outcome X , and 0 otherwise. Then Ei= 1 also has the probability X. Let the indices of J be enumerated by j1; j2; : : : . By the law of large numbers
in probability theory (see, for example, the book by Chung[9]), for any given we have lim n→∞P P16i6nEji n − X 6= 1:
That is, when n tends to in nity, the probability is 1 that (P16i6nEji)=n tends to X.
Therefore, with probability 1, the set {i | Eji= 1; i ¿ 1} is in nite. So, with
proba-bility 1, there are in nitely many i’s in J such that the random draws in Eti; 2
ti;1P(X )
I such that the random draws in Eti; 2
ti;1P(X ) yield the same outcome X . The theorem is
therefore proven.11
Like the algorithm presented in [19], a conspiracy against strong interaction fairness can be devised if Assumption (A2) is dropped from Theorem 6. To see this, consider a system of two processes p1 and p2, and three interactions X1; X2, and X12, where
P(X1) = {p1}; P(X2) = {p2}, and P(X12) = {p1; p2}. Assume that p1 is ready for both
X1 and X12. So it will toss a coin to choose one to attempt. The malicious p2 could
stay in its local computing phase until p1 has randomly selected X1; then p2 becomes
ready for X2 and X12 before p1 executes X1. Since p1’s attempt to execute X1 will
succeed once it selects X1, X12 will not be executed this time. However, X12 is enabled
as soon as p2 becomes ready. Similarly, p1 could also stay in its local computing
phase until p2’s random draw yields X2. So if this scenario is repeated over and over
again, then the resulting computations would not be strong interaction fair. Note that in the resulting computation there exist in nite many ti;1’s and ti; 2’s such that Etti;1i; 2P(X12)
is proper. However, the two random draws in Eti; 2
ti;1P(X12) are not mutually dependent
because one of them is performed only if the other has outcome X1 (or X2)
3.2.4. Time complexity
To measure the time complexity of TB, we wish to know that, when an interaction X is enabled, how long it takes a participant of X to execute an interaction, i.e., to disable X .12 It can be seen from Theorem 5 that a necessary condition for X to be
disabled is that processes’ speeds will not keep decreasing. So, to simplify the analysis, we shall rst consider a stable system where processes’ speeds do not vary. Moreover, for subsequent comparison with deterministic algorithms, we shall also simplify the 11The law of large numbers cannot be used to prove the theorem if one were to reset time variables
E[ j] periodically. This is because although there are in nitely many i’s in I such that all the random draws in each Eti; 2
ti;1P(X ) yield the same outcome X , Lemma 4 might not be used to guarantee the establishment of
X because each process’s monitoring window following its random draw in Eti; 2
ti;1P(X ) could incidentally be
reset to a value unable to satisfy the condition of Lemma 4. Instead, the second Borel–Cantelli Lemma can be used to prove the theorem. As a consequence of the lemma, it is a well known fact in measure theory and probability that (see for instance Example 4.14 of [6]), if a coin (with outcome 0 or 1) is tossed an in nite number of times, then given any constant c the probability is 1 that there are in nitely many runs of 1 of length greater than c (where a run of 1 is a sequence of 1’s surrounded by two 0’s; its length is the number of 1’s in the sequence).
Given that the length of a non-monitoring window will eventually be bounded, we can see that, from some point onward, if an interaction X is enabled and each participant of X always chooses X to attempt, then after at most some nite number of attempts X will be established (they failed to establish X in earlier attempts because their monitoring windows were too short to satisfy the condition of Lemma 4). The above fact in measure theory and probability guarantees that, if X is enabled in nitely often, then the probability is 1 that, in nitely often, every participant of X will continuously choose X to attempt for at least some nite number of times. Therefore, the probability is 1 that X will be established in nitely often.
12Given that interactions’ membership rosters may overlap, it is clear that no algorithm can guarantee
the following: when an interaction is enabled, then this particular instance of interaction must eventually be executed with certainty; for, otherwise, the exclusion requirement of the interaction scheduling would not be satis ed.
analysis by assuming that each non-monitoring window takes a constant time − for some ¿0, and each interaction involves m participants. By the algorithm, each monitoring window then must take more than (m − 1)(n − ) time. Let us assume that it takes (m − 1) + time.
Theorem 7 (Time complexity). Suppose each interaction involves m participants. Suppose further that each non-monitoring window has a length − for some ¿0; and each monitoring window has a length (m − 1) + . Then, once an interaction X is enabled, the expected time it takes for a member of X to start an interaction is no greater than
m Q
pi∈P(X ) pi; X
+ (m − 1) +
where pi; X is the probability that pi chooses X in its random draw.
Proof. Assume the hypothesis, and that X is enabled at time t. By Lemma 3 (with max
i = , t0= t, u = X = m), there exist two time instances t1 and t2, where t −
m¡t16 t2¡t + m and t2 − t1¡m, such that Ett12P(X ) is proper. By Lemma 4
(with the hypothesis that each monitoring window has a length (m − 1) + sat-isfying the condition: (m − 1) + ¿(m − 1)( − )) and the remark following the lemma, if the random draws in Et2
t1P(X ) yield the same outcome X (an event that
occurs with probability X=Qpi∈P(X ) pi; X), then an instance of X will be
estab-lished by time t2 + (m − 1) + ¡t + m + (m − 1) + . Note that if the
ran-dom draws do not yield the same outcome X but some process’s ranran-dom draw in Et2
t1P(X ) leads to the establishment of some other interaction involving the process,
then the process will also start an interaction when it nishes its monitoring window (that is established following the random draw). If neither of these is the case then each process in P(X ), after performing its random draw in Et2
t1P(X ), must perform
a new random draw in another m time (which amounts to the length of a non-monitoring window − plus the length of a non-monitoring window (m − 1) + ). That is, there must exist another proper set of random draws Et2+m
t1+mP(X ) that is disjoint
from Ett2 1P(X ).
Once again, if the new random draws yield the same outcome X or cause some other interaction to be established (with probability no less than (1 − X) X), then
some interaction involving a member of X will be established by time t2+ m + (m −
1) + ¡t + 2m + (m − 1) + . Otherwise, there must exist another proper set of random draws Et2+2m
t1+2mP(X ) that is disjoint form E
t2+m
t1+mP(X ), and so on.
In general, if X remains enabled, then there exist mutually disjoint sets of random draws Et2
t1P(X ); E
t2+m
t1+mP(X ); : : : ; E
t2+(i−1)m
t1+(i−1)mP(X ); : : : ; and each of these sets is proper.
Moreover, if the random draws in Et2+(i−1)m
t1+(i−1)mP(X ) yield the same outcome X or cause
some other interaction to be established (with probability no less than (1 − X)i−1 X),
then an interaction involving a member of X will be established by t+im+(m−1)+. Therefore, the expected time starting from t until an interaction involving a member
of X is established is less than P i im(1 − X) i−1 X + (m − 1) + =m X + (m − 1) + :
Similar analysis can also be carried out if interactions have di erent size or non-monitoring windows have di erent lengths. In particular, when the length of pj’s
non-monitoring windows may vary, another process pi must update its E[ j] in order to
adjust its monitoring window for monitoring some interaction involving pj. In the
algorithm, pi learns a new j (which measures the maximum length of pj’s previous
non-monitoring windows) through an attempt to establish an interaction involving pj.
For pi to have such an attempt it must choose an interaction involving pj in some
random draw. Let i; j denote the probability that, in one random draw by pi, an
interaction involving pj is chosen. Then the expected number of attempts for pi to
nally attempt an interaction involving pj so as to update pi’s E[ j] is
Ti; j=P
k k(1 − i; j) k−1
i; j=1 i; j:
If each such attempt takes no more than s time (which consists of a non-monitoring window followed by a monitoring window), then an additional s=i; j time would be
required for pi to have the knowledge of pj’s new j. If pj also has no knowledge of
pi’s new i, then an additional max{Ti; j; Tj; i} · s time would be required for both pi
and pj to have each other’s new .
To see how the time complexity is a ected by (1) the number of potential interactions for which a process may be ready at a time, and (2) the size of an interaction, assume that a process may be ready for k potential interactions at a time, and each interaction involves m participants. So the probability for the processes in P(X ) to choose X in a set of random draws, one by each process, is (1=k)m. Assume further that each
non-monitoring window has a length − and a non-monitoring window has a length (m − 1) + . From Theorem 7, the expected time for an enabled interaction to be disabled is dominated by mkm. Suppose that the time to execute a local action is negligible
compared to the communication time for delivering a message. Then, consists of four message transmissions (a message to send the token, an acknowledgement, a message to retrieve the token, and a message to return the token) if messages in lines 5, 6, 16, and 17 of TB can be sent in parallel. If the message transmission time is c, then the time complexity is dominated by
4cmkm:
In the above, since m messages are sent in parallel in each interval c, the expected number of messages needed to establish an interaction per process is no greater than
4m2km:
For comparison, the ecient deterministic alogrithm by Ramesh [28] has a worst case time complexity in the order of 3cnk and a message complexity 3mk. Note that, unlike
TB (and other randomized algorithms [12, 30, 19]), the time complexity of determinis-tic algorithms typically depends on n — the total number of processes in the system. This is because they impose priority (e.g., process id’s) to break the symmetry be-tween processes so that a low-priority process must wait for a high-priority one if they attempt to establish con icting interactions (two interactions con ict if they involve a common process).13 The fact that randomized algorithms often have a time complexity
independent of n is one of the reasons that Reif and Spirakis’s randomized algorithm [30] was able to claim a real-time response.
From the above comparison, we can see that TB can out-perform deterministic al-gorithms (where only WIF is required) only if time is a main concern and the two parameters, k — the number of potential interactions for which a process may be ready at a time, and m — the number of participants in an interaction, are kept small rel-ative to n, e.g., CSP-like biparty interactions. (For eciency’s concern, deterministic or randomized, it is generally known that the two parameters must be kept small in practical applications. A technique of synchrony loosening [10] is therefore proposed for reducing the size of an interaction.) Otherwise, TB has a niche simply because deterministic algorithms are unable to guarantee SIF.
4. A shared-memory solution
In this section we present an algorithm for the multiparty interaction scheduling problem where processes communicate by reading from and writing to shared variables. In particular, the algorithm uses only single-writer variables. A non-local variable Vj
can be read by the command read (Vj).
4.1. Informal description
Like Algorithm TB, when a process pi is ready for interaction, it randomly chooses
one interaction X , from the set of potential interactions it is ready to execute, and then attempts to establish X . However, instead of sending out tokens, pi expresses
its interest in X by writing hexamining; X i to its local variable state, which is to be read by other processes. In the algorithm, values of state is of the form hstatus; X i, where X denotes the interaction pi is attempting, and status records the status of the
attempt. Besides examining, status has another three possible values: waiting, success, and closed; their meaning should be clear shortly.
After setting its state to hexamining; X i, pi begins to read the states of the other
participants. If, for every pj∈ P(X ), pj’s state is hexamining; X i or hwaiting; X i, then
the other processes in P(X ) are also interested in X . This means that pihas successfully
observed the establishment of X . It then changes its state to hsuccess; X i, and waits for the other participants to observe the establishment of X . To do so, pi keeps a
13 It is well known that, even if only WIF is required, there is still no symmetric, decentralized, and
binary variable ag[X ] for each interaction X . Initially, all processes in P(X ) have their ag[X ]’s set to the same value, say 0. When a process p is to execute an instance of X , it complements its ag[X ]. In the above case, pi complements its ag[X ] before
it changes its state to hsuccess; X i. To ensure that every other pj∈ P(X ) has also
observed the establishment of X , pi keeps reading pj’s ag[X ] until it has the same
value as pi’s. Then, pi changes its state to hclosed; X i and starts X .
As we shall see, ag[X ] has another important role in the algorithm: to avoid a process from “outrunning” other processes in executing instances of X . In other words, the algorithm guarantees that, if pi is to execute an instance of X , then all other
processes in P(X ) must have nished the previous instance of X .
When examining other processes’ states, if not all of them are hexamining, X i or
hwaiting; X i, then pi changes its state to hwaiting; X i. Like TB, pi has to wait for a
period of time , and then re-inspects the other participants’ states. The value of is determined as in TB. That is, must be no less than Ppj∈P(X )−{pi}j, where j is
the maximum time (measured by the algorithm) pj has spent between two consecutive
-intervals.
If after time some process pj has changed its state to hsuccess; X i, and pj: ag[X ]
6= pi: ag[X ], then pi has learned the establishment of X from pj. (Throughout the
paper we often use pj:v to denote pj’s variable v.) So, pi also complements its
ag[X ] and then starts X . If after time either (1) no process’s state has changed to hsuccess; X i, or (2) some process is in state hsuccess; X i but its ag[X ] has the same value as pi: ag[X ] (which means that the process is still executing the
previ-ous instance of X ), then pi’s attempt to establish X has failed. It must return to the
beginning of the procedure to attempt another interaction. 4.2. The code
The algorithm executed by each process pi is given in Fig. 5. We shall refer to the
algorithm as SM (for Shared Memory). The variables local to pi are given as follows:
• ready: a boolean ag that is set to true when pi is ready for interaction, and is set
to false when pi has executed some interaction. It is initialized to false.
• state[1::n]: array of hstatus; X i, where X is an interaction, and status is examining;
waiting, success, or closed. Each state[ j] records the state of pj observed by pi,
and is initialized to hclosed; ⊥i.
• ag[X1::Xm]: array of binary values, where X1; : : : ; Xm are interactions of which pi
is a member. Each ag[Xj] is initialized to 0.
• : records the maximum of the durations from the time pi previously stopped
monitoring interaction to the time pi starts monitoring interaction. It is initialized
to 0.
• init−: a temporary variable used to measure . It is initialized to ∞.
• E[1::n]: E[j], initialized to 0, records the maximum value of pj’s read by pi.
In the algorithm, variable is measured in a way similar to TB. That is, pi starts
