Bi-Ru Dai1,* and Ming-Syan Chen 2
1 Department of Computer Science and Information Engineering National Taiwan University of Science and Technology
Taipei, Taiwan, ROC
2 Department of Electrical Engineering National Taiwan University
Taipei, Taiwan, ROC
Received June 22, 2007 ; Accepted June 30, 2007
Abstract. In order to import the domain knowledge or application dependent parameters into the data min-ing systems, constraint-based minmin-ing has attracted a lot of research attention recently. However, most of the constraint-based mining algorithms are designed for static data sets, and are not investigated in the data stream environment. In this paper, we devise a framework of Constrained Clustering for the Evolving Data Stream, abbreviated as CCDS framework, to cluster the data stream under the pairwise range constraint. The CCDS framework proposed consists of two phases, namely the statistics reserving phase and the clustering responding phase. The statistics reserving phase provides an efficient algorithm to process and maintain the data points in a compact structure named constraint tree. The clustering responding phase generates clusters whenever a clustering request is submitted by the user. As shown in our analyses, the time complexity of the statistics reserving phase, which is the time complexity of constructing the constraint tree, is linear in the number of data points. In addition, the clustering time is also reduced by applying the statistics maintained to the clustering algorithm. Therefore, framework CCDS is very suitable for the data stream environment. It is empirically shown that the proposed framework is very efficient for dealing with multiple constrained clus-tering requests in the data stream environment while producing clusclus-tering results of very high qual-ity
Keywords: data mining, data clustering, constrained clustering, data stream
1 Introduction
Data clustering is a useful technique for many applications, including similarity search, pattern recognition, trend analysis, marketing analysis, grouping, classification of documents, and so forth [1][2]. In data clustering, similar data points are grouped together in a cluster. In recent years, several mining capabilities have been explored for the data stream environment [3][4], including those on the association rules [5], frequent patterns [6], data clus-tering [7-9], and data classification [10][11], to name a few. For data stream applications, the volume of data is usually too huge to be stored on permanent devices or to be scanned thoroughly more than once. It is hence rec-ognized that both approximation and adaptivity are key ingredients for executing queries and performing mining tasks over rapid data streams.
Since data mining is an application dependent technology, the information involving domain knowledge is usually imposed on the mining systems as various constraints. Some algorithms have been proposed for cluster-ing with constraints [12-17]. However, they are mainly designed for static data sets and are usually not able to work well in the data stream environment. On the other hand, the main focus of the research on mining data streams is to solve mining problems under the condition of limited resources, such as time and space, compared to the fast and infinite data points. However, the constraints for clusters or data points are not fully investigated. In this paper, these two concepts, i.e., the properties of constraints and data streams, are combined and
ered at the same time. Note that the effects of these two factors are entangled, thus significantly complicating the problem. We focus our attention on clustering with the pairwise numerical constraint, which was proposed in the work [13], and propose a framework to support this constrained clustering problem in the data stream environ-ment. Specifically, those attributes employed to model the constraints are called constraint attributes whereas those attributes involved in the objective function to be optimized, similar to those in most prior works, are called optimization attributes. The constrained clustering is conducted in such a way that the objective function of opti-mization attributes is optimized subject to the condition that the imposed constraint by constraint attributes is satisfied. The constraint considered in this work is that the constraint attribute values of any two data items in the same cluster are required to be within the corresponding constraint range.

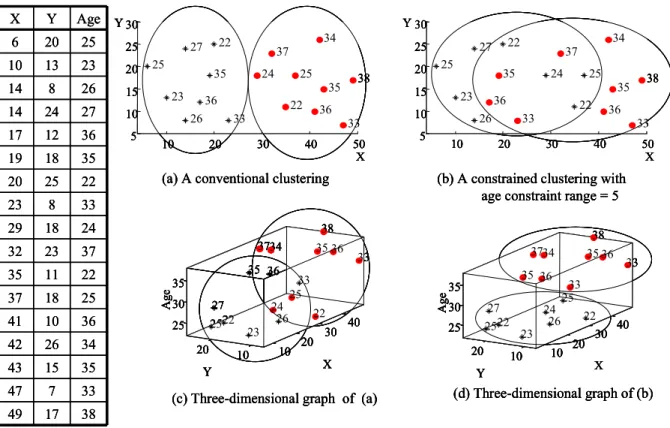

This pairwise constrained clustering problem can be understood by the following example. Consider the data points in Fig. 1 where X and Y are the conventional optimization attributes which form the coordinate of the residential location and age is the constraint attribute with the constraint range being 5 years. The nodes in Fig. 1(a) are identical to those in Fig. 1(b) and the number next to each node represents the age of that person. By conventional clustering methods which are designed to cluster nearby nodes together, these nodes may be parti-tioned into the two clusters as shown in Fig. 1(a), in which, however, the age constraint is not obeyed. Instead, one possible solution to this constrained clustering problem is shown in Fig. 1(b), where members within 22 - 27 years old are in one cluster, and people within 33 - 38 years old are in the other cluster. Such a clustering with numerical constraints is called for in many real applications. For example, we may apply this pairwise numerical constrained clustering on the basic data of people in a club to group people provided that we require the range of ages in each group to be no more than 5 years. Notice that we do not indicate a fixed boundary of a cluster ex-plicitly. Instead, the boundaries of constraint attributes of each cluster are dynamically determined by the data points existing in the cluster. In the example in Fig. 1, once a person joins a cluster, the age range of this cluster is adjusted immediately. For example, assume that the first person joining a group is 23 years old, then people between 18 to 28 years old are allowed to join this group afterward. However, if the second person joining this group is 27 years old, the age range of this group is narrowed down to 22 - 28 years old, meaning that the age boundary of this cluster is revised. Finally, groups with similar people are generated based on the 5-year range. Figures 1(c) and 1(d) show the age in the third dimension, and the difference to the result from a conventional clustering method is also shown. Possible applications of this constrained clustering model include bioinformat-ics data with the control of temperature [18], the group behavior of GPS users along the time line, and the seg-mentation of a video into story units [19], to name a few. More justification of this problem model can be found in [15][20]. 10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e
(c) Three-dimensional graph of (a)
10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e (d) Three-dimensional graph of (b) (a) A conventional clustering
10 20 30 40 50 5 10 15 20 25 30 38 33 35 34 36 25 22 37 24 X 33 22 35 36 27 26 23 25 Y
(b) A constrained clustering with age constraint range = 5
10 20 30 40 50 5 10 15 20 25 30 38 33 35 34 36 25 22 37 24 X 33 22 35 36 27 26 23 25 Y 38 17 49 33 7 47 35 15 43 34 26 42 36 10 41 25 18 37 22 11 35 37 23 32 24 18 29 33 8 23 22 25 20 35 18 19 36 12 17 27 24 14 26 8 14 23 13 10 25 20 6 Age Y X 10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e
(c) Three-dimensional graph of (a)
10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e (d) Three-dimensional graph of (b) (a) A conventional clustering
10 20 30 40 50 5 10 15 20 25 30 38 33 35 34 36 25 22 37 24 X 33 22 35 36 27 26 23 25 Y
(b) A constrained clustering with age constraint range = 5
10 20 30 40 50 5 10 15 20 25 30 38 33 35 34 36 25 22 37 24 X 33 22 35 36 27 26 23 25 Y 10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e
(c) Three-dimensional graph of (a)
10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e 10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e 10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e
(c) Three-dimensional graph of (a)
10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e (d) Three-dimensional graph of (b) 10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e 10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e 10 20 30 40 10 20 25 30 35 33 36 X 38 35 22 33 25 26 24 34 36 37 35 23 22 27 25 Y A g e (d) Three-dimensional graph of (b) (a) A conventional clustering
10 20 30 40 50 5 10 15 20 25 30 38 33 35 34 36 25 22 37 24 X 33 22 35 36 27 26 23 25 Y
(a) A conventional clustering
10 20 30 40 50 5 10 15 20 25 30 38 33 35 34 36 25 22 37 24 X 33 22 35 36 27 26 23 25 Y 10 20 30 40 50 5 10 15 20 25 30 38 33 35 34 36 25 22 37 24 X 33 22 35 36 27 26 23 25 Y
(b) A constrained clustering with age constraint range = 5
10 20 30 40 50 5 10 15 20 25 30 38 33 35 34 36 25 22 37 24 X 33 22 35 36 27 26 23 25 Y
(b) A constrained clustering with age constraint range = 5
10 20 30 40 50 5 10 15 20 25 30 38 33 35 34 36 25 22 37 24 X 33 22 35 36 27 26 23 25 Y 10 20 30 40 50 5 10 15 20 25 30 38 33 35 34 36 25 22 37 24 X 33 22 35 36 27 26 23 25 Y 38 17 49 33 7 47 35 15 43 34 26 42 36 10 41 25 18 37 22 11 35 37 23 32 24 18 29 33 8 23 22 25 20 35 18 19 36 12 17 27 24 14 26 8 14 23 13 10 25 20 6 Age Y X 38 17 49 33 7 47 35 15 43 34 26 42 36 10 41 25 18 37 22 11 35 37 23 32 24 18 29 33 8 23 22 25 20 35 18 19 36 12 17 27 24 14 26 8 14 23 13 10 25 20 6 Age Y X
Note that in the data stream environment, data points arrive continuously. The limited space does not allow us to maintain all the information of data points. Therefore, data points can only be parsed once to collect necessary statistics and then discard afterwards. In addition, to process fast incoming data points, an efficient algorithm of maintaining statistics is also required. Furthermore, along the accumulation of data points, users are possible to have different clustering requirements at different time. For example, when a club has fewer members and fewer resources, 5 clusters with the constraint range being 10 years are good. However, when more and more members join, users may feel that 10 clusters with 5-year range are more appropriate. In addition, clustering requirements are usually unpredictable in advance because they are application dependent and are usually different for various purposes. Therefore, a framework, which is able to handle infinite arriving data points and support various clus-tering requirements, will be desired.
In this paper, we devise a framework of Constrained Clustering for the Evolving Data Stream, abbreviated as CCDS framework, to cluster the data stream under the pairwise numerical constraint. The CCDS framework proposed consists of two phases, namely the statistics reserving phase and the clustering responding phase. The statistics reserving phase provides an efficient algorithm to process and maintain the data points in a compact structure named constraint tree. On the other hand, the statistics maintained will be retrieved in the clustering responding phase to generate clusters according to clustering requests specified by users. Since the clustering requirement is obtained only when a user submits the request, the maintained information is required to have the ability to service various clustering requests without process the original data points again. Note that in addition to minimize the clustering costs, the pairwise numerical constraint should be followed strictly. Accordingly, we design the constraint tree structure to provide a higher priority for the constraint attribute when data points are inserted. Then, data points with higher similarity are summarized and maintained in one record to reduce the storage space. As shown in the complexity analyses, the time complexity of the statistics reserving phase, which is the time complexity of constructing the constraint tree, is of O(n) where n is the number of data points. In addi-tion, the clustering time is also reduced by applying the statistics maintained to the clustering algorithm, which ensures the efficient execution of framework CCDS in the data stream environment. Furthermore, theoretical properties of CCDS are derived in this paper. It is also validated by our empirical studies that the CCDS frame-work performs very efficiently in the data stream environment while producing clustering results of very high quality.
The rest of this paper is organized as follows. The problem description and framework definitions are given in Section 2. Section 3 presents the proposed algorithms to deal with this constrained clustering problem in the data stream environment. Then empirical studies are conducted in Section 4. This paper concludes with Section 5
2 Problem Description
In this section we will describe the problem studied in this paper, and introduce a framework to solve the con-strained clustering for the evolving data stream. As mentioned earlier, among all attributes of the data set, some are specified as constraint attributes and some are optimization attributes. Constraint attributes and optimization attributes may overlap because some attributes are possibly important in both considerations. Similar to the con-ventional clustering problems, there is an objective function operating on the optimization attributes to measure the cost of clustering. In addition, an additional constraint range
C
a
R
is set for the constraint attribute aC. For any pair of objects oi, oj in a cluster, the constraint distanced
aC(
o
i,
o
j)
of constraint attribute aC between any two objects oi and oj is required to be less than or equal toC
a
R
. For example, in Fig. 1, age is a constraint attrib-ute, denoted by aage, and its constraint rangeR
aage is 5. The constraint distanced
aage(.,.)
, which is thediffer-ence of ages, should be no more than 5 years. For the simplification and clearer discussion of this problem, we focus on the scenario of a single constraint attribute in this paper. Formally, we have the following problem defi-nition.
Definition 1 Clustering Data Stream with Pairwise Constraint:
A data stream D of infinite incoming objects is represented as {o1,o2, ..., oi, ...}.
A clustering request is a pair of (k,
R
aC),where k is the number of clusters,R
aC is the constraint range of theconstraint attribute aC , and the value of
R
aC×
k
is larger than or equal to the whole range of the constraintat-tribute aC .
Given a data stream D and a received clustering request of (k,
C
a
R
), the pairwise constrained clustering problem is defined as the problem of determining the k-clustering Cl = {C1,C2, ..., Ck} in such a way that the total costCost(Cl) is minimized subject to the condition that for any pair of objects (oi,oj ) in a cluster, we have C
C i j a
a
o
o
R
d
(
,
)
≤
. The cost function Cost(Cl) is calculated based on the optimization attributes.Example 1: Given a data stream as follows, D ={(9,11), (2,27), (7,3), (10,9), (6,29), (8,23), (4,22), (5,8), (3,6), (1,25), ...}, where the first value of each data point is the value of the constraint attribute, and the second one is the value of the optimization attribute. Suppose that a clustering request of (k,
C
a
R
) = (2, 6) is submitted when 8 data points are received. The constrained clustering result will be C1 = {(2, 27), (6, 29), (8, 23), (4, 22)} and C2 = {(9, 11),(7, 3), 10, 9), (5, 8)}. Note that the values of the constraint attribute are in the range [2-8] for cluster C1 and in the
range [5-10] for cluster C2 to comply with the constraint range 6. Then, after two more data points are inserted, another
clustering request of (k,
C
a
R
) = (3, 5) is submitted. The clustering result of C1 = {(2, 27), (6, 29), (4, 22), (1, 25)}, C2= {(9, 11), (10, 9), (8, 23)}, and C3 = {(7, 3), (5, 8), (3, 6)} will be responded to the new request. It is noted that some
data points are not in the same clusters as the previous clustering result since the constraint range and the number of clusters are changed.
62 50 62 50 173173 185185 190190 15 8 15 8 1717 2020 2525 2727 190190 200200 bucket
bucket bucketbucket bucketbucket bucketbucket bucketbucket bucketbucket bucketbucket
…
……
……
constraint levels dense-record buckets 173 120 90 50 90 120 173 50 47 42 33 17 33 42 47 17…

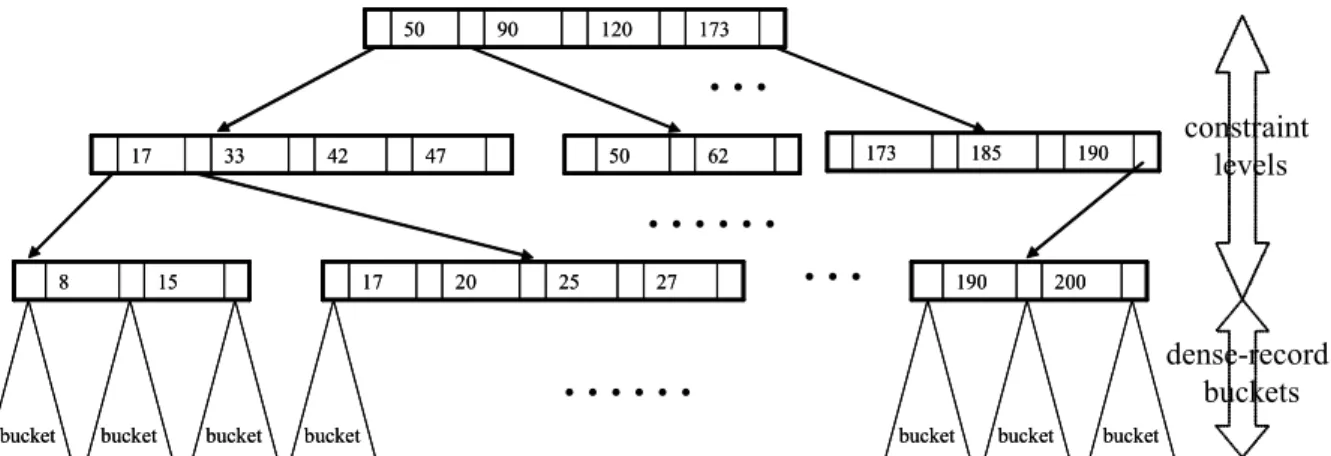

Fig. 2. Illustration of the constraint tree, where the maximum number of keys in a node is 4. Each node contains at least 2 keys and at most 4 keys. The leaf nodes link to dense-record buckets.
Note that in the data stream environment, data points arrive continuously and users can submit clustering re-quest (k,
C
a
R
) at any time. According to the above definition, two main tasks are required to be handled in our framework. First, we have to keep track of the incoming data stream, and maintain sufficient information or sum-maries for generating clusters with high quality. Second, clusters, which are able to satisfy requirements specified by users, should be generated from the available information instead of from the original whole data set. Note that the maintained information should service various clustering requests without process the original data points again. Therefore, a framework named Constrained Clustering for the Evolving Data Stream, abbreviated as CCDS framework, containing two phases, which are the statistics reserving phase and the clustering responding phase, is proposed to deal with these two tasks, respectively. In the statistics reserving phase, the arriving data points are processed and some statistics are maintained. Note that clusters are generated whenever a clustering request is submitted by a user; therefore, we have no idea about what kind of clusters will be generated when data points arrive. In other words, the statistics maintained during the statistics reserving phase should contain enough information for currently unknown clustering requests while keeping the required storage space small. In the CCDS framework, a compact data structure, named constraint tree, is proposed to maintain the statistics effi-ciently for future clustering requests. In the clustering responding phase, clustering requests containing the cluster number k and the constraint rangeC
a
R
are obtained. Then, according to the clustering requests, the clustering algo-rithm will be applied to the statistics kept in the constraint tree. Therefore, multiple clustering requests are able to be served without visiting the original data set. The details of the constraint tree and the proposed algorithms will be described in Section 3.3 Design of CCDS Framework
In Section 3.1, the algorithm for maintaining the constraint tree during the statistics reserving phase is presented. Next, the approach to generate clusters in the clustering responding phase is described in Section 3.2.
3.1 Statistics Reserving Phase
Since the data points in the data stream environment arrive continuously, we are not able to store the information of all data points. Therefore, a compact structure is required to keep enough information for clustering requests in the future without incurring massive storage space.
Note that data points considered in this work contain two types of attributes, which are the constraint attribute and the optimization attributes. The constraint attribute sets a restriction on data points to be put in the same cluster. On the other hand, clusters with lower cost, which is calculated by the optimization attributes, are more desirable. Therefore, these two types of attributes should be handled separately in the statistics reserving phase. Accordingly, the constraint tree is designed to incorporate the information of the constraint attribute and the optimization attributes in a compact structure. This constraint tree consists of two parts, which are constraint levels and dense-record buckets, as shown in Fig. 2. The index keys in the constraint levels are values of the constraint attribute, where as similar data points in the same leaf node are aggregated into one record in the dense-record bucket. When a new arriving data point is inserted into the constraint tree, it traverses through the constraint levels according to the value of constraint attribute first, and then goes to the dense-record bucket afterwards. As such, among all the attributes, the constraint attribute is able to be considered in a higher priority. Then, the optimization attributes are taken into consideration for data points within a smaller range of constraint values.
The purpose of constraint levels is to distribute data points according to the constraint attribute in a more bal-anced way. However, the limitation of restricted space in the data stream environment usually does not allow us to keep track of every possible value. Therefore, when more and more data points with different constraint values are received, the precise constraint values are not always be inserted as a new index key value of the constraint tree. Instead, some data points will be assigned to an appropriate leaf node directly without creating a new key. The inner nodes of constraint levels are represented as the following format:
<child0, key1, child1, key2, child2,..., keym, childm> ,
where childi is the pointer to a child node, and keyi is a constraint value where keyi < keyj if i < j. There are at most m keys and at least
2
m
keys in each node. The child node linked by childi contains records with the constraint values in the range of [keyi , keyi+1) for 1 < i < m-1. The child node linked by child0 contains records with the constraint values being smaller than key1, and the child node linked by childm contains records with the constraint values being larger than or equal to keym. The format of leaf nodes is the same as inner nodes. Rather than linking to a child node, a pointer in a leaf node links to a dense-record bucket instead. Similar to the inser-tion of B+-tree, an incoming record traverse the constraint tree to find a suitable leaf node for inserinser-tion. If there is still empty space in the node, a new key is inserted. Otherwise, the node needs to be split and the median key is inserted into its parent node. If the parent node is also full, split it and repeat the procedure until no parent node needs to be split.
However, the constraint tree is not allowed to grow infinitely due to the limited space in the data stream envi-ronment. Therefore, a predefined parameter Hmax , which can be specified by users according to the available space, is assigned to be the maximum height of constraint levels. Note that when the height of the constraint tree is smaller than Hmax, there are still not many data points arrived. In this situation, we have enough space to allow the constraint tree being built precisely without any approximation. Therefore, data points are inserted into the constraint tree without any restriction. However, when more and more data points have been inserted, not all of them can be maintained precisely. Therefore, the insertion operation will be adjusted to include more data records in a dense-record bucket while do not lose much information.
We can observe that except for the root node, which has at least two branches, every node contains at least
1
2
+
m
branches. Therefore, the constraint tree is a highly balanced tree, where leaf nodes are all at the same level and each node is at least half full. In addition to the balanced structure of the constraint tree, we also desire that the distribution of the constraint values can be highly balanced. This highly balanced distribution can be achieved more easily for static data sets, where all the data points are available for calculation. However, in the data stream environment, maintaining the balance will be an uneasy job because of the evolving of data points and the limitation of available space. Therefore, we propose a mechanism to construct a more balanced constraint tree for the evolving data stream. The following lemmas help us to build a more balanced constraint tree.
Lemma 1 The number of leaf nodes, denoted as nL, in the constraint tree of height Hmax is in the range of
.
)
1
(
,
)
1
2
(
2
max 2 max 1
+
+
×
H − H −m
m
Proof. Except for the root node, which has at least two links, every node contains at least
1
)
2
(
+
m
links.Therefore, the number of leaf nodes of the tree with height Hmax will not smaller than
2 max
)
1
2
(
2
+
−
×
m
H . On the other hand, the maximum number of keys in each node is m; at most (m+1) links will be in a node. The maximum number of leaf nodes will be(
m
+
1
)
Hmax−1.
Note that a link of a leaf node connects to a dense-record bucket. According to the above lemma, the number of dense-record buckets in the constraint tree can be calculated as the following lemma.
Lemma 2 The number of dense-record buckets, denoted as nB, in the constraint tree of height Hmax is in the range of
+
+
×
1
)
max−,
(
1
)
max2
(
2
m
H 1m
H .Note that all the dense-record buckets will cover the whole range of the constraint attribute without overlap. Proof. The minimum number of dense-record buckets in a leaf node is
1
)
2
(
+
m
. Therefore, the number of
dense-record buckets of the tree with height Hmax will not smaller than
1 max
)
1
2
(
2
+
−
×
m
H. On the other hand, the maximum number of record buckets in each leaf node is (m+1); thus, the maximum number of dense-record buckets will be max
(m +1)H .
Recall that a dense-record bucket contains a number of data points whose constraint values are in the range specified by the keys in the leaf node of the constraint tree. In order to maintain more precise constraint values for data points, dense-record buckets with smaller ranges of constraint values will be preferred. However, as shown in Lemma 2, the number of dense-record buckets in a constraint tree is limited, and all the dense-record buckets will cover the whole range of the constraint attribute. Since we have no idea about the distribution of constraint values of incoming data points, a balanced distribution of constraint values into all the dense-record buckets will allow us to maintain data points more precisely. Furthermore, because the number of incoming data points is infinite, which causes the range of the constraint attribute being possible to vary along with the arriving data points, we are not able to specify the ranges of the constraint attribute for all the dense-record buckets di-rectly. Therefore, a guideline is introduced in this paper to adjust the ranges of the constraint attribute in record buckets dynamically according to arriving data points. Since the range of constraint values in a dense-record bucket is affected by the number of dense-dense-record buckets in the constraint tree, we have the following observation.
Observation: From Lemma 2, we can observe that the constraint tree of height Hmax contains nB densr-record
buckets, where
1
)
max(
1
)
max2
(
2
m
+
H 1≤
n
B≤
m
+
H
×
−. Therefore, if the whole range Rwhole of the constraint attribute is distributed to these dense-record buckets uniformly, each dense-record bucket is desired to cover the range between max
)
1
(
H wholem
R
+
and1
)
max 12
(
2
+
−
×
H wholem
R
.Because the number of branches in each node is between
1
)
2
(
+
m
and (m+1), we choose a middle value for approximating the range of the constraint values in a dense-record bucket. Accordingly, a guideline is provided as follows.
Lemma 3 The approximating range Rapp is assigned as max
)
1
4
3
(
H wholem
R
+
. When a data point arrives at a leafnode, if the constraint value of the new data point, denoted as keynew, is larger than the largest key in the leaf node, denoted as keymax,, insert the new key if (keynew – keymax,) > Rapp. If it is smaller than the smallest key in the leaf node, denoted as keymin, insert the new key if (keymin,– keynew,) > Rapp. Otherwise, this data point is put into a dense-record bucket directly without creating a new key.
The procedure of constructing the constraint tree is described as follows. Procedure of Constructing the Constraint Tree
1. When a data point with the constraint value keynew is inserted, update the minimum value and the maximum value of the constraint attribute if so necessarily.
2. Traverse the tree to an appropriate leaf node according to the constraint value. Then three cases are consid-ered:
2.1 Case 1: If the key value keynew already exists in the leaf node, insert this data point into a dense-record bucket. If this data point has high similarity with an existing dense-record in the bucket, merge the date point to that dense-record.
2.2 Case 2: If the height of constraint tree is smaller than Hmax, insert the constraint value of the data point as a new key. A dense-record bucket with this data point is also created. If this leaf node is full, split it into two nodes and insert the middle key to their parent node. This step of split and insertion will be re-peated until no splitting of a parent node is required.
2.3 Case 3: If the height of constraint tree is equivalent to Hmax, two cases will be considered:
Case 3.1: if (keynew–keymax)≤Rapp and (keymin–keynew)≤Rapp, this data point is inserted into a dense-record bucket directly.
Case 3.2: Otherwise, insert the new key, create the corresponding dense-record bucket, and split nodes as Case 2 while needed. After this insertion, if the height of the constraint tree in-creases to (Hmax+1), which exceeds the maximum height allowed, the constraint tree needs to be adjusted. In order to maintain the height of the constraint tree not to exceed Hmax, the leaf nodes of the constraint tree will be regarded as dense-record buckets afterwards, and the parents of original leaf nodes will become new leaf nodes. The dense-record buckets in an original leaf node are combined into a single dense-record bucket, and dense-records with high similarity are merged. Consequently, the height of the constraint tree is reduced to Hmax again.
20 17 20 17 2525 2727 3131 62 50 62 50 173173 185185 190190 15 8 15 8
…
190190 200200……
constraint
levels
dense-record
buckets
25 17 25 17 3333 4242 4747 50 33 50 33 9090 120120 173173 90 90…
bucket bucket bucket bucket

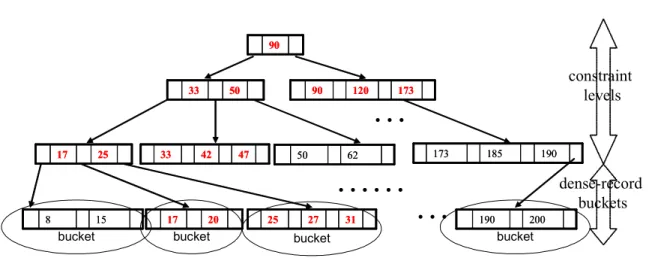

Fig. 3. Illustration of inserting a data point with constraint value 31.
Example 2: Consider the constraint tree in Fig. 2 as an example and recall that m =4 and Hmax =3. Assume that a data point with key 31 is inserted. Since the constraint tree already reaches the maximum height, Case 3 in the Procedure of Constructing the Constraint Tree will be followed. Rapp is calculated by
3
1
4
4
3
8
200
3=
×
+
−
,keymax of the leaf node is 27, and we will have that (31–27) = 4 > Rapp. Therefore, Case 3.2 will be followed next. After this insertion, several nodes are split and the height of the constraint tree becomes (Hmax+1), as shown in Fig. 3, where the split nodes are marked with red and bold key values. Therefore, the original leaf nodes of the constraint tree will be regarded as dense-record buckets afterwards, and the parents of original leaf nodes will become new leaf nodes. Then, the height of the constraint tree is reduced to Hmax again.
It is noted that if the values of the constraint attribute do not have much correlation with time, the constraint tree will become stable soon, and most of new data records will be inserted to appropriate dense-record buckets accordingly. However, if the values of the constraint attribute are dependent on time, the whole range of the con-straint attribute will getting larger and larger. In this situation, our approach is able to adjust the concon-straint tree dynamically according to the increasing range.
After introducing the properties of constraint levels and the construction of the constraint tree, we start to de-scribe the details of record buckets. A record bucket contains multiple records, and a dense-record, which is an aggregation of similar data points, can be regarded as a micro-cluster within a smaller range of the constraint attribute. A dense-record is represented as the following format,
[
a
C.
s
,
a
C.
e
]
,
(
N
,
LS
,
SS
)
,where aC.s and aC.e are the smallest and largest constraint attribute values of data points in this dense-record
respec-tively, and the part
(
N
,
LS
,
SS
)
is the same as the Clustering Feature defined in BIRCH [21]. Accordingly, N is the number of data points in the dense-record,LS
is the linear sum of the N data point, i.e.,∑
= N i i
X
1 , andSS
is the square sum of the N data points, i.e.,
∑
= N i iX
1 2. By the Clustering Feature, the distance between two
dense-record d(Fi, Fj), where
F
i=
[
a
C.
s
i,
a
C.
e
i]
,
(
N
,
LS
,
SS
)
,
andF
j=
[
a
C.
s
j,
a
C.
e
j]
,
(
N
,
LS
,
SS
)
,
can be calculated efficiently.(
)
1/2 1 1 2 2 2 / 1 1 1 22
)
,
(
−
+
=
−
=
∑ ∑
∑ ∑
