JMEPEG (2000) 9:253- 260 © ASM International
galvanic coupling occurs between these grain boundary precipi-tates and the grain interiors, which can lead to severe intergran-ular attack. The intergranintergran-ular corrosion susceptibility depends on the corrosion solution and the extent of intergranular precip-itates, which is also a function of Mg content, fabrication, and the thermal process.[6,7]Furthermore, an undesirable phenome-non, the formation of cavities, occurs during the superplastic forming of some alloys, especially aluminum alloys. The cavia-tion phenomenon not only deteriorates the mechanical proper-ties of the workpiece but also increases its susceptibility to corrosion.[4,8–10]In our previous studies, it was found that the su-perplastically formed Al 7475 and Inconel 718, (INCO Alloys International, Inc., Huntington, WV) workpieces clearly showed an increase in susceptibility to corrosion in 3.5% NaCl solu-tion.[11,12] All factors aforementioned will increase the subse-quent corrosion tendency of the superplastically formed Al 5083 alloy, especially intergranular corrosion susceptibility.
Although the processing of superplastic forming for Al 5083S has been studied by some researchers,[8–10,13–15]evaluation of the corrosion behavior of this alloy is scarce, which is important from a practical point. Moreover, the effects of sensitization on corro-sion behavior caused by thermal processing and the cavitation formed during the superplastic forming should be clarified. In the present work, the degradation of corrosion resistance of a su-perplastic Al 5083 alloy (Al 5083S), before and after thermal and superplastic forming processes, was systematically investi-gated by weight loss method, electrochemical technique, and scanning electron microscope (SEM) observation. For comparison, specimens of a non-superplastic Al 5083 alloy (denoted as Al 5083N) with the same thermal histories as those used in the super-plastic forming of Al 5083S were also studied. Through these ex-perimental results, the influences of sensitization and cavitation Keywords Al 5083 alloy, intergranular corrosion, superplastic
forming, thermal processing, sensitization, cavitation
1. Introduction
Al 5083 alloy has been widely used in structural materials that require corrosion resistance and moderate to high strength. Grain refinement of this alloy can be obtained by thermome-chanical treatment, which improves its methermome-chanical properties and results in superplasticity.[1]A superplastic forming technol-ogy has been developed, which becomes important in industry for manufacturing complex workpieces and replaces conven-tional stamping processes, especially for those materials with lower formability.[2]The superplastic Al 5083 alloy (denoted as Al 5083S) has been commercialized and the superplastically formed components have been used in automotive industry to re-duce vehicle weight and improve fuel efficiency.[3]It also has the potential to be used in mechanical and architectural structures. However, due to the increase of grain boundaries in the super-plastic Al 5083S, the susceptibility of intergranular corrosion of this alloy should be noted. Moreover, the superplastic forming processes of the Al 5083S are usually performed at 450 to 550 °C.[4]It has been reported that Al-Mg alloys containing more than 3 wt.% Mg, including Al 5083, will be sensitized at elevated temperatures above 100 °C or higher.[5,6,7]This is the result of the continuous forming of the highly anodic βphase (Mg2Al3) at grain boundaries.[5]During exposure to corrosive environments,

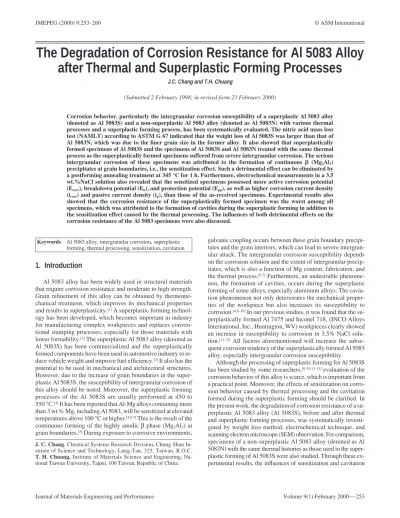

The Degradation of Corrosion Resistance for Al 5083 Alloy
after Thermal and Superplastic Forming Processes
J.C. Chang and T.H. Chuang
(Submitted 2 February 1998; in revised form 23 February 2000)
Corrosion behavior, particularly the intergranular corrosion susceptibility of a superplastic Al 5083 alloy (denoted as Al 5083S) and a non-superplastic Al 5083 alloy (denoted as Al 5083N) with various thermal processes and a superplastic forming process, has been systematically evaluated. The nitric acid mass loss test (NAMLT) according to ASTM G 67 indicated that the weight loss of Al 5083S was larger than that of Al 5083N, which was due to the finer grain size in the former alloy. It also showed that superplastically formed specimens of Al 5083S and the specimens of Al 5083S and Al 5083N treated with the same thermal process as the superplastically formed specimens suffered from severe intergranular corrosion. The serious intergranular corrosion of these specimens was attributed to the formation of continuous b (Mg2Al3)
precipitates at grain boundaries, i.e., the sensitization effect. Such a detrimental effect can be eliminated by a postforming annealing treatment at 345 °C for 1 h. Furthermore, electrochemical measurements in a 3.5 wt.%NaCl solution also revealed that the sensitized specimens possessed more active corrosion potential (Ecorr), breakdown potential (Eb), and protection potential (Epp), as well as higher corrosion current density
(icorr) and passive current density (ip), than those of the as-received specimens. Experimental results also
showed that the corrosion resistance of the superplastically formed specimen was the worst among all specimens, which was attributed to the formation of cavities during the superplastic forming in addition to the sensitization effect caused by the thermal processing. The influences of both detrimental effects on the corrosion resistance of the Al 5083 specimens were also discussed.
J. C. Chang, Chemical Systems Research Division, Chung Shan In-stitute of Science and Technology, Lung-Tan, 325, Taiwan, R.O.C. T. H. Chuang, Institute of Materials Science and Engineering, Na-tional Taiwan University, Taipei, 106 Taiwan, Republic of China.
on the corrosion behavior of these specimens, particularly inter-granular corrosion susceptibility, were also discussed.
2. Experimental
Sheet materials of commercial superplastic Al 5083 alloy (Al 5083S) with a thickness of 2 mm were used in this study. The Al 5083S, designated as S1, was supplied by SKY Aluminum Co. Ltd. (Japan). Table 1 shows the chemical compositions of this alloy as analyzed by inductively coupled plasma-atomic emission spectroscopy (ICP-AES). On the other hand, a commercial, non-superplastic Al 5083 alloy (Al 5083N) with 2-mm thickness was also used in this investigation. The Al 5083N, designed as N1, alloy was purchased from Alcoa Co. (Alcoa Center, PA). The chemical composition of Al 5083N is also shown in Table 1. Test solutions were prepared using reagent grade chemicals and high purity deionized water (Milli-Q SP, Millipore S.A., France).
Some disk specimens with a diameter of 13 cm were cut from a sheet of Al 5083S alloy and superplastically formed in a cylin-drical die by argon blowing with a pressure of 0.35 MPa (50 psi) at 500 °C for 1 h. Figure 1(a) shows a typical pan-shaped work-piece after superplastic forming. The central cross-sectional pro-file of such a workpiece was demonstrated in Fig. 1(b). It indicated that the thickness was not uniform, usually thinner at the corner. The specimens for weight loss tests and electro-chemical measurements were cut from the central section of the pan bottom. In order to evaluate the effect of the superplastic forming process on intergranular corrosion susceptibility, spec-imens of both Al 5083S and Al 5083N, designated as S3 and N2, respectively, were also prepared by heating at 500 °C for 1 h to simulate the thermal process of superplastic forming.
Some specimens of S2, S3, and N2 were further annealed at 345 °C for 1 h, which were designated as S4, S5, and N3, respec-tively. The thermal and forming processes of all the specimens prior to corrosion tests are summarized in Table 2. The detrimen-tal effects caused by these treatments are also given in Table 2.
The susceptibility of intergranular corrosion was deter-mined by the NAMLT test according to ASTM G67-93. The dimension of the specimens was 50 ×6 mm with a thickness of 2 mm. They were cut along the rolling direction and polished with emery paper to 320 grit. Then, the specimens were etched in a 5 pct sodium hydroxide (NaOH) solution at 80 °C for 60 s, desmut in a concentrated nitric acid (HNO3), and rinsed with deionized water. After drying in air, the specimens were weighed to an accuracy of near 0.1 mg. The NAMLT test was then conducted by immersing the specimens in a 70% HNO3 solution at 30 ± 1 °C for 24 h. Then, they were washed in deionized water and acetone, dried in air, and weighed again.
Cyclic polarization measurements were conducted in an aer-ated 3.5 wt.% sodium chloride (NaCl) solution with a potentio-stat (M273A, EG & G PARC, TN). Before testing, the specimens
were polished with emery paper to 600 grit, then degreased with acetone in an ultrasonic cleaning bath and rinsed in deionized water. The exposed surface area of the working electrode was 30 mm2 of the longitude-transverse (L-T) plane. The specimens were immersed in the test solution for 30 minutes to approach a steady-state condition. Cyclic polarization curves were obtained by the potentiodynamic technique, with a scanning rate of 1 mV/s. The potentials were scanned from −250 mV against the corrosion potential (Ecorr) to the threshold current density of 50 mA/cm2, then reversing the scan until the hysteresis loop was closed. All potentials were measured and quoted against a satu-rated calomel electrode (SCE).
To observe the general microstructure via optical micro-scope, the specimens were prepared by polishing and etching with Graf Sergeant reagent (15.5 mL HNO3, 0.5 mL hydrogen fluoride (HF), 3 g chromium acid (CrO3), and 84 mL deionized water).[10]To identify the β-phase precipitates, the specimens with various thermal processes were selectively etched with a 40% phosphoric acid (H3PO4) solution then examined by SEM. The corrosion morphologies after the NAMLT test were also observed by SEM.
Table 1 Chemical compositions of Al 5083 alloys (wt.%)
Alloy Mg Mn Cr Si Fe Cu Ti Zn Al
Al 5083S 4.46 0.67 0.10 0.09 0.05 0.02 0.01 0.01 bal
Al 5083N 4.36 0.78 0.08 0.06 0.08 0.02 0.01 0.01 bal Fig. 1 (a) The typical pan-shaped workpiece after superplastic forming. (b) The central cross-sectional profile of the workpiece
the as-received specimens (S1 and N1), respectively. ASTM G 67 suggests the amount of weight loss should be less than 25 mg/cm2for a good intergranular corrosion resistance property of the 5xxx series aluminum alloys, implying that both the S1 and N1 were low in susceptibility to intergranular corrosion. It can also be seen that the weight loss of the fine grain-sized S1 speci-men was larger than that of the larger grain-sized N1 specispeci-men.
3. Results and Discussion
3.1 Susceptibility to Intergranular Corrosion
The typical grain structure of the as-received Al 5083S (S1), Al 5083N (N1), and superplastically formed Al 5083S (S2) are shown in Fig. 2(a), (b), and (c), respectively. The grain sizes measured by the mean linear intercept method based on ASTM E112 are listed in Table 3. The measurement revealed that Al 5083S possessed an approximately 50% finer grain size than that of Al 5083N. Table 3 also shows that the grain growth of these alloys under various thermal processes in this study was negligible, except for that of the superplasti-cally formed specimen.
The grain size of the superplastically formed specimen (S2) increased by about 65%, compared to that of the as-received specimen (S1). The grain growth rate was similar to that ob-tained in a tension test reported by Verma et al.[8]However, the grain size of the specimens treated with the same thermal process as superplastic forming (S3) apparently was not changed, as shown in Table 3. After superplastic forming, cav-ities were also found in the specimens, as shown in Fig. 3(a). In addition to the large cavities formed in the intersection of triple grain boundaries, many small cavities were also found at the grain boundaries, as shown in the magnified micrograph of Fig. 3(b).
Table 4 demonstrated the results of the NAMLT test of those Al 5083 specimens. The weight loss was 5.6 and 3.2 mg/cm2for
Table 2 Various heat treatments and the accompanying
ef-fects in superplastic and nonsuperplastic Al 5083 alloys
Temper Detrimental
Specimen Material conditions effects
S1 Al 5083S as-received
S2(a) Al 5083S superplastically sensitization formed and cavitation S3(b) Al 5083S heat treated sensitization
with the same thermal process as superplastic forming specimen (S2) S4(c) Al 5083S postannealing cavitation after superplastic forming S5(c) Al 5083S postannealing of the S3 specimen N1 Al 5083N as-received
N2(b) Al 5083N heat treated sensitization with the same
thermal process as superplastic forming N3(c) Al 5083N postannealing of
the N2 specimen
(a) Superplastic forming by 0.35 MPa (50 psi) argon pressure at 500 °C for 1 h, then furnace cooled
(b) Heat treated at 500 °C and 0.35 MPa (50 psi) for 1 h without superplas-tic forming, then furnace cooled
(c) Postannealing at 345 °C for 1 h, then air cooled
Fig. 2 The typical optical micrographs of the A1 5083 alloys: (a) S1, (b) N1, and (c) S2
Table 3 Intercept grain sizes and the surface area of grain boundaries of the Al 5083 alloys
Longitudinal Long transverse Surface area of grain Specimen direction (µm) direction (µm) boundaries (cm2/cm3)
S1 9.6 ±0.5 7.5 ±0.4 2.54 ×103 S2 15.8 ±0.7 9.2 ±0.5 1.98 ×103 S3 9.8 ±0.4 7.3 ±0.3 2.59 ×103 S4 15.9 ±0.7 9.1 ±0.5 2.00 ×103 S5 9.7 ±0.4 7.4 ±0.3 2.56 ×103 N1 18.6 ±0.7 15.2 ±0.7 1.26 ×103 N2 18.3 ±0.7 15.4 ±0.6 1.25 ×103 N3 19.1 ±0.7 16.0 ±0.6 1.21 ×103
Fig. 3 (a) Cavitation formed in the superplastically formed specimen (b) The magnification of (a)
Table 4 Results of NAMLT test for Al 5083 alloys (a) Al 5083S Specimen S1 S2 S3 S4 S5 Weight loss 5.6 ± 0.4 41.6 ± 4.5 43.8 ± 3.7 4.7 ± 0.5 5.9 ± 0.3 (mg/cm2) (b) Al 5083N Specimen N1 N2 N3 Weight loss 3.2 ± 0.3 38.3 ± 4.1 3.4 ± 0.3 (mg/cm2)
where Sv= specific surface area, (NL)//= number of intersections
with grain boundaries per unit length placed parallel to the rolling direction, and (NL)⊥= number of intersections per unit length placed perpendicular to the rolling direction.
In Table 4, it was also clearly revealed that the weight losses of S2, S3, and N2 were much greater than those of the annealed specimens. In other words, specimens treated with the same ther-mal processes as superplastic forming (S3 and N2) resulted in a similar level of weight loss as that obtained after actual super-plastic forming (S2). The severe susceptibility of intergranular corrosion for the aforementioned specimens was attributed to the sensitization effect of heat treatment during the superplastic forming process. Kaesche[19]and Craig[20]have reported that the
Al 5083 alloy is susceptible to intergranular corrosion after ex-posure to moderately elevated temperature up to about 175 °C, which can be recovered by a postforming annealing treatment. In the present study, Table 4 also showed that the annealing treatment of the superplastically formed specimen and the spec-imens treated with the same thermal process as superplastic forming led to the recovery of intergranular corrosion suscepti-bility to a level approaching that of the original one.
Figure 4 presents the micrographs of the distributions of
β-phase precipitates, which were selectively etched with a 40% H3PO4solution. This etchant reveals only the β-phase precipitate
and not the grain boundaries.[5]From Fig. 4(a) and (b), the
as-re-ceived specimens (S1 and N1) possessed random distributions of small pits, while a continuous network of β-phase precipitates along grain boundaries appeared in the superplastically formed specimen (S2) (Fig. 4c). The specimens, S3 and N2, which were sensitized by the same thermal process as the superplastically formed specimens, showed morphologies similar to that of the S2. After further annealing of the superplastically formed spec-imen (S2), the microstructure returned to random distributions of
β-phase precipitates, as shown in Fig. 4(d) for specimen S4. Such results also existed for the annealing of S3 and N2 specimens, which are shown in Fig. 4(e) and (f) for specimens S5 and N3, re-spectively. Both specimens showed the random distributions of
β-phase precipitates as that of S4. The results are consistent with the opinions of Summerson and Sprowls[21] and Dix et al.[22]
They reported that the intergranular corrosion susceptibility of the sensitized specimens can be eliminated by dissolution of the continuous precipitation layer along the grain boundaries, and the coarsened precipitates will form during the annealing treatment.
Results of the specific surface area of grain boundaries are also given in Table 3. They were achieved by a quantitative metal-lurgy analysis and are defined by the ratio of grain boundary area to the volume of specimen. For a rolling material with partially oriented structures as used in this study, the specific surface area may be obtained by the following relation:[16,17,18]
(Eq 1) Sv=0 429.
( )
NL / /+1 571.( )
NL ⊥Fig. 4 SEM micrographs of β-phase precipitates selectively etched by phosphoric acid in Al 5083 alloys with various thermal processes: (a) S1, (b) N1, (c) S2, (d) S4, (e) S5, and (f ) N3
Figure 5 shows the corrosion morphologies of the specimens after the NAMLT tests. Both S2 and S3 specimens were at-tacked mainly at the grain boundaries (Fig. 5b and c). The grains may drop off as a result of severe corrosion around the grain boundaries,[20]leading to a large amount of weight loss,
as shown in Table 4. A similar morphology was also found in Fig. 5(g) for the N2 specimens. However, the as-received
spec-imens were only slightly attacked and corrosion occurred over the grain boundaries and inside the grains, as shown in Fig. 5(a), (d), (e), (f), and (h). From the results discussed above, it can clearly be seen that both the as superplastically formed speci-men and the specispeci-mens treated with the same thermal process as superplastic forming were seriously susceptible to inter-granular corrosion.
In order to evaluate the influences of sensitization and cav-itation during the superplastic forming process on the electro-chemical behavior of the various Al 5083 specimens, cyclic polarization was also performed for the specimens of S3 and N2, which were treated with the same thermal process as the super-plastically formed specimens. The results shown in Fig. 6(b) indicate that the corrosion potentials (Ecorr) of S2, S3, and N2
specimens were similar to one another. However, the breakdown potential (Eb) of S2 was about 50 mV more active than that of the S3 and N2 specimens, and both the cathodic and anodic current densities of the S2 specimen were also higher than those of the S3 and N2 specimens. These results could be attributed to the
3.2 Electrochemical Behaviors
Figure 6 shows the cyclic polarization curves of the Al 5083 specimens measured in a 3.5 wt.% NaCl solution. The electro-chemical parameters obtained from this figure are listed in Table 5. From Fig. 6(a), it is clear that the polarization curves of the as-received specimens (S1 and N1) were similar to each other. However, the electrochemical parameters of the super-plastically formed specimen (S2), such as the corrosion potential (Ecorr), the breakdown potential (Eb), and the protection potential (Epp), shifted to a more active direction compared to that of S1 and N1 specimens. The magnitude of the passive current density (ip) of the S2 specimen was also two to three times larger than that of the S1 and N1specimens, a result of the precipitation of the β phase, which is highly anodic to the alloy matrix.[23]Therefore,
the difference in polarization behaviors of these specimens can be attributed to the larger tendency of the selective dissolution of the βphase.
Table 5 Electrochemical parameters of Al 5083 alloys in 3.5 wt.% NaCl solution
Ecorr Eb Epp icorr ip
(mV vs SCE) (mV vs SCE) (mV vs SCE) (µA/cm2) (µA/cm2)
S1 −833 −647 −781 4.9 16.9 S2 −998 −791 −835 14.3 42.5 S3 −987 −746 −824 11.3 34.1 S4 −875 −715 −821 8.0 23.6 S5 −820 −638 −783 4.4 16.5 N1 −842 −653 −784 4.1 15.6 N2 −992 −740 −816 10.5 32.3 N3 −825 −659 −785 4.2 15.9
Εcorr: corrosion potential; Eb: breakdown potential; Epp: protection poten-tial; icorr: corrosion current density; and ip: passive current density
Fig. 6 Cyclic polarization curves of the Al 5083 alloys in 3.5wt.%NaCl solution: (a) S1, S2, N1; (b) S2, S3, N2; and (c) S1, S4, S5 N4 (a)
(b)
cavitation formed in the S2 specimen during superplastic form-ing, since both S3 and N2 specimens were treated with the same thermal process as the S2 specimen with the exception of the su-perplastic forming of the S2 specimen. Because cavities are usu-ally active sites for corrosion reaction, they caused pitting corrosion and led to the increase of corrosion current density (icorr) and passive current density (ip) values.[19,21]Reducing the
forma-tion of cavities in this alloy using the back pressure technique suggested by Bampton et al.[24,25]may eliminate the pitting cor-rosion tendency and increase the corcor-rosion resistance of the su-perplastically formed workpiece.
Cyclic polarization curves of the postannealing specimens (S4, S5, and N3), i.e., annealed after superplastic forming or heat treated with the same thermal process as superplastic forming, were shown in Fig. 6(c). For comparison, the cyclic polarization curves of the as-received specimen (S1) were also given in this figure. It is worth noting that the Ecorr, Eb, and Eppof S4 were
ap-parently more active than those of the other specimens. In addi-tion, both the cathodic and anodic current densities of the S4 specimen were also the highest among these specimens. The re-sults could be attributed to the retention of cavitation in S4, which was formed during superplastic forming. The electrochemical be-havior of S5 and N3 was similar to that of the S1 specimen.
From the values of icorrshown in Table 5, it was proposed that the ratio of the sensitization effect to cavitation effect for the in-tergranular corrosion susceptibility of a superplastically formed Al 5083 alloy could be expressed as
(Eq 2) This implies that the sensitization effect was approximately twice as dominant as the cavitation effect.
4. Conclusions
The susceptibility of Al 5083S to intergranular corrosion was more severe than that of Al 5083N. The higher weight loss of the Al 5083S specimen as measured by the NAMLT test was caused by its finer grain size. Results of the NAMLT tests also showed that the superplastically formed specimen (S2) and the speci-mens S2 and N3 treated with the same thermal process as su-perplastic forming also suffered from intergranular corrosion, primarily attributed to the effect of sensitization. The weight losses of the S2, S3, and N2 specimens were similar. The inter-granular corrosion of the S2, S3, and N2 specimens can be elim-inated by a postforming annealing treatment at 345 °C for 1 h.
From the electrochemical tests, the following results can be summarized: (1) both S1 and N1 possessed similar electro-chemical behavior; (2) the superplastic forming process resulted in sensitization and formation of cavitation of the Al 5083 alloys that clearly influenced the electrochemical behavior; (3) post-forming annealing treatment can recover the sensitization of the Al 5083 alloy; (4) the formation of cavitation led to the more ac-tive potentials of Ecorr, Eb, and Eppand the higher current
densi-ties of icorrand ipmeasured in the S2 and S4 specimens.
Both the NAMLT test and electrochemical measurement can be employed to evaluate the susceptibility of the Al 5083 alloys after superplastic forming and various heat treatments. It appears
icorr(S3)−icorr(S1) icorr(S4) icorr(S1)
[
]
:[
−]
=6 4 3 1. : .that the solution of the NAMLT test was too aggressive to de-termine the effect of cavitation on the susceptibility of the su-perplastically formed specimen to intergranular corrosion. However, the electrochemical measurements in 3.5 wt.% NaCl solution were more sensitive for clarifying the different effects between cavitation and sensitization.
