行政院國家科學委員會專題研究計畫 成果報告
介觀尺度下氮化鎵量子侷限結構在高 Q 值微共振腔之光子
輻射可控性研究(3/3)
研究成果報告(完整版)
計 畫 類 別 ： 整合型 計 畫 編 號 ： NSC 97-2120-M-009-001- 執 行 期 間 ： 97 年 08 月 01 日至 98 年 07 月 31 日 執 行 單 位 ： 國立交通大學光電工程學系（所） 計 畫 主 持 人 ： 王興宗 共 同 主 持 人 ： 孟心飛、彭隆瀚、郭浩中、盧廷昌、林佳鋒 計畫參與人員： 碩士級-專任助理人員：陳奎廷 學士級-專任助理人員：邱麗君 博士班研究生-兼任助理人員：邱清華 博士班研究生-兼任助理人員：蔡敏安 博士班研究生-兼任助理人員：邱鏡學 博士班研究生-兼任助理人員：巫漢敏 博士班研究生-兼任助理人員：鄭柏孝 博士班研究生-兼任助理人員：楊仲傑 博士後研究：李亞儒 報 告 附 件 ： 出席國際會議研究心得報告及發表論文 處 理 方 式 ： 本計畫可公開查詢中 華 民 國 98 年 11 月 13 日
行政院國家科學委員會補助專題研究計畫
■ 成 果 報 告
□期中進度報告
Research on Mesoscopic GaN-based Quantum
Confined Structures with High-Q Microcavity for
Control of Photon Emission
介觀尺度下氮化鎵量子侷限結構在高
Q 值微共振腔
之光子輻射可控性研究
計畫類別：■ 個別型計畫 □ 整合型計畫
計畫編號：NSC97－2120－M－009－001－
執行期間：95 年 08 月 01 日至 98 年 07 月 31 日
計畫主持人：S.C. Wang (王興宗)
共同主持人：
H.C. Kuo(郭浩中)、L.H. Peng(彭隆瀚)、H.F. Meng(孟心飛)、
T.C. Lu(盧廷昌)、C.F. Lin(林佳鋒)
計畫參與人員：李鎮宇(博士後)、邱麗君(行政助理)，博士生：朱榮堂、
高志強、柯宗憲、邱清華、陳俊榮、陳士偉、羅明華、凌碩均、鄭柏孝、
黃輝閔、蔡閔安、邱鏡學、王朝勳；碩士生：劉亭均、張家銘、卓立夫、
林伯駿、柯智淳、何依嚀、劉玫君、侯延儒、林大為、林詳淇、盧昱昕、
黃重卿、吳永吉、黃柏凱
成果報告類型(依經費核定清單規定繳交)：□精簡報告 ■完整報告
本成果報告包括以下應繳交之附件：
□赴國外出差或研習心得報告一份
□赴大陸地區出差或研習心得報告一份
■出席國際學術會議心得報告及發表之論文各一份
□國際合作研究計畫國外研究報告書一份
處理方式：除產學合作研究計畫、提升產業技術及人才培育研究計畫、
列管計畫及下列情形者外，得立即公開查詢
□涉及專利或其他智慧財產權，□一年□二年後可公開查詢
執行單位：國立交通大學
中 華 民 國 98 年 10 月 31 日
Research on Mesoscopic GaN-based Quantum
Confined Structures with High-Q Microcavity for
Control of Photon Emission
介觀尺度下氮化鎵量子侷限結構在高
Q 值微共振腔
之光子輻射可控性研究
總執行期限：95 年 08 月 01 日至 98 年 07 年 31 日PI: S. C. Wang (王興宗), National Chiao Tung University, E-mail:
[email protected]
Co-PI: H. C. Kuo (郭浩中), L. H. Peng (彭隆瀚), H. F. Meng (孟心飛), T. C. Lu
(盧廷昌), C. F. Lin (林佳鋒)
中文摘要
本研究團隊已完成本三年期研究計畫所規劃之研究目標。包含建立氮化鎵量子局限結 構之製程技術、建立理論模型與設計高Q 值之微共振腔結構與共振腔量子效應、製作含有 微共振腔與量子侷限結構之氮化鎵垂直共振腔面射型雷射、研究氮化鎵垂直共振腔面射型 雷射元件之特性與製作可控制光子輻射與雷射的氮化鎵垂直共振腔面射型雷射元件。我們 發表數種新穎的技術並成功製作世界第一個電激發操作之氮化鎵垂直共振腔面射型雷射。 除此之外，我們也成功發表了第一個室溫下光激發之氮化鎵光子晶體面射型雷射，並探討 其相關的物理機制與極化特性。另外，利用本研究團隊居於領先地位的高反射率氮化鎵與 氮化鋁所組成的佈拉格反射鏡，配合具有高激子束縛能之氧化鋅材料成功製作高Q 值微共 振腔結構，我們研究其光子與激子在量子侷限結構中的交互作用，成功在室溫下觀察到極 化子於微共振腔中的存在。因此，本計畫利用不同的奈米製作技術，已成功的使用氮化鎵 材料製作出不同型式的微共振腔結構，進而探討不同面向的光子輻射控製機制的可能性。 關鍵詞：氮化鎵、面射型雷射、光子晶體, 微共振腔英文摘要
We have accomplished the research objectives of this three year project. It includes the establishment of GaN-based quantum confined structures fabrication technology, modeling and design of high Q microcavity and cavity quantum effect, fabrication of GaN vertical cavity surface emitting lasers (VCSELs) with micricavity and quantum confined structures, investigation of performance of the fabricated GaN VCSEL devices, and Demonstration of controlled photon emission and lasing of the GaN VCSEL devices. We have demonstrated several kinds of new technologies and successfully fabricated the first electrically pumped GaN VCSEL. In addition, we have also reported the first room-temperature (RT) optically pumped GaN photonic crystal surface emitting lasers (PCSELs) and discussed the corresponding physical mechanisms and polarization. Moreover, by employing the high-reflectivity GaN/AlN distributed Bragg reflectors (DBRs) developed in our research group, we have fabricated ZnO-based high quality factor (Q) microcavity structures. Because of the strong interaction between photon and exciton in the microcavity, we have observed the microcavity polariton at RT. Therefore, we used different nano-technologies to fabricate many types of microcavity structures and investigated various possibilities about control of photon emission.
目錄
中文摘要………. I 英文摘要………. II 目錄……… III 報告內容 (一) 前言……… 1 (二) 研究目的……… 21. GaN-based vertical-cavity surface-emitting lasers……… 2
2. GaN-based photonic crystal surface-emitting lasers………. 2
3. Semiconductor micricavity polaritons……….. 3
(三) 文獻探討………. 4
1. Recent development of GaN-based VCSELs………. 4
2. Recent development of GaN-based PCSELs……… 4
3. Recent development of semiconductor microcavity polaritons……… 5
(四) 研究方法、結果與討論……….. 6
1. Research results of GaN-based VCSELs……….. 6
2. Research results of GaN-based PCSELs……….. 19
3. Research resuls of semiconductor microcavity polaritons……….. . 29
(五) 參考文獻………..……….. 36
(六) 與國外學術合作………. 40
(七) 計畫成果自評………. 41
報告內容
(一) 前言
An Optical microcavity consists of two high-reflectivity mirrors and a thin active layer in which photons are confined in small volumes by resonant recirculation. Microscale cavity ensures that the resonant frequencies are sparsely distributed throughout the spectrum and can be controlled by changing the cavity volume. Microcavities made of active III-V semiconductor materials can control emission spectra, which has been widely used in the fabrication of vertical cavity surface emitting lasers (VCSELs) and resonant cavity light emitting diodes (RCLEDs). In addition to the planar-type microcavities, microcavities based on photonic crystals can provide extremely small mode volumes. A photonic crystal (PC) is a bulk spatially periodic structure whose dielectric constant is modulated with a period comparable to the light wavelength. The interaction between such a crystal and photons essentially modifies the spatial distribution and the energy spectrum of the electromagnetic field; it means that the photonic crystal can be engineered to possess a photonic band gap (PBG) for a specific range of frequencies for which electromagnetic waves are forbidden to exist within the crystal. Based on a appropriate design of photonic crystal lattices and the use of active layer, photonic crystal surface emitting lasers (PCSELs) can be achieved and provide a large area single mode laser. Beyond the standard applications of the surface emitting lasers, microcavity polariton is another hot topic in recent year. Photons and excitons can be confined in a semiconductor microcavity simultaneously. Under this condition, when the cavity photon mode is resonant with an exciton mode, the strong coupling regime is achieved and the new coupled modes, named cavity polaritons are created. microcavity polaritons are admixed quasiparticles originated from the strong interaction between cavity photons and excitons. The half matter-half light nature of the Bose particles provides the extremely light effective mass and the controllable exciton-polariton dispersion curves by designing different cavity-exciton detuning values. These unique MC polariton properties are very important for the study of the fundamental physical phenomena including strong light-matter interaction, solid-state cavity quantum electrodynamics, and dynamical Bose-Einstein condensates (BEC). In this research report, we will focus on the investigation and development of above applications from semiconductor microcavities. Our research results in three years about VCSELs, PCSELs, microcavities, and nanotechnology on LEDs will be reviewed in detail. The related publications about the research results of GaN-based VCSELs, PCSELs, microcavities, and nanostructure GaN LEDs are also listed in this report for the readers to obtain the detailed information.
1. GaN-based vertical-cavity surface-emitting lasers (VCSELs)
VCSELs have many inherent advantages, such as circular output beam, low beam divergence, high modulation bandwidth, single longitudinal mode, and convenient wafer-level testing [1]−[3]. These advantages make VCSELs promising optoelectronic devices for many practical applications, such as high density optical storage system, laser printing, free space optical interconnects, fiber-optic communications, etc. Conventional GaAs- and InP-based red and infrared VCSELs have been commercialized for a long time due to its lattice-matched DBRs and suitable GaAs and InP substrates. However, the development of GaN-based VCSELs is relatively slow even though the idea of such a VCSEL has been proposed by Iga et al. since 1979 [4]. GaN and its most relevant alloys such as InGaN and AlGaN have many unique properties suitable for fabrications of various photon emission devices including LEDs and edge-emitting laser diodes (LDs). By varying the alloy composition, different photon emission can be obtained over a wide range of energy from 0.7 to 6.2 eV, covering the wavelength range from infrared to ultraviolet. However, there are several key technical issues in realization of nitride-based laser devices. These include no suitable GaN substrate material, difficulty in p-doping, and relatively high defect densities of epitaxially grown films, limiting the development of GaN-based optoelectronic devices. As for GaN-based VCSELs, the lasing action of GaN-based VCSELs is mostly reported under optical pumping conditions. There are three critical difficulties in fabricating electrically pumped GaN VCSELs. One is the lack of suitable substrates, leading to much higher defect densities in GaN films. Another is the difficulty in growing high-quality and high-reflectivity GaN-based DBRs due to the large lattice mismatch between GaN and AlN layers. The other is to obtain low-resistive p-type GaN layers, originated from the high activation energy of Mg dopants. Despite the material quality or fabrication problems, our research group was still devoted to the study of GaN-based VCSELs. Based on our previous research results about the improvement of high-reflectivity GaN/AlN DBRs [5], we have successfully demonstrated optically pumped GaN VCSELs at RT and electrically pumped GaN VCSELs at 77 K.
2. GaN-based photonic crystal surface-emitting lasers (PCSELs)
During the past decade, photonic crystals (PCs) have drawn much attention, and have many advantages to control the light propagation and photonic bandgap. The applications of PCs nanostructure can function as good photonic devices [6]−[8]. In general, there are two types of PC lasers, which have been developed and investigated. The first one fabricates a PC defect with an optical gain surrounded by 2-D or 3-D PC mirrors to form a resonant cavity, and lasing actions arise from the resonant cavity modes with high Q-values and a small modal volume. This kind of microcavity laser can achieve strong Purcell effect and the low-threshold lasing [9], [10]. Another type of PC lasers can operate without any defined cavity and extrinsic mirror because Bloch waves have an intrinsic feedback mechanism near the bandgap edge. Thus, this kind of PC laser is called as the band edge laser. The multidirectional distributed feedback effect near the band edges in two-dimensional (2D) PC structures can create a surface emitting laser [11], [12]. This kind of PC surface emitting lasers (PCSELs) could be considered as a candidate for perfect single
mode emission over a large area, high output power, and surface emission with narrow divergence angle [13], [14]. These PCSEL structures are usually composed of a perfect PC lattice and the laser action would happen in those band edge points in the photonic band diagram by satisfying the Bragg condition. The surface emission would occur when the vertical diffraction conditions are satisfied. Due to the advantages of the nitride-based materials, we focused our attention on the research topic of GaN-based PCSELs. The lasing action of GaN PCSELs was observed at RT by optical pumping technique. The corresponding laser performance and characteristics are also discussed in this report.
3. Semiconductor microcavity polaritons
Semiconductor microcavities have recently gained intense interest in the research of strong light-matter interaction since the pioneering work of Weisbuch et al. in 1992. [15]. In microcavity structure with strong interaction of excitons and photons, the new quasiparticles termed cavity polaritons are created and characterized by bosonic properties including very light mass and controllable dispersions. These unique MC polariton properties provide the possibility to investigate the fundamental physical phenomena including strong light-matter interaction, solid-state cavity quantum electrodynamics (CQED), and dynamical BEC. Besides, further applications of microcavity polaritons include polariton lasers [16], polariton light-emitting diodes [17], and polariton parametric amplifiers [18]. The first experimental observation of strong coupling regime confirmed by an anticrossing of the exciton and photon modes was reported in a GaAs-based microcavities [15]. Because of the nearly lattice-matched AlGaAs/AlGaAs DBRs and the high-quality GaAs/AlGaAs quantum wells (QWs), the growth and fabrication of GaAs-based semiconductor microcavities with high-quality factor (Q) are relatively easy. Consequently, the investigation of GaAs-based microcavity polariton has been widely reported and the electrically driven polariton LEDs are also demonstrated [17], [19]. Nevertheless, polariton optoelectronic devices operating at high temperatures require wide-bandgap material systems which can provide larger exciton binding energy than GaAs and can assure the existence of excitons at that temperature. In this sense, nitride-based material systems have attracted much attention in this research field due to their large exciton binding energy of about 26 meV for GaN bulk layers [20] and about 40−50 meV for GaN-based QW structures due to the quantum confinement effect [21]. Furthermore, ZnO-based microcavity is an attractive alternative for the study of polariton-related properties at RT since the exciton binding energy is as even larger about 60 meV for bulk ZnO layers. Therefore, based on our previous research results about the high-reflectivity AlN/GaN DBRs [5], we have fabricated ZnO-based microcavity structure and successfully observed the strong light-matter interaction. The cavity Q value is about 250, which is the state of the art for a ZnO-based microcavities and has a large vacuum Rabi splitting of about 72 meV. The detail research results will be shown in this report.
1. Recent development of GaN-based VCSELs
The fabrication of GaN-based VCSEL is a significant challenge due to the difficulty of growing high-reflectivity nitride-based DBRs. Despite the material quality and fabrication problems, realizations of the GaN-based VCSELs have been reported. The first demonstration of the RT optically pumped GaN-based VCSELs has been reported by Redwing et al. in 1996 [22]. The fully epitaxial VCSEL structure consists of a 10 μm GaN active region sandwiched between 30-period Al0.12Ga0.88N/ Al0.4Ga0.6N DBRs with the reflectivity values about 84~93% from the
theoretical prediction. The relatively low reflectivity results in the high threshold pumping energy ~2.0 MW/cm2 and the employment of thick GaN gain layer. Furthermore, Arakawa et al. fabricated an In0.1Ga0.9N VCSEL and observed the lasing action at 77 K for the first time in 1998
[23]. The 3-λ cavity comprising an In0.1Ga0.9N active layer was grown on 35-pair
Al0.34Ga0.66N/GaN DBRs with the reflectivity of 97%. The top-DBR consisting of 6-pair
TiO2/SiO2 multi-layer providing the reflectivity of 98% was evaporated on the top of the active
layer to form the hybrid VCSEL structure (i.e., the VCSEL structure consisting of semiconductor grown mirror and dielectric deposited mirror). The emission linewidth significantly decreased from 2.5 nm to 0.1 nm after the threshold condition. Thereafter, Song et al. demonstrated a VCSEL structure consisting of InGaN multiple quantum wells (MQWs) and 10-pair SiO2/HfO2
top and bottom DBR by using laser left-off technology in 1999 [24]. Since the reflectivity of top and bottom DBRs were 99.5 and 99.9% respectively, the cavity Q factor is larger than 600 in their experiments. In the same year, Someya et al. reported the RT lasing at blue wavelengths in hybrid GaN-based VCSELs [25]. Lasing action was observed at a wavelength of 399 nm under optical excitation and the emission linewidth decreased from 0.8 nm below threshold to less than 0.1 nm above threshold. In 2005, crack-free fully epitaxial nitride microcavity using lattice-matched AlInN/GaN DBRs has been reported by Carlin et al. [26]. The optical cavity was formed by a 3λ/2 GaN cavity surrounded by lattice-matched AlInN/GaN DBRs with reflectivity values close to 99%. The cavity mode was clearly resolved with a linewidth of 2.3 nm. However, the laser behavior has not been reported in this kind of VCSEL structure at that time. Other optically pumped results reported in recent years are aimed at improving the device performance and investigating the physical mechanisms [27−34]. It was not until 2008 that the first electrically pumped GaN VCSEL was demonstrated at 77 K under CW operation by our group [35] and recently the RT CW GaN VCSEL was also reported by Nichia Corporation [36].
2. Recent development of GaN-based PCSELs
The PCSELs have been demonstrated by many research groups in recent years. Kwon et al. reported RT optical pumping of photonic crystal air-bridge slabs lasers by using InGaAsP QWs emitting at 1.5 μm in 2003 [37]. A low threshold incident pump power of less than 1 mW is achieved for the laser operating at the second bandedge near the X and M points, with only 15×15 lattice points. The measured characteristics of the bandedge lasers closely agree with the result of calculations based on the plane-wave-expansion method and the finite-difference time-domain method. In addition to the InP-based materials, Notomi et al. demonstrated a series of
two-dimensional (2D) hexagonal organic photonic-crystal lasers whose lattice constant varies from 0.18 to 0.44 μm, and observed clear lasing oscillation at the four lowest band gap frequencies [38]. They used in-plane beam propagation analysis to clarify the 2D feedback mechanism at each gap frequency, which differs for different gaps. Theobserved K1 lasing
oscillation is due to coupling of three nonparallel diffracted waves, which has a purely 2D character. Furthermore, Noda’s group published electrically pumped GaN-based PCSELs at blue-violet wavelength at RT in 2008 [39]. They have developed a fabrication method, named “air holes retained over growth,” in order to construct a two-dimensional GaN/air PC structure. The resulting periodic structure has a PC band-edge effect sufficient for the successful operation of a current-injection surface-emitting laser. Our research approaches to the fabrication of GaN PCSELs are based on the combination of AlN/GaN DBRs and PC bandedge effects. RT optically pumped GaN PCSELs have been demonstrated in our research results and will be presented in the following sections.
3. Recent development of semiconductor microcavity polaritons
The first experimental observation of strong coupling regime confirmed by an anticrossing of the exciton and photon modes was reported in a GaAs-based MC [15]. Thereafter, many research groups are devoted to this research field and the related literatures have been reported in recent years. Tsintzos et al. demonstrated a electrically pumped GaAs-based polariton LEDs, which emits directly from polariton states at a temperature of 235 K. Polariton electroluminescence data reveal characteristic anticrossing between exciton and cavity modes, a clear signature of the strong coupling regime. The first experimental results of the strong coupling regime in GaN-based MCs were reported by Antoine-Vincent et al. in 2003 [40]. RT polariton lasing in a bulk GaN MC under nonresonant pulsed optical pumping has been demonstrated by Christopoulos et al. [41]. The 3λ/2 bulk GaN cavity was sandwiched between a bottom 34 pair Al0.85In0.15N/Al0.2Ga0.8N DBR and a top 10 pair SiO2/Si3N4 DBR. The Q factor
obtained was ~ 2800. Further challenging RT strong coupling regime and nonlinear effects in GaN-based QWs microcavities were studied. Christmann et al. employed GaN-based hybrid microcavities which consist of a 3λ cavity layer with 67 period of GaN/Al0.2Ga0.8N MQWs
sandwiched between a 35 pair of lattice-matched Al0.85In0.15N/Al0.2Ga0.8N DBR and a 10 pair
SiO2/Si3N4 DBR. The vacuum Rabi splitting of 56 meV is observed at RT. Furthermore,
ZnO-based MC is an attractive alternative for the study of polariton-related properties at RT since the exciton binding energy is as even larger about 60 meV for bulk ZnO layers. Theoretical analysis has expected that a bulk ZnO MC is a potentially excellent candidate for the realization of room-temperature (RT) polariton lasers [42], [43]. Consequently, several experimental results about ZnO MCs have been reported in recent years [44]-[47]. Schmidt-Grund et al. demonstrated MC structures with ZnO as the cavity surrounded with ZrO2/MgO DBRs. The maximum Rabi
splitting value about 78 meV was estimated from the coupling of the excitons and the Bragg band-edge modes. Besides, Nakayama et al. reported a MC consisting of a ZnO active layer and HfO2/SiO2 DBRs at the bottom and top. The Rabi splitting energy was estimated to be ~80 meV
of ZnO crystal quality and be found to be polycrystalline. Furthermore, Médard et al. reported hybrid ZnO MCs with bottom 7.5-pair Al0.2Ga0.8N/AlN DBR grown on Si(111) substrates and 10
nm aluminum top mirrors [44]. The maximum Rabi splitting of about 70 meV was obtained at 5 K. Shimada et al. demonstrated another kind of hybrid MCs composed of 29-pair Al0.5Ga0.5N/GaN DBR at the bottom of the ZnO cavity layer and 8-pair SiO2/Si3N4 DBR as the
top mirror [45]. The Rabi splitting was estimated to be ~50 meV at RT. In our research results, we have fabricated a high Q ZnO-based microcavity and the vacuum Rabi splitting is of about 72 meV.
(四) 研究方法、結果與討論
1. Research results of GaN-based VCSELs
The evolution of nitride-based light-emitting devices suffered many obstacles, such as the absence of lattice-matched substrates [48], low activation ratio of p-type (Al)GaN , large mobility difference between electrons and holes, crystal-structure- and strain-induced quantum-confined-Stark effect (QCSE), etc. These problems have been widely investigated in nitride-based LEDs and LDs. Nevertheless, the most difficult challenge for nitride-based VCSELs is the lattice-mismatched nitride-based DBRs. High-quality and high-reflectivity DBRs are necessary to achieve threshold condition due to the relatively short gain region of a VCSEL. In general, there are three kinds of material systems used in nitride-based DBRs, including AlN/GaN, Al(Ga)N/(Al)GaN, and AlInN/GaN. The AlN/GaN DBRs offer the highest refractive index contrast among the III-nitride compounds and provide highly reflective structures together with a large stopband width. However, the large lattice mismatch between AlN and GaN is up to 2.4%, which generally results in a tensile strain and the formation of cracks. These cracks tend to grow into V-shaped grooves and seriously affect the reflectivity of the DBR due to scattering, diffraction, and absorption. To prevent the formation of cracks, the AlxGa1−xN/AlyGa1−yN system
is usually used to reduce the strain in the whole DBR structure. Nevertheless, the refractive index contrast decreases with increasing Al composition in GaN or Ga composition in AlN, which leads to a reduced stopband width and the requirement of increased number of pairs to achieve high reflectivity. An alternative approach was proposed by Carlin and Ilegems [49]. They demonstrated high-reflectivity AlInN/GaN DBRs near lattice matched to GaN. The 20-pair DBRs exhibited a peak reflectivity over 90 % and a 35 nm stopband width at 515 nm. Although this kind of DBR has been reported, the growth of high-quality AlInN film is difficult due to the composition inhomogeneity and phase separation in AlInN, which results from large mismatch of covalent bond length and growth temperature between InN and AlN.
In order to obtain high-reflectivity and large-stopband DBRs for nitride-based VCSELs, our group is keeping on the study of growing high-quality AlN/GaN DBRs. In our previous study, we reported the growth of crack-free AlN/GaN DBRs with insertion of 5.5 periods of AlN/GaN superlattice (SL) [5]. Fig. 1 shows cross-sectional transmission electronic microscopy (TEM) images of the SL DBR structure. The lighter layers represent AlN layers while the darker layers
represent GaN layers. The interfaces between AlN and GaN layers are sharp and abrupt in low-magnification TEM image, as shown in Fig. 1(a). The arrows indicate the SL insertion positions. Fig. 1(b) shows the cross-sectional TEM image of one set of 5.5-pairs AlN/GaN SL insertion layers under high magnification. Detailed observations by this TEM image reveal that the V-shaped defects in the AlN layers are always observable at the GaN-on-AlN interfaces and filled in with GaN. These V-shaped defects have been reported earlier and could be due to various origins such as stacking mismatch boundaries and surface undulation. The GaN/AlN SL insertion layers were ended by one more AlN layer to identify the changing from the AlN layer to the GaN layer. Here a set of GaN/AlN SL insertion layers can be seen as a quasi alloy of an AlxGa1−xN
layer for a low refractive index quarter-wave layer in the DBR structure. The effect of the SL insertion layers on the structural characteristics of the nitride DBRs is relevant to the mechanism of strain relaxation. The relaxation process of AlN/GaN SL layers keeps relatively better coherency, i.e., GaN and AlN SL layers are fully strained against each other. Therefore, the SLs behave like effective bulk layers which have in-plane lattice constant between bulk GaN and AlN DBR layers. The subsequent growth of five-pair AlN/GaN DBR could follow the AlN/GaN SLs, which will make the DBR layers suffer relatively smaller strain as compared with DBR layers grown on bulk GaN layer. Consequently, the insertion of the SL layers during the growth of the DBR layers could act as strain buffers between DBRs and the underlying GaN bulk layer because the in-plane lattice constants of the SL layers are close to those of the AlN layers in the DBRs.

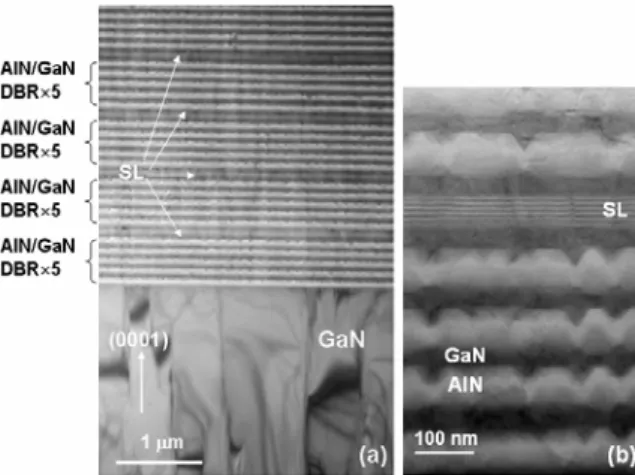

Fig. 1. Low-magnification cross-sectional TEM image of the SL DBR structure. (b) High-magnification cross-sectional TEM image of the SL DBR structure. The 5.5-pair AlN/GaN SL can be observed clearly
Another consideration of the VCSEL design is the thickness and position of the InGaN/GaN MQWs inside the GaN microcavity. Typically, the cavity length of VCSELs is on the order of few half operating wavelengths. In such a short cavity device, the electromagnetic waves would form standing wave patterns with nodes (electromagnetic wave intensity minima) and anti-nodes (electromagnetic wave intensity maxima) within the GaN microcavity. The location of the InGaN/GaN MQWs with respect to the anti-modes can significantly affect the coupling of laser mode with the cavity field. The proper alignment of the MQWs region with the anti-nodes of the cavity standing wave field patterns will enhance the coupling and reduce laser threshold condition. As a result, the precise layer thickness control in the VCSEL fabrication is important.
Wang’s group used ten pairs InGaN/GaN MQWs to form a 1/2λ optical thickness to fully overlap with one standing wave pattern in order to have a more thickness tolerance during the fabrication and to have a higher longitudinal confinement factor with respect to the total cavity length. Fig. 2 shows the refractive index value in each layer and the simulated standing wave patterns inside the hybrid DBR VCSEL structure. Since the bottom AlN/GaN DBR and the GaN cavity are epitaxially grown, the precise layer thickness can be controlled by the in-situ monitoring system. By fixing a specific monitor wavelength, the thickness of each quarter-wavelength GaN and AlN, and GaN cavity can be precisely controlled by following the reflectance signals during the metal organic chemical vapor deposition (MOCVD) growth. The total reflectance signal at 460 nm for the half-cavity structure is shown in Fig. 3 The relative reflectivity is gradually saturated with increasing number of DBR pairs, as shown in Fig. 3(a). The AlN/GaN SL layers are inserted in to AlN/GaN DBR at the time indicated as SL. The cavity thickness and positions of MQWs can also be in-situ monitored by observing the oscillation periods during the growth, as shown in Fig. 3(b). After the growth of nitride-based half cavity, an eight-pair of Ta2O5/SiO2 dielectric mirror was
deposited by electronic beam evaporation as the top DBR reflector to form the hybrid microcavity. 1.5 2.0 2.5 3.0 3.5 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 MQWs Top DBR Cavity Distance (μm) N o rm alized optical intensity Bottom DBR 1.4 1.6 1.8 2.0 2.2 2.4 2.6 In d ex of refract ion

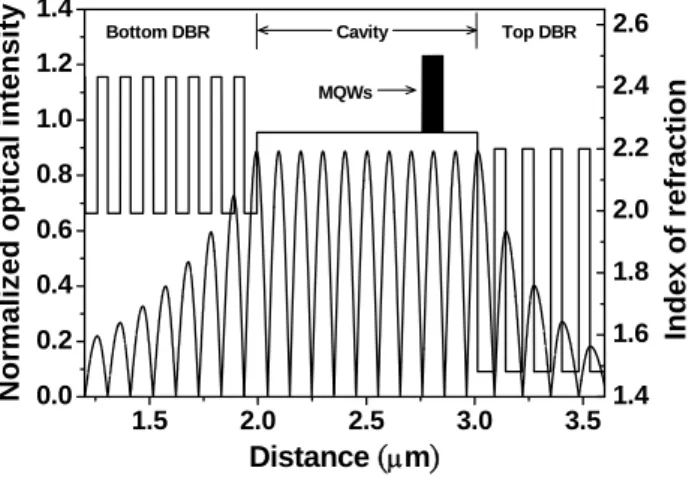

Fig. 2. Schematic representation of the relation between refractive index and longitudinal optical field for a typical hybrid DBR VCSEL.
Because of the difficulty of growing high-quality and high-reflectivity nitride-based DBRs, the possible design of GaN based blue-VCSELs has been proposed by Iga in 1996 [50]. The corresponding structural designs for nitride-based VCSELs can be classified into three major types, as shown in Fig. 4. The first one is monolithic grown vertical resonant cavity consisting of epitaxially grown III-nitride top and bottom DBRs [Fig. 4(a)]. The advantage of the fully epitaxial microcavity is the controllable cavity thickness which is beneficial to fabricate microcavity structure. However, VCSELs require extremely high-reflectivity DBRs (i.e., high cavity Q factor). The fully epitaxial nitride microcavity is very difficult to achieve this requirement. The second one is vertical resonant cavity consisting of dielectric top and bottom DBRs [Fig. 4(b)]. The double dielectric DBR VCSELs can exhibit high cavity Q factors because of the high-reflectivity DBR, which are relatively easy to fabricate. The large refractive index contrast in dielectric materials can make high-reflectivity and large-stopband DBR with less number of pairs. The drawback of the double dielectric DBR VCSEL is the difficulty of
controlling the cavity thickness precisely and the complicated fabrication process due to the employment of laser lift-off technique [51]. In addition, the thickness of the GaN cavity should keep as thick as possible to avoid the damage of the InGaN/GaN MQWs during the laser lift-off process. Such a thick cavity length could increase the threshold condition and reduce the microcavity effect. Although the cavity layer can be polished and thinned using chemical-mechanical polishing (CMP) technique, the smooth surface is another key issue for high-quality GaN cavity. The third one is the VCSEL structure combining an epitaxially grown DBR and a dielectric type DBR which compromises the advantages and disadvantages of the above two VCSEL structures [Fig. 4(c)]. The hybrid DBR VCSEL can eliminate the complex process and keep the feasibility of coplanar contacts with dielectric DBR mesas for the future electrically pumped VCSEL applications. The major requirement for the fabrication of hybrid DBR VCSEL is to grow high-reflectivity and high-quality nitride-based DBRs. Our approaches to the realization of GaN-based VCSELs are mainly based on the double dielectric DBR VCSELs and the hybrid DBR VCSELs. The device performances of these two VCSEL structures will be analyzed and discussed in the following sections.
Fig. 3. (a) In-situ normal reflectance measurement during the growth of the AlN/GaN DBR and GaN microcavity with InGaN/GaN MQWs by a fixed measurement wavelength of 460nm. The AlN/GaN superlattices are inserted into AlN/GaN DBR at the time indicated as SL. (b) Enlarged part of reflectance signals during the growth of the GaN microcavity consisted of n-GaN, InGaN/GaN MQWs and p-GaN layers.

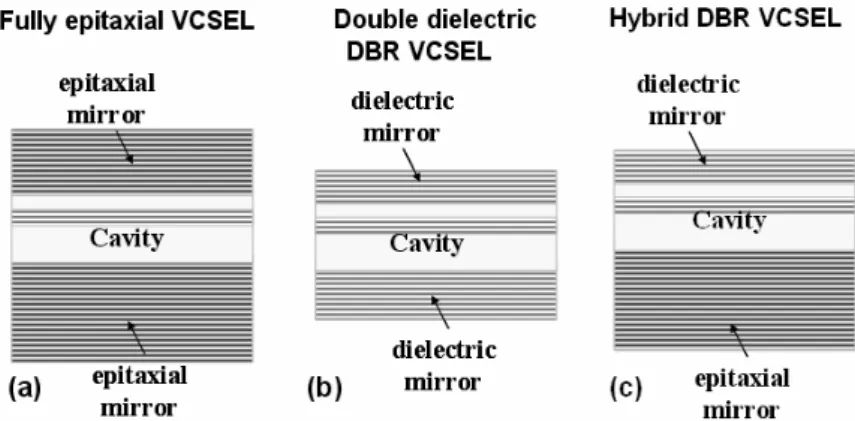

Fig. 4. Three kinds of GaN-based VCSEL structures. (a) Fully epitaxial VCSELs. (b) Double dielectric DBR VCSELs. (c) Hybrid DBR VCSELs
The hybrid DBR GaN-based VCSELs were grown in a low-pressure high-speed rotating-disk MOCVD system. Two-inch diameter (0001)-oriented sapphire substrates were used for the growth of AlN/GaN DBR and cavity. During the growth, trimethylgallium (TMGa), trimethylindium (TMIn), and trimethylaluminum (TMAl) were used as group III source materials and ammonia (NH3) as the group V source material. Then, the growth process was as follows.
The substrate was thermally cleaned in hydrogen ambient for 5 min at 1100°C, and then a 30 nm thick GaN nucleation layer was grown at 500°C. The growth temperature was raised up to 1100°C for the growth of a 2-µm GaN buffer layer. Then the 29 pairs of AlN/GaN DBR with six AlN/GaN superlattice insertion layers were grown under the fixed chamber pressure of 100 Torr. In order to reduce the tensile strain between the AlN and GaN, they inserted one superlattice into each five DBR periods at first twenty pairs of DBR. Then the superlattice was inserted into each three DBR periods for the remaining nine pairs of DBR to reduce the tensile strain. The overall AlN/GaN DBRs has 29 pairs with six superlattice insertion layers. On top of this 29-pair AlN/GaN DBR is a 790-nm-thick Si-doped n-type GaN cladding layer. The MQW active region consists of ten 2.5-nm-thick In0.2Ga0.8N QWs and 7.5-nm-thick GaN barrier layers. A
120-nm-thick Mg-doped p-type GaN cladding layer was grown on top of the MQWs to form a 5λ cavity in optical thickness for center wavelength of 460 nm. Here, they chose 460 nm as the designed lasing wavelength mainly due to the consideration of the higher absorption of the indium tin oxide (ITO) layer at shorter wavelength for the further electrically pumped GaN VCSELs. Besides, the grown epilayer thickness is easier to monitor at this wavelength by the
in-situ monitor system. After the growth of nitride-based half cavity, an eight pairs of Ta2O5/SiO2
dielectric mirror was deposited by electronic beam evaporation as the top DBR reflector to form the hybrid microcavity.
The experimental results obtained from the performance characteristics of optically pumped VCSELs provide useful information for further development of electrically pumped VCSELs. It allows the estimation of the threshold condition of the designed VCSEL structure and provides better understanding of the material properties. From the reflectivity spectrum of the full VCSEL structure, the accuracy of the cavity thickness can be assured. Fig. 5 shows the RT reflectivity spectrum of whole microcavity under near normal incidence. The peak reflectivity is about 97 % with a large stopband of 70 nm originated from the large refractive index contrast between Ta2O5
and SiO2 layers. The irregular long wavelength oscillations of the reflectivity spectrum arise from
the modulation of the respective top and bottom DBR spectra. On the other hand, the short wavelength oscillator is relatively regular, which only results from the top dielectric DBR since the short-wavelength light is absorbed by GaN layer. The photoluminescence (PL) emission spectrum of the full microcavity was measured at room temperature and shown in Fig. 5 as well. The excitation source is a 325-nm He-Cd laser and the cavity resonance mode at 464.2 nm with a full-width at half-maximum (FWHM) value of 0.61 nm is clearly observed. The cavity mode dip is located at reflectivity curve corresponding to the emission peak. This indicates that the InGaN/GaN MQWs emission peak was well aligned with the hybrid microcavity. The cavity Q factor was estimated from the λ/Δλ to be about 760.
300 350 400 450 500 550 600 0 50 100 150 200 250 FWHM ~0.61 nm Wavelength (nm) PL Inte nsit y (a rb . unit) Cavity mode @ 464.2 nm 0 20 40 60 80 100 120 Reflecti v it y (%)
Fig. 5. Room-temperature reflectivity spectrum and PL spectrum of whole GaN-based microcavity
To examine the lasing action, they measured the emission intensity of the hybrid microcavity with increasing pumping power using a microscopic optical pumping system. The optical pumping of the samples was performed using a frequency-tripled Nd:YVO4 355-nm pulsed laser
with a pulse width of ~0.5 nm at a repetition rate of 1 kHz. The pumping laser beam with a spot size ranging from 30 to 60 μm was incident normal to the VCSEL sample surface. The light emission from the VCSEL sample was collected using an imaging optic into a spectrometer/CCD (Jobin-Yvon Triax 320 Spectrometer) with a spectral resolution of ~0.1 nm for spectral output measurement. Fig. 6 shows the emission intensity at RT from the hybrid GaN-based VCSEL as a function of the excitation energy. A distinct threshold characteristic can be found at the threshold excitation energy of ~55 nJ corresponding to an energy density of 7.8 mJ/cm2. Then the laser output increased linearly with the pumping energy beyond the threshold. A dominant laser emission line at 448.9 nm appears above the threshold pumping energy.
0 20 40 60 80 100 120 0 20 40 60 80 100 101 102 10-1 100 101 102 103 β~6X10-2 N o rm a liz ed inten s ity (a .u .) Excitation energy(nJ/pulse) Output powe r ( ar b. unit )
Excitation Energy (nJ/pulse) RT
Fig. 6. Laser emission intensity as a function of the exciting energy at room temperature conditions for the hybrid DBR VCSEL. (Inset) Laser emission intensity versus pumping energy in logarithmic scale. The difference between the heights of the emission intensities before and after the threshold corresponds roughly to the value of β. The dash lines are guides for the eye.
The laser emission spectral linewidth reduces as the pumping energy above the threshold energy and approaches 0.17 nm at the pumping energy of 82.5 nJ. In order to extract the spontaneous coupling factor β of this cavity from Fig. 6, they normalized the vertical scale and re-plotted it in a logarithm scale as shown in the inset in Fig. 6. The difference between the
heights of the emission intensities before and after the threshold roughly coincides with the value of β. The β value of this hybrid GaN-based VCSEL estimated from the inset of Fig. 6 is about 6×10−2. The alternative approach to estimating the β value is based on the approximation equation which can be expressed by
1 p p F F β = + (1.1) with 2 3 3 4 /( / ) p c Q F V n π λ = (1.2)
where Fp is the Purcell factor, Q is the cavity quality factor, λ is the laser wavelength, Vc is the
optical volume of laser emission, and n is the refractive index. Since the photoluminescence spectrum of the hybrid DBR VCSEL showed a narrow emission peak with FWHM of 0.61 nm, cavity quality factor was estimated to be 760. The refractive index is 2.45 for the GaN cavity. For the estimation of the optical volume, they used the spot size of the laser emission image which was about 3 μm and the cavity length of about 9.5λ with considering the penetration depth of the DBRs. By using these parameters, the Purcell factor of about 2.9×10-2 was obtained and they estimated the β value to be about 2.8×10-2, which has the same order of magnitude as the above β value estimated from the inset in Fig. 6. This β value is three order of magnitude higher than that of the typical edge emitting semiconductor lasers (normally about 10-4~10-5 [52]) indicating the enhancement of the spontaneous emission into a lasing mode by the high quality factor microcavity effect in the VCSEL structure. The variation of the laser emission intensity with the angle of the polarizer was also measured and showed nearly a cosine square variation. The result shows that the laser beam has a degree of polarization of about 89%, suggesting a near linear polarization property of the laser emission.
The schematic fabrication flowchart for dielectric DBR VCSELs is shown in Fig. 7. The layer structure of the GaN-based cavity, grown on a (0001)-oriented sapphire substrate by MOCVD is described as followed: a 30-nm nucleation layer, a 4-μm GaN bulk layer, MQWs consisting of 10 periods of 5-nm GaN barriers and 3-nm In0.1Ga0.9N wells, and a 200-nm GaN cap layer. The peak emission wavelength of
the MQWs for the as-grown sample was obtained to be 416 nm. Then, the dielectric DBR consisting of 6-pair SiO2/TiO2 was evaporated on the top of GaN-based cavity. The stop band center of the DBR was
tuned to 450 nm. The reflectivity of the SiO2/TiO2 DBR at 414 nm is obtained to be 99.5%. Next, in order
to enhance the adhesion between the epitaxial layers and silica substrate, an array of disk-like patterns with the diameter of 60 μm was formed by standard photolithography process and the SiO2/TiO2 DBR
mesas were formed by the buffer oxide etcher. The wafer was then mounted onto a silica substrate, which is nearly transparent to the wavelength of the excitation light and the VCSEL. A KrF excimer laser radiation at 248 nm was guided into the sample from back side of the sapphire to separate the sapphire from the epitaxial layers [53]. After the laser lift-off process, the sample was dipped into the H2SO4
solution to remove the residual Ga on the exposed GaN buffer layers. In the next step, the sample was lapped and polished by diamond powders to smooth the GaN surface since the laser lift-off process left a roughened surface. The mean surface roughness of the polished GaN surface measured by the atomic force microscopy (AFM) is about 1 nm over a scanned area of 20×20 μm2. However, to prevent the
possible damage of the quality in MQWs during the lapping process, the 4-μm GaN bulk layer was preserved. Finally, the second DBR consisting of 8-pair SiO2/Ta2O5 was deposited on the top of the
polished GaN surface. The reflectivity of the SiO2/Ta2O5 DBR at 414 nm is 97%. The stopband center of
the DBR was also tuned to 450 nm. The thickness of the whole epitaxial cavity was equivalent to the optical thickness of 24.5 emission wavelength. The optical thickness of the MQWs covered nearly half of the emission wavelength right between two adjacent nodes.

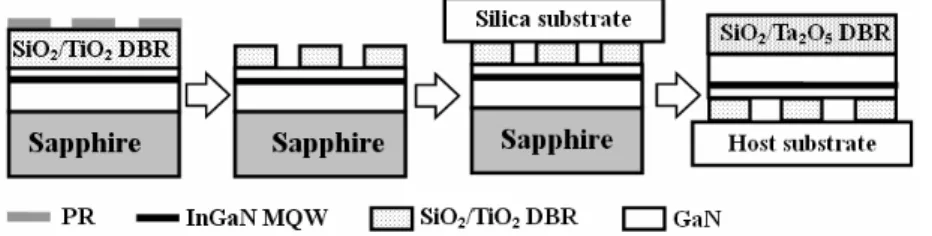

Fig. 7. Schematic process flowchart of the dielectric DBR VCSELs incorporating with two dielectric DBRs fabricated by the later lift-off technique.
Fig. 8 shows the laser emission intensity from the dielectric DBR VCSEL as a function of the pumping energy at room temperature conditions. A clear evidence of threshold condition occurred at the pumping energy of Eth = 270 nJ corresponding to an energy density of 21.5
mJ/cm2. The output laser intensity from the sample increased linearly with the pumping energy level beyond the threshold energy. The estimated carrier density at the threshold is in the order of 1020 cm−3 assuming that the pumping light with the emission wavelength of 355 nm has experienced a 60% transmission through the SiO2/Ta2O5 DBR layers and undergone a 98%
absorption in the thick GaN layer. According to the report by Park [54], the gain coefficient of InGaN at this carrier density level is about 104 cm−1. Wang et al. estimated the threshold gain (gth)
value of the VCSEL using the equation gth ≥ 1/(ξLa) × ln(1/R1R2), where ξ is the axial
enhancement factor, La is the total thickness of the InGaN MQWs, and R1 and R2 are the
reflectivity of the dielectric DBRs. Since the active region covers half of the emission wavelength,
ξ is unity. They obtained an estimated gain coefficient of about 104 cm−1 which is consistent with the above gth value estimated from the carrier density. This also proved that the quality of the
MQWs had been kept after the laser lift-off and lapping process. The inset shown in Fig. 8 is the laser emission intensity as the function of pumping energy in a logarithmic scale. From the logarithmic data, the spontaneous coupling factor β was estimated from the difference between the heights of the emission intensities before and after the threshold condition. The estimated β was about 1.1×10−2. Since the cavity volume of this dielectric DBR VCSEL is large than the
above hybrid DBR VCSEL, the Purcell factor and the spontaneous coupling factor shall be lower accordingly.

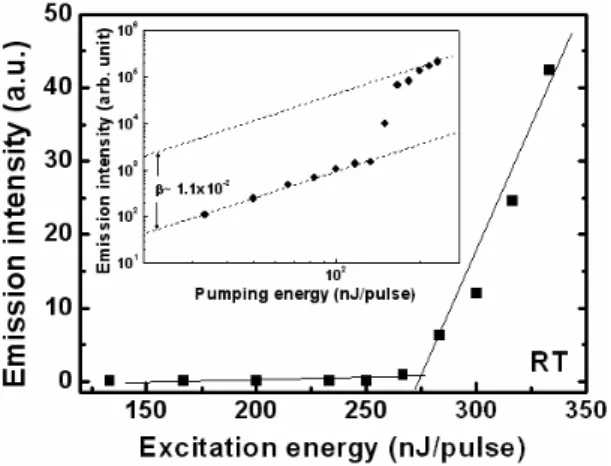

Fig. 8. Laser emission intensity as a function of the exciting energy at room temperature conditions for the dielectric DBR VCSEL. (Inset) Laser emission intensity versus pumping energy in logarithmic scale. The difference between the heights of the emission intensities before and after the threshold corresponds roughly to the value of β. The dash lines are guides for the eye.
Fig. 9. Emission spectra from the dielectric DBR VCSEL at various pumping energy. The lasing emission wavelength is 414 nm with a linewidth of 0.25 nm. The inset shows the rescaled emission spectrum under pumping power of 0.25Eth.
Fig. 9 shows the evolution of the VCSEL emission spectrum with the pumping energy at room temperature. When the pumping energy is below the threshold, the spontaneous emission spectrum shows multiple cavity modes. The mode spacing is about 7 nm corresponding to a cavity length of 4.3 μm, which is nearly equal to the thickness of the epitaxial cavity. The linewidth of a single cavity mode is 0.8 nm as shown in the inset of Fig. 9. The cavity quality factor estimated from the linewidth is about 518. Considering the optical absorption of GaN layer, an estimated effective cavity reflectivity based on this Q factor is about 97%, which is close to the cavity reflectivity formed by the two dielectric DBRs. This result indicates the laser cavity structure was nearly intact after the laser lift-off process. As the pumping energy increased above the threshold, a dominant laser emission line appeared at 414 nm with a narrow linewidth of about 0.25 nm. The lasing wavelength is located at one of cavity modes near the peak emission wavelength of the InGaN MQWs. The laser emission polarization contrast between two orthogonal directions was measured as well. A degree of polarization of about 70% is estimated. The lower degree of polarization in comparison to the hybrid DBR VCSEL could be due to the smaller Q factor for this dielectric DBR VCSEL.
1. (b) Research results about electrically pumped GaN-based VCSELs
To fabricate the VCSEL structure for electrical excitation, additional processes for current injection are necessary. Since the epitaxially grown bottom AlN/GaN DBR was un-doped and non-conductive, the epitaxially grown wafer should be further processed to form the intra-cavity co-planar p- and n-contacts for current injection. First, the mesa region was defined by photo-lithography and etched using an inductively coupled plasma reactive ion etching system with Cl2/Ar as the etching gases to expose the n-GaN layer for the n-contact formation. Then a
0.2-µm thick SiNx layer was used as the mask to form a current injection and light emitting
aperture of 10 μm in diameter, which was then deposited an ITO as the transparent contact layer. Since the ITO locates just next to the VCSEL microcavity, the thickness of 240 nm corresponding to 1λ optical length (λ = 460 nm) has to be accurate to match the phase condition and reduce the microcavity anti-resonance effect. The ITO was annealed at 525oC under the nitrogen ambient to reduce the contact resistance as well as to increase transparency thus reducing the internal cavity loss. A high transmittance of about 98.6% at λ = 460 nm was measured for the deposited ITO after the annealing. Then the metal contact layer was deposited by the electron beam evaporation using Ti/Al/Ni/Au (20/150/20/1000 nm) and Ni/Au (20/1000 nm) as the n-type electrode and p-type electrode to form co-planar intra-cavity contacts, respectively. Finally, an eight-pair Ta2O5/SiO2 dielectric DBR (measured reflectivity of about 99% at λ=460 nm) was deposited on
top of the ITO layer to form the top DBR mirror and complete the full hybrid microcavity VCSEL device. Fig. 10(a) shows the schematic of the electrically pumped hybrid GaN-based VCSEL structure. Fig. 10(b) shows the scanning electron microscopy (SEM) image of the completed VCSEL devices. For VCSEL performance characterization, the fabricated VCSEL devices were diced into an individual device size of 120 µm × 150 µm and packaged into the TO-can. The packaged VCSEL device was mounted inside a cryogenic chamber for testing under the 77 K condition. Fig. 10(c) shows the optical microscopy image of a GaN VCSEL sample device at an injection current of 1 mA. The GaN VCSEL sample was placed inside a liquid nitrogen cooled chamber at 77K and tested under CW current injection condition using a CW current source (Keithley 238). The emission light was collected by a 25 µm diameter multimode fiber using a microscope with a 40× objective (numerical aperture = 0.6) and fed into the spectrometer (Triax 320). The system has a focal distance of 320 mm and a grating of 1800 g/mm with a spectral resolution of 0.15 nm. The output from the spectrometer was detected by a charge-coupled device (CCD) to record the emission spectrum. The spatial resolution of the imaging system was about 1 µm as estimated by the diffraction limit of the objective lens. The cross-sectional SEM image of the whole hybrid VCSEL structure is shown in Fig. 11.
Fig. 10. Structure of electrically pumped hybrid GaN VCSEL. (a) The schematic diagram of the intra-cavity GaN VCSEL. (b) SEM image for the VCSEL with the intra-cavity with two co-planar p- and n-contacts for current injection. (c) The vertical surface emission image of a GaN VCSEL chip at an injection current of 1 mA. The crack line under the p-contact wire bond was occurred during the chipping process.
Fig. 11. Cross-sectional SEM image of the whole hybrid GaN-based VCSEL structure with hybrid DBRs, MQWs, and ITO layer.
400 440 480 520 560 0 20 40 60 80 100 Bottom DBR Re flectivity (%) Wavelength (nm) (a) Top DBR 440 445 450 455 460 465 470 0 50 100 150 200 454.3 nm Intensi ty (arb. unit) Wavelength (nm) (b) FWHM ~ 0.21 nm Q ~ 2163
Fig. 12. (a) The reflectivity spectra of top and bottom DBRs show that the highest peak reflectivity of bottom and top DBR is about 99.4% and 99%, respectively. (b) The PL spectrum of the GaN VCSEL structure excited by a CW He-Cd laser (325 nm) at room temperature.
Fig. 12(a) shows the reflectivity spectra of crack-free 29-pair AlN/GaN DBR with six SL insertion layers and 8-pair Ta2O5/SiO2 DBR, respectively. A high peak reflectivity of 99.4 % with
a spectral band width of ~25 nm was observed from 29-pair AlN/GaN DBR. The flat-topped stopband indicates the high crystal quality of the AlN/GaN DBRs. The 8-pair Ta2O5/SiO2 DBR
shows a peak reflectivity of about 99% at 460 nm. The hybrid microcavity quality factor Q of the fabricated GaN VCSEL without the ITO layer was estimated from the PL spectrum of the VCSEL structure as shown in Fig. 12(b). The VCSEL structure was also excited by a CW 325 nm He-Cd laser with a laser spot size of about 1 µm in diameter. From the PL emission peak of 454.3 nm and a narrow linewidth of 0.21 nm, the cavity Q factor can be calculated by λ/Δλ to be about 2200. This Q value is larger than that of the previous optically pumped VCSEL structure, which may originates from the improvement of AlN/GaN DBR reflectivity and the better sample quality. On the other hand, the Q value is slightly higher than the value obtained from the whole VCSEL structure with intra-cavity ITO contact layer due to the additional absorption loss of the ITO.
Fig. 13(a) shows the light output power versus injection current and current-voltage characteristics (typical L-I-V characteristics of a laser) of the VCSEL sample at 77 K. The turn on voltage is about 4.1 V, indicating the good electrical contact of the ITO transparent layer and the intra-cavity structure. The serial resistance of the VCSEL is about 1200 ohm at the driving current of 2.5 mA due to the small current injection aperture. The laser light output power showed a distinct threshold characteristic at the threshold current (Ith) of about 1.4 mA then increased linearly with the injection current beyond the threshold. The
threshold current density is estimated to be about 1.8 kA/cm2 for a current injection aperture of 10 μm in
diameter. The corresponding threshold carrier density is about 2.6×1019 cm-3, estimated by assuming that
the carrier lifetime of InGaN MQW is 6.4 ns and the internal quantum efficiency is 0.9 at 77 K [55]. However, according to the observation from CCD image, the injected carriers are not uniformly spreading over the whole 10-μm current aperture, resulting in the spatial non-uniformity in the emission intensity. The actual area for carrier localizations appearing in the current aperture should be much smaller than the 10-μm current aperture. The carrier localization area was estimated to be about 30~50% of the total aperture. Then the carrier density for the lasing spots should be in the range of 5.2×1019 to 8.7×1019 cm-3.
Furthermore, they also estimated the threshold gain coefficient (gth) of the current injection VCSEL
operated at 77K using the equation:
1 2 1 1 ln 2 eff a th i a a L d g d α d R R − ⎛ ⎞ ≥ < > + ⎜ ⎟ ⎝ ⎠ (1.3)
where Leff is the effective cavity length, <αi> is the average internal loss inside the cavity, da is the total
thickness of the multiple quantum well and R1, R2 are the reflectivity of the top and bottom DBR mirrors,
respectively. Since the internal loss inside the cavity mainly came from the ITO absorption, a threshold gain coefficient value was obstained to be about 8.8×103 cm−1, which is a reasonable value for the carrier
density in the range of 5.2×1019 to 8.7×1019 cm−3. Furthermore, the spontaneous emission coupling factor
extracted β value is about 7.5×10−2 for the GaN VCSEL. Moreover, the β value was also estimated from the Purcell factor Fp using the approximation equation as that shown in expressions (1) and .2). The cavity
Q value is about 1800 based on the emission linewidth of 0.25 nm near the threshold. The optical volume Vc is estimated to be about 1.2×10-11 cm3 for an emission spot size measured to be about 3 μm. The cavity
length is about 10.5λ considering the thickness of the ITO and the penetration depth of the DBRs. By using these parameters, a Purcell factor could be estimated to be about 7.9×10−2 and an estimated β value of about 7.4×10−2 was then obtained. This value is close to that obtained above from Fig. 13(b). The high β value of the microcavity VCSEL could be responsible for low threshold operation of the laser.
0.0 0.5 1.0 1.5 2.0 2.5 0 2 4 6 8 10 12 I-V L-I
Input Current (mA)
V o lt ag e (V o lt) I-V L-I 0.0 0.5 1.0 1.5 2.0 2.5 3.0 (a) Ou tp ut P o w e r ( a .u .) 77 K 1 2 10-2 10-1 100 101
Input Curent (mA)
Norma lize d Inte ns ity (a .u.) β ~7.5x10−2 77 K (b)

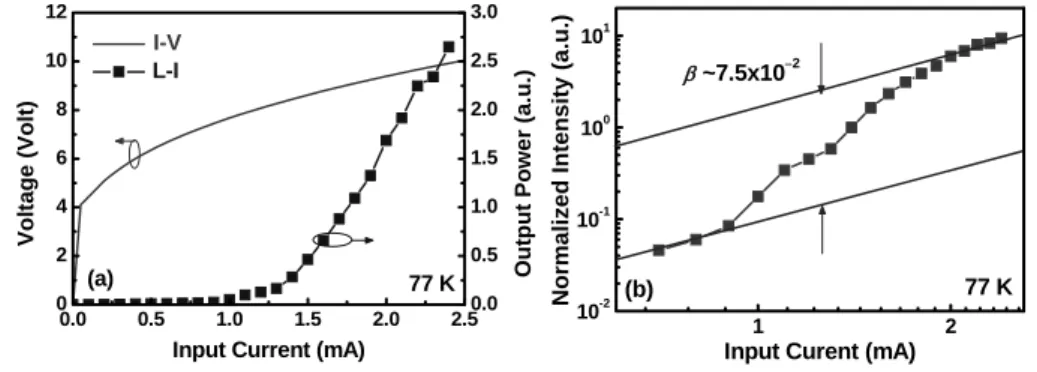

Fig. 13. (a) The light output intensity versus injection current and current-voltage characteristics of GaN VCSEL measured under the CW condition at 77K. (b) The logarithm light output intensity as a function input current at 77 K. The two solid lines are guides for the eye.
Fig. 14 shows the laser emission spectrum at various injection current levels. A dominant single laser emission line at 462.8 nm appears above the threshold current. The inset in Fig. 14 shows the light emission linewidth at various injection current levels. The laser emission spectral linewidth reduces suddenly with the injection current above the threshold current and approaches the spectral resolution limit of 0.15 nm at the injection current of 1.7Ith. Another inset in Fig. 14 shows the CCD image of the spatial
laser emission pattern across the 10 μm emission aperture at a slightly below the threshold injection current of 1 mA. The non-uniform emission intensity across the emission aperture with several bright emission spots was observed. Earlier report showed that InGaN MQWs tend to have indium inhomogeneity [56]. Therefore, the non-uniformity in the emission intensity across the aperture could be due to the indium non-uniformity that creates non-uniform spatial gain distribution in the emitting aperture. Actually, the lasing action mainly arises from those spots with brightest intensity as indicated in the inset of Fig. 14. The spatial dimension of these bright spot clusters is only about few μm in diameter. Similar result was also observed and reported recently for the optically pumped GaN VCSELs. The polarization characteristics and far-field pattern (FFP) of the laser emission were also measured. The laser emission has a degree of polarization of about 80% and the FWHM of the FFP is about 11.7° in both horizontal and vertical directions.
Fig. 14. The laser emission spectrum at different injection current levels measured at 77 K. (Inset) The light emission linewidth at various injection current levels and the CCD image of the emission from the aperture.
2. Research results of GaN-based PCSELs
The GaN-based 2D PCSEL was grown by a MOCVD on c-face 2 in diameter sapphire. TMIn, TMGa, TMAl, and ammonia were used as the In, Ga, Al, and N sources, respectively. Fig. 15(a) shows the schematic layer structure of GaN-based 2D PCSELs with bottom AlN/GaN DBRs. The 35 pairs quarter-wave GaN/AlN DBR grown on a 2 μm thick undoped GaN buffer layer was crack free and had a flat surface. Then, an active region grown atop the DBR typically composed of ten In0.2Ga0.8N QWs(LW=2.5 nm) with GaN barriers (LB=7.5 nm), and was
surrounded by a 560 nm thick Sidoped n-type GaN and a 200 nm thick Mg-doped p-type GaN layer.
Fig. 15. (a) Schematic layer structure of GaN-based 2D surface-emitting PC lasers with bottom AlN/GaN DBR and the lowest order calculated mode intensity profile along with the refractive index distribution. (b) Top view scanning electron microscope images of the PC structures with hexagonal lattices and circle unit cells.
The typical photoluminescence (PL) spectrum had a peak centered at a wavelength of 425 nm with a linewidth of 25 nm. At normal incidence at RT, the DBR showed the highest reflectivity of 99% at the center wavelength of 430 nm, with a stopband width of about 30 nm, measured by an n&k ultraviolet-visible spectrometer. The as-grown sample was then first deposited with a hard mask consisting of a SiN layer of 200 nm by plasma-enhanced chemical
vapor deposition, followed by a soft mask consisting of a polymethylmethacrylate (PMMA) layer of 150 nm. Using electron-beam lithography, we defined on the soft mask a hexagonal PC pattern with the lattice constant a ranging from 190 to 300 nm and the circular hole diameter r chosen such that r /a is about 0.28. The whole PC pattern is of a circular shape with a diameter of 50 μm. Then, the PC pattern on soft mask was transferred to SiN film by inductively coupled plasma-reactive ion etching (ICP-RIE). After the PMMA layer was removed by acetone, we used ICP-RIE to etch down the as-grown sample to about 400 nm deep. The etching penetrated the QW active regions and created the PC patterns in the nitride layers. Finally, the SiN hard mask was removed by buffered oxide etch dipping. The top view of the hexagonal PC pattern on the GaN-based structure thus created was shown in Fig. 15(b).
Fig. 16. Measured output intensity versus input excitation energy density from the GaN-based 2D surface-emitting PC lasers with bottom AlN/GaN distributed Bragg reflectors at room temperature.
Fig. 17. Emission spectra under varied excitation energy density from the GaN-based 2D surface-emitting PC lasers with bottom AlN/GaN distributed Bragg reflectors at room temperature.
The optical pumping was performed using a frequency tripled Nd:YVO4 355 nm pulsed
laser with a pulse width of ~0.5 ns at a repetition rate of 1 KHz. The pumping laser beam had a spot size of 50 μm and was normally incident onto the sample surface covering the whole PC pattern area. The light emission from the sample was collected by a 15× objective lens through a fiber with a 600 μm core, and coupled into a spectrometer with a charge-coupled device (CCD).
The spectral resolution is about 0.1 nm for spectral output measurement. Fig. 16 demonstrates the output emission intensity as a function of the pumping energy density from the sample with PC lattice constant of 290 nm. The clear threshold characteristic was observed at the threshold pumping energy density of 3.5 mJ/cm2, with a peak power density of 7 MW/cm2. Then the laser output increases abruptly with the excitation energy density beyond the threshold. Fig. 17 shows the excitation energy density dependent emission spectra. These spectra clearly show the transition behavior from spontaneous emission to stimulated emission with a single dominant peak. Above the threshold, we can observe only one dominant peak wavelength of 424.3 nm with a full width at half maximum (FWHM) of 0.11 nm limited by our measurement resolution.
Fig. 18. (a) Normalized frequency as a function of the lattice constant. The solid circle points are the lasing wavelengths from the different PC structures. (b) Calculated band diagram of the 2D hexagonal-lattice structure. The dotted lines are guides for band edges.
It is worth noting that the single mode lasing phenomenon only occurs in the area with PC patterns. On the other hand, multiple lasing peaks were occurred when the area without PC patterns was pumped at the threshold energy density two order of magnitude higher. The normalized frequency (lattice constant over wavelength, a/λ) for the lasing wavelength emitted from our PC lasers with different lattice constants were plotted, as shown in Fig.18(a). All the PC lasers have lasing peaks in a range from 401 to 425 nm. It can be seen that the normalized lasing frequency (dotted points in the figure) increased with the lattice constant in a discontinues and steplike fashion. To calculate the band diagram of the hexagonal PC patterns in this structure, we employ the plane-wave expansion method in two-dimensions with an effective index approach that took into account the effects of partial modal overlap of electromagnetic fields with the PC structures. As a starting point, the ratio of light confined within the 2D PC structure to light extended in the entire device Γg and the effective refractive index of the entire device neff were
first estimated by the transfer matrix method. The calculation shows that the lowest order guided mode has the highest confinement factor for both PC and multiple quantum well regions, as shown in Fig. 15(a), and the Γg and neff are estimated to be 0.563 and 2.495, respectively. Then,
we determine the effective dielectric constants of the two materials in the unit cell, εa and εa,
using 2 eff
n = fεa+(1−f)εb and Δε=εb−εa = Γg(εmat−εair), where, the f=(2πr2/ 3 a2) is a filling factor
(4.11) and εb(7.07) thus obtained were then put into the calculation of the band diagram for the
2D hexagonal-lattice structure with r/a =0.28.
Fig. 18(b) shows the calculated band diagram of the 2D hexagonal-lattice structure for transverse-electric mode. It can be expected that the lasing occurs at special points such as at Brillouin-zone boundary near the band edges, because the Bragg condition is satisfied and the density of states is higher in these points. At these lasing points, wave can propagate in different directions and couple with each other. The dotted lines are guides for band edges calculated in Fig. 18(b) and extended horizontally to Fig. 18(a) with the same normalized frequency. It can be seen that different groups of the normalized frequency observed in the PC samples with different lattice constants occur exactly at band edges such as Γ, M, and K points, indicating that the laser operation was provided by multidirectional distributed feedback in the 2D PC structure. The characteristics of Γ, M, and K points lasing can be further identified by the polarization angle of the output emission. Note that the output intensity is higher when some of the lasing frequencies are in the stopband of DBR, which could be due to that the bottom DBR here could be treated as a high reflectivity reflector, facilitating top emission efficiency. The lasing area of the GaN-based 2D surface-emitting PC laser, obtained by a CCD camera is relatively large which covers almost whole area of PC pattern with only one dominant lasing wavelength. The measured FWHM of laser emission divergence angle is smaller than 5°, which is limited by our measurement setup, indicating that the surface emission is almost normal to the PC surface. It’s interesting to note that the threshold power density of GaN-based 2D surfaceemitting PC laser is in the same order of or even better than the threshold for GaN-based VCSEL we demonstrated recently. Unlike the small emission spots observed in the GaN-based VCSELs, the large-area emission in 2D surface-emitting PC laser has great potential in applications required high power output operation.
We will further report the characteristics of GaN-based PCSELs and demonstrate the specific lasing characteristics at the following different band edges: Γ, K, and M points calculated by using the plane-wave expansion method. The lasing modes corresponding to the different points of Brillouin-zone boundary can be confirmed by the polarization directions of the laser emissions. Fig. 19(a) shows the laser intensity as a function of the pumping energy at RT condition from the sample with PC lattice constant of 234 nm. The clear evidence of threshold condition occurred at the pumping energy (Eth) of 165 nJ corresponding to an energy density of
2.7 mJ/cm2 and the output laser intensity from the sample increased linearly with the pumping energy level beyond the threshold energy. Only one dominated wavelength at 401.8 nm with a linewidth of 1.6 Å was measured, as shown in the inset of Fig. 19(a). Different lasing frequencies were measured from different PC lattice structures. The normalized frequencies as a function of r /a ratio were plotted as square points in Fig. 19(b). On the other hand, we apply the plane-wave expansion method in two dimensions with an effective index model considering the effects of the partial modal overlap of electromagnetic fields with the PC structures to calculate the band diagram of the hexagonal PC patterns in this structure. The solid (black), dot (red), and dash (green) lines are the calculated band edge frequencies at the Γ, K, and M Brillouin-zone
boundaries as a function of r /a ratio, which were in accordance with the measured results.
Fig. 19. (a) Laser emission intensity as a function of the pumping energy at room temperature
condition for the GaN-based PCSEL. The inset shows only one dominant mode appearing in
the lasing spectrum. (b) Normalized frequency vs r /a ratios. The solid (black), dot (red), and dash (green) lines represent the simulation results of Γ, K, and M lasing groups by PWE method. The square points, inserted in the diagram, present the experiment results mapped and compared with the simulation results.
Fig. 20. (a) The measured polarization curves for different band edge lasers grouped into Γ
(red-circle points and solid line), K (green triangle points and dot line), and M (blue-square points and dash line) boundaries calculated by the plane-wave expansion method. (b) The main polarization directions obtained in (a) and their corresponding diffracted laser beams, which are normal to the polarization directions in a K-space map corresponding to our hexagonal PC lattice.
The measured polarization curves for different band edge lasers grouped into Γ(red-circle points and solid line), K (green-triangle points and dot line) , and M (blue-square points and dash
line) boundaries calculated by the planewave expansion method are shown in Fig. 20(a) and the degree of polarization from the emission defined as (Imax−Imin) /(Imax+Imin) was somehow around
50%. The polarization angles from the emissions of devices with different normalized frequencies grouped into Γ, K or M band edge lasers were different. Since the PC lattices provide the optical feedback, which is the origin of the band edge laser operation, the direction and the polarization of the laser light will strictly follow the PC lattice vectors. The symmetric feedback directions provided by the 2D lattice vectors could result in a relatively low degree of polarization if the measurement of the polarization is from the top of the device. As a result, it should be rather
