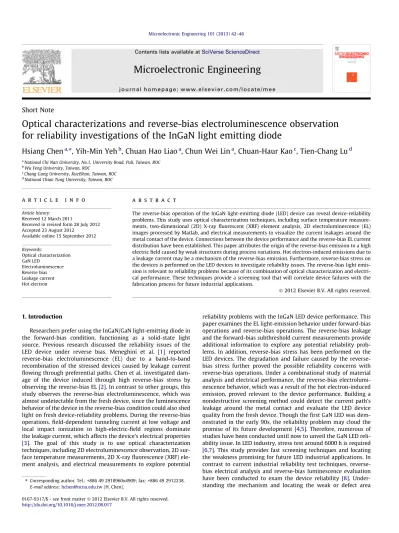

Optical characterizations and reverse-bias electroluminescence observation for reliability investigations of the InGaN light emitting diode

(1)

Short Note

Optical characterizations and reverse-bias electroluminescence observation

for reliability investigations of the InGaN light emitting diode

Hsiang Chen

a,⇑

, Yih-Min Yeh

b

, Chuan Hao Liao

a

, Chun Wei Lin

a

, Chuan-Haur Kao

c

, Tien-Chang Lu

d

a_{National Chi Nan University, No.1, University Road, Puli, Taiwan, ROC} b

Wu Feng University, Taiwan, ROC c

Chang Gung University, KueiShan, Taiwan, ROC d

National Chiao Tung University, Taiwan, ROC

a r t i c l e

i n f o

Article history: Received 12 March 2011

Received in revised form 28 July 2012 Accepted 23 August 2012

Available online 15 September 2012 Keywords: Optical characterization GaN LED Electroluminescence Reverse bias Leakage current Hot electron

a b s t r a c t

The reverse-bias operation of the InGaN light-emitting diode (LED) device can reveal device-reliability problems. This study uses optical characterization techniques, including surface temperature measure-ments, two-dimensional (2D) X-ray ﬂuorescent (XRF) element analysis, 2D electroluminescence (EL) images processed by Matlab, and electrical measurements to visualize the current leakages around the metal contact of the device. Connections between the device performance and the reverse-bias EL current distribution have been established. This paper attributes the origin of the reverse-bias emission to a high electric ﬁeld caused by weak structures during process variations. Hot electron-induced emissions due to a leakage current may be a mechanism of the reverse-bias emission. Furthermore, reverse-bias stress on the devices is performed on the LED devices to investigate reliability issues. The reverse-bias light emis-sion is relevant to reliability problems because of its combination of optical characterization and electri-cal performance. These techniques provide a screening tool that will correlate device failures with the fabrication process for future industrial applications.

1. Introduction

Researchers prefer using the InGaN/GaN light-emitting diode in the forward-bias condition, functioning as a solid-state light source. Previous research discussed the reliability issues of the LED device under reverse bias. Meneghini et al. [1] reported reverse-bias electroluminescence (EL) due to a band-to-band recombination of the stressed devices caused by leakage current flowing through preferential paths. Chen et al. investigated dam-age of the device induced through high reverse-bias stress by observing the reverse-bias EL[2]. In contrast to other groups, this study observes the reverse-bias electroluminescence, which was almost undetectable from the fresh device, since the luminescence behavior of the device in the reverse-bias condition could also shed light on fresh device-reliability problems. During the reverse-bias operations, field-dependent tunneling current at low voltage and local impact ionization in high-electric-field regions dominate the leakage current, which affects the device’s electrical properties

[3]. The goal of this study is to use optical characterization techniques, including 2D electroluminescence observation, 2D sur-face temperature measurements, 2D X-ray ﬂuorescence (XRF) ele-ment analysis, and electrical measureele-ments to explore potential

reliability problems with the InGaN LED device performance. This paper examines the EL light-emission behavior under forward-bias operations and reverse-bias operations. The reverse-bias leakage and the forward-bias subthreshold current measurements provide additional information to explore any potential reliability prob-lems. In addition, reverse-bias stress has been performed on the LED devices. The degradation and failure caused by the reverse-bias stress further proved the possible reliability concerns with reverse-bias operations. Under a combinational study of material analysis and electrical performance, the reverse-bias electrolumi-nescence behavior, which was a result of the hot electron-induced emission, proved relevant to the device performance. Building a nondestructive screening method could detect the current path’s leakage around the metal contact and evaluate the LED device quality from the fresh device. Though the ﬁrst GaN LED was dem-onstrated in the early 90s, the reliability problem may cloud the promise of its future development[4,5]. Therefore, numerous of studies have been conducted until now to unveil the GaN LED reli-ability issue. In LED industry, stress test around 6000 h is required

[6,7]. This study provides fast screening techniques and locating the weakness promising for future LED industrial applications. In contrast to current industrial reliability test techniques, reverse-bias electrical analysis and reverse-reverse-bias luminescence evaluation have been conducted to exam the device reliability[8]. Under-standing the mechanism and locating the weak or defect area

⇑Corresponding author. Tel.: +886 49 2910960x4909; fax: +886 49 2912238. E-mail address:[email protected](H. Chen).

Contents lists available atSciVerse ScienceDirect

Microelectronic Engineering

j o u r n a l h o m e p a g e : w w w . e l s e v i e r . c o m / l o c a t e / m e e

(2)

can help engineers can improve the fabrication process and in-crease the yield rate[9].

2. Device fabrication

This experiment uses metal–organic chemical–vapor deposition (MOCVD) on a c-face 2 inch sapphire (0 0 0 1) substrate to grow the InGaN/GaN multiple quantum well (MQW) LED. The device struc-ture consists of a 30 nm GaN nucleation layer, a 2-m-thick un-doped GaN, 2-m-thick Si-un-doped n-type GaN, 100-nm-thick active layers, 50-nm-thick Mg-doped AlGaN electron-blocking layer, and a 15-nm-thick Mg-doped p-GaN layer. The InGaN/GaN MQW active region consists of 10 pairs of 3-nm-thick InGaN well layers and 7-nm-thick GaN barrier layers. After partially etching the sam-ple down to the n+ layer, we deposited a 230 nm indium-tin oxide (ITO) surface layer onto the sample surface to function as the trans-parent contact layer (TCL). Ti/Al/Ti/Au contact was evaporated onto the exposed n-type GaN layer to function as the n-type electrode. 3. Experiments and discussion

To examine the device operations, this study investigates the electroluminescence behavior in both the forward bias and the re-verse bias condition. It is common knowledge that band-to-band recombination is responsible for the forward-bias EL during the LED device operations, while band-to-band recombination [1], hot-electron emission[10,11], or yellow luminescence defect[12]

and its inﬂuence on device reliability[13]may generate the re-verse-bias electron emission. Not only is the rere-verse-bias leakage current smaller than the forward-bias recombination current, but also forward-bias band-to-band recombination contributes to strong EL. The device in the forward-bias condition generates a much stronger band-to-band recombination light emission than the leakage-current-induced emission during reverse-bias opera-tions. The intensity of forward-bias emission is more than one mil-lion times brighter than the reverse-bias emission. In comparison to the forward-bias EL emission, the reverse-bias light emission is nearly undetectable. This study incorporates a high-resolution cooled iXON electron-multiplying charge-coupled-device (EMCCD) camera in the experiment to collect the weak light from the device under reverse-bias operations.

This study measures the surface temperature from the device under forward bias and reverse bias to associate the reverse-bias emission with the leakage current.Fig. 1(a) shows that in the for-ward-bias condition, high-temperature area occurs on the chip area, since current due to band-to-band recombination is ﬂowing. The higher the current and the more power dissipation results in a higher temperature [14]. On the contrary, in the reverse-bias

condition, the temperature of the border area between the metal and the chip is higher than the chip area (Fig. 1(b)), indicating that the leakage current, which associates with the reverse-bias EL, heats up the electrode. Due to high electric ﬁeld (V = 10 V) under reverse bias, the temperature of the border area in the reverse-bias condition is higher than the temperature of the chip area in the for-ward-bias condition.

To ﬁnd composition of the device, this study incorporates 2D XRF element analysis to position the 2D distribution of different composite elements. XRF is a powerful tool to detect the distribu-tion of the elements on the periodic table between Na (atomic number 11) and U (atomic number 92). Especially for some packed LED devices with resin coating or white-light LED devices with a phosphorus layer, a XRF scan can penetrate the resin coating or phosphor layer, since the XRF scan depth is approximately 5 mm for nonmetal materials, but 50

l

m for metal. Using XRF analysis can clearly identify the edge of the metal contact, or the border be-tween the chip area and the metal contact. To analyze the reverse-bias emission area, comparison of the forward-reverse-bias emission, re-verse-bias emission, and element-analysis images in superposition images are investigated. Comparison of forward-bias EL and Ga XRF distribution areas (the chip area) and comparison of reverse-bias EL and Au XRF distribution areas (the metal contact) in the LED device in two superposition images are presented inFig. 2(a) and (b). While the forward-bias emission area covers the Gallium rich area except for the near-contact area in Fig. 2(a), the re-verse-bias emission occurs in the metal contact and the chip-over-lapped area. Also, the line-like reverse-bias emission occurs in the square edge of circumference, which is also in the central metal area as shown inFig. 2(b).

Although the charge-coupled device (CCD) EL image cannot re-veal the metal area, the XRF analysis inFig. 2(a) and (b) clearly pre-sents the compositions of different parts of the device. The images demonstrate the distribution of the gold in the two electrode areas and the area surrounding the square LED chip. In addition, gallium is complementary to the two gold electrodes in the LED chip and the border between the two elements (the chip area and the elec-trode area) is easily identifiable. By comparing the EL images, sur-face-temperature profile and XRF element distribution, a reverse-bias emission emits from the border, or the contact of the central chip area where high electric field may occur due to weak struc-tures or structural defects[15–19]. This area is vulnerable to metal migration[7,20]at the border of metal contact. The weak structure or the structural defects may be a result of process variation since the reverse-bias electroluminescence behavior differs among sev-eral devices.

This study also ﬁnds that different reverse-bias emission char-acteristics relates to device electrical reliability and forward-bias emission efﬁciency. The reverse-bias light-emission behavior

(3)

differs among several fresh devices. At the same reverse-bias volt-age of 10 V, the leakage current of the device with the largest re-verse-bias emission area as shown inFig. 3(a) (Device A) is about 100

l

A and the leakage current of the device with no light emis-sion (Device C) as shown inFig. 3(c) has the leakage current of 5 nA. The leakage current of Device B with a small emission area, as shown inFig. 3(b), shows the leakage current of Device B is approximately 10

l

A. Most of the fresh LEDs are similar to Device C and have no reverse-bias emission.

To build connections between the device performance and the reverse-bias emission characteristics, HP 4145 measures the I–V curves of the devices with different light-emission characteristics.

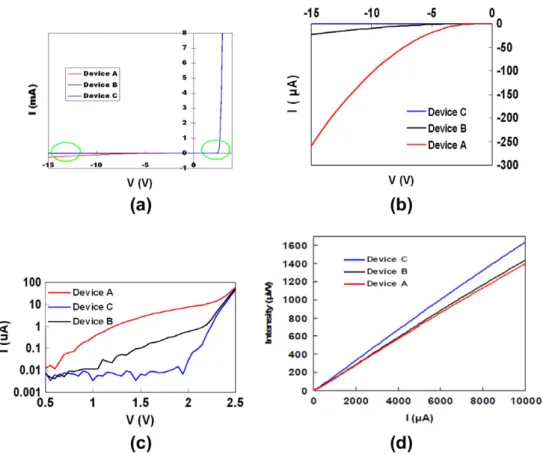

Fig. 4(a), (b), and (c) show the I–V curves, which are the enlarged I–

V curves under reverse bias as shown inFig. 4(b), and the enlarged I–V curves in the subthreshold region under forward bias as shown inFig. 4(c). In the reverse-bias condition, while Device A with the strongest reverse-bias light emission has the largest reverse-bias leakage current of approximate 100

l

A order, Device C with no light emission has the smallest reverse-bias leakage current about nA order and Device C with weak light emission has the interme-diate leakage current of about 10

l

A order as shown inFig. 4(b). The leakage current induces the reverse-bias emission. The larger the leakage current is, the stronger the light emission will be. We operate the LED under forward bias functioning as a light source, and we zoom into the electrical behavior of the device in the off state, subthreshold region, and fully turned-on state for the

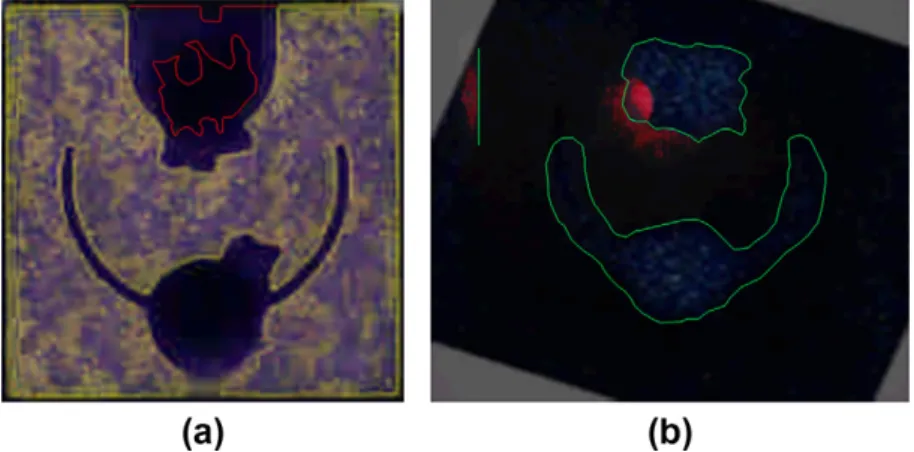

for-Fig. 2. (a) Comparison of forward-bias EL (in yellow), XRF Ga distribution (in purple) areas in the superposition image, and Ga distribution borderline (in red), (b) comparison of reverse bias EL (in red), XRF Au distribution (in blue) areas in the superposition image, and Au distribution borderline (in green). (For interpretation of the references to colour in this ﬁgure legend, the reader is referred to the web version of this article.)
