Purification of algal anti-tyrosinase zeaxanthin from Nannochloropsis oculata

using supercritical anti-solvent precipitation

Chun-Ting Shen

_{, Po-Yen Chen}

_{, Jia-Jiuan Wu}

_{, Tse-Min Lee}

_{, Shih-Lan Hsu}

_{, Chieh-Ming J. Chang}

_,

Chiu-Chung Young

_{, Chwen-Jen Shieh}

a_{Department of Chemical Engineering, National Chung Hsing University, 250, Kuo-Kuang Road, Taichung 402, Taiwan, ROC} b_{Department of Soil and Environmental Sciences, National Chung Hsing University, 250, Kuo-Kuang Road, Taichung 402, Taiwan, ROC} c_{Biotechnology Center, National Chung Hsing University, 250, Kuo-Kuang Road, Taichung 402, Taiwan, ROC}

d_{Institute of Marine Biology, National Sun Yat-Sen University, No. 70, Lienhai Road, Kaohsiung 804, Taiwan, ROC}

e_{Education and Research Department, Taichung Veterans General Hospital, 160, Taichung Harbor Road, Taichung 407, Taiwan, ROC} f_{Department of Nutrition, China Medical University, No. 91, Hsueh-Shih Road, Taichung 404, Taiwan, ROC}

a r t i c l e i n f o

Article history:

Received 30 August 2010 Received in revised form 30 September 2010 Accepted 1 October 2010 Keywords: Nannochloropsis oculata Zeaxanthin Elution chromatography Submicrosize particles

Supecritical anti-solvent precipitation

a b s t r a c t

This work investigated the changes in content of algal zeaxanthin in submicronized precipitates gener-ated from the supercritical anti-solvent (SAS) process of extracting microalgae Nannochloropsis oculata. Following a reverse phase elution chromatography, the particulates were successfully generated from feed solutions containing zeaxanthin that ranged from 0.4 to 0.8 mg/mL by a SAS process. The precip-itation condition was set at 323 K and pressures ranged from 10 to 20 MPa. Experimental results of a three-factor center composite response surface method for the SAS process indicated that the size of the precipitates was significantly affected by the flow rate of carbon dioxide. The purity of zeaxanthin increased with increasing solvent flow rate and with reducing solution concentration. The recovery of zeaxanthin and the morphology of the precipitates was also examined. The content of zeaxanthin in sub-micronsized precipitates increased from 485.9 (48.6%) to 673.7 mg/g (67.4%). This work demonstrates that elution chromatography coupled with a SAS process is an environmentally benign method to recover anti-tyrosinase zeaxanthin from Nannochloropsis oculata as well as to generate submicrosized precipitates of the purest zeaxanthin from algal solutions.

© 2010 Elsevier B.V. All rights reserved.

1. Introduction

Zeaxanthin (C40H56O2) is the principal pigment obtained from yellow corn or from the marigold flower; it is involved in many important physiological functions of the human body. Dietary xanthophylls such as lutein and zeaxanthin play important roles against related macular degeneration (AMD) and other age-related eye disease (AED)[1–3]. Lutein and zeaxanthin have been found to accumulate in high concentrations within the human retina[4]. Photo-protective mechanisms are important to prevent harmful reactions in plants (marigold) and algae (Nannochloropsis oculata). Harmful reactions are induced by an excess of photons absorbed from sunlight irradiation. Carotenoids have been sug-gested as key molecules in these photo-protective mechanisms. For example, beta-carotene can act as an effective quencher of singlet oxygen in the photo-system II reaction center[5]. Another

exam-∗ Corresponding author. Tel.: +886 4 2285 2592; fax: +886 4 2286 0231. E-mail address:[email protected](C.-M.J. Chang).

ple, xanthophylls, especially zeaxanthin, is involved in the process of non-photochemical energy dissipation[6–10]. Algae or marigold containing zeaxanthin can be cultivated in the environment men-tioned above. However, traditional organic solvent extraction of these thermal labile and light sensitive carotenoids from natural material is not so efficient due to low recovery of the carotenoid by total vaporization of the solvent at high boiling point. Co-solvent modified supercritical carbon dioxide (SC-CO2) extraction of lipids and carotenoids from microalgae; ultrasound water extraction of vitamins B from SC-CO2defatted rice bran; and SC-CO2extraction of cinnamic acid derivatives from propolis were recently investi-gated[11–13]. These supercritical fluids extraction showed that the SC-CO2is a green solvent in recovering valuable compounds from natural materials.

Supercritical anti-solvent (SAS) precipitation of solutes from a liquid phase solution has been extensively applied in pigment dispersion and pharmaceutical recrystallization to produce fine particles with high yield[14,15]. This SAS approach has also been utilized in the separation of bioactive compounds from natural materials, including flavonoids, ginkgolides, lycopene, carotenoids and phenolic acid derivatives[16–22]. Additionally, experimental

0896-8446/$ – see front matter © 2010 Elsevier B.V. All rights reserved. doi:10.1016/j.supflu.2010.10.003

data on the phase equilibrium between SC-CO2 and an organic solvent is important in understanding the supercritical anti-solvent (SAS) process as supercritical, superheated, liquid and the co-existing phases directly influence the morphology, size and dis-tribution of particles [23–25]. Three dimensionless parameters, Reynolds number (VD/; : density of the fluid, V: velocity, D: pipe diameter and: fluid viscosity), Webers number (V2_D/; : density of the droplet, V: droplet impact velocity, D: droplet diameter and: surface tension of droplet) and super-saturation of solutes (S/S*_{; S: transient solubility, S}*_{: equilibrium solubility)} have been recognized as major parameters that govern the mech-anism of particle formation associated with SAS precipitation by Rantakyla et al.[23]. Super-saturation of solutes in a high-pressure solution is important to generate micronized particles in a SC-CO2anti-solvent precipitation process. However, the transient high super-saturation of the solutes (e.g. 1.0× 104_{) in such a} high-pressure system that is mixed with SC-CO2 is very difficult to be measured, reported earlier by Chang et al.[24]. This study inves-tigated SAS precipitations of submicron-sized particles containing zeaxanthin from purified algal solutions. The effect of the opera-tion parameters (i.e. pressure, feed concentraopera-tion, CO2flow rate) on purity and recovery of zeaxanthin was based on a three-factor center composite response surface methodology and was exam-ined to determine the optimization of the purity of zeaxanthin in the SC-CO2precipitates.

2. Materials and methods 2.1. Materials

Nannochloropsis oculata was cultivated by sea water in five of 5 tons open-type polypropylene tanks sparkled with air for 15 days. After sedimentation by alunite coagulation, high speed centrifugal collection and freeze dried treatment, 500 g of algae in dry basins were donated by GeneReach Biotech. Company (Central Science Park, Taichung, Taiwan). The dried microalgae were then collected by sieving it between 60 (250␮m) and 80 (177 ␮m) mesh stainless steel screens under dimmed light and stored in a freezer at 193 K before extraction.

2.2. Chemical and standards

Analytical grade solvents used for the extractions, SAS pro-cesses, column chromatography and fractionations contained 99% ethanol (Mallinckrodt, USA), 99.5% acetone (Mallinckrodt, USA), 99.5% dichloromethane (DCM) (Mallinckrodt, USA). HPLC grade sol-vents used for the mobile phase in HPLC contained 99.5% methanol (Mallinckrodt, USA), 99.5% methyl tert-butyl ether (Mallinckrodt, USA). Ultrapure water (>18 M) was obtained using the UltrapureTM water purification system (Louton Co., Ltd., Taipei, Taiwan) and was filtered through a 0.45␮m membrane filter prior to use. The analytical grade of F254Silica-gel 60 resin (Merck, Germany) was purchased and used without further purification. And 99.95% CO2 (Toyo gas, Taiwan) was used for SAS precipitation.

The authentic standards for carotenoids contained 90.0% lutein (Fluka, Switzerland), >95% zeaxanthin (Fluka, Switzerland), 95%␤-cryptoxanthin (Sigma–Aldrich, USA), 95% trans-␤-apo-8 -catotenal (Fluka, Switzerland), 95% mix isomers of ␤-carotene:␣-carotene = 2:1 (Sigma–Aldrich, USA).

The reagents used for agar-plate tyrosinase inhibition included agar (Amresco, USA), 99.5% dimethyl sulfoxide (DMSO), sodium phosphate (Na2HPO4, NaH2PO4), 99% potassium phosphate (KH2PO4), mushroom tyrosinase, 3,4-dihydroxy- l-phenylalanine (l-Dopa), vitamin C (Sigma, USA), 2-phenoxyethanol (Sigma–Aldrich, USA), and No. 2 filter paper (Advantec, Japan).

2.3. Soxhlet extractions of Nannochloropsis oculata

Freeze-dried microalgal powders (10.5 g) were extracted using four different solvents separately over 16 h in a 175 mL Soxhlet extractor. After extraction, solvents were removed under vacuum and then weighed individually. The extracts were stored in a 193 K refrigerator before column chromatography was performed. All extractive and quantitative procedures were carried out under dimmed light.

2.4. Column chromatography and fractionation

The freeze-dried microalgae (50.0 g) were exhaustively extracted in dichloromethane with a 300 mL Soxhlet extrac-tor. The algal extracts were concentrated under vacuum to yield a loading sample (3.6 g) for column chromatography. The loading sample was dissolved in mixed solvents of ethyl acetate (EA) and n-hexane (1:3, volume ratio). The solution was subjected to a 10 cm (ID)× 30 cm (L) glass column which was packed with silica gel as a stationary phase. The feed solution was just introduced on the top of silica gel layer by a positive displacement membrane pump. A similar experimental facility was described in detail in our previous study[25]. Isocratic elution was carried out using EA and n-hexane (1:3, volume ratio) at the flow rate of 7 mL/min. Finally, a total of 32 volume fractions were collected, and the solvent of each fraction was removed under vacuum and then weighed individually. The fractions were collected according to each 10 mL of eluted solution. The purified samples were stored in a 193 K refrigerator before HPLC analysis and SC-CO2precipitation. 2.5. The SC-CO2precipitation process

For interpretation of the schematic flow diagram of SC-CO2 pre-cipitation, the reader is referred to the study of the Chen et al.[12]. Liquid CO2was compressed using a high-pressure pump (Spe-ed SFE, Applied Separations, USA) (4) into the first surge tank (75 mL, L/D = 30) (8). It entered a second surge tank (750 mL, L/D = 10) (11) at a constant flow rate after it was preheated using a heat exchanger (7). Then, CO2flowed (18, 36, 54 g/min) through a metering valve (SS-31RS4-A, Swagelok, USA) (6–3) into a visible precipitator (TST, Taiwan) (12), and various concentrations (0.4, 0.6, 0.8 mg/mL) of feed solutions were delivered into the precipitator at a constant flow rate of 2 mL/min via a high-pressure liquid pump (L-6200A, Hitachi, Japan) (17). A coaxial nozzle of 0.007 in. inside diameter was installed in the entrance of the precipitator to spray off the feed solution. A stainless frit (37␮m) and an online filter (0.45 ␮m) were placed at the bottom of precipitator to prevent the penetration of particles. The operating pressure (10, 15, 20 MPa) was regulated using a back-pressure regulator (26-1722, Tescom, USA) (9–3), and the operating temperature (313 K) was controlled using a water bath circulator (5–3). The consumption of CO2was measured using a drum type gas meter (TG10/5, Ritter, Germany) (16).

2.6. Quantification of zeaxanthin

High-performance liquid chromatography (HPLC) was per-formed using a Hitachi 2130 pump and 2400 UV series system (Hitachi, Ltd., Tokyo, Japan). The analysis was carried out with a reverse-phase YMC C-30 (5␮m, 250 mm × 4.6 mm i.d.) and a Phe-nomenex Luna security guard cartridge C-18 (5␮m, 4 mm × 2.0 mm i.d.). The microalgal extracts were eluted using mobile phases of water (A) methanol (B) and methyl t-butyl ether (C). The eluent flow rate was maintained at 1 mL/min, the injection volume was 20␮L, and the detection wavelength and column temperature were set to 450 nm and 303 K. The elution gradients were as follows: 0 min, 10% A, 90% B, 0% C; 5 min, 4% A, 81% B, 15% C; 25 min, 4% A, 81% B,

Table 1

Experimental data concerning Soxhlet extractions of carotenoids from 10 g of N. oculata powder.

Entry Solvent TY (%) Czea(mg/g) Wzea(mg/g) Rzea(%) CCAR(mg/gext) WCAR(mg/galga) RCAR(%)

1 CH2Cl2 8.91 20.10 1.79 100 25.15 2.24 100

2 n-Hexane 5.33 19.59 1.04 58.1 25.67 1.37 61.2

3 EtOH 23.33 7.55 1.76 98.3 8.49 1.98 88.4

4 Toluene 10.70 9.99 1.07 59.8 12.44 1.33 59.4

TY: total yield of extract = (Wext/Wfeed.)× 100%; Czea: concentration of zeaxanthin in extract; Wzea: the amount of zeaxanthin in microalgae; Rzea: recovery of

zeaxan-thin = (Wzea/1.79)× 100%; CCAR: concentration of carotenoids in extract; WCAR: the amount of carotenoids in microalgae; RCAR: recovery of carotenoids = (WCAR/2.24)× 100%.

15% C; 50 min, 4% A, 31% B, 65% C. The identity of zeaxanthin was confirmed by comparing its HPLC retention time with the analytical standards at the wavelength of 450 nm.

2.7. Analysis of particle size distribution and morphology

The mean particle size and particle size distribution (PSD) were determined using a light scattering particle size analyzer (Beckman Coulter, Counter F5, USA). The morphologies of the precipitates were examined using a field emission scanning electron micro-scope (FESEM) (UltraPlus series, Zeiss, GE). The precipitates were sputtered with a layer of platinum film and the FESEM images were observed under a voltage of 2 kV.

2.8. Agar-plate tyrosinase inhibition

The whitening tests were performed using mushroom tyrosi-nase (200 Unit/mL) that was smeared on an agar plate that contained 97.5% distilled water, 0.1%l-Dopa, 2% agar and 0.4% 2-phenoxyethanol. The samples at certain concentrations were loaded on the surface of a piece of No. 2 filter paper which was placed on the agar-plate and then incubated at room tempera-ture for 6 h. The bright area of the sample represents the area of tyrosinase inhibition.

3. Results and discussion 3.1. HPLC analysis of carotenoids

Fig. 1 shows the HPLC chromatograms for the analysis of carotenoids from the extracted, fractionated and precipitated sam-ples. FromFig. 1(b), carotenoids from Soxhlet dichloromethane (DCM) extraction were separated successfully using a C30 column with a gradient elution method. Each carotenoid was identified by comparing it with its commercial standard chromatogram as shown in Fig. 1(a). The amount of zeaxanthin was higher than

Minutes mAU a b c d 5 10 15 20 25 30 35 40 45 0 50 100 150 200 250 1 2 ₃ 4 5 6

Fig. 1. HPLC chromatogram of algal samples and standards (a) STDs; (b)

SOX-CH2Cl2; (c) column partition fractions; (d) SAS precipitates. (1, lutein; 2, zeaxanthin;

3, internal standard; 4,␤-cryptoxanthin; 5, ␣-carotene; 6, ␤-carotene).

Table 2

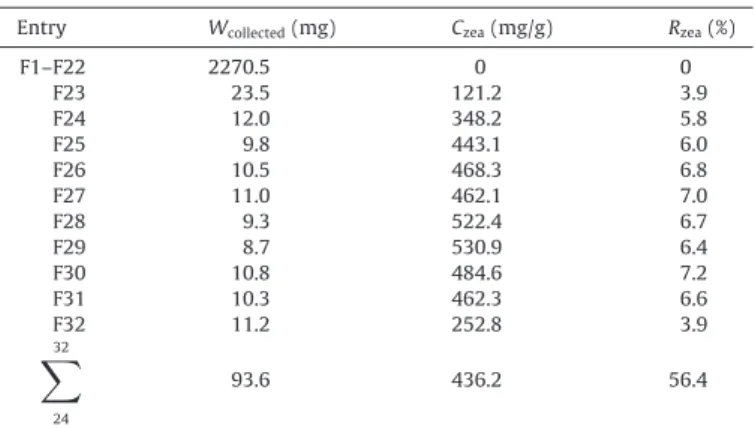

Experimental data on column partition fractionation of algal extract.

Entry Wcollected(mg) Czea(mg/g) Rzea(%)

F1–F22 2270.5 0 0 F23 23.5 121.2 3.9 F24 12.0 348.2 5.8 F25 9.8 443.1 6.0 F26 10.5 468.3 6.8 F27 11.0 462.1 7.0 F28 9.3 522.4 6.7 F29 8.7 530.9 6.4 F30 10.8 484.6 7.2 F31 10.3 462.3 6.6 F32 11.2 252.8 3.9 32



Wfeed: 3600 mg; Cfeed: 20.1 mg/gext; eluent: n-hexane:ethyl acetate = 3:1; Wcollected:

weight of each fraction; Czea: concentration of zeaxanthin in each fraction; Rzea:

recovery of zeaxanthin = (Wcollected× Czea)/(3600× 20.1) × 100%.

other carotenoids in the sample of Soxhlet DCM extraction. The chromatogram of the sample after column partition is shown in Fig. 1(c). The result reveals that the concentrations of cartenoides decreased after the column partition except for zeaxanthin. Finally, Fig. 1(d) shows that the amount of zeaxanthin further increased after undergoing the process of supercritical anti-solvent precipi-tation. The purity of zeaxanthin increased from the Soxhlet extract, to the column fractions, and finally to the SAS precipitates stepwise.

3.2. Efficiency of Soxhlet extraction

Table 1represents total yield (TY), concentrations of zeaxanthin (Czea), and recovery of zeaxhanthin (Rzea). The definitions of these items are shown as follows:

TY=





Czea=



weight of algal extract



Rzea=



weight of zeaxanthin in algae



Organic solvents are frequently used to extract carotenoids from natural products. In our previous study, Soxhlet dichloromethane (DCM) extraction was used to recover zeaxanthin from the algae, and four extraction times (4, 8, 12, 16 h) were tested [11]. The Table 3

Solubility data of algal extracts dissolved in different solvents.

EtOH (mg/mL) Acetone (mg/mL) Dichlolomethane (mg/mL)

93% Zea 0.10 0.87 8.51

40% Zea 0.65 1.04 10.46

29% Zea 1.00 2.11 11.31

Table 4

RSM-designed SC-CO2antisolvent precipitation at 313 K.

SEM # P (MPa) P (bar) Cfeed(mg/mL) QCO2(g/min) Czea(mg/g) TY (%) Rzea(%)

1(F) 10 100 0.4 18 486.3 68.3 76.1 2(A) 10 100 0.6 36 578.4 64.8 85.9 3(F) 10 100 0.8 18 485.9 80.1 89.2 4(A) 10 100 0.8 54 653.2 58.6 87.8 5(F) 10 100 0.4 54 561.1 62.8 80.8 6(A) 15 150 0.6 54 673.7 58.1 89.7 7(C) 15 150 0.6 36 602.9 52.4 72.4 8(F) 15 150 0.4 36 660.7 55.4 83.9 9(A) 15 150 0.8 36 614.2 55.9 78.7 10(A) 15 150 0.6 18 597.3 61.0 83.5 11(A) 20 200 0.6 36 541.1 58.2 72.2 12(F) 20 200 0.8 18 544.4 65.3 81.5 13(F) 20 200 0.4 18 655.2 55.2 82.9 14(F) 20 200 0.4 54 622.3 51.8 73.9 15(F) 20 200 0.8 54 575.7 58.1 76.7

P: pressure of precipitator; Cfeed: concentration of feed;QCO2: flow rate of CO2; TY: total yield of precipitates = (Wcrystallization/Wfeed)× 100%; Czea: concentration of zeaxanthin

in precipitates; Rzea: recovery of zeaxanthin = (10× TY × Czea/1000)/(10× 436.2/1000) × 100%; Qfeed: 2 mL/min; Czea,feed= 436.2 mg/g; Wfeed: 10 mg weight of feed.

575 603 630 658 685 Czea (mg/g) 0.4 0.5 0.6 0.7 0.8 18 27 36 45 54 B: Cfeed (mg/ml) C: Qco2 (g/min) 480 528 575 623 670 Czea (mg/g) 100 125 150 175 200 18 27 36 45 54 A: Pressure (bar) C: Qco2 (g/min)

a

Pressure=

15 MPa

b

C

= 0.6 mg/ml

525 558 590 623 655 Czea (mg/g) 100 125 150 175 200 0.4 0.5 0.6 0.7 0.8 A: Pressure (bar) B: Cfeed (mg/ml)

Q

= 36 g/min

c

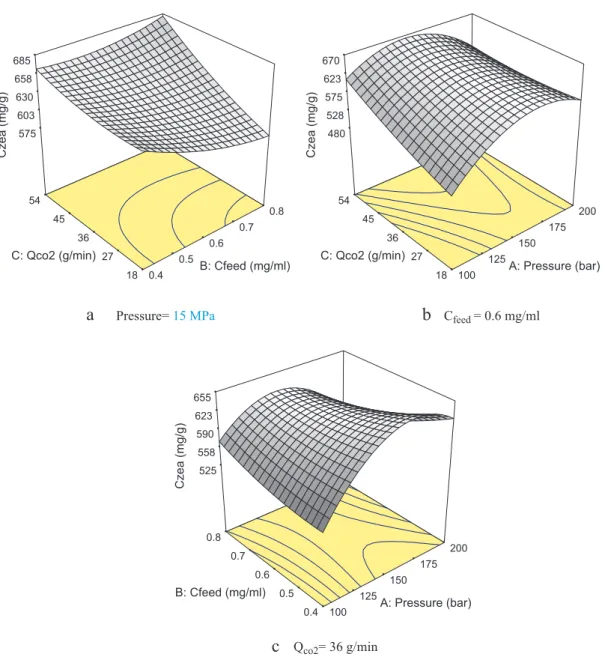

Fig. 2. Three-dimensional representation of the concentration of zeaxanthin (Czea) (F-testing: R2= 0.91, S.D. = 29.43 mg/g). Center point: (a) pressure: 15 MPa; (b) Cfeed:

findings presented that after 16 h of extraction, the content of zeax-anthin in the microalgal extract reached the maximum value. Due to the fact that the difference between the 12 and 16 h data is very small, the maximum amount of 1.79 mg/galgawas considered to be 100% recovery of zeaxanthin obtained by the 300 mL Soxhlet DCM extraction of 10 g of microalgae. In our experiment, three sol-vents (ethanol, toluene, n-hexane) were used to evaluate extraction efficiency of zeaxanthin compared to that of the dichloromethane, shown inTable 1. From the table it can be seen that the recovery of zeaxanthin was the highest value when extracted by DCM, but was close to ethanol (Rzea= 98%). The recovery of zeaxanthin decreased significantly with decreasing polarity of the solvents, and had no relationship to the boiling point of solvents. This phenomenon was

caused by the higher solubility of zeaxanthin dissolved in ethanol and DCM than those of the other solvents.

3.3. Column chromatography fractionation

Compared to the solvent of Soxhlet extraction, the recov-ery of zeaxanthin in Soxhlet DCM is better than that of Soxhlet ethanol. Therefore, the Soxhlet DCM extract was adopted and fur-ther subjected to column chromatography to yield 32 fractions. A medium-pressure normal-phase column partition fractionation was adopted herein to purify zeaxanthin from the algal solution. Table 2 presents the concentration of zeaxanthin (Czea) in each fraction. The fractions of 24–32 were identified as

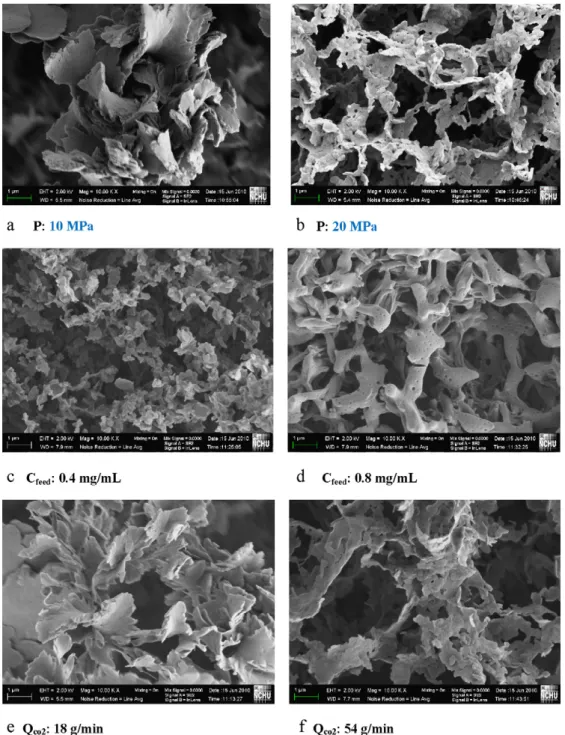

zeaxanthin-Fig. 3. FESEM images of precipitated algal samples at (a) P: 10 MPa, Cfeed: 0.6 mg/mL,QCO2= 36 g/min; (b) P: 20 MPa, Cfeed: 0.6 mg/mL,QCO2= 36 g/min; (c) P: 15 MPa,

Cfeed: 0.4 mg/mL,QCO2= 36 g/min; (d) P: 15 MPa, Cfeed: 0.8 mg/mL,QCO2= 36 g/min; (e) P: 20 MPa, Cfeed: 0.8 mg/mL,QCO2= 18 g/min; (f) P: 20 MPa, Cfeed: 0.8 mg/mL,QCO2=

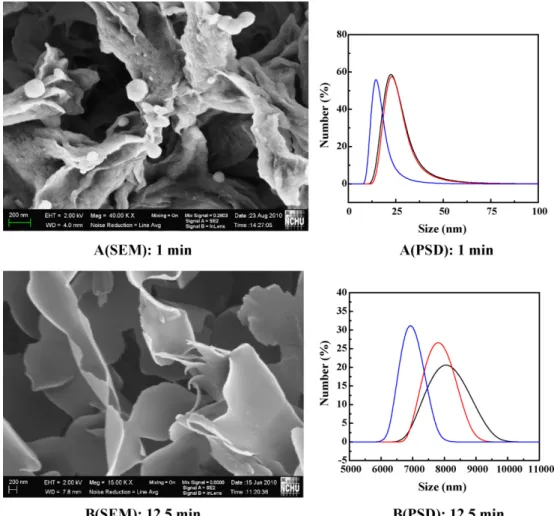

Fig. 4. Morphology (SEM) and particle size distribution (PSD) at different injection times. A: 1 min; B: 12.5 min. (P: 20 MPa, Cfeed:0.4 mg/mL,QCO2= 54 g/min, T: 313 K). rich by utilization of the HPLC analysis, and were enhanced from

121.2 mg/g to 530.9 mg/g. We stopped the collection when high Czea value was observed (F32) because there is only low Czeavalue in fractions after F32. The F24–F32 portions consisting of 56.4% zeax-anthin were mixed to form materials having an average value of the Czea= 436.2 mg/g (43.6%), which were then used as feeds for the SC-CO2anti-solvent processes.

3.4. Preliminary experimention of SC-CO2antisolvent precipitation

Prior to the study of a SAS process, solubilities of algal extracts in various solvents were crucial and had to be estimated for selection of suitable feed solutions.Table 3shows experimental solubility data of algal extracts with different zeaxanthin contents in various solvents, which were obtained using visual observation of a fixed amount of solutes dissolved in the solvent. Further investigation into these solubilities shows chloromethane is the best solvent in which to dissolve the zeaxanthin-rich extracts. Good solvents (i.e. DCM) that easily dissolve zeaxanthin are not suitable for the purifi-cation of zeaxanthin in the SAS precipitation process. Ethanol and acetone are better solvents since their solubilities decrease sharply with increasing content of zeaxanthin in the extracts. Acetone was finally selected as a solvent to dissolve the algal extracts to form feed solutions for the SAS process study.

3.5. RSM-designed SC-CO2antisolvent precipitation

Response surface methodology (RSM) based on the center composite scheme for three design variables (pressure, feeding

concentration and flow rate of CO2) with seven axial points, seven factor points and one center point was employed for the SC-CO2antisolvent precipitation. The condition for the RSM-designed SC-CO2 anti-solvent precipitation was set to 313 K.Table 4lists experimental data concerning this RSM-designed at pressures ranging from 10 to 20 MPa, feeding concentrations from 0.4 to 0.8 mg/mL, and flow rates of CO2from 18 to 54 g/min. One major response of the concentration of zeaxanthin (Czea) was analyzed using a quadratic regression model in the Design-Expert software package (Stat-Ease, Version 6.01). Fig. 2 which plots the three-dimensional response surfaces for the concentrations of zeaxanthin (Czea) shows that the concentrations of zeaxanthin (Czea) which represent the quality of precipitates changed with pressure, solu-tion concentrasolu-tion and flow rate of CO2 at the center point of P = 15 MPa, Cfeed= 0.6 mg/g andQCO2= 36 g/min. The concentra-tions of zeaxanthin (Czea) increased as pressure and CO2flow rate increased, and it decreased as solution concentration increased from 0.4 to 0.8 mg/mL at high pressures. A quadratic regression model was determined from the F-test and the analysis of variance (i.e. FCzea= 5.77 > 4.77 = F (0.05, 9, 5), R2= 0.91 forFig. 2). From the F-test, concentrations of zeaxanthin respond significantly in this RSM.

3.6. Morphology and particle size distribution

Fig. 3(a and b) displays the morphology of precipitate as they vary with pressure. The higher operating pressure produced a smaller size of flake-type precipitates. The degree of supersatura-tion increased as pressures increased above the critical point of the mixture; this was due to a decrease of solute concentration in the

Fig. 5. Agar-plate-tyrosinase inhibition by column fractions and SC-CO2

precipi-tates.

solution mixed with CO2.Fig. 3(c and d) indicates solution concen-trations increasing from 0.4 mg/mL to 0.8 mg/mL lead to an increase in the size of the snow flower-type precipitates due to a larger mass input.Fig. 3(e and f) shows that a thin size of the snow flower-type precipitates can be found in the experiments with high CO2flow rate. The reason may be that a high CO2flow rate is associated with rapid expansion of the feed solution and nucleation of the precipi-tates occurs in the well mixing of acetone and carbon dioxide. For a given degree of expansion, reducing the solution concentration of zeaxanthin promotes the supersaturation of the solute and the easy formation of narrow size precipitates. In contrast, increasing the solution concentration of zeaxanthin promotes the agglomer-ation of precipitates, such that the snow flower-type precipitates become large. In the study of classification of particulates in the SAS process, the experimental data ofFig. 4indicates that reducing the injection time from 12.5 min to 1 min leads to nano-sized round-type precipitates, and it is obvious that a small mass input during a short injected time leads to nucleation during the SAS process only. 3.7. Agar-plate tyrosinase inhibition of SC-CO2antisolvent

precipitation

An agar-plate model was adopted to evaluate the correlation between the zeaxanthin contents and tyrosinase inhibition by the algal extracts and the SAS precipitates.Fig. 5shows that qualitative effect of the 65% zeaxanthin sample on the anti-tyrosinase activ-ity is very close to that of Vitamin C, because that brighten area is almost identical at the dosed concentration of 1 mg/m1. The bright area and brightness representing the ability of anti-tyrosinase are in descending order of the 65% > 40% > 30% zeaxanthin samples. The inhibition of tyrosinase activity increased with the content of zeax-anthin in the samples.

4. Conclusions

This study successfully examined the generation of submicron-sized precipitates containing zeaxanthin from algal solutions of Nannochloropsis oculata using reverse-phase column elution chromatography coupled with the SAS precipitation process. Experimental results show that the amount of zeaxanthin in the column elution was 21-fold higher than that in the dry solid algae. A three center-composite factor of response surface method

designed supercritical anti-solvent precipitations of the algal solu-tions was executed to find crucial operational parameters affecting the amount of zeaxanthin in the submicron sized precipitates. The results revealed that the concentration of feed solution and the flow rate of carbon dioxide are very important to influence the amount of zeaxanthin. Higher amounts of zeaxanthin in the precipitates can be found in the experiments of low feed concentrations. On the other hand, smaller sizes of the round-type particulates can be found in high CO2flow rates under a short injection time. This work demonstrates that supercritical carbon dioxide anti-solvent precipitation of the fraction obtained from the column elution chro-matography substantially produces submicron-sized precipitates containing a large amount of zeaxanthin; the purest reached 67.4% by weight.

Acknowledgements

The authors would like to thank the National Science Council of the Republic of China, Taiwan for financially supporting this research (NSC98-2622-E005-004-CC1 and NSC98-2622-E005-016-CC3) and the Taichung Veterans General Hospital and National Chung Hsing University, Taiwan, for partially supporting under contract no. TCVGH-NCHU 977603.
