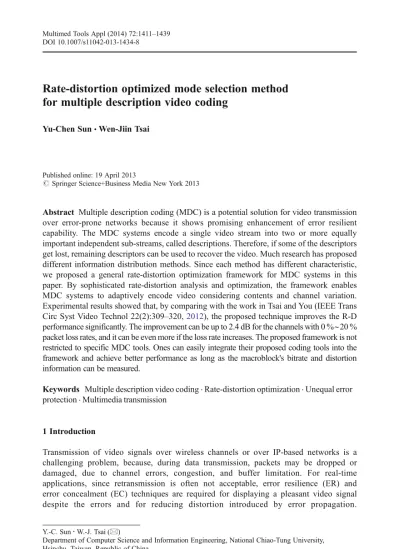

Rate-distortion optimized mode selection method

for multiple description video coding

Yu-Chen Sun&Wen-Jiin Tsai

Published online: 19 April 2013

# Springer Science+Business Media New York 2013

Abstract Multiple description coding (MDC) is a potential solution for video transmission over error-prone networks because it shows promising enhancement of error resilient capability. The MDC systems encode a single video stream into two or more equally important independent sub-streams, called descriptions. Therefore, if some of the descriptors get lost, remaining descriptors can be used to recover the video. Much research has proposed different information distribution methods. Since each method has different characteristic, we proposed a general rate-distortion optimization framework for MDC systems in this paper. By sophisticated rate-distortion analysis and optimization, the framework enables MDC systems to adaptively encode video considering contents and channel variation. Experimental results showed that, by comparing with the work in Tsai and You (IEEE Trans Circ Syst Video Technol 22(2):309–320,2012), the proposed technique improves the R-D performance significantly. The improvement can be up to 2.4 dB for the channels with 0 %∼20 % packet loss rates, and it can be even more if the loss rate increases. The proposed framework is not restricted to specific MDC tools. Ones can easily integrate their proposed coding tools into the framework and achieve better performance as long as the macroblock's bitrate and distortion information can be measured.

Keywords Multiple description video coding . Rate-distortion optimization . Unequal error protection . Multimedia transmission

1 Introduction

Transmission of video signals over wireless channels or over IP-based networks is a challenging problem, because, during data transmission, packets may be dropped or damaged, due to channel errors, congestion, and buffer limitation. For real-time applications, since retransmission is often not acceptable, error resilience (ER) and error concealment (EC) techniques are required for displaying a pleasant video signal despite the errors and for reducing distortion introduced by error propagation.

Y.-C. Sun

:

Department of Computer Science and Information Engineering, National Chiao-Tung University, Hsinchu, Taiwan, Republic of China

Multiple description coding (MDC) [22] has received much attention for the past decades because MDC is a promising approach to enhance error resilient capability. This property makes MDC a potential solution for emerging applications that require video transmission over error-prone networks [13].

Multiple description coding is a technique that encodes a single video stream into two or more equally important sub-streams, called descriptions, each of which can be decoded independently. Different from the traditional single description coding (SDC) where the entire video stream (single description) is sent in one channel, in MDC, these multiple descriptions are sent to the destination through different channels, resulting in much less probability of losing the entire video stream (all the descrip-tions), where the packet losses of all the channels are assumed to be independently and identically distributed. The first MD video coder, called multiple description scalar quantizer (MDSQ) [21], has been realized in 1993 by Vaishampayan who proposed an index assignment table that maps a quantized coefficient into two indices each could be coded with fewer bits. Due to effectiveness in providing error resil-ience, a variety of research on different MDC approaches had been proposed after-wards. These approaches can be intuitively classified through the stage where it split the signal, such as, frequency domain [4, 21], spatial domain [2, 12], and temporal domain [1, 10]. In our previous works [11], a hybrid MDC method has been proposed, which applies MDC first in spatial domain to split motion compensated residual data, and then in frequency domain to split quantized coefficients. A hybrid MDC method with spatial and temporal splitting was proposed in [19] and a hierar-chical B-picture based hybrid MDC method was proposed in [20]. The results in [9, 19,20] show that, by properly utilizing more than one splitting technique, the hybrid MDC method can improve error-resilient performance.

To improve coding performance, some researchers proposed to optimize the encoding coefficient for rate-distortion performance. In [5, 6], a R-D optimization technique is proposed for the MDC with one descriptor containing all DCT coefficients and the second one containing only few low frequency coefficients. The R-D technique aims at optimizing the number of pruning coefficients, given the target description bitrate. In [18], the method to find out optimized quantization parameters was proposed for the MDC based on H.264/AVC redundant slices [24]. Then, Lin et. al [14] extended the method from the slice level to the macroblock level.

There are two major benefits of the rate-distortion optimization concept. First, video contents vary spatially and temporally, so it would be inefficient to use a fixed encoding method to encode whole contents. In addition, the importance of different parts of video contents may be different, so adopting an unequal error protection can achieve better rate-distortion performance. Second, the channel condition also varies over time, so a mechanism to dynamically adjust protection level is necessary. With rate-distortion optimization, the encoder can change coding strategy according to video contents and channel conditions, and therefore improve the performance. How-ever, the previous optimization frameworks were based on the specific MDC systems. Since a variety of new MDC coding tools are being proposed and each tool has different characteristics. To enable the rate-distortion optimization concept on these MDC tools, a general framework is desirable. Therefore, this paper aims at proposing a general optimization framework. The proposed framework analyzes the bitrate and distortion information of macroblocks and optimizes the performance. As long as a MDC tool can provide bitrate and distortion measurements, it can utilize the proposed framework to further improve coding performance. This property makes the proposed

framework suitable for most macroblock based MDC tools and not restricted to specific coding structures, such as IPPP or hierarchical B-picture structure. Ones can easily integrate their coding tools into the proposed optimization framework and achieve better performance. In this paper, we applied the proposed optimization framework on the MDC system in [20] to explain the proposed framework. The major differences between the proposed method and the MDC system in [20] include:

– The MDC tool selection is adaptive in the proposed method, while it is fixed in [20]. – The protection level is determined at macroblock level in the proposed method, while it

is at frame level in [20]

– Video content characteristics and channel conditions are taken into considerations in the proposed method, while they are not considered in [20].

The remainder of this paper is organized as follows. First, the proposed MDC method which is an improved version of the MDC system in [20] is presented in section 2. Section 3 introduces the proposed framework, and section 4 verifies it with simulation data. Section 5 concludes the paper by summarizing the main results, and discussing possible future work.

2 Proposed MDC based on a hierarchical B-picture structure

This paper proposes a general R-D optimization framework for MDC systems. To illustrate and evaluate the proposed framework, the MDC system in [20] is adopted, although our optimization approach is not restricted to this specific MDC method. The adopted MDC is a complex system with a wide choice of splitters on a hierarchical B-picture coding structure. With the illustration of applying our approach to this complex MDC system, one can easily apply it to relatively simple MDC systems. The details of the improved MDC system are described in the following, and the proposed R-D optimization framework is described in Section 3.

2.1 The encoder architecture

Figure 1 shows the encoder architecture of the proposed MDC system which is an improved version based upon the MDC method in [20]. The architecture contains three MDC coding tools: duplicator, spatial splitter, and temporal splitter. The three tools divide a SDC bitstream into two MDC descriptors with different amount of redundancy on each. This architecture is similar to the one in [20] except that a mode selection module is added. To encode a frame, the mode selection module analyzes the importance of a macroblock in the frame and the channel condition and then chooses a suitable splitter for the macroblock, thereby optimizing R-D performance. After determining the coding tool, each macroblock is split and encoded into two individual descriptors.

The system contains three MDC coding tools: duplicator, temporal splitter, and spatial splitter. The duplicator generates two descriptors by directly duplicating the SDC data into each descriptor. Because each descriptor contains complete SDC data, the decoder can perfectly reconstruct the image as long as any one descriptor is received.

The temporal splitter splits the SDC bitstream in temporal domain, which assigns input macroblocks, in turn, to the two output paths such that successive macroblocks will go to different descriptors. Namely, when a macroblock is assigned to one description, it will be encoded as a skipped MB with no information in the other description. As a consequence, if any one descriptor is lost, those temporally split macroblocks belonging to the lost descriptor will get lost completely and can only be estimated by the macroblocks in spatial or temporal neighborhoods.

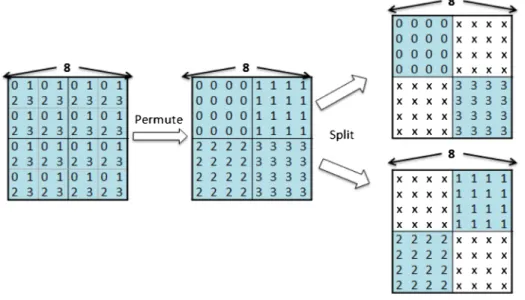

Spatial splitter splits each input macroblock into two parts which are then separately transformed, quantized, and entropy encoded before going to their respective descriptors. The spatial splitter performs splitting on an 8×8 block basis in residual domain. For each 8× 8 residual block, it is first polyphase permuted inside the block and then is split to two, as shown in Fig. 2. The permuting mechanism is that, for every 2×2 pixels inside the 8× 8 residual block, the top-left pixel (labeled 0) is re-arranged to the top-left 4×4 block, the top-right pixel (labeled 1) to the top-right 4×4 block, the bottom-left pixel (labeled 2) to the bottom-left 4 × 4 block, and the bottom-right pixel (labeled 3) to the bottom-right 4 × 4 block, as illustrated in the middle of Fig. 2. After polyphase permutation, the 8 × 8 block is split into two 8 × 8 blocks, each carries two 4 ×4 blocks chosen in diagonal and the remaining two 4 ×4 blocks are given all-zero residuals (labeled as ‘×’ in Fig. 2). Note that there are four 8 × 8 residual blocks in each macroblock, all of them are permuted and split in the same way. Since these split frames need to be merged to serve as reference frames, a Spatial Merger is applied after de-quantization (Q−1) and inverse transform (DCT−1) as shown in Fig. 1. The Spatial Merger first discards the all-zero 4 × 4 blocks and then adopts Polyphase Inverse Permuting (the reversed process of Fig. 1) to reconstruct the original 8 ×8 blocks.

The proposed improved MDC system is also based on a non-dyadic hierarchical B-picture coding structure with 4 levels as depicted in Fig. 3. For the same structure, the MDC in [20] applies duplicator on the I/P frames at the lowest hierarchical level for providing the highest error resilience, spatial-splitter (S) on the reference B frames at Fig. 1 The encoder architecture of the proposed MDC system. The major difference between it and the one in [20] is that it includes a Mode Selection module

intermediate levels for modest error resilience, and temporal-splitter (T) on the non-reference B frames at the highest level for the lowest error resilience. The idea behind the assignment in [20] is that the frames at the lower hierarchical level are more important and thus should be protected with more redundancy. In this paper, we extend the idea from frame level to macroblock level. In other word, we adaptively choose the splitters macroblock by macroblock according to its importance. A macroblock in the non-reference B frames at the highest level could be split by the temporal splitter or the duplicator; while a macroblock in other frames could be split by the spatial splitter or the duplicator. The proposed mode selection module plays a role to find out a splitter assignment that has better R-D performance. By splitter assignment at macroblock level, there may have three types of macroblocks distributed throughout the video sequence: dupli-cated macroblocks, spatially split macroblocks, and temporally split macroblocks. Figure 4 shows an example to illustrate the description generation. For temporally split macroblocks, they are encoded normally in one description and as skipped macroblocks in the other. For duplicated macroblocks, all the transformed coefficients belonging to one macroblock are encoded and duplicated in two descriptions. For spatially split macroblocks, only half of coefficients will be encoded in one description. Its counterpart will be in the other description. In these macroblocks, the punched coefficients will be set to zero. It Fig. 2 Spatial splitting

I B B B B B B B B B B P B B B B B

T : Temporal Splitter

S : Spatial Splitter

D: Duplicator

is worth mentioning that since the decoder can decode macroblocks and identify their splitter types, no additional signaling bits are required in the bitstreams.

2.2 The decoder estimation methods

With the proposed MDC, assume the generated two descriptors are denoted by D0 and D1, respectively. Assuming one description, D0, is lost, the macroblocks split by duplicator can be easily reconstructed at decoder by using the same macroblocks in the other description, D1. For the macroblocks split by the spatial splitter, one descriptor loss will cause partially loss of the macroblocks, which can be estimated by using the information of their counter-parts in D1. As Fig.5shown, the black blocks are lost pixels which will be estimated by bilinear interpolation from their counterparts.

As for the macroblocks split by the temporal splitter, one descriptor loss will cause loss of all the macroblocks in a frame, which can only be estimated by using other frames. In case of two-description loss, D0 and D1, it will result in whole-data loss regardless of splitter types. For whole-data loss, each macroblock is recovered based on temporal correlation. Figure6 shows an example to illustrate temporal estimation. To recover macroblocks on the frame 8, the motion fields of frame 9, denoted as MF, is used to interpolate the motion fields of frame 8. With the interpolated motions, the lost pixels are recovered by the pixels in frames 6 and 9, denoted as DF. For other loss cases, the estimation method is similar, except that the choices of MF and DF may be different. The detail algorithm can be found in [20]. Since the estimation methods are not the focus of this paper, we simply adopt the estimation methods in [20] for our experiments in the later section.

Table1 summarizes the cases for different estimation methods to be applied, where S denotes the spatial method, T the temporal method, and D the duplication method. The columns describe the two loss cases; while the rows describe three types of splitters. Note

D1 … D0 I B B B B B B B B B B B P f0 f1 f2 f3 f4 f5 f6 f7 f8 f9 f10 f11 f12 f0 (I) f1 (B) f2 (B) f0 (I) f1 (B) f2 (B) ( , ) : Spatial Split MB ( , ) : Temporal Split MB ( , ) : Duplicated MB … … SDC

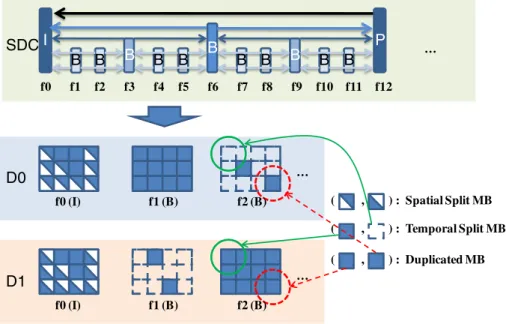

Fig. 4 An example of description generation. Each frame combines more than one types of MBs. For example, f2 combines temporal split MBs, indicted by green solid lines, and duplicated MBs, indicted by red dotted lines

that, when descriptions are lost, the frame is recovered by the depicted estimation methods and then it is stored into frame buffer for motion compensation of following frames. Therefore, the distortion due to estimation will be propagated to the following frames. This is a common issue in error recovering for video coding. In the next section, a method is proposed to analyze error propagation effect.

3 Rate-distortion mode selection method

A MDC system might contain lots of coding tools and have a complex coding structure. How to find out the mode assignment which has good R-D performance is a challenging problem. This paper proposes a R-D optimization framework. With the framework, encoder

Fig. 6 An example of temporal estimation

0

0

0

0

3

3

3

3

0

0

0

0

3

3

3

3

0

0

0

0

3

3

3

3

0

0

0

0

3

3

3

3

… i-1 i i+1 …

…

j-1

j

j+

1 ….

8x8 block

can decide a suitable splitter mode for each macroblock, thereby optimize the R-D perfor-mance. In following, we first explain the proposed framework on an ideal MDC channel. Then, the framework is extended to a packet loss channel. Finally, we summarize the proposed framework.

3.1 Rate-distortion optimization on an ideal MDC channel

An ideal MDC channel assumes that some descriptors are received without losing any information while the others are totally lost. Such a situation is referred to as side recon-struction. In the MDC system with two descriptors, e.g. the system introduced in section2, there are two cases of side reconstruction.

Assume a video is encoded by traditional close-loop codec, and the resulting coding rate and distortion are RSDCand DSDC, respectively. A MDC system tries to divide the SDC data into two MDC descriptors. First, consider a naive design as a baseline design: the system that directly duplicates the whole SDC data into two descriptors, which is denoted as duplicator-only-MDC (DO-MDC). In this system, the bit-rate of each descriptor, say R1 and R2, is equal to RSDC. And, the distortion of side decoders are equal to DSDC.

For DO-MDC which has two cases of side reconstruction, the average distortion of the two side decoders and the total bit-rate of the two descriptors are calculated as

DSide;DO MDC¼ D1ð þ D2Þ 2 ¼ DSDC=

RSide;DO MDC¼ R1þ R2¼ 2  RSDC: ð1Þ

When multiple MDC splitters are available, the encoder can choose a different splitter, instead of the duplicator, to split macroblocks. If the encoder well chooses the splitters for each macroblock, the overall R-D performance would be improved. A challenging R-D optimization problem is that how to find out a good splitter assignment. Assume the encoder choose a mode assignment (say M) for all macroblocks in the sequence and the changes of the resulting distortion and bitrate, compared with DO-MDC, are denoted as (Δ DSide,M,Δ R_Side,M) Then, the new distortion and bitrate are:

DSide_;RDO¼ DSide_{;DO MDC}þ Δ DSide_;M;

RSide_;RDO¼ RSide_{;DO MDC}þ Δ RSide_;M: ð2Þ

The R-D optimization problem is to find out the M for better (DSide,RDO, RSide,RDO). To solve the problem, we propose a strategy that makes (Δ DSide,M, Δ RSide,M) satisfy the equation: d ΔDSide_;M
d ΔRSide;M
¼ d DSide_{; DO MDC}
d RSide; DO MDC
¼ 1 2 d DSDCð Þ d RSDCð Þ: ð3Þ

Table 1 Summary of the cases

for different estimation methods Estimation methods Descriptor status One-descriptor loss Two-descriptor loss MB Type Duplicated MB D T Spatial split MB S T Temporal split MB T T

In Eq. (3), the first two terms represent the slope of the R-D curve, which means the ratio of distortion improvement over bitrate consumption. Larger ratio indicates that increasing little bitrate can improve distortion greatly. If we try to divide bitrate resource into two targets as Eq. (2), the best strategy is to keep the slopes of two targets the same. Otherwise, we can easily move rates from the target with the small slope to the target with the large one, and the overall R-D performance will thereby improved. Eq. (3) expresses this concept.

To better understand the proposed method's characteristic on R-D performance, we take an example in Fig. 7 to illustrate the concept of Eq. (3). The Foreman CIF sequence is encoded by a MDC system and its R-D curve is shown in Fig. 7, where there are four R-D points, A, B, C, and D. In the right-down legend, the bitrates of four R-D points are shown in the form of RSide,DO–MDC+Δ RSide,M. Points A and B are the R-D points of DO-MDC, where only the duplicator is adopted, so Δ RSide,M equals to zero. With other splitters adopted to replace the duplicator for some macroblocks, the R-D points move along the dashed curve from point A to C. Keeping adopting the splitters for more macroblocks, the R-D curve will go to point D. For the R-D curve in Fig. 7, it is observed that point C has the best R-D performance and that the bitrate allocated to Δ RSide,M is too small for point A and too large for point D. Since different splitting-mode assignments will result in different R-D performances, Eq. (3) provides a guide to select a good splitting-mode assignment. 400 450 500 550 600 650 700 750 32 32.5 33 33.5 34 34.5 35 Rate (kbits) PSN R ( d b ) A B C D Rate (kbits) A: 732+ 0 B: 413+ 0 C: 732+ (-134) D: 732+ (-226)

According to the concept in Eq. (3), a splitting-mode selection method is proposed. For macroblock i, the encoder firstly encodes it by DO-MDC and then try each splitter candidate. For each splitter, calculate the bitrate and distortion changes from using DO-MDC and then choose the one closest to Eq. (3).

In the proposed mode selection method, the encoder should calculate the R-D impact for each splitter candidate. However, accurate R-D impact is hard to calculate, because the distortion will propagate among frames according to traditional predictive coding scheme. For each splitter candidate applied on a macroblock, all frames that directly or indirectly reference to this macroblock should be re-encoded to calculate the distortion propagation and then the exact R-D change can be obtained. However, the computation is too complex and is not realistic. In following, we proposed a realistic method to estimate the R-D impact of each splitter candidate.

3.2 Rate-distortion estimation

Compared with DO-MDC, if a macroblock i is encoded by a splitter mode j, rather than the duplicator, the bitrate change due to this macroblock is denoted by Δ RMB i

Side;mode j and the distortion change is by Δ DMB i

Side;mode j. The bitrate change can be calculated as Δ RMB i

Side;mode j¼ RMB iSide;DO MDC RMB iSide;mode j: ð4Þ The distortion change, Δ DMB i

Side;mode j, however, is hard to be calculated because it needs to take into account all the affected macroblocks caused by motion prediction which results in distortion propagation. To reduce the complexity of distortion calculation, an estimation method is proposed as Eq. (5), where each pixel has a distortion weight, w, to approximate the distortion from the pixel itself and the propagation effect.

Δ DMB i Side;mode j¼

X

k2MBiwk d pxl k

Side;DO MDC dSidepxl k;mode j



; ð5Þ

where dpxl k_{Side;DO MDC} dpxl k_{Side;mode j}



is the distortion change of pixel k by replacing the duplicator with a splitter mode j on macroblock i. Note that uncapitalized "d" represents distortion of pixel k itself. In contrast, capitalized "D" represents distortion superimposed on the entire sequence, including the distortion on macroblok i itself and the distortion propagating to other macroblocks. In Eq. (5), if there is no propagation effect, distortion weight of each pixel will be equal to one. With propagation effects, the distortion weight is approximated by a linear model which sequentially estimates the propagated distortion of each pixel from the trajectory of motion prediction. Since distortion propagation is caused by motion prediction, the amount of propagated error should be larger if a pixel is referred by more pixels, namely, its distortion weight w should be set larger. According to this concept, we calculate w from the motion prediction trajectory. Although similar idea has been proposed in [14], there are two major differences between their approach and ours. First, we adopt pixel-level instead of macroblock-level estimation. Second, we consider that the propagated distortion will decay over time [9,23] and thus adopt a linear model for this effect.

Take an example in Fig. 5 to illustrate how to calculate distortion weights. Figure 8(a) shows successive frames in a hierarchical B coding architecture, where the arrow signs indict the directions of motion prediction. We enlarge the first four frames in Fig.5(b)and highlight four pixels, P1, P2, P3and P4, to explain the method of calculation. Since P1and P2are in non-reference frames, their distortion will not propagate to

other frames and thus the corresponding weights, w1and w2, both equal to 1. Assuming that P3 is referred by P1and P2, since the distortion of P3will propagate to P1and P2, we add some distortion to P3to elevate its impact on the overall distortion. In the case of Fig.5, since P1and P2are non-reference pixels, the distortion propagated from P3will stop on these two pixels. The distortion weight of P3can be thereby calculated as 1+α1+α2, where 1 represents the distortion of P3itself, andα1andα2represent the distortion propagated to P1and P2, respectively. The values ofα depends on motion prediction schemes of P1and P2. In this example, P1is bi-predicted by P3and P4(0.5* P1+0.5* P4); P2is uni-predicted by P3. Many distortion estimation methods [7,14] assume that the distortion will propagate to other pixels without any decay. By this assumption,α1andα2are 0.5 and 1, respectively. However, some coding tools will mitigate the error propagation effects, e.g., de-blocking filter, sub-pixel interpolation filter, quantizer, and so on. Therefore, we adopt a factor, αPD,representing propagation decays and then α1and α2 become 0.5 ×αPDand αPD, respectively. Some studies [23] have proposed theoretical derivation of propagation decays. In our approach, the decay factor αPD is statistically determined by experiments. In the experiments, we introduced little error in a frame and observed the propagated errors in those frames that refer to this frame. The factor, αPD, can be thereby calculated. To conduct the experiments, four CIF sequences, Coastguard, Hall, Harbour, and Soccer were adopted and encoded by hierarchical B picture structures with QPs equal to 16, 22, 28, and 34, respectively. We introduced errors into frames on each hierarchical layer and observed the propagated error. The experimental results are shown in Fig. 9, where the vertical axis is the observed decay factors and the horizontal axis is QP settings. It can be seen that the results of four sequences can be approached by Eq. (6), a linear function of decay factor and QP, using least square method.

aPD¼ 0:0032  QP þ 0:7466: ð6Þ

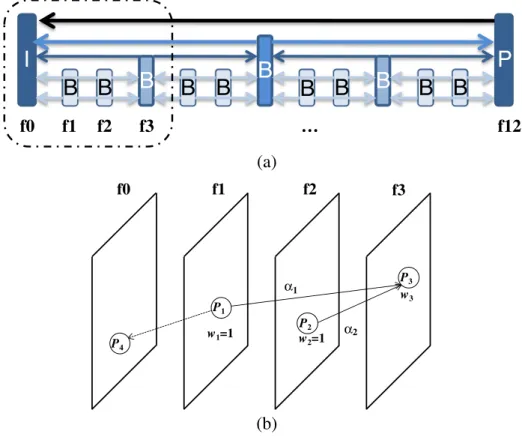

In the example of Fig.8, if P1and P2are also referred by other pixels, then the w1and w2 will not equal to 1. The distortion of P3will propagate not only to P1and P2but also to the pixels referring to them. The distortion weight of P3will be the sum of the distortion weights of P1and P2, i.e. w3=1+0.5×αPD×w1+1×αPD×w2.

To summarize, the distortion weight of pixel k is

wk¼ _1þ P1; if k is a non reference pixel l2Ωkalwl if k is a reference pixel

;

ð7Þ where Ωk is the set of the pixels referring to pixel k and αl represents the distortion propagation factor which can be calculated as

al¼ _{0:5  aPD;}aPD; if l is an uni predicted pixel_{if l is a bi predicted pixel} ;

ð8Þ whereαPDis calculated by Eq. (6). To determine the best mode assignment, we start from non-reference frames to all the non-reference frames in the same GOP, so the distortion weights of all pixels in the GOP can be derived from Eq. (7). And then the bit-rate and distortion impact of each mode on each individual macroblock can be calculated by Eq. (4) and Eq. (5), respectively. Finally, the best mode assignment for each macroblock can be found by Eq. (3). The proposed mode selection method is summarized in section3.D.

3.3 Rate-distortion optimization on a packet loss channel

In section3.A, the proposed mode selection method is discussed in an ideal MDC channel. In following, we will extend it to a general packet loss channel.

Assume a frame is divided into two descriptors. Each descriptor forms a packet and is transmitted through a packet loss network. In the decoder side, the frame can be perfectly reconstructed if two descriptors are received. If any description loss, the data will be recovered by the estimation method proposed in section 2. For a macroblock MBi, let DMB i

2D denote the distortion superimposed on the whole sequence when two descriptions are received, and DMB i1D = DMB i0D when one and no descriptor is received, respectively. Note that, for a macroblock, the distortion superimposed on the sequence includes the distortion caused by itself and the distor-tion propagated to other macroblocks in the sequence.

Assuming that the distortion caused by the loss of a number of macroblocks is mutually un-correlated [14]. Given packet loss rate, Pl, the expectation of the distortion is derived as DPl¼ 1 Plð Þ2
X i DMB i 2D ! þ 2 1 Plð ÞPl
X i DMB i 1D ! þ P2 l
X i DMB i 0D ! ð9Þ The last part of Eq. (9) can be neglected for low Pl.

(a)

(b)

I

B

B

B

B B

B

B

B

B

B B

P

f0

f1

f2

f3

…

f12

f0

f1

f2

f3

To see how Eq. (9) is affected by mode assignment, we firstly consider RO-MDC where the distortion when one or two descriptors are received is equal to the distortion of SDC, namly, P_iDMB i_{2D;DO MDC}P_iDMB i_{1D;DO MDC}¼ DSDC . When two de-scriptors are received, since all information distributed into dede-scriptors are collected on the decoder side without any loss, we assume DMB i_2D would not change. The mode assignment will result in distortion change only when there is any description loss. Let

16 22 28 34 0.5 0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1 QP PD

Least Square Fitting Coastguard Hall Harbour Soccer

α

Fig. 9 Fitting result of propagation decays factors,αPD

10 20 30 40 50 -1 -0.9 -0.8 -0.7 -0.6 -0.5 -0.4 -0.3 -0.2 -0.1 0

Packet Loss Rate (%)

Least Square Fitting Coastguard Hall Harbour Soccer Fig. 10 Fitting result ofβ in Eq.

D1

D0

I

B

B

B

B

B

B

B

P

f0

f1

f2

f3

f4

f5

f6

f7

f8

f9

…

SDC

B

I

B

B

B

B

B

B

B

P

f0

f1

f2

f3

f4

f5

f6

f7

f8

f9

…

B

I

B

B

B

B

B

B

B

P

f0

f1

f2

f3

f4

f5

f6

f7

f8

f9

…

I

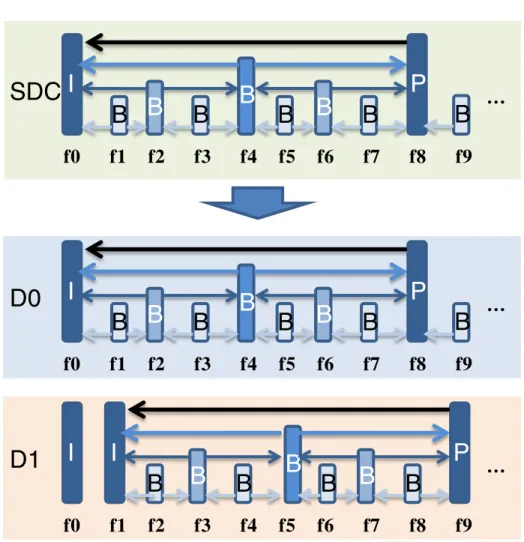

Fig. 12 Illustration of Zhu et al.’s method [25]

g

b

p

1-p

q

1-q

Fig. 11 Two-state discrete-time Markov chain channel model

Δ DPl;M denote the distortion change when assignment M is applied and one description is lost. With mode assignment, Eq. (9) will be re-written as

DPl;RDO¼ 1 Plð Þ 2_{ DSDCþ 2 1 Plð ÞPl DSDCþ Δ DP} l;M
¼ ð1 PlÞ2þ 2 1 Plð ÞPl n o  DSeq SDCþ 2 1 Plð ÞPl Δ DPl;M: ð10Þ 0 500 1000 1500 2000 32 33 34 35 36 37 38 39 40 Rate (kbps) PSN R ( d B)

Foreman, Loss Rate=1%

Proposed MDC MDC[20] MDC[25] SDC+FEC 0 500 1000 1500 2000 32 33 34 35 36 37 38 39 Rate (kbps) PSN R ( d B)

Foreman, Loss Rate=5%

Proposed MDC MDC[20] MDC[25] SDC+FEC 0 500 1000 1500 2000 31 32 33 34 35 36 37 Rate (kbps) PSN R ( d B)

Foreman, Loss Rate=10%

Proposed MDC MDC[20] MDC[25] SDC+FEC 0 500 1000 1500 2000 29 30 31 32 33 34 Rate (kbps) PSN R ( d B)

Foreman, Loss Rate=20%

Proposed MDC MDC[20] MDC[25] SDC+FEC

a

b

c

d

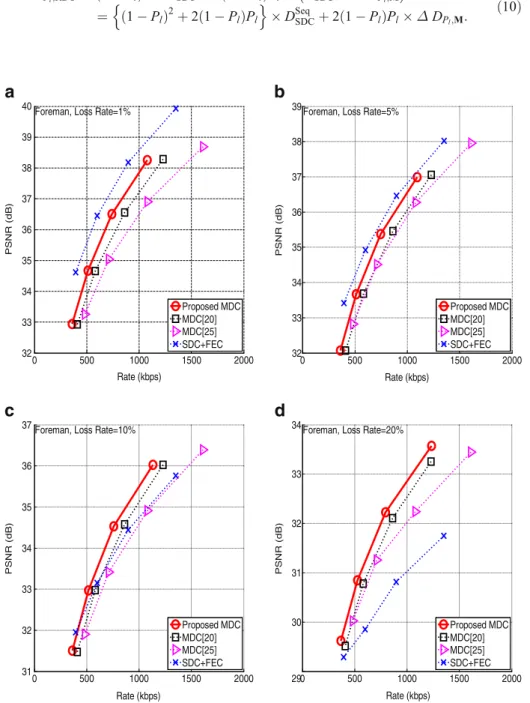

Fig. 13 R-D performance of the Forman Sequence. a Packet loss rate=1 %. b Packet loss rate=5 %. c Packet loss rate=10 %. d Packet loss rate=20 %

On the other hand, the bit-rate change taking account for mode assignment M is denoted asΔ RPl;M. According to Eq. (3), the assignment M should satisfy

2 1ð PlÞPl 1  d ΔDPl;M
d ΔRPl;M
¼ ð1 PlÞ 2 þ 2 1 Plð ÞPl n o 2  dDSDC dRSDC ð11Þ 0 200 400 600 800 1000 35 36 37 38 39 40 41 42 43 Rate (kbps) PSN R ( d B)

News, Loss Rate=1%

Proposed MDC MDC[20] MDC[25] SDC+FEC 0 200 400 600 800 1000 34 35 36 37 38 39 40 41 42 Rate (kbps) PSN R ( d B)

News, Loss Rate=5%

Proposed MDC MDC[20] MDC[25] SDC+FEC 0 200 400 600 800 1000 34 35 36 37 38 39 40 Rate (kbps) PSN R ( d B)

News, Loss Rate=10%

Proposed MDC MDC[20] MDC[25] SDC+FEC 0 200 400 600 800 1000 32 33 34 35 36 37 38 Rate (kbps) PSN R ( d B)

News, Loss Rate=20%

Proposed MDC MDC[20] MDC[25] SDC+FEC

a

b

c

d

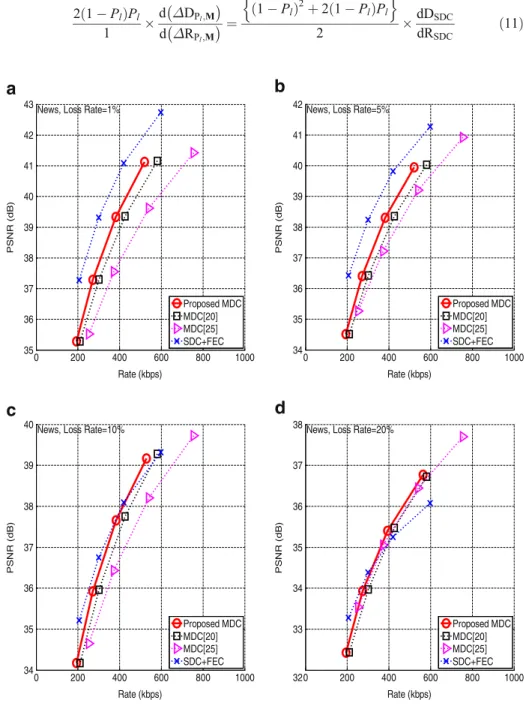

Fig. 14 R-D performance of the News Sequence. a Packet loss rate=1 %. b Packet loss rate=5 %. c Packet loss rate=10 %. d Packet loss rate=20 %

which can be rewritten as d ΔDPl;M
d ΔRPl;M
¼ ð1 PlÞ 2_{þ 2 1 Plð ÞPl} n o 2 2 1 Plð ÞPl  dDSDC dRSDC: ð12Þ

Using Eq. (12) instead of Eq. (3), the best assignment M under packet loss network can be found using the method proposed in section3.A.

500 1000 1500 2000 2500 3000 3500 30 31 32 33 34 35 36 37 38 39 40 Rate (kbps) PSN R ( d B)

Stefan, Loss Rate=1%

Proposed MDC MDC[20] MDC[25] SDC+FEC 500 1000 1500 2000 2500 3000 3500 29 30 31 32 33 34 35 36 37 38 Rate (kbps) PSN R ( d B)

Stefan, Loss Rate=5%

Proposed MDC MDC[20] MDC[25] SDC+FEC 500 1000 1500 2000 2500 3000 3500 29 30 31 32 33 34 35 36 Rate (kbps) PSN R ( d B)

Stefan, Loss Rate=10%

Proposed MDC MDC[20] MDC[25] SDC+FEC 500 1000 1500 2000 2500 3000 3500 26 27 28 29 30 31 32 33 Rate (kbps) PSN R ( d B)

Stefan, Loss Rate=20%

Proposed MDC MDC[20] MDC[25] SDC+FEC

a

b

c

d

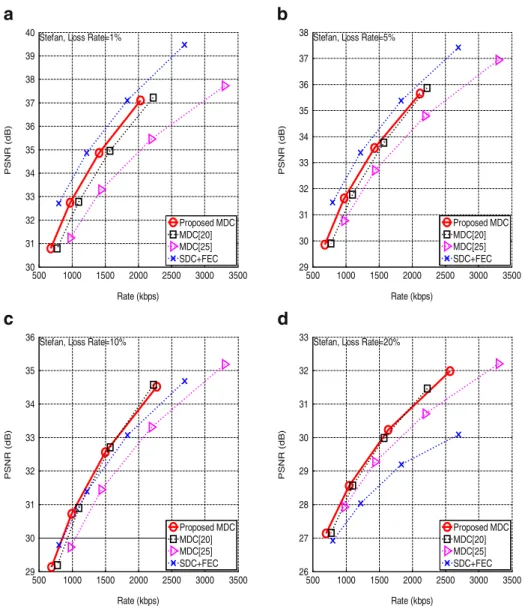

Fig. 15 R-D performance of the Stefan Sequence. a Packet loss rate=1 %. b Packet loss rate=5 %. c Packet loss rate=10 %. d Packet loss rate=20 %

3.4 Summary of proposed rate-distortion mode selection method

Let N, I, and P respectively denote GOP length, the number of macroblocks in one frame, and the number of pixels in one frame.Λ() is a function, which indicates the frame encoding order. The proposed mode selection method is shown in the following:

In Eq. (3) and Eq. (12), the R-D slope of SDC, d(DSDC)/d(RSDC), is related to adopted SDC codec. For H.264/AVC codec, the slope can be approximated by

dDSDC

dRSDC ¼ b  2 QP 12

3

ð _{Þ; ð13Þ}

whereβ is empirically fitted as −0.85 in [16,17]. However, this value is not good enough for the proposed system. To clarify this, experiments have been conducted to find a betterβ for our framework. We choose four CIF versions of sequences, Coastguard, Hall, Harbour, and Soccer and encode them with different combinations of QPs (22, 25, 28, and 31) and packet loss rates (10 %, 20 %, 30 %, 40 %, and 50 %). For each packet loss rate, we calculate mode assignments

/*Step1: Record R-D performance and motion prediction trajectory */

For frame n = (1) to (N) in a GOP

For macroblock i = 1 to I in the frame n

Encode macroblock i by SDC codec.

Record and .

Record the motion vectors.

end end

/* Step2: Calculate distortion weights */

For frame n = (N) to (1) in a GOP. For pixel p = 1 to P in the frame n

Calculate distortion weights of pixel p by Eq.(7).

end end

/* Step3: optimize R-D performance*/

For frame n = (1) to (N) in a GOP

For macroblock i = 1 to I in the frame n

Calculate and by Eq.(4) and Eq.(5) for each splitting mode j. Select the best mode by Eq.(3) or Eq.(12).

end end

by using ten values ofβ, equally distributed from 0 to 1. Among these ten values, the one with best R-D performance by B-D method is selected. The bestβ value selected for each packet loss rate is shown in Fig.10. It can be found that when packet loss rate increases, the optimalβ value increases. We adopt a linear model to fit the relation betweenβ and packet loss rates. The least square fitting result is:

b ¼ 1:04Pl 0:67 ð14Þ 0 500 1000 1500 2000 32 33 34 35 36 37 38 39 40 41 Rate (kbps) PSN R ( d B)

Table, Loss Rate=1%

Proposed MDC MDC[20] MDC[25] SDC+FEC 0 500 1000 1500 2000 31 32 33 34 35 36 37 38 39 Rate (kbps) PSN R ( d B)

Table, Loss Rate=5%

Proposed MDC MDC[20] MDC[25] SDC+FEC 0 500 1000 1500 2000 31 32 33 34 35 36 37 Rate (kbps) PSN R ( d B)

Table, Loss Rate=10%

Proposed MDC MDC[20] MDC[25] SDC+FEC 0 500 1000 1500 2000 29 30 31 32 33 34 35 Rate (kbps) PSN R ( d B)

Table, Loss Rate=20%

Proposed MDC MDC[20] MDC[25] SDC+FEC

a

b

c

d

Fig. 16 R-D performance of the Table Tennis Sequence. a Packet loss rate=1 %. b Packet loss rate=5 %. c Packet loss rate=10 %. d Packet loss rate=20 %

Even though the data do not exactly distributed linearly, we found that the fitting error is not sensitive. Since simple linear model can provide acceptable performance, we adopt linear fitting results to conduct the following experiments.

4 Experimental result

In this section, the performance of the proposed mode selection method was evaluated under both packet loss channels and ideal MDC channels. We also evaluate the computational complexity of the proposed method.

Table 2 BD results of the proposed framework on packet loss channels. The column of "Comparing with the MDC system in [20]" shows the BD difference between the proposed method and the MDC system in [20]; The column of "Comparing with the MDC system in [25]" shows the difference between the proposed method and the MDC system in [25]; The column of "Comparing with SDC system with FEC " shows the difference between the proposed method and SDC system with FEC

Sequence Pl Comparing with the MDC system in [20]

Comparing with the MDC system in [25]

Comparing with the SDC system with FEC BD-PSNR (dB) BD-Rate (%) BD-PSNR (dB) BD-Rate (%) BD-PSNR (dB) BD-Rate (%) Foreman (CIF) 1 % 0.661 −12.632 1.269 −23.733 −0.940 22.315 5 % 0.551 −11.486 0.639 −13.625 −0.503 12.162 10 % 0.467 −10.846 0.871 −20.364 0.476 −13.205 20 % 0.391 −11.175 0.698 −21.059 1.498 −40.785 News (CIF) 1 % 0.602 −9.729 1.597 −24.462 −1.340 26.812 5 % 0.526 −9.120 0.905 −15.441 −1.192 25.972 10 % 0.437 −8.304 1.040 −19.271 −0.230 4.080 20 % 0.288 −6.729 0.119 −3.011 0.111 −3.058 Stefan (CIF) 1 % 0.615 −9.914 1.716 −27.271 −0.812 15.421 5 % 0.369 −6.848 0.909 −16.571 −0.621 13.074 10 % 0.168 −3.735 0.950 −19.248 0.282 −6.733 20 % 0.135 −3.638 0.521 −13.661 1.261 −29.664 Table Tennis (CIF) 1 % 0.612 −11.119 1.391 −24.639 −1.136 24.652 5 % 0.466 −9.234 0.693 −13.979 −0.970 23.005 10 % 0.319 −7.081 0.827 −17.950 −0.139 3.105 20 % 0.207 −5.609 0.160 −4.822 0.576 −15.033

Table 3 Side decoding BD results of the proposed framework. The column of "Comparing with the MDC system in [20]" and " Comparing with the MDC system in [25]" are defined as Table2

Sequence Comparing with the MDC system in [20] Comparing with the MDC system in [25]

BD-PSNR (dB) BD-Rate (%) BD-PSNR (dB) BD-Rate (%)

Foreman(CIF) 1.964 −40.372 0.159 −3.603

News(CIF) 0.941 −17.169 0.174 −3.263

Stefan(CIF) 3.651 −61.215 0.089 −1.758

4.1 Packet loss performance

For packet loss channels, a two-state discrete-time Markov chain was adopted as our channel model, which is shown in Fig.11where there are two chain states, {g(ood), b(ad)}. A packet transmitted at slot n is successfully received if the corresponding state is good (i.e., Xn=g); otherwise, it is lost. The transition probabilities from good to bad and vice versa are p and q, respectively. The stationary packet loss probability is p/(p+q) and average burst error length is 1/q. For conducting the experiments, four CIF sequences, Foreman, News, Stefan, and Table Tennis, were chosen. We select these sequences because they contain different types of

0 500 1000 1500 2000 31 32 33 34 35 36 37 38 39 Rate (kbps) P S NR ( d B )

Foreman, Side Decoding

Proposed MDC MDC[20] MDC[25] 0 200 400 600 800 1000 34 35 36 37 38 39 40 41 42 Rate (kbps) PSN R ( d B)

News, Side Decoding

Proposed MDC MDC[20] MDC[25] 500 1000 1500 2000 2500 3000 3500 27 28 29 30 31 32 33 34 35 36 37 38 Rate (kbps) P S NR ( d B )

Stefan, Side Decoding

Proposed MDC MDC[20] MDC[25] 0 500 1000 1500 2000 31 32 33 34 35 36 37 38 39 Rate (kbps) P S NR ( d B )

Table, Side Decoding

Proposed MDC MDC[20] MDC[25]

a

b

c

d

contents. Note that, for fair comparison, these sequences are different from those sequences used for the coefficient fitting described in section3. All sequences were encoded using a dyadic hierarchical structure with 4 levels. Each slice is about 1 k bytes and transmitted in a packet. Four packet loss rates, 1 %, 5 %, 10 %, and 20 %, were chosen for evaluation, and average burst length was 10. For the optimized encoding, it is better to set smaller QPs for the frames that are referenced by other frames. In the Joint Scalable Video Model 11 (JSVM11) [15], QPs of the B frames at level-1 equal to the QPs of the I/P frames plus 4, and the QPs at level-i increase by 1 from level-(i–1), with i≧2.

The proposed method was compared with three video delivering approaches. First one is the MDC system in [20], where key frames are duplicated, reference B frames are spatially split, and non-reference B frames are temporally split. Second one is the MDC system proposed by Zhu et al. [25] in which each test sequence is duplicated into two and then encoded by hierarchical B structure with staggered key frames in the two sequences. For example, if one sequence is encoded with the structure shown in Fig.12where frames f0, f8, f16,… are I frames, then the other one will have frames f1, 9, f17, … encoded as I frames. This approach is characterized by that each frame at levels 0, 1, or 2 of one sequence will be at level 3 of the other sequence and vice versa, resulting in two fidelities of each frame. Finally, we also compare the performance of the proposed method with single description video coding with forward error correction. The experimental settings in [8] were adopted, where an (100, 90) Reed-Solomon code is adopt to protect video packets.

The resulting R-D curves were shown in Figs. 13,14,15 and16. Bjontegarrd bit rate savings (BD-rate) and PSNR gains (BD- PSNR) [3] are calculated using the methodology presented in [25] and shown in Table 2. It is observed that, compared with other MDC approaches, the proposed method has the best performance.

For CIF sequences, compared with the MDC system in [20], the proposed method has significant improvement when packet loss rate is low (0 %∼10 %). As the packet loss rate increases (10 %∼20 %), the proposed method still performs better, although the improve-ment becomes moderate. However, if packet loss rate further increases, resulting in one descriptor is totally lost, the performance gap between the proposed method and the MDC in [20] will be turned to increase again, which is presented in the next subsection. Since the proposed method can adjust error resilience ability according to channel conditions, the R-D performance can be optimized for various packet loss rates, resulting in better performance than the MDC in [20] for every loss rate. Compared with the MDC system in [25], the proposed method also achieves superior performance. The performance gap is even larger. This is due to that the MDC system in [25] allocated too much redundancy for the channel with low error rates. Although the performance gap decreases as the packet loss rate

Table 4 Center decoding BD results of the proposed framework. The column of "Comparing with the MDC system in [20]", " Comparing with the MDC system in [25]", and " Comparing with the SDC system with FEC" are defined as Table2

Sequence Comparing with the MDC system in [20] Comparing with the MDC system in [25]

BD-PSNR (dB) BD-Rate (%) BD-PSNR (dB) BD-Rate (%)

Foreman(CIF) 0.685 −12.759 1.670 −29.590

News(CIF) 0.458 −7.334 1.745 −25.943

Stefan(CIF) 0.646 −10.359 2.227 −34.174

increases, especially when one descriptor is totally lost which is presented in the next subsection, the overall results still show the superiority of the proposed method over the MDC system in [25]. Compared with the SDC system with FEC, the proposed method outperformed the FEC based approach under the channel with high loss rates. When loss rate decreases (about <10 %), the proposed method has worse performance than the FEC based approach. This result matches the conclusion in [8] that multiple description schemes seem to be a valid alternative to the SDC system with FEC for channels with high packet loss rates (about 10 % in the experimental result in [8]).

0 500 1000 1500 2000 33 34 35 36 37 38 39 Rate (kbps) PSN R ( d B)

Foreman, Center Decoding

Proposed MDC MDC[20] MDC[25] 0 200 400 600 800 1000 35 36 37 38 39 40 41 42 Rate (kbps) PSN R ( d B)

News, Center Decoding

Proposed MDC MDC[20] MDC[25] 500 1000 1500 2000 2500 3000 3500 31 32 33 34 35 36 37 38 Rate (kbps) PSN R ( d B)

Stefan, Center Decoding

Proposed MDC MDC[20] MDC[25] 0 500 1000 1500 2000 32 33 34 35 36 37 38 39 Rate (kbps) PSN R ( d B)

Table, Center Decoding

Proposed MDC MDC[20] MDC[25]

a

b

c

d

4.2 Side reconstruction performance

In following, we evaluated the performance of the proposed method and other two MDC approaches on ideal MDC channels which means that one descriptor is received without losing any information while the other is totally lost. Such performance is called side reconstruction performance and the results were shown in Table 3 and Fig. 17. It can be found that the proposed method has the best performance. Comparing with the MDC system in [20], the performance improvement can be up to 3.7 dB. This is due to that the MDC in [20] adopted fixed redundancy assignment and hence is only suitable for a certain range of packet loss rates. When the loss rate comes to 50 % (one descriptor is lost), it is obviously that the redundancy is insufficient to reconstruct well. The proposed method, however, determines the mode assignment by taking into account for channel conditions, and thus performs better. Compared with the MDC system in [25], the proposed method still has better performance even though the improvement is moderate. The reason might be that the splitting methods adopt in this paper are not good enough. If some advanced MDC tools could be adopted in the system, the performance improvement might increase.

We also showed the performance of center decoding in Table4and Fig.18. When there is error free, the value of Eq. (12) goes to negative infinity. Therefore, the optimization framework would remove redundancy as much as possible, resulting in the best R-D performance.
