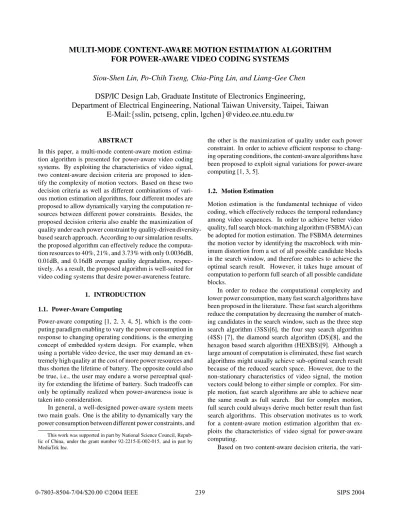

MULTI-MODE CONTENT-AWARE MOTION ESTIMATION ALGORITHM
FOR POWER-AWARE VIDEO CODING SYSTEMS
Siou-Shen Lin, Po-Chih Tseng, Chia-Ping Lin, and Liang-Gee Chen
DSP/IC Design Lab, Graduate Institute of Electronics Engineering,
Department of Electrical Engineering, National Taiwan University, Taipei, Taiwan
E-Mail:
{sslin, pctseng, cplin, lgchen}@video.ee.ntu.edu.tw
ABSTRACT
In this paper, a multi-mode content-aware motion estima-tion algorithm is presented for power-aware video coding systems. By exploiting the characteristics of video signal, two content-aware decision criteria are proposed to iden-tify the complexity of motion vectors. Based on these two decision criteria as well as different combinations of vari-ous motion estimation algorithms, four different modes are proposed to allow dynamically varying the computation re-sources between different power constraints. Besides, the proposed decision criteria also enable the maximization of quality under each power constraint by quality-driven diversity-based search approach. According to our simulation results, the proposed algorithm can effectively reduce the computa-tion resources to 40%, 21%, and 3.73% with only 0.0036dB, 0.01dB, and 0.16dB average quality degradation, respec-tively. As a result, the proposed algorithm is well-suited for video coding systems that desire power-awareness feature.
1. INTRODUCTION 1.1. Power-Aware Computing
Power-aware computing [1, 2, 3, 4, 5], which is the com-puting paradigm enabling to vary the power consumption in response to changing operating conditions, is the emerging concept of embedded system design. For example, when using a portable video device, the user may demand an ex-tremely high quality at the cost of more power resources and thus shorten the lifetime of battery. The opposite could also be true, i.e., the user may endure a worse perceptual qual-ity for extending the lifetime of battery. Such tradeoffs can only be optimally realized when power-awareness issue is taken into consideration.
In general, a well-designed power-aware system meets two main goals. One is the ability to dynamically vary the power consumption between different power constraints, and
This work was supported in part by National Science Council, Repub-lic of China, under the grant number 92-2215-E-002-015, and in part by MediaTek Inc.
the other is the maximization of quality under each power constraint. In order to achieve efficient response to chang-ing operatchang-ing conditions, the content-aware algorithms have been proposed to exploit signal variations for power-aware computing [1, 3, 5].
1.2. Motion Estimation
Motion estimation is the fundamental technique of video coding, which effectively reduces the temporal redundancy among video sequences. In order to achieve better video quality, full search block-matching algorithm (FSBMA) can be adopted for motion estimation. The FSBMA determines the motion vector by identifying the macroblock with min-imum distortion from a set of all possible candidate blocks in the search window, and therefore enables to achieve the optimal search result. However, it takes huge amount of computation to perform full search of all possible candidate blocks.
In order to reduce the computational complexity and lower power consumption, many fast search algorithms have been proposed in the literature. These fast search algorithms reduce the computation by decreasing the number of match-ing candidates in the search window, such as the three step search algorithm (3SS)[6], the four step search algorithm (4SS) [7], the diamond search algorithm (DS)[8], and the hexagon based search algorithm (HEXBS)[9]. Although a large amount of computation is eliminated, these fast search algorithms might usually achieve sub-optimal search result because of the reduced search space. However, due to the non-stationary characteristics of video signal, the motion vectors could belong to either simple or complex. For sim-ple motion, fast search algorithms are able to achieve near the same result as full search. But for complex motion, full search could always derive much better result than fast search algorithms. This observation motivates us to work for a content-aware motion estimation algorithm that ex-ploits the characteristics of video signal for power-aware computing.
vari-MVa MVb MVc MV MVvar = 0 (a) 0 0.2 0.4 0.6 0.8 1 0 8 16 24 32 40 48 56 variance probability (b)
Fig. 1. (a) The variance of motion vectors (b) The variance
distribution of motion vectors in the sequence stefan, for CIF format, block size of 16×16, search range from -16 to +15.
ance of motion vectors and the accuracy of predictive mo-tion vectors, a multi-mode content-aware momo-tion estimamo-tion algorithm is proposed. This algorithm provides four dif-ferent modes to allow dynamically varying the computa-tion resources between different power constraints. Besides, under each mode, the quality are maximized by quality-driven diversity-based search approach. As a result, the proposed algorithm is well-suited for video coding systems that desire power-awareness feature. In the following of this paper, the content-aware decision criteria are described in Sec. 2. Based on the content-aware decision criteria, the multi-mode content-aware motion estimation algorithm is discussed in Sec. 3. Sec. 4 illustrates the performance eval-uation results of proposed algorithm. Finally, a brief sum-mary is given to conclude this paper.
2. CONTENT-AWARE DECISION CRITERIA
The proposed content-aware motion estimation algorithm is based on two criteria: the variance of motion vectors and the accuracy of predictive motion vectors. They will be de-scribed in detail in the following subsections.
Table 1. The probability that the variance of motion
vec-tors is smaller than 3, for CIF format, block size of 16×16, search range from -16 to +15.
Probabilty of small variance variance sequence 0 1 2 3 total coastguard 0.5709 0.0665 0.1069 0.1041 0.8483 foreman 0.3807 0.0721 0.0788 0.1030 0.6346 mobile 0.6224 0.0688 0.0896 0.1189 0.8996 stefan 0.7161 0.0608 0.0375 0.0359 0.8502 silent 0.3668 0.0576 0.0518 0.0643 0.5405 weather 0.8617 0.0409 0.0263 0.0246 0.9536 avg 0.5864 0.0611 0.0651 0.0751 0.7878 MV Object
Fig. 2. Because the current block is in another object, the
motion vector in current block is not around the predictive motion vectors.
2.1. The Variance of Motion Vectors
The motion vectors of the current block and those of the neighbor blocks are highly correlative, because these blocks may reside in the same foreground or background. When the motion vectors of neighbor blocks are the same, the probability is quite high that the motion vectors of the cur-rent block are around the motion vectors of neighbor blocks, as shown in Fig. 1(a). By analyzing the variance distribu-tion of modistribu-tion vectors, the variance is approach to zero most of the time, as shown in Fig. 1(b). The variance is defined as below.
MVmean= (MV + MVa+ MVb+ MVc)/4
MVvar = |MV − MVmean| + |MVa− MVmean|
+ |MVb− MVmean| + |MVc− MVmean| (1)
From Table 1, it can be shown that the probability is 79% in average when the variance of the current block and neighbor blocks is smaller than 3. It can be inferred that when the variance of the motion vectors in the neighbor blocks is small, using the fast search algorithms from the predictive motion vectors instead of full search can get the correct motion vector with much less computation.
2.2. The Accuracy of Predictive Motion Vectors
2.2.1. Analysis of Boundary Blocks
In general cases, the variance of motion vectors in the neigh-bor blocks is a good measure to select the appropriate al-gorithm to get the correct motion vectors with much less computation. In some special cases, however, it is not good enough. When the neighbor blocks are in one object and the current block is in another, the variance of motion vectors in the neighbor blocks is still small, but the motion vectors of the current block may not be around the predictive motion vectors, as shown in Fig. 2.
To detect this condition, the accuracy of predictive mo-tion vectors must be taken into consideramo-tion. The accuracy can be estimated in another method: the matching differ-ence of the predictive candidate block. When the variance of motion vectors in neighbor blocks is small, if the cur-rent block and the neighbor blocks belong to diffecur-rent ob-jects with different motions, then the matching difference of the predictive candidate block will be large. In other words, when the matching difference is larger than a thresh-old, the algorithms which are suitable for complex motion are more appropriate than the algorithms which are suitable for simple motion. The SAD value is taken as the criterion of matching difference for the consideration of implemen-tation.
2.2.2. Advanced SAD Threshold
First, the constant SAD threshold is experimented for the sake of fewer computation resources. When the variance of neighbor blocks is smaller, the SAD of predictive candidate block will be compared with the constant SAD threshold to determine the accuracy of the predictive motion vectors.
The constant SAD threshold is not suitable for every quence. Sometimes, the threshold is too large for one se-quence and too small for another. Therefore, the adaptive SAD threshold should be used. The adaptive SAD thresh-old is determined by neighbor blocks, as shown in Eq. 2.
SADmean= (SADa+ SADb+ SADc)/3
SADthreshold= R × SADmean (2)
There are still some problems for the adaptive SAD old. For example, there is no limitation of the SAD thresh-old when the calculated SAD values in neighbor blocks are too large. Especially in the sequence with complex texture, such as the sequence mobile. Hence, the SAD threshold should be limited in a reasonable range. Combining the ad-vantages of the constant threshold and the adaptive thresh-old, the advanced SAD threshold is proposed in the follow-ing equation. A2 MV_variance SAD threshold A1 A2 smaller larger larger smaller
Fig. 3. The flow of the proposed content-aware motion
es-timation algorithm. SR_16 MV_variance SAD threshold SR_8 SR_16 smaller larger larger smaller (a) MV variance = 0 p = 8 predictive MV p = 16 (b)
Fig. 4. (a) The flow of adaptive search range mode. (b)
Illustration of SR 8.
SADmean= (SADa+ SADb+ SADc)/3
IfR × SADmean> Constant,
SADthreshold= Constant;
Else,
SADthreshold= R × SADmean (3)
With the advanced SAD threshold, the complete content-aware motion estimation algorithm with multi-mode is pro-posed in next section.
3. MULTI-MODE CONTENT-AWARE MOTION ESTIMATION ALGORITHM
The flow of the proposed multi-mode content-aware motion estimation algorithm is shown in Fig. 3. The A1 stands
FS MV_variance SAD threshold E4SS FS smaller larger larger smaller
Fig. 5. The flow of adaptive E4SS/FS mode.
3SS MV_variance SAD threshold E4SS 3SS smaller larger larger smaller
Fig. 6. The flow of adaptive E4SS/3SS mode.
for the algorithm which is suitable for simple motion, while the A2 stands for the algorithm which is suitable for com-plex motion. When the variance of motion vectors of the neighbor blocks is larger than a threshold, the A2 is appro-priate to perform the motion estimation. When the variance of neighbor blocks is small and the accuracy of predictive motion vectors is high, the A1 is more appropriate than the A2 to get the correct motion vectors with fewer computation resources.
Different combinations of the A1 and the A2 constitute different modes of content-aware motion estimation algo-rithm. These modes are full search (FS) mode, adaptive search range mode, adaptive E4SS/FS mode, and adaptive E4SS/3SS mode.
3.1. FS Mode
The FS mode is suitable for the requirement of high quality motion estimation without any power constraint.
3.2. Adaptive Search Range Mode
The FS algorithm is adopted in this mode, and the flow is shown in Fig. 4(a). The SR 8 stands for the FS algorithm in search range from -8 to +7 around the predictive motion vectors, as shown in Fig. 4(b). The SR 16 stands for the FS algorithm in search range from -16 to +15 around the origin. When the variance of neighbor blocks is small and the accuracy of predictive motion vectors is high, the SR 8

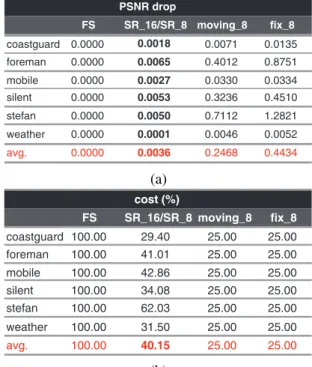

Table 2. The PSNR drop (a) and the cost (b) of the adaptive
search range mode. For CIF format, block size of 16×16, search range from -16 to +15,MVvar threshold = 6,
con-stant = 3072, and R = 3. PSNR drop FS SR_16/SR_8 moving_8 fix_8 coastguard 0.0000 0.0018 0.0071 0.0135 foreman 0.0000 0.0065 0.4012 0.8751 mobile 0.0000 0.0027 0.0330 0.0334 silent 0.0000 0.0053 0.3236 0.4510 stefan 0.0000 0.0050 0.7112 1.2821 weather 0.0000 0.0001 0.0046 0.0052 avg. 0.0000 0.0036 0.2468 0.4434 (a) cost (%) FS SR_16/SR_8 moving_8 fix_8 coastguard 100.00 29.40 25.00 25.00 foreman 100.00 41.01 25.00 25.00 mobile 100.00 42.86 25.00 25.00 silent 100.00 34.08 25.00 25.00 stefan 100.00 62.03 25.00 25.00 weather 100.00 31.50 25.00 25.00 avg. 100.00 40.15 25.00 25.00 (b)
is performed for less computation. When the variance of neighbor blocks is large, the SR 16 is performed to obtain the correct motion vector.
3.3. Adaptive E4SS/FS Mode
The FS algorithm and the Enhanced 4SS (E4SS) are adopted in this mode, and the flow of this mode is shown in Fig. 5. When the variance of neighbor blocks is small and the ac-curacy of predictive motion vectors is high, the E4SS is per-formed for less computation. When the variance of neigh-bor blocks is large, the FS is performed to obtain the correct motion vector.
3.4. Adaptive E4SS/3SS Mode
The 3SS and the E4SS are adopted in this mode, and the flow of this mode is shown in Fig. 6. When the variance of neighbor blocks is small and the accuracy of predictive motion vectors is high, the E4SS is performed for less com-putation. When the variance of neighbor blocks is large, the 3SS is performed to obtain the correct motion vector.
Table 3. The PSNR drop (a) and the cost (b) of the
adap-tive E4SS/FS mode. For CIF format, block size of 16×16, search range from -16 to +15,MVvar threshold = 4,
con-stant = 3548, and R = 2. PSNR drop DS 4SS 3SS E4SS/FS coastguard 0.0094 0.0126 0.6622 0.0031 foreman 0.3387 0.4607 1.1393 0.0237 mobile 0.0762 0.0745 0.4892 0.0099 silent 0.5050 0.4652 0.4102 0.0099 stefan 0.6451 0.6828 1.9339 0.0052 weather 0.0886 0.1444 0.4853 0.0087 avg. 0.2772 0.3067 0.8533 0.0101 (a) cost(%) DS 4SS 3SS E4SS/FS coastguard 3.28 3.84 4.69 8.84 foreman 3.08 3.48 4.69 24.86 mobile 2.61 3.10 4.69 22.43 silent 2.78 2.99 4.69 16.52 stefan 3.31 3.73 4.69 45.83 weather 2.59 2.80 4.69 11.80 avg. 2.94 3.32 4.69 21.71 (b)
Table 4. The PSNR drop (a) and the cost (b) of the E4SS/3SS mode. For CIF format, block size of 16×16, search range from -16 to +15,MVvar threshold = 55,
con-stant = 5120, and R = 3. PSNR drop E4SS/3SS 3SS 4SS E4SS DS coastguard 0.0094 0.6622 0.0126 0.0096 0.0094 foreman 0.1927 1.1393 0.4607 0.2893 0.3387 mobile 0.0538 0.4892 0.0745 0.0699 0.0762 silent 0.2503 0.4102 0.4652 0.3874 0.5050 stefan 0.3551 1.9339 0.6828 0.4790 0.6451 weather 0.1034 0.4853 0.1444 0.0882 0.0886 avg. 0.1608 0.8533 0.3067 0.2205 0.2772 (a) cost (%) E4SS/3SS 3SS 4SS E4SS DS coastguard 4.50 4.69 3.84 4.49 3.28 foreman 3.84 4.69 3.48 3.82 3.08 mobile 3.82 4.69 3.10 3.73 2.61 silent 3.09 4.69 2.99 3.05 2.78 stefan 4.13 4.69 3.73 3.93 3.31 weather 2.98 4.69 2.80 2.89 2.59 avg. 3.73 4.69 3.32 3.65 2.94 (b) 4. PERFORMANCE EVALUATION 4.1. FS Mode
The FS mode can obtain the correct motion vectors without any quality degradation. Define the cost as the candidate blocks being compared during motion estimation, and then the cost percentage of the FS mode is 100%.
4.2. Adaptive Search Range Mode
According to the simulation result, the cost is about 40% of the FS mode, and the PSNR is dropped only 0.0036dB in average, as shown in Table 2. Compared with the FS with search range from -8 to +7 around the origin (fix 8) and around the predictive motion vectors (moving 8), the qual-ity is much better and the cost is not increased too much. The adaptive search range mode is suitable for the require-ment of high quality motion estimation with some power constraint.
4.3. Adaptive E4SS/FS Mode
According to the simulation result, the cost is about 21% of the FS mode, and the PSNR is dropped 0.01dB in average, as shown in Table 3. Compared with other fast search algo-rithms, such as the DS, 4SS, etc., the quality is much bet-ter. Compared with the FS mode, the cost is much smaller. This mode is a good trade-off between the FS and other fast search algorithms. The adaptive E4SS/FS mode is suitable for the requirement of good quality motion estimation with more power constraint.
4.4. Adaptive E4SS/3SS Mode
According to the simulation result, the cost is about 3.73% of the FS mode, and the PSNR is dropped 0.16dB in aver-age, as shown in Table 4. Compared with other fast search algorithms, such as the DS, 4SS, etc., the quality is much better and the cost is at the same order. This mode exploits the different characteristics of 3SS and 4SS effectively. The adaptive E4SS/3SS mode is suitable for the requirement of good quality motion estimation with strict power constraint.
5. CONCLUSION
This paper presents a multi-mode content-aware motion es-timation algorithm for power-aware video coding systems. By exploiting the characteristics of video signal, two content-aware decision criteria are proposed to identify the com-plexity of motion vectors. Based on these two decision cri-teria as well as different combinations of various motion es-timation algorithms, four different modes are proposed to allow dynamically varying the computation resources be-tween different power constraints. Besides, the proposed
decision criteria also enable the maximization of quality un-der each power constraint by quality-driven diversity-based search approach. According to our simulation results, the proposed algorithm can effectively reduce the computation resources to 40%, 21%, and 3.73% with only 0.0036dB, 0.01dB, and 0.16dB average quality degradation, respec-tively. As a result, the proposed algorithm is well-suited for video coding systems that desire power-awareness feature.
6. REFERENCES
[1] M. Bhardwaj, R. Min, and A. P. Chandrakasan, “Quan-tifying and enhancing power awareness of vlsi sys-tems,” IEEE Transactions on Very Large Scale Integra-tion (VLSI) Systems, vol. 9, no. 6, pp. 757–772, Dec. 2001.
[2] Y. H. Lu, L. Benini, and G. De Micheli, “Power-aware operating systems for interactive systems,” IEEE Trans-actions on Very Large Scale Integration (VLSI) Systems, vol. 10, no. 2, pp. 119–134, Apr. 2002.
[3] A. Sinha, A. Wang, and A. P. Chandrakasan, “Energy scalable system design,” IEEE Transactions on Very Large Scale Integration (VLSI) Systems, vol. 10, no. 2, pp. 135–145, Apr. 2002.
[4] O. S. Unsal and I. Koren, “System-level power-aware design techniques in real-time systems,” Proceedings of the IEEE, vol. 91, no. 7, pp. 1055–1069, July 2003. [5] P. Jain, A. Laffely, W. Burleson, R. Tessier, and
D. Goeckel, “Dynamically parameterized algorithms and architectures to exploit signal variations,” Jour-nal of VLSI SigJour-nal Processing, vol. 36, pp. 27–40, Jan. 2004.
[6] T. Koga, K. Linuma, A. Hirano, Y. Iijima, and T. Ishig-uro, “Motioncompensated interframe coding for video conferencing,” in Proc. NTC, pp. C9.6.1–9.6.5, Nov. 1981.
[7] L. M. Po and W. C. Ma, “A new center-biased search algorithm for block motion estimation,” IEEE Transac-tion on Image Processing, pp. 23–26, Oct. 1995. [8] S. Zhu and K. K. Ma, “A new diamond search
algo-rithm for fast block matching motion estimation,” In-formation, Communications and Signal Processing, pp. 9–12, Sept. 1997.
[9] C. Zhu, X. Lin, and L. P. Chau, “Hexagon-based search pattern for fast block motion estimation,” IEEE Trans-action on Circuit and System for Video Technology, pp. 349–355, May 2002.
