GUAN-YI LIN, CHENG-YI LIN, SHIH-CHIEN CHANG, CHUNG-NENG WANG AND TIHAO CHIANG
Department of Electronics Engineering, National Chiao Tung University, Hsinchu, Taiwan Received July 2003; Revised January 2004; Accepted March 2004
Abstract. We present a baseline MPEG-4 Advanced Video Coding (AVC) decoder based on the methodology of joint optimization of software and hardware. The software is first optimized with algorithm improvements for frame buffer management, boundary padding, content-aware inverse transform and context-based entropy decoding. The overall decoding throughput is further enhanced by pipelining the software and the dedicated hardware at macroblock level. The decoder is partitioned into the software and hardware modules according to the target frame rate and complexity profiles. The hardware acceleration modules include motion compensation, inverse transform and loop filtering. By comparing the optimized decoder with the committee reference decoder of Joint Video Team (JVT), the experimental results show improvement on the decoding throughput by 7 to 8 times. On an ARM966 board, the optimized software without hardware acceleration can achieve a decoding rate up to 5.9 frames per second (fps) for QCIF video source. The overall throughput is improved by another 27% to 7.4 fps on the average and up to 11.5 fps for slow motion video sequences. Finally, we provide a theoretical analysis of the ideal performance of the proposed decoder.
Keywords: MPEG-4, advanced video coding (AVC), H.264, joint video team (JVT), software-hardware co-implementation, task partition, MB level pipelining
1. Introduction
Multimedia services over mobile networks are becom-ing important with the pervasive presence of the In-ternet and wireless devices. For example, new service such as MMS (Multimedia Messaging Service) over cell phones is booming. The services are usually con-strained by limited channel bandwidth. To address the issue, MPEG-4 Advanced Video Coding (AVC) [1] is widely considered for content delivery due to signifi-cant improvement in coding efficiency. With high
com-plexity tools in AVC specification, it is challenging to implement AVC encoder and decoder for real-time con-tent delivery. Several AVC codecs [2–4] are optimized for general-purpose processors that have powerful pro-cessors, large memory, special media instruction sets and wide buses to facilitate the cost reduction. How-ever, for the portable or mobile devices the design of the optimized AVC modules is constrained by low compu-tational power and small memory spaces. In this paper, we present software/hardware co-implementation to address the performance issue under both constraints.
The design methodology for realizing a multime-dia system on a chip can be roughly partitioned into 3 categories covering pure software implementation, pure hardware design and SW/HW joint optimization. The pure software implementation can be found in [5– 7], where the existing processors such as RISC CPU or DSP are used as the only platform. The design method-ology of pure software implementation has the shortest design cycle and is flexible for a wide range of appli-cations. However, the functionality is limited by the built-in instructions and architecture of the processors. With the pure hardware design, all the modules of a multimedia system are constructed with hardware cir-cuits [8]. The hardware is used for a special-purpose multimedia system to exploit the maximal parallelism and to achieve the best performance simultaneously. The optimization of the dedicated hardware design usu-ally fits the target applications. As to the SW-HW co-implementation, we can achieve both fast development and high performance [9–12]. The SW/HW joint opti-mization is based on the characteristics of a multimedia system. With the SW/HW co-implementation, the de-velopment time of a multimedia system can be signif-icantly reduced by porting the software modules to an existing chip. To enhance the overall system through-put, some modules whose software level optimization still causes the performance bottleneck when running on low power platforms are sped up by dedicated hard-ware. In addition, the software and hardware tasks are synchronized through parallel processing. To maxi-mize the overall throughput, the issues of task parti-tioning, software optimization, hardware implementa-tion and task synchronizaimplementa-tion need to be resolved.
According to the complexity analysis of MPEG-4 AVC decoder, the required computational power is too high for regular RISC processors or DSP to meet the target low bit-rate of multimedia service applications, which usually provide 7.5 QCIF (176×144) frames per second (fps) as the minimum need over mobile network or 3G W-CDMA (Wideband Code Division Multiple Access) [13]. To meet the minimal processing rate of 7.5 fps, we propose an optimized SW/HW architecture for a baseline MPEG-4 AVC decoder. In the design flow, the general-purpose processors control the decod-ing processes and the dedicated coprocessors conquer the computationally intensive modules. The coproces-sors are realized with programmable logic modules to retain the flexibility of circuit design. In addition, a standardized system bus is used to remove the bottle-neck of data communications between modules and to
allow interoperability. Subsequently, the proposed ar-chitecture is evaluated on an ARM966 platform. The results show that the optimized software without hard-ware acceleration can achieve a decoding rate up to 5.9 frames per second (fps) for the video sequences in QCIF resolution and YCbCr 4:2:0 color format. With the proposed SW/HW design, the throughput is in-creased by about 27% to reach 7.4 fps on the average and is up to 11.5 fps for slow motion video sequences. To estimate the practical upper bound of our design method, a theoretical analysis is given.
This paper is organized as follows. In Section 2, we present a novel MPEG-4 AVC decoder architec-ture and analyze the complexity. In Section 3, the Soft-ware/Hardware design methodology and architecture are provided. In Section 4, the synchronization and the optimization issues of software and hardware are solved. In Section 5, the Software/Hardware design re-sults are given and overhead is analyzed to explain the experimental results. Section 6 draws the conclusion.
2. MPEG-4 AVC Decoder
2.1. System Architecture

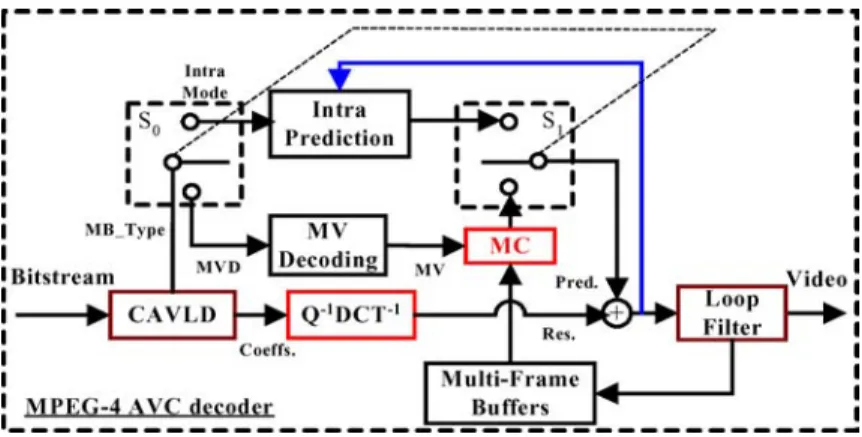

As shown in Fig. 1, the MPEG-4 AVC decoder can be partitioned into four main modules.
1. Context-adaptive variable length decoding (CAVLD).
2. Inverse quantization and inverse 4× 4 Discrete Cosine Transform (Q−1DCT−1).
3. Motion compensation (MC). 4. Reconstruction and loop filtering.
The decoding is performed by first parsing the com-pressed bitstream by CAVLD. After the parsing, the quantized prediction residuals and macroblock (MB) side information including MB type (MB Type), pre-diction mode and motion vector difference (MVD) are extracted. The MB Type information controls the switches S0and S1in Fig. 1 to determine the prediction type. For an intra MB, the intra prediction is derived from the neighboring pixels without loop filtering. For an inter MB, the inter prediction is derived from mo-tion compensated pixels. The addimo-tion of the predicmo-tion pixels and the decoded residuals produces the recon-structed frame. After the reconstruction, a loop-filter is applied to remove blocking artifacts and the filtered
pixels are stored in the frame buffers for advanced reference.
The new MPEG-4 AVC standard contains many powerful tools for enhancing the coding efficiency. For example, new tools for a baseline AVC decoder covering the multiple reference frames (1–5 frames), the variable block sizes for motion search (7 modes for 4× 4 to 16 × 16), the intra prediction, the con-text adaptive entropy coding, the 4× 4 integer in-verse DCT transform, the Hadamard transform, and the rate-distortion optimization. With the tools MPEG-4 AVC achieves high coding efficiency but drastically increases the complexity.
2.2. Complexity Analysis
To analyze the complexity quantitatively, we have eval-uated the AVC and two most popular video standards including MPEG-4 Simple Profile (MPEG-4@SP) and H.263. To evaluate the AVC decoder complexity ob-jectively, we limit the multimedia applications to be compliant with the Baseline Profile at Level 1 as sum-marized in Table 1. The encoding parameters for com-plexity comparison are listed in Table 2. Table 3 shows the bit rates and the objective qualities in PSNR for 5
Table 1. MPEG-4 AVC baseline profile and level 1.
Max MB processing rate 1485 Max picture size 176× 144 Max bit rate 64 Kbits/sec Max # of reference frames 5
different MPEG test sequences. With an identical bit rate of 64 kbps, MPEG-4@SP has similar quality as that of H.263, and AVC has more than 3 dB gain in PSNR over the 2 previous standards. In addition, to achieve the processing rate up to 7.5 fps of QCIF video, the opera-tion count for each decoder is observed in Table 4. The operation counts with MPEG-4@SP, AVC and H.263 decoder are 39, 218, and 9 million cycles per second, respectively. Based on the operation counts, we can roughly estimate that the execution time of AVC [1] is 6 times compared to that of MPEG-4@SP [14] and 24 times compared to that of H.263 [15].
3. System Architecture
To enhance the overall throughput of the AVC de-coding system, the system architecture is developed based on the characteristics of the decoding modules and data dependency between the modules. Consider-ing the complexity characteristics, we adopt the Soft-ware/Hardware (SW/HW) co-implementation design methodology. To resolve the data dependency issue, a time scheduling for MB level pipelining is presented.
3.1. SW-HW Co-Implementation Design Methodology
Joint optimization of software and hardware (SW/HW) co-implementation offers a flexible way to balance the performance, cost and complexity. Design methodol-ogy of SW/HW co-implementation has been widely adopted for realizing complicated multimedia sys-tems [9–12]. The advantages of such design method-ology can be shown from 3 different aspects including
Table 2. The encoding parameters for construcing the test bitstreams of MPEG-4@SP, MPEG-4 AVC and H.263 at 64 kbps.
Search Search Variable Multiple
range algorithm Format Resolution search mode reference frame
MPEG-4@SP ±16 Full search 7.5fps QCIF Half pel 16× 16 and 8 × 8 1 MPEG-4 AVC baseline ±16 Full search 7.5fps QCIF Quarter pel 7 modes 5 H.263 ±15 (max) Fast motion (default) 7.5fps QCIF Half pel 16× 16 1

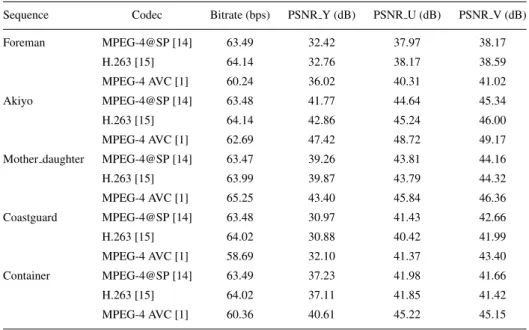

Table 3. Rate and distortion performance for MPEG-4@SP, MPEG-4 AVC and H.263.
Sequence Codec Bitrate (bps) PSNR Y (dB) PSNR U (dB) PSNR V (dB)
Foreman MPEG-4@SP [14] 63.49 32.42 37.97 38.17 H.263 [15] 64.14 32.76 38.17 38.59 MPEG-4 AVC [1] 60.24 36.02 40.31 41.02 Akiyo MPEG-4@SP [14] 63.48 41.77 44.64 45.34 H.263 [15] 64.14 42.86 45.24 46.00 MPEG-4 AVC [1] 62.69 47.42 48.72 49.17
Mother daughter MPEG-4@SP [14] 63.47 39.26 43.81 44.16
H.263 [15] 63.99 39.87 43.79 44.32 MPEG-4 AVC [1] 65.25 43.40 45.84 46.36 Coastguard MPEG-4@SP [14] 63.48 30.97 41.43 42.66 H.263 [15] 64.02 30.88 40.42 41.99 MPEG-4 AVC [1] 58.69 32.10 41.37 43.40 Container MPEG-4@SP [14] 63.49 37.23 41.98 41.66 H.263 [15] 64.02 37.11 41.85 41.42 MPEG-4 AVC [1] 60.36 40.61 45.22 45.15
Test machine: Pentium 4-2G.
computational characteristics, design verification and system performance.
Most video coding schemes are composed of both irregular branching operations and regular complex
op-Table 4. The operation counts for the decoders of MPEG-4@SP, MPEG-4 AVC and H.263.
MPEG-4 MPEG-4
Sequence\ @SP [14] AVC [1] H.263 [15] Codec (Mcycles/sec) (Mcycles/sec) (Mcycles/sec)
Foreman 42.00 237.92 8.89 Akiyo 32.94 192.54 9.73 Mother 38.67 218.30 8.82 daughter Coastguard 41.04 238.32 10.55 Container 37.33 200.88 6.98 Average 38.39 217.60 8.89 Ratio 4.27 24.19 1.00
Test machine: Pentium 4-2G.
Mcycles/sec: Million cycles per second.
erations. The irregular branching operations with fewer computations are more suitable for software imple-mentation and the regular complex operations can be effectively implemented with dedicated hardware co-processors. For the design verification, software level implementation on the existing platforms such as per-sonal computers (PC) is much easier for debugging and verification. In contrast, hardware level implemen-tation usually takes long design cycle for testing and verification. From the system performance perspective, specialized hardware design with specific functionali-ties can obtain higher performance than pure software design. Thus, we use the SW/HW joint optimization to retain an optimized operation performance with mod-erate design efforts.
Several video codec systems [9–12] have been devel-oped using the SW/HW joint optimization approaches. The authors in [9] have developed a H.263 based video-phone system with multiple micro-controllers, pro-cessors and dedicated hardware. The system is con-trolled with 2 micro-controllers, which are used for the
Figure 2. Architecture and emulation environment of ARM platform based MPEG-4 AVC decoder.
MB-level pipelining and the memory management re-spectively. The computational intensive parts such as motion estimation (ME) or discrete cosine transform (DCT) are processed by the dedicated hardware. Data for different modules are moved via on-chip data and command buses controlled by the micro-controllers. Another similar approach in [11] has proposed a multi-cores architecture for a single chip solution for MPEG-4 streaming application. A RISC processor is embed-ded for data flow control and a VLIW processor is designed for computationally intensive tasks. In par-ticular, they follow the ARM Master Bus Architecture (AMBA) to implement the system bus for data com-munication.
Instead of the single chip approaches in [9] and [11], the authors in [10] have developed a scalable MPEG-2 Main Profile and Main Level (MP@ML) encoding scheme. The encoding throughput can be increased by deploying multiple chips for parallel processing. Each chip has 3 layers consisting of the process control, the video processing and the data buffering layers. The process control layer has a RISC processor for video sequence control at the MB level. In the second layer of video processing, multiple dedicated hardware mod-ules and a SIMD processor are used for handling the computationally intensive parts, which mean ME, MC
or DCT. To communicate with the other chips, a hard-ware module is designed for function extension and data sharing.
In addition, the authors in [12] have developed a H.263 codec on an emulation board with one Strong ARM 110 core and 2 FPGA boards. By analyzing the computation power taken in the codec system, the high power-consuming modules including ME and motion compensation (MC) are partitioned and realized with dedicated hardware. The remaining modules such as entropy decoding are done only with software level optimization. The data communication between the processor and the dedicated hardware are processed via Direct Memory Access (DMA). In conclusion, the SW/HW joint optimization has been proven to enhance the performance of the video coding systems [9–12]. Thus, we maximize the throughput of the high com-plex AVC decoding system based on the SW/HW joint optimization.
3.2. Proposed Architecture on ARM Development Platform

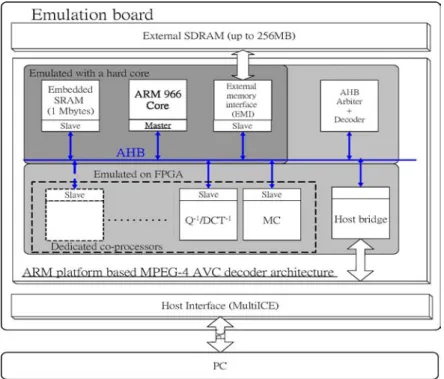

Figure 2 depicts the ARM platform based MPEG-4 AVC decoder architecture and the emulation
environment. The system includes an ARM966 CPU, an embedded SRAM, multiple dedicated coprocessors, an external memory interface and a 32-bit wide ARM High-speed Bus (AHB). All functional modules are connected via the AHB bus. The ARM966 CPU acts as a master on the AHB bus and conducts the synchro-nization among all functional blocks. All the remain-ing functional blocks that comply with the commands from CPU are slaves. Specifically, the dedicated copro-cessors can accelerate computation or reduce memory access for rapid processing. The firmware of the copro-cessors and the software for the remainders are stored in the embedded SRAM. In addition to the embedded memory, the decoder also requires external memory for frame buffering with size about 470 kilo-bytes. The ac-cess to the external memory is via an external memory interface.
4. Design Methodology
4.1. Software and Hardware Partitioning
Software and hardware task partitioning is critical to the performance enhancement and cost reduction of the en-tire system. To meet the requirement of decoding QCIF video sequences at 7.5 fps, our system needs a proces-sor running at 218 million cycles per second according to the observation in Section 2. Since our processor runs in 140 MHz, the pure software-level optimization of AVC decoder implementation can only achieve the decoding rate of 4.83 fps. To further increase the de-coding throughput to 7.5 fps, we must assign at least 35.7%1of workload to dedicated hardware. Thus, the remaining issue of the system architecture is the dis-tribution of the processing tasks to the proper coding modules.
To partition the task, computation characteristics are good criteria to guide the process [9–11]. Table 5 il-lustrates the kernel operations of each AVC decoding module. Most modules except the Q−1DCT−1require a great amount of memory access (MemA). In
addi-Table 5. Key operations for AVC decoding modules.
Modules MC Q−1DCT−1 CAVLD Loop filtering
Operations Mul., Add, Add, Branch, Add, MemA, Shift Shift MemA. MemA.
Mul.: multiply, MemA: memory access

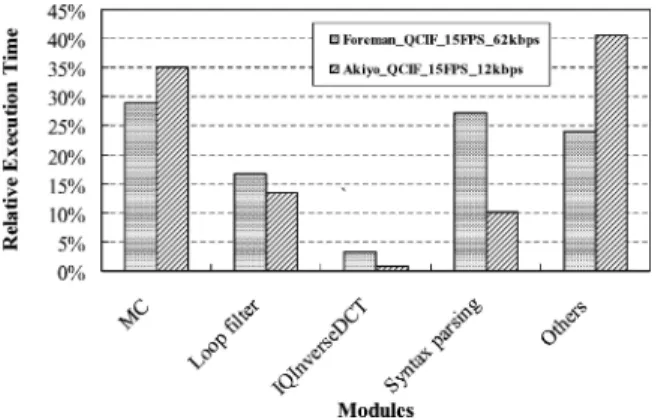

Figure 3. Decoding profiling for AVC on ARM 966 CPU.
tion, the MC and loop filtering require intensive arith-metic operations for interpolation and filtering, re-spectively. The CAVLD needs branch instructions for context-adaptive table switching. Thus, the MC, loop filtering and Q−1DCT−1are suitable for hardware im-plementation and the CAVLD is suitable for software implementation. Figure 3 shows the decoding profiling in relative execution time for each module. From the Amdahl’s law and the observations of Fig. 3, we re-duce the computational loads by developing three ded-icated coprocessors for the MC, Q−1DCT−1and loop filtering, respectively. The remaining modules are im-plemented and optimized in software. The ideal upper bound of the decoding frame rate in fps can be approx-imated when the software and hardware tasks work in parallel with an efficient scheduling. For example, the combined percentage of MC, Q−1DCT−1and loop fil-tering occupies about 49% for Foreman sequence and 50% for Akiyo sequence. Consequently, we can esti-mate the ideal upper bound of the decoding rate to be 9.47 fps2for Foreman sequence and 9.66 fps3for Akiyo sequence.
4.2. Software and Hardware Synchronization
To save the memory for intermediate data buffers and to maximize the throughput simultaneously, module syn-chronization is required for SW/HW joint optimization. Module synchronization is realized as a scheduling ap-proach for MB level pipelining as shown in Fig. 4. The scheduling is based on data dependency and workload distribution. The subscript n denotes the MB index. Basically, a MB is decoded through the three stages including (1) CAVLD; (2) Q−1DCT−1and MC; (3) re-construction and loop filtering.
Figure 4. Illustration of proposed MB level pipeline.
Figure 5 shows the flow chart for synchronization between CPU and the three coprocessors in MB level. For synchronization, each stage of decoding processing is initialized as follows.
1. Send the data to the MC coprocessor for motion compensation of the n-th MB.
2. Send the data to the Q−1DCT−1 coprocessor for Q−1DCT−1of the n-th MB.
3. Send the data to the LF coprocessor for loop filtering of the (n− 1)-th MB.
4. Proceed to decode the (n + 1)-th MB header and coefficients on CPU.
5. Check the ready signals from the three coprocessors. 6. If the data in the three coprocessors are both ready, store the data for loop filtering to reconstruct the
n-th MB in the next stage, and receive the filtered
data to the (n− 1)-th MB. Otherwise, go to Stage 5.
4.3. Software Optimization
To retain the flexibility and portability across differ-ent platforms, we adopt algorithm level optimization for the software. The main optimization methods are introduced in the following.
4.3.1. Frame Buffer Management. Three frame
buffer management methods are adopted to save ex-ecution time of memory copy.
1. The frame copy is done by swapping the pointers of frame buffers.
2. The motion compensated frame or intra prediction pixels are stored directly in the decoded frame buffer to avoid memory copy.
3. The decoded residuals are stored in the frame buffers with 4-byte alignment to facilitate access on 32-bit ARM CPU architecture.
4.3.2. Boundary Padding for Motion Compensation.
Since unconstrained motion vector and the 6-tap filter [1,−5, 20, 20, −5, 1] are used for MC with half-pel interpolation, the locations of the reference pixels may exceed the frame boundaries. For boundary checking and pixel padding, on-the-fly pixel padding is costly and can be avoided by padding the reference frame be-fore MC. For AVC specification of baseline profile at level 1.0, legal search range of±64 is supported, but the memory usage is over 3 times of the original mem-ory size for QCIF resolution.4To save memory spaces our solution is to pad (16+ 2) points to the left and upper edges and (16+ 3) points to the right and bot-tom edges. This is because that the data in the padded area is the same. When the motion predictors exceed the padding range, we will map the destination points inside the range that has the identical content. In ad-dition to padding, we also speed up the interpolation by replacing the filter tap multiplication with a table lookup technique.
4.3.3. Content-Aware Q−1DCT−1. We observe that most DCT coefficients of motion compensated resid-uals are quantized to zeros at low bit rate coding. Table 6 shows the percentage of the blocks with all zero
Figure 5. Software flow for MB level pipeline.
coefficients in fast motion and slow motion sequences. For fast motion sequences, about 25% of DCT blocks are all zero cases. For slow motion sequences, the centage is increased to 47%. In addition, a large
per-Table 6. Percentage of all zero blocks at 64 kilo-bits/sec.
Fast motion Show motion Sequence Foreman Mother-Daughter
All zero blocks 24.8% 47%
centage of DCT blocks have only one DC coefficient. Thus, we can classify DCT blocks into three categories and conduct Q−1DCT−1differently.
1. For the blocks with nonzero AC coefficients, we perform normal Q−1DCT−1.
2. For the blocks with only nonzero DC coefficient, we only perform inverse DC transform.
3. For blocks of all zero coefficients, we just skip the transform.
nique. MPEG-4 AVC baseline profile uses many cod-ing tables for CAVLD [16]. Each context refers to a dif-ferent table for decoding. Currently, reference software uses exhaustive search for symbol decoding [1]. The symbol matching is conducted in a bit-by-bit manner. As a result, decoding each symbol takes many branch-ing and comparison instructions in CAVLD module, which reduces the overall performance.
To speed up CAVLD, we replace the branching and comparison instructions with a table lookup technique. Figure 6 shows that each VLC symbol in AVC bit-streams is composed of leading zeros (M bits) and non-leading zero part (N bits). To speed up the sym-bol decoding, we organize new VLD tables to avoid branching and comparison instructions. With the novel table lookup method, the symbol decoding is identi-cal to the table indexing. In the new VLD tables, each decoded symbol can be indexed by the length of lead-ing zeros and the value of non-zero part. For example, Table 7 is used to decode the leading zeros of com-ing symbol. Each entry of Table 7 maps the input data
Table 7. The “leading one” indexing table and its rel-ative return values.
Return value Symbol Range of value
1 1xxxxxxxx 128–255 2 01xxxxxxx 64–127 3 001xxxxxx 32–63 4 0001xxxxx 16–31 5 00001xxxx 8–15 6 000001xxx 4–7 7 0000001xx 2–3 8 00000001 1
Jump to the next byte 00000000 0
Consequently, 2 byte-wise operations can fully decode leading zeros and one operation is required for com-pleting the non-zero part. With the specified tables, the total amount of the extra memory required is less than 4 kilo-bytes, which may be proper by considering the increased throughputs. As compared to the decoding rates of [17], we can achieve 37% savings for CAVLC and 40% savings for UVLC (or called Exp-Golomb) on a Pentium-IV 2.0 GHz desktop as shown in Fig. 8. For processing the bitstreams with 300 kbps, the over-all throughput is improved by 7.12% on a Pentium-IV
Figure 8. Performance evaluation for CAVLC and UVLC decod-ing.
Figure 9. Execution time comparison of MPEG-4 AVC decoders with and without optimization.
Figure 10. Throughput comparison on the decoding frame rates for MPEG-4 AVC decoders with and without optimization.
2.0 GHz desktop and by 8.3% on the proposed ARM platform.
In our decoding system, the decoding throughput and program code size are both optimized. After our
optimization, the code size of baseline decoder is re-duced from 244 kilo-bytes (KB) (JM 6.1 [1]) to current 92 KB, which presents 62.3% reduction. As shown in Fig. 9, the overall throughput of CIF/QCIF resolution video sequences is enhanced from 25/92 fps to cur-rent 186/803 fps, which shows a speedup of 7.44/8.72 times, respectively. To give a complexity analysis of each module, the operation counts in Fig. 10 are also greatly reduced with more than 80% time saving as compared to the original decoder [1].
4.4. Dedicated Coprocessor Design
With the MB level scheduling, the minimum granular-ity of a task for the dedicated coprocessors is one MB. In designing the hardware, we hope to build an area ef-ficient architecture under the throughput requirement of decoding QCIF video sequences at 7.5 fps.
4.4.1. MB Based MC. To speed up the interpolation
prior to MC, we design a dedicated coprocessor in Fig. 11. For a MB interpolation, the coprocessor uses a local memory to store 1500 integer pixels. It also has two interpolation engines for luminance and chromi-nance component respectively. With the two interpola-tors, interpolation process can be sped up by parallel processing. Each engine consists of multiple multipli-ers and accumulators. The multiplier is implemented in a hardwired manner to maximize performance. Within each MB requiring 2-D interpolation, the in-termediate results (output) of row filtering in each en-gine is fed back to conduct the filtering of another columns.
AVC uses variable block size motion compensation with smallest size of 4× 4. Thus, our interpolation en-gine is designed for a 4× 4 block. The interpolation of each MB takes 16 iterations. In the worse case, our design takes 1280 cycles to interpolate one MB. As op-erating at 10 MHz, the throughput for each MB is 7812 MBs per second (MBs/sec) exceeding the requirements in Table 1.
4.4.2. MB Based Q−1DCT−1. The Q−1DCT−1 mod-ule involves two major tasks. The first task is to store a MB into a local memory with size 3 kilo-bits. The second task is the 4× 4 integer inverse DCT, which consists of two multiplication-free transforms and one transpose operation. The IQ is done with a hardwired multiplier. In our implementation, we integrate three different types of inverse transform for luminance 4× 4
Figure 11. Interpolation architecture for quarter-pel motion compensation.
DC block, chrominance 2× 2 DC block and lumi-nance 4× 4 blocks, respectively. In the worse case, the Q−1DCT−1takes 210 cycles for one MB. When oper-ating at 10 MHz, the MB throughput is 47619 MBs/sec, which is over the requirement of the AVC decoder in Table 1.
4.4.3. MB Based Loop Filtering. The main idea of
MB based loop filtering design is to modify the original frame based loop filtering to fit our design optimization. The MB based architecture introduces 2 advantages including less storage memory and no macroblock de-pendency in a frame for deeper pipelining. From the viewpoint of memory usage, the original method in the reference software of JM 6.1 needs two buffers of frame size to store the un-loop filtered and loop fil-tered data. In the proposed MB loop filtering, at most 2 rows of MBs (current and top row) loop filtered data are needed to be buffered. Because the current MB will need only upper and left MB data for loop filtering. The other rows of loop filtered data can overwrite the un-used data that will not be un-used again. Thus, MB based loop filtering can achieve almost 50% reduction of the redundant memory for QCIF or CIF resolution video frames. From the viewpoint of parallel processing, the proposed scheme deepens the pipeline stages accord-ing to the synchronization schedulaccord-ing in Section 4.2 and Fig. 4. Thus MB based loop filtering is well

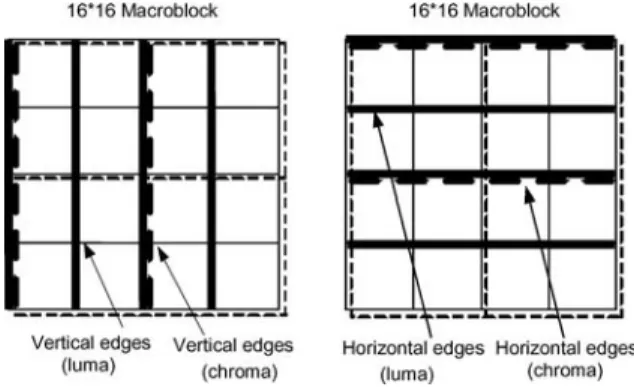

sched-Figure 12. Loop filtering on 4× 4 block edges in a macroblock.
uled to work with the MB based MC and Q−1DCT−1 modules in FPGA modules.
Two-dimensional (2-D) loop filtering of the AVC de-coding system is processed in a separable manner. To execute the 2-D loop filtering, one-dimensional (1-D) filtering is applied horizontally and then vertically to the handling pixels. As shown in Fig. 12, each 1-D filtering involves at most 16 iterations of edge filter-ing for the 4× 4 blocks. In the worst case, the loop filtering takes 480 cycles to complete the operations in one MB including luminance and chrominance compo-nents. When operating at 10 MHz, the MB throughput for the loop filtering is 20833 MBs/sec, which fits the requirement of the AVC decoder in Table 1. In addition,
Table 8. Summary of the dedicated coprocessors.
Modules MC LF Q−1DCT−1
RAM size (Kbits) 12 3.84 3
Gate count 11172 6156 11489
Throughput (MBs/sec) 7812 20833 47619 (Running in 10 MHz)
Longest delay to 1280 480 210 run a MB (cycles)
we need to reserve 3.84 kilo-bits local memory space for loop filtering coprocessor.
To simplify our hardware design and reduce the cost, we replace 2-D interpolation for MC by applying 1-D interpolation filter twice. Although the 1-D interpola-tion incurs longer delay, it is still fast enough to meet the target frame rate of 7.5 fps.
The total gate counts required for all dedicated co-processors are 28826. The MC coprocessor contributes 11,172 gates, Q−1DCT−1coprocessor occupies 11,489 gates, and loop filtering coprocessor requires 6,156 gates. Table 8 summarizes the design parameters for each coprocessor.
5. Experimental Results
5.1. Performance Evaluation of Optimized Software
To show the performance of our optimized software, we use the work in [4] as the baseline system for com-parison. In [4], a moderately optimized AVC decoder adopts algorithm level optimization techniques and a highly optimized version using Intel MMX technol-ogy. In our comparison, all simulations are done on a Pentium III processor with 500 MHz CPU and our op-timized software is built from the reference software of version JM6.1. Since the baseline system uses dif-ferent machines and difdif-ferent reference software, we scale our decoding throughput to match the configu-ration of baseline system in [4]. Table 9 shows that there are only minor updates from the reference soft-ware of version JM5.0h to that of version JM6.1, which indicates that the two versions have similar complex-ity. In addition, we scale our decoding throughput by a factor of 4/5 for a fair comparison with the results in [4], which are evaluated on a Pentium III proces-sor with a 400 MHz CPU [4]. Because the encoding information provided is insufficient in [4], we assume that all the baseline tools including rate-distortion op-timization, Hadamard transform, and intra prediction
Table 9. Updates for AVC codec from JM5.0h to JM6.1. New features • Slice header and parameter sets
(except POC) (JM5.0h)
• Chroma loop filtering update (JM 6.0) • SEI decoding re-enabled and
new messages added (JM 6.1)
• Weighted Prediction Updates (JM 6.1) • POC updated (JM 6.1)
• CABAC slice initializations (JM 6.1)
Removed feature • ABT (JM5.0h)
were enabled in [4]. Thus, we then encode the test bit-streams on the same basis as illustrated in Table 10. The throughput ratio over the decoding frame rate of [4] is defined by Ratio= 4 5fpsproposed fpsref[4] (1)
In Table 11, both the medium optimized version (M.O.) and highly optimized version (H.O.) in [4] are com-pared. The results show that we get a ratio of 2.82– 3.52, which means the proposed AVC decoder is 2.8 times faster than the M.O. [4] on a similar platform. The results in Table 11 show that we can get a ratio of 2.16–2.67, which indicates the proposed decoder has double throughput over that by H.O. decoder [4].
5.2. Performance Evaluation of Proposed Embedded System
Our decoding system is emulated with the configura-tion as described in Fig. 2. The ARM966 CPU (system clock is set as 140 MHz), embedded SRAM (1 Mbytes) and external memory interface are replaced with a ded-icated hard core. The other parts of the decoding system including the dedicated coprocessors are implemented on a FPGA module (running at 10 MHz). In addition, the AHB bus is running at 33 MHz. No cache is enabled in this system.
Table 12 lists the decoding throughput in fps on ARM966 CPU. If only the optimized software was used, the decoding speed ranges from 3.4 to 9.4 fps with an average of 5.9 fps. With the aid of the coprocessors, the throughput can be further in-creased by 17–38%. The overall throughput ranges from 4.4 to 11.5 fps with the average value of 7.4 fps.
• 7 modes of search block • 7 modes of search block • Search range of ±16 • Hadamard transform • Intra prediction • Rate Distortion • optimization • GOV: 1I/99P
Table 11. Performance evaluation for Lapplainen’s work (Moderately optimized. and highly optimized version) [4] with the proposed.
Sequence Bit rate PSNR Y PSNR U PSNR V Decoding Throughput (QCIF) Version (kbps) (dB) (dB) (dB) rate (fps) ratiob
Foreman M.O. [4] 24 28.5 37.6 37.7 66.4 2.87 H. O. [4] 24 28.5 37.6 37.7 88.1 2.16 Proposeda 26.93 30.6 37.7 37.9 238.1 1 Akiyo M.O. [4] 24 40.9 44.2 44.9 94.7 3.52 H. O. [4] 24 40.9 44.2 44.9 125.0 2.67 Proposeda 25.49 40.9 43.0 43.8 416.7 1
Mother Daughter M.O. [4] 24 37.2 42.6 43.1 81.6 2.97
H. O. [4] 24 37.2 42.6 43.1 101.5 2.39
Proposeda 25.24 37.4 41.4 42.2 303.0 1
aSize= QCIF, Group of Picture = 1I + 149P, QP = I(30)P(31), frame rate = 15 fps Reference frames = 5. bRatio= (4
5· fpsproposed)/(fpsref[4]) (unit: fps).
In Table 12, we observe that the decoding through-put is sequence dependent. Our decoder performs bet-ter for slow motion sequences, which have more zero DCT blocks and higher probability of using integer-pixel MC. Therefore, the decoding rate is increased due to the less interpolation of MC and less computa-tion of Q−1DCT−1for slow motion sequences. The im-provement ratio using coprocessors for decoding slow motion sequences becomes minor, which is consistent
with the observations of Amdahl’s law and the results in Table 12.
5.3. Decoding Throughput Analysis with Overhead
In Section 4.1, we approximate the ideal decod-ing frame rates usdecod-ing the proposed synchronization scheme. Since the operation counts of the decoder are
Table 12. Performance of our prototype decoder.
Bit rate PSNR Y SW only SW+ HW Throughput QCIF (kbits/s) (dB) (fps) (fps) speedup (%)
Container 13.15 34.18 8.56 9.98 17 Akiyo 8.67 36.50 9.36 11.50 22 Coastguard 58.69 32.10 3.40 4.40 29 Mother Daughter 14.43 35.55 5.55 7.68 38 Foreman 42.47 34.00 3.53 4.54 29 Silent 25.99 34.06 6.03 7.29 21 Mobile calendar 58.88 28.40 3.96 5.20 31 Table tennis 38.83 34.00 5.19 6.59 27 Stefan 54.27 26.23 4.07 5.30 30 Hall monitor 16.58 35.50 8.91 11.11 25
Size= QCIF, Group of Picture = 1I+74P, frame rate = 7.5 fps. Reference frames= 5, 7 modes of block size.
evaluated on a desktop PC, we may expect more opera-tion counts on ARM platforms. Because the ARM plat-forms do not support powerful resources, such as large capacity of cache size (512 Kbytes L2 cache), higher frequency DDR ram (333 MHz), etc, the operation data in Section 4.1 may not reflect the real performance of our proposed platform. Therefore, we re-evaluate the data to study a more realistic scenario for an ARM platform.
In Section 5.2, the pure software decoding frame rate on ARM processor is 5.9 fps on the average, which leads to that 175 Mcycles/sec5 is required to achieve the throughput of 7.5 fps with QCIF resolution on the ARM platform. Due to the limited resources on the ARM platform and lower clock frequency, it is diffi-cult to achieve this target using the pure software de-coder. By analyzing the SW/HW partitioning scheme and the weightings of dedicated hardware modules for the MC, the inverse DCT and the loop filtering in Fig. 3, the ideal upper bound is 11.8 fps.6 The practical de-coding rate of 7.4 fps is smaller than that of ideal case due to the overhead for synchronization and data transfer.
Synchronization introduces additional memory ac-cess. In our current implementation, the input data of each coprocessor always come from the CPU. There-fore, the CPU needs extra memory space for data transport among different coprocessors. In addition, the memory movement incurs great penalty during the preparation of input data for each coprocessor. Thus, the synchronization overhead causes the performance degradation.
The other overhead is data movement. In the ideal case, we assume the time for data movement can be ig-nored. Observing the scheme in Fig. 13(a), we assume that the tasks in each coprocessor and CPU can be fully parallelized in each pipeline stage, and syntax parsing can cover all the running time slots of coprocessors. In practice, the data is required to sequentially move from CPU to each coprocessor. In addition, for rapid and efficient transmission via bus we need extra time to pack the data. Even with the data packing, the buses may conflict as in a more realistic scenario depicted in Fig. 13(b), which takes some CPU cycles. With the overhead for data movement, duration for each pipeline stage is increased. As a result, the overall throughput is decreased. Table 13 shows the amount of data trans-ferring between CPU and coprocessors for a MB com-putation. To complete a MB processing, CPU has to transfer 4.97 kilo-bytes data in total. Consequently, the total data transferred could be up to 492.3 kilo-bytes for decoding a QCIF frame. Thus, the bandwidth of system bus and the overhead for synchronization set an upper bound for the decoding throughput. The best throughput achieved on the consideration of both the overhead for synchronization and data transfer can be estimated by
fpsideal = fpsSW/(1 − RHW) (2)
fpspractical=
f psSW
{(1 − RHW)∗ TSW+ Tdata transfer+ Tsynchronization)}/TSW (3)
Figure 13. Time scheduling with the proposed synchronization scheme. (a) ideal case (b) practical case.
Where fpsidealis the ideal decoding frame rate and
fpspractical is the decoding frame rate with overhead.
RHWmeans the ratio for dedicated hardware. TSWis the total time used for running software level AVC decoder
Table 13. Maximum amount of sent or received data for MB based MC, Q−1DCT−1and loop filtering.
Data Data sending receiving Modules Parameter (bytes) (bytes)
MC Luma 1296 256
Chroma 256 128
MV info 64 –
Total 1616 384
Loop Filtering Luma and boundary 384 384 Chroma and boundary 192 192 Edge info and QP 4 –
Total 580 576 Q−1DCT−1 Luma 1296 256 Chroma 256 128 Info and QP 8 – Total 1560 384 Total 3756 1344
and Tdata transfer is additional overhead for data trans-ferring. Tsynchronizationindicates additional overhead for synchronization.
The cost of extra memory movement for synchro-nization is 5%, and the term of RHW is almost 50% as demonstrated in Fig. 3. Since the AHB is operated at 33 MHz for 32-bit data, we can approximate that the data transferring via the AHB bus takes 3.64 mil-liseconds for each frame (492.3 kilo bytes/33× 4 mega bytes per second). In the preceding sections, we get the decoding frame rate to be 5.9 fps on the average. The results show that about 1/6 seconds are spent for decoding a frame in SW level. To calculate the practi-cal decoding frame rate according to Eq. (3), we can get
fpspractical=
1
(1− 50%) ·16+16 · 5%+33∗ 4 ∗ 1024492.3 · h where h is large than or equal to 5.9 (improved decod-ing frame rate will be greater than 5.9 fps of pure SW decoding). Thus, we can obtain the practical decoding frame rate to be 8.8 fps that is closer to the experimen-tal results of average 7.4 fps. According to the above
analysis, we can reasonably explain the non-ideal ex-perimental results.
6. Conclusions
In this paper, we have presented a MB level pipelin-ing architecture for a MPEG-4 AVC baseline de-coder based on both SH/HW joint optimization design methodology and circuit design principles. In the as-pect of software, our work is highly optimized for the ARM architecture with innovative algorithms for frame buffer management, boundary padding, content-aware inverse transform and context-based entropy decoding. The algorithms are specifically designed for the AVC decoder to achieve a speedup by 7 to 8 times. In ad-dition, the code size is as small as 92 kilo-bytes that can easily fit into an existing mobile device. As for the hardware aspect, we proposed a MB level pipelining based on complexity analysis to yield the best partition-ing. The scheduling approach considers the tradeoff between efficiencies and flexibility. We implemented three dedicated coprocessors for the MC, Q−1DCT−1, and loop filtering modules with only 28,826 gates. With such small additional chip area, the three coprocessors can improve the performance by 27 % that justifies the additional complexity.
In conclusion, our design has shown a highly ef-ficient and cost effective implementation of an AVC decoder. The AVC specific optimization demonstrates that MPEG-4 AVC standard may be applicable for the next generation mobile multimedia communications using a platform-based design methodology.
Notes
1. 217.6(Mcycles)−140(Mcycles)217.6(Mcycles) = 35.7%. 2. 4.83 ·100%1−49%= 9.47. 3. 4.83 ·100%1−50%= 9.66.
4. original image sizepadded image size =(176+64·2)·(144+64·2)176·144 = 3.26.
5. 7.5 (fps) / 5.9 (fps)× 140 (MHz) = 178 (Million cycles per sec-ond).
6. 5.9 fps/(100%–50%)= 11.8 fps, 50% for MC + Inverse DCT+ loop filtering.
References
1. Joint Video Team (JVT) of ISO/IEC MPEG&ITU-T VCEG, “Draft ITU-T Recommendation and Final Draft Interna-tional Standard of Joint Video Specification,” JVT-G050,
ISO/IEC JTC1/SC29/WG11 and ITU-T SG16 Q.6, Mar. 2003.
2. J. Zhang, Y. He, S. Yangm, and Y. Zhong, “Performance and Complexity Joint Optimization for H.264 Video Coding,” in
Proc. IEEE International Symposium on Circuit and System,
May 2003, pp. 888–891.
3. V. Lappalainen, A. Hallapuro and T. D. Hamalainen, “Perfor-mance of H.26L Video Encoder on General Purpose Processor,”
Journal of VLSI Signal Processing System for Signal, Image and Video Technology, pp. 239–249, 2003.
4. V. Lappalainen, A. Hallapuro, and T. D. Hamalainen, “Opti-mized Implementation of Emerging H.26L Video Decoder on Pentium III,” in Proc. 5th WSES, July 2001.
5. K. Ramkishor and V. Gunashree, “Real Time Implementation of MPEG-4 Video Decoder on ARM7TDMI,” in Proc. IEEE
International Symposium on Intelligent Multimedia, Video, and Speech Processing, May 2001, pp. 522–526.
6. M.-H. Zhou and R. Tallurt, “DSP-Based Real Time Video De-coding,” in Proc. IEEE International Conference on Consumer
Electronics, pp. 296–297, 1999.
7. W. Lin, et al., “Real Time H.263 Video Codec Using Parallel DSP,” Proc. IEEE International Conference on Image
Process-ing, pp. 586–589, 1997.
8. H. Fujiwara, et al., “An All-ASIC Implementation of a Low Bit-Rate Video Codec,” IEEE Trans. on Circuit and System for Video
Technology, vol. 2, pp. 123–134, June 1992.
9. M. Harrand, et al., “A Single Chip CIF 30-Hz, H.261, H.263, and H.263+ Video Encoder\Decoder with Embedded Display Con-troller,” IEEE Journal of Solid State Circuits, vol. 34, pp. 1627– 1633, Nov. 1998.
10. M. Ikeda, et al., “SuperEnc: MPEG-2 Video Encoder Chip,”
IEEE Micro magazine, July 1999.
11. M. Berekovic, et al., “Muiticore System-on-Chip Architecture for MPEG-4 Streaming Video,” IEEE Trans. on Circuit and
System for Video Technology, vol. 12, no. 8, pp. 688–699,
2002.
12. S.-K. Jang, et al., “Hardware-Software Co-Implementation of a H.263 Video Codec,” IEEE Trans. on Consumer Electronics, vol. 46, no. 1, pp. 191–200, 2000.
13. L. D. Soares, S. Adachi, and F. Pereira, “Influence of Encoder Parameter on the Decoded Video Quality for MPEG-4 over W-CDMA Mobile Network,” in Proc. IEEE International
Confer-ence on Image Processing, 2000, pp. 148–151.
14. S.-H. Wang, C.-N. Wang, G.-Y. Lin, T. Chiang, and H.-F. Sun, “AHG Report on Editorial Convergence of MPEG-4 Reference Software,” ISO/IEC JTC1/SC29/WG11, M9073, Dec. 2002.
15. Telenor Research, “Video Codec Test Model (TMN5),” ITU-T SG 15, WP 15/1, Experts Group on Very Low Bit Rate Visual Technology, Jan 31, 1995. (Internet: ftp://bonde.na.no/pub/tmn/software/tmn-2.0.tar.gz, tmndec– 2.0.tar.gz)
16. Joint Video Team (JVT) of ISO/IEC MPEG&ITU-T VCEG, “Context-adaptive VLC (CVLC) Coding of Coefficients,” JVT-C028, ISO/IEC JTC1/SC29/WG11 and ITU-T SG16 Q.6, May 2002.
17. S.-H. Wang, et al., “A Platform-Based MPEG-4 Advanced Video Coding Decoder with Block Level Pipelining,” in Proc. IEEE
tation.
Wen-Hsiao Peng was born in Hsin-Chu, Taiwan, Republic of China,
in 1975. He received the B.S. and the M.S. degrees in Electrics En-gineering from National Chiao-Tung University, Hsin-Chu, Taiwan, in 1997 and 1999 respectively. During 2000–2001, he was an intern in Intel Microprocessor Research Lab, U.S.A. In 2002, he joined the Institute of Electronics of National Chiao-Tung University, where he is currently a Ph.D candidate. His major research interests include scalable video coding, video codec optimization and platform based architecture design for video compression applications. Since 2000, he has been working with video coding development and implemen-tation. He has actively contributed to the development of MPEG-4 Fine Granularity Scalability (FGS) and MPEG-21 Scalable Video Coding (Now, MPEG-4 Part 10 AVC Amd.1).
Yu-Wen He received his Ph.D. degree in computer application from
Tsinghua University in 2002. He was a lecture of the Department of Computer Science and Technology from 2002 to 2003 in Tsinghua
Guan-yi Lin was born in Kaohsiung, Taiwan in 1981. He received
the B.S. degree in Electronics Engineering from National Chiao Tung University, Hsinchu, Taiwan, in 2003, where he is currently working toward the M.S. degree in the Institute of Electronics.
His research interests are video compression and communication systems design.
Cheng-Yi Lin was born in Tainan, Taiwan in 1981. He received the
B.S. degree in Electronics Engineering from National Chiao Tung University, Hsinchu, Taiwan, in 2003, where he is currently working toward the M.S. degree in the Institute of Electronics.
His research interests are on-chip communication and testing. [email protected]
Shih-Chien Chang was born in Taichung, Taiwan in 1981. He
Chiao Tung University, Hsinchu, Taiwan, in 2003, where he is cur-rently working toward the M.S. degree in the Institute of Electronics. His research interests are video compression and VLSI implemen-tation.
Chung-Neng Wang was born in PingTung, Taiwan, in 1972. He
received the B.S. degree and Ph.D degree in computer science and information engineering from National Chiao-Tung University (NCTU), HsinChu, Taiwan in 1994 and 2003, respectively. He joined the faculty at National Chiao-Tung University in Taiwan, R.O.C in January 2003.
Since 2001 he has actively participated in ISO’s Moving Picture Experts Group (MPEG) digital video coding standardization process. He has made more than 18 contributions to the MPEG committee over the past 4 years. He published over 23 technical journal and con-ference papers in the field of video and signal processing. His current research interests are video/image compression, motion estimation, video transcoding, and streaming.
Tihao Chiang was born in Cha-Yi, Taiwan, Republic of China, 1965.
He received the B.S. degree in electrical engineering from the
Na-tional Taiwan University, Taipei, Taiwan, in 1987, and the M.S. de-gree in electrical engineering from Columbia University in 1991. He received his Ph.D. degree in electrical engineering from Columbia University in 1995. In 1995, he joined David Sarnoff Research Center as a Member of Technical Staff. Later, he was promoted as a tech-nology leader and a program manager at Sarnoff. While at Sarnoff, he led a team of researchers and developed an optimized MPEG-2 software encoder. For his work in the encoder and MPEG-4 areas, he received two Sarnoff achievement awards and three Sarnoff team awards.
Since 1992 he has actively participated in ISO’s Moving Picture Experts Group (MPEG) digital video coding standardization process with particular focus on the scalability/compatibility issue. He is cur-rently the co-editor of the part 7 on the MPEG-4 committee. He has made more than 90 contributions to the MPEG committee over the past 10 years. His main research interests are compatible/scalable video compression, stereoscopic video coding, and motion estima-tion. In September 1999, he joined the faculty at National Chiao-Tung University in Taiwan, R.O.C. Dr. Chiang is currently a senior member of IEEE and holder of 13 US patents and 30 European and worldwide patents. He was a co-recipient of the 2001 best paper award from the IEEE Transactions on Circuits and Systems for Video Technology. He published over 50 technical journal and conference papers in the field of video and signal processing.
