Introduction
In environmental monitoring such as groundwater quality investigations, the collected data may harbor significant uncertainty, including complex or extremely complicated variations in the observed values of mea-surable characteristics of the investigated medium or pollution sources in time and space. Given the high cost and risks associated with such investigations,
develop-ment of efficient procedures for designing and adjusting information-effective monitoring networks is an essen-tial task for more accurately understanding the spaessen-tial distribution or variations of monitoring variables. Therefore, the information generated by such optimal monitoring networks should provide sufficient, but not redundant information to fully understand the spatial phenomena of monitoring variables or their variations. These networks can be used to characterize natural re-Ming-Sheng Yeh
Yu-Pin Lin
Liang-Cheng Chang
Designing an optimal multivariate
geostatistical groundwater quality monitoring
network using factorial kriging and genetic
algorithms
Received: 19 September 2005 Accepted: 10 January 2006 Published online: 18 March 2006 Springer-Verlag 2006
Abstract The optimal selection of monitoring wells is a major task in designing an information-effective groundwater quality monitoring network which can provide sufficient and not redundant information of monitoring variables for delineating spatial distribution or variations of monitoring variables. This study develops a design approach for an optimal multivariate geostatistical groundwater quality network by proposing a network system to identify groundwater quality spatial variations by using factorial kriging with genetic algorithm. The pro-posed approach is applied in designing a groundwater quality monitoring network for nine vari-ables (EC, TDS, Cl), Na, Ca, Mg, SO42), Mn and Fe) in the Pingtung
Plain in Taiwan. The spatial struc-ture results show that the vario-grams and cross-variovario-grams of the nine variables can be modeled in two spatial structures: a Gaussian model with ranges 28.5 km and a spherical
model with 40 km for short and long spatial scale variations, respectively. Moreover, the nine variables can be grouped into two major components for both short and long scales. The proposed optimal monitoring design model successfully obtains different optimal network systems for delin-eating spatial variations of the nine groundwater quality variables by using 20, 25 and 30 monitoring wells in both short scale (28.5 km) and long scale (40 km). Finally, the study confirms that the proposed model can design an optimal groundwater monitoring network that not only considers multiple groundwater quality variables but also monitors variations of moni-toring variables at various spatial scales in the study area.
Keywords Groundwater quality Æ Monitoring network design Æ Factorial kriging Æ Optimization Æ Spatial Variation Æ Pingtung plain Æ Taiwan
M.-S. Yeh Æ L.-C. Chang Department of Civil Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan
Y.-P. Lin (&)
Department of Bioenvironmental Systems Engineering, National Taiwan University, 1 Section 4 Roosevelt Road,
Taipei 10617, Taiwan E-mail: [email protected] Tel.: +886-2-23686980 Fax: +886-2-23635854
sources for the management of resources or to delineate polluted area and variation for remediation and risk assessment.
Geostatistics, a spatial statistical technique used in environmental monitoring, is widely applied to analyze and map distributions of concentrations and variations in space and time. Geostatistics uses variograms to characterize and quantify spatial variability, perform rational interpolation, and estimate the variance in the interpolated values. A variogram quantifies the com-monly observed relationship between the values of data, pertaining to the samples, and the samples‘ proximity. Kriging, a geostatistical method, is a linear interpolation procedure that provides a best linear unbiased estimator (BLUE) for quantities that vary spatially. Recently, kriging has been widely used to analyze and map the spatial variability and distribution of investigated data in many fields. Multivariate geostatistical methods, such as factorial kriging, combine the advantages of geosta-tistical techniques and multivariate analysis, while incorporating spatial or temporal correlations and multivariate relationships to detect and map different sources of spatial variation on different scales (Lin
2002). Factorial kriging is a variant of kriging which aims at estimating and mapping the different sources of spatial variability identified on the experimental vario-gram (Goovaerts 1992and1998). Examples of factorial kriging studies include Goovaerts (1994), Goovaerts and Webster (1994), Dobermann and others (1995), Einax and Soldt (1998), Jime´nez-Espinosa and Chica-Olmo (1999), Bocchi et al. (2000), Castrignano et al. (2000a,
b), Batista and others (2001) and Lin (2002).
In monitoring network design studies, many researchers have considered geostatistical approaches to designing or adjusting environmental monitoring sys-tems and quantifying the informational value of moni-toring data and their variations, for example, Rouhani (1985), Rouhani and Hall (1988), Christakos and Olea (1988), Loaiciga (1989), Hudak and Loaiciga (1993), Benjemaa et al. (1994), Pesti et al. (1994) and Wang and Qi (1998). Recently, Brus et al. (1999) used a geostatis-tical sampling scheme to discuss sampling size and points for estimating the mean extractable phosphorus con-centration of fields. Van Groenigen et al. (1999) extended spatial simulated annealing with the kriging method to optimize spatial sampling schemes for obtaining the minimal kriging estimation variance. Lark (2000) used fuzzy and kriging methods to define a sampling scheme for designing sampling grids from imprecise information of soil variability. Prakash and Singh (2000) applied kriging variance reduction to design a groundwater monitoring network, as well as locations of additional wells from predefined locations. Based on the variance reduction method, Lin and Rouhani (2001) have devel-oped a multiple-point variance analysis (MPV), which utilizes both the multiple-point variance reduction
analysis and the multiple-point variance increase analy-sis. This process expands on foregoing studies by pro-viding automatic procedures for simultaneously identifying groups of sampling sites without any need for spatial discretization or sequential selection. The goal of MPV (Lin and Rouhani2001) is to develop a framework for the optimal simultaneous selection of additional or redundant sampling locations. Lark (2002) used the maximum likelihood method to optimize and discuss the spatial sampling of soil for the estimation of variograms. Cameron and Hunter (2002) selected redundant groundwater monitoring wells that did not change the plume interpolation, the kriging estimation variance in the plume section, nor the averaging global kriging var-iance. Ferreyra et al. (2002) used the scaled variogram technique with spatial simulated annealing algorithms along with kriging methods to reduce the number of locations from a regular grid system to describe water content in an 8-ha study area. Passarella et al. (2003) used the cokriging estimation variance with the fuzzy method to assess the loss of information produced by the elimination of the selected well in a groundwater net-work. All of these approaches have only focused on one monitoring variable and its spatial distribution.
The genetic algorithms (GAs) are robust methods used to search for the optimum solution of a complex problem and can compute the near global optimal solutions. GAs have been widely used in solving opti-mization problems and have found applications in monitoring network design. Cieniawski et al. (1995) addressed the problem of how to select a system of monitoring wells with a GA and the method of opti-mization using GA which could consider the two objectives of (1) maximizing reliability and (2) mini-mizing the contaminated area at the time of first detec-tion. Reed and others (2000) combined a fate-and-transport model, plume interpolation, and a GA to identify cost-effective sampling plans that accurately quantify the total mass of the dissolved contaminant. Al-Zahrani and Moied (2003) used a GA for optimizing monitoring stations for water quality in a water distri-bution network to select sampling locations which were representative of the whole network system.
Genetic algorithms in other hydrological and water resources management applications include McKinney and Lin (1994), Hsiao and Chang (2002), Chang and Hsiao (2002), Rogers and Dowla (1994), Wardlaw and Sharif (1999), Wang (1991) and Mohan (1997).
In fact, groundwater quality monitoring networks may not only consider multiple variables, but also delineate their major variations in space. Therefore, this study develops a multivariate geostatistical groundwater quality network design model to propose a network system to identify groundwater quality spatial variations by using factorial kriging with GAs. The proposed model can optimally design a groundwater monitoring
network that not only considers multiple groundwater quality variables but also monitors their spatial varia-tions at various spatial scales. The developed model also has been applied in a real groundwater quality moni-toring case in Taiwan.
Materials and methods
Factorial kriging
Multivariate analysis provides techniques, such as prin-ciple component analysis (PCA) and factor analysis, for classifying the inter-relationship of measured variables. Multivariate geostatistical methods combine the advan-tages of geostatistical techniques and multivariate anal-ysis while incorporating spatial or temporal correlations and multivariate relationships to detect and map different sources of spatial variation on different scales. Textbooks (Deutsch and Journel1992; Wackernagel1995; Goova-erts 1997) and papers (Goovaerts 1992; Wackernagel
1994) have further detailed multivariate geostatistical methods. Therefore, only a brief description of multi-variate geostatistical methods is provided here.
Geostatistics provide a variogram of data within a statistical framework, including spatial and temporal covariance functions. As expected, these variogram models are termed spatial or temporal structures, and are defined in terms of the correlation between any two points separated either spatially or temporally. The variograms provide a means of quantifying the com-monly observed relationship between the values of the samples and the samples’ proximity (Lin et al. 2002).
The variogram c(h) of second-order stationary regionalized variables, Z(x), is defined as
cðhÞ ¼ ð1=2Þ Var ½ZðxÞ Zðx þ hÞ ð1Þ
where h denotes the lag distance that separates pairs of points; Var represents the variance of the argument; Z(x) is the value of the regionalized variable of interest at location x, and Z(x+h) denotes the value at location x+h. An experimental variogram for the interval lag distance class h, c(h), is given by
^ cðhÞ ¼ 1 2nðhÞ XnðhÞ i¼1 Zðxiþ hÞ ZðxiÞ ½ 2 ð2Þ
where n(h) represents the number of pairs separated by the lag distance, h. Similarly, the spatial correlations or cross-variograms (ca b(h)) between two variables can be
defined as
cabðhÞ ¼1
2E ½Zaðxiþ hÞ ZaðxiÞ½Zbðxiþ hÞ ZbðxiÞ
ð3Þ
where a b represent the different regionalized variables. The experimental cross-variogram cab(h) can be written
as: ^cabðhÞ ¼ 1 2nðhÞ XnðhÞ i¼1 ½Zaðxiþ hÞ ZaðxiÞ ½Zbðxiþ hÞ ZbðxiÞ: ð4Þ
Multivariate regionalization of a set of random func-tions can be represented with a spatial, multivariate linear model which allows easy manipulation of multivariate data (Wackernagel 1995). The nested direct and cross-variogram can thus be modeled as linear combinations:
cabðhÞ ¼X S u¼1 cuabðhÞ ¼X S u¼1 buabguðhÞ ð5Þ
where S is the number of the spatial scale, babu are
coefficients, and gu(h) are elementary variogram func-tions for the spatial scale u.
A set of second-order stationary regionalized vari-ables, {Zi(x ); i=1,..., N}, can be decomposed into sets
of spatial components, {Zi u (x ); i=1, ..., N;u=1, ..., S}: Zið Þ ¼x XS u¼1 Ziuð Þ þ mx i; ð6Þ
where i represents the different regionalized variables, N is the number of regionalized variables, u represents the different spatial scale, and S the number of spatial scales. miis E[Zi(x)]. Then, the set of spatial components Ziu(x)
can be decomposed into sets of spatially uncorrelated factors (Goovaerts 1992; Rouhani and Wackernagel
1990; Wackernagel1995),
Ziuð Þ ¼x X
N
p¼1
auipYpuð Þx ð7Þ
where Ypu(x) are the regionalized factors in which p
de-notes different factors at a given spatial scale u. According to Eqs. 6 and 7
Zið Þ ¼x XS u¼1 XN p¼1 auipYpuð Þ þ mx i: ð8Þ
At a given spatial scale u, each uncorrelated factor Yp u
(x) is assigned the same elementary variogram function, gu(h). Because each factor is uncorrelated
1 2E Y u vð Þ Yx u vðxþ hÞ Yvu00ð Þ Yx u 0 v0ðxþ hÞ n o h i ¼ g uð Þ if u ¼ uh 0 and v¼ v0 0 otherwise ( ð9Þ
According to Eqs. 8 and 9, the direct and cross-variograms, between two variables, cab(h), can be
represented by gu(h) and aipu cabðhÞ ¼1 2E ½ZaðxiÞ Zaðxiþ hÞ½ZbðxiÞ Zbðxiþ hÞ ¼X S u¼1 XS u0¼1 XN p¼1 XN p0¼1 auapaubp00 1 2E Y u pð Þ Yx u pðxþ hÞ n o Ypu00ð Þ Yx u 0 p0ðxþ hÞ n o h i ¼X S u¼1 XN p¼1 auapaubpguð Þ:h ð10Þ
Then, according to Eqs. 5 and 10
cabð Þ ¼h X S u¼1 buabguðhÞ ¼X S u¼1 XN p¼1 auapaubpguð Þ:h ð11Þ
The matrix form of Eq. 11 can be written as
CðhÞ ¼X S u¼1 Buguð Þ ¼h X S u¼1 AuAuTguð Þ:h ð12Þ Then, Bu¼ AuAuT ð13Þ where Bu is called the coregionalization matrix for a given spatial scale u, and Bu must be a positive semi-definite matrix. Matrix A is the transformation coeffi-cient between regionalized factors, Ypu(x), and spatial
components, Ziu(x). Based on the above nested model,
PCA can be applied to analyze the N · N coregional-ization matrix of the coefficients babu as a covariance
matrix of N regionalized variables on a spatial scale that can be decomposed and written as (Wackernagel
1995) Bu¼ AuAuT¼ QupffiffiffiffiffiffiKu QupffiffiffiffiffiffiKu T ð14Þ
where Quis the matrix of eigenvectors for spatial scale u, Kuis the diagonal matrix of eigenvalues for spatial scale u, and the relative eigenvalues are k1, k2,...,kN. The
variance explanation of Bu by Ypu (x), i.e., proportion,
can be represented as kp/Pk .
Based on the above, when gu(h) and aipu have been
obtained, the cokriging estimator of the regionalized factors, Ypu(x0), at a given point xois
Ypuð Þ ¼x0 XN i¼1 Xm a¼1 kiaZið Þxa ð15Þ
where Zi(xa) is the observed value of the regionalized
variable, Zi, at the data point xa; m is the number of
observed value data of the regionalized variable, Zi; N is
the number of regionalized variables; and kia is the
estimation weight of the observed value of the region-alized variable, Zi, at the point xa.
The cokriging system can be solved as PN j¼1 Pm b¼1 kjbcij xa xb li ¼ au ipguðxa x0Þ for i¼ 1; . . . ; N ; a ¼ 1; . . . ; m Pm b¼1 kib¼ 0 for i¼ 1; . . . ; N 8 > > > > > < > > > > > : ð16Þ where l iis the ith Lagrange multiplier, gu (xa) x0) is
the value taken by the uth elementary variogram func-tion, gu(h), between the a th observed point and x0.
Genetic algorithms
The concept of GAs has been derived from Darwin’s theory of natural selection, and was first proposed in 1975 by John Holland (1992). In the 1960s and 1970s, several evolutionary computing models were simulta-neously developed. GAs are becoming the most popular innovative methods of computing due to their ability to solve complex problems, simple interface, and their ability to be hybridized with existing simulation models. GAs are inspired by the mechanism of natural section, in which stronger individuals are likely to survive in a competing environment. GAs are computing procedures embodying important mechanisms of the adaptive pro-cess in natural systems.
Genetic algorithms are heuristic programming methods capable of locating near global optimal solu-tions for complex problems (Goldberg1989). The basic principle of the GA is to simulate biological evolution. This process has been successfully applied to many sit-uations. A single GA cycle, known as a ‘‘generation’’, includes three genetic operators: reproduction, cross-over, and mutation, and can be considered to consist of the following steps (Mitchell1998).
1. Start with a randomly generated population of n chromosomes (candidate solutions to a problem). 2. Calculate the fitness of each chromosome in the
population.
3. Repeat the following steps until n offsprings have been created.
(a) Select a pair of parent chromosomes from the current population, the probability of selection being an increasing function of fitness.
(b) With the crossover probability, cross over the pair at a randomly chosen point to form two offsprings.
(c) Mutate the two offsprings at each locus with the mutation probability, and place the resulting chromosomes in the new population.
4. Replace the current population with the new popu-lation.
5. Go to step 2 until the required number of genera-tions. For detailed procedures of GAs, refer to Mitchell (1998). In this study, the simple GA com-bines factorial kriging and GAs to develop a multi-variate geostatistical groundwater monitoring network design model.
Multivariate geostatistical groundwater quality monitoring network design model
Definition of optimal problem
The aim of the optimal model is to minimize the esti-mation variance of a single-factor or multi-factors composed of groundwater quality variables for the purpose of establishing a monitoring network to moni-tor spatial variations. Facmoni-torial kriging can solve a multi-variable problem by applying regionalized factors as representative variables of multi-scale geostatistical structures. PCA, one of the components of factorial kriging, can address the proportion of each regionalized factor of multi-scale geostatistical structures. In this study a groundwater quality monitoring network design approach is developed by considering total variances of the regionalized factors composed by monitoring vari-ables at various spatial scales.
The objective function of the optimal problem is to minimize the total variances involved when estimating regionalized factors of a study region under cost con-straints. Factorial kriging is employed to estimate vari-ances of regionalized factors in a study region. The optimal model can be formulated as
objective function Min IX; sS; nNu JðIÞ ¼X u2s X p2n X d2D xYu pr d Yu pð ÞI ð17Þ subject to NI Nmax ð18Þ where
I a subset of W and is a possible alternative network design
W an index set that defines all of the candidate well locations in the study region
S an index set of all the spatial scales
s a subset of S and represents the set of spatial scales considering the network design
Nu an index set that represented all of the regionalized factors of a given spatial scale u n a subset of Nu and represents the set of
regionalized factors considering the network design of a given spatial scale u
Ypu regionalized factor xYu
p the weighting of Yp
u
D the set of all grids in the study region domain
d an element of D
rd Yu
p the variance of the estimation of Yp
u
at a given grid d
NI the number of a possible alternative network design, I
Nmax the maximum limited number of monitoring wells.
In Eq. 17, the objective function represents the total variances of estimating the regionalized factors, Ypu,
which are chosen under the value of the proportion of Ypu of the concerned spatial scale, s (s S). The
weighting of Yu p;xYu
p; can be assigned based on the
proportion of each Ypu. In Eq. 18, the constraint
repre-sents the cost limit of the monitoring network.
The optimal problem defined by Eqs. 17 and 18 has three key characteristics which are different from tradi-tional network design problems.
First, the objective function is to minimize the total variances of not the regional variables themselves, but the chosen regionalized factors.
Second, an optimal network can be designed con-sidering only one regionalized factor for a specific spatial scale, or the optimal network can be designed consid-ering several main regionalized factors for more than one spatial scale.
Third, the weighting of Ypu, xYu
p; can be assigned
objectively based on the proportion of each Ypu. This
differs from the kriging and cokriging methods, which use the subjective weight of regional variables.
Solution procedure: Integration of factorial kriging and GAs
To solve the optimal problem defined by Eqs. 17 and 18, factorial kriging is combined with GA to develop a groundwater monitoring network design model that considers multi-variables (Fig.1). The algorithm is a simple GA with factorial kriging embedded in the total variance of the chosen regionalized factors. The FAC-TOR2D (Pardo-Iguzquiza and Dowd 2002) Fortran program was modified for factorial kriging analysis in this study. The program has two main features in this study. First, the GA accommodates the discreteness of the search for alternative optimal well locations among the candidate well sites. Second, factorial kriging is used
to calculate the total variances of the chosen latent factors associated with each network alternative (chro-mosomes). These features are clarified in the following steps of the developed optimal model.
Step 1: standardizing monitoring variables
Solving the dimension of differing groundwater quality requires standardizing the monitoring variables before multivariate analysis. ~zai¼ zai li si ; ð19Þ where ~
zai is the standardized variable value of the ith
groundwater quality item of the ath moni-toring well;
zai are the data of the ith groundwater quality item of the ath monitoring well;
li is the mean of the data of the ith groundwater
quality item; and
si is the standard deviation of the data of the ith groundwater quality item.
After standardizing groundwater quality data, a successive analysis can be conducted using the stan-dardized variables.
Step 2: modeling the coregionalization of standardized variables
In this study, VARIOWIN2.2 (Pannatier 1996) is used to calculate and fit initial direct variograms and cross-variograms of the standardized variables. After calcu-lations the experimental direct and cross-variograms of standardized variables are modeled as linear combina-tions of elementary variogram funccombina-tions, gu(h), for each spatial scale u. Then, the variogram type and range of the elementary variogram functions gu(h) must be determined for each spatial scale u. Some studies (Go-ovaerts 1992; Pardo-Iguzquiza and Dowd 2002) offer more detail for modeling regionalization procedures. The procedures are simply described as follows.
1. All direct variograms and cross-variograms are esti-mated by using VARIOWIN 2.2 for the same number of lags and the same lag distances h.
2. The number and types of elementary variogram functions and their ranges are postulated.
3. The sills (coregionalization matrix) are fitted by re-peat (1) and (2) to ensure the positive semi-definite-ness of all coregionalization matrices.
Step 3: PCA of the coregionalization matrices
Based on the above, PCA can be applied to the coregi-onalization matrix of each spatial scale. In this study, the statistics software SPSS is employed in PCA and each coregionalization matrix is treated as a covariance ma-trix, making it possible to obtain the proportion and factor loading of each factor. The GA procedures are described in the subsequent paragraphs.
Step 4: initialization chromosomes
The network alternatives are encoded as chromosomes into the GA and randomly generate an initial popula-tion. The GA is widely known for using binary coding to represent a variable. This study uses a binary indicator to represent the status of a well installation at a candi-date site. Accordingly, a chromosome, represented by a binary string, defines a network alternative. Each bit in a chromosome is associated with a candidate well, and the

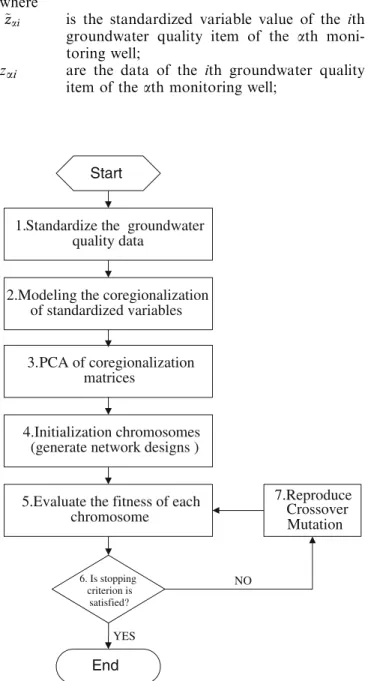

1.Standardize the groundwater quality data
2.Modeling the coregionalization of standardized variables
3.PCA of coregionalization matrices
5.Evaluate the fitness of each chromosome
Start
4.Initialization chromosomes (generate network designs )
End 6. Is stopping criterion is satisfied? 7.Reproduce Crossover Mutation NO YES
length of the chromosome equals the total number of candidate sites available for installation. If the value of a bit equals one, then a well will be installed at the asso-ciated candidate site; otherwise, the value of a bit is zero and no well will be installed at the associated candidate site. The selection of wells is binary, so the encoding and decoding of the chromosome are straightforward.
Step 5: evaluate the fitness of each chromosome
The objective function of the optimal problem is to minimize the total variances of latent factors of the grids for a study region under cost constraints. Therefore, the total variances can clearly represent the fitness of each chromosome. It should also be mentioned that the objective function of Eq. 17 can consider multi-spatial scales and multi-factors.
Some chromosomes may violate the maximum lim-ited number of monitoring wells (Eq. 18). In this situa-tion, the penalty function method is employed to modify the total variancesJ(I) as fitness to avoid reducing the diversity of chromosomes. This is done because only a minority of the chromosomes can continue propagating if those chromosomes which violate the maximum lim-ited number of monitoring wells are abandoned.
The modification of fitness by the penalty function method is performed as follows:
FðIÞ ¼ JðIÞ if NI ¼ Nmax
JðIÞ ð Nj I NmaxjÞ if NI 6¼ Nmax
ð20Þ
In Eq. 20, the modified fitness is equal to the total variances, J(I), multiplied by a penalty factor |NI)Nmax|
if the well number of the chromosome does not equal the maximum limited number of monitoring wells (Nmax).
The fitness modified by the penalty function in Eq. 20 allows the chromosomes which violate the maximum limited number of monitoring wells to maintain a lower probability of reproduction instead of being abandoned.
Step 6: termination
The new population requires evaluating the total vari-ances as in Step 5, which is employed to evaluate the stopping criterion. The stopping criterion is based on the change of either the value of the objective function or the optimized parameters. If the user-defined stopping criterion is satisfied or the maximum allowed number of generations is reached, the procedure terminates; otherwise, it performs Step 7 for another cycle. The success and performance of GAs depend on various parameters—population size, number of generations and the probabilities of crossover and mutation (Mckinney and Lin1994). Goldberg (1989) has asserted that how well GAs perform depends on the choice of high-crossover and low-mutation probabilities and a
moderate population size. Therefore, solutions obtained using a GA cannot be guaranteed to be optimal.
The stopping criterion requires two conditions be satisfied in the algorithm. The conditions are no further change of the value of the object function for 15 suc-cessive generations, and the population propagating for more than 50 generations.
Step 7: reproduce the best chromosomes, perform crossover and implement mutation
If the stopping criterion is not satisfied, one should reproduce the best strings, perform crossovers and implement mutations for a general new population, and then go back to Step 5. In this study, a uniform crossover using the tournament selection method is chosen; cross-over probability (pcross) equals 0.8, mutation probability
(pmutat) equals 0.1, and the population size equals 50.
Model application

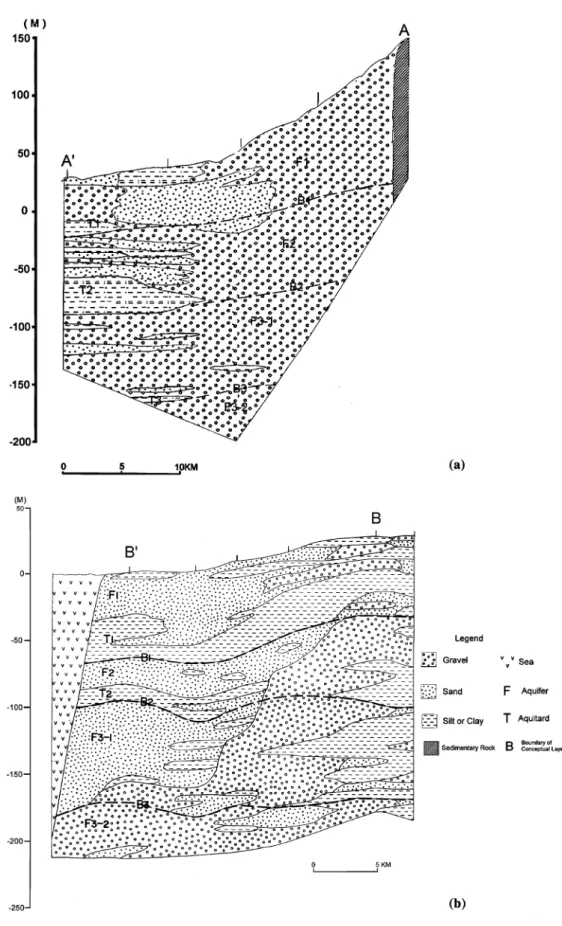

The proposed model is utilized in designing the groundwater quality monitoring network for the second aquifer (Aquifer 2) of Pingtung Plain, Taiwan. The Pingtung Plain is located in southern Taiwan, and is the largest alluvial plain in the region. To the east lie the central mountains of Taiwan, to the north and west the low hills of the quaternary sediments, and to the south the Taiwan Strait. The area of the Pingtung Plain is about 1,140 km2, approximately 60 km from north to south and 20 km from east to west (Fig.2). The groundwater of the Pingtung Plain is an important water source in southern Taiwan. There are four major com-ponents of the aquifer system: Aquitard 1, Aquifer 2, Aquifer 3–1 and Aquifer 3–2 (Fig.3).
In the Pingtung Plain, the intended monitoring pro-gram should produce information representative of the long-term water quality variations of the major aquifers. The current groundwater monitoring network established and operated by the Water Resources Agency has suc-cessfully provided valuable information on the major aquifers in the Pingtung Plain. The 34 existing monitoring wells system for the second aquifer is shown in Fig.2.
Nine water quality variables, including EC, TDS, Cl), Na, Ca, Mg, SO42), Fe and Mn, have been selected as
regionalized variables to assess the monitoring network design in the follow-up analysis procedures. The groundwater quality data used in this study were sampled in 2001 from a total of 34 wells in the regional monitoring network built by the Water Resources Agency. However, the cost of maintaining extensive monitoring of both the water level and the quality of groundwater is very expensive. Developing a cost-effective program for monitoring the quality of groundwater which involves
sampling from only a fraction of the existing monitoring wells is important. To produce a cost-effective monitor-ing system, the existmonitor-ing monitormonitor-ing system has been re-evaluated and designed into 20-well, 25-well and 30-well monitoring systems using the proposed model.
Multivariate geostatistical analysis
This study calculates experimental direct variograms and cross-variograms for the standardized (zero mean and unit variance) EC, TDS, Cl), Na, Ca, Mg, SO4
2), Fe
and Mn. A relatively consistent set of best-fit models was obtained to fit these variograms using VARIOWIN 2.2
(Pannatier1996). The best-fit variogram models of these nine variables were specified as the sum of two structures by a Gaussian type model with an effective range of 28.5 km and a spherical type with an effective range of 40 km. The coregionalization matrix of spatial scales for 28.5 and 40 km are shown in Table.1 and 2, respec-tively. After the PCA of the coregionalization matrix, the eigenvalues and the variance proportion of each factor are shown in Table3. The factor loadings of the two spatial scales are shown in Table.4 and 5, respec-tively.
In the 28.5 km scale, the first two factors explained 80.2% of the total variance for the nine variables as listed in Table3. The first factor explained 69.1% of the Fig. 2 Location of the
ground-water monitoring wells in the second aquifer in Pingtung Plain
Table 1 Coregionalization matrix of spatial scale 28.5 km for the standardized variables EC TDS Cl Na Ca Mg SO42) Fe Mn EC 0.4 – – – – – – – – TDS 0.36 0.4 – – – – – – – Cl) 0.36 0.36 0.39 – – – – – – Na 0.36 0.36 0.36 0.41 – – – – – Ca 0.261 0.243 0.328 0.224 0.48 – – – – Mg 0.36 0.36 0.38 0.37 0.328 0.4 – – – SO42) 0.32 0.32 0.32 0.288 0.238 0.312 0.49 – – Fe 0.114 0.185 0.175 0.124 0.203 0.145 0.072 0.42 – Mn 0.272 0.264 0.264 0.28 0.208 0.272 0.182 0.156 0.46
Table 2 Coregionalization matrix of spatial scale 40 km for the standardized variables
EC TDS Cl Na Ca Mg SO42) Fe Mn EC 1.0 – – – – – – – – TDS 0.9 1.0 – – – – – – – Cl) 0.9 0.9 1.0 – – – – – – Na 0.9 0.9 0.9 1.0 – – – – – Ca 0.9 0.9 0.8 0.8 0.97 – – – – Mg 0.9 0.9 0.9 0.9 0.8 1.0 – – – SO42) 0.8 0.8 0.8 0.8 0.7 0.8 1.0 – – Fe 0.6 0.5 0.5 0.4 0.7 0.5 0.4 1.0 – Mn 0.8 0.8 0.8 0.8 0.8 0.8 0.7 0.6 1.0

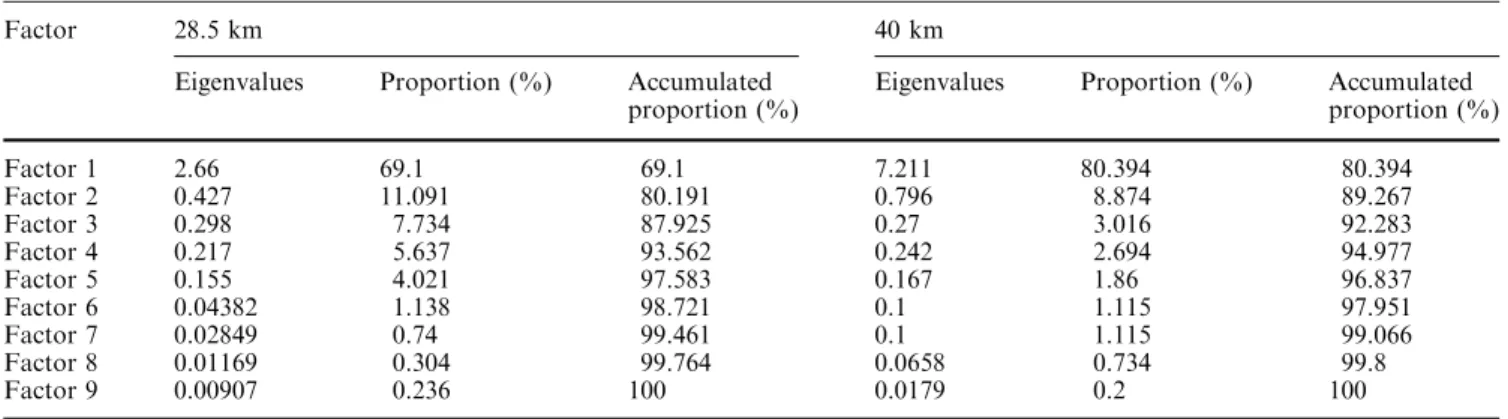

Table 3 Eigenvalues of coregionalization matrix of spatial scale 28.5 and 40 km
Factor 28.5 km 40 km
Eigenvalues Proportion (%) Accumulated proportion (%)
Eigenvalues Proportion (%) Accumulated proportion (%) Factor 1 2.66 69.1 69.1 7.211 80.394 80.394 Factor 2 0.427 11.091 80.191 0.796 8.874 89.267 Factor 3 0.298 7.734 87.925 0.27 3.016 92.283 Factor 4 0.217 5.637 93.562 0.242 2.694 94.977 Factor 5 0.155 4.021 97.583 0.167 1.86 96.837 Factor 6 0.04382 1.138 98.721 0.1 1.115 97.951 Factor 7 0.02849 0.74 99.461 0.1 1.115 99.066 Factor 8 0.01169 0.304 99.764 0.0658 0.734 99.8 Factor 9 0.00907 0.236 100 0.0179 0.2 100
Table 4 Factor loading of spatial scale 28.5 km
Factor 1 Factor 2 Factor 3 Factor 4 Factor 5 Factor 6 Factor 7 Factor 8 Factor 9
EC 0.934 )0.189 0.067 0.015 )0.102 0.250 0.120 0.029 )0.006 TDS 0.938 )0.059 0.072 0.230 )0.093 0.079 )0.202 )0.007 0.049 Cl) 0.979 )0.005 )0.081 )0.017 )0.103 )0.025 0.017 )0.144 )0.054 Na 0.912 )0.168 0.194 0.077 )0.231 )0.172 0.095 0.014 0.071 Ca 0.740 0.322 )0.423 )0.409 0.016 0.011 )0.008 0.009 0.048 Mg 0.968 )0.059 )0.046 )0.093 )0.145 )0.086 )0.057 0.086 )0.097 SO42) 0.767 )0.373 )0.284 0.202 0.387 )0.043 0.023 0.009 0.003 Fe 0.457 0.800 )0.029 0.381 0.052 )0.007 0.047 0.016 )0.011 Mn 0.710 0.160 0.570 )0.250 0.288 )0.006 )0.012 )0.005 )0.001
total variance, and was highly positively correlated with EC, TDS, Cl), Na, Ca, Mg, SO4
2)and Mn. The second
factor explained 11.1% of the total variance, and was only highly positively correlated with Fe. In spatial scales of 40 km, the first factor explained 80.4% of the total variance, and had a highly positive loading on EC, TDS, Cl), Na, Ca, Mg, SO4
2)and Mn. The second factor

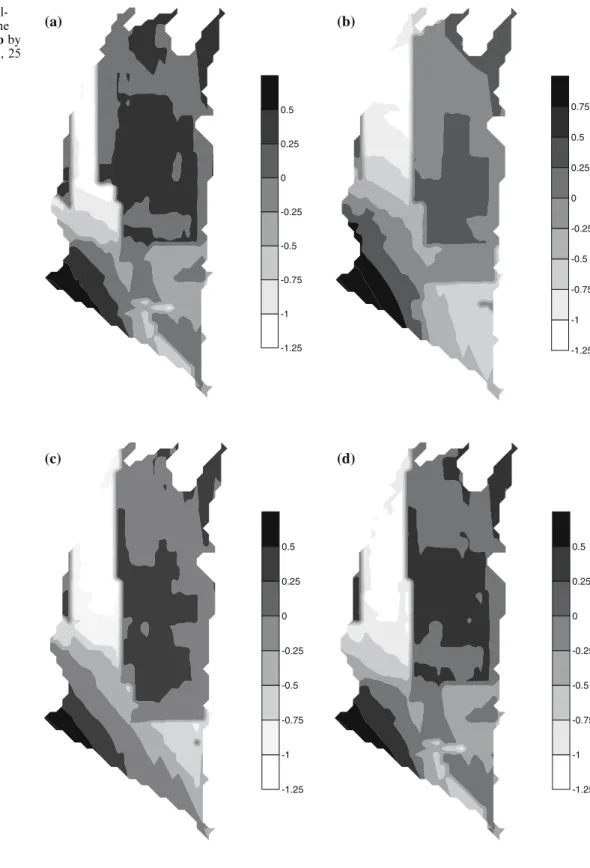

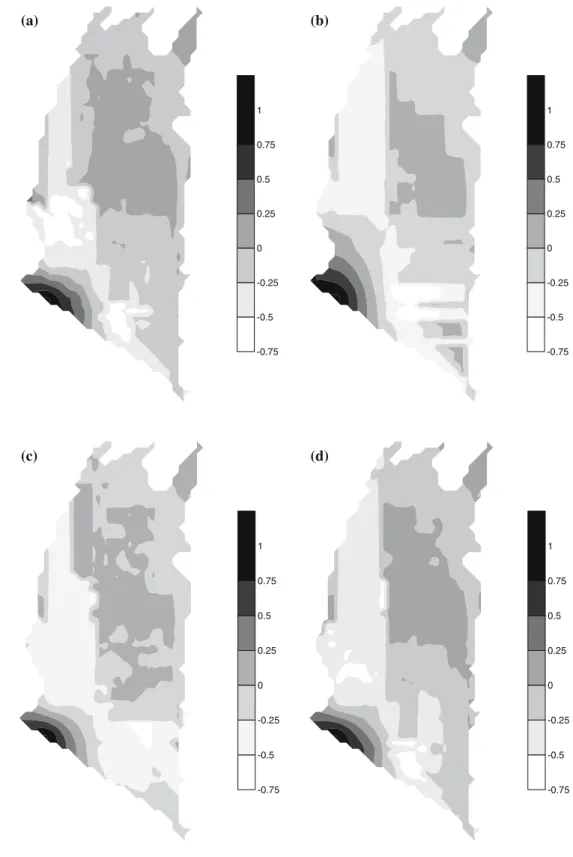

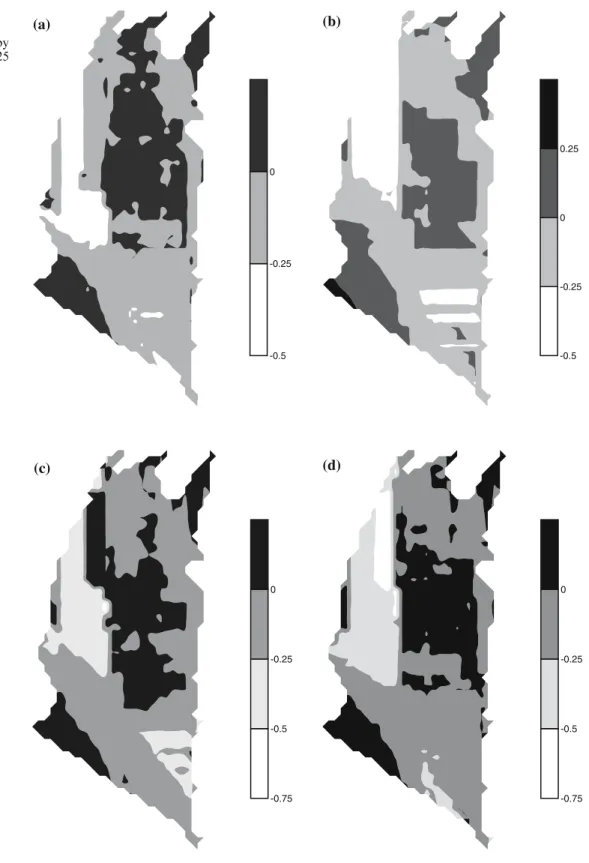

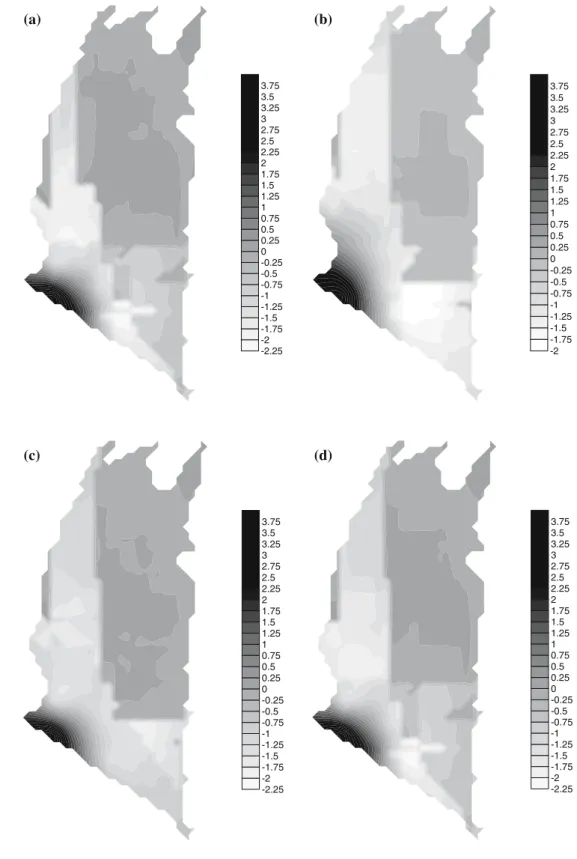

exhibited highly positive loading only on Fe. Figures 5a, and 8a show the spatial maps of the first two factors in 28.5 and 40 km scales. Figures5a and6a show that in both the spatial scales of 28.5 and 40 km, the sites with the high positive score of the first factor are almost lo-cated in coastal areas.
In both spatial scales of 28.5 and 40 km, the second factors have a positive correlation with Ca, Mn, and especially Fe. Since umber loam is the composition of the east gravel tableland of the Pingtung Plain, the aquifer should be abundant in iron oxide. Confined aquifers in the Pingtung Plain were created from alternating layers of permeable gravel and sand, and impermeable silts and clays that deposited in inter-montane basins. The grain-size also becomes finer further towards the southwest. The components of the sediments include the mineral of MgCO3 in a
car-bonate formation. Mn and Fe dissolve in the groundwater by dissolution and ion exchange; there is higher ion concentration of Fe around the aquitard. In this study, for both spatial scales of 28.5 and 40 km, the sites located further north have a lower score in the second factor. This phenomenon is primarily af-fected by the alluvium of the main river of Pingtung Plain, the Kaoping River.
Optimal multivariate geostatistical groundwater quality monitoring network
Based on the above multivariate geostatistical analysis, the existing 34 groundwater level monitoring wells in the second aquifer are treated as candidate wells for a groundwater quality monitoring network design in the optimization problem. The study area is divided into
1·1 km grids for calculating the total variances for the estimated regionalized factors.
Based on the PCA results, the nine groundwater quality variables in the second aquifer in the Pingtung Plain have 28.5 and 40 km spatial scales, respectively. The optimization of the monitoring network performed according to the following cases with different propos-als.
Case 1: considering the first factors in the two spatial scales
In Case 1, the first factors in both 28.5 and 40 km spatial scales are considered, Yp=1u=1 and Yp=1u=2,
simulta-neously. Therefore, both the estimated variances of each first factor in 28.5 and 40 km scales should be minimized to obtain an accurate estimation of the factors by using the proposed optimal monitoring well system. To refer to the optimal problem defined by Eqs. 17 and 18, the problem definition of Case 1 is as follows: Object function Min IXJðIÞ ¼ X m2M 0:691rmY1 1ð Þ þ 0:804rI m Y2 1ð ÞI n o ð21Þ Subject to NI Nmax: ð22Þ
According to the proportion of the total variance in Table3, the weights of Y1
1
and Y1 2
are 0.691 and 0.804, respectively. The maximum number of monitoring wells is set to 20, 25 and 30, respectively.
Case 2: considering the first factor in the short spatial scale
In Case 2, only the first factor of the 28.5 km spatial scale is considered, Yp=1u=1. The estimated variance of
the first factor in the 28.5 km scale should be mini-mized to obtain an accurate estimation of the factor Table 5 Factor loading of spatial scale 40 km
Factor 1 Factor 2 Factor 3 Factor 4 Factor 5 Factor 6 Factor 7 Factor 8 Factor 9
EC 0.963 0.007 )0.003 )0.138 0.018 0.148 0.081 )0.150 )0.054 TDS 0.954 )0.103 )0.077 )0.129 )0.141 )0.148 )0.081 0.055 )0.076 Cl) 0.941 )0.133 )0.035 )0.022 0.191 )0.182 0.155 )0.031 0.028 Na 0.932 )0.242 )0.109 )0.013 0.032 0.148 0.081 0.175 0.006 Ca 0.930 0.217 )0.073 )0.154 )0.225 0.000 0.000 )0.030 0.086 Mg 0.941 )0.133 )0.035 )0.022 0.191 0.033 )0.237 )0.031 0.028 SO42) 0.852 )0.236 0.447 0.107 )0.081 0.000 0.000 0.006 0.008 Fe 0.625 0.760 0.127 )0.013 0.106 0.000 0.000 0.070 )0.018 Mn 0.884 0.113 )0.171 0.413 )0.074 0.000 0.000 )0.041 )0.010
by using the proposed optimal monitoring well system. In Case 2, the optimization problem can be defined as follows: Object function Min IXJðIÞ ¼ X m2M rmY1 1ð ÞI ð23Þ Subject to NI 25: ð24Þ
The maximum number of monitoring wells is set to 25.
Case 3: considering multi-factors in the short spatial scale
In Case 3, two of the first factors in the 28.5 km spatial scales are considered, Yp=1u=1 and Yp=2u=1, simultaneously.
The problem definition of Case 3 is as follows: Object function Min IXJðIÞ ¼ X m2M 0:691rmY1 1 I ð Þ þ 0:111rm Y1 2 I ð Þ n o ð25Þ Subject to NI 25: ð26Þ

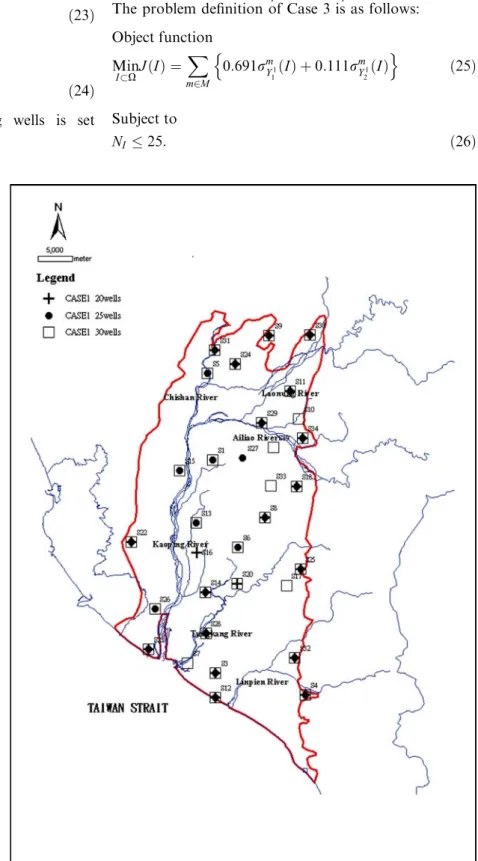

Fig. 4 Optimal network design of the 20, 25, 30 wells of case 1
According to the proportion column in Table 3, the weights of Y11and Y21are 0.691 and 0.111, respectively.
The maximum number of monitoring wells is set to 25.
Considering the variations of monitoring variables in both short (28.5 km) and long (40 km) range scales, the sum of the estimation variances with weightings of both
-1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 -1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 0.75 -1.25 -1 -0.5 -0.25 0 0.25 0.5 -0.75 -1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 (a) (b) (c) (d)
Fig. 5 Mappings of regional-ized factors of factor 1 at the 28.5 km scale a by 34 well, b by Case 1, 20 well, c by Case 1, 25 well, d by Case 1, 30 well
first regionalized factors in the two scales is to be mini-mized using GA for selecting 20, 25 and 30 monitoring wells. The optimal 20, 25 and 30 selected monitor-ing wells are mapped in Fig. 4. These three monitoring
systems focus on the spatial variations in both the local scale (28.5 km) and regional scale (40 km). In the 20-well monitoring system, most of the selected wells are located at the south and north parts of the study area,
-2.25 -2 -1.75 -1.5 -1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.25 3.5 3.75 -2 -1.75 -1.5 -1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.25 3.5 3.75 -2.25 -2 -1.75 -1.5 -0.25 0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.25 3.5 3.75 -1.25 -1 -0.75 -0.5 -2.25 -2 -1.75 -1.5 -1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.25 3.5 3.75 (a) (b) (c) (d)
Fig. 6 Mappings of regional-ized factors of factor 1 at the 40 km scale a by 34 well, b by Case 1, 20 well, c by Case 1, 25 well, d by Case 1, 30 well
and fewer wells are located at the eastern parts of the area because of improving estimations of the first factors in both 28.5 and 40 km scales (Figs.5b, 6b). In the
25-well and 30-well monitoring systems the wells are distributed more uniformly over the study area (Fig.4). There are 18 identical monitoring wells appearing in all
-0.5 -0.25 0 -0.5 -0.25 0 0.25 -0.75 -0.25 0 -0.5 -0.75 -0.5 -0.25 0 (a) (b) (c) (d)
Fig. 7 Mappings of regional-ized factors of factor 2 at the 28.5 km scale a by 34 well, b by Case 1, 20 well, c by Case 1, 25 well, d by Case 1, 30 well
20-well, 25-well and 30-well monitoring systems, and the same 24 wells appear in both the 25-well and 30-well systems (Fig.4). These optimal selection results dem-onstrate that the 18 wells should be defined as minimum
basic wells to delineate spatial variations in both short and long range scales.
Both the first factor scores in 28.5 and 40 km scales are mapped by using 34, 20, 25 and 30 wells with the
-0.75 -0.5 -0.25 0 0.25 0.5 0.75 1 -0.75 -0.5 -0.25 0 0.25 0.5 0.75 1 -0.75 -0.5 0 0.25 0.5 0.75 1 -0.25 -0.75 -0.5 -0.25 0 0.25 0.5 0.75 1 (a) (b) (c) (d)
Fig. 8 Mappings of regional-ized factors of factor 2 at the 40 km scale a by 34 well, b by Case 1, 20 well, c by Case 1, 25 well, d by Case 1, 30 well
factor score (Figs. 5, 6, 7, 8). These factor score maps confirm that the more monitoring wells are installed, the more reliable factor score maps can be performed. To delineate spatial variations of the monitoring variables in the regional and local scales, the 30-well system is the best compared to the 25-well and 20-well systems. However, the proposed optimal monitoring design ap-proach selected the monitoring systems which well cap-ture spatial variations of monitoring variables in both scales (Figs.5,6,7, 8).
After considering various purposes for the multi-factors in 28.5 and 40 km scales (Case 1), single factor in 28.5 km (Case 2) and multi-factor in 28.5 km (Case 3), there are 17 identical monitoring wells selected in
25-well systems for these three cases (Fig. 9). The 17 selected wells are likely to be homogeneously distrib-uted in the study area except in the western part. These optimal well selection results imply that the 17 identical monitoring wells could be the baseline monitoring network system to provide information of the total spatial variations of monitoring variables for multi-purpose. The remaining eight monitoring wells are se-lected for monitoring spatial variations in various scales and purposes (Fig.9).
Maps of factors mapped by 25-well systems in Cases 2 and 3 are shown in Figs.10,11,12. Comparing Fig.10
and Fig.5a, c the 25-well system of Case 2 captures spatial variations of factor 1 in the 28.5 km scale slightly Fig. 9 Optimal network designs
better than the systems of Cases 1 and 3. Figures 5a, c,
7a, c,10and12illustrate that the 25-well system of Case 3 captures the patterns of both factors 1 and 2 in the 28.5 km scale slightly better than the systems of Cases 1
and 2. However, the purposed approach obtains the monitoring system that does not only consider grouped monitoring variables but also delineate spatial variation of the grouped monitoring variables. Therefore, unlike
-1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 -1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 (a) (b)
Fig. 10 Mappings of regional-ized factors of factor 1 at the 28.5 km scale a by Case 2, 25 well, b by Case 3, 25 well
-2.25 -2 -1.75 -1.5 -1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.25 3.5 3.75 -2 -1.75 -1.5 -1.25 -1 -0.75 -0.5 -0.25 0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.25 3.5 3.75 (a) (b)
Fig. 11 Mappings of regional-ized factors of factor 1 at the 40 km scale a by Case 2, 25 well, b by Case 3, 25 well
previous related studies different optimal systems are obtained by the purposed approach based on various factors to reach the monitoring purposes in different scales. For example, the monitoring well system based on the second factor is different to that based on the first factor or single monitoring variable. The monitoring well system based on the second factor will provide useful information of the monitoring variables included in the second factor for identifying the variations of the variables. The more the factors considered in the opti-mal monitoring system design, the more is the infor-mation provided by the designed monitoring system. Moreover, the purposed approach can obtain different monitoring systems that provide varied information of the monitoring variables in space. The maps and optimal results also confirmed that the proposed model can de-sign an optimal groundwater monitoring network that not only considers various factors grouped by multiple groundwater quality variables but also monitors varia-tions of monitoring variables at various spatial scales in the study area.
Conclusion
In the past groundwater quality monitoring design studies, a groundwater item was considered as a
monitoring design variable for designing a system to monitor multiple items in real practice. This study develops a novel approach to design an optimal mul-tivariate geostatistical groundwater quality monitoring network using factorial kriging with GAs. The pro-posed approach designs a monitoring system which not only considers multi-variables, but also monitors spa-tial variations of the variables in various scales. In the approach, a multivariate geostatistical analysis is used to decompose multiple variables into small sets of spatial factors in various spatial scales. Based on the multivariate geostatistical analysis the proposed opti-mization model minimizes the estimation variance of the spatial factor, needed to design a groundwater quality monitoring network considering one or multi-spatial scales in accordance with the different moni-toring goals. GAs are suitable for use with factorial kriging to obtain optimal results. The designed moni-toring system can be used to delineate spatial variation patterns and sources of multiple groundwater quality items. The proposed approach was also successfully applied in a real case in Taiwan to design optimal monitoring systems for various purposes in order to delineate spatial variations in various scales. In future studies, the developed model could also be modified and applied to design a monitoring system for multi-aquifer cases. -0.75 -0.5 -0.25 0 -0.5 -0.25 0 (a) (b)
Fig. 12 Mappings of regional-ized factors of factor 2 at the 28.5 km scale a by Case 2, 25 well, b by Case 3, 25 well
References
Al-Zahrani MA, Moied K (2003) Optimiz-ing water quality monitorOptimiz-ing stations using genetic algorithms. Arab J Sci Eng 28(1B):57–75
Batista AC, Sousa AJ, Batista MJ, Viegas L (2001) Factorial kriging with external drift: a cause study on the Penedono Region, Portugal. Appl Geochem 16(7– 8):921–929
Benjemaa F, Mario MA, Loaiciga HA (1994) Multivariate geostatistical design of groundwater monitoring networks. J Water Resour Plan Manag ASCE 120(4):505–522
Bocchi S, Castrignano A, Fornaro F, Maggiore T (2000) Application of fac-torial kriging for mapping soil variation at field scale. Eur J Agron 13:295–308 Brus DJ, Spatjens LEEM, de Gruijter JJ
(1999) A sampling scheme for estimat-ing the mean extractable phosphorus concentration of fields for environmen-tal regulation. Goderma 89:129–148 Cameron K, Hunter P (2002) Using spatial
models and kriging techniques to opti-mize long-term groundwater monitor-ing networks: a case study.
Environmetrics 13(5–6):629–656 Castrignano A, Giugliarini L, Risaliti R,
Martinelli N (2000a) Study of spatial relationships amon some soil physico-chemical properties of a field in central Italy using multivariate geostatistics. Geoderma 97:39–60
Castrignano A, Goovaerts P, Lulli L, Bra-gato G (2000b) A geostatistical ap-proach to estimate probability of occurrence of Tuber melanosporum in relation to some soil properties. Geo-derma 98:95–113
Chang LC, Hsiao CT (2002) Dynamic optimal groundwater remediation including fixed and operation costs. Ground Water 40(5):481–490 Christakos G, Olea R(1988) A
multiple-objective optimal exploration strategy. Math Comput Model 11:413–418 Cieniawski SE, Eheart JW, Ranjithan S
(1995) Using genetic algorithm to solve a multiobjective groundwater monitor-ing problem. Water Resour Res 31(2):399–409
Deutsch CV, Journel AG (1992) Geosta-tistical software library and user’s guide. Oxford University Press, New York
Dobermann A, Goovaerts P, George T (1995) Sources of soil variation in an acid Ultisol of the Philippines. Geoder-ma 68:173–191
Einax JW, Soldt U (1998) Multivariate geostatistical analysis of soil contami-nations. Fresen J Anal Chem 361:10–14
Ferreyra RA, Apezteguia HP, Rereno R, Jones JW (2002) Reduction of soil water spatial sampling density using scaled semivariograms and simulated anneal-ing. Geoderma 110:265–289
Goldberg DE (1989) Genetic algorithm in search, optimization, and machine learning. Addison-Wesley, Reading Goovaerts P (1992) Factorial kriging
anal-ysis: a useful tool for exploring the structure of multivariate spatial soil information. J Soil Sci 43:597–619 Goovaerts P (1994) Study of spatial
rela-tionships between two sets of variables using multivariate geostatistics. Geo-derma 62:93–107
Goovaerts P (1997) Geostatistics for natu-ral resource evaluation. Oxford Uni-versity Press, Oxford
Goovaerts P (1998) Geostatistical tools for characterizing the spatial variability of microbiological and physico-chemical soil properties. Bio Fertil Soils 27:315– 334
Goovaerts P, Webster R (1994) Scale-dependent correlation between topsoil copper and cobalt concentrations in Scotland. Eur J Soil Sci 45(1):79–95 Holland JH (1992) Adaptation in Natural
and Artificial Systems, 2nd edn. Mass Inst Technol, Cambridge
Hsiao CT, Chang LC (2002) Dynamic Optimal Groundwater Management with Inclusion of Fixed Costs. J Water Resource Plan Manag ASCE 128(1):57– 65
Hudak PF, Loaiciga HA (1993) An opti-mization method for monitoring net-work design in multilayered
groundwater flow systems. Water Re-source Res 29(8):2835–2845
Jime´nez-Espinosa R, Chica-Olmo M (1999) Application of geostatistics to identify gold-rich areas in the Finisterre-Ferv-enza region, NW Spain. Appl Geochem 14(1):133–145
Lark RM (2000) Design sampling grids from imprecise information on soil variability, and approach based on the fuzzy kriging variance. Geoderma 98:35–59
Lark RM (2002) Optimized spatial sam-pling of soil for estimation of the vari-ogram by maximum likelihhod. Geoderma 105:49–80
Lin YP (2002) Multivariate geostatistical methods to identify and map spatial variations of soil heavy metals. Environ Geol 42:1–10
Lin YP, Rouhani S (2001) Multiple-point variance analysis for optimal adjust-ment of a monitoring network. Environ Monit Assess 69(3):239–266
Lin YP, Chang TK, Shih CW, Tseng CH (2002) Factorial and indicator kriging with geographic information system to delineate spatial variations and pollu-tion sources of soil heavy metals. Envi-ron Geol 42:900–909
Loaiciga HA (1989) An optimization ap-proach for groundwater quality moni-toring network design. Water Resour Res 25(8):1771–1782
McKinney DC, Lin D (1994) Genetic algorithm solution of groundwater management models. Water Resour Res 30(6):1897–1906
Mitchell M (1998) An introduction to ge-netic algorithms. MIT Press, Cambridge Mohan S (1997) Parameter estimation of
nonlinear muskingum models using ge-netic algorithm. J Hydraul Eng 123(2):137–142
Pannatier Y (1996) Variowin: software for spatial data analysis in 2D. Springer, Berlin Heidelberg New York Pardo-Iquzquiza E, Dowd PA (2002)
FACTOR2D: a computer program for factorial cokriging. Comput Geosci 28:857–875
Passarella G, Vurro M, D’Agostino V, Barcelona MJ (2003) Cokriging opti-mization of monitoring network con-figuration based on fuzzy and non-fuzzy variogram evaluation. Environ Monit Assess 82:1–21
Pesti G, Kelly WE, Bogardi I (1994) Observation network design for select-ing locations for water-supply wells. Environmetrics 5(2):91–110
Prakash MR, Sihgn VS (2000) Network design for groundwater monitoring—a case study. Environ Geol 39(6):628–632 Reed P, Minsker B, Valocchi AJ (2000)
Cost-effective long-term groundwater monitoring design using a genetic algo-rithm and global mass interpolation. Water Resource Res 36 (12):3731–3741 Rogers LL, Dowla FU (1994) Optimization of groundwater remediation using arti-ficial neural networks with parallel sol-ute transport modeling. Water Resource Res 30(2):457–481 Rouhani S (1985) Variance reduction
analysis. Water Resource Res 21(6):837–846
Rouhani S, Hall TJ (1988) Geostatistical schemes for groundwater sampling. J Hydrol 103:85–102
Rouhani S, Wackernagel H, (1990) Multi-variate geostatistical approach to space-time data analysis. Water Resource Res 26:585–591
Van Groenigen JW, Siderius W, Stein A (1999) Constrained optimal of soil sampling for minimization of the kri-ging variance. Geoderma 87:239–259
Wackernagel H (1994) Cokriging versus kriging in regionalized multivariate data analysis. Geoderma 62:83–92
Wackernagel H (1995) Multivariate geosta-tistics: an introduction with applications. Springer, Berlin Heidelberg New York
Wang QJ (1991) The genetic algorithm and its application to calibrating conceptual rainfall-runoff models. Water Resource Res 27(9):2467–2471
Wang XJ, Qi F (1998) The effects of sam-pling design on spatial structure analy-sis of contaminated soil. Sci Total Environ 224:29–41
Wardlaw R, Sharif M(1999) Evaluation of genetic algorithms for optimal reservoir system operation. J Water Resource Plan Manag ASCE 125(1):25–33
