An experimental investigation of jet flows through a row of

forward expanded holes into a mainstream over a concave surface

I-Chien Lee

a

, Ping-Hei Chen

a,*

, M.K. Chyu

b

aDepartment of Mechanical Engineering, National Taiwan University, No.1, Roosevelt Road, Section 4, Taipei 10617, Taiwan bDepartment of Mechanical Engineering and Materials Science, University of Pittsburgh, Pittsburgh, PA 15261, USA

Received 28 May 2006; received in revised form 13 December 2007; accepted 19 December 2007

Abstract

This study performed detailed measurements of jet flows through a row of forward expanded holes into a mainstream over a concave surface using digital particle image velocimetry. Each of ejected holes had a streamwise inclined angle of 35° bounded on a concave sur-face with constant radius of 382 mm. The spacing of adjacent holes is 1.5D. The density and the momentum flux ratio of the mainstream to the jet flow were 1.0. Results show detailed 2D mean velocity maps on several horizontal and vertical planes and a 3D streamline pattern of jet mean velocity. The streamlines of 3D mean velocity clearly display different flow characteristics of the ejected jet flow along the transverse direction. In addition, the particle trajectory of a ring enclosing an ejected jet above the injection hole was also presented to show movement of jet.

Ó 2008 Elsevier Inc. All rights reserved.

Keywords: Particle image velocimetry; Jets into mainstream; CVP; Lift-off effect

1. Introduction

Transport phenomena around a jet array injecting into a mainstream have been a subject of extensive study, because they are related to many significant applications. One of the major applications is film cooling of turbine airfoils, which protects the airfoil material and structure against the extremely high-temperature exhaust from the combus-tor. While film cooling has been the workhorse of turbine cooling for nearly three decades and surface heat transfer data are plenty, the technology today is by no means well developed. This is largely attributable to the fact that the knowledge, as well as the database, toward the flow fields dominated by the interaction between the jet flow and mainstream is insufficient. Reports to date have revealed several unique and complex flow features associated with the interaction between the jet flow and mainstream. Most

notable features include the so-called counter-rotating vor-tex pairs (CVP) embedded in the jet [1–4], a shear-layer vortex existing on the windward side of the jet[1], a horse-shoe vortex prevailing upstream to the jet[5], and a near-wall wake region downstream of the jet[6]. In an attempt to characterize the CVP related flow, Liscinsky et al. [7]

performed a visualization study of a jet flow into the main-stream on various cross-sectional planes. Their study exhibited that a round jet produces CVP of kidney shape for blowing ratios (M) in the range about 1–2. On a related topic, Burd et al.[8]examined the film hole length and the effects of turbulence intensity for jets with a inclination rel-ative to the protected surface. Thole et al.[9]measured the effect of the hole exit shape on the distribution of mean velocity, turbulence intensity, and turbulent shear stress at a blowing ratio of 1.0. More recently, Garlomagno

[10] performed flow visualization and velocity measure-ment using particle image velocimetry. The test geometry used for this study was a jet injected toward mainstream over a flat surface.

0894-1777/$ - see front matterÓ 2008 Elsevier Inc. All rights reserved. doi:10.1016/j.expthermflusci.2007.12.002

*

Corresponding author.

E-mail address:phchen@ntu.edu.tw(P.-H. Chen).

www.elsevier.com/locate/etfs Experimental Thermal and Fluid Science 32 (2008) 1068–1080

(2)

It is understandable that both the jet flow and main-stream in a turbine passage experience strong curvature effects, for which the model with a flat surface may not be representative. Goldstein and Stone [11] examined film-cooling performance over curved surfaces and sug-gested that the phenomenon of coolant jet lift-off, which is detrimental to the film cooling performance, could be greatly affected by surface curvature. As mentioned earlier, in the film cooling literature, studies directed to investigat-ing the detailed flow features and momentum transport with a row of jet injected toward mainstream are rather limited,. Therefore, the primary goal of this study is to characterize the detailed velocity fields in a simulated film cooling setting over a concave wall.

2. Experimental apparatus and procedures

Fig. 1a shows a schematic view of the experimental mechanism. The experiments were performed in a wind tunnel with a curved test section. On a concave surface, there were five injection holes through which jets were ejected into the mainstream. A centrifugal blower produced the mainstream of the wind tunnel. Jet flows were supplied by a large storage tank system with a pressure of 8 kg/cm2. The volume consumption of jet flow at a measured time-period of 40 s was about 1.0% of the total air storage tank volume. The cross sectional area of the inlet section of the tunnel was 450 450 mm. Downstream of the straight duct, there was a Plexiglas curved duct serving as the test section, and an outlet straight duct. The curved duct had

a 135° bend at a constant radius of 382 mm over the con-cave surface. A row of injection holes was located at 34° from the onset of concave surface. The jet flow was injected through a forward expanded hole with a streamwise inclined angle of 35° on the concave surface. The length-to-diameter ratio of the injection hole was 2.2. A schematic view of hole geometry is shown inFig. 2a. Note that mea-surements were taken on planes in a Cartesian coordinate system, XYZ, of which the origin was located at the upstream edge of the injection hole, as shown in Fig. 2.

The set-up for DPIV flow field measurements is schemat-ically shown inFig. 1b. A Nd:YAG pulsed laser (NewWave, Reasearch Minilaser) provided pulsed light sheets at a wave-length of 532 nm. The thickness of pulsed laser sheet is adjusted to approximately 1 mm. Particle images were recorded by a Kodak ES1.0 CCD camera at a resolution of 1008 1016 pixels. It is necessary to determine the mag-nification factor of the CCD image compared to the real object on the measured plane. The magnification is mea-sured by a calibration procedure. The calibration procedure employed a grid target (DANTEC, 908X0321) measuring 75 mm by 95 mm with an exact dot spacing of 10 mm. The calibration target was aligned with the light sheet at each measured plane before the measurement on the measured plane was executed. A Dantec FlowMap 2500 processor with a buffer memory of 8 GB was installed in a computer workstation that controlled the synchronized actions between the pulsed laser and the CCD camera.

Two components of the instantaneous velocity vector were measured at six horizontal XY planes (Z/D = 0.13, Nomenclature

Cp pressure coefficient of the mainstream,

¼ ðP  P0Þ=ð0:5qU2pwÞ

D injection hole diameter at the inlet, [m] dP diameter of seeding particles, [lm]

Le eddy length scale of jet flow, was chosen to be

0.5Dp, [mm]

M ratio of momentum flux, ¼ qjU2=qmU20

P static pressure, [Pa]

Re Reynolds number based on the diameter of injection hole, =qU0D

l

St Stokes number,¼sPUe

Le

U mean velocity, [m/s]

Ue eddy velocity scale of jet flow, was chosen to be

40% of the mean velocity, [m/s] Ug Particle sedimentation velocity,¼

ðqPqaÞd2Pg

18l [m/s]

Upw free stream velocity in the curved section, [m/s]

UYZ projected velocity component of mean velocity

= ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiU2X þ U2 Y

q

[m/s]

U0 the free stream velocity in the straight duct,

[m/s]

U velocity fluctuation, [m/s]

X Streamwise distance from the upstream leading edge of the middle hole, [mm]

Y Transverse distance from the centerline of the middle hole, [mm]

Z Vertical distance from the upstream leading edge of the hole, [mm]

Greek symbols

b injection angle, [°]

d boundary layer thickness, [mm]

h the angle of curved section at the onset of the bend, [°]

l dynamic viscosity, [kg/m s] q density, [kg/m3]

sP particle relaxation time based on Stokes drag

¼DPqPC 18l , [s] Subscripts a air o reference point P seeding particles

(3)

0.31, 0.63, 0.88, 1.13, and 1.38) and at six vertical XZ planes (Y/D = 0, 0.19, 0.25, 0.45, 0.63, and 0.75). Since every injection hole was symmetric, the verti-cal instantaneous velocities were only measured in the neg-ative transverse axis on the vertical XZ plane.

Mainstream velocities were also measured by a hot wire anemometer (Dantec, StreamLine 90C10) with a hot-wire probe (Dantec, 55P63) at a location 200 mm upstream of the onset of curved duct. Static pressure probes were installed at different locations along the centerline of the concave surface. A pressure transducer (Validyne, DP 103-16) was used to measure static pressure distribution. Pressure signal measurements were converted to digital sig-nals by an AD conversion board (Validyne, UPC 608) for further signal processing.

3. Operating conditions and experimental uncertainty For DPIV measurements, velocity vectors were obtained by calculating the cross-correlation coefficient between two consecutively recorded particle images. Both seeded parti-cle concentration contours and mean velocity vector distri-butions were acquired at a sampling rate of 15 Hz and were averaged over 600 instantaneous image pairs. The images were divided into 32 32 pixel interrogation windows with a 50% overlap grid to obtain a velocity. The seeded parti-cles were produced by a fog generator using water-based fog liquid[12]. The particle size is about 13 lm in diam-eter. If the seeding particles can move with the flow without causing any significant uncertainty, Flagan and Seinfeld

[13] showed that the particle’s Stokes number, St, must

1. Inlet section(D420 × 300mm)

2. Blower (1 Hp × 0.75KW, D420mm, centrifugal fan) 3. Honeycomb

4. Diffuser (D420 to 450 × 450mm, L:450mm) 5. Screens (three wire meshes)

6. Contraction (450 × 450 to 150 × 150 mm, L:400mm) 7. Straight duct (150×150×270 mm)

8. Curved duct (150 × 150 mm × 135°) 9: Outlet straight duct (150 × 150 × 100 mm) 10. Jet supply section and seeding generator 11. Buffer tank

12. Valves 13. Air flow meter 14. Pressure regulators

15. Air storage tanks (0.66 m3 × 2) 16. Air compressors (5 Hp × 2)

(4)

be far smaller than one. In addition, the particle sedimen-tation velocity[14], Ug, of seeding particles must be much

smaller than the flow velocity. The particle’s Stokes num-ber and particle sedimentation velocity for the worst case in this study are 0.042 and 2.1 104m/s, respectively.

The free-stream velocity, U0, of the mainstream in the

straight duct was kept at 12.0 m/s with a turbulence intensity of 1.5%. Both results were measured at a loca-tion 200 mm upstream of the onset of the curved secloca-tion. The mainstream Reynolds number was 5820. Both the density ratio and the momentum flux ratio of the main-stream to the jet flow were 1.0. Following the uncertainty analysis of Kline and Mcclintock[15], the uncertainties at a 95% confidence level were 3% and 4.5% for the nomi-nal mean velocity and for the nominomi-nal turbulence inten-sity, respectively. The uncertainty of the seeded particle concentration in the ejected flow was 2.2%. From hot-wire measurements; the uncertainties of the mainstream velocity and the mainstream turbulence intensity were 2.0% and 2.5%, respectively. The uncertainty in the jet mass flow rate was 2.0%. The uncertainty of the pressure coefficient, Cp, was 5.6%.

4. Results and discussion

4.1. Mainstream in the curved section

Since the free-stream velocity on a concave surface of a curved duct may depend on the distance from the wall, this study obtained free-stream velocity from the extrapolated velocity defined by Schultz and Volino [16]. The measured boundary layer thickness, d, at the onset of the curved sec-tion was 6.1 mm and it gradually increased to 17.0 mm at the upstream edge of the ejected holes.

Fig. 3 shows the streamwise distribution of pressure coefficient, Cp, on the concave surface, which is positioned

only at a mainstream without ejected flows. The free-stream velocity, Upw, was also calculated from the wall

sta-tic pressure according to the method proposed by Muck et al.[17]. As observed in Fig. 3, the mainstream deceler-ated at the onset of the curved section and then maintained a constant velocity in the region where circumferential angle (h) ranged from 19° to 32° on the concave surface. In the 32° < h < 116° region, the value of Cp decreases

slightly as the mainstream is accelerated. In this study, the value of Upw was 11.6 m/s at the upstream edge of

the injection hole. DPIV measurements of the flow field were performed in the region where the value of X/D ran-ged from0.5 to 7.0, corresponding to the circumferential angle ranging from 33.8° to 60.8°.

4.2. Mean seeded particle concentrations of the jet flow The flow visualization technique was used for quantita-tive flow field measurement by PIV.Fig. 4shows PIV time-averaged jet flow images on a X–Y plane obtained from 600 images at four elevations of Z/D = 0.13, 0.31, 0.63, and 0.88. The dark image indicates the area in which the flow is dominated by the mainstream. As shown in Fig. 4, the jet shape gradually changes from a kidney shape near the hole exit to an oval shape at Z/D = 0.88. This figure also shows the spanwise periodic behavior of the image, which indicates the uniformity of ejected jets through five injec-tion holes. Fig. 5shows the mean seeded particle concen-tration contours at different values of Z/D, which can be regarded as flow visualization pictures. Note that the

Fig. 2. Schematic views of test region and the Cartesian coordinate system (a) the ejected hole geometry, and (b) the curved duct.

0 A 45 B 90 135 150 -0.1 0 0.1 0.2 0.3 0.4 0.5 0.6 θ Cp

The straight duct

Fig. 3. Streamwise distribution of Cpalong the concave wall. (The DPIV measured area lies between A and B).

(5)

CCD images were divided into several interrogation areas (8 8 pixels). Each interrogation area corresponds to one measured point. When the seeding particle concentration, Cj, equals 1.0 at the measured point, the number of pixels

containing particle image (the bright spot) is greater than 8 in the chosen interrogation area for all 600 captured images. If the number of pixels having a bright signal is less than 8, the bright signal is considered background noise and not registered as a particle image. In Fig. 5a at Z/D = 0.13, the contour of a high mean concentration, Cj= 0.95, shows a clear kidney shape above the ejected

hole. There are low particle concentrations behind the ejected hole downstream at this elevation, which means that most of the jet flow moves away from the wall. In

Fig. 5b at Z/D = 0.31, the contour of the mean particle concentration at Cj= 0.95 maintains a kidney shape, and

the size of kidney shape is larger than that at Z/D = 0.13. Comparing results between Fig. 5a and b, the expansion of the brightest area indicates jet diffusion in the transverse direction. InFig. 5c, the area with Cj= 0.95 is reduced as

Z/D increases from 0.31 to 0.63. This is caused by mixing between the jet flow and the mainstream. As observed in

Fig. 5b and c, the contour of the mean particle concentra-tion, Cj= 0.8, at Z/D = 0.63 stretches further in the

streamwise direction than that at Z/D = 0.31. This stream-wise stretching of the contours is caused by the drag of shear stress exerting on the jet by the mainstream. At a higher elevation of Z/D = 0.88, a stronger mixing between the mainstream and the jet flow reduces the maximum mean particle concentration to a value of 0.92 and the mean particle concentration gradient in the streamwise direction, as shown inFig. 5d.

4.3. Mean velocity field

Fig. 6 shows three contours of the streamwise compo-nent of dimensionless mean velocity, UX/U0, at different

vertical elevations of Z/D. The contour distributions of UX/U0are quite similar inFig 6a–c, but the maximum

con-tour value increases with vertical elevation away from the wall. At Z/D = 0.13, low streamwise components of mean jet velocities can be observed on the plane just above the

Fig. 4. PIV time-averaged images obtained from 600 images at four positions of the laser sheet.

X/D Y/D Y/D Y/D Y/D 0.95 0.8 0.6 0.2 0.4 0.6 0.8 0.2 0.6 0.2 0.6 0.8 -0.5 0 1 2 3 4 5 6 -1 0 1 X/D 0.95 0.8 0.6 0.8 0.4 0.8 0.4 0.8 0.6 0.6 -0.5 0 1 2 3 4 5 6 -1 0 1 X/D 0.95 0.8 0.6 0.8 0.4 0.6 0.4 0.6 0.8 0.8 -0.5 0 1 2 3 4 5 6 -1 0 1 X/D 0.9 0.8 0.8 0.8 0.4 0.6 0.4 0.6 0.8 0.8 -0.5 0 1 2 3 4 5 6 -1 0 1

Fig. 5. Contours of mean seeded particle concentration on the different horizontal XY planes: (a) Z/D = 0.13, (b) Z/D = 0.31, (c) Z/D = 0.63, and (d) Z/D = 0.88.

(6)

hole exit, particularly in the region just downstream of the injection hole, as shown inFig. 6a. There is a local mini-mum in UX/U0at a value of 0.4 in the region just

down-stream of injection holes around X/D = 2.0. This indicates that the mainstream is not strong enough to bend the jet flow on the concave surface in this region. In

Fig. 6b, the contour of UX/U0on top of the injection hole

clearly shows a kidney shape and has a maximum value of 1.2 near the trailing edge of the jet hole as Z/D reaches 0.63. Apparently, the jet flow in this region is accelerated by jet flow bending due to blockage of the mainstream. However, the maximum value of UX/U0at 1.2 moves

fur-ther downstream as the measured plane was situated at a higher elevation, Z/D = 0.88, as shown inFig. 6c.

Fig. 7shows transverse component contours of dimen-sionless mean velocity, UY/U0, at different elevations of

Z/D. At Z/D = 0.13, UY/U0has an opposite sign but has

same magnitude, as shown inFig. 7a. This symmetric con-tour pattern indicates that jet flows on both sides of the injection holes move towards the centerline of the hole downstream and the maximum value of |UY/U0| 0.2 is

located near X/D 2.03.3. There are three almost-parallel lines with the value of UY/U0= 0. One is located at

the hole centerline and the others are located near the mid-plane between adjacent holes. It is expected that the vortical motion in the jet occurs in the region between these parallel lines. In addition, there is almost no transverse motion in the jet right on top of the injection hole at this elevation.

InFig. 7b at Z/D = 0.31, the transverse motion in the jet against the hole centerline strengthens in the region directly above the injection hole but weakens in the region down-stream. This might indicate CVP already forming in the jet at this elevation. Even higher, at Z/D = 0.63, the mag-nitude of UY/U0in the region directly above the injection

hole increases from 0 to 0.15 at Z/D = 0.13, as shown in

Fig. 7c. In addition, the area with |UY/U0| P 0.1 at

Z/D = 0.63 is much larger than that at Z/D = 0.31. Appar-ently, the strong vortical motion in the jet spreads out from the injection hole to downstream at Z/D = 0.63.

Fig. 8a–d show vertical component contour plots of dimensionless mean velocity, Uz/U0, at Y/D = 0.0, –0.25,

0 1 2 3 4 5 6 7 -1 -0.5 0 0.5 1 X/D Y/D Y/D Y/D 0.2 0.4 0.5 0.6 0.7 0.8 0 1 2 3 4 5 6 7 -1 -0.5 0 0.5 1 X/D 0.2 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 0 1 2 3 4 5 6 7 -1 -0.5 0 0.5 1 X/D 0.2 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2

Fig. 6. Contours of streamwise component of dimensionless mean velocity, UX/U0and mean 2D velocity fields (UX, UY) on the different horizontal XY planes: (a) Z/D = 0.13, (b) Z/D = 0.63, and (c) Z/D = 0.88.

(7)

–0.63, and –0.75, respectively. The results in Fig. 8a–b provide evidence that affects the film cooling protection over a concave surface. Downstream of the injection holes, the regions near the wall with positive Uz/U0 values have

poor film cooling protection on the surface. On the center injection hole plane at Y/D = 0.0,Fig. 8a shows that there are two maxima in the UZ/U0contour plot. One is an

abso-lute maximum located immediately above the hole exit and the other is a local maximum located in the 2.5 < X/D < 3.0 region. The latter local maximum in UZ/U0is produced by

the impingement of opposite transverse flow motions in the jet moving towards the injection hole centerline. This strong positive vertical velocity downstream of the injec-tion hole provides evidence of the lift-off of jet flow (Gold-stein and Stone [11]). Away from the injection hole centerline, the UZ/U0 contour plots in Fig. 8b at Y/D =

–0.25 are similar to those at Y/D = 0.0, but have lower absolute maximum value in UZ/U0at the upstream edge

of the injection hole and no local maximum in UZ/U0in

the leeward side of jet flow. Therefore, the lift-off of jet flow near the injection hole centerline is produced by opposite transverse flow motions in the jet near the wall surface. At Y/D =0.25, the jet is bent by the mainstream and is attached to the concave wall surface in the region down-stream of the injection hole. At Y/D =0.63, in Fig. 8c, negative values of Uz/U0 appear in the leeward side of

the jet flow. This phenomenon indicates jet flow down-wash. A maximum value of |Uz/U0| at 0.35 appears near

the concave wall in the 3.2 < X/D < 4.2 region. There is no doubt that effective film cooling could be found in this region due to the jet flow downwash. On the midplane between two adjacent holes at Y/D =0.75, the jet flow downwash becomes even more obvious than at Y/D = 0.63 since the maximum value of |Uz/U0| increases from

0.35 at Y/D =0.63 to 0.45. This is due to interaction between CVP in the neighboring jets. If an observers stands at the upstream side of a row of injection holes to observe the CVP flow direction in the jet, the right CVP vortex

0 1 2 3 4 5 6 7 -1 -0.5 0 0.5 1 X/D Y/D -1 -0.5 0 0.5 1 Y/D -1 -0.5 0 0.5 1 Y/D -0.2 -0.1 0.0 0.1 0.2 0 1 2 3 4 5 6 7 X/D -0.1 -0.05 0.0 0.05 0.1 0 1 2 3 4 5 6 7 X/D -0.15 -0.1 0.0 0.1 0.15

Fig. 7. Contours of the transverse component of dimensionless mean velocity, UY/U0and mean 2D velocity fields (UX, UY) on the different horizontal XY planes: (a) Z/D = 0.13, (b) Z/D = 0.31, and (c) Z/D = 0.63.

(8)

rotates clockwise and the left CVP rotates counter-clock-wise. Since the spacing between adjacent holes is only 3D, rotating-vortex pairs in the neighboring jets lie against each other at midplane.

4.4. Flow patterns of jets into a mainstream

Fig. 9shows cross-sectional views of the contour plots of the dimensionless projected velocity component, UYZ/U0, and projected well spaced streamlines at X/D =

2.0 and 3.0, respectively. InFig. 9a and b, distinct stream-line characteristics can be found in two different regions. One region has near straight lines close to the injection hole

center plane, and the spacing between neighboring stream-lines is narrower near the wall and wider away from the wall. This phenomenon indicates that jet flow upward motion is strongly restrained by the mainstream. The other streamline characteristic shows a strong vortex motion in the left corner. As indicated in Fig. 9a, the vortex has a zero value of UYZ/U0 at location (Y/D, Z/D) = (0.45,

0.33) on the plane at X/D = 2.0. The mainstream blockage (reduction in streamwise velocity component of jet flow in

Fig. 6b) and the interaction of adjacent jets (negative verti-cal velocity component of jet flow as shown inFig. 8c and d) contributed to the circulation of this streamwise vortex. Jet lift-off can be observed from the upward flow motions

0 1 2 3 4 5 6 7 0 0.5 1 1.5 2 X/D Z/D Z/D Z/D Z/D 0.1 0.2 0.28 0.4 0.6 0.8 0 1 2 3 4 5 6 7 0 0.5 1 1.5 2 X/D 0.1 0.2 0.4 0.6 0.7 0 1 2 3 4 5 6 7 0 0.5 1 1.5 2 X/D -0.35 -0.3 -0.2 -0.1 0 0.05 0 1 2 3 4 5 6 7 0 0.5 1 1.5 2 X/D -0.45 -0.4 -0.3 -0.2 -0.1 0 0.05

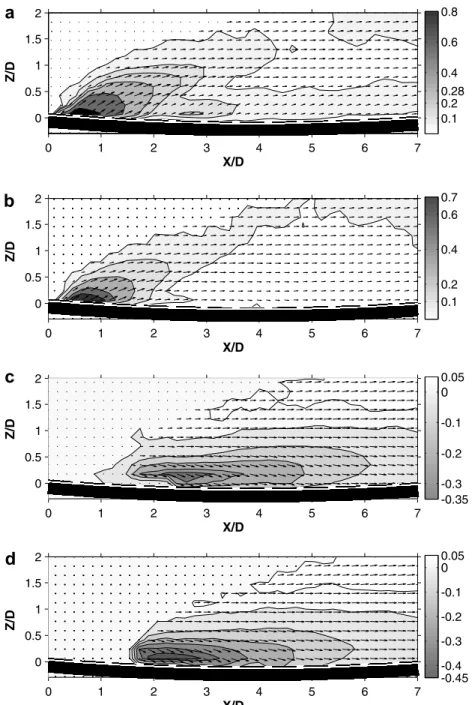

Fig. 8. Contours of the vertical component of dimensionless mean velocity, Uz/U0and mean 2D velocity fields (UX, Uz) on the different vertical XZ planes: (a) Y/D = 0.0, (b) Y/D =0.25, (c) Y/D = 0.63, and (d) Y/D = 0.75.

(9)

in Fig. 9a–b at all streamwise locations. In Fig. 9b, the value of UYZnear the injection hole center plane decreases

from 0.3 to 0.1 as X/D increases from 2.0 to 3.0.

Fig. 10(a)–(d) show the perspective views of streamline distributions where starting points are located at the same vertical elevations of Z/D = 0.19 on different transverse planes, Y/D =0.025, Y/D = 0.25, Y/D = 0.30, and Y/D =0.375. The construction of three-dimensional streamlines is obtained from the measured time-averaged 3D velocity field using the approach described by Kara-mcheti [18]. The spacing between starting points along the streamwise direction on each transverse plane is 0.1D. Since the injection angle of jet flow is 35°, no jet flow can be found at an elevation of Z/D = 0.19 directly above the upstream edge of the injection hole. The upstream most streamline starts at 0.1D from the upstream injection hole edge.Figs. 11 and 12illustrate the side and top view of spa-tial streamline distributions of Fig. 10, respectively. Note that the data shown inFig. 10a is very much representative for the flow characteristics of the injection center plane. Here, for Y/D =0.025, It is clear that the spacing between jet flow streamlines, remains virtually the same as the jet flow travels downstream. It can be confirmed by results shown in Fig. 11a. In Fig. 10b, jet expansion results in the transverse movement of streamlines starting at Y/D =0.25 towards the midplane of adjacent jets when the jet travels downstream. In addition, if an observer stands at the upstream side of an injection hole row to observe, streamlines are swirled clockwise. As shown in

Fig. 10b, streamlines starting from the front portion of the injection hole travel towards the midplane of adjacent jets, but those starting from the rear portion of the injec-tion hole travel upwards and slightly towards the jet hole center plane, as shown in Figs. 11 and 12b. Streamline swirling is caused by CVP in the jet. Streamline swirling

becomes more obvious as the transverse streamline starting point moves from Y/D =0.25 to 0.30, as indicated in

Fig. 10b and c. Near the transverse side of the injection hole at Y/D =0.375, streamlines starting near the front of the injection hole travel upwards first and then are pushed towards the wall by the mainstream, as shown in

Fig. 10d. When the streamlines nearly touch the wall, the present measured data are not close enough to the wall to determine the passage of streamlines. Thus, the streamlines end near X/D  5.0, as indicated in Fig. 12d. However, the reason for upstream most streamline termi-nation near X/D 3.0 is due to mixing occurring between the mainstream and the ejected jet.

As observed from the streamline passages shown in

Figs. 10–12, the jet flow ejected from an inclined jet into a mainstream has different flow patterns depending on var-ious transverse positions. It can be divided into three zones, a straight flow zone, a swirling flow zone, and a touch-down flow zone. Near jet hole center plane (a straight flow zone), the jet flow moves almost straight downstream. As Y/D increases (a swirling flow zone), jet flow swirling becomes more significant. Near the transverse edge of the injection hole (a touch-down flow zone), the reattachment of jet flow ejects can be found, which is caused by blockage of the mainstream.

If one can track the particles on the circular ring enclos-ing the jet at some locations above the injection hole, one can obtain the physical insight of evolution of ejected jet in the mainstream. Fig. 13shows the temporal evolution of a ring-shape fluid filament surrounding the ejected jet right above the hole exit. Note that the first ring-type fila-ment right above the injection hole is chosen in such a way that the vorticity of the fluid particle on the ring-type fila-ment remains the same. However, the vorticity of every particle on the filament cannot remain the same as the

0.0 2 0.05 0.0 5 0.05 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0 .2 0.2 0 .2 0 .2 0.3 0 .3 0.3 0 .3 Y/D Z/D -0.75 -0.5 -0.25 0 0.2 0.4 0.6 0.8 1 1.2 0.02 0.02 0.05 0.05 0.05 0.05 0.0 5 0.05 0.05 0.05 0.1 0.1 0.1 0.1 0 .1 0.2 0.2 0.2 0 2 0.3 Y/D Z/D -0.75 -0.5 -0.25 0 0.2 0.4 0.6 0.8 1 1.2

Fig. 9. Cross-sectional views of the YZ plane streamline distributions with contours of its 2D dimensionless velocity magnitude (UYZ=U0¼ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi U2 Yþ U 2 Z q

(10)

0 1 2 3 4 5 6 7 -0.75 -0.5 -0.250 0.2 0.4 0.6 0.8 1 1.2 X/D Y/D Z/D 0 1 2 3 4 5 6 7 X/D Y/D Z/D 0 1 2 3 4 5 6 7 X/D 0 1 2 3 4 5 6 7 X/D -0.75 -0.5 -0.250 0.2 0.4 0.6 0.81 1.2 Y/D Z/D -0.75 -0.5 -0.250 0.2 0.4 0.6 0.81 1.2 Y/D Z/D -0.75 -0.5 -0.250 0.2 0.4 0.6 0.8 1 1.2

Fig. 10. Perspective views of streamline distributions starting from Z/D = 0.19 with equal spacing of 0.1D along streamwise direction at different transverse locations: (a) Y/D =0.025, (b) Y/D = 0.25, (c) Y/D = 0.30, and (d) Y/D = 0.375.

(11)

ring-shape fluid filament travels downstream. This is because the fluid particle on the filament experiences differ-ent levels of the mainstream effect. Since the fluid particles’ velocities on the ring are not the same, the ring shape is dis-torted as the fluid particles move downstream. Successive trajectories of the ring-shape filament inFig. 13 are con-structed by tracing the fluid particles from the first ring-shape filament at different times. The upstream portion of the circular ring is tilted up when the fluid particles move downstream because the jet is bent towards the wall by the mainstream. This stretch of circular ring in the trans-verse direction results from transtrans-verse shear stress induced by the interaction between the jet flow, the mainstream, and a pair of streamwise vortices. As mentioned in the pre-vious section, this pair of streamwise vortices occurs in the wake region downstream of the ejected jet.

5. Conclusions

This study performed velocity measurements and flow visualizations for a row of inclined jets though a forward expanded hole into a mainstream over a concave surface

using a DPIV system at Re = 5820. Each of ejected holes had a streamwise inclined angle of 35° bounded on a con-cave surface with constant radius of 382 mm. the spacing of adjacent holes is 1.5D. The density and the momentum flux ratio of the mainstream to the jet flow were 1.0. The mea-sured region was located downstream of the central injec-tion hole with a streamwise distance, X/D, ranging from 0.5 to 7.0. The following conclusions are obtained from measured distributions of mean seeded particle concentra-tions, three-dimensional time-averaged velocity field, and streamlines of a row of ejected jets into the mainstream: 1. At the center plane, the strong positive vertical mean

velocity, Uz/U0, downstream of the injection hole

pro-vides evidence of the jet flow lift-off (Goldstein and Stone

[11]). This positive value of Uz/U0has poor film cooling

protection on the surface. Therefore, jet flow lift-off near the injection hole centerline is produced by opposite transverse flow motions in the jet near the wall surface. 2. A counter-rotating secondary-flow vortex pair

immedi-ately forms in the jet at a location between Z/D = 0.13 and 0.31 directly above the injection hole.

0 1 2 3 4 5 6 7 0.2 0.4 0.6 0.8 1 1.2 Z/D 0 1 2 3 4 5 6 7 X/D X/D X/D X/D Z/D 0 1 2 3 4 5 6 7 Z/D 0 1 2 3 4 5 6 7 Z/D 0.2 0.4 0.6 0.8 1 1.2 0.2 0.4 0.6 0.8 1 1.2 0.2 0.4 0.6 0.8 1 1.2

Fig. 11. Side views of streamline distributions of Fig. 11 starting from Z/D = 0.19 with equal spacing of 0.1D along the streamwise direction at different transverse locations: (a) Y/D =0.025, (b) Y/D = 0.25, (c) Y/D = 0.30, and (d) Y/D = 0.375. i.e. each dot distance along a streamline keeps a fixed time-period.

(12)

3. Depending on flow characteristics, the ejected jet flow at transverse locations can be categorized into three flow zones, namely, a straight flow zone, a swirling flow zone, and a touch-down flow zone.

4. In addition, a ring-shape fluid filament surrounding the jet right above the hole exit is significantly stretched and bent transversely towards the wall as the ring-shape fluid filament travels downstream.

0 1 2 3 4 5 6 7 -0.75 -0.5 -0.25 0 X/D X/D X/D X/D 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 Y/D Y/D Y/D Y/D 0 1 2 3 4 5 6 7 -0.75 -0.5 -0.25 0 -0.75 -0.5 -0.25 0 -0.75 -0.5 -0.25 0

Fig. 12. Top views of streamline distributions ofFig. 11starting from Z/D = 0.19 with equal spacing of 0.1D along the streamwise direction at different transverse locations: (a) Y/D =0.025, (b) Y/D = 0.25, (c) Y/D = 0.30, and (d) Y/D = 0.375. i.e. each dot distance along a streamline keeps a fixed time-period. 0 1 2 3 4 5 6 7 -0.75 -0.5 -0.250 0.2 0.4 0.6 0.8 1 1.2 X/D Y/D Z/D

(13)

References

[1] R.M. Kelso, T.T. Lim, A.E. Perry, An experimental study of round jets in cross-flow, J. Fluid Mech. 306 (1996) 111–144.

[2] S.H. Smith, M.G. Mungal, Mixing, structure and scaling of the jet in crossflow, J. Fluid Mech. 357 (1998) 83–122.

[3] L. Cortelezzi, A.R. Karagozian, On the formation of the counter-rotating vortex pair in transverse jets, J. Fluid Mech. 446 (2001) 347– 373.

[4] S.D. Peterson, M.W. Plesniak, Evolution of jets emanating from short holes into crossflow, J. Fluid Mech. 503 (2004) 57–91. [5] A. Krothapalli, L. Lourenco, J.M. Buchlin, Separated flow upstream

of a jet in a crossflow, AIAA J. 28 (1990) 414–420.

[6] T.F. Fric, A. Roshko, Vortical structure in the wake of a transverse jet, J. Fluid Mech. 279 (1994) 1–47.

[7] D.S. Liscinsky, B. Truc, J.D. Holdman, Crossflow mixing of noncircular jets, J. Propuls. Power 12 (2) (1996) 225–230.

[8] S.W. Burd, R.W. Kaszeta, T.W. Simon, Measurements in film cooling flows: hole L/D and turbulence intensity effects, ASME J. Turbo-mach. 120 (1998) 791–798.

[9] K. Thole, M. Gritsch, A. Schulz, S. Wittig, Flowfield measurement for film cooling holes with expanded exits, ASME J. Turbomach. 120 (1998) 327–336.

[10] G.M. Carlomagno, Colours in a complex fluid flow, Opt. Laser Technol. 38 (2006) 230–242.

[11] R.J. Goldstein, L.D. Stone, Row-of-holes film cooling of curved walls at low injection angles, ASME J. Turbomach. 119 (1997) 574–579. [12] A. Melling, Tracer particles and seeding for particle image

velocime-try, Meas. Sci. Technol. 8 (1997) 1406–1416.

[13] R.C. Flagan, J.H. Seinfeld, Fundamental of air pollution engineering, Prentice Hall, Englewood Cliffs, New Jersey, 1998, pp. 290–357. [14] M. Raffel, C. Willert, J. Kompenhans, Particle image velocimetry: a

practical guide, Springer, 1998, pp. 13–16.

[15] S.J. Kline, F.A. Mcclintock, Describing uncertainties in single sample experiments, Mech. Eng. (1953) 3–8.

[16] M.P. Schultz, R.J. Volino, Effects of concave curvature on boundary layer transition under high free stream turbulence conditions, ASME J. Fluid Eng. 125 (2003) 18–27.

[17] K.C. Muck, P.H. Hoffmann, P. Bradshaw, The effect of convex surface curvature on turbulent boundary layers, J. Fluid Mech. 161 (1985) 347–369.

[18] K. Karamcheti, Principles of Ideal-Fluid Aerodynamics, Stanford University, 1966 (Chapter 4, pp.162–163).

數據

Fig. 1a shows a schematic view of the experimental mechanism. The experiments were performed in a wind tunnel with a curved test section
Fig. 1. Schematic views of (a) the experimental set-up, and (b) the DPIV system.
Fig. 3 shows the streamwise distribution of pressure coefficient, C p , on the concave surface, which is positioned only at a mainstream without ejected flows
Fig. 4. PIV time-averaged images obtained from 600 images at four positions of the laser sheet.
+7

參考文獻

相關文件

Particles near (x, y, z) in the fluid tend to rotate about the axis that points in the direction of curl F(x, y, z), and the length of this curl vector is a measure of how quickly

[This function is named after the electrical engineer Oliver Heaviside (1850–1925) and can be used to describe an electric current that is switched on at time t = 0.] Its graph

A discussion of the Dapagli flozin and Prevention of Adverse Outcomes in Chronic Kidney Disease (DAPA-CKD) trial, the Effect of Sotagli flozin on Car- diovascular Events in Patients

We solve the three-in-a-tree problem on

6 《中論·觀因緣品》,《佛藏要籍選刊》第 9 冊,上海古籍出版社 1994 年版,第 1

The first row shows the eyespot with white inner ring, black middle ring, and yellow outer ring in Bicyclus anynana.. The second row provides the eyespot with black inner ring

In BHJ solar cells using P3HT:PCBM, adjustment of surface energy and work function of ITO may lead to a tuneable morphology for the active layer and hole injection barrier

a) Excess charge in a conductor always moves to the surface of the conductor. b) Flux is always perpendicular to the surface. c) If it was not perpendicular, then charges on
