PPISearch: a web server for searching
homologous protein–protein interactions
across multiple species
Chun-Chen Chen
1, Chun-Yu Lin
1, Yu-Shu Lo
1and Jinn-Moon Yang
1,2,3,*
1
Institute of Bioinformatics and Systems Biology, 2Department of Biological Science and Technology and
3
Core Facility for Structural Bioinformatics, National Chiao Tung University, Hsinchu, 30050, Taiwan Received March 4, 2009; Revised April 13, 2009; Accepted April 15, 2009
ABSTRACT
As an increasing number of reliable protein–protein interactions (PPIs) become available and high-throughput experimental methods provide system-atic identification of PPIs, there is a growing need for fast and accurate methods for discovering homologous PPIs of a newly determined PPI. PPISearch is a web server that rapidly identifies homologous PPIs (called PPI family) and infers transferability of interacting domains and functions of a query protein pair. This server first identifies two homologous families of the query, respectively, by using BLASTP to scan an annotated PPIs database (290 137 PPIs in 576 species), which is a collection of five public databases. We deter-mined homologous PPIs from protein pairs of homologous families when these protein pairs were in the annotated database and have significant joint sequence similarity (E 1040) with the query. Using these homologous PPIs across multiple species, this sever infers the conserved domain– domain pairs (Pfam and InterPro domains) and function pairs (Gene Ontology annotations). Our results demonstrate that the transferability of con-served domain-domain pairs between homologous PPIs and query pairs is 88% using 103 762 PPI queries, and the transferability of conserved func-tion pairs is 69% based on 106 997 PPI queries. The PPISearch server should be useful for searching homologous PPIs and PPI families across multiple species. The PPISearch server is available through the website at http://gemdock.life.nctu.edu.tw/ ppisearch/.
INTRODUCTION
Interactions between proteins are critical to most biolog-ical processes. To identify and characterize protein– protein interactions (PPIs) and their networks, many high-throughput experimental approaches, such as yeast two-hybrid screening, mass spectroscopy and tandem affinity purification and computational methods [phyloge-netic profiles (1), known 3D complexes (2) and interologs (3)] have been proposed (4). Some PPI databases, such as IntAct (5), BioGRID (6), DIP (7), MIPS (8) and MINT (9), have accumulated PPIs submitted by biologists, and those from mining literature, high-throughput experi-ments and other data sources. As these interaction data-bases continue growing in size, they become increasingly useful for analysis of newly identified interactions.
The discovery of sequence homologs to a known pro-tein often provides clues for understanding the function of a newly sequenced gene. As an increasing number of reliable PPIs become available, identifying homologous PPIs should be useful to understand a newly determined PPI. Recently, several PPI databases (e.g. IntAct and BioGRID) allow users to input one or a pair of proteins or gene names to acquire the PPIs associated with the query protein(s). Few computational methods (10,11) applied homologous interactions to assess the reliability of PPIs.
To address this issue, we proposed the PPISearch server for searching homologous PPIs across multiple species and annotating the query protein pair. According to our knowledge, PPISearch is the first public server that iden-tifies homologous PPIs from annotated PPI databases and infers transferability of interacting domains and functions between homologous PPIs and the query. PPISearch is an easy-to-use web server that allows users to input a pair of protein sequences. Then, this server finds homologous PPIs in multiple species from five public databases
*To whom correspondence should be addressed. Tel: 886 3 571212 56942; Fax: 886 3 5729288; Email: [email protected] ß 2009 The Author(s)
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/ by-nc/2.0/uk/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
(IntAct, MIPS, DIP, MINT and BioGRID) and annotates the query. Our results demonstrate that this server achieves high agreements on interacting domain–domain pairs and function pairs between query protein pairs and their respective homologous PPIs.
METHOD AND IMPLEMENTATION
Figure 1 shows the details of the PPISearch server to search homologous PPIs of a query protein pair (A and B) by the following steps (Figure 1A). This server first identifies the homologous families (A0 and B0) of A and B, respectively, with E 1010 by using BLASTP to scan the annotated PPI databases (Figure 1B and C). All protein pairs of A0 and B0 are considered candidates of homologous PPIs. We selected homologous PPIs from these candidates, which are recorded in the anno-tated databases, and have significant joint sequence simi-larity (E 1040) between candidates and the query (Figure 1D). Then, we measure the conservation ratios
of domain-domain pairs [DDPs; Pfam (12) and InterPro (13) domains] and protein functions [Gene Ontology annotations (14)] derived from these homologous PPIs of the query (Figure 1E). This server provides conserved DDPs and protein functions for annotating the query. Finally, this server provides homologous PPIs in multiple species; conservations and GO annotations of protein functions; conservations and annotations of DDPs; and the best-matched protein pair of the query.
Homologous protein–protein interaction
The concept of homologous PPI is the core of the PPISearch server to identify the PPI family and measure DDPs and functional conservations of a query protein pair (A and B). We define a homologous PPI as follows: (1) homologs of A and B are proteins with significant sequence similarity BLASTP E-values 1010 (3,15); (2) significant joint sequence similarity (joint E-value JE1040) between two pairs, i.e. (A, A10) and (B, B10),
of the query protein pair (A and B) and their respective Annotated databases
(290,137 protein-protein interactions) BLASTP E-value 10–10 BLASTP E-value 10–10
Homologous PPIs σ1A-adaptin of mouse (P61967) 1-adaptin of mouse (P22892) B A C P61966 P61967 P56377 Q9DB50 Q9VCF4 P35181 P62743 P53680 O75843 O43747 Q86B59 Q9W388 Q9UPM8 Q12028 P17427 O95782 O75843 P61966 P61967 O43747 P56377 O75843 O43747 O43747 Q9DB50 O75843 Q9VCF4 P61966 Mouse Human Human Human Human Yeast Human Human Human Fruit fly Human Human Fruit fly Human Human Human Mouse Mouse Human Human Mouse Mouse Fruit fly Fruit fly Human Yeast Mouse Human
Domain-domain pairsConservation ratio 14/14 = 1.0 13/14 = 0.93 2/14 = 0.14 0.6 E 1/14 = 0.07 PF01602 PF02883 PF02296 PF07718 PF01217 PF01217 PF01217 PF01217 interacting domains Step 2: Identify homologous protein
families (A’ and B’) of A and B, respectively, with E-values 10–10using
BLASTP from annotated PPI databases
Step 4: Measure the conservation ratios
of all of domain-domain pairs (DDPs) and protein functions derived from these homologous PPIs of aquery. The DDPs and function terms are considered as conservation if their ratios 0.6.
Step 1: Query a pair of protein sequences
(A and B)
Step 5: Output homologous PPIs,
conserved DDPs and functions, and multiple sequence alignments across multiple species for the query
Step 3: Identify homologous PPIs which
are protein pairs of A’ and B’ and recorded in annotated databases with joint E-values (JE) 10–40. D P61967 O43747 Human Mouse P61966 O75843 Human Human P56377 Q86B59 Fruit fly Human Q9W388 Q9DB50 Fruit fly Mouse Q9UPM8 Q9VCF4 Human Fruit fly Q12028 Yeast P35181 Yeast P62743 P17427 Mouse Mouse Human Human P53680 O95782 … …
σ1A-adaptin family 1-adaptinfamily
1.7e–134 1.7e–134 1.7e–134 1.7e–134 1.7e–129 1.7e–129 1.0e–128 1.0e–128 2.0e–124 2.0e–124 5.5e–73 6.5e–63 9.5e–55 6.0e–54 JE g g
Figure 1. Overview of the PPISearch server for homologous protein–protein interaction search and conservation analysis using proteins s1A-adaptin and g1-adaptin as the query. (A) The main procedure. (B) Identify homologs of s1A-adaptin and g1-adaptin using BLASTP to scan the annotated PPI databases. (C) The homologous families of s1A-adaptin and g1-adaptin with E-values 1010. (D) Homologous PPIs of the query. (E) Conservation ratios of domain-domain pairs derived from homologous PPIs.
homologs (A10 and B10) recorded in annotated PPI
databases. This work followed previous studies (3,15) to define joint sequence similarity as
JE¼ ffiffiffiffiffiffiffi EA p
EB 1
where EA is the E-value of proteins A and A10; and EB
is the E-value of proteins B and B10. Here, JE1040 is
considered a significant similarity according to statistical analysis of 290 137 annotated PPIs and 6597 orthologous PPI families collected from the PORC database (16). Annotations of homologous PPI
A query protein pair and its homologous PPIs, significant both in sequence and joint sequence similarity, can be considered a PPI family. The concept of PPI families is similar to that of protein sequence family (12,13) and pro-tein structure family (17). We believe that PPI families can be applied widely in biological investigations. Here, we assume that the members of a PPI family are conserved on specific functions and in interacting domain(s). Using these conservations of a PPI family, our server can be used to annotate the protein functions and DDPs of a query protein pair.
Transferability of domain–domain pairs. A query protein pair and its homologous PPIs often show conserve inter-acting DDPs. To measure the occurence of each DDP in a PPI family, we define the conservation ratio (CRDp) of a
DDPpin homologous PPIs of a query protein pair i as
CRDp¼
Number of homologous PPIs with a domain pair p Number of homologous PPIs of query i
2 Figure 1D and E show an example to calculate the CRD values of four DDPs. In addition, to evaluate the transferability of DDPs between a query and its homolo-gous PPIs statistically, this study defines the shared ratio (SRD) of DDPs using CRDpand 103 762 annotated PPIs
as query protein pairs. The SRD of DDPs against different ratio c is given as SRD ¼ P i2QdiðCRDp cÞ P i2QDiðCRDp cÞ 3 where Q is a set of annotated PPIs in databases (here, the total number of PPIs in Q is 103 762); i is a query protein pair; di(CRDpc) is the number of DDPs with CRDp
values exceeding c; and these DDPs are shared by the query i and its homologous PPIs. Di(CRDpc) is the
total number of the DDPs with CRDpc, where DDPs
are derived from homologous PPIs of the query i. Here, this work used a statistical approach to determine the threshold c (here, c = 0.6) of CRDp to yield reliable
DDP annotations with an acceptable level of Di. Please
note that CRDp and SRD are computed from a query
protein pair and a set of queries, respectively.
Transferability of molecular function. The members of a PPI family often have similar molecular functions. PPISearch uses the molecular function (MF) terms of
Gene Ontology (14) to annotate the functions of a query protein pair. The conservation ratio (CRFm) of an MF
term pair (MFP) m in homologous PPIs of a query i is utilized to measure the agreement and is defined as
CRFm¼
Number of homologous PPIs with a GO MF term pair m Number of homologous PPIs of query i
4 Additionally, the shared ratio of MFPs (SRF), which is statistically derived from 106 997 annotated queries, is utilized to estimate the transferability of conserved func-tion pairs shared by the query and its homologous PPIs. The SRF against different ratio k is defined as
SRF ¼ P i2QfiðCRFmkÞ P i2QFiðCRFmkÞ 5 where Q is a set of annotated PPIs in databases; i is a query protein pair; fi(CRFmk) is the number of MFPs
with CRFmvalues exceeding k and these MFPs are shared
by the query i and its homologous PPIs; and Fi(CRFmk)
is the total number of MFPs with CRFmk, where MFPs
are derived from homologous PPIs of the query i. Here, k is set to 0.6.
INPUT, OUTPUT AND OPTIONS
The PPISearch is an easy-to-use web server (Figure 2). Users input a pair of protein sequences in FASTA format or UniProt ID, and choose E-value thresholds for homologs and for homologous PPIs (Figure 2A). In addition, users can assign the CRD and CRF thresholds, specific species and the number of homologous PPIs in a species.
Typically, the PPISearch server yields homologous PPIs within 20 s when sequence length is 350 (Figure 2B). This server identifies homologous PPIs in multiple species; conservations and GO annotations of protein functions; conservations and annotations of DDPs; and the best-matched protein pairs of the query (Figure 2C). Additionally, the PPISearch server provides multiple sequence alignments of homologous PPIs and indicates the conserved residues based on amino acid types. For each homologous PPI, this server shows the alignments and experimental annotations (e.g. interaction types, experimental methods, gene names and GO terms). Example analysis
1A-adaptin and g1-adaptin. Figure 1C and D show
search results using s1A-adaptin (UniProt accession number: P61967) and g1-adaptin (P22892) of Mus muscu-lusas the query. These two proteins are components of the heterotetrameric adaptor protein complex 1 (AP-1), which medicates clathrin-coated vesicle transport from the trans-Golgi network to endosome (18). According to the crystal structure (PDB code 1W63) (19), this protein pair is a physical interaction, but it is not recorded in the annotated PPI database. For this query, the PPISearch server iden-tifies 14 homologous PPIs, a PPI family, from four species (human, mouse, fruit fly and yeast). This PPI family has
four DDPs (Figure 1E)—PF01217-PF01602 (CRD is 1.0), PF01217-PF02883 (0.93), PF1217-PF02296 (0.14) and PF01217-PF07718 (0.07). Two DDPs (PF01217-PF01602 and PF01217-PF02883) with highest CRD ratios are the domain compositions of the query and PF01217-PF01602 is the interacting domains (19).
This server allows users to choose the JE threshold
of homologous PPIs. For example, when JE is set to
10100(default value is 1040), the number of homologous PPIs decreases from 14 to 10 by filtering out the last four PPIs (Figure 1D). These 10 homologous PPIs consis-tently include the two DDPs PF01217-PF01602 and Figure 2. The PPISearch server search results using proteins MIX-1 and SMC-4 of Caenorhabditis elegans as the query. (A) The user interface for assignments of query protein sequences and E-value thresholds of homologs and homologous PPIs. (B) Homologous PPIs of MIX-1SMC-4 in multiple species and public databases. (C) Conserved protein functions (GO terms) and domain-domain pairs (Pfam and InterPro) of homologous PPIs with a conservation ratio 0.6.
PF01217-PF02883, each with a CRD = 1.0. Furthermore, users can choose the best match or number of homologous PPIs in a species. In this manner, the PPISearch server is able to select the primary homologous PPIs of each species for specific applications, such as evolutionary analysis of essential proteins.
MIX-1 and SMC-4. Mitotic chromosome and X-chromo-some-associated protein (MIX-1, Q09591) and structural maintenance of chromosomes protein 4 (SMC-4, Q20060) of Caenorhabditis elegans are members of SMC protein family, and are required for mitotic chromosome segrega-tion (20). Both MIX-1 and SMC-4 are essential compo-nents in forming the condensin complex for interphase chromatin to convert into mitotic-like condense chromo-somes (20,21). Using C. elegans MIX-1 and SMC-4 as the query protein pair and JE is set to 1040, the PPISearch
server found seven homologous interactions from anno-tated PPI databases (Figure 2B). These seven homologous PPIs are consistently SMC–SMC protein interactions, including 24, 34 and SMC-2SMC-1, in four species. Among these homologous PPIs, two PPIs, Q95347-Q9NTJ3 (Homo sapiens) and P38989-Q12267 (Saccharomyces cerevisiae), are ortholo-gous interactions of the query MIX-1SMC-4 (16).
These seven homologous PPIs of MIX-1 and SMC-4 include 136 GO term pairs. Among these GO terms, the CRF ratios of four GO MF term pairs and two GO BP term pairs exceed 0.6 (Figure 2C). These six GO term pairs are consistent with the term-pair combinations of MIX-1 and SMC-4. For example, MIX-1 and SMC-4 have the same two GO MF annotations, protein binding (GO:0005515) and ATP-binding (GO:0005524). Addition-ally, these seven homologous PPIs contain four DDPs with CRD ratios of 1.0. These four DDPs, PF02463-PF02463, PF06470-PF02463, PF02463-PF06470 and PF06470-PF06470, are recorded in iPfam (12) and are consistent with the query pair. The hinge–hinge interaction (PF02463-PF02463) is exper-imentally proved, and is conserved in the eukaryotic
SMC-2–SMC-4 heterodimer (22). These analytical results reveal that the PPISearch server is able to identify homol-ogous PPIs that share conserved DDPs and MFPs with the query.
RESULTS
To evaluate the usefulness of the PPISearch server for the discovery of homologous PPIs and for the annotations of a query protein pair, we selected two query protein sets, termed HOM and ORT. To search homologous PPIs, HOM and ORT are used to assess PPISearch performance and to determine the threshold of joint E-value JE
[Equation (1)] (Figure 3A). In addition, the HOM set was applied to infer the relations between conservation ratios [CRD and CRF defined in Equations (2) and (4)] and the transferability of DDPs and MFPs, respectively, between a query and its homologous PPIs (Figure 3B and Supplementary Figure S1). The HOM set includes all 290 137 PPIs and the ORT set has 6597 orthologous PPI families (14 571 PPIs) derived from the annotated PPI database and PORC orthology database (16).
HOM and ORT were used to assess the PPISearch server in identifying homologous PPIs and orthologous PPIs, respectively, by searching the annotated PPI data-base (290 137 PPIs with 54 422 proteins). Figure 3A shows the relationships between joint E-value JE and number
of orthologous PPIs (black) and homologous PPIs (red). The orthologous PPIs often have the same functions and domains. When JE1040, the number of
ortholo-gous PPIs decreases significantly; conversely, the number of homologous PPIs decreases more gradually than that at JE10
40
. This result shows that the proposed method is able to identify 98.2% orthologous PPIs with a reasonable number of homologous PPIs when JE1040.
To evaluate the transferability of DDPs and MFPs between a query and its homologous PPIs, we used the SRD [Equation (3)] and SRF [Equation (5)]. The HOM set is used to evaluate the utility of the PPISearch server in annotating the query protein pair. By excluding proteins
0 5000 10000 15000 20000 25000 10 20 30 40 50 60 70 80 90 100 110 120 –log(Joint E-value)
Number of orthologous PPI
s 0 50000 100000 150000 200000 250000 300000 350000 400000 450000 500000
Number of homologous PPI
s A 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Conservation ratio of DDPs in homologous PPIs
Shared ratio of DDPs (SRD) 0 50000 100000 150000 200000 250000 300000 350000 400000 Number of domain p airs (NDP ) SRD (logJE<-10) SRD (logJE<-40) SRD (logJE<-100) NDP (logJE<-10) NDP (logJE<-40) NDP (logJE<-100) B

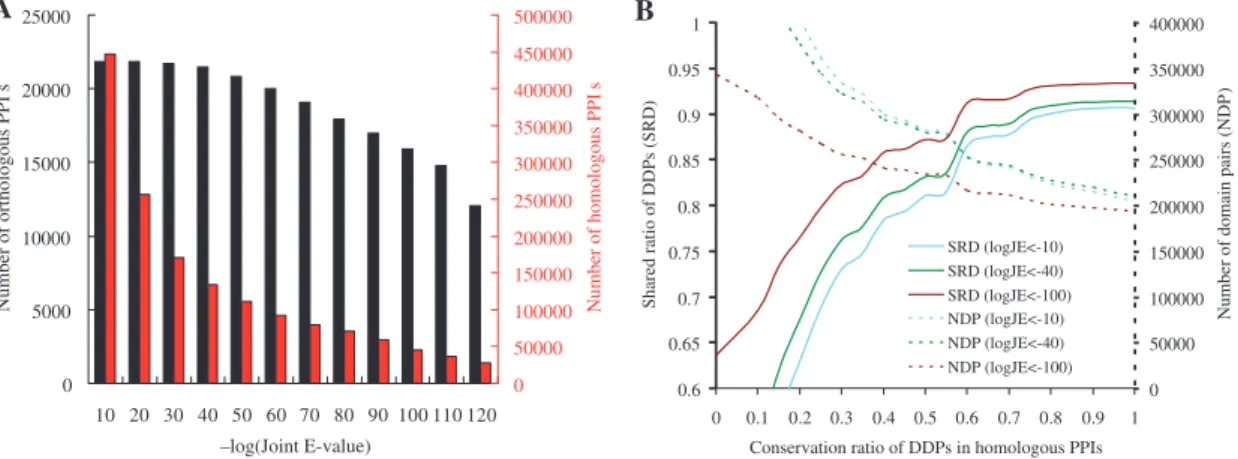

Figure 3. Evaluations of the PPISearch server. (A) The relationships between joint E-value JEand the numbers of orthologous PPIs (black) and
homologous PPIs (red) derived from 290 137 annotated PPIs. (B) The relationships between conservation ratios of DDPs with shared ratios of DDPs and with the number (dotted lines) of DDPs derived from 103 762 PPI families. The shared ratio of DDPs is 0.88 and the number of DDPs is 252 728 when the conservation ratio is 0.6 and joint E-value is 1040(green lines).
without domain annotations from the query set, 103 762 PPIs are used to evaluate the transferability (SRD) of conserved DDPs between these query PPIs and their respective homologous PPIs (Figure 3B). The transferabil-ity (SRF) of conserved functions between the 106 997 PPIs and their homologous PPIs is assessed by excluding pro-teins without molecular function terms of GO from the original query set (Supplementary Figure S1).
Figure 3B shows the relationship between conservation ratios (CRD) of DDPs and the SRD ratios. The SRD ratio increases significantly (solid lines) when the CRD increases and CRD 0.6. Conversely, the number of DDPs derived from 103 762 PPI families decreases (dotted lines) as CRD increases. If the CRD is set to 0.6 and the joint E-value is set to 1040(green lines), the SRD is 0.88 and the number of DDPs is 252 728. This result demonstrates that members of a PPI family derived by PPISearch reliably share DDPs (or interacting domains). Additionally, similar results were obtained for transfer-ability of conserved functions between homologous PPIs and the query (Supplementary Figure S1). The members of a PPI family have similar molecular functions, and SRF ratios are highly correlated with conservation ratios (CRF) of MFPs. When the CRF is 0.6 and the joint E-value is 1040 (green lines), the SRF is 0.69 and the number of MFPs is 454 251.
These results reveal that the PPISearch server achieves a high SRD with a reasonable number of DDPs when the joint E-value is set to 1040. In summary, these experimen-tal results demonstrate that this server achieves high agree-ment on DDPs and MFPs between the query and their respective homologous PPIs.
CONCLUSIONS
This study demonstrates the utility and feasibility of the PPISearch server in identifying homologous PPIs and inferring conserved DDPs and MFPs from PPI families. By allowing users to input a pair of protein sequences, PPISearch is the first server that can identify homologous PPIs from annotated PPI databases and infer transferabil-ity of interacting domains and functions between homol-ogous PPIs and a query. Our experimental results demonstrate that the query protein pair and its homolo-gous PPIs achieve high agreement on conserved DDPs and MFPs. We believe that PPISearch is a fast homolo-gous PPIs search server and is able to provide valuable annotations for a newly determined PPI.
SUPPLEMENTARY DATA
Supplementary Data are available at NAR Online.
ACKNOWLEDGEMENTS
Authors are grateful to both the hardware and software supports of the Structural Bioinformatics Core Facility at National Chiao Tung University.
FUNDING
National Science Council and partial support of the ATU plan by MOE to J.-M.Y. Funding for open access charge: National Science Council of the Republic of China and MOE ATU.
Conflict of interest statement. None declared.
REFERENCES
1. Pellegrini,M., Marcotte,E.M., Thompson,M.J., Eisenberg,D. and Yeates,T.O. (1999) Assigning protein functions by comparative genome analysis: protein phylogenetic profiles. Proc. Natl Acad. Sci. USA, 96, 4285–4288.
2. Chen,Y.-C., Lo,Y.-S., Hsu,W.-C. and Yang,J.-M. (2007)
3D-partner: a web server to infer interacting partners and binding models. Nucleic Acids Res., W561–W567.
3. Yu,H.Y., Luscombe,N.M., Lu,H.X., Zhu,X.W., Xia,Y., Han,J.D.J., Bertin,N., Chung,S., Vidal,M. and Gerstein,M. (2004) Annotation transfer between genomes: Protein-protein interologs and protein-DNA regulogs. Gen. Res., 14, 1107–1118.
4. Shoemaker,B.A. and Panchenko,A.R. (2007) Deciphering protein-protein interactions. Part I. Experimental techniques and databases. PLoS Comput. Biol., 3, 337–344.
5. Kerrien,S., Alam-Faruque,Y., Aranda,B., Bancarz,I., Bridge,A., Derow,C., Dimmer,E., Feuermann,M., Friedrichsen,A., Huntley,R. et al. (2007) IntAct – open source resource for molecular interaction data. Nucleic Acids Res., 35, D561–D565.
6. Stark,C., Breitkreutz,B.J., Reguly,T., Boucher,L., Breitkreutz,A. and Tyers,M. (2006) BioGRID: a general repository for interaction datasets. Nucleic Acids Res., 34, D535–D539.
7. Salwinski,L., Miller,C.S., Smith,A.J., Pettit,F.K., Bowie,J.U. and Eisenberg,D. (2004) The Database of Interacting Proteins: 2004 update. Nucleic Acids Res., 32, D449–D451.
8. Mewes,H.W., Dietmann,S., Frishman,D., Gregory,R., Mannhaupt,G., Mayer,K.F.X., Munsterkotter,M., Ruepp,A., Spannagl,M., Stuempflen,V. et al. (2008) MIPS: analysis and annotation of genome information in 2007. Nucleic Acids Res., 36, D196–D201.
9. Chatr-Aryamontri,A., Ceol,A., Palazzi,L.M., Nardelli,G., Schneider,M.V., Castagnoli,L. and Cesareni,G. (2007) MINT: the molecular INTeraction database. Nucleic Acids Res., 35, D572–D574.
10. Patil,A. and Nakamura,H. (2005) Filtering high-throughput protein-protein interaction data using a combination of genomic features. BMC Bioinformatics, 6, 100–112.
11. Saeed,R. and Deane,C. (2008) An assessment of the uses of homologous interactions. Bioinformatics, 24, 689–695. 12. Finn,R.D., Tate,J., Mistry,J., Coggill,P.C., Sammut,S.J.,
Hotz,H.R., Ceric,G., Forslund,K., Eddy,S.R., Sonnhammer,E.L.L. et al. (2008) The Pfam protein families database. Nucleic Acids Res., 36, D281–D288.
13. Hunter,S., Apweiler,R., Attwood,T.K., Bairoch,A., Bateman,A., Binns,D., Bork,P., Das,U., Daugherty,L., Duquenne,L. et al. (2009) InterPro: the integrative protein signature database. Nucleic Acids Res., 37, D211–D215.
14. Ashburner,M., Ball,C.A., Blake,J.A., Botstein,D., Butler,H., Cherry,J.M., Davis,A.P., Dolinski,K., Dwight,S.S., Eppig,J.T. et al. (2000) Gene ontology: tool for the unification of biology. Nat. Genet., 25, 25–29.
15. Matthews,L.R., Vaglio,P., Reboul,J., Ge,H., Davis,B.P., Garrels,J., Vincent,S. and Vidal,M. (2001) Identification of potential interaction networks using sequence-based searches for conserved protein-protein interactions or ‘‘interologs’’. Gen. Res., 11, 2120–2126.
16. Kersey,P., Bower,L., Morris,L., Horne,A., Petryszak,R., Kanz,C., Kanapin,A., Das,U., Michoud,K., Phan,I. et al. (2005) Integr8 and genome reviews: integrated views of complete genomes and proteomes. Nucleic Acids Res., 33, D297–D302.
17. Andreeva,A., Howorth,D., Brenner,S.E., Hubbard,T.J., Chothia,C. and Murzin,A.G. (2004) SCOP database in 2004: refinements
integrate structure and sequence family data. Nucleic Acids Res., 32, D226–D229.
18. Bonifacino,J.S. and Traub,L.M. (2003) Signals for sorting of transmembrane proteins to endosomes and lysosomes. Ann. Rev. Biochem., 72, 395–447.
19. Heldwein,E.E., Macia,E., Jing,W., Yin,H.L., Kirchhausen,T. and Harrison,S.C. (2004) Crystal structure of the clathrin adaptor protein 1 core. Proc. Natl Acad. Sci. USA, 101, 14108–14113. 20. Lieb,J.D., Albrecht,M.R., Chuang,P.T. and Meyer,B.J. (1998)
MIX-1: an essential component of the C. elegans mitotic
machinery executes x chromosome dosage compensation. Cell, 92, 265–277.
21. Hagstrom,K.A., Holmes,V.F., Cozzarelli,N.R. and Meyer,B.J. (2002) C. elegans condensin promotes mitotic chromo-some architecture, centromere organization, and sister
chromatid segregation during mitosis and meiosis. Genes Dev., 16, 729–742.
22. Hirano,M. and Hirano,T. (2002) Hinge-mediated dimerization of SMC protein is essential for its dynamic interaction with DNA. EMBO J., 21, 5733–5744.
