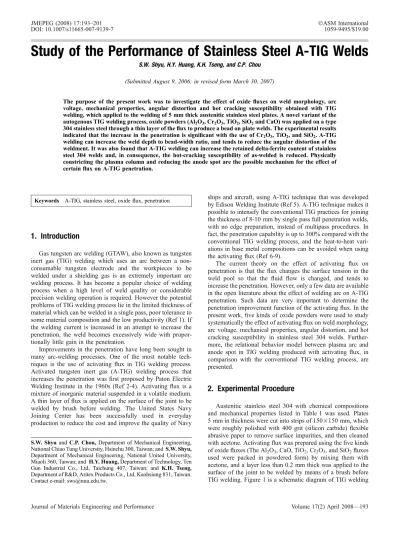

Study of the Performance of Stainless Steel A-TIG Welds
S.W. Shyu, H.Y. Huang, K.H. Tseng, and C.P. Chou (Submitted August 9, 2006; in revised form March 30, 2007)
The purpose of the present work was to investigate the effect of oxide fluxes on weld morphology, arc voltage, mechanical properties, angular distortion and hot cracking susceptibility obtained with TIG welding, which applied to the welding of 5 mm thick austenitic stainless steel plates. A novel variant of the autogenous TIG welding process, oxide powders (Al2O3, Cr2O3, TiO2, SiO2and CaO) was applied on a type
304 stainless steel through a thin layer of the flux to produce a bead on plate welds. The experimental results indicated that the increase in the penetration is significant with the use of Cr2O3, TiO2, and SiO2. A-TIG
welding can increase the weld depth to bead-width ratio, and tends to reduce the angular distortion of the weldment. It was also found that A-TIG welding can increase the retained delta-ferrite content of stainless steel 304 welds and, in consequence, the hot-cracking susceptibility of as-welded is reduced. Physically constricting the plasma column and reducing the anode spot are the possible mechanism for the effect of certain flux on A-TIG penetration.
Keywords A-TIG, stainless steel, oxide flux, penetration
1. Introduction
Gas tungsten arc welding (GTAW), also known as tungsten inert gas (TIG) welding which uses an arc between a non-consumable tungsten electrode and the workpieces to be welded under a shielding gas is an extremely important arc welding process. It has become a popular choice of welding process when a high level of weld quality or considerable precision welding operation is required. However the potential problems of TIG welding process lie in the limited thickness of material which can be welded in a single pass, poor tolerance to some material composition and the low productivity (Ref 1). If the welding current is increased in an attempt to increase the penetration, the weld becomes excessively wide with propor-tionally little gain in the penetration.
Improvements in the penetration have long been sought in many arc-welding processes. One of the most notable tech-niques is the use of activating flux in TIG welding process. Activated tungsten inert gas (A-TIG) welding process that increases the penetration was first proposed by Paton Electric Welding Institute in the 1960s (Ref 2-4). Activating flux is a mixture of inorganic material suspended in a volatile medium. A thin layer of flux is applied on the surface of the joint to be welded by brush before welding. The United States Navy Joining Center has been successfully used in everyday production to reduce the cost and improve the quality of Navy
ships and aircraft, using A-TIG technique that was developed by Edison Welding Institute (Ref 5). A-TIG technique makes it possible to intensify the conventional TIG practices for joining the thickness of 8-10 mm by single pass full penetration welds, with no edge preparation, instead of multipass procedures. In fact, the penetration capability is up to 300% compared with the conventional TIG welding process, and the heat-to-heat vari-ations in base metal compositions can be avoided when using the activating flux (Ref 6-9).
The current theory on the effect of activating flux on penetration is that the flux changes the surface tension in the weld pool so that the fluid flow is changed, and tends to increase the penetration. However, only a few data are available in the open literature about the effect of welding arc on A-TIG penetration. Such data are very important to determine the penetration improvement function of the activating flux. In the present work, five kinds of oxide powders were used to study systematically the effect of activating flux on weld morphology, arc voltage, mechanical properties, angular distortion, and hot cracking susceptibility in stainless steel 304 welds. Further-more, the relational behavior model between plasma arc and anode spot in TIG welding produced with activating flux, in comparison with the conventional TIG welding process, are presented.
2. Experimental Procedure
Austenitic stainless steel 304 with chemical compositions and mechanical properties listed in Table 1 was used. Plates 5 mm in thickness were cut into strips of 150· 150 mm, which were roughly polished with 400 grit (silicon carbide) flexible abrasive paper to remove surface impurities, and then cleaned with acetone. Activating flux was prepared using the five kinds of oxide fluxes (The Al2O3, CaO, TiO2, Cr2O3, and SiO2fluxes
used were packed in powdered form) by mixing them with acetone, and a layer less than 0.2 mm thick was applied to the surface of the joint to be welded by means of a brush before TIG welding. Figure 1 is a schematic diagram of TIG welding S.W. Shyu and C.P. Chou, Department of Mechanical Engineering,
National Chiao Tung University, Hsinchu 300, Taiwan; and S.W. Shyu, Department of Mechanical Engineering, National United University, Miaoli 360, Taiwan; and H.Y. Huang, Department of Technology, Ten Gun Industrial Co., Ltd, Taichung 407, Taiwan; and K.H. Tseng, Department of R&D, Aritex Products Co., Ltd, Kaohsiung 831, Taiwan. Contact e-mail: sws@nuu.edu.tw.
JMEPEG (2008) 17:193–201 ASM International
produced with activating flux. An autogenous TIG welding was conducted on a type 304 stainless steels to produce a bead on plate welds. A machine-mounted torch with standard 2% thoriated tungsten electrode (3.2 mm diameter) was used. The electrode tip configuration was a blunt point with a 60oinclude angle. Welding parameters used in the present work are given in Table 2. During welding process, a CCD camera system was used to observe the tungsten electrode, the welding arc, and the weld pool.
The ferrite number (FN) was measured using a calibrating magnetic instrument with a Ferritscope M10B-FE. To minimize measurement errors due to the weldment inhomogeneity, the average value of seven measurements from different locations along the as-welded surface was recorded.
Figure 2 is a schematic diagram of welding distortion measurement. A position fixed hole was drilled at the back of points P1, P2, and P3, and a pillar was attached to each hole.
Three pillars (one stable, the other two adjustable) were used to adjust the horizontal level. Prior to measuring, five sets of measuring positions were determined on both the left side (A-E) and right side (F-J) of the as-welded surface along the y-axis. During the measurement, the stage was moved along the x-axis by 50 mm, and a vertical displacement Z was obtained. The angular distortion value h can be derived from the equation h¼ tan1Z
50
Finally, the five positions on either side of the welds were averaged, and then added together to give the angular distortion value.
In the present work, the hot cracking susceptibility was evaluated by spot varestraint test (Ref 10-12). The welding conditions were 80 A arc current with 8 s arc time in 3 mm thick stainless steel plate, and the arc length was maintained at 1.6 mm. Hot cracking occurred in both the weld metal and heat-affected zone. In this evaluation of the hot cracking susceptibility, the total cracking length in the weld metal was normalized on the basis of the weld pool diameter. Figure 3 shows the spot varestraint test method in a schematic form.
Longitudinal tensile and Vickers hardness tests were used to examine the metallurgical properties of A-TIG stainless steel welds. Longitudinal tensile tests of three specimens from each welding procedure combination were used to determine the strength and ductility of the weldments. The configuration and size of the tensile specimens were in accordance with ASTM E8. Tensile fracture morphology of the weldment was also analyzed by means of a scanning electron microscopy. Vickers hardness in the weld metal was measured under a load of 1.96 N for 15 s. An optical microscope was used to measure the dimensions of the weld depth and bead width. All metallographic specimens were prepared by mechanical lap-ping, grinding, and polishing to a 0.3 lm finish, followed by etching in a solution of 10 g CuSO4+ 50 ml HCl + 50 ml
H2O.
3. Results and Discussion
3.1 Effect of Oxide Fluxes on Weld Morphology
Figure 4 shows the cross-sections of TIG welds without and with flux in 5 mm thick stainless steel 304 plates. There is significant variation in weld depth and bead width of A-TIG weld morphology. The increases in weld depth and the decrease in bead width are significant with use of the Cr2O3, TiO2 and
SiO2, and have the particular shape of a peanut shell. In the
present work, the greatest improvement function in the penetration capability occurred with the use of SiO2, up to
220%, compared with the conventional TIG welding. However, the CaO has no effect on A-TIG penetration.
It can also be seen in Fig. 4 that TIG welding with Cr2O3,
TiO2and SiO2can significantly increase the weld depth to bead
width ratio. According to previous investigations (Ref 13, 14), a greater weld depth to bead width ratio is a characteristics of the increased energy density of the heat source, and thereby the high degree of energy concentration during TIG welding process.
Although a commonly agreed mechanism for increased A-TIG penetration has yet to be found, it has frequently been observed in TIG and plasma welding that using activating flux can constrict the welding arc, and tends to increase the penetration (Ref 1-3). The major effect of activating flux appears to be on the characteristic of the welding arc rather than on the direction of the fluid flow (Ref 1, 8, 9). In arcing without flux and with SiO2
composition (shown in Fig. 5), the central part of the welding arc shows clearly in a glowing zone occupying almost the entire arc length. The zone is regarded as the plasma column, which forms by the current carried by the electrons and positive ions produced by thermal ionization of the shielding gas. It can be seen in that TIG welding arc with SiO2 shows a constriction in plasma column diameter
compared with the conventional TIG welding arc at the same current level. Constriction of the plasma column increases
Table 1 Chemical composition (wt%, balance Fe) and mechanical properties of experimental austenitic stainless steel
C Si Mn P S Cr Ni Yield strength, MPa Elastic modulus, GPa PoissonÕs ratio
0.07 0.51 1.30 0.026 0.013 18.7 8.16 290 193 0.25 (a) Mixing 5 10m m 150 mm 10mm Brush Flux Base metal Acetone Oxide powder (b) Coating
Fig. 1 Schematic diagram of TIG welding produced with activating flux
the current density in the arc root, and a more focused arc increase in A-TIG penetration can be achieved compared with the conventional TIG welds.
Other factors, such as anode spot, can also affect the weld morphology. Because the conductivity of the flux is much lower than that of the metal vapors, and the melting and boiling point of the flux are higher than that of the weld metal, the metal evaporation will be only generated in the central regions of the welding arc, where the temperature is higher than the Start point of measure
End point of measure Reference point of measure
A B C D E F G H I J P1 P3 P2 30 mm 15 mm Y X Z X Direction of measure X Z (b) Measuring position Flux Direc tion o f trav el Torch Scribing Leveling Drilling Welding Speci men Indicator Welds Indicator
(a) Measuring step Locating
Measuring
(c) Measuring theory Fig. 2 Schematic diagram of welding distortion measurement
(a) 50mm 3mm Die block Torch Molten pool Crack Augmented-tangential strain : 5% (c) Torch Hydraulic actuator Specimen Die block Force Force (b)
Fig. 3 Schematic diagram of spot varestraint test
Table 2 Welding parameters for autogenous TIG welding experiments
Welding current 150 A
Travel speed 150 mm/min
Arc length 3 mm
Shielding gas Pure argon
Fig. 4 Effect of oxide fluxes on weld morphology
dissociation temperature of the flux compounds, leading to a reduction in the conductivity area of the anode spot. It can also be seen in that TIG weld pool with SiO2shows a reduction in
the anode spot compared with the conventional TIG welds at the same current level.
On the basis of the present results, it is considered that the plasma column and the anode spot play a major role in determining A-TIG weld morphology. When using A-TIG welding, physically constricting the plasma column and reducing the anode spot, and tends to increase the energy density of the heat source and electromagnetic force of the weld pool, resulting in a relatively narrow and deep weld morphol-ogy compared with the conventional TIG welding. Although further investigation is still needed to understand the mecha-nisms, the present work has potentially demonstrated the effect of specific flux on A-TIG penetration.
It should be mentioned that the Al2O3 led to the
deterio-ration in the penetdeterio-ration and excessive slag compared with the conventional TIG process for stainless steel 304 welds. It can be seen in that TIG welding with use of the activating flux, which is composed of Al2O3 powder, appears unable to
constrict the plasma column and reduce the anode spot, as indicated in Fig. 6(a) and (b), resulting in a relatively wide and shallow weld morphology compared with the conventional TIG welding. This result can be related to the aluminum oxide particles of the weld pool during TIG welding with Al2O3
powder as shown in Fig. 6(c). As TIG welding with Al2O3
produces fluid flow outwards from the center of the weld pool, the particle-free band will be formed along the edge of the weld pool, resulting in an arc wander.
3.2 Effect of Oxide Fluxes on Arc Voltage
In the present work, three pillars (one stable, the other two adjustable) were used to adjust the horizontal level of test
specimens before welding. During welding process, a CCD camera system was used to observe the tungsten electrode, welding arc and weld pool. It can be found that there is no significant change to the variations of electrode geometry and arc length during welding. If the welding current, travel speed, arc length, argon flowrate, and electrode geometry are constant for each weld, then the variation of distortion in the direction of the weld centerline should not be great enough to affect the arc length for a comparative study such as the present investiga-tion.
The effect of TIG welding without and with flux on arc voltage is shown in Fig. 7. The welding current, travel speed, arc length, argon flowrate, and electrode geometry were maintained at constant value, and it was found that the arc voltage increases when TIG welding with CaO, TiO2, Cr2O3,
and SiO2was used. It can be seen in Fig. 5 that A-TIG welding
arc shows a constriction in plasma column diameter compared with the conventional TIG welding arc at the same welding current and arc length level. The welding arc contains a lot of free electrons. The decomposed flux additives attract electrons, causing the welding arc to constrict, results in an increase in arc voltage. In addition, the arc trailing (the arc remains behind with respect to the welding arc) in A-TIG welding (shown in Fig. 8), as a result of the effective arc length increases, and the arc voltage is consequently increased as indicated in Fig. 9(a). There is a good correlation between the measured arc voltage and arc length in TIG welding without and with flux.
Figure 9(b) shows the effect of arc length on penetration in TIG welding without and with flux. It can be seen that there is no significant change to the variations of arc length and penetration. To avoid electrode damage and obtain arc stability, A-TIG welding arc should be ignited with 2-4 mm arc length. It should also be mentioned that the calculated heat input is proportional to the measured arc voltage, applied activating flux has the positive effect of increasing the amount of heat input per unit length in A-TIG welds.
3.3 Effect of Oxide Fluxes on Mechanical Properties
Figure 10 presents the experimental results for mechanical properties of TIG weldment without and with activating fluxes. It can be clearly seen that the weldment obtained by using TIG welding with CaO, TiO2, Cr2O3, and SiO2 exhibits
Fig. 6 Effect of Al2O3flux on welding arc and fluid flow
0 10 20 30 40 50 60 70 80
Welding Time (sec)
14.0 14.5 15.0 15.5 16.0 Ar ) V( e g atl o V c
Without flux With SiO2 flux
Al2O3
CaO TiO2
Cr2O3
SiO2
Flux Change in voltage 14.48-14.73 -0.23 V 14.85-14.73 0.12 V 15.20-14.73 0.47 V 15.44-14.73 0.71 V 15.36-14.73 0.63 V
better-mechanical properties (including yield strength, ultimate tensile strength, elongation, and hardness) than those of TIG weldment without using the activating flux.
The fracture can be described as a single body being separated into pieces by imposed stress. For engineering materials there are only two possible modes of fracture, ductile and brittle. The fracture morphology of TIG weldments without and with SiO2, as indicated in Fig. 11, is the ductile dimple
fracture mode.
3.4 Effect of Oxide Fluxes on Angular Distortion
Uneven heating through the thickness during welding of a joint causes non-uniform thermal strains that result in angular distortion. The value of angular distortion of the weldment depends on several factors, including (a) the relative penetra-tion, and (b) the shape and dimensions of welds (Ref 15). The effect of TIG welding with various flux compositions on angular distortion of stainless steel 304 weldment is shown in Fig. 12. When TIG welding with Al2O3is used, it can be seen
that the weld depth is not more than the half of plate thickness. The shallow weld bead causes lower angular distortion, and with increasing the weld depth to plate
thickness ratio, the angular distortion of the weldment with CaO increases to a critical point (weld depth to plate thickness ratio equivalent to 0.5), and then weld depth exceeds 50% of the plate thickness, the angular distortion of the weldment with use of the TiO2, Cr2O3, and SiO2is decreased. Because
of a high degree of energy concentration during A-TIG welding process, both the weld pool and the HAZ are reduced Fig. 8 Effect of TIG welding without and with flux on arc trailing
0 2 4 6 8 10 t e n e Pr ) m m( n oit a 0 1 2 3 4 5 6 Arc Length (mm) 12 14 16 18 ) V( e g atl o V cr A (a) (b) Without flux With SiO2 flux
Fig. 9 Effect of arc length on arc voltage and penetration in TIG welding without and with flux
160 180 200 220 ) v H( s s e n dr a H
Without flux Al2O3 CaO TiO2 Cr2O3 SiO2
20 24 28 32 36 40 ) %( n oit a g n ol E 380 400 420 440 460 ) a P M( ht g n er t S dl ei Y (b) (c) (d) 500 550 600 650 700 t S eli s n e T et a mitl Ur ) a P M( ht g n e (a)
(Ref 8). This contributes to a reduction in the quantity of supplied heat and, in consequence, prevents overheating of the metal; this reduces the incidence of thermal stresses and incompatible strains due to shrinkage in the thickness direction, and therefore the angular distortion of stainless steel 304 weldments can be reduced.
3.5 Effect of Oxide Fluxes on Hot Cracking Susceptibility
The weld metal microstructure in all the welds consisted of ferrite in an austenitic matrix (Ref 8, 16). The measured ferrite number of stainless steel 304 welds with various flux compo-sitions is presented in Fig. 13(a). When TIG welding with CaO, TiO2, Cr2O3, and SiO2is used, the retained delta-ferrite content
in weld metal is increased.
A certain amount of retained delta-ferrite in austenitic stainless steel weld metals has a beneficial effect in reducing the hot cracking susceptibility (Ref 17). The result of spot varestraint test is shown in Fig. 14. It can be seen in Fig. 13(b) that TIG welding with CaO, TiO2, Cr2O3and SiO2can reduce
total cracking length of stainless steel 304 weld metals. The result clearly indicates that the hot cracking susceptibility of stainless steel 304 as-welded can be reduced when certain flux was applied to TIG welding process.
4. Conclusions
1. In the present work, the increases in weld depth and the decrease in bead width are significant with use of the Cr2O3, TiO2, and SiO2. The greatest improvement
func-tion in the penetrafunc-tion is with the use of SiO2, but the
Al2O3 led to the deterioration in the penetration and
excessive slag compared with the conventional TIG pro-cess for stainless steel 304 welds. The CaO has no effect on A-TIG penetration.
2. When using A-TIG welding, physically constricting the plasma column and reducing the anode spot, tends to in-crease the energy density of the heat source and electro-magnetic force of the weld pool, resulting in a relatively narrow and deep weld morphology compared with the conventional TIG welding.
3. A-TIG welding can increase the arc voltage, and the amount of heat input per unit length in welds can there-fore be increased.
4. A-TIG weldment exhibits better mechanical properties (including strength, ductility, and hardness) than those of TIG welding without flux.
Fig. 11 Scanning electron microscopy of fracture surface
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 D/T 0.6 0.8 1.0 1.2 1.4 1.6 1.8 Aa l u g n ro t si Dr g e d( n oitr ) e e Al2O3 Without flux Cr2O3 CaO TiO2 SiO2
Fig. 12 Effect of weld depth to plate thickness ratio on angular distortion 0 4 8 12 16 C l at o T) m m( ht g n e L g ni k c a
Without flux Al2O3 CaO TiO2 Cr2O3 SiO2 0 2 4 6 8 10 ) N F( t n et n o C eti rr e F (a) (b)
5. A-TIG welding can increase the weld depth to bead width ratio, which is characteristics of a high degree of energy concentration during welding, and then the angu-lar distortion of the weldment can be reduced.
6. A-TIG welding can increase the retained delta-ferrite con-tent of stainless steel welds and, in consequence, the hot cracking susceptibility of as-welded is reduced.
References
1. H.Y. Huang, S.W. Shyu, K.H. Tseng, and C.P. Chou, Effects of the Process Parameters on Austenitic Stainless Steel by TIG-flux Welding, J. Mater. Sci. Technol., 2006, 22(3), p 367–373
2. D.S. Howse and W. Lucas, Investigation into Arc Constriction by Active Fluxes for Tungsten Inert Gas Welding, Sci. Technol. Weld. Joining, 2000, 5(3), p 189–193
3. M. Tanaka, T. Shimizu, H. Terasaki, M. Ushio, F. Koshi-ishi, and C.-L. Yang, Effects of Activating Flux on Arc Phenomena in Gas Tungsten Arc Welding, Sci. Technol Weld. Joining, 2000, 5(6), p 397–402
4. M. Kuo, Z. Sun, and D. Pan, Laser Welding with Activating Flux, Sci. Technol Weld. Joining, 2001, 6(1), p 17–22
5. T. Paskell, C. Lundin, and H. Castner, GTAW Flux Increases Weld Joint Penetration, Weld. J., 1997, 76(4), p 57–62
6. C.L. Yang, S.B. Lin, F.Y. Liu, W. Lin, and Q.T. Zhang, Research on the Mechanism of Penetration Increase by Flux in A-TIG Welding, J. Mater. Sci. Technol., 2003, 19, p 225–227
7. P.J. Modenesi, E.R. Apolina´rio, and I.M. Pereira, TIG Welding with Single-component Fluxes, J. Mater. Process. Technol., 2000, 99(1), p 260–265
8. H.Y. Huang, S.W. Shyu, K.H. Tseng, and C.P. Chou, Evaluation of TIG-Flux Welding on the Characteristics of Stainless Steel, Sci. Technol. Weld. Joining, 2005, 10(5), p 566–573
9. H.Y. Huang, S.W. Shyu, K.H. Tseng, and C.P. Chou, Effect of A-TIG Welding on the Morphology of Stainless Steel Welds, Proceedings of 7th International Conference on Trends in Welding Research, ASM International, 2005
10. T. Ogawa and E. Tsunetomi, Hot Cracking Susceptibility of Austenitic Stainless Steel, Weld. J., 1982, 61(3), p 82–93
11. J.A. Brook, Effect of Alloy Modifications on HAZ Cracking of A-286 Stainless Steel, Weld. J., 1974, 53(11), p 517–523
12. C.D. Lundin and P.W. Turner, Effect of the Hot Cracking of Uranium Weld Metal-Part I, Weld. J., 1970, 49(12), p 579–587
13. K.H. Tseng and C.P. Chou, Effect of Pulsed Gas Tungsten Arc Welding on Angular Distortion in Austenitic Stainless Steel Weldments, Sci. Technol. Weld. Joining, 2001, 6(3), p 149–153
14. K.H. Tseng and C.P. Chou, The Effect of Pulsed GTA Welding on the Residual Stress of a Stainless Steel Weldment, J. Mater. Process. Technol., 2002, 123, p 346–353
15. V.I. Pavlovsky and K. Masubuchi, Research in the U.S.S.R. on Residual Stresses and Distortion in Welded Structures, Weld. Res. Counc. Bull., 1994, 338, p 44–48
16. K.H. Tseng and C.P. Chou, Effect of Nitrogen Addition to Shielding Gas on Residual Stress of Stainless Steel Weldments, Sci. Technol. Weld. Joining, 2002, 7(1), p 57–62
17. M.H. Chen and C.P. Chou, Effect of Thermal Cycles on Ferrite Content of Austenitic Stainless Steel, Sci. Technol. Weld. Joining, 1999, 4(1), p 58–62
