Micro-viscometer based on electrowetting on dielectric

(1)

Available online 13 November 2006

Abstract

A viscometer used to measure the viscosity of 10␮l of a liquid, must be miniaturized down, and the liquid velocity gradient in the channel used to determine the viscosity coefficient. Two major factors that affect the liquid velocity are the mechanical forces exerted by the mechanical motors and electromagnetic forces. In this study, electrowetting on dielectric (EWOD) is adopted to drive liquids. Variously sized electrodes on a chip, and two shapes of channel are employed to measure the velocity gradient to determine the viscosity coefficient. The device is fabricated by microelectromechanical system (MEMS) technology. The dielectric layer used in EWOD has a high dielectric constant, BST (Ba0.7Sr0.3TiO3),

to reduce the required applied voltage; its surface is coated with hydrophobic polymer, polytetrafluoro-ethylene (PTFE, Teflon® _{AF DuPont).}

Keywords: Viscometer; Electrowetting (EW); Electrowetting on dielectric (EWOD); Micro electromechanic system (MEMS); Microfluid

1. Introduction

In humans, water in such fluids as interstitial fluid, blood, mucus and others, represents 70% of the weight. Like their chemical functions, viscosity coefficients are important physical characteristics of the fluids in human bodies. Artificial liquids used as substitutes in living bodies have been examined. In designing a substitute for the aqueous humors in the eyes of human beings, the viscosity coefficient must be determined but only a little of the sample is available in the body. Accordingly, the viscometer must be miniaturized. In this work, the liquid velocity gradient in the channel is employed to find the viscos-ity coefficient. Two major schemes adopted to drive the liquid involve mechanical forces exerted by motors[1] and electro-magnetic forces in the channel. Miniaturizing viscometers and

∗_{Corresponding author at: Medical Micro Sensor and System Laboratory,} Institute of Bio-Medical Engineering, College of Engineering and College of Medicine, National Taiwan University, No. 1, Sec. 4, Roosevelt Road, Taipei 107, Taiwan, ROC. Tel.: +886 2 33665272; fax: +886 2 33665268.

E-mail address:[email protected](C.-W. Lin).

reducing the volume of liquid required by EW are of great inter-est[2].

Since the advancement of MEMS, there have been many devices studied and developed to manipulate liquids in microfluid channels. For all these devices, there are various actuation methods to pump or control fluid, such as piezo-electric, electrostatic, thermopneumatic, electromagnetic, elec-trophoretic, electroosmotic, etc.[3–5]Due to the process limita-tion, device reliability and cost of micromachining, the actuation mechanism with the least fabrication complication in devices is absolutely needed for microfluidics. Surface tension, which is always neglected on a macroscale, becomes dominant force on a microscale. Since surface tension cannot be avoid on the microscale, electrowetting (EW) utilizes the surface tension to be wetted a liquid by applying voltages[6–9]. The contact angle will be changed and the surface tension varies, while the applied voltage affects the electric field and electrons distribution in an electric double layer (EDL) for EW or a dielectric layer for elec-trowetting on dielectric (EWOD)[9]. EWOD has been used for analysis of peptides and proteins[10]. In this study, EWOD is used to drive the flow in the designed channels and produces the velocity gradients to measure viscosity coefficient.

(2)

Fig. 1. Flow situation in static and dynamic conditions.

2. Theory and principle

2.1. Viscometer

When a shear strain is applied to one side of a liquid in a channel to cause it to flow, the viscosity relates these shear forces to the motion of the fluid. At rest, a shear force is applied to the upper side of two parallel plates to induce a flow at a slow speed

υ0, whereas the other plate is held stationary, as presented in

Fig. 1in the top and the bottom of the channel. The shear strain is

F A = η

υ0

d (1)

[11], where the parameter η is the viscosity coefficient and d is the thickness of the channel.

For an infinitesimal rectangular area in the flow between two plates, as in the one-dimensional case shown inFig. 1, the shear stain is given by F A = η υx y , →0lim η υx y = η ∂vx ∂y (2)

In the two-dimensional case, the general form of the shear strain is Sxy= η ∂υy ∂x + ∂υx ∂y (3) Consider a rotational fluid and the boundary conditions for a point at y = 0: as shown inFig. 2, ∂␻/∂y = 0; x(∂␻/∂x) = r(∂␻/∂r), and the shear strain is

(Sxy)_y=0= ηr∂ω

∂r (4)

In a circular channel, every point has y = 0. For circular motion, υt= rω, and the shear strain is related to the velocity

according to Scir= ηr 1 r ∂υt ∂r − υt r2 (5) Then, the viscosity coefficient is determined by the speed of the liquid at various radii.

Fig. 2. Fluid flows in a circular channel. 2.2. Electrowetting

The relationship between the applied voltage and the surface tension among liquid, electrodes and air can be derived at the interface. The contact angle is a function of the applied voltage between liquid and electrode [9]. As the contact angle varies with the applied voltage, the surface wettability varies between hydrophobic and hydrophilic. Three electrowetting methods are available; they are continuous electrowetting (CEW) [7], electrowetting (EW) [6,12], and electrowetting on dielectric (EWOD) [6,8]. EW drives flow in a channel by varying the surface tension, which depends on the electrical double layer (EDL), between the interface of the channel, air and the liq-uid. In EWOD, the EDL is replaced by the dielectric mate-rial (Ba0.7Sr0.3TiO3, BST) and a hydrophobic polymer (PTFE,

Teflon®AF)[8].

Based on Lippmann–Young’s equation[6]: cos θ = cos θ0+ 1 γLG 1 2cV 2 ₍₆₎

where θ is the contact angle, θ0the contact angle when the

elec-tric field across the interfacial layer is zero, γLGthe liquid–gas

surface tension, and c is the capacitance per unit area of the EDL or the dielectric layer. The droplet is wetted by the applied volt-age in EWOD and remained wetted as the voltvolt-age is removed. The droplet becomes hydrophobic again after the applied voltage is grounded. The thickness of the dielectric affects the wettabil-ity of the liquid. The pressure induced by the surface tension due to a change in contact angle is given by[6]:

p = pL− pR= γLG

d (cos θb− cos θb0) (7)

The Lippmann–Young’s equation is

p = 1

2dcV

2₌ ε0εV2

2dt (8)

where ε and t are the dielectric constant and the thickness of the surface material, respectively.

(3)

electrolyte

Tables 1 and 2compare these approaches of each method

[6–9].

According to both tables, CEW requires mercury in the chan-nel, and the process becomes complex, potentially damaging the sample. The EW channel is not reusable and the liquid may be electrolyzed due to the conduction of electrodes and liquid. The conclusion is that EWOD is preferred for use in the experiment

[13].

3. Experimental procedure

Based on theories concerning the viscometer and EW described above, EWOD is utilized to drive the flow on the one side of the channel and the velocity of the liquid is observed on the opposite side. The external force exerted by EWOD is

Fex= pAcross= ε0εV 2

2dt Across (9)

where Acrossrepresents the cross-sectional area of the channel.

In the linear channel, the viscosity coefficient is related to the external force by Fex= SlAtan= η ∂υx ∂y + ∂υy ∂x Atan (10)

where Atan is the tangent area that is in contact with the

liq-uid and the channel wall. For a curved channel, which is part of a circular channel, the viscosity coefficient is related to the external force by Fex= ScAtan= ηr 1 r ∂υt ∂r − υt r2 Atan (11) 500 1000 1000 500 2500 250 100

Numerous physical considerations influence Eq.(11), such as the channel size, the dielectric constant of the material, the thickness of the material and the size of the electrode. Eqs.(9) and (10)reveals that the linear channel viscosity coefficient ηl

for the linear channel is

ηl = 1 (∂υx/∂y) + (∂υy/∂x) ε0εV2 2dt Across Atan (12)

Also from Eqs.(9) and (11), the viscosity coefficient ηc in

the curved channel is

ηc= 1 (∂υt/∂r) − (υt/r) ε0εV2 2dt Across Atan (13)

Rearranging Eq.(13)yields: ∂υt ∂r − υt r =1 η ε0εV2 2dt Across Atan = c0 η (14)

where the constant c0can be determined by substituting values

into Eq.(14). Integrating Eq.(14)yields:

vt= r −c0 η ln r − c1 (15) which is the relationship between the tangential velocity (vt), the

radius (r), the viscosity coefficient (η) and the integral constant

c1. The vacuum dielectric constant ε0is 8.85× 10−12F/m; the

BST dielectric constant εris 180, its thickness t is 80 nm, the

channel height d is 50␮m and the applied voltage V is 20 V. The electrodes and channels are designed in linear and curva-ture arrays, as described in Tables 3 and 4. The edges of the square electrodes are designed with isosceles triangles to have

Table 2

Major parameters of each method[6–9]

EW EWOD with Teflon EWOD with BST

Applied voltage (V) ∼1 50–100 ∼15 (15–50)

Dielectric constant, ε 80 2 (Teflon) 180 (BST)

Thickness 100 ˚A (EDL) 100 nm (Teflon) 100 nm (BST)

Channel height 10␮m 10␮m 10␮m

(4)

Fig. 3. Layout of two kinds of electrodes.

the lowest potential energy gradient with sides of length 50␮m, as shown inFig. 3. The potential energy gradient of the trian-gles is only higher than sinusoidal wave shape edges, which are difficult exactly defined by photolithography[14].

The fabrication process is as presented inFig. 4. Glass-based wafers are applied as substrates in the device. After the standard cleaning process, a layer of the photoresist (Negative photore-sist, SPR220) is spin coated on the substrate, and the electrodes are defined on wafers by lift-off. The wafers are etched to a depth of 120 nm by buffered oxide etch (BOE) in the shape of an elec-trode; Cr and Pt are deposited on the device using an E-beam evaporator with thicknesses of 20 and 100 nm, respectively. For EWOD, a dielectric layer is required between the electrodes and the hydrophobic surface layers (PTFE, Teflon® AF) [15,16]. Also, according to Eq.(8), a thin material with a high dielectric

constant is associated with a low required voltage. BST is the preferred choice because of its high dielectric constant. The elec-trode surfaces were hydrophobic when no voltage was applied, and were hydrophilic ones when a voltage was applied. Teflon® AF was the surface material, which was spin coated to a thick-ness of 20 nm. The reactive ion etching (RIE) was Teflon®AF etching, and BOE used for the BST etching. The channel wall was photolithographed using a negative epoxy-based photore-sist, SU-8[17], with a thickness of approximately 40␮m. The topside was covered by glass coated with indium tin oxide (ITO) and Teflon®AF as grounded.

A LabVIEW program is designed to control the applied voltage in the five electrodes. The program is a one-to-five mul-tiplexer that applies voltages; the duty cycles are tunable using the panel. The power supply applies 15 V and the time interval

Fig. 4. Device process: (a) the patterns of electrodes are defined on the glass substrate by lift-off with negative photoresist (PR); (b) etch the substrate with BOE for 120 nm; (c) deposit electrodes with Cr (20 nm) and Pt (100 nm) and remove photoresist; (d) deposit BST and coat Teflon®AF; (e) photolithograph pads with photoresist and etch Teflon®AF with RIE and BST with BOE; (f) photolithograph SU-8 as channel wall; (g) bonding with ITO coating Teflon®AF.

(5)

Fig. 5. Simulation of “velocity vs. radius” through water, ethyl alcohol, and methanol. Various liquids have different velocities relating to the radii.

is 100 ms. The time required for liquids to flow through the elec-trodes and to be displaced at various positions can be obtained from continuous images captured using a CCD camera through a microscope. A polynomial formula is then obtained by fit-ting the curve from the velocity–position plot, and the viscosity coefficient is estimated using Eqs.(12),(13)and(15).

4. Results

4.1. Simulation results

The constant c0is evaluated using Eq.(14)by substituting

the numerical values of the parameters. The viscosity

coeffi-Fig. 6. Measurement of “capacitance vs. voltage of BST” and testing sample chip structure. BST has varied dielectric constants when applying different dc voltage due to its unique properties.

cient curves for three liquids, water (η is 0.89 × 10−3Pa s), ethyl alcohol (η is 1.074 × 10−3Pa s) and methanol (η is 0.544× 10−3Pa s), are obtained from the equation.Fig. 5 dis-plays the results, as the velocity ranges from 10 to 150 mm/s and the radii vary from 500 to 5000␮m.

4.2. Experiment results

Fig. 6plots the capacitance of BST, from which the dielectric constant is determined. A BST film layer as thin as 0.1␮m and

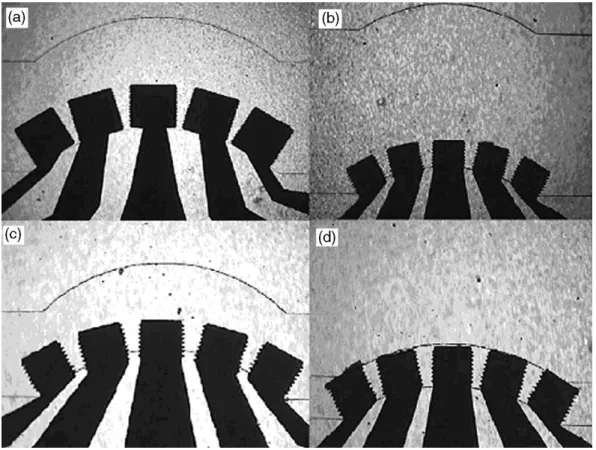

Fig. 7. Curvature channels with different electrode sizes: (a) 1000␮m with 2500 ␮m width channel; (b) 500 ␮m with 2500 ␮m width channel; (c) 500 ␮m with 1000␮m width channel; (d) 500 ␮m with 500 ␮m width channel.

(6)

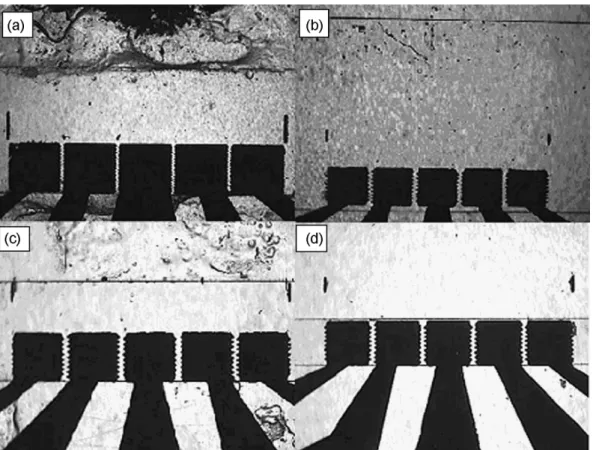

Fig. 8. Linear channels with different electrodes sizes: (a) 1000␮m with 2500 ␮m width channel; (b) 500 ␮m with 2500 ␮m width channel; (c) 500 ␮m with 1000 ␮m width channel; (d) 500␮m with 500 ␮m width channel.

not uniform over its whole area, electrodes with a small area are fabricated on the testing chip. The dielectric constant is related to the capacitance by

C = ε0εA

t (16)

where ε0 is 8.85× 10−12F/m, the electrode area A

4.9× 10−8m2, and the thickness t is 80 nm. From the

C–V curve inFig. 6, the BST capacitance is between 7× 10−10 and 1.2× 10−9F at various voltages. The dielectric constant ranges from 129.13 to 221.37.

Fig. 9. Liquid flows in 2500␮m width channel with 1000 ␮m electrodes and measuring the velocity gradients.

The electrodes and channels are fabricated by the MEMS process.Figs. 7 and 8show the curvature and linear channels with various widths and variously sized electrodes. Saline (0.9% NaCl solution) solution is used as the sample. A velocity gra-dient is induced by the flow of liquid in a 2500␮m-wide linear channel with 1000␮m electrodes, as shown inFig. 9. In a linear system, four positions are selected and the relationships between the velocity and the position in the x- and y-directions are as plot-ted inFigs. 10 and 11, respectively. Then, ∂vx/∂y and ∂vy/∂x are

evaluated by finding the first-order differentiations to be

substi-Fig. 10. Vxvs. position y curve with second-order curve fitting. The polynomial

(7)

Fig. 11. Vyvs. position x curve with second-order curve fitting. The polynomial

equation is Vy= 0.00081648 + 4.5281x− 3250.8058x2.

tuted into Eq.(12). The viscosity coefficient, which is 94.28 for saline solution, is thus determined.

5. Discussions

A micro viscometer based on EWOD can manipulate liq-uid on a micro scale, and the chip area is 2.3 cm× 2.3 cm. All analysis process is accomplished only in a few seconds. As the advancement of MEMS technology, simple and fast processes by mass production can easily approach the purpose of cost down. However, the device still has disadvantage that EWOD needs higher level of voltage. Even though the applied voltage can be significantly reduced with BST layer, it is still much higher than EW and CEW. The dielectric material and deposition quality is the key point to decrease the applied voltage with well liquid manipulation.

In our experiments, the BST surface is not uniform due to the deposition quality and it results in the thickness variation through whole wafer. While etching BST, the glass below elec-trodes would be under cut and the elecelec-trodes will split out. Additionally, the dielectric constant varies as the thickness is not uniform. Moreover, some thin area is easily punched through and results pin holes, and the liquid touching with the electrode surface directly will electrolyze and produce bubbles to inter-fere the observation. A great amount of bubbles induce flows in different directions and block the liquid flow. Besides, the elec-trodes, liquid, and ITO glass will conduct as a circuit, and the liquid can be considered as a resist. When applying voltages, the electrical current flows through the resist and induces heat. The viscosity coefficient is sensitive to temperature. Further-more, the water in solution vapors rapidly due to the heat, and the sample therefore becomes dense resulting in the variation of the viscosity. As the high frequency voltage is applied, the bubble effects can be improved, but there are still tiny bubbles locally inducing at the edge of electrodes. While the applying voltage interval is shortened, the heat caused by circuit can be reduced. The uniform BST deposition and better process

capillary stronger. When the liquid is dropped in channel, it will be pulled to another side immediately. Teflon AF coated at the surface is hydrophobic but after the channel is wetted once, the wall becomes a little more hydrophilic due to the liquid cohe-sion and the liquid will pass through the channel rapidly. As the reason, after the liquid flows through the channel, we have to ground each electrode to let them recover to hydrophobic state and dry out the channel at the same time. Because of the con-ductibility and transparency, ITO glass is chosen as a cover and ground in the device. But in the experiment, we find that the ITO at cathode burns out as the voltage applied and loses its conductibility.

In the micro channel, besides capillary effects, the cohesion and surface tension of liquid, and resistance between liquid and channel will show its influence. Before the flow motion, the cohesion and surface tension of liquid outside the channel makes it more difficult to start motion. After the liquid flows, not only bubbles and heat affect the result, but also the resistance consume part of work applied by EWOD, and the velocity cannot reach the speed in ideal simulation.

Finally, the electrodes design in our devices, we assumed the force described by viscosity as a shear strain that acts on a tangent area is equal to the force induced by EWOD as a pressure that suppresses on a sectional area of channel. The assumption is proved while the driving force is at the edge of the channel to be regarded as a shear force. As a result of this condition, the channel width to electrode size ratio ought to be large and can still pull the flow on the opposite side. But in the experiment, the liquids get better control on the 500 and 1000␮m electrodes. Under the larger ratio, these two forces may not be regard as equal. The design can be used in the future is the device which electrodes and channel are the same size and the image captured from the side of chip. Furthermore, according to the EWOD theory, while the liquid is on one electrode, the liquid should cover the other electrode beneath and then the surface can be wetted to drive liquids. For the curvature system, because the electrodes are arranged in an arch shape, the gaps between electrodes are too far at the periphery to cover the next electrodes and result in failure.

In our system, due to the high level applied voltage, the high level power supply and the LabVIEW system are still needed and cannot be integrated on chip. If we can reduce the voltage under 3 or 5 V, the control circuits can utilize semiconductor and IC design to integrate into the device. The detection system is optical microscope with image frame grabber, but the light source is another heat source for samples. The micro velocity

(8)

detector which can get more accurate velocity and do not affect the results integrates in micro channels and then the whole sys-tem can be scale down.

6. Conclusion

This work designed a novel EWOD micro viscometer, a novel EWOD micro viscometer was designed based on theoretical derivations. The liquid velocity gradient in the channel is con-sidered to determine the viscosity coefficient. The simulation results reveal the feasibility of measuring viscosity coefficients of solutions in the range 0.5× 10−3 to 2× 10−3Pa s, corre-sponding to velocities from 5 to 140 mm/s when 20 V is applied. The use of EWOD to drive the flow is demonstrated, and a minia-turized viscometer with a simple multiplexer control circuit is realized. Experimental results demonstrate that liquids can be pulled in linear channels by applying 15 V and a velocity of saline solution 660␮m/s at the electrodes with a resulting viscos-ity coefficient of 94.283. The viscometer based on a CCD camera used through a microscope may be replaced by a velocity sensor, and the control circuit may in the future be integrated on a chip.

Acknowledgement

The authors would like to thank the National Science Council of the Republic of China, Taiwan, for financially supporting this research under Contract no. NSC94-2323-B-002-013.
