Efficient high-energy pulse generation from a diode-side-pumped passively Q-switched
Nd:YAG laser and application for optical parametric oscillator
View the table of contents for this issue, or go to the journal homepage for more 2014 Laser Phys. Lett. 11 095001
(http://iopscience.iop.org/1612-202X/11/9/095001)
1. Introduction
The high gain of Nd:YAG crystal makes it preferred for use in pulsed solid-state lasers [1–4]. Laser resonators with a large mode volume, efficiently utilizing the stored energy in the laser medium, are highly desirable for the generation of high-energy pulses. Two main types of large-mode-volume resonators, unsta-ble resonator [5, 6] and stable telescopic resonator [7], have been implemented to extract the millijoule level pulse with a low divergence angle. Nevertheless, the long-length resonators are not favorable for obtaining short-pulse lasers [8], and typically accompany the problem of alignment sensitivity. Chesler et al [9] reported that the convex–concave resonator, in comparison to other resonator types, possesses the advantages of compactness, high efficiency, and insensitivity to perturbations. It is therefore valuable to develop a compact resonator with a large mode vol-ume, based on the convex–concave resonator, for the highly effi-cient generation of millijoule and nanosecond laser pulses.
Thermal lensing of the laser rod dominantly affects the laser mode volume, stability of laser resonator, and output per-formances. For diode pumped laser rods, the thermal lensing
is much lower than that of flashlamp pumped [5–7], owing to the thermal loading reduction of laser rods derived from the spectral match [10]. Moreover, quasi-continuous-wave (QCW) laser bars and stacks, giving significantly weaker thermally induced lenses with meter-level focal lengths [11,
12], have been frequently used to achieve multi-millijoule Q-switched neodymium-doped lasers [13–15]. In this work, we employ a convex–concave resonator, in which compact configuration provides a large mode volume, to develop a high-pulse-energy diode-side-pumped passively Q-switched Nd:YAG/Cr4+:YAG laser with high extraction efficiency. The
convex–concave resonator utilizes the property of weak ther-mal lensing induced by the QCW diode-pumping operation to enter the stable region. At a diode pumped energy of 227 mJ, the output laser pulse reaches 30 mJ with a pulse width of 6 ns at a repetition rate of 20 Hz. The optical-to-optical conversion efficiency is as high as 13.2%. With the developed Nd:YAG laser oscillator, the optical parametric oscillator (OPO) is fur-ther investigated with a monolithic KTP crystal in an extra-cavity configuration. With the 1064 nm input energy of 30 mJ, the OPO energy at 1573 nm is found to be 13.3 mJ. The OPO
Y P Huang1, Y J Huang2 and C Y Cho2
1 Department of Physics, Soochow University, Shih Lin, Taipei 11102, Taiwan
2 Department of Electrophysics, National Chiao Tung University, Hsinchu 30010, Taiwan
E-mail: [email protected]
Received 17 April 2014, revised 16 June 2014 Accepted for publication 20 June 2014 Published 16 July 2014
Abstract
We employ a convex–concave resonator to develop a high-pulse-energy diode-side-pumped passively Q-switched Nd:YAG laser with high extraction efficiency. At a diode pump energy of 227 mJ, the output laser pulse reaches 30 mJ with a pulse width of 6 ns at a repetition rate of 20 Hz. The optical-to-optical conversion efficiency is up to 13.2%. Based on the developed Nd:YAG laser oscillator, we further employ a monolithic KTP crystal to perform the optical parametric oscillator (OPO). With the 1064 nm input energy of 30 mJ, the OPO energy at 1573 nm is found to be 13.3 mJ, corresponding to an OPO conversion efficiency as high as 44.3%.
Keywords: diode-side-pumped, Q-switched laser, Nd:YAG laser (Some figures may appear in colour only in the online journal)
Y P Huang et al Printed in the UK 095001 lPl 1612-2011 10.1088/1612-2011/11/9/095001
Letters
9Y P Huang et al
2
conversion efficiency is as high as 44.3%, illustrating the excellent performance of the 1064 nm laser oscillator.
2. Passively Q-switched Nd:YAG laser at 1064 nm
2.1. Experimental setup
Figure 1(a) depicts the experimental setup for the QCW diode-side-pumped passively Q-switched Nd:YAG/Cr4+:YAG laser,
employing a convex–concave resonator to make a large mode volume. The pump source was two QCW high-power diode stacks (Coherent G-stack package, Santa Clara, CA, USA). Each diode stack consisted of six 10 mm long diode bars gen-erating a maximum output power of 90 W per bar at the cen-tral wavelength of 808 nm. The diode stack was constructed with 400 μm spacing between the diode bars so that the whole emission area was approximately 10 × 2.4 mm2. The full
divergence angles in the fast and slow axes are approximately 35 ° and 10 °, respectively. The radii of curvature of cavity mir-rors are chosen as R1 = −500 mm and R2 = 600 mm for the
convex rear mirror and concave output coupler, respectively. The mode radius on a lens-like medium, in the symmetric cav-ity configuration, was numerically calculated by means of the ABCD matrix method [16]. Figure 1(b) shows the calculated results for the dependences of the cavity mode radius on the focal length of the thermal lens for the cases of cavity length
L = 70, 80, 90, 100 and 110 mm. It is obvious that, for the
shorter cavity length, the stronger thermal lens is required to step into the stable region and to lase, i.e. the higher pump threshold; whereas the longer cavity length causes the smaller cavity mode radius, which is undesired for the high-energy Q-switched laser. In order to achieve a good cavity design in the QCW diode-pumping operation, we measure the focal length of the induced thermal lens at the incident diode pumped energy of 250 mJ (almost 80% maximum output energy of two diodes driven to emit optical pulse of 300 µs), corresponding to the average pump power of 5 W, using the holographic shear interferometry. The thermal focal length is measured to be in the range of 11−13 m, and thus cavity length L = 90 mm is chosen for sufficient energy extraction, which corresponds to the cavity mode radius of 0.82 − 1.08 mm, as depicted in fig-ure 1(b). In addition, the beam waist is numerically calculated to be 0.76 − 1.0 mm on the rear mirror.
The rear mirror was coated for high reflection at 1064 nm (R > 99.8%) on the convex surface. The output coupler, spe-cially designed as a meniscus to collimate the output laser beam, was coated for partial reflection at 1064 nm (R = 55%) on the concave surface and antireflection at 1064 nm (R < 0.2%) on the output convex surface. The gain medium was a 1.0 at. % Nd:YAG crystal with a 4 × 4 mm2 cross
sec-tion and a length of 25 mm, and cut with 2 °-wedged end facets to avoid etalon effects. Both end facets of the laser crystal were coated for antireflection at 1064 nm (R < 0.2%), and the pump face was coated for antireflection at 808 nm (R < 0.2%). The pump radiation was directly coupled to the laser crystal without any complex optics. The diode stacks were placed close to the lateral surface of the laser crystal to have good pump efficiency, and they were driven to emit optical pulses of 300 µs to match the upper-level lifetime of Nd:YAG laser crystal. The Cr4+:YAG crystal with the initial transmission of
30 % was coated for antireflection at 1064 nm on both sur-faces (R < 0.2%). The Cr4+:YAG crystal was placed near the

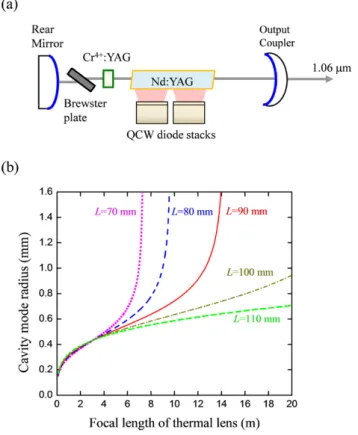

Figure 1. (a) Schematic diagram of the experimental configuration for a QCW diode-side-pumped passively Q-switched Nd:YAG/Cr4+:YAG
laser with a convex–concave resonator. (b) Calculated results for the dependence of the cavity mode sizes on the focal length of the thermal lens for the cases of L = 70, 80, 90, 100 and 110 mm.
Figure 2. Output energy at 1064 nm with respect to the diode pump energy at 808 nm in the QCW free-running operation. Inset: temporal shape for the laser pulse at the maximum diode pump energy of 298 mJ.
rear mirror where the smaller cavity mode size is. All crystals were wrapped with indium foil and mounted in conductively cooled copper blocks. A Brewster plate was inserted inside the cavity to obtain the linear polarization output. The pulse tem-poral behavior was recorded by a LeCroy digital oscilloscope (Wavepro 7100, 10 G samples/s, 1 GHz bandwidth) with a fast InGaAs photodiode.
2.2. Experimental results and discussions
First of all, the QCW free-running operation without the Cr4+:YAG crystal was performed to confirm the reliability
of the laser configuration. Figure 2 depicts the experimental results of the output energy as a function of the diode pump energy in the free-running operation. The threshold pump energy is approximately 64 mJ. With a diode pump energy
of 298 mJ, the output energy at 1064 nm is 122 mJ, corre-sponding to an optical-to-optical conversion efficiency of 41%. The temporal shape of the laser pulse, as inserted in figure 2, reveals a train of spikes caused by the relaxation oscillation. The overall slope efficiency is found to be 54%. We then inserted the Cr4+:YAG crystal into the laser
resona-tor to implement the passively Q-switched Nd:YAG laser. Figure 3. Typical temporal shape for the 1064 nm laser pulse.
Figure 5. Dependence of the measured beam width at 1064 nm in the (a) horizontal and (b) vertical directions on the position along the propagation direction.
Figure 6. Schematic diagram of the experimental configurations for an extracavity OPO with a monolithic KTP crystal pumped by the developed passively Q-switched Nd:YAG/Cr4+:YAG laser.
Figure 4. Dependence of the total output energy at 1064 nm on the diode pump energy at 808 nm for the Q-switched operation.
Y P Huang et al
4
The threshold pump energy for the Q-switched operation is measured to be approximately 227 mJ, and the output pulse energy at 1064 nm is about 30 mJ at a repetition rate of 20 Hz. It corresponds to an optical-to-optical conversion efficiency of 13.2%. Compared to the results of the passively Q-switched Nd:YAG/Cr4+:YAG laser with a QCW diode side-pumping
system to date [14, 17, 18], the energy extraction efficiency is the highest to our knowledge thanks to the superior cavity design of a convex–concave resonator.
A typical temporal shape of the laser pulse, as depicted in figure 3, displays the mode-locked modulation resulted from the multi-longitudinal mode beating. The separation of the mode-locked pulses is verified to be correspondent with the cavity round-trip frequency of 1.36 GHz. The Q-switched pulse envelope is approximately 6 ns. The Q-switched mode-locked pulses enhance the peak power, which is estimated to be up to 6.3 MW through numerical integration. With increasing the diode pump energy up to 268 mJ, the thresh-old of absorber bleaching is reached again and double laser pulses appear. Figure 4 shows that the laser output energy step likely increases with the diode pump energy at 808 nm, which connotes that the laser configuration provides the high energy extraction efficiency again. In the single-pulse regime, the laser beam was focused with a 20 cm focal length lens in order to measure the beam quality employing the z-scan method. The beam width was evaluated by the scanning knife-edge method. Figure 5(a, b) show the experimental results of the beam widths in the horizontal and vertical directions as a function of the position along the propagation direction, respectively. Based on the fitting curves in figure 5(a, b), the beam quality factors M2 are estimated to be 5.0 × 3.0
(hori-zontal × vertical) for the convex–concave cavity [19]. To make a comparison, we also measured the beam quality for a plane-parallel cavity by the above methods, and the results are pre-sented in figure 5(a, b) as well. The M2 factors are estimated
to be 5.2 × 8.0 (horizontal × vertical) for the plane-parallel cavity, which represents that the convex–concave cavity pro-vides a significant improvement of beam quality more than twice in the vertical direction. For two kinds of cavities, the
beam quality in the horizontal direction would be improved by optimization of the diode wavelength and design of the pump coupling. From the comparison, the convex–concave cavity configuration gives the laser oscillator a great beam quality and a low beam divergence, which are beneficial for extracavity wavelength conversions. In the following section, we employ the developed Nd:YAG laser oscillator, operating in the single pulse regime, to explore the performance of the extracavity OPO.
3. Application to extracavity optical parametric oscillator (OPO) at 1573 nm
3.1. Experimental setup
In this experiment, the OPO cavity was formed by a mono-lithic KTP crystal, as shown in figure 6. The nonlinear crys-tal KTP with 5 × 5 × 25 mm3 was cut along x axis (θ = 90°
and φ = 0°) for type-II noncritically phase-matched OPO with the advantages of a maximum effective nonlinear Figure 7. Output pulse energy at 1.57 μm and OPO conversion
efficiency as a function of the input pulse energy at 1.06 μm.
Figure 8. (a) Temporal behavior of the OPO pulse at 1.57 μm with an input pulse energy at 1.06 µm of 30 mJ. (b) Optical spectrum of the OPO.
of an optical isolator, was applied to prevent the feedback of 1064 nm input light into the laser oscillator. Note that the low-divergence input beam of 1064 nm leads to the need-lessness of collimation optics. An antireflection coated half-waveplate at 1064 nm and a polarizer were combined to be a variable attenuator for adjusting the input pulse energy at 1064 nm.
3.2. Experimental results and discussions
The dependence of the output pulse energy at 1.57 μm on the input pulse energy at 1.06 μm is shown in figure 7. The OPO threshold energy is approximately 6.0 mJ. With maxi-mum available input energy of 30 mJ at 1.06 μm, the OPO output energy of 13.3 mJ is obtained, leading to a high slope efficiency of 54.8%. The OPO conversion efficiency is also presented in figure 7 as a function of the input pulse energy at 1.06 μm. With increasing the input energy at 1.06 μm, the OPO conversion efficiency increases substantially; however, there is a tendency toward saturation at the higher input energy. The maximum OPO conversion efficiency of 44.3% is obtained at the highest input energy of 30 mJ, in which the excellent performance is attributed to the superior cav-ity design for the 1064 nm laser oscillator. Figure 8(a) pres-ents the temporal shape of the OPO pulse for the maximum output energy of 13.3 mJ, which exhibits a considerably less pronounced modulation with the same beating frequency as 1064 nm input pulses. The OPO pulse width is similar to that of the 1064 nm input pulse of approximately 6 ns. By the numerical integration, the corresponding OPO peak power is calculated to be approximately 2.1 MW. The optical spectrum of OPO, as shown in figure 8(b), was measured with an opti-cal spectrum analyzer (Advantest Q8381A), which has the resolution of 0.1 nm. In addition, the beam-quality M2
fac-tors of the OPO beam are measured to be less than 3.0 in both directions. The better beam quality than that of the input 1064 nm beam results from the spatial cleaning effect in the OPO conversion process. It is worth noting that both the eye-safe pulse energy of 13.3 mJ and the diode-to-signal conver-sion efficiency of 5.9%, obtained with the extracavity OPO driven by the present side-pumped Nd:YAG laser oscillator, are comparable to those attained with an intracavity OPO scheme by end pumping [20].
