Cross-Layer, Energy-Efficient Design for Supporting
Continuous Queries in Wireless Sensor Networks:
A Quorum-Based Approach
Chia-Hung Tsai· Tsu-Wen Hsu · Meng-Shiuan Pan · Yu-Chee Tseng
Published online: 10 July 2009
© Springer Science+Business Media, LLC. 2009
Abstract Power saving and query processing are two major concerns in a wireless sensor network. Each of these two issues has been intensively studied separately in the literature. In this work, we are interested in linking the asynchronous power-saving protocol and the
continuous query-processing problem together. A cross-layer solution is proposed. On the
MAC layer, we propose to use the grid-quorum system (Tseng et al., Computer Networks, 43(3):317–337, 2003) to serve as the underlying power-saving framework. On the network layer, we propose to find query paths based on the power cost incurred by grid quorums used by nodes along a path. We show how these two layers interwork with each other to support continuous queries in an energy-efficient way.
Keywords Power saving· Protocol design · Query processing · Routing · Wireless sensor network
1 Introduction
The rapid progress of wireless communication and MEMS technology have made wireless
sensor networks (WSNs) possible. A WSN normally consists of many inexpensive wireless
sensor nodes. Each node is capable of collecting, storing, processing environmental informa-tion, and communicating with neighbor nodes. Recently, a lot of research works have been dedicated to WSNs, such as routing [6,9], self-organization [12,23], deployment [8,16,28],
C.-H. Tsai (
B
)· T.-W. Hsu · M.-S. Pan · Y.-C. TsengDepartment of Computer Science, National Chiao Tung University, 1001 Ta Hsueh Road, Hsinchu 30010, Taiwan, ROC e-mail: [email protected] T.-W. Hsu e-mail: [email protected] M.-S. Pan e-mail: [email protected] Y.-C. Tseng e-mail: [email protected]
and localization [5,20]. Applications of WSNs include emergency guiding [13,26], light control [17,18], and environment monitoring [24].
Power saving and query processing are two main issues in WSNs. Many power-saving
MAC protocols have been proposed. In SMAC [30], nodes periodically switch to sleep mode. In PMAC [31], sensors are allowed to adaptively determine their sleep schedules by con-sidering neighbors’ traffic patterns. In RMAC [3], sensor nodes periodically wake up and use their active periods to establish routing paths. Nodes not located on any routing path can go to sleep; otherwise, they have to remain active. GAF [29] divides the network area into square grids. Although sensors can switch between sleep mode and active mode periodically, GAF guarantees that at least one node per grid remains active to exchange packets with neighboring grids. Span [2] adaptively elects some nodes to stay in active mode and serves as the network backbone. Other nodes periodically check with backbone nodes to see if they need to wake up. Both [2] and [29] may have some redundant sensors to stay active. TAP [7] considers traffic flows and identifies redundant nodes that can go to sleep when establishing routing paths. Most of these schemes require nodes to be synchronized in time, which are costly. Recently, some power-saving protocols have been proposed without requiring time synchronization [1,11,14,24,25].
On the other hand, query processing in WSNs has also attracted a lot of attention. Directed diffusion [10] achieves energy efficiency by selecting empirically good paths and by caching and processing data inside the network. In [19], data-centric storage is proposed by adopt-ing geographic hashadopt-ing to offer high data availability and load distribution. TAG [15] is a tiny data service that can significantly reduce bandwidth consumption. A semistructure approach which uses multiple shortest-path trees is proposed in [4] to support scalable data aggregation. A lot of works [21,22] utilize the spatio-temporal correlations of sensing data to achieve energy efficiency. A generic two-tier storage strategy for answering precision-constrained approximate queries is proposed in [27]. Although most of these query-processing works focus on achieving energy efficiency, they all do not specifically address the underlying wake-up/sleep schedules of sensor nodes.
In this work, we are interested in applying the quorum-based power-saving protocols [1,11,14,25], which have the advantage of not relying on any time synchronization among sensor nodes, to the continuous query-processing problem. A continuous query involves sending periodical reports from a source to a sink and is commonly seen in WSNs. More specifically, we will adopt the grid-quorum system [25] to derive the wake-up/sleep sched-ules of sensor nodes. Multiple query paths may coexist, each with its preferred grid quorum. We will show how these paths (and thus grid quorums) interact with each other to meet each query’s bandwidth requirement in an energy-efficient way. Although global clock synchro-nization is not necessary, we will suggest to employ an optional local slot synchrosynchro-nization to improve nodes’ energy efficiency. Compared to existing works, this paper contributes in pro-posing a cross-layer approach to integrate the grid-quorum system with continuous queries. Simulation results are presented to evaluate our results.
The rest of this paper is organized as follows. Section2presents our cross-layer sys-tem architecture. The detail MAC layer (quorum layer) and network layer (query-processing layer) are presented in Sects.3and4, respectively. Section5contains our simulation results. Finally, Sect.6concludes this paper.
2 System Architecture
We are given a WSN for supporting continuous queries. A continuous query is a unicast with sensing data being periodically delivered from a source node to a sink node. A continuous
Fig. 1 The proposed 2-layer architecture
query, or simply query, is denoted by a 5-tuple(sn, sr, t, p, len), where snis the sink node, sr is the source node, t is the lifetime of the query, p is the period that sr will generate reports, and len is the expected packet length per report. Multiple queries may coexist in the network. We use the grid-quorum system [25] as the underlying MAC layer to support power management and develop a routing layer on the top of the quorum system to determine its parameters. The goal is to support continuous queries in an energy-efficient manner.
We propose a 2-layer architecture as shown in Fig.1. When a continuous query arrives at the network layer, the sink will broadcast a query request (QREQ) packet to find a reporting path to the source. Such QREQ packets will be flooded around the network. To reply, the source will unicast a query reply (QREP) packet to the sink. To save sensor nodes’ energy, a cost function is designed at the network layer to select query paths and to dynamically choose/adjust the quorum system’s parameters. Then, the MAC layer will give power mode commands to the underlying layer. Note that when there are multiple queries, our cross-layer approach will try to increase the overlapping among nodes’ quorums to reduce the energy costs to support these queries. After a query expires, a query remove (QREM) packet will be sent along its query path.
Each node will maintain a Query Session Information (QSI) table to keep track of the query paths that currently pass it and the quorums to support these paths. Table1shows the structure of the QSI table. Gird quorums in this table will together form the quorum set of the node. The detail MAC-layer and network-layer operations will be discussed in Sects.3 and4, respectively.
Table 1 An example of the QSI table
Query Up_Node Down_Node Quorum Additional_Quorum
(31, 99, 2000, 40, 100) 55 129 (8, 5, {1}, {1}) φ (101, 29, 1000, 20, 100) 63 129 (5, 4, {3}, {3}) φ
(a)
(b)
(c)

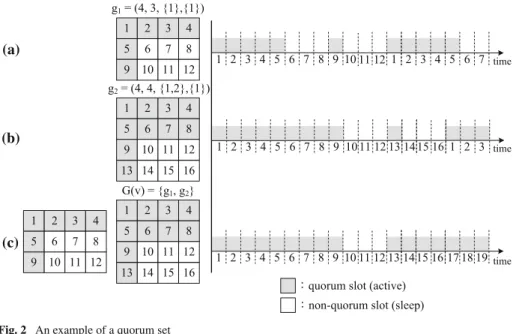

Fig. 2 An example of a quorum set
3 Quorum Layer
3.1 Grid Quorum System
Power-saving protocols for wireless networks need to ensure that nodes’ wake-up patterns will overlap with their neighbors’ patterns for communication opportunity. It is pointed out in [25] that two major challenges that one would encounter when designing a power-saving protocol are: clock synchronization and neighbor discovery. Therefore, many solutions try to enforce nodes to synchronize their clocks. However, time synchronization in a large-scale distributed environment is very costly. An alternative is to develop asynchronous power-saving protocols. The quorum-based protocols [1,11,14,25] are such solutions. Basically, they require nodes to wake up and sleep based on some pre-configured rules, but nodes do not need to synchronize their clocks. Several kinds of quorums have been proposed, such as tree quorums and grid quorums.
In this work, we will adopt the grid-quorum system [25] as our power-saving mechanism. Figure2a shows a grid-quorum example. Each node’s time axis is divided into repetitive
n1× n2 time slots, which are called a group. In each group, its slots are arranged as an n1× n2array in a row-major manner. From the array, the node can arbitrarily pick one col-umn and one row of slots as its wake-up slots, or called quorum slots. Each node must stay awake in quorum slots, and can go to sleep in the remaining n1× n2− n1− n2+ 1 slots. Note that nodes’ clocks do not need to be synchronized.
The concept has been applied to IEEE 802.11-based ad hoc networks in [25] by enforc-ing all nodes to take the same values of n1 and n2. In [1], it is further shown that even if two nodes use different n1and n2, transmission opportunity (i.e., overlapping of wake-up patterns) between them is still guaranteed.
3.2 Quorum Set for Continuous Queries
In this work, we are interested in applying the grid-quorum system to support continuous queries in a WSN. The wake-up/sleep schedule of a node will be determined by one or multiple grid quorums, which we call quorum set. The quorum set of a nodev is denoted by
G(v). Each grid quorum is denoted by a 4-tuple g = (n1, n2, R, C), where n1and n2are the numbers of rows and columns, respectively, of the grid array, R is a set of rows, and C is a set of columns. Note that this is an extension of the original definition in [25] since all entries falling in rows of R or columns of C are quorum slots. We define the duty cycle of a grid quorum g= (n1, n2, R, C) by
dt y(g) =|R| × n1+ |C| × n2− |R| × |C| n1× n2
. (1)
For example, Fig.2a shows a grid quorum g1following the original definition of [25] (it con-tains only one row and one column of quorum slots). In Fig.2b, g2= (4, 4, {1, 2}, {1}) is an extended grid quorum, which contains two rows and one column of quorum slots. Figure2c shows a quorum set G(v) = {g1, g2}, in which case, v will run both quorums g1 and g2 simultaneously by “OR” the quorum slots of both g1and g2. That is, whenever any of the grid quorums in G(v) indicates that a slot is a quorum slot, v will enter the active mode. So Fig.2c is the “OR” of the two sequences in Fig.2a, b.
4 Query-Processing Layer
In our system, when a node does not support any continuous query, its quorum set will contain only one default grid quorum gde f with minimum duty cycle. As more and more continu-ous queries (query paths) pass the node, its quorum set will contain more grid quorums. The default quorum is defined as gde f = (nmax, nmax, {rnd}, {rnd}), where nmax is a large number and r nd is a random integer between 1 and nmax. A DSR-like routing protocol will be applied. To select a routing path, an energy cost function will be defined to evaluate the quality of a query path. Basically, a new path will try to increase its overlapping of quorum slots with existing paths’ quorum slots while maintain sufficient communication capacity.
Section4.1presents the query-requesting process, followed by the query-replying and the query-removing processes in Sects.4.2and4.3. Finally, in Sect.4.4, a lightweight local slot synchronization is proposed to increase energy efficiency.
4.1 Query-Requesting Process
This part contains three modules, quorum preparing, QREQ initiating and processing, and
QREQ rebroadcasting, as explained below. 4.1.1 Quorum Preparing
When a sink node sn has a query y= (sn, sr, t, p, len) to a source node sr, it will compute a grid quorum gi nito support the query y as follows. Here we assume that from past history, the length len per report is already known.
(1) Compute a pair (n1, n2) such that n1× n2≈ p and n1is as close to n2as possible. (2) Construct a grid quorum gi ni = (n1, n2, R, C), where R/C contains a random row/
(3) Then, we check whether dt y(gi ni) ≥ lenr × 1p holds, where r is the transmission rate of a node. If so, we will adopt gi nias the grid quorum to serve the query y. Otherwise, we will continuously add rows or columns to R or C to increase the duty cycle value
dt y(gi ni), until dty(gi ni) ≥ lenr × 1p holds.
Note that gi ni is only considered as a candidate to support y; it may or may not be actually used on the query path between sr and sn. This will become clear later.
4.1.2 QREQ Initiating and Processing
There are two cases involving in producing a QREQ packet: (i) a node initiates a new query and (ii) a node receives a QREQ and rebroadcasts it. Below, we will only consider case (ii) and regard case (i) as a special case of case (ii). So, we suppose that node xi receives from node xi−1a QREQ(gi ni, y, c, P AT H) for possibly supporting a query y initiated by node x0, where gi niis the grid quorum computed by x0(by the above step A), c is the cost calcu-lated by xi−1, and P AT H is a list of 2-tuples, where each 2-tuple is of the form (node_id, quorum). Note that P AT H contains the nodes that the QREQ has traversed so far and the
grid quorums chosen by them. In case that xi is the query initiator (i.e., x0 = xi), we will imagine that a virtual QREQ is sent by xi to itself such that c= 0 and P AT H = () is an empty list. On receipt such a QREQ, the following discusses how xirebroadcasts this QREQ. First, xiwill find a quorum to serve query y, which we call gser(y). If xi is not currently passed by any query path, it will set gser(y) = gi ni. Otherwise, xiwill try to pick an existing quorum in its quorum set G(xi) or adopt gi ni to serve y. It will try to pick an existing one in G(xi) first. Recall the definition of duty cycle in Eq.1. Given G(xi), we can estimate xi’s duty cycle as follows:
DT Y(G(xi)) = 1 − g∈G(xi)
(1 − dty(g)). (2)
Also, from xi’s QSI, we can measure xi’s current traffic load as follows. For each query z, in xi’s QSI, its load can be calculated by ld(z) = lenr(z)· p1(z), where len(z) is the length of each sensing report and p(z) is the period per report for query z. So xi’s current traffic load is
L D(xi) =
∀z∈QSI of xi
ld(z). (3)
Then, xican measure whether its current quorum set can accommodate y or not by checking L D(xi) + ld(y) ≤ DT Y (G(xi)). If so, xiwill try to pick a candidate quorum gcan ∈ G(xi) with sufficient capacity to serve y. The capacity of gcanis defined as follows:
Cap(gcan) = sj∈QS(gcan) 1 s-deg(sj) n1(gcan) × n2(gcan) , (4) where n1(gcan) and n2(gcan) are the numbers of rows and columns of gcan, respectively, Q S(gcan) means the set of quorum slots of gcan, and s-deg(sj) is the share degree of the quorum slot sjin gcan. Here the share degree of sjis the estimated average number of quo-rums which will also regard slot sjas a quorum slot. This is due to the fact that xi may be running several quorums simultaneously to support multiple query paths, so quorum gcan can only have an equal share of that slot. (For example, in Fig.2, the share degree of slot 5 of g2is two and the share degree of slot 6 of g2is one.) If there exists one gcansuch that
Cap(gcan) ≥ ld(y) +
z suppor ted by gcan
ld(z), (5)
then gcanwill be assigned to support y and we will set gser(y) = gcan. Otherwise, no existing quorum in G(xi) can support y and we will check the following two conditions to see if it is possible to include gi niinto G(xi):
– DT Y(G(xi) ∪ {gi ni}) ≥ L D(xi) + ld(y) – Cap(gi ni) ≥ ld(y)
If both conditions are met, we will set gser(y) = gi ni; otherwise, this query is beyond the capacity of xito be supported and the QREQ will be discarded. Finally, if y can be supported, xiwill append the 2-tuple (xi, gser(y)) to the list P AT H and proceed to the next step.
The above steps have determined the quorum gser(y) to support y. Next, we will compute the additional energy cost to support y. There are two costs associated with this: (i) the aver-age extra energy cost Cactfor xi to remain active per slot and (ii) the average extra energy cost Ct xfor xito transmit data for y per slot. For (i), recall that gser(y) is the quorum to serve y by xi. Let gser(y) be the quorum selected by xi−1to serve y. We will actually enforce xi to include gser (y) into its quorum set, so that xican smoothly transmit data to xi−1. The cost
Cactis defined as
Cact = Eact× (DT Y (G(xi) ∪ {gser(y), gser (y)}) − DT Y (G(xi))),
where Eactis the energy to remain active for one full slot. This means the extra amount of energy for xi to remain active per slot in order to support y. For (ii), the cost Ct x is defined as Ct x = (Et x− Eact) × len(y) r × 1 p(y),
where Et x is the energy to transmit one full slot of data.
The total addition energy cost for xi to support y is Cact + Ct x. So, we will set c = c+ Cact+ Ct x.
4.1.3 QREQ Rebroadcasting
The above steps have determined the new c and P AT H if xidecides to support y. Node xi will also maintain the minimum cost cmi nfor all paths from x0to xi that xi has learned so far. If cmi n≥ c, then xiwill rebroadcast QREQ(gi ni, y, c, P AT H) containing the new c and P AT H and set cmi n= c. Note that in cast that xi is the source sr, rebroadcasting QREQ is not necessary (this will be discussed in Sect.4.2).
4.2 Query-Replying Process
When a node xi receives from xi−1a QREQ(gi ni, y, c, P AT H) initiated by a node x0and finds that it is the sink node of the query y, it will prepare to periodically report its sensing data to x0 according to the parameters specified in the query. Node xi will collect QREQs for a while and choose the QREQ(gi ni, y, c, P AT H) with the lowest cost c. Then xi will unicast QREP(y, P AT H) back to x0. The QREP will sequentially traverse nodes along the reverse direction of P AT H.
For each node xjreceiving the QREP, it can identify its serving quorum gser(y) recorded in the P AT H . There are two cases:
– If G(xj) = {gde f}, xj will directly set G(xj) = {gser(y)}. – Otherwise, xjwill set G(xj) = G(xj) ∪ {gser(y)}.
Also, xjcan find the serving quorum, say gser (y), picked by its previous node in P AT H. If gser(y) = gser (y), xjwill further set G(xj) = G(xj)∪{gser(y)}. This is for xjto cooperate with its previous node so as to smoothly transmit its data to its previous node. Finally, xj will adjust its QSI table as follows (refer to Table1). A new entry will be added such that Query = y, Up_Node= xj’s previous node, Down_Node = xj’s next node, Quorum = gser(y), and Additional_Quorum = gser (y).
After a node adjusts its quorum set, it can wake up and sleep according to the quorums in its set. Quorums do not need to synchronize with each other. Whenever any quorum in its set enters a quorum slot, the node has to be active in that slot. Also note that when a quorum slot belongs to multiple queries, the transmission opportunity should be equally shared by all these queries.
4.3 Query-Removing Process
When a query session y terminates, the sink node can identify this fact by checking its QSI table. Then it can initiate a QREM(y) packet along the query path to the sink. Each interme-diate node when receiving the QREM(y) will remove the corresponding entry from its QSI table. Also, the corresponding quorums to support will be removed from their quorum slots. Again, each node will wake up and sleep according to its new quorum slots.
4.4 Local Slot Synchronization
Although the quorum system can guarantee the communication opportunity of any two asyn-chronous nodes, in this section we will suggest a lightweight local slot synchronization to improve energy efficiency and reduce transmission delays of sensing reports. Here, we only propose to synchronize local nodes’ slots and local nodes’ quorums. We summarize our rules as follows:
– At the clock level, two neighboring nodes will try to synchronize their clocks by aligning their slots. That is, they will try to synchronize the beginning of slots at each side. – At the quorum level, if two neighboring nodes use the same quorum in their quorum sets,
they will try to synchronize this quorum by aligning the first slot of this quorum at each side. (Different quorums of these two nodes do not need to be synchronized. Similarly, inside each node, two different quorums do not need to be synchronized).
The above two rules do not address how to break the tie when a node has multiple neigh-bors and/or when a node shares the same quorum with multiple neighneigh-bors. We propose to assign priority by the following rules:
– Along a query path, a node that is closer to the source node has a higher priority. – Between two query paths, the path which was established earlier (i.e., with an earlier
5 Simulation Results
5.1 Simulation Environments
Since large-scare deployment is difficult to realize, we develop a simulation environment to verify the energy efficiency factor of our cross-layer query-processing protocol. We set up a
400× 400 m2sensing field, on which hundreds of sensor nodes are randomly deployed. The
transmission range and carrier sensing range of each sensor node are set to 50 and 100 m, respectively. In our simulations, we will randomly generate several sink-source continuous query pairs with random report periods and lifetimes. The whole simulation time is 7,200 s. To evaluate the energy consumption, the power consumption rates of a wireless interface are set to 50, 50, 45, and 5 mW under transmit, receive, idle, sleep modes, respectively. The default quorum gde f is set to (40, 40, {1}, {1}) with each quorum slot fixed to 0.1 s. Hence, each node will initially operate under 5% duty cycle and each quorum group is 160 s.
Figure3shows a scenario of our system which runs four continuous queries simulta-neously. It shows that there exists path sharing between the sink-source pairs (y1, y1) and (y3, y3) from node 8 to node 131, and the sink-source pairs (y2, y2) and (y4, y4) from node 148 to node 24. After the simulation terminates, the percentage of nodes’ residual energy is displayed in Fig.4.
In the following sections, we will discuss the benefit of our cross-layer design and the impact of query loads on our approach.
5.2 Impact of Our Cross-Layer Design
To verify the benefit gained from our cross-layer design, we will compare our approach against two schemes. Both schemes apply shortest path routing. The first one lets each query path adjust its quorum on its own, but there is no coordination between paths’ quorums; this scheme is referred to as SP–NC (shortest-path, no-coordination). The second one enforces all quorum paths to share the same quorum; this scheme is referred to SP–GQ (shortest path, global-quorum). We show our results below.
(A) Comparison with the SP–NC Scheme: Each query reporting period is set to 60 s. Query
requests are randomly injected at a rate of one query per 500 s. Figure5shows the minimal residual energy among all nodes. Since our scheme encourages a new path to overlap with existing paths, it shows that the SP–NC scheme is more likely to exhaust some particular nodes’ energy.
(B) Comparison with SP–GQ scheme: The SP–GQ scheme will pick the quorum with the
lowest duty cycle that can meet all nodes’ requirement as the global quorum. On the contrary, our scheme can dynamically adjust each query path’s quorum. The results are in Fig.6. We fix the number of nodes to 200 and set the query generation rate to one query per 500 to 1,000 s. It shows that our cross-layer design can result in much higher average residual energy. Even the minimum residual energy of our scheme still significantly outperforms that of SP–GQ. Also, the query generation rate has little impact on the energy consumption of our scheme.
5.3 Impact of Traffic Loads
Recall the query load estimation in Sect.4.1. It can be influenced by three factors: transmis-sion rate, packet length per report, and reporting period. In the following, we will discuss the impact of traffic loads on energy consumption.

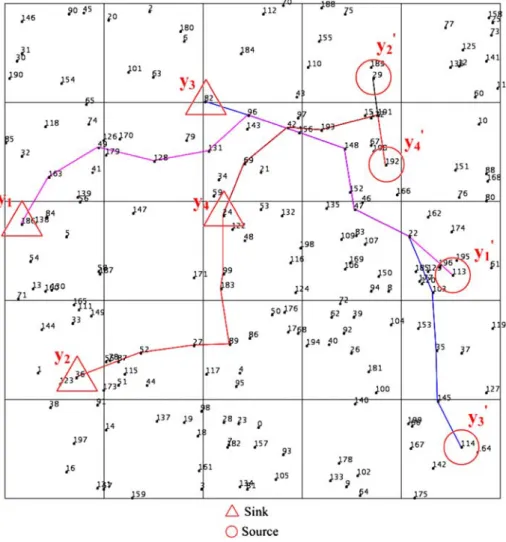

Fig. 3 A path-sharing scenario
(A) Impact of Transmission Rate: A smaller transmission rate r will result in slower
trans-mission (and thus a higher traffic load). Hence, we evaluate the energy consumption of our system by varying the transmission rate at 250, 100, 50, and 10 kbps. In Fig.7a, b, we randomly inject queries at a rate of one query per 1,000 s. In Fig.7c, d, we randomly inject queries at a rate of three queries per 1,000 s. Each report is 100 bytes. We can see that a lower r might incur higher energy consumption. In Fig.7a, c, we see that both transmission rate and number of nodes make little impact on the average residual energy because our protocol only causes nodes on query paths to increase their duty cycles. All other nodes still operate with the default quorum. However, if we look at the node with the minimal residual energy, there do exist some differences, as shown in Fig.7b, d. A lower r will cause some nodes to consume more energy than others but the impact is still quite smaller.
(B) Impact of Packet Length: Here, we vary the length len per report to evaluate the energy
performance of our scheme. The transmission rate r is fixed to 250 kbps and len varies from 100, 1,000, to 5,000 bytes. Similar with the previous case, the query generation
0 50 100 150 200 250 300 350 400 0 50 100 150 200 250 300 350 400 47 47.5 48 48.5 49 49.5 Residual Energy 47 47.5 48 48.5 49 49.5
Fig. 4 A scenario of the percentage of nodes’ residual energy after executing four continuous queries
30 35 40 45 50 100 200 300 400 500 600 700 800 900
Min Residual Energy
Number of Nodes
Our approach SP-NC
Fig. 5 Comparison to the SP–NC scheme on minimal residual energy
rates are one and three queries per 1,000 s in Fig.8a–b and Fig.8c–d, respectively. Figure8a, c shows that the average residual energy under different lens, while Fig.8b, d shows the minimal residual energy under different lens. The tread is generally the same as that in Fig.7.
(C) Impact of Query Period: In this scenario, we set r= 250 kbps and len = 100 bytes and
vary the reporting period p from 30 to 70 s. The query generation rates remain the same with the previous two experiments. The results are similar to the previous cases. As Fig.9shows a higher reporting period will incur less energy consumption. From Fig.9, we see that reporting period ( p) has more impact on energy consumption than transmission rate (r ) and packet length (len). This is because a lower reporting period will cause nodes to use smaller quorums to serve them. Smaller quorums can easily increase nodes’ duty cycles.
20 25 30 35 40 45 50 400 500 600 700 800 900 1000 1100 Residual Energy
Query Generation Period(s)
Average Residual Energy, SP-GQ Min Residual Energy, ours Average Residual Energy, ours
Fig. 6 Comparison to the SP–GQ scheme on nodes’ residual energy
30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Average Residual Energy(%)
Number of Nodes r = 250kbps r = 100kbps r = 50kbps r = 10kbps 30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Min Residual Energy
Number of Nodes r = 250kbps r = 100kbps r = 50kbps r = 10kbps (a) (b) 30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Average Residual Energy(%)
Number of Nodes r = 250kbps r = 100kbps r = 50kbps 30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Min Residual Energy
Number of Nodes r = 250kbps r = 100kbps r = 50kbps
(c) (d)

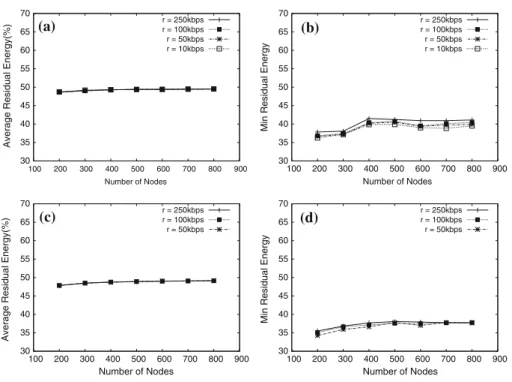

Fig. 7 The energy consumption of our system under different transmission rates (r )
6 Conclusions
We have developed a query-processing protocol to support multiple continuous queries simul-taneously in a wireless sensor network. Our design emphasizes on increasing the overlapping of query paths for energy efficiency. It adopts the grid-quorum system and extends it to the
30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Average Residual Energy(%)
Number of Nodes len = 100 bytes len = 1000 bytes len = 5000 bytes 30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Min Residual Energy
Number of Nodes len = 100 bytes len = 1000 bytes len = 5000 bytes (a) (b) 30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Average Residual Energy(%)
Number of Nodes len = 100 bytes len = 1000 bytes len = 5000 bytes 30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Min Residual Energy
Number of Nodes len = 100 bytes len = 1000 bytes len = 5000 bytes
(c) (d)

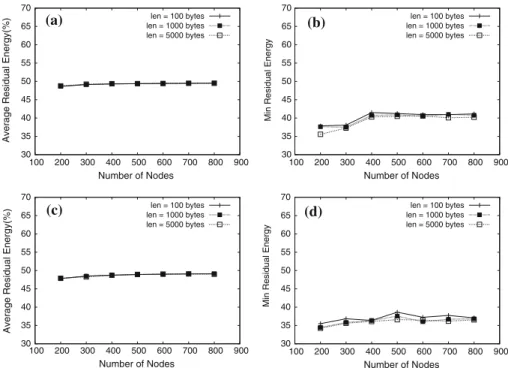

Fig. 8 The energy consumption of our system under different lengths per report (len)
30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Average Residual Energy(%)
Number of Nodes p = 30s p = 40s p = 50s p = 60s p = 70s 30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Min Residual Energy
Number of Nodes p = 30s p = 40s p = 50s p = 60s p = 70s (a) (b) 30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Average Residual Energy(%)
Number of Nodes p = 30s p = 40s p = 50s p = 60s p = 70s 30 35 40 45 50 55 60 65 70 100 200 300 400 500 600 700 800 900
Min Residual Energy
Number of Nodes p = 30s p = 40s p = 50s p = 60s p = 70s (c) (d)
concept of quorum set. We modify the original DSR routing scheme by adding a cost metric to choose quorums along a query path. Simulation results also verify the correctness and per-formance of the proposed scheme. In the future, we will consider this issue in mobile WSNs.
