Influences of post-annealing conditions on the formation of delafossite-CuCrO2 films

(1)

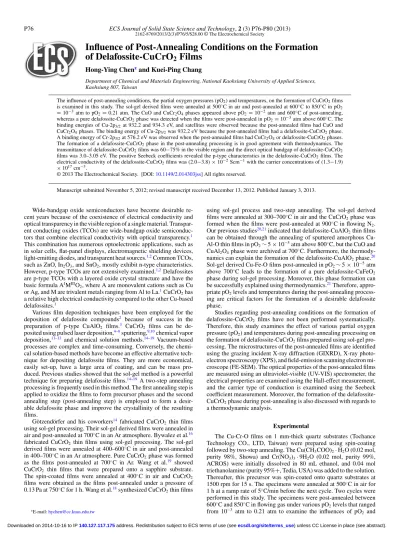

P76 ECS Journal of Solid State Science and Technology, 2 (3) P76-P80 (2013) 2162-8769/2013/2(3)/P76/5/$28.00©The Electrochemical Society

Influence of Post-Annealing Conditions on the Formation

of Delafossite-CuCrO

2

Films

Hong-Ying Chenz_{and Kuei-Ping Chang}

Department of Chemical and Materials Engineering, National Kaohsiung University of Applied Sciences, Kaohsiung 807, Taiwan

The influence of post-annealing conditions, the partial oxygen pressures (pO2) and temperatures, on the formation of CuCrO2films is examined in this study. The sol-gel derived films were annealed at 500◦C in air and post-annealed at 600◦C to 850◦C in pO2 = 10−3_{atm to pO2} _{= 0.21 atm. The CuO and CuCr}_2O4_{phases appeared above pO2}_{= 10}−2_{atm and 600}◦_{C of post-annealing,} whereas a pure delafossite-CuCrO2phase was detected when the films were post-annealed in pO2= 10−3atm above 600◦C. The binding energies of Cu-2p3/2at 932.2 and 934.3 eV, and satellites were observed because the post-annealed films had CuO and CuCr2O4phases. The binding energy of Cu-2p3/2was 932.2 eV because the post-annealed films had a delafossite-CuCrO2phase. A binding energy of Cr-2p3/2at 576.2 eV was observed when the post-annealed films had CuCr2O4or delafossite-CuCrO2phases. The formation of a delafossite-CuCrO2 phase in the post-annealing processing is in good agreement with thermodynamics. The transmittance of delafossite-CuCrO2films was 60−75% in the visible region and the direct optical bandgap of delafossite-CuCrO2 films was 3.0–3.05 eV. The positive Seebeck coefficients revealed the p-type characteristics in the delafossite-CuCrO2films. The electrical conductivity of the delafossite-CuCrO2films was (2.0−3.8) × 10−2Scm−1with the carrier concentrations of (1.3−1.9) × 1017_cm−3_.

Manuscript submitted November 5, 2012; revised manuscript received December 13, 2012. Published January 3, 2013.

Wide-bandgap oxide semiconductors have become desirable re-cent years because of the coexistence of electrical conductivity and optical transparency in the visible region of a single material. Transpar-ent conducting oxides (TCOs) are wide-bandgap oxide semiconduc-tors that combine electrical conductivity with optical transparency.1 This combination has numerous optoelectronic applications, such as in solar cells, flat-panel displays, electromagnetic shielding devices, light-emitting diodes, and transparent heat sources.1,2_{Common TCOs,} such as ZnO, In2O3, and SnO2, mostly exhibit n-type characteristics.

However, p-type TCOs are not extensively examined.1,2_Delafossites are p-type TCOs with a layered oxide crystal structure and have the basic formula AI_MIII_O

2, where A are monovalent cations such as Cu

or Ag, and M are trivalent metals ranging from Al to La.1_CuCrO

2has

a relative high electrical conductivity compared to the other Cu-based delafossites.1

Various film deposition techniques have been employed for the deposition of delafossite compounds2 _{because of success in the} preparation of p-type CuAlO2 films.3 CuCrO2 films can be

de-posited using pulsed laser deposition,4–8_sputtering,9,10_{chemical vapor} deposition,11–13_{and chemical solution methods.}14–19 _Vacuum-based processes are complex and time-consuming. Conversely, the chemi-cal solution-based methods have become an effective alternative tech-nique for depositing delafossite films. They are more economical, easily set-up, have a large area of coating, and can be mass pro-duced. Previous studies showed that the sol-gel method is a powerful technique for preparing delafossite films.14–19_{A two-step annealing} processing is frequently used in this method. The first annealing step is applied to oxidize the films to form precursor phases and the second annealing step (post-annealing step) is employed to form a desir-able delafossite phase and improve the crystallinity of the resulting films.

G¨otzend¨orfer and his coworkers14 _{fabricated CuCrO}

2 thin films

using sol-gel processing. Their sol-gel derived films were annealed in air and post-annealed at 700◦C in an Ar atmosphere. Bywalez et al.16 fabricated CuCrO2 thin films using sol-gel processing. The sol-gel

derived films were annealed at 400–600◦C in air and post-annealed in 400–700◦C in an Ar atmosphere. Pure CuCrO2phase was formed

as the films post-annealed at 700◦C in Ar. Wang et al.19 _showed CuCrO2 thin films that were prepared onto a sapphire substrate.

The spin-coated films were annealed at 400◦C in air and CuCrO2

films were obtained as the films post-annealed under a pressure of 0.13 Pa at 750◦C for 1 h. Wang et al.18_{synthesized CuCrO}

2thin films

z_E-mail:_{[email protected]}

using sol-gel process and two-step annealing. The sol-gel derived films were annealed at 300–700◦C in air and the CuCrO2 phase was

formed when the films were post-annealed at 900◦C in flowing N2.

Our previous studies20,21_{indicated that delafossite-CuAlO}

2thin films

can be obtained through the annealing of sputtered amorphous Cu-Al-O thin films in pO2∼ 5 × 10−5atm above 800◦C, but the CuO and

CuAl2O4phase were archived at 700◦C. Furthermore, the

thermody-namics can explain the formation of the delafossite-CuAlO2phase.20

Sol-gel derived Cu-Fe-O films post-annealed in pO2∼ 5 × 10−5atm

above 700◦C leads to the formation of a pure delafossite-CuFeO2

phase during sol-gel processing. Moreover, this phase formation can be successfully explained using thermodynamics.21_Therefore, appro-priate pO2levels and temperatures during the post-annealing

process-ing are critical factors for the formation of a desirable delafossite phase.

Studies regarding post-annealing conditions on the formation of delafossite-CuCrO2 films have not been performed systematically.

Therefore, this study examines the effect of various partial oxygen pressure (pO2) and temperatures during post-annealing processing on

the formation of delafossite-CuCrO2films prepared using sol-gel

pro-cessing. The microstructures of the post-annealed films are identified using the grazing incident X-ray diffraction (GIXRD), X-ray photo-electron spectroscopy (XPS), and field-emission scanning photo-electron mi-croscope (FE-SEM). The optical properties of the post-annealed films are measured using an ultraviolet-visible (UV-VIS) spectrometer, the electrical properties are examined using the Hall-effect measurement, and the carrier type of conduction is examined using the Seebeck coefficient measurement. Moreover, the formation of the delafossite-CuCrO2phase during post-annealing is also discussed with regards to

a thermodynamic analysis.

Experimental

The Cu-Cr-O films on 1 mm-thick quartz substrates (Tochance Technology CO., LTD, Taiwan) were prepared using spin-coating followed by two-step annealing. The Cu(CH3COO)2· H2O (0.02 mol,

purity 98%, Showa) and Cr(NO3)3· 9H2O (0.02 mol, purity 99%,

ACROS) were initially dissolved in 80 mL ethanol, and 0.04 mol triethanolamine (purity 95%+, Tedia, USA) was added to the solution. Thereafter, this precursor was spin-coated onto quartz substrates at 1500 rpm for 15 s. The specimens were annealed at 500◦C in air for 1 h at a ramp rate of 5◦C/min before the next cycle. Two cycles were performed in this study. The specimens were post-annealed between 600◦C and 850◦C in flowing gas under various pO2levels that ranged

from 10−3 atm to 0.21 atm to examine the influences of pO2 and

) unless CC License in place (see abstract).

ecsdl.org/site/terms_use

address. Redistribution subject to ECS terms of use (see

140.127.117.175

(2)

ECS Journal of Solid State Science and Technology, 2 (3) P76-P80 (2013) P77

temperatures on the formation of the delafossite-CuCrO2phase. The

pO2 in the flowing gas was achieved by mixing mixed O2 (purity

99.7%) into N2(purity 99.9%, pO2∼ 10−3atm). The annealing was

maintained for 2 h at a ramp rate of 5◦C/min.

A Bruker D8 Discover SSS X-ray diffractometer operating with Cu-Kα radiation (λ = 0.154 nm) at 40 kV and 40 mA was used to determine the changes in crystal structure. The grazing incidence op-erating mode was used with an incidence angle of 1◦and the sampled step size was 0.01◦within 2θ = 10◦−70◦. XPS was performed using an ULVAC PHI-5000 spectrometer with the Al K_α(hν = 1486.6 eV) exciting X-ray source. The surface was sputtered cleaning prior to measurement using an Ar ion gun operated at 2 keV for 2 min. High-resolution spectra of Cu-2p, Cr-2p and O-1s were obtained at an energy interval of 0.2 eV/step. All spectra were calibrated according to the C-1s peak at 284.6 eV. The XPS spectra were fitted using a nonlinear least squares fit with a Gaussian/Lorentzian peak shape (G/L mixing ratio= 0.3) and the background was subtracted prior to each fitting routine. The surface morphology of the films was analyzed using the FE-SEM (JEOL JSM-6700F). Optical properties were measured using a Perkin Elmer Lambda 35 ultraviolet-visible (UV-VIS) spectrome-ter. The electrical resistivity, carrier type, and carrier concentration of the post-annealed films were measured using the standard Hall-effect measurement.

Results and Discussion

GIXRD analysis.— Figure1shows the GIXRD pattern of the sol-gel derived films annealed at 500◦C in air and post-annealed un-der various pO2levels at 600–850◦C. The CuO (JCPDS #89-5899)

and CuCr2O4 (JCPDS #85-2313) are the predominant phases in the

films annealed in air at 500◦C for 1 h, which is shown in the bottom curve of Fig.1d. Moreover, the intense CuO (JCPDS #89-5899) and CuCr2O4(JCPDS #85-2313) phase appeared in the pattern as the films

were post-annealed in pO2 = 0.21 atm at 600–850◦C (Fig.1a), pO2

= 10−1_{atm at 600–800}◦_{C (Fig.}_1b_{), and pO}

2= 10−2atm at 600–750◦C

(Fig.1c) for 2 h. Moreover, post-annealed films exhibited small crys-tallinity when obtained from the large full width at half maximum (FWHM) values.

Conversely, intense delafossite-CuCrO2(R3m, JCPDS #89-6744)

diffraction peaks were well-defined in the films post-annealed in pO2

= 10−3_{atm at 600–700}◦_{C (Fig.}_1d_{). Strong (006), (012), and (110)}

diffraction peaks are observed in the figure, where the relative inten-sities of the diffraction peaks remained unchanged in the films post-annealed in pO2= 10−3atm. The narrow FWHM of the

delafossite-CuCrO2films’ peaks represented a good crystallinity.

The post-annealing conditions and corresponding phases ob-served from GIXRD patterns are summarized in Table I. The

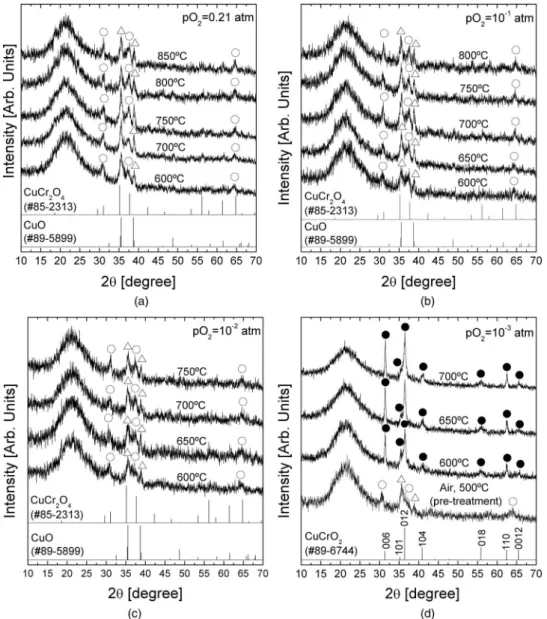

Figure 1. X-ray diffraction pattern of sol-gel derived films annealed in air at 500◦C and post-annealed under various pO2levels: (a) pO2= 0.21 atm, (b) pO2 = 10−1_{atm, (c) pO2}_{= 10}−2_{atm, and (d) pO2}_{= 10}−3_{atm (}_{:CuO, ◦:CuCr}_2O4,_●:CuCrO2_).

140.127.117.175

(3)

P80 ECS Journal of Solid State Science and Technology, 2 (3) P76-P80 (2013)

Figure 6. Transmittance spectrum of delafossite-CuCrO2films obtained by sol-gel derived films post-annealed under pO2= 10−3atm at 600–700◦C (inset is optical bandgaps).

during the post-annealing process. The equation indicates that the film post-annealed under pO2= 10−3 atm at 700◦C has aG value

of−29.5 kJ/mol, whereas the G value is −10.8 kJ/mol for the film post-annealed under pO2= 10−2atm at 700◦C.

Optoelectronic properties analysis.— The optoelectronic proper-ties of the delafossite-CuCrO2films obtained from the post-annealing

processes are analyzed. Figure6shows the optical properties, trans-mittance spectrum and direct optical bandgap of the delafossite-CuCrO2films that were post-annealed under pO2= 10−3atm at 600◦C

to 700◦C. The absorption edge near 400 nm is shown in this figure. The transmittance of the films in the visible region is approximately 60%−75%, which slightly increases as temperature increases. This increase may be associated with the good crystallinity of the films at high temperatures (cf. Figs.3cand3d). The direct optical bandgap of the delafossite-CuCrO2films deduced from the absorption coefficient

and incident photo energy are shown in the inset of the figure. The direct optical bandgap of the delafossite-CuCrO2films were

approx-imately 3.0 eV (600 and 650◦) and approximately 3.05 eV (700◦C). The values obtained in the direct optical bandgap for the delafossite-CuCrO2films are consistent with those of other studies.18,19

Moreover, the positive Seebeck coefficients confirm the p-type characteristics of the delafossite-CuCrO2 films. The electrical

con-ductivity, carrier concentration, and mobility measurements of the delafossite-CuCrO2 films prepared by post-annealing above 600◦C

under pO2 = 10−3 atm were examined using a standard Hall-effect

analyzer. The electrical conductivities of the delafossite-CuCrO2films

were 3.8× 10−2Scm−1(600◦C), 2.0× 10−2Scm−1(650◦C), and 2.3 × 10−2 _Scm−1 ₍₇₀₀◦_{C). The corresponding carrier concentrations}

were 1.7× 1017_cm−3 ₍₆₀₀◦_{C), 1.3}_{× 10}17 _cm−3 ₍₆₅₀◦_{C), and 1.9}

× 1017 _cm−3 ₍₇₀₀◦_{C), respectively. The electrical conductivities}

of the sol-gel-derived delafossite-CuCrO2 thin films were (3.4−5)

× 10−3 _S/cm18 _{and 1.8}_{× 10}−2 _S/cm.19 _{Moreover, the carrier} con-centration of the sol-gel-derived delafossite-CuCrO2 thin films was

3.14× 1015_cm−3_.19_{Therefore, the electrical conductivities and} car-rier concentrations of the delafossite-CuCrO2films in this study are

in accordance other studies.

Conclusions

The influence of partial oxygen pressure and temperatures during the post-annealing processing on the formation of delafossite-CuCrO2

films were examined. CuO and CuCr2O4phases were observed above

pO2= 10−2atm during post-annealing processing. Pure

delafossite-CuCrO2films were obtained when the films were post-annealed above

600◦C in pO2 = 10−3 atm. Binding energies of Cu-2p3/2 at 932.2

and 934.3 eV, and satellites were observed when the post-annealed films had CuO and CuCr2O4phases. Conversely, the binding energy

of Cu-2p3/2was 932.2 eV as the delafossite-CuCrO2 phase formed.

The binding energy of 576.2 eV for Cr-2p3/2was observed when the

post-annealed films had a CuCr2O4or delafossite-CuCrO2phase. The

compact surface with an average particle size of 100 nm in conjunction with large particles was apparent when the films were post-annealed at 700◦C under pO2= 10−2atm, which contributed to CuO and CuCr2O4

phases. The surface exhibited granular features that resulted from the formation of the delafossite-CuCrO2 phase, which was observed in

films post-annealed at 700◦C in pO2 = 10−3 atm.

Thermodynam-ics can explain the formation of the delafossite-CuCrO2 phase in

the films post-annealed in pO2= 10−3 atm above 600◦C. However,

thermodynamics cannot explain the experimental results near the cal-culated line, which may be caused by the small driving force for the phase transformation. The transmittance of the delafossite-CuCrO2

films was 60%−75% and the estimated direct optical bandgap of the delafossite-CuCrO2 films was 3.0−3.05 eV. The electrical

conduc-tivity of the delafossite-CuCrO2films was (2.0−3.8) × 10−2 Scm−1

with carrier concentrations of (1.3−1.9) × 1017_cm−3_{. Hence}

appro-priate pO2and temperature are major factors in the formation of the

delafossite-CuCrO2 phase during the post-annealing step of sol-gel

processing.

Acknowledgments

We thank the National Science Council of the R.O.C. for financial assistance under grant numbers NSC 100-2221-E-151-027 and NSC 101-2221-E-151-029.

References

1. M. A. Marquardt, N. A. Ashmore, and D. P. Cann, Thin Solid Films, 496, 146 (2006).

2. A. N. Banerjee and K. K. Chattopadhyay,Progress in Crystal Growth and Charac-terization of Materials, 50, 52 (2005).

3. H. Kawazoe, M. Yasukawa, H. Hyodo, M. Kurita, H. Yanagi, and H. Hosono,Nature, 389, 939 (1997).

4. K. Tonooka and N. Kikuchi,Thin Solid Films, 515, 2415 (2006). 5. T. W. Chiu, K. Tonooka, and N. Kikuchi,Vacuum, 83, 614 (2008).

6. D. Li, X. Fang, A. Zhao, Z. Deng, W. Dong, and R. Tao,Vacuum, 84, 851 (2010). 7. L. Da, F. Xiaodong, D. Zanhong, Z. Shu, T. Ruhua, D. Weiwei, W. Tao, Z. Yiping,

M. Gang, and Z. Xuebin,Journal of Physics D: Applied Physics, 40, 4910 (2007). 8. R. Nagarajan, A. D. Draeseke, A. W. Sleight, and J. Tate,Journal of Applied Physics,

89, 8022 (2001).

9. P. W. Sadik, M. Ivill, V. Craciun, and D. P. Norton,Thin Solid Films, 517, 3211 (2009).

10. G. Dong, M. Zhang, X. Zhao, H. Yan, C. Tian, and Y. Ren,Applied Surface Science, 256, 4121 (2010).

11. S. Mahapatra and S. A. Shivashankar,Chemical Vapor Deposition, 9, 238 (2003). 12. S. H. Lim, S. Desu, and A. C. Rastogi,Journal of Physics and Chemistry of Solids,

69, 2047 (2008).

13. A. C. Rastogi, S. H. Lim, and S. B. Desu,Journal of Applied Physics, 104, 023712 (2008).

14. S. Götzendörfer, C. Polenzky, S. Ulrich, and P. Löbmann,Thin Solid Films, 518, 1153 (2009).

15. S. Götzendörfer, R. Bywalez, and P. Löbmann,J. Sol-Gel Sci. Technol., 52, 113 (2009).

16. R. Bywalez, S. Gotzendorfer, and P. Lobmann,Journal of Materials Chemistry, 20, 6562 (2010).

17. S. Götzendörfer and P. Löbmann,J. Sol-Gel Sci. Technol., 57, 157 (2011). 18. J. Wang, P. Zheng, D. Li, Z. Deng, W. Dong, R. Tao, and X. Fang,Journal of Alloys

and Compounds, 509, 5715 (2011).

19. Y. Wang, Y. Gu, T. Wang, and W. Shi,Journal of Alloys and Compounds, 509, 5897 (2011).

20. H.-Y. Chen and M.-W. Tsai,Thin Solid Films, 519, 5966 (2011). 21. H.-Y. Chen and J.-H. Wu,Thin Solid Films, 520, 5029 (2012).

22. T. K. Le, D. Flahaut, H. Martinez, N. Andreu, D. Gonbeau, E. Pachoud, D. Pelloquin, and A. Maignan,Journal of Solid State Chemistry, 184, 2387 (2011).

23. K. T. Jacob, G. M. Kale, and G. N. K. Iyengar,J. Mater. Sci., 21, 2753 (1986).
