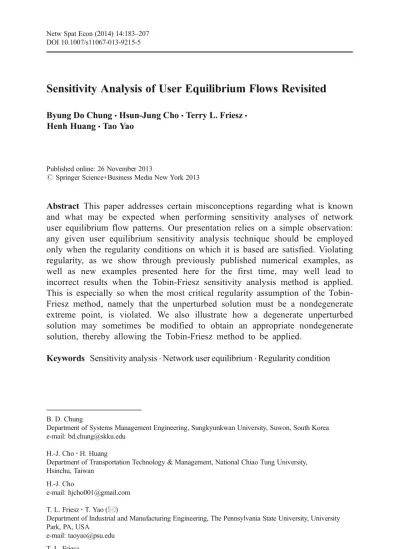

Sensitivity Analysis of User Equilibrium Flows Revisited
Byung Do Chung&Hsun-Jung Cho&Terry L. Friesz& Henh Huang&Tao Yao
Published online: 26 November 2013
# Springer Science+Business Media New York 2013
Abstract This paper addresses certain misconceptions regarding what is known and what may be expected when performing sensitivity analyses of network user equilibrium flow patterns. Our presentation relies on a simple observation: any given user equilibrium sensitivity analysis technique should be employed only when the regularity conditions on which it is based are satisfied. Violating regularity, as we show through previously published numerical examples, as well as new examples presented here for the first time, may well lead to incorrect results when the Tobin-Friesz sensitivity analysis method is applied. This is especially so when the most critical regularity assumption of the Tobin-Friesz method, namely that the unperturbed solution must be a nondegenerate extreme point, is violated. We also illustrate how a degenerate unperturbed solution may sometimes be modified to obtain an appropriate nondegenerate solution, thereby allowing the Tobin-Friesz method to be applied.
Keywords Sensitivity analysis . Network user equilibrium . Regularity condition DOI 10.1007/s11067-013-9215-5
B. D. Chung
Department of Systems Management Engineering, Sungkyunkwan University, Suwon, South Korea e-mail: [email protected]
H.<J. Cho
:
H. HuangDepartment of Transportation Technology & Management, National Chiao Tung University, Hsinchu, Taiwan
H.<J. Cho
e-mail: [email protected] T. L. Friesz
:
T. Yao (*)Department of Industrial and Manufacturing Engineering, The Pennsylvania State University, University Park, PA, USA
e-mail: [email protected] T. L. Friesz
1 Introduction
The type of sensitivity analysis we consider in this paper is based on the simultaneous perturbation of parameters in a static user equilibrium model. We assume herein that the reader is aware of the importance of being able to easily approximate a new equilibrium following such a perturbation. The work by Fiacco (1983), Tobin (1986), Kyparisis (1987) and Dafermos (1988) on the sensitivity analysis of nonlinear programs and abstract variational inequalities eventually inspired several efforts to create a method for the sensitivity analysis of user equilibrium.
The history of user equilibrium sensitivity analysis is interesting, and, for our purposes herein, may be considered to begin with Tobin and Friesz (1988). In the Tobin-Friesz approach to user equilibrium sensitivity analysis, an unperturbed nonde-generate extreme point must be known from the outset in order to initiate sensitivity analysis calculations. The formulae for sensitivity analysis obtained under the nondegeneracy assumption accord with intuition, and are easy to derive and under-stand. Various other user equilibrium sensitivity analysis methods including Qiu and Magnanti (1989), Yang (1997), Cho et al. (2000), Patriksson and Rockafellar (2003), Patriksson (2004), Yang and Bell (2007) and Lu (2008) have been developed since Tobin and Friesz (1988). Sensitivity analysis methods have been effectively used for various transportation applications, including but not limited to network design (Friesz et al. (1990) and Davis (1994)), origin–destination matrix estimation (Yang et al. (2001)), and optimal pricing (Ying and Yang (2005)).
This paper has been written to clarify the regularity conditions governing application of the Tobin-Friesz method (TFM) for user equilibrium sensitivity analysis presented in Tobin and Friesz (1988) and rederived in Cho et al. (2000). We have found that certain statements and numerical examples found in Patriksson (2004), Josefsson and Patriksson (2007) and Marcotte and Patriksson (2007), if taken out of context, leave the impression that the TFM for user equilibrium sensitivity analysis is somehow “wrong” when, in fact, it works quite well provided its application is limited to those problems fulfilling the regularity conditions reviewed in this paper.
We wish to make clear from the outset that the sensitivity analysis formulae developed by Josefsson and Patriksson (2007), Marcotte and Patriksson (2007) and Lu (2008) are more general in some aspects than the TFM. We note that a central theorem in Patriksson (2004) is unproven since the proof is incorrect as shown in Robinson (2006). History, however, plays a significant role in the scholarly conversa-tion about sensitivity analysis of user equilibrium flows. In particular, the TFM was developed some 15 to 20 years prior to the alternative literature cited above, at a time when there was considerable doubt about whether sensitivity analysis of variational inequalities based on path variables was possible. It is only natural that, as the first method for user equilibrium sensitivity analysis, the TFM involves more restrictive regularity conditions than those of subsequently published works.
The aforementioned lack of generality notwithstanding, the TFM is a self-consistent user equilibrium sensitivity analysis technique. As such, the TFM does not produce erroneous results when the user equilibrium to which it is applied fulfills the assump-tions used for derivation of the TFM presented in this paper. Although there are now more general methods for user equilibrium sensitivity analysis, such generality comes at the price of increased mathematical sophistication that may place alternative methods
beyond the comprehension of some practitioners. In mathematics, generality is always thought to be a virtue. However, in operations research, engineering and the social sciences, users of mathematical tools vote with their feet; that is, the most general mathematical tools may fail to be the most popular mathematical tools. Such is the nature of scholarly inquiry and the march of knowledge.
2 The Principal Issues
Although the TFM for sensitivity analyses, which was re-derived using alter-native arguments by Cho et al. (2000), has been widely used, it has been criticized by Patriksson (2004), Josefsson and Patriksson (2007), Marcotte and Patriksson (2007), Yang and Bell (2007) and Yang and Huang (2005) on the basis of the following:
1. A non-standard definition of user equilibrium is employed in Tobin and Friesz (1988). We agree that the definition of user equilibrium employed is not general, and it represents a limitation of the analysis presented in Tobin and Friesz (1988). However, as we show in this paper, the results derived in Tobin and Friesz (1988) do not depend on using that nonstandard definition and may be derived using the traditional definition of user equilibrium.
2. A non-standard definition of strict complementary slackness is employed in Tobin and Friesz (1988). We agree that the definition of strict complementarity used in Tobin and Friesz (1988) is nonstandard. However, we show in this paper that the TFM may be derived using the traditional definition of strict complementary slackness.
3. To apply the TFM, one must begin with an unperturbed solution that is a nondegenerate extreme point. This regularity condition represents a critical assumption; it is the key reason why the TFM is easy to derive. Example problems have been published that show the TFM may fail when the nondegeneracy assumption is relaxed. However, it is possible to modify the degenerate solutions employed in example 7.3.2 of Josefsson and Patriksson (2007), as shown in Section 4.1.5 of this paper, and example 8 of Yang and Bell (2007), as shown in Section 4.2.3 of this paper, to create valid initial solutions that are nondegenerate. However, our remarks should not be misconstrued as a claim that such modifications will always be possible, for they will not. However, in the event it is possible to construct a nondegenerate extreme point solution from a degenerate solu-tion, the TFM works. Moreover, the rederived method by Cho et al. (2000) can sometimes be applied to cases where an unperturbed solution is a nondegenerate extreme point as shown in Section 4.1.6 of this paper for examples 7.3.2 and 7.3.3 of Josefsson and Patriksson (2007) and Section4.2.4of this paper for example 8 of Yang and Bell (2007).
4. From Tobin and Friesz (1988), it is clear that existence and invertibility of the Jacobian matrix of the path cost vector, a submatrix of the entire Jacobian matrix formed from the Kuhn-Tucker conditions (including the complementary slackness conditions), are crucial to the validity of the
TFM. Differentiability of the relevant functions assures existence of that Jacobian, and the stipulation of differentiability as a regularity condition is not at issue. However, Bell and Iida (1997) correctly observed that the Jacobian of the path cost vector is not invertible when the number of paths is larger than the number of arcs, as example 6 of Yang and Bell (2007) illustrates. In Section 4.2.1 of this paper, we show that sometimes it is possible for the whole Jacobian matrix to be invertible even though the aforementioned submatrix (the Jacobian matrix of the path cost vector) is not invertible. Moreover, in assessing the TFM, one should not forget that the alternative derivation of identical sensitivity analysis formulae in Cho et al. (2000) was performed to overcome the potential noninvertibility of the Jacobian matrix of the path cost vector, provided the appropriate derivatives needed to express the Jacobian may be calculated.
5. Violation of traditional strict complementarity may occur. Because one of the regularity conditions stipulated by Tobin and Friesz (1988) is strict complementarity, it is reasonable to expect that the violation of some form of strict complementarity would generally prevent sensitivity analysis based on the TFM. However, in this paper, we show by numerical example that sensitivity analysis may sometimes be performed using the TFM even if strict complementarity is violated, provided there is differentiability at the unperturbed user equilibrium solution. Example 5 in Patriksson (2004) is an instance wherein both strict complementarity and differentiability fail to hold. Per se, sensitivity analysis of such a non-differentiable problem cannot be conducted using the TFM. However, when we consider example 7.3.1 of Josefsson and Patriksson (2007), which does not fulfill strict complementarity but meets the differentiability standard, we find the TFM may be used successfully, as we illustrate in Section 4.1.2
3 User Equilibrium Sensitivity Analysis
We will employ the specific notation presented in Table 1. We assume the user equilibrium problem possess s parameters that are subject to perturbation; these form the vectorε∈ℜs. The reader should note that the number s of perturbed parameters has no a priori relationship to the number of decision variables, the number of equality constraints or the number of inequality constraints found in a given user equilibrium problem.
To represent the perturbation of a given user equilibrium problem, we explicitly express the dependence of the impacted arc and path flows, cost functions and demands on the perturbation vectorε∈ℜs. That is, we will write
hð Þε C hð ð Þ; εε Þ
to denote the vector of perturbed path flows and the vector of perturbed path costs, respectively. Similar notation of course applies to other perturbed entities. We will not elaborate further on such notation, since it is intuitive and widely used in the sensitivity analysis literature. Using the notation of Table 1,
together with the perturbation notation convention just mentioned, the unperturbed user equilibrium problem of interest is:
gpðhð Þ0 Þ≡−hpð Þ < 0; p ∈ P0 w⇒Cpðhð Þ; 00 Þ ¼ λw ∀w∈W ð1Þ Cpðhð Þ; 00 Þ−λw≥0 ∀w∈W; p∈Pw ð2Þ dwðhð Þ; 00 Þ≡ X p∈Pw hpð Þ−Q0 w¼ 0 ∀w∈W ð3Þ
Let us define the set of feasible solutions
Ωhð Þ ¼ h 00 ð Þ : dwðh 0ð Þ; 0Þ ¼ 0; gpðh 0ð ÞÞ≤0
n o
ð4Þ It is not difficult to show that Eqs. (1–3) may be equivalently stated as the variational inequality
V Ihð Þ : find h0 ð Þ∈Ω0 hð Þ such that0
C hð ð Þ; 00 Þ
½ T
hð Þ−h0 ð Þ0
ð Þ≥0 ∀h 0ð Þ∈Ωhð Þ0 ð5Þ

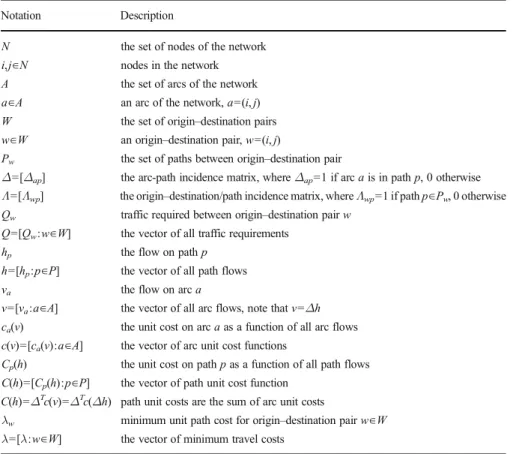

Table 1 The notation
Notation Description
N the set of nodes of the network
i,j∈N nodes in the network
A the set of arcs of the network
a∈A an arc of the network, a=(i, j) W the set of origin–destination pairs w∈W an origin–destination pair, w=(i, j)
Pw the set of paths between origin–destination pair
Δ=[Δap] the arc-path incidence matrix, whereΔap=1 if arc a is in path p, 0 otherwise
Λ=[Λwp] the origin–destination/path incidence matrix, where Λwp=1 if path p∈Pw, 0 otherwise
Qw traffic required between origin–destination pair w
Q=[Qw:w∈W] the vector of all traffic requirements
hp the flow on path p
h=[hp:p∈P] the vector of all path flows
va the flow on arc a
v=[va:a∈A] the vector of all arc flows, note that v=Δh
ca(v) the unit cost on arc a as a function of all arc flows
c(v)=[ca(v):a∈A] the vector of arc unit cost functions
Cp(h) the unit cost on path p as a function of all path flows
C(h)=[Cp(h):p∈P] the vector of path unit cost function
C(h)=ΔTc(v)=ΔTc(Δh) path unit costs are the sum of arc unit costs
λw minimum unit path cost for origin–destination pair w∈W
since we take demand to be inelastic. The variational inequality (5), under the assump-tion that path costs are additive in arc costs, is equivalent to
V Ivð Þ : findv0 ð Þ∈Ω0 vð Þ such that0
c vð ð Þ; 00 Þ ½ T vð Þ−v0 ð Þ0 ð Þ≥0 ∀v 0ð Þ∈Ωvð Þ0 ð6Þ where Ωvð Þ ¼ v 00 ð Þ : dwðh 0ð Þ; 0Þ ¼ 0; gpðh 0ð ÞÞ≤0; v 0ð Þ ¼ Δh 0ð Þ n o ð7Þ is the set of feasible arc flows.
Clearly, the perturbed version of Eqs. (5–6) are V Ihð Þ : findhε ð Þ∈Ωε hð Þ such thatε
C hð ð Þ; εε Þ
½ T
hð Þ−hε ð Þε
ð Þ≥0 ∀h εð Þ∈Ωhð Þε ð8Þ
V Ivð Þ : findvε ð Þ∈Ωε vð Þ such thatε
c vð ð Þ; εε Þ
½ T
vð Þ−vε ð Þε
ð Þ≥0 ∀v εð Þ∈Ωvð Þε ð9Þ
where we employ the obvious definitions of perturbed feasible sets, namely Ωhð Þ ¼ h εε ð Þ : dwðhð Þ; εε Þ ¼ 0; gpðhð Þε Þ≤0 n o ð10Þ Ωvð Þ ¼ v εε ð Þ : dwðhð Þ; εε Þ ¼ 0; gpðhð Þε Þ≤0; v εð Þ ¼ Δh εð Þ n o ð11Þ 3.1 Regularity Conditions
We now introduce the following regularity conditions which are assumed to be in force unless otherwise stated:
Condition 1 Continuous differentiability. In the perturbed equilibrium network flow problem, c(v,ε) is once continuously differentiable in (v,ε), and Q(ε) is once continuously differentiable inε.
Condition 2 Strong monotonicity. The arc cost vector c(v,ε) is strongly monotone in v for allε. As a consequence, the arc flow solution is unique.
Condition 3 Traditional strict complementarity. If hp*(0)= 0, then Cp*(h*(0),
0)>λw(0) for origin–destination (OD) pair w∈W.
3.2 The Key Formulae
Now suppose v*(0) to be a locally unique solution to VIv(0). Additionally take
∇hgp(h*,0), for all p such that gp(h*,0)=0, and∇hdw(h*,0), for all w∈W, to be linearly
independent, where the gradients are with respect to path flows. Furthermore, assume that the strict complementary slackness condition
π
pð Þ > 0 when g0 pðhð Þ; 00 Þ ¼ 0
holds. Then the equilibrium dual variables for inequality constraints and equal-ity constraints, π*(0) and μ*(0) respectively, are unique. Moreover, in a
neighborhood of ε=0, there exists a unique once continuously differentiable function yð Þ≡ε vð Þε πð Þε μð Þε 2 4 3 5
where v*(ε) is the locally unique arc flow solution to VIv(ε) assumed previously
to be at our disposal, and π*(ε) and μ*(ε) are its unique associated multipliers. Note that VIh(0) may be stated as
min Z h 0ð ð ÞÞ ¼ C h½ ð ð Þ; 00 ÞTh 0ð Þ s:t:h 0ð Þ∈Ωhð Þ0 and ∂Z 0ð Þ ∂hp ¼X a∈A ∂fa ∂hp ∂Z 0ð Þ ∂fa ¼X a∈A δapcaðf 0ð Þ; 0Þ ¼ Cpðh 0ð Þ; 0Þ Thus ∇hZð Þ ¼ C h0 ð ð Þ; 00 Þ
The derivative of the solution vector y(ε) with respect to ε obeys the following form of the implicit function theorem:
∇εyð Þ ¼0 ∇εvð Þ0 ∇επð Þ0 ∇εμð Þ0 2 4 3 5 ¼ J yð Þ0 h i−1 ⋅ J εð Þ0 ð12Þ where Jy*(0) is the Jacobian matrix with respect to y of the following Kuhn-Tucker
system for VIh(0): C hð ð Þ; 00 Þ þX i¼1 m πi∇hgiðhð Þ; 00 Þ þ X i¼1 p μi∇hdiðhð Þ; 00 Þ ¼ 0 ð13Þ πigiðhð Þ; 00 Þ ¼ 0 πi≥0 for i ¼ 1; …; m ð14Þ diðhð Þ; 00 Þ ¼ 0 for i ¼ 1; …; p ð15Þ
and Jε(0) the Jacobian with respect toε. Result Eq. (12) would seem to provide
an immediate opportunity to conduct sensitivity analysis. Unfortunately, as is now widely understood, the gradients in Eq. (13) do not generally exist since path flows are generally not unique. Therefore, Eq. (12) cannot be used as it is presently stated.
To avoid complications arising from the non-uniqueness of path flows, Tobin and Friesz (1988) assumed the unperturbed equilibrium path flow solution on which to base sensitivity analysis corresponds to a nondegenerate
extreme point of Ωh(0). More precisely, they invoked the following regularity
condition:
Condition 4 Non-degeneracy assumption. There exists h*(0) that is a non-degenerate extreme point of
Ωhð Þ ¼ h : Δh ¼ v0 f ð Þ; Λh ¼ Q 00 ð Þ; h≥0g
in the sense that h*(0) corresponds to a unique basis and the number of paths with positive flow is equal to the rank of [ΔT,ΛT] after restricting the network to arcs with positive flows.
We know that the perturbed arc flow solution f *(ε) is continuous with respect to the perturbation vectorε because of Condition 2. Thus, provided ε is small enough, we are assured that those arcs of the perturbed solution with positive flow are the same as those of the unperturbed solution. We are then free to consider only those paths of the non-degenerate extreme point that traverse arcs with positive flow and themselves have positive path flows. We shall refer to the vector of unperturbed, positive, equilibrium path flows found in the manner just described as h0(0). Moreover, because of continuity, we may be sure, for sufficiently small ε, that −h0(ε)<0. As a consequence, the associated dual variables are all zero; that is,π0(0)=π0(ε)=0.
We shall employ the notation Δ0 for the arc-path incidence matrix corre-sponding to h0(0). Additionally, we shall use the notation Λ0 for the OD-path incidence matrix corresponding to h0(0). The matrices Δ0 and Λ0 also apply to the perturbed solution h0(ε) by virtue of continuity and the way in which h0(0) has been constructed.
Thus, the key information on which sensitivity analysis is predicated is h0(0), which in turn is predicated on finding a non-degenerate extreme point ofΩh(0). Tobin and
Friesz (1988) suggest searching for a non-degenerate extreme point by varying b∈ℜ|h| and repeatedly solving the linear program:
min bTh s:t: h∈Ωhð Þ0 ð16Þ
Other schemes may also be employed, as we shall illustrate later via numerical examples.
As long as the Conditions 1 through 4 mentioned above are satisfied, the derivative of the equilibrium solution vector with respect toε may be calculated using the TFM. Let us briefly review what has been said above by placing the essential actions in the order in which they would be executed in an actual application:
1. If Conditions 1 through 3 are satisfied, restrict the network to those arcs with positive arc flows.
2. If possible, determine a nondegenerate extreme point h*(0)∈Ωh(0) so that
Condi-tion 4 is satisfied. Construct h0(0) by considering only those paths of the non-degenerate extreme point h*(0) that traverse arcs with positive flow and themselves have positive path flows.
3. Construct the origin–destination/path incidence matrix Λ0and arc-path incidence matrixΔ0corresponding to h0(0).
4. Create formulae for sensitivity analysis using the implicit function theorem identity (12) adapted to the restricted network created via actions 1, 2 and 3 above,
recognizing thatπ0=0, since all path flows of both the perturbed and unperturbed versions of the restricted network are positive. The relevant result is
∇εh0ð Þ0 ∇εμ0ð Þ0 ¼ J h0μ0ð Þ0 h i−1 Jεð Þ0 ð17Þ and ∇εv0ð Þ ¼ Δ0 0∇εh0ð Þ0 ð18Þ
where Jh0μ0ð Þ is the Jacobian of the Kuhn-Tucker conditions for the restricted0
network with respect to h0(0) and μ0(0) whenε=0; and Jε*(0) is the Jacobian of the
Kuhn-Tucker conditions for the restricted network with respect to perturbations when ε=0. The Jacobian matrices J
h0μ0ð Þ and J0 ε*(0) are Jεð Þ0 ¼ −∇εC0ðhð Þ; 00 Þ ∇εQ 0ð Þ ð19Þ Jh0μ0ð Þ0 h i ¼ ∇hC0ðh; 0Þ −Λ0T Λ0 0 ð20Þ Suppose Jh0μ0ð Þ0 h i−1 ¼ B11 B12 B21 B22 ð21Þ then the derivatives with respect toε when ε=0 are
∇εh0ð Þ ¼ −B0 11∇εC0ðhð Þ; 00 Þ þ B12∇εQ 0ð Þ ð22Þ ∇εμ0ð Þ ¼ −B0 21∇εC0ðhð Þ; 00 Þ þ B22∇εQ 0ð Þ ð23Þ where B11¼ ∇hC0ðh; 0Þ−1 I−Λ0T Λ0∇hC0ðh; 0Þ−1Λ0T h i−1 Λ0∇ hC0ðh; 0Þ−1 ð24Þ B12¼ ∇hC0ðh; 0Þ−1Λ0T Λ0∇hC0ðh; 0Þ−1Λ0T h i−1 ð25Þ B21¼ − Λ0∇hC0ðh; 0Þ−1Λ0T h i−1 Λ0∇ hC0ðh; 0Þ−1 ð26Þ B22¼ Λ0∇hC0ðh; 0Þ−1Λ0T h i−1 ð27Þ are found using a minimum norm projection to express a mathematical program whose unique solution provides the gradient information needed for sensitivity analysis.
5. Perform the desired sensitivity analysis according to the following local linear approximation: h0ð Þε μ0ð Þε ≈ hμ00ð Þð Þ00 þ ∇εh0ð Þ0 T ∇εμ0ð Þ0 T h i ε ε ð28Þ Since path flows are unique for the restricted network, it is a simple matter to find arc flows from Eq. (28).
3.3 The Cho-Smith-Friesz Alternative Derivation of Sensitivity Analysis Formulae The TFM is based on the implicit function theorem and requires local uniqueness. Specifically, we need to choose a unique path flow vector h* with a restricted network by solving the linear program (16). To meet the requirement of a nondegenerate extreme point, the number of paths with positive flow must equal the rank of [ΔT,ΛT
]. For convenience, we refer to that property as the positive-flow-rank (PFR) condition. It is sometimes not possible to fulfill the PFR condition even when working with the restricted network formulation of a given user equilibrium problem. Moreover, Bell and Iida (1997) observed the potential non-invertibility of the submatrix∇hC0(h*,0)−1of the Jacobian matrix Jh0μ0ð Þ employed by0
the TFM. Accordingly, Cho et al. (2000) proposed an arc-based reduction method that derives sensitivity analysis formulae without invoking the PFR condition.
In the arc-based reduction method, a“minimum distance” technique is employed to find a unique equilibrium path flow. To employ that perspective, a maximal set of rows fromΔ, say Δ1, is selected so that the combined matrix [Δ1,Λ]Tis of full row rank.
Thereby we achieve the following partition ofΔ: Δ ¼ Δ½ 1 Δ2T
Therefore, there must exist matrices M1and M2such that
Δ2¼ M1Δ1þ M2Λ ð29Þ
In concert, the arc-flow vector is partitioned so that v¼ v½ 1 v2T
where
v2¼ Δ2h ð30Þ
¼ M1Δ1hþ M2Λh ð31Þ
¼ M1v1þ M2Tð Þε ð32Þ
Since travel demands are linearly expressible in terms of arc flows, the following minimum norm projection problem may be employed to determine a unique equilib-rium path-flow vector for any v1,ε and h0. That is, we solve
min h−hk 0k2¼ h−hð 0ÞTðh−h0Þ s:t: ΔΛ1 h¼ v1 Tð Þε ð33Þ
Since the matrix [Δ1,Λ]Tis of full row rank, there exists a unique solution h(ε,v1,h0)
to the above linearly constrained quadratic program, namely hðε; v1; h0Þ ¼ h0þ ΔΛ1 T Δ 1ΔT1 Δ1ΛT ΛΔT 1 ΛΛ T " #−1 v1 Tð Þε − Δ1 Λ h0 ð34Þ Moreover, if we let Δ1ΔT1 Δ1ΛT ΛΔT 1 ΛΛT −1 ¼ M11 M12 M21 M22 ð35Þ we can rewrite Eq. (34) in a compact form as
hðε; v1; h0Þ ¼ N0h0þ N1v1þ N2Tð Þε where N0¼ I 0 0 I − Δ1 Λ T Δ1ΔT1 Δ1ΛT ΛΔT 1 ΛΛ T −1 Δ1 Λ N1 ¼ ΔT1M11þ ΛTM21 ð36Þ N2 ¼ ΔT1M12þ ΛTM22 ð37Þ
Also, from Eqs. (29) and, (35–37), M1and M2may be expressed as
Δ2¼ M1Δ1þ M2Λ ¼ M½ 1 M2 ΔΛ1 so that M1 M2 ½ ¼ Δ2 ΔΛ1 T Δ1 Λ Δ1 Λ T!−1 ð38Þ ¼ Δ2 ΔΛ1 T M11 M12 M21 M22 ¼ Δ2½N1 N2 ð39Þ
Therefore, M1=Δ2N1 and M2=Δ2N2. Finally, we conclude that the
flow-conservation conditions in Eq. (30) can be written as Δ2N1v1−v2þ Δ2N2Tð Þ ¼ 0ε
so that
Mvþ Δ2N2Tð Þ ¼ 0ε
where
Carrying out the necessary algebra yield the following: ∇εvð Þ0 ∇εμ 0ð Þ ¼ ∇vc v 0ð ð Þ; 0Þ −MT MT 0 −1 −∇εc v 0ð ð Þ; 0Þ Δ2N2∇εQ 0ð Þ ð41Þ from which it is apparent that differentiability of arc costs with respect to flow and parameter perturbations is needed; differentiability of demands with respect to param-eter perturbations is also needed.
4 Counterexamples in the Literature
In this section we discuss some numerical examples appearing in the literature on user equilibrium sensitivity analysis.
4.1 Counterexamples in Patriksson (2004), Josefsson and Patriksson (2007) and Marcotte and Patriksson (2007)
In Patriksson (2004), there is an illustrative example explaining that the TFM can provide an inaccurate result. Also, Josefsson and Patriksson (2007) proposed three counterexamples which depicted some pitfalls of the TFM and which were re-used in Marcotte and Patriksson (2007). However, in the aforementioned examples, the authors either ignored the require-ments of the TFM or applied the TFM to non-differentiable examples which violated the method’s basic assumptions. As such the examples are not bonafide counter examples. In the discussion below, we will carry out TFM calculations for some of the aforementioned examples while enforcing the regularity conditions presented in Section3of this paper. 4.1.1 Example 5 in Patriksson (2004)
In Patriksson (2004), a 5 node, 7 arc network with 2 origin–destination (OD) pairs and 6 paths is depicted and repeated here as Fig.1. There are two fixed travel demands for OD pairs (1, 4), and (3, 5). There are three paths corresponding to each OD pair: p1={1,3}, p2={1,7,4} and p3={2,4} for OD pair (1,4) and p4={5,2}, p5={5,1,7} and
p6={6,7} for OD pair (3, 5). The arc cost functions are
c1ð Þ ¼ 10vv1 1 c2ð Þ ¼ 0:5vv2 2 c3ð Þ ¼ 3 þ 10vv3 3 c4ð Þ ¼ 1 þ 10vv4 4 c5ð Þ ¼ vv5 5 c6ð Þ ¼ 2 þ vv6 6 c7ð Þ ¼ vv7 7
The travel demands are subject to perturbations expressed as the following vector: ε ¼ ε½ 14 ε35T
Whenε=0, the equilibrium arc flow solution is v*(0)=[0,2,0,1,1,0,0]T. However, as mentioned in Patriksson (2004), the solution does not obey strict complementarity.
Also, the equilibrium solution is not differentiable. Therefore, this example problem is not one for which the TFM is applicable. That is, the TFM was never intended to apply to such a problem, and the example is not a counterexample.
4.1.2 Example 7.3.1 in Josefsson and Patriksson (2007)
This example, proposed by Josefsson and Patriksson (2007), considers the 4 node, 5 arc network with 2 OD pairs and 4 paths depicted in Fig.2. There are fixed demands of 2 and 1 units of flow for OD pairs (1, 2) and (4, 2), respectively. There are four paths corresponding to the two OD pairs: p1={1}, p2={2,3}, p3={4} and p4={5,3}. The arc cost functions are
c1ðv1; εÞ ¼ 2v1þ ε
c2ð Þ ¼ vv2 2
c3ð Þ ¼ 1v3 c4ð Þ ¼ vv4 4þ 2
c5ð Þ ¼ vv5 5
Whenε=0, the equilibrium arc flow solution is v*(0)=[1,1,2,0,1]T. (Note that the arc flow solution, namely v*(0)=[1,1,1,1,1]T, given in Josefsson and Patriksson (2007) is incorrect.) Since the solution violates strict complementary, the TFM should was never intended for application to this problem. However, since strict complementarity is not a necessary condition for differentiability, it is possible that the problem is differentiable in the neighborhood ofε=0 and that the TFM may be applied, as is next discussed.
We consider perturbations of the travel demands; that is, ε ¼ ε½ 12 ε42T . The unperturbed solution is v*(0)=[1,1,2,0,1]T, and the restricted arc-path and OD-path incidence matrices are
3
1
2
4
5
6
7
1 2 3 4 5Δ ¼ 1 0 0 0 1 0 0 1 1 0 0 1 2 6 6 4 3 7 7 5 and Λ ¼ 10 10 01 :
In the restricted arc-path and OD-path incidence matrices, arc 4 is eliminated in the restricted network. The rows of the restricted arc-path incidence matrix correspond to arcs 1, 2, 3 and 5. The columns of arc-path incidence matrix correspond to paths 1, 2 and 4, respectively. We solve a linear program to find non-degenerate extreme points of the restricted network with b¼ 1 1 1½ T , and obtain the path flow solution h0ð Þ ¼ 1 1 10 ½ T > 0 . The rank of [Δ0T,Λ0T] is equal to the number of paths with positive flow, which means that h0(0) is a non-degenerate extreme point. The scalar path flows corresponding to h*(0) are all positive, and h0,Δ0andΛ0are identical to h*,Δ and Λ, respectively. It follows that
∇hC0ðh; 0Þ −Λ0T Λ0 0 ¼ 2 0 0 −1 0 0 1 0 −1 0 0 0 1 0 −1 1 1 0 0 0 0 0 1 0 0 2 6 6 6 6 4 3 7 7 7 7 5 −∇εC0ðh; 0Þ ∇εQð Þ0 ¼ −1 0 0 0 0 2 6 6 6 6 4 3 7 7 7 7 5
3
1
2
4
5
1 2 3 4Therefore ∇εv¼ −1.3 1 . 3 1 . 3 0 2 6 6 6 6 6 4 3 7 7 7 7 7 5
which is identical to the solution reported in Josefsson and Patriksson (2007). We do add, however, that every cases for which strict complementarity condition will possess the differentiability that allowed the successful application of the TFM. However, the above calculations do show that sometimes violation of strict complementarity does not prevent application of the TFM.
4.1.3 Example 7.3.2 in Josefsson and Patriksson (2007)
In another example, Josefsson and Patriksson (2007) considered a 3 node, 4 arc network with the single OD pair (1, 3) and 4 paths, as depicted in Fig.3. There is a fixed demand of 2 units of flow for OD pair (1, 3). Also there are four paths: p1={1,3},
p2={1,4}, p3={2,3} and p4={2,4}. Furthermore, the arc cost functions are
c1ðv1; εÞ ¼ v1þ ε
c2ð Þ ¼ vv2 2
c3ð Þ ¼ vv3 3
c4ð Þ ¼ vv4 4
whereε∈ℜ1is a now a scalar perturbation parameter. Whenε=0, the equilibrium arc flow solution is v*(0)=[1,1,1,1]T. Thus, the restricted arc-path and OD-path incidence matrices are Δ ¼ 1 1 0 0 0 0 1 1 1 0 1 0 0 1 0 1 2 6 6 4 3 7 7 5 and Λ ¼ 1 1 1 1½ : In this example, the rank of [ΔT,ΛT
] is 3. As the analysis in Josefsson and Patriksson (2007) establishes, the possible number of paths having non-zero flow is either 2 or 4. It is impossible to find a vector b for which the linear program (16) yields is a non-degenerate path flow solution with only 3 non-zero flows. In other words, it is
1 2 3
3
1
2
4
impossible to satisfy the requirements of the TFM in this example. Therefore, the TFM should not be applied in this example to calculate the sensitivity information even though the gradient exists, and the example does not constitute a counterexample. 4.1.4 Example 7.3.3 in Josefsson and Patriksson (2007)
In this example, Josefsson and Patriksson (2007) considered the 3 node, 3 arc network with 3 OD pairs and 4 paths depicted in Fig.4. There are three fixed demands of 1 unit of flow for each of the OD pairs (1, 2), (1, 3) and (3, 2). There are four paths corresponding to the three OD pairs denoted by p1={1}, p2={2,3}, p3={2} and
p4={3}. The arc cost functions are given by
c1ðv1; εÞ ¼ 2v1þ ε
c2ð Þ ¼ vv2 2
c3ð Þ ¼ vv3 3
whereε∈ℜ1is again a scalar perturbation parameter. Whenε=0, the equilibrium arc flow solution is v*(0)=[1,1,1]T. Thus, the restricted arc-path and OD-path incidence matrices are Δ ¼ 10 01 01 00 0 1 0 1 2 4 3 5 and Λ ¼ 10 10 01 00 0 0 0 1 2 4 3 5: In this example, the rank of [ΔT,ΛT
] is 4. Path 3 is the only path connecting OD pair (1, 3); so the flow on path 3 is exactly equal to the associated demand. Similarly, the flow on path 4 is exactly equal to the demand between OD pair (3, 2). Therefore, the flow on path 1 must be 1 and the flow on path 2 is zero. The flows just described form the unique equilibrium path flow solution, and the rank of [ΔT,ΛT] cannot possibly equal the number of paths with positive flow. Once again, this example does not satisfy the regularity conditions for the TFM. In addition, this example is non-differentiable, which fact also violates the TFM regularity conditions. Thus, the TFM should never be considered for application to this example, and the example, again, does not constitute a counterexample.
1 2 3
3
1
2
4.1.5 Modifying Example Problems to Satisfy the TFM Regularity Conditions Example 7.3.2 in Josefsson and Patriksson (2007), first discussed in this paper in Section 4.1.3 above, violates the regularity assumptions on which the TFM is predicated due to its symmetric arc cost functions and network topology. If we make the cost functions asymmetric, as we shall illustrate, the possible number of paths having non-zero flow is no longer restricted to either 2 or 4. As depicted in Fig.3. the network contains three nodes, four arcs, one OD pair and four paths. This example is identical to example 7.3.2 in Josefsson and Patriksson (2007) except for the cost function of arc 2, which is now c2(v2) = 1 + v2.
When ε=0, the equilibrium arc flow solution is v*(0)=[3/2,1/2,1,1]T. Thus, the restricted arc-path and OD-path incidence matrices are
Δ ¼ 1 1 0 0 0 0 1 1 1 0 1 0 0 1 0 1 2 6 6 4 3 7 7 5 and Λ ¼ 1 1 1 1½ :
After solving the linear program (16), a path flow solution h*(0)=[1,1/2,0,1/2]Tcan be obtained with b=[1,1,1,1]T. In this case, the rank of [ΔT,ΛT] is equal to the number of paths with positive flow, which implies that h* is a non-degenerate extreme point. Due to the flow on path 3 being zero, we may eliminate path 3 to generate h0*(0)=[1, 1/2, 1/2]T which contains only those path variables having positive path flows. Conformally defined with respect to h0*, the reduced arc-path and OD-path incidence matrices, denoted byΔ0andΛ0respectively, are
Δ0¼ 1 1 0 0 0 1 1 0 0 0 1 1 2 6 6 4 3 7 7 5 and Λ0¼ 1 1 1½ : It follows that ∇hC0ðh; 0Þ −Λ0T Λ0 0 ¼ 2 1 0 −1 1 2 1 −1 0 1 2 −1 1 1 1 0 2 6 6 4 3 7 7 5 −∇εC0ðh; 0Þ ∇εQð Þ0 ¼ −1 −1 0 0 2 6 6 4 3 7 7 5
Therefore, we have the following derivative of arc flows with respect to the perturbationε (of the cost function for arc 1):
∇εv¼ −1=2 1=2 0 0 2 6 6 4 3 7 7 5
Clearly, all requirements of the TFM are satisfied and the derivative of differentiable solutions with respect to perturbation parameters can be calcu-lated by the TFM. This contrasts to the example 7.3.3 in Josefsson and Patriksson (2007) and the example 5 in Patriksson (2004), for which non-differentiability is encountered in violation of the assumptions intrinsic to the TFM.
4.1.6 Applying Cho-Smith-Friesz Method on Counterexamples
We illustrate in this section that the Cho-Smith-Friesz method (CSFM) extends the circumstances under which the TFM is applicable.
Example 7.3.2 in Josefsson and Patriksson (2007) This example has been stated previously. Recall that, when ε=0, the equilibrium arc flow solution is v*(0) = [1,1,1,1]T and the restricted arc-path and OD-path incidence matrices are Δ ¼ 1 1 0 0 0 0 1 1 1 0 1 0 0 1 0 1 2 6 6 4 3 7 7 5 and Λ ¼ 1 1 1 1½ : In this example, the rank of [ΔT,ΛT
] is 3. By inspection,Λ has one independent row. Also the rows ofΔ that correspond to arcs 1 and 3 are linearly independent, so that we may partitionΔ according to
Δ ¼ Δ½ 1 Δ2T ð42Þ where Δ1¼ 11 10 01 00 andΔ2¼ 0 0 1 1 0 1 0 1
The matrices referred to in Eq. (41) are the followings:
∇vc vð ð Þ; 00 Þ ¼ 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 2 6 6 4 3 7 7 5 M ¼ −1 −1 0 0 0 0 −1 −1 −∇εc v 0ð ð Þ; 0Þ ¼ 1 0 0 0 2 6 6 4 3 7 7 5 Δ2N2∇εQð Þ ¼0 00
Therefore, Eq. (41) reduces to the following: ∇εv¼ −1.2 1 . 2 0 0 2 6 6 6 6 4 3 7 7 7 7 5
which is identical to the solution in Josefsson and Patriksson (2007). Thereby, we see that the CSFM may sometimes be able to deal with cases wherein h* is not a non-degenerate path solution.
Example 7.3.3 in Josefsson and Patriksson (2007) Whenε=0, the equilibrium arc flow solution is v*(0) = [1,1,1]T. Thus, the restricted arc-path and OD-path incidence matrices are Δ ¼ 10 01 01 00 0 1 0 1 2 4 3 5 and Λ ¼ 10 10 01 00 0 0 0 1 2 4 3 5: In this example, the rank of [ΔT,ΛT
] is 3. By inspectionΛ has three independent rows. Moreover, the rows ofΔ are linearly independent. Thus
Δ ¼ Δ2
based on the notation introduced in Eq. (42). Therefore, the matrices of Eq. (41) may be expressed as ∇vc vð ð Þ; 00 Þ ¼ 2 0 0 0 1 0 0 0 1 2 4 3 5 M ¼ −1 0 0 0 −1 0 0 0 −1 2 4 3 5 −∇εc v 0ð ð Þ; 0Þ ¼ −1 0 0 2 4 3 5 Δ2N2∇εQð Þ ¼0 0 0 0 2 4 3 5 Furthermore, Eq. (41) yields
∇εv¼ 0 0 0 2 4 3 5
which is the directional derivative whenε=1 employed in the Josefsson-Patriksson solution. However, the directional derivative whenε=−1 cannot be obtained by the CSFM because it corresponds to a non-differentiable circumstance, and thereby vio-lates the regularity conditions needed for application of the CSFM method.
4.2 Counterexamples in Yang and Bell (2007) and Yang and Huang (2005)
Subsequent to Bell and Iida (1997), non-invertibility of the Jacobian of the path cost occurring in Eq. (24) of the TFM was also observed by Yang and Bell (2007). The Jacobian of the path cost is in general not invertible so that the sensitivity formulae of the TFM would seem to fail in such a circumstance. However, Yang and Bell (2007) presented an example for which the Jacobian of the path cost is not invertible yet the requisite information for sensitivity analysis exists. As we have already indicated, this is not a surprise, since the invertibility of the Jacobian of path cost is a regularity condition for the TFM that one may relax when it is realized that the sensitivity analysis formulae may be derived via the CSFM. More generally, the TFM sensitivity formulae remain applicable when the Jacobian of the path cost is not invertible. This understanding, as we now reiterate, is established by the analysis of Cho et al. (2000) and the summary thereof presented in Section3.3of this paper, because Cho et al. (2000) derive those formulae without reference to the network’s topology or the presumption of invertibility of the Jacobian of path cost. We note that the Yang and Bell (2007) counter example is used in Yang and Bell (2007); thus, the above remarks also apply to the Yang and Huang (2005) paper. Our remarks immediately above are not criticisms of the manuscripts cited but rather are meant to establish connections among the various papers on the subject of equilibrium sensitivity analysis that have appeared over a considerable period of time in various journals and books.
4.2.1 Example 6 in Yang and Bell (2007)
In this example, Yang and Bell (2007) considered a 3 node, 2 arc network with 3 OD pairs and 3 paths which is depicted in Fig.5. There are two fixed demands of 5 units of flow for each of the OD pairs (1, 2) and (2, 3). The demand for OD pair (1, 3) is perturbed and becomes 5+ε13. The three paths are p1={1}, p2={2} and p3={1,2}. The
arc cost functions are given by
c1ðv1; ε1Þ ¼ v1þ 1 þ ε1 c2ð Þ ¼ vv2 2þ 1 It is helpful to define ε ¼ ε13 ε1 :
Whenε=0, the equilibrium arc flow solution is v*(0)=[10,10]T. Thus, the restricted arc-path and OD-path incidence matrices are
Δ ¼ 1 0 1 0 1 1 andΛ ¼ 1 0 0 0 1 0 0 0 1 2 4 3 5: 1 2 3 1 2
Solving the linear programming (16), with b = [1,1,1]T, a path flow solution h*=[5,5,5]Tis obtained. The rank of [ΔT,ΛT] is equal to the number of paths with positive flow, which implies that h* are all positive. Moreover, h0*,Δ0*andΛ0*are identical to h*,Δ and Λ, respectively. By inspection, we have
∇hC0ðh; 0Þ −Λ0T Λ0 0 ¼ 1 0 1 −1 0 0 0 1 1 0 −1 0 1 1 2 0 0 −1 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 2 6 6 6 6 6 6 4 3 7 7 7 7 7 7 5 ð43Þ
Yang and Bell (2007) note that the inverse of the Jacobian of the path cost matrix, ∇hC0ðh; 0Þ ¼ 1 0 1 0 1 1 1 1 2 2 4 3 5 −1 ð44Þ does not exist, and it would seem that the TFM is not applicable. However, the inverse of the entire matrix presented on the right-hand side of Eq. (43) is easily shown to be the following: ∇εC0ðh; 0Þ −Λ0T Λ0 0 −1 ¼ 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 −1 0 0 1 0 1 0 −1 0 0 1 1 0 0 −1 1 1 2 2 6 6 6 6 6 6 4 3 7 7 7 7 7 7 5 Also we note that
−∇εC0ðh; 0Þ ∇εQð Þ0 ¼ −1 0 0 0 −1 0 0 0 0 0 0 1 2 6 6 6 6 6 6 4 3 7 7 7 7 7 7 5
According to Eqs. (17–18), the derivative of arc flows with respect toε is ∇εv¼ 00 11
ð45Þ which is identical to the solution in Yang and Bell (2007). The derivative of equilibrium costs with respect toε is
∇εμ¼ 1 1 0 1 1 2 2 4 3 5 ð46Þ
which is also identical with the solution in Yang and Bell (2007). Thus, the TFM may remain applicable even though the Jacobian of the path cost matrix is not invertible.
More precisely, the non-invertibility problem encountered in expression (44) need not be inherited by inverse matrix in Eq. (17).
4.2.2 Example 8 in Yang and Bell (2007)
In this example, Yang and Bell (2007) considered a 3 node, 4 arc network with 3 OD pairs and 8 paths. The network topology is that of Fig.3. The OD demands are given by d13=2+ε13, d12=2+ε12and d23=2+ε23. There are eight paths corresponding to three
OD pairs; they are h1={1,3}, h2= {1,4}, h3= {2,3}, h4={2,4}, h5={1}, h6={2},
h7={3} and h8={4}. The arc cost functions are given by
c1ðv1; εÞ ¼ v1þ 1 þ ε
c2ð Þ ¼ vv2 2þ 1
c3ðv3; εÞ ¼ v3þ 1 þ ε
c4ð Þ ¼ vv4 4þ 1
whereε∈ℜ1is a now a scalar perturbation parameter. Whenε=0, the equilibrium arc flow solution is v*(0)=[2,2,2,2]Tand the arc-path and OD-path incidence matrices are
Δ ¼ 1 1 0 0 1 0 0 0 0 0 1 1 0 1 0 0 1 0 1 0 0 0 1 0 0 1 0 1 0 0 0 1 2 6 6 4 3 7 7 5 and Λ ¼ 1 1 1 1 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 1 1 2 4 3 5: In this example, the rank of [ΔT,ΛT
] is 5, but it appears to be impossible to find a vector b such that the path flow solution of linear programming problem (16) having only five non-zero path flow variables. Therefore, the non-degeneracy condition cannot be satisfied, and it is inappropriate to employ the TFM for sensitivity analysis of the example considered in this section.
4.2.3 Modifying Example Problems to Satisfy the Tobin and Friesz’s Regularity Conditions
In example 8 of Yang and Bell (2007), the number of paths is greater than the number of arcs plus the number of OD pairs. It can be hard to find a non-degenerate extreme point that satisfies the regularity conditions needed for the TFM. This observation is readily apparent when applying the TFM to example 8 of Yang and Bell (2007). In some cases, and this example is one of them, it is possible to modify the problem of interest to satisfy the missing regularity conditions. One way we can do that is reducing the number of paths needed to make the non-degenerate extreme point exist. If we eliminate OD pairs (1, 2) and (2, 3), this example will be a 3 node, 4 arc network with 1 OD pair and 4 paths, which is similar to the example 7.3.2 in Josefsson and Patriksson (2007).
In particular, there are four paths corresponding to OD pair (1, 3), denoted by p1={1,3}, p2={1,4}, p3={2,3} and p4={2,4}. The arc cost functions are:
c1ðv1; εÞ ¼ v1þ 1 þ ε
c2ð Þ ¼ vv2 2þ 1
c3ðv3; εÞ ¼ v3þ 1 þ ε
whereε∈ℜ1is a now a scalar perturbation parameter. Moreover, the arc cost function and the network topology are symmetric, reminiscent of the example 7.3.2 in Josefsson and Patriksson (2007). In order to modify the counterexample to satisfy the requirement of the TFM, we may easily make the cost functions asymmetric to attain this goal. For simplicity, we modify the cost function of arc 2 to c2(v2) = v2. When ε=0, the
equilibrium arc flow solution is v*(0)=[1/2,3/2,1,1]T. Thus, the arc-path and OD-path incidence matrices are
Δ ¼ 1 1 0 0 0 0 1 1 1 0 1 0 0 1 0 1 2 6 6 4 3 7 7 5 and Λ ¼ 1 1 1 1½ : The rank of [ΔT,ΛT
] is 3. Using b=[1,1,1,1]T, the linear program (16) yields the path flow vector h*=[1/2,0,1/2,1]T. In that case, the rank of [ΔT,ΛT] is equal to the number of paths with positive flow, which implies that h* is a non-degenerate extreme point. Since the flow on path 2 is zero, we can eliminate path 2 to generate h0*which contains only those path variables having positive path flows. Corresponding to h0*we have the following reduced arc-path and OD-path incidence matrices:
Δ0¼ 1 0 0 0 1 1 1 1 0 0 0 1 2 6 6 4 3 7 7 5 and Λ0¼ 1 1 1½ : Accordingly, we have ∇hC0ðh; 0Þ −Λ0T Λ0 0 ¼ 2 1 0 −1 1 2 1 −1 0 1 2 −1 1 1 1 0 2 6 6 4 3 7 7 5 −∇εC0ðh; 0Þ ∇εQð Þ0 ¼ −1 −1 0 0 −1 0 0 0 0 0 0 1 2 6 6 4 3 7 7 5 and the derivative of arc flows with respectε1,ε3andε13is
∇εv¼ −1.2 0 1 . 2 1 . 2 0 1 . 2 0 −1 . 2 1 . 2 0 1 . 2 1 . 2 2 6 6 6 6 6 6 4 3 7 7 7 7 7 7 5
In this modified example, all requirements of the TFM are satisfied. Therefore, the derivative of differentiable solutions with respect to perturbation parameters can be calculated using the TFM. Obviously the modified problem is significantly different than the original problem; as such, sensitivity analysis of the modified problem may be of little value.
4.2.4 Applying Cho-Smith-Friesz Method on Counterexamples
Let us again consider example 8 in Yang and Bell (2007). Whenε=0, the equilibrium arc flow solution is v*(0)=[2,2,2,2]T. Thus, the restricted arc-path and OD-path inci-dence matrices are
Δ ¼ 1 1 0 0 1 0 0 0 0 0 1 1 0 1 0 0 1 0 1 0 0 0 1 0 0 1 0 1 0 0 0 1 2 6 6 4 3 7 7 5 and Λ ¼ 1 1 1 1 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 1 1 2 4 3 5: In this example, the rank of [ΔT,ΛT] is 5. Clearly Λ has three independent rows. Choosing two more linearly independent rows formΔ, say those corresponding to arcs 1 and 3, allowsΔ to be partitioned in this fashion:
Δ ¼ Δ½ 1 Δ2T where Δ1 ¼ 11 10 01 00 10 00 10 00 andΔ1¼ 0 0 1 1 0 1 0 0 0 1 0 1 0 0 0 1 : The individual submatrices of matrix Eq. (41) are the following:
∇vc vð ð Þ; 00 Þ ¼ 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 2 6 6 4 3 7 7 5 M ¼ −1 −1 0 0 0 0 −1 −1 −∇εc v 0ð ð Þ; 0Þ ¼ 1 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 2 6 6 4 3 7 7 5 Δ2N2∇εQð Þ ¼0 0 0 −1 −1 0 0 0 −1 0 −1
Therefore, Eq. (41) yields
∇εv¼ −1.2 0 1 . 2 1 . 2 0 1 . 2 0 1 . 2 1 . 2 0 0 −1 . 2 1 . 2 0 1 . 2 0 1 . 2 1 . 2 0 1 . 2 2 6 6 6 6 6 6 4 3 7 7 7 7 7 7 5
In the matrix immediately above, columns 1 through 5 are the derivatives of arc flows with respect to the perturbationsε1, ε2, ε12, ε13 and ε23, respectively. The resulting
approximation of the CSFM is identical with Yang and Bell (2007). Thereby, it overcomes the non-invertibility problem noted by Bell and Iida (1997). As such the CSFM is more general than TFM in that it solves problems without requiring the PFR condition.
5 Conclusion
This paper has reviewed several prior articles in which some defects of the Tobin-Friesz method (TFM) are indicated and some examples are shown to explain that the TFM may fail or lead to an incorrect solution. However, we found this is not because the TFM is incorrect but because some of the so-called counter examples were purposely fabricated to violate the assumptions intrinsic to the TFM and the related Cho-Smith-Friesz method (CSFM). That is, the counter examples reported in the literature are not true counter examples for the TFM because they violate the regularity conditions on which the method is based.
Nonetheless, we readily acknowledge that the TFM must be applied with care. The reward for exercising such care is the rather simple formulae that characterize the TFM. In this paper, we have seen that, sometimes when the regularity conditions of the TFM are violated, the equilibrium problem of interest may be modified to allow the method’s application; this is especially so when cost symmetries are the complicating aspect of a given problem. We also observed that sometimes the Cho-Smith-Friesz method (CSFM) may be employed in lieu of the TFM to deal with noninvertible Jacobians.
References
Bell MGH, Iida Y (1997) Transportation network analysis. Wiley, New Jersey
Cho H, Smith T, Friesz TL (2000) A reduction method for local sensitivity analyses of network equilibrium arc flows. Transp Res Part B 34:31–51
Dafermos S (1988) Sensitivity analysis in variational inequalities. Math Oper Res 13:421–434
Davis G (1994) Exact local solution of the continuous network design problem via stochastic user equilibrium assignment. Transp Res Part B 28:61–75
Fiacco A (1983) Introduction to sensitivity and stability analysis in nonlinear programming. Academic, New York Friesz TL, Tobin R, Cho H, Mehta N (1990) Sensitivity analysis based heuristic algorithms for mathematical
programs with variational inequality constraints. Math Program 48:265–284
Josefsson M, Patriksson M (2007) Sensitivity analysis of separable traffic equilibrium equilibria with application to bilevel optimization in network design. Transp Res Part B 41:4–31
Kyparisis J (1987) Sensitivity analysis framework for variational inequalities. Math Program 38:203–213 Lu S (2008) Sensitivity of static traffic user equilibria with perturbations in arc cost function and travel
demand. Transp Sci 42:105–123
Marcotte P, Patriksson M (2007) Handbooks in operations research and management science: transportation. In: Barnhart C, Laporte G (eds) Traffic equilibrium. Elsevier, Netherlands, pp 623–714
Patriksson M (2004) Sensitivity analysis of traffic equilibria. Transp Sci 38:258–281
Patriksson M, Rockafellar R (2003) Sensitivity analysis of aggregated variational inequality problems with application to traffic equilibria. Transp Sci 37:56–68
Qiu Y, Magnanti T (1989) Sensitivity analysis for variational inequalities defined on polyhedral sets. Math Oper Res 14:410–432
Robinson SM (2006) Strong regularity and the sensitivity analysis of traffic equilibria: a comment. Transp Sci 40:540–542
Tobin RL (1986) Sensitivity analysis for variational inequalities. J Optim Theory Appl 48:191–204 Tobin RL, Friesz TL (1988) Sensitivity analysis for equilibrium network flow. Transp Sci 22:242–250 Yang H (1997) Sensitivity analysis for the elastic-demand network equilibrium problem with applications.
Transp Res Part B 31:55–70
Yang H, Bell M (2007) Sensitivity analysis of network traffic equilibria revisited: the corrected approach. In: Heydecker BG (ed) Mathematics in transport. Elsevier, Netherlands, pp 373–395
Yang H, Huang H (2005) Mathematical and economic theory of road pricing. Elsevier, Netherlands Yang H, Meng Q, Bell M (2001) Simultaneous estimation of the origin–destination matrices and travel-cost
coefficient for congested networks in a stochastic user equilibrium. Transp Sci 35:107–123
Ying J, Yang H (2005) Sensitivity analysis of stochastic user equilibrium flows in a bi-modal network with application to optimal pricing. Transp Res Part B 39:769–795
