Diffusioosmosis of electrolyte solutions in a capillary

slit with surface charge layers

Hsien Chen Ma, Huan J. Keh

Department of Chemical Engineering, National Taiwan University, Taipei 106-17, Taiwan, ROC

Available online 25 July 2005 Abstract

The steady diffusioosmotic flow of an electrolyte solution in a fine capillary slit with each of its inside walls covered by a layer of adsorbed polyelectrolytes is analytically studied. In this solvent-permeable and ion-penetrable surface charge layer, idealized polyelectrolyte segments are assumed to distribute at a uniform density. The electric double layer and the surface charge layer may have arbitrary thicknesses relative to the gap width between the slit walls. The Debye–Huckel approximation is used to obtain the electrostatic potential distribution on a cross section of the slit. The macroscopic electric field induced by the imposed electrolyte concentration gradient through the slit is determined as a function of the lateral position rather than taken as its constant bulk-phase quantity. Explicit formulas for the fluid velocity profile are derived as the solution of a modified Navier–Stokes/Brinkman equation. The effect of the lateral distribution of the induced axial electric field in the slit on the diffusioosmotic flow is found to be of dominant significance in most practical situations and to drive the fluid towards the end of higher electrolyte concentration. The existence of the surface charge layers can lead to a quite different diffusioosmotic flow from that in a capillary with bare walls.

© 2005 Elsevier B.V. All rights reserved.

Keywords: Diffusioosmosis; Polyelectrolyte-coated capillary; Arbitrary double-layer thickness

1. Introduction

The flow of electrolyte solutions in a small pore with a charged wall is of much fundamental and practical interest in various areas of science and engineering. In general, driving forces for this electrokinetic flow include dynamic pressure differences between the two ends of the pore (a streaming potential is developed as a result of zero net electric current) and tangential electric fields that interact with the electric double layer adjacent to the pore wall (electroosmosis). Prob-lems of fluid flow in pores caused by these well-known driving forces were studied extensively in the past century

[1–8].

Another driving force for the electrokinetic flow in a micropore, which has commanded less attention, involves tangential concentration gradients of an ionic solute that inter-acts with the charged pore wall. This solute-wall interaction is electrostatic in nature and its range is the Debye screening ∗Corresponding author. Tel.: +886 2 33663048; fax: +886 2 23623040.

E-mail address: [email protected] (H.J. Keh).

length κ−1(defined right after Eq.(3)). The fluid motion asso-ciated with this mechanism, known as “diffusioosmosis”, has been analytically examined for solutions near a plane wall[4,9–12]and inside a fine capillary[13–16]. Electrolyte solutions with a concentration gradient of order 100 kmol/m4 (=1 M/cm) along solid surfaces with a zeta potential of order

kT/e (∼25 mV; e is the charge of a proton, k is the Boltzmann

constant, and T is the absolute temperature) can flow by diffusioosmosis at velocities of several micrometers per second.

Although the basic relationships involved in electrokinetic phenomena were derived mainly by using the traditional model of plain distribution of surface charges, quite a number of investigations have applied these phenomena to the study of the effects of polyelectrolyte adsorbates. The electroosmotic flows in capillaries with thin polymer layers on the inside walls were theoretically examined for the cases of a slit[17,18]and a tube[19]with thin double layers. On the other hand, analytical formulas for the electroosmotic velocity profile of electrolyte solutions on the cross section of a capillary with its inside wall covered by a finite layer 0927-7757/$ – see front matter © 2005 Elsevier B.V. All rights reserved.

(2)

of adsorbed polyelectrolytes were obtained by solving the linearized Poisson–Boltzmann equation for the case of an arbitrary value of κR or κh, where R is the radius of a capillary tube and h is the half thickness of a capillary slit[20,21]. Recently, the diffusioosmotic flow of a symmetric electrolyte solution in a fine capillary slit bearing adsorbed polyelec-trolytes on its inside walls was theoretically investigated for the case of small potentials or low fixed-charge densities, and an analytical formula for the fluid velocity profile on the cross section of the slit was obtained[22]. In this study, however, the effect of lateral distributions of the counter-ions and co-ions on the local macroscopic electric field induced by the imposed electrolyte concentration gradient in the axial direction, which can be dominantly important, was neglected. The objective of this work is to analyze the steady diffu-sioosmosis of an electrolyte solution with a constant imposed concentration gradient through a capillary slit bearing per-manently adsorbed or covalently bound polyelectrolytes on its inside walls. The charge and segment densities of the adsorbed polymers are assumed to be uniform throughout the surface charge layer, and the Debye–Huckel approxima-tion for the electrostatic potential is employed. However, no assumptions will be made about the thickness of the electric double layer or the thickness of the surface charge layer rel-ative to the gap width between the slit walls, and the lateral distribution of the induced axial electric field is allowed. We shall derive explicit formulas for the local and average fluid velocities due to the application of an electrolyte concentra-tion gradient along the slit walls. These results show that the effect of the deviation of the induced axial electric field in the slit from its bulk-phase quantity on the diffusioosmotic velocity of the fluid is dominantly significant in most practical situations.

2. Electrostatic potential distribution

In this section, we consider the electrostatic potential dis-tribution in the fluid solution of a symmetrically charged electrolyte on a cross section of the narrow channel between two large identical parallel plates of length L at separation dis-tance 2 h with h L, as illustrated inFig. 1. Each of the inside walls of the capillary slit is coated with a layer of adsorbed,

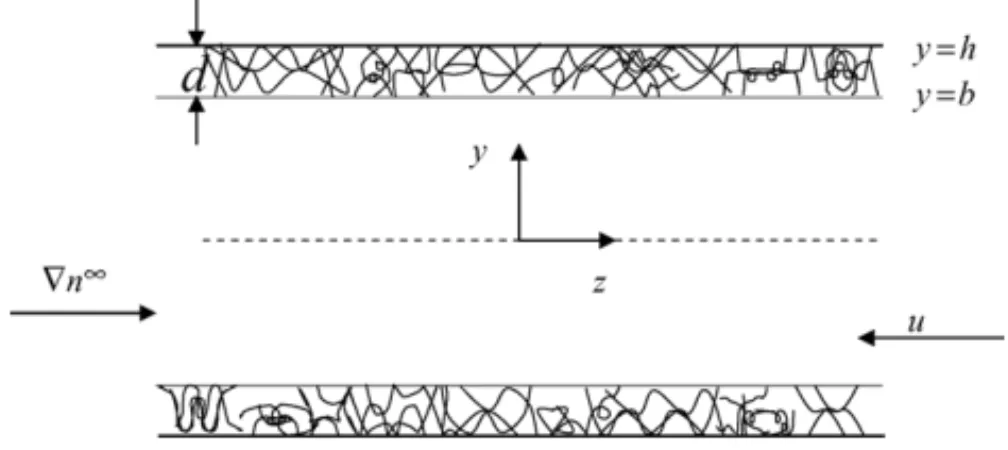

Fig. 1. Geometrical sketch for the diffusioosmosis in a capillary slit with each of its inside walls covered by a layer of adsorbed polyelectrolytes.

charged polymers in equilibrium with the surrounding solu-tion. The polymer layer is treated as a solvent-permeable and ion-penetrable surface charge layer of constant thick-ness d = h− b in which fixed-charged groups of valence q are distributed at a uniform density N. Experimental val-ues for human erythrocytes[23], rat lymphocytes[24], and grafted polymer macrocapsules [25]indicate that d ranges from 7.8 nm to 3.38␮m and N can be as high as 0.03 kmol/m3, depending on the pH and ionic strength of the electrolyte solution.

The prescribed electrolyte concentration gradient∇n∞is a constant along the axial direction in the capillary, where

n(z) can be interpreted as the equivalent electrolyte con-centration in the bulk solution phase (outside the capillary) at equilibrium with the fluid in the slit cross section at axial posi-tion z. Since the electrolyte ions can diffuse freely along the capillary (inside and outside the surface charge layers), there exists no regular osmotic flow of the solvent. It is assumed that L|∇n|/n∞(0) 1, where z = 0 is set at the midpoint through the capillary slit. Thus, the variation of the elec-trostatic potential (excluding the macroscopic electric field induced by the prescribed electrolyte gradient, which will be discussed in the next section) and ionic concentrations in the slit with the axial position is negligible.

Because of the planar symmetry of the system, we need consider only the half region 0≤ y ≤ h, where y is the distance from the median plane between the slit walls in a normal direction. If ψ(y) represents the electrostatic potential at the position y relative to that in the bulk solution and n+(y, z) and n(y, z) denote the local concentrations of the cation and anion, respectively, of the symmetric electrolyte with valence

Z (which is positive), then Poisson’s equation gives

d2ψ

dy2 = − 4πe

ε {Z[n+(y, 0)− n(y, 0)]+ H(y)qN} (1)

Here, H(y) is a unit step function which equals unity if

b < y < h, and zero if 0≤ y <b; ε = 4πε0εr, where εris the rela-tive permittivity of the electrolyte solution which is assumed to be constant and ε0is the permittivity of a vacuum.

The local concentrations n+and nare also related to ψ by the Boltzmann equation:

n±= n∞ exp  ∓Zeψ kT  (2) The substitution of Eq. (2) into Eq. (1) leads to the well-known Poisson–Boltzmann equation. For small values of ψ (or Zeψ/kT 1, known as the Debye–Huckel approxima-tion), the Poisson–Boltzmann equation can be linearized and Eq.(1)becomes

d2ψ

dy2 = κ

2ψ− H(y)4πqeN

ε , (3)

where κ= [8π(Ze)2n(0)/εkT ]1/2 is the Debye screening parameter.

(3)

The boundary conditions for ψ are dy(y= 0) = 0, (4a) ψ(y= b−)= ψ(y = b+), (4b) dy(y= b)= dy(y= b +), (4c) dy(y= h) = 4πσ ε . (4d)

Eqs.(4b)and(4c)are the continuity requirements for ψ and dψ/dy at the outer edge of the surface charge layer[18,26]. Eq.(4d)is the Gauss condition at the capillary wall, with σ equal to the surface charge density of the bare wall.

The solution to Eqs.(3)and(4)is

ψ= kT ZeAcosh(κy), if 0≤ y ≤ b, (5a) ψ= kT Ze[B cosh(κy)+ C sinh(κy) + ¯N], if b ≤ y ≤ h, (5b) with A= σ¯+ ¯N sinh(κd) sinh(κh) , (6a) B=σ¯− ¯N cosh(κh) sinh(κb) sinh(κh) , (6b) C= ¯N sinh(κb), (6c)

where ¯σ= 4πZeσ/εκkT and ¯N = 4πZe2qN/εκ2kT. Evi-dently, the electric potential given by Eq. (5) is correct to the first orders of the dimensionless fixed-charge densities ¯σ

and ¯N. Note that the parameter ¯Ncan also be viewed as the nondimensionalized Donnan potential[18,27]of the surface charge layer in the Debye–Huckel approximation.

If the boundary condition (4d)for the case of constant surface charge density is replaced by the boundary condition for the case of constant surface potential,

ψ(y= h) = ζ, (7)

then the solution in the form of Eq.(5) is also valid to the first orders of ζ and ¯N,with

A= ¯ζ+ ¯N[cosh(κd) − 1]

cosh(κh) , (8a)

B= ¯ζ− ¯N[sinh(κh) sinh(κb) + 1]

cosh(κh) , (8b)

where ¯ζ= Zeζ/kT is the dimensionless surface potential, and c is still given by Eq.(6c). By using Eqs.(4d),(5b),(6c), and(8b), it can be found that the relation between ζ and ¯σ

for arbitrary values of ¯N, κhand κb under the Debye–Huckel approximation is

¯

σcosh(κh)= (¯ζ − ¯N) sinh(κh) + ¯N sinh(κb) (9)

When there is no polyelectrolyte adsorbed on the walls of the capillary slit, or when the adsorbed polymer layer is uncharged, one has N = 0. Then, Eqs.(5),(6), and(8)reduce to ψ=kT ZeA0cosh(κy), (10) where A0= ¯ σ sinh(κh) (11a)

for the situation of constant surface charge density, and

A0= ¯ζ

cosh(κh) (11b)

for the situation of constant surface potential (B = A = A0and

C = 0).When the capillary slit is filled with the

polyelec-trolytes, one has d = h and b = 0. Then, Eqs.(5),(6), and(8)

reduce to ψ=kT Ze[B1cosh(κy)+ ¯N], (12) where B1= ¯ σ sinh(κh) (13a)

for the situation of constant surface charge density, and

B1= ¯ζ− ¯N

cosh(κh) (13b)

for the situation of constant surface potential (A− ¯N = B =

B1and C = 0).

3. Induced electric field distribution

The ionic concentrations n+and n−in the capillary slit are not uniform in both axial (z) and lateral (y) directions; hence their prescribed gradients in the axial direction can give rise to a “diffusion current” distribution on a cross section of the slit. To prevent a continuous separation of the counter-ions and co-ions, an electric field distribution E along the axial direction arises spontaneously in the electrolyte solution to produce another electric current distribution, which exactly balances the diffusion current[4,10].

The flux of either ionic species can be expressed by the Nernst–Planck equation, J±= −D±  ∇n±±kTZen±(∇ψ − E)  , (14)

where the principle of superposition for the electric potential is used, and D+and D−are the diffusion coefficients of the cations and anions, respectively, which are assumed to be constant both inside and outside the porous surface layer. In order to have no current arising from the cocurrent diffusion

(4)

of the cations and anions, one must require that J+= J= J. Applying this constraint to Eq.(14), one obtains

E = kT Ze  G+− G G++ G  ∇nn∞(0), (15) where G±= D±exp  ∓Zeψ kT  (16) Here, the coefficients G+and G−reflect the fact of an increase in the axial diffusive flux of the counter-ions and a decrease in the flux of the co-ions inside the electric double layer.

Substitution of Eqs.(15)and(16)into Eq.(14)leads to,

J = −D∇n, (17)

where the position-dependent net diffusivity is

D= 2G+G

G++ G (18)

Eqs.(15)and(17)show clearly that both E and J are collinear with the axially imposed electrolyte gradient∇n∞.

When the electric potential ψ is low, a Taylor expansion applies to Eq.(16), and Eqs.(15)and(18)can be expressed as E = kT Ze  β− (1 − β2)Zeψ kT + O(ψ 2)  ∇nn∞(0) (19) and D= 2D+DD++ D  1+ βZeψ kT + O(ψ 2)  , (20) where β=D+− DD++ D (21)

Evidently,−1 ≤ β ≤ 1. Note that, even if the cation and anion diffusion coefficients are identical (i.e., β = 0, the O(ψ) term in Eq.(19)for the induced electric field E still exists (due to the adsorption of the counter-ions and depletion of the co-ions near the slit walls) and equals−ψ∇n/n∞(0). In a previous study of the diffusioosmosis of electrolyte solutions in a capillary slit with each of its inside walls covered by a layer of adsorbed polyelectrolytes[22], only the first term in the brackets of Eq.(19), which is a constant, was considered for E (the bulk-phase electrostatic potential ψ = 0 is taken everywhere), and thus, the effect of the lateral distribution of the induced electric field on the fluid velocity was excluded.

4. Fluid velocity distribution

We now consider the steady flow of an electrolyte solution in a capillary slit with each of its inside walls coated with a layer of charged polymers under the influence of a constant concentration gradient of the electrolyte prescribed axially.

The momentum balances on the Newtonian fluid in the y and

z directions give ∂p ∂y+ Ze(n+− n−) dy = 0 (22) ηd 2u dy2− H(y)fu = ∂p ∂z− Ze(n+− n−)|E| (23)

Here, u(y) is the fluid velocity profile (satisfying the equation of continuity for an incompressible fluid) in the direction of decreasing electrolyte concentration (i.e., direction of∇n∞),

p(y, z) is the pressure, E(y) is the macroscopic electric field

induced by the applied concentration gradient of the elec-trolyte given by Eq.(15)or(19), η is the viscosity of the fluid, and f is the hydrodynamic friction coefficient in the polymer layer per unit volume of the fluid; both η and f are assumed to be constant. Eq. (23) is the Navier–Stokes/Brinkman equation modified by adding a term of electrostatic force.

The boundary conditions for u are du dy(y= 0) = 0, (24a) u(y= b−)= u(y = b+), (24b) du dy(y= b)=du dy(y= b +), (24c) u(y= h) = 0 (24d)

Eqs.(24b)and(24c)express the continuity conditions of u and of du/dy at the outer boundary of the surface charge layer

[17–19]. In Eq.(24d), we have assumed that the shear plane coincides with the surface of the bare wall.

After the substitution of Eq.(2)for n±into Eq.(22)(based on the assumption that the equilibrium lateral ionic distribu-tions are not affected by the axially induced electric field E) and the application of the Debye–Huckel approximation, the pressure distribution can be determined, with the result correct to the second orders of ¯σ(or ζ) and ¯Nas

p= p0+

n(z)

kT (Ze)

2{[ψ(y)]2− [ψ(0)]2} (25) Here, p0is the pressure at the median plane between the slit walls, which is a constant in the absence of applied pressure gradient, and the electric potential distribution ψ(y) is given by Eq.(5).

Substituting the linearized form of the ionic concentration distributions of Eq.(2), the electrostatic potential distribution of Eq.(5), the pressure profile of Eq.(25), and the induced electric field profile of Eq.(19)into Eq.(23), and solving for the fluid velocity subject to the boundary conditions in Eq.

(24), we obtain u U= βΦ1+ 1 8Φ2− 1 4(1− β 2 3, (26)

(5)

where

Φi= gi1(κb)− gi1(κy)− gi2(κb)+ sec h(λd)gi2(κh) − tanh(λd)gi0(κb), if 0≤ y ≤ b, (27a)

Φi= sech(λd)[gi2(κh) cosh(λy− λb)

−gi0(κb) sinh(λh− λy)] − gi2(κy), if b≤ y ≤ h, (27b) for i = 1, 2, and 3. In the above equations, U∗= 2kT|∇n|/ηκ2, which is a characteristic value of the diffu-sioosmotic velocity, the functions gi0(x), gi1(x), and gi2(x) are

defined by Eqs.(A.1)–(A.3)inAppendix A, and λ = (f/n)1/2. The parameter 1/λ has the dimension of length and the square of it is the so-called Darcy permeability of the porous medium, which is related to the pore (or segment) size and porosity and characterizes the dynamic behavior of the vis-cous fluid in it. For the surface charge layers of human erythrocytes [18], rat lymphocytes [24], and grafted poly-mer microcapsules[25], experimental data of i/λ range from 1.35 to 3.7 nm. It can be found from Eq.(27)that the func-tions Φ2and Φ3are almost equivalent when the value of κh is large and the value of d/h is small.

The definition of the average fluid velocity over a cross section of the capillary slit is

u = 1

h

 h

0

u(y) dy (28)

Substituting Eqs.(26)and(27)into the above equation and performing the integration, we obtain

u U= βΦ1 + 1 82 − 1 4(1− β2)3 , (29) with Φi = b h[gi1(κb)− gi2(κb)]+ 1 λh[λb sech(λd) + tanh(λd)]gi2(κh) − 1 λh[λb tanh(λd)− sech(λd) + 1]gi0(κb) −si1(κb)− si2(κb), (30)

where the functions Si1(x) (=  x

0 gi1(x) dx/κh) and Si2(x) (=0xgi2(x) dx/κh) are defined by Eqs.(A.5)and(A.6).

The function Φ1in Eqs.(26)and(29)represents the first orders of ¯σ(or ζ) and ¯N, while the functions Φ2and Φ3denote the second orders. As it is well-known, the diffusioosmosis of an electrolyte solution in a capillary pore results from a linear combination of two effects: “chemiosmosis” due to the nonuniform adsorption of counter-ions and depletion of co-ions in the electric double layer over the charged surface and “electroosmosis” due to the macroscopic electric field gener-ated by the imposed concentration gradient of the electrolyte given by Eq.(15)or(19). The terms in Eqs.(26)and(29)

involving the functions Φ1and Φ3represent the contribution from electroosmosis, while the remainder terms (containing the function Φ2) are the chemiosmotic component. Note that additional second-order terms caused by electroosmosis may exist if the electrolyte is not symmetric.

When there is no polymer adsorbed on the slit walls, one has d = 0, b = h, N = 0, and λ = 0 and the potential profile in the slit is given by Eq.(10). Then, Eqs.(27)and(30)reduce to

Φi= gi1(κh)− gi1(κy) (31)

Φ = gi1(κh)− si1(κh) (32)

In the functions gi1 and Si1 for this simple case, we take

A = A0, which was defined by Eq.(11). Eqs. (31)and(32) agree with the result obtained in a previous article[16], in which only the case of a capillary with bare walls is examined. In this case, the functions ΦiandΦi with i equal to 1, 2,

and 3 are always positive and Φ3≥ Φ2. It can be found by a comparison between Eqs.(30)and(32)that the structure of the surface charge layer can result in an augmented or a diminished fluid velocity relative to that in a capillary with bare walls, depending on the characteristics of the electrolyte solution, of the surface charge layer, and of the capillary.

For the case of a capillary slit coated with an uncharged polymer layer (N = 0) at each of its inside walls, Eq.(10)

for the potential distribution is also applicable and the fluid velocity can be evaluated from Eqs.(26)–(30)by setting ¯N =

0, B = A = A0and C = 0.

When λ→ ∞ (very high segment density), the resistance to the fluid motion inside the surface charge layer is infinitely large. For this limiting case, gi0(x) = gi2(x) = 0, and Eqs.(27)

and(30)reduce to Φi= gi1(κb)− gi1(κy), if 0≤ y ≤ b, (33a) Φi= 0, if b ≤ y ≤ h, (33b) Φi = b hgi1(κb)− si1(κb) (34)

Eq.(33)shows that the fluid flow in the surface charge layer disappears and the velocity profile of the remaining fluid is similar to that in a polymer-free capillary slit of half thickness

b with a modified surface charge density or surface potential

at the wall.

When λ→ 0 (very low segment density), the adsorbed polymers do not exert resistance to the fluid motion in the capillary channel. In this limit, Eqs.(27)and(30)become

Φi= gi1(κb)− gi1(κy)+ gi3(κb), if 0≤ y ≤ b, (35a)

Φi= gi3(κy), if b≤ y ≤ h; (35b) Φi =

b

h[gi1(κb)+ gi3(κb)]− si1(κb)+ si3(κb), (36)

where the functions gi3 and Si3(x) (= κh

x gi3(x) dx/κh) are

(6)

are uncharged (N = 0), the above expressions for the fluid velocity again reduce to Eqs.(31)and(32).

When the capillary slit is filled with the adsorbed poly-mers, one has d = h and b = 0, and the potential distribution in the slit is given by Eq.(12). Then, Eqs.(27)and(30)reduce to Φi = gi4(κh) cosh(λy) cosh(λh)− gi4(κy) (37) Φi = gi4(κh) tanh(λh) λh − si4(κh), (38)

where the definitions of the functions gi4(x) and Si4(x)

(=0xgi4(x) dx/κh) are given by Eqs.(A.9)and(A.10).

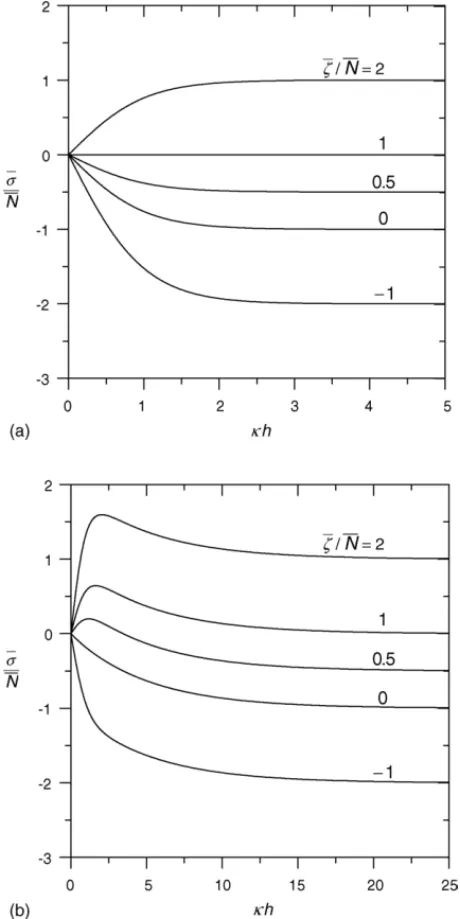

Fig. 2. Plots of the ratio ¯σ/ ¯Nfor a capillary slit with its inside walls covered by layers of adsorbed polyelectrolytes vs. the parameter κh: (a) b/h = 0; (b)

b/h = 0.8.

5. Results and discussion

For the system of an electrolyte solution in a capillary slit bearing adsorbed polyelectrolytes on its inside walls, the surface charge density of the wall, the surface potential of the wall, the fixed-charge density in the polyelectrolyte layer, and the electrokinetic dimensions of the system are related by Eq. (9).Fig. 2(a) and (b) show the results of the ratio

¯

σ/ ¯N for the case of b/ h= 0 and for the case of a finite value of b/h (=0.8), respectively, as functions of κh for several values of the ratio ¯ζ/ ¯N. It can be seen that ¯σ/ ¯N= 0 as κh = 0

and ¯σ/ ¯N = ¯ζ/ ¯N − 1 as κh → ∞, regardless of the values of

¯ζ/ ¯Nand b/h. For the special case with b/h = 0 and ¯ζ/ ¯N= 1,

the potential in the polyelectrolyte-filled capillary equals the

Fig. 3. Plots of the function Φ3/ ¯N2for a capillary slit filled with adsorbed

polyelectrolytes (b/h = 0) vs. the relative position y/h: (a) κh = 10; (b) λh = 1. The dashed, solid, and dotted curves represent the cases ¯ζ/ ¯N= 2, 0, and

(7)

Donnan potential everywhere, and ¯σ/ ¯N = 0 at any value of κh. For the other cases with b/h = 0, ¯σ has the same sign as ¯ζ− ¯N and the magnitude of ¯σ/ ¯N increases monotonically with an increase in κh for a constant value of ¯ζ/ ¯N. For the case with a finite value of b/h, ¯σ/ ¯Nis negative and its magnitude is still a monotonic increasing function of κh if ¯ζ/ ¯N≤ 0,

but the dependence of ¯σ/ ¯Non κh may not be monotonic if ¯ζ/ ¯N >0.

The functions Φ1, Φ2, and Φ3 given by Eq. (27) for the general case and by Eqs. (31),(33),(35), and(37)for several special cases determine the diffusioosmotic velocity of a symmetric electrolyte in a capillary slit with each of its inside walls covered by a layer of adsorbed polyelectrolytes according to Eq.(26)correct to the second orders of ¯σ(or

Fig. 4. Plots of the function Φ3/ ¯N2for a capillary slit with its inside walls

covered by layers of adsorbed polyelectrolytes vs. the relative position y/h as b/h = 0.8: (a) κh = 10; (b) λh = 1. The solid, dashed, and dotted curves represent the cases ¯ζ/ ¯N= 0, 2, and 4, respectively.

¯ζ) and ¯N. Some graphical results concerning Φ1/ ¯N and

Φ2/ ¯N2(and Zeψ/kT ¯N) as functions of the dimensionless coordinate y/h can be found in the literature[22]. InFig. 3, the function Φ3/ ¯N2for a slit filled with adsorbed polyelec-trolytes (with b/h = 0) calculated form Eq. (37) is plotted versus y/h for several values of the parameters ¯ζ/ ¯N, κh, and

λh. It can be seen that Φ3is positive, meaning that the effect of the lateral distribution of the induced axial electric field in the slit will cause the fluid flowing towards the end of higher electrolyte concentration. As expected, the value of Φ3is a monotonically decreasing function of y/h from a maximum at the median plane (with y = 0) between the slit walls to zero at the no-slip walls (with y = h). The value of Φ3/ ¯N2

in general increases with an increase in ¯ζ/ ¯N. Evidently, Φ3

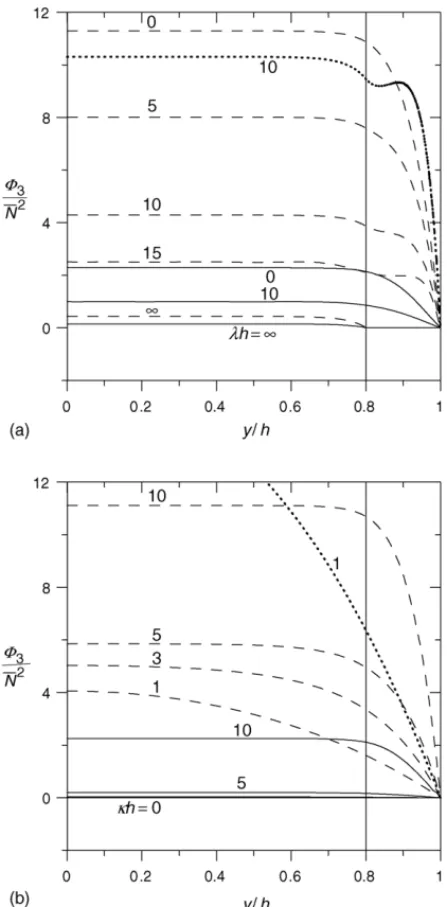

Fig. 5. Plots of the function Φ3/ ¯N2for a capillary slit with its inside walls

covered by layers of adsorbed polyelectrolytes vs. the relative position y/h as b/h = 0.8: (a) κh = 10; (b) λh = 1. The solid and dashed curves represent the cases ¯ζ/ ¯N= −1 and −2, respectively.

(8)

increases with an increase in the value of κh and decreases with an increase in the value of λh, for an otherwise specified condition. In the limiting situations that κh = 0 (there is no interaction between the diffuse ions and the fixed charges) or λh→ ∞ (there is no flow penetration into the polymer layer), Φ3vanishes at any position in the capillary.

The function Φ3/ ¯N2 for a capillary slit with its inside walls covered by finite layers of adsorbed polyelectrolytes (with b/h = 0.8 as an example) is plotted versus the relative position y/h in Figs. 4 and 5 for different values of the parameters ¯ζ/ ¯N, κh, and λh. Again, Φ3is positive for given values of these parameters, equals zero everywhere in the capillary for the limiting case of κh = 0, and decreases with an increase in λh for an otherwise fixed condition. When the magnitudes of ¯ζ/ ¯Nand λh are relatively large, Φ3/ ¯N2is not a monotonic function of y/h due to the existence of the finite

Fig. 6. Plots of the functionΦ1 / ¯N for a capillary slit filled with adsorbed polyelectrolytes (b/h = 0) vs. the parameters λh and κh. The solid and dashed curves represent the cases ¯ζ/ ¯N= 0 and 2, respectively.

polyelectrolyte layers on the slit walls. In the limit λh→ ∞,

Φ3 vanishes within the surface charge layer (y > b) as expected, but can be finite at other locations in the capillary. For the case of ¯ζ/ ¯N≥ 0, as illustrated inFig. 4, the value of

Φ3/ ¯N2increases with an increase in κh or ¯ζ/ ¯Nfor an other-wise specified condition. For the case of ¯ζ/ ¯N <0, as shown inFig. 5, Φ3at a given relative position not too close to the slit walls may not be a monotonically increasing function of κh.

InFigs. 6–8, the averaged values3 / ¯N2,2 / ¯N2, and 3 / ¯N2, respectively, calculated from Eq.(38)as functions of the relevant parameters are plotted for a slit filled with adsorbed polyelectrolytes. For all cases, both2 / ¯N2and 3 / ¯N2are positive, and the dependence of these values on the parameter ¯ζ/ ¯Nbecomes relatively weak when the magni-tude of the parameter κh is large. On the other hand,Φ2 / ¯N2

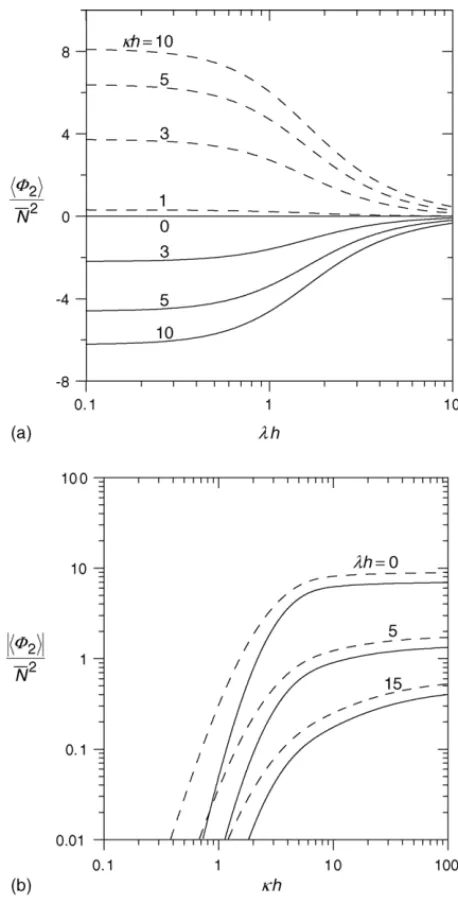

Fig. 7. Plots of the functionΦ2 / ¯N2for a capillary slit filled with adsorbed

polyelectrolytes (b/h = 0) vs. the parameters λh and κh. The solid and dashed curves represent the cases ¯ζ/ ¯N= 0 and 2, respectively.

(9)

is positive as ¯ζ/ ¯N >1, negative as 0≤ ¯ζ/ ¯N < 1, and van-ishes as ¯ζ/ ¯N= 1. For the case of ¯ζ/ ¯N < 0 (which is not

plotted here for conciseness),2 / ¯N2can be either positive or negative depending on the combination of ¯ζ/ ¯Nand κh. As expected, the magnitudes of all these three average functions increase with an increase in the value of κh (the dependence for2 / ¯N2is weaker than for the other two functions when

κhis large) and decrease with an increase in the value of λh, for an otherwise specified condition. In the limiting situations that κh = 0 or λh→ ∞, Φ1 = Φ2 = Φ3 = 0 and there is no fluid flow in the capillary.

The dependence of the normalized average diffusioos-motic velocityu /U*of an electrolyte solution in a capillary slit with each of its inside walls covered by a layer of adsorbed polyelectrolytes on the dimensionless fixed-charge density

Fig. 8. Plots of the functionΦ3 / ¯N2for a capillary slit filled with adsorbed

polyelectrolytes (b/h = 0) vs. the parameters λh and κh. The solid and dashed curves represent the cases ¯ζ/ ¯N= 0 and 2, respectively.

¯

N at a fixed value of κh and various values of ¯ζ/ ¯N, λh, and b/h calculated from Eqs.(29)and(30)is displayed in

Figs. 9 and 10. Because our analysis is based on the assump-tion of small electrostatic potentials, the magnitudes of ¯N

considered are less than 3.Fig. 9is drawn for the case of a symmetric electrolyte that the cation and anion diffusivities are equal (β = 0, representing the aqueous solution of KCl if Z = 1). Only the results at positive values of ¯N are shown because the fluid velocity, which is due to O(ζ2, ζN, N2) con-tribution entirely as illustrated by Eqs.(29)and(30), is now an even function of ¯N. It can be seen from Eq. (29) and

Figs. 7 and 8that the fluid flows contributed from chemiosmo-sis (involving the function Φ2) and electroosmochemiosmo-sis (involving

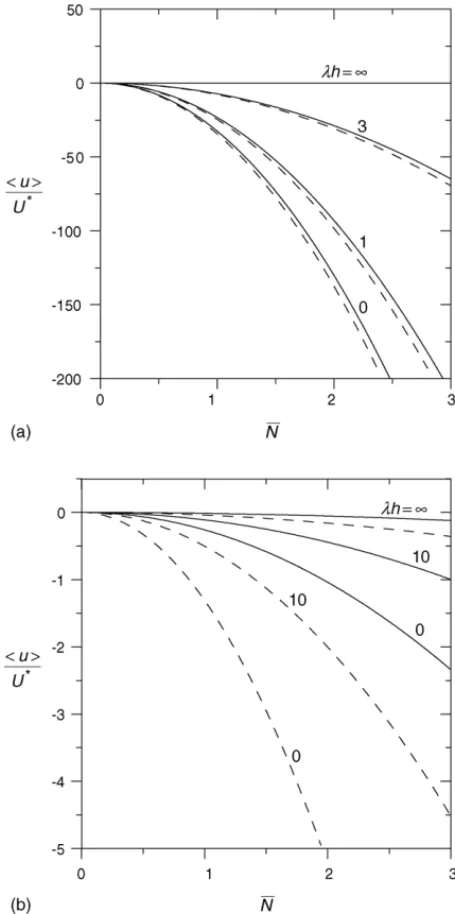

Fig. 9. Plots of the normalized average diffusioosmotic velocityu /U*in

a capillary slit with its inside walls covered by layers of adsorbed poly-electrolytes vs. the dimensionless charge density ¯Nwith κh = 10 and β = 0: (a) b/h = 0; (b) b/h = 0.8. The solid and dashed curves represent the cases ¯ζ/ ¯N= 0 and 2, respectively.

(10)

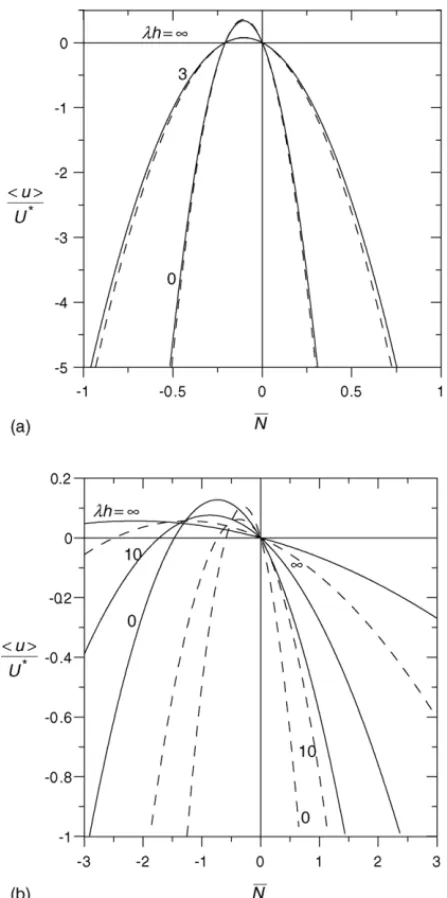

Fig. 10. Plots of the normalized average diffusioosmotic velocityu /U*in a capillary slit with its inside walls covered by layers of adsorbed polyelec-trolytes vs. the dimensionless charge density ¯Nwith κh = 10 and β =−0.2: (a) b/h = 0; (b) b/h = 0.8. The solid and dashed curves represent the cases ¯ζ/ ¯N= 0 and 2, respectively.

Φ3) are in the same direction as 0≤ ¯ζ/ ¯N < 1 but in the oppo-site directions as ¯ζ/ ¯N >1, and the net flow is dominated by the electroosmotic effect (having the direction of increas-ing electrolyte concentration). As expected, the magnitude of u /U* increases monotonically with an increase in | ¯N| and with a decrease in λh for constant values of ¯ζ/ ¯N, κh, and

b/h. There is no diffusioosmotic motion of the fluid for the

special case of ¯ζ= ¯N = 0. In a previous study of the same diffusioosmosis [22], the O(ζ2, ζN, N2) contribution from electroosmotic effect was not considered, and the resulted fluid velocity (which is due to chemiosmotic effect only) for the case of ¯ζ/ ¯N >1 was in the direction of decreasing elec-trolyte concentration. Note that the magnitude ofu /U*has

the order unity for the case of a thin polyelectrolyte layer (b/h→ 1), but can be quite large if b/h → 0.

InFig. 10, the normalized average diffusioosmotic veloc-ity u /U* as a function of ¯N is plotted for the case of a symmetric electrolyte whose cation and anion have different diffusion coefficients (β =−0.2 is chosen, representing the aqueous solution of NaCl if Z = 1). In this case, the diffu-sioosmotic velocity is neither an even nor an odd function of

¯

N. It can be seen that the fluid velocity is not necessarily a monotonic function of the magnitude of ¯N for fixed values of ¯ζ/ ¯N, κh, λh, and b/h. The curves in the vicinity of ¯N = 0

indicate that the fluid might reverse direction of flow more than once as ¯Nvaries in a narrow range from negative to pos-itive values. The reversals occurring at the values of ¯Nother than zero result from the combination of the contributions from electroosmosis of O(ζ, N) and O(ζ2, ζN, N2) (which is still dominant in many situations) and chemiosmosis of O(ζ2, ζN, N2). Again, for specified values of ¯ζ, ¯N, κh, and

b/h, the magnitude ofu /U*decreases monotonically with an increase in λh. In general, the net diffusioosmotic flow is still dominated by the electroosmotic contribution and in the direction of increasing electrolyte concentration.

6. Concluding remarks

The steady diffusioosmotic flow of solutions of sym-metric electrolytes in a narrow capillary slit bearing a layer of adsorbed polyelectrolytes on each of its inside walls is analytically studied in this work. Solving the linearized Poisson–Boltzmann equation and the modified Navier–Stokes/Brinkman equation applicable to the system, the electrostatic potential distribution and the fluid velocity profile under the influence of a constant gradient of the electrolyte concentration are obtained in closed forms to the orders (ζ, N) and (ζ2, ζN, ¯N2), respectively. The macro-scopic electric field induced by the prescribed electrolyte concentration gradient through the capillary slit is a function of the lateral position rather than a constant bulk-phase quantity. The contribution to the diffusioosmotic flow made by the position dependence of the induced electric field is of the same order [O(ζ2, ζN, N2)] as, but may have an opposite direction to, that made by the chemiosmotic effect, and the former is dominant in most practical situations, as indicated by Eq.(26). Therefore, the effect of the deviation of the local induced axial electric field in the slit from its bulk-phase quantity [given by the term of zeroth order in ψ in Eq.(19)], which causes the fluid flowing towards the end of higher elec-trolyte concentration, cannot be neglected in the evaluation of the diffusioosmotic flow rate in a capillary, even for the case of very thin double layer. Our results demonstrate that the structure of the surface charge layer can lead to a quite dif-ferent diffusioosmotic flow from that in a capillary with bare walls[16], depending on the characteristics of the capillary, of the surface charge layer, and of the electrolyte solution.

(11)

The macroscopic electric field E arising spontaneously due to the imposed concentration gradient of the electrolyte in the axial direction of the capillary slit is provided by Eqs.(15)or(19), and the diffusioosmotic velocity u of the electrolyte solution is obtained in Eq. (26); both are accu-rate with the primary effects only. In addition to the ionic fluxes due to diffusion and electric migration [given by Eq.

(14)], the diffusioosmotic fluid flow can generate an elec-tric current by ionic convection (known as the relaxation effect). This electric current is not included in the current balance for the determination of E in Section 3. Thus, a secondary induced electric field must build up through the capillary, which is just sufficient to prevent the net electric current flow. This secondary electric field, which is of the order O(ζ2, ζN, N2), and its contribution to the fluid flow, which is of the order O(ζ3, ζ2N, ζN2, N3), can be calculated via a similar approach in the calculations of the streaming potential induced across the capillary in the presence of an applied pressure gradient [2,3,21]. Alternatively, distribu-tions of ionic concentradistribu-tions, electric potentials, and fluid velocity might be calculated in a general self-consistent way

[13–15,28]. For the geometry of a capillary slit with adsorbed polyelectrolyte layers considered in the present article, how-ever, the general approach accurate to higher orders of ζ and

N would be somewhat complicated and could be an endeavor

for future work.

Acknowledgment

This research was supported by the National Science Council of the Republic of China.

Appendix A

For conciseness the definitions of some functions in Sec-tion4are listed here. In Eq.(27),

g10(x)= κ λ  κ2 κ2− λ2F2(x)− A sinh x  , (A.1a) g20(x)= κ λ  2 2− λ2F4(x)+ 2 κ2− λ2NF¯ 2(x) − A2(sinh 2x− 2x)  , (A.1b) g30(x)= κ λ  2 2− λ2F4(x)+ 2 κ2− λ2NF¯ 2(x) − A2(sinh 2x+ 2x)  ; (A.1c) g11(x)= A cosh x, (A.2a) g21(x)= 12A2(cosh 2x− 2x2), (A.2b) g31(x)= 12A2(cosh 2x+ 2x2); (A.2c) g12(x)= κ2 κ2− λ2F1(x)κ2 λ2N,¯ (A.3a) g22(x)= 2 2− λ2F3(x)+ 2 κ2− λ2NF¯ 1(x) +2 λ2(2A 2− B2+ C2− 2 ¯N2), (A.3b) g32(x)= g22(x)2 λ2 A 2, (A.3c) where

F1(x)= B cosh x + C sinh x, (A.4a)

F2(x)= (B sinh x + C cosh x), (A.4b)

F3(x)= (B2+ C2) cosh 2x+ 2BC sinh 2x, (A.4c)

F4(x)= (B2+ C2) sinh 2x+ 2BC cosh 2x. (A.4d) In Eq.(30), s11(x)= A sinh x κh , (A.5a) s21(x)= 1 12κhA 2(3 sinh 2x− 4x3), (A.5b) s31(x)= 1 12κhA 2(3 sinh 2x+ 4x3); (A.5c) s12(x)= 1 κh κ2 κ2− λ2[F2(κh)− F2(x)]κ λ2hN¯(κh− x), (A.6a) s22(x)= 1 κh κ2 2− λ2[F4(κh)− F4(x)] +8 κh κ2 κ2− λ2N¯[F2(κh)− F2(x)] + λ2h(2A 2− B2+ C2− 2 ¯N2)(κh− x), (A.6b) s32(x)= s22(x) λ2hA 2(κh− x). (A.6c) In Eqs.(35)and(36), g13(x)= F1(κh)− F1(x), (A.7a) g23(x)= g33(x)= 12[F3(κh)− F3(x)]+ 8 ¯Ng13(x); (A.7b) s13(x)= 1 κh[F1(κh)(κh− x) − F2(κh)+ F2(x)], (A.8a)

(12)

s23(x)= s33(x)= 1 2κhF3(κh)(κh− x) − 1 4κh[F4(κh)− F4(x)]+ 8 ¯Ns13(x). (A.8b) In Eqs.(37)and(38), g14(x)= κ2 κ2− λ2B1cosh xκ2 λ2N,¯ (A.9a) g24(x)= 2 2− λ2B1 2cosh 2x+ 2 κ2− λ2B1N¯ cosh x +2 λ2 (B1 2+ 4B 1N¯), (A.9b) g34(x)= g24(x)2 λ2 (B1+ ¯N) 2 ; (A.9c) s14(x)= κ2 κ2− λ2B1 sinh x κhκx λ2hN,¯ (A.10a) s24(x)= κ2 2− λ2B1 2sinh 2x κh + 2 κ2− λ2B1N¯ sinh x κh +2κx λ2h(B1 2+ 4B 1N¯), (A.10b) s34(x)= s24(x)−4κx λ2h(B1+ ¯N) 2 (A.10c) and B1was defined by Eq.(13).

References

[1] M. Smoluchowski, in: I. Graetz (Ed.), Handbuch der Electrizitat und des Magnetismus, vol. II, Barth, Leipzig, 1921, p. 336.

[2] D. Burgreen, F.R. Nakache, J. Phys. Chem. 68 (1964) 1084. [3] C.L. Rice, R. Whitehead, J. Phys. Chem. 69 (1965) 4017. [4] S.S. Dukhin, B.V. Derjaguin, in: E. Matijevic (Ed.), Surface and

Colloid Science, vol. 7, Wiley, New York, 1974.

[5] J.L. Anderson, K. Idol, Chem. Eng. Commun. 38 (1985) 93. [6] J.H. Masliyah, Electrokinetic Transport Phenomena, AOSTRA,

Edmonton, Alta., Canada, 1994.

[7] A. Szymczyk, B. Aoubiza, P. Fievet, J. Pagetti, J. Colloid Interface Sci. 216 (1999) 285.

[8] H.J. Keh, H.C. Tseng, J. Colloid Interface Sci. 242 (2001) 450.

[9] D.C. Prieve, Adv. Colloid Interface Sci. 16 (1982) 321.

[10] D.C. Prieve, J.L. Anderson, J.P. Ebel, M.E. Lowell, J. Fluid Mech. 148 (1984) 247.

[11] J.L. Anderson, Annu. Rev. Fluid Mech. 21 (1989) 61. [12] H.J. Keh, S.B. Chen, Langmuir 9 (1993) 1142. [13] J.C. Fair, J.F. Osterle, J. Chem. Phys. 54 (1971) 3007.

[14] V. Sasidhar, E. Ruckenstein, J. Colloid Interface Sci. 85 (1982) 332.

[15] G.B. Westermann-Clark, J.L. Anderson, J. Electrochem. Soc. 130 (1983) 839.

[16] H.J. Keh, H.C. Ma, Colloid Surf. A 233 (2004) 87.

[17] E. Donath, A. Voigt, J. Colloid Interface Sci. 109 (1986) 122.

[18] H. Ohshima, T. Kondo, J. Colloid Interface Sci. 135 (1990) 443.

[19] V.M. Starov, Y.E. Solomentsev, J. Colloid Interface Sci. 158 (1993) 166.

[20] H.J. Keh, Y.C. Liu, J. Colloid Interface Sci. 172 (1995) 222. [21] H.J. Keh, J.M. Ding, J. Colloid Interface Sci. 263 (2003)

645.

[22] J.H. Wu, H.J. Keh, Colloid Surf. A 212 (2003) 27. [23] K.A. Sharp, D.E. Brooks, Biophys. J. 47 (1985) 563.

[24] K. Morita, N. Muramatsu, H. Ohshima, T. Kondo, J. Colloid Inter-face Sci. 147 (1991) 457.

[25] O. Aoyanagi, N. Muramatsu, H. Ohshima, T. Kondo, J. Colloid Interface Sci. 162 (1994) 222.

[26] S.S. Dukhin, R. Zimmermann, C. Werner, J. Colloid Interface Sci. 274 (2004) 309.

[27] A.W. Adamson, Physical Chemistry of Surfaces, fifth ed., Wiley, New York, 1990.

[28] V.M. Starov, W.R. Bowen, J.S. Welfoot, J. Colloid Interface Sci. 240 (2001) 509.

數據

Fig. 1. Geometrical sketch for the diffusioosmosis in a capillary slit with each of its inside walls covered by a layer of adsorbed polyelectrolytes.
Fig. 3. Plots of the function Φ 3 / ¯ N 2 for a capillary slit filled with adsorbed polyelectrolytes (b/h = 0) vs
Fig. 5. Plots of the function Φ 3 / ¯ N 2 for a capillary slit with its inside walls covered by layers of adsorbed polyelectrolytes vs
Fig. 6. Plots of the function Φ 1 	/ ¯N for a capillary slit filled with adsorbed polyelectrolytes (b/h = 0) vs
+3

參考文獻

相關文件

In our Fudoki myth, the third, sociological, “code” predominates (= the jealous wife/greedy mistress), while the first, alimentary, code is alluded to (= fish, entrails), and

In this section, we consider a solution of the Ricci flow starting from a compact manifold of dimension n 12 with positive isotropic curvature.. Our goal is to establish an analogue

double-slit experiment is a phenomenon which is impossible, absolutely impossible to explain in any classical way, and.. which has in it the heart of quantum mechanics -

17-1 Diffraction and the Wave Theory of Light 17-2 Diffraction by a single slit.. 17-3 Diffraction by a Circular Aperture 17-4

a) Excess charge in a conductor always moves to the surface of the conductor. b) Flux is always perpendicular to the surface. c) If it was not perpendicular, then charges on

A clever and simplifying strategy: pairing up all the rays coming through the slit and then finding what conditions cause the waves of the rays in each pair to cancel each other.

Assuming that the positive charge of the nucleus is distributed uniformly, determine the electric field at a point on the surface of the nucleus due to that

[This function is named after the electrical engineer Oliver Heaviside (1850–1925) and can be used to describe an electric current that is switched on at time t = 0.] Its graph
