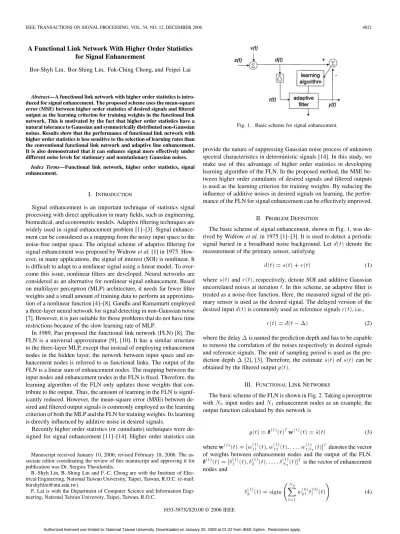

A Functional Link Network With Higher Order Statistics for Signal Enhancement

Bor-Shyh Lin, Bor-Shing Lin, Fok-Ching Chong, and Feipei Lai

Abstract—A functional link network with higher order statistics is intro-duced for signal enhancement. The proposed scheme uses the mean-square error (MSE) between higher order statistics of desired signals and filtered output as the learning criterion for training weights in the functional link network. This is motivated by the fact that higher order statistics have a natural tolerance to Gaussian and symmetrically distributed non-Gaussian noises. Results show that the performance of functional link network with higher order statistics is less sensitive to the selection of learning rates than the conventional functional link network and adaptive line enhancement. It is also demonstrated that it can enhance signal more effectively under different noise levels for stationary and nonstationary Gaussian noises.

Index Terms—Functional link network, higher order statistics, signal enhancement.

I. INTRODUCTION

Signal enhancement is an important technique of statistics signal processing with direct application in many fields, such as engineering, biomedical, and econometric models. Adaptive filtering techniques are widely used in signal enhancement problem [1]–[3]. Signal enhance-ment can be considered as a mapping from the noisy input space to the noise-free output space. The original scheme of adaptive filtering for signal enhancement was proposed by Widrow et al. [1] in 1975. How-ever, in many applications, the signal of interest (SOI) is nonlinear. It is difficult to adapt to a nonlinear signal using a linear model. To over-come this issue, nonlinear filters are developed. Neural networks are considered as an alternative for nonlinear signal enhancement. Based on multilayer perceptron (MLP) architecture, it needs far fewer filter weights and a small amount of training data to perform an approxima-tion of a nonlinear funcapproxima-tion [4]–[8]. Gandhi and Ramamurti employed a three-layer neural network for signal detecting in non-Gaussian noise [7]. However, it is just suitable for those problems that do not have time restrictions because of the slow learning rate of MLP.

In 1989, Pao proposed the functional link network (FLN) [8]. The FLN is a universal approximator [9], [10]. It has a similar structure to the three-layer MLP, except that instead of employing enhancement nodes in the hidden layer, the network between input space and en-hancement nodes is referred to as functional links. The output of the FLN is a linear sum of enhancement nodes. The mapping between the input nodes and enhancement nodes in the FLN is fixed. Therefore, the learning algorithm of the FLN only updates those weights that con-tribute to the output. Thus, the amount of learning in the FLN is signif-icantly reduced. However, the mean-square error (MSE) between de-sired and filtered output signals is commonly employed as the learning criterion of both the MLP and the FLN for training weights. Its learning is directly influenced by additive noise in desired signals.

Recently higher order statistics (or cumulants) techniques were de-signed for signal enhancement [11]–[14]. Higher order statistics can

Manuscript received January 10, 2006; revised February 18, 2006. The as-sociate editor coordinating the review of this manuscript and approving it for publication was Dr. Sergios Theodoridis.

B.-Shyh Lin, B.-Shing Lin and F.-C. Chong are with the Institute of Elec-trical Engineering, National Taiwan University, Taipei, Taiwan, R.O.C. (e-mail: [email protected]).

F. Lai is with the Department of Computer Science and Information Engi-neering, National Taiwan University, Taipei, Taiwan, R.O.C.

Fig. 1. Basic scheme for signal enhancement.

provide the nature of suppressing Gaussian noise process of unknown spectral characteristics in deterministic signals [14]. In this study, we make use of this advantage of higher order statistics in developing learning algorithm of the FLN. In the proposed method, the MSE be-tween higher order cumulants of desired signals and filtered outputs is used as the learning criterion for training weights. By reducing the influence of additive noises in desired signals on learning, the perfor-mance of the FLN for signal enhancement can be effectively improved.

II. PROBLEMDEFINITION

The basic scheme of signal enhancement, shown in Fig. 1, was de-rived by Widrow et al. in 1975 [1]–[3]. It is used to detect a periodic signal buried in a broadband noise background. Letd(t) denote the measurement of the primary sensor, satisfying

d(t) = s(t) + v(t) (1)

wheres(t) and v(t), respectively, denote SOI and additive Gaussian uncorrelated noises at iterationt. In this scheme, an adaptive filter is treated as a noise-free function. Here, the measured signal of the pri-mary sensor is used as the desired signal. The delayed version of the desired inputd(t) is commonly used as reference signals r(t), i.e.,

r(t) = d(t 0 1) (2)

where the delay1 is named the prediction depth and has to be capable to remove the correlation of the noises respectively in desired signals and reference signals. The unit of sampling period is used as the pre-diction depth1 [2], [3]. Therefore, the estimate ^s(t) of s(t) can be obtained by the filtered outputy(t).

III. FUNCTIONALLINKNETWORKS

The basic scheme of the FLN is shown in Fig. 2. Taking a perceptron withN0 input nodes andN1 enhancement nodes as an example, the output function calculated by this network is

y(t) = (1)_(t)T_w(1)_{(t) = ^s(t)} ₍₃₎ wherew(1)(t) = [w(1)₁₁(t); w(1)₁₂(t); . . . ; w_1N(1) (t)]Tdenotes the vector of weights between enhancement nodes and the output of the FLN. (1)_{(t) = [}(1)

(2)

4822 IEEE TRANSACTIONS ON SIGNAL PROCESSING, VOL. 54, NO. 12, DECEMBER 2006

Fig. 2. Scheme of functional link networks.

where the sigmoidal function is given by

sigm(net) = _{1 + e}1_0net: (5)

Here,w_kl(0)is the weight between thelth input node and the kth en-hancement node and is randomly given.(0)_l (t) denotes the lth input node. In this study, the input nodes consist of the sequence of refer-ence signals and its orthonormal basis functions. The orthonormal basis functions of reference signals are used to enhance the representation of input space.

The mean-square output errory(t) 0 d(t) is commonly defined as the criterion of learning. Therefore,w(1)(t) can be adapted by using gradient method [3]

w(1)_{(t + 1) = w}(1)_(t)

0

a + (1)_(t)T(1)_(t)

(1)_{(t) (y(t) 0 d(t)) (6)}

where is the learning rate, and a is a small constant. Since d(t) con-tains noisesv(t), the system output noise e(t) is also correlated to noise v(t), as follows:

e(t) = d(t) 0 y(t) = s(t) + v(t) 0 ^s(t): (7) From (6), we can find that (7) is affected directly by uncorrelated noises.

IV. FUNCTIONALLINKNETWORKSWITHHIGHERORDERSTATISTICS

A. Learning Algorithm With Higher Order Statistics

For a set ofn real variables fxi(t)g, i = 1; 2; . . . ; n, the nth-order cross cumulant offxi(t)g is defined by

Cx x ...x (1; 2; . . . ; n01)= Cum [x1(t);1

x2(t + 1); x3(t + 2); . . . ; xn(t + n01)] : (8)

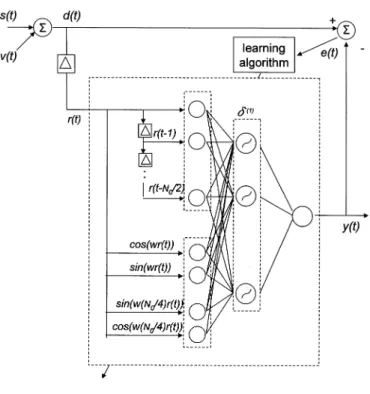

Fig. 3. Scheme of functional link networks with higher order statistics.

Here,Cum[] in (8) denotes the cumulant operator. Other properties of cumulants are described in [14].

Under the assumption that there exists thenth-order cumulants of the desired and reference signals and they are not identically zero, they are given by

Cdrr...r(1; 2; . . . ; n01) = Cum [d(t); r(t + 1);

r(t + 2); . . . ; r(t + n01)] : (9) Sinces(t) and v(t) are independent, and the nth-order cumulants of Gaussian noises are identically zero, (9) can be expressed by

Cdrr...r(1; 2; . . . ; n01) = Cum [s(t); s(t + 10 1); . . . ; s(t + n010 1)] = Css...s(10 1; 20 1; . . . ; n010 1): (10) Similarly, we have Cyrr...r(1; 2; . . . ; n01) = C^ss...s(10 1; 20 1; . . . ; n010 1): (11) By the properties of (10) and (11), the basic idea behind the proposed method, shown in Fig. 3, is that the higher order cross cumulants of the desired signal and filtered output are used as the learning criterion for training weights to reduce the influence of additive noises.

= . . . 1 2[Cyrr...r(1; 2; . . . ; n01) 0 Cdrr...r(1; 2; . . . ; n01)]2 = ( ; ;...; )20 . . . 1 2[C^sss...s(1; 2; . . . ; n01) 0 Csss...s(1; 2; . . . ; n01)]2 = ( ; ;...; )20 . . . 1 2 N j=1 w(1) j1C _rr...r(1; 2; . . . ; n01) 0Cdrr...r(1; 2; . . . ; n01) 2 : (12)

(3)

Fig. 4. (a) The waveform of SOI for simulation, and (b) its power spectrum; (c) the waveform and (d) power spectrum of additive Gaussian noises distributed in [0.05, 0.075]; (e) the waveform (f) and power spectrum of additive noises distributed in [0.2, 0.225].

Equation (12) can be rewritten in a matrix form

= 1₂ C _rr...rw(1)_{0 Cdrr...r} 2_: ₍₁₃₎ Here,C_rr...r, andCdrr...rare, respectively, anM02N1matrix and anM02 1 column vector, and M0denotes the number of points in the set0 .

In order to minimize, the gradient descent method is used. The gradient of is given by

r_w (t) _@w@₍₁₎_(t) = 2 CT

rr...rC rr...rw(1)0CT rr...rCdrr...r : (14)

Consequently, the adaptation formula in this algorithm becomes

w(1)_{(t + 1) = w}(1)_{(t) 0} tr CT

rr...rC rr...r

r_w (t): (15)

From (12), it is straightforward that the influence ofv(t) on (15) is reduced.

B. Implementation of Learning Algorithm With Third Order Statistics

In practice, the theoretical higher order cumulants need to be substi-tuted by their estimations. The estimate of third-order cumulants can be recursively computed by ^ Cx x x (t; 1; 2) = hx1(t)x2(t + 1)x3(t + 2)i 0 hx1(t)i hx2(t + 1)x3(t + 2)i 0 hx2(t + 1)i hx1(t)x3(t + 2)i 0 hx3(t + 2)i hx1(t)x2(t + 1)i

+ 2 hx1(t)i hx2(t + 1)i hx3(t + 2)i : (16) For zero-mean signals, it can be given by

^

Cx x x (t; 1; 2) = hx1(t)x2(t + 1)x3(t + 2)i : (17) Here, the operationhi is given by

hf(t)i = hf(t 0 1)i + (1 0 )f(t) (18) where is a forgetting factor.

(4)

Fig. 5. (a) Simulated trials with the SNR of05 dB; (b) its power spectrum; the filtered outputs of (c) ALE, (e) FLN, and (g) FLN-TOS, and their power spectra of (d) ALE, (f) FLN, and (h) FLN-TOS; solid line denotes filtered outputs, whereas dashed line denotes SOI.

Therefore, for third-order statistics, the learning criterion can be ex-pressed as = m =0m m =1 1 2 N j=1 w_j1(1)(t) ^C _rr(t; 1; 2)0 ^Cdrr(t; 1; 2) 2 : (19)

V. RESULTS ANDDISCUSSION

In some simulations, comparisons are conducted for the perfor-mance of adaptive line enhancement (ALE) with normalized least mean-square algorithm [3], the FLN, and the FLN with third-order statistics (FLN-TOS) for nonlinear signal enhancement. These com-parisons are mainly presented in terms of the MSE between the SOI and the system output obtained by each above method. In this study, we assume that the nonlinear SOI is the electrocardiogram (ECG) pattern in MIT/BIH database shown in Fig. 4(a), and its power

spectrum is shown in Fig. 4(b). The additive Gaussian noises and their power spectrum are respectively shown in Fig. 4(c) and (e) and Fig. 4(d) and (f).

Fig. 5 is the result for stationary Gaussian noises. The additive noise in Fig. 4(c) is used to generate simulated trials, shown in Fig. 5(a) with a signal-to-noise ratio (SNR) of05 dB. Fig. 5(b) shows that the power spectrum of additive noises heavily overlap that of the SOI. The FLN (N0 = 32, N1 = 32, = 0:05, = 0:02), the FLN-TOS (N0= 32, N1 = 32, = 0:05, = 0:02, m1 = 30, m2 = 5, = 0:9), and 32-taps ALE with the learning rate = 0:05 are used in this simulation. The result shows that the filtered output of the ALE presents heavy distortion, and both the FLN and the FLN-TOS can effectively enhance the SOI in this case. The FLN provides about 5-dB reduction for Gaussian noises, whereas the FLN-TOS can provide about 20-dB reduction.

Fig. 6 is the result for nonstationary Gaussian noises. The varia-tion of SNR and noise types of additive nonstavaria-tionary Gaussian noises is shown in Fig. 6(a). Here, NOISE1 and NOISE2 denote Gaussian noises in Fig. 4(c) and (e), respectively. The parameters of the FLN, FLN-TOS, and ALE are set the same as above. Result shows that the

(5)

Fig. 6. (a) Variation of SNR and noise types of additive nonstationary noises; (b) simulated trials with nonstationary noises; the filtered outputs of (c) ALE, (e) FLN, and (g) FLN-TOS, and their error curves of (d) ALE, (f) FLN, and (h) FLN-TOS.

efficiency of the FLN for signal enhancement is sensitive to the varia-tion of the SNR of additive noises. For the FLN-TOS, the influence of variation of additive noises on the performance for signal enhancement is negligible.

From above simulations, the FLN-TOS provides a good performance for signal enhancement under stationary and nonstationary Gaussian noises. To investigate the stability of performance of the FLN-TOS, the simulations of the FLN-TOS under different learning rates and noise levels are carried out. Fig. 7 is the comparison of performance of each method with different learning rates. As we expected, the FLN-TOS provides the best performance and its performance is more insensitive to the choice of learning rates. The performances of both the ALN and the FLN are easily influenced by selecting learning rates. In particular, when the learning rate is large, the influence of additional noises on the performance increases. Although smaller learning rates for the FLN can provide better performance, they also cause slow convergence for learning. This may cause the distortion of estimate of the SOI. There-fore, the performance of the FLN becomes poor when the learning rate is less than 0.05.

Fig. 8 is the comparison of performance of each method under dif-ferent noise levels. The SNR of simulated trials are set from02.5 dB

Fig. 7. Comparison of performances of each method with different learning rates.

to015 dB. The result shows that the performance of ALE rapidly be-comes very poor when the SNR bebe-comes poor. The FLN-TOS provides

(6)

Fig. 8. Comparison of performances of each method under different noise levels.

better performance under different noise levels. Although its perfor-mance is also influenced by the variation of the SNR, it is more insen-sitive than that of the FLN and ALE.

VI. CONCLUSION

The learning algorithm of the FLN with higher order statistics was introduced in this study. By employing higher order statistics techniques to suppress additive Gaussian noises before adapting weights, it can provide a cleaner desired signal for learning. Simulated results show that the FLN-TOS can effectively enhance nonlinear under stationary or nonstationary Gaussian noises. The performance of the FLN-TOS for signal enhancement is less sensitive to its learning rates. An FLN can effectively track nonlinear signals, but its efficiency for suppressing noises is limited. The performance of the FLN-TOS over the FLN and the ALE has demonstrated under different noise levels. Therefore, the FLN-TOS is an effective approach for signal enhancement under additive Gaussian noisy environment.

REFERENCES

[1] B. Widrow, J. R. Glover, Jr., J. M. McCool, J. Kaunitz, C. S. Williams, R. H. Hearn, J. R. Zeidler, E. Dong, Jr., and R. C. Goodlin, “Adaptive noise cancelling: Principles and applications,” Proc. IEEE, vol. 63, pp. 1692–1716, 1975.

[2] J. R. Zeidler, “Performance analysis of LMS adaptive prediction fil-ters,” Proc. IEEE, vol. 78, pp. 1781–1806, 1990.

[3] S. Haykin, Adaptive Filter Theory, 2nd ed. Englewood Cliffs, NJ: Prentice-Hall, 1991.

[4] B. Widrow and M. A. Lehr, “30 years of adaptive neural networks: perceptron, madaline, and backpropagation,” Proc. IEEE, vol. 78, no. 9, pp. 1415–1441.

[5] F. Rosenblatt, Principles of Neurodynamics: Perceptrons and the

Theory of Brain Mechanism. Washington, DC: Spartan Books, 1961. [6] R. P. Lippmann and P. Beckman, “Adaptive neural net preprocessing for signal detection in non-Gaussian noise,” Adv. Neural Inf. Proces.

Syst., vol. 1, pp. 124–132, 1989.

[7] P. P. Gandhi and V. Ramamurti, “Neural networks for signal detection in non-Gaussian noise,” IEEE Trans. Signal Process., vol. 45, no. 11, pp. 2846–2851, Nov. 1997.

[8] Y. H. Pao, Adaptive Pattern Recognition and Neural Networks. Reading, MA: Addison-Wesley, 1989.

[9] N. E. Cotter, “The Stone–Weierstrass theorem and its application to neural networks,” IEEE Trans. Neural Netw., vol. 1, no. 4, pp. 290–295, 1990.

[10] B. Igelnik and Y.-H. Pao, “Stochastic choice of basis functions in adap-tive function approximation and the functional-link net,” IEEE Trans.

Neural Netw., vol. 6, no. 6, pp. 1320–1329, 1995.

[11] B. M. Sadler, G. B. Giannakis, and K.-S. Li, “Estimation and detec-tion in non-Gaussian noise using higher order statistics,” IEEE Trans.

Signal Process., vol. 42, no. 10, pp. 2729–2741, Oct. 1994.

[12] H. M. Ibrahim, R. R. Gharieb, and M. M. Hassan, “A higher order statistics-based adaptive algorithm for line enhancement,” IEEE Trans.

Signal Process., vol. 47, no. 2, pp. 527–532, Feb. 1999.

[13] D. C. Shin and C. L. Nikias, “Adaptive interference canceler for narrowband and wideband interferences using higher order statistics,”

IEEE Trans. Signal Process., vol. 42, no. 10, pp. 2715–2728, Oct.

1994.

[14] C. L. Nikias and A. P. Petropulu, Higher Order Spectral Analysis:

A Nonlinear Signal Processing Framework. Englewood Cliffs, NJ: Prentice-Hall, 1993.

[15] M. Brown and C. Harris, Neurofuzzy Adaptive Modelling and

Con-trol. Englewood Cliffs, NJ: Prentice-Hall, 1994.
