Sedimentation velocity and potential in concentrated suspensions

of charged porous spheres

Huan J. Keh

∗

, Wei C. Chen

Department of Chemical Engineering, National Taiwan University, Taipei 10617, Taiwan, Republic of China Received 24 May 2005; accepted 17 September 2005

Available online 9 January 2006

Abstract

The body-force-driven migration in a homogeneous suspension of polyelectrolyte molecules or charged flocs in an electrolyte solution is analyzed. The model used for the particle is a porous sphere in which the density of the hydrodynamic frictional segments, and therefore also that of the fixed charges, is constant. The effects of particle interactions are taken into account by employing a unit cell model. The overlap of the electric double layers of adjacent particles is allowed and the relaxation effect in the double layer surrounding each particle is considered. The electrokinetic equations which govern the electrostatic potential profile, the ionic concentration (or electrochemical potential energy) distributions, and the fluid velocity field inside and outside the porous particle in a unit cell are linearized by assuming that the system is only slightly distorted from equilibrium. Using a regular perturbation method, these linearized equations are solved for a symmetrically charged electrolyte with the density of the fixed charges as the small perturbation parameter. An analytical expression for the settling velocity of the charged porous sphere is obtained from a balance among its gravitational, electrostatic, and hydrodynamic forces. A closed-form formula for the sedimentation potential in a suspension of identical charged porous spheres is also derived by using the requirement of zero net electric current. The dependence of the sedimentation velocity and potential of the suspension on the particle volume fraction and other properties of the particle–solution system is found to be quite complicated.

Keywords: Sedimentation velocity; Sedimentation potential; Charged porous particle; Unit cell model

1. Introduction

The sedimentation or migration of charged colloidal parti-cles in electrolyte solutions has received quite an amount of attention in the past. This problem is more complex than that of uncharged particles because the electric double layer surround-ing each charged particle is distorted by the ambient fluid flow relative to the particle. The deformation of the double layer re-sulting from the fluid motion is usually referred to as the polar-ization or relaxation effect and gives rise to an induced electric field. The sedimentation potential or migration potential, which is set up in a suspension of settling or translating charged parti-cles, was first reported by Dorn in 1878, and this effect is often known by his name[1–5]. The sedimentation potential gradi-ent not only alters the velocity and pressure distributions in the

* _{Corresponding author.}

E-mail address:[email protected](H.J. Keh).

fluid due to its action on the electrolyte ions but also retards the settling of the particles by an electrophoretic effect.

Without considering the particle–particle interaction effects, Booth[1]solved a set of electrokinetic equations using a pertur-bation method to obtain formulas for the sedimentation velocity and sedimentation potential in a dilute suspension of identi-cal spheriidenti-cal particles with an arbitrary double-layer thickness expressed as power series in the small zeta potential of the particles. A method of thin-double-layer approximation for the evaluation of the sedimentation potential, which has no restric-tion regarding the value of the zeta potential of the particles, has also been developed[2,3,6]. On the other hand, numerical results relieving the restriction of low zeta potential in Booth’s analysis were reported by Stigter[7] using a modification of the theory of electrophoresis of a dielectric sphere developed by Wiersema et al.[8]. It was found that the Onsager recipro-cal relation between the sedimentation potential and the elec-trophoretic mobility derived by de Groot et al.[9]is satisfied

(2)

within good computational accuracy. Taking the double-layer distortion from equilibrium as a small perturbation, Ohshima et al.[10]obtained general expressions and presented numerical results for the sedimentation velocity and potential in a dilute suspension of identical charged spheres over a broad range of zeta potential and double-layer thickness.

Theoretical study of the electrokinetic phenomena of charged porous particles, or flocs, was first made by Hermans and Fujita

[11,12] who derived formulas for the electrophoretic mobil-ity of a porous sphere by introducing the Brinkman equation

[13,14]for the internal flow field of the particle and assum-ing that the double layer remains spherically symmetric in the presence of the applied electric field. The effect of the distor-tion of the counterion atmosphere around a nearly free-drained polyelectrolyte coil under an applied electric field was exam-ined theoretically by Imai and Iwasa[15], and their numerical results agree well with the experimental data [16]. Recently, general expressions were derived for the electrophoretic mo-bility and sedimentation velocity of a charged composite (soft) spherical particle which is a rigid colloidal sphere coated with a layer of porous substances or polymers at its surface[17–22]. These electrophoretic mobility expressions tend to a formula obtained by Hermans and Fujita[11]for a spherical polyelec-trolyte when the hard core of the composite particle vanishes and the electric potentials are low.

In practical applications of sedimentation, relatively con-centrated suspensions of particles are usually encountered, and effects of particle interactions will be important. To avoid the difficulty of the complex geometry appearing in swarms of par-ticles, unit cell models[23–27]were often employed to predict the effects of particle interactions on the mean sedimentation rate in a bounded suspension of identical spheres. These mod-els involve the concept that an assemblage can be divided into a number of identical cells, one sphere occupying each cell at its center. The boundary value problem for multiple spheres is thus reduced to the consideration of the behavior of a single sphere and its bounding envelope. The most acceptable of these mod-els with various boundary conditions at the virtual surface of the cell are the so-called “free-surface” model of Happel[23]

and “zero-vorticity” model of Kuwabara[24], the predictions of which for the sedimentation of uncharged spherical particles have been tested against the experimental data.

Using the Kuwabara cell model and assuming that the over-lap of the electric double layers of adjacent particles is negligi-ble on the virtual surface of the cell, Levine et al.[25]derived analytical expressions for the sedimentation velocity and sedi-mentation potential in a homogeneous suspension of identical charged impermeable spheres with a small surface potential as functions of the fractional volume concentration of the parti-cles. The Kuwabara model with nonoverlapping double layers has also been used to demonstrate the Onsager relation between the sedimentation potential and the electrophoretic mobility of charged impermeable spheres in concentrated suspensions

[28,29]. On the other hand, the body-force-driven migration phenomena in homogeneous suspensions of identical charged impermeable spheres with a small surface potential and an ar-bitrary double-layer thickness were analyzed with employing

both the Happel and the Kuwabara cell models and allowing the overlap of adjacent double layers[30]. Closed-form formulas for the sedimentation velocity and potential expressed as power series in the surface charge density or surface potential of the particles were obtained, and these results demonstrate that the effect of the double-layer overlap is quite significant even for the case of thin double layers.

Recently, Ohshima[31]derived general expressions for the sedimentation velocity and potential for a concentrated sus-pension of identical soft spherical particles on the basis of the Kuwabara cell model for the case of low electrostatic potentials and nonoverlapping double layers of adjacent particles, neglect-ing the polarization (relaxation) effect of each double layer. In this article, the unit cell model is used to study the sedimen-tation phenomena in a suspension of identical charged porous spheres. The overlap of adjacent double layers is allowed and the polarization effect in the diffuse layer surrounding each par-ticle is included. No assumption is made about the thickness of the double layer relative to the dimension of the particle. Both the Happel model and the Kuwabara model are considered. The basic electrokinetic equations are linearized assuming that the electrolyte ion concentrations, the electrostatic potential, and the fluid pressure have only a slight deviation from equilibrium due to the motion of the particle. Through the use of a regular perturbation method with the fixed charge density of the particle as the small perturbation parameter, the ion concentration (or electrochemical potential), electric potential, and fluid velocity profiles are determined by solving these linearized electroki-netic equations subject to the appropriate boundary conditions. Analytical expressions for the settling velocity of the charged porous spheres in the solution of a symmetrically charged elec-trolyte and for the sedimentation potential in the suspension are obtained in closed forms.

2. Basic electrokinetic equations

We consider the sedimentation (or any other body-force-driven motion) of a statistically homogeneous distribution of identical charged porous spherical particles in a bounded liq-uid solution containing M ionic species at the steady state. The acceleration of gravity (or the uniformly imposed body force field) equals gez and the sedimentation (or migration)

veloc-ity of the porous particles is U ez, where ez is the unit vector

in the positive z-direction. As shown in Fig. 1, we employ a unit cell model in which each particle of radius a is surrounded by a concentric spherical shell of suspending solution having an outer radius of b such that the particle/cell volume ratio is equal to the apparent particle volume fraction ϕ throughout the entire suspension; viz., ϕ= (a/b)3. The cell as a whole is electrically neutral. The origin of the spherical coordinate system (r, θ, φ) is taken at the center of the particle and the axis θ= 0 points to-ward the positive z-direction. Obviously, the problem for each cell is axially symmetric about the z-axis.

It is assumed that the magnitude of the particle velocity is not large and hence that the electric double layer surrounding the particle is only slightly distorted from the equilibrium state, where the particle and fluid are at rest. Therefore, the

(3)

concen-Fig. 1. Geometrical sketch for the sedimentation of a charged porous sphere at the center of a spherical cell.

tration (number density) distribution nm(r, θ )of species m, the

electric potential distribution ψ(r, θ ), and the pressure distribu-tion p(r, θ ) can be expressed as

(1a) nm= n(eq)m + δnm, (1b) ψ= ψ(eq)+ δψ, (1c) p= p(eq)+ δp,

where n(eq)m (r), ψ(eq)(r), and p(eq)(r, θ )are the equilibrium

dis-tributions of the concentration of species m, electric potential, and pressure, respectively, and δnm(r, θ ), δψ(r, θ ), and δp(r, θ )

are the corresponding small deviations from the equilibrium state. The equilibrium concentration of each ionic species is re-lated to the equilibrium potential by the Boltzmann distribution. It can be shown that the small perturbed quantities δnm, δψ,

and δp, together with the fluid velocity field u(r, θ ), satisfy the following set of linearized electrokinetic equations[18,30]:

(2) ∇ · u = 0, (3) ∇2 u− h(r)λ2u=1 η∇δp − ε 4π η ∇2_ψ(eq)_∇δψ + ∇2_δψ_∇ψ(eq)₋1 ηh(r)Q∇δψ, (4) ∇2_δμ m= zme kT ∇ψ(eq)_{· ∇δμ} m− kT Dm∇ψ (eq)_{· u} , m= 1, 2, . . . , M, (5) ∇2_δψ_{= −}4π ε M m=1 zmen∞m kT exp −zmeψ(eq) kT × (δμm− zmeδψ ).

Here, δμm(r, θ )is defined as a linear combination of δnmand δψon the basis of the concept of the electrochemical potential energy[10], (6) δμm= kT n(eq)m δnm+ zmeδψ;

n∞_m is the concentration of the type m ions in the bulk (elec-trically neutral) solution where the equilibrium potential is set equal to zero; η is the viscosity of the fluid (the available ev-idence[32]suggests that it is reasonable to assume the same value of η inside and outside the porous particle); λ= (f/η)1/2, where f is the hydrodynamic friction coefficient inside the porous particle per unit volume of the fluid (which accounts for the hindrance to the convective transport of the electrolyte solution caused by the frictional segments); h(r) is a unit step function which equals unity if r a, and zero otherwise; Q is the fixed charge density inside the porous particle; Dmand zm

are the diffusion coefficient and valence, respectively, of species

m; e is the elementary electric charge; k is Boltzmann’s con-stant; T is the absolute temperature; and ε= 4πε0εr, where εr

is the relative permittivity of the electrolyte solution and ε0is

the permittivity of a vacuum. We assume that the values of η,

f, ε, and Dmare constant.

Note that f can be expressed as 6π ηaSNS in the

free-draining limit, where NS and aS are the number density and

the Stokes radius, respectively, of the hydrodynamic frictional segments of the porous particle, and the reciprocal of the para-meter λ is the shielding length characterizing the extent of flow penetration inside the porous particle. For some model porous particles made of steel wool (in glycerin–water solution)[33]

and plastic foam slab (in silicon oil)[34], experimental values of 1/λ can be as high as 0.4 mm, whereas in the surface re-gions of human erythrocytes[35], rat lymphocytes [36], and grafted polymer microcapsules[37]in salt solutions, values of 1/λ were found to be about 3 nm. Note that 1/λ2 is the so-called “permeability” of the porous medium, which is related to its pore size and porosity and characterizes the dynamic be-havior of the viscous fluid in it.

The conditions to be satisfied inside the porous particle are (7)

u, δμm,and δψ are finite.

where the superscripts+ and − to S represent the external and internal sides, respectively, to the surface of the particle, n is the unit vector outwardly normal to the particle surface, and σ is the hydrodynamic stress of the fluid. Equations(8a) and (8b)are the continuity requirements of the fluid velocity and stress at the particle surface which are physically realistic and mathemat-ically consistent boundary conditions for the present problem

[32,38,39]. Since we take the same fluid viscosity inside and outside the porous particle and use the fluid velocity continu-ity given by Eq.(8a), Eq.(8b)is equivalent to the continuity of pressure. Equations(8c) and (8d)state that the concentrations

(4)

and fluxes of the ionic species must be continuous at the particle surface, while Eqs.(8e) and (8f)indicate that the electrostatic potential and electric field are also continuous. The continuity of the electric field results from the assumption that the relative permittivity of the solution takes the same value both inside and outside the porous particle. In the present system, the to-tal fluid stress, which consists of the hydrodynamic stress and the Maxwell stress, is continuous at the particle surface. The boundary condition for the continuity of hydrodynamic stress given by Eq.(8b)comes from the fact of continuous Maxwell stress that can be deduced from Eqs.(1b) and (8f) [17].

The boundary conditions at the virtual surface of the cell, in which the overlap of the electric double layers of adjacent particles is allowed, are

(9a) r= b: ur= −U cos θ, τrθ= η r ∂ ∂r uθ r +1 r ∂ur ∂θ = 0 (9b)

(for Happel model),

(∇ · u)φ= 1 r ∂ ∂r(ruθ)− 1 r ∂ur ∂θ = 0 (9c)

(for Kuwabara model),

(9d) ∂δμm ∂r = 0, (9e) ∂δψ ∂r = 0,

where ur and uθ are the r and θ components, respectively, of

the fluid velocity u. Note that the Happel cell model[23] as-sumes that the radial velocity and the shear stress of the fluid on the outer boundary of the cell are zero, while the Kuwabara cell model[24]assumes that the radial velocity and the vortic-ity of the fluid are zero there. Equation(9a)takes a reference frame that the particle is at rest and the velocity of the fluid at the outer boundary of the cell is the particle velocity in the op-posite direction. The conditions(9a), (9d), and (9e)imply that there are no net flows of fluid, ionic species, and electric current between adjacent cells. They are valid because the suspension of the particles is bounded by impermeable, inert, and noncon-ductive walls. Thus, the effect of the backflow of fluid occurring in a container is included in both cell models.

For the sedimentation of a suspension of uncharged spher-ical particles, both the Happel and the Kuwabara models give qualitatively the same flow fields and approximately compara-ble drag forces on the particle in a cell. However, the Happel model has a significant advantage in that it does not require an exchange of mechanical energy between the cell and the envi-ronment[40].

3. Solution of the electrokinetic equations for symmetric electrolytes

We now consider the sedimentation of a charged porous sphere in a unit cell filled with the solution of a symmetrically charged binary electrolyte with a constant bulk concentration

n∞(M= 2, z₊= −z₋= Z, n∞₊ = n∞₋ = n∞, where subscripts + and − refer to the cation and anion, respectively). We first

seek the solution of ψ(eq)which appears in Eqs.(3)–(5)and is governed by the equilibrium Poisson–Boltzmann equation,

(10) ∇2_ψ(eq)₌kT Zeκ 2 sinh Zeψ(eq) kT − h(r)4π Q ε ,

where κ= (8πZ2e2n∞/εkT )1/2is the Debye screening para-meter. The boundary conditions for ψ(eq)are

(11) r= 0: ψ(eq)is finite, (12) r= a: ψ(eq)anddψ (eq) dr are continuous, (13) r= b: dψ (eq) dr = 0.

The solution to Eqs.(10)–(13)is

(14) ψ(eq)(r)= ψeq1(r) ¯Q+ O( ¯Q3), where (15a) ψeq1= kT Ze 1−

(1− κa)eκa+α(κa)

α(κb) × (κb − 1)eκb sinh(κr) κr if 0 r a, ψeq1= kT Ze α(κa) α(κb) 1 κr κbcosh(κb− κr) − sinh(κb − κr) (15b) if a r b,

the function α(x) is defined by Eq.(A.3a)inAppendix A, and ¯

Q= 4πZeQ/εκ2kT is the nondimensional charge density of the porous particle. Expression(14)for ψ(eq)as a power series in ¯Qup to O( ¯Q)is the equilibrium solution for the linearized Eq. (10)that is valid for small values of the electric potential (the Debye–Huckel approximation). That is, the fixed charge density Q of the particle must be small enough for the potential to remain small. Note that ψ(eq)and n(eq)_± depend on r only due to spherical symmetry, and the O( ¯Q2)term in Eq.(14)for ψ(eq) disappears only for the case of symmetric electrolytes.

To solve the small quantities u, δp, δμ_±, and δψ in terms of the particle velocity U when the parameter ¯Qis small, these variables can be written as regular perturbation expansions in powers of ¯Q, (16a) u= u0+ u1Q¯+ u2Q¯2+ · · · , (16b) δp= p0+ p1Q¯+ p2Q¯2+ · · · , (16c) δμ_±= μ1±Q¯+ μ2±Q¯2+ · · · , (16d) δψ= ψ1Q¯ + ψ2Q¯2+ · · · , (16e) U= U0+ U1Q¯ + U2Q¯2+ · · · ,

where the functions ui, pi, μi±, ψi, and Ui are independent

of ¯Q. The zeroth-order terms of both δμ_±and δψ disappear due to not imposing a macroscopic electrolyte gradient and electric field.

Substituting the expansions given by Eq. (16) and ψ(eq) given by Eq. (14) into the governing equations (2)–(5) and boundary conditions(7)–(9), and equating like powers of ¯Qon both sides of the respective equations, we can obtain a set of lin-ear differential equations and boundary conditions for each set

(5)

of the functions ui, pi, μi±, and ψi with i equal to 0, 1, and 2.

After solving these perturbation equations, the results for the r and θ components of u (to the order ¯Q2), δμ_±, and δψ (to the order ¯Q, which will be sufficient for the calculation of the sedi-mentation velocity and sedisedi-mentation potential to the order ¯Q2) can be written as (17a) ur = U0F0(r)− U1F0(r) ¯Q+ U0F2(r)+ U2F0(r) ¯Q2 × cos θ + O( ¯Q3), (17b) uθ= − 1 2r d drr 2_U 0F0(r)− U1F0(r) ¯Q +U0F2(r)+ U2F0(r) ¯Q2 sin θ+ O( ¯Q3), (18) δμ_±= U0F±(r)cos θ ¯Q+ O( ¯Q2), (19) δψ= U0Fψ(r)cos θ ¯Q+ O( ¯Q2).

Here, the functions Fi(r)(with i equal to 0 and 2), F±(r), and Fψ(r) for both the Happel and the Kuwabara cell models are

defined by Eqs.(A.1), (A.8), and (A.9)inAppendix A. Since

F_±(r) and Fψ(r) are influenced by the fluid flow via F0(r),

the leading order of the effect of the relaxation (or polarization) of the diffuse ions in the electric double layer surrounding the particle is included in the solution for δμ_±and δψ up to the order ¯Q.

4. Sedimentation velocity

The total force exerted on the charged porous sphere settling in the electrolyte solution within a unit cell can be expressed as the sum of the gravitational force (and buoyant force), the electrostatic force, and the hydrodynamic force acting on the particle. The gravitational force is given by

(20) Fg= 4 3π a 3₍ 1− εp)(ρp− ρ)gez,

where εpand ρpare the porosity and true mass density of the

porous particle, respectively, ρ is the mass density of the fluid, and gezis the gravitational acceleration.

The electric force acting on the porous sphere is defined by

(21)

Fe= −

ra

Q∇ψ dx.

Substituting Eqs.(1b) and (19)into Eq.(21), and using the fact that the net electric force acting on the particle at the equilib-rium state is zero, one has

(22) Fe= − ε 3 kT Ze(κa) 2_U 0Fψ(a) ¯Q2ez.

The hydrodynamic drag force acting on the porous sphere is given by (23) Fh= ra f u(x)dx.

Substitution of Eq.(17)into the above equation results in

Fh= 4π 3 ηλ 2_a3_U 0F0(a)+ U1F0(a) ¯Q (24) +U0F2(a)+ U2F0(a) ¯Q2 ez.

At the steady state, the total force acting on the settling particle (or the unit cell) is zero. Applying this constraint to the summa-tion of Eqs.(20), (22), and (24)for a symmetric electrolyte, we obtain the sedimentation velocity of the charged porous sphere in the expansion form of Eq.(16e)with the first three coeffi-cients as (25a) U0= −(1 − ε p)(ρp− ρ)g ηλ2_[C 01+ α(λa)C02] , (25b) U1= 0, (25c) U2= −U0 F2(a) F0(a)− εκ2kT 4π ηλ2_aze Fψ(a) F0(a) ,

where the coefficients C01 and C02 are given by Eq. (A.4)

for the Happel cell model and by Eq.(A.5)for the Kuwabara cell model in Appendix A. U0 is the settling velocity of an

uncharged porous sphere in the cell [41]. The definite inte-grals in the functions F2(a) and Fψ(a) in Eq. (25c)defined

by Eqs.(A.1) and (A.9) can be calculated numerically. Note that the correction for the effect of the fixed charge density to the particle velocity starts from the second order Q2, instead of the first order Q. The reason is that this effect is due to the interaction between the particle charges and the local induced sedimentation potential gradient; both are of order Q and thus the correction is of order Q2.

Substitution of Eq.(25)into Eq.(16e)results in an expres-sion for the sedimentation velocity as a perturbation expanexpres-sion in powers of Q,

(26)

U= U0

1− (κa)4H ¯Q2+ O( ¯Q3).

Here, the dimensionless coefficient H is a function of the para-meters κa, λa, and ϕ for a given electrolyte solution,

(27)

H= − U2 (κa)4_U

0 .

The numerical result of H calculated by using Eqs. (25a) and (25c) will be presented in Section 6. Note that (κa)2Q¯ (= 4πa2ZeQ/εkT )is independent of κ or n∞for a constant fixed charge density Q.

5. Sedimentation potential

The electric fields around the individual charged particles undergoing sedimentation in a suspension superimpose to re-sult in a sedimentation potential gradient. For a homogeneous suspension of identical spherical particles, the sedimentation potential field is uniform and can be regarded as the average of the gradient of electric potential over a sufficiently large volume of the suspension to contain many particles. In order to calculate this field, the requirement that there exists no net electric cur-rent in the suspension must be satisfied. For identical charged porous spheres suspended in a symmetric electrolyte with the absolute value of valence Z, the sedimentation potential field obtained from the unit cell model can be expressed as[18]

ESED= 4π b2Z2e2n∞N 3kT V Λ∞ U0 D₊ rdF+ dr − F+

(6)

(28) − D− rdF− dr − F− r=b ¯ Q+ O( ¯Q3) ez.

Substituting Eq.(25a)for U0and Eq.(A.8)for F±(r)after the

numerical integration into the above equation, we obtain this field as (29) ESED= −(1 − εp)(ρp− ρ) ϕg Λ∞μEez, where μE= Q ηλ2_α(κb)_[C 01+ α(λa)C02] 6L1(λa)3(ϕ−1/3− ϕ−2) ×

λasinh(λa) cosh(κa)− κa cosh(λa) sinh(κa)

(λa)2_{− (κa)}2 −sinh(λa) sinh(κa) (λa)(κa) +3L1ϕ−2 (κa)3 2A2ϕ5/3+ (λa)2(1+ 2ϕ5/3)α(λa) ×3α(κa)− (κa)2sinh(κa)

+α(κa) (κa)2 (λaκa)2B1ϕ−8/3+ 10(λa)2A4ϕ−4/3 − 2(λa)2_B 1ϕ−2− (κa)2B2ϕ−3 −α(κa)L2 (κa)5 (λa)2(κ4a4+ 15κ2a2+ 30)A4ϕ−1/3 − (κa)2_(λaκa)2_(A 4− B1)+ (κ2a2+ 3)B2 ϕ−2 +α(κa)L3 (κa)4 5(λa)2(κ2a2+ 6)A4ϕ−2/3 (30a) + (κa)2 2(λa)2B1− 3B2 ϕ−7/3+ O( ¯Q3)

for the Happel model, and

μE= Qϕ2 45ηλ2_{α(κb)α(λa)} 30λaL1(ϕ−1− ϕ−2) ×

λasinh(λa) cosh(κa)− κa cosh(λa) sinh(κa)

(κa)2_{− (λa)}2 −sinh(λa) cosh(κa) (λa)(κa) +15L1(2ϕ−1+ ϕ−2)α(λa) (κa)3

×3α(κa)− (κa)2sinh(κa)

+ α(κa)(2A2ϕ− 5A4)ϕ−2+ 18(λa)2ϕ−8/3 − 5(A1+ A4ϕ)ϕ−3 −α(κa)L2 (κa)5 3(λa)2(κ4a4 + 15κ2_a2_{+ 30)α(λa)ϕ}−1_{− (κa)}2_5(κ2_a2_{+ 3)} × (A1+ A4ϕ)− (κa)2(2A2ϕ− 5A4) − 15(λaκa)2_α(λa)_ϕ−2 +15α(κa)L3 (κa)4

(λa)2(κ2a2+ 6)α(λa)ϕ−4/3+ (κa)2

(30b) ×2(λa)2α(λa)− A1− A4ϕ

ϕ−7/3+ O( ¯Q3)

for the Kuwabara model. In the above equations, Ai, Li, and Bi

are defined by Eqs.(A.7), (A.10), and (A.11), and ϕ= (a/b)3

is the apparent volume fraction of the particles in the suspen-sion. Equation(29)is an Onsager reciprocal relation connecting the sedimentation potential with the electrophoretic mobility derived by de Groot et al.[9]on the basis of irreversible ther-modynamics. Evidently, the electrophoretic mobility μE is

in-dependent of the ionic diffusion coefficients and is a function of the parameters κa, λa, and ϕ only.

6. Results and discussion

For the limiting case of an infinitely dilute suspension of porous spheres (ϕ= 0), the quantities U0and μEin expressions

(25a) and (30)for the sedimentation velocity and potential re-duce to (31) U0= (1 − εp)(ρp− ρ) 2a2g 9η 2(λa)A1α(λa) ₋₁ , (32) μE= Q ηλ2 1+1 3 λ κ 2 1+ e−2κa−1− e −2κa κa +1 3 λ2 λ2_{− κ}2 1+ 1 κa × λ κ 2_κa( 1+ e−2κa)− 1 + e−2κa λacoth(λa)− 1 − 1 + e −2κa + O( ¯Q2).

These reduced results are the same as the formulas for U0and μEobtained previously[11,14,18]for a single porous sphere in

an unbounded electrolyte.

According to Eqs.(25)–(27), the sedimentation velocity of charged porous spheres in a given electrolyte solution can be calculated to the order of Q2. The numerical results of the dimensionless coefficient H for particles in the aqueous so-lution of HCl at room temperature as a function of the pa-rameters κa, λa, and ϕ are plotted in Figs. 2–4. The value

εk2T2/4π ηDz2e2= 0.259 with D₊= D₋= D [42]is used in the calculations, and the results are presented up to ϕ= 0.74, which corresponds to the maximum attainable volume fraction for a swarm of identical spheres [43]. The fact that H is al-ways positive demonstrates that the presence of the particle charges reduces the sedimentation rate for any volume fraction of particles in the suspension. This retardation on the settling of the charged particles reflects the electrophoretic effect on the particles in the direction opposite to gravity caused by the sed-imentation potential gradient induced in the suspension.

For fixed values of λa and ϕ, the coefficient H has a max-imum at some finite value of κa and vanishes in the limits

κa→ 0 and κa → ∞. The reason for this behavior is obvious.

The limit κa→ 0 means that the presence of the counterions around each particle is negligible and the perturbation quanti-ties δnmand δψ disappear, while the limit κa→ ∞ indicates

that the total charge density is zero everywhere and the total electric force on the particle vanishes. Note that the location of this maximum shifts to greater κa as ϕ increases, keeping the value of λa unchanged, but is not a sensitive function of

λa, as shown inFig. 2. For given values of κa and ϕ, the co-efficient H increases monotonically with decreasing λa. In the

(7)

(a)

(b)

Fig. 2. Plots of the dimensionless coefficient H in Eq.(26)for settling charged porous spheres in the KCl solution versus the parameter κa: (a) λa= 1; (b) ϕ= 0.3. The solid and dashed curves represent the calculations for the Hap-pel and Kuwabara cell models, respectively.

limit λa→ ∞, the porous particles behave like impermeable conductive spheres and thus H = 0 (the sedimentation veloc-ity of the particle limits to the Stokes velocveloc-ity). At small val-ues of λa (say, less than 0.05), the porous particles are nearly free-drained, and their velocity might be large that the pertur-bation quantities become comparable in magnitude with the equilibrium values. Therefore, our perturbation result will not be adaptable for this case owing to disobeying the assumption that the system is only slightly distorted from equilibrium. For specified values of κa and λa in a broad range, H is not a monotonic function of ϕ and has a maximal value. The loca-tion of this maximum shifts to greater ϕ as κa increases but is not a sensitive function of λa.

Figs. 2–4illustrate that, for any combination of κa, λa, and

ϕ, the Kuwabara model predicts a smaller value for the

coeffi-(a)

(b)

Fig. 3. Plots of the dimensionless coefficient H in Eq.(26)for settling charged porous spheres in the KCl solution versus the parameter λa: (a) κa= 1; (b) ϕ= 0.3. The solid and dashed curves represent the calculations for the Hap-pel and Kuwabara cell models, respectively.

cient H (or a weaker particle concentration dependence for the sedimentation of the suspension) than the Happel model does. This occurs because the zero-vorticity model yields a larger en-ergy dissipation in the cell than that due to particle drag alone, owing to the additional work done by the stresses at the outer boundary[40]. In general, the qualitative and quantitative dif-ferences in H between the two models are not significant.

InFigs. 5–7, the numerical results for the dimensionless sed-imentation potential or electrophoretic mobility ηλ2μE/Qin a

suspension of identical charged porous spheres calculated from Eq. (30) are plotted as a function of the parameters κa, λa, and ϕ. As expected, ηλ2μE/Qis always a positive value. For

a given value of λa, ηλ2μE/Qincreases monotonically with a

decrease in κa (or with an increase in the double-layer over-lap) as ϕ= 0, but may have a maximum at some finite value

(8)

(a)

(b)

Fig. 4. Plots of the dimensionless coefficient H in Eq.(26)for settling charged porous spheres in the KCl solution versus the parameter ϕ: (a) λa= 1; (b) κa= 1. The solid and dashed curves represent the calculations for the Hap-pel and Kuwabara cell models, respectively.

of κa and approaches zero in proportion to (κa)2 in the limit

κa→ 0 for any finite value of ϕ; the location of this maximum

again shifts to greater κa as ϕ increases, as shown inFig. 5. For any values of λa and ϕ, ηλ2μE/Qequals unity in the limit κa→ ∞. For fixed values of κa and ϕ, ηλ2μE/Q increases

monotonically with an increase in λa, approaches a constant value (e.g., ηλ2μE/Q= 1 as ϕ = 0) in the limit λa → 0, and is

proportional to (λa)2 in the limit λa→ ∞. For specified val-ues of κa and λa in a broad range, ηλ2_μ

E/Qis a monotonic

decreasing function of ϕ.Figs. 5–7indicate that, for any combi-nation of κa, λa, and ϕ, the Kuwabara model predicts a smaller value for the dimensionless sedimentation potential than the Happel model does, but the difference in general is negligible.

In a previous analysis for the sedimentation velocity and po-tential in suspensions of identical charged soft particles through

(a)

(b)

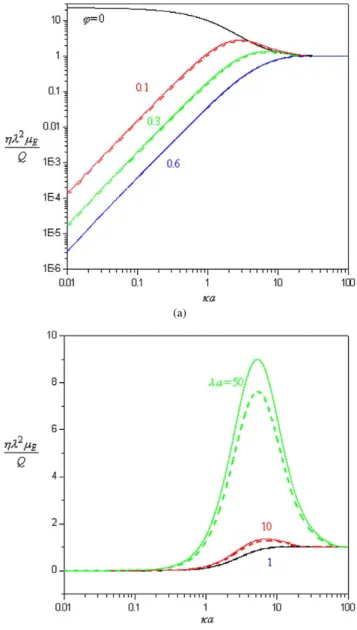

Fig. 5. Plots of the dimensionless sedimentation potential ηλ2μE/Qin a

sus-pension of identical charged porous spheres calculated from Eq.(30)versus the parameter κa: (a) λa= 10; (b) ϕ = 0.3. The solid and dashed curves represent the calculations for the Happel and Kuwabara cell models, respectively.

the use of the Kuwabara cell model, it was assumed that the effects of the overlap of the electric double layers of adjacent particles and of the relaxation of the diffuse ions in the dou-ble layers could be neglected[31]. Comparisons of the relevant results of the dimensionless coefficients H and ηλ2μE/Q

ob-tained in this previous analysis with our calculations relaxing these assumptions indicate that the errors in the sedimentation velocity and sedimentation potential in suspensions owing to neglect of these effects can be quite significant under typical conditions, even when the double layers are thin relative to the radius of the particles.

7. Concluding remarks

In this work, the steady-state sedimentation phenomena in a homogeneous suspension of identical charged porous spheres

(9)

(a)

(b)

sus-pension of identical charged porous spheres calculated from Eq.(30)versus the parameter λa: (a) κa= 1; (b) ϕ = 0.3. The solid and dashed curves represent the calculations for the Happel and Kuwabara cell models, respectively.

in an electrolyte solution with arbitrary values of κa, λa, and

ϕ are analyzed by employing the Happel and Kuwabara cell models. Solving the linearized electrokinetic equations applica-ble to the system of a porous sphere in a unit cell by a regular perturbation method, we have obtained the ion concentration (or electrochemical potential energy) distributions, the electric potential profile, and the fluid flow field for the case of low elec-tric potentials. The requirement that the total force exerted on the particle is zero leads to an explicit formula, Eq.(26), for the settling velocity of the particles. The effect of the particle charges is to reduce the settling velocity and the correction be-gins at the second order Q2. Numerical results indicate that, for given values of λa and ϕ, this effect has a maximum at some finite values of κa and disappears when κa approaches

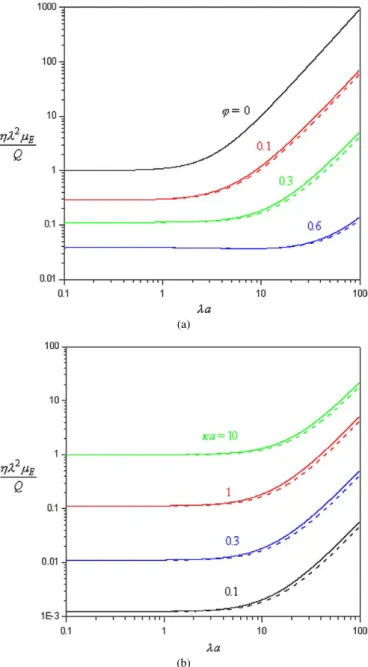

(a)

(b)

sus-pension of identical charged porous spheres calculated from Eq.(30)versus the parameter ϕ: (a) λa= 10; (b) κa = 1. The solid and dashed curves represent the calculations for the Happel and Kuwabara cell models, respectively.

zero and infinity. For fixed values of κa and ϕ, this effect in-creases monotonically with a decrease in λa. Another explicit formula, Eq.(29), for the sedimentation potential is derived to the order Q by letting the net electric current in the suspension be zero. The normalized sedimentation potential is found to in-crease with an inin-crease in λa for specified values of κa and ϕ, and to decrease with an increase in ϕ for given values of κa and

λa.

Equations(25)–(27), (29), and (30)are obtained on the basis of the Debye–Huckel approximation for the equilibrium po-tential distribution around the charged porous sphere in a unit cell. A similar formula for the sedimentation velocity of an im-permeable sphere with a low zeta potential in an unbounded electrolyte solution was shown to give an excellent approxima-tion for the case of reasonably high zeta potential (with an error

(10)

less than 0.1% for|ζ|e/kT 2 in a KCl solution)[9]. There-fore, our results might be used tentatively for the situation of reasonably high electric potentials.

A limitation in both Booth’s[1]classical theory and our per-turbation analysis is that they are valid only for the case of a suf-ficiently small Péclet number. For the case of a relatively large Péclet number, however, Derjaguin and Dukhin[6,45]obtained a fundamental result for the sedimentation potential of a dilute suspension of impermeable charged spheres and found that the Smoluchowski theory is still valid in spite of the double-layer polarization.

Acknowledgment

This research was partially supported by the National Sci-ence Council of the Republic of China.

Appendix A. Definitions of some functions in Sections3 and 5

For conciseness the definitions of some functions in Sec-tions3 and 5are listed here. In Eq.(17),

(A.1a) Fi(r)= Ci1+ Ci2 a r 3 α(λr) + δi2 2 3λ2 r 0 G(r)dr− 1 r3 r 0 r3G(r)dr +3α(λr) λ3_r3 r 0 β(λr)G(r)dr −3β(λr) λ3_r3 r 0 α(λr)G(r)dr for 0 < r < a, Fi(r)= Ci3+ Ci4 a r + Ci5 a r 3 + Ci6 r a 2 − δi2 1 15 r2 r 0 G(r)dr− 5 r 0 r2G(r)dr +5 r r 0 r3G(r)dr− 1 r3 r 0 r5G(r)dr (A.1b) for a < r < b,

where i= 0 and 2. In the above equations, δij is the Kronecker

delta which equals unity if i= j but vanishes otherwise, (A.2) G(r)= εκ 2 8π ηr F₊(r)− F₋(r)dψeq1 dr , (A.3a) α(x)= x cosh x − sinh x, (A.3b) β(x)= x sinh x − cosh x, (A.4a) C01=−6[A2+ (λa)

2_α(λa)_]ϕ−1/3_{− 3(λa)}2_α(λa)ϕ−2 WH , (A.4b) C02= 6(λa)2(ϕ−1/3− ϕ−2) WH , (A.4c) C03=−3(2A2+ A3 )ϕ−1/3− (λa)2A1ϕ−2 WH , (A.4d) C04= 2(λa)2_A 2ϕ−1/3+ 3(λa)4α(λa)ϕ−2 WH , (A.4e) C05=−(λa) 2_A 4ϕ−2 WH , (A.4f) C06= (λa)2A4ϕ−1/3 WH

for the Happel model, and

(A.5a) C01=−15α(λa)(2ϕ −1_{+ ϕ}−2₎ WK , (A.5b) C02= 30(ϕ−1− ϕ−2) WK , (A.5c) C03=−5(A4 ϕ−1+ A1ϕ−2) WK , (A.5d) C04= 15(λa)2α(λa)ϕ−2 WK , (A.5e) C05= 2A2ϕ−1− 5A4ϕ−2 WK , (A.5f) C06= 3α(λa)(λa)2ϕ−1 WK

for the Kuwabara model, where

(A.6a)

WH= (λa)2A1ϕ−2− 3(λa)4α(λa)ϕ−5/3

+ 3(2A2+ A3)ϕ−1/3− 2(λa)2A2,

(A.6b)

WK= 5A1ϕ−2− 18(λa)2α(λa)ϕ−5/3

+ 10A4ϕ−1− 2A2,

(A.7a)

A1= 3α(λa) + 2(λa)3cosh(λa),

(A.7b)

A2= 15α(λa) + (λa)3cosh(λa)− 6(λa)2sinh(λa),

(A.7c)

A3= (λa)2

(λa)2+ 12α(λa)− 4(λa)4sinh(λa),

(A.7d)

A4= 6α(λa) + (λa)3cosh(λa)− 3(λa)2sinh(λa).

The expressions for the coefficients C2j are lengthy; the full

versions are available in W.C. Chen’s M.S. thesis [44] or on request from the corresponding author. In Eqs.(18), (19), and (A.2), F_±(r)= ± 1 3D_± 2r b3 b 0 r3F0(r) dψeq1 dr dr (A.8) + r b r F0(r) dψeq1 dr dr+ 1 r2 r 0 r3F0(r) dψeq1 dr dr , Fψ(r)= 1 2κr2 (κ2b2+ 2κb + 2)e−κb (κb)2_sinh(κb)_{− 2α(κb)}

(11)

× α(κr) b 0 α(κr)F₊(r)− F₋(r)dr + α(κr) b r (κr+ 1)e−κrF₊(r)− F₋(r)dr + (κr + 1)e−κr r 0 α(κr)F₊(r)− F₋(r)dr . (A.9) In Eq.(30), (A.10a)

L1= α(κb)(κa − 1)eκa− α(κa)(κb − 1)eκb,

(A.10b)

L2= κb cosh(κa − κb) + sinh(κa − κb),

(A.10c)

L3= ϕ1/3cosh(κa− κb) + κa sinh(κa − κb),

(A.11a)

B1= 2A2ϕ5/3+ 3(λa)2α(λa),

(A.11b)

B2= (λa)2A1+ 3(2A2+ A3)ϕ5/3.

References

[1] F. Booth, J. Chem. Phys. 22 (1954) 1956.

[2] S.S. Dukhin, B.V. Derjaguin, in: E. Matijevic (Ed.), Surface and Colloid Science, vol. 7, Wiley, New York, 1974.

[3] R.J. Hunter, Zeta Potential in Colloid Science, Academic Press, London, 1981.

[4] D.A. Saville, Adv. Colloid Interface Sci. 16 (1982) 267.

[5] J.H. Masliyah, Electrokinetic Transport Phenomena, AOSTRA, Edmon-ton, Alberta, Canada, 1994.

[6] S.S. Dukhin, Adv. Colloid Interface Sci. 44 (1993) 1. [7] D. Stigter, J. Phys. Chem. 84 (1980) 2758.

[8] P.H. Wiersema, A.L. Leob, J.Th.G. Overbeek, J. Colloid Interface Sci. 22 (1966) 78.

[9] S.R. de Groot, P. Mazur, J.Th.G. Overbeek, J. Chem. Phys. 20 (1952) 1825.

[10] H. Ohshima, T.W. Healy, L.R. White, R.W. O’Brien, J. Chem. Soc. Fara-day Trans. 2 (80) (1984) 1299.

[11] J.J. Hermans, H. Fujita, K. Ned. Akad. Wet. Proc. Ser. B 58 (1955) 182. [12] J.J. Hermans, J. Polym. Sci. 18 (1955) 527.

[13] H.C. Brinkman, Appl. Sci. Res. A 1 (1947) 27. [14] P. Debye, M. Bueche, J. Chem. Phys. 16 (1948) 573. [15] N. Imai, K. Iwasa, Israel J. Chem. 11 (1973) 223.

[16] I. Noda, M. Nagasawa, M. Ota, J. Am. Chem. Soc. 86 (1964) 5075. [17] H.J. Keh, Y.C. Liu, J. Colloid Interface Sci. 195 (1997) 169. [18] Y.C. Liu, H.J. Keh, Colloids Surf. A 140 (1998) 245. [19] Y.C. Liu, H.J. Keh, Langmuir 14 (1998) 1560. [20] H. Ohshima, J. Colloid Interface Sci. 228 (2000) 190.

[21] R.J. Hill, D.A. Saville, W.B. Russel, J. Colloid Interface Sci. 258 (2003) 56.

[22] J.J. Lopez-Garcia, C. Grosse, J. Horno, J. Colloid Interface Sci. 265 (2003) 327.

[23] J. Happel, AIChE J. 4 (1958) 197.

[24] S. Kuwabara, J. Phys. Soc. Jpn. 14 (1959) 527.

[25] S. Levine, G. Neale, N. Epstein, J. Colloid Interface Sci. 57 (1976) 424. [26] V.N. Shilov, N.I. Zharkikh, Yu.B. Borkovskaya, Colloid J. 43 (1981)

434.

[27] A.S. Dukhin, V. Shilov, Yu. Borkovskaya, Langmuir 15 (1999) 3452. [28] H. Ohshima, J. Colloid Interface Sci. 208 (1998) 295.

[29] F. Carrique, F.J. Arroyo, A.V. Delgado, Colloids Surf. A 195 (2001) 157. [30] H.J. Keh, J.M. Ding, J. Colloid Interface Sci. 227 (2000) 540.

[31] H. Ohshima, J. Colloid Interface Sci. 229 (2000) 140. [32] J. Koplik, H. Levine, A. Zee, Phys. Fluids 26 (1983) 2864. [33] K. Matsumoto, A. Suganuma, Chem. Eng. Sci. 32 (1977) 445. [34] J.H. Masliyah, M. Polikar, Can. J. Chem. Eng. 58 (1980) 299.

[35] S. Kawahata, H. Ohshima, N. Muramatsu, T. Kondo, J. Colloid Interface Sci. 138 (1990) 182.

[36] K. Morita, N. Muramatsu, H. Ohshima, T. Kondo, J. Colloid Interface Sci. 147 (1991) 457.

[37] O. Aoyanagi, N. Muramatsu, H. Ohshima, T. Kondo, J. Colloid Interface Sci. 162 (1994) 222.

[38] G. Neale, N. Epstein, W. Nader, Chem. Eng. Sci. 28 (1973) 1865. [39] V. Natraj, S.B. Chen, J. Colloid Interface Sci. 251 (2002) 200.

[40] J. Happel, H. Brenner, Low Reynolds Number Hydrodynamics, Nijhoff, Dordrecht, The Netherlands, 1983.

[41] H.J. Keh, Y.C. Chang, Colloid Polym. Sci. 283 (2005) 627.

[42] T.G.M. van de Ven, Colloidal Hydrodynamics, Academic Press, London, 1989.

[43] S. Levine, G.H. Neale, J. Colloid Interface Sci. 47 (1974) 520. [44] W.C. Chen, M.S. thesis, National Taiwan University, 2005.

[45] B.V. Derjaguin, S.S. Dukhin, in: B.V. Derjaguin (Ed.), Research in Surface Forces, vol. 3, Plenum, New York, 1971.
