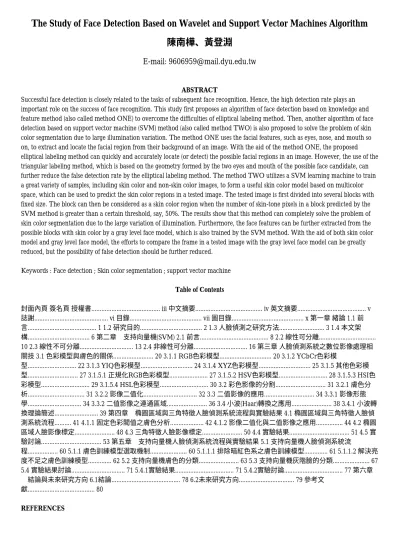

The Study of Face Detection Based on Wavelet and Support Vector Machines Algorithm 陳南樺、黃登淵
E-mail: [email protected]
ABSTRACT
Successful face detection is closely related to the tasks of subsequent face recognition. Hence, the high detection rate plays an important role on the success of face recognition. This study first proposes an algorithm of face detection based on knowledge and feature method (also called method ONE) to overcome the difficulties of elliptical labeling method. Then, another algorithm of face detection based on support vector machine (SVM) method (also called method TWO) is also proposed to solve the problem of skin color segmentation due to large illumination variation. The method ONE uses the facial features, such as eyes, nose, and mouth so on, to extract and locate the facial region from their background of an image. With the aid of the method ONE, the proposed elliptical labeling method can quickly and accurately locate (or detect) the possible facial regions in an image. However, the use of the triangular labeling method, which is based on the geometry formed by the two eyes and mouth of the possible face candidate, can further reduce the false detection rate by the elliptical labeling method. The method TWO utilizes a SVM learning machine to train a great variety of samples, including skin color and non-skin color images, to form a useful skin color model based on multicolor space, which can be used to predict the skin color regions in a tested image. The tested image is first divided into several blocks with fixed size. The block can then be considered as a skin color region when the number of skin-tone pixels in a block predicted by the SVM method is greater than a certain threshold, say, 50%. The results show that this method can completely solve the problem of skin color segmentation due to the large variation of illumination. Furthermore, the face features can be further extracted from the possible blocks with skin color by a gray level face model, which is also trained by the SVM method. With the aid of both skin color model and gray level face model, the efforts to compare the frame in a tested image with the gray level face model can be greatly reduced, but the possibility of false detection should be further reduced.
Keywords : Face detection ; Skin color segmentation ; support vector machine Table of Contents
封面內頁 簽名頁 授權書... iii 中文摘要... iv 英文摘要... v 誌謝... vi 目錄... vii 圖目錄... x 第一章 緒論 1.1 前 言... 1 1.2 研究目的... 2 1.3 人臉偵測之研究方法... 3 1.4 本文架 構... 6 第二章 支持向量機(SVM) 2.1 前言... 8 2.2 線性可分離...
10 2.3 線性不可分離... 13 2.4 非線性可分離... 16 第三章 人臉偵測系統之數位影像處理相 關技 3.1 色彩模型與膚色的關係... 20 3.1.1 RGB色彩模型... 20 3.1.2 YCbCr色彩模
型... 22 3.1.3 YIQ色彩模型... 24 3.1.4 XYZ色彩模型... 25 3.1.5 其他色彩模 型... 27 3.1.5.1 正規化RGB色彩模型... 27 3.1.5.2 HSV色彩模型... 28 3.1.5.3 HSI色 彩模型... 29 3.1.5.4 HSL色彩模型... 30 3.2 彩色影像的分割... 31 3.2.1 膚色分 析... 31 3.2.2 影像二值化... 32 3.3 二值影像的應用... 34 3.3.1 影像形態 學... 34 3.3.2 二值影像之連通區域... 36 3.4 小波(Haar)轉換之應用... 38 3.4.1 小波轉 換理論簡述... 39 第四章 橢圓區域與三角特徵人臉偵測系統流程與實驗結果 4.1 橢圓區域與三角特徵人臉偵 測系統流程... 41 4.1.1 固定色彩閥值之膚色分析... 42 4.1.2 影像二值化與二值影像之應用... 44 4.2 橢圓 區域人臉影像標定... 48 4.3 三角特徵人臉影像標定... 50 4.4 實驗結果... 51 4.5 實 驗討論... 53 第五章 支持向量機人臉偵測系統流程與實驗結果 5.1 支持向量機人臉偵測系統流
程... 60 5.1.1 膚色訓練模型選取機制... 60 5.1.1.1 排除暗紅色系之膚色訓練模型... 61 5.1.1.2 解決亮 度不足之膚色訓練模型... 62 5.2 支持向量機膚色的分類... 63 5.3 支持向量機灰階臉的分類... 67 5.4 實驗結果討論... 71 5.4.1實驗結果... 71 5.4.2實驗討論... 77 第六章 結論與未來研究方向 6.1結論... 78 6.2未來研究方向... 79 參考文
獻... 80 REFERENCES
