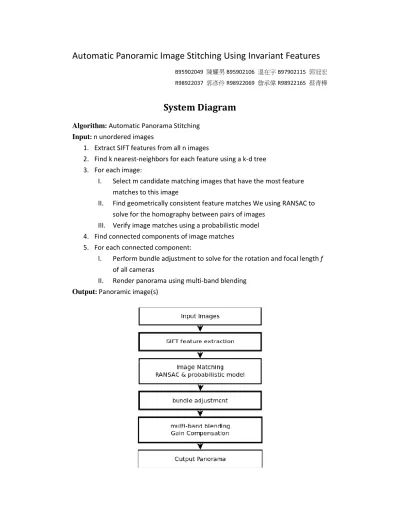

Automatic Panoramic Image Stitching Using Invariant Features
B95902049 陳耀男 B95902106 溫在宇 B97902115 郭冠宏 R98922037 郭彥伶 R98922069 詹承偉 R98922165 蔡青樺
System Diagram
Algorithm: Automatic Panorama Stitching Input: n unordered images
1. Extract SIFT features from all n images
2. Find k nearest-neighbors for each feature using a k-d tree 3. For each image:
I. Select m candidate matching images that have the most feature matches to this image
II. Find geometrically consistent feature matches We using RANSAC to solve for the homography between pairs of images
III. Verify image matches using a probabilistic model 4. Find connected components of image matches
5. For each connected component:
I. Perform bundle adjustment to solve for the rotation and focal length f of all cameras
II. Render panorama using multi-band blending Output: Panoramic image(s)
SIFT
I. Scale-space extrema detection
This is the most time consuming stage. In this stage the input image will apply many Gaussian filters with different variance. Because each pixel is
independent from each other we can compute then parallelly.
For each block we will have 16x16 threads. So the total number of blocks will be /16 x ℎ/16 where w and h is the width and height of the input image respectively. We can guarantee that global memory access is fully coalesced.
To further improve the performance we use a 2D texture memory to store the input data. This improves the memory throughput because threads in the same blocks will access nearby memory location in a 2D-space.
We also use share memory to store Gaussian filter table because each thread use the same set of table.
II. Discarding low-contrast key points & Eliminating edge responses
After finding the feature location we eliminate key point which will produce unstable feature.
III. Orientation assignment
In this step, our task is computing these feature points’ orientation. First, take the gradient of points which distance is less than sigma and do weighted sum with Gaussian. Now, we have a histogram of angle. We slightly smooth the angle histogram. Finally we take the maximum angle and other angle that bigger than 80% of maximum as our feature orientation. In parallel, for each thread, compute one feature point.
IV. Key point descriptor
For each key point and orientation pair we compute there SIFT descriptor using local image gradient magnitude and angle. Each key point will collect data from a 128x128 pixel square and store the result in a 128-dims vector.
The image is store in global memory so is the vector. All the operation requires a lot of memory bandwidth result in low instruction throughput.
Our solution is to break the computation of the 128-dims vector in many different threads. Each thread will compute 8 entries of the 128-dims vector.
So we can store the vector data in 8 registers instead of global memory.
Although we need to compute the same information in different thread but the overhead is small compare to the gain of reduce memory access.
Sequential Version
Function Time (sec) Percentage
Gauss 7.84 82.68%
DOG + MOVE 0.32 3.38%
Gradient > 0.01 0%
Orientation 0.08 0.84%
Descriptor 1.23 12.99%
Total 9.47
First CUDA Version
Function Time ( msec ) Percentage
Gauss 59404.5 14.80%
DOG + MOVE 29356.24 7%
Gradient 7417.18 2%
Orientation 12277.4 3%
Descriptor 225552.67 56%
Misc 735.968 0.20%
Memcpy 65390.8 16%
TOTAL 400134.758
Final CUDA Version
Function Time Percentage
Gauss 29197 19%
DOG + MOVE 19648.108 13%
Gradient 4550.308 3%
Orientation 11770.2 8%
Descriptor 66671.97 45%
Misc 736.192 0.50%
Memcpy 16724.3 11%
TOTAL 149298.078
The above table shows the time used for each step in sequential version and CUDA version. As you can see we gain most of the speedup from Gaussian Filter as the CUDA version is 270 times faster than the sequential version. When optimize the CUDA version we try to reduce the must time consuming step “Descriptor”. Using method like reorder memory access and re-compute most of the data instead of storing them. We are able to speedup this stage about 3.4 times faster.
The overall speedup is about 67 times faster than the sequential version.
Feature Matching
For each feature, find 4 nearest feature (128 dimension and according to L2 loss) for matching which is the next step.
For each thread in CUDA, it takes its own feature and goes through all other features to find 4 nearest features.
Parallel Optimization Detail
1. Shared Memory
Let every thread load its own feature to shared memory and be expected that It will be faster. But the result seems to slower than using global memory.
2. Exchange Dimension
Because the instruction executing in all threads in CUDA is the same;
therefore, when it take feature for computing L2 loss, it is better to let the location of memory be closer. Therefore we change dimension from [Total Feature][128 dimension] to [128 dimension][Total Feature]. After exchange, when all thread load first dimension the locality is better than original.
3. Register
First, we use the array for storing the nearest feature and distance as far.
However, array will be stored in global memory. Therefore, we change this array to 4 batch variable. Variable will be stored in register. Therefore, it will speed up.
4. Texture
Because there is cache in texture and our feature locality, it will be better if we using texture. After using texture, it slightly speeds up. But we have a problem. If the number of features is very large, texture can’t bind the large memory. Therefore, we give up this small speed-up and recover to original version.
Finally the speed-up of feature matching is about 15 times.
Version Time (sec) Sequential 17.913 Share Memory 15.221 Global Memory Only 4.97 Exchange Dimension 1.39 Use Register 1.17
RANSAC
After we have the information of feature matching of all pictures, we can use this useful information to do image matching. In image matching step, we are going to find out which picture is a neighbor of another picture, and find the correctly feature matching set we need for next step of all feature matching set.
First, for each picture we consider 6 images that have the greatest number of feature matches to it, and then we use RANSAC to select a set of inliers that are compatible with a homography between the images.
RANSAC(RANdom SAmple Consensus) is a non-deterministic algorithm estimates parameters of a mathematical model from a set of observed data which contains outliners iteratively. We show the step of RANSAC in details as follow.
RANSAC loop:
1. Select four feature pairs (at random) 2. Compute homography H (exact)
3. Compute inliers where , < 4. Keep largest set of inliers
5. Re-compute least-squares H estimate on all of the inliers
We use DLT (Direct Linear Transformation) as the mathematical model in RANSAC.
DLT can find the Homography between the images.
DLT ‘s mathematical model
In the paper we implement run 500 RANSAC iteration to find the model which fits the largest set of inliners, but we figure out that if we just implement as paper says in some times the model RANSAC find is not the correct model matching this two images. In order to reduce the probability of getting wrong model, we run 3000 iteration and find the model has a smallest error sum of inliners.
Image stitching
After the RANSAC stage, we get the homography Hij between each matched images, e.g. image i and image j. To stitch the images and remove the distortion, we
randomly select an image as a start image s and project each point in other images, i.e. xj, to the coordinate of the start image s by xs = Hsjxj.
Figure 1 Image transformation using homography Hij
For each neighbor image j of s, we use xs = Hsjxj to calculate the new position of the points of j. For other images i, we need to find a sequence of linked images and transform the image by a series of homography matrices, i.e. xs = HsmHmn…Hhixi. The stitched image is the transformation result of each image as shown in Figure 2.
Figure. The stitched image after RANSAC stage Hij
Gain Compensation
Since there are obvious differences in brightness between overlapped images, finding overall gains to adjust brightness for images becomes necessary.
1. Start from setting an error measurement function:
where indicates the gain vector of images, and , is the overlapped region between image and .
2. Approximate to the mean of overlapped region ̅ :
3. Add a term to make the gains close to unity (for avoiding the all zero solution):
where |, |.
4. Minimize the rewritten error measurement function above by setting the derivative to zero, and get a set of overall gains for image brightness adjustment.
5. Finally, multiply all the pixel values by the overall gains.
Multi-Band Blending
Even a small registration error causes ghost (blurring of high frequency), therefore, multi-band blending is applied when image stitching. That is, blend low frequencies over a large spatial range, and blend high frequencies over a short range.
1. For each output pixel, find the input image which can represent this pixel value best in the stitching:
where linearly varies from 1 at the center to 0 at the edge of input image.
2. Render high frequency part in the images:
Blur the max-weight functions to form the blending weights:
3. Calculate for lower frequency bands:
where ! "2$ % 1!.
4. Finally, combine the values from each band as the final result:
Parallelize the Gaussian convolution part, and optimize it by binding the Gaussian matrix with texture or using shared memory to store the Gaussian matrix. The below table shows the execution times of sequential version, parallelized version, optimized with texture version and optimized with shared memory version. The optimized version speeds up 5.54X over the sequential version.
Version Time (sec)
Sequential 36.33
Parallel 7.20
With Texture 6.62 With shared memory 6.55
Total Time Comparison
Sequential Version
CUDA Version
Using CUDA we improve the performance of Panoramic Image Stitching nearly 10 times faster. Our system can build the panorama in about a minute when given 6 input images with 1000x800 size where the sequential version takes about 12 minutes to compute the same panorama.
Job Assignments
B95902106 溫在宇溫在宇 溫在宇溫在宇 SIFT, Feature Matching, RANSAC B95902049 陳耀男陳耀男 陳耀男陳耀男 SIFT, Feature Matching
B97902115 郭冠宏郭冠宏 郭冠宏郭冠宏 Web Interface
R98922037 郭彥伶郭彥伶 郭彥伶郭彥伶 RANSAC, Image stitching R98922069 詹承偉詹承偉 詹承偉詹承偉 RANSAC, Image stitching
R98922165 蔡青樺蔡青樺 蔡青樺蔡青樺 Gain Compensation, Multi-Band Blending
Reference
M. Brown and D. G. Lowe. Automatic panoramic image stitching using invariant features. IJCV, 74(1):59–73, August 2007.
Function Time Percentage
SIFT 53.95 7.42%
Match 618.80 85.08%
RANSAC 21.57 2.97%
Blend 32.95 4.53%
Total 727
Function Time Percentage SIFT (CUDA) 2.53 3.36%
Match (CUDA) 40.09 52.74%
RANSAC 21.06 27.70%
Blend (CUDA) 11.59 16.17%
Total 75.997
