Towards Secure Industrial IoT: Blockchain System with Credit-Based Consensus Mechanism

(1)

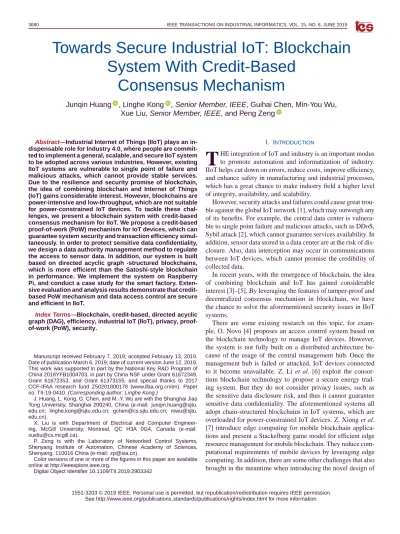

Towards Secure Industrial IoT: Blockchain System With Credit-Based

Consensus Mechanism

Junqin Huang , Linghe Kong , Senior Member, IEEE, Guihai Chen, Min-You Wu, Xue Liu, Senior Member, IEEE, and Peng Zeng

Abstract—Industrial Internet of Things (IIoT) plays an in- dispensable role for Industry 4.0, where people are commit- ted to implement a general, scalable, and secure IIoT system to be adopted across various industries. However, existing IIoT systems are vulnerable to single point of failure and malicious attacks, which cannot provide stable services.

Due to the resilience and security promise of blockchain, the idea of combining blockchain and Internet of Things (IoT) gains considerable interest. However, blockchains are power-intensive and low-throughput, which are not suitable for power-constrained IoT devices. To tackle these chal- lenges, we present a blockchain system with credit-based consensus mechanism for IIoT. We propose a credit-based proof-of-work (PoW) mechanism for IoT devices, which can guarantee system security and transaction efficiency simul- taneously. In order to protect sensitive data confidentiality, we design a data authority management method to regulate the access to sensor data. In addition, our system is built based on directed acyclic graph -structured blockchains, which is more efficient than the Satoshi-style blockchain in performance. We implement the system on Raspberry Pi, and conduct a case study for the smart factory. Exten- sive evaluation and analysis results demonstrate that credit- based PoW mechanism and data access control are secure and efficient in IIoT.

Index Terms—Blockchain, credit-based, directed acyclic graph (DAG), efficiency, industrial IoT (IIoT), privacy, proof- of-work (PoW), security.

Manuscript received February 7, 2019; accepted February 13, 2019.

Date of publication March 6, 2019; date of current version June 12, 2019.

This work was supported in part by the National Key R&D Program of China 2018YFB1004703, in part by China NSF under Grant 61672349, Grant 61672353, and Grant 61373155, and special thanks to 2017 CCF-IFAA research fund Z50201800178 (www.ifaa.org.cn/en). Paper no. TII-19-0410. (Corresponding author: Linghe Kong.)

J. Huang, L. Kong, G. Chen, and M.-Y. Wu are with the Shanghai Jiao Tong University, Shanghai 200240, China (e-mail:,junqin.huang@sjtu.

edu.cn; [email protected]; [email protected]; mwu@sjtu.

edu.cn).

X. Liu is with Department of Electrical and Computer Engineer- ing, McGill University, Montreal, QC H3A 0G4, Canada (e-mail:, [email protected]).

P. Zeng is with the Laboratory of Networked Control Systems, Shenyang Institute of Automation, Chinese Academy of Sciences, Shenyang, 110016 China (e-mail:,[email protected]).

Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.

Digital Object Identifier 10.1109/TII.2019.2903342

I. INTRODUCTION

T

HE integration of IoT and industry is an important modus to promote automation and informatization of industry.

IIoT helps cut down on errors, reduce costs, improve efficiency, and enhance safety in manufacturing and industrial processes, which has a great chance to make industry field a higher level of integrity, availability, and scalability.

However, security attacks and failures could cause great trou- ble against the global IoT network [1], which may outweigh any of its benefits. For example, the central data center is vulnerable to single point failure and malicious attacks, such as DDoS, Sybil attack [2], which cannot guarantee services availability. In addition, sensor data stored in a data center are at the risk of disclosure. Also, data interception may occur in communications between IoT devices, which cannot promise the credibility of collected data.

In recent years, with the emergence of blockchain, the idea of combining blockchain and IoT has gained considerable interest [3]–[5]. By leveraging the features of tamper-proof and decentralized consensus mechanism in blockchain, we have the chance to solve the aforementioned security issues in IIoT systems.

There are some existing research on this topic, for example, O. Novo [4] proposes an access control system based on the blockchain technology to manage IoT devices. However, the system is not fully built on a distributed architecture because of the usage of the central management hub. Once the management hub is failed or attacked, IoT devices connected to it become unavailable. Z. Li et al. [6] exploit the consor- tium blockchain technology to propose a secure energy trading system. But they do not consider privacy issues, such as the sensitive data disclosure risk, and thus it cannot guarantee sensitive data confidentiality. The aforementioned systems all adopt chain-structured blockchains in IoT systems, which are overloaded for power-constrained IoT devices. Z. Xiong et al.

[7] introduce edge computing for mobile blockchain applica- tions and present a Stackelberg game model for efficient edge resource management for mobile blockchain. They reduce com- putational requirements of mobile devices by leveraging edge computing. In addition, there are some other challenges that also brought in the meantime when introducing the novel design of

See http://www.ieee.org/publications standards/publications/rights/index.html for more information.

(2)

blockchain into IIoT systems. We summarize the three main challenges.

1) Tradeoff Between Efficiency and Security: We know that consensus algorithms in blockchain can effectively help to defend malicious attacks, and PoW is the most widely used consensus algorithm, which forces nodes to run high-complexity hash algorithms to verify transactions. However, it is overloaded for power-constrained IoT devices. While eliminating the PoW mechanism can potentially improve efficiency of transactions, it also causes system security issues. As a result, how to make the tradeoff between security and efficiency in consensus mechanisms is the first challenge of this study.

2) Coexistence of Transparency and Privacy: Blockchain features of transparency, which is an important characteristic in the finance field. However, it may become a drawback for some IIoT systems, where the collected sensitive data require the confidentiality and are only accessible by authorized ones.

It is therefore important to design an access control scheme in a transparent system.

3) Conflicts Between High Concurrency and Low Through- put: IoT devices report data continuously in IIoT systems, leading to a high concurrency. Unfortunately, complex cryptographic-based security mechanisms largely limit the throughput of blockchain. Besides, the synchronous consensus model in chain-structured blockchains cannot make full use of bandwidth in IIoT systems. So how to improve the throughput of blockchain to satisfy the need of frequent transactions in IIoT systems becomes the third challenge.

To address these challenges, we propose a blockchain system with credit-based consensus mechanism for IIoT. In order to decrease the power-consumption in consensus mechanism, we present a self-adaptive PoW algorithm for power-constrained IoT devices. It can adjust the difficulty of PoW based on nodes’

behavior, which can decrease the difficulty for honest nodes while increasing for malicious nodes. We also present an access control scheme based on the symmetric cryptography in the transparent blockchain system, which provides a flexible data authority management method for users. Our system infrastructure is built based on the directed acyclic graph (DAG)- structured blockchain, which improves the system throughput by leveraging its asynchronous consensus model.

We implement a concrete system on Raspberry Pi for a smart factory scenario. Extensive experiments and analysis results demonstrate that the proposed credit-based PoW mechanism and data authority management method can guarantee efficiency and security simultaneously. Our main contributions of this paper are described as follows.

1) We identify three main challenges in integrating blockchain technology into IIoT and propose corresponding three solutions to tackle these challenges.

2) We propose a general, scalable, and secure blockchain system for IIoT, where we design a moderate-cost credit- based PoW mechanism and an efficient access control scheme for power-constrained IoT devices. Also, different from previous works, we utilize the DAG-structured blockchain as the infrastructure to build our system to achieve a higher throughput.

Fig. 1. Chain-structured blockchain. White squares represent valid blocks, while gray squares represent invalid blocks.

3) We design and implement the proposed system for a smart factory scenario. Experiments results demonstrate that the credit-based PoW mechanism and data authority management method have a good performance in IoT devices.

The remainder of this paper is organized as follows. Section II briefly introduces the background of blockchain technology.

Section III presents the overview of our blockchain system for smart factory including architecture and mechanisms design. We implement the proposed system in Section IV, and introduce the workflow of each system module respectively. Evaluation and analysis are conducted in Section V. Section VI discusses the related work and Section VII concludes this paper.

II. BACKGROUND

Blockchains are distributed ledgers or databases, which is backed by complex cryptographic technologies and the consensus model. Blockchains enable parties which do not fully trust each other to form and maintain consensus about the existence, status, and evolution of a set of shared facts [8]. These values of blockchain have gained considerable interest and adoption in industry and academia.

Based on the difference in structure, there are two types of blockchains, one is chain-structured blockchain and the other is DAG-structured blockchain [9].

A. Chain-Structured Blockchain

Existing implementations of blockchain are mainly based on chain-structured blockchain, such as Bitcoin, Ethereum, Hyper- ledger, etc. As Fig. 1shows that chain-structured blockchain maintains the longest chain as the main chain in the system, blocks attached in the main chain are considered as valid transactions. When two blocks are generated just a few seconds apart, forks will happen, and the latest block in the longest chain is always chosen, so other blocks in shorter chains are considered as invalid blocks.

However, chain-structured blockchain is power-intensive due to its complex cryptographic security mechanisms [10], which is not suitable for power-constrained IoT devices. Also, synchronous consensus mechanisms limit the system throughput, i.e., transactions only can be validated one by one, which cannot satisfy the need for frequent requests in IoT systems.

B. DAG-Structured Blockchain

In order to make blockchain technology more practical in real- istic world, especially in power-constrained application, people

(3)

Fig. 2. DAG-structured blockchain. White squares represent verified transactions, while gray squares represent tips.

propose a new structure of blockchain, based on directed acyclic graph architecture, which is vividly called tangle [11].

In tangle, it eliminates the concept of block, each transaction is an individual node linked in the distributed ledger. Be- fore a new transaction is submitted, it must validate two former transactions that have been attached but not verified in the tangle, which is called tips. Then the new transaction bun- dles with these two former transactions through running PoW algorithm. After that, the new transaction can be broadcasted to the tangle network. Each new transaction always will be validated by other newer transactions later. There is a metric called weight for each transaction, which is proportional to the number of validation for the transaction. The weight is similar to the concept of six-block-security [12] in bitcoin, the bigger value of weight is, the more difficult the transaction to be tampered.

In chain-structured blockchain, a new transaction must be validated before attached to the main chain, which is called synchronous consensus. Different from it, tangle adopts an asynchronous consensus, which is more efficient in improving system throughput. As shown inFig. 2, DAG-structured blockchain is not constrained by the single main chain and forks all the time, the relation among transactions looks like a tangled net. This novel architecture and consensus mechanism can improve network throughput and system response time theoretically. IOTA [11], Byteball [13], and NANO are three representative DAG- structured blockchains.

Though DAG-structured blockchain has been designed to satisfy the demands of frequent transactions in IoT system, ability- limited IoT devices, e.g., battery-powered nodes, are restricted to run light wallets due to the complex consensus algorithm [14].

According to the official document, we know that the minimum difficulty value of PoW required to attach transaction to tangle is 14,¹and we test its performance running on a Raspberry Pi in Section V. TheFig. 7shows that it takes over 200 s to run the PoW algorithm, which is unacceptable for IIoT systems. Hence, we need to design a new light-weight consensus mechanism for IIoT systems.

1[Online]. Available: https://github.com/iotaledger/iota.js

Fig. 3. Architecture of blockchain-based IIoT system for smart factory.

III. BLOCKCHAINSYSTEMWITHCREDIT-BASEDCONSENSUS

MECHANISM FORIIOT

In this section, we present the overview of the proposed blockchain-based IIoT system. We introduce the detailed design of system from three parts, including the system architecture, credit-based PoW mechanism, and data authority management method.

A. Architecture Design for Smart Factory

The system infrastructure is built on DAG-structured blockchain, each entity is a node in the blockchain-based IIoT system. In terms of functional division, they can be divided into two categories, i.e., light nodes and full nodes. Light nodes are those power-constrained devices like IoT devices, they do not store blockchain information due to their constrained na- ture. What they can do are to verify tips, run PoW consensus algorithm and send new transactions to full nodes. Full nodes are those more powerful devices like gateways or servers, their main duty is to maintain the whole blockchain network, i.e., the tangle. They receive transaction requests from light nodes and broadcast in the blockchain network to complete the transactions.

The architecture of our system is shown inFig. 3, and there are four components in the architecture.

1) Wireless Sensors: Wireless sensors deployed in a smart factory belong to the group of light nodes. Each sensor will generate a blockchain account when initialized, i.e., a pair of public/secret key(P K, SK), which is the unique identifier in the system. The key pair for each device is not only used to sign transactions, but also to make the key distribution, which will be described in Section III-C.

2) Gateways: Gateways play the role of full nodes, which are committed to maintain the tangle network. More specific, gateways receive the requests from various sensors and

(4)

broadcast the transactions in the tangle, they only process transactions from legal sensors that are authorized by the manager.

3) Manager: Manager is a specific full node, which is re- sponsible for managing IoT devices in a smart factory. The public key of the manager will be hard-coded into software in gateways, which means only the manager has the rights to publish the authorization list of devices. Then the manager can manage IoT devices (add/delete) through launching a transaction which records public keys of authorized IoT devices. It can be described as

T X = SignS KM(P Kd1, P Kd2, ..., P Kdn) (1) where T X represents a transaction, SK_M represents the secret key of the manager, P K_d₁, P Kd2, ..., P Kdn represent public keys of IoT devices. Because the manager signs the transaction by using his secret key, which cannot be forged, thus gateways can discriminate legal devices by fetching authorized devices list published by the manager from blockchain.

In each smart factory, the existence of one or more managers are permitted, which depends on the decision of the owner of IoT devices. The role of a manager can help to manage the IoT devices in a smart factory, also block the invalid requests from unauthorized devices. In this way, our system can be scaled and managed flexibly.

4) Tangle Network: The tangle network in our system is a public blockchain network, any party can access the network.

Gateways, i.e., full nodes, keep the network secure and stable by broadcasting transactions and keeping copies of the blockchain.

Among factories, secure data sharing is also supported. For some sensitive data, we can use data authority management method to protect the privacy of sensor data, which will be detailed introduced in Section III-C.

The architecture of our system is distributed and resilient to various attacks, such as DDoS, Sybil, double-spending, etc.

Also, our system is based on DAG-structured blockchain, which improves system throughput comparing to chain-structured blockchain. In order to further improve throughput of our system and make access control in the system, we propose credit-based PoW mechanism and data authority management method in the rest part of this section.

B. Credit-Based PoW Mechanism

In this part, we design credit-based PoW mechanism to make the tradeoff between efficiency and security in consensus mechanism.

We define that node i has a property of credit value Cr_i, and the credit value will change in real time based on node’s behaviors. Normal behaviors, i.e., obey the system rules to send transactions, will increase the credit value over time gradually.

In the opposite, nodes which conduct abnormal behaviors will decrease credit value. The difficulty of PoW mechanism is self- adaptive according to credit value of each node, the lower the credit value is, the longer the time taken to run PoW algorithm.

So this mechanism will let honest nodes consume less resources while force malicious nodes to increase the cost of attacks.

Before giving the detailed design of credit-based PoW mechanism, we first state two possible existing abnormal behaviurs in the system.

1) Lazy Tips: A “lazy” node could always verify a fixed pair of very old transactions, while not contributing to the ver- ification of more recent transactions. For example, a malicious entity can artificially inflate the number of tips by issuing many transactions that verify a fixed pair of transactions. This would make it possible for future transactions to select these tips with very high probability, effectively abandoning the tips belonging to honest nodes.

2) Double-spending: A malicious node wants to spend the same token twice or more through submitting multiple transactions before the previous one is verified. Even though such behavior will be detected and canceled by asynchronous consensus mechanism, it slows down the efficiency of system because other associated transactions also will be redone.

Thus, according to the behavior of node i, we divide Cr_iinto two components, which can be denoted as

Cri= λ1Cr_i^P + λ2Cr_i^N (2) where Cr^P_i represents the positive impact part, Cr_i^N represents the negative impact part,λ1andλ2represent the weight coefficient of each part, respectively.

We can distribute the weight of these two parts by adjusting λ1andλ2. If we want to adopt strict punishment strategy in the system, we can setλ2larger.

Cr^P_i is positively related to the number of normal transactions over a unit of time of node i, i.e., is measured by the level of node activity, which is defined as

Cr^P_i =

_n_i

k=1w_k

ΔT (3)

where n_idenotes the number of valid transactions of node i during the latest unit of time,ΔT denotes a unit of time, wkdenotes the weight of the kth transaction. The weight of a transaction means the number of validation to this transaction.

That is to say, if node i is active during a period of time, Cr^P_i will adjust according to the level of activity, which guarantees that active nodes in the system can submit transactions faster while using less power. If node i does not submit transactions for a period of time, we consider it as an inactive, even an untrusted node, so the system will not decrease the difficulty of PoW for it at the beginning, i.e., Cr_i^P = 0.

Cr^N_i is negatively related to the number of malicious behav- iors of node i, which is defined as

Cr^N_i = −

mi

k=1

α(B) · ΔT t− tk

(4)

where m_i represents the total number of malicious behaviors conducted by node i, t represents current time, t_k represents the time point of the kth malicious behavior conducted by node i, and α(B) represents the punishment coefficient for malicious behaviorB, which is defined as

α(B) =

α_l ifB is lazy tips behavior;

αd ifB is double-spending behavior (5)

(5)

where α_l and α_d can be adjusted according to the requirement of sensitivity to malicious behaviors. We will discuss concrete parameters setting in Section V-A.

As described in (4), we can observe that malicious behaviors impact on a node will gradually decrease over time, but different from Cr^P_i , it cannot be eliminated over time. When a malicious behavior happened just a moment, the absolute value of Cr^N_i will be so large that the malicious node cannot continue con- ducting attacks because of the large difficulty of PoW. Thus we can stop the malicious behaviors in time.

We notice that the credit formulation mechanism requires full transaction information of each sensor involved, is it possible to calculate correct credit scores? We know that the whole tangle network is transparent, so we can obtain the transaction information of all the sensors and the relationships between transactions from the DAG network. Thus we can obtain the weights of trans- actions w and malicious behaviors records α(B) by sweeping the DAG structure easily.

After we calculate Cr^P_i and Cr^N_i respectively, we can get Criaccording to (2). Similar to the definition of the difficulty of mining in Bitcoin [15], the difficulty of PoW in this system is inversely proportional to the credit scores, which is adjusted dynamically throughout the lifetime of the system. We define Cr_i= δ_D¹_i, where D_iis the difficulty of PoW for node i, δ is a scale factor (δ= 11 in this paper). So, there is still a question, how to control the difficulty of PoW algorithm?

In tangle, a new transaction should “bundle” with two former transactions through PoW algorithm before submitting, which can be expressed in formula as

output= hash{hash(T X1)||hash(T X2)||nonce} (6) where T X1and T X2are hash values of two former transactions respectively, the nonce is a random number which nodes need to calculate. If output satisfies the requirement of minimum length of prefix zero, then nodes succeed to find the valid nonce.

Due to the computing complexity and anticollision of hash algorithm, we know that if the demand of minimum length of prefix zero is bigger, it is more difficult to calculate a valid nonce. Thus we can control the difficulty of PoW by adjusting the demand of minimum length of prefix zero.

Hence, credit-based PoW mechanism can decrease the power consumption of honest nodes while defending malicious attacks efficiently.

C. Data Authority Management Method

Due to the transparency of blockchain, sensor data stored in blockchain is exposed in public. So we propose a data authority management method to support access control of sensor data in the system.

The way to protect data confidentiality in a transparent system is encryption. There are two main types of encryption algorithms, which are symmetric key encryption and public key encryption. Considering the efficiency of encryption algorithms, symmetric key encryption is much faster (about 100–1000 times faster) than public key encryption, which is the benefit for power-constrained devices. Also, there are massive quantities

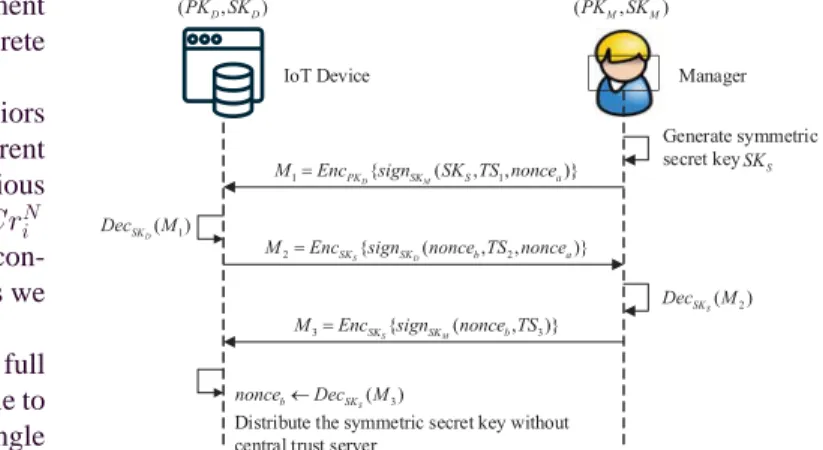

Fig. 4. Process of symmetric secret key distribution.

of sensor data in smart factories, it is unbearable to use the much slower public key encryption.

However, different from public key encryption, if we adopt symmetric key encryption, we must consider a secure way to distribute the secret key. So in order to design a flexible data authority management method, first, we propose our secret key distribution scheme without any central trust party.

From the aforementioned architecture design, we know that every node has a pair of public/secret key(P K, SK) as the unique identifier, so we can utilize public key encryption to distribute the symmetric key.

There are three steps for one time secret key distribution, the process of secret key distribution is shown inFig. 4, where T S denotes a timestamp, M denotes a message, and Enc and Dec are the abbreviations of encrypt and decrypt respectively.

The step of generating symmetric secret key is only done for one time. Each message is signed with the sender’s secret key, which ensures received message is not tampered or damaged.

T S in each message presents timeliness of the message, which is used to resist the replay attack.

M1is encrypted by the public key of IoT device, which means the message only can be decrypted by the IoT device. nonce_a attached in M1 is used to launch a response-challenge, if IoT device returns the correct nonce, we consider the IoT device has decrypted M1 correctly. IoT device decrypts M1 and gets the symmetric secret key, then sends M₂ encrypted by SK_S to demonstrate the success of decryption. nonce_b is also a response-challenge which is used to test the correctness of SK_S. And manager returns nonce_b in M₃ to complete this round of key distribution.

This key distribution scheme utilizes the public/secret key of each node to distribute symmetric secret key without any central trust server. Also, it is flexible to update symmetric keys if needed.

Because the function of each device is relatively fixed, hence, for those devices whose collected data is not sensitive, they do not need to encrypt sensor data. So manager only distributes secret key to those devices which collect sensitive data. After IoT devices get the symmetric secret key, then they can encrypt sensor data before posting it to blockchain. Only people who have the secret key can decrypt those sensitive data, which guarantees data confidentiality in a transparent system efficiently.

(6)

IV. IMPLEMENTATION

We implement the proposed system in order to conduct evaluation and analysis on it. In this section, we present the detailed implementation of our system. We implement our system by modifying IOTA implementation, which is one of the most pop- ular DAG-structured blockchain platform currently. In the rest part of this section, we will introduce the implementation of full nodes and light nodes.

A. Full Nodes

There are two roles of full nodes, which are manager and gateway. They are implemented based on IOTA reference implementation (IRI),² which is the official reference implementation of full nodes. A full-featured node is a part of the tangle network as both a transaction relay and network information provider. It provides a convenient RESTful HTTP interface, so light nodes can post transactions to full nodes through the re- mote procedure call (RPC) interface. Besides, We modify IRI to provide the credit-based PoW mechanism and integrate the functionality of symmetric key generation and distribution into full nodes, we use the SHA-256 algorithm to distribute secret keys, and use the advanced encryption standard (AES) block cipher algorithm implemented by C to encrypt sensor data.

B. Light Nodes

Light nodes are IoT devices in this system, which connect to full nodes to interact with the tangle network. They are implemented based on PyOTA,³ which is the IOTA Python API Library. However, PyOTA does not provide local PoW interface, in order to adjust the difficulty of PoW algorithm flexibly, so we implement an extension package written in Java to ex- tend PyOTA. The implementation specification of package is based on aforementioned design of credit-based PoW mechanism. We also implement the AES-based data authority management method on light nodes by using C to encrypt collected sensor data.

C. Tangle Network

Full nodes maintain the tangle network through broadcasting, storing and synchronizing blockchain information, and light nodes contribute to increasing the stability of tangle through validating and submitting new transactions. Here we use a PC as a gateway/manager to run a full node, and use a Raspberry Pi Model 3B as an IoT device to run a light node, which is shown inFig. 5. The Raspberry Pi reports

collected data continuously and the PC screen shows the status of transactions in real time.

In this system, the interaction between manager, gateway and IoT device is shown inFig. 6. The workflow of system can be described in the following steps.

2[Online]. Available: https://github.com/iotaledger/iri

3[Online]. Available: https://pyota.readthedocs.io/

Fig. 5. Implementation of system on PC and Raspberry Pi.

Fig. 6. ThInteraction among manager, gateway, and IoT device.

1) The manager initializes gateways to set up the tangle network firstly, i.e., records gateways identifiers in blockchain that cannot be tampered.

2) Then, the manager can authorize or deauthorize IoT devices through updating authorized devices list in blockchain.

3) In the stage of secret key distribution, the manager does not need to distribute the secret key to all IoT devices, only to devices which collect sensitive data. More specific, in this case, for IoT device 1, as it does not need to encrypt collected sensor data because its data is not sensitive, but for IoT device 2, it will encrypt data by using symmetric secret key before posting transactions in order to guarantee sensitive data privacy.

4) After that, an IoT device will get two random tips to validate them before submitting a new transaction.

5) When validation is passed, the IoT device bundles the new transaction with these two verified tips through the PoW algorithm, and submits it to the gateways.

Step 4 and Step 5 are a single process for sensor data submis- sion, which can be done repeatedly.

(7)

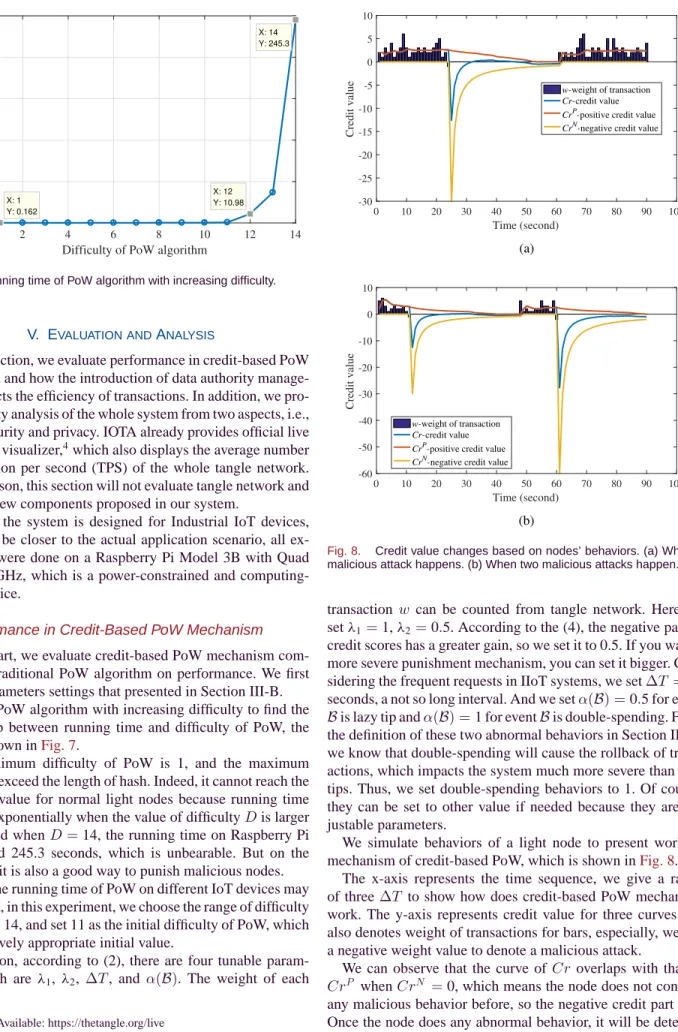

Fig. 7. Running time of PoW algorithm with increasing difficulty.

V. EVALUATION ANDANALYSIS

In this section, we evaluate performance in credit-based PoW mechanism and how the introduction of data authority management impacts the efficiency of transactions. In addition, we provide security analysis of the whole system from two aspects, i.e., system security and privacy. IOTA already provides official live transaction visualizer,⁴which also displays the average number of transaction per second (TPS) of the whole tangle network.

For this reason, this section will not evaluate tangle network and target the new components proposed in our system.

Because the system is designed for Industrial IoT devices, in order to be closer to the actual application scenario, all experiments were done on a Raspberry Pi Model 3B with Quad [email protected], which is a power-constrained and computing- limited device.

A. Performance in Credit-Based PoW Mechanism In this part, we evaluate credit-based PoW mechanism comparing to traditional PoW algorithm on performance. We first discuss parameters settings that presented in Section III-B.

We run PoW algorithm with increasing difficulty to find the relationship between running time and difficulty of PoW, the result is shown inFig. 7.

The minimum difficulty of PoW is 1, and the maximum should not exceed the length of hash. Indeed, it cannot reach the maximum value for normal light nodes because running time increases exponentially when the value of difficulty D is larger than 11, and when D= 14, the running time on Raspberry Pi has reached 245.3 seconds, which is unbearable. But on the other side, it is also a good way to punish malicious nodes.

Due to the running time of PoW on different IoT devices may be different, in this experiment, we choose the range of difficulty is from 1 to 14, and set 11 as the initial difficulty of PoW, which is the relatively appropriate initial value.

In addition, according to (2), there are four tunable parameters, which are λ1, λ2, ΔT , and α(B). The weight of each

4[Online]. Available: https://thetangle.org/live

Fig. 8. Credit value changes based on nodes’ behaviors. (a) When a malicious attack happens. (b) When two malicious attacks happen.

transaction w can be counted from tangle network. Here we setλ1 = 1, λ2= 0.5. According to the (4), the negative part of credit scores has a greater gain, so we set it to 0.5. If you want a more severe punishment mechanism, you can set it bigger. Con- sidering the frequent requests in IIoT systems, we setΔT = 30 seconds, a not so long interval. And we set α(B) = 0.5 for event B is lazy tip and α(B) = 1 for event B is double-spending. From the definition of these two abnormal behaviors in Section III-B, we know that double-spending will cause the rollback of transactions, which impacts the system much more severe than lazy tips. Thus, we set double-spending behaviors to 1. Of course, they can be set to other value if needed because they are ad- justable parameters.

We simulate behaviors of a light node to present working mechanism of credit-based PoW, which is shown inFig. 8.

The x-axis represents the time sequence, we give a range of threeΔT to show how does credit-based PoW mechanism work. The y-axis represents credit value for three curves and also denotes weight of transactions for bars, especially, we use a negative weight value to denote a malicious attack.

We can observe that the curve of Cr overlaps with that of Cr^P when Cr^N = 0, which means the node does not conduct any malicious behavior before, so the negative credit part is 0.

Once the node does any abnormal behavior, it will be detected

(8)

Fig. 9. Performance evaluation in credit-based PoW mechanism. The four control experiments respectively represent original PoW, credit- based PoW with normal behaviors, credit-based PoW with a malicious attack, credit-based PoW with two malicious attacks.

immediately and there will be the corresponding adjustment for credit value. FromFig. 8(a), we can see that when time is at 24th second, the node conducts a malicious attack, Cr^N has a sharp decline in a short time, thus Cr also sharply decreases according to (2).

We know that Cr∝_D¹, which means the less Cr is, the more difficult PoW becomes, so that the node has to take a long time to calculate a correct nonce for the next transaction after con- ducting a malicious behavior. Thus there is a spacing between 24th and 61st second inFig. 8(a)because of the punishment for the malicious behavior, so it takes 37 s to recover the normal transaction in this experiment, and during this time, Cr^P also decreases because it is inactive. The degree of punishment can be adjusted flexibly according to the requirement of system.

With time goes, the credit value of node will rise gradually and return to normal transaction rate. Besides that, we can notice that, inFig. 8(b), if the node conducts malicious attacks twice or more, it will take a longer time to recover normal transaction rate, which can well prevent malicious nodes from attacking.

The simulation results indicate that credit-based PoW mechanism can defend malicious attacks efficiently.

Then, we compare credit-based PoW mechanism with original PoW mechanism in performance, and set four control experiments as shown inFig. 9.

We conduct these four control experiments during a range time of threeΔT , i.e., 90 s, and evaluate average time of PoW per transaction. FromFig. 9, we can observe that credit-based PoW with normal behaviors perform best in running time, which only needs 0.118 s of PoW for each transaction on average, while it needs 0.7 s on average for original PoW mechanism.

This indicates that credit-based PoW can speed up transactions for honest nodes.

We also notice that for malicious nodes, the more malicious behaviors they conduct, the longer time they need to post a

Fig. 10. Impact of symmetric encryption algorithm on transaction efficiency.

transaction. The penalty time is exponential with the number of malicious attacks, so malicious nodes can hardly complete a transaction which will consume much computing resources. The result indicates credit-based PoW mechanism can also defend malicious attacks efficiently even if an honest node becomes a malicious one suddenly.

B. Impact of Data Authority Management Method on Transaction Efficiency

Due to the introduction of data authority management method in our system, so we evaluate this method’s influence level on transaction efficiency. In the method, there mainly contains two components, which are the secret key distribution and sensor data encryption. Consider the frequency of use, key distribution will not be conducted frequently, even only will be conducted once at the initialization of system, whose impact on transaction can be ignored. Thus, in this part, we focus on evaluating performance in sensor data encryption.

As introduced in Section IV, we adopt AES algorithm in sensor data encryption. And we test the speed of data encryption for different message length, which is from 64 B to 1 MB, and the result is shown inFig. 10. Note thatFig. 10uses a logarithmic scale.

We can observe that running time of AES increases with increasing message length. When message length is 64 B, the running time of AES is 0.205 ms. When message length is 1 MB, the running time is 1.491 s. Indeed, a 256 kB data package is big enough for IoT transmission. In this experiment, encrypting a message with 256 kB length on Raspberry Pi only needs 0.373 s, which has tiny impact on the whole transaction process. Thus we can conclude that the introduction of data authority management method has little impact on transaction efficiency.

C. Security Analysis

In this part, we first present several possible attack models, and then analyze security from two aspects, i.e., system security and privacy.

(9)

In this study, we assume that attackers are able to launch following attacks. We are not concerned about how attackers launch different attacks, but focus on defending the system against these possible attacks.

1) Single point of failure. A single point of failure is a part of system that, if it fails, will stop entire system from working, which is undesirable in any system with a goal of high availability or reliability.

2) Sybil attack. In a peer-to-peer network, each node has one identity generally. There may exist evil nodes, which pre- tend multiple identities illegitimately, attempts to control most nodes in the network to eliminate the function of re- dundant replicated nodes, or to defraud multiple rewards, which is known as Sybil attack.

3) Lazy tips and Double-spending. These two micro possible attacks have already been introduced in Section III-B.

These four possible attacks can be divided into macro attacks and micro attacks. We firstly analyze two possible macro attacks, i.e., single point of failure and Sybil attack.

Our system is built based on DAG-structured blockchain, which is a distributed ledger, consisting of a group of replicated database nodes. Sensor data are redundantly replicated by all full nodes, so it is resilient for failure of one or more nodes, which improves reliability of IoT system. Also, we know that information recorded in blockchain cannot be tampered, so we can leverage this feature to manage IoT devices and refuse to provide services for unauthorized IoT devices, which can effectively defend attacks, such as DDoS, Sybil attack.

For two micro possible attacks, i.e., lazy tips and double- spending, the proposed credit-based PoW mechanism in this work also helps to punish and defend malicious nodes, which is presented before. Besides that, consensus mechanisms in blockchain can prevent double-spending effectively. These mechanisms guarantee system safety in the blockchain-based IIoT system.

To be noticed that, in the proposed system, the duty of the manager is to authorize and manage IoT devices. And, the manager is usually the shareholder of the IIoT system, who is the biggest beneficiary in this system. Thus, the manager has no mo- tivation for evil, and it is always considered as an honest node in this system. Under this premise, light nodes and other full nodes are authorized and managed by the manager, which can improve credibility to a certain extent. Even though these devices changes to malicious nodes suddenly, our proposed credit-based PoW mechanism can prevent malicious behaviors efficiently, which has been demonstrated inFig. 8.

In protecting data privacy, due to the transparency of blockchain, we utilize the symmetric encryption algorithm to implement a data authority management method, which pro- tects sensor data confidentiality through encrypting data before storing in blockchain. Only people who have the secret key can decrypt and get sensor data, which realizes data authority control in a transparent system. Also, the introduction of this method brings little impact on transaction efficiency, which is resource-friendly to IoT devices.

VI. RELATEDWORK

In IIoT system, there are common technical challenges [1], [16] needed to tackle, such as scalability, dependability, privacy, access control, etc. In this section, we review related work carried out for solving these challenges and discuss the insuffi- ciencies of them briefly.

There are some existing solutions that are not based on blockchain technologies. As an example, C. E. Kaed et al. [17]

present a semantic rules engine for industrial IoT gateways that allows implementing dynamic and flexible rule-based control strategies, which is vulnerable to single point failure and malicious attacks due to the centralized architecture. M. Shamim Hossain et al. [18] present a HealthIIoT-enabled monitoring framework to collect health care data from mobile devices and sensors, which also faces the same risks. In addition, health care data stored in central servers may be vulnerable to privacy disclosure.

There are also many research combining blockchain with IoT to solve the aforementioned issues. For example, A. Dorri et al. [3] propose a blockchain-based smart home framework to achieve security goals of confidentiality, integrity, and availability. But they eliminate the concept of PoW to speed up efficiency of transactions, which will raise system security risks. Also, K.

Christidis et al. [19] adopt a similar implementation, i.e., use a white-list scheme, to cancel consensus mechanisms in private networks, thus it faces the same secure issues. Z. Shae et al. [20]

propose a blockchain platform for clinical trial and precision medicine, which still stuck in the concept stage and is a lack of evaluation. K. R. ¨Ozylmaz et al. [21] try to integrate low-power IoT devices to a blockchain-based infrastructure, but the system is implemented on Ethereum blockchain, which is overload for IoT devices. And the low throughput of Ethereum blockchain cannot satisfy the demands of IIoT system. Di Pietro et al. [22]

describe a distributed trust model for the IoT that bridges them to create end-to-end trust between IoT devices without any third party, which just simply apply blockchain technology into IoT system and do not present a detailed implementation.

VII. CONCLUSION

In this work, we propose a blockchain-based IIoT system in the applied scenarios of smart factory to address aforementioned challenges for IIoT. The proposed credit-based PoW mechanism, which decreases power consumption for honest nodes while increasing computing complexity for malicious nodes, helps to make the DAG-structured blockchain more suitable for IIoT systems. Also, the data authority management method can protect data privacy without affecting the system performance, which is also practical in IIoT system. The results of extensive experiments and evaluation show that our system has a good performance in IIoT.

This work will be of importance to research in distributed IIoT systems by providing a practical DAG-structured blockchain- based solution. Our solution is not only suitable for smart factory, but also able to adapt to various IIoT scenarios. However, there are still some limitations in our systems, such as sensor data

(10)

quality control and storage limitations. In future directions, we can explore sensor data quality control schemes in blockchain- based systems and some methods to store huge amounts of data.

REFERENCES

[1] Y. Lu and L. D. Xu, “Internet of things (iot) cybersecurity research: A review of current research topics,” IEEE Internet Things J., to be published, doi:10.1109/JIOT.2018.2869847.

[2] H. Yu, P. B. Gibbons, M. Kaminsky, and F. Xiao, “Sybillimit: A near- optimal social network defense against sybil attacks,” in Proc. IEEE Symp.

Sec. Privacy, 2008, pp. 3–17.

[3] A. Dorri, S. S. Kanhere, R. Jurdak, and P. Gauravaram, “Blockchain for IoT security and privacy: The case study of a smart home,” in Proc. IEEE Int. Conf. Pervasive Comput. Commun. Workshops, 2017, pp. 618–623.

[4] O. Novo, “Blockchain meets IoT: An architecture for scalable access management in IoT,” IEEE Internet Things J., vol. 5, no. 2, pp. 1184–

1195, Apr. 2018.

[5] Z. Yang, K. Yang, L. Lei, K. Zheng, and V. C. M. Leung, “Blockchain- based decentralized trust management in vehicular networks,” IEEE In- ternet Things J., to be published, doi:10.1109/JIOT.2018.2836144.

[6] Z. Li, J. Kang, R. Yu, D. Ye, Q. Deng, and Y. Zhang, “Consortium blockchain for secure energy trading in industrial internet of things,” IEEE Trans. Ind. Inform., vol. 14, no. 8, pp. 3690–3700, Aug. 2018.

[7] Z. Xiong, Y. Zhang, D. Niyato, P. Wang, and Z. Han, “When mobile blockchain meets edge computing,” IEEE Commun. Mag., vol. 56, no. 8, pp. 33–39, Aug. 2018.

[8] M. Swan, Blockchain: Blueprint for a New Economy. Sebastopol, CA, USA: O’Reilly Media, Inc., 2015.

[9] K. Karlsson et al., “Vegvisir: A partition-tolerant blockchain for the internet-of-things,” in Proc. IEEE 38th Int. Conf. Distrib. Comput. Syst., 2018, pp. 1150–1158.

[10] Z. Zheng, S. Xie, H. Dai, X. Chen, and H. Wang, “An overview of blockchain technology: Architecture, consensus, and future trends,” in Proc. IEEE Int. Congr. Big Data, 2017, pp. 557–564.

[11] S. Popov, “The tangle,” Cit. on, p. 131, 2016.

[12] R. B¨ohme, N. Christin, B. Edelman, and T. Moore, “Bitcoin: Economics, technology, and governance,” J. Econ. Perspectives, vol. 29, no. 2, pp. 213–

38, May 2015.

[13] A. Churyumov, “Byteball: A decentralized system for storage and transfer of value,” URL https://byteball. org/Byteball. pdf, 2016.

[14] X. Wang et al., “Survey on blockchain for internet of things,” Comput.

Commun., vol. 136, pp. 10–29, 2019.

[15] M. Vukoli´c, “The quest for scalable blockchain fabric: Proof-of-work vs.

bft replication,” in Open Problems in Network Security. Cham, Switzer- land: Springer, 2016, pp. 112–125.

[16] K. Iwanicki, “A distributed systems perspective on industrial IoT,” in Proc. IEEE 38th Int. Conf. Distrib. Comput. Syst., 2018, pp. 1164–1170.

[17] C. E. Kaed, I. Khan, A. V. D. Berg, H. Hossayni, and C. Saint-Marcel,

“SRE: Semantic rules engine for the industrial internet-of-things gate- ways,” IEEE Trans. Ind. Inform., vol. 14, no. 2, pp. 715–724, Feb. 2018.

[18] M. S. Hossain and G. Muhammad, “Cloud-assisted industrial internet of things (IIoT) C enabled framework for health monitoring,” Comput. Netw., vol. 101, pp. 192–202, 2016.

[19] K. Christidis and M. Devetsikiotis, “Blockchains and smart contracts for the internet of things,” IEEE Access, vol. 4, pp. 2292–2303, 2016.

[20] Z. Shae and J. J. P. Tsai, “On the design of a blockchain platform for clinical trial and precision medicine,” in Proc. IEEE 37th Int. Conf. Distrib.

Comput. Syst., 2017, pp. 1972–1980.

[21] K. R. Ozyilmaz and A. Yurdakul, “Work-in-progress: Integrating low- power iot devices to a blockchain-based infrastructure,” in Proc. Int. Conf.

Embedded Softw., 2017, pp. 1–2.

[22] R. Di Pietro, X. Salleras, M. Signorini, and E. Waisbard, “A blockchain- based trust system for the internet of things,” in Proc. 23rd ACM Symp.

Access Control Models Technol., 2018, pp. 77–83.

Junqin Huangreceived the B.E. degree in computer science and technology from the Univer- sity of Electronic Science and Technology of China, Chengdu, China, in 2018. He is currently working toward the Master’s degree in computer technology at Shanghai Jiao Tong University, Shanghai, China.

His research interests include big data, Inter- net of things, blockchain, and crowdsensing.

Linghe Kong(M’13–SM’18) received the Bach- elor degree from Xidian University, Xi’an, China in 2005, the Master degree from TELECOM SudParis (ex. INT), Essonne, France in 2007, and the Ph.D. degree from Shanghai Jiao Tong University, Shanghai, China in 2012.

He is currently a Tenure-track Research Pro- fessor at the Department of Computer Science and Engineering, Shanghai Jiao Tong University, Shanghai, China. He previously was a Postdoc- toral researcher with Columbia University, McGill University, and Singapore University of Technology and Design. His research interests include wireless networks, big data, mobile computing, Internet of things, and smart energy systems.

Guihai Chenreceived the B.E. degree in computer software from Nanjing University, Nanjing, China, in 1984, the M.E. degree in computer science from Southeast University, Nanjing, China, in 1987, and the Ph.D. degree in computer science from the University of Hong Kong, Hong Kong, in 1997.

He is a Distinguished Professor with Shang- hai Jiaotong University, Shanghai, China. He has been invited as a Visiting Professor by many universities, including the Kyushu Institute of Technology, Japan, in 1998, the University of Queensland, Australia, in 2000, and Wayne State University, Detroit, MI, USA, during Septem- ber 2001 to August 2003. His current research interests includes sensor networks, peer-to-peer computing, high-performance computer architecture, and combinatorics.

Min-You Wu received the Ph.D. degree from Santa Clara University, Santa Clara, CA, USA in 1984.

He is a Professor with the Department of Computer Science and Engineering at Shang- hai Jiao Tong University, Shanghai, China, and a Research Professor with the University of New Mexico, Albuquerque, NM, USA. His current research interests include grid computing, wireless networks, sensor networks, multimedia net- working, parallel and distributed systems, and compilers for parallel computers.

Xue Liu(M’06–SM’19) received the B.S. degree in mathematics and the M.S. degree in auto- matic control both from Tsinghua University, Bei- jing, China, and the Ph.D. degree in computer science from the University of Illinois at Urbana- Champaign, Urbana, IL, USA in 2006.

He is currently a Full Professor with the School of Computer Science at McGill Univer- sity, Montreal, QC, Canada. He has also worked as the Samuel R. Thompson Associate Profes- sor with the University of Nebraska-Lincoln, Lin- coln, NE, USA and HP Labs in Palo Alto, CA, USA. His research interests include computer networks and communications, smart grid, real-time and embedded systems, cyber-physical systems, data centers, and software reliability.

Peng Zengreceived the B.S. degree in computer science from Shandong University, Shan- dong, China, in 1998, and the Ph.D. degree in mechatronic engineering from the Shenyang In- stitute of Automation, Chinese Academy of Sci- ences, Shenyang, China, in 2005.

From 2005 to 2007, he was an Associate Professor with the Shenyang Institute of Au- tomation, Chinese Academy of Sciences, where he was involved in research on wireless sensor networks. He is currently a Professor with the Shenyang Institute of Automation, Chinese Academy of Sciences, Shenyang, China. His current research interests include wireless sensor networks for industrial automation, smart grids, and demand response.
