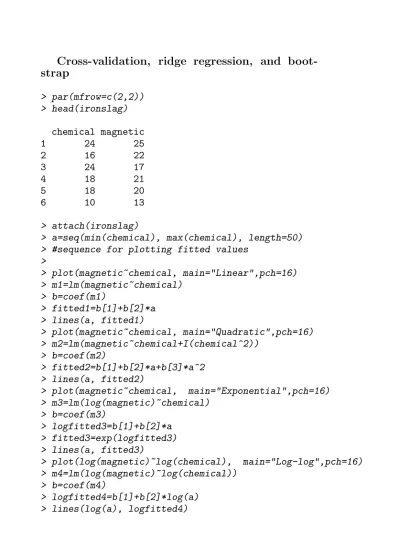

Cross-validation, ridge regression, and boot- strap
> par(mfrow=c(2,2))
> head(ironslag) chemical magnetic
1 24 25
2 16 22
3 24 17
4 18 21
5 18 20
6 10 13
> attach(ironslag)
> a=seq(min(chemical), max(chemical), length=50)
> #sequence for plotting fitted values
>
> plot(magnetic~chemical, main="Linear",pch=16)
> m1=lm(magnetic~chemical)
> b=coef(m1)
> fitted1=b[1]+b[2]*a
> lines(a, fitted1)
> plot(magnetic~chemical, main="Quadratic",pch=16)
> m2=lm(magnetic~chemical+I(chemical^2))
> b=coef(m2)
> fitted2=b[1]+b[2]*a+b[3]*a^2
> lines(a, fitted2)
> plot(magnetic~chemical, main="Exponential",pch=16)
> m3=lm(log(magnetic)~chemical)
> b=coef(m3)
> logfitted3=b[1]+b[2]*a
> fitted3=exp(logfitted3)
> lines(a, fitted3)
> plot(log(magnetic)~log(chemical), main="Log-log",pch=16)
> m4=lm(log(magnetic)~log(chemical))
> b=coef(m4)
> logfitted4=b[1]+b[2]*log(a)
> lines(log(a), logfitted4)
●
●
●
●●
●
●
●
●
●
●
●●
●●
●
●
●
●
●
●
● ●
●
●
●
● ●● ●
●
●
●
●
●
●
●
●
● ●
●
● ●
●
● ●
●
●
●
●
●
●
●
10 15 20 25 30
10203040
Linear
chemical
magnetic
●
●
●
●●
●
●
●
●
●
●
●●
●●
●
●
●
●
●
●
● ●
●
●
●
● ●● ●
●
●
●
●
●
●
●
●
● ●
●
● ●
●
● ●
●
●
●
●
●
●
●
10 15 20 25 30
10203040
Quadratic
chemical
magnetic
●
●
●
●●
●
●
●
●
●
●
●●
●●
●
●
●
●
●
●
● ●
●
●
●
● ●● ●
●
●
●
●
●
●
●
●
● ●
●
● ●
●
● ●
●
●
●
●
●
●
●
10 15 20 25 30
10203040
Exponential
chemical
magnetic
●
●
●
●●
●
●
●
●
●
●
●●
●●
●
●
●
●
●
●
● ●
●
●
●
● ●● ●
●
●
●
●
●
●
●
●
● ●
●
● ●
●
●●●
●
●
●
●
●
●
2.4 2.6 2.8 3.0 3.2 3.4
2.42.83.23.6
Log−log
log(chemical)
log(magnetic)
> #Cross-validation
> #leave one out CV (LOOCV); n-fold CV
>
> n=length(chemical)
> e1 <- e2 <- e3 <- e4 <- numeric(n)
> #n-fold CV
> #fit models on leave-one-out samples
>
> for (k in 1:n){
+ x = chemical[-k] #training sets + y = magnetic[-k] #training sets + ttx = chemical[k] #testing point + tty = magnetic[k]
+
+ J1=lm(y~x)
+ yhat1=J1$coef[1]+J1$coef[2]*ttx + e1[k]=tty-yhat1
+
+ J2=lm(y~x+I(x^2))
+ yhat2=J2$coef[1]+J2$coef[2]*ttx+J2$coef[3]*ttx^2 + e2[k]=tty-yhat2
+
+ J3=lm(log(y)~x)
+ logyhat3=J3$coef[1]+J3$coef[2]*ttx + yhat3=exp(logyhat3)
+ e3[k]=tty-yhat3 +
+ J4=lm(log(y)~log(x))
+ logyhat4=J4$coef[1]+J4$coef[2]*log(ttx) + yhat4=exp(logyhat4)
+ e4[k]=tty-yhat4 + }
> #estimate the mean of the squared prediction errors (MSPE)
> c(mean(e1^2), mean(e2^2), mean(e3^2), mean(e4^2)) [1] 19.55644 17.85248 18.44188 20.45424
> #According to MSPE Model 2 would be the best fit for the data
> library(car)
> J2 Call:
lm(formula = y ~ x + I(x^2)) Coefficients:
(Intercept) x I(x^2)
25.98525 -1.52948 0.05707
> f2=lm(magnetic~chemical+I(chemical^2))
> vif(f2)
chemical I(chemical^2) 62.14357 62.14357
> X=model.matrix(f2)
> crossprod(X)
(Intercept) chemical I(chemical^2)
(Intercept) 53 1120 24990
chemical 1120 24990 584086
I(chemical^2) 24990 584086 14193450
> summary(f2) Call:
lm(formula = magnetic ~ chemical + I(chemical^2)) Residuals:
Min 1Q Median 3Q Max
-8.4335 -2.7006 -0.2754 2.5446 12.2665 Coefficients:
Estimate Std. Error t value Pr(>|t|) (Intercept) 24.49262 9.14657 2.678 0.0100 chemical -1.39334 0.88852 -1.568 0.1232 I(chemical^2) 0.05452 0.02081 2.620 0.0116 Residual standard error: 4.098 on 50 degrees of freedom
Multiple R-squared: 0.5931, Adjusted R-squared: 0.5768 F-statistic: 36.44 on 2 and 50 DF, p-value: 1.728e-10
> s.c=chemical-mean(chemical)
> s.f2=lm(magnetic~s.c+I(s.c^2))
> vif(s.f2)
s.c I(s.c^2) 1.000276 1.000276
> X=model.matrix(s.f2)
> crossprod(X)
(Intercept) s.c I(s.c^2)
(Intercept) 5.300000e+01 6.039613e-14 1322.0755 s.c 6.039613e-14 1.322075e+03 119.0367 I(s.c^2) 1.322075e+03 1.190367e+02 71777.7234
> summary(s.f2) Call:
lm(formula = magnetic ~ s.c + I(s.c^2)) Residuals:
Min 1Q Median 3Q Max
-8.4335 -2.7006 -0.2754 2.5446 12.2665 Coefficients:
Estimate Std. Error t value Pr(>|t|) (Intercept) 19.39475 0.76573 25.33 < 2e-16 s.c 0.91086 0.11273 8.08 1.25e-10 I(s.c^2) 0.05452 0.02081 2.62 0.0116
Residual standard error: 4.098 on 50 degrees of freedom
Multiple R-squared: 0.5931, Adjusted R-squared: 0.5768 F-statistic: 36.44 on 2 and 50 DF, p-value: 1.728e-10
> oldpar <- par(mfrow = c(2,2))
> plot(s.f2)
> par(oldpar)
15 20 25 30 35
−100510
Fitted values
Residuals
●
●
●
●●
●
●
●
●
●
●
●
●● ●
●
●
●
●●
●
●
●
●
● ●
●
●
●
● ●
●
● ●
●
●
●
●
●
●
●
●● ●
●
●
●
●
●
●
● ●
●
Residuals vs Fitted
50 53
10
●
●
●
●●
●
●
●
●
●
●
●
●●●●
●
●
●●●
●
●●
●●
●
●●
●●
●
●
●
●
●
●
●
●
●
●
●●
●
●
●
●
●
●
●
●●
●
−2 −1 0 1 2
−20123
Theoretical Quantiles
Standardized residuals
Normal Q−Q
50 53
10
15 20 25 30 35
0.00.51.01.5
Fitted values
Standardized residuals
●
● ●
●
●
●
●
● ●
●
●
●
●
●
●●
●
●
●●
●
●
● ●
●
●
●
●
● ●
● ●
●
●
●
●
●
●
●
●
●
●●
●
●
●
●
●
●
●
● ●
●
Scale−Location
50 10 53
0.0 0.1 0.2 0.3
−20123
Leverage
Standardized residuals
●
●
●
●●
●
●
●
●
●
●
●
● ●●●
●
●
●●●
●
●●
●●
●
●
●
●●
●
●●
●
●
●
●
●
●
●
●●●
●
●
●
●
●
●
● ●
●
Cook's distance 1 0.5 0.5 1
Residuals vs Leverage
51
6 50
> head(bodyfat)
SKIN THIGH ARM FAT 1 19.5 43.1 29.1 11.9 2 24.7 49.8 28.2 22.8 3 30.7 51.9 37.0 18.7 4 29.8 54.3 31.1 20.1 5 19.1 42.2 30.9 12.9 6 25.6 53.9 23.7 21.7
> pairs(bodyfat)
SKIN
45 50 55
●
●
● ●
●
●
●
●
●
●
●●
● ●
●
●
●
●
●
●
●
●
● ●
●
●
●
●
●
●
●●
● ●
●
●
●
●
●
●
15 20 25
15202530
●
●
●●
●
●
●
●
●
●
●●
● ●
●
●
●
●
●
●
455055
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●●
●
●
● THIGH
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
● ●
●
●
●
●
●
●
●
●
●
●
●
●
●
●●
●
●
●
●●
●
●
●
● ●
●
● ●
●
●
●
●
●
●
●
●
●
●
●
●
●
● ●
● ●
●
● ●
●
●
●
●
●
●
●
●
●
●
●
●
●
● ● ARM
253035
● ●
●
● ●
●
●
●
●
●
●
●
●
●
●
●
●
●
● ●
15 20 25 30
152025
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
25 30 35
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
● FAT
> #variance inflation factor VIF
> cor(bodyfat)
SKIN THIGH ARM FAT
SKIN 1.0000000 0.9238425 0.4577772 0.8432654 THIGH 0.9238425 1.0000000 0.0846675 0.8780896 ARM 0.4577772 0.0846675 1.0000000 0.1424440 FAT 0.8432654 0.8780896 0.1424440 1.0000000
> fm1=lm(FAT~., data=bodyfat)
> summary(fm1) Call:
lm(formula = FAT ~ ., data = bodyfat) Residuals:
Min 1Q Median 3Q Max
-3.7263 -1.6111 0.3923 1.4656 4.1277 Coefficients:
Estimate Std. Error t value Pr(>|t|) (Intercept) 117.085 99.782 1.173 0.258
SKIN 4.334 3.016 1.437 0.170
THIGH -2.857 2.582 -1.106 0.285
ARM -2.186 1.595 -1.370 0.190
Residual standard error: 2.48 on 16 degrees of freedom
Multiple R-squared: 0.8014, Adjusted R-squared: 0.7641 F-statistic: 21.52 on 3 and 16 DF, p-value: 7.343e-06
> vif(fm1)
SKIN THIGH ARM
708.8429 564.3434 104.6060
> gs=summary(lm(SKIN~THIGH+ARM, data=bodyfat))
> vif.SKIN=1/(1-gs$r.squared)
> vif.SKIN [1] 708.8429
> gs=summary(lm(THIGH~SKIN+ARM, data=bodyfat))
> vif.THIGH=1/(1-gs$r.squared)
> vif.THIGH [1] 564.3434
> gs=summary(lm(ARM~SKIN+THIGH, data=bodyfat))
> vif.ARM=1/(1-gs$r.squared)
> vif.ARM [1] 104.606
> #ridge regression
> library(MASS)
> f2.ridge=lm.ridge(FAT~SKIN+THIGH+ARM, data=bodyfat, lambda=seq(0,0.2, 0.005))
> plot(f2.ridge)
> select(f2.ridge)
modified HKB estimator is 0.008505093 modified L-W estimator is 0.3098511 smallest value of GCV at 0.02
> lam=0.02
> abline(v=lam)
0.00 0.05 0.10 0.15 0.20
−15−10−505101520
x$lambda
t(x$coef)
> lam=0.02
> r=lm.ridge(FAT~SKIN+THIGH+ARM, data=bodyfat, lambda=lam)
> r$coef
SKIN THIGH ARM
10.126984 -4.682273 -3.527010
> coef(r)
SKIN THIGH ARM
42.2181995 2.0683914 -0.9177207 -0.9921824
> r$ym [1] 20.195
> r$xm
SKIN THIGH ARM 25.305 51.170 27.620
> r$scales
SKIN THIGH ARM
4.896067 5.102068 3.554800
> attach(bodyfat)
> cY <- scale(FAT, scale=FALSE)
> n <- length(cY)
> sX1 <- scale(SKIN) * sqrt(n/(n-1))
> sX2 <- scale(THIGH) * sqrt(n/(n-1))
> sX3 <- scale(ARM) * sqrt(n/(n-1))
> ans2 <- lm.ridge(cY ~ sX1 + sX2 + sX3, lambda = lam)
> ans2$coef
sX1 sX2 sX3
10.126984 -4.682273 -3.527010
> coef(ans2)
sX1 sX2 sX3
-2.386183e-15 1.012698e+01 -4.682273e+00 -3.527010e+00
> library(lars)
> xset=cbind(SKIN, THIGH, ARM)
> y=FAT
> g=lars(xset,y) #lasso least absolute shrinkage and selection operator Tibshirani 1996
> plot(g$lambda, type="l")
> g$lambda[1]
[1] 19.54395
1 2 3 4 5
05101520
Index
g$lambda
> plot(g)
* * *
**
*
0.0 0.2 0.4 0.6 0.8 1.0
−50050100
|beta|/max|beta|
Standardized Coefficients
*
* *
**
*
* * *
**
* LASSO
231
0 2 5
> cv.g=cv.lars(xset, y)
> which.min(cv.g$cv) [1] 10
> #bootstrap
>
> library(boot)
> Fun <- function(a, i) mean(a[i])
> set.seed(123)
> a=c(3,5,2,1,7)
> mean(a) [1] 3.6
> R=5 # number of bootstrap samples
> out=boot(a, Fun, R);out
ORDINARY NONPARAMETRIC BOOTSTRAP
Call:
boot(data = a, statistic = Fun, R = R)
Bootstrap Statistics :
original bias std. error
t1* 3.6 0.28 1.432480
> b=boot.array(out); b #indicate how many time ith obs appeared in the bth bootstrap sample [,1] [,2] [,3] [,4] [,5]
[1,] 1 1 0 0 3
[2,] 0 1 2 2 0
[3,] 1 0 1 2 1
[4,] 0 1 2 0 2
[5,] 1 0 1 1 2
> tb.theta=(b%*%a)/R; tb.theta [,1]
[1,] 5.8 [2,] 2.2 [3,] 2.8 [4,] 4.6 [5,] 4.0
> mean(tb.theta)-mean(a) [1] 0.28
> sd(tb.theta) [1] 1.432480
> out=boot(a, Fun, 2000); out ORDINARY NONPARAMETRIC BOOTSTRAP
Call:
boot(data = a, statistic = Fun, R = 2000)
Bootstrap Statistics :
original bias std. error t1* 3.6 -0.0322 0.9813484
> plot(out)
> head(litters) #pig litter data lsize bodywt brainwt
1 3 9.447 0.444 2 3 9.780 0.436 3 4 9.155 0.417 4 4 9.613 0.429 5 5 8.850 0.425 6 5 9.610 0.434
> y=litters$brainwt
> x1=litters$lsize
> x2=litters$bodywt
> f0=lm(y~x1+x2, data=litters)
> print(f0) Call:
lm(formula = y ~ x1 + x2, data = litters) Coefficients:
(Intercept) x1 x2
0.17825 0.00669 0.02431
> summary(f0) Call:
lm(formula = y ~ x1 + x2, data = litters) Residuals:
Min 1Q Median 3Q Max
-0.0230005 -0.0098821 0.0004512 0.0092036 0.0180760 Coefficients:
Estimate Std. Error t value Pr(>|t|) (Intercept) 0.178247 0.075323 2.366 0.03010 x1 0.006690 0.003132 2.136 0.04751 x2 0.024306 0.006779 3.586 0.00228
Residual standard error: 0.01195 on 17 degrees of freedom Multiple R-squared: 0.6505, Adjusted R-squared: 0.6094 F-statistic: 15.82 on 2 and 17 DF, p-value: 0.0001315
> anova(f0)
Analysis of Variance Table Response: y
Df Sum Sq Mean Sq F value Pr(>F) x1 1 0.00268418 0.00268418 18.788 0.0004502 x2 1 0.00183687 0.00183687 12.857 0.0022784 Residuals 17 0.00242870 0.00014286
> # random x : case resampling
> boot.litters <- function(data, i){
+ b.data <- data[i,] # select obs. in bootstrap sample + y=b.data$brainwt
+ x1=b.data$lsize + x2=b.data$bodywt
+ mod <- lm(y ~ x1 + x2, data=b.data)
+ coefficients(mod) # return coefficient vector + }
> library(boot)
> out <- boot(litters, boot.litters, 200);out ORDINARY NONPARAMETRIC BOOTSTRAP
Call:
boot(data = litters, statistic = boot.litters, R = 200)
Bootstrap Statistics :
original bias std. error t1* 0.178246962 -5.958688e-04 0.067741874 t2* 0.006690331 6.984422e-05 0.002783938 t3* 0.024306344 3.580500e-05 0.006159927
> plot(out, index=2)
Histogram of t
t*
Density
0.000 0.010
050100150
●●
●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●
●●
●
●●
●
−2 0 1 2
0.0000.0050.0100.015
Quantiles of Standard Normal
t*
> plot(out, index=3)
Histogram of t
t*
Density
0.01 0.03 0.05
010203040506070
●●
●●
●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●
●
●●
●
−2 0 1 2
0.010.020.030.04
Quantiles of Standard Normal
t*
> # fixed x: model-based resampling
>
> fit <- fitted(f0)
> e <- residuals(f0)
> X <- model.matrix(f0)[,-1]
> boot.litters.fixed <- function(data, i){
+ y <- fit + e[i]
+ mod <- lm(y ~ X ) + coefficients(mod) + }
> out.fix <- boot( litters, boot.litters.fixed, 200); out.fix ORDINARY NONPARAMETRIC BOOTSTRAP
Call:
boot(data = litters, statistic = boot.litters.fixed, R = 200)
Bootstrap Statistics :
original bias std. error t1* 0.178246962 8.693893e-04 0.071398245 t2* 0.006690331 -3.196501e-05 0.002966800 t3* 0.024306344 -9.890197e-05 0.006400178
