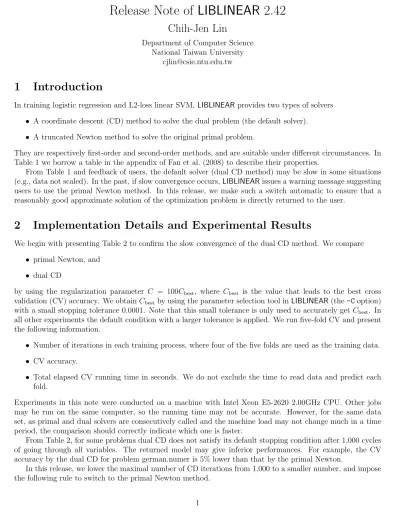

Release Note of LIBLINEAR 2.42

Chih-Jen Lin

Department of Computer Science National Taiwan University

cjlin@csie.ntu.edu.tw

1 Introduction

In training logistic regression and L2-loss linear SVM, LIBLINEAR provides two types of solvers

ˆ A coordinate descent (CD) method to solve the dual problem (the default solver).

ˆ A truncated Newton method to solve the original primal problem.

They are respectively first-order and second-order methods, and are suitable under different circumstances. In Table 1 we borrow a table in the appendix of Fan et al. (2008) to describe their properties.

From Table 1 and feedback of users, the default solver (dual CD method) may be slow in some situations (e.g., data not scaled). In the past, if slow convergence occurs, LIBLINEAR issues a warning message suggesting users to use the primal Newton method. In this release, we make such a switch automatic to ensure that a reasonably good approximate solution of the optimization problem is directly returned to the user.

2 Implementation Details and Experimental Results

We begin with presenting Table 2 to confirm the slow convergence of the dual CD method. We compare

ˆ primal Newton, and

ˆ dual CD

by using the regularization parameter C = 100Cbest, where Cbest is the value that leads to the best cross validation (CV) accuracy. We obtain Cbest by using the parameter selection tool in LIBLINEAR (the -C option) with a small stopping tolerance 0.0001. Note that this small tolerance is only used to accurately get Cbest. In all other experiments the default condition with a larger tolerance is applied. We run five-fold CV and present the following information.

ˆ Number of iterations in each training process, where four of the five folds are used as the training data.

ˆ CV accuracy.

ˆ Total elapsed CV running time in seconds. We do not exclude the time to read data and predict each fold.

Experiments in this note were conducted on a machine with Intel Xeon E5-2620 2.00GHz CPU. Other jobs may be run on the same computer, so the running time may not be accurate. However, for the same data set, as primal and dual solvers are consecutively called and the machine load may not change much in a time period, the comparison should correctly indicate which one is faster.

From Table 2, for some problems dual CD does not satisfy its default stopping condition after 1,000 cycles of going through all variables. The returned model may give inferior performances. For example, the CV accuracy by the dual CD for problem german.numer is 5% lower than that by the primal Newton.

In this release, we lower the maximal number of CD iterations from 1,000 to a smaller number, and impose the following rule to switch to the primal Newton method.

(2)

Table 1: A table from Fan et al. (2008) to describe properties of LIBLINEAR solvers for logistic regression and L2-loss linear SVM.

Dual-based solvers (coordinate descent methods)

Primal-based solvers (Newton-type methods)

Property Extremely fast in some situations, but may be very slow in some others

Moderately fast in most situations When to use it 1. Large sparse data (e.g., documents) un-

der suitable scaling and C is (regularization parameter) not too large

2. Data with # instances  # features

Others

If CD iterations ≥ limit of CD iterations switch to primal Newton

An issue is about the initial w of the newly called primal Newton method. Two options are 1. the w returned from the unfinished dual CD, and

2. the w = 0 used as if the primal Newton is freshly considered.

We decide to use the first option (i.e., w returned from dual CD) for the following reasons.

ˆ Reassigning w to 0 needs additional lines of code.

ˆ The returned w from dual CD may be a better initial point than 0 because some CD steps have been spent for training.

Note that the stopping condition of the Newton method is not affected because of the choice of the initial point. In the primal Newton method, the condition always uses 0 on the right-hand side:

k∇f (w)k ≤ min{#pos, #neg}

l k∇f (0)k, (1)

where f (·) is the primal problem to be minimized, #pos and #neg are the numbers of positive- and negative- labeled instances respectively, and l is the total number of training data. However, the stopping tolerance  should be adjusted because it is the one used by dual CD. For example, for logistic regression, the default  for dual CD is 0.1, but the default  for primal Newton is 0.01. Therefore, if we keep using  = 0.1 for Newton, the stopping condition may be too loose. We propose the following heuristic to change :

 ← 0.1 for logistic regression and L2-loss SVM

 ← 0.001 for L2-loss SVR

The rationale is that if the default tolerance of dual CD has been used, we change  to the default tolerance of primal Newton.

In Tables 3-10 we compare the primal Newton method and the new dual CD method. For the new dual CD, the rule of possibly switching to the primal Newton method is imposed and we consider two options.

ˆ limit of CD iterations = 500

ˆ limit of CD iterations = 300

The regularization parameters C = Cbest and C = 100Cbest are considered. We have the following observations.

ˆ If C = Cbest, the dual CD method is faster on document sets such as kdda, kddb, leisure.scale etc.

However, if C = 100Cbest, the primal Newton method is faster.

This confirms the statements in Table 1.

(3)

ˆ If the dual CD method reaches the iteration limit and primal Newton is called, we see that the number of Newton iterations needed is generally smaller than if the Newton method is directly run on the same problem. This result supports our choice of the initial w when switching to primal Newton.

ˆ For some problems (e.g., kdda and kddb in Table 4), after switching from dual CD to primal Newton, the initial w already satisfies the stopping condition (1) and no Newton iteration is conducted. In such situations the default dual CD stopping condition may be too tight and slow convergence may not really occur. Having a stopping criterion neither too tight nor too loose is often difficult. The new setting of lowering the CD iteration limit and using primal Newton’s stopping condition as a second check may help to avoid the over-solving of the optimization problem.

ˆ If dual CD fails to meet the stopping condition after 300 iterations, then generally neither can it meet the condition after 500 iterations. Therefore, 200 CD iterations may be wasted without much progress.

On the other hand, the needed Newton iterations after switching to Newton at the 300th or the 500th CD iteration are similar. Therefore, we decide to use 300 as the limit in the released code.

Because the default seed in the GNU C library is 1, for the same data, the five CV folds used in all experiments should be the same. However, we notice that for problem HIGGS, the second training procedure of dual CD takes

291 and 300

iterations, respectively in Tables 4 and 8. This result seems to be strange because the training set is the same.

An explanation is as follows. In Table 4 dual CD runs 500 iterations for the first training procedure in the five-fold CV, while in Table 8, dual CD only runs 300. Thus for the next training procedure, the sequences of random numbers used are different. Note that dual CD randomly permutes all indices before each CD cycle.

Thus the different numbers of CD iterations for the second training process are not an error.

3 Multi-core LIBLINEAR

The multi-core branch of LIBLINEAR has not been updated since version 2.30. We finished updating this branch and took this opportunity to conduct some experiments. We follow similar settings for Tables 7-10 to compare primal Newton and dual CD. Some details are given below.

ˆ We run multi-core LIBLINEAR on the same computer and use 12 threads.

ˆ Primal Newton involves some level-1 BLAS operations. Though they are not the bottleneck, we link OpenBLAS instead of compiling the BLAS code in LIBLINEAR. This may slightly reduce the running time.

ˆ Parallel dual CD is available only for L2-loss SVM. Thus we do not report results of dual CD on logistic regression (i.e., solver -s 7).

Results are given in Tables 11-14 and we have the following observations.

ˆ For logistic regression, in Table 7 with C = Cbest, primal Newton is slower than dual CD in some situations. After using multi-core Newton, the running time is never slower than the standard single- thread dual CD.

ˆ For L2-loss SVM, the speedup of multi-core primal Newton is better than multi-core dual CD. It is known that multi-core dual CD is more effective in the environment of a single CPU with multiple cores. The server we used has two CPUs so data access across CPUs causes a lower usage of the computational cores.

In Table 13 of using C = Cbest, while multi-core dual CD is still faster for some sets, the gap is smaller than that in Table 9. For example, in Table 9, for problem kdda, primal Newton is 10 times slower than

(4)

References

R.-E. Fan, K.-W. Chang, C.-J. Hsieh, X.-R. Wang, and C.-J. Lin. LIBLINEAR: a library for large linear classification. Journal of Machine Learning Research, 9:1871–1874, 2008. URL http://www.csie.ntu.edu.

tw/~cjlin/papers/liblinear.pdf.

(5)

Table 2: Results of running existing LIBLINEAR 2.41 on logistic regression. (-s 7: dual CD, -s 0: primal Newton) C = 100Cbest.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS 100 s7 525 294 531 536 527 64.10 12886.59

HIGGS 100 s0 9 8 7 8 8 64.08 1486.03

a9a 100 s7 338 344 361 336 337 84.75 11.74

a9a 100 s0 5 5 5 5 6 84.77 0.61

astro-ph 62369.dat 100 s7 512 504 501 481 485 96.13 86.70

astro-ph 62369.dat 100 s0 7 7 7 7 7 96.27 11.24

australian 100 s7 1000 1000 1000 1000 1000 78.70 0.38

australian 100 s0 5 5 5 5 5 78.84 0.01

australian scale 100 s7 13 12 11 11 11 85.80 0.01

australian scale 100 s0 4 5 4 4 5 86.23 0.01

breast-cancer 100 s7 3 3 3 3 2 65.01 0.00

breast-cancer 100 s0 1 1 1 1 1 65.01 0.00

breast-cancer scale 100 s7 1000 1000 1000 1000 1000 96.19 0.49

breast-cancer scale 100 s0 5 5 5 6 5 96.78 0.01

cod-rna 100 s7 1000 1000 1000 1000 1000 89.08 54.77

cod-rna 100 s0 4 4 4 4 4 89.23 0.67

colon-cancer 100 s7 7 7 7 7 7 77.42 0.05

colon-cancer 100 s0 4 4 4 4 4 79.03 0.08

covtype.libsvm.binary.scale 100 s7 89 88 98 92 92 75.62 88.20

covtype.libsvm.binary.scale 100 s0 6 11 7 6 6 75.60 37.32

covtype.libsvm.binary 100 s7 1000 1000 1000 1000 1000 68.98 1004.92

covtype.libsvm.binary 100 s0 8 7 9 6 6 71.25 32.17

diabetes 100 s7 1000 1000 1000 1000 1000 67.97 0.42

diabetes 100 s0 3 2 3 3 3 67.84 0.01

diabetes scale 100 s7 1000 1000 1000 1000 1000 76.69 0.42

diabetes scale 100 s0 3 3 4 5 3 77.34 0.01

duke 100 s7 14 12 13 13 12 88.64 0.16

duke 100 s0 5 5 5 5 5 88.64 0.23

fourclass 100 s7 72 66 67 69 68 73.20 0.03

fourclass 100 s0 1 3 3 2 1 73.32 0.00

fourclass scale 100 s7 6 6 6 8 7 68.68 0.01

fourclass scale 100 s0 3 3 3 3 3 68.68 0.00

german.numer 100 s7 1000 1000 1000 1000 1000 71.60 0.77

german.numer 100 s0 4 4 4 4 4 76.60 0.02

german.numer scale 100 s7 829 829 841 842 839 77.30 0.63

german.numer scale 100 s0 4 4 4 4 4 77.00 0.02

gisette scale 100 s7 66 70 68 66 70 97.15 34.15

gisette scale 100 s0 6 7 7 6 7 97.15 31.30

heart 100 s7 1000 1000 1000 1000 1000 82.22 0.17

heart 100 s0 5 5 5 6 5 82.59 0.00

heart scale 100 s7 7 7 7 7 7 82.96 0.00

heart scale 100 s0 4 4 4 4 4 82.96 0.00

ijcnn1 100 s7 1000 1000 1000 1000 1000 91.21 75.06

ijcnn1 100 s0 7 6 6 7 7 92.46 1.51

ionosphere scale 100 s7 1000 1000 1000 1000 1000 82.34 0.32

(6)

Table 2 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

ionosphere scale 100 s0 6 6 5 5 5 84.62 0.01

kdda 100 s7 821 830 805 815 824 86.75 23562.43

kdda 100 s0 9 7 7 9 8 86.65 3539.57

kddb 100 s7 1000 1000 1000 1000 1000 87.82 69366.84

kddb 100 s0 7 7 7 10 7 87.81 5393.68

leisure.scale 100 s7 1000 1000 1000 1000 1000 85.75 5131.87

leisure.scale 100 s0 16 10 9 14 13 86.28 1587.37

leu 100 s7 9 10 9 9 10 94.74 0.13

leu 100 s0 6 6 6 6 6 92.11 0.22

liver-disorders 100 s7 486 508 577 539 557 68.28 0.04

liver-disorders 100 s0 4 4 3 3 3 68.97 0.00

liver-disorders scale 100 s7 92 108 102 110 97 73.79 0.01

liver-disorders scale 100 s0 4 4 3 3 3 73.79 0.00

madelon 100 s7 345 344 345 350 346 57.25 5.49

madelon 100 s0 6 5 5 6 6 57.20 0.91

mushrooms 100 s7 40 64 50 49 46 100.00 0.41

mushrooms 100 s0 6 6 6 6 6 99.98 0.16

news20.binary 100 s7 1000 1000 1000 1000 1000 96.65 329.45

news20.binary 100 s0 12 15 6 14 11 97.30 73.80

rcv1 test.binary 100 s7 373 364 369 376 376 97.16 954.74

rcv1 test.binary 100 s0 7 7 6 8 7 97.55 123.04

rcv1 train.binary 100 s7 1000 1000 1000 1000 1000 96.65 48.22

rcv1 train.binary 100 s0 6 6 6 6 6 96.54 2.99

real-sim 100 s7 668 675 672 679 674 97.12 109.85

real-sim 100 s0 7 7 7 7 7 97.50 8.41

skin nonskin 100 s7 64 59 64 54 71 90.66 13.31

skin nonskin 100 s0 4 4 4 4 4 90.66 3.43

sonar scale 100 s7 1000 1000 1000 1000 1000 72.60 0.33

sonar scale 100 s0 9 11 8 7 9 71.63 0.03

splice 100 s7 175 169 172 176 169 79.70 0.28

splice 100 s0 4 4 4 4 4 79.60 0.05

splice scale 100 s7 32 32 32 32 32 71.00 0.08

splice scale 100 s0 3 3 3 3 3 71.20 0.04

svmguide1 100 s7 169 172 181 175 174 83.52 0.34

svmguide1 100 s0 5 5 5 5 5 83.52 0.02

svmguide3 100 s7 1000 1000 1000 1000 1000 78.60 1.19

svmguide3 100 s0 6 4 6 7 4 79.73 0.04

train308.scale 100 s7 312 307 314 308 315 91.89 268.80

train308.scale 100 s0 7 9 7 7 7 92.06 84.72

url combined 100 s7 84 85 84 86 85 99.20 1155.46

url combined 100 s0 6 6 7 6 6 98.94 852.82

w8a 100 s7 1000 1000 1000 1000 1000 98.26 65.43

w8a 100 s0 8 9 10 10 10 98.36 1.18

webspam wc normalized unigram.svm 100 s7 133 144 152 159 131 92.76 177.73

webspam wc normalized unigram.svm 100 s0 6 7 7 7 7 92.73 61.26

(7)

Table 3: Logistic Regression (-s 7: dual CD, -s 0: primal Newton). C = Cbest. For dual CD, if # iterations exceeds 500, primal Newton is called and the # of Newton iterations is shown in the next row.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS s7 15 15 14 15 17 64.08 620.26

HIGGS s0 7 8 7 7 6 64.06 1187.92

a9a s7 14 16 15 14 11 84.78 0.54

a9a s0 5 5 5 5 5 84.76 0.60

astro-ph 62369.dat s7 10 10 11 10 9 96.82 3.85

astro-ph 62369.dat s0 6 5 5 5 6 96.83 8.75

australian s7 179 229 179 181 182 70.00 0.06

australian s0 5 5 5 5 5 70.00 0.00

australian scale s7 6 5 5 6 5 86.96 0.00

australian scale s0 3 2 2 2 3 86.96 0.00

breast-cancer s7 3 3 2 2 3 65.01 0.00

breast-cancer s0 1 1 1 1 1 65.01 0.00

breast-cancer scale s7 500 500 500 500 457 96.78 0.18

0 0 0 0 0

breast-cancer scale s0 5 5 5 6 5 96.78 0.00

cod-rna s7 79 63 78 67 71 87.58 4.25

cod-rna s0 4 4 4 4 4 87.58 0.76

colon-cancer s7 3 4 3 4 3 83.87 0.04

colon-cancer s0 1 1 1 1 1 83.87 0.05

covtype.libsvm.binary.scale s7 12 12 11 14 14 75.65 16.05

covtype.libsvm.binary.scale s0 9 10 7 7 9 75.66 39.27

covtype.libsvm.binary s7 218 204 220 188 203 61.62 189.14

covtype.libsvm.binary s0 4 4 4 4 4 61.62 18.10

diabetes s7 234 228 225 221 160 67.84 0.07

diabetes s0 2 2 3 2 2 67.84 0.00

diabetes scale s7 69 70 74 75 61 77.34 0.03

diabetes scale s0 3 3 4 4 3 77.21 0.00

duke s7 8 6 7 7 6 88.64 0.13

duke s0 3 3 3 3 3 88.64 0.17

fourclass s7 6 7 5 5 8 73.78 0.00

fourclass s0 3 0 0 0 0 73.78 0.00

fourclass scale s7 4 4 4 4 4 68.68 0.00

fourclass scale s0 2 2 2 2 2 68.68 0.00

german.numer s7 500 500 500 500 500 76.20 0.38

1 1 1 1 1

german.numer s0 3 3 3 3 3 76.20 0.01

german.numer scale s7 15 15 13 17 16 77.00 0.02

german.numer scale s0 4 4 4 4 4 77.00 0.02

gisette scale s7 42 43 43 42 45 97.20 24.03

gisette scale s0 6 6 6 6 7 97.25 29.66

heart s7 500 500 500 500 500 84.07 0.08

3 3 3 3 4

heart s0 4 3 4 3 5 83.33 0.00

heart scale s7 4 3 3 4 4 83.33 0.00

heart scale s0 2 2 2 2 2 83.33 0.00

ijcnn1 s7 500 500 500 500 500 92.45 29.49

(8)

Table 3 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

1 1 1 1 1

ijcnn1 s0 7 6 6 7 7 92.45 1.51

ionosphere scale s7 500 500 500 500 500 84.33 0.14

1 1 1 1 1

ionosphere scale s0 6 6 6 6 5 84.33 0.01

kdda s7 30 27 27 33 33 88.24 1026.16

kdda s0 8 8 8 8 7 88.23 3158.82

kddb s7 41 41 44 50 49 88.89 3004.30

kddb s0 10 12 7 17 12 88.89 11303.21

leisure.scale s7 75 76 76 77 78 87.25 416.21

leisure.scale s0 8 10 9 10 8 87.27 760.93

leu s7 7 9 10 8 8 89.47 0.11

leu s0 6 6 6 6 6 92.11 0.20

liver-disorders s7 9 10 10 9 10 70.34 0.00

liver-disorders s0 3 3 3 2 2 70.34 0.00

liver-disorders scale s7 5 5 5 5 6 75.86 0.00

liver-disorders scale s0 2 3 2 2 2 75.86 0.00

madelon s7 18 16 13 18 17 60.35 0.41

madelon s0 1 1 2 1 2 60.40 0.32

mushrooms s7 12 19 16 15 15 99.99 0.15

mushrooms s0 6 6 6 6 6 99.98 0.16

news20.binary s7 328 376 372 319 350 96.54 97.33

news20.binary s0 6 6 6 6 6 96.79 22.15

rcv1 test.binary s7 13 14 14 14 14 97.76 55.94

rcv1 test.binary s0 7 7 7 7 7 97.74 102.89

rcv1 train.binary s7 90 96 89 90 90 96.98 5.31

rcv1 train.binary s0 6 6 6 6 6 97.02 2.84

real-sim s7 14 16 13 12 12 97.53 3.96

real-sim s0 6 6 6 6 6 97.53 6.59

skin nonskin s7 8 8 8 8 9 90.66 2.51

skin nonskin s0 4 4 4 4 4 90.66 3.35

sonar scale s7 39 42 43 45 45 74.04 0.01

sonar scale s0 4 5 4 6 4 74.04 0.01

splice s7 9 12 7 8 7 80.80 0.02

splice s0 3 2 3 2 3 80.70 0.02

splice scale s7 5 5 6 5 6 72.70 0.02

splice scale s0 2 2 2 2 2 72.70 0.02

svmguide1 s7 9 9 6 7 6 83.43 0.01

svmguide1 s0 5 5 5 5 5 83.46 0.01

svmguide3 s7 500 500 500 500 500 79.81 0.49

3 4 3 3 3

svmguide3 s0 5 5 4 6 4 79.57 0.02

train308.scale s7 11 12 13 13 13 92.66 18.69

train308.scale s0 6 7 8 7 7 92.66 64.80

url combined s7 13 12 11 12 13 98.25 211.41

url combined s0 5 5 6 5 7 98.09 601.90

w8a s7 500 500 500 500 500 98.35 33.73

(9)

Table 3 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

1 1 0 1 1

w8a s0 9 9 13 12 10 98.35 1.82

webspam wc normalized unigram.svm s7 9 13 11 12 12 92.33 24.58

webspam wc normalized unigram.svm s0 5 6 6 6 6 92.33 57.42

(10)

Table 4: Logistic Regression. (-s 7: dual CD, -s 0: primal Newton). C = 100Cbest. For dual CD, if # iterations exceeds 500, primal Newton is called and the # of Newton iterations is shown in the next row.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS 100 s7 500 291 500 500 500 64.10 12859.18

0 0 0 0 0

HIGGS 100 s0 9 8 7 8 8 64.08 1325.56

a9a 100 s7 338 344 361 336 337 84.75 9.58

a9a 100 s0 5 5 5 5 6 84.77 0.53

astro-ph 62369.dat 100 s7 500 500 500 485 495 96.13 85.35

0 0 0 0 0

astro-ph 62369.dat 100 s0 7 7 7 7 7 96.27 10.78

australian 100 s7 500 500 500 500 500 78.70 0.21

2 3 3 3 2

australian 100 s0 5 5 5 5 5 78.84 0.00

australian scale 100 s7 13 12 11 11 11 85.80 0.01

australian scale 100 s0 4 5 4 4 5 86.23 0.00

breast-cancer 100 s7 3 3 3 3 2 65.01 0.00

breast-cancer 100 s0 1 1 1 1 1 65.01 0.00

breast-cancer scale 100 s7 500 500 500 500 500 96.78 0.27

2 2 3 2 3

breast-cancer scale 100 s0 5 5 5 6 5 96.78 0.00

cod-rna 100 s7 500 500 500 500 500 89.24 30.57

1 2 2 2 2

cod-rna 100 s0 4 4 4 4 4 89.23 0.80

colon-cancer 100 s7 7 7 7 7 7 77.42 0.05

colon-cancer 100 s0 4 4 4 4 4 79.03 0.07

covtype.libsvm.binary.scale 100 s7 89 88 98 92 92 75.62 92.68

covtype.libsvm.binary.scale 100 s0 6 11 7 6 6 75.60 31.97

covtype.libsvm.binary 100 s7 500 500 500 500 500 71.31 534.71

7 7 7 5 5

covtype.libsvm.binary 100 s0 8 7 9 6 6 71.25 31.38

diabetes 100 s7 500 500 500 500 500 67.97 0.21

3 3 3 5 2

diabetes 100 s0 3 2 3 3 3 67.84 0.00

diabetes scale 100 s7 500 500 500 500 500 77.34 0.21

4 3 4 4 5

diabetes scale 100 s0 3 3 4 5 3 77.34 0.00

duke 100 s7 14 12 13 13 12 88.64 0.14

duke 100 s0 5 5 5 5 5 88.64 0.21

fourclass 100 s7 72 66 67 69 68 73.20 0.02

fourclass 100 s0 1 3 3 2 1 73.32 0.00

fourclass scale 100 s7 6 6 6 8 7 68.68 0.00

fourclass scale 100 s0 3 3 3 3 3 68.68 0.00

german.numer 100 s7 500 500 500 500 500 76.60 0.40

4 3 4 4 5

german.numer 100 s0 4 4 4 4 4 76.60 0.01

german.numer scale 100 s7 500 500 500 500 500 77.20 0.39

1 1 1 2 2

german.numer scale 100 s0 4 4 4 4 4 77.00 0.01

(11)

Table 4 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

gisette scale 100 s7 66 70 68 66 70 97.15 34.31

gisette scale 100 s0 6 7 7 6 7 97.15 31.30

heart 100 s7 500 500 500 500 500 82.59 0.08

4 5 4 6 9

heart 100 s0 5 5 5 6 5 82.59 0.00

heart scale 100 s7 7 7 7 7 7 82.96 0.00

heart scale 100 s0 4 4 4 4 4 82.96 0.00

ijcnn1 100 s7 500 500 500 500 500 92.47 35.11

4 4 6 6 6

ijcnn1 100 s0 7 6 6 7 7 92.46 1.34

ionosphere scale 100 s7 500 500 500 500 500 84.62 0.17

9 5 6 6 5

ionosphere scale 100 s0 6 6 5 5 5 84.62 0.01

kdda 100 s7 500 500 500 500 500 86.75 14831.57

0 0 0 0 0

kdda 100 s0 9 7 7 9 8 86.65 3581.88

kddb 100 s7 500 500 500 500 500 87.82 34125.98

0 0 0 0 0

kddb 100 s0 7 7 7 10 7 87.81 4772.23

leisure.scale 100 s7 500 500 500 500 500 85.88 2802.63

2 2 6 1 2

leisure.scale 100 s0 16 10 9 14 13 86.28 1637.36

leu 100 s7 9 10 9 9 10 94.74 0.11

leu 100 s0 6 6 6 6 6 92.11 0.20

liver-disorders 100 s7 486 500 500 500 500 68.97 0.03

0 1 0 1 1

liver-disorders 100 s0 4 4 3 3 3 68.97 0.00

liver-disorders scale 100 s7 92 108 102 110 97 73.79 0.01

liver-disorders scale 100 s0 4 4 3 3 3 73.79 0.00

madelon 100 s7 345 344 345 350 346 57.25 5.03

madelon 100 s0 6 5 5 6 6 57.20 0.83

mushrooms 100 s7 40 64 50 49 46 100.00 0.35

mushrooms 100 s0 6 6 6 6 6 99.98 0.14

news20.binary 100 s7 500 500 500 500 500 96.69 164.55

2 1 1 1 1

news20.binary 100 s0 12 15 6 14 11 97.30 67.20

rcv1 test.binary 100 s7 373 364 369 376 376 97.16 1000.91

rcv1 test.binary 100 s0 7 7 6 8 7 97.55 124.18

rcv1 train.binary 100 s7 500 500 500 500 500 96.67 25.97

1 0 0 0 0

rcv1 train.binary 100 s0 6 6 6 6 6 96.54 2.74

real-sim 100 s7 500 500 500 500 500 97.12 87.00

0 0 0 0 0

real-sim 100 s0 7 7 7 7 7 97.50 7.70

skin nonskin 100 s7 64 59 64 54 71 90.66 15.54

skin nonskin 100 s0 4 4 4 4 4 90.66 3.33

sonar scale 100 s7 500 500 500 500 500 72.12 0.14

(12)

Table 4 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

3 3 3 5 4

sonar scale 100 s0 9 11 8 7 9 71.63 0.02

splice 100 s7 175 169 172 176 169 79.70 0.27

splice 100 s0 4 4 4 4 4 79.60 0.03

splice scale 100 s7 32 32 32 32 32 71.00 0.05

splice scale 100 s0 3 3 3 3 3 71.20 0.03

svmguide1 100 s7 169 172 181 175 174 83.52 0.27

svmguide1 100 s0 5 5 5 5 5 83.52 0.01

svmguide3 100 s7 500 500 500 500 500 79.89 0.50

7 7 6 4 5

svmguide3 100 s0 6 4 6 7 4 79.73 0.03

train308.scale 100 s7 312 307 314 308 315 91.89 271.37

train308.scale 100 s0 7 9 7 7 7 92.06 84.20

url combined 100 s7 84 85 84 86 85 99.20 1046.04

url combined 100 s0 6 6 7 6 6 98.94 757.98

w8a 100 s7 500 500 500 500 500 98.36 48.32

5 5 5 8 7

w8a 100 s0 8 9 10 10 10 98.36 1.80

webspam wc normalized unigram.svm 100 s7 133 144 152 159 131 92.76 186.50

webspam wc normalized unigram.svm 100 s0 6 7 7 7 7 92.73 66.26

(13)

Table 5: L2-loss SVM. (-s 1: dual CD, -s 2: primal Newton). C = Cbest. For dual CD, if # iterations exceeds 500, primal Newton is called and the # of Newton iterations is shown in the next row.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS s1 8 6 6 8 7 64.01 310.26

HIGGS s2 9 8 8 7 8 64.00 1135.69

a9a s1 14 13 14 13 14 84.80 0.29

a9a s2 4 4 4 4 4 84.83 0.33

astro-ph 62369.dat s1 8 8 8 8 8 96.94 2.88

astro-ph 62369.dat s2 5 5 5 5 5 96.95 5.81

australian s1 422 402 386 260 419 69.13 0.07

australian s2 5 4 4 5 5 68.99 0.00

australian scale s1 4 4 4 4 4 86.67 0.00

australian scale s2 2 2 2 2 2 86.67 0.00

breast-cancer s1 1 1 1 1 1 65.01 0.00

breast-cancer s2 1 1 1 1 1 65.01 0.00

breast-cancer scale s1 25 22 26 25 27 96.78 0.00

breast-cancer scale s2 4 4 4 4 4 96.78 0.00

cod-rna s1 53 54 52 47 53 87.57 1.53

cod-rna s2 3 3 3 3 3 87.57 0.52

colon-cancer s1 3 3 3 3 3 83.87 0.04

colon-cancer s2 1 1 1 1 1 83.87 0.04

covtype.libsvm.binary.scale s1 6 6 6 6 6 75.71 7.28

covtype.libsvm.binary.scale s2 10 8 8 7 7 75.70 30.31

covtype.libsvm.binary s1 22 23 23 23 23 61.25 19.81

covtype.libsvm.binary s2 2 2 3 2 2 61.24 10.26

diabetes s1 213 222 195 331 149 68.36 0.04

diabetes s2 3 3 4 2 2 68.36 0.00

diabetes scale s1 9 9 9 9 9 77.34 0.00

diabetes scale s2 3 3 3 3 3 77.34 0.00

duke s1 7 8 5 6 7 88.64 0.12

duke s2 3 3 3 3 4 88.64 0.18

fourclass s1 6 5 6 5 6 73.78 0.00

fourclass s2 2 0 0 0 0 73.78 0.00

fourclass scale s1 4 4 4 4 5 68.68 0.00

fourclass scale s2 1 1 1 1 1 68.68 0.00

german.numer s1 500 500 500 500 500 76.30 0.22

2 1 1 2 1

german.numer s2 3 3 3 3 3 76.30 0.01

german.numer scale s1 80 80 79 80 80 76.80 0.03

german.numer scale s2 4 4 4 3 4 76.60 0.01

gisette scale s1 24 25 24 24 25 97.40 11.71

gisette scale s2 5 5 6 5 6 97.47 19.02

heart s1 500 500 500 500 500 83.33 0.04

3 4 3 2 2

heart s2 3 3 3 3 3 83.33 0.00

heart scale s1 3 3 3 3 4 83.33 0.00

heart scale s2 2 2 2 2 2 83.33 0.00

ijcnn1 s1 16 16 15 15 16 92.27 0.58

(14)

Table 5 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

ijcnn1 s2 6 6 6 6 5 92.25 0.73

ionosphere scale s1 311 394 436 317 326 84.90 0.04

ionosphere scale s2 5 6 5 5 5 84.90 0.01

kdda s1 10 10 10 10 10 88.25 333.81

kdda s2 16 14 15 14 16 88.24 3593.42

kddb s1 25 24 24 24 24 88.95 1445.05

kddb s2 17 15 15 15 17 88.95 7601.96

leisure.scale s1 39 39 39 38 39 87.36 178.61

leisure.scale s2 9 10 11 10 11 87.37 530.09

leu s1 7 10 9 7 7 94.74 0.11

leu s2 6 5 6 5 7 94.74 0.22

liver-disorders s1 11 11 10 11 12 69.66 0.00

liver-disorders s2 3 2 2 2 2 69.66 0.00

liver-disorders scale s1 6 6 6 6 6 75.86 0.00

liver-disorders scale s2 2 2 2 2 2 75.86 0.00

madelon s1 9 9 9 9 9 59.95 0.31

madelon s2 1 1 1 1 1 60.30 0.30

mushrooms s1 36 65 30 36 43 100.00 0.09

mushrooms s2 5 5 5 5 5 99.96 0.08

news20.binary s1 330 357 345 335 356 96.77 48.12

news20.binary s2 6 5 6 5 4 97.16 12.78

rcv1 test.binary s1 10 10 10 10 10 97.81 32.30

rcv1 test.binary s2 5 6 5 5 5 97.80 63.66

rcv1 train.binary s1 11 11 11 11 10 97.08 0.91

rcv1 train.binary s2 5 4 5 6 4 97.05 1.65

real-sim s1 9 9 8 9 9 97.55 2.27

real-sim s2 5 5 5 6 5 97.55 4.28

skin nonskin s1 7 7 7 7 7 90.83 1.54

skin nonskin s2 1 2 2 2 2 90.84 1.79

sonar scale s1 15 14 17 15 16 74.04 0.00

sonar scale s2 5 4 3 5 4 74.04 0.01

splice s1 13 13 13 13 13 80.90 0.02

splice s2 3 3 3 3 3 81.00 0.02

splice scale s1 5 5 5 5 5 72.60 0.02

splice scale s2 2 2 2 2 2 72.70 0.02

svmguide1 s1 6 6 6 6 6 83.36 0.01

svmguide1 s2 5 4 5 5 4 83.36 0.01

svmguide3 s1 500 500 500 500 500 79.57 0.28

2 1 3 2 1

svmguide3 s2 8 6 5 4 6 79.49 0.03

train308.scale s1 9 9 9 9 9 92.81 13.13

train308.scale s2 10 10 8 9 10 92.79 51.90

url combined s1 7 7 7 7 7 98.53 119.46

url combined s2 5 8 5 5 5 98.26 381.91

w8a s1 500 500 500 500 500 98.22 3.09

1 2 3 1 1

w8a s2 8 8 8 8 11 98.23 0.71

(15)

Table 5 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time webspam wc normalized unigram.svm s1 10 10 10 10 10 92.60 19.54

webspam wc normalized unigram.svm s2 5 5 4 4 5 92.57 41.67

(16)

Table 6: L2-loss SVM. (-s 1: dual CD, -s 2: primal Newton). C = 100Cbest. For dual CD, if # iterations exceeds 500, primal Newton is called and the # of Newton iterations is shown in the next row.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS 100 s1 333 167 339 343 343 64.05 8043.69

HIGGS 100 s2 9 9 7 7 7 64.03 1211.18

a9a 100 s1 500 500 500 500 500 84.80 6.42

1 1 1 1 1

a9a 100 s2 4 4 4 4 4 84.75 0.33

astro-ph 62369.dat 100 s1 229 233 241 237 229 95.49 9.51

astro-ph 62369.dat 100 s2 5 5 6 5 5 95.49 5.78

australian 100 s1 500 500 500 500 500 79.57 0.10

5 4 2 3 4

australian 100 s2 4 5 4 5 4 79.57 0.00

australian scale 100 s1 9 9 9 9 9 86.09 0.00

australian scale 100 s2 4 5 5 4 4 86.09 0.00

breast-cancer 100 s1 5 3 3 5 4 65.01 0.00

breast-cancer 100 s2 2 2 2 2 1 65.01 0.00

breast-cancer scale 100 s1 500 500 500 500 500 96.78 0.03

1 1 1 2 2

breast-cancer scale 100 s2 4 5 4 6 4 96.78 0.00

cod-rna 100 s1 500 500 500 500 500 88.39 14.03

1 3 2 2 3

cod-rna 100 s2 3 3 3 3 3 88.40 0.55

colon-cancer 100 s1 8 9 7 8 9 75.81 0.05

colon-cancer 100 s2 4 4 4 4 5 75.81 0.07

covtype.libsvm.binary.scale 100 s1 46 45 45 44 44 75.68 33.11

covtype.libsvm.binary.scale 100 s2 9 10 10 9 9 75.69 33.04

covtype.libsvm.binary 100 s1 500 500 500 500 500 64.91 393.37

2 3 4 2 1

covtype.libsvm.binary 100 s2 5 8 6 7 6 64.95 21.54

diabetes 100 s1 500 500 500 500 500 67.45 0.09

3 2 2 2 3

diabetes 100 s2 1 3 5 2 4 67.45 0.00

diabetes scale 100 s1 500 482 399 429 405 77.21 0.07

1 0 0 0 0

diabetes scale 100 s2 3 3 3 3 3 77.34 0.00

duke 100 s1 11 13 13 13 15 88.64 0.14

duke 100 s2 9 6 7 8 4 90.91 0.22

fourclass 100 s1 75 70 72 74 71 73.32 0.01

fourclass 100 s2 2 2 2 2 2 73.32 0.00

fourclass scale 100 s1 9 7 9 8 8 68.56 0.00

fourclass scale 100 s2 2 2 2 2 2 68.45 0.00

german.numer 100 s1 500 500 500 500 500 76.70 0.24

5 5 4 3 3

german.numer 100 s2 3 3 4 3 3 76.80 0.01

german.numer scale 100 s1 500 500 500 500 500 76.70 0.22

4 4 4 4 4

german.numer scale 100 s2 3 4 3 3 4 76.90 0.01

gisette scale 100 s1 62 66 62 64 66 96.97 15.68

(17)

Table 6 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

gisette scale 100 s2 5 7 5 5 6 97.07 17.73

heart 100 s1 500 500 500 500 500 83.70 0.04

4 4 4 5 4

heart 100 s2 4 5 5 4 6 83.33 0.00

heart scale 100 s1 8 8 8 9 9 82.96 0.00

heart scale 100 s2 3 3 3 4 3 82.96 0.00

ijcnn1 100 s1 500 500 500 500 500 92.29 11.11

2 2 2 2 2

ijcnn1 100 s2 5 5 6 6 6 92.25 0.74

ionosphere scale 100 s1 500 500 500 500 500 84.33 0.05

7 7 8 5 5

ionosphere scale 100 s2 6 6 5 6 6 83.76 0.01

kdda 100 s1 401 423 407 409 421 86.52 5841.76

kdda 100 s2 11 11 13 13 14 86.49 2814.50

kddb 100 s1 500 500 500 500 500 87.49 20152.69

1 1 1 1 1

kddb 100 s2 17 18 18 18 18 87.52 10285.00

leisure.scale 100 s1 500 500 500 500 500 84.95 1486.11

1 3 2 2 2

leisure.scale 100 s2 6 7 6 7 9 85.96 329.70

leu 100 s1 7 8 9 9 8 94.74 0.11

leu 100 s2 4 4 5 4 6 97.37 0.14

liver-disorders 100 s1 500 500 500 500 500 68.97 0.01

1 1 1 1 0

liver-disorders 100 s2 3 1 2 1 1 68.97 0.00

liver-disorders scale 100 s1 99 138 153 104 104 73.79 0.00

liver-disorders scale 100 s2 3 3 2 3 3 74.48 0.00

madelon 100 s1 500 500 500 500 361 57.05 6.28

1 1 1 1 0

madelon 100 s2 7 4 4 6 5 57.20 0.80

mushrooms 100 s1 43 72 39 44 59 100.00 0.09

mushrooms 100 s2 5 5 5 5 6 99.98 0.07

news20.binary 100 s1 500 500 500 500 500 96.76 78.27

1 2 2 1 1

news20.binary 100 s2 5 5 6 5 4 97.25 10.15

rcv1 test.binary 100 s1 452 420 469 427 431 97.00 203.21

rcv1 test.binary 100 s2 7 10 9 6 7 97.29 70.47

rcv1 train.binary 100 s1 500 500 500 500 500 96.32 5.44

0 0 0 0 0

rcv1 train.binary 100 s2 4 6 5 5 5 96.06 1.51

real-sim 100 s1 351 347 347 350 375 96.65 7.74

real-sim 100 s2 7 6 6 6 6 96.74 4.25

skin nonskin 100 s1 302 298 285 206 290 90.83 44.68

skin nonskin 100 s2 2 2 1 1 2 90.84 1.78

sonar scale 100 s1 500 500 500 500 500 74.52 0.05

2 2 2 3 2

sonar scale 100 s2 7 8 10 8 9 73.08 0.00

(18)

Table 6 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

2 1 1 1 1

splice 100 s2 4 4 4 4 4 80.10 0.03

splice scale 100 s1 36 33 34 33 35 71.00 0.04

splice scale 100 s2 3 3 3 3 3 71.00 0.02

svmguide1 100 s1 95 100 94 94 93 83.49 0.04

svmguide1 100 s2 5 5 5 5 5 83.46 0.01

svmguide3 100 s1 500 500 500 500 500 79.49 0.29

4 6 3 5 5

svmguide3 100 s2 7 6 5 6 4 79.32 0.02

train308.scale 100 s1 378 371 379 376 375 91.08 104.81

train308.scale 100 s2 11 10 10 10 11 91.56 48.93

url combined 100 s1 180 180 180 181 168 99.44 487.37

url combined 100 s2 9 7 6 7 5 99.21 409.74

w8a 100 s1 500 500 500 500 500 98.21 3.84

6 7 7 6 5

w8a 100 s2 12 11 9 9 9 98.23 0.73

webspam wc normalized unigram.svm 100 s1 477 470 500 481 500 92.71 381.08

0 0 1 0 0

webspam wc normalized unigram.svm 100 s2 5 5 4 5 5 92.66 43.39

(19)

Table 7: Logistic Regression (-s 7: dual CD, -s 0: primal Newton). C = Cbest. For dual CD, if # iterations exceeds 300, primal Newton is called and the # of Newton iterations is shown in the next row.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS s7 15 15 14 15 17 64.08 566.54

HIGGS s0 7 8 7 7 6 64.06 1204.51

a9a s7 14 16 15 14 11 84.78 0.54

a9a s0 5 5 5 5 5 84.76 0.51

astro-ph 62369.dat s7 10 10 11 10 9 96.82 3.91

astro-ph 62369.dat s0 6 5 5 5 6 96.83 9.47

australian s7 179 229 179 181 182 70.00 0.06

australian s0 5 5 5 5 5 70.00 0.04

australian scale s7 6 5 5 6 5 86.96 0.01

australian scale s0 3 2 2 2 3 86.96 0.01

breast-cancer s7 3 3 2 2 3 65.01 0.00

breast-cancer s0 1 1 1 1 1 39.09 0.00

breast-cancer scale s7 300 300 300 300 300 96.78 0.13

0 0 0 0 0

breast-cancer scale s0 5 5 5 6 5 96.78 0.01

cod-rna s7 79 63 78 67 71 87.58 3.03

cod-rna s0 4 4 4 4 4 87.58 0.58

colon-cancer s7 3 4 3 4 3 83.87 0.05

colon-cancer s0 1 1 1 1 1 83.87 0.24

covtype.libsvm.binary.scale s7 12 12 11 14 14 75.65 15.76

covtype.libsvm.binary.scale s0 9 10 7 7 9 75.66 38.84

covtype.libsvm.binary s7 218 204 220 188 203 61.62 192.28

covtype.libsvm.binary s0 4 4 4 4 4 61.62 18.77

diabetes s7 234 228 225 221 160 67.84 0.08

diabetes s0 2 2 3 2 2 67.84 0.01

diabetes scale s7 69 70 74 75 61 77.34 0.03

diabetes scale s0 3 3 4 4 3 77.21 0.01

duke s7 8 6 7 7 6 88.64 0.13

duke s0 3 3 3 3 3 88.64 0.28

fourclass s7 6 7 5 5 8 73.78 0.00

fourclass s0 3 3 3 3 3 73.78 0.00

fourclass scale s7 4 4 4 4 4 68.68 0.00

fourclass scale s0 2 2 2 2 2 68.68 0.00

german.numer s7 300 300 300 300 300 76.10 0.24

3 2 1 2 1

german.numer s0 3 3 3 3 3 76.20 0.03

german.numer scale s7 15 15 13 17 16 77.00 0.02

german.numer scale s0 4 4 4 4 4 77.00 0.03

gisette scale s7 42 43 43 42 45 97.20 24.34

gisette scale s0 6 6 6 6 7 97.25 33.02

heart s7 300 300 300 300 300 83.33 0.05

4 3 4 4 4

heart s0 4 3 4 3 5 83.33 0.02

heart scale s7 4 3 3 4 4 83.33 0.00

heart scale s0 2 2 2 2 2 83.33 0.00

ijcnn1 s7 300 300 300 300 300 92.46 14.90

(20)

Table 7 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

2 2 2 2 2

ijcnn1 s0 7 6 6 7 7 92.45 0.95

ionosphere scale s7 300 300 300 300 300 84.33 0.09

2 1 2 2 1

ionosphere scale s0 6 6 6 6 5 84.33 0.01

kdda s7 30 27 27 33 33 88.24 998.50

kdda s0 8 8 8 8 7 88.23 3171.60

kddb s7 41 41 44 50 49 88.89 3090.66

kddb s0 10 12 7 17 12 88.89 11578.24

leisure.scale s7 75 76 76 77 78 87.25 419.46

leisure.scale s0 8 10 9 10 8 87.27 758.93

leu s7 7 9 10 8 8 89.47 0.12

leu s0 6 6 6 6 6 92.11 0.22

liver-disorders s7 9 10 10 9 10 70.34 0.00

liver-disorders s0 3 3 3 2 2 70.34 0.00

liver-disorders scale s7 5 5 5 5 6 75.86 0.00

liver-disorders scale s0 2 3 2 2 2 75.86 0.00

madelon s7 18 16 13 18 17 60.35 0.42

madelon s0 1 1 2 1 2 60.40 0.35

mushrooms s7 12 19 16 15 15 99.99 0.16

mushrooms s0 6 6 6 6 6 99.98 0.17

news20.binary s7 300 300 300 300 300 96.54 85.82

0 0 0 0 0

news20.binary s0 6 6 6 6 6 96.79 23.62

rcv1 test.binary s7 13 14 14 14 14 97.76 60.90

rcv1 test.binary s0 7 7 7 7 7 97.74 107.28

rcv1 train.binary s7 90 96 89 90 90 96.98 4.69

rcv1 train.binary s0 6 6 6 6 6 97.02 2.75

real-sim s7 14 16 13 12 12 97.53 3.98

real-sim s0 6 6 6 6 6 97.53 6.67

skin nonskin s7 8 8 8 8 9 90.66 2.28

skin nonskin s0 4 4 4 4 4 90.66 2.99

sonar scale s7 39 42 43 45 45 74.04 0.02

sonar scale s0 4 5 4 6 4 74.04 0.01

splice s7 9 12 7 8 7 80.80 0.03

splice s0 3 2 3 2 3 80.70 0.03

splice scale s7 5 5 6 5 6 72.70 0.02

splice scale s0 2 2 2 2 2 72.70 0.03

svmguide1 s7 9 9 6 7 6 83.43 0.02

svmguide1 s0 5 5 5 5 5 83.46 0.02

svmguide3 s7 300 300 300 300 300 79.81 0.32

3 4 3 4 3

svmguide3 s0 5 5 4 6 4 79.57 0.03

train308.scale s7 11 12 13 13 13 92.66 20.43

train308.scale s0 6 7 8 7 7 92.66 67.76

url combined s7 13 12 11 12 13 98.25 214.91

url combined s0 5 5 6 5 7 98.09 612.64

(21)

Table 7 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

w8a s7 300 300 300 300 300 98.36 15.38

2 1 1 0 2

w8a s0 9 9 13 12 10 98.35 1.40

webspam wc normalized unigram.svm s7 9 13 11 12 12 92.33 28.44

webspam wc normalized unigram.svm s0 5 6 6 6 6 92.33 56.16

(22)

Table 8: Logistic Regression. (-s 7: dual CD, -s 0: primal Newton). C = 100Cbest. For dual CD, if # iterations exceeds 300, primal Newton is called and the # of Newton iterations is shown in the next row.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS 100 s7 300 300 300 300 300 64.10 8095.74

0 0 0 0 0

HIGGS 100 s0 9 8 7 8 8 64.08 1214.53

a9a 100 s7 300 300 300 300 300 84.79 8.58

1 0 1 1 1

a9a 100 s0 5 5 5 5 6 84.77 0.49

astro-ph 62369.dat 100 s7 300 300 300 300 300 96.13 51.02

0 0 0 0 0

astro-ph 62369.dat 100 s0 7 7 7 7 7 96.27 10.60

australian 100 s7 300 300 300 300 300 78.84 0.13

2 2 3 2 2

australian 100 s0 5 5 5 5 5 78.84 0.01

australian scale 100 s7 13 12 11 11 11 85.80 0.01

australian scale 100 s0 4 5 4 4 5 86.23 0.01

breast-cancer 100 s7 3 3 3 3 2 65.01 0.00

breast-cancer 100 s0 1 1 1 1 1 65.01 0.00

breast-cancer scale 100 s7 300 300 300 300 300 96.63 0.17

2 3 2 3 2

breast-cancer scale 100 s0 5 5 5 6 5 96.78 0.01

cod-rna 100 s7 300 300 300 300 300 89.24 13.53

3 2 2 1 2

cod-rna 100 s0 4 4 4 4 4 89.23 0.52

colon-cancer 100 s7 7 7 7 7 7 77.42 0.05

colon-cancer 100 s0 4 4 4 4 4 79.03 0.08

covtype.libsvm.binary.scale 100 s7 89 88 98 92 92 75.62 89.45

covtype.libsvm.binary.scale 100 s0 6 11 7 6 6 75.60 31.30

covtype.libsvm.binary 100 s7 300 300 300 300 300 71.31 321.39

6 5 7 9 7

covtype.libsvm.binary 100 s0 8 7 9 6 6 71.25 31.41

diabetes 100 s7 300 300 300 300 300 68.10 0.13

7 4 3 4 5

diabetes 100 s0 3 2 3 3 3 67.84 0.00

diabetes scale 100 s7 300 300 300 300 300 77.34 0.13

4 4 3 4 4

diabetes scale 100 s0 3 3 4 5 3 77.34 0.00

duke 100 s7 14 12 13 13 12 88.64 0.15

duke 100 s0 5 5 5 5 5 88.64 0.22

fourclass 100 s7 72 66 67 69 68 73.20 0.03

fourclass 100 s0 3 3 3 3 3 73.32 0.00

fourclass scale 100 s7 6 6 6 8 7 68.68 0.00

fourclass scale 100 s0 3 3 3 3 3 68.68 0.00

german.numer 100 s7 300 300 300 300 300 76.80 0.25

4 4 5 3 4

german.numer 100 s0 4 4 4 4 4 76.60 0.02

german.numer scale 100 s7 300 300 300 300 300 77.00 0.25

2 2 3 2 2

(23)

Table 8 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

german.numer scale 100 s0 4 4 4 4 4 77.00 0.02

gisette scale 100 s7 66 70 68 66 70 97.15 34.66

gisette scale 100 s0 6 7 7 6 7 97.15 31.56

heart 100 s7 300 300 300 300 300 82.96 0.05

5 5 8 5 5

heart 100 s0 5 5 5 6 5 82.59 0.00

heart scale 100 s7 7 7 7 7 7 82.96 0.00

heart scale 100 s0 4 4 4 4 4 82.96 0.00

ijcnn1 100 s7 300 300 300 300 300 92.46 17.84

4 6 5 5 5

ijcnn1 100 s0 7 6 6 7 7 92.46 0.95

ionosphere scale 100 s7 300 300 300 300 300 84.62 0.12

6 7 6 10 7

ionosphere scale 100 s0 6 6 5 5 5 84.62 0.01

kdda 100 s7 300 300 300 300 300 86.75 8603.58

1 0 1 0 0

kdda 100 s0 9 7 7 9 8 86.65 3576.87

kddb 100 s7 300 300 300 300 300 87.82 20468.49

0 0 0 0 0

kddb 100 s0 7 7 7 10 7 87.81 4889.11

leisure.scale 100 s7 300 300 300 300 300 85.92 1873.69

4 3 2 5 4

leisure.scale 100 s0 16 10 9 14 13 86.28 1697.93

leu 100 s7 9 10 9 9 10 94.74 0.13

leu 100 s0 6 6 6 6 6 92.11 0.21

liver-disorders 100 s7 300 300 300 300 300 68.97 0.02

1 1 1 0 1

liver-disorders 100 s0 4 4 3 3 3 68.97 0.00

liver-disorders scale 100 s7 92 108 102 110 97 73.79 0.01

liver-disorders scale 100 s0 4 4 3 3 3 73.79 0.00

madelon 100 s7 300 300 300 300 300 57.20 4.28

1 1 1 2 1

madelon 100 s0 6 5 5 6 6 57.20 0.81

mushrooms 100 s7 40 64 50 49 46 100.00 0.36

mushrooms 100 s0 6 6 6 6 6 99.98 0.15

news20.binary 100 s7 300 300 300 300 300 96.66 103.35

2 6 2 2 2

news20.binary 100 s0 12 15 6 14 11 97.30 68.51

rcv1 test.binary 100 s7 300 300 300 300 300 97.17 838.74

0 0 0 0 0

rcv1 test.binary 100 s0 7 7 6 8 7 97.55 123.54

rcv1 train.binary 100 s7 300 300 300 300 300 96.72 16.29

1 0 0 0 0

rcv1 train.binary 100 s0 6 6 6 6 6 96.54 2.67

real-sim 100 s7 300 300 300 300 300 97.12 53.99

0 0 0 0 0

real-sim 100 s0 7 7 7 7 7 97.50 7.89

(24)

Table 8 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

skin nonskin 100 s7 64 59 64 54 71 90.66 13.50

skin nonskin 100 s0 4 4 4 4 4 90.66 2.73

sonar scale 100 s7 300 300 300 300 300 72.12 0.10

6 5 5 5 6

sonar scale 100 s0 9 11 8 7 9 71.63 0.02

splice 100 s7 175 169 172 176 169 79.70 0.24

splice 100 s0 4 4 4 4 4 79.60 0.04

splice scale 100 s7 32 32 32 32 32 71.00 0.06

splice scale 100 s0 3 3 3 3 3 71.20 0.03

svmguide1 100 s7 169 172 181 175 174 83.52 0.29

svmguide1 100 s0 5 5 5 5 5 83.52 0.02

svmguide3 100 s7 300 300 300 300 300 79.89 0.35

8 6 6 5 6

svmguide3 100 s0 6 4 6 7 4 79.73 0.03

train308.scale 100 s7 300 300 300 300 300 91.90 274.52

0 0 0 0 0

train308.scale 100 s0 7 9 7 7 7 92.06 85.03

url combined 100 s7 84 85 84 86 85 99.20 1029.32

url combined 100 s0 6 6 7 6 6 98.94 780.83

w8a 100 s7 300 300 300 300 300 98.37 23.19

9 9 6 8 6

w8a 100 s0 8 9 10 10 10 98.36 1.18

webspam wc normalized unigram.svm 100 s7 133 144 152 159 131 92.76 188.84

webspam wc normalized unigram.svm 100 s0 6 7 7 7 7 92.73 65.65

(25)

Table 9: L2-loss SVM. (-s 1: dual CD, -s 2: primal Newton). C = Cbest. For dual CD, if # iterations exceeds 300, primal Newton is called and the # of Newton iterations is shown in the next row.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS s1 8 6 6 8 7 64.01 320.32

HIGGS s2 9 8 8 7 8 64.00 1137.87

a9a s1 14 13 14 13 14 84.80 0.30

a9a s2 4 4 4 4 4 84.83 0.34

astro-ph 62369.dat s1 8 8 8 8 8 96.94 2.90

astro-ph 62369.dat s2 5 5 5 5 5 96.95 5.89

australian s1 300 300 300 255 300 68.99 0.06

1 1 0 0 1

australian s2 5 4 4 5 5 68.99 0.01

australian scale s1 4 4 4 4 4 86.67 0.00

australian scale s2 2 2 2 2 2 86.67 0.00

breast-cancer s1 2 2 2 2 2 65.01 0.00

breast-cancer s2 1 1 1 1 1 39.09 0.00

breast-cancer scale s1 25 22 26 25 27 96.78 0.00

breast-cancer scale s2 4 4 4 4 4 96.78 0.00

cod-rna s1 53 54 52 47 53 87.57 1.12

cod-rna s2 3 3 3 3 3 87.57 0.37

colon-cancer s1 3 3 3 3 3 83.87 0.05

colon-cancer s2 1 1 1 1 1 83.87 0.05

covtype.libsvm.binary.scale s1 6 6 6 6 6 75.71 7.18

covtype.libsvm.binary.scale s2 10 8 8 7 7 75.70 30.22

covtype.libsvm.binary s1 22 23 23 23 23 61.25 18.46

covtype.libsvm.binary s2 2 2 3 2 2 61.24 10.35

diabetes s1 213 222 195 300 291 68.36 0.04

0 0 0 1 0

diabetes s2 3 3 4 2 2 68.36 0.00

diabetes scale s1 9 9 9 9 9 77.34 0.00

diabetes scale s2 3 3 3 3 3 77.34 0.00

duke s1 7 8 5 6 7 88.64 0.13

duke s2 3 3 3 3 4 88.64 0.19

fourclass s1 6 5 6 5 6 73.78 0.00

fourclass s2 2 2 2 2 2 73.78 0.00

fourclass scale s1 4 4 4 4 5 68.68 0.00

fourclass scale s2 1 1 1 1 1 68.68 0.00

german.numer s1 300 300 300 300 300 76.30 0.14

2 2 2 2 2

german.numer s2 3 3 3 3 3 76.30 0.01

german.numer scale s1 80 80 79 80 80 76.80 0.04

german.numer scale s2 4 4 4 3 4 76.60 0.01

gisette scale s1 24 25 24 24 25 97.40 12.36

gisette scale s2 5 5 6 5 6 97.47 19.42

heart s1 300 300 300 300 300 83.33 0.03

3 2 3 3 2

heart s2 3 3 3 3 3 83.33 0.00

heart scale s1 3 3 3 3 4 83.33 0.00

(26)

Table 9 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

heart scale s2 2 2 2 2 2 83.33 0.00

ijcnn1 s1 16 16 15 15 16 92.27 0.52

ijcnn1 s2 6 6 6 6 5 92.25 0.85

ionosphere scale s1 300 300 300 291 300 84.33 0.04

0 1 1 0 1

ionosphere scale s2 5 6 5 5 5 84.90 0.01

kdda s1 10 10 10 10 10 88.25 330.97

kdda s2 16 14 15 14 16 88.24 3405.58

kddb s1 25 24 24 24 24 88.95 1351.98

kddb s2 17 15 15 15 17 88.95 7347.57

leisure.scale s1 39 39 39 38 39 87.36 191.56

leisure.scale s2 9 10 11 10 11 87.37 567.57

leu s1 7 10 9 7 7 94.74 0.12

leu s2 6 5 6 5 7 94.74 0.23

liver-disorders s1 11 11 10 11 12 69.66 0.00

liver-disorders s2 3 2 2 2 2 69.66 0.00

liver-disorders scale s1 6 6 6 6 6 75.86 0.00

liver-disorders scale s2 2 2 2 2 2 75.86 0.00

madelon s1 9 9 9 9 9 59.95 0.34

madelon s2 1 1 1 1 1 60.30 0.32

mushrooms s1 36 65 30 36 43 100.00 0.10

mushrooms s2 5 5 5 5 5 99.96 0.09

news20.binary s1 300 300 300 300 300 96.77 43.68

0 0 0 0 0

news20.binary s2 6 5 6 5 4 97.16 13.27

rcv1 test.binary s1 10 10 10 10 10 97.81 36.89

rcv1 test.binary s2 5 6 5 5 5 97.80 69.38

rcv1 train.binary s1 11 11 11 11 10 97.08 0.93

rcv1 train.binary s2 5 4 5 6 4 97.05 1.61

real-sim s1 9 9 8 9 9 97.55 2.40

real-sim s2 5 5 5 6 5 97.55 4.33

skin nonskin s1 7 7 7 7 7 90.83 1.27

skin nonskin s2 2 2 2 2 2 90.84 1.47

sonar scale s1 15 14 17 15 16 74.04 0.01

sonar scale s2 5 4 3 5 4 74.04 0.01

splice s1 13 13 13 13 13 80.90 0.03

splice s2 3 3 3 3 3 81.00 0.03

splice scale s1 5 5 5 5 5 72.60 0.02

splice scale s2 2 2 2 2 2 72.70 0.02

svmguide1 s1 6 6 6 6 6 83.36 0.01

svmguide1 s2 5 4 5 5 4 83.36 0.01

svmguide3 s1 300 300 300 300 300 79.49 0.18

2 2 4 3 3

svmguide3 s2 8 6 5 4 6 79.49 0.03

train308.scale s1 9 9 9 9 9 92.81 13.91

train308.scale s2 10 10 8 9 10 92.79 52.88

url combined s1 7 7 7 7 7 98.53 122.18

(27)

Table 9 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

url combined s2 5 8 5 5 5 98.26 385.17

w8a s1 300 300 300 300 300 98.22 2.01

3 2 3 2 2

w8a s2 8 8 8 8 11 98.23 0.54

webspam wc normalized unigram.svm s1 10 10 10 10 10 92.60 20.43

webspam wc normalized unigram.svm s2 5 5 4 4 5 92.57 44.03

(28)

Table 10: L2-loss SVM. (-s 1: dual CD, -s 2: primal Newton). C = 100Cbest. For dual CD, if # iterations exceeds 300, primal Newton is called and the # of Newton iterations is shown in the next row.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS 100 s1 300 164 300 300 300 64.05 6784.00

0 0 0 0 0

HIGGS 100 s2 9 9 7 7 7 64.03 1225.11

a9a 100 s1 300 300 300 300 300 84.79 4.23

2 2 2 2 2

a9a 100 s2 4 4 4 4 4 84.75 0.33

astro-ph 62369.dat 100 s1 229 233 241 237 229 95.49 7.94

astro-ph 62369.dat 100 s2 5 5 6 5 5 95.49 5.58

australian 100 s1 300 300 300 300 300 79.42 0.07

3 5 5 2 5

australian 100 s2 4 5 4 5 4 79.57 0.01

australian scale 100 s1 9 9 9 9 9 86.09 0.00

australian scale 100 s2 4 5 5 4 4 86.09 0.01

breast-cancer 100 s1 5 3 3 5 4 65.01 0.00

breast-cancer 100 s2 2 2 2 2 1 65.01 0.00

breast-cancer scale 100 s1 300 300 300 300 300 96.78 0.02

2 1 2 1 2

breast-cancer scale 100 s2 4 5 4 6 4 96.78 0.00

cod-rna 100 s1 300 300 300 300 300 88.40 6.86

1 1 2 2 3

cod-rna 100 s2 3 3 3 3 3 88.40 0.36

colon-cancer 100 s1 8 9 7 8 9 75.81 0.05

colon-cancer 100 s2 4 4 4 4 5 75.81 0.08

covtype.libsvm.binary.scale 100 s1 46 45 45 44 44 75.68 33.78

covtype.libsvm.binary.scale 100 s2 9 10 10 9 9 75.69 34.93

covtype.libsvm.binary 100 s1 300 300 300 300 300 64.92 223.71

4 3 4 2 3

covtype.libsvm.binary 100 s2 5 8 6 7 6 64.95 21.48

diabetes 100 s1 300 300 300 300 300 67.32 0.05

2 2 1 4 3

diabetes 100 s2 1 3 5 2 4 67.45 0.00

diabetes scale 100 s1 300 300 300 300 300 77.21 0.05

1 1 1 1 1

diabetes scale 100 s2 3 3 3 3 3 77.34 0.00

duke 100 s1 11 13 13 13 15 88.64 0.15

duke 100 s2 9 6 7 8 4 90.91 0.23

fourclass 100 s1 75 70 72 74 71 73.32 0.01

fourclass 100 s2 2 2 2 2 2 73.32 0.00

fourclass scale 100 s1 9 7 9 8 8 68.56 0.00

fourclass scale 100 s2 2 2 2 2 2 68.45 0.00

german.numer 100 s1 300 300 300 300 300 76.70 0.15

5 4 5 4 4

german.numer 100 s2 3 3 4 3 3 76.80 0.01

german.numer scale 100 s1 300 300 300 300 300 76.80 0.14

4 4 4 4 4

german.numer scale 100 s2 3 4 3 3 4 76.90 0.01

(29)

Table 10 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

gisette scale 100 s1 62 66 62 64 66 96.97 16.27

gisette scale 100 s2 5 7 5 5 6 97.07 19.19

heart 100 s1 300 300 300 300 300 83.33 0.03

5 5 4 5 3

heart 100 s2 4 5 5 4 6 83.33 0.00

heart scale 100 s1 8 8 8 9 9 82.96 0.00

heart scale 100 s2 3 3 3 4 3 82.96 0.00

ijcnn1 100 s1 300 300 300 300 300 92.29 6.15

3 2 3 3 3

ijcnn1 100 s2 5 5 6 6 6 92.25 0.60

ionosphere scale 100 s1 300 300 300 300 300 84.05 0.04

7 8 6 4 5

ionosphere scale 100 s2 6 6 5 6 6 83.76 0.01

kdda 100 s1 300 300 300 300 300 86.52 4630.91

0 0 0 0 0

kdda 100 s2 11 11 13 13 14 86.49 2564.00

kddb 100 s1 300 300 300 300 300 87.49 12555.66

1 1 2 1 2

kddb 100 s2 17 18 18 18 18 87.52 9795.87

leisure.scale 100 s1 300 300 300 300 300 85.04 1051.34

3 2 1 3 3

leisure.scale 100 s2 6 7 6 7 9 85.96 358.16

leu 100 s1 7 8 9 9 8 94.74 0.12

leu 100 s2 4 4 5 4 6 97.37 0.15

liver-disorders 100 s1 300 300 300 300 300 68.28 0.01

1 1 1 1 1

liver-disorders 100 s2 3 1 2 1 1 68.97 0.00

liver-disorders scale 100 s1 99 138 153 104 104 73.79 0.00

liver-disorders scale 100 s2 3 3 2 3 3 74.48 0.00

madelon 100 s1 300 300 300 300 300 57.15 4.11

3 3 2 3 2

madelon 100 s2 7 4 4 6 5 57.20 0.79

mushrooms 100 s1 43 72 39 44 59 100.00 0.10

mushrooms 100 s2 5 5 5 5 6 99.98 0.09

news20.binary 100 s1 300 300 300 300 300 96.74 52.06

2 1 1 1 1

news20.binary 100 s2 5 5 6 5 4 97.25 11.32

rcv1 test.binary 100 s1 300 300 300 300 300 97.00 170.94

0 0 0 0 0

rcv1 test.binary 100 s2 7 10 9 6 7 97.29 74.93

rcv1 train.binary 100 s1 300 300 300 300 300 96.33 3.73

0 0 0 0 0

rcv1 train.binary 100 s2 4 6 5 5 5 96.06 1.52

real-sim 100 s1 300 300 300 300 300 96.66 6.33

0 0 0 0 0

real-sim 100 s2 7 6 6 6 6 96.74 4.28

skin nonskin 100 s1 300 289 274 285 300 90.84 35.45

(30)

Table 10 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

0 0 0 0 0

skin nonskin 100 s2 2 2 2 2 2 90.84 1.47

sonar scale 100 s1 300 300 300 300 300 73.56 0.04

3 4 2 3 4

sonar scale 100 s2 7 8 10 8 9 73.08 0.01

splice 100 s1 300 300 300 300 300 80.10 0.24

2 2 2 2 2

splice 100 s2 4 4 4 4 4 80.10 0.03

splice scale 100 s1 36 33 34 33 35 71.00 0.05

splice scale 100 s2 3 3 3 3 3 71.00 0.03

svmguide1 100 s1 95 100 94 94 93 83.49 0.05

svmguide1 100 s2 5 5 5 5 5 83.46 0.01

svmguide3 100 s1 300 300 300 300 300 79.73 0.20

6 5 5 6 4

svmguide3 100 s2 7 6 5 6 4 79.32 0.03

train308.scale 100 s1 300 300 300 300 300 91.08 95.39

1 0 0 0 1

train308.scale 100 s2 11 10 10 10 11 91.56 49.36

url combined 100 s1 180 180 180 181 168 99.44 516.10

url combined 100 s2 9 7 6 7 5 99.21 402.35

w8a 100 s1 300 300 300 300 300 98.22 2.49

7 6 5 5 7

w8a 100 s2 12 11 9 9 9 98.23 0.56

webspam wc normalized unigram.svm 100 s1 300 300 300 300 300 92.71 274.88

3 1 1 0 1

webspam wc normalized unigram.svm 100 s2 5 5 4 5 5 92.66 43.16

(31)

Table 11: Multi-core LIBLINEAR for logistic regression (-s 0: primal Newton). C = Cbest. Multi-core dual CD is not available for logistic regression.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS s0 7 7 8 7 7 64.07 451.05

a9a s0 5 5 5 5 5 84.84 0.23

astro-ph 62369.dat s0 6 6 5 6 6 96.79 4.38

australian s0 5 5 5 5 5 67.83 0.01

australian scale s0 2 2 2 2 2 87.10 0.01

breast-cancer s0 1 1 1 1 0 59.44 0.01

breast-cancer scale s0 5 5 5 5 5 96.63 0.01

cod-rna s0 4 4 4 4 4 87.57 0.45

colon-cancer s0 1 2 1 1 1 80.65 0.05

covtype.libsvm.binary.scale s0 10 8 8 6 8 75.66 11.16

covtype.libsvm.binary s0 4 5 3 4 4 61.60 6.46

diabetes s0 2 2 2 2 2 67.84 0.01

diabetes scale s0 3 3 3 3 3 77.86 0.01

duke s0 3 3 3 3 3 81.82 0.15

fourclass s0 3 3 3 3 3 72.74 0.01

fourclass scale s0 2 2 2 2 2 68.79 0.01

german.numer s0 3 3 3 3 3 76.30 0.02

german.numer scale s0 4 4 4 4 4 77.40 0.02

gisette scale s0 6 6 6 6 6 97.17 11.94

heart s0 4 4 3 4 4 84.44 0.01

heart scale s0 2 2 2 2 2 82.96 0.01

ijcnn1 s0 6 6 6 6 6 92.44 0.56

ionosphere scale s0 5 6 5 5 5 83.48 0.02

kdda s0 7 9 7 7 8 88.23 969.02

kddb s0 11 14 8 9 12 88.89 2961.35

leisure.scale s0 8 15 8 10 8 87.15 234.50

leu s0 6 6 6 6 6 92.11 0.16

liver-disorders s0 3 3 3 2 2 68.28 0.01

liver-disorders scale s0 2 3 2 2 2 73.79 0.01

madelon s0 1 2 1 1 2 59.60 0.29

mushrooms s0 6 6 6 6 6 99.96 0.09

news20.binary s0 6 7 8 7 6 96.91 12.80

rcv1 test.binary s0 7 7 7 7 7 97.74 43.95

rcv1 train.binary s0 6 6 6 6 6 96.91 1.40

real-sim s0 6 6 6 6 7 97.46 3.18

skin nonskin s0 4 4 4 4 4 90.67 1.35

sonar scale s0 5 6 5 4 4 69.71 0.02

splice s0 3 3 3 3 3 79.10 0.03

splice scale s0 2 2 2 2 2 71.80 0.03

svmguide1 s0 5 5 5 5 5 83.20 0.02

svmguide3 s0 7 5 6 5 5 80.13 0.03

train308.scale s0 7 7 7 7 7 92.70 24.50

url combined s0 5 6 5 5 7 98.09 201.33

w8a s0 11 9 9 9 10 98.38 0.45

webspam wc normalized unigram.svm s0 5 5 5 5 5 92.33 20.14

(32)

Table 12: Multi-core LIBLINEAR for logistic regression (-s 0: primal Newton). C = 100Cbest. Multi-core dual CD is not available for logistic regression.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS 100 s0 6 7 7 7 7 64.09 426.36

a9a 100 s0 6 5 6 5 5 84.83 0.23

astro-ph 62369.dat 100 s0 7 7 7 7 7 96.25 4.91

australian 100 s0 5 5 5 5 5 78.41 0.02

australian scale 100 s0 4 4 5 5 4 87.10 0.01

breast-cancer 100 s0 1 1 1 1 1 65.01 0.01

breast-cancer scale 100 s0 5 5 5 5 5 96.63 0.01

cod-rna 100 s0 4 4 4 4 4 89.21 0.41

colon-cancer 100 s0 4 4 4 4 4 72.58 0.07

covtype.libsvm.binary.scale 100 s0 9 6 8 10 7 75.61 11.26

covtype.libsvm.binary 100 s0 8 13 10 6 9 71.24 12.90

diabetes 100 s0 3 3 2 3 3 69.79 0.01

diabetes scale 100 s0 4 5 4 3 4 77.73 0.01

duke 100 s0 5 5 5 5 5 88.64 0.17

fourclass 100 s0 3 3 3 3 3 73.32 0.01

fourclass scale 100 s0 3 3 3 3 3 68.68 0.01

german.numer 100 s0 3 4 4 4 4 76.10 0.02

german.numer scale 100 s0 4 4 4 4 4 77.50 0.02

gisette scale 100 s0 7 6 6 6 8 97.17 12.42

heart 100 s0 5 5 7 4 5 84.44 0.01

heart scale 100 s0 4 4 4 4 4 82.96 0.01

ijcnn1 100 s0 6 7 6 6 6 92.43 0.60

ionosphere scale 100 s0 5 7 5 5 5 83.48 0.02

kdda 100 s0 7 11 11 7 7 86.65 1078.10

kddb 100 s0 7 7 7 10 8 87.80 1527.79

leisure.scale 100 s0 14 9 11 11 9 86.22 337.42

leu 100 s0 6 6 6 6 6 92.11 0.16

liver-disorders 100 s0 3 3 3 1 3 67.59 0.01

liver-disorders scale 100 s0 3 4 3 4 4 72.41 0.01

madelon 100 s0 6 6 7 5 5 58.55 0.43

mushrooms 100 s0 6 6 6 6 6 99.98 0.08

news20.binary 100 s0 15 11 11 16 8 97.31 27.43

rcv1 test.binary 100 s0 7 7 7 6 6 97.59 42.63

rcv1 train.binary 100 s0 6 6 6 6 6 96.60 1.26

real-sim 100 s0 7 7 7 7 7 97.42 3.67

skin nonskin 100 s0 4 4 4 4 4 90.68 1.43

sonar scale 100 s0 10 11 10 9 8 74.52 0.03

splice 100 s0 4 4 4 4 4 79.90 0.03

splice scale 100 s0 3 3 3 3 3 69.90 0.03

svmguide1 100 s0 5 5 5 5 5 83.39 0.02

svmguide3 100 s0 4 5 7 5 6 80.45 0.04

train308.scale 100 s0 8 8 8 8 8 92.07 32.40

url combined 100 s0 6 7 7 6 6 99.02 240.52

w8a 100 s0 15 10 9 11 10 98.37 0.50

webspam wc normalized unigram.svm 100 s0 7 7 6 7 7 92.74 23.52

(33)

Table 13: Multi-core LIBLINEAR for L2-loss SVM. (-s 1: dual CD, -s 2: primal Newton). C = Cbest. For dual CD, if # iterations exceeds 300, primal Newton is called and the # of Newton iterations is shown in the next row.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS s1 7 7 7 8 6 64.01 272.06

HIGGS s2 7 8 7 8 9 63.98 430.98

a9a s1 15 14 15 15 15 84.84 0.41

a9a s2 4 4 4 4 4 84.78 0.19

astro-ph 62369.dat s1 8 8 8 8 8 96.89 2.83

astro-ph 62369.dat s2 5 5 5 5 5 96.90 3.24

australian s1 300 300 300 300 300 67.68 0.07

2 1 0 1 2

australian s2 5 5 4 5 5 67.54 0.01

australian scale s1 4 4 5 5 4 86.67 0.01

australian scale s2 2 2 2 2 2 86.81 0.01

breast-cancer s1 1 1 1 1 1 59.44 0.00

breast-cancer s2 1 1 1 1 1 59.44 0.01

breast-cancer scale s1 24 26 28 28 25 96.78 0.01

breast-cancer scale s2 4 4 4 4 4 96.78 0.01

cod-rna s1 55 49 54 54 52 87.55 1.31

cod-rna s2 3 3 3 3 3 87.57 0.30

colon-cancer s1 3 3 3 3 3 80.65 0.05

colon-cancer s2 1 2 1 1 1 80.65 0.05

covtype.libsvm.binary.scale s1 6 6 6 6 6 75.69 6.82

covtype.libsvm.binary.scale s2 6 8 7 7 7 75.70 8.86

covtype.libsvm.binary s1 25 25 24 25 25 61.19 16.50

covtype.libsvm.binary s2 3 2 2 3 3 61.21 4.49

diabetes s1 300 300 138 274 209 67.71 0.06

1 1 0 0 0

diabetes s2 2 2 2 3 2 67.71 0.01

diabetes scale s1 10 10 9 10 9 77.34 0.01

diabetes scale s2 3 3 3 3 3 77.34 0.01

duke s1 6 5 8 8 8 84.09 0.14

duke s2 4 2 4 3 3 84.09 0.15

fourclass s1 6 6 6 7 6 72.74 0.01

fourclass s2 2 2 2 2 2 72.62 0.01

fourclass scale s1 4 5 4 4 4 68.56 0.00

fourclass scale s2 1 1 1 1 1 68.56 0.00

german.numer s1 300 300 300 300 300 75.90 0.30

2 2 2 2 2

german.numer s2 3 3 3 3 3 75.90 0.02

german.numer scale s1 112 114 82 105 105 77.80 0.09

german.numer scale s2 3 4 3 4 4 77.90 0.02

gisette scale s1 26 26 26 25 25 97.13 12.49

gisette scale s2 6 6 7 5 5 97.18 9.73

heart s1 300 300 300 300 300 84.81 0.04

3 4 4 3 4

heart s2 2 3 3 3 3 84.81 0.01

(34)

Table 13 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

heart scale s1 4 4 4 4 3 83.33 0.01

heart scale s2 2 2 2 2 2 82.96 0.01

ijcnn1 s1 16 18 17 17 17 92.25 0.69

ijcnn1 s2 5 5 6 6 6 92.26 0.49

ionosphere scale s1 300 300 300 300 300 84.05 0.07

0 1 2 1 1

ionosphere scale s2 4 5 5 4 5 84.05 0.02

kdda s1 10 10 10 10 10 88.25 376.98

kdda s2 13 14 14 16 13 88.24 1108.22

kddb s1 25 25 25 24 25 88.95 1013.04

kddb s2 15 16 16 14 16 88.95 2207.53

leisure.scale s1 40 39 39 41 39 87.27 256.36

leisure.scale s2 8 8 7 9 9 87.27 160.86

leu s1 8 6 8 8 11 92.11 0.14

leu s2 6 5 5 5 6 92.11 0.16

liver-disorders s1 11 11 12 13 12 69.66 0.00

liver-disorders s2 2 2 2 1 1 69.66 0.01

liver-disorders scale s1 7 6 6 7 7 73.79 0.01

liver-disorders scale s2 2 2 2 2 2 73.79 0.01

madelon s1 9 9 9 9 9 59.65 0.39

madelon s2 1 1 1 1 1 59.60 0.25

mushrooms s1 38 37 58 41 33 100.00 0.11

mushrooms s2 5 4 5 5 4 99.95 0.07

news20.binary s1 300 300 300 300 300 96.84 36.58

0 0 0 1 0

news20.binary s2 7 6 6 5 6 97.24 9.33

rcv1 test.binary s1 10 10 10 10 10 97.80 36.82

rcv1 test.binary s2 6 6 6 5 5 97.79 32.15

rcv1 train.binary s1 10 12 10 10 11 97.05 1.13

rcv1 train.binary s2 6 6 5 5 6 97.03 1.05

real-sim s1 9 9 9 9 8 97.51 2.45

real-sim s2 5 6 6 5 6 97.54 2.41

skin nonskin s1 8 8 8 8 8 90.90 1.57

skin nonskin s2 2 2 2 2 2 90.90 0.93

sonar scale s1 16 18 17 16 17 71.63 0.01

sonar scale s2 4 5 4 4 4 72.12 0.01

splice s1 14 14 13 14 14 79.50 0.04

splice s2 3 3 3 3 3 79.60 0.02

splice scale s1 5 5 5 5 5 71.60 0.03

splice scale s2 2 2 2 2 2 71.60 0.02

svmguide1 s1 6 6 6 6 6 83.17 0.02

svmguide1 s2 4 4 5 4 5 83.20 0.02

svmguide3 s1 300 300 300 300 300 79.73 0.35

3 3 4 3 2

svmguide3 s2 4 4 5 5 5 79.57 0.03

train308.scale s1 10 9 9 10 9 92.82 14.66

train308.scale s2 9 9 8 8 11 92.81 22.01

(35)

Table 13 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

url combined s1 7 8 7 7 7 98.53 108.90

url combined s2 6 6 6 7 7 98.41 159.21

w8a s1 300 300 300 300 300 98.26 2.75

2 2 2 2 2

w8a s2 8 8 9 8 8 98.26 0.28

webspam wc normalized unigram.svm s1 11 11 11 11 11 92.61 18.57

webspam wc normalized unigram.svm s2 4 4 4 4 4 92.54 17.38

(36)

Table 14: Multi-core LIBLINEAR for L2-loss SVM. (-s 1: dual CD, -s 2: primal Newton). C = 100Cbest. For dual CD, if # iterations exceeds 300, primal Newton is called and the # of Newton iterations is shown in the next row.

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

HIGGS 100 s1 300 300 300 300 175 64.04 2141.30

1 1 1 1 0

HIGGS 100 s2 7 8 8 9 9 64.03 468.85

a9a 100 s1 300 300 300 300 300 84.76 5.77

2 2 2 2 2

a9a 100 s2 4 4 4 4 4 84.81 0.19

astro-ph 62369.dat 100 s1 240 237 115 215 241 95.49 6.48

astro-ph 62369.dat 100 s2 5 5 5 5 5 95.48 3.22

australian 100 s1 300 300 300 300 300 78.70 0.12

4 4 3 2 4

australian 100 s2 4 5 4 5 4 79.13 0.01

australian scale 100 s1 10 9 9 9 10 85.80 0.01

australian scale 100 s2 4 5 5 4 3 85.80 0.01

breast-cancer 100 s1 1 1 1 1 1 59.44 0.00

breast-cancer 100 s2 1 2 2 2 2 65.01 0.01

breast-cancer scale 100 s1 300 300 300 300 300 96.78 0.04

3 1 2 3 2

breast-cancer scale 100 s2 4 4 4 4 4 96.78 0.01

cod-rna 100 s1 300 300 300 300 300 88.33 12.76

1 2 1 2 2

cod-rna 100 s2 3 3 3 3 3 88.33 0.30

colon-cancer 100 s1 10 10 11 10 10 69.35 0.06

colon-cancer 100 s2 3 4 4 4 4 69.35 0.06

covtype.libsvm.binary.scale 100 s1 49 49 49 49 50 75.65 44.80

covtype.libsvm.binary.scale 100 s2 10 12 11 11 9 75.67 12.51

covtype.libsvm.binary 100 s1 300 300 300 300 300 64.89 270.54

4 4 3 3 3

covtype.libsvm.binary 100 s2 6 5 6 5 7 64.89 7.00

diabetes 100 s1 300 300 300 300 300 69.40 0.11

3 3 3 4 4

diabetes 100 s2 6 1 1 5 2 69.27 0.01

diabetes scale 100 s1 300 300 300 300 300 77.86 0.10

1 1 1 1 1

diabetes scale 100 s2 3 3 3 3 3 77.60 0.01

duke 100 s1 13 15 18 13 13 81.82 0.18

duke 100 s2 6 5 5 6 10 88.64 0.18

fourclass 100 s1 117 72 119 76 117 73.09 0.03

fourclass 100 s2 2 2 2 2 2 73.20 0.01

fourclass scale 100 s1 9 9 9 10 9 68.68 0.01

fourclass scale 100 s2 2 2 1 2 2 68.68 0.01

german.numer 100 s1 300 300 300 300 300 76.40 0.28

4 4 3 4 4

german.numer 100 s2 3 3 4 4 3 76.60 0.02

german.numer scale 100 s1 300 300 300 300 300 77.70 0.26

3 4 4 4 4

(37)

Table 14 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

german.numer scale 100 s2 3 3 3 4 3 77.90 0.02

gisette scale 100 s1 64 67 68 69 68 96.85 16.17

gisette scale 100 s2 5 5 7 8 6 97.08 9.42

heart 100 s1 300 300 300 300 300 85.19 0.04

3 4 4 4 6

heart 100 s2 5 4 5 4 5 85.19 0.01

heart scale 100 s1 9 9 9 10 9 82.96 0.01

heart scale 100 s2 3 3 4 3 3 82.96 0.01

ijcnn1 100 s1 300 300 300 300 300 92.27 10.53

3 3 3 2 3

ijcnn1 100 s2 6 6 6 6 7 92.27 0.49

ionosphere scale 100 s1 300 300 300 300 300 83.76 0.07

7 5 6 7 5

ionosphere scale 100 s2 5 5 5 5 5 84.33 0.02

kdda 100 s1 300 300 300 300 300 86.52 6541.42

1 0 1 1 1

kdda 100 s2 11 13 11 11 14 86.47 991.36

kddb 100 s1 300 300 300 300 300 87.49 10319.54

3 2 2 2 2

kddb 100 s2 17 12 12 18 18 87.59 2509.10

leisure.scale 100 s1 300 300 300 300 300 84.93 1526.87

2 3 2 2 3

leisure.scale 100 s2 7 8 8 7 7 85.74 138.20

leu 100 s1 9 6 7 8 9 92.11 0.13

leu 100 s2 4 3 5 3 7 92.11 0.13

liver-disorders 100 s1 300 300 300 300 300 67.59 0.03

2 1 2 2 2

liver-disorders 100 s2 2 3 1 2 1 67.59 0.01

liver-disorders scale 100 s1 146 148 136 208 138 71.72 0.01

liver-disorders scale 100 s2 2 4 3 3 3 71.72 0.01

madelon 100 s1 300 300 300 300 300 58.45 4.99

3 3 3 2 3

madelon 100 s2 4 4 6 5 4 58.35 0.36

mushrooms 100 s1 43 45 98 51 46 100.00 0.11

mushrooms 100 s2 5 5 5 5 5 99.96 0.06

news20.binary 100 s1 300 300 300 300 300 96.81 67.25

2 1 1 1 2

news20.binary 100 s2 5 5 5 5 5 97.39 7.86

rcv1 test.binary 100 s1 300 300 300 300 300 96.97 266.07

0 0 0 0 0

rcv1 test.binary 100 s2 6 6 6 6 6 97.49 31.56

rcv1 train.binary 100 s1 300 300 300 300 300 96.21 8.27

0 0 0 0 0

rcv1 train.binary 100 s2 4 4 5 5 5 96.25 0.97

real-sim 100 s1 300 300 300 300 300 96.48 9.34

0 0 0 0 0

real-sim 100 s2 6 6 6 6 6 96.62 2.21

(38)

Table 14 – continued from previous page

Data set and approaches # Iter # Iter # Iter # Iter # Iter CV Time

0 0 0 0 1

skin nonskin 100 s2 2 2 2 2 2 90.90 0.88

sonar scale 100 s1 300 300 300 300 300 73.08 0.06

3 7 3 3 3

sonar scale 100 s2 10 11 9 11 10 72.60 0.03

splice 100 s1 300 300 300 300 300 80.20 0.39

2 2 3 3 2

splice 100 s2 4 4 4 4 4 80.10 0.03

splice scale 100 s1 35 34 34 36 35 70.60 0.07

splice scale 100 s2 3 4 3 3 3 70.80 0.03

svmguide1 100 s1 100 107 102 98 102 83.43 0.11

svmguide1 100 s2 4 4 5 5 5 83.36 0.02

svmguide3 100 s1 300 300 300 300 300 79.73 0.32

7 7 6 5 3

svmguide3 100 s2 5 5 6 5 8 79.81 0.03

train308.scale 100 s1 300 300 300 300 300 91.10 111.62

2 1 1 1 2

train308.scale 100 s2 12 12 12 13 9 91.57 24.51

url combined 100 s1 178 181 177 180 164 99.43 285.93

url combined 100 s2 7 6 7 7 6 99.27 159.96

w8a 100 s1 300 300 300 300 300 98.26 2.81

5 7 6 5 7

w8a 100 s2 10 9 9 10 8 98.27 0.29

webspam wc normalized unigram.svm 100 s1 300 300 300 300 300 92.72 228.85

3 1 1 1 1

webspam wc normalized unigram.svm 100 s2 5 5 5 5 7 92.69 18.71

Figure

Updating...

References

Related subjects :
