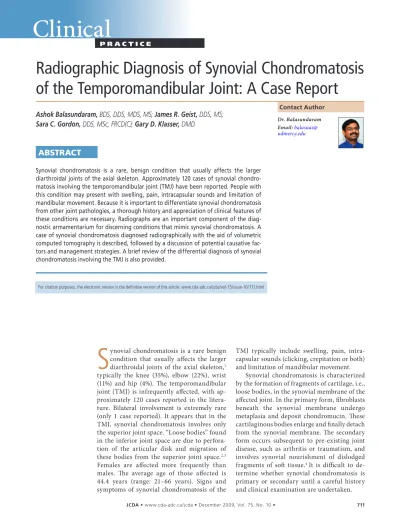

JCDA • www.cda-adc.ca/jcda • December 2009, Vol. 75, No. 10 • 711
Clinical
p r a c t i c ES
ynovial chondromatosis is a rare benign condition that usually affects the larger diarthroidal joints of the axial skeleton,1 typically the knee (35%), elbow (22%), wrist (11%) and hip (4%). The temporomandibular joint (TMJ) is infrequently affected, with ap- proximately 120 cases reported in the litera- ture. Bilateral involvement is extremely rare (only 1 case reported). It appears that in the TMJ, synovial chondromatosis involves only the superior joint space. “Loose bodies” found in the inferior joint space are due to perfora- tion of the articular disk and migration of these bodies from the superior joint space.2,3 Females are affected more frequently than males. The average age of those affected is 44.4 years (range: 21–66 years). Signs and symptoms of synovial chondromatosis of theFor citation purposes, the electronic version is the definitive version of this article: www.cda-adc.ca/jcda/vol-75/issue-10/711.html
Contact Author
TMJ typically include swelling, pain, intra- capsular sounds (clicking, crepitation or both) and limitation of mandibular movement.
Synovial chondromatosis is characterized by the formation of fragments of cartilage, i.e., loose bodies, in the synovial membrane of the affected joint. In the primary form, fibroblasts beneath the synovial membrane undergo metaplasia and deposit chondromucin. These cartilaginous bodies enlarge and finally detach from the synovial membrane. The secondary form occurs subsequent to pre-existing joint disease, such as arthritis or traumatism, and involves synovial nourishment of dislodged fragments of soft tissue.4 It is difficult to de- termine whether synovial chondromatosis is primary or secondary until a careful history and clinical examination are undertaken.
Radiographic Diagnosis of Synovial Chondromatosis of the Temporomandibular Joint: A Case Report
Ashok Balasundaram, BDS, DDS, MDS, MS; James R. Geist, DDS, MS;
Sara C. Gordon, DDS, MSc, FRCD(C); Gary D. Klasser, DMD
ABSTRACT
Synovial chondromatosis is a rare, benign condition that usually affects the larger diarthroidal joints of the axial skeleton. Approximately 120 cases of synovial chondro- matosis involving the temporomandibular joint (TMJ) have been reported. People with this condition may present with swelling, pain, intracapsular sounds and limitation of mandibular movement. Because it is important to differentiate synovial chondromatosis from other joint pathologies, a thorough history and appreciation of clinical features of these conditions are necessary. Radiographs are an important component of the diag- nostic armamentarium for discerning conditions that mimic synovial chondromatosis. A case of synovial chondromatosis diagnosed radiographically with the aid of volumetric computed tomography is described, followed by a discussion of potential causative fac- tors and management strategies. A brief review of the differential diagnosis of synovial chondromatosis involving the TMJ is also provided.
Dr. Balasundaram Email: balasuas@
udmercy.edu
712 JCDA • www.cda-adc.ca/jcda • December 2009, Vol. 75, No. 10 •
––– Balasundaram –––
Figure 3: Sagittal cone beam volu- metric image slice showing condyle and lesion.
Figure 1: Clinical photograph of patient with preauricular swelling.
Figure 2: Coronal cone beam volumetric computed tomography image slice showing the left condyle and lesion.
Accurate diagnosis of synovial chondromatosis is based on history and clinical, radiographic and micro- scopic examination. Signs and symptoms of synovial chondromatosis of the TMJ do not differ from those of other conditions affecting the TMJ. Therefore, careful attention must be paid to the clinical and radiologic fea- tures of all lesions affecting this joint.
Radiographic modalities available for diagnosis of synovial chondromatosis include plain film radiography, plain film tomography, computed tomography (CT), magnetic resonance imaging (MRI) and radionuclide scanning. Plain film radiography is inexpensive but the images suffer from distortion. CT produces excellent detail of hard and soft tissue, but with higher radia- tion doses than for plain film radiography. MRI is non- ionizing and produces excellent soft tissue resolution, but is costly and of limited availability. Radionuclide scan- ning is usually used to determine metabolic activity in a lesion.
Advanced imaging methods, such as CT and MRI, re- veal the extent and character of the lesion and have con- tributed to an increase in the number of reported cases of synovial chondromatosis.4 CT and MRI are invaluable diagnostic tools, as they can also show changes associ- ated with synovial chondromatosis, such as temporal bone sclerosis and extension of the lesion into the cranial cavity. On both plain films and CT, findings associated with synovial chondromatosis may also include widening of joint space, irregularity of the joint surface, the pres- ence of loose calcified nodules and sclerosis of the glenoid fossa and mandibular condyle.5
CT is particularly useful in the radiographic diag- nosis of synovial chondromatosis because hard tissues, such as calcified cartilaginous bodies, are easily identi- fied. CT also depicts the lesion in multiple planes. For ex- ample, coronal CT can help detect intracranial extension of synovial chondromatosis of the TMJ. Also, CT allows
customization of specific protocols to visualize bone or soft tissue.
Volumetric computed tomography (VCT) has wide application, such as presurgical assessment of implant sites, orthodontics and evaluation of TMJ-related path- ology in the maxillofacial region. In cone beam VCT, the scanning process involves a single rotation of the x-ray source contiguous with the detector, thus reducing scan time. The advantages of cone beam VCT include simpli- fied design and, most important, reduced radiation dose to the patient.6
Case Report
An 82-year-old man presented to the University of Detroit Mercy School of Dentistry clinic with a swelling on the left side of his face that had developed over the past 5 years (Fig. 1). Discomfort, which occurred before the swelling, was described as persistent, gnawing and worse at night. No history of limitation of mandibular movement or intracapsular sounds was associated with the swelling. For many decades after suffering painful repetitive jaw trauma while serving in the armed forces during World War II, the patient had experienced epi- sodic tenderness in the left TMJ on prolonged mouth opening. Three years before presentation, he had visited his primary care physician for evaluation of the swelling, which had been clinically diagnosed as a benign tumour.
The patient’s current medical history included man- aged hypertension and hypercholesterolemia; he had a past history of adenoma of the thyroid gland and ce- rebrovascular accident (without neurologic deficit).
The patient’s medications included acetylsalicylic acid, furosemide, benazepril, simvastatin, calcium carbonate, glucosamine and omega-3 fatty acid. His dental history included previous visits for periodontal maintenance, restoration and maxillary and mandibular partial den- ture fabrication.
JCDA • www.cda-adc.ca/jcda • December 2009, Vol. 75, No. 10 • 713
––– Synovial Chondromatosis –––
A well-circumscribed 50 mm × 40 mm extraoral swelling was present in the left preauricular region (Fig. 1). Palpation revealed a hard, non-tender mass.
The patient’s maximum mouth opening was 35 mm, both assisted and unassisted, with deflection of the mandible to the left side. An asymptomatic click was identified on the left side of the TMJ on closing. No associated tenderness or pain in the lateral capsules of the TMJ was elicited on palpation, at rest or during mandibular movements.
A panoramic radiograph revealed a radiopacity adja- cent to the left condyle. As the extent of the lesion could not be evaluated in its entirety, we decided to image the patient’s TMJ using a cone beam VCT scanner. The classic i-CAT standard VCT scanner (Imaging Sciences International, Hatfield, PA) was used. The x-ray tube and detector rotated 360° around the head of the patient at a constant beam angle.
Cone beam VCT images localized the lesion in all planes, revealing a well-defined radiopaque–radiolucent mass on the anteromedial aspect of the left condyle, ex- tending to completely involve the posterior region of the condyle (Figs. 2 and 3). The lesion was clearly separated from the condylar surface. There was evidence of mild flattening of the condyle suggesting degenerative change, but the cortical outline appeared intact. Joint space was reduced due to expansion of the lesion into the glenoid fossa.
The history, clinical examination and especially the cone beam VCT findings helped to establish a presump- tive radiographic diagnosis of synovial chondromatosis of the left TMJ in this patient. The patient was referred to an oral and maxillofacial surgeon for biopsy and treatment.
Discussion
Synovial chondromatosis of extragnathic joints is rare and involvement of the TMJ even rarer. Georg Axhausen7 first described synovial chondromatosis of the TMJ in 1954 as metaplastic chondrogenesis in the synovial membrane.
The secondary form of synovial chondromatosis is particularly relevant in our case report. The patient was a World War II veteran with a convincing history of re- peated trauma to the jaws and the TMJ and symptoms of joint disease extending over many decades. Several studies8,9 report a correlation between traumatic events and development of synovial chondromatosis. Repeated trauma to the jaws and the resulting blunt force trans- mitted to the joint could have been an initiating factor in the formation of loose bodies that later calcified and presented as synovial chondromatosis of the TMJ in our patient.
Synovial chondromatosis of the TMJ is difficult to differentiate from similar lesions affecting the TMJ (Table 1). Osteoarthritis is an age-related degenerative disease, common in women. Common radiographic findings in osteoarthritis include osteophyte forma- tion, erosion, flattening, sclerosis of mandibular fossa and reduction in joint space.10 Although osteoarthritis may affect the joint space, the calcifications (joint mice) are smaller. In our patient, the size of the calcifications and the apparently normal cortical outlines of the man- dibular condyle and fossa did not favour a diagnosis of osteoarthritis.
Calcium pyrophosphate dihydrate disease (CPDD), or pseudogout, is a type of arthritis caused by the pre- cipitation of calcium pyrophosphate crystals. It is considered a disease of older patients. Fewer than 30 cases affecting the TMJ have been described. The radiographic appearance of CPDD is called chondro- calcinosis, which resembles synovial chondromatosis histologically and radiographically.11,12 However, CPPD of the TMJ is rare and usually associated with predisposing factors.13 There were no predisposing factors evident in our patient, nor did he show any sign of a metabolic disease (gout).
Osteochondroma is a cartilage-capped bony growth usually affecting the appendicular skeleton and rarely involving the mandibular condyle. CT usually depicts the continuity between the cortical outline of native bone and the tumour, a feature that was absent in our patient.14 Table 1 Differential diagnosis of synovial chondromatosis
Diagnosis Distinguishing characteristics
Synovial chondromatosis Loose bodies in synovial space; cortical outline of bone unaltered;
calcifications can attain a large size Osteoarthritis (joint mice) Small calcifications
Chondrocalcinosis (pseudogout) Fine calcifications; even distribution
Osteochondroma Arises from condylar head; cartilage cap present Pigmented villonodular synovitis Not localized to a portion of the joint
Osteochondritis dissecans Younger patients; associated with osteochondral fracture
714 JCDA • www.cda-adc.ca/jcda • December 2009, Vol. 75, No. 10 •
––– Balasundaram –––
Cone beam VCT images of our patient clearly showed a distinct separation of the calcified lesion from the adja- cent condylar head.
Pigmented villonodular synovitis and osteochondritis dissecans are both reactive joint conditions that can cause focal calcifications and should be included in the differential diagnosis.15,16 However, neither of these con- ditions is accompanied by large calcifications such as those found in our patient.
The appropriate treatment for synovial chondroma- tosis includes surgical removal of calcifications followed by total or subtotal synovectomy. Our patient, consid- ering his age and medical condition, declined interven- tion. The lesion is stable 5 years after diagnosis with no evidence of change in size or character.
The diagnostic yield from a readily accessible 3D imaging modality cannot be underestimated. Although a panoramic image confirmed the presence of the lesion, spatial information in all 3 dimensions was crit- ical in establishing a diagnosis. The distinct separation of the lesion from the condyle, only seen in the cone beam VCT images, and the massive size of the calcifica- tions helped us arrive at a diagnosis. Cone beam VCT images also confirmed the site of origin of the lesion at the joint space, which helped narrow our diagnosis.
It does not seem that the calcified lesion in our case report could represent any lesion other than synovial chondromatosis, pending microscopic examination.
Conclusion
The various radiographic modalities used to evaluate a case of synovial chondromatosis of the TMJ have been elucidated. In particular, the utility of a dental CT scanner in diagnosing a lesion involving the TMJ is emphasized.
General dentists must be aware of the availability of this new imaging technology and its ability to diagnose maxillofacial anomalies with radiation doses as low as reasonably achievable. a
THE AUTHORS
Dr. Balasundaram is an assistant professor in the radi- ology division, department of diagnostic sciences, School of Dentistry, University of Detroit Mercy, Detroit, Michigan.
Dr. Geist is a professor in the department of diagnostic sci- ences, School of Dentistry, University of Detroit Mercy, Detroit, Michigan.
Dr. Gordon is an associate professor in the department of oral medicine and diagnostic sciences, University of Illinois at Chicago, College of Dentistry, Chicago, Illinois.
Dr. Klasser is an assistant professor in the department of oral medicine and diagnostic sciences, University of Illinois at Chicago, College of Dentistry, Chicago, Illinois.
Correspondence to: Dr. Ashok Balasundaram, Radiology division, Department of diagnostic sciences, University of Detroit Mercy, 2700 Martin Luther King Boulevard, Detroit, MI 48208, USA.
The authors have no declared financial interests in any company manufac- turing the types of products mentioned in this article.
This article has been peer reviewed.
References
1. Reddy PK, Vannemreddy PS, Gonzalez E, Nanda A. Synovial chondro- matosis of the temporomandibular joint with intracranial extension. J Clin Neurosci. 2000;7(4):332-4.
2. von Lindern JJ, Theuerkauf I, Niederhagen B, Berge S, Appel T, Reich RH.
Synovial chondromatosis of the temporomandibular joint: clinical, diagnostic, and histomorphologic findings. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2002;94(1):31-8.
3. Holmlund AB, Eriksson L, Reinholt FP. Synovial chondromatosis of the temporomandibular joint: clinical, surgical and histological aspects. Int J Oral Maxillofac Surg. 2003;32(2):143-7.
4. Huh JK, Park JY, Lee S, Lee SH, Choi SW. Synovial chondromatosis of the temporomandibular joint with condylar extension. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2006;101(6):e83-8. Epub 2006 Apr 24.
5. Nitzan DW, Marmary Y, Fields SI, Shteyer A. The diagnostic value of computed tomography in temporomandibular joint synovial chondromatosis.
Comput Med Imaging Graph. 1991;15(1):53-6.
6. Sukovic P. Cone beam computed tomography in craniofacial imaging.
Orthod Craniofac Res. 2003;6 Suppl 1:31-6; discussion 179-82.
7. Axhausen G. Arthritis deformans of the temporomandibular joint. Dtsch Zahnarztl Z. 1954;9(15):852-9. German.
8. Reyes Macías JF, Sánchez Prieto M. Synovial chondromatosis of the tem- poromandibular joint. Med Oral Patol Oral Cir Bucal. 2007;12(1):E26-9.
9. Nussenbaum B, Roland PS, Gilcrease MZ, Odell DS. Extra-articular synovial chondromatosis of the temporomandibular joint: pitfalls in diagnosis. Arch Otolaryngol Head Neck Surg. 1999;125(12):1394-7.
10. Alexiou K, Stamatakis H, Tsiklakis K. Evaluation of the severity of tem- poromandibular joint osteoarthritic changes related to age using cone beam computed tomography. Dentomaxillofac Radiol. 2009;38(3):141-7.
11. Eriksson L, Mertens F, Akerman M, Wiegant J. Calcium pyrophosphate di- hydrate crystal deposition disease in the temporomandibular joint: diagnostic difficulties and clonal chromosome aberrations in a case followed up for 5 years. J Oral Maxillofac Surg. 2001;59(10):1217-20.
12. Covani U, Orlando B, Galletti C, Nuterini C, Barone A. Chondrocalcinosis of the temporomandibular joint: clinical considerations and case report.
Cranio. 2009;27(2):134-9.
13. Chuong R, Piper MA. Bilateral pseudogout of the temporomandibular joint: report of case and review of literature. J Oral Maxillofac Surg.
1995;53(6):691-4.
14. Avinash KR, Rajagopal KV, Ramakrishnaiah RH, Carnelio S, Mahmood NS. Computed tomographic features of mandibular osteochondroma.
Dentomaxillofac Radiol. 2007;36(7):434-6.
15. Oda Y, Izumi T, Harimaya K, Segawa Y, Ishihara S, Komune S, et al. Pigmented villonodular synovitis with chondroid metaplasia, resem- bling chondroblastoma of the bone: a report of three cases. Mod Pathol.
2007;20(5):545-51. Epub 2007 Mar 2.
16. Orhan K, Arslan A, Kocyigit D. Temporomandibular joint osteochondritis dissecans: case report. Oral Surg Oral Med Oral Pathol Oral Radiol Endod.
2006;102(4):e41-6. Epub 2006 Jul 14.
