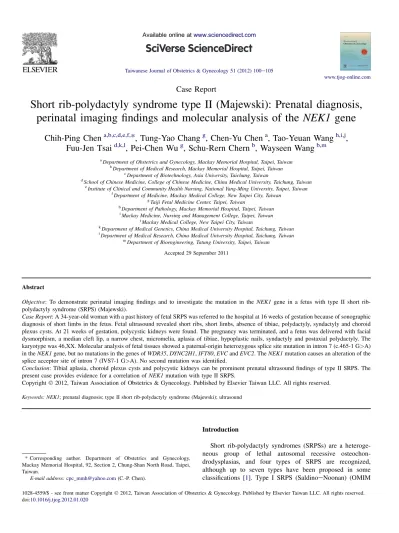

Short rib-polydactyly syndrome type II (Majewski): prenatal diagnosis, perinatal imaging findings and molecular genetic analysis

(1)

Case Report

Short rib-polydactyly syndrome type II (Majewski): Prenatal diagnosis, perinatal imaging findings and molecular analysis of the NEK1 gene

Chih-Ping Chena,b,c,d,e,f,*, Tung-Yao Chang^g, Chen-Yu Chen^a, Tao-Yeuan Wang^h,i,j, Fuu-Jen Tsai^d,k,l, Pei-Chen Wu^g, Schu-Rern Chern^b, Wayseen Wang^b,m

aDepartment of Obstetrics and Gynecology, Mackay Memorial Hospital, Taipei, Taiwan

bDepartment of Medical Research, Mackay Memorial Hospital, Taipei, Taiwan

cDepartment of Biotechnology, Asia University, Taichung, Taiwan

dSchool of Chinese Medicine, College of Chinese Medicine, China Medical University, Taichung, Taiwan

eInstitute of Clinical and Community Health Nursing, National Yang-Ming University, Taipei, Taiwan

fDepartment of Medicine, Mackay Medical College, New Taipei City, Taiwan

gTaiji Fetal Medicine Center, Taipei, Taiwan

hDepartment of Pathology, Mackay Memorial Hospital, Taipei, Taiwan

iMackay Medicine, Nursing and Management College, Taipei, Taiwan

jMackay Medical College, New Taipei City, Taiwan

kDepartment of Medical Genetics, China Medical University Hospital, Taichung, Taiwan

lDepartment of Medical Research, China Medical University Hospital, Taichung, Taiwan

mDepartment of Bioengineering, Tatung University, Taipei, Taiwan Accepted 29 September 2011

Abstract

Objective: To demonstrate perinatal imaging findings and to investigate the mutation in the NEK1 gene in a fetus with type II short rib- polydactyly syndrome (SRPS) (Majewski).

Case Report: A 34-year-old woman with a past history of fetal SRPS was referred to the hospital at 16 weeks of gestation because of sonographic diagnosis of short limbs in the fetus. Fetal ultrasound revealed short ribs, short limbs, absence of tibiae, polydactyly, syndactyly and choroid plexus cysts. At 21 weeks of gestation, polycystic kidneys were found. The pregnancy was terminated, and a fetus was delivered with facial dysmorphism, a median cleft lip, a narrow chest, micromelia, aplasia of tibiae, hypoplastic nails, syndactyly and postaxial polydactyly. The karyotype was 46,XX. Molecular analysis of fetal tissues showed a paternal-origin heterozygous splice site mutation in intron 7 (c.465-1 G>A) in the NEK1 gene, but no mutations in the genes of WDR35, DYNC2H1, IFT80, EVC and EVC2. The NEK1 mutation causes an alteration of the splice acceptor site of intron 7 (IVS7-1 G>A). No second mutation was identified.

Conclusion: Tibial aplasia, choroid plexus cysts and polycystic kidneys can be prominent prenatal ultrasound findings of type II SRPS. The present case provides evidence for a correlation of NEK1 mutation with type II SRPS.

Keywords: NEK1; prenatal diagnosis; type II short rib-polydactyly syndrome (Majewski); ultrasound

Introduction

Short rib-polydactyly syndromes (SRPSs) are a heteroge- neous group of lethal autosomal recessive osteochon- drodysplasias, and four types of SRPS are recognized, although up to seven types have been proposed in some classifications [1]. Type I SRPS (SaldinoeNoonan) (OMIM

* Corresponding author. Department of Obstetrics and Gynecology, Mackay Memorial Hospital, 92, Section 2, Chung-Shan North Road, Taipei, Taiwan.

E-mail address:[email protected](C.-P. Chen).

Taiwanese Journal of Obstetrics & Gynecology 51 (2012) 100e105

www.tjog-online.com

doi:10.1016/j.tjog.2012.01.020

(2)

263530) is characterized by flipper-like extremities, polydactyly, polycystic kidneys and pointed metaphyses. Type II SRPS (Majewski) (OMIM 263520) is characterized by polydactyly, micromelia, cleft lip/palate, polycystic kidneys, disproportionately short ovoid tibia and occasionally hypoplastic epiglottis and larynx. Type III SRPS (VermaeNaum- off) (OMIM 263510) is characterized by polydactyly, micromelia, metaphyseal spurs and occasionally situs inversus totalis. Type IV SRPS (BeemereLanger) (OMIM 269860) clinically resembles type II SRPS, except there is no

polydactyly and more normally developed tibiae. Type III SRPS is similar but milder than type I. Both types I and III are classified together according to current nosology and classification of genetic skeletal disorders[2]. Recently, a new type V SRPS has been suggested. Type V SRPS (OMIM 614091) is most similar to type III SRPS, but is associated with acromesomelic hypomineralization and campomelia [3,4].

Because of overlap in the clinical and radiological manifestations in different types, it is hypothesized that the different subtypes may be a single genetic disorder with variable

Fig. 1. Prenatal ultrasound at 16 weeks of gestation shows: (A) choroid plexus cysts; (B) short ribs and a narrow chest (arrow); (C) short fibula and tibial aplasia;

and (D) and (E) polydactyly. F¼ fibula; T ¼ tibia.

(3)

expressivity. Here, we present perinatal imaging findings and molecular investigation in a fetus with type II SRPS (Majewski).

Case report

A 34-year-old, gravida 5, para 2, woman with a past history of fetal SRPS was referred to the hospital at 16 weeks of gestation following sonographic diagnosis of shortening of the limbs in the fetus. She and her husband were non- consanguineous and had two normal daughters, aged 6 years and 3 years, respectively. Eight years previously, she had given birth to a female fetus with type II SRPS (Majewski). The fetus manifested a median cleft lip, a narrow chest, a protu- berant abdomen, ovoid short tibiae, postaxial polydactyly and micromelia [5]. Five years previously, recurrent SRPS occurred in her third pregnancy that resulted in a malformed male fetus. During this pregnancy, level II ultrasound at 16 weeks of gestation revealed a singleton fetus equivalent to 16 weeks with short ribs, short limbs, absence of tibiae, polydactyly, syndactyly and choroid plexus cysts (Fig. 1). The lengths of four limbs were less than fifth centile. At 21 weeks of gestation, polycystic kidneys were evident on prenatal ultrasound (Fig. 2). The pregnancy was subsequently terminated. A 404-g malformed female fetus was delivered with prominent forehead, low-set ears, a short and flat nose, micrognathia, a median cleft lip, a narrow chest, micromelia, aplasia of tibiae, hypoplastic nails, syndactyly, and postaxial polydactyly of the hands and feet (Fig. 3). The phenotype and radiological manifestations were consistent with the diagnosis of SRPS II (Majewski) (Fig. 4). Pathological examinations showed multiple small cysts in the kidneys (Fig. 5). The fetal karyotype was 46,XX. Molecular analysis of the tissues of the affected fetus showed no mutations in the genes of WDR35, DYNC2H1, IFT80, EVC and EVC2. However, there was a paternal-origin heterozygous splice site mutation in intron 7 (c.465-1 G>A) in the NEK1 gene. The mutation causes an alteration of the splice acceptor site of intron 7 (IVS7-1 G>A) (Fig. 6). No second mutation could be identified in this case.

Discussion

The present case prenatally manifested choroid plexus cysts and absence of tibiae in addition to short ribs, micromelia, enlarged echogenic kidneys and polydactyly. SRPS has been reported to be associated with increased nuchal translucency, cystic hygroma and choroid plexus cysts on prenatal ultrasound[6e9]. The unique aspect in the present case is tibial aplasia on prenatal ultrasound. Round hypoplastic tibia is a characteristic finding of type II SRPS. Radiological manifestations of type II SRPS include underdeveloped mandible, short and horizontally located ribs, mesomelia, extremely short tibiae, rounded metaphyseal ends of long bones, precocious ossification of proximal femoral epiphysis, polydactyly, syndactyly and distal phalangeal hypoplasia[1].

SRPS is an autosomal recessive disorder with a recurrence rate in 25% of cases. Genetic counseling of fetal SRPS should include differential diagnosis of Jeune asphyxiating thoracic dystrophy (JATD) and Ellisevan Creveld syndrome (EvCS).

SRPS, JATD and EvCS belong to ciliopathy. Ciliopathy is associated with defects in a variety of ciliary proteins neces- sary for intraflagellar transport (IFT), primary cilia, basal body and centrosome. JATD (OMIM 208500) is an autosomal recessive disorder characterized by thoracic dystrophy, chon- drodysplasia, short ribs, short long bones, inconstant polydactyly, trident acetabular roof and occasional involvement of hepatic and retinal degeneration and cystic renal disease.

JATD is caused by mutations of the IFT80 gene (OMIM 611177) and DYNC2H1 gene (OMIM 603297). JATD and type III SRPS have been suggested to be variants of a single ciliary disorder[10]. EvCS (OMIM 225500) is an autosomal recessive disorder characterized by short ribs, short limbs, postaxial polydactyly of the hands, occasional polydactyly of the feet, ectodermal dysplasia such as dysplastic nails and teeth, sparse hair and an absent gingival sulcus, and congenital heart defects such as a common atrium, atrioventricular septal defects and patent ductus arteriosus[11]. EvCS is caused by mutations in the EVC gene (OMIM 604831) or EVC2 gene (OMIM 607261). SRPSs share similar findings in the phenotypic and radiological manifestations with JATD and EvCS. Merrill et al [12]suggested that SRPS, JATD and EvCS comprise a family of disorders that may be functionally related. Recently, SRPS has been found to be caused by mutations in the genes of IFT80, DYNC2H1, NEK1 (OMIM 604588) or WDR35 (OMIM 613602).

The WDR35 gene is located at 2p24.1. WDR35 is a WD40 domain-containing protein and functions in intraflagellar transport [13]. Gilissen et al [13] first identified compound heterozygous mutations in the WDR35 gene in patients with cranioectodermal dysplasia 2 (CED2; OMIM 613610). Mill et al [4] later mapped the SRPS disease locus to 2p24 from two siblings affected by type II SRPS and subsequently identified an in-frame homozygous 2,847-bp deletion spanning exon 5 of the WDR35 gene. Mill et al[4]additionally identified compound heterozygous mutations in the WDR35 gene in an unrelated fetus with type V SRPS. The fetus inherited a nonsense mutation of R545X from the mother and a missense mutation of W261R

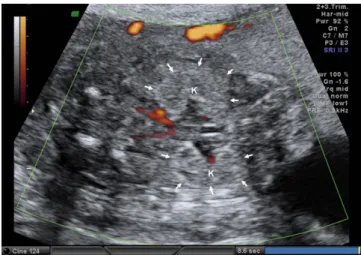

Fig. 2. Prenatal ultrasound at 21 weeks of gestation shows bilateral enlarged echogenic kidneys (K) (arrows) consistent with polycystic kidneys.

(4)

Fig. 3. The fetus at birth: (A) whole-body view; (B) characteristic facial features of prominent forehead, malformed low-set ears, a median cleft lip, a short and flat nose and micrognathia; (C) polydactyly and syndactyly of the hands; (D) polydactyly and syndactyly of the feet with hypoplastic nails.

Fig. 4. Radiological manifestations: (A) skull with underdeveloped mandible; (B) short and horizontally located ribs; (C) precocious humeral ossification, polydactyly, distal phalangeal hypoplasia and symphalangism; (D) precocious femoral ossification and aplasia of the tibiae.

(5)

from the father. Mill et al [4] showed that the endogenous WDR35 localizes to cilia and centrosomes throughout the developing embryo, and that mouse and human fibroblasts lacking the WDR35 protein fail to produce cilia.

The NEK1 gene is located at 4q33. NEK1 is a mammalian protein relative of the fungal NIMA (never in mitosis gene A) regulator[14]. Thiel et al[15]mapped the SRPS disease locus

to 4q32.1-q34.3 from the affected probands of type II SRPS from two consanguineous families, and identified a homozygous R127X mutation in the NEK1 gene in an affected individual with type II SRPS and a homozygous splice site mutation of c.869-2 A>G in NEK1 in another individual with type II SRPS. Thiel et al[15]additionally identified a heterozygous 1-bp insertion (c.1640_1641insA) in the NEK1 gene,

Fig. 5. Pathological manifestations: (A) polycystic kidney, hematoxylineeosin (H&E) stain 1; (B) polycystic kidney, H&E stain 40.

Fig. 6. A heterozygous splice site mutation in intron 7 (c.465-1 G>A) in the NEK1 gene in the father and the fetus. The mutation causes an alteration of the splice acceptor site of intron 7 (IVS7-1 G>A).

(6)

and a heterozygous G3916D missense mutation in the DYNC2H1 gene in the third individual with type II SRPS. Thiel et al [15]found that absence of functional full-length NEK1 severely reduces cilia number and alters cilia morphology in vivo.

The IFT80 gene is located at 3q25.33. IFT80 is a protein component of the intraflagellar transport complex B and is essential for the development and maintenance of motile and sensory cilia[16]. Cavalcanti et al[17]reported a homozygous missense mutation of G241R in exon 8 of the IFT80 gene in a fetus with type III SRPS. In an Ift80 mouse model of SRPS, Rix et al [18] demonstrated defects in hedgehog signaling without loss or malformation of cilia and suggested that Ift80 is required in hedgehog signaling, but low-level expression of Ift80 permits ciliogenesis.

The DYNC2H1 gene is located at 11q22.3. DYNC2H1 is a cytoplasmic dynein involved in retrograde transport in the cilia. Dagoneau et al[10]identified compound heterozygosity for missense mutations of Q1537R and G2461V in the DYNC2H1 gene in a fetus with type III SRPS. Dagoneau et al [10] additionally identified compound heterozygosity for a missense mutation of T1987A inherited from the father and a frameshift mutation of 10130delT or 1-bp deletion in exon 67 inherited from the mother in the DYNC2H1 gene in three fetuses with type III SRPS. Merrill et al[12]detected homozygosity for a missense mutation of R587C in the DYNC2H1 gene in four affected offspring with type III SRPS from first-cousin parents.

Merrill et al [12] identified compound heterozygosity for a missense mutation of R2205H and a nonsense mutation of R2838X in the DYNC2H1 gene in a patient with type III SRPS.

Merrill et al [12]additionally identified compound heterozygosity for a substitution of consecutive basepairs in exon 5 (624_625 GT>AA) resulting in a missense mutation of F209I, and for an alteration of the splice donor site of intron 33 (IVS33þ1 G>T) resulting in nonsense-mediated decay in the DYNC2H1 gene in an individual with type III SRPS. A heterozygous G3916D missense mutation has also been observed in a patient with type II SRPS[15].

In summary, this presentation demonstrates perinatal imaging findings of a median cleft lip, tibial aplasia, choroid plexus cysts and polycystic kidneys in addition to short ribs, short limbs and polydactyly in a fetus with type II SRPS. The present case provides evidence for a correlation of a mutation in the NEK1 gene with type II SRPS.

Acknowledgments

This work was supported by research grants NSC-97-2314- B-195-006-MY3 and NSC-99-2628-B-195-001-MY3 from the National Science Council, and MMH-E-100-04 from Mackay Memorial Hospital, Taipei, Taiwan.

References

[1] Lachman RS. Skeletal dysplasia. In: Taybi H, Lachman RS, editors.

Radiology of syndromes, metabolic disorders, and skeletal dysplasias.

5th ed. St Louis: Mosby; 2007. p. 1052e7.

[2] Superti-Furga A, Unger S. Nosology and classification of genetic skeletal disorders: 2006 revision. Am J Med Genet 2007;143A:1e18.

[3] Kannu P, McFarlane JH, Savarirayan R, Aftimos S. An unclassifiable short rib-polydactyly syndrome with acromesomelic hypomineralization and campomelia in siblings. Am J Med Genet 2007;143A:2607e11.

[4] Mill P, Lockhart PJ, Fitzpatrick E, Mountford HS, Hall EA, Reijns MAM, et al. Human and mouse mutations in WDR35 cause short- rib polydactyly syndromes due to abnormal ciliogenesis. Am J Hum Genet 2011;88:508e15.

[5] Chen C-P, Chang T-Y, Tzen C-Y, Wang W. Second-trimester sonographic detection of short rib-polydactyly syndrome type II (Majewski) following an abnormal maternal serum biochemical screening result. Prenat Diagn 2003;23:353e5.

[6] Wu M-H, Kuo P-L, Lin S-J. Prenatal diagnosis of recurrence of short rib- polydactyly syndrome. Am J Med Genet 1995;55:279e84.

[7] Shindel B, Wise S. Recurrent short rib-polydactyly syndrome with unusual associations. J Clin Ultrasound 1999;27:143e6.

[8] Daskalakis G, Souka AP, Kavalakis I, Haritos T, Basayiannis C, Antsaklis P, et al. Short-rib-polydactyly syndrome presenting with increased nuchal translucency in a high-risk family. Fetal Diagn Ther 2006;21:401e3.

[9] Taori KB, Sharbidre KG, Krishnan V, Kundargi N, Kulkarni BR, Satkar V, et al. Diagnosis of short rib polydactyly syndrome type IV (Beemer-Langer syndrome) with cystic hygroma: a case report. J Clin Ultrasound 2009;37:406e9.

[10] Dagoneau N, Goulet M, Genevie`ve D, Sznajer Y, Martinovic J, Smithson S, et al. DYNC2H1 mutations cause asphyxiating thoracic dystrophy and short rib-polydactyly syndrome, type III. Am J Hum Genet 2009;84:706e11.

[11] Chen C-P, Su Y-N, Chern S-R, Tsai F-J, Wu P-C, Chen P-T, et al. Ellis- van Creveld syndrome: prenatal diagnosis, molecular analysis and genetic counseling. Taiwan J Obstet Gynecol 2010;49:481e6.

[12] Merrill AE, Merriman B, Farrington-Rock C, Camacho N, Sebald ET, Funari VA, et al. Ciliary abnormalities due to defects in the retrograde transport protein DYNC2H1 in short-rib polydactyly syndrome. Am J Hum Genet 2009;84:542e9.

[13] Gilissen C, Arts HH, Hoischen A, Spruijt L, Mans DA, Arts P, et al.

Exome sequencing identifies WDR35 variants involved in Sensenbrenner syndrome. Am J Hum Genet 2010;87:418e23.

[14] Letwin K, Mizzen L, Motro B, Ben-David Y, Bernstein A, Pawson T. A mammalian dual specificity protein kinase, Nek1, is related to the NIMA cell cycle regulator and highly expressed in meiotic germ cells. EMBO J 1992;10:3521e31.

[15] Thiel C, Kessler K, Giessl A, Dimmler A, Shalev SA, von der Haar S, et al. NEK1 mutations cause short-rib polydactyly syndrome type Majewski. Am J Hum Genet 2011;88:106e14.

[16] Beales PL, Bland E, Tobin JL, Bacchelli C, Tuysuz B, Hill J, et al. IFT80, which encodes a conserved intraflagellar transport protein, is mutated in Jeune asphyxiating thoracic dystrophy. Nat Genet 2007;39:727e9.

[17] Cavalcanti DP, Huber C, Le Quan Sang K-H, Baujat G, Collins F, Delezoide A-L, et al. Mutation in IFT80 in a fetus with the phenotype of VermaeNaumoff provides molecular evidence for JeuneeVermae Naumoff dysplasia spectrum. J Med Genet 2011;48:88e92.

[18] Rix S, Calmont A, Scambler PJ, Beales PL. An Ift80 mouse model of short rib polydactyly syndromes shows defects in hedgehog signalling without loss or malformation of cilia. Hum Mol Genet 2011;20:1306e14.
