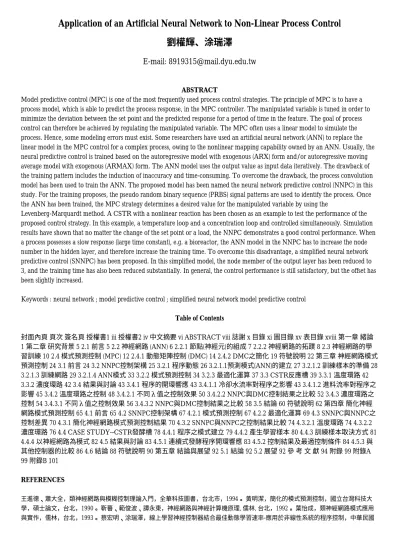

Application of an Artificial Neural Network to Non-Linear Process Control 劉權輝、涂瑞澤
E-mail: [email protected]
ABSTRACT
Model predictive control (MPC) is one of the most frequently used process control strategies. The principle of MPC is to have a process model, which is able to predict the process response, in the MPC controller. The manipulated variable is tuned in order to minimize the deviation between the set point and the predicted response for a period of time in the feature. The goal of process control can therefore be achieved by regulating the manipulated variable. The MPC often uses a linear model to simulate the process. Hence, some modeling errors must exist. Some researchers have used an artificial neural network (ANN) to replace the linear model in the MPC control for a complex process, owing to the nonlinear mapping capability owned by an ANN. Usually, the neural predictive control is trained based on the autoregressive model with exogenous (ARX) form and/or autoregressive moving average model with exogenous (ARMAX) form. The ANN model uses the output value as input data iteratively. The drawback of the training pattern includes the induction of inaccuracy and time-consuming. To overcome the drawback, the process convolution model has been used to train the ANN. The proposed model has been named the neural network predictive control (NNPC) in this study. For the training proposes, the pseudo random binary sequence (PRBS) signal patterns are used to identify the process. Once the ANN has been trained, the MPC strategy determines a desired value for the manipulated variable by using the
Levenberg-Marquardt method. A CSTR with a nonlinear reaction has been chosen as an example to test the performance of the proposed control strategy. In this example, a temperature loop and a concentration loop and controlled simultaneously. Simulation results have shown that no matter the change of the set point or a load, the NNPC demonstrates a good control performance. When a process possesses a slow response (large time constant), e.g. a bioreactor, the ANN model in the NNPC has to increase the node number in the hidden layer, and therefore increase the training time. To overcome this disadvantage, a simplified neural network predictive control (SNNPC) has been proposed. In this simplified model, the node member of the output layer has been reduced to 3, and the training time has also been reduced substantially. In general, the control performance is still satisfactory, but the offset has been slightly increased.
Keywords : neural network ; model predictive control ; simplified neural network model predictive control Table of Contents
封面內頁 頁次 簽名頁 授權書1 iii 授權書2 iv 中文摘要 vi ABSTRACT viii 誌謝 x 目錄 xi 圖目錄 xv 表目錄 xviii 第一章 緒論 1 第二章 研究背景 5 2.1 前言 5 2.2 神經網路 (ANN) 6 2.2.1 節點(神經元)的組成 7 2.2.2 神經網路的拓蹼 8 2.3 神經網路的學 習訓練 10 2.4 模式預測控制 (MPC) 12 2.4.1 動態矩陣控制 (DMC) 14 2.4.2 DMC之簡化 19 符號說明 22 第三章 神經網路模式 預測控制 24 3.1 前言 24 3.2 NNPC控制架構 25 3.2.1 程序動態 26 3.2.1.1預測模式(ANN)的建立 27 3.2.1.2 訓練樣本的準備 28 3.2.1.3 訓練網路 29 3.2.1.4 ANN模式 33 3.2.2 模式預測控制 34 3.2.3 最適化運算 37 3.3 CSTR反應槽 39 3.3.1 溫度環路 42 3.3.2 濃度環路 42 3.4 結果與討論 43 3.4.1 程序的開環響應 43 3.4.1.1 冷卻水流率對程序之影響 43 3.4.1.2 進料流率對程序之 影響 45 3.4.2 溫度環路之控制 48 3.4.2.1 不同λ值之控制效果 50 3.4.2.2 NNPC與DMC控制結果之比較 52 3.4.3 濃度環路之 控制 54 3.4.3.1 不同λ值之控制效果 56 3.4.3.2 NNPC與DMC控制結果之比較 58 3.5 結論 60 符號說明 62 第四章 簡化神經 網路模式預測控制 65 4.1 前言 65 4.2 SNNPC控制架構 67 4.2.1 模式預測控制 67 4.2.2 最適化運算 69 4.3 SNNPC與NNPC之 控制差異 70 4.3.1 簡化神經網路模式預測控制結果 70 4.3.2 SNNPC與NNPC之控制結果比較 74 4.3.2.1 溫度環路 74 4.3.2.2 濃度環路 76 4.4 CASE STUDY--CSTR發酵槽 78 4.4.1 程序之模式建立 79 4.4.2 產生學習樣本 80 4.4.3 訓練樣本取決方式 81 4.4.4 以神經網路為模式 82 4.5 結果與討論 83 4.5.1 連續式發酵程序開環響應 83 4.5.2 控制結果及最適控制條件 84 4.5.3 與 其他控制器的比較 86 4.6 結論 88 符號說明 90 第五章 結論與展望 92 5.1 結論 92 5.2 展望 92 參 考 文 獻 94 附錄 99 附錄A 99 附錄B 101
