by Using Adaptive Discretization
Ying-ping Chen
∗ ypchen@nclab.twDepartment of Computer Science, National Chiao Tung University, Hsinchu, Taiwan
Chao-Hong Chen
chchen@nclab.twDepartment of Computer Science, National Chiao Tung University, Hsinchu, Taiwan
Abstract
An adaptive discretization method, called split-on-demand (SoD), enables estimation of distribution algorithms (EDAs) for discrete variables to solve continuous optimization problems. SoD randomly splits a continuous interval if the number of search points within the interval exceeds a threshold, which is decreased at every iteration. After the split operation, the nonempty intervals are assigned integer codes, and the search points are discretized accordingly. As an example of using SoD with EDAs, the inte-gration of SoD and the extended compact genetic algorithm (ECGA) is presented and numerically examined. In this integration, we adopt a local search mechanism as an optional component of our back end optimization engine. As a result, the proposed framework can be considered as a memetic algorithm, and SoD can potentially be ap-plied to other memetic algorithms. The numerical experiments consist of two parts: (1) a set of benchmark functions on which ECGA with SoD and ECGA with two well-known discretization methods: the fixed-height histogram (FHH) and the fixed-width histogram (FWH) are compared; (2) a real-world application, the economic dispatch problem, on which ECGA with SoD is compared to other methods. The experimental results indicate that SoD is a better discretization method to work with ECGA. More-over, ECGA with SoD works quite well on the economic dispatch problem and delivers solutions better than the best known results obtained by other methods in existence.
Keywords
Estimation of distribution algorithm, EDA, ECGA, split-on-demand, SoD, real-parameter optimization, economic dispatch, valve point effect.
1
Introduction
Genetic algorithms are widely applied on many real-world optimization problems. According to the theory of design decomposition (Goldberg, 2002), key components in the GA success include identifying, reproducing, and exchanging solution structures. Recombination, one of the main GA operators, mixes the promising subsolutions, called building blocks (BBs), and creates new solutions. Genetic algorithms therefore work very well on those problems that can be decomposed into subproblems. However, problem-independent recombination operators with fixed chromosome representations
often break building blocks and result in ineffective mixing. When traditional genetic algorithms meet complex solution structures composed of groups of related genes, they often fail to appropriately identify and exchange building blocks to create good final solutions (Goldberg et al., 1989).
In order to mix genes effectively, Larra ˜naga and Lozano (2001) and Pelikan et al. (2002) proposed evolutionary algorithms based on probabilistic models. In such schemes, the offspring population is generated according to the estimated probabilistic model of the selected individuals instead of using regular recombination and mutation operators. The probabilistic model is expected to reflect the problem structure, and bet-ter performance can be achieved via exploring and exploiting the relationship among genes. These evolutionary algorithms are called estimation of distribution algorithms (EDAs) or probabilistic model building genetic algorithms (PMBGAs; Larra ˜naga and Lozano, 2001; Pelikan et al., 2002).
In EDAs, decision variables are often coded with binary codes. It is computation-ally expensive to find high accuracy solutions in solving continuous problems for EDAs combined with elementary discretization methods (Tsutsui et al., 2001; Pelikan et al., 2003). Moreover, many real-world engineering problems are real-parameter optimiza-tion problems, such as structural optimizaoptimiza-tion. In the literature, several attempts to apply EDAs to problems in the continuous domain have been made, including con-tinuous population-based incremental learning with Gaussian distribution (Sebag and Ducoulombier, 1998), a real-coded variant of population-based incremental learning with interval updating (Servet et al., 1997), Bayesian evolutionary algorithms for con-tinuous function optimization (Shin and Zhang, 2001), and the real-coded Bayesian optimization algorithm (Ahn et al., 2004).
However, these approaches require the knowledge of and are clearly specialized for the modified algorithms. In order to provide a good, general interface between problems of continuous variables and algorithms for discrete variables, we propose a framework that enables the EDAs designed for handling bit strings to tackle real-valued optimization problems. Particularly, we develop a new, adaptive discretization encoding scheme that can be easily integrated into EDAs or other algorithms for discrete variables, and we use the extended compact genetic algorithm (ECGA; Harik, 1999) as an example in the present work.
In the next section, we will give a background of this study, including a brief introduction of ECGA and two well-known discretization methods: the fixed-height histogram (FHH) and the fixed-width histogram (FWH). Section 3 proposes split-on-demand (SoD) and describes in detail how SoD encodes individuals of real values into integer codes. In Section 4, we use SoD to enable ECGA to handle real-valued variables. The numerical experiments on benchmark functions are presented in Section 5, includ-ing the comparisons with the elementary discretization techniques and other optimiza-tion methods in evoluoptimiza-tionary computaoptimiza-tion. The proposed framework is also adopted to tackle the economic dispatch problem in Section 6. Finally, Section 7 concludes this work.
2
Background
This section first provides a brief overview of EDAs. EDAs use probabilistic models to represent distributions of candidate solutions. Constructing probabilistic models and sampling from the models replace the usual crossover and mutation operators in genetic algorithms. Next, the feature designs of the ECGA are described, including the probabilistic model and the criterion to evaluate the models. The section ends
by introducing two discretization methods, the FHH and the FWH, which will be integrated with ECGA.
2.1 Estimation of Distribution Algorithms
EDAs (M ¨uhlenbein and Paaß, 1996; Larra ˜naga and Lozano, 2001; Pelikan et al., 2002) tackle optimization problems by constructing probabilistic models based on promis-ing solutions and by generatpromis-ing offsprpromis-ing solutions from the built models. From the viewpoint of genetic and evolutionary algorithms, EDAs replace the regular genetic operators, such as crossover and mutation, with the construction and utilization of probabilistic models. In EDAs, at each generation, the selection operator selects promis-ing individuals from the current population. A probabilistic model is then constructed according to these selected individuals, and new individuals are produced by sampling from the built model.
An EDA can be algorithmically outlined as 1. Initialize a population at random.
2. Apply the selection operator on the population.
3. Model the selected individuals by constructing a probabilistic model. 4. Stop if the termination criterion is satisfied.
5. Generate a new population by sampling the built model. 6. Return to step 2.
Early EDAs, such as population-based incremental learning (PBIL; Baluja, 1994) and the compact genetic algorithm (cGA; Harik et al., 1999), assume no interaction be-tween variables. Each variable is modeled independently of the others and subsequent studies start by capturing potential pairwise interactions, such as mutual-information-maximizing input clustering (MIMIC; de Bonet et al., 1997), Baluja’s dependency tree approach (Baluja and Davies, 1997), and the bivariate marginal distribution algorithm (BMDA; Pelikan and M ¨uhlenbein, 1999). Further studies modeled multivariate inter-actions, such as the ECGA (Harik, 1999), the Bayesian optimization algorithm (BOA; Pelikan et al., 1999), the estimation of Bayesian network algorithm (EBNA; Etxeberria and Larra ˜naga, 1999), the factorized distribution algorithm (FDA; M ¨uhlenbein and Mahnig, 1999), and the learning version of FDA (LFDA; M ¨uhlenbein and H ¨ons, 2005). With the reasoning of dependencies among variables by building probabilistic models, these approaches can capture problem structures and achieve good performance. 2.2 Extended Compact Genetic Algorithm
The ECGA was proposed by Harik (1999) based on the idea that probability distribu-tions can be used to model the population in genetic algorithms and the choice of a good probability distribution can be viewed as equivalent to learning linkage between variables. The probabilistic models adopted in ECGA are a class of models known as the marginal product models (MPMs; Harik, 1999). ECGA utilizes MPMs to model partitions of variables. The measurement of distribution quality is quantified accord-ing to the minimum description length (MDL) principle (Rissanen, 1989), which can be considered as a realization of Occam’s razor. MDL prefers simpler distributions to
more complex ones. The MDL criterion penalizes both inaccuracy and complexity and thereby produces high quality distributions.
ECGA can be algorithmically outlined as
1. Initialize a population of N individuals at random. 2. Apply tournament selection of size S.
3. Model the selected individuals with a greedy MPM search. 4. Stop if the MPM model has converged.
5. Generate a new population by sampling the MPM model. 6. Return to step 2.
The complexity measurement of the MPM model is the sum of (1) model complexity and (2) compressed population complexity:
Model complexity= log N I
2S[I ], (1)
where N is the population size, and S[I ] is the length of the I th subset of genes. Compressed population complexity= NE(MI), (2) where E(MI) is the entropy of the marginal distribution for subset I . According to the MDL principle, the goal for the greedy MPM search is to find an MPM model with the minimal combined complexity.
Instead of applying regular crossover and mutation operators, ECGA creates the new population by sampling the MPM model obtained in Step 3. This creates offspring without disrupting linkage groups of decision variables. In the original framework, ECGA can handle only binary variables. In order to make ECGA capable of tackling the real-parameter optimization problems, a certain technique is required to play as an interface between the method for optimization and the problem to solve. In the present work, we propose an adaptive discretization method, SoD, which will be described in Section 3. In the next section, we will briefly introduce two well-known discretization methods, the FHH and the FWH.
2.3 Discretization Methods
Discretization can be used to transform problems from the continuous domain into the discrete domain and to provide an interface between problems and solvers of different domains. After discretization, the candidate solutions in the continuous domain are encoded as discrete codes, such as binary strings or integer vectors. The optimization techniques designed for discrete variables can then operate on these binary strings or integer vectors. In this section, two elementary discretization methods are described (Bosman and Thierens, 2000; Cant ´u-Paz, 2001; Tsutsui et al., 2001).
−100 100 2
(a) Population # 1: five-bin FHH (two individuals in each bin).
−100 100
2
(b) Population # 2: five-bin FHH (two individuals in each bin).
−100 100
2
(c) Population # 3: five-bin FHH (two individuals in each bin).
Figure 1: Three populations discretized by the five-bin FHH. 2.3.1 Fixed-Height Histogram (FHH)
One way to discretize an interval is to place equal numbers of individuals in the bins. Real-valued individuals within one bin are all encoded as the discrete code assigned to that bin. One of the intuitive ways to discretize an interval is to make all the bins contain the same number of individuals. Such a method is called the fixed-height histogram, where the word height refers to the number of individuals contained in each bin. Figure 1 shows an example to discretize three different populations of size 10 with a five-bin FHH. Because of the fixed height, each bin contains exactly two individuals.
2.3.2 Fixed-Width Histogram (FWH)
Another discretization technique fixes the width of the bins. Figure 2 shows the dis-cretization of three populations of size 10 into five bins using this technique, called fixed-width histogram. For an interval [, u), a k-bin FWH divides the interval into k bins of equal width (u− )/k. The range of the ith bin can be given as
+i(u− ) k , + (i+ 1)(u − ) k ,
where i∈ {0, . . . , k − 1}. Figure 2 shows that the discretization configuration is identical for the three different populations, and the width of each bin is fixed as 40.
3
Split-on-Demand
An adaptive discretization method, called split-on-demand, encodes real-number deci-sion variables into discrete numerical codes (Chen et al., 2006). The main idea of SoD is to encode with more integer codes those regions that we are more interested in and want to know more about. For this purpose, SoD splits the continuous intervals in which there are equal to or more than a specified number of individuals at random. Thus, when SoD works with EDAs, more accurate probabilistic models regarding these promising
40 40 40 40 40
−100 100
(a) Population # 1: 5-bin FWH (the width is 40 for each bin).
40 40 40 40 40
−100 100
(b) Population # 2: 5-bin FWH (the width is 40 for each bin).
40 40 40 40 40
−100 100
(c) Population # 3: 5-bin FWH (the width is 40 for each bin).
Figure 2: Three populations discretized by the five-bin FWH.
regions may be built, while less computational resources may be spent on modeling the regions containing fewer individuals. A split rate γ , where 0 < γ < 1, is employed to determine whether or not a real-number interval should be split. If the population size is N, an interval containing equal to or more than N× γ individuals should be split. By adjusting γ , we can control the precision of the probabilistic model (of discrete variables) as well as avoid having unnecessarily long bit strings for discretization.
As described, SoD splits a dimension of real numbers into several intervals and assigns each of the intervals an integer code. We can then translate a vector of real numbers into a vector of integers, which can be represented by bits or binary codes more directly. As an example, given a real-parameter optimization problem of two dimensions, one possible code table constructed by SoD is shown in Figure 3. The solution (−72.3, 24.8) is encoded as (0, 1), and the solution (13.8, −5.3) as (2, 0). Figure 4 shows the solution space split by the code table given in Figure 3. Figure 4(a) is the split configuration on dimension 1, Figure 4(b) is the split configuration on dimension 2, and Figure 4(c) is the combined split configuration on (dimension 1, dimension 2), which is the whole solution space. The code table splits the solution space into 12 regions.
In order to construct the table, SoD splits continuous intervals in which there are too many search points. Because a selection operator chooses promising individuals at each generation, if there is a host of individuals in certain regions after selection, we may consider those regions important and conclude that the probability of good solutions in those regions is higher. Therefore, we split promising regions to gain higher resolution as well as to achieve better accuracy in assisting the EDA to build high quality models. In order to determine which interval to split, we employ a split rate γ , where 0 <
γ <1. An interval should be split if it contains equal to or more than N × γ individuals,
where N is the population size. The split rate controls the resolution and accuracy of the probabilistic model to be built. If the probabilistic model is required to be more accurate, smaller split rates should be used such that the value range of a variable is split into more intervals. Furthermore, for the same reason, the split rate also stochastically decides the overall code length. The higher the split rate, the shorter the code length, and vice versa.
Dimension 1 Dimension 2
Interval Code Interval Code
–100 to –50 0 –100 to 0 0
–50 to 0 1 0 to 50 1
0 to 50 2 50 to 100 2
50 to 100 3
Figure 3: An example code table constructed by SoD for a real-parameter optimization problem of two dimensions.
100
−100 −50 0 50
(a) Split configuration on dimension 1.
100 0 5 0 0 0 1 −
(b) Split configuration on dimension 2.
–100 –50 0 50 100 –100 –50 0 50 100
(c) Combined split configuration on both dimensions.
Figure 4: An illustration of the solution space being split according to the code table given in Figure 3.
The procedure of SoD can be described as follows, and the pseudocode of SoD is shown in Figure 5. Procedure Split-on-Demand first calls subroutine Split on the interval [lower bound, upper bound), where the lower bound and upper bound are the bounds of the range of a decision variable. Split generates a uniformly distributed random number m within the interval in question and counts the individuals in the two subintervals: [, m) and [m, u). If an interval contains equal to or more than N× γ individuals, it should be further split. Split will recursively call itself to split that interval until all the intervals contain fewer than N × γ individuals.
When all the split operations are done, we decrease the split rate by a factor , where 0 < < 1. The reason to decrease the split rate is to have higher split rates at
1: procedureprocedure SPLIT-ON-DEMAND 2: Split([lower bound, upper bound))
3: γ ← γ ×
4: enend procedureprocedure
1: procedureprocedure SPLIT([ , u))
2: m ← random[ ) 3: N ← number of individuals in [ ) 4: Nu← number of individuals in [m u) 5: ifif N ≥ N × γ thenthen 6: Split([ , m)) 7: elseelse
8: Add a code for the range[ )
9: enend ifif
10: ifif Nu≥ N × γ thenthen 11: Split([m, u))
12: elseelse
13: Add a code for the range[m u)
14: enend ifif 15: enend procedureprocedure
Figure 5: Pseudocode for SoD.
early search stages to maintain the diversity as well as to implement a coarse-grained, global search. As the search process proceeds, we obtain more and more information about the solution space and know where to put more search points to find good solutions. Hence, at late search stages, a lower split rate is needed to build accurate probabilistic models for conducting a fine-grained, local search. The factor can be set to control the speed of convergence. An appropriate can help the back end search algorithm to avoid wasting time on useless regions as well as being trapped at local optima, and therefore is key to an efficient search process.
We now give an example of how SoD runs on populations. Assume that the popu-lation size is 10, and the initial split rate γ = 0.5. Figure 6 depicts how the individuals are distributed at different generations. Initially, Figure 6(a) shows that the first posi-tion to split, marked by 1, is randomly generated. We then discover that the number of individuals in the left interval is larger than 10× γ = 5. Under this condition, SoD calls Splitto perform a random split on the left interval and gets the second split position, marked by 2. After the second split, the numbers of individuals in the two intervals,
−100 100 1
2
(a) Population #1 and two split positions at generation 1. γ = 0.5.
10 × γ = 5.
−100 100
1
2 3
(b) Population #2 and three split positions at generation 10.γ = 0.4.
10 × γ = 4.
−100 100
1 2
3 5 4
(c) Population #3 and five split positions at generation 20.γ = 0.3.
10 × γ = 3.
Figure 6: Populations and split positions at different generations.
the left interval and the right interval to the second split position, are both less than 10× γ = 5. As a consequence, SoD stops the split operation and decreases the split rate. Figure 6(b) shows the population and the splits at generation 10. The split rate γ is now 0.4. SoD performs a random split to cut the whole interval into two intervals. It can be observed that both the left and the right intervals contain equal to or more than 10× γ = 4 individuals. As a result, SoD calls Split on both the left and the right intervals. For the left interval, SoD randomly splits it into two intervals and finds out that each interval contains three individuals. By conducting the recursive split operation until no more interval has to be split, three splits make the value range four intervals. Moreover, in Figure 6(c) at generation 20, the split rate is 0.3. SoD runs on the population, and the whole interval is split into six regions by five splits.
One might wonder whether the proposed encoding scheme seems similar to the FHH method. In fact, there is a significant difference between SoD and FHH—the code table construction. In FHH, because the height of histograms, that is, the number of bins employed in the algorithm, is fixed, the code table is deterministically constructed for any given population. However, in SoD, even with the same split rate, for the same population, different code tables may be stochastically constructed. Such a flexibility might make the probabilistic model built by the back end EDA more accurate than what is built according to the individuals encoded by FHH.
For handling the adaptive discretization during an optimization process, Figure 7 shows an example of how SoD cooperating with ECGA splits the solution space at dif-ferent generations when a two-dimensional objective function G1=
xi2is minimized, where the bound of every dimension is [−100, 100], and the global optimum is (0, 0).
–100 –50 0 50 100 –100 –50 0 50 100 –100 –50 0 50 100 –100 –50 0 50 100 –100 –50 0 50 100 –100 –50 0 50 100 (a) Generation 1 (b) Generation 50 (c) Generation 100
Figure 7: Split configurations at different generations for G1=
Figure 7(a) depicts the split configuration on the solution space at generation 1. The split configuration seems random because the population is highly diverse at generation 1. Later, at generation 50, the population begins to converge, and Figure 7(b) shows that SoD splits the solution space around (0, 0) into many regions and leaves other parts of the solution space un-encoded. Finally, in Figure 7(c), it can be observed that SoD focuses on the solution space close to (0, 0) at generation 100. With the population con-verging to (0, 0), ECGA is able to explore the promising solution space more thoroughly and to find the solutions of higher precision.
Another example is the two-dimensional objective function G2=
10− |xi|. Figure 8 depicts how SoD splits the solution space, of which the bound of each di-mension is [−10, 10], when G2is minimized. There are four global minima located at
(−10, −10), (−10, 10), (10, −10), and (10, 10). Figure 8(a) is the split configuration on the solution space at generation 1. Because the population is initially random, the split configuration seems random. In Figure 8(b), we observe that at generation 10, because the population begins to converge to the global minima, the split points are close to the four corners where the global minima of G2are located. Finally, Figure 8(c) shows that
almost all split points are around the region close to (10, 10) because the population converges to one of the four global optima at generation 20.
These two examples demonstrate that the split configuration established by SoD appropriately responds to the status of the population. The split configuration can en-code the individuals as precisely as necessary for the backend EDA to build probabilistic models. Hence, SoD is an effective encoding technique to make EDAs able to handle real-parameter optimization problems. In the next section, ECGA, as an example of EDAs, will be employed to show the feasibility of integrating SoD and EDAs.
4
Real-Coded ECGA
In the previous section, we proposed the adaptive discretization SoD method, we de-scribed the behavior of SoD, and we demonstrated the effect of SoD. In this section, we will show the way to plug SoD into ECGA, as a showcase for the integration of SoD and EDAs. A similar hybridization was proposed by Pelikan et al. (2003) to use a dis-cretization method as a bridge between optimization techniques designed for variables of different domains. In this study, we use SoD as a direct interface between problems and the optimizer. The integration of ECGA and SoD is called the real-coded ECGA (rECGA) in the remainder of this paper and can be given as
1. Initialize a population of N individuals at random. 2. Apply tournament selection of size S.
3. Use SoD to encode each dimension of the continuous variables. 4. Model the selected, encoded individuals with a greedy MPM search. 5. Stop if the MPM model has converged.
6. Generate a new population by sampling the built MPM model.
7. (Optional local search) for every L generations, run the Nelder-Mead (Nelder and Mead, 1965) method on the best 10% individuals.
–10 –5 0 5 10 –10 –5 0 5 10 (a) Generation 1 –10 –5 0 5 10 –10 –5 0 5 10 (b) Generation 10 –10 –5 0 5 10 –10 –5 0 5 10 (c) Generation 20
Figure 8: Split configurations at different generations for G2=
The implementation of rECGA used in this paper is available and can be downloaded at http://www.nclab.tw/SM/2009/01.
5
Comparisons on Benchmark Functions
After proposing SoD and rECGA, first we would like to know how SoD performs compared to the well-known discretization methods FHH and FWH. Then, we will compare the performance of rECGA to that of other real-parameter optimization meth-ods in evolutionary computation on a set of benchmark functions proposed in CEC 2005 (Suganthan et al., 2005).
5.1 Comparisons with FHH and FWH
In this section, we use the identical search engine, ECGA, as the platform and plug SoD, FHH, and FWH into ECGA to examine how well they perform under the same conditions. When FHH and FWH are used, the optimization procedure, similar to rECGA, can be described as
1. Initialize a population of N individuals at random. 2. Apply tournament selection of size S.
3. Use FHH/FWH to encode each dimension of the continuous variables. 4. Model the selected, encoded individuals with a greedy MPM search. 5. Stop if the MPM model has converged.
6. Generate a new population by sampling the built MPM model.
7. (Optional local search) for every L generations, run the Nelder-Mead (Nelder and Mead, 1965) method on the best 10% individuals.
8. Return to Step 2.
The following eight test functions were used to serve as a testbed for observing the relative performance of the three discretization methods:
1. Sphere function F1(x)= D i=1 x2i 2. Rosenbrock’s function F2(x)= D−1 i=1 100xi2− xi+1 2+ (x i− 1)2
3. Ackley’s function F3(x)= −20 exp ⎛ ⎝−0.2 1 D D i=1 xi2 ⎞ ⎠ − exp 1 D D i=1 cos(2πxi) + 20 + e 4. Griewanks’s function F4(x)= D i=1 xi2 4000− D i=1 cos xi √ i + 1 5. Weierstrass function F5(x)= D i=1 kmax k=0 (akcos(2πbk(x i+ 0.5))) − D kmax k=0 (akcos(2πbk· 0.5)), where a= 0.5, b = 3, kmax = 20 6. Rastrigin’s function F6(x)= D i=1 x2i − 10 cos(2πxi)+ 10
7. Noncontinuous Rastrigin’s function
F7(x)= D i=1 yi2− 10 cos(2πyi)+ 10 , where yi = ⎧ ⎨ ⎩ xi, if|xi| < 12 round(2xi) 2 , if|xi| >= 1 2 8. Schwefel’s function F8(x)= 418.9829 × D − D i=1 xisin |xi| 1 2
The global optimum positions, x∗, the global optimum objective values, f (x∗), and the search intervals, [xmin, xmax], of each test function are listed in Table 1. The number of dimension, D, in all the experiments is 10.
The parameters for rECGA (i.e., ECGA+SoD) we used in this series of experiments are given in the following: population size= 250, crossover probability = 1.0, tourna-ment size= 8, L = 5, the maximum function evaluations = 30,000, and 50 independent runs for each test function. The maximum function evaluations include the function evaluations made by ECGA and the Nelder-Mead method. Because the code length is constant for FHH and FWH while it varies for SoD, in order to achieve fair comparisons, we conducted two sets of experiments to examine the effect of different code lengths

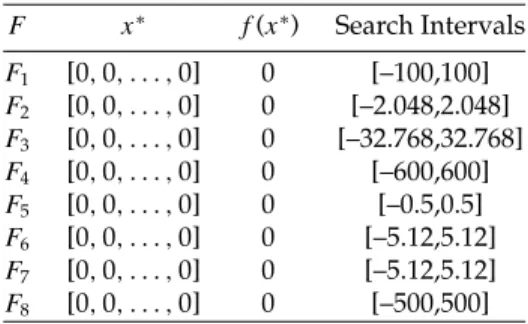

Table 1: Global optima and search intervals of the test functions. F x∗ f(x∗) Search Intervals F1 [0, 0, . . . , 0] 0 [–100,100] F2 [0, 0, . . . , 0] 0 [–2.048,2.048] F3 [0, 0, . . . , 0] 0 [–32.768,32.768] F4 [0, 0, . . . , 0] 0 [–600,600] F5 [0, 0, . . . , 0] 0 [–0.5,0.5] F6 [0, 0, . . . , 0] 0 [–5.12,5.12] F7 [0, 0, . . . , 0] 0 [–5.12,5.12] F8 [0, 0, . . . , 0] 0 [–500,500]
on the three discretization methods. In each experiment set, we executed ECGA with FHH or FWH for one code length slightly shorter as well as for one slightly longer than the mean SoD code length.
In the first set of experiments, for SoD, γ = 0.7, and = 0.99. Under this condition, the mean SoD code length for each dimension is 13.23. We compare the results of rECGA to that of ECGA+FHH and ECGA+FWH with bin numbers 10 and 15. The mean objective values, variances, and t-test results of each function are shown in Table 2. In the other set of experiments, for SoD, γ = 0.45, and = 0.988. In this case, the mean SoD code length for each dimension becomes 22.81. Accordingly, we compare the results of rECGA to that of ECGA+FHH and ECGA+FWH with bin numbers 20 and 25. The results are given in Table 3.
According to the experimental results presented in Tables 2 and 3, we first observe that SoD outperforms FHH or FWH on the eight test functions by comparing the obtained mean objective values. We can also see that SoD in general provides smaller variances of the solutions than do FHH and FWH. The t-values listed in the tables further indicate that the experimental results are statistically significant. Except for FHH-25 on F7(marked by∗in Table 3), all t-values are greater than the critical value, 1.68, for one
tail significance α= 0.05 and degree of freedom around 50. As a consequence, we can conclude that SoD can better discretize the continuous search intervals than FHH and FWH can, at least when SoD cooperates with ECGA.
For this series of numerical experiments, because a local search method, the Nelder-Mead method, is utilized for the purpose of solution quality improvement, the inte-grations, including ECGA+SoD, ECGA+FHH, and ECGA+FWH, can be considered as hybridizations of global and local searchers and therefore as memetic algorithms. Read-ers interested in the design and development of memetic algorithms can refer to the details in the related publications (Bambha et al., 2004; Ong et al., 2006; Li and Jiang, 2000; Hart, 1994) in the literature.
5.2 Comparisons with Other Evolutionary Algorithms
In this section, we will use rECGA to solve a set of benchmark functions proposed in CEC 2005 (Suganthan et al., 2005). The benchmark also defines the evaluation criteria as well as providing the performance results for comparison. Hence, rECGA will be compared to the existing algorithms included in the special session at CEC 2005. The parameters of rECGA we use in this section are population size= 250, probability of crossover= 0.975, tournament size = 8, γ = 0.5, = 0.998, and L = 5.

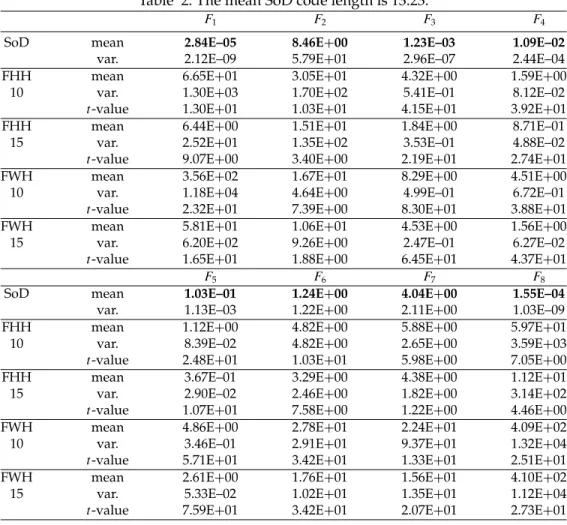

Table 2: The mean SoD code length is 13.23.
F1 F2 F3 F4
SoD mean 2.84E–05 8.46E+00 1.23E–03 1.09E–02
var. 2.12E–09 5.79E+01 2.96E–07 2.44E–04
FHH mean 6.65E+01 3.05E+01 4.32E+00 1.59E+00
10 var. 1.30E+03 1.70E+02 5.41E–01 8.12E–02
t-value 1.30E+01 1.03E+01 4.15E+01 3.92E+01
FHH mean 6.44E+00 1.51E+01 1.84E+00 8.71E–01
15 var. 2.52E+01 1.35E+02 3.53E–01 4.88E–02
t-value 9.07E+00 3.40E+00 2.19E+01 2.74E+01
FWH mean 3.56E+02 1.67E+01 8.29E+00 4.51E+00
10 var. 1.18E+04 4.64E+00 4.99E–01 6.72E–01
t-value 2.32E+01 7.39E+00 8.30E+01 3.88E+01
FWH mean 5.81E+01 1.06E+01 4.53E+00 1.56E+00
15 var. 6.20E+02 9.26E+00 2.47E–01 6.27E–02
t-value 1.65E+01 1.88E+00 6.45E+01 4.37E+01
F5 F6 F7 F8
SoD mean 1.03E–01 1.24E+00 4.04E+00 1.55E–04
var. 1.13E–03 1.22E+00 2.11E+00 1.03E–09
FHH mean 1.12E+00 4.82E+00 5.88E+00 5.97E+01
10 var. 8.39E–02 4.82E+00 2.65E+00 3.59E+03
t-value 2.48E+01 1.03E+01 5.98E+00 7.05E+00
FHH mean 3.67E–01 3.29E+00 4.38E+00 1.12E+01
15 var. 2.90E–02 2.46E+00 1.82E+00 3.14E+02
t-value 1.07E+01 7.58E+00 1.22E+00 4.46E+00
FWH mean 4.86E+00 2.78E+01 2.24E+01 4.09E+02
10 var. 3.46E–01 2.91E+01 9.37E+01 1.32E+04
t-value 5.71E+01 3.42E+01 1.33E+01 2.51E+01
FWH mean 2.61E+00 1.76E+01 1.56E+01 4.10E+02
15 var. 5.33E–02 1.02E+01 1.35E+01 1.12E+04
t-value 7.59E+01 3.42E+01 2.07E+01 2.73E+01
The error values, f (x)− f (x∗), are presented in Table 4 for the 25 test functions. The number of dimensions for each problem is 10. The error values are recorded after 100,000 function evaluations (FEs) for each of the 25 runs. A run is considered a success if the final solution reaches within the given fixed accuracy level. The predefined accuracy levels are 1× 10−6 for functions 1–5, 1× 10−2 for functions 6–14, and 1× 10−1 for functions 15–25. The error values of the 25 runs on one function are sorted, and the table presents the following items: the 1st (best), the 13th (median), the 25th (worst), and the average (mean). The notations∗ and∗∗put after the function number denote that the function is considered solved or rECGA obtains comparable results against other algorithms, respectively. According to the benchmark, if an algorithm successfully reaches within the given accuracy level for a function in at least one out of the 25 runs, the function is considered solved by the algorithm. “Comparable results” mean that the performance of rECGA is equally good compared to that of other algorithms.
The experimental results indicate that rECGA can solve functions 1, 2, 3, 4, 6, 7, 9, 12, 13, and 15, which are denoted with∗. Functions 1 and 2 are easy and can be solved in every run. Function 3 is the shifted rotated high conditioned elliptic function, which magnifies the error of input. Even if the error of input is quite small, the error value will be huge due to a huge multiplier. By utilizing a good local search operator, rECGA

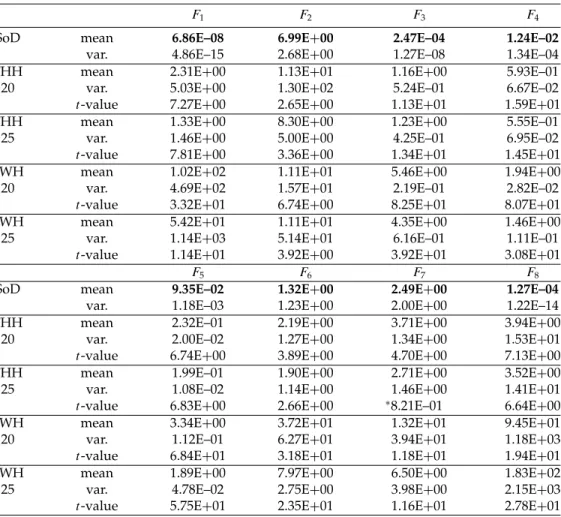

Table 3: The mean SoD code length is 22.81.
F1 F2 F3 F4
SoD mean 6.86E–08 6.99E+00 2.47E–04 1.24E–02
var. 4.86E–15 2.68E+00 1.27E–08 1.34E–04
FHH mean 2.31E+00 1.13E+01 1.16E+00 5.93E–01
20 var. 5.03E+00 1.30E+02 5.24E–01 6.67E–02
t-value 7.27E+00 2.65E+00 1.13E+01 1.59E+01
FHH mean 1.33E+00 8.30E+00 1.23E+00 5.55E–01
25 var. 1.46E+00 5.00E+00 4.25E–01 6.95E–02
t-value 7.81E+00 3.36E+00 1.34E+01 1.45E+01
FWH mean 1.02E+02 1.11E+01 5.46E+00 1.94E+00
20 var. 4.69E+02 1.57E+01 2.19E–01 2.82E–02
t-value 3.32E+01 6.74E+00 8.25E+01 8.07E+01
FWH mean 5.42E+01 1.11E+01 4.35E+00 1.46E+00
25 var. 1.14E+03 5.14E+01 6.16E–01 1.11E–01
t-value 1.14E+01 3.92E+00 3.92E+01 3.08E+01
F5 F6 F7 F8
SoD mean 9.35E–02 1.32E+00 2.49E+00 1.27E–04
var. 1.18E–03 1.23E+00 2.00E+00 1.22E–14
FHH mean 2.32E–01 2.19E+00 3.71E+00 3.94E+00
20 var. 2.00E–02 1.27E+00 1.34E+00 1.53E+01
t-value 6.74E+00 3.89E+00 4.70E+00 7.13E+00
FHH mean 1.99E–01 1.90E+00 2.71E+00 3.52E+00
25 var. 1.08E–02 1.14E+00 1.46E+00 1.41E+01
t-value 6.83E+00 2.66E+00 ∗8.21E–01 6.64E+00
FWH mean 3.34E+00 3.72E+01 1.32E+01 9.45E+01
20 var. 1.12E–01 6.27E+01 3.94E+01 1.18E+03
t-value 6.84E+01 3.18E+01 1.18E+01 1.94E+01
FWH mean 1.89E+00 7.97E+00 6.50E+00 1.83E+02
25 var. 4.78E–02 2.75E+00 3.98E+00 2.15E+03
t-value 5.75E+01 2.35E+01 1.16E+01 2.78E+01
Note:∗Less than the critical value (1.68).
is able to solve function 3. Function 4 is the shifted Schwefel’s problem 1.2 with noise in fitness. rECGA can solve this problem because SoD can decrease the noise effect by splitting the real number interval at random. Function 5 is Schwefel’s problem 2.6 with global optimum on bounds. The special property of function 5 is that function 5 can be solved if the individuals are located at bounds. Due to SoD’s characteristics, rECGA fails to satisfy the success criterion, although rECGA can provide comparable results.
Functions 6–14 are basic and expanded multimodal problems. Although rECGA cannot solve all these problems, most of the results are comparable to that of other evolutionary algorithms. The optimum of function 8 is within a very narrow valley, and the parameter setting used in this experiment does not allow rECGA to have a sufficient resolution to accurately find the valley. Functions 15–25 are composites of the basic functions, and they are big challenges to search algorithms. rECGA successfully solves only function 15. Some of the results of rECGA for functions 16–25 are comparable to other algorithms. rECGA and many other algorithms can only find the local optima. For an overall comparison, Table 5 lists the performance indexes of the algorithms compared to the benchmark in terms of the number of solved functions. We note that rECGA is ranked second, between two versions of the most advanced evolutionary algorithm for
Table 4: Error values for functions 1–25 (100,000 function evaluations).
Function 1∗ 2∗ 3∗ 4∗ 5∗∗ 6∗ 7∗
Best 5.68E–14 5.68E–14 1.14E–13 3.45E–08 1.06E–04 1.71E–13 9.38E–13 Median 6.82E–13 1.02E–12 1.25E–12 2.33E–04 1.33E–03 1.24E–11 1.03E–01 Worst 4.43E–12 1.68E–11 1.93E–04 2.58E–02 1.54E+00 5.54E+01 5.34E–01 Mean 1.29E–12 2.11E–12 7.72E–06 2.13E–03 8.77E–02 5.77E+00 1.42E–01
Function 8∗∗ 9∗ 10∗∗ 11 12∗ 13∗ 14∗∗
Best 2.00E+01 1.71E–13 2.98E+00 5.23E–01 5.68E–14 9.91E–03 2.16E+00 Median 2.00E+01 6.82E–13 7.96E+00 2.21E+00 1.76E–12 3.85E–01 3.06E+00 Worst 2.00E+01 8.01E–12 1.39E+01 5.53E+00 1.56E+03 8.54E–01 4.00E+00 Mean 2.00E+01 1.33E–12 7.84E+00 2.35E+00 6.39E+01 4.37E–01 2.97E+00
Function 15∗ 16∗∗ 17 18 19 20 21
Best 2.84E–14 9.43E+01 1.13E+02 3.00E+02 3.00E+02 3.00E+02 3.00E+02 Median 1.72–12 1.10E+02 1.25E+02 8.00E+02 8.00E+02 8.00E+02 8.00E+02 Worst 4.24E+02 1.30E+02 1.73E+02 9.51E+02 9.68E+02 9.28E+02 1.13E+03 Mean 1.55E+02 1.11E+02 1.30E+02 7.28E+02 6.61E+02 5.86E+02 6.87E+02
Function 22∗∗ 23∗∗ 24∗∗ 25
Best 7.27E+02 5.59E+02 2.00E+02 4.21E+02 Median 7.40E+02 9.71E+02 2.00E+02 4.40E+02 Worst 8.00E+02 1.24E+03 2.00E+02 1.48E+03 Mean 7.47E+02 8.14E+02 2.00E+02 6.35E+02 ∗Considered solved according to the given accuracy.
∗∗Comparable to the results obtained by other algorithms.
Table 5: The number of solved functions in the benchmark for various evolutionary algorithms. U: Unimodal functions (f1to f5); B: Basic functions (f6to f12); E: Expanded
functions (f13and f14); H: Hybrid composition functions (f15to f25).
Algorithm U B EH Total
IPOP-CMA-ES (Auger and Hansen, 2005b) 1,2,3,4,5 6,7,9,10,11,12 — 11
rECGA 1,2,3,4 6,7,9,12,13 15 10
DMS-L-PSO (Liang and Suganthan, 2005) 1,2,3,5 6,7,9,12 15 9
LR-CMA-ES (Auger and Hansen, 2005a) 1,2,3,4,5 6,7,12 — 8
PSGES (Hsieh et al., 2007) 1,2,4 6,7,9,12,13 — 8
BLX-MA (Molina et al., 2005) 1,2,4,5 9,11,12 — 7
DE (Ronkkonen et al., 2005) 1,2,3,4,5 6,9 — 7
K-PCX (Sinha et al., 2005) 1,2,4 6,9,10,12 — 7
SPC-PNX (Ballester et al., 2005) 1,2,4,5 6,7,11 — 7
Co-EVO (Posik, 2005) 1,2,3,4 7 — 5
EDA (Yuan and Gallagher, 2005) 1,2,3,4 — — 4
real-parameter optimization, CMA-ES (Hansen, 2006). Such a result encourages us to conduct further investigations and to apply rECGA to real-world applications in the next section. For further information, the detailed numerical results on the test functions can be found at http://www.nclab.tw/SM/2009/01.
6
Real-World Applications
After verifying the discretization capability of SoD, we are interested in putting the proposed framework, rECGA, into action. In this section, we employ rECGA to handle
the economic dispatch (ED) problem, which is an essential topic in the power system because several important facets of power systems are involved. Thanks to the impor-tance of the ED problem, researchers have been making numerous attempts to find good solutions. Among evolutionary optimization methods for tackling the ED problem are genetic algorithms (Walters and Sheble, 1993; Sheble and Brittig, 1995; Chen and Chang, 1995; Baskar et al., 2003; Yalcinoz et al., 2001), evolutionary programming (Jayabarathia et al., 2005; Sinha et al., 2003; Yang et al., 1996; Wong and Yuryevich, 1998), and parti-cle swarm optimization (Gaing, 2003; Victoire and Jeyakumar, 2004a; Park et al., 2005; Victoire and Jeyakumar, 2004b). In order to obtain superior solutions, we apply rECGA on the ED problem in this section. First, we briefly introduce the ED problem, and then the high quality solutions offered by rECGA are presented.
6.1 The Problem: Economic Dispatch
With the development of modern power systems, the economic dispatch (ED) problem has been receiving increased attention. The ED problem is essential for the real-time control of power system operations. It consists of allocating the total generation re-quired among the available thermal generating units, assuming that a thermal unit commitment is previously determined. The problem aims to minimize the fuel cost subject to the physical and operational constraints. As a result, the ED problem is to find the optimal combination of generations that minimizes the total generation cost while satisfying the specified constraints. In order to model the ED problem, a simpli-fied cost function (Allen and Bruce, 1984) of each generator, represented as a quadratic function, can be given as:
C=
j∈J
Fj(Pj),
Fj(Pj)= ajPj2+ bjPj + cj,
where C is the total generation cost; J is the set for all generators; Pj is the electrical output of generator j ; Fj is the cost function for generator j ; and aj, bj, and cj are the cost coefficients for generator j .
In the real world, the total generation should be equal to the total system demand plus the transmission network loss. However, in this study, the network loss is not considered for simplicity as in many previous studies. Thus, the constraints of the problem include two parts. The first part is the equality constraint. The total system power demand must be equal to the summation of the output of each generator:
D=
j∈J
Pj, (3)
where D is the total system demand.
Moreover, the generation output of each unit should be within the respective min-imum and maxmin-imum limits. Such a condition introduces the inequality constraint for each generation unit, such as for generator j :
where Pjminand Pjmaxare the minimum and maximum output of generator j , and Pj is the desired output for generator j .
In reality, the objective function of economic dispatch is more complicated due to the valve point effects, the change of fuels, and other potential practical factors. Therefore, nonsmooth cost functions should be taken into consideration instead of the simplistic form of Equation (3). The inclusion of the valve point effects makes the modeling of the incremental fuel cost function of the generation units more practical. Such a modification increases the nonlinearity as well as the number of local optima in the search space. Hence, the employed search algorithm may be trapped at the local optima more easily. The incremental fuel cost function of the generator with the valve point effects can be given as (Walters and Sheble, 1993)
Fj(Pj)= ajPj2+ bjPj + cj + |ejsin(fj × (Pj min− Pj))|, (4) where ej and fj are the coefficients to reflect the valve point loading effects.
In this study, we focus on solving the ED problem with the valve point loading effects, which is modeled in Equation (4). We employed rECGA as an optimization tool. The equality and inequality constraints are handled through a repair operator. Descriptions in detail are given in the following section.
6.2 Our Solution: rECGA for Economic Dispatch
The integration of ECGA and SoD, rECGA, can generally handle global optimization problems. However, certain extra efforts have to be made for employing rECGA to tackle the ED problem. Among the most important topics for solving the ED problem may be the equality and inequality constraints. These constraints divide the problem search space into complicated areas. This condition renders the optional local searcher (the Nelder-Mead method, included in the framework of rECGA), inefficient and ineffective (Nelder and Mead, 1965). As a consequence, the optional local search operator is not applied when rECGA is used to solve the ED problem.
Furthermore, in order to deal with the constraints, based on the repair concept, we developed a constraint handling technique specifically for the ED problem. Repairing solutions stands for transforming infeasible solutions into feasible ones via a certain procedure. For the equality constraint, Equation (3) in the ED problem, we repair infea-sible solutions in the following way. Firstly, we create a sequence from 1 to the number of generator in a random order. Each number in the sequence represents one desig-nated generator. The sequence indicates the order in which we adjust the output of the generation for making a solution feasible. For example, if the generated sequence is 4, 2, 1, 5, 3, we will first process generator 4, then generator 2, and so on. To process a generator, we check the equality constraint, that is, the sum of the output has to be equal to the total power demand. If the equality constraint is not satisfied, the output of the generator under processing is modified according to:
Pi= min(UBound(Pi), max((D− n j=1,j=i
Pj), LBound(Pi))), (5)
where D is the system power demand, LBound(Pi) and UBound(Pi) are the lower bound and upper bound of Pi, that is, the inequality constraint of Pi.
Table 6: Parameters for test case I (three-unit system) with the valve point loading effect. a, b, c, e, and f are the cost coefficients in the fuel cost function: Fj(Pj)= ajPj2+ bjPj+ cj + |ejsin(fj× (Pjmin− Pj))|.
Generator Pmin(MW) Pmax(MW) a b c e f
1 100 600 0.001562 7.92 561 300 0.0315
2 100 400 0.00482 7.97 78 150 0.063
3 50 200 0.00194 7.85 310 200 0.042
The proposed algorithm, rECGA, incorporating the constraint handling technique is capable of tackling the ED problem effectively. For simplicity, the optional local search method is not used. With the adoption of the proposed repair mechanism, rECGA for solving the ED problem can be outlined as:
1. Initialize a population of N individuals at random according to the constraints posed to the generator output.
2. Apply tournament selection of size S.
3. Use SoD to encode each dimension of the continuous variables. 4. Model the selected, encoded individuals with a greedy MPM search. 5. Stop if the MPM model has converged.
6. Generate a new population by sampling the built MPM model. 7. Repair the infeasible solutions in the population.
8. Return to Step 2.
In order to observe the effectiveness and to verify the performance of rECGA for ED, two ED problem instances, one consisting of three generators and the other consisting of 40 generators, serve as a testbed. The experimental results on the two ED problems are presented in the next section.
6.3 Verification: Numerical Experiments
We focus on solving the ED problem with nonsmooth cost functions considering the valve point loading effect for verifying the utility of the proposed framework, rECGA. The nonsmooth cost functions were described as Equation (4). In order to examine the performance, rECGA for ED was applied to two ED problems that were adopted as test problems in the literature (Walters and Sheble, 1993; Sinha et al., 2003) for the purpose of comparison. One consists of three generation units, and the other consists of 40 generation units. The input data for the three-generator system are given by Walters and Sheble (1993), and those for the 40-generator system are given by Sinha et al. (2003). The detailed problem parameters for the two test problems, including the lower bound and upper bound for the output of each generator as well as the coefficients for computing the cost functions, are given in Tables 6 and 7. The total system demand for the three-unit system is 850 MW, and that for the 40-unit system is 10,500 MW. It has been proven that for the three-unit system, the global optimal solution is 8234.07 (Lin et al.,
Table 7: Parameters for test case II (40-unit system) with the valve point loading effect. a, b, c, e, and f are the cost coefficients in the fuel cost function: Fj(Pj)= ajPj2+ bjPj + cj + |ejsin(fj × (Pjmin− Pj))|.
Generator Pmin(MW) Pmax(MW) a b c e f
1 36 114 0.0069 6.73 94.705 100 0.084 2 36 114 0.0069 6.73 94.705 100 0.084 3 60 120 0.2028 7.07 309.54 100 0.084 4 80 190 0.00942 8.18 369.03 150 0.063 5 47 97 0.0114 5.35 148.89 120 0.077 6 68 140 0.01142 8.05 222.33 100 0.084 7 110 300 0.00357 8.03 287.71 200 0.042 8 135 300 0.00492 6.99 391.98 200 0.042 9 135 300 0.00573 6.6 455.76 200 0.042 10 130 300 0.00605 12.9 722.82 200 0.042 11 94 375 0.00515 12.9 635.2 200 0.042 12 94 375 0.00569 12.8 654.69 200 0.042 13 125 500 0.00421 12.5 913.4 300 0.035 14 125 500 0.00752 8.84 1,760.4 300 0.035 15 125 500 0.00708 9.15 1,728.3 300 0.035 16 125 500 0.00708 9.15 1,728.3 300 0.035 17 220 500 0.00313 7.97 647.85 300 0.035 18 220 500 0.00313 7.95 649.69 300 0.035 19 242 550 0.00313 7.97 647.83 300 0.035 20 242 550 0.00313 7.97 647.81 300 0.035 21 254 550 0.00298 6.63 785.96 300 0.035 22 254 550 0.00298 6.63 785.96 300 0.035 23 254 550 0.00284 6.66 794.53 300 0.035 24 254 550 0.00284 6.66 794.53 300 0.035 25 254 550 0.00277 7.1 801.32 300 0.035 26 254 550 0.00277 7.1 801.32 300 0.035 27 10 150 0.52124 3.33 1,055.1 120 0.077 28 10 150 0.52124 3.33 1,055.1 120 0.077 29 10 150 0.52124 3.33 1,055.1 120 0.077 30 47 97 0.0114 5.35 148.89 120 0.077 31 60 190 0.0016 6.43 222.92 150 0.063 32 60 190 0.0016 6.43 222.92 150 0.063 33 60 190 0.0016 6.43 222.92 150 0.063 34 90 200 0.0001 8.95 107.87 200 0.042 35 90 200 0.0001 8.62 116.58 200 0.042 36 90 200 0.0001 8.62 116.58 200 0.042 37 25 110 0.0161 5.88 307.45 80 0.098 38 25 110 0.0161 5.88 307.45 80 0.098 39 25 110 0.0161 5.88 307.45 80 0.098 40 242 550 0.00313 7.97 647.83 300 0.035
2002). As for the 40-unit system, the global optimal solution has not been determined. To the best of our limited knowledge, the known best solution previously obtained by other methods is 122,252.265 as reported by Park et al. (2005) with MPSO.
The parameter settings in rECGA for ED are population size= 400, crossover prob-ability = 0.975, tournament size = 8, γ = 0.5, = 0.999, and the maximum function
Table 8: Comparison of the results obtained by various methods on the nonsmooth cost function considering the valve point loading effect. For the three-unit system, EP, CMA-ES, MPSO, and rECGA were able to find the global optimum (Lin et al., 2002).
IEP MPSO
Generator GA (pop= 20) EP (par= 20) CMA-ES rECGA
1 300 300.23 300.26 300.27 300.27 300.27
2 400 400 400 400 400 400
3 150 149.77 149.74 149.73 149.73 149.73
TP 850 850 850 850 850 850
TC 8237.6 8234.09 8234.07 8234.07 8234.07 8234.07
Table 9: Comparison of the results obtained by various methods on the nonsmooth cost function considering the valve point loading effect. For the 40-unit system, rECGA was able to find the best solution.
Minimum Cost Method
123,488.3 CEP 122,679.7 FEP 122,647.6 MFEP 122,624.35 IFEP 122,252.27 MPSO 122,160.19 CMA-ES 121,462.3591 rECGA
evaluations is 200,000. One hundred independent trials were conducted for each prob-lem to collect statistically significant results. The obtained results for the three-unit system are shown in Table 8 and are compared to those obtained by IEP (Park et al., 1998), EP (Yang et al., 1996), MPSO (Park et al., 2005), and CMA-ES (Hansen, 2006).1
The results for this small ED problem indicate that rECGA was able to find the global optimal solution determined by Lin et al. (2002).
In the case of the 40-unit system, the results are compared with those obtained by using other methods given by Sinha et al. (2003) such as classical EP (CEP), fast EP (FEP), modified FEP (MFEP), and improved FEP (IFEP). The results for MPSO provided in Park et al. (2005) and obtained by CMA-ES (Hansen, 2006) are also included. The minimum costs, that is, the best solutions, achieved by these methods are presented in Table 9. We can see that the best solution delivered by rECGA is 121,462.3591, which is better than the known, published best solution, 122,252.27, presented by Park et al. (2005) and that obtained by CMA-ES, 122,160.19. For the purpose of access and verification, the generation outputs (the values of the decision variables) and the corresponding cost (the objective values) of the solution found by rECGA are given in Table 10.
Because of the stochastic nature of evolutionary computation methods, to avoid reporting the results of a “lucky shot,” comparison of the experimental results in a statistical manner has to be conducted. First of all, Table 11 shows the range of the results in the 100 trials obtained by CEP, FEP, MFEP, IFEP, MPSO, CMA-ES, and rECGA, where the listed results except for those of rECGA and CMA-ES are given elsewhere
Table 10: The generator outputs and the costs of the best solution obtained by rECGA.
Generator Pmin(MW) Pmax(MW) Output Cost
1 36 114 110.80098 925.11565 2 36 114 110.88806 926.56631 3 60 120 97.40449 1,190.63739 4 80 190 179.73300 2,143.55011 5 47 97 96.15215 840.66343 6 68 140 140.00000 1,596.46432 7 110 300 299.99898 3,216.41474 8 135 300 284.62219 2,780.24662 9 135 300 284.61234 2,798.46198 10 130 300 130.00001 2,502.06532 11 94 375 94.00003 1,893.30606 12 94 375 94.00027 1,908.17291 13 125 500 214.76169 3,792.11715 14 125 500 394.27878 6,414.85790 15 125 500 304.52026 5,171.21428 16 125 500 394.28449 6,436.71537 17 220 500 489.27966 5,296.71703 18 220 500 489.27855 5,288.76474 19 242 550 511.27996 5,540.94200 20 242 550 511.28163 5,540.95823 21 254 550 523.28030 5,071.30855 22 254 550 523.28419 5,071.38735 23 254 550 523.28495 5,057.33548 24 254 550 523.28151 5,057.26621 25 254 550 523.28214 5,275.14526 26 254 550 523.27977 5,275.09678 27 10 150 10.00013 1,140.52698 28 10 150 10.00517 1,140.64280 29 10 150 10.00018 1,140.52812 30 47 97 87.84287 707.21302 31 60 190 189.99927 1,643.98840 32 60 190 189.99996 1,643.99109 33 60 190 189.99993 1,643.99098 34 90 200 199.99994 2,101.01644 35 90 200 199.99993 2,043.72638 36 90 200 199.99972 2,043.72436 37 25 110 110.00000 1,220.16612 38 25 110 109.99978 1,220.16484 39 25 110 109.99871 1,220.15859 40 242 550 511.28401 5,541.02984
Total generation and total cost 10,500 121,462.3591
(Sinha et al., 2003; Park et al., 2005). As we observe from Table 11, the distribution of the rECGA results may be considered better than those obtained by the other methods. Furthermore, to more carefully and accurately compare the performance of rECGA and MPSO (Park et al., 2005) on the 40-unit problem, the t-test was conducted for the statistical significance of the obtained experimental results. Since the actual results of the 100 trials for MPSO are not available, in order to get a fair performance comparison and capability assessment, we set up two conditions under which the t-test was conducted.
T able 11: Comparison of methods o n relative fr equency o f conver g ence in the cost range. Range o f cost 126.5– 126.0– 125.5– 125.0– 124.5– 124.0– 123.5– 123.0– 122.5– 122.0– 121.5– 121.0– Method ∞ 126.5 126.0 125.5 125.0 124.5 124.0 123.5 123.0 122.5 122.0 121.5 C E P 10 4 —1 62 24 2 4 2———— F E P 6 — 4 2 102 02 62 4 6 ——— M F E P —————1 42 65 01 0——— IFEP — — 2 — 4 4 18 50 22 — — — M P S O ————————5 34 7—— C M A -E S 9 1 6 121 91 92 4 4 5 1 —— rE C G A — ———————— 2 97 1
Table 12: The t-test for the experimental results obtained by rECGA and MPSO under condition 1, where the rECGA dataset contains the actual results, and the MPSO dataset contains 47 values of 122,252.265 and 53 values of 122,750.
rECGA MPSO
mean 121,777.649963 122,516.06455
t-value 27.8068829451749
p-value 2.2645299161711E–55
Table 13: The t-test for the experimental results obtained by rECGA and MPSO under condition 2, where the rECGA dataset contains the actual results, and the MPSO dataset contains 47 values of 122,252.265 and 53 values of 122,500.
rECGA MPSO
mean 121,777.649963 122,383.56455
t-value 39.4214198098397
p-value 9.0857670116394E–91
Based on the data given in Table 11, the first condition is that the MPSO results contain 47 values of 122,252.265, which is the optimum reported for MPSO (Park et al., 2005), and 53 values of 122,750, which is the mean value of 122,500 and 123,000. Table 12 demonstrates the t-test results for condition 1. Given the p-value: 2.26× 10−55, which is smaller than the commonly used statistically significant levels, such as .05 (5%), .01 (1%), or .001 (0.1%), we can conclude that the performance of rECGA on the 40-unit ED problem is statistically significantly better than that of MPSO on the same problem. For condition 2, the MPSO results contain 47 values of 122,252.265, which is the optimum reported for MPSO (Park et al., 2005), and 53 values of 122,500, which is the best value in the range from 122,500 to 123,000. The t-test results under condition 2 are presented in Table 13. Due to the change of the standard deviation, the p-value becomes 9.09× 10-91.
The small p-value prevents us from accepting the null hypothesis, which is interpreted as that the performance of rECGA and MPSO on the problem is equivalent.
According to the experimental results, we know that the proposed algorithm, rECGA (ECGA+SoD), performs well on the two ED problems. Particularly, for the 40-unit ED problem, we improved the known best solution from 122,252.265 (Park et al., 2005) to 121,462.3591. Moreover, from Tables 11, 12, and 13, we observe that rECGA statistically significantly outperformed MPSO on the 40-unit ED problem. Therefore, rECGA is capable of solving ED problems effectively.
7
Summary and Conclusions
In this study, we proposed an adaptive discretization method, SoD, to enable EDAs designed for handling discrete variables to tackle real-parameter optimization. SoD was described in detail with its procedure, effect, and usage. In order to show the utility of SoD, an ECGA was employed as an optimization engine, and SoD was used as a variable-type interface. By combining ECGA and SoD, the real-coded ECGA (rECGA) were applied to solve a set of benchmark functions and two ED problems. The results on benchmark functions indicated that SoD was better than two well-known discretization methods, FHH and FWH. The results on the ED problems demonstrated that rECGA successfully achieved the global optimal solution of the three-unit ED problem and
was able to obtain the solutions better than the known best solution obtained by other methods and reported in the literature for the 40-unit ED problem.
The outcome of this study indicates that it is not only possible but also practical to employ an optimization method designed for handling discrete variables to tackle prob-lems consisting of continuous variables, as long as an appropriate interface is adopted. Although many researchers in the field of evolutionary computation do not consider variable-type transformation to be an issue, in practice, except for some limited cases, most algorithms designed for discrete variables do not perform well on continuous problems and vice versa. By comparing the real-coded ECGA to the algorithms specifi-cally designed for handling continuous variables, such as particle swarm optimization (MPSO), evolutionary programming (IFEP, MFEP, FEP, CEP), and evolution strategies (CMA-ES), this paper provides the experimental results to serve as the proof of prin-ciple for transforming the variable type while retaining the capability of the back end optimization algorithm.
Given the nature of discretization, although good results were obtained in this study, we believe that the proposed framework might not be suitable for applications that require very high precision. As we can see in Table 5 in Section 5.2, rECGA seems to perform as well as the state of the art method, CMA-ES. However, for the benchmark, since there is a predefined accuracy level for each function (1× 10−6,1× 10−2, and 1× 10−1), the experimental results in terms of the number of solved functions should be appropriately interpreted instead of being considered to demonstrate that rECGA can perform very well under any situations. For applications that do not require very high precision, such as the control of robots, evolutionary arts, or machine learning, the proposed discretization technique may come in handy for handling real-parameter problems with the discrete-type optimization algorithm that is already in use.
Finally, future work of this study includes applying rECGA to handle other impor-tant problems as well as developing different integrations of optimization algorithms and transforming techniques. Moreover, theoretical understandings for the quality of the transforming techniques, such as SoD, FHH, and FWH, as well as for the interaction between the engine and the interface, should also be considered.
Acknowledgments
The work was supported in part by the National Science Council of Taiwan under Grant NSC-96-2221-E-009-196. The authors are grateful to the National Center for High-Performance Computing for computer time and facilities.
References
Ahn, C. W., Ramakrishna, R. S., and Goldberg, D. E. (2004). Real-coded Bayesian optimization algorithm, bringing the strength of BOA into the continuous world. In Proceedings of Genetic and Evolutionary Computation Conference (GECCO-2004), pp. 840–851.
Allen, J. W., and Bruce, F. W. (1984). Power generation, operation, and control. New York: Wiley. Auger, A., and Hansen, N. (2005a). Performance evaluation of an advanced local search
evolution-ary algorithm. In Proceedings of the IEEE Congress on Evolutionevolution-ary Computation (CEC-2005), pp. 1777–1784.
Auger, A., and Hansen, N. (2005b). A restart CMA evolution strategy with increasing population size. In Proceedings of the IEEE Congress on Evolutionary Computation (CEC-2005), pp. 1769– 1776.
Ballester, P. J., Stephenson, J., Carter, J. N., and Gallagher, K. (2005). Real-parameter optimization performance study on the CEC-2005 benchmark with SPC-PNX. In Proceedings of the IEEE Congress on Evolutionary Computation (CEC-2005), pp. 498–505.
Baluja, S. (1994). Population-based incremental learning: A method for integrating genetic search based function optimization and competitive learning. Technical report, Carnegie Mellon University, Pittsburgh, Pennsylvania.
Baluja, S., and Davies, S. (1997). Using optimal dependency-trees for combinational optimization. In Proceedings of the Fourteenth International Conference on Machine Learning, pp. 30–38. Bambha, N. K., Bhattacharyya, S. S., Teich, J., and Zitzler, E. (2004). Systematic integration of
parameterized local search into evolutionary algorithms. IEEE Transactions on Evolutionary Computation, 8(2):137–154.
Baskar, S., Subbaraj, P., and Rao, M. V. C. (2003). Hybrid real coded genetic algorithm solution to economic dispatch problem. Computers and Electrical Engineering, 29(3):407–419.
Bosman, P. A., and Thierens, D. (2000). Continuous iterated density estimation evolutionary algorithms within the idea framework. In Workshop Proceedings of Genetic and Evolutionary Computation Conference (GECCO-2000), pp. 197–200.
Cant ´u-Paz, E. (2001). Supervised and unsupervised discretization methods for evolutionary algo-rithms. In Workshop Proceedings of Genetic and Evolutionary Computation Conference (GECCO-2001), pp. 213–216.
Chen, C.-H., Liu, W.-N., and Chen, Y.-p. (2006). Adaptive discretization for probabilistic model building genetic algorithms. In Proceedings of ACM SIGEVO Genetic and Evolutionary Com-putation Conference (GECCO-2006), pp. 1103–1110.
Chen, P. H., and Chang, H. C. (1995). Large-scale economic-dispatch by genetic algorithm. IEEE Transactions on Power Systems, 10(4):1919–1926.
de Bonet, J., Isbell, C., and Viola, P. (1997). MIMIC: Finding optima by estimating probability densities. Advances in Neural Information Processing Systems, 9:424–430.
Etxeberria, R., and Larra ˜naga, P. (1999). Global optimization using Bayesian networks. In Pro-ceedings of the Second Symposium on Artificial Intelligence, pp. 332–339.
Gaing, Z. L. (2003). Particle swarm optimization to solving the economic dispatch considering the generator constraints. IEEE Transactions on Power Systems, 18(3):1187–1195.
Goldberg, D. E. (2002). The design of innovation: Lessons from and for competent genetic algorithms, Vol. 7 of Genetic algorithms and evolutionary computation. Dordrecht, The Netherlands: Kluwer Academic Publishers.
Goldberg, D. E., Korb, B., and Deb, K. (1989). Messy genetic algorithms: Motivation, analysis, and first results. Complex Systems, 3(5):493–530.
Hansen, N. (2006). The CMA evolution strategy: A comparing review. In J. A. Lozano, P. Larra ˜naga, I. Inza, and E. Bengoetxea (Eds.), Towards a new evolutionary computation. Advances on estimation of distribution algorithms, Vol. 192 of Studies in fuzziness and soft computing, pp. 75–102. Berlin: Springer.
Harik, G. R. (1999). Linkage learning via probabilistic modeling in the ECGA. IlliGAL Report No. 99010, University of Illinois at Urbana-Champaign, Illinois Genetic Algorithms Laboratory, Urbana.
Harik, G. R., Lobo, F. G., and Goldberg, D. E. (1999). The compact genetic algorithm. IEEE Transactions on Evolutionary Computation, 3(4):287.
Hart, W. E. (1994). Adaptive global optimization with local search. PhD thesis, University of California, San Diego.
