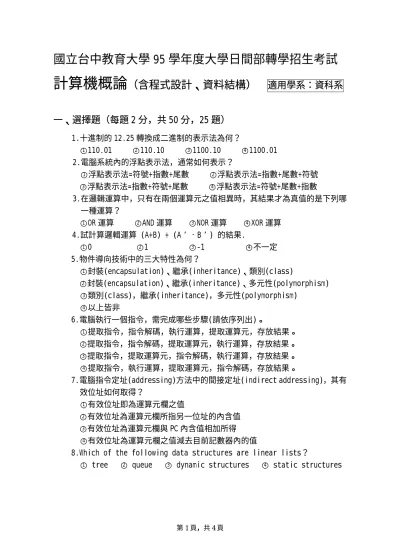

計算機概論

第 1 頁，共 4 頁 ，

國立台中教育大學 95 學年度大學日間部轉學招生考試

計算機概論

（含程式設計、資料結構）

適用學系：資科系

一、選擇題（每題 2 分，共 50 分，25 題）

○1 _{OR 運算 ○}2 _{AND 運算 ○}3 _{NOR 運算 ○}4 _{XOR 運算}

4.試計算邏輯運算 (A+B) + (A’•B’) 的結果. ○1 _{0 ○}2 _{1 ○}3 _{-1 ○}4 _不一定 5.物件導向技術中的三大特性為何？ ○1 _{封裝(encapsulation)、繼承(inheritance)、類別(class)} ○2 _{封裝(encapsulation)、繼承(inheritance)、多元性(polymorphism)} ○3 _{類別(class)，繼承(inheritance)，多元性(polymorphism)} ○4 _以上皆非 6.電腦執行一個指令，需完成哪些步驟(請依序列出)。 ○1 _{提取指令，指令解碼，執行運算，提取運算元，存放結果。} ○2 _{提取指令，指令解碼，提取運算元，執行運算，存放結果。} ○3 _{提取指令，提取運算元，指令解碼，執行運算，存放結果。} ○4 _{提取指令，執行運算，提取運算元，指令解碼，存放結果。} 7.電腦指令定址(addressing)方法中的間接定址(indirect addressing)，其有 效位址如何取得？ ○1 _{有效位址即為運算元欄之值} ○2 _{有效位址為運算元欄所指另一位址的內含值} ○3 _{有效位址為運算元欄與 PC 內含值相加所得} ○4 _{有效位址為運算元欄之值減去目前記數器內的值}

8.Which of the following data structures are linear lists？

第 2 頁，共 4 頁 ，

9.Give the preorder traversal sequence of the following tree？

○1 _{A1, A2, A3, A4, A5, A6 ○}2 _{A1, A2, A4, A3, A5, A6}

○3 _{A1, A2, A4, A5, A3, A6 ○}4 _{A1, A2, A4, A5, A6, A3}

10.What is the result of FIB(7) based on the Fibonacci Sequence definition？

FIB(N) = N, if N=0 or N=1

FIB(N) = FIB(N-2) + FIB(N-1), if N >=2 ○1 _{8 ○}2 _{13 ○}3 _{21 ○}4 ₃₄

11.C 語言描述下列何者錯誤？

○1 _{(x = = y)測試左右兩邊的值是否相等，表示 x 的值等於 y 的值的判斷式}

○2 _{x =y 將 y 的值 assign 給 x}

○3 _{function 的 return data type 為 void 表示不傳回值，int 表示傳回型態}

為整數

○4 _{%f 為輸出入格式化使用，表示 int 資料型態}

12.下面程式片段使指標變數 P 指向一存儲型變數的動態存儲空間 int *P; P =___ malloc(sizeof(int))；其中___應填入 ○1 _{int ○}2 _{int * ○}3 _{(*int) ○}4 _{(int *)}

13. main() {

int i, x[3][3]={9, 8, 7, 6, 5, 4, 3, 2, 1}, *p=&xs[1][1]; for(i=0; i < 4; i = i+2) printf(“%d ”, p[i]);

} 以上程式的輸出結果為: ○1 _{5 2 ○}2 _{5 1 ○}3 _{5 3 ○}4 _{9 7} 14. int x=10,y=0; if(x>=0) if(x==0) y=1; else y=-1; printf("%d",y); 上列程式段的輸出結果為: ○1 _{1 ○}2 _{10 ○}3 _{0 ○}4 _-1

第 3 頁，共 4 頁 ， 15.下列指令哪個不正確?

○1 _{a+x = x; ○}2 _{a= a+x; ○}3 _{c = a%b; ○}4 _{z = z/y;}

16.In IEEE 802.11, _____ provide access to the distribution system via the wireless medium for associated stations.

○1 _{access points ○}2 _{base stations}

○3 _{coordination functions ○}4 _{data sets}

17.If there are 200 nodes to be stored in a binary tree, the minimum height of the tree is

○1 _{7 ○}2 _{8 ○}3 _{9 ○}4 _{greater than 10}

18.At the Cyclic Redundancy Check (CRC) checker, _______ means that the data unit is damaged.

○1 _{a string of alternating 1s and 0s ○}2 _{a nonzero remainder}

○3 _{a string of 0s ○}4 _{a string of 1s}

19.The sequence to traverse a tree with pre-order traversal is ____. ○1 _{left sub-tree, right sub-tree, the node}

○2 _{left sub-tree, the node, right sub-tree}

○3 _{the node, left sub-tree, right sub-tree}

○4 _{right sub-tree, left sub-tree, the node}

20.The solution of the recurrence relation T(2n) =2T(n) + O(n), T(2)=1

is？

○1 _{O(n) ○}2 _{O(nlogn) ○}3 _O(2n_{) ○}4 _O(n2₎

21.The _____ holds the address of the next instruction to be executed. ○1 _{status register ○}2 _{program counter}

○3 _{condition register ○}4 _{instruction register}

22.Which of the following layer of the TCP/IP protocol hierarchy handles framing?

○1 _{data link ○}2 _{physical ○}3 _{network ○}4 _application

23.Assigning port numbers to programs and remembering which program goes with which port is a part of the _____ layer protocols.

○1 _{physical ○}2 _{data link ○}3 _{network ○}4 _transport

24.If a Turing machine program consists of the following four instructions: (1,0,1,2,R)→(1,1,0,2,R)→(2,0,0,2,R)→(2,b,b,2,L) then which of the following is a halting configuration?

○1 _{b 1 1 b b b ... (current state = 2, symbol 1 is being read),}

○2 _{b 1 1 b b b ... (current state = 1, symbol 1 is being read),}

○3 _{b 1 0 b b b ... (current state = 1, symbol 0 is being read),}

第 4 頁，共 4 頁 ，

25.Suppose the current state in a Turing machine is 1, and the current symbol is 0, and that (1,0,1,2,R) (1,0,0,3,L) both appear in the same collection of instructions. Then the machine _____.

○1 _{would proceed as normal}

○2 _{has a conflict}

○3 _{would fix the problem and continue}

○4 _{would eliminate one of the instructions}

二、問答及程式設計（每題 10 分，共 50 分，5 題）

1.Please describe the four compilation process steps and their functions in detail. (10 分)

2.請利用 C/C++語言寫一個程式，該程式輸入兩個正整數，並輸出這兩個數字 的最大公因數。（10 分）

3.Build a minimum cost spanning tree T by adding edges to T one at a time for the following graph. What is the time complexity? (10分)

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

4.Please correct the following C program segment:（10 分） char str[80];

printf(“Please input your name”); scanf(“%c”, &str);

printf(“your name is %s”, str);

5. Write a procedure for inserting a node from a binary search tree? （10 分）
