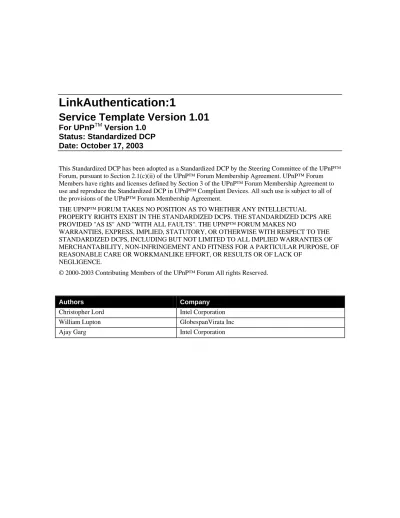

LinkAuthentication:1
Service Template Version 1.01
For UPnP
TMVersion 1.0 Status: Standardized DCP Date: October 17, 2003
This Standardized DCP has been adopted as a Standardized DCP by the Steering Committee of the UPnP™
Forum, pursuant to Section 2.1(c)(ii) of the UPnP™ Forum Membership Agreement. UPnP™ Forum Members have rights and licenses defined by Section 3 of the UPnP™ Forum Membership Agreement to use and reproduce the Standardized DCP in UPnP™ Compliant Devices. All such use is subject to all of the provisions of the UPnP™ Forum Membership Agreement.
THE UPNP™ FORUM TAKES NO POSITION AS TO WHETHER ANY INTELLECTUAL
PROPERTY RIGHTS EXIST IN THE STANDARDIZED DCPS. THE STANDARDIZED DCPS ARE PROVIDED "AS IS" AND "WITH ALL FAULTS". THE UPNP™ FORUM MAKES NO
WARRANTIES, EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE STANDARDIZED DCPS, INCLUDING BUT NOT LIMITED TO ALL IMPLIED WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT AND FITNESS FOR A PARTICULAR PURPOSE, OF REASONABLE CARE OR WORKMANLIKE EFFORT, OR RESULTS OR OF LACK OF
NEGLIGENCE.
© 2000-2003 Contributing Members of the UPnP™ Forum All rights Reserved.
Authors Company
Christopher Lord Intel Corporation
William Lupton GlobespanVirata Inc
Ajay Garg Intel Corporation
Contents
1. OVERVIEW AND SCOPE...4
2. SERVICE MODELING DEFINITIONS...5
2.1. SERVICETYPE...5
2.2. STATE VARIABLES...5
2.2.1. NumberOfEntries...6
2.2.2. Identifier...6
2.2.3. Secret...6
2.2.4. SecretType...6
2.2.5. AuthType...7
2.2.6. AuthState...7
2.2.7. CredentialState...8
2.2.8. Description...8
2.2.9. MACAddress...9
2.2.10. CredentialDuration...9
2.2.11. LinkedIdentifier...9
2.2.12. LastChange...9
2.2.13. LastError...10
2.3. EVENTING AND MODERATION...10
2.3.1. Event Model...11
2.4. ACTIONS...11
2.4.1. GetGenericEntry...12
2.4.2. GetSpecificEntry...13
2.4.3. AddEntry...14
2.4.4. UpdateEntry...16
2.4.5. DeleteEntry...17
2.4.6. GetNumberOfEntries...18
2.4.7. FactoryDefaultReset...18
2.4.8. ResetAuthentication...19
2.4.9. Common Error Codes...19
2.5. THEORY OF OPERATION...21
2.5.1. 802.1x introduction...21
2.5.2. High level intended operation ...21
2.5.3. Detailed level operation ...22
2.5.4. Record format ...24
2.5.5. Example using client certificate credentials ...24
2.5.6. Limitations on Pending Records...25
3. XML SERVICE DESCRIPTION ...26
4. TEST...32
List of Tables
Table 1: State Variables...5Table 1.1: allowedValueList for SecretType ...6
Table 1.2: allowedValueList for AuthType...7
Table 1.4: allowedValueList for CredentialState ...8
Table 2: Event Moderation ...10
Table 3: Actions ...11
Table 4: Arguments for GetGenericEntry...12
Table 5: Arguments for GetSpecificEntry ...13
Table 6: Arguments for AddEntry ...14
Table 7: Arguments for UpdateEntry ...16
Table 8: Arguments for DeleteEntry ...17
Table 9: Arguments for GetNumberOfEntries...18
Table 10: Common Error Codes...19
1. Overview and Scope
This device template is compliant with the UPnP™ Device Architecture, Version 1.0.
This service-type enables a UPnP™ control point to configure and control the parameters pertaining to authentication by an authentication server. The service specifies variables and actions that are used by control points to add, update and delete records used for authentication. This would typically be used for maintaining per-client authentication parameters on a device. This service would support a user/client list with the credentials (password, public key) and the specific access rights on a per-user basis. The service is mainly designed for authentication on a wireless access point (AP) that implements link layer security such as 802.1x. It may be used for other purposes - e.g., to securely store client credentials such as certificates and asymmetric keys for network-layer security protocols.
The working committee has however looked at this service only from the perspective of 802.1x usage and therefore this document makes several references to the 802.1x protocol. This service may be co-located with the access point device that requires the authentication service or located on a different device on the network such as an Internet Gateway Device (IGD). The service was defined to associate WLAN clients and their credentials to bootstrap a secure WLAN in a UPnP™ technology compliant
WLANAccessPointDevice*.
This service is defined as a standalone service and will remain at the component level. Any product that implements a standard device specification will have the option to implement this standard service specification. The product will be tested at certification testing time for this service in addition to being tested to the product’s original device type (e.g., WLANAccessPointDevice, InternetGatewayDevice).
* Refer to companion documents defined by the UPnP™ Internet Gateway working committee for more
2. Service Modeling Definitions
2.1. ServiceType
The following service type identifies a service that is compliant with this template:
urn:schemas-upnp-org:service:LinkAuthentication:1
2.2. State Variables
Table 1: State Variables
Variable Name Req.
or Opt.1
Data Type
Allowed Value 2 Default Value 2 Eng.
Units
NumberOfEntries R ui2 >=0 0 N/A
Identifier R String <= 64 char Empty string N/A
Secret R String Encoded in
BASE64, <=
1024 char
Empty string N/A
SecretType R String See Table 1.1,
<= 32 char
Not specified N/A
AuthType R String See Table 1.2,
<= 32 char
Not specified N/A
AuthState R String See Table 1.3,
<= 32 char
“Unconfigured” N/A
CredentialState R String See Table 1.4,
<= 32 char
“Unconfigured” N/A
Description R String <= 256 char Empty string N/A
MACAddress R String MAC address,
“xx:xx:xx:xx:xx:x x”, case-
independent, 17 char
Empty string N/A
CredentialDuration R ui4 >= 0 0 Seconds
LinkedIdentifier R String <= 64 char Empty string N/A
LastChange R String <= 1024 char Empty string N/A
LastError R String <= 1024 char Empty string N/A
Non-standard state variables implemented by an UPnP™
X TBD TBD TBD TBD
Variable Name Req.
or Opt.1
Data Type
Allowed Value 2 Default Value 2 Eng.
Units
device vendor go here.
1 R = Required, O = Optional, X = Non-standard.
2 Values listed in this column are required. To specify standard optional values or to delegate assignment of values to the vendor, you must reference a specific instance from the appropriate table below.
2.2.1. NumberOfEntries
This variable indicates the number of entries in the authentication database.
2.2.2. Identifier
This variable is similar to a username or userID field. This field is matched when a client supplies an EAP-Identity string. This service expects Identifier to uniquely identify each record in the authentication database, that is, there are no records with duplicate Identifier fields. Note, EAP uses the term Identifier to refer to a single octet used to match EAP request and responses, in this specification Identifier refers to the EAP Identity string. See RFC 2716 Section 3.1. The Identifier may contain the characters < > & which will “break” the surrounding XML, therefore the Identifier string must be ‘escaped’. Refer to DeviceSecurity section “XML Strings as UPnP™
Parameters”.
2.2.3. Secret
This variable contains the secret as per the type specified in SecretType. It is encoded as a canonical BASE64 string (as used by the DeviceSecurity service).
2.2.4. SecretType
This variable specifies the type of secret contained in the Secret field. Possible string values are specified in table 1.1.
Table 1.1: allowedValueList for SecretType
Value Req. or Opt. 1 Description
TextPassword R This value indicates that Secret field contains a text password
X509Certificate R This value indicates the Secret field contains an X.509 certificate
PublicKey R This value indicates the Secret field contains a public key PubKeyHash160 R This value indicates the Secret field contains a 160-bit
hash of a public key
Vendor-defined R R
Vendor-defined O O
3 R = Required, O = Optional.
2.2.5. AuthType
This variable specifies the type of authentication. Possible string values are specified in table 1.2 Table 1.2: allowedValueList for AuthType
Value Req. or Opt. 1 Description
SharedSecret R This value indicates the 802.1x client is using an
authentication method that requires addition of a credential such as shared secret that is missing, i.e., TextPassword.
When AuthState is Pending the user would be expected to provide the shared secret to the AP via the control point using the UpdateEntry action. This results in a change in the Secret field value.
ValidateCredentials R This value indicates the 802.1x client is using an authentication method that requires the verification of existing credentials, i.e. as in an X509Certificate. When AuthState is Pending this requires the user or control point to validate the credential in the Secret field.
Vendor-defined R R
Vendor-defined O O
1 R = Required, O = Optional.
2.2.6. AuthState
This variable specifies the current state of the authentication process. Possible string values are specified in table 1.3. Refer to the state diagram and theory of operation for details.
Table 1.3: allowedValueList for AuthState
Value Req. or Opt. 1 Description
Unconfigured R A WLAN client corresponding to this Identifier has yet to authenticate.
Failed R A WLAN client corresponding to this Identifier failed to successfully authenticate the contents of the secret field - for example, with 802.1x authentication. This state informs control points the secret that was entered or validated has failed.
Succeeded R A WLAN client corresponding to this Identifier successfully authenticated using the contents of the secret field, for example, with 802.1x authentication. This state informs control points that the secret that was entered or validated has succeeded.
Vendor-defined R R
Vendor-defined O O
1 R = Required, O = Optional.
2.2.7. CredentialState
This variable specifies the current state of the credential approval/validation process. Possible string values are specified in table 1.4. Refer to the state diagram and theory of operation for details.
Table 1.4: allowedValueList for CredentialState Value Req. or Opt.
1 Description
Unconfigured R This value indicates that other variables in the particular record are uninitialized or in an invalid state. Examples of such variables include Secret and AuthType. This record will not be used for authentication; it may be used for other purposes.
Pending
(alert CP for action)
R This value indicates the record referred to by the
Identifier does not have a validated Secret field.
Control points are expected to prompt the end-user to enter the SharedSecret or validate a credential. Upon end-user acceptance the control point changes AuthState to either Accepted or Denied
Accepted R This value indicates the database record referred to by the Identifier field has had its Secret field
entered/validated by the end-user.
Denied R This value indicates that when a client attempts to authenticate it is not allowed to proceed with link layer authentication. This state is intended to restrict devices from the network and restrict events from those devices.
Vendor-defined R R
Vendor-defined O O
1 R = Required, O = Optional.
The component performing authentication and authorization for network access is expected to refer to the client database for credential information. If a given Identifier is not found in the database, a new record is created, populated, and set to Pending. The user, via a control point, can update the record to Accepted, or Denied. The control point may query the user for an amount of time to grant the client temporary network access. The amount of time is specified in seconds and is stored in the CredentialDuration variable.
2.2.8. Description
This variable stores a string used exclusively by control points to aid in identifying authentication records. For example, a control point may prompt the user to supply a friendly name for the client device. It is stored in the authentication records and may not be used by the AP device. The Description may contain the characters < > & which will “break” the surrounding XML, therefore the Description string must be ‘escaped’. Refer to DeviceSecurity section “XML Strings as UPnP™ Parameters”.
2.2.9. MACAddress
This variable specifies the MAC address of the client. It is not intended to be used to authenticate the client, as MAC Addresses are mutable. This field can be used by control points to display the device’s MAC address during the initial authentication process when the client device is first added to the network and authentication database. This field is dynamically updated by the AP when a client device is authenticating. This field is also updated to reflect the last MAC address that successfully or unsuccessfully authenticated. See the theory of operation section for more details.
2.2.10. CredentialDuration
This variable determines the time (in number of seconds) a client record with a
CredentialState of Accepted is allowed to authenticate. A value of 0 means the client record is permanent, that is, there is no expiration period. Non-zero values specify temporary access. When a non-zero CredentialDuration transitions to zero (the number of seconds has expired) the record must be deleted and LastChange event triggered. Note that permanent client records with CredentialDuration of zero persist across device resets or reboots. It is up to vendors to implement persistence as appropriate for their device, for example store in non- volatile storage such as flash or disk. Non-zero CredentialDuration values do not persist across device resets or reboots, that is, the temporary client is expected to be re-authenticated.
The remaining number of seconds can be retrieved via the GetGenericEntry and
GetSpecificEntry actions. Automatic second decrements to the CredentialDuration do NOT generate a LastChange event.
2.2.11. LinkedIdentifier
Some EAP authentication methods allow two EAP negotiations. For example, PEAP optionally negotiates two phases, a Part 1 and a Part 2 phase to complete authentication. Each phase may negotiate using unique Identifiers, AuthTypes, and credentials. To allow the EAP server to indicate related records to the control point this field contains the Identifier for the initial EAP negation. For example, if PEAP Part1 used an Identifier of User1, AuthType of
ValidateCredentials and SecretType of PubKeyHash160 and PEAP Part 2 used an Identifier of User2, AuthType of SharedSecret, then two records would exist with the LinkedIdentifier field of the User2 record containing User1. Therefore, if the Part 2 authentication phase fails, the EAP server should delete both records User 1 and User 2. Additionally, if the user refuses to authenticate Part 2, the control point should set both records CredentialState to Denied or optionally delete both records User1 and User2.
The LinkedIdentifier may contain the characters < > & which will “break” the surrounding XML, therefore the LinkedIdentifier string must be ‘escaped’. Refer to DeviceSecurity section “XML Strings as UPnP™ Parameters”.
2.2.12.LastChange
This variable is used for eventing purposes to allow control points to receive meaningful event notifications when a record is added, deleted or changed.
LastChange is an evented string variable whose value is an escaped XML string (as used by the DeviceSecurity service) with the following format (white space is shown for readability but is not necessary or desirable):
<action>
<fieldname>value</fieldname>…
</action>
where action is one of {Add, Delete, Update}, fieldname is one of {Identifier, Secret, SecretType, AuthType, AuthState, CredentialState,
LinkedIdentifier}, and value is specified per the State Variables table. The Identifier must always be present. To prevent sending the Secret, which can be a large string, over the network an empty string should be sent in its place. This is intended to reduce the traffic when the LastChange event triggers, and also of course avoids sending sensitive information via event messages. Multiple changes to a single record can be concatenated to trigger only a single event to subscribed control points. When a record is updated, it is recommended that only those fields whose values have changed be sent, but control points should not assume this.
For example, creation of a new record might result in the following value for LastChange.
<Add>
<Identifier>Foo</Identifier>
<Secret/>
<SecretType>TextPassword</SecretType>
<AuthType>SharedSecret</AuthType>
<AuthState>Unconfigured</AuthState>
<CredentialState>Unconfigured</CredentialState>
</Add>
A subsequent change to CredentialState might result in the following value.
<Update>
<Identifier>Foo</Identifier>
<CredentialState>Pending</CredentialState>
</Update>
2.2.13.LastError
This variable is used for eventing purposes to allow control points to discover when an
asynchronous error (i.e. an error that is not the direct result of a UPnP™ action) has occurred in the authentication server backend handler. For example, the EAP server might have tried to add a new record to the authentication database but failed due to lack of resources.
LastError is an evented string variable whose value is an escaped XML string (as used by the DeviceSecurity service) with the following format (white space is shown for readability but is not necessary or desirable):
<Error>
<Code>integer-code</Code>
<Description>error-description</Description>
</Error>
Where appropriate, standard UPnP™ error codes and descriptions can be used. New codes should be allocated according to the conventions described in Section 2.4.9.
2.3. Eventing and Moderation
Table 2: Event Moderation
Variable Name Evented Moderated
Event
Max Event Rate1
Logical Combination
Min Delta per Event2
LastChange Yes No N/A N/A N/A
Variable Name Evented Moderated Event
Max Event Rate1
Logical Combination
Min Delta per Event2
LastError Yes No N/A N/A N/A
Non-standard state variables implemented by an UPnP™ device vendor go here.
TBD TBD TBD TBD TBD
1 Determined by N, where Rate = (Event)/(N secs).
2 (N) * (allowedValueRange Step).
2.3.1. Event Model
Control points can use LastChange events to notify end-users of clients attempting to access the network for the first time, and can use LastError events to notify them of asynchronous errors. Additionally, control points can use events for duplication or to backup the authentication database to a control point such as a PC or into another wireless access point. Refer to the Theory of operation for further details.
Note: events alone cannot be used to duplicate a database, because they will not contain the value of the Secret field. A control point could, on noting that Secret had changed, use GetSpecificEntry to retrieve its value.
2.4. Actions
Table 3 lists the required and optional actions for the UPnP™ AP device. This is followed by detailed information about these actions, including short descriptions of the actions, the effects of the actions on state variables, and error codes defined by the actions.
Securing UPnP™ actions in this service is optional but strongly recommended, using UPnP™ security protocols as defined by UPnP™ Security working group. If the AP implements security for UPnP™
actions, Table 3 indicates which actions MUST be secure. The others may be implemented as secure or open. Secure actions MUST be protected for both confidentiality and integrity.
Access permissions will be inherited from the containing device (e.g., WLANAccessPointDevice).
Table 3: Actions
Name Secure or
Open*
Req. or Opt. 1
GetGenericEntry S R
GetSpecificEntry S R
AddEntry S R
UpdateEntry S R
DeleteEntry S R
GetNumberOfEntries S R
FactoryDefaultReset S R
ResetAuthentication S R
Non-standard actions implemented by an UPnP™ device vendor go here. X X
1 R = Required, O = Optional, X = Non-standard.
*This column is relevant if DeviceSecurity service is present in the container device
2.4.1. GetGenericEntry
This action retrieves authentication records one entry at a time. Control points can call this action with an incrementing array index until no more entries are found in the authentication record list.
If LastChange is updated during a call, the process may have to start over. Entries in the array are contiguous. As entries are deleted, the array is compacted, and the evented variable LastChange is triggered. Authentication records are logically stored as an array and retrieved using an array index ranging from 0 to NumberOfEntries-1.
2.4.1.1. Arguments
Table 4: Arguments for GetGenericEntry
Argument Direction relatedStateVariable
NewIndex IN NumberOfEntries
NewIdentifier OUT Identifier
NewSecret OUT Secret
NewSecretType OUT SecretType
NewAuthType OUT AuthType
NewAuthState OUT AuthState
NewCredentialState OUT CredentialState
NewDescription OUT Description
NewMACAddress OUT MACAddress
NewCredentialDuration OUT CredentialDuration
NewLinkedIdentifier OUT LinkedIdentifier
2.4.1.2. Dependency on State (if any) 2.4.1.3. Effect on State (if any) None.
2.4.1.4. Errors
errorCode errorDescription Description
402 Invalid Args See UPnP™ Device Architecture section on Control.
713 SpecifiedArrayIndexInvalid The specified array index is out of bounds.
2.4.2. GetSpecificEntry
This action retrieves one authentication record entry specified by the input parameter NewIdentifierKey. Authentication records are logically stored as an array in the authentication record list and can be retrieved using their Identifier as a unique value.
2.4.2.1. Arguments
Table 5: Arguments for GetSpecificEntry
Argument Direction relatedStateVariable
NewIdentifierKey IN Identifier
NewIdentifier OUT Identifier
NewSecret OUT Secret
NewSecretType OUT SecretType
NewAuthType OUT AuthType
NewAuthState OUT AuthState
NewCredentialState OUT CredentialState
NewDescription OUT Description
NewMACAddress OUT MACAddress
NewCredentialDuration OUT CredentialDuration
NewLinkedIdentifier OUT LinkedIdentifier
2.4.2.2. Dependency on State (if any) 2.4.2.3. Effect on State (if any) None.
2.4.2.4. Errors
errorCode errorDescription Description
402 Invalid Args See UPnP™ Device Architecture section on Control.
605 String Argument Too Long A string argument is too long for the device to handle properly.
702 IdentifierKeyNotPresent The record corresponding to input Identifier key is not found in the authentication record list.
2.4.3. AddEntry
This action creates a new authentication record.
2.4.3.1. Arguments
Table 6: Arguments for AddEntry
Argument Direction relatedStateVariable
NewIdentifier IN Identifier
NewSecret IN Secret
NewSecretType IN SecretType
NewAuthType IN AuthType
NewAuthState IN AuthState
NewCredentialState IN CredentialState
NewDescription IN Description
NewMACAddress IN MACAddress
NewCredentialDuration IN CredentialDuration
NewLinkedIdentifier IN LinkedIdentifier
NewNumberOfEntries OUT NumberOfEntries
2.4.3.2. Dependency on State (if any) 2.4.3.3. Effect on State (if any)
When adding a new record the LastChange variable is evented including the new fields and values.
2.4.3.4. Errors
errorCode errorDescription Description
501 Action Failed See UPnP™ Device Architecture section on Control.
605 String Argument Too Long A string argument is too long for the device to handle properly.
701 EntryAlreadyPresent If an existing record with Identifier already exists in the database return this error.
2.4.4. UpdateEntry
This action modifies an existing authentication record.
2.4.4.1. Arguments
Table 7: Arguments for UpdateEntry
Argument Direction relatedStateVariable
NewIdentifier IN Identifier
NewSecret IN Secret
NewSecretType IN SecretType
NewAuthType IN AuthType
NewAuthState IN AuthState
NewCredentialState IN CredentialState
NewDescription IN Description
NewMACAddress IN MACAddress
NewCredentialDuration IN CredentialDuration
NewLinkedIdentifier IN LinkedIdentifier
NewNumberOfEntries OUT NumberOfEntries
2.4.4.2. Dependency on State (if any) 2.4.4.3. Effect on State (if any)
The modified fields and values are evented via the LastChange event.
2.4.4.4. Errors
errorCode errorDescription Description
402 Invalid Args See UPnP™ Device Architecture section on Control.
501 Action Failed See UPnP™ Device Architecture section on Control.
605 String Argument
Too Long
A string argument is too long for the device to handle properly.
2.4.5. DeleteEntry
This action deletes an authentication record specified by InIdentifier.
2.4.5.1. Arguments
Table 8: Arguments for DeleteEntry
Argument Direction relatedStateVariable
NewIdentifier IN Identifier
NewNumberOfEntries OUT NumberOfEntries
2.4.5.2. Dependency on State (if any) 2.4.5.3. Effect on State (if any)
As each entry is deleted, the array is compacted, and the evented variable LastChange is triggered. LastChange only includes the ActionField set to Delete followed by the Identifier field.
2.4.5.4. Errors
errorCode errorDescription Description
402 Invalid Args See UPnP™ Device Architecture section on Control.
605 String Argument Too Long A string argument is too long for the device to handle properly.
702 IdentifierKeyNotPresent The record corresponding to input Identifier key is not found in the authentication record list.
2.4.6. GetNumberOfEntries
This action retrieves the value NumberOfEntries.
2.4.6.1. Arguments
Table 9: Arguments for GetNumberOfEntries
Argument Direction relatedStateVariable
NewNumberOfEntries OUT NumberOfEntries
2.4.6.2. Dependency on State (if any) 2.4.6.3. Effect on State (if any) 2.4.6.4. Errors
ErrorCode errorDescription Description
402 Invalid Args See UPnP™ Device Architecture section on Control.
2.4.7. FactoryDefaultReset
This action resets the service to its factory defaults. On successful completion, the authentication database will contain only those entries that were pre-defined by the vendor, if any.
It is recommended that the relevant LastChange events be posted when resetting to factory defaults.
All authenticated sessions using credentials in the credential store must be disassociated.
FactoryDefaultReset is processed by the LinkAuthentication service when a containing device has its DeviceSecurity FactoryDefaultReset invoked. Additionally, the IGD working committee has determined that the LinkAuthentication service is a child service of the WLANConfiguration service when contained in the WLANAccessPointDevice. Therefore when WLANConfiguration FactoryDefaultReset is invoked, the implementation of WLANConfiguration FactoryDefaultReset must invoke the implementation of LinkAuthentication FactoryDefaultReset.
2.4.7.1. Arguments None
2.4.7.2. Dependency on State (if any) 2.4.7.3. Effect on State (if any) 2.4.7.4. Errors
ErrorCode errorDescription Description
402 Invalid Args See UPnP™ Device Architecture section on Control.
2.4.8. ResetAuthentication
This action performs a soft reset of the service. This forces all clients to re-authenticate and guarantees that CredentialState and AuthState are consistent, as follows.
• All authenticated sessions using credentials in the credential store must be disassociated.
• All non-permanent authentication database entries (i.e. those that have non-zero CredentialDuration fields) are deleted.
• All entries with a CredentialState other than Accepted (i.e. those whose secrets have never been validated) are deleted.
• AuthState is set to Unconfigured for all remaining entries, and the EAP server proceeds with re-authentication.
It is required that the relevant LastChange events be posted when performing a soft reset.
This soft reset logic is also executed on each reboot.
The IGD working committee has determined that the LinkAuthentication service is an implied child service of the WLANConfiguration service when contained in the WLANAccessPointDevice.
Therefore when WLANConfiguration ResetAuthentication is invoked, the implementation of WLANConfiguration ResetAuthentication must invoke the implementation of LinkAuthentication ResetAuthentication.
2.4.8.1. Arguments None
2.4.8.2. Dependency on State (if any) 2.4.8.3. Effect on State (if any) 2.4.8.4. Errors
ErrorCode errorDescription Description
402 Invalid Args See UPnP™ Device Architecture section on Control.
501 Action Failed See UPnP™ Device Architecture section on Control.
2.4.9. Common Error Codes
The following table lists error codes common to actions for this service type. If an action results in multiple errors, the most specific error should be returned.
Table 10: Common Error Codes
errorCode errorDescription Description
401 Invalid Action See UPnP™ Device Architecture section on Control.
402 Invalid Args See UPnP™ Device Architecture section on Control.
404 Invalid Var See UPnP™ Device Architecture section on Control.
501 Action Failed See UPnP™ Device Architecture section on Control.
errorCode errorDescription Description
600-699 TBD Common action errors. Defined by UPnP™ Forum Technical Committee.
701-799 Common action errors defined by the UPnP™ Forum working committees.
800-899 TBD (Specified by UPnP™ device vendor.)
2.5. Theory of Operation
The LinkAuthentication service provides a mechanism for control points to access a per-client credential store. It is strongly recommended that actions of this service are controlled using DeviceSecurity:1.0 as defined in the UPnP™ Security working group. The term “per-client” means that users and/or WLAN client devices have unique credentials, as opposed to using a single network-wide common credential. The credential store and this service can be used for any authentication mechanism but one of the main uses is with 802.1x. The following sections describe how it works with 802.1x, but is also applicable to other authentication processes, for example, any client can store their public keys in the credential store keyed with its unique Identifier.
2.5.1. 802.1x introduction
IEEE-802.1x is a request-response framework used for physical port-level access (as in an Ethernet switch) to local area networks. There are three roles in 802.1x: 1) the supplicant, 2) the authenticator, and 3) the authentication server. The supplicant is the client attempting to authenticate to gain network access. The authenticator is the device enforcing authentication, and the authentication server provides the mechanism to check the supplicant’s credentials on behalf of the authenticator. 802.1x uses EAP (Extensible
Authentication Protocol) to exchange authentication messages between the client requesting authentication and the authentication server. Several EAP authentication protocols have been specified including EAP- TLS, Protected EAP, EAP-TTLS and others, see RFC 2284 for details. Per the 802.1x specification – “an Authenticator and an Authentication server can be co-located within the same System, allowing that System to perform the authentication function without the need for communication with an external server.” – IEEE Std 802.1x-2001 §6.1.
IEEE-802.1x has been adapted to 802.11 by the industry where the wireless station (the supplicant) authenticates with an authentication server via an AP (the authenticator). This is typically applied in enterprise networks where the authentication protocols rely on ‘back-end’ authentication servers (e.g.
RADIUS). The servers are linked to user databases that are commonly found in large corporate class networks administered by Information Technology staff. However, one cannot assume that level of administrative expertise in the home environment. The LinkAuthentication service provides a simple and sufficient authentication server framework that can be updated via UPnP™ actions. Although the
LinkAuthentication service is assumed generally to be co-located with the AP, it is possible that it may be running on a separate device on the LAN.
2.5.2. High level intended operation
Access points implementing 802.1x based authentication require the use of authentication server(s).
Additionally, 802.1x client devices such as embedded devices with built-in or preconfigured unique (“per- client”) credentials such as passwords or certificates need to have their credentials initially verified, added, and stored in the authentication server. The LinkAuthentication service can be used by an AP that supports 802.1x and does not have an authentication server such as RADIUS available (external to the AP device) on the network. This service provides a means for UPnP™ Control Points to store and access the authentication data and is essentially a front-end API to manipulate the authentication database the AP uses for 802.1x authentication. It also provides a mechanism to inform the control point via UPnP™ events that a particular entry needs to be validated. The authentication data store can be present anywhere on the network. For instance, it can be stored locally on the AP or in an embedded device such as an IGD that can host the LinkAuthentication service and the database. In the latter case, the AP could access the database on the IGD via RADIUS and the user could manipulate the database via the LinkAuthentication service.
RFC 2716 (EAP-TLS) uses the term “EAP Server” to denote the “ultimate endpoint” actually performing the authentication process. This term is also used below.
The LinkAuthentication service maintains records with state variables to aid control points (via end-user interaction) in verifying, adding, and storing per-user or per-device unique credentials. There are two entities making changes to records in the database. For instance, in the case of the LinkAuthentication Service and the database residing locally in the AP, one entity is the 802.1x EAP Server while the other entity is the UPnP™ Control Point. Both are able to update fields in the authentication database and
respond to changes. Any modification to the client records generates the appropriate UPnP™ events (see description for LastChange variable).
This service supports the most commonly utilized authentication protocols specified via 802.1x EAP. The EAP protocols are generalized in this document into two types. The first type requires that the public key of a client be verified and the other requires the end user to enter a secret such as a password. For example, with EAP-TLS the client’s certificate (credentials) is sent to the AP and then to the Control Point. It is assumed that the user at the Control Point has a means to validate this certificate. Another EAP type is Protected EAP which involves EAP-TLS tunnel with the use of an inner protocol such as MSCHAPv2. In this case, a shared secret / password is entered via the Control Point and stored in the database. The secret would already be present in the client in permanent storage such as disk or put in flash memory at the time of manufacture. For example, the secret on a closed/embedded device could be accessed by the user by reading a sticker on the device or printed documentation. Once the user has entered the secret into the Control Point it is sent to the AP and used to authenticate the client.
2.5.3. Detailed level operation
The 802.1x EAP process starts with a request by the EAP Server for an EAP Identity string from the enrolling client. The EAP Server accesses the authentication records using the EAP Identity string to retrieve the record with the corresponding Identifier field. Therefore all devices accessing the wireless network must have unique EAP Identity strings. The EAP process then progresses to select an
authentication method (EAP Type). Once an EAP type has been agreed upon by the server and client, the EAP authentication method is executed. It is expected that the EAP Server will refer to the corresponding client record with the given Identifier during the authentication process and verify that the credentials used for authentication match those in the authentication records.
If the EAP Identity string does not match any client Identifiers, then a new record is created by the EAP Server. The EAP server should populate the record with the Identifier field set to the EAP Identity string from the enrolling client and set the AuthType corresponding to the EAP authentication mode (such as EAP-TLS) selected by the EAP server . The EAP server should also update the MAC address field in the record. If credential exchanges have occurred by this time as in the case of EAP-TLS, the EAP server should populate the Secret field appropriately as well. The EAP server can now set the CredentialState to Pending which will trigger LastChange and alert control points of an enrolling client. The control points will prompt the user to accept or deny the client’s credentials. If the user selects Denied the control point invokes UpdateEntry action, halting the client authentication process. This results in an EAP Failure sent to the client by the AP. If the user selects Accepted the client authentication proceeds and the EAP server verifies the credential in the secret field is actually being used for client authentication. At the conclusion of the authentication process the EAP server updates the AuthState field.
However, if the EAP Identity does match a client Identifier and the CredentialState is Accepted the EAP server proceeds with the authentication process and verifies the credential in the secret field is actually being used for client authentication. If CredentialState is already Denied the client authentication process halts and an EAP Failure is sent to the client. At the conclusion of the authentication process the EAP server updates the AuthState field.
2.5.4. Record format
Each record is uniquely addressed via the Identifier field. As an example, the following
authentication records contain two device records with CredentialState set to Accepted, named Dev1 and Dev2. For this example these two devices have already authenticated via EAP-TLS and the AP has stored the devices’ public keys. Since the AuthState is Authenticated, when either of these devices sends its EAP Identity, the AP will find the matching record and compare the contents of the Secret field with the public key that the client sends during the TLS handshake phase. If they match the AP will continue the TLS handshake; if they do not match the AP should not continue the TLS handshake.
Identifier Secret Secret Type
Auth
Type Cred State Auth State Descrip. MAC addr.
Cred Duration Dev 1 Key1 Public
Key
Validate Credentials
Accepted Succeeded MAC 1 0
Dev 2 Key2 Public Key
Validate Credentials
Accepted Succeeded MAC 2 0
… … … … … … … …
With EAP-TLS the Identifier field and the public key will be sent in the clear over the wireless link during the TLS handshake phase. TLS will ensure that the client sending a public key has a matching private key.
It is important to store and compare the credential for EAP-TLS, in this example the public key, in the authentication records with the client’s public key since a rogue device can masquerade as Dev1 by sending Dev1 as its identifier and use Dev1’s MAC address. Additionally, the rogue device can easily create a valid public key / private key pair and send the public key to the AP during the TLS handshake phase. If the rogue client’s public key were not matched against Dev1’s user authenticated Secret (its public key) in the authentication records the AP EAP server would challenge the rogue device using the rogue device’s public key and the rogue client would successfully complete the TLS handshake. Therefore, to prevent rogue devices from successfully masquerading using their own keys, the public key or other credential should be maintained in the authentication records and matched during authentication.
2.5.5. Example using client certificate credentials
In this example, an 802.1x based client device is attempting to gain network access. Suppose the client and AP are both configured with certificates from a common certificate authority. The EAP-TLS process will exchange challenges and certificates. The certificates are typically validated in terms of expiration dates, and the certificate chain to the root certificate authority. In this case the AP certificate is validated by the client which then proceeds with establishing the TLS tunnel. The first time the client associates the AP is expected to find that the client’s certificate (or hash of the public key in the cert) is not in the client credential records. In this case the EAP server creates and populates a record with the Identifier, Secret and AuthType of ValidateCredentials, then the EAP server sets the
CredentialState to Pending. The CP receives the event(s) and informs the user that a device with an identifier of (a string such as serialnumber@manufacturer ) and a “secret” of (some string) is requesting network access. The secret in this case is printed on the bottom of the client device. This is a hash of the public key. The user is expected to look under the device and match the number on the sticker to the number on the control point. If the user deems that the numbers match the user will click on the “accept”
button and optionally enter a time interval for temporary network access. The CP will set
CredentialState to Accepted and the EAP server will then continue the TLS session ensuring the public key from the client is indeed used for the TLS session. If the EAP-TLS authentication succeeds or fails the AuthState variable will be updated informing the control point. Note the client has been
The above example relies on the clients and AP having pre-installed certificates. This is not practical for the home environment especially for small embedded devices without a user interface. This limitation will have to be addressed with some authentication method that provides mutual authentication but does not require certificate validation.
2.5.6. Limitations on Pending Records
The EAP server must delete Pending records when the 802.1x authentication process times out or is aborted. The state machines and time values are specified in the IEEE Std 802.1x-2001.
An attacker could attempt authentication with randomly selected EAP Identity strings and overwhelm the credential store by effectively creating too many Pending records. Each implementation should place an implementation dependent limit on the maximum number of Pending records.
3. XML Service Description
<?xml version="1.0"?>
<scpd xmlns="urn:schemas-upnp-org:service-1-0">
<specVersion>
<major>1</major>
<minor>0</minor>
</specVersion>
<actionList>
<action>
<name>GetGenericEntry</name>
<argumentList>
<argument>
<name>NewIndex</name>
<direction>in</direction>
<relatedStateVariable>NumberOfEntries</relatedStateVariable>
</argument>
<argument>
<name>NewIdentifier</name>
<direction>out</direction>
<relatedStateVariable>Identifier</relatedStateVariable>
</argument>
<argument>
<name>NewSecret</name>
<direction>out</direction>
<relatedStateVariable>Secret</relatedStateVariable>
</argument>
<argument>
<name>NewSecretType</name>
<direction>out</direction>
<relatedStateVariable>SecretType</relatedStateVariable>
</argument>
<argument>
<name>NewAuthType</name>
<direction>out</direction>
<relatedStateVariable>AuthType</relatedStateVariable>
</argument>
<argument>
<name>NewAuthState</name>
<direction>out</direction>
<relatedStateVariable>AuthState</relatedStateVariable>
</argument>
<argument>
<name>NewCredentialState</name>
<direction>out</direction>
<relatedStateVariable>CredentialState</relatedStateVariable>
</argument>
<argument>
<name>NewDescription</name>
<direction>out</direction>
<relatedStateVariable>Description</relatedStateVariable>
</argument>
<argument>
<name>NewMACAddress</name>
<direction>out</direction>
<relatedStateVariable>MACAddress</relatedStateVariable>
</argument>
<argument>
<name>NewCredentialDuration</name>
<direction>out</direction>
<relatedStateVariable>CredentialDuration</relatedStateVariable>
</argument>
<argument>
<name>NewLinkedIdentifier</name>
<direction>out</direction>
<relatedStateVariable>LinkedIdentifier</relatedStateVariable>
</argument>
</argumentList>
<name>GetSpecificEntry</name>
<argumentList>
<argument>
<name>NewIdentifierKey</name>
<direction>in</direction>
<relatedStateVariable>Identifier</relatedStateVariable>
</argument>
<argument>
<name>NewIdentifier</name>
<direction>out</direction>
<relatedStateVariable>Identifier</relatedStateVariable>
</argument>
<argument>
<name>NewSecret</name>
<direction>out</direction>
<relatedStateVariable>Secret</relatedStateVariable>
</argument>
<argument>
<name>NewSecretType</name>
<direction>out</direction>
<relatedStateVariable>SecretType</relatedStateVariable>
</argument>
<argument>
<name>NewAuthType</name>
<direction>out</direction>
<relatedStateVariable>AuthType</relatedStateVariable>
</argument>
<argument>
<name>NewAuthState</name>
<direction>out</direction>
<relatedStateVariable>AuthState</relatedStateVariable>
</argument>
<argument>
<name>NewCredentialState</name>
<direction>out</direction>
<relatedStateVariable>CredentialState</relatedStateVariable>
</argument>
<argument>
<name>NewDescription</name>
<direction>out</direction>
<relatedStateVariable>Description</relatedStateVariable>
</argument>
<argument>
<name>NewMACAddress</name>
<direction>out</direction>
<relatedStateVariable>MACAddress</relatedStateVariable>
</argument>
<argument>
<name>NewCredentialDuration</name>
<direction>out</direction>
<relatedStateVariable>CredentialDuration</relatedStateVariable>
</argument>
<argument>
<name>NewLinkedIdentifier</name>
<direction>out</direction>
<relatedStateVariable>LinkedIdentifier</relatedStateVariable>
</argument>
</argumentList>
</action>
<action>
<name>AddEntry</name>
<argumentList>
<argument>
<name>NewIdentifier</name>
<direction>in</direction>
<relatedStateVariable>Identifier</relatedStateVariable>
</argument>
<argument>
<name>NewSecret</name>
<direction>in</direction>
<relatedStateVariable>Secret</relatedStateVariable>
</argument>
<argument>
<name>NewSecretType</name>
<direction>in</direction>
<relatedStateVariable>SecretType</relatedStateVariable>
</argument>
<argument>
<name>NewAuthType</name>
<direction>in</direction>
<relatedStateVariable>AuthType</relatedStateVariable>
</argument>
<argument>
<name>NewAuthState</name>
<direction>in</direction>
<relatedStateVariable>AuthState</relatedStateVariable>
</argument>
<argument>
<name>NewCredentialState</name>
<direction>in</direction>
<relatedStateVariable>CredentialState</relatedStateVariable>
</argument>
<argument>
<name>NewDescription</name>
<direction>in</direction>
<relatedStateVariable>Description</relatedStateVariable>
</argument>
<argument>
<name>NewMACAddress</name>
<direction>in</direction>
<relatedStateVariable>MACAddress</relatedStateVariable>
</argument>
<argument>
<name>NewCredentialDuration</name>
<direction>in</direction>
<relatedStateVariable>CredentialDuration</relatedStateVariable>
</argument>
<argument>
<name>NewLinkedIdentifier</name>
<direction>in</direction>
<relatedStateVariable>LinkedIdentifier</relatedStateVariable>
</argument>
<argument>
<name>NewNumberOfEntries</name>
<direction>out</direction>
<relatedStateVariable>NumberOfEntries</relatedStateVariable>
</argument>
</argumentList>
</action>
<action>
<name>UpdateEntry</name>
<argumentList>
<argument>
<name>NewIdentifier</name>
<direction>in</direction>
<relatedStateVariable>Identifier</relatedStateVariable>
</argument>
<argument>
<name>NewSecret</name>
<direction>in</direction>
<relatedStateVariable>Secret</relatedStateVariable>
</argument>
<argument>
<name>NewSecretType</name>
<direction>in</direction>
<relatedStateVariable>SecretType</relatedStateVariable>
</argument>
<argument>
<name>NewAuthType</name>
<direction>in</direction>
<argument>
<name>NewAuthState</name>
<direction>in</direction>
<relatedStateVariable>AuthState</relatedStateVariable>
</argument>
<argument>
<name>NewCredentialState</name>
<direction>in</direction>
<relatedStateVariable>CredentialState</relatedStateVariable>
</argument>
<argument>
<name>NewDescription</name>
<direction>in</direction>
<relatedStateVariable>Description</relatedStateVariable>
</argument>
<argument>
<name>NewMACAddress</name>
<direction>in</direction>
<relatedStateVariable>MACAddress</relatedStateVariable>
</argument>
<argument>
<name>NewCredentialDuration</name>
<direction>in</direction>
<relatedStateVariable>CredentialDuration</relatedStateVariable>
</argument>
<argument>
<name>NewLinkedIdentifier</name>
<direction>in</direction>
<relatedStateVariable>LinkedIdentifier</relatedStateVariable>
</argument>
<argument>
<name>NewNumberOfEntries</name>
<direction>out</direction>
<relatedStateVariable>NumberOfEntries</relatedStateVariable>
</argument>
</argumentList>
</action>
<action>
<name>DeleteEntry</name>
<argumentList>
<argument>
<name>NewIdentifier</name>
<direction>in</direction>
<relatedStateVariable>Identifier</relatedStateVariable>
</argument>
<argument>
<name>NewNumberOfEntries</name>
<direction>out</direction>
<relatedStateVariable>NumberOfEntries</relatedStateVariable>
</argument>
</argumentList>
</action>
<action>
<name>GetNumberOfEntries</name>
<argumentList>
<argument>
<name>NewNumberOfEntries</name>
<direction>out</direction>
<relatedStateVariable>NumberOfEntries</relatedStateVariable>
</argument>
</argumentList>
</action>
<action>
<name>FactoryDefaultReset</name>
</action>
<action>
<name>ResetAuthentication</name>
</action>
</actionList>
<serviceStateTable>
<stateVariable sendEvents="no">
<name>NumberOfEntries</name>
<dataType>ui2</dataType>
<defaultValue>0</defaultValue>
</stateVariable>
<stateVariable sendEvents="no">
<name>Identifier</name>
<dataType>string</dataType>
</stateVariable>
<stateVariable sendEvents="no">
<name>Secret</name>
<dataType>string</dataType>
</stateVariable>
<stateVariable sendEvents="no">
<name>SecretType</name>
<dataType>string</dataType>
<allowedValueList>
<allowedValue>TextPassword</allowedValue>
<allowedValue>X509Certificate</allowedValue>
<allowedValue>PublicKey</allowedValue>
<allowedValue>PublicKeyHash160</allowedValue>
</allowedValueList>
</stateVariable>
<stateVariable sendEvents="no">
<name>AuthType</name>
<dataType>string</dataType>
<allowedValueList>
<allowedValue>SharedSecret</allowedValue>
<allowedValue>ValidateCredentials</allowedValue>
</allowedValueList>
</stateVariable>
<stateVariable sendEvents="no">
<name>AuthState</name>
<dataType>string</dataType>
<defaultValue>Unconfigured</defaultValue>
<allowedValueList>
<allowedValue>Unconfigured</allowedValue>
<allowedValue>Failed</allowedValue>
<allowedValue>Succeeded</allowedValue>
</allowedValueList>
</stateVariable>
<stateVariable sendEvents="no">
<name>CredentialState</name>
<dataType>string</dataType>
<defaultValue>Unconfigured</defaultValue>
<allowedValueList>
<allowedValue>Unconfigured</allowedValue>
<allowedValue>Pending</allowedValue>
<allowedValue>Accepted</allowedValue>
<allowedValue>Denied</allowedValue>
</allowedValueList>
</stateVariable>
<stateVariable sendEvents="no">
<name>Description</name>
<dataType>string</dataType>
</stateVariable>
<stateVariable sendEvents="no">
<name>MACAddress</name>
<dataType>string</dataType>
</stateVariable>
<stateVariable sendEvents="no">
<name>CredentialDuration</name>
<dataType>ui4</dataType>
<defaultValue>0</defaultValue>
</stateVariable>
<stateVariable sendEvents="yes">
<name>LastChange</name>
<dataType>string</dataType>
</stateVariable>
<stateVariable sendEvents="no">
</stateVariable>
<stateVariable sendEvents="yes">
<name>LastError</name>
<dataType>string</dataType>
</stateVariable>
</serviceStateTable>
</scpd>
4. Test
No semantic tests have been defined for this service.
