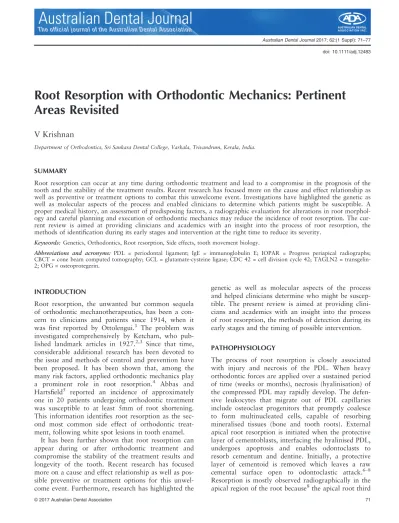

Root Resorption with Orthodontic Mechanics: Pertinent Areas Revisited
V Krishnan
Department of Orthodontics, Sri Sankara Dental College, Varkala, Trivandrum, Kerala, India.
SUMMARY
Root resorption can occur at any time during orthodontic treatment and lead to a compromise in the prognosis of the tooth and the stability of the treatment results. Recent research has focused more on the cause and effect relationship as well as preventive or treatment options to combat this unwelcome event. Investigations have highlighted the genetic as well as molecular aspects of the process and enabled clinicians to determine which patients might be susceptible. A proper medical history, an assessment of predisposing factors, a radiographic evaluation for alterations in root morphol- ogy and careful planning and execution of orthodontic mechanics may reduce the incidence of root resorption. The cur- rent review is aimed at providing clinicians and academics with an insight into the process of root resorption, the methods of identification during its early stages and intervention at the right time to reduce its severity.
Keywords: Genetics, Orthodontics, Root resorption, Side effects, tooth movement biology.
Abbreviations and acronyms: PDL = periodontal ligament; IgE = immunoglobulin E; IOPAR = Progress periapical radiographs;
CBCT = cone beam computed tomography; GCL = glutamate-cysteine ligase; CDC 42 = cell division cycle 42; TAGLN2 = transgelin- 2; OPG = osteoprotegerin.
INTRODUCTION
Root resorption, the unwanted but common sequela of orthodontic mechanotherapeutics, has been a con- cern to clinicians and patients since 1914, when it was first reported by Ottolengui.1 The problem was investigated comprehensively by Ketcham, who pub- lished landmark articles in 1927.2,3 Since that time, considerable additional research has been devoted to the issue and methods of control and prevention have been proposed. It has been shown that, among the many risk factors, applied orthodontic mechanics play a prominent role in root resorption.4 Abbas and Hartsfield5 reported an incidence of approximately one in 20 patients undergoing orthodontic treatment was susceptible to at least 5mm of root shortening.
This information identifies root resorption as the sec- ond most common side effect of orthodontic treat- ment, following white spot lesions in tooth enamel.
It has been further shown that root resorption can appear during or after orthodontic treatment and compromise the stability of the treatment results and longevity of the tooth. Recent research has focused more on a cause and effect relationship as well as pos- sible preventive or treatment options for this unwel- come event. Furthermore, research has highlighted the
genetic as well as molecular aspects of the process and helped clinicians determine who might be suscep- tible. The present review is aimed at providing clini- cians and academics with an insight into the process of root resorption, the methods of detection during its early stages and the timing of possible intervention.
PATHOPHYSIOLOGY
The process of root resorption is closely associated with injury and necrosis of the PDL. When heavy orthodontic forces are applied over a sustained period of time (weeks or months), necrosis (hyalinisation) of the compressed PDL may rapidly develop. The defen- sive leukocytes that migrate out of PDL capillaries include osteoclast progenitors that promptly coalesce to form multinucleated cells, capable of resorbing mineralised tissues (bone and tooth roots). External apical root resorption is initiated when the protective layer of cementoblasts, interfacing the hyalinised PDL, undergoes apoptosis and enables odontoclasts to resorb cementum and dentine. Initially, a protective layer of cementoid is removed which leaves a raw cemental surface open to odontoclastic attack.6–8 Resorption is mostly observed radiographically in the apical region of the root because8the apical root third
Australian Dental Journal 2017; 62:(1 Suppl): 71–77 doi: 10.1111/adj.12483
Australian Dental Journal
The official journal of the Australian Dental Association
is covered with cellular cementum, which relies on active cells and supporting vasculature, the loss of which renders the area vulnerable to trauma and cell injury-related reactions. It is reported that blood ves- sels occupy 47% of the PDL space in the apical region, compared with 4% at the cervical end of the root.9 In addition, there is a decrease in the hardness and elastic modulus of the cementum, from the cervi- cal to the apical region, making the apical areas prone to resorption.10 Furthermore, the fulcrum of tooth movement (centre of rotation) is occlusal to the apical half of the root during tipping movements. This, along with the differences in the direction of the peri- odontal fibres likely results in increased trauma to the apical and middle thirds of the root.5
CATEGORISING THE RESORPTION PROCESS
The earliest classification of root resorption consid- ered the clinical severity of the process and was pro- posed by Brezniak and Wasserstein.11 According to their description, a resorptive event may affect only the outer surface of the tooth root, which maintains a potential for full regeneration or remodelling (cemen- tal or surface resorption). Alternatively, root resorp- tion can reach into dentine and cause morphological alterations (dentinal resorption) or further, continue and lead to full resorption of hard tissues resulting in root shortening (circumferential root resorption). A pictorial representation of this phenomenon was pro- vided and proposed as an index by Malmgen et al.12, which was further modified by Beck and Harris in 199413 (Figure 1). An additional classification with orthodontic relevance categorises the process as either internal (starting from the pulpal side) or external (which is further divided into apical as well as lateral root resorption). A repair process, initiated once the applied forces have been discontinued, lays down acellular cementum followed by the deposition of cel- lular cementum, the effects of which usually take at least 6-8 weeks to become radiographically evident.
PREDISPOSING OR RISK FACTORS
A review of published literature has identified a num- ber of risk factors, which predispose a patient to root resorption once subjected to orthodontic mechanics.
These can be categorised as general or local factors.
GENERAL FACTORS
Age at start of treatment
Even though most reports reveal poor correlation between the patient’s age at the start of treatment and the incidence of root resorption, Sameshima and
Sinclair14 reported an increased incidence in adults.
This finding was confirmed by Ren et al.15through an animal study and Picanco et al.16 through human research. The proposed reasons contributing to increased root resorption in adults were listed as a decreased periodontal vascularity and inelasticity, thicker cementum and its firm attachment in the api- cal third of the root in adults thereby increasing sus- ceptibility.
Gender
Though the majority of studies report little correlation between gender and the incidence of root resorption, Sameshima and Sinclair14 reported a statistically insignificant increase in incidence in males. In addi- tion, there are mixed reports indicating that females as well as males are prone to the process, which leaves clinicians in confusion. Recent literature sup- ports the findings of Sameshima and Sinclair14 while Geraldo de et al.17 attributed the gender discrepancy to an altered root morphology and pipette-shaped central incisor roots in males which herald an increased tendency for root resorption. According to a thesis published by Kathryn and Begole18, females exhibit shorter root morphology than males in all eth- nic groups.
Ethnicity
Ethnic difference is considerable as evidenced by reports stating that Asians are less prone to root resorption compared with Caucasians and Hispan- ics.19 Kathryn and Begole18conducted a detailed eval- uation of pre-treatment root length of four ethnic group assessments. Caucasians and Hispanics were found to have larger relative root lengths compared with Asians and African Americans. The exception to this was the maxillary 2nd premolar which showed
Fig. 1 Scoring system of Malmgren et al. (1982)9– Grade 0 – no resorption, Grade 1 mild resorption, root with normal length and only
displaying an irregular contour, Grade 2– moderate resorption, small area of root loss with apex exhibiting almost straight contour, Grade 3– accentuated resorption, loss of almost one-third of root length, Grade 4– extreme resorption, loss of more than one third root length. Grade 0 was
added by Beck and Harris in their article for American Journal of Orthodontics and Dentofacial Orthopedics in the year 1994.10(Reprinted
with permission from Elsevier)
greater root length values in Asians compared with Caucasians. The findings were interpreted as evidence that short roots (Asians, African Americans and females) were less likely to be affected by root resorp- tion compared with roots that were longer or affected by altered morphology.
Systemic diseases and medications
A close correlation exists between the immune system and the root resorptive process shown by an increased prevalence in patients with allergies and asthma. Ele- vated levels of IgE are present in patients suffering from asthma, atopy and allergy.20 Asthma, in particu- lar, results in an imbalance between T helper 1 and T helper 2 lymphocytes, the latter responsible for the pulmonary synthesis and release of inflammatory mediators, such as interleukins 4, 5, 6, 10 and 13.21 The released cytokines attract inflammatory cells to the lung, which initiate further secretion of histamine, prostaglandins and leukotrienes. These signalling molecules enter the circulation and reach the peri- odontal ligament, where they are able to interact with target cells involved in tissue remodelling and tooth movement.22 Moreover, the application of excessive orthodontic force in asthmatic patients, often results in tissue compression and necrosis, and subsequent clast cell activity leading to hard tissue resorption. In addition to asthma, diseases associated with low bone turn over, such as hypothyroidism, can lead to increased stress on tooth roots following applied orthodontic loads and lead to root resorption.23
The genetic link revisited
Many studies have attempted to correlate root resorp- tion with a patient’s genetic characteristics and deter- mined that individuals homozygous for IL-1b (+3953) allele 1 have a 5.6-fold increase in the risk of root resorption compared with those who are not homozy- gous. These individuals have reduced secretion of IL-1 b leading to less catabolic bone remodelling response (resorption) and more damage to root structure.24,25 Another candidate gene showing a close association with root resorption is TNFRSF11A which codes for the bone remodelling protein RANK. The reduced expression of any gene involved with bone remod- elling will lead to stress concentration on tooth roots and likely precipitate root resorption.24,25
LOCAL FACTORS
Tooth shape and position
The majority of studies have suggested that central inci- sors are more susceptible to root resorption.13,26–28
However, two studies, indicated that lateral incisors were more affected19,29 followed by molars and canines. The most commonly resorbed tooth in the mandibular arch is the canine followed by the lateral and central incisors19. Beck and Harris13reported more root resorption in the distal roots of molars as anchor- age bends placed at the mesial aspect of the molars for bite opening caused the distal roots to be compressed in their bony sockets. A previous history of trauma30–32 and pre-treatment root resorption11 have been posi- tively correlated with root resorption seen during orthodontic treatment. The relationship between root length and resorption also exhibited a positive correla- tion. The increase in dentine density following endodontic treatment produces resistance against the resorptive process when compared with vital teeth.28,33 Interestingly, minimal resorption was observed in blunted apical forms19and the greatest resorption was encountered in pointed, tapered or dilacerated apical morphology.27 This observation may be explained by pressure from an axial component of an applied orthodontic force is delivered maximally to the root apical region resulting in a localised ischaemic necrosis, which removes pre-cementum, cementoblasts and per- mits colonisation by dentinoclasts. Therefore, abnor- mal root shapes observed in pre-treatment diagnostic records should be considered with caution and carefully monitored throughout treatment for the development of iatrogenic damage.
What do orthodontic mechanics do to tooth roots?
The detrimental nature of fixed appliances compared with removable appliance therapy on tooth roots has been previously examined and assessed34. While Beck and Harris13 found no statistically significant differ- ence in the resorption rate between Begg Light-Wire mechanics and Edgewise (Tweed) techniques, McNab et al.35 reported a higher incidence as well as increased root resorption in patients treated with the Light-Wire appliance. It was determined that the inci- dence root resorption increased 3.72 times when extractions were undertaken as part of Light-Wire appliance therapy. Alexander29 considered the pres- ence of jiggling movements or round-tripping move- ments during mechanotherapy as likely causes of increased resorption. Of the various tooth move- ments, intrusion and torqueing have been most com- monly associated with root damage and are evident and required in Class II division 2 correction. The displacement of the root apex horizontally or by torqueing has been proven to result in root resorp- tion.19,36,37 The highest incidence of root resorption has been reported to occur when 3 – 4.5 mm of torqueing movement was performed.19 The relation- ship between the length of treatment time and root
resorption has been positively correlated by almost all studies11,19,36. Ahu Acar et al.38 evaluated the effect of the type of force applied, whether continuous or interrupted, on the pattern of resorption and observed less severe apical blunting and smaller resorption affected areas when the applied force was intermit- tant.
IDENTIFYING MID-TREATMENT RESORPTION Progress periapical radiographs (IOPAR) still form the major investigative method used to identify mid- treatment root resorption. Multiple grading systems and scoring criteria exist for assessing the resorptive process. Contemporary digital imaging tools such as cone beam computed tomography (CBCT) with reduced radiation dose and high accuracy, have been critical for the purpose of identification.4 Durack et al.39 compared IOAPR and CBCT for the detec- tion of resorption craters and concluded that IOPAR carries inherent limitations and shortcomings. A detailed study by Sherrard et al.40 concluded that IOPAR evaluation could lead to an underestimation of root length by an average of 2.6 mm while a CBCT discrepancy is of the order of 0.3 mm, making it the assessment tool of choice. The main problems of CBCT usage are the associated increased radiation dose, cost and ethical issues. Panoramic radiographs which offer less radiation exposure, less patient and operator time and better patient co-operation, forms the least reliable method confirmed by the difficulty in identifying precise root morphology.23 Moreover, the midline structures are often obscured in panora- mic radiographs which makes resorption difficult to assess in central and lateral incisors. A comparative evaluation of the root resorption process occurring in maxillary central incisors as identified through IOPAR and orthopantamograph is provided in Figure 2.
Until now, there have been no reliable biomarkers identified for the chair-side estimation of the dental resorptive process. The search for biochemical mark- ers was promoted by the discovery of dentine specific proteins in gingival crevicular fluid, as the by-pro- ducts of root resorption.41 The main problem associ- ated with this detection method was the need for high-level laboratory instrumentation to perform ELISA, Western-blot or electrophoresis (SDS-PAGE).
Rody Jr et al. through their recent publications42,43 carried out liquid chromatographic mass spectrometry and immunoassay to quantify root resorption in the deciduous dentition (not orthodontically treated) and suggested strong upregulation of glutamate-cysteine ligase (GCL), which is a rate-limiting enzyme that catalyses the formation of the cellular antioxidant, glutathione. The upregulation of epidermal growth
factor receptor pathway substrate-8-like protein 2 and the down regulation of two exosome-related proteins, cell division cycle 42 (CDC 42) and transgelin-2 (TAGLN2), were identified. Immunoassay revealed a statistically significant difference in the levels of IL- 1b, osteoprotegerin (OPG) and MMP-9, leading to a conclusion that IL-1 RA was downregulated in patients with root resorption. However, translating this research data into a useful clinical approach for identification and diagnosis still requires additional investigation.
Once root resorption has been identified, it is rec- ommended that orthodontic mechanics be discontin- ued for at least 6 months. During this rest period, it is anticipated that root resorption craters will be repaired. Intermittant forces are tissue friendly in comparison with continuously-applied forces as the former allow repair during the rest period.
THE REPAIR PROCESS
Upon cessation of an orthodontic force, active root resorption will stop and a partial, functional or ana- tomic repair process commences.44,45 Partial repair
Fig. 2 Root resorption process of same patient as identified through orthopantamograph and intra oral periapical radiograph. This patient was
treated three time by different orthodontists for closing the openbite and was unsuccessful in all three times. There was a failure in diagnosis at
the initial point by not identifying the vertical maxillary excess and mandibular retrognathism leading to poor treatment planning and execu- tion. Lateral cephalogram showed the evidence of unsucessful treatment.
Please note the limitation observed in the orthopantamograph in identify- ing midline structures and making the resorption process in the central incisors obscure. IOPAR is considered effective tool in comparison to
orthopantamograph in identifying this phenomenon.
occurs when exposed dentine is incompletely covered by new cementum leaving an exposed area. Func- tional repair occurs when the exposed dentine has been completely covered by a thin layer of repair cementum but without the re-establishment of origi- nal contour. Anatomic repair, as the most preferred, is characterised by the restoration of the root surface to its original contour. It has been reported by Owmann-Moll and Kurol44 and Cheng et al.45 that it takes at least 8 weeks of rest for anatomic repair to occur while the partial and functional repair processes predominate during the first 4-6 weeks. Owmann- Moll et al.46 in 1995 clearly delineated the observed percentage of repair process as 17 to 31% during the first 4 weeks (partial repair), 33-40% during 5- 8weeks (functional repair) and 12% after 8 weeks (anatomic repair). Cheng et al.45 reported that 8 weeks of rest produced anatomic repair in 4 exam- ined teeth irrespective of the amount of applied force or stress or the amount of orthodontic damage induced. It was concluded that a minimum of 4 weeks rest is essential for the initiation of the repair process.
The repair of root resorption craters occurs by the deposition of cellular or acellular cementum. Vardi- mon et al.47 described the process with the help of expansion studies as non-functional retarded acellular repair and functional rapid cellular repair. Accord- ingly, the first increment of repair tissue was charac- terised by the apposition of acellular cementum overlying the bottom of a resorption crater. This layer had sparse Sharpey fibre attachments. Subse- quently, the increments deposited were characterised by mixed fibrillar cellular cementum, comprising extrinsic (Sharpey fibres) and intrinsic fibres. This occurs as a result of a differential healing process.
Acellular cementum forms very slowly and occurs during initial rest phases. Later, when healing becomes faster, the cementocytes are trapped within their lacunae as complete mineralisation of the incre- ments takes place. Owmann-Moll et al.44,46 and Cheng et al.45 supported this hypothesis and sug- gested acellular cementum predominated in tooth repair following shorter rest periods (2-3 weeks) compared with teeth subjected to longer resting time periods (6-7 weeks).
AUGMENTING THE REPAIR PROCESS WITH ADJUNCT APPROACHES
Research has demonstrated possible ways of reducing the rate of root resorption during mechanotherapy which have included drugs, hormones, and the appli- cation of low-intensity pulsed ultrasound.23,48 The drugs which have been administered included bisphos- phonates as potent bone resorption inhibitors. The
anti-inflammatory properties of tetracyclines and NSAIDs have also been noted to reduce root resorp- tion. Hormones which have a positive effect on resorption include corticosteroids and L-thyroxine due to its dual activation of parathormone and bone remodelling resulting in less stress on the root apex.23 These research data are obtained from either animal experiments or by incidental observation of patients consuming these drugs. This creates uncertainty related to the clinical applicability of pharmacological programmes solely for the purpose of suppressing the root resorptive process. Considering the unfavourable effects that pharmacology might have in other sys- tems, a rest period of at least 8 weeks is considered the best option, if mid-treatment root resorption is diagnosed.
CONCLUSIONS
It is well known that orthodontic therapy is associated with root shortening. A proper medical history, an assessment of predisposing factors, a radiographic evaluation for alterations in root morphology and careful planning and execution of orthodontic mechanics may reduce the incidence of root resorption to an extent. A mid-treatment radiographic evaluation with IOPAR can identify teeth at risk and can indicate the need for an adequate rest period so that functional or anatomic repair might be promoted. Further treat- ment in affected patients should be performed with caution and with the appropriate application of very light forces while avoiding movements definitively associated with resorption, such as intrusion. Mavra- gani et al.49 in 2002 suggested early-age treatment, when roots were incompletely developed and there- fore showed more root length at the end of treatment due to continuing development. This may be consid- ered when planning orthodontic treatment in young children but lacks practicality.
REFERENCES
1. Ottolengui R. The physiological and pathological resorption of tooth roots. Dent Items Interest 1914;36:322–362.
2. Ketcham AH. A preliminary report of an investigation of apical root resorption of permanent teeth. Int J Orthod 1927;13:115– 127.
3. Ketcham AH. A radiographic study of orthodontic tooth move- ment: A preliminary report. J Am Dent Assoc 1927;14:1577– 1596.
4. Krishnan V. Critical issues concerning root resorption: A con- temporary review: World. J Orthod 2005;6:30–40.
5. Abass KS, Hartsfield JK. Orthodontics and External Apical Root Resorption. Semin Orthod 2007;13:246–56.
6. Brudvik P, Rygh P. The initial phase of orthodontic root resorp- tion incident to local compression of the periodontal ligament.
Eur J Orthod 1993;15:249–263.
7. Brudvik P, Rygh P. Root resorption beneath the main hyalin- ized zone. Eur J Orthod 1994;16:249–263.
8. Brudvik P, Rygh P. Multi-nucleated cells remove the main hyalinized tissue and start resorption of adjacent root surfaces.
Eur J Orthod 1994;16:265–273.
9. Blaushild N, Michaeli Y, Steigman S. Histomorphometric study of the periodontal vasculature of the rat incisor. J Dent Res 1992;71:1908–12.
10. Chutimanutskul W, Ali Darendeliler M, Shen G, Petocz P, Swain M. Changes in the physical properties of human premo- lar cementum after application of 4 weeks of controlled orthodontic forces. Eur J Orthod 2006;28:313–18.
11. Brezniak N, Wasserstein A. Orthodontically induced inflamma- tory root resorption –part II: Clinical aspects. Angle Orthod 2002;72:180–184.
12. Malmgren O, Goldson L, Hill C, Orwin A, Petrini L, Lund- berg M. Root resorption after orthodontic treatment of traumatized teeth. Am J Orthod 1982;82:487–91.
13. Beck BW, Harris EF. Apical root resorption in orthodontically treated subjects – analysis of edgewise and light wire mechan- ics. Am J Orthod Dentofac Orthop 1994;105:350–361.
14. Sameshima GT, Sinclair PM. Predicting and preventing root resorption– Part I - Diagnostic factors. Am J Orthod Dentofac Orthop 2001;119:505–510.
15. Ren Y, Maltha JC, Liem RS, Stokroos I, Kuijpers-Jagtman AM.
Age-dependent external root resorption during tooth movement in rats. Acta Odontol Scand 2008;66:93–98.
16. Picano GV, de Freitas KMS, Cancado RH, Valarelli FP, Picano PRB, Feijao CP. Predisposing factors to severe external root resorption associated to orthodontic treatment. Dental press J Orthod 2013;18.
17. de Antonio Geraldo O, Alberto C, Jose Luiz Cintra Martins- Ortiz J, Fernanda M, Solange de Oliveria Braga F. Analysis of predictors of root resorption in orthodontic treatment. J Dent oral Hyg 2011;3:46–52.
18. Kathryn E, Begole E.Prevalence of short dental roots in four ethnic groups in an orthodontic population. University of Illi- nois at Chicago 2011, Thesis, Publication number-1492989 19. Sameshima GT. Sinclair PM (2001) Predicting and preventing
root resorption – Part II – Treatment factors. Am J Orthod Dentofac Orthop 2001;119:511–515.
20. Davidovitch Z, Krishnan V. Adverse effects of Orthodontics: A report of two cases. World J Orthod 2008;9:268 (Online only) 21. Robinson DS, Hamid Q, Ying S, et al. Predominant TH2-like
bronchoalveolar T-lymphocyte population in atopic asthma. N Engl J Med 1992;326:298–304.
22. Meikle MC, Heath JK, Atkinson SJ, Hembry RM, Reynolds JJ. Molecular biology of tooth movement. In: Norton LA, Burstone CJ, eds. Boca Raton, Florida: CRC Press, 1989:
71–86.
23. Abubara A. Biomechanical aspects of external root resorption in orthodontic therapy. Med Oral Patol Oral Cir Bucal 2007;12.
24. Al-Qawasmi RA, Hartsfield JK Jr, Everett ET, Flury L, et al.
Genetic predisposition to external apical root resorption. Am J Orthod Dentofac Orthop 2003;123:242–52.
25. Al-Qawasmi RA, Hartsfield JK, Everett ET, Weaver MR, et al.
Root resorption associated with orthodontic force in IL-1Beta knockout mouse. J Musculoskelet Neuronal Interact 2004;4:383–85.
26. Janson GR, De Luca Canto G, Martins DR, Henriques JF, De Freitas MR. A radiographic comparison of apical root resorption after orthodontic treatment with 3 different fixed appliance techniques. Am J Orthod Dentofac Orthop 1999;118:262–273.
27. L’ Abee EM, Saderink GCH. Apical root resorption during Begg treatment. J Clin Orthod 1985;19:60– 61.
28. Remington DN, Joondeph DR, Artun J, Riedel RA, Chapko MK. Long term evaluation of root resorption occurring during orthodontic treatment. Am J Orthod Dentofac Orthop 1989;96:43–46.
29. Alexander SA. Levels of root resorption associated with contin- uous arch and sectional arch mechanics. Am J Orthod Dentofac Orthop 1996;110:321–324.
30. Mirabella A, Artun J. Risk factors for apical root resorption of maxillary anterior teeth in adult orthodontic patients. Am J Orthod Dentofac Orthop 1995;108:48–55.
31. Newman WG. Possible etiologic factors in external root resorption. Am J Orthod 1975;67:539–552.
32. Brin I, Becker A, Zilberman Y. Resorbed lateral incisors adja- cent to impacted canines have normal crown size. Am J Orthod Dentofac Orthop 1993;104:60–66.
33. Spurrier SW, Hall SH, Joondeph DR, Shapiro PA, Riedel RA. A comparison of apical root resorption during orthodontic treatment in endodontically treated teeth and vital teeth. Am J Orthod Dentofac Orthop 1990;97:130– 134.
34. Linge BO, Linge L. Apical root resorption in upper anterior teeth. Eur J Orthod 1983;5:173–183.
35. McNab S, Battistutta D, Taverne A, Symons AL. External api- cal root resorption following orthodontic treatment. Angle Orthod 2000;77:227–232.
36. Baumirind S, Korn EL, Boyd RL. Apical root resorption in orthodontically treated adults. Am J Orthod Dentofac Orthop 1996;110:311–320.
37. Parker RJ, Harris EF. Directions of orthodontic tooth move- ments associated with apical root resorption of the maxillary central incisor. Am J Orthod Dentofac Orthop 1998;114:677– 683.
38. Acar A, Canyurek V, Kocaga M, Ervedi N. Continuous Vs dis- continuous force application and root resorption. The Angle Orthodontist 1999;69:159–163.
39. Durack C, Patel S, Davies J, Wilson R, Manocci F. Diagnostic accuracy of small volume cone beam computed tomography and intra oral periapical radiography for the detection of simu- lated external inflammatory root resorption. Int Endod J 2011;44:136–47.
40. Sherrard JF, Rossouw EP, Benson BW, Carrillo R, Buschang PH. Accurac and reliability of tooth and root lengths measured on cone-beam computed tomographs. Am J Orthod Dentofac Orthop 2010;137:S100–108.
41. Mah J, Prasad N. Dentine phosphoproteins in gingival crevicular fluid during root resorption. Eur J Orthod 2004;26:25–30.
42. Rody WJ Jr, Wjjemgunasinghe M, Holliday LS, McHugh KP, Wallet SM. Immunoassay analysis of proteins in gingival crevic- ular fluid samples from resorbing teeth. Angle Orthod 2016;86:187–92.
43. Rody WJ Jr, Holliday LS, McHugh KP, Wallet SMSpicer VKro- khin O. Mass spectrometry analysis of gingival crevicular fluid in the presence of external root resorption. Am J Orthod Dentofac Orthop 2014;145:787–98.
44. Owmann-Moll P, Kurol J. The early reparative process of orthodontically induced root resorption in adolescents– loca- tion and type of tissue. Eur J Orthod 1998;20:727–32.
45. Cheng LL, Turk T, Elekdag-Turk S, Jones AS, Yu Y, Daren- deliler MA. repair of root resorption 4 and 8 weeks after appli- cation of continuous and heavy forces on premolars for 4 weeks: a histologic study. Am J Orthod Dentofac Orthop 2010;138:727–34.
46. Owmann-Moll P, Kurol J, Lundgren D. Repair of orthodonti- cally induced root resorption in adolescents. The Angle Orthod 1995;65:403–8.
47. Vardimon AD, GraberTM Pitaru S. Repair process of external root resorption subsequent to palatal expansion treatment. Am J Orthod Dentofac Orthop 1993;103:120–30.
48. El-Bialy T, El-Shamy I, Graber TM. Repair of orthodontically induced root resorption by ultrasound in humans. Am J Orthod Dentofac Orthop 2004;126:186–93.
49. Mavragani M, Boe OE, Wisth PL, Selvig KA. Changes in root length during orthodontic treatment: advantages for immature teeth. Eur J Orthod 2002;24:91–97.
