The Behavior Analysis of Flash-Memory Storage Systems ^∗

Po-Chun Huang ^† , Yuan-Hao Chang ^† , Tei-Wei Kuo ^† , Jen-Wei Hsieh ^‡ , and Miller Lin ^§

† Department of Computer Science and Information Engineering Graduate Institute of Networking and Multimedia

National Taiwan University, Taipei 106, Taiwan, R.O.C.

{r95070, d93944006, ktw}@csie.ntu.edu.tw

‡ Department of Computer Science and Information Engineering

National Taiwan University of Science and Technology, Taipei, Taiwan, R.O.C.

§ Genesys Logic, Taipei, Taiwan, R.O.C [email protected]

Abstract

Performance and reliability are two major design concerns of flash-memory storage systems, especially for low-cost products. Although various excellent flash- memory management schemes are proposed, there is little work done on how to evaluate the designs or im- plementations of flash-memory storage systems. Many of the existing evaluation workloads for flash-memory storage systems still rely on those based on hard disks.

This work aims at the needs of behavior analysis of flash-memory storage systems and their evaluations. In particular, a set of evaluation metrics and their corre- sponding access patterns are proposed. The behaviors of flash memory are also analyzed in terms of perfor- mance and reliability issues.

1 Introduction

Flash memory becomes more and more popular be- cause of its nature in shock resistance, low power con- sumption, small size, non-volatility, low cost, and ex- cellent random access time. It has now been widely adopted in various applications and grown beyond its original goals ¹ . As the capacity of flash memory and the number of bits in each flash cell increase, how to re- tain the system performance and reliability has become a very challenging issue. A well designed flash-memory management scheme can improve the performance and reliability of flash-memory storage systems. However, it is hard to evaluate the performance and reliability of a flash-memory management scheme, because those of a flash-memory management scheme are affected by the features of the underlying flash media and the access patterns issued by file systems and user applications.

∗

Supported by the National Science Council of Taiwan, R.O.C., under Grant NSC-96-2752-E-002 -008 -PAE

1

There are two major types of flash memory: NOR and NAND. In this paper, we consider NAND flash memory, which is the most widely adopted flash memory in storage systems.

Even though some evaluation tools, e.g., HDBench ^{T M} for hard drives and F DBench ^{T M} for flash drives, are designed for the evaluation of storage devices, none of them were designed with the considerations of flash- memory features, especially on performance and relia- bility. These observations underline the motivation of this research.

In the past years, there are a lot of excellent designs and implementations of flash-memory management schemes proposed in the literature, e.g., [2, 6, 17, 18].

In recent years, several vendors, such as Intel and Mi- crosoft, also started to adopt flash memory in their product designs, e.g., the flash-memory cache for hard disks (known as TurboMemory) and the fast booting mechanism in Windows Vista [1, 3], in order to improve their system performance. Well-known flash-memory- based products, such as solid state disks (SSD), now emerge in the market to substitute for hard drives in some portable devices [5, 16]. Researchers and vendors explored the possibility in the performance improve- ment of NAND with a SRAM cache [10, 11, 13, 15].

Among them, OneNAND-similar approaches presented simple but effective hardware architectures to replace NOR with NAND and a SRAM cache [10, 12].

With the wide popularity of flash memory in storage

system designs in various applications/systems, it is of

paramount importance to have fair evaluation of dif-

ferent designs/implementations of flash-memory stor-

age system, especially on their performance and reli-

ability metrics. Because the performance and reliabil-

ity of a flash-memory storage system is highly influ-

enced by the underlying flash media, the management

scheme design, and the access pattern generated by ap-

plications, proper evaluation of flash-memory storage

systems should consider system behaviors with respect

to these three factors. Unfortunately, not sufficient at-

tention is paid to the evaluation of flash-memory stor-

age systems, e.g., [8, 9]. Such an observation moti-

vates the research objective of this study. In this pa-

per, we analyze the performance and reliability issues

of flash memory and their potential storage-system de-

signs. Metrics on performance and reliability are pro-

posed for the evaluations of flash-memory storage sys-

tems based on the viewpoints of device drivers. With

11th IEEE Symposium on Object Oriented Real-Time Distributed Computing (ISORC)

the proposed metrics, a set of access patterns are pro- posed to evaluate the performance and reliability of flash-memory storage systems. The proposed access patterns are analyzed based on throughput, response time, maintenance overheads, endurance, data distur- bance, and crash recovery. The objective is to provide a more complete behavior analysis of flash-memory stor- age systems so that more objective comparison of the designs/implementations of flash-memory storage sys- tems is possible.

The rest of this paper is organized as follows: Sec- tion 2 describes flash-memory characteristics, system architectures, and our research motivation. The pro- posed access patterns and their behaviors on differ- ent flash-memory management schemes are proposed in Section 3. Section 4 is the conclusion.

2 Flash-Memory Characteristics, Sys- tem Architecture, and Motivation

A NAND-type flash memory chip comprises one or more banks. Each bank is composed of blocks, and each block is of a fixed number of pages. A block is the smallest unit of erase operations, while read and write operations are done on a page basis. When a page is written, the space can not be overwritten unless it is erased. (That is called the write-once property.) There- fore, out-place update is adopted to write data to free space and invalidate old versions of data. The latest copy of data is considered as live, and old versions are considered as dead, since more than one versions of data might coexist in flash memory. Pages that store live data and dead data are called valid pages and in- valid pages, respectively. When the number of the free pages falls below some safe threshold, a system activity, called garbage collection, is carried out to reclaim in- valid pages. Invalid pages are reclaimed through block erases, and valid pages in the to-be-erased block (vic- tim block ) should be copied to a free space before the block is erased. Since each flash-memory block has lim- ited erase cycles, a wear leveling strategy is needed to erase all blocks evenly so as to achieve a longer lifetime of flash memory ² .

As shown in Figure 1, a Memory Technology Device (MTD) driver is to provide primitive functions, such as reads, writes, and erases over flash media. To do this, a Flash Translation Layer driver is needed in the system for address translation and garbage collection.

The Flash Translation Layer protocol (FTL) and the NAND Flash Translation Layer protocol (NFTL) are its popular implementations. This driver emulates the flash media as block devices so that the file systems and user applications can access the flash media trans- parently. Another architecture is to adopt a flash file system that is specifically designed for flash media and manages the address translation and garbage collection at the same time. Products in the market might be par- titioned into two categories: One may include the MTD driver (and the Flash Translation Layer driver) in their device packages (such as CompactF lash ^{T M} , and USB Flash Drives (UFDs)), as shown in Figure 1(a), and

2

SLC (Single Level Cell) and MLC (Multi-Level Cell) are the two popular designs of flash memory. Each cell of SLC flash memory stores one-bit information, while each cell of MLC

flash memory contains n-bit information.

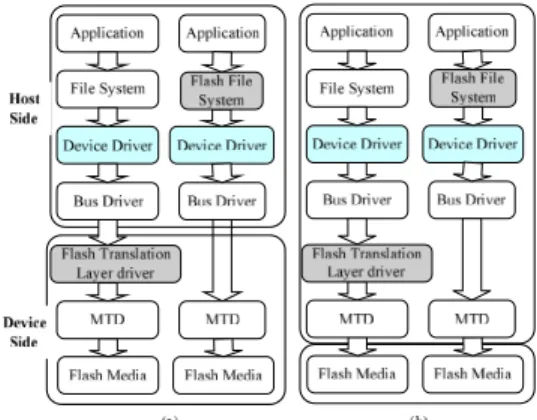

Figure 1. Storage system architecture

the other may not include them (such as xD ^{T M} ), as shown in Figure 1(b).

Figure 2. Design and evaluation considera- tions of flash-memory storage systems

In this paper, we consider the architecture with the

Flash Translation Layer driver because it provides high

portability and compatibility for flash devices. Under

this architecture, the performance and reliability of a

flash-memory storage system is mainly controlled by

the flash-memory management scheme implemented in

the Flash Translation Layer driver. Note that differ-

ent flash-memory management schemes favor different

access patterns. As shown in Figure 2, the design

of a flash-memory management scheme should con-

sider the access patterns applied on it, and the evalua-

tion of a flash-memory storage system should consider

both the flash-memory management scheme and access

patterns applied to the storage system. In addition,

the features of flash media should also be considered

since it affects the design of flash-memory management

schemes. However, most evaluation tools, i.e., bench-

marks, for storage systems are designed for the bench-

marking of hard drives without good consideration to

neither the features of flash media nor the behaviors

of flash-memory management schemes. Such observa-

tions underline the objectives of this research. That is

to explore the behaviors of flash-memory management

schemes and the features of flash media as well as to

analyze evaluation metrics and access patterns that are

suitable to the performance and reliability evaluations

of flash-memory storage systems.

3 The Analysis and Evaluation for Flash-memory Storage Systems 3.1 Overview

Flash memory, like hard disks, are usually used in secondary storage devices and accessed by the host as block devices through a management layer called the flash translation layer. Without the considerations of physical characteristics and the translation layer of flash memory, we could not evaluate flash-based stor- age systems by adopting existing evaluation methods or tools designed for hard drives. The constraints on the read/write performance and the reliability concerns of flash memory should be further analyzed. The pur- pose of this section is to analyze the behaviors of flash memory, in terms of performance (Section 3.2) and reli- ability (Section 3.3). A set of access patterns are then proposed for the evaluation of flash-memory storage systems according to the analyzed behaviors and pro- posed metrics.

The performance and reliability of a flash-memory storage system is the combination result of the flash- memory management scheme (which is implemented as a Flash Translation Layer driver) and its underly- ing flash media. To evaluate a flash-memory storage system, access patterns should be designed in the layer of device drivers because device drivers can separate read operations from write operations without the in- terference of file systems. In other words, a file system might use buffers to cache data, or issue several reads and writes to its underlying device drivers whenever it receives a read (or a write) request from an applica- tion; meanwhile, different file systems (and even differ- ent implementations of file systems) also have different behaviors to access storage systems. Note that a read or write operation issued by the device driver consists of two fields to describe accessed LBAs: the start LBA and the number of LBAs.

3.2 Performance Analysis and Relative Metrics

3.2.1 Read and Write Performance

Throughput and Response Time Throughput and response time are the most widely used metrics for the performance evaluation of storage systems, where throughput is the amount of data read from (or writ- ten to) the storage system per time unit, e.g., one sec- ond, and response time is the time that the storage system takes to react to a read or write from the host.

The throughput evaluates the performance of a storage system in the granularity of one time unit, and the re- sponse time shows the performance of a storage system in the unit of one read or write operation. Note that read and write operations are in the view of the level of device drivers so that we can separate the evaluation of read operations from writes operations, in terms of the throughput and response time of a storage system.

The throughput can be classified into the aver- age throughput T H avg , worst-case throughput T H worst , and best-case throughput T H best , which are defined as follows:

T H

=



D

T (1)

T H

= min

i=1

D

(2)

T H

= max

i=1

D

, (3)

where D

is the amount of data transmitted during, the i

time unit and T is the number of time units during the evaluation period.

Equation 1 is to evaluate the average throughput of a flash-memory storage system during the evalua- tion period. The best-case throughput and worst-case throughput, as shown in Equations 2-3, are to find out the largest and smallest amount of data that a flash-memory storage system can transmit in a time unit, respectively. Therefore, the best-case through- put presents the performance limitation of a flash- memory storage system, and the worst-case throughput can aid the design of real-time applications. However, the worst-case throughput is usually ignored, since it doesn’t evaluate the performance of a flash-memory storage system in the unit of one read or write op- eration.

Similar to the throughput, the response time can also be classified into three categories: the average re- sponse time RT avg , worst-case response time RT worst , and best-case response time RT best , as shown in Equa- tions 4-6. The average response time is the average time that an access is serviced and responded, where an access is a read or write operation. The best-case response time shows the shortest time that an access can be responded, but it is usually discarded because it doesn’t help the stability consideration in the de- signs of flash-memory storage systems. The worst-case response time can be used to measure the device capa- bility in the support of real-time application designs.

In the design of a real-time applications, we usually measure the worst-case response time, instead of the worst-case throughput because one time unit usually consists of more than one accesses. Note that in or- der to evaluate the worst-case response time, one better way is to access only one page for each read or write operation, since the accessing to n consecutive pages at a time (for a request) is usually much faster than the total time in accessing one page per request for n times.

RT

=



RT

N (4)

RT

= min

i=1

RT

(5)

RT

= max

i=1

RT

, (6)

where RT

is the response time of the i

access,

and N is the number of accesses during the evaluation period.

Without loss of generality, the evaluation of read performance is separated from that of write perfor- mance for the considerations of simplicity. In each evaluation, it suffices to simply evaluate the aver- age throughput, best-case throughput, average response time, and worst-case response time of a flash-memory storage system, since the worst-case throughput and best-case response time can not provide any further per- formance information of a flash-memory storage sys- tem.

Due to the write-once property and the unit differ-

ence between read/write operations and erase opera-

tions to flash media, the best-case throughput usually

occurs when data of consecutive logical addresses are

written to the flash memory or when data stored in the

consecutive physical addresses are read from the flash

memory. Figure 3 shows an example of the access pat-

tern to evaluate the best-case throughput, where x-axis

denotes the sequence of accesses, and y-axis denotes the

logical block addresses. In this figure, five sequential write operations (red dots) are issued to write data of consecutive LBAs, followed by five sequential read op- erations (dark blue dots) to read previous written data back, where the number of LBAs accessed by each op- eration (length of vertical line) is the maximal number imposed by the operation system or bus driver. Be- cause a flash-memory management scheme might adopt a cache to buffer accessed data, the number of all LBAs accessed in the test pattern should be be large enough to identify the caching effects.

i

access LBA

Largest request packet length

Figure 3. A test pattern for best-case throughput

As shown in Figure 4(a), the access pattern for the worst-case response time should access one page at a time, and each LBA should be randomly accessed as even as possible. It is because the longest time to finish reading or writing the same amount of data from/to a flash-memory storage system is to access one page at a time, and different flash-memory management schemes might favor different designed patterns. As the evalua- tion time with this access pattern is longer, the derived worst-case response time is closer to the true worst-case response time. However, it is lack of efficiency for the evaluation of the worst-case response time of write op- erations, because the worst case of a write operation occurs when it triggers garbage collections, which take much longer time than any other management over- heads. As shown in Figure 4(b), the access pattern first fills up the flash-memory storage system with se- quential writes and then start random write process, so that garbage collections can be triggered much faster.

(a) Uniform random access pattern for the worst-case re- sponse time

LBA

i^thaccess Sub-pass1 Sub-pass2

(b) Uniform random access pattern for the worst-case write response time

Figure 4. Test patterns for worst-case re- sponse time

When a flash-memory storage system, e.g., SSD, is adopted in a general-purpose application such as lap-

tops, it receives accesses from all of the applications running on the system. In such an access pattern, the distribution of the start LBA and the number of LBAs of a read/write operation would be close to a normal distribution, whose averages and variations are varied by the behavior of a system under evaluation.

We can use a normal distribution to generate the dis- tributions of the start LBA and the number of LBAs of each read/write operation to evaluate the average throughput and response time of a flash-memory stor- age system, and Figure 5(a) shows an example.

If a flash-memory storage system is adopted on a portable multimedia device such as digital cam- era, most read and write operations access consecu- tive LBAs. For such applications, the multimedia de- vice usually formats the flash-memory device as a FAT file system, because of its compatibility and simplic- ity, and stores files (e.g., pictures, videos, or MP3’s) on the storage system. Therefore, no matter the device wants to read, write, or delete a file, the storage sys- tem receives a set of read or write operations to access a large number of consecutive LBAs (i.e., sequential accesses) accompanied with some read or write opera- tions, which are mainly to access file allocation tables or file/directory information, to access a small number of consecutive LBAs (i.e., random accesses). Figure 5(b) is an example to simulate the access pattern of such applications. The access pattern can randomly generate sequential accesses mixed with some random accesses in various pre-configurable ratios.

LBA

i^thaccess

(a) An access pattern of general-purpose applications

i^thaccess LBA

Metadata Area Data Area

(b) An access pattern of multimedia applications

Figure 5. Test patterns for average throughput and response time

Performance Stability In terms of reads and

writes, performance stability is also very important to a

storage system, since better stability implies more pre-

dictable performance of a system. Mechanical storage

devices such as hard disks have unstable performance,

because their read and write performance heavily de-

pends on the seek time and rotation time. On the

other hand, electronic storage devices such as SRAM,

DRAM, and flash memory, have comparatively stable

read and write performance by their nature. However,

the write-once property, the bulk erase property, and

the property of limited erase cycles over each block

let flash memory have unstable performance, so that a

management layer, i.e., the flash translation layer, must

be adopted to manage address translation, garbage

collections, and wear leveling, as stated in previous

sections. For example, a write operation to a flash-

memory storage system may trigger live-page copyings

and block erases to reclaim free spaces, so that the time to finish the write operation varies. Suppose that an operation to write a 2KB page to a SLC flash memory [14] takes 200 µs for data programming, where the data transmission time is not considered. If this write op- eration only triggers one block erase, it takes at least 1.7ms, i.e., 200µ + 1.5ms [14], which is 8.5 times of the time to write a 2KB page without the involvement of any block erase.

For time-critical applications, the performance sta- bility of the flash-memory storage system plays a criti- cal role in the system designs. In order to evaluate the performance stability of a flash-memory storage sys- tem, the standard deviation of the throughput T H S

and that of the response time RT S are adopted and shown in Equations 7-8 because they can measure the variances of read/write operations in the throughput and response time.

T H

=





i=0

(D

− T H

)



T (7)

RT

=





i=0

(RT

− RT

)



N (8)

where T , D

, T H

, N , RT

, and RT

are defined in Equations 1-6.

With the consideration of efficient evaluation, we define the relative half distances of throughput T H h

and response time RT h to derive the maximum perfor- mance variances in the throughput and response time, respectively, as shown in Equations 9-10. Compared to the standard deviations, relative half distances are more efficient in calculation, even though they are less precise. However, they still can effectively evaluate the performance stability of flash-memory storage systems in most cases.

T H

=

 T H

T H

− 1

× 100% (9)

RT

=

 RT

RT

− 1

× 100% (10)

, where T H

, T H

, RT

, and RT

are defined in Equations 1-6.

The metrics for performance stability are derived from the metrics for throughput and response time.

Therefore, we can simply use the access patterns for the evaluation of throughput and response time to de- rive the performance stability of a flash-memory stor- age system.

3.2.2 System Initialization Time

As the capacity of flash-memory storage devices is dou- bled approximately every 18 months, the initialization time of flash-memory storage systems becomes a criti- cal issue in the design of a flash-memory management scheme. Two well-known flash translation layer pro- tocols in the management of flash memory are Flash Translation Layer (FTL) and NAND Flash Transla- tion Layer (NFTL), where FTL adopts a page-level address translation mechanism, and NFTL adopts a block-level address translation mechanism. Whenever a flash-memory storage system is powered on, both FTL and NFTL have to reconstruct the address trans- lation table, which stores the information that maps logical block addresses (LBA) into their corresponding physical block addresses (PBA). To reconstruct the ad- dress translation table, FTL should scan the spare area

of each page in the flash memory, and NFTL have to scan the spare area of the specific page of each block to retrieve the logical block addresses of the data stored in the corresponding page or block. For example, with the initialization of an 8GB large-block SLC flash-memory storage system (2KB per page and 64 pages per block), FTL takes 20µs × _2KB ^8GB ≈ 83.89 seconds, and NFTL needs 20µs × _(2KB ^8GB _×64) ≈ 1.31 seconds to reconstruct the address translation table, while the data transmis- sion time between the storage system and the host is ignored. It demonstrates that the initialization time of FTL becomes no longer acceptable. Compared to FTL, NFTL will face the same problem in the near future when the capacity of flash-memory storage sys- tems keeps growing up. Even worse is the adoption of low-cost MLC flash memory, because the performance of MLC flash memory is worse than that of SLC flash memory. Therefore, a management scheme for flash- memory storage systems should take the initialization time into considerations seriously, especially when a large-scale MLC flash-memory is adopted.

The system initialization time of a flash-memory storage system is affected by the amount of data stored in it. Thus, a simple and effective way is proposed to measure the initialization time under the following se- ries of access patterns and their tests: Beginning with an empty (or newly formatted) device, we use the ac- cess pattern to fill n% of the device capacity, restart the device, then measure the initialization time. The process is then repeated until the device becomes full.

In this way, we can extract the relationship between the system initialization time and space utilization.

3.3 Reliability Issues and Relative Met- rics

3.3.1 Block Failure and Write Endurance Is- sues

One of the most serious problem in flash-memory man- agement is block failures, because we can’t guarantee the correctness of the data stored in any bad block.

A bad block is usually caused by cell failures that are the worn-out of one or more flash cells in the block.

In general, an SLC flash cell can endure 100,000 erase cycles, but an MLC flash cell can only endure 10,000 or even less erase cycles, on average. Therefore, it is important to distribute block erases evenly so that the lifetime of flash memory is extended. However, some defect flash cells called fast erasing cells [4] can only endure much less erase cycles than normal flash cells do, and they might fail at any time (of erasing). That is why block failures sometimes occur on the blocks that do not exceed the average erase cycles.

In order to reduce the number of block failures, a

flash-memory management scheme should employ wear

leveling mechanisms [7] to distribute block erases as

even as possible. However, a wear leveling mechanism

can not avoid the failure of any fast erasing cell, and it

is hard to evaluate a wear leveling mechanism outside of

a flash-memory storage system. From the perspective

of the host, a flash-memory management scheme (of a

storage system) should be able to recover lost data or to

find another valid block to store data while a bad block

occurs. From the user perspective, the write endurance

is more important than the number of block failures be-

cause users only care about whether data can be suc-

cessfully written to flash-memory storage systems and read back correctly. (Note that the write endurance is the ability or the period of time that data can be suc- cessfully written to the flash-memory storage system.) Therefore, in order to evaluate the write endurance of a flash-memory storage system, we can design a set of access patterns to write data to a flash-memory storage system and read back the written data to verify their correctness repeatedly so as to derive the first failure time, which is the first time that a device driver (or application) can not correctly read/write data from/to the underlying flash-memory storage system. In order to successfully evaluate the write endurance of a flash- memory storage system through the first failure time, the test access patterns should be carefully designed.

LBA

i

access

Figure 6. A test pattern for write en- durance test

To derive the first failure time, the most efficient way is to repetitively write data to specific LBAs to trigger quick worn-out of those pages. However, flash- memory storage systems might employ buffers to cache frequently accessed data. Therefore, access patterns should frequently write data to specific LBAs and try to mix randomly generated accesses to read/write data from/to other LBAs, so that the data written to the specific LBAs are hardly cached in the buffer. As shown in Figure 6, the shadowed areas are the spe- cific LBAs, which are frequently written with data, and some randomly generated accesses are inserted to force the wear-leveling management facility to function.

4 Conclusion and Future Work

The work is motivated by the needs of proper evalua- tion workloads for flash-memory storage systems. Such needs have become even more urgent because of the emerging of high-density (MLC) flash-memory chips with low reliability characteristics and restrictive con- straints in efficient read/write access. Such a trend makes popular hard-disk-based benchmarks or even ex- isting flash-drive benchmarks, e.g., F DBench ^{T M} , not suitable to the future needs. In this paper, we analyze the behaviors of flash-memory storage systems. Met- rics are proposed to evaluate system designs with re- spective to performance and reliability. We also come out access patterns that could provide better evalu- ation of system designs and implementations. Ac- cess patterns, flash-memory management scheme, and flash-media features are taken into considerations at the same time because the performance and reliability considerations of a flash-memory storage system should be influenced by them all together.

For future research, we should further analyze the behaviors of popular implementations FTL and NFTL.

The behaviors of more flash management components are also needed, such as those for garbage collection, address translation, and free space allocation. A bench- mark software that could generate various benchmark access patterns presented in this paper is now un- der development and will be available for downloading shortly.

References

[1] Software Concerns of Implementing a Resident Flash Disk. Intel Corporation.

[2] Flash-memory Translation Layer for NAND flash (NFTL). M-Systems, 1998.

[3] Windows ReadyDrive and Hybrid Hard Disk Drives,

http:// www.microsoft.com/whdc/device/storage/hybrid.mspx.

Technical report, Microsoft, May 2006.

[4] P. Cappelletti, C. Golla, P. Olivo, and E. Zanoni. Flash Memories. Kluwer Academic Publishers, 1999.

[5] L.-P. Chang. Hybrid solid-state disks: Combining het- erogeneous nand flash in large ssds. 13th Asia and South Pacific Design Automation Conference, ASP- DAC 2008, 2008.

[6] L.-P. Chang and T.-W. Kuo. An Efficient Manage- ment Scheme for Large-Scale Flash-Memory Storage Systems. ACM Symposium on Applied Computing (SAC), pages 862–868, Mar 2004.

[7] Y.-H. Chang, J.-W. Hsieh, and T.-W. Kuo. En- durance enhancement of flash-memory storage sys- tems: An efficient static wear leveling design. the 44th ACM/IEEE Design Automation Conference, San Diego, California, USA, 2007.

[8] R. Dan and R. Singer. Enabling MLC NAND Flash for Cost-Effective, High-Capacity Data Storage. M- Systems Flash Disk Pioneers, Ltd., Jan 2003.

[9] R. Dan and R. Singer. Implementing MLC NAND Flash Memory for Cost-Effective, High-capacity Mem- ory. M-Systems, September 2003.

[10] Y. Joo, Y. Choi, C. Park, S. W. Chung, E.-Y. Chung, and N. Chang. Demand paging for onenandtm flash execute-in-place. CODES+ISSS, October 2006.

[11] J.-H. Lee, G.-H. Park, and S.-D. Kim. A new NAND- type flash memory package with smart buffer system for spatial and temporal localities. JOURNAL OF SYSTEMS ARCHITECTURE, 51:111–123, 2004.

[12] J.-H. Lin, Y.-H. Chang, J.-W. Hsieh, T.-W. Kuo, and C.-C. Yang. A NOR Emulation Strategy over NAND Flash Memory. the 13th IEEE International Confer- ence on Embedded and Real-Time Computing Sys- tems and Applications (RTCSA), Daegu, Korea, Au- gust 2007.

[13] C. Park, J.-U. Kang, S.-Y. Park, and J.-S. Kim.

Energy-aware demand paging on nand flash-based em- bedded storages. ISLPED, August 2004.

[14] Samsung Electronics. K9K8G08U0M 1G * 8 Bit NAND Flash Memory Data Sheet, 2005.

[15] Samsung Electronics. OneNAND Features and Per- formance, 11 2005.

[16] Samsung Electronics. Samsung’s Solid State Disk Drive, 2008.

[17] Q. Xin, E. L. Miller, T. Schwarz, D. D. Long, S. A.

Brandt, and W. Litwin. Reliability Mechanisms for Very Large Storage Systems. In Proceedings of the 20th IEEE / 11th NASA Goddard Conference on Mass Storage Systems and Technologies (MSS’03), pages 146–156, Apr 2003.

[18] K. S. Yim, H. Bahn, and K. Koh. A Flash Com- pression Layer for SmartMedia Card Systems. IEEE Transactions on Consumer Electronics, 50(1):192–

197, Feburary 2004.
