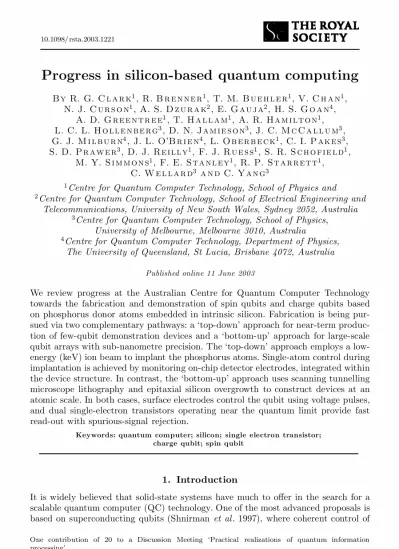

Progress in silicon-based quantum computing
By R. G. C l a r k1, R. B r e n n e r1, T. M. B u e h l e r1, V. C h a n1, N. J. C u r s o n1, A. S. D z u r a k2, E. G a u j a2, H. S. G o a n4,
A. D. G re e n t r e e1, T. H a l l a m1, A. R. Ha m ilt o n1, L. C. L. H o ll e n be rg3, D. N. J a m ie s o n3, J. C. M c C a l l u m3, G. J. M i l bu r n4, J. L. O’B r i e n4, L. O b e r b e c k1, C. I. P ak es3, S. D. Pr a we r3, D. J. Reilly1, F. J. R u e s s1, S. R. S c h o fie ld1,
M. Y. S i m m o n s1, F. E. St a nl ey1, R. P. St a rret t1, C. W e l l a r d3 a n d C. Y a n g3
1Centre for Quantum Computer Technology, School of Physics and
2Centre for Quantum Computer Technology, School of Electrical Engineering and Telecommunications, University of New South Wales, Sydney 2052, Australia
3Centre for Quantum Computer Technology, School of Physics, University of Melbourne, Melbourne 3010, Australia
4Centre for Quantum Computer Technology, Department of Physics, The University of Queensland, St Lucia, Brisbane 4072, Australia
Published online 11 June 2003
We review progress at the Australian Centre for Quantum Computer Technology towards the fabrication and demonstration of spin qubits and charge qubits based on phosphorus donor atoms embedded in intrinsic silicon. Fabrication is being pur- sued via two complementary pathways: a `top-down’ approach for near-term produc- tion of few-qubit demonstration devices and a `bottom-up’ approach for large-scale qubit arrays with sub-nanometre precision. The `top-down’ approach employs a low- energy (keV) ion beam to implant the phosphorus atoms. Single-atom control during implantation is achieved by monitoring on-chip detector electrodes, integrated within the device structure. In contrast, the `bottom-up’ approach uses scanning tunnelling microscope lithography and epitaxial silicon overgrowth to construct devices at an atomic scale. In both cases, surface electrodes control the qubit using voltage pulses, and dual single-electron transistors operating near the quantum limit provide fast read-out with spurious-signal rejection.
Keywords: quantum computer; silicon; single electron transistor;
charge qubit; spin qubit
1. Introduction
It is widely believed that solid-state systems have much to o¬er in the search for a scalable quantum computer (QC) technology. One of the most advanced proposals is based on superconducting qubits (Shnirman et al . 1997), where coherent control of
One contribution of 20 to a Discussion Meeting `Practical realizations of quantum information processing’.
Phil. Trans. R. Soc. Lond. A (2003) 361, 1451{1471 ° 2003 The Royal Societyc
(a) A J (b)
Si A J A
= |1ñ
= |0ñ
= |1ñ
= |0ñ
31P
31P
P+ e-P
P Si
B S
S
SET SET
P P P
J A
20 nm
50 nm B = 2T
Q1 Q2
B1
SET
SET
B2
S2 S1
Q1
Q2 d12
a a b (d )
b (c)
VB = 0 VS = 0 VB = 0 VS = 0
SET SET
=
=
SiO2 SiO2
S B S
a b a b
Figure 1. Quantum computer architectures based on buried phosphorus dopants in silicon.
(a) Kane scheme, where a qubit is de¯ned by the spin of a single31P nucleus. (b) Charge-based scheme: the position of a single electron within a double-well potential created by two P dopants, one of which has been ionized by gate-controlled electron removal, de¯nes logical statesj0i and j1i. Dual single-electron transistors (SETs) on the surface enable qubit read-out. (c) Operation of a single charge-qubit showing barrier (B gate) and symmetry (S gates) control, together with twin-SET for correlated charge-position read-out. (d) Charge-qubit-coupling scheme based on Coulomb interaction for a CNOT con¯guration where the control qubit Q1 alters the e® ective barrier height as seen by target qubit Q2. (Reproduced from Dzurak et al. (2003).)
a qubit has been demonstrated and decoherence times measured (Nakamura et al . 1999; Vion et al . 2002; Yu et al . 2002; Martinis et al. 2002), with the rst evidence for qubit coupling having been reported recently (Pashkin et al. 2003). In these sys- tems, a macroscopic number of electrons condense into a single (superconducting) ground state, which forms the basis of the qubits. Semiconductor schemes are also signi cant|in particular those based on silicon{metal-oxide-semiconductor technol- ogy, due to their compatibility with existing technology. In Kane’s (1998) scheme ( gure 1a) the qubits are formed from the very-long-lived nuclear spins of single phosphorus dopants in an Si host crystal, and manipulated by external surface gates and radio-frequency (RF) magnetic elds. Qubit coupling is via the hyper ne and
electron-exchange interactions, requiring qubit spacing of ca. 20 nm. A complemen- tary Si{SiGe:P architecture has been proposed using exchange-coupled electron spin states as qubits (Vrijen et al. 2000), with increased qubit spacing (ca. 100 nm) in the Si{SiGe structure. Although single-spin read-out has yet to be demonstrated in semiconductors, recent experiments have shown that the electron spin T2lifetimes in
28Si at electron densities corresponding to several tenths of a micron spacing exceed 60 ms at low temperatures (Tyryshkin et al . 2003), with the possibility of even longer (ca. 1 s) coherence times at millikelvin temperatures. It is important to realize that the work of Tyryshkin et al . is for a bulk doped sample, where the decoherence time of a single electron spin in the environment of a large number of uncontrolled spins is measured. Consequently the long decohernece times are constrained to lightly doped samples due to dipole{dipole interactions. However, it is important to realize that in a precisely fabricated quantum computer where all of the qubits and their interactions are controlled with gates, the total spin{spin interactions (exchange and dipole{dipole) are central to the qubit coupling process (albeit slightly more compli- cated than exchange-only coupling), and therefore in principle do not constitute a decoherence process. One would therefore expect decoherence times for a quantum computer to be of the same order as those for the lightly doped samples, despite the fact that the donor spacing is very much smaller. While the `hard’ nanofabrication and measurement of single-buried-atom qubit arrays in silicon have presented signif- icant challenges, this architecture avoids many obstacles to scaling, such as crosstalk between electromagnetic elds of more easily fabricated macroscopic circuits. Beyond the current (and correct) international focus on demonstration of coherence via Rabi oscillations, single-atom qubits have a number of advantages with respect to decisive issues that will determine the viability of a large-scale QC.
Although the electrical detection of single spins has not been achieved, fast single- charge detection is already in place due to pioneering developments in RF-SET technology (Schoelkopf et al . 1998; Aassime et al . 2001). In a spin-read-out scheme proposed by Kane, RF-SETs have been proposed to read out the states of single nuclear and electron spins, by detecting spin-dependent electron tunnelling between adjacent P atoms (Kane 1998; Kane et al . 2000). However, this is a challenging task, complicated by the small (ca. 1 meV) binding energy associated with two electrons of opposite spin on a single P donor in Si (D¡ centre). Because of the common read-out technology, we have therefore developed (Hollenberg et al. 2003) an Si:P charge-qubit architecture ( gure 1b) which is complementary to the Kane concept, but experimentally accessible now. The quantum logic states correspond to the lowest two states of the single valence electron localized by the double well formed by two donor P atoms. Surface gates allow for qubit preparation (P{P ! P{P+ ), external control over the potential barrier height (B gate) and potential symmetry (S gate) for manipulation of localized qubit states (j0i = jLi and j1i = jRi), while twin-RF-SETs facilitate qubit initialization and read-out.
Due to its stronger coupling to the environment, the charge qubit will decohere faster than its spin-based counterpart. However, calculated gate-operation times can be as fast as 50 ps (Hollenberg et al . 2003), commensurately faster than the microsec- ond operation times (Fowler et al . 2003) for spin qubits. Additionally, we have devel- oped a single-shot RF-SET read-out scheme for the charge qubit superposition basis j0i = (1p
2)(jLi + jRi), j1i = (1p
2)(jLi ¡ jRi) (Greentree et al . 2003), o¬ering the prospect of signi cantly enhanced coherence times, as found for superconducting
charge qubits in this basis. This read-out scheme is directly extendable to single spin read-out via RF-SETs.
Coupling schemes for the charge qubit have also been proposed (Hollenberg et al . 2003). In the `CNOT’ arrangement shown in gure 1d, qubit Q1 acts on the e¬ective barrier height of qubit Q2, and the coupling is primarily given by ¡ zx¼ (1)z ¼ (2)x . The e¬ect of moving a charge of 1:0e between the `a’ and `b’ positions of Q1(see gure 1d) on the qubit Q2was calculated with `a’ and `b’ chosen to be 60 and 30 nm from the barrier centre of Q2, respectively, and was found to give a coupled-qubit operation time of 0.1{1 ns (Hollenberg et al . 2003).
Operational issues aside, the spin- and charge-based Si:P schemes shown in gure 1 (as well as the Si{SiGe:P (Vrijen et al. 2000) and more recent ®ying qubit proposals (Skinner et al. 2003)) face an identical challenge: placement of individual phosphorus donors within a low-disorder intrinsic-silicon (i-Si) substrate at precise array sites, accurately positioned with respect to the surface control gates and SETs. In this paper we review two contrasting approaches currently being developed to attain this goal, together with the SET measurement techniques required to read out the state of a qubit.
In x 2 we describe a top-down construction approach for which prototype charge- qubit devices have been successfully fabricated (Dzurak et al . 2003). Array sites are de ned by top-down lithographic patterning of a resist mask and the donors are implanted through the mask using a keV phosphorus-ion beam. The implan- tation of P donors is controlled with single-ion accuracy, allowing devices to be con gured atom by atom. In x 3 we discuss the use of a twin-SET architecture for correlated detection of single-electron transfer in a device|in particular operation of these devices at the megahertz frequencies required for read-out in both charge- and spin-based qubit schemes. Finally, in x 4 we outline a bottom-up atomic assembly approach (O’Brien et al . 2001; Simmons et al. 2003) that is potentially capable of constructing devices with close to atomic precision. Here scanned-probe lithography of a hydrogenated silicon surface together with epitaxial Si overgrowth is used to construct a buried P array. We review a number of key proving experiments, which show that complete construction of a prototype device by the bottom-up approach is within reach.
2. Top-down fabrication using controlled single-ion implantation In the conventional microelectronics industry, ion implantation is a standard tech- nique for the incorporation of dopant atoms and is essentially a bulk process involving many dopants. We have recently developed a technique which enables controlled sin- gle -ion implantation (Dzurak et al . 2003). Ion-impact detectors, integrated into the devices, are monitored electronically during implantation. When a single ion enters the i-Si substrate, it produces electron{hole pairs that drift in an applied electric
eld, creating a detectable current pulse for each ion strike. Although discussed here for the construction of QC devices, this technology is applicable to any semiconductor device where accurate control of the dopant number is important.
Figure 2 depicts the technique developed to localize individual phosphorus atoms at the desired qubit array sites for a two-donor device. A nanopatterned ion-stopping resist such as poly(methyl methacrylate) (PMMA) de nes the array sites and a low- energy (14 keV)31P+ ion beam is used to implant the P dopants to an average depth
of 15 nm below the Si{SiO2 interface, for a 5 nm thick SiO2 layer. Each ion entering the substrate creates ca. 500 e¡/h+ pairs which drift in an internal electric eld produced by a bias voltage up to 10 V applied between two detector electrodes. The resulting current is ampli ed in an external, high-e¯ ciency cooled detector circuit to produce a single pulse for each ion strike. The two aluminium detector electrodes form Schottky contacts which act as back-to-back diodes under bias, restricting the dark current (no31P+ beam) to below 100 pA.
Typical data for an incident 14 keV 31P+ ion beam are shown in gure 2d for an interdigitated electrode array with lateral dimension ca. 100mm. Pulses above the noise threshold occur with a frequency consistent with the areal ion dose of ca. 5 ions ms¡1 across the active device area and can therefore be unambiguously identi ed as single-ion strikes. The e¡/h+ pair separation mechanism has been mod- elled using technology computer-aided design (Pakes et al. 2003b) and is found to create a current pulse in 40 ps. The temporal broadening of the peaks in gure 2d results from the time constant of the external circuit.
While semiconductor detectors are well-established (Bertolini & Coche 1968), to our knowledge this is the rst use of a detector integrated into a device to precisely control its doping level. Furthermore, the 14 keV data in gure 2d represent the rst detection of P+ ions at an energy below 80 keV. This energy resolution is partly due to the presence of a near-intrinsic Si substrate. While critical for Si:P QC devices, the use of intrinsic Si also ensures that the electric eld penetrates maximally throughout the sample. To explore the eld penetration we have rastered an MeV ion beam across various electrode geometries and monitored the charge collection e¯ ciency at each point (Yang et al . 2002), nding collection e¯ ciencies of ca. 99% at distances up to 10mm from the electrodes. We can therefore fabricate detector electrodes set many micrometres back from the central nanostructured region where the qubits and control gates are located.
Because of their mass,31P+ ions with incident energy 14 keV lose ca. 85% of their initial energy to nuclear stopping events in the substrate, compared with only ca. 20%
for light ions such as 1H+ . The energy available for the creation of e¡/h+ pairs is therefore ca. 2 keV. Because the path taken by each incident ion is di¬erent, the exact number of e¡/h+ pairs and the resulting current pulse height will vary between events, as seen in gure 2d. To ensure that no ions enter the substrate without detection, the noise level must be kept signi cantly below the mean pulse height.
Using cryogenic-detection electronics we have been able to reduce the e¬ective noise level to an energy equivalent of ca. 1 keV and expect that a value of 0.1 keV will be possible in the near future, providing greater than 95% con dence that all ions have been detected.
At present we are applying a uniform areal ion dose to our masked substrates, broadly focused over the aperture region, so that ion placement is random between the apertures. For the P{P+ charge-qubit device of gure 1b it is possible that the two implanted ions will have gone down the same aperture, leading to a one-in-two probability of correctly con guring a device with one P atom at each site. Such a yield is su¯ cient for proof-of-principle experiments on one-qubit devices. For large- scale qubit arrays it will be necessary to direct each ion to its appropriate array site using a31P focused ion beam, one of which has recently been installed in the Centre for Quantum Computer Technology.
signal (c)
phosphorus ions
detector electronics
(d )
24nm PMMA
10V
E + +++ --
-- +
-
0V
100 200 300 400 500 600 700 800 –1
0 1 2 3 4 5 6
14 keV 31P 14 keV 31P
time (ms)
pulse height (V)
noise threshold Si
5 nmSiO2
(a) (b)
Figure 2. Electrically registered single-ion implantation. (a), (b) Optical images of detector elec- trodes. (c) Schematic showing phosphorus implantation through a resist mask. Each ion strike creates an electron{hole plasma, producing a current pulse monitored by on-chip electrodes.
(d) Experimental demonstration of single-ion strikes in an i-Si substrate from a 14 keV phos- phorus-ion beam. (Reproduced from Dzurak et al. (2003).)
Devices incorporating implanted phosphorus donors, with fully con gured surface control gates and dual-read-out SETs have recently been constructed (Dzurak et al . 2003) to study controlled electron transfer between donors. Following the successful achievement of a one-qubit, two-donor-atom implant, initial electrical measurements have concentrated on devices where each donor is replaced by a cluster of phosphorus
S S ET 2 coupler 80 nm
control gates donor implant sites SET 1
SET 1 bias (a)
SET 2
SET 1 SET 2
control gates (b)
SET 2 bias
SET 1
bias SET 2
bias
annealed alignment
marker 2mm
1mm
donor implant sites
25nm 80nm
B S
S
S S ET 1 B
coupler
Figure 3. Scanning electron microscope (SEM) images of prototype devices incorporating buried phosphorus-ion implants. (a) Device with ¯ve control gates (bottom of image) to control electron motion between donors, together with two closely spaced SETs to detect electron transfer.
(b) Modi¯ed device, where each SET island has a coupling electrode to capacitively couple it to a phosphorus donor site. A long central barrier (B) gate may be used to control tunnelling between donors. Inset, bottom left: demonstration of implantation apertures via metal lift-o® . (Reproduced from Dzurak et al . (2003).)
donors. Figure 3a shows such a device containing 100 phosphorus donors in each cluster. A range of such devices spanning the metal{insulator transition is under investigation.
The fabrication of a device such as that shown in gure 3 involves a number of high- resolution electron-beam lithography (EBL) steps, each of which must be aligned to the others to within 20 nm. The process ®ow proceeds as follows. Firstly, a 5 nm thick SiO2 layer is thermally grown on a near-intrinsic silicon wafer, with a background n-doping level of 1012cm¡3. If single-ion doping control is required, micrometre-scale
0 0.01 0.02
0 0.05 0.10
0.24 0.28 0.32 0.36 0
0.01 0.02
A2
A1 G2
G1 source
drain
tunnel junction SET 2
SET 1
dot 1 dot 2 transconductance (arb. units)
G (e2/h) correlation (arb. units)
G (e2/h)
VA1 = -VA2 (V) VA1 = -VA2 (V)
(a) (b)
(c) (d)
source drain
DVtrans@
31 mV DVSET1@ 68 mV
DVdots
Figure 4. (a) Schematic of the correlated SET system for read-out of charge transfer of a double dot. The dots are connected via a tunnel junction and the charge con¯guration of the double dot is controlled with the gates labelled A1 and A2. SET 1 is more strongly coupled to the charge on dot 1 than the charge on dot 2, and SET 2 is similarly more sensitive to the charge on dot 2. (Reproduced from Buehler et al . (2003a).) (b) SEM image of the actual device fabricated to realize correlated charge measurements. (Reproduced from Buehler et al. (2003d).) (c) Con- ductance traces showing the individual SET responses to charge motion (discontinuities in the conductance traces) on the double dot. (Reproduced from Buehler et al . (2003a).) (d) Upper panel: conductance traces where e® ects of the A gates on the SETs have been compensated for.
Lower panel: correlation signals clearly showing the signature of charge transfer and rejecting noise due to background charge ° uctuations. In parts (c) and (d) the solid lines denote SET 1 and the dotted lines denote SET 2. (Reproduced from Buehler et al . (2003a).)
aluminium detector electrodes are then deposited on the substrate using ultraviolet lithography. Next, to provide sub-20 nm alignment accuracy between all features on the device, Ti/Pt alignment markers are patterned using EBL. In a second EBL step, two sub-30 nm apertures are opened in a layer of PMMA resist of thickness greater than 100 nm.
The patterned PMMA resist acts as a mask for the phosphorus-ion implant step to follow. The inset in gure 3b shows the result of a metallization and lift-o¬ used to demonstrate the dimensions of these apertures. Following aperture de nition, a 14 keV P+ ion beam is directed at the substrate to implant the donors. The PMMA layer is su¯ ciently thick to stop the ions and forward recoil of H atoms from the
PMMA itself, while ions which pass through the nano-apertures come to rest at a mean depth of 15 nm below the Si{SiO2 interface and register a current pulse in the on-chip detector circuit. Following calibrated implantation and resist removal, the samples are then subjected to a 950¯C rapid thermal anneal (RTA) for 5 s to remove implant damage and activate the donors. The 5 s RTA process is necessary to limit P donor di¬usion to ca. 1 nm.
Following ion implantation and activation, the remaining nanocircuitry on the surface of the chip is completed using two further EBL steps. Firstly, the Ti/Au control gates are deposited following EBL patterning of a single PMMA layer. The gates on the devices in gure 3, produced using this process, all have line widths below 20 nm and we have reliably demonstrated line widths of 12 nm with this process.
Finally, the two Al/Al2O3 SETs are fabricated using a double-angle metallization process and a bilayer resist (Fulton & Dolan 1987). As seen in gure 3a, the overall alignment between all levels of this process is better than the width of a control gate (20 nm).
Preliminary electrical measurements on the device in gure 3a indicated that the two SET islands were more strongly coupled to each other than to the phosphorus donors below them. A new architecture has recently been developed to decouple the two SETs, and is shown in gure 3b. Here, the two SETs are separated by ca. 1mm.
However, each SET island is connected to the central donor region using a Ti/Au coupling electrode. These are designed to capacitively couple each SET to its target donor atom or atom cluster, but not to its neighbouring SET. To provide further isolation, a long barrier (B) gate is con gured between the two donor clusters and SET couplers. Measurements on this device are currently underway.
3. Integrated quantum read-out with SETs
The practical read-out of a solid-state qubit is of central importance. For optimum performance, such a read-out device should be integrated with the qubit architec- ture. This suggests that one of the best measurement methodologies is to fabricate a solid-state device capable of electrical measurement of the qubit, with single-shot capability, fast response and robustness against noise. To that end we have con- centrated on the SET (Grabert & Devoret 1992). This device is a highly sensitive electrometer, with performance close to the quantum noise limit. The SET has previ- ously been identi ed as a key measurement device, not just for the Kane nuclear spin (Kane 1998; Kane et al . 2000; Pakes et al. 2003a) and electronic charge-based QCs (Hollenberg et al . 2003), but also for superconducting Cooper-pair box architectures (Aassime et al . 2001; Makhlin et al . 2001; Lehnert et al . 2003; Duty et al . 2003).
Our work has focused on the study of twin-SET geometries, in which two aluminium- based SETs monitor the charge transfer in coincidence. This has the advantage of reducing sensitivity to spurious noise signals as the noise couples asymmetrically to each SET. Our work has been performed in both DC (Buehler et al . 2002, 2003a; b) and RF (Buehler et al . 2003c{e) modes of operation and is described below. We have also performed investigations of other SET geometries, including the double- island SET (Brenner et al. 2003), which o¬ers the possibility of a completely di¬erent measurement device, and most recently we have begun to fabricate all-silicon SETs, which may o¬er lower noise levels.
(b) (a) ¦1 RF sourcesignal output
(c) JQP DC
DC
f2 RF signal output SET2
G=
40 dB source
directional coupler bias-T1
L1 L2
C C
bias-T2
twin-SET
combiner mixer
mixer BPF
BPF BPF
BPF splitter
RT
4.2 K
50 mK modulationgate LPF
SET1
LPF G=
50 dB
DJQP
gate bias (V) 0
0.1
0 source–drain bias (mV) 1.5 –1.5
330 340 350 360 370
–60 –50 –40 –30 –20 –10 0
–60 –50 –40 –30 –20 –10 0
qSET1=7.5meHz–1/2 qSET2=4.4meHz–1/2
reflected power (dBm)
reflected power (dB)
frequency (MHz) d
d
Figure 5. (a) Schematic electrical circuit showing the twin-RF-SET circuit. (b) Upper trace:
frequency dependence of the power re° ected by the tank circuits, measured at the top of the dilution refrigerator. Lower trace: typical amplitude-modulation signal associated with each RF-SET measuring a signal corresponding to ca. 0:1e at 2.5 MHz; (i) ¯ qS ET 1 = 7:5me Hz¡ 1=2, (ii) ¯ qS ET 2= 4:4me Hz¡ 1=2. Horizontal arrows indicate the relevant y-axis. (c) Bias spectroscopy of the RF-SET. Re° ected power is monitored as a function of gate bias and source{drain bias for each RF-SET, allowing the identi¯cation of the DJQP resonance which is the optimum working point for the RF-SET. (Reproduced from Buehler et al. (2003d).)
To demonstrate the correlated detection of electron tunnelling events, we con- structed the aluminium nanostructure shown in gure 4. Here two metal `dots’, connected by an aluminium oxide tunnel junction, in the centre of the device, are used to simulate the P donors. The two adjacent SETs then detect single charge transfer between dot 1 and dot 2 when an electric eld is applied across the dots by applying equal and opposite biases to gates A1 and A2. This double dot is thus a direct, but classical, simulation of an electronic charge qubit; as an electron is trans- ferred from one metal island to the other, both SETs simultaneously register equal and opposite signals. Figure 4c shows the conductance of the SETs as a function of the electric eld applied across the double dot. Electron transfer between the dots is clearly seen by the periodic simultaneous discontinuities in the outputs of the two SETs (¢V = 31 mV), superimposed on top of the standard Coulomb blockade oscil- lations of each SET (¢V = 68 mV). To show this more clearly, we use the G1 and G2 gates to keep the conductance of the SETs constant, so that only discrete events due to charge motion are detected ( gure 4d).
SET 1/SET 2
–500 0 500
(a) 4 averages (b) NO average
A1–A2
time (ms)
Gate A1/A2
correlation
0 200 400
Figure 6. (a) Upper trace: individual RF-SET responses to periodic charge transfer with four averages. Middle trace: correlation signal showing clear charge transfer. Lower trace: applied gate biases to induce charge transfer. (b) Upper trace: RF-SET responses without averaging.
Charge noise can be seen a® ecting one of the SETs in the grey region but the correlation signal (lower trace) shows signi¯ cant noise rejection. (Reproduced from Buehler et al. (2003e).)
The upper trace of gure 4d shows the SET conductance where the G gates (see
gure 4a) have compensated for the e¬ect of the A-gate potentials on the SETs and the lower trace shows the correlation signal. The correlation signal is obtained by taking the derivative of the SET conductances (generating the transconductance) and multiplying these together. By correlating in this fashion, we are able to reject charge noise events which are detected by one SET and not the other. This rejection can be clearly seen in gure 4d, where a random charge event has been detected by SET 1 but not SET 2. Although the transconductance for SET 1 shows a signal comparable in size with the previously measured charge transfer event, the correlation signal shows no such event. In this way we greatly enhance the read-out delity.
In addition to being able to distinguish real signal from noise, the read-out must occur on time-scales shorter than the qubit relaxation time T1. For charge-based qubits, this is expected to be 0.1{10ms (Hollenberg et al . 2003). Although spin qubits have much longer relaxation times (T1 º 100 ms has been recently reportedy), when the spin information is converted to charge information for SET-based read-out, a similar restriction may apply (Kane et al . 2000). By operating the SETs at radio fre- quencies, it is possible to greatly enhance the time-domain sensitivity (Schoelkopf et al . 1998), while retaining the extreme charge sensitivity. Therefore, we have devel- oped a fast twin-RF-SET read-out scheme which allows correlated charge motion detection on microsecond time-scales, with spurious-signal rejection.
A schematic of the electrical set-up is shown in gure 5a, and is described in more detail elsewhere (Buehler et al. 2003d). In this circuit, each SET provides a
y E. Yablonovitch 2003, unpublished research, presented as `The electron spin in silicon, a promising qubit’ at US/Australia Workshop Solid State and Optical Approaches to Quantum Information Science, Sydney, Australia.
variable damping to an LC resonator. By choosing di¬erent values of L1 and L2
we can tune the resonance of each SET to a di¬erent frequency ( gure 5b), and monitor both SETs simultaneously. The upper trace in gure 5b is the re®ected RF power from the tank circuit with no signal applied to the SETs, and the lower trace shows a typical signal when a 2.5 MHz signal is applied to a gate that couples equally to both SETs, inducing a charge of ca. 0:1e on each SET island. This lower trace allows us to calculate the sensitivities of the RF-SETs as 7:5me Hz¡1=2 and 4:4me Hz¡1=2. The theoretical charge sensitivity limit of a realistic, optimized RF- SET is 2me Hz¡1=2 (Devoret & Schoelkopf 2000), so our sensitivities are close to the fundamental limit. In order to achieve the optimum sensitivity, we tune our devices using the source{drain and gate biases to the double-Josephson-quasi-particle resonance (DJQP) ( gure 5c), which theory suggests is the optimal con guration for a superconducting SET (Clerk et al. 2002). We next use these optimized SETs to detect single-electron transfer between the metal dots ( gure 7) on microsecond time- scales. The bias applied to the A gates is now increased very rapidly (lower panel of gure 6a), which induces charge transfer between the metal dots. The top trace shows the response of the RF-SETs (as was shown in gure 4 for the DC-SETs);
the simultaneous discontinuities in the output of the two RF-SETs indicate charge transfer events. The data clearly show periodic charge transfer with periodic peaks in the correlation (middle panel), since each trace is obtained by averaging four separate traces. The e¬ects of charge noise become much more evident if each measurement is performed single shot, as is required for optimum for QC read-out ( gure 6b). The upper SET trace in gure 6b now shows artefacts due to charge noise (highlighted in grey). However, the noise does not a¬ect the correlation measurement (lower trace).
Such results suggest that correlated RF-SETs are excellent candidates for performing fast, single-shot measurements on solid-state quantum computing architectures.
4. Bottom-up atomically precise phosphorus array fabrication While ion implantation provides a rapid path for the study of few-qubit devices, there will always be some deviation in the position of the phosphorus donors from the ideal array sites resulting from the statistical nature of the implant process. This deviation should not be problematic for charge-based qubits but could introduce signi cant variations in exchange coupling between donors in the case of spin qubits.
For atomic-scale precision in phosphorus donor placement a `bottom-up’ approach to fabrication is necessary. Figure 7 shows such a process which employs atomic-scale lithography of a hydrogenated silicon surface using a scanning tunnelling microscope (STM), together with silicon overgrowth via molecular beam epitaxy (O’Brien et al . 2001; Simmons et al . 2003). This technology provides a path towards atomically precise doping of a semiconductor, together with a methodology to construct large- scale precise Si:P qubit arrays. We review progress achieved to date on key steps in this approach.
The bottom-up fabrication process shown in gure 7a begins with preparation of a clean, defect-free Si(100) surface, followed by passivation using atomic hydrogen to form a monolayer (ML) of monohydride resist (step 1). An STM tip is then used to desorb single H atoms from the resist, thereby exposing the underlying Si substrate (step 2). During subsequent exposure of the surface to phosphine (PH3) gas, single P-containing molecules only adsorb at the exposed regions of Si surface (O’Brien et
al . 2001) (step 3). Annealing at ca. 350¯C (step 4) then incorporates P atoms from the phosphine molecules into the Si surface, while leaving the hydrogen resist layer una¬ected (Oberbeck et al . 2002; Curson et al. 2003a; Scho eld et al . 2003). This step is critical. Prior to annealing, the phosphine molecules are weakly attached to the exposed silicon surface with one covalent bond. Following annealing, however, the incorporated P atoms form three covalent bonds to silicon atoms, securing the phosphorus atom in its patterned location by providing a stronger resistance to thermal di¬usion.
The remaining steps in gure 7a involve encapsulation of the phosphorus array.
In step 5, the hydrogen resist layer is removed from the surface without destroying the ordered array of phosphorus atoms. In step 6 the phosphorus atoms are then encapsulated by a few MLs of silicon grown at room temperature (RT) (Oberbeck et al . 2003). Subsequent rapid annealing (step 7) reduces the defect density in the silicon layer and ®attens the surface. The last three steps involve further Si growth at higher temperatures to achieve the necessary Si-layer thickness of 5{20 nm, followed by growth of an insulating barrier layer and the registration of surface metal gates to the buried phosphorus atoms. We have already demonstrated steps 1{4 (O’Brien et al . 2001; Oberbeck et al. 2002; Curson et al . 2003a; Scho eld et al . 2003), step 5 (unpublished) has recently been achieved and we are currently developing the nal process steps.
Patterning of a hydrogen-terminated Si(001) surface was rst demonstrated by Lyding et al . (1994), who used a highly con ned electron beam generated by the tip of an STM to desorb hydrogen atoms, exposing the underlying Si surface. As shown in gure 8a; b, we have used this technique to perform controlled lithography using the STM tip to create both large areas (200 £ 30 nm2) and parallel, nanometre-wide lines of bare Si. Large lithographically de ned areas are used as registration markers for the relocation of atomic-scale features on the surface after process steps such as sample annealing. Figure 8c demonstrates atomic-precision single-atom lithography, where ultimate resolution is attained by pulsing the STM tip at ca. 1.5 nm intervals to desorb single H atoms, in this case from the right-hand side of ve consecutive dimer rows (Scho eld et al . 2003).
Following the demonstration of atomic-scale hydrogen lithography we have carried out an extensive series of STM experiments, summarized in gure 9, which demon- strate an ability to incorporate single phosphorus dopants in a silicon surface with atomic precision: step 4 in gure 7a.
The STM image in gure 9a shows an Si(001) surface after ®ash-annealing to 1200¯C, cooling to RT and dosing with 0.01 Langmuir (1 L = 0:75 £ 10¡6mbar s) of PH3gas. Two adsorbed PH3molecules appear in this image as bright circular protru- sions with an apparent height of ca. 0.07 nm above the substrate dimer rows (Scho eld et al . 2003; Wang et al . 1994). A schematic of these adsorbed PH3molecules is shown in gure 9b. After a controlled anneal to 550¯C, the circular adsorbate protrusions are replaced by asymmetric features that have an apparent height of ca. 0.03 nm with respect to the substrate dimer rows, two of which are shown in gure 9c. These features are Si{P heterodimers (Curson et al . 2003a; Oberbeck et al. 2002), as indi- cated schematically in gure 9d. The Si{P heterodimer is formed by the substitution of a P atom with one atom of an Si dimer. The displaced Si atom is ejected onto the surface and at this anneal temperature has enough mobility to di¬use to a step edge, to which it bonds. Having developed an understanding of how PH3 interacts
(a) monohydride deposition Si growth at RT (b)
hydrogen desorptionSTM tip
rapid annealing step
700
P desorption
H desorption
PH2 (incorporated)
(incorporated)
temperature (ºC)
P 500
300
100
P incorporation barrier growth
H desorption
alignment of surface gates PH3 dosing Si growth at elevated T
PH3 PH2 H
Si
Figure 7. (a) Schematic of the `bottom-up’ fabrication process. (b) Key reactions known to occur on PH3/Si(001) and H/Si(001) surfaces, as a function of annealing temperature. The processes shown are dissociation of PH3 to form PH2, dissociation of PH2 and subsequent incorporation of P atoms into the surface layer, desorption of H atoms and ¯nally desorption of P atoms.
with the clean Si(001) surface (Curson et al . 2003b), we have then used STM-based lithography to demonstrate that PH3molecules can be adsorbed on the surface with atomic precision.
Figure 9f shows an atomic-resolution STM image of three hydrogen desorption sites, ca. 3 nm apart, on an otherwise H-terminated Si(001) surface (O’Brien et al . 2001). The bright protrusion at each of the desorption sites is the signature of a single silicon dangling bond, after desorption of just one hydrogen atom. Figure 9g shows the same area of the surface after dosing with PH3 at RT. The e¬ectiveness of the hydrogen resist as a barrier to phosphine adsorption is demonstrated by the uniform hydrogen coverage after phosphine dosing except at the previously desorbed hydrogen sites. Analysis of line pro les (not shown) reveals a characteristic increase of ca. 0.05 nm in the height of the protrusion after phosphine dosing (O’Brien et al . 2001), which con rms the adsorption of a PH3 molecule.
Figure 9h; i demonstrates the incorporation of an individual P atom into the sili- con surface with atomic precision by the use of a critical anneal step. Figure 9h shows a hydrogen-terminated silicon surface with a controlled single desorption site around two to three dimers in length, created using the STM tip. Figure 9i shows the same
(a)
(b) (c)
Figure 8. An STM tip has been used to remove hydrogen atoms from a hydrogen-terminated Si(001) surface to form (a) a 200 nm£ 30 nm rectangular patch, (b) two parallel lines of bare Si(001) surface, and (c) ¯ve single hydrogen-atom desorption sites. The desorption parameters used were +4 V sample bias and 1 nA tunnel current. The areas of bare Si(001) surface appear brighter than the surrounding H-terminated surface, due to the additional tunnel current con- tributed by the Si surface states.
(e)
(a) ( f )
(b) (g)
(c)
(d )
(h) (i)
Figure 9. (a){(e) STM images and schematics of the interaction of PH3with the Si(001) surface.
(a) STM image and (b) schematic of an Si(001) surface, consisting of rows of paired Si atoms (dimers), and two molecularly adsorbed PH3 molecules. (c) STM image and (d) schematic of a PH3-dosed and annealed (ca. 550¯C) Si(001) surface showing two incorporated P atoms.
(e) Schematic of an Si dimer and an Si{P heterodimer. STM images of three desorption sites of H-terminated Si(001) before (f ) and after (g) phosphine dosing. (h), (i) STM images of atomically precise single P atom incorporation into the surface of H-terminated Si(001):
(h) H-terminated Si(001) with a single H-desorption point; (i) the same area after PH3 dosing and annealing to 350¯C showing that a single P atom has been incorporated at the location de¯ned by the H-desorption point.
desorption site after PH3 dosing with ca. 0.3 L PH3 and annealing to 350¯C. We can clearly see the asymmetric H-Si{P heterodimer. In contrast to the clean-surface results, the Si{P heterodimers are hydrogen terminated as a result of the abundance of surrounding hydrogen, such that the silicon dangling bond is now hydrogen pas- sivated and no longer protrudes from the surface. To our knowledge, this is the rst demonstration of the controlled incorporation of a single dopant atom into a silicon surface (Scho eld et al. 2003) and not only makes possible large-scale silicon-based QC devices (Kane 1998) but also opens up new possibilities for atomic-scale elec- tronic devices such as classical single-atom memories (Snider et al. 1999).
Our ability to thermally incorporate phosphorus atoms into the silicon sur- face without disturbing the hydrogen resist is consistent with previous studies of phosphine-dosed Si(001) (Hamers & Wang 1996; Shan et al . 1996; Lin et al . 1999) and hydrogen-dosed Si(001) (Suemitsu et al. 1994) surfaces. Figure 7b summarizes these studies by showing the relevant reactions that are known to occur as a func- tion of annealing temperature. From the gure we see that our 350¯C phosphorus- incorporation step exploits a natural temperature window in the surface chemistry of these adsorption systems.
Following formation of the P array in the Si surface, the next step of our process is the encapsulation in epitaxial Si. During this encapsulation process, the carefully created P array must be kept intact, with segregation and di¬usion of the P atoms minimized by keeping the growth temperature as low as possible. We have studied P segregation and di¬usion under di¬erent encapsulation and annealing conditions using the STM to image P atoms at the surface. We have also shown that the incor- poration of P atoms into the Si surface via the annealing step results in electrical activation of the P atoms (Oberbeck et al. 2002). Annealing of the sample after low-temperature growth is necessary to ®atten the surface and, for the purpose of monitoring the vertical segregation, identify the characteristic asymmetric appear- ance of the Si{P heterodimer, shown in gure 9c; e.
Figure 10a{f shows lled-state STM images taken at RT of two separate encap- sulation experiments. For each experiment, STM images of the clean Si(001) surface are shown after: initial ®ashing; P incorporation; Si overgrowth at di¬erent tempera- tures; and successive annealing steps for 5 s at temperatures close to 350¯C, 500¯C and 600¯C. For compactness we show only selected STM images of the annealing sequence. The analysis of the data is summarized in gure 10g. The two experiments di¬er only in the Si overgrowth step: 5 MLs of Si were grown either at 255¯C (left column) or at RT (right column). After P incorporation and 5 MLs of Si growth, annealing of the surface at temperatures of 345¯C ( gure 10d), 498¯C ( gure 10e) and 600¯C ( gure 10f ) causes the Si surface to ®atten due to island coarsening and di¬usion of Si atoms to step edges. Simultaneously, the density of bright asymmetric features resulting from vertically segregated P atoms forming Si{P heterodimers at the surface increases. Figure 10d{f demonstrates that the density of Si{P hetero- dimers at the Si surface is much lower for a given anneal temperature if the Si encapsulation occurs at RT compared with 255¯C Si growth.
To quantify the density of P atoms at the Si(001) surface observed in the STM images in gure 10 the number of Si{P heterodimers was counted after each anneal.
Figure 10g shows the increase in the relative density of P atoms at the surface fol- lowing subsequent annealing steps for the two experiments. The relative density is obtained by comparison of the phosphorus density after Si growth and sample anneal-
ing with the initial density of incorporated phosphorus atoms after phosphine dosing of the clean Si surface. We rst consider the results for encapsulation with 5 MLs of Si grown at 255¯C. After the rst 5 s annealing step at the lowest applied annealing temperature (ca. 350¯C), already ca. 25% of the initial number of phosphorus atoms have segregated during Si growth and occupy surface lattice sites (see gure 10g).
After subsequent annealing at 400, 450, 500, 550 and 600¯C, nearly 60% of the phosphorus atoms are present at the surface. These results demonstrate that even with encapsulation in epitaxial Si at relatively low temperatures (ca. 250¯C), a short low-temperature anneal results in signi cant segregation. In contrast, if phosphorus atoms are overgrown with 5 MLs of Si deposited at RT and annealed at 350¯C for 5 s, only ca. 5% of the initial number of P atoms are present at the surface. Dur- ing the subsequent anneals, the P density increases only slightly to ca. 10%. This is a direct consequence of the strongly suppressed segregation of P atoms during Si overgrowth at RT. Looking forward, these experiments show that, to encapsulate phosphorus atoms in epitaxial Si with minimal segregation, not only should the Si growth temperature be as low as possible but more sophisticated and considerably faster anneal procedures will be necessary|for example, via the use of pulsed lasers of speci c wavelength or other techniques.
In summary, the results presented above for the bottom-up approach show that considerable progress has been made towards fabricating a P array in Si for an Si- based QC. We have developed a process for incorporating single P dopants in Si with atomic-scale precision and have determined that, during Si encapsulation, P atom segregation/di¬usion is minimized by RT growth followed by rapid annealing. We are currently in the process of combining these results to encapsulate a P array and characterize the spatial integrity of that array using buried dopant imaging. Also underway are studies of the barrier-layer growth between the embedded P array and surface electrodes and the process of accurately registering these electrodes to the buried qubits.
5. Conclusion
Solid-state approaches to quantum computing o¬er distinct advantages in terms of scalability and device integration. Furthermore, silicon-based approaches are com- patible with technologies already used in conventional nanofabrication. The Kane approach is particularly attractive due to the extremely long coherence times for phosphorus nuclear spins in silicon. Our approach to the fabrication of a Kane QC begins with construction of the complementary Si:P charge qubit, for which read- out is achievable now using RF-SETs. Fabrication of the Si:P charge qubit is being approached via a `top-down’ method, employing single-ion implantation with on- chip detection, and a `bottom-up’ method, where advanced lithographic techniques are used to embed individual phosphorus atoms in silicon with atomic precision. Key targets for future work include: demonstration of the P-P+ charge qubit and measure- ment of qubit coherence times; in the bottom-up approach, integration of atomically precise phosphorus structures with surface control gates; and further optimizations of SETs to ensure quantum limited performance with optimal response times. Beyond Si:P charge qubits, spin-based qubits o¬er longer coherence times and commensu- rately greater prospects for scale-up and to this end electronic read-out of a single spin, compatible with the Kane architecture, is being pursued.
(a)
(g)
600
1.0 100
10–1
5ML@ 255ºC
5ML@ RT 10–2
1.1 1.2 1.3 1.4 1.5 1.6
500 400 350
annealing temperature (ºC)
inverse annealing temperature (1/K) (´10–3)
relative phosphorus density
5ML@255ºC 5 ML@RT
(b)
(c)
(d)
(e)
( f )
Figure 10. (a){(f ) Filled state STM images showing (a) the clean Si(001) surface, (b) the surface after phosphorus incorporation, (c) Si overgrowth, (d){(f ) annealing at various temperatures from two experiments: 5 MLs Si growth at 255¯C (left column) and at RT (right column). STM images taken after various annealing steps show an increasing density of bright asymmetric features at the surface which are Si{P heterodimers. Image size of individual STM images is 50£ 25 nm2. (g) Relative density of phosphorus atoms at the Si(001) surface after Si growth and various annealing steps. The density relative to the initial coverage was determined from STM images. The lines are a guide to the eye.
This work was supported by the Australian Research Council, the Australian Government, the US National Security Agency, Advanced Research and Development Activity and Army Research O± ce under contract number DAAD19-01-1-0653. H.S.G., L.O. and D.J.R. acknowledge the support of Hewlett Packard Research Fellowships.
References
Aassime, A., Johansson, G., Wendin, G., Schoelkopf, R. J. & Delsing, P. 2001 Radio-frequency single-electron transistor as readout device for qubits: charge sensitivity and backaction.Phys.
Rev. Lett. 86, 3376.
Bertolini, G. & Coche, A. 1968 Semiconductor detectors. Amsterdam: North-Holland.
Brenner, R., Hamilton, A. R., Clark, R. G. & Dzurak, A. S. 2003 Double-island single-electron transistor for noise-suppressed detection of charge transfer. Microelectron. Engng 67{68, 826.
Buehler, T. M., Brenner, R., Reilly, D. J., Hamilton, A. R., Dzurak, A. S. & Clark, R. G. 2002 Single-electron transistor architectures for charge motion detection in solid-state quantum computer devices.Smart Mater. Struct. 11, 749.
Buehler, T. M., Reilly, D. J., Brenner, R., Hamilton, A. R., Dzurak, A. S. & Clark, R. G. 2003a Correlated charge detection for read-out of a solid-state quantum computer.Appl. Phys. Lett.
82, 577.
Buehler, T. M., Reilly, D. J., Starrett, R. P., Court, N., Hamilton, A. R., Brenner, R., Dzurak, A. S. & Clark, R. G. 2003b Single electron devices for simulating read-out in a solid-state quantum computer. Surf. Sci. 532{535, 1199.
Buehler, T. M., Reilly, D. J., Starrett, R. P., Kenyon, S., Hamilton, A. R., Dzurak, A. S. &
Clark, R. G. 2003c The twin radio frequency single electron transistor for correlated charge detection on microsecond time scales. Microelectron. Engng 67{68, 775.
Buehler, T. M., Reilly, D. J., Starrett, R. P., Hamilton, A. R., Dzurak, A. S. & Clark, R. G.
2003d Development and operation of twin radio frequency single electron transistor for solid state qubit readout. (Preprint cond-mat/0302085.)
Buehler, T. M., Reilly, D. J., Starrett, R. P., Greentree, A. D., Hamilton, A. R., Dzurak, A. S.
& Clark, R. G. 2003e E± cient readout with the radio frequency single electron transistor in the presence of charge noise. (Preprint cond-mat/0304384.)
Clerk, A. A., Girvin, S. M., Nguyen, A. & Stone, A. D. 2002 Resonant Cooper-pair tunneling:
quantum noise and measurement characteristics. Phys. Rev. Lett. 89, 176804.
Curson, N. J., Scho¯eld, S. R., Simmons, M. Y., Oberbeck, L., O’ Brien, J. L. & Clark, R. G.
2003a STM characterization of the Si{P heterodimer. (Submitted.)
Curson, N. J., Scho¯eld, S. R., Simmons, M. Y., Oberbeck, L. & Clark, R. G. 2003b Critical issues in the formation of atomic arrays of phosphorus in silicon for the fabrication of a solid-state quantum computer. Surf. Sci. (In the press.)
Devoret, M. H. & Schoelkopf, R. J. 2000 Amplifying quantum signals with the single electron transistor.Nature 406, 1039.
Duty, T., Gunnarsson, D., Bladh, K., Schoelkopf, R. J. & Delsing, P. 2003 Coherent dynamics of a Josephson charge qubit. (Preprint cond-mat/0305433.)
Dzurak, A. S. (and 15 others) 2003 Charge-based silicon quantum computer architectures using controlled single-ion implantation. (Preprint cond-mat/0306265.)
Fowler, A., Wellard, C. & Hollenberg, L. C. L. 2003 Error rate of the Kane quantum computer controlled-NOT gate in the presence of dephasing.Phys. Rev. A 67, 012301.
Fulton, T. A. & Dolan, G. J. 1987 Observation of single-electron charging e® ects in small tunnel junctions.Phys. Rev. Lett. 59, 109.
Grabert, H. & Devoret, M. H. (eds) 1992 Single charge tunneling: coulomb blockade phenomena in nanostructures. NATO Adv. Stud. Inst. B 294, 1{352.
Greentree, A. D., Hamilton, A. R., Green, F. & Clark, R. G. 2003 Charge shelving and bias spectroscopy for readout of a charge-qubit in the superposition basis. (Submitted.)
Hamers, R. J. & Wang, Y. 1996 Atomically resolved studies of the chemistry and bonding at silicon surfaces.Chem. Rev. 96, 1261.
Hollenberg, L. C. L., Dzurak, A. S., Wellard, C., Hamilton, A. R., Reilly, D. J., Milburn, G. J.
& Clark, R. G. 2003 Charge-based quantum computing using single donors in semiconduc- tors.(Preprint cond-mat 0306235.)
Kane, B. E. 1998 A silicon-based nuclear spin quantum computer.Nature 393, 133.
Kane, B. E., McAlpine, N. S., Dzurak, A. S., Clark, R. G., Milburn, G. J., Sun, H. B. &
Wiseman, H. 2000 Single-spin measurement using single-electron transistors to probe two- electron systems.Phys. Rev. B 61, 2961.
Lehnert, K. W., Bladh, K., Spietz, L. F., Gunnarsson, D., Schuster, D. I., Delsing, P. &
Schoelkopf, R. J. 2003 Measurement of the excited-state lifetime of a microelectronic cir- cuit.Phys. Rev. Lett. 90, 027002.
Lin, D.-S., Ku, T.-S. & Sheu, T.-J. 1999 Thermal reactions of phosphine with Si(100): a combined photoemission and scanning-tunneling microscopy study.Surf. Sci. 424, 7.
Lyding, L. W., Abeln, G. C., Shen, T.-C., Wang, C. & Tucker, J. R. 1994 Nanometer scale patterning and oxidation of silicon surfaces with an ultra-high vacuum scanning tunneling microscope. J. Vac. Sci. Technol. B 12, 3735.
Makhlin, Yu., Schon, G. & Shnirman, A. 2001 Quantum-state engineering with Josephson- junction devices. Rev. Mod. Phys. 73, 357.
Martinis, J. M., Nam, S., Aumentado, J. & Urbina, C. 2002 Rabi oscillations in a large Josephson-junction qubit.Phys. Rev. Lett. 89, 117901.
Nakamura, Y., Pashkin, Yu. A. & Tsai, J. S. 1999 Coherent control of macroscopic quantum states in a single Cooper-pair box.Nature 398, 786.
Oberbeck, L., Curson, N. J., Simmons, M. Y., Brenner, R., Hamilton, A. R., Scho¯eld, S. R.
& Clark, R. G. 2002 Encapsulation of phosphorus dopants in silicon for the fabrication of a quantum computer.Appl. Phys. Lett. 81, 3197.
Oberbeck, L., Curson, N. J., Scho¯eld, S. R., Hallam, T., Simmons, M. Y. & Clark, R. G.
2003 Challenges in surface science for a P in Si quantum computer: phosphine adsorp- tion/incorporation and epitaxial Si encapsulation. Surf. Rev. Lett. (In the press.)
O’ Brien, J. L., Scho¯eld, S. R., Simmons, M. Y., Clark, R. G., Dzurak, A. S., Curson, N. J., Kane, B. E., McAlpine, N. S., Hawley, M. E. & Brown, G. W. 2001 Towards the fabrication of phosphorous qubits for a silicon quantum computer.Phys. Rev. B 64, 161401.
Pakes, C. I., Conrad, V., Ang, J. C., Green, F., Dzurak, A. S., Hollenberg, L. C. L., Jamieson, D. N. & Clark, R. G. 2003a Modelling single-electron-transistor-based readout in the Kane solid-state quantum computer.Nanotechnology 14, 161.
Pakes, C. I., George, D. P., Jamieson, D. N., Yang, C., Dzurak, A. S., Gauja, E. & Clark, R. G.
2003b Technology computer-aided design modelling of single-atom doping for fabrication of buried nanostructures.Nanotechnology 14, 157.
Pashkin, Y. A., Yamamoto, T., Asta¯ev, O., Nakamura, Y., Averin, D. V. & Tsai, J. S. 2003 Quantum oscillations in two coupled charge qubits.Nature 421, 823.
Schoelkopf, R. J., Wahlgren, P., Kozhevnikov, A. A., Delsing, P. & Prober, D. E. 1998 The radio-frequency single-electron transistor (RF-SET): a fast and ultrasensitive electrometer.
Science 280, 1238.
Scho¯eld, S. R., Curson, N. J., Simmons, M. Y., Oberbeck, L., Hallam, T., Ruess, F. J. &
Clark, R. G. 2003 Atomically precise placement of single dopants in Si. (Submitted.) Shan, J., Wang, Y. & Hamers, R. J. 1996 Adsorption and dissociation of phosphine on Si(001).
J. Phys. Chem. 100, 4961.
Shnirman, A., Schoen, G. & Hermon, Z. 1997 Quantum manipulations of small Josephson junc- tion. Phys. Rev. Lett. 79, 2371.
Simmons, M. Y., Scho¯eld, S. R., O’ Brien, J. L., Curson, N. J., Oberbeck, L., Hallam, T. &
Clark, R. G. 2003 Towards the atomic-scale fabrication of a silicon-based solid state quantum computer. Surf. Sci. (In the press.)
Skinner, A. J., Davenport, M. E. & Kane, B. E. 2003 Hydrogenic spin quantum computing in silicon: a digital approach.Phys. Rev. Lett. 90, 087901.
Snider, G. L., Orlov, A. O., Amlani, I., Zuo, X., Bernstein, G. H., Lent, C. S., Merz, J. L. &
Porod, W. 1999 Quantum-dot cellular automata: review and recent experiments. J. Appl.
Phys. 85, 4283.
Suemitsu, M., Nakazawa, H. & Miyamoto, N. 1994 Temperature-programmed-desorption study of the process of atomic deuterium adsorption onto Si(100)2£ 1.Appl. Surf. Sci. 82, 449.
Tyryshkin, A. M., Lyon, S. A., Astashkin, A. V. & Raitsimring, A. M. 2003 Electron spin- relaxation times of phosphorus donors in silicon. (Preprint cond-mat/0303006.)
Vion, D., Aassime, A., Cottet, A., Joyez, P., Pothier, H., Urbina, C., Esteve, D. & Devoret, M. H.
2002 Manipulating the quantum state of an electrical circuit. Science 296, 886.
