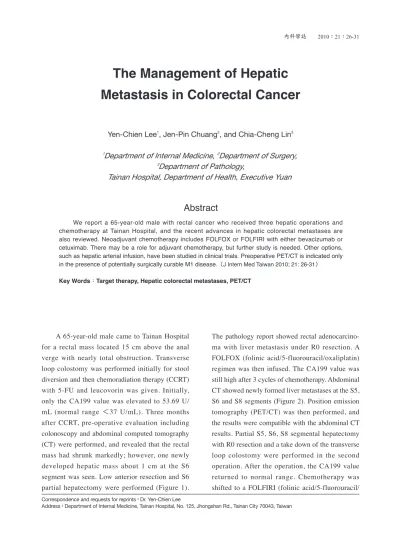

The Management of Hepatic Metastasis in Colorectal Cancer

Correspondence and requests for reprints：Dr. Yen-Chien Lee

Address：Department of Internal Medicine, Tainan Hospital, No. 125, Jhongshan Rd., Tainan City 70043, Taiwan

The Management of Hepatic Metastasis in Colorectal Cancer

Yen-Chien Lee

, Jen-Pin Chuang

, and Chia-Cheng Lin

1

Department of Internal Medicine,

Department of Surgery,

3

Department of Pathology,

Tainan Hospital, Department of Health, Executive Yuan

A 65-year-old male came to Tainan Hospital for a rectal mass located 15 cm above the anal verge with nearly total obstruction. Transverse loop colostomy was performed initially for stool diversion and then chemoradiation therapy (CCRT) with 5-FU and leucovorin was given. Initially, only the CA199 value was elevated to 53.69 U/

mL (normal range ＜37 U/mL). Three months after CCRT, pre-operative evaluation including colonoscopy and abdominal computed tomography (CT) were performed, and revealed that the rectal mass had shrunk markedly; however, one newly developed hepatic mass about 1 cm at the S6 segment was seen. Low anterior resection and S6 partial hepatectomy were performed (Figure 1).

The pathology report showed rectal adenocarcino- ma with liver metastasis under R0 resection. A FOLFOX (folinic acid/5-fluorouracil/oxaliplatin) regimen was then infused. The CA199 value was still high after 3 cycles of chemotherapy. Abdominal CT showed newly formed liver metastases at the S5, S6 and S8 segments (Figure 2). Position emission tomography (PET/CT) was then performed, and the results were compatible with the abdominal CT results. Partial S5, S6, S8 segmental hepatectomy with R0 resection and a take down of the transverse loop colostomy were performed in the second operation. After the operation, the CA199 value returned to normal range. Chemotherapy was shifted to a FOLFIRI (folinic acid/5-fluorouracil/

Abstract

We report a 65-year-old male with rectal cancer who received three hepatic operations and chemotherapy at Tainan Hospital, and the recent advances in hepatic colorectal metastases are also reviewed. Neoadjuvant chemotherapy includes FOLFOX or FOLFIRI with either bevacizumab or cetuximab. There may be a role for adjuvant chemotherapy, but further study is needed. Other options, such as hepatic arterial infusion, have been studied in clinical trials. Preoperative PET/CT is indicated only in the presence of potentially surgically curable M1 disease.

Key Words：Target therapy, Hepatic colorectal metastases, PET/CT

irinotecan) regimen with 12 cycles. Six months after the second operation, the CEA value was elevated to 5.4 U/mL (normal range ＜5 U/mL). Abdominal CT revealed a S2 hepatic lesion only. PET/CT showed the S2 lesion and another unsuspected new lesion less than 1 cm in size between the S5 surface and the right kidney (Figure 3). FOLFOXFIRI (folinic acid/5-fluorouracil/oxaliplatin/irinotecan) was infused once. Direct DNA sequencing of the main tumor confirmed a K-ras mutation. The

patient then received a third partial hepatectomy;

the pathology results revealed S2 and S5 hepatic metastases with R0 resection. At this writing, 5 months after the third operation, the patient is receiving bevacizumab and FOLFOX regimens and is free of tumor.

Due to the new developments in treatment, recent advances in the management of hepatic metastases in colorectal cancer are reviewed below.

Introduction

Colorectal cancer (CRC) is the third most common cancer worldwide, with over a million new cases diagnosed each year

. Approximately 20-25%

of patients with CRC will have liver metastasis at diagnosis

, and as many as 60% of patients who develop metastases will have liver metastases

. On average, 5-year survival for these patients is 2-8%

without surgical resection

, although with impro- Fig.1. Liver metastatic tumor about 1 cm at S6 seg-

ment (arrow).

Fig.2(A). The 2

time liver metastasis. Left, abdominal CT showed S5 metastases (arrow), which was compatible with the right-side lesion on PET/CT.

Fig.2(B). The 2

time liver metastasis. Left, abdo- minal CT showed S6 metastasis (arrow), which was compatible with the right-side lesion on PET/CT.

Fig.3. The 3

time liver metastasis. The upper panel

hot spot is the S2 hepatic recurrence. The

lower panel is the S5 hepatic surface lesion

(arrow).

ved detection and treatment options, rates of death from CRC are decreasing

. Therapeutic options are limited. Even when a complete clinical response is achieved with chemotherapy, it is not the equivalent of a complete pathologic response and does not obviate the need for curative surgery. Surgery remains the treatment of choice for patients with resectable hepatic colorectal metastases; approxi- mately 25-35% of patients who qualify for com- plete surgical resection will be alive at 5 years

. Unfortunately, recurrences occur in two-thirds of patients within 2 years after resection for liver metastases, but if repeat hepatic resection is feasible, the survival clock could be turned back.

However, the majority (80-90%) of patients with hepatic metastases are poor candidates for surgery due to unfavorable location, size, or number of metastases; insufficient liver reserve; or extrahe- patic disease

. These patients generally receive palliative chemotherapy aimed at alleviating and controlling symptoms, improving quality of life, and improving survival.

In historical series of unresectable patients, the median survival was 6-9 months with very few survivors at 5 years, and none recorded at 10 years.

In contrast, studies with long-term follow-up have demonstrated 10-year survival rates of 22-24%

, and several authors have reported survival periods of greater than 20 years following hepatic resection

. The emphasis is increasingly placed on the likeli- hood of achieving negative surgical margins while maintaining adequate liver reserve, as opposed to other criteria such as the number of liver metastases present. With the increasing number of reports of success, it is important to review the recent advan- ces in hepatic colorectal metastases.

Neoadjuvant systemic chemotherapy

When preoperative therapy is planned, the National Comprehensive Cancer Network (NCCN) panel recommends that a surgical re-evaluation

should be planned within 8-10 weeks after initiation of preoperative therapy.

FOLFIRI had been reported to enable 32.5%

of patients with initially unresectable liver metas- tases to undergo liver resection

. FOLFOX4 has also been reported to enable 40% of patients to become resectable liver metastases

.

Bevacizumab, a monoclonal antibody neutra- lizing vascular endothelial growth factor, has been administered in combination with chemotherapy for the neoadjuvant treatment of colorectal hepatic metastases. The objective responses of 41 patients (73%) were reported in a phase II study

. To deal with the potential of wound healing complications, the NCCN panel recommends at least a 6-week interval (which corresponds to 2 half-lives of the drug) between the last dose of bevacizumab and elective surgery. The anti-epidermal growth factor receptor (anti-EGFR) available in Taiwan, cetuxi- mab, has been combined with either FOLFOX6 or FOLFIRI, and 42% of patients who were initially unresectable became resectable after this combin- ation treatment in a CELIM study

. According to the American Society of Clinical Oncology Provisional Clinical Opinion, all patients with metastatic CRC who are candidates for anti-EGFR antibody therapy should have their tumor tested for KRAS mutations in an accredited laboratory.

If a KRAS mutation in codon 12 or 13 is detected, then those patients should not receive anti- EGFR antibody therapy as part of their treat- ment

. A recent study has shown that the addition of cetuximab to capecitabine, oxaliplatin, and bevacizumab resulted in significantly shorter progression-free survival and an inferior quality of life

. Cetuximab and bevacizumab should not be combined outside of a clinical trial. Current evidence suggests that no chemotherapy backbone is preferred over another in combination with targeted agents

.

To date, the true benefit of neoadjuvant

chemotherapy prior to surgical resection, with respect to progression-free survival or overall survival, is unknown. However, pre-hepatectomy chemotherapy appears to be safe and is an important part of the multidisciplinary approach to this disease

.

Adjuvant systemic chemotherapy

Portier et al. published a study randomizing 173 patients with completely resected hepatic metastases from CRC to observation or 6 months of adjuvant 5-fluorouracil/folinic acid

. Despite what is considered a suboptimal chemotherapy regimen, there was a trend towards increased overall survival in the chemotherapy group, with 5-year overall survival of 51% vs. 41%, p=0.13.

There may be a role for further systemic che- motherapy in these completely resected patients.

However, a well-designed prospective randomized trial is presently lacking.

There are concerns about liver damage following chemotherapy. Oxaliplatin-based chemotherapy has been known to cause vascular lesions, and steatohepatitis is linked to irinotecan treatment, although studies have shown that mortality was not increased with either of the regimens. Bevacizumab-related complications could also be decreased if the operation was performed 5 weeks after the medications

.

Hepatic arterial chemotherapy (HAI)

A hepatic arterial infusion pump could be inserted by the radiologist or inserted while the patient is receiving hepatic surgery. Although improved hepatic disease-free survival has been demonstrated, overall survival is minimally affected and recurrence of metastatic disease at distant sites is still a major problem

. Overall survival of 16 months for patients with second-line hepatic arterial infusion with a HAI oxaliplatin (100 mg/m

2 hours) regimen combined with a modified LV5FU2

regimen has been reported

. The overall survival of second-line treatment with a FOLFOX6 intravenous regimen was 10.8 months

, based on historic reports. Though survival with the HAI regimen seems longer than that with the intravenous regimen, the HAI group enrolled 44 patients who had presented with colonic primary and synch- ronous liver metastasis and the FOLFOX6 intrave- nous regimen group enrolled 60 patients, 22 with rectal cancer and 19 with more than 2 metastatic sites. With these two different patient groups, reaching a conclusion as to which is the better treatment is difficult. HAI seems promising, but further head-to-head comparisons are needed.

Significant toxicity related to hepatic arterial infusion pump chemotherapy in the form of biliary sclerosis has been reported

.

Radio frequency ablation/cryosurgery in combination with hepatic resection

Radio frequency ablation (RFA) is not a substitute for hepatic resection. Hepatic resection continues to be the gold standard currently. Though there are no randomized studies comparing these 2 modalities, single institutional experience has repeatedly demonstrated that the outcomes of RFA are inferior to those of hepatic resection. The MD Anderson Cancer Center group reported that for "solitary" colorectal liver metastases, resection was associated with longer 5-year survival rates than RFA, including disease-free (50% vs. 0%, respectively; P=0.001), and OS (71% vs. 27%, respectively; P＜0.001) rates

.

Positron emission tomography/com- puted tomography (PET/CT)

Sobhani I et al.

reported that recurrences were detected after a shorter time (12.1 vs. 15.4 months;

P=0.01) in the PET/CT group, in which recurrences

were also more frequently (10 vs two patients)

cured by surgery (R0) among 130 CRC patients

randomized to conventional CT or PET/CT. In our experience, PET has altered our management of liver resection. But for multiple small nodules in lung metastases less than 1 cm, conventional CT had better detection rates than PET/CT. PET/CT has been reported to alter surgical plans by about 23-43%, compared with conventional CT

. PET/

CT has also been reported to miss tumors less than 1 cm in size more frequently

. PET/CT should be used in the management of patients with recurrent CRC who are being considered for potentially cur- ative surgery.

The NCCN panel recommends that post- treatment PET scans are not routinely performed for surveillance of patients with resected early-stage CRC or to detect metastatic disease in the absence of other evidence of such disease.

Conclusion

The last decade has seen a revolution in the application of novel therapies leading to an aggressive approach to the management of colorectal liver metastases. It is important for the oncologist and surgeon, as well as the pathologist, to cooperate closely to detect metastatic lesions earlier and make the best profit for the patients.

References

1.Parkin DM, Bray F, Ferlay J, Pisani P. Global cancer statistics, 2002. CA Cancer J Clin 2005; 55: 74-108.

2. Kemeny N. Management of liver metastases from colorectal cancer. Oncol 2006; 20: 1161-76.

3. Adam R. Chemotherapy and surgery: new perspectives on the treatment of unresectable liver metastases. Ann Oncol 2003; 14(Suppl 2): ii13-6.

4. Wood CB, Gillis CR, Blumgart LH. A retrospective study of the natural history of patients with liver metastases from colorectal cancer. Clin Oncol 1976; 2: 285-8.

5. Wagner JS, Adson MA, Van Heerden JA, Adson MH, Ilstrup DM. The natural history of hepatic metastases from colorectal cancer: a comparison with resective treatment.

Ann Surg 1984; 199: 502-7.

6. Fong Y. Surgical therapy of hepatic colorectal metastasis. CA Cancer J Clin 1999; 49: 231-55.

7. Khatri VP, Chee KG, Petrelli NJ. Modern multimodality

approach to hepatic colorectal metastases: solutions and controversies. Surg Oncol 2007; 16: 71-83.

8. Scheele J, Altendorf-Hofmann A. Resection of colorectal liver metastases. Langenbecks Arch Surg 1999; 384: 313-27.

9. Fong Y, Fortner J, Sun RL, Brennan MF, Blumgart LH.

Clinical score for predicting recurrence after hepatic resection for metastatic colorectal cancer: analysis of 1001 consecutive cases. Ann Surg 1999; 230: 309-18.

10.Scheele J, Stangl R, Altendorf-Hofmann A. Hepatic metastases from colorectal carcinoma: impact of surgical resection on the natural history. Br J Surg 1990; 77: 1241-6.

11.Adson MA, Van Heerden JA. Major hepatic resections for metastatic colorectal cancer. Ann Surg 1980; 191: 576-83.

12.Butler J, Attiyeh FF, Daly JM. Hepatic resection for metastases of the colon and rectum. Surg Gynecol Obstet 1986; 162: 109-13.

13.Pozzo C, Basso M, Cassano A, et al. Neoadjuvant trea- tment of unresectable liver disease with irinotecan and 5-fluorouracil plus folinic acid in colorectal cancer patients.

Ann Oncol 2004; 15: 933-9.

14.Alberts SR, Horvath WL, Sternfeld WC, et al. Oxaliplatin, fluorouracil, and leucovorin for patients with unresectable liver-only metastases from colorectal cancer: a North Central Cancer Treatment Group phase II study. J Clin Oncol 2005;

23: 9243-9.

15.Gruenberger B, Tamandl D, Schueller J, et al. Bevacizumab, capecitabine, and oxaliplatin as neoadjuvant therapy for patients with potentially curable metastatic colorectal cancer.

J Clin Oncol 2008; 26: 1830-5.

16.Folprecht G, Gruenberger T, Hartmann JT, et al. Cetuximab plus FOLFOX6 or cetuximab plus FOLFIRI as neoadjuvant treatment of nonresectable colorectal liver metastases: A randomized multicenter study (CELIM-study). ESMO 2008, abstract #510PD.

17.Allegra CJ, Jessup JM, Somerfield MR, et al. American Society of Clinical Oncology provisional clinical opinion:

testing for KRAS gene mutations in patients with metastatic colorectal carcinoma to predict response to anti-epidermal growth factor receptor monoclonal antibody therapy. J Clin Oncol 2009; 27: 2091-6.

18.Tol J, Koopman M, Cats A, et al. Chemotherapy, beva- cizumab, and cetuximab in metastatic colorectal cancer. N Engl J Med 2009; 360: 563-72.

19.Nordlinger B, Van Cutsem E, Gruenberger T, et al. Com- bination of surgery and chemotherapy and the role of targeted agents in the treatment of patients with colorectal liver metastases: recommendations from an expert panel.

Ann Oncol 2009; 20: 985-92.

20.Scoggins CR, Campbell ML, Landry CS, et al. Preoperative chemotherapy does not increase morbidity or mortality of hepatic resection for colorectal cancer metastases. Ann Surg Oncol 2009; 16: 35-41.

21.Portier G, Elias D, Bouche O, et al. Multicenter randomized trial of adjuvant fluorouracil and folinic acid compared with surgery alone after resection of colorectal liver metastases:

大腸直腸癌合併肝臟轉移的最新療法

李妍蒨¹

莊仁賓

林家成

行政院衛生署台南醫院

腫瘤科

外科

病理科

摘 要

我們報告一位65歲的直腸癌合併肝臟轉移的患者來署立台南醫院接受治療，前後一共歷 經三次切肝手術和多次化學治療，並探討此類患者治療之最新進展。

Neoadjuvant 化學治療

而正子攝影的檢查目前是建議使用在有開刀可能性的患者身上。

FFCD ACHBTH AURC 9002 trial. J Clin Oncol 2006; 24:

4976-82.

22.Ruo L, DeMatteo RP, Blumgart LH. The role of adjuvant therapy after liver resection for colorectal cancer metastases.

Clin Colorectal Cancer 2001; 1: 154-66.

23.Boige V, Malka D, Elias D, et al. Hepatic arterial infusion of oxaliplatin and intravenous LV5FU2 in unresectable liver metastases from colorectal cancer after systemic chemotherapy failure. Ann Surg Oncol 2008; 15: 219-26.

24.Maindrault-Goebel F, Louvet C, Andre T, et al. Oxaliplatin added to the simplified bimonthly leucovorin and 5-fluoro- uracil regimen as second-line therapy for metastatic colo- rectal cancer (FOLFOX6). GERCOR. Eur J Cancer 1999; 35:

1338-42.

25.Martin RC, Edwards MJ, McMasters KM. Morbidity of adjuvant hepatic arterial infusion pump chemotherapy in the management of colorectal cancer metastatic to the liver. Am J Surg 2004; 188: 714-21.

26.Aloia TA, Vauthey JN, Loyer EM, et al. Solitary colorectal liver metastasis: resection determines outcome. Arch Surg 2006; 141: 460-6.

27.Sobhani I, Tiret E, Lebtahi R, et al. Early detection of recurrence by 18FDG-PET in the follow-up of patients with colorectal cancer. Br J Cancer 2008; 98: 875-80.

28.Vitola JV, Delbeke D, Sandler MP, et al. Positron emission tomography to stage suspected metastatic colorectal carcinoma to the liver. Am J Surg 1996; 171: 21-6.

29.Fong Y, Saldinger PF, Akhurst T, et al. Utility of 18F-FDG positron emission tomography scanning on selection of patients for resection of hepatic colorectal metastases. Am J Surg 1999; 178: 282-7.

30.Fernandez FG, Drebin JA, Linehan DC, Dehdashti F, Siegel BA, Strasberg SM. Five-year survival after resection of hepatic metastases from colorectal cancer in patients screened by positron emission tomography with F-18 fluorodeoxyglucose (FDG-PET). Ann Surg 2004; 240:

438-47.

31.Ogunbiyi OA, Flanagan FL, Dehdashti F, et al. Detection of recurrent and metastatic colorectal cancer: comparison of positron emission tomography and computed tomography.

Ann Surg Oncol 1997; 4: 613-20.

32.Desai DC, Zervos EE, Arnold MW, Burak WE Jr, Mantil J, Martin EW Jr. Positron emission tomography affects surgical management in recurrent colorectal cancer patients. Ann Surg Oncol 2003; 10: 59-64.

33.Lai DT, Fulham M, Stephen MS, et al. The role of whole-body positron emission tomography with [18F]fluorodeoxyglucose in identifying operable colorectal cancer metastases to the liver. Arch Surg 1996; 131: 703-7.
