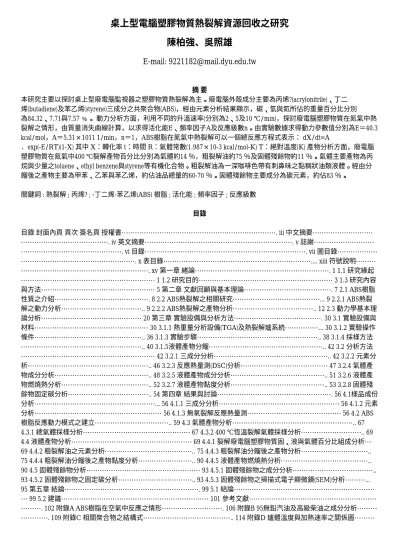

桌上型電腦塑膠物質熱裂解資源回收之研究 陳柏強、吳照雄
E-mail: [email protected]
摘 要
本研究主要以探討桌上型廢電腦監視器之塑膠物質熱裂解為主。廢電腦外殼成分主要為丙烯?(acrylonitrile)、丁二 烯(butadiene)及苯乙烯(styrene)三成分之共聚合物(ABS)，經由元素分析結果顯示，碳、氫與氮所佔的重量百分比分別 為84.32、7.71與7.57 ﹪。 動力分析方面，利用不同的升溫速率(分別為2、5及10 ℃/min)，探討廢電腦塑膠物質在氮氣中熱 裂解之情形，由質量消失曲線計算，以求得活化能E、頻率因子A及反應級數n。由實驗數據求得動力參數值分別為E＝40.3 kcal/mol，A＝5.31×1011 1/min，n＝1，ABS樹脂在氮氣中熱裂解可以一個總反應方程式表示： dX/dt=A
．exp(-E/RT)(1-X) 其中 X：轉化率 t：時間 R：氣體常數(1.987×10-3 kcal/mol-K) T：絕對溫度(K) 產物分析方面，廢電腦 塑膠物質在氮氣中400 ℃裂解產物百分比分別為氣體約14 ％，粗裂解油約75 ％及固體殘餘物約11 ％。氣體主要產物為丙 烷與少量之toluene、ethyl benzene與styrene等有機化合物。粗裂解油為一深咖啡色帶有刺鼻味之黏稠狀油類液體。經由分 餾後之產物主要為甲苯、乙苯與苯乙烯，約佔油品總量的60-70 ％。固體殘餘物主要成分為碳元素，約佔83 ％。
關鍵詞 : 熱裂解 ; 丙烯? ; -丁二烯-苯乙烯(ABS) 樹脂 ; 活化能 ; 頻率因子 ; 反應級數 目錄
目錄 封面內頁 頁次 簽名頁 授權書………. iii 中文摘要………
………. iv 英文摘要………. v 誌謝………
………. vi 目錄………. vii 圖目錄………
………. x 表目錄……….... xiii 符號說明………
………. xv 第一章 緒論………. 1 1.1 研究緣起
……… 1 1.2 研究目的……… 3 1.3 研究內容 與方法……… 5 第二章 文獻回顧與基本理論………. 7 2.1 ABS樹脂 性質之介紹………. 8 2.2 ABS熱裂解之相關研究………... 9 2.2.1 ABS熱裂 解之動力分析……….. 9 2.2.2 ABS熱裂解之產物分析……….. 12 2.3 動力學基本理 論分析……… 20 第三章 實驗設備與分析方法………. 30 3.1 實驗設備與 材料……… 30 3.1.1 熱重量分析設備(TGA)及熱裂解爐系統………... 30 3.1.2 實驗操作 條件……….. 36 3.1.3 實驗步驟……….. 38 3.1.4 採樣方法
……….. 40 3.1.5液體產物分餾……….. 42 3.2 分析方法
……… 42 3.2.1 三成分分析……….. 42 3.2.2 元素分 析……….. 46 3.2.3 反應熱量測(DSC)分析……… 47 3.2.4 氣體產 物成分分析……….. 48 3.2.5 液體產物成分分析……….. 51 3.2.6 液體產 物燃燒熱分析……….. 52 3.2.7 液體產物黏度分析……….. 53 3.2.8 固體殘 餘物固定碳分析……….. 54 第四章 結果與討論………. 56 4.1樣品成份 分析………... 56 4.1.1 三成分分析……… 56 4.1.2 元素 分析……… 56 4.1.3 無氧裂解反應熱量測……… 56 4.2 ABS 樹脂反應動力模式之建立……….. 59 4.3 氣體產物分析……….. 67 4.3.1 總氣體採樣分析……… 67 4.3.2 400 ℃恆溫裂解氣體採樣分析……….. 69 4.4 液體產物分析……… 69 4.4.1 裂解廢電腦塑膠物質固、液與氣體百分比組成分析…
69 4.4.2 粗裂解油之元素分析……….. 75 4.4.3 粗裂解油分餾後之產物分析………..
75 4.4.4 粗裂解油分餾後之產物黏度分析……….. 90 4.4.5 液體產物燃燒熱分析………..
90 4.5 固體殘餘物分析……… 93 4.5.1 固體殘餘物之成分分析………..
93 4.5.2 固體殘餘物之固定碳分析……….. 93 4.5.3 固體殘餘物之掃描式電子顯微鏡(SEM)分析………...
95 第五章 結論………. 99 5.1 結論………
… 99 5.2 建議……… 101 參考文獻………
………. 102 附錄A ABS樹脂在空氣中反應之情形………. 106 附錄B 95無鉛汽油及高級柴油之成分分析………
…………. 109 附錄C 相關聚合物之結構式……….. 114 附錄D 爐體溫度與加熱速率之關係圖………
………. 115 附錄E 標準偏差……….. 116 參考文獻
