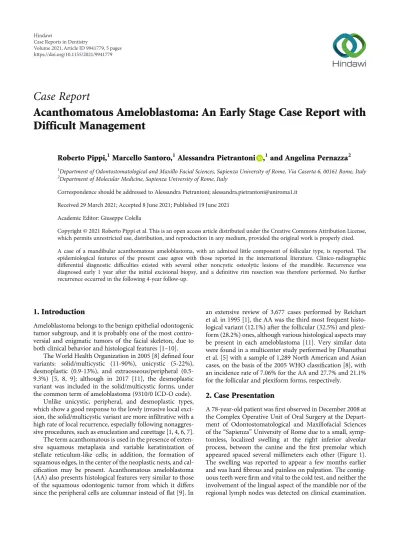

Case Report

Acanthomatous Ameloblastoma: An Early Stage Case Report with Difficult Management

Roberto Pippi,1Marcello Santoro,1Alessandra Pietrantoni ,1and Angelina Pernazza2

1Department of Odontostomatological and Maxillo Facial Sciences, Sapienza University of Rome, Via Caserta 6, 00161 Rome, Italy

2Department of Molecular Medicine, Sapienza University of Rome, Italy

Correspondence should be addressed to Alessandra Pietrantoni; alessandra.pietrantoni@uniroma1.it Received 29 March 2021; Accepted 8 June 2021; Published 19 June 2021

Academic Editor: Giuseppe Colella

Copyright © 2021 Roberto Pippi et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

A case of a mandibular acanthomatous ameloblastoma, with an admixed little component of follicular type, is reported. The epidemiological features of the present case agree with those reported in the international literature. Clinico-radiographic differential diagnostic difficulties existed with several other noncystic osteolytic lesions of the mandible. Recurrence was diagnosed early 1 year after the initial excisional biopsy, and a definitive rim resection was therefore performed. No further recurrence occurred in the following 4-year follow-up.

1. Introduction

Ameloblastoma belongs to the benign epithelial odontogenic tumor subgroup, and it is probably one of the most contro- versial and enigmatic tumors of the facial skeleton, due to both clinical behavior and histological features [1–10].

The World Health Organization in 2005 [8] defined four variants: solid/multicystic (11-90%), unicystic (5-22%), desmoplastic (0.9-13%), and extraosseous/peripheral (0.5- 9.3%) [5, 8, 9]; although in 2017 [11], the desmoplastic variant was included in the solid/multicystic forms, under the common term of ameloblastoma (9310/0 ICD-O code).

Unlike unicystic, peripheral, and desmoplastic types, which show a good response to the lowly invasive local exci- sion, the solid/multicystic variant are more infiltrative with a high rate of local recurrence, especially following nonaggres- sive procedures, such as enucleation and curettage [1, 4, 6, 7].

The term acanthomatous is used in the presence of exten- sive squamous metaplasia and variable keratinization of stellate reticulum-like cells; in addition, the formation of squamous edges, in the center of the neoplastic nests, and cal- cification may be present. Acanthomatous ameloblastoma (AA) also presents histological features very similar to those of the squamous odontogenic tumor from which it differs since the peripheral cells are columnar instead offlat [9]. In

an extensive review of 3,677 cases performed by Reichart et al. in 1995 [1], the AA was the third most frequent histo- logical variant (12.1%) after the follicular (32.5%) and plexi- form (28.2%) ones, although various histological aspects may be present in each ameloblastoma [11]. Very similar data were found in a multicenter study performed by Dhanuthai et al. [5] with a sample of 1,289 North American and Asian cases, on the basis of the 2005 WHO classification [8], with an incidence rate of 7.06% for the AA and 27.7% and 21.1%

for the follicular and plexiform forms, respectively.

2. Case Presentation

A 78-year-old patient wasfirst observed in December 2008 at the Complex Operative Unit of Oral Surgery at the Depart- ment of Odontostomatological and Maxillofacial Sciences of the“Sapienza” University of Rome due to a small, symp- tomless, localized swelling at the right inferior alveolar process, between the canine and the first premolar which appeared spaced several millimeters each other (Figure 1).

The swelling was reported to appear a few months earlier and was hardfibrous and painless on palpation. The contig- uous teeth werefirm and vital to the cold test, and neither the involvement of the lingual aspect of the mandible nor of the regional lymph nodes was detected on clinical examination.

Volume 2021, Article ID 9941779, 5 pages https://doi.org/10.1155/2021/9941779


The patient was suffering from hemiparesis caused by cerebral ischemia in 2007, from noninsulin-dependent diabetes and from polio disability of the lower legs since he was 12 years old. The orthopantomography showed a homogeneous, radio- lucent, oval-shaped, unilocular area, well-delimited by a peripheral radiopaque and slightly scalloped border, involving the roots of the canine and thefirst premolar and vertically oriented, from the top of the alveolar process up to about 1 cm below the apices of the neighboring teeth (Figure 2).

The en bloc excision of the lesion was directly performed under local anesthesia and after antibiotic prophylactic regi- men (amoxicillin+clavulanic acid, 2 gr p. os, 1 hour before surgery) involving the overlying keratinized tissue and the 2 contiguous teeth, with a few millimeters of lateral and apical clinically healthy tissue and about 2 mm of residual bone cavity curettage. A surgical dressing was finally placed to support a secondary intention healing. No medical treatment was prescribed after surgery but only the use of a 0,20%

chlorexidine mouthwash and analgesics as needed.

An acanthomatous ameloblastoma (AA), with a little component of follicular histo-type, was histologically diag- nosed, and a microscopic amount of pathological tissue was identified at the deep edge of the surgical piece corresponding to the center of the residual bone cavity, while the lesion appeared completely removed from the contiguous soft and bone tissues.

A close clinical radiographic follow-up was therefore per- formed until, after approximately 1 year, a 5 mm radiolucent area was detected in the middle of the mineralized bone tissue (Figure 3).

A computed tomography (CT) with the Dentascan program was then performed (Figure 4) to better evaluate the morphology and the limits of the possible recurrence, and an incisional biopsy was performed to obtain micro- scopic confirmation.

Complete excision of the lesion was then performed by a rim resection involving a safety margin of about 7-8 mm of laterally and inferiorly radiographically healthy bone tissue, while preserving the integrity of the lingual cortical bone (Figure 5).

Histological examination of the surgically excised tissue confirmed the tumor recurrence (Figures 6–9).

No recurrence was observed at the radiographic 4-year follow-up (Figure 10), and no further diagnostic exams were performed due to the difficult clinical conditions of the patient who subsequently died due to other causes at the age of 83.

3. Discussion

The epidemiological features of the present case support those reported by the international literature regarding AA, despite the association of two different histo-types. Actually, the advanced age of the patient (78 years) is typical of the AA whose mean age at presentation (51 years) is more advanced than that of both the follicular (41 years) and the plexiform (39.1 years) subtypes [1]. Moreover, the mandibular canine-premolar localization of the present case corresponds to the generic ameloblastoma’s predilection for the mandible (81%) and in particular to that of the AA for the mandibular incisor-canine area (42.8%), while the plexiform and follicu- lar subtypes prefer both the molar area and the ascending branch (31.5%). No difference, on the other hand, was found in the literature with reference to gender and race [1, 10].

Although ameloblastomas with more than one epithelial hysto-type are not infrequent, mixed cases with acanthoma- tous hysto-type are rarely reported in the literature [12–14], and, to the best of the authors’ knowledge, no cases of mixed ameloblastomas in which the acanthomatous component is so much represented, except for the present case, are reported in the international literature.

Pathogenesis of the coexistence of different hysto-types in the same tumor has not been explained yet. It is possible that it represents the different expression of the same neofor- mation process due to epithelial ameloblastic cells in different stages of maturation and morpho-differentiation—in rela- tion to genetic mutations of their pathway of differentiation [15–17] or to different epigenetic or nongenetic time- and site-related stimuli [18]—or due to cells derived from differ- ent portions of the dental lamina, rather than the early or late association of different neoplasms or the conversion of one hysto-type into another, as already suggested in the past [19]. The genetic study of the various histological subtypes present in the mixed forms of ameloblastoma could provide useful information on their pathogenesis as well as allowing a targeted therapeutic strategy.

The clinical radiographic features of this case also sup- port those described in the literature.

Actually, bone swelling seems to be the most common clinical sign of all types of ameloblastoma.

Other frequent events are pain, soft tissue ulceration, tooth eruption disorders, tooth mobility, and dislocation [1, 6, 8]. Dislocation was particularly evident in the present case, given the remarkable diastema between the involved teeth. Reichart et al. [1] already identified that AA caused cortical bone involvement more (50%) than all other types in the case of expansion of the involved bone segment, as in the present case.

All these clinical features, however, as well as the radio- graphic appearance, were not pathognomonic of ameloblas- toma. Actually, differential diagnostic difficulties exist with several other noncystic osteolytic lesions of the mandible, since unilocular and multilocular aspects of the solid/multi- cystic forms seem to occur with approximately the same frequency [1, 5, 8].

The decision tofirst perform an excisional rather than an incisional biopsy of the lesion was made based on the Figure 1: First visit clinical view shows a localized swelling at the

right inferior alveolar process.


following aspects: the diagnostic assumption of a benign neo- formation due to the limited extension to the canine region in a subedentulous mandible; the lack of involvement of the

nervous and vascular surrounding structures (mental bundle); the good radiographic peripheral demarcation, the radiographic appearance not pathognomonic of ameloblas- toma; the hypothesis to resolve the pathological picture in a single surgical session, in view of the disability, with lack of mobility; the advanced age of the patient; and the notable distance of his home from the hospital. Actually, to the best of the authors’ knowledge, there are no guidelines in the international literature on when to perform an excisional or incisional biopsy of jaw bone lesions. It therefore seems appropriate to obtain a precise histological diagnosis preop- eratively using a preliminary incisional biopsy in the presence of an apparently benign osteolytic lesion of an Figure 3: Orthopantomography 1 year after initial treatment: a

radiolucent area was detected in the middle of the mineralizing bone tissue.

10 20 30 40

10 20 30 40





# 41 # 42 # 43

20 30 40

Figure 4: Dentascan CT: cross sections detail showed the limited involvement of the lingual cortical bone the limits of the recurrence.

Figure 5: Rim resection intraoperative view.

Figure 6: Histological preparation from the definitive surgically excised tissue, evidence of squamoid area (arrow), H&E×4.

Figure 7: The tumor cells appear clear with eosinophilic cytoplasm, according to the differentiation H&E ×10.

Figure 2: Orthopantomography at first visit showed a homogeneous, radiolucent, oval-shaped, unilocular area, which appeared quite well- delimited by a peripheral radiopaque and slightly scalloped border.

Figure 8: H&E ×25: mixed type of follicular and acanthomatous solid ameloblastoma.


uncertain nature, wide enough and/or involving important adjacent anatomical structures such as nerves, blood vessels, mucous membranes, and roots of many teeth, in order to perform a proper surgical planning, reducing the risk of recurrence caused by an incomplete intervention. Actually, the frequency of ameloblastoma recurrence, which may occur even many years after surgery, seems to depend on both the histological features of the tumor and the type of therapeutic approach used [1, 4, 6–8].

The extensive 1995 literature review by Reichart et al. [1]

(3,677 cases) showed that tumors of follicular and plexiform subtypes resulted having a high frequency of recurrence (16.7% and 29.5%, respectively) compared to the acanthoma- tous, unicystic, and peripheral subtypes which, instead, appeared associated with a relatively lower recurrence rate (4.5%, 13.7%, and 9.1%, respectively).

However, the most recent study by Hong et al. [4] with 305 cases reported a 26.47% recurrence rate for AA, com- prised between that of the follicular/granular cell subtypes and that of the plexiform/unicystic subtypes [5–7, 9]. The current WHO classification of odontogenic tumors [11]

finally reports that the hystological type does not condition the prognosis, and it is therefore possible to argue, in the same way, that the presence of different histological types in the same tumor does not determine an evident improve- ment or worsening of the average tumor prognosis, and, probably, the different therapeutic approach is the most important factor in recurrence frequency which seems related to an uncompleted tumor removal [11], as happened in the present case, as well as to the tumor genetic profile, which were both found to be independent, statistically signif- icant predictor factors of recurrence [17].

Since the simple enucleation or curettage of solid/multi- cystic ameloblastoma has 60-80% recurrence rate, especially in the presence of high-risk histologic variants such as the follicular one, lesion excision with an adequate safety margin is necessary [4, 7].

Histological sections showed tumor cells at a distance of 8 mm from the clinical and radiographic limit of the lesion, so the elimination of at least 1 cm of peripheral bone margin and the removal of at least 1 tissue plane surrounding the tumor when the soft tissues are involved seem to ensure the complete elimination of all possible peripheral tumor nuclei and may therefore significantly reduce the recurrence rates [4, 7].

The close clinical radiographic follow-up of the patient was therefore essential for early detection of recurrence and for its rapid treatment. Its small size compared to that of the initial mass also allowed to perform a much less aggres- sive or radical surgery, compared to what could have been in thefirst instance. Such a procedure allowed the removal of about 7-8 mm of clinically and radiographically healthy bone tissue, laterally and inferiorly to the lesion, and the simultaneous preservation of the lingual cortical bone integ- rity, in order to reduce surgical invasiveness and promote better tissue healing. The decision to conservatively treat the recurrence with a rim resection took into account its small size, histological type, and the advanced age and the clinical conditions of the patient. Actually, although neoplas- tic projections are able to spread easily through the marrow spaces of the spongy bone, it is unusual that the tumor tissue infiltrates the compact bone as well as the neural structures such as the inferior alveolar nerve [1, 4].

Finally, since the slow growth of these tumors can take many years (even 20 years) before a recurrence may be seen, although it most commonly appears 2-5 years later, the sur- gical site clinical radiographic follow-up is highly recom- mended for at least 10 years [4, 7, 9]. In the present case, follow-up was not possible because of the patient’s death which occurred 5 years after surgery due to other causes.

4. Conclusions

Clinical and radiographic features of an early stage amelo- blastoma can be not pathognomonic, so a preliminary histo- logical diagnosis, through an incisional biopsy, seems highly indicated. During surgery, the preservation of the lingual cortical is advisable unless it is not clearly compromised by the tumor, in order to preserve bone continuity. Acanthoma- tous ameloblastoma is not frequent, but its complete excision, with adequate peripheral safety margin, is of paramount importance in reducing the risk of recurrence.

Conflicts of Interest

None of the authors have conflict of interest to disclose.


[1] P. A. Reichart, H. P. Philipsen, and S. Sonner,“Ameloblas- toma: biological profile of 3677 cases,” European Journal of Cancer. Part B, Oral Oncology, vol. 31, no. 2, pp. 86–99, 1995.

Figure 10: Four-year radiographic follow-up. No recurrence was detected.

Figure 9: Detail from the previous histological preparation. H&E

×250: magnification of the acanthomatous component; Malpighian differentiation is highlighted by the presence of desmosomes.


[2] S. G. Kim and H. S. Jang,“Ameloblastoma: a clinical, radio- graphic, and histopathologic analysis of 71 cases,” Oral Sur- gery, Oral Medicine, Oral Pathology, Oral Radiology, and Endodontics, vol. 91, no. 6, pp. 649–653, 2001.

[3] J. George and M. Kamboj,“Ameloblastoma-an enigma,” Jour- nal of Oral Biology and Craniofacial Research, vol. 2, no. 3, pp. 203–205, 2012.

[4] J. Hong, P. Y. Yun, I. H. Chung et al.,“Long-term follow up on recurrence of 305 ameloblastoma cases,” International Journal of Oral and Maxillofacial Surgery, vol. 36, no. 4, pp. 283–288, 2007.

[5] K. Dhanuthai, S. Chantarangsu, S. Rojanawatsirivej et al.,

“Ameloblastoma: a multicentric study,” Oral Surgery, Oral Medicine, Oral Pathology, Oral Radiology, vol. 113, no. 6, pp. 782–788, 2012.

[6] C. H. Siar, S. H. Lau, and K. H. Ng,“Ameloblastoma of the jaws: a retrospective analysis of 340 cases in a Malaysian pop- ulation,” Journal of Oral and Maxillofacial Surgery, vol. 70, no. 3, pp. 608–615, 2012.

[7] M. A. Pogrel and D. M. Montes,“Is there a role for enucleation in the management of ameloblastoma?,” International Journal of Oral and Maxillofacial Surgery, vol. 38, no. 8, pp. 807–812, 2009.

[8] L. Barnes, J. W. Eveson, P. Reichart, and D. Sidransky, World Health Organization Classification of Tumours. Pathology and genetics. Head and neck tumours, International Agency for Research on Cancer, Lyon, 2005.

[9] P. Reichard and H. P. Philipsen, Odontogenic Tumours and Allied Lesions, Quintessence Publishing Co Ltd, London, 2004.

[10] M. Bansal, T. P. Chaturvedi, R. Bansal, and M. Kumar,

“Acanthomatous ameloblastoma of anterior maxilla,” Journal of the Indian Society of Pedodontics and Preventive Dentistry, vol. 28, no. 3, pp. 209–211, 2010.

[11] M. Vened, S. Muller, and K. Heikinheimo, Benign Epithelial Odontogenic Tumours, A. K. El-Naggar, C. JKC, T. T. Grandis, T. Takata, and P. J. Slootweg, Eds., WHO classification of head and neck tumours. International Agency for Research on Can- cer, Lyon, 2017.

[12] J. K. Brooks, H. al-Mubarak, M. J. Ribera, P. D. Cohen, D. S.

Ross, and M. A. Scheper,“Diminutive, interradicular “hybrid”

desmoplastic/acanthomatous ameloblastoma,” Quintessence International, vol. 41, no. 3, pp. 209–212, 2010.

[13] K. Jain, G. Sharma, P. Kardam, and M. Mehendiratta,“Unicys- tic ameloblastoma of mandible with an unusual diverse histo- pathology: a rare case report,” Journal of Clinical and Diagnostic Research, vol. 11, no. 4, pp. ZD04–ZD05, 2017.

[14] C. R. Lakshmi, S. M. Bhavana, S. M. Nallamilli, M. P. Prabhat, G. Sarat, and C. Anuradha, “Hybrid ameloblastoma of the maxilla: a puzzling pathology,” Iranian Journal of Medical Sci- ences, vol. 41, no. 4, pp. 340–344, 2016.

[15] R. T. Sweeney, A. C. McClary, B. R. Myers et al.,“Identification of recurrent _SMO_ and _BRAF_ mutations in ameloblasto- mas,” Nature Genetics, vol. 46, no. 7, pp. 722–725, 2014.

[16] A. P. Dodds, R. E. Cannon, C. A. Suggs, and J. T. Wright,

“mRNA expression and phenotype of odontogenic tumours in the v-Ha-ras transgenic mouse,” Archives of Oral Biology, vol. 48, no. 12, pp. 843–850, 2003.

[17] N. A. Brown, D. Rolland, J. B. McHugh et al., “Activating FGFR2-RAS-BRAF mutations in ameloblastoma,” Clinical Cancer Research, vol. 20, no. 21, pp. 5517–5526, 2014.

[18] R. Pippi, “Odontomas and supernumerary teeth: is there a common origin?,” International Journal of Medical Sciences, vol. 11, no. 12, pp. 1282–1297, 2014.

[19] H. P. Philipsen, P. A. Reichart, and T. Takata,“Desmoplastic ameloblastoma (including "hybrid" lesion of ameloblastoma).

Biological profile based on 100 cases from the literature and ownfiles,” Oral Oncology, vol. 37, no. 5, pp. 455–460, 2001.
